Intel® Desktop Board DG41MJ Product Guide
Revision History
Preface
Contents
1 Desktop Board Features
2 Installing and Replacing Desktop Board Components
3 Updating the BIOS
- Updating the BIOS with the Intel® Express BIOS Update Utility
- Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update Utility
A Error Messages and Indicators
- BIOS Beep Codes
- BIOS Error Messages
B Regulatory Compliance

Intel® Desktop Board DG41MJ

Product Guide

Order Number: E59138-001

Revision History

Revision Revision History Date

-001 First release of the Intel® Desktop Board DG41MJ Product Guide February 2009

If an FCC declaration of conformity marking is present on the board, the following statement applies:

FCC Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

For questions related to the EMC performance of this product, contact:

Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124

1-800-628-8686

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit other than the one to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications to the equipment not expressly approved by Intel Corporation could void the

user’s authority to operate the equipment.

Tested to comply with FCC standards for home or office use.

Canadian Department of Communications Compliance Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set

out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numerique német pas de bruits radioélectriques dépassant les limites applicables aux

appareils numériques de la classe B prescrites dans le Réglement sur le broullage radioélectrique édicté par

le ministére des Communications du Canada.

Disclaimer

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL® PRODUCTS. NO LICENSE,

EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS

GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR

SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR

WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT

OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. Intel products are not intended

for use in medical, life saving, or life sustaining applications. Intel may make changes to specifications and

product descriptions at any time, without notice.

Intel® Desktop Board DG41MJ may contain design defects or errors known as errata which may cause the

product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing

your product order.

Copies of documents which have an ordering number and are referenced in this document, or other Intel

literature, may be obtained from Intel Corporation by going to the World Wide Web site at:

http://www.intel.com/ or by calling 1-800-548-4725.

Intel, the Intel logo, Pentium, and Celeron are registered trademarks of Intel Corporation or its subsidiaries

in the United States and other countries.

* Other names and brands may be claimed as the property of others.

iii

Preface

This Product Guide gives information about board layout, component installation, BIOS

update, and regulatory requirements for Intel® Desktop Board DG41MJ.

Intended Audience

The Product Guide is intended for technically qualified personnel. It is not intended for

general audiences.

Use Only for Intended Applications

All Intel Desktop Boards are evaluated as Information Technology Equipment (I.T.E.)

for use in personal computers (PC) for installation in homes, offices, schools, computer

rooms, and similar locations. The suitability of this product for other PC or embedded

non-PC applications or other environments, such as medical, industrial, alarm systems,

test equipment, etc. may not be supported without further evaluation by Intel.

Document Organization

The chapters in this Product Guide are arranged as follows:

1 Desktop Board Features: a summary of product features

2 Installing and Replacing Desktop Board Components: instructions on how to install

the Desktop Board and other hardware components

3 Updating the BIOS: instructions on how to update the BIOS

A Error Messages and Indicators: information about BIOS error messages and beep

codes

B Regulatory Compliance: information about safety standards, EMC regulations, and

product certifications

Intel Desktop Board DG41MJ Product Guide

Conventions

The following conventions are used in this manual:

CAUTION

Cautions warn the user about how to prevent damage to hardware or loss of data.

NOTE

Notes call attention to important information.

Terminology

The table below gives descriptions of some common terms used in the product guide.

Term Description

GB Gigabyte (1,073,741,824 bytes)

Gb Gigabit (1,073,741,824 bits)

GHz Gigahertz (one billion hertz)

KB Kilobyte (1024 bytes)

MB Megabyte (1,048,576 bytes)

Mb Megabit (1,048,576 bits)

MHz Megahertz (one million hertz)

Contents

1 Desktop Board Features

Desktop Board Components.................................................................................11

Processor..........................................................................................................12

Main Memory.....................................................................................................13

Intel® G41 Express Chipset .................................................................................14

Graphics Support........................................................................................14

Intel® GMA X4500 Graphics Controller....................................................14

DVI Support .......................................................................................14

Audio Subsystem ...............................................................................................15

Legacy Input/Output (I/O) Controller ....................................................................15

LAN Subsystem .................................................................................................16

USB 2.0 Support................................................................................................17

Serial ATA.........................................................................................................17

Expandability.....................................................................................................17

BIOS................................................................................................................17

Serial ATA and IDE Auto Configuration...........................................................17

PCI* Auto Configuration ..............................................................................17

Security Passwords.....................................................................................18

Hardware Management Features ..........................................................................18

Hardware Monitoring and Fan Speed Control ..................................................18

Power Management Features ...............................................................................19

ACPI.........................................................................................................19

Hardware Support ......................................................................................19

Power Connectors ...............................................................................19

Fan Headers .......................................................................................20

LAN Wake Capabilities..........................................................................20

Instantly Available PC Technology..........................................................20

+5 V Standby Power Indicator LED ........................................................21

Wake from USB Support.......................................................................22

PME# Signal Wake-up Support..............................................................22

Wake From PS/2 Devices......................................................................22

Wake From Serial Devices ....................................................................22

ENERGY STAR* Capable ..............................................................................22

Speaker............................................................................................................22

Battery.............................................................................................................22

Real-Time Clock.................................................................................................22

2 Installing and Replacing Desktop Board Components

Before You Begin ...............................................................................................23

Installation Precautions.......................................................................................24

Prevent Power Supply Overload ....................................................................24

Observe Safety and Regulatory Requirements.................................................24

Installing the I/O Shield ......................................................................................25

Installing and Removing the Desktop Board ...........................................................26

Installing and Removing a Processor.....................................................................27

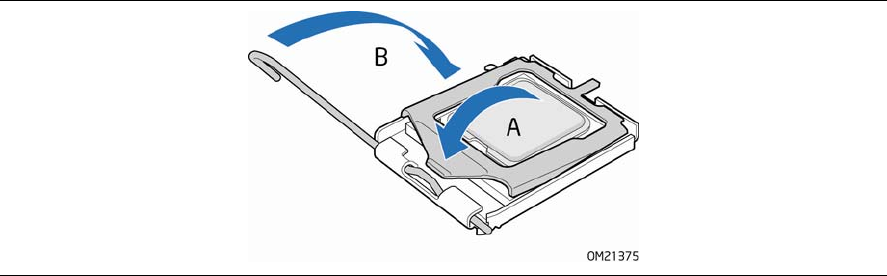

Installing a Processor ..................................................................................27

Installing the Processor Fan Heat Sink ...........................................................31

Intel Desktop Board DG41MJ Product Guide

Connecting the Processor Fan Heat Sink Cable................................................31

Removing the Processor ..............................................................................31

Installing and Removing Memory..........................................................................32

Installing DIMMs ........................................................................................33

Removing DIMMs........................................................................................35

Using the Serial ATA (SATA) Cables ......................................................................35

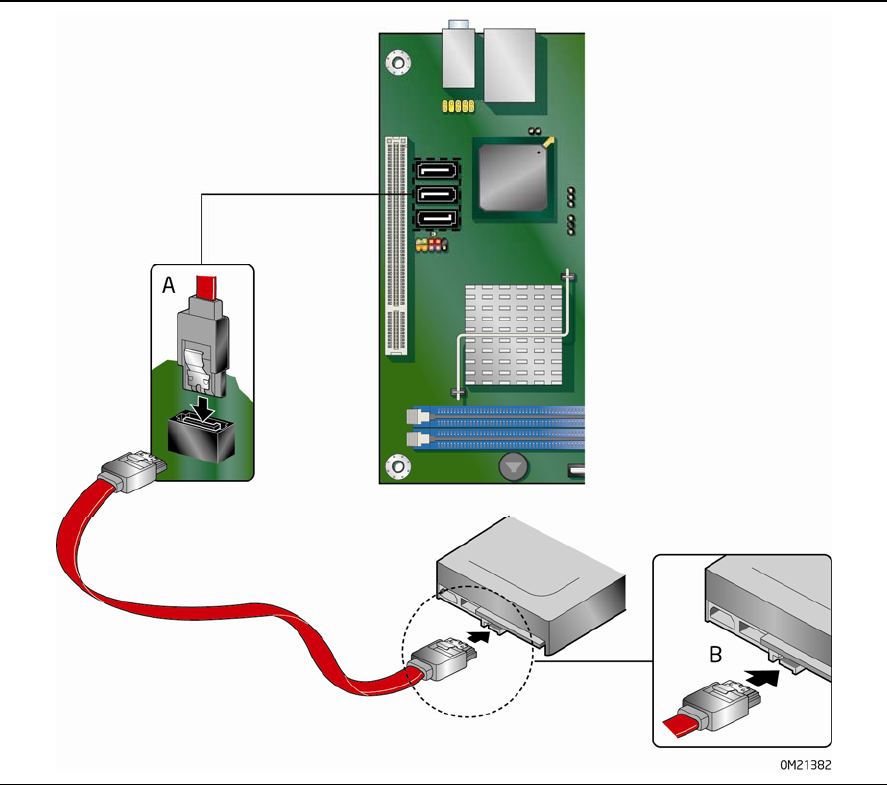

Connecting a Standard SATA Drive................................................................36

Connecting a Slimline SATA Drive .................................................................37

Connecting to the Internal Headers and Connectors ................................................38

Front Panel Audio Header ............................................................................39

Chassis Intrusion Header .............................................................................39

USB 2.0 Headers ........................................................................................40

Serial Port Header ......................................................................................40

Alternate Front Panel Power LED Header ........................................................41

Front Panel Header .....................................................................................41

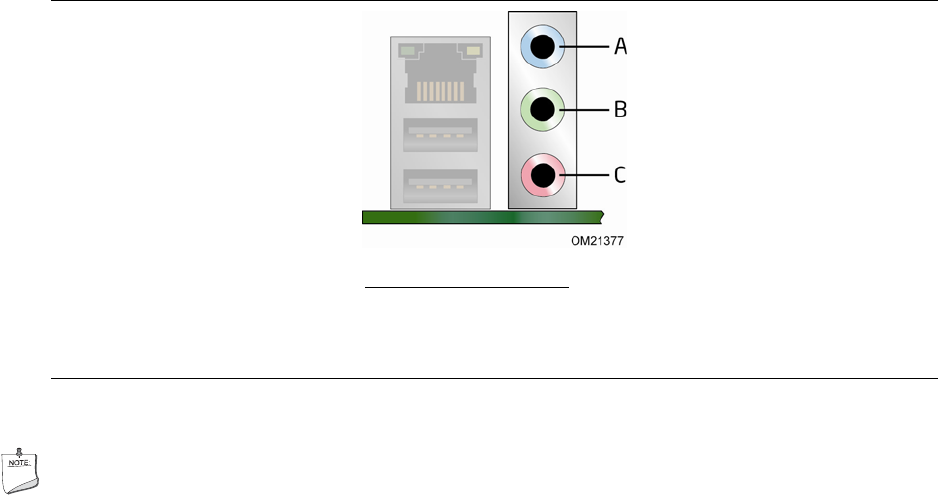

Connecting to the Back Panel Audio Connectors......................................................42

Connecting Chassis Fan and Power Supply Cables...................................................43

Connecting a Chassis Fan Cable....................................................................43

Connecting Supply Power Cables ..................................................................44

Setting the BIOS Configuration Jumper .................................................................45

Clearing Passwords ............................................................................................46

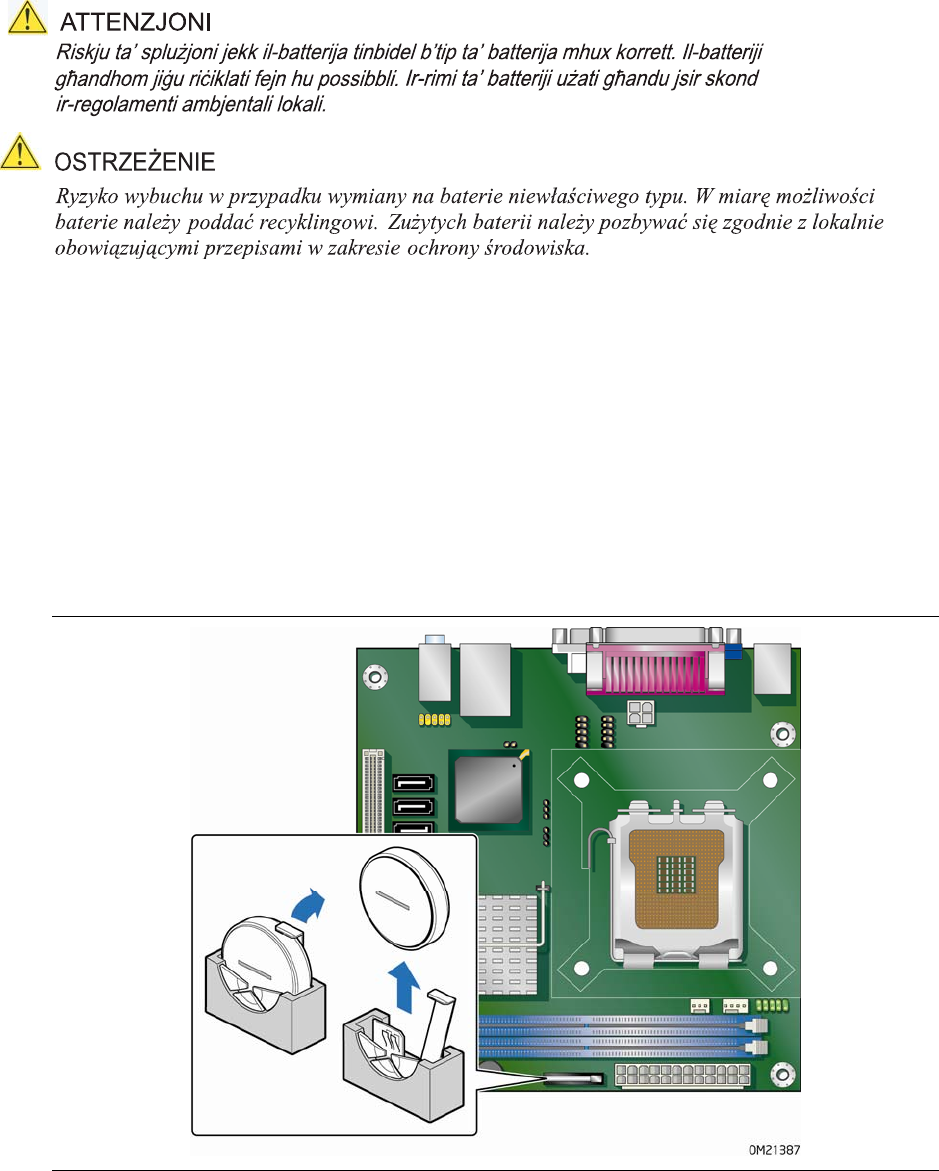

Replacing the Battery .........................................................................................47

3 Updating the BIOS

Updating the BIOS with the Intel® Express BIOS Update Utility.................................53

Updating the BIOS with the ISO Image BIOS Update File or the Iflash Memory Update

Utility .........................................................................................................54

Obtaining the BIOS Update File ....................................................................54

Updating the BIOS with the ISO Image BIOS Update File .................................54

Updating the BIOS with the Iflash Memory Update Utility .................................55

Recovering the BIOS...................................................................................56

A Error Messages and Indicators

BIOS Beep Codes...............................................................................................57

BIOS Error Messages..........................................................................................57

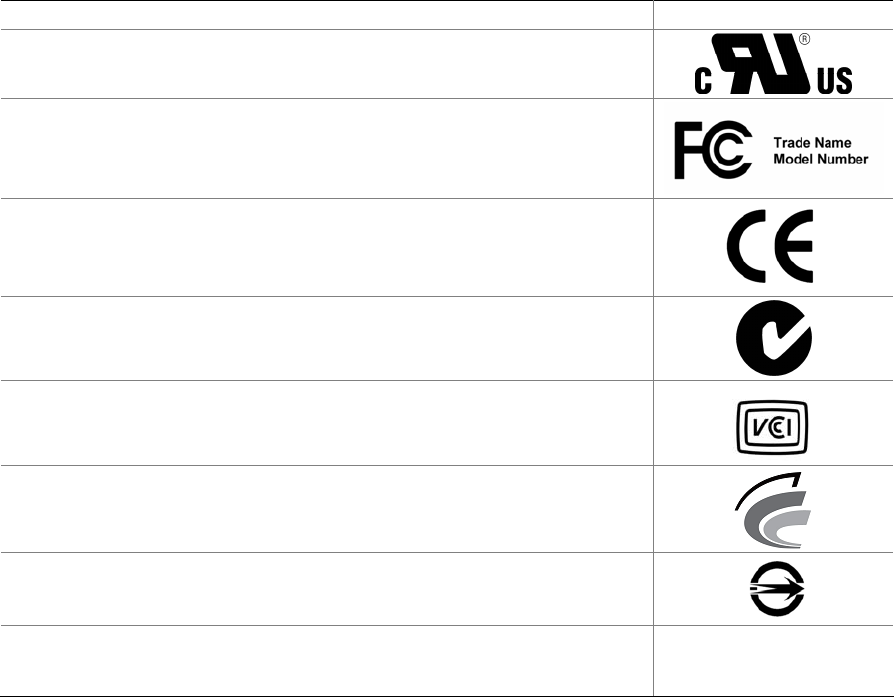

B Regulatory Compliance

Safety Standards ...............................................................................................59

Place Battery Marking .................................................................................59

European Union Declaration of Conformity Statement..............................................60

Product Ecology Statements ................................................................................61

Recycling Considerations .............................................................................61

Lead-Free Desktop Board.............................................................................63

EMC Regulations ................................................................................................65

Ensure Electromagnetic Compatibility (EMC) Compliance..................................66

Product Certifications..........................................................................................67

Board-Level Certification Markings ................................................................67

Chassis and Component Certifications............................................................68

Contents

vii

Figures

1. Intel Desktop Board DG41MJ Components ........................................................11

2. LAN Connector LEDs ......................................................................................16

3. Location of the Standby Power Indicator ...........................................................21

4. Installing the I/O Shield .................................................................................25

5. Intel Desktop Board DG41MJ Mounting Screw Hole Locations...............................26

6. Lift the Socket Lever......................................................................................27

7. Lift the Load Plate .........................................................................................28

8. Remove the Protective Socket Cover ................................................................28

9. Remove the Processor from the Protective Processor Cover .................................29

10. Install the Processor .....................................................................................29

11. Close the Load Plate......................................................................................30

12. Connecting the Processor Fan Heat Sink Cable to the Processor Fan Header ..........31

13. Dual Channel Memory Configuration Example ...................................................32

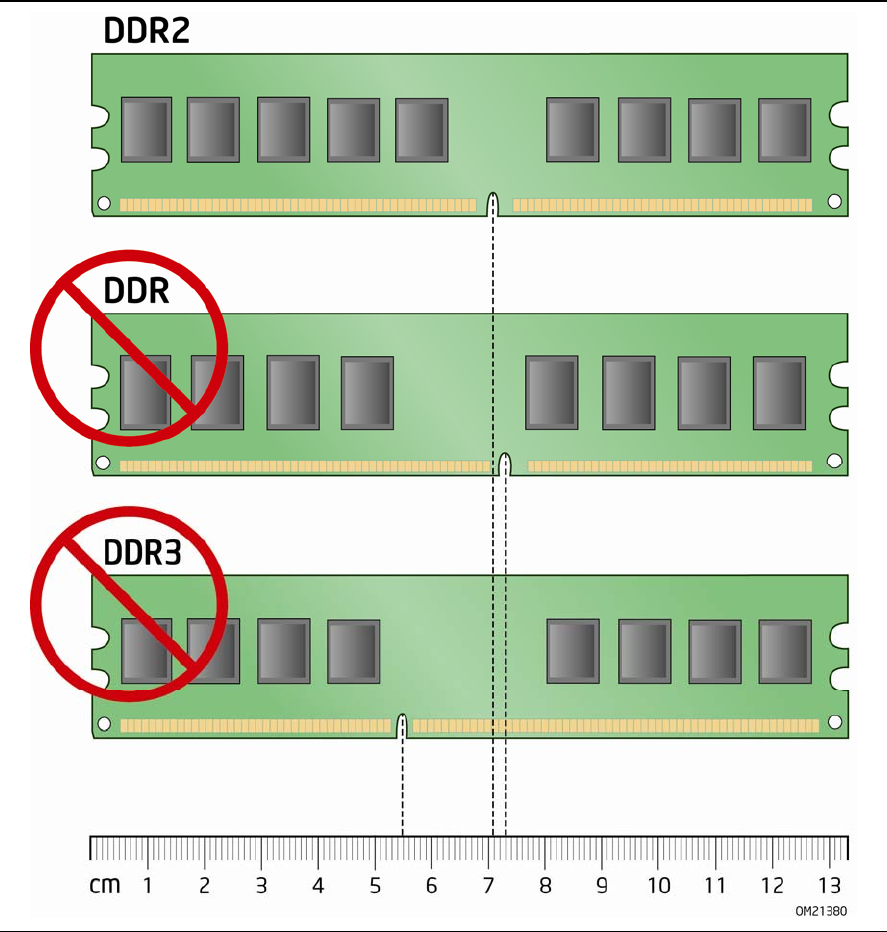

14. Use DDR2 DIMMs .........................................................................................33

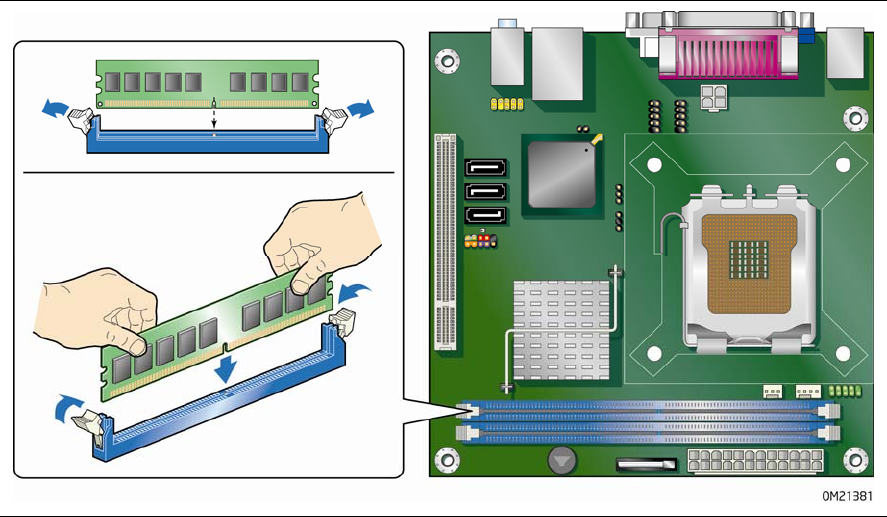

15. Installing a DIMM .........................................................................................34

16. Using the Standard SATA Cable ......................................................................36

17. Using the SATA-to-Slimline SATA Adapter Cable................................................37

18. Internal Headers and Connectors ....................................................................38

19. Back Panel Audio Connectors..........................................................................42

20. Location of the Chassis Fan Header .................................................................43

21. Connecting Power Supply Cables.....................................................................44

22. Location of the BIOS Configuration Jumper Block ..............................................45

23. Removing the Battery ...................................................................................51

Tables

1. Feature Summary........................................................................................... 9

2. Intel Desktop Board DG41MJ Components.........................................................12

3. Audio Jack Retasking Support..........................................................................15

4. LAN Connector LEDs ......................................................................................16

5. Front Panel Audio Signal Names for Intel HD Audio.............................................39

6. Front Panel Audio Header Signal Names for AC’97 Audio .....................................39

7. Chassis Intrusion Header Signal Names ............................................................39

8. USB 2.0 Header Signal Names.........................................................................40

9. Serial Port Header Signal Names......................................................................40

10. Alternate Front Panel Power LED Header Signal Names ......................................41

11. Front Panel Header Signal Names....................................................................41

12. Jumper Settings for the BIOS Setup Program Modes..........................................46

13. Beep Codes..................................................................................................57

14. BIOS Error Messages.....................................................................................57

15. Safety Standards..........................................................................................59

16. Lead-Free Board Markings..............................................................................64

17. EMC Regulations...........................................................................................65

18. Product Certification Markings ........................................................................67

Intel Desktop Board DG41MJ Product Guide

viii

1 Desktop Board Features

This chapter briefly describes the features of Intel® Desktop Board DG41MJ. Table 1

summarizes the major features of the Desktop Board.

Table 1. Feature Summary

Form Factor Mini-ITX (170.18 millimeters [6.70 inches] x 170.18 millimeters

[6.70 inches])

Processor Support for an Intel® processor in the LGA775 package

Main Memory • Two 240-pin, DDR2 SDRAM Dual Inline Memory Module (DIMM)

sockets

• 800/667 MHz single or dual channel DDR2 SDRAM interface

• Support for up to 8 GB of system memory

Chipset Intel® G41 Express Chipset consisting of:

• Intel G41 Express Chipset Graphics and Memory Controller Hub

(GMCH) with Intel® Graphics Media Accelerator X4500 (Intel® GMA

X4500)

• Intel® 82801GB I/O Controller Hub (ICH7)

Graphics • Intel G41 Express Chipset Graphics and Memory Controller Hub

(GMCH)

• Integrated graphics (Intel® GMA X4500) with VGA and DVI-D

outputs

• One PCI* bus connector supporting PCI graphics cards

Audio • 5.1 channel in single-stream mode or 4 + 2 channel in multi-

streaming mode, featuring:

― Realtek* ALC888VC audio codec

― Support for Intel® High Definition Audio (Intel® HD Audio) and

AC ’97 Audio

LAN Support Realtek 8111D Gigabit Ethernet Controller for operation at

10/100/1000 Mb/s

Expansion

Capabilities

• One PCI bus connector

Peripheral

Interfaces

• Up to eight USB 2.0 ports:

― Four ports routed to the back panel

― Four ports routed to two USB headers

• Three Serial ATA (SATA) channels (3.0 Gb/s) via ICH7

• One serial port header

• PS/2* keyboard port on the back panel

continued

Intel Desktop Board DG41MJ Product Guide

Table 1. Feature Summary (continued)

BIOS • Intel® Platform Innovation Framework for extensible firmware

interface

• 8 Mb symmetrical flash memory device

• Support for SMBIOS

• Intel® Rapid BIOS Boot

• Intel® Express BIOS Update

Power Management • Support for Advanced Configuration and Power Interface (ACPI)

• Suspend to RAM (STR)

• Wake on USB, LAN, PS/2, and front panel

• ENERGY STAR* capable

Hardware Monitor • Voltage sense to detect out of range power supply voltages

• Thermal sense to detect out of range temperatures

• Two fan headers

• Two fan sense inputs to monitor fan speed

Supported

Operating Systems The Desktop Board supports the following operating systems:

• Microsoft Windows Vista* Home Premium

• Microsoft Windows Vista Home Basic

• Microsoft Windows Vista Home Premium 64-bit edition

• Microsoft Windows Vista Home Basic 64-bit edition

• Microsoft Windows* XP Media Center Edition 2005

• Microsoft Windows XP Professional

• Microsoft Windows XP Professional x64 Edition

• Microsoft Windows XP Home

For more information on Intel Desktop Board DG41MJ consult the following online

resources:

To find information

about… Visit this World Wide Web site:

Intel Desktop Board

DG41MJ http://www.intel.com/products/motherboard/DG41MJ/index.htm

Desktop Board Support http://support.intel.com/support/motherboards/desktop/DG41MJ

Available configurations

for Intel Desktop Board

DG41MJ

http://www.intel.com/products/motherboard/DG41MJ/index.htm

Supported processors http://processormatch.intel.com

Chipset information http://www.intel.com/products/desktop/chipsets/index.htm

BIOS and driver updates http://downloadcenter.intel.com/

Integration information http://www.intel.com/support/go/buildit

Desktop Board Features

Desktop Board Components

Figure 1 shows the approximate location of the major components on Intel Desktop

Board DG41MJ.

Figure 1. Intel Desktop Board DG41MJ Components

Intel Desktop Board DG41MJ Product Guide

Table 2. Intel Desktop Board DG41MJ Components

Label Description

A Front panel audio header

B Back panel connectors

C 12 V processor core voltage connector (2 x 2 pin)

D High-speed USB 2.0 headers (2)

E BIOS configuration jumper block

F Alternate front panel power LED header

G Processor socket

H Chassis fan header

I Processor fan header

J Serial port header

K Main power connector (2 x 12 pin)

L Battery

M Speaker

N DDR2 Channel B DIMM 0 socket

O DDR2 Channel A DIMM 0 socket

P Front panel header

Q Serial ATA connectors (3)

R PCI bus connector

Processor

CAUTION

Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin)

power connector to the Desktop Board may result in damage to the board, or the

system may not function properly.

Intel Desktop Board DG41MJ supports an Intel processor in the LGA775 package.

Processors are not included with the Desktop Board and must be purchased

separately. The processor connects to the Desktop Board through the LGA775 socket

(Figure 1, G).

For instructions on installing a processor, refer to page 27 in Chapter 2.

Desktop Board Features

Main Memory

NOTE

To be fully compliant with all applicable Intel

® SDRAM memory specifications, the

board should be populated with DIMMs that support the Serial Presence Detect (SPD)

data structure. If your memory modules do not support SPD, you will see a

notification to this effect on the screen at power up. The BIOS will attempt to

configure the memory controller for normal operation.

The Desktop Board has two DIMM sockets that support the memory features listed

below:

• DDR2 SDRAM DIMMs with the option in the BIOS setup to raise the voltage to

support higher performance DDR2 SDRAM DIMMs

• Support for:

⎯ Non-ECC DDR2 800/667 MHz memory

⎯ Serial Presence Detect (SPD) memory only

⎯ Unbuffered, non-registered single- or double-sided DIMMs

⎯ Memory configurations listed below:

• Up to 2.0 GB utilizing 256 Mb technology

• Up to 8.0 GB utilizing 512 Mb or 1 Gb technology

• A minimum of 512 MB of total memory is required

NOTE

System resources and hardware require physical memory address locations that can

reduce available addressable system memory. This could result in a reduction of as

much as 1 GB or more of physical addressable memory being available to the

operating system and applications, depending on the system configuration and

operating system.

For instructions on installing memory, refer to page 32 in Chapter 2.

Intel Desktop Board DG41MJ Product Guide

Intel® G41 Express Chipset

The Intel G41 Express Chipset consists of the following devices:

• Intel G41 Express Chipset Graphics and Memory Controller Hub (GMCH) with Direct

Media Interface (DMI)

• Intel 82801GB I/O Controller Hub (ICH7) with DMI

The GMCH component provides interfaces to the processor, memory, PCI, and the DMI

interconnect. The component also provides integrated graphics capabilities supporting

3D, 2D, and display capabilities. ICH7 is a centralized controller for the board’s I/O

paths.

Graphics Support

The Intel G41 Express Chipset supports two separate, mutually exclusive graphics

options. Either the integrated Intel® Graphics Media Accelerator X4500 (Intel®

GMA X4500) graphics controller is used or a PCI graphics add-in card can be used.

When a PCI graphics add-in card is installed, the Intel GMA X4500 graphics controller

is disabled.

The GMA X4500 graphics controller supports dual independent displays via the VGA

and DVI-D connectors on the Desktop Board back panel.

Intel® GMA X4500 Graphics Controller

The Intel GMA X4500 graphics controller has the following features:

• Advanced graphics performance, including:

⎯ DirectX10.0* and OpenGL* 2.0 compliant

⎯ Shader Model 4.0 support

• Enhanced video playback support, including:

⎯ Software DVD at 30 fps full screen

⎯ Dynamic Video Memory Technology (DVMT) 5.0

• Advanced display support, including:

⎯ High Definition Content Protection (HDCP) version 1.1 support

⎯ Support for all HD display resolutions including 720p, 1080i, and 1080p

⎯ Support for digital and analog displays up to 2048 x 1536 at 75 Hz refresh rate

(QXGA); also supports 1920 x 1080 resolution for full High Definition video

playback quality

DVI Support

The DVI-D port supports digital DVI displays. The maximum supported resolution is

2048 x 1536 at 75 Hz (QXGA). The DVI port is compliant with the DVI 1.0

specification.

Desktop Board Features

Audio Subsystem

The onboard audio subsystem consists of the following:

• Intel® ICH7

• Realtek ALC888VC audio codec

• Back panel audio connectors (see Figure 19)

• Front panel audio header supporting both Intel High Definition Audio and AC ’97

Audio (see Figure 18, A)

The audio subsystem supports the following features:

• A signal-to-noise (S/N) ratio of 95 dB

• Independent 5.1 audio playback from the back panel connectors and stereo

playback from the Intel High Definition Audio front panel header

Table 3 lists the supported functions for the front panel and back panel audio jacks.

Table 3. Audio Jack Retasking Support

Jack Mic Line out Headphones Line in Rear

Surround Center/

Subwoofer

Front Panel

Green No Yes Yes No No No

Pink Yes No No No No No

Back Panel

Blue No No No Yes Yes No

Green No Yes Yes No No No

Pink Yes No No No No Yes

Legacy Input/Output (I/O) Controller

The Winbond 83627DHG-P legacy I/O controller provides the following functions:

• One serial port interface via an onboard header

• One parallel port

• Serial IRQ interface compatible with serialized IRQ support for PCI systems

• Intelligent power management, including a programmable wake up event interface

• PCI power management support

Intel Desktop Board DG41MJ Product Guide

LAN Subsystem

The LAN subsystem includes:

• Intel ICH7

• Realtek 8111D-GR Gigabit Ethernet Controller for operation at 10/100/1000 Mb/s

• RJ-45 LAN connector with integrated status LEDs

The subsystem features:

• CSMA/CD protocol engine

• LAN connect interface between ICH7 and the LAN controller

• PCI bus power management

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see

Figure 2). These LEDs indicate the status of the LAN.

Figure 2. LAN Connector LEDs

Table 4 describes the LED states when the board is powered up and the LAN

subsystem is operating.

Table 4. LAN Connector LEDs

LED LED Color LED State Indicates

A (Link) Off LAN link is not established.

Green

On LAN link is established.

Blinking LAN activity is occurring.

N/A Off 10 Mb/s data rate is selected.

Green On 100 Mb/s data rate is selected.

B (Data

Rate)

Yellow On 1000 Mb/s data rate is selected.

Desktop Board Features

USB 2.0 Support

The Desktop Board supports up to eight USB 2.0 ports (four ports routed to the back

panel and four ports routed to two internal headers) via ICH7. USB 2.0 ports are

backward compatible with USB 1.1 devices. USB 1.1 devices will function normally at

USB 1.1 speeds.

USB 2.0 support requires both an operating system and drivers that fully support

USB 2.0 transfer rates. Disabling Hi-Speed USB in the BIOS reverts all USB 2.0 ports

to USB 1.1 operation. This may be required to accommodate operating systems that

do not support USB 2.0.

Serial ATA

The Desktop Board supports three Serial ATA channels (3.0 Gb/s) via ICH7, connecting

one device per channel.

Expandability

For system expansion, the Desktop Board includes one PCI bus connector.

BIOS

The BIOS provides the Power-On Self-Test (POST), the BIOS Setup program, the PCI

and IDE auto-configuration utilities, and the video BIOS. The BIOS is stored in the

Serial Peripheral Interface (SPI) Flash component.

The BIOS can be updated by following the instructions on page 53 in Chapter 3.

Serial ATA and IDE Auto Configuration

If you install a Serial ATA or IDE device (such as a hard drive) in your computer, the

auto-configuration utility in the BIOS automatically detects and configures the device

for your computer. You do not need to run the BIOS Setup program after installing a

Serial ATA or IDE device. You can override the auto-configuration options by

specifying manual configuration in the BIOS Setup program.

PCI* Auto Configuration

If you install a PCI add-in card in your computer, the PCI auto-configuration utility in

the BIOS automatically detects and configures the resources (IRQs, DMA channels,

and I/O space) for that add-in card. You do not need to run the BIOS Setup program

after you install a PCI add-in card.

Intel Desktop Board DG41MJ Product Guide

Security Passwords

The BIOS includes security features that restrict whether the BIOS Setup program can

be accessed and who can boot the computer. A supervisor password and a user

password can be set for the BIOS Setup and for booting the computer, with the

following restrictions:

• The supervisor password gives unrestricted access to view and change all Setup

options. If only the supervisor password is set, pressing <Enter> at the password

prompt of Setup gives the user restricted access to Setup.

• If both the supervisor and user passwords are set, you must enter either the

supervisor password or the user password to access Setup. Setup options are then

available for viewing and changing depending on whether the supervisor or user

password was entered.

• Setting a user password restricts who can boot the computer. The password

prompt is displayed before the computer is booted. If only the supervisor

password is set, the computer boots without asking for a password. If both

passwords are set, you can enter either password to boot the computer.

For instructions on resetting the password, see Clearing Passwords on page 46.

Hardware Management Features

The hardware management features of Intel Desktop Board DG41MJ enable the board

to be compatible with the Wired for Management (WfM) specification. The board has

several hardware management features including the following:

• Fan speed monitoring and control

• Thermal and voltage monitoring

Hardware Monitoring and Fan Speed Control

Features of the board’s hardware monitoring and fan speed control include:

• Monitoring of power supply voltages to detect levels above and below acceptable

values.

• Smart fan control provided by the legacy I/O controller, delivering acoustically-

optimized thermal management. Fan speed controllers and sensors are integrated

into the legacy I/O controller.

• Thermally monitored closed-loop fan control, for onboard fans, that can adjust fan

speed according to thermal conditions.

• Two thermal sensors (processor and a remote thermal sensor).

Desktop Board Features

Power Management Features

Power management is implemented at several levels, including:

• Software support through the Advanced Configuration and Power Interface (ACPI)

• Hardware support:

⎯ Power connectors

⎯ Fan headers

⎯ LAN wake capabilities

⎯ Instantly Available PC technology (Suspend to RAM)

⎯ +5 V standby power indicator LED

⎯ Wake from USB

⎯ Power Management Event signal (PME#) wake-up support

⎯ Wake from PS/2 devices

⎯ Wake from serial port

• ENERGY STAR capable

ACPI

ACPI gives the operating system direct control over the power management and Plug

and Play functions of a computer. The use of ACPI with the Desktop Board requires an

operating system that provides full ACPI support.

Hardware Support

Power Connectors

ATX12V-compliant power supplies can turn off the computer power through system

control. When an ACPI-enabled computer receives the correct command, the power

supply removes all non-standby voltages.

When resuming from an AC power failure, the computer returns to the power state it

was in before power was interrupted (either on or off). The computer’s response can

be set by using the Last Power State feature in the BIOS Setup program’s Boot menu.

The Desktop Board has two power connectors. See Figure 21 on page 44 for the

location of the power connectors.

Intel Desktop Board DG41MJ Product Guide

Fan Headers

The function/operation of the fans is as follows:

• The fans are on when the computer is in the ACPI S0 state.

• The fans are off when the computer is in the ACPI S3, S4, or S5 state.

• The processor fan header is wired to a fan tachometer input. The chassis fan

header has an independent tachometer input to the hardware monitoring and fan

control device.

• All fan headers support closed-loop fan control that can adjust the fan speed

according to thermal conditions.

• All fan headers have a +12 V DC connection.

The Desktop Board has a 4-pin processor fan header and a 3-pin chassis fan header.

LAN Wake Capabilities

CAUTION

For LAN wake capabilities, the 5 V standby line for the power supply must be capable

of delivering adequate +5 V standby current. Failure to provide adequate standby

current when using this feature can damage the power supply.

LAN wakeup capabilities enable remote wake-up of the computer through a network.

The LAN subsystem monitors network traffic and upon detecting a Magic Packet*

frame, it asserts a wake-up signal that powers up the computer.

Instantly Available PC Technology

CAUTIONS

For Instantly Available PC technology, the 5 V standby line for the power supply must

be capable of delivering adequate +5 V standby current. Failure to provide adequate

standby current when using this feature can damage the power supply and/or effect

ACPI S3 sleep state functionality.

Power supplies used with this Desktop Board must be able to provide enough standby

current to support the standard Instantly Available (ACPI S3 sleep state) configuration.

If the standby current necessary to support multiple wake events from the PCI and/or

USB buses exceeds power supply capacity, the Desktop Board may lose register

settings stored in memory.

Instantly Available PC technology enables the board to enter the ACPI S3 (Suspend-to-

RAM) sleep state. While in the S3 sleep state, the computer will appear to be off. If

the computer has a dual-colored power LED on the front panel, the sleep state is

indicated by the LED turning amber. When signaled by a wake-up device or event, the

computer quickly returns to its last known awake state.

Desktop Board Features

The Desktop Board supports the PCI Bus Power Management Interface Specification.

Add-in cards that support this specification can participate in power management and

can be used to wake the computer.

+5 V Standby Power Indicator LED

CAUTION

If the AC power has been switched off and the standby power indicator is still lit,

disconnect the power cord before installing or removing any devices connected to the

board. Failure to do so could damage the board and any attached devices.

The Desktop Board’s standby power indicator, shown in Figure 3, is lit when there is

standby power still present on the board even when the computer appears to be off.

For example, when this LED is lit, standby power is still present at the memory module

sockets and the PCI bus connector.

Figure 3. Location of the Standby Power Indicator

For more information on standby current requirements for the Desktop Board, refer to

the Technical Product Specification at

http://www.intel.com/products/motherboard/DG41MJ/index.htm.

Intel Desktop Board DG41MJ Product Guide

Wake from USB Support

NOTE

Wake from USB requires the use of a USB peripheral that supports Wake from USB.

USB bus activity wakes the computer from an ACPI S1 or S3 state.

PME# Signal Wake-up Support

When the PME# signal on the PCI bus is asserted, the computer wakes from an ACPI

S1, S3, S4, or S5 (LAN only) state.

Wake From PS/2 Devices

PS/2 device activity wakes the computer from an ACPI S1 or S3 state.

Wake From Serial Devices

Serial port activity wakes the computer from an ACPI S1 or S3 state.

ENERGY STAR* Capable

In 2007, the US Department of Energy and the US Environmental Protection Agency

revised the ENERGY STAR requirements. Intel worked directly with these two

governmental agencies to define the new requirements. This Desktop Board meets

the ENERGY STAR Category B requirements.

For more information concerning ENERGY STAR, go to

http://www.intel.com/go/EnergyStar

Speaker

A speaker is mounted on the Desktop Board. The speaker provides audible error code

(beep code) information during the Power-On Self-Test (POST).

Battery

A battery on the Desktop Board keeps the values in CMOS RAM and the clock current

when the computer is turned off. Go to page 47 for instructions on how to replace the

battery.

Real-Time Clock

The Desktop Board has a time-of-day clock and 100-year calendar. The battery on the

Desktop Board keeps the clock current when the computer is turned off.

2 Installing and Replacing Desktop

Board Components

This chapter tells you how to:

• Install the I/O shield

• Install and remove the Desktop Board

• Install and remove a processor

• Install and remove memory

• Use the Serial ATA cables

• Connect to the internal headers and connectors

• Connect to the audio system

• Connect chassis fan and power supply cables

• Set the BIOS configuration jumper

• Clear passwords

• Replace the battery

Before You Begin

CAUTION

The procedures in this chapter assume familiarity with the general terminology

associated with personal computers and with the safety practices and regulatory

compliance required for using and modifying electronic equipment.

Disconnect the computer from its power source and from any telecommunications

links, networks, or modems before performing any of the procedures described in this

chapter. Failure to disconnect power, telecommunications links, networks, or modems

before you open the computer or perform any procedures can result in personal injury

or equipment damage. Some circuitry on the board can continue to operate even

though the front panel power button is off.

Follow these guidelines before you begin:

• Always follow the steps in each procedure in the correct order.

• Set up a log to record information about your computer, such as model, serial

numbers, installed options, and configuration information.

• Electrostatic discharge (ESD) can damage components. Perform the procedures

described in this chapter only at an ESD workstation using an antistatic wrist strap

and a conductive foam pad. If such a station is not available, you can provide

some ESD protection by wearing an antistatic wrist strap and attaching it to a

metal part of the computer chassis.

Intel Desktop Board DG41MJ Product Guide

Installation Precautions

When you install and test the Intel Desktop Board, observe all warnings and cautions

in the installation instructions.

To avoid injury, be careful of:

• Sharp pins on connectors

• Sharp pins on printed circuit assemblies

• Rough edges and sharp corners on the chassis

• Hot components (such as processors, voltage regulators, and heat sinks)

• Damage to wires that could cause a short circuit

Observe all warnings and cautions that instruct you to refer computer servicing to

qualified technical personnel.

Prevent Power Supply Overload

Do not overload the power supply output. To avoid overloading the power supply,

make sure that the calculated total current loads of all the modules within the

computer is less than the output current rating of each of the power supply output

circuits.

Observe Safety and Regulatory Requirements

Read and adhere to the instructions in this section and the instructions supplied with

the chassis and associated modules. If you do not follow these instructions and the

instructions provided by the chassis and module suppliers, you increase safety risk and

the possibility of noncompliance with regional laws and regulations. If the instructions

for the chassis are inconsistent with these instructions or the instructions for

associated modules, contact the supplier’s technical support to find out how you can

ensure that your computer meets safety and regulatory requirements.

Related Links

For information about regulatory compliance, go to Appendix B on page 59.

Installing and Replacing Desktop Board Components

Installing the I/O Shield

The Desktop Board comes with an I/O shield. When installed in the chassis, the shield

blocks radio frequency transmissions, protects internal components from dust and

foreign objects, and promotes correct airflow within the chassis.

Install the I/O shield before installing the Desktop Board in the chassis. Place the

shield inside the chassis as shown in Figure 4. Press the shield into place so that it fits

tightly and securely. If the shield does not fit, obtain a properly sized shield from the

chassis supplier.

Figure 4. Installing the I/O Shield

Intel Desktop Board DG41MJ Product Guide

Installing and Removing the Desktop Board

CAUTION

Only qualified technical personnel should do this procedure. Disconnect the computer

from its power source before performing the procedures described here. Failure to

disconnect the power before you open the computer can result in personal injury or

equipment damage.

Refer to your chassis manual for instructions on installing and removing the Desktop

Board.

Figure 5 shows the location of the mounting screw holes for Intel Desktop Board

DG41MJ.

Figure 5. Intel Desktop Board DG41MJ Mounting Screw Hole Locations

Installing and Replacing Desktop Board Components

Installing and Removing a Processor

Instructions on how to install the processor to the Desktop Board are given below.

Installing a Processor

CAUTION

Before installing or removing the processor, make sure the AC power has been

removed by unplugging the power cord from the computer; the standby power LED

should not be lit (see Figure 3 on page 21). Failure to do so could damage the

processor and the board.

To install a processor, follow these instructions:

1. Observe the precautions in "Before You Begin" on page 23.

2. Open the socket lever by pushing the lever down and away from the socket

(Figure 6, A and B).

Figure 6. Lift the Socket Lever

Intel Desktop Board DG41MJ Product Guide

3. Lift the load plate (Figure 7, A). Do not touch the socket contacts (Figure 7, B).

Figure 7. Lift the Load Plate

4. Remove the plastic protective socket cover from the load plate (Figure 8). Do not

discard the protective socket cover. Always replace the socket cover if the

processor is removed from the socket.

Figure 8. Remove the Protective Socket Cover

Installing and Replacing Desktop Board Components

5. Remove the processor from the protective processor cover. Hold the processor

only at the edges, being careful not to touch the bottom of the processor

(Figure 9). Do not discard the protective processor cover. Always replace the

processor cover if the processor is removed from the socket.

Figure 9. Remove the Processor from the Protective Processor Cover

6. Hold the processor with your thumb and index fingers oriented as shown in

Figure 10. Make sure your fingers align to the socket cutouts (Figure 10, A). Align

notches (Figure 10, B) with the socket (Figure 10, C). Lower the processor straight

down without tilting or sliding it in the socket.

Figure 10. Install the Processor

Intel Desktop Board DG41MJ Product Guide

7. Pressing down on the load plate (Figure 11, A), close and engage the socket lever

(Figure 11, B).

Figure 11. Close the Load Plate

Installing and Replacing Desktop Board Components

Installing the Processor Fan Heat Sink

Intel Desktop Board DG41MJ has mounting holes for a processor fan heat sink. For

instructions on how to attach the processor fan heat sink to the Desktop Board, refer

to the boxed processor manual.

Connecting the Processor Fan Heat Sink Cable

Connect the processor fan heat sink cable to the 4-pin processor fan header (see

Figure 12). A fan with a 4-pin connector as shown in Figure 12, A is recommended;

however, a fan with a 3-pin connector (Figure 12, B) can be used. However, since the

fan with a 3-pin connector cannot use the onboard fan control, the fan will always

operate at full speed.

Figure 12. Connecting the Processor Fan Heat Sink Cable to the

Processor Fan Header

Removing the Processor

For instructions on how to remove the processor fan heat sink and processor, refer to

the processor installation manual.

Intel Desktop Board DG41MJ Product Guide

Installing and Removing Memory

NOTE

To be fully compliant with all applicable Intel SDRAM memory specifications, the board

requires DIMMs that support the Serial Presence Detect (SPD) data structure.

The Desktop Board has two 240-pin DDR2 DIMM sockets providing Channel A and

Channel B. For optimum dual-channel performance, install a matched pair of DIMMs

equal in speed and size (see Figure 13).

Figure 13. Dual Channel Memory Configuration Example

NOTE

All other memory configurations will result in single channel memory operation.

Installing and Replacing Desktop Board Components

Installing DIMMs

To make sure you have the correct DIMM, place it on the illustration of the DDR2

DIMM in Figure 14. All the notches should match with the DDR2 DIMM.

Figure 14. Use DDR2 DIMMs

Intel Desktop Board DG41MJ Product Guide

To install a DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 23.

2. Turn off all peripheral devices connected to the computer. Turn off the computer

and disconnect the AC power cord.

3. Remove the computer’s cover and locate the DIMM sockets (see Figure 15).

Figure 15. Installing a DIMM

4. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the

open position.

5. Holding the DIMM by the edges, remove it from its anti-static package.

6. Position the DIMM above the socket. Align the small notch at the bottom edge of

the DIMM with the keys in the socket (see inset in Figure 15).

7. Insert the bottom edge of the DIMM into the socket.

8. When the DIMM is inserted, push down on the top edge of the DIMM until the

retaining clips snap into place. Make sure the clips are firmly in place.

9. Replace the computer’s cover and reconnect the AC power cord.

Installing and Replacing Desktop Board Components

Removing DIMMs

To remove a DIMM, follow these steps:

1. Observe the precautions in "Before You Begin" on page 23.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

3. Remove the AC power cord from the computer.

4. Remove the computer’s cover.

5. Gently spread the retaining clips at each end of the DIMM socket. The DIMM pops

out of the socket.

6. Hold the DIMM by the edges, lift it away from the socket, and store it in an

anti-static package.

7. Reinstall and reconnect any parts you removed or disconnected to reach the DIMM

sockets.

8. Replace the computer’s cover and reconnect the AC power cord.

Using the Serial ATA (SATA) Cables

Two SATA cables are provided with the Desktop Board:

• a standard SATA data cable

• a SATA-to-Slimline SATA adapter cable (with power) that allows you to connect a

Slimline SATA drive to the board

Each cable can be used to connect a single internal SATA drive to the Desktop Board.

Intel Desktop Board DG41MJ Product Guide

Connecting a Standard SATA Drive

You can use the standard SATA data cable supplied to connect a standard SATA drive

to the Desktop Board.

For correct cable function:

1. Observe the precautions in “Before You Begin” on page 23.

2. Attach one end of the SATA data cable to one of the SATA connectors on the board

(Figure 16, A) and attach the other end of the cable to the SATA drive

(Figure 16, B).

Figure 16. Using the Standard SATA Cable

Installing and Replacing Desktop Board Components

Connecting a Slimline SATA Drive

You can use the SATA-to-Slimline SATA adapter cable to connect a slimline SATA drive

to a standard SATA data connector on the Desktop Board. This adapter splits a

Slimline SATA connector into a standard SATA data cable and a power connector which

plugs into a 4-pin 5 V Molex* power connector from an ATX12V power supply.

For correct adapter cable function:

1. Observe the precautions in “Before You Begin” on page 23.

2. Attach the adapter cable’s standard SATA data connector (Figure 17, A) to one of

the SATA data connectors on the Desktop Board and attach the adaptor cable’s

Slimline connector to the corresponding connector (Figure 17, B) on the Slimline

SATA drive.

3. Connect the adapter cable’s power connector (Figure 17, C) to a 4-pin 5 V Molex

power connector from the chassis power supply.

Figure 17. Using the SATA-to-Slimline SATA Adapter Cable

Intel Desktop Board DG41MJ Product Guide

Connecting to the Internal Headers and

Connectors

Before connecting cables to the internal headers and connectors, observe the

precautions in “Before You Begin” on page 23. Figure 18 shows the location of the

internal headers and connectors for Intel Desktop Board DG41MJ.

Figure 18. Internal Headers and Connectors

Installing and Replacing Desktop Board Components

Front Panel Audio Header

The front panel audio header shown in Figure 18, A on page 38 supports both Intel HD

Audio and AC’97 Audio. Table 5 shows the pin assignments and signal names for Intel

HD Audio and Table 6 shows the pin assignments and signal names for AC’97 Audio.

Table 5. Front Panel Audio Signal Names for Intel HD Audio

Pin Signal Name Pin Signal Name

1 PORT 1L (Microphone) 2 GND

3 PORT 1R (Microphone) 4 PRESENCE#

5 PORT 2R (Headphone) 6 SENSE1_RETURN

7 SENSE_SEND 8 KEY (no pin)

9 PORT 2L (Headphone) 10 SENSE2_RETURN

Table 6. Front Panel Audio Header Signal Names for AC’97 Audio

Pin Signal Name Pin Signal Name

1 MIC 2 AUD_GND

3 MIC_BIAS 4 AUD_GND

5 FP_OUT_R 6 FP_RETURN_R

7 AUD_5V 8 KEY (no pin)

9 FP_OUT_L 10 FP_RETURN_L

Chassis Intrusion Header

Figure 18, B on page 38 shows the location of the chassis intrusion header. This

header can be connected to a mechanical switch on the chassis to detect if the chassis

cover is removed.

Table 7 shows the pin assignments for the chassis intrusion header.

Table 7. Chassis Intrusion Header Signal Names

Pin Description

1 Intruder

2 Ground

Intel Desktop Board DG41MJ Product Guide

USB 2.0 Headers

Before connecting to the USB 2.0 headers, observe the precautions in "Before You

Begin" on page 23. See Figure 18, C on page 38 for the location of the USB 2.0

headers. Table 8 shows the pin assignments for each USB 2.0 header. Each USB

header can be used to connect two USB devices.

Table 8. USB 2.0 Header Signal Names

USB Port A USB Port B

Pin Signal Name Pin Signal Name

1 Power (+5 V) 2 Power (+5 V)

3 D- 4 D-

5 D+ 6 D+

7 Ground 8 Ground

9 Key 10 No Connection

Note: USB ports may be assigned as needed.

NOTE

Computer systems that have an unshielded cable attached to a USB port might not

meet FCC Class B requirements, even if no device or a low-speed USB device is

attached to the cable. Use a shielded cable that meets the requirements for a

full-speed USB device.

Serial Port Header

See Figure 18, D on page 38 for the location of the serial port header. Table 9 shows

the pin assignments for the serial port header.

Table 9. Serial Port Header Signal Names

Pin Signal Name Pin Signal Name

1 DCD 2 RXD#

3 TXD# 4 DTR

5 Ground 6 DSR

7 RTS 8 CTS

9 RI 10 No Connection

Installing and Replacing Desktop Board Components

Alternate Front Panel Power LED Header

Figure 18, E on page 38 shows the location of the alternate front panel power LED

header. Pins 1 and 3 of this header duplicate the signals on pins 2 and 4 of the front

panel header. If your chassis has a three-pin power LED cable, connect it to this

header.

Table 10 shows the pin assignments for the alternate front panel power LED header.

Table 10. Alternate Front Panel Power LED Header Signal Names

Pin Description In/Out

1 Front panel green LED Out

2 No pin

3 Front panel yellow LED Out

Front Panel Header

Before connecting to the front panel header, observe the precautions in "Before You

Begin" on page 23. See Figure 18, F on page 38 for the location of the multi-colored

front panel header.

Table 11 shows the pin assignments for the front panel header.

Table 11. Front Panel Header Signal Names

Pin Description In/Out

Hard Drive Activity LED Power LED

1 Hard disk LED pull-up to +5 V

Out 2 Front panel green LED Out

3 Hard disk active LED Out 4 Front panel yellow LED Out

Reset Switch On/Off Switch

5 Ground 6 Power switch In

7 Reset switch In 8 Ground

Power Not Connected

9 Power Out 10 No pin

Intel Desktop Board DG41MJ Product Guide

Connecting to the Back Panel Audio

Connectors

After the audio driver has been installed, the multi-channel audio feature can be

enabled. Figure 19 shows the back panel audio connectors. The default connector

assignments are shown in the figure. Refer to Table 3 on page 15 for audio connector

retasking information.

Item Description

A Line In

B Line Out

C Mic In

Figure 19. Back Panel Audio Connectors

NOTE

The back panel line out connector is designed to power either headphones or amplified

speakers only. Poor audio quality may occur if passive (non-amplified) speakers are

connected to this output.

Installing and Replacing Desktop Board Components

Connecting Chassis Fan and Power Supply

Cables

Connecting a Chassis Fan Cable

Connect your chassis fan cable to the 3-pin chassis fan header on the Desktop Board.

Figure 20 shows the location of the chassis fan header.

Figure 20. Location of the Chassis Fan Header

Intel Desktop Board DG41MJ Product Guide

Connecting Supply Power Cables

CAUTION

Failure to use an appropriate power supply and/or not connecting the 12 V (2 x 2 pin)

power connector to the Desktop Board may result in damage to the board or the

system may not function properly.

The 2 x 12 pin main power connector on the Desktop Board is backwards compatible

with ATX12V power supplies with 2 x 10 connectors. Figure 21 shows the location of

the Desktop Board power connectors.

Figure 21. Connecting Power Supply Cables

1. Observe the precautions in "Before You Begin" on page 23.

2. Connect the main power supply cable to the 2 x 12 pin connector.

3. Connect the 12 V processor core voltage power supply cable to the 2 x 2 pin

connector.

Installing and Replacing Desktop Board Components

Setting the BIOS Configuration Jumper

NOTE

Always turn off the power and unplug the power cord from the computer before

moving the jumper. Moving the jumper with the power on may result in unreliable

computer operation.

Figure 22 shows the location of the Desktop Board’s BIOS configuration jumper block.

Figure 22. Location of the BIOS Configuration Jumper Block

The three-pin BIOS jumper block enables all board configurations to be done in the

BIOS Setup program. Table 12 shows the jumper settings for the BIOS Setup

program modes.

Intel Desktop Board DG41MJ Product Guide

Table 12. Jumper Settings for the BIOS Setup Program Modes

Jumper Setting Mode Description

Normal (default) (1-2) The BIOS uses the current configuration and

passwords for booting.

Configure (2-3) After the Power-On Self-Test (POST) runs, the

BIOS displays the Maintenance Menu. Use this

menu to clear passwords.

Recovery (None) The BIOS recovers data in the event of a failed

BIOS update.

Clearing Passwords

This procedure assumes that the board is installed in the computer and the

configuration jumper block is set to normal mode.

1. Observe the precautions in "Before You Begin" on page 23.

2. Turn off all peripheral devices connected to the computer. Turn off the computer.

Disconnect the computer’s power cord from the AC power source (wall outlet or

power adapter).

3. Remove the computer cover.

4. Find the configuration jumper block (see Figure 22).

5. Place the jumper on pins 2-3 as shown below.

6. Replace the cover, plug in the computer, turn on the computer, and allow it to

boot.

7. The computer starts the Setup program. Setup displays the Maintenance menu.

8. Use the arrow keys to select Clear Passwords. Press <Enter> and Setup displays a

pop-up screen requesting that you confirm clearing the password. Select Yes and

press <Enter>. Setup displays the maintenance menu again.

9. Press <F10> to save the current values and exit Setup.

10. Turn off the computer. Disconnect the computer’s power cord from the AC power

source.

11. Remove the computer cover.

Installing and Replacing Desktop Board Components

12. To restore normal operation, place the jumper on pins 1-2 as shown below.

13. Replace the cover, plug in the computer, and turn on the computer.

Replacing the Battery

A coin-cell battery (CR2032) powers the real-time clock and CMOS memory. When

the computer is not plugged into a wall socket, the battery has an estimated life of

three years. When the computer is plugged in, the standby current from the power

supply extends the life of the battery. The clock is accurate to ± 13 minutes/year at

25 ºC with 3.3 VSB applied.

When the voltage drops below a certain level, the BIOS Setup program settings stored

in CMOS RAM (for example, the date and time) might not be accurate. Replace the

battery with an equivalent one. Figure 23 on page 51 shows the location of the

battery.

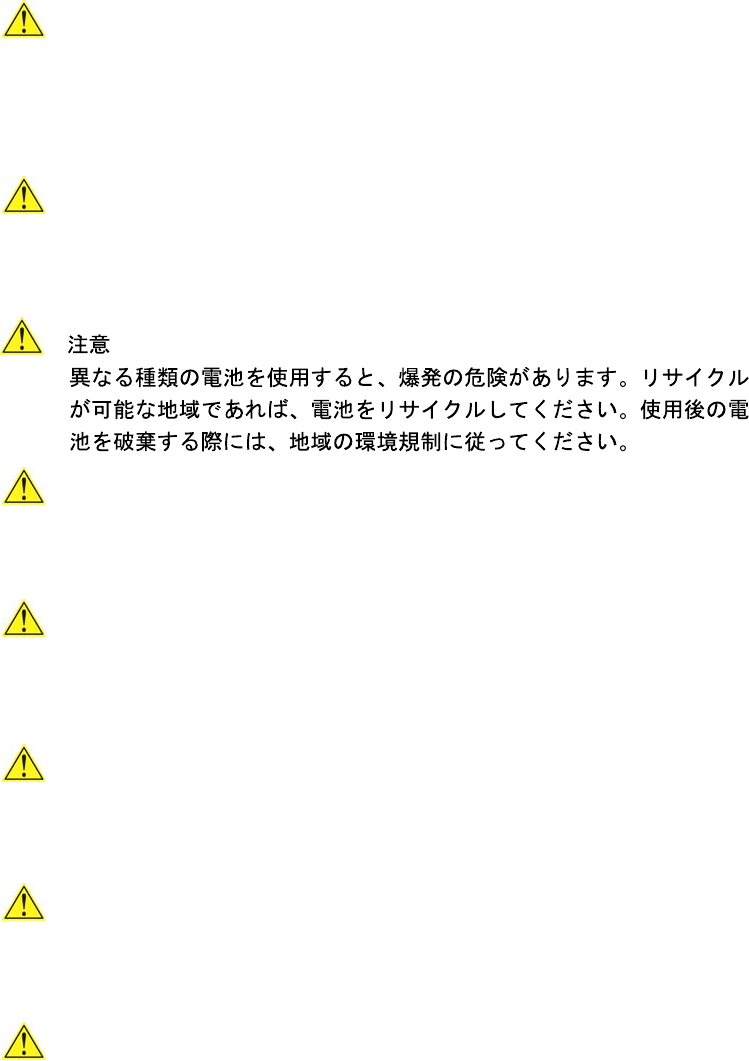

CAUTION

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be

recycled where possible. Disposal of used batteries must be in accordance with local

environmental regulations.

PRÉCAUTION

Risque d'explosion si la pile usagée est remplacée par une pile de type incorrect. Les

piles usagées doivent être recyclées dans la mesure du possible. La mise au rebut des

piles usagées doit respecter les réglementations locales en vigueur en matière de

protection de l'environnement.

FORHOLDSREGEL

Eksplosionsfare, hvis batteriet erstattes med et batteri af en forkert type. Batterier

bør om muligt genbruges. Bortskaffelse af brugte batterier bør foregå i

overensstemmelse med gældende miljølovgivning.

OBS!

Det kan oppstå eksplosjonsfare hvis batteriet skiftes ut med feil type. Brukte batterier

bør kastes i henhold til gjeldende miljølovgivning.

VIKTIGT!

Risk för explosion om batteriet ersätts med felaktig batterityp. Batterier ska kasseras

enligt de lokala miljövårdsbestämmelserna.

Intel Desktop Board DG41MJ Product Guide

VARO

Räjähdysvaara, jos pariston tyyppi on väärä. Paristot on kierrätettävä, jos se on

mahdollista. Käytetyt paristot on hävitettävä paikallisten ympäristömääräysten

mukaisesti.

VORSICHT

Bei falschem Einsetzen einer neuen Batterie besteht Explosionsgefahr. Die Batterie

darf nur durch denselben oder einen entsprechenden, vom Hersteller empfohlenen

Batterietyp ersetzt werden. Entsorgen Sie verbrauchte Batterien den Anweisungen

des Herstellers entsprechend.

AVVERTIMENTO

Esiste il pericolo di un esplosione se la pila non viene sostituita in modo corretto.

Utilizzare solo pile uguali o di tipo equivalente a quelle consigliate dal produttore. Per

disfarsi delle pile usate, seguire le istruzioni del produttore.

PRECAUCIÓN

Existe peligro de explosión si la pila no se cambia de forma adecuada. Utilice

solamente pilas iguales o del mismo tipo que las recomendadas por el fabricante del

equipo. Para deshacerse de las pilas usadas, siga igualmente las instrucciones del

fabricante.

WAARSCHUWING

Er bestaat ontploffingsgevaar als de batterij wordt vervangen door een onjuist type

batterij. Batterijen moeten zoveel mogelijk worden gerecycled. Houd u bij het

weggooien van gebruikte batterijen aan de plaatselijke milieuwetgeving.

ATENÇÃO

Haverá risco de explosão se a bateria for substituída por um tipo de bateria incorreto.

As baterias devem ser recicladas nos locais apropriados. A eliminação de baterias

usadas deve ser feita de acordo com as regulamentações ambientais da região.

AŚCIAROŽZNAŚĆ

Існуе рызыка выбуху, калі заменены акумулятар неправільнага тыпу.

Акумулятары павінны, па магчымасці, перепрацоўвацца. Пазбаўляцца ад старых

акумулятараў патрэбна згодна з мясцовым заканадаўствам па экалогіі.

UPOZORNÌNÍ

V případě výměny baterie za nesprávný druh může dojít k výbuchu. Je-li to možné,

baterie by měly být recyklovány. Baterie je třeba zlikvidovat v souladu s místními

předpisy o životním prostředí.

Installing and Replacing Desktop Board Components

Προσοχή

Υπάρχει κίνδυνος για έκρηξη σε περίπτωση που η μπαταρία αντικατασταθεί από μία

λανθασμένου τύπου. Οι μπαταρίες θα πρέπει να ανακυκλώνονται όταν κάτι τέτοιο είναι

δυνατό. Η απόρριψη των χρησιμοποιημένων μπαταριών πρέπει να γίνεται σύμφωνα με

τους κατά τόπο περιβαλλοντικούς κανονισμούς.

VIGYÁZAT

Ha a telepet nem a megfelelő típusú telepre cseréli, az felrobbanhat. A telepeket

lehetőség szerint újra kell hasznosítani. A használt telepeket a helyi környezetvédelmi

előírásoknak megfelelően kell kiselejtezni.

AWAS

Risiko letupan wujud jika bateri digantikan dengan jenis yang tidak betul. Bateri

sepatutnya dikitar semula jika boleh. Pelupusan bateri terpakai mestilah mematuhi

peraturan alam sekitar tempatan.

OSTRZEŻENIE

Istnieje niebezpieczeństwo wybuchu w przypadku zastosowania niewłaściwego typu

baterii. Zużyte baterie należy w miarę możliwości utylizować zgodnie z odpowiednimi

przepisami ochrony środowiska.

PRECAUŢIE

Risc de explozie, dacă bateria este înlocuită cu un tip de baterie necorespunzător.

Bateriile trebuie reciclate, dacă este posibil. Depozitarea bateriilor uzate trebuie să

respecte reglementările locale privind protecţia mediului.

ВНИМАНИЕ

При использовании батареи несоответствующего типа существует риск ее взрыва.

Батареи должны быть утилизированы по возможности. Утилизация батарей должна

проводится по правилам, соответствующим местным требованиям.

UPOZORNENIE

Ak batériu vymeníte za nesprávny typ, hrozí nebezpečenstvo jej výbuchu. Batérie by

sa mali podľa možnosti vždy recyklovať. Likvidácia použitých batérií sa musí vykonávať

v súlade s miestnymi predpismi na ochranu životného prostredia.

Intel Desktop Board DG41MJ Product Guide

POZOR

Zamenjava baterije z baterijo drugačnega tipa lahko povzroči eksplozijo.

Če je mogoče, baterije reciklirajte. Rabljene baterije zavrzite v skladu z lokalnimi

okoljevarstvenimi predpisi.

UYARI

Yanlış türde pil takıldığında patlama riski vardır. Piller mümkün olduğunda geri

dönüştürülmelidir. Kullanılmış piller, yerel çevre yasalarına uygun olarak atılmalıdır.

OСТОРОГА

Використовуйте батареї правильного типу, інакше існуватиме ризик вибуху.

Якщо можливо, використані батареї слід утилізувати. Утилізація використаних

батарей має бути виконана згідно місцевих норм, що регулюють охорону довкілля.

Installing and Replacing Desktop Board Components

To replace the battery, follow these steps:

1. Observe the precautions in "Before You Begin" (see page 23).

2. Turn off all peripheral devices connected to the computer. Disconnect the

computer’s power cord from the AC power source (wall outlet or power adapter).

3. Remove the computer cover.

4. Locate the battery on the board (see Figure 23).

5. Push the battery retention clip aside and remove the battery from the connector as

shown in Figure 23. Note the orientation of the “+” and “-” on the battery.

6. Install the new battery in the connector, making sure to orient the “+” and “-”

correctly.

7. Replace the computer cover.

Figure 23. Removing the Battery

Intel Desktop Board DG41MJ Product Guide

3 Updating the BIOS

The BIOS Setup program can be used to view and change the BIOS settings for the

computer. You can access the BIOS Setup program by pressing the <F2> key after

the Power-On Self-Test (POST) memory test begins and before the operating system

boot begins.

This chapter tells you how to update the BIOS by either using the Intel Express BIOS

Update utility or the Iflash Memory Update utility, and how to recover the BIOS if an

update fails.

Updating the BIOS with the Intel® Express

BIOS Update Utility

With the Intel Express BIOS Update utility you can update the system BIOS while in

the Microsoft Windows environment. The BIOS file is included in an automated update

utility that combines the functionality of the Intel® Flash Memory Update Utility and

the ease of use of Windows-based installation wizards.

To update the BIOS with the Intel Express BIOS Update utility:

1. Go to the Intel World Wide Web site at

http://support.intel.com/support/motherboards/desktop/

2. Navigate to the Intel Desktop Board DG41MJ page, click “Latest BIOS,” and select

the Express BIOS Update utility file.

3. Download the file to your hard drive. (You can also save this file to a removable

USB device. This is useful if you are updating the BIOS for multiple identical

systems.)

4. Close all other applications. This step is required. Your system will be rebooted at

the last Express BIOS Update window.

5. Double-click the executable file from the location on your hard drive where it was

saved. This runs the update program.

6. Follow the instructions provided in the dialog boxes to complete the BIOS update.

Intel Desktop Board DG41MJ Product Guide

Updating the BIOS with the ISO Image BIOS

Update File or the Iflash Memory Update

Utility

You can use the information in this section to update the BIOS using either the Iflash

Memory Update Utility or the ISO Image BIOS update file.

Obtaining the BIOS Update File

You can update to a new version of the BIOS by using the ISO Image BIOS update file

(recommended), or Iflash BIOS update file.

The ISO Image BIOS update file is a standardized image of a bootable CD-ROM that

can be used to create a bootable CD that will update the BIOS.

The Iflash BIOS update file is a compressed file that contains the files you need to

update the BIOS. The Iflash BIOS update file contains:

• New BIOS file

• Intel® Integrator Toolkit Configuration File (optional)

• Intel Flash Memory Update Utility

You can obtain either of these files through your computer supplier or by navigating to

the Intel Desktop Board DG41MJ page on the Intel World Wide Web site at

http://support.intel.com/support/motherboards/desktop

Navigate to the Intel Desktop Board DG41MJ page, click “Latest BIOS,” and select the

ISO Image BIOS Update or Iflash BIOS Update utility file.

Updating the BIOS with the ISO Image BIOS Update

File

The ISO Image BIOS update allows for the update of an Intel® Desktop Board BIOS to

the latest production release regardless of the operating system installed on the

computer's hard drive and without the need to remove the BIOS configuration jumper.

It requires a blank CD-R, a read/writeable CD drive, and software capable of

uncompressing and writing the ISO image file to CD.

The image uses ISOLINUX* bootloader and automatically launches a script to upgrade

the BIOS via the Iflash utility.

CAUTION

Do not interrupt the process or the system may not function properly.

Updating the BIOS

Follow these instructions to upgrade the BIOS using the ISO Image BIOS file:

1. Download the ISO Image BIOS file.

2. Using software capable of uncompressing and writing an ISO image file to CD, burn

the data to a blank CD.

NOTE

Copying the ISO Image BIOS file to CD will not work. The completed CD should

contain multiple files and a directory.

3. Insert the CD that was created in the CD-ROM drive of the computer to be

upgraded and boot the system.

4. When the "Press ENTER to continue booting from CD-ROM" prompt appears, press

the Enter key. The system will boot from the hard drive if no key is pressed within

15 seconds.

5. At the "Welcome to the Intel Desktop Board BIOS Upgrade CD-ROM" page, press

any key to confirm the BIOS upgrade operation.

6. Wait for the BIOS upgrade process to complete.

CAUTION

DO NOT POWER DOWN YOUR COMPUTER before the update is complete. The update

may take up to 5 minutes.

Updating the BIOS with the Iflash Memory Update

Utility

With the Iflash Memory update utility you can update the system BIOS from a

bootable CD-ROM, bootable USB flash drive, or other bootable USB media. The utility

available on the Intel World Wide Web site provides a simple method for creating a

bootable CD-ROM that will automatically update your BIOS. The Iflash BIOS update

files can also be extracted locally to your hard drive and copied to a bootable USB

flash drive or other bootable USB media.

The Iflash Memory update utility allows you to:

• Update the BIOS in flash memory

• Update the language section of the BIOS

NOTE

Review the instructions distributed with the update utility before attempting a BIOS

update.

CAUTION

Do not interrupt the process or the system may not function properly.

Intel Desktop Board DG41MJ Product Guide

1. Uncompress the BIOS update file and copy the .BIO file, IFLASH.EXE, and .ITK file

(optional) to a bootable USB flash drive or other bootable USB media.

2. Configure the BIOS or use the F10 option during POST to boot to the USB device.

3. Manually run the IFLASH.EXE file from the USB device and manually update the

BIOS.

Recovering the BIOS

It is unlikely that anything will interrupt the BIOS update; however, if an interruption

occurs, the BIOS could be damaged. Due to BIOS size and recovery requirements, a

CD-R with the .BIO file in the root directory will be required.
