Users Manual
Please Recycle H62795-001
Wireless Charging Bowl
Designed by Intel
Quick Start Guide
Congratulations and thank you!
...for purchasing the Wireless
Charging Bowl, designed by Intel and
built to make charging more conve-
nient.
Aesthetically designed to match
modern home decor, the Wireless
Charging Bowl is a bowl-shaped
device capable of charging a MICA
bracelet from Opening Ceremony
wirelessly.
The Wireless Charging Bowl works
via magnetic resonance technology,
a wireless charging standard that
Intel is helping to develop.
What you get
Included in this package:
• Wireless Charging Bowl
• power adapter
• six-foot power cord
Using a Wireless Charging Bowl
To power up your Wireless Charging
Bowl, insert the power cord into the
back of the bowl and insert the plug
end of the power adapter into a wall
receptacle. To start charging your
MICA bracelet, place the bracelet into
the bowl.
The Wireless Charging Bowl also has
two USB charging ports on the back,
so you can plug in nonwireless
devices to recharge via USB.
When all wireless devices in the bowl
are fully charged, or when the bowl is
empty, the Wireless Charging Bowl
drops to an energy-efficient power
save state.
Although the Wireless Charging Bowl
will usually detect if there are incom-
patible devices in the bowl and shut
off automatically, avoid putting
metallic objects (like coins, rings, ear-
rings, etc.) or noncompliant elec-
tronic devices into the bowl.

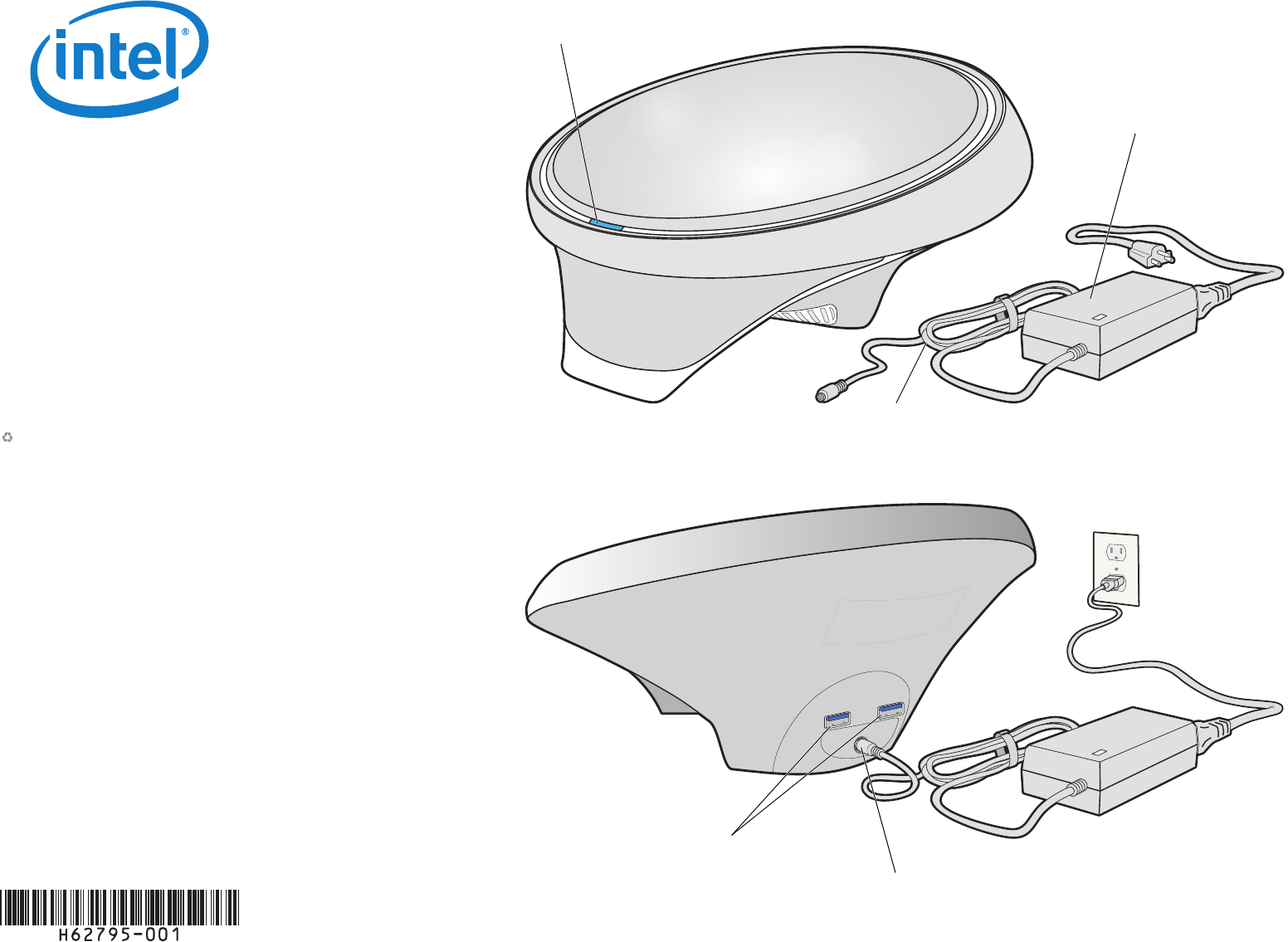

Figure 1 Connecting your Wireless Charging Bowl
USB charging ports
Status LED
Power adapter
Power port
6ft. power cord
LED indicator patterns
The Wireless Charging Bowl uses a
multicolored LED to indicate status.
Note: For bedroom convenience, normal operation
LED patterns time out to standby after two minutes.
Alert patterns (yellow and red) do not time out.
Pattern*
* “Steady” LED stays on;
“Blinking” LED alternates on/off once per second;
“Flashing” LED alternates on/off four times per second.
Eddy Bowl state
Blue
steady
Power is on, but there is no activity
(power save mode).
Blue
blinking
Preparing to charge devices
detected in the bowl.
Green
steady
Active wireless charging; power is
transferring.
Alternating
yellow/green
Too many devices. Remove devices
until the LED turns steady green.
Yellow
blinking
A device in the bowl may have
overheated. Remove device.
Red
flashing
Nonchargeable, conductive object
detected in the bowl. Remove
noncompliant devices.
Blue
flashing
Firmware upgrade in progress. LED
will turn steady blue if successful.
Yellow
steady
Firmware upgrade error. Unplug
the charging bowl (power off) for
ten seconds then try again.
Red
steady
Firmware upgrade failed. Unplug
the charging bowl (power off) for
ten seconds then try again.
Dark Power off/standby.
Firmware upgrades
If you need to upgrade the firmware,
turn your Wireless Charging Bowl on
its side so you can see the status LED
and still access the micro USB port
underneath the bowl. Connect a
cable from the micro USB port to a
USB port on your computer or lap-
top. Open a browser on your com-
puter and enter this link:
• www.intel.com/support/go/bowl
The support webpages explain how
to download/install new firmware to
your Wireless Charging Bowl through
a Windows* or Mac OS* computer.
Troubleshooting issues
• My bowl will not power on. Make
sure the power adapter is con-
nected, and check the cable con-
nections going into and coming
out of the power adapter.
• My devices aren’t charging. Try
the following suggestions:
– Make sure the bowl is on. If the
LED is dark, unplug the power
cord and plug it back in.
– Check the LED status.
(See LED indicator patterns.)
– Make sure the chargeable
device is powered on and lying
flat in the center of the bowl.
– Make sure there are no other
objects in the bowl, especially
nothing magnetic or metallic.
Customer support
For product news, firmware updates,
release notes, the end-user license
agreement (EULA), and support, visit
www.intel.com/support/go/bowl.

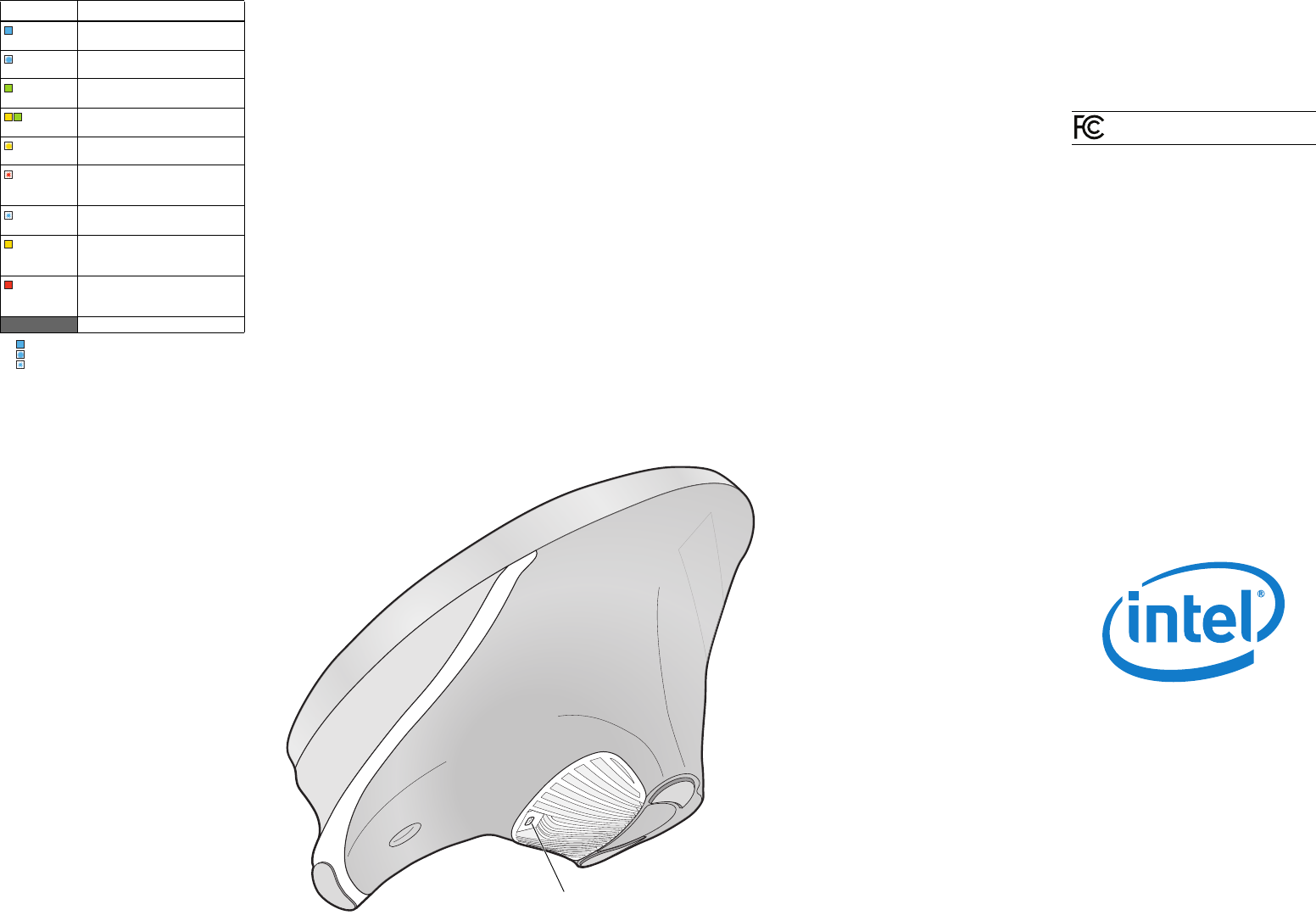

Figure 2 Firmware update via micro USB port
Micro USB port
Care instructions
Clean the plastic on the bowl surface
with a warm, damp cloth. Do not
immerse the bowl in water, and do
not pour water or any other liquid
into the bowl.
Additional care instructions:
• Do not use industrial cleaners.
• Do not plug the device in if the
surface of the bowl ever cracks.
• Do not cook in or eat from the
bowl.
• Do not put the bowl in a freezer,
refrigerator, microwave, or oven.
• Do not operate the bowl from on
top of a metallic table or surface,
as the metal may cause the bowl
to malfunction.
Ninety-day limited warranty
Limited warranty. This ninety-day limited warranty
(“Limited Warranty”) is provided for the wireless charging
bowl hardware (the “Device”) by Intel Corporation (“Intel,”
“we,” or “us”) to the original Device purchaser or recipient
(“you”). Subject to the terms of this Limited Warranty, Intel
warrants the Device to be free from manufacturing and mate-
rial defects under ordinary consumer use for 90 days from
the date of original purchase from place of purchase. If you
submit a valid claim under this Limited Warranty, Intel will, at
Intel’s sole discretion and within a reasonable period of time,
refund or replace any Device that fails solely as a result of any
manufacturing or material defect. Any such replacement will
be made at no charge to you for parts and labor. Any replace-
ment Device may be new or refurbished, at Intel’s sole discre-
tion. Intel may require you to submit proof of purchase of the
Device prior to providing you with service under this Limited
Warranty.
This Limited Warranty does not apply to any of the following:
(a) cosmetic damage to the Device, such as scratches, nicks,
stains, and dents; (b) your loss or misplacement of the Device;
(c) repair or replacement to consumable parts for the Device,
such as batteries; (d) damage to the Device caused by acci-
dent, abuse, misuse, neglect, water, flood, fire, or other acts of
nature or external causes; (e) normal wear and tear of the
Device; or (f) damage to a Device that has been modified,
altered, or repaired by you or a third party, other than by an
Intel authorized service center.
Warranty service. If you need to exercise your rights
under this Limited Warranty, go to the support page at
www.intel.com/support/go/bowl and select the How do I get
warranty service link. Intel is not responsible for any shipping
charges, packing supplies or loss/damage while in transit
incurred in connection with delivery of the Device for service.
Exclusive remedy; limitation of liability. TO
THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW,
THE WARRANTIES AND REMEDIES CONTAINED IN THIS
LIMITED WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL
OTHER WARRANTIES EXPRESS, IMPLIED, OR STATUTORY,
INCLUDING ANY LIABILITY ARISING UNDER ANY WAR-
RANTY OF MERCHANTABILITY OR FITNESS FOR A PARTIC-
ULAR PURPOSE, STATUTORY OR OTHERWISE. SOME
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY (OR CONDITION) MAY LAST,
SO THE LIMITATION DESCRIBED ABOVE MAY NOT APPLY
TO YOU. Intel’s liability is limited solely to replacement or
repair, as provided under this Limited Warranty.
YOU UNDERSTAND AND EXPRESSLY AGREE THAT, TO THE
FULLEST EXTENT PERMITTED BY APPLICABLE LAW, INTEL,
ITS LICENSORS, AND SUPPLIERS WILL NOT BE LIABLE FOR
ANY SPECIAL, INDIRECT, CONSEQUENTIAL, OR PUNITIVE
DAMAGES OR ANY DAMAGES WHATSOEVER, WHETHER IN
CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE,
WHETHER ACTIVE, PASSIVE OR IMPUTED), PRODUCT LIA-
BILITY, STRICT LIABILITY, OR OTHER THEORY, ARISING OUT
OF OR RELATING TO THE DEVICE, INCLUDING, WITHOUT
LIMITATION, LOSS OF GOODWILL, PROFITS, OR REVENUE,
LOSS OF USE OF THE DEVICE OR ANY OTHER EQUIPMENT,
LOSS OF DATA, COST OF CAPITAL, COST OF ANY SUBSTI-
TUTE EQUIPMENT, FACILITIES OR SERVICES, OR DOWN-
TIME COSTS AND WHETHER OR NOT ADVISED OF THE
POSSIBILITY OF SUCH LOSSES. TO THE EXTENT SOME
JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF
IMPLIED WARRANTIES AND CONSEQUENTIAL DAMAGES,
OR THE LIMITATION OF LEGAL RIGHTS OF THE CON-
SUMER, IT IS POSSIBLE THAT SUCH EXCLUSIONS AND LIM-
ITATIONS MAY NOT APPLY IN SUCH JURISDICTIONS. You
expressly agree that, to the maximum extent permitted by
applicable law, the total liability of Intel, its licensors and sup-
pliers in connection with the Device or this Limited Warranty
will not exceed the purchase price of the Device.
Other terms. IMPORTANT: YOU MAY ALSO HAVE
OTHER RIGHTS (STATUTORY RIGHTS) IN ADDITION TO
THIS LIMITED WARRANTY AND YOUR STATUTORY RIGHTS
MAY VARY FROM STATE TO STATE OR FROM COUNTRY
TO COUNTRY. We recommend that you consult your local
trading standards offices, consumer association or citizens’
advice bureau to understand your rights as a consumer.
