Intelleflex MC9090 RFID Gun with WLAN and BT User Manual Antenna Spec RFID for WJ

Intelleflex Corporation RFID Gun with WLAN and BT Antenna Spec RFID for WJ

User Manual 3

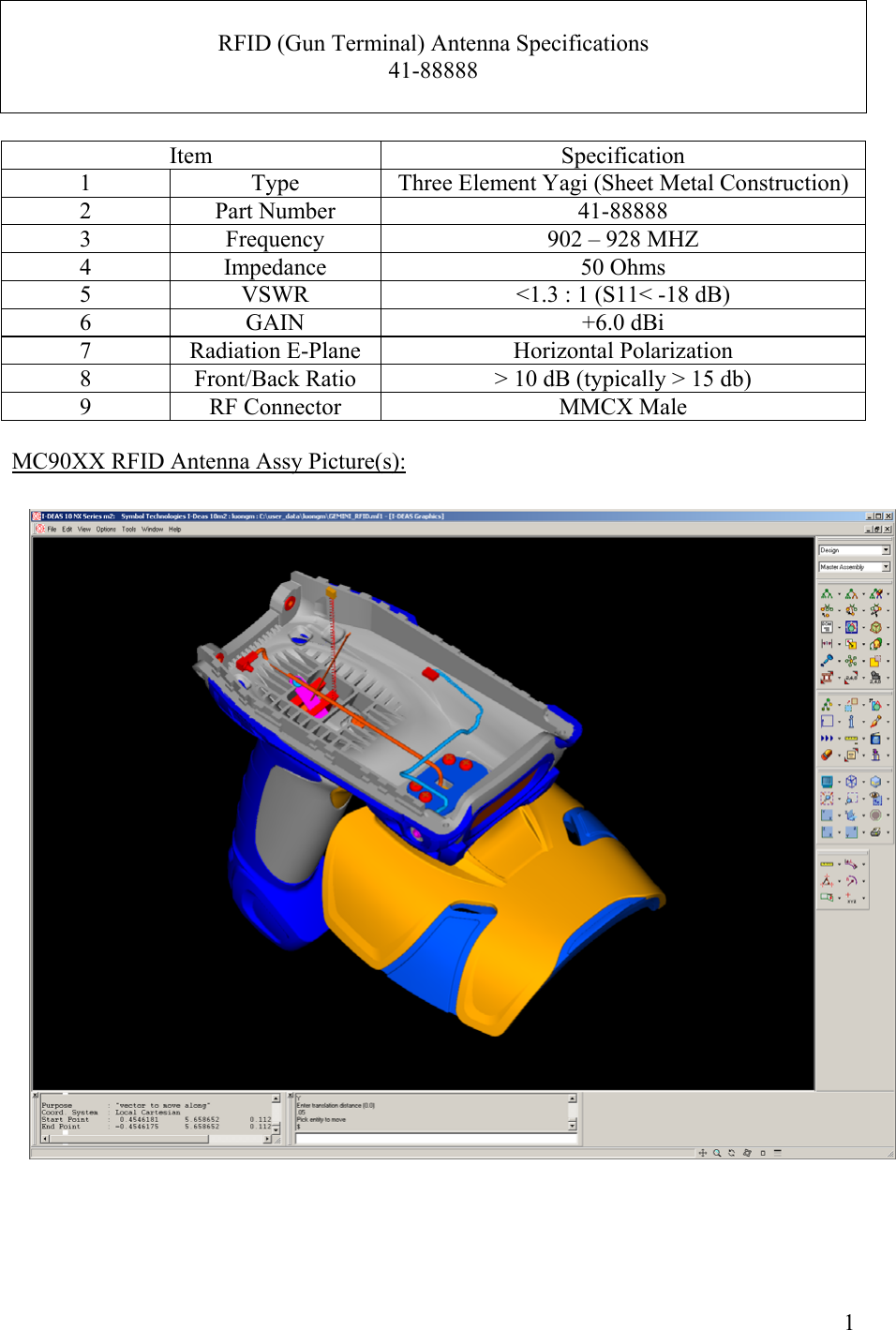

1 RFID (Gun Terminal) Antenna Specifications 41-88888 Item Specification 1 Type Three Element Yagi (Sheet Metal Construction) 2 Part Number 41-88888 3 Frequency 902 – 928 MHZ 4 Impedance 50 Ohms 5 VSWR <1.3 : 1 (S11< -18 dB) 6 GAIN +6.0 dBi 7 Radiation E-Plane Horizontal Polarization 8 Front/Back Ratio > 10 dB (typically > 15 db) 9 RF Connector MMCX Male MC90XX RFID Antenna Assy Picture(s):
