IntelliTouch EOS-P610 Dual Zone Wireless Transceiver User Manual

IntelliTouch Dual Zone Wireless Transceiver

User Manual

commercial wireless audioTMEOSP-610Dual Zone Wireless TransceiverUser ManualTM

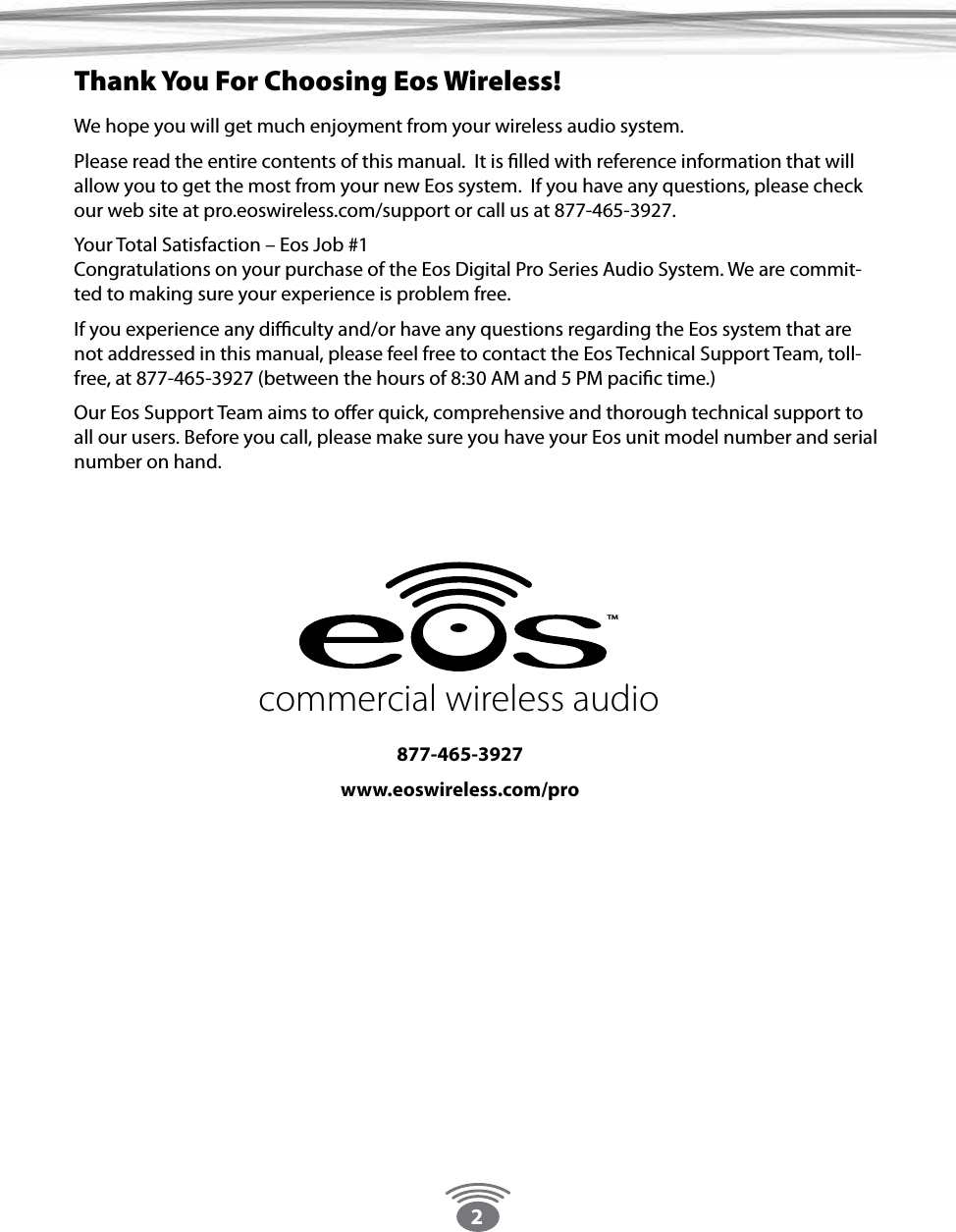

2We hope you will get much enjoyment from your wireless audio system.Please read the entire contents of this manual. It is lled with reference information that will allow you to get the most from your new Eos system. If you have any questions, please check our web site at pro.eoswireless.com/support or call us at 877-465-3927.Your Total Satisfaction – Eos Job #1 Congratulations on your purchase of the Eos Digital Pro Series Audio System. We are commit-ted to making sure your experience is problem free.If you experience any diculty and/or have any questions regarding the Eos system that are not addressed in this manual, please feel free to contact the Eos Technical Support Team, toll-free, at 877-465-3927 (between the hours of 8:30 AM and 5 PM pacic time.) Our Eos Support Team aims to oer quick, comprehensive and thorough technical support to all our users. Before you call, please make sure you have your Eos unit model number and serial number on hand. Thank You For Choosing Eos Wireless!877-465-3927www.eoswireless.com/procommercial wireless audioTM

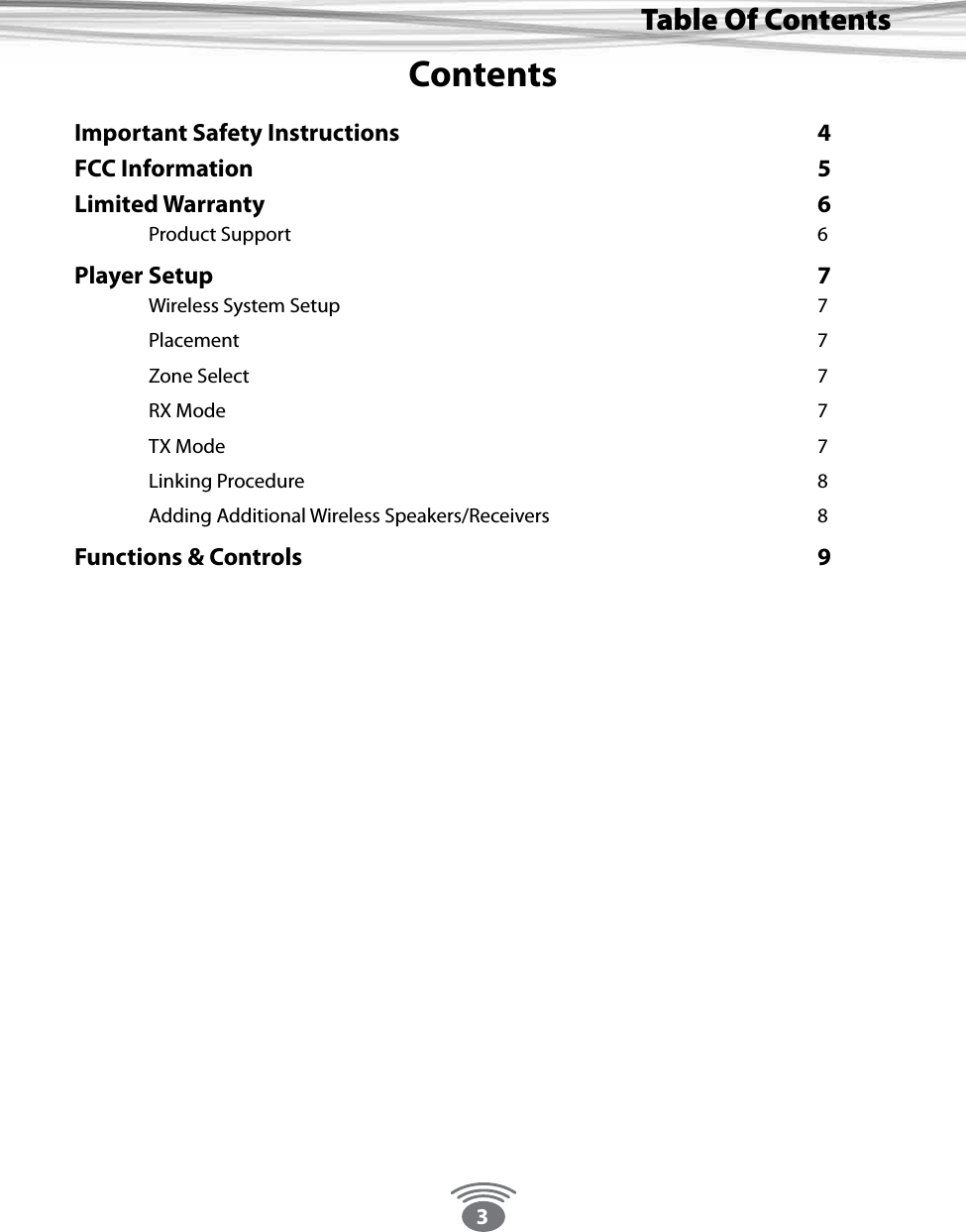

3Thank You For Choosing Eos Wireless!Table Of ContentsContentsImportant Safety Instructions 4FCC Information 5Limited Warranty 6 Product Support 6Player Setup 7 Wireless System Setup 7 Placement 7 Zone Select 7 RX Mode 7 TX Mode 7 Linking Procedure 8 Adding Additional Wireless Speakers/Receivers 8Functions & Controls 9

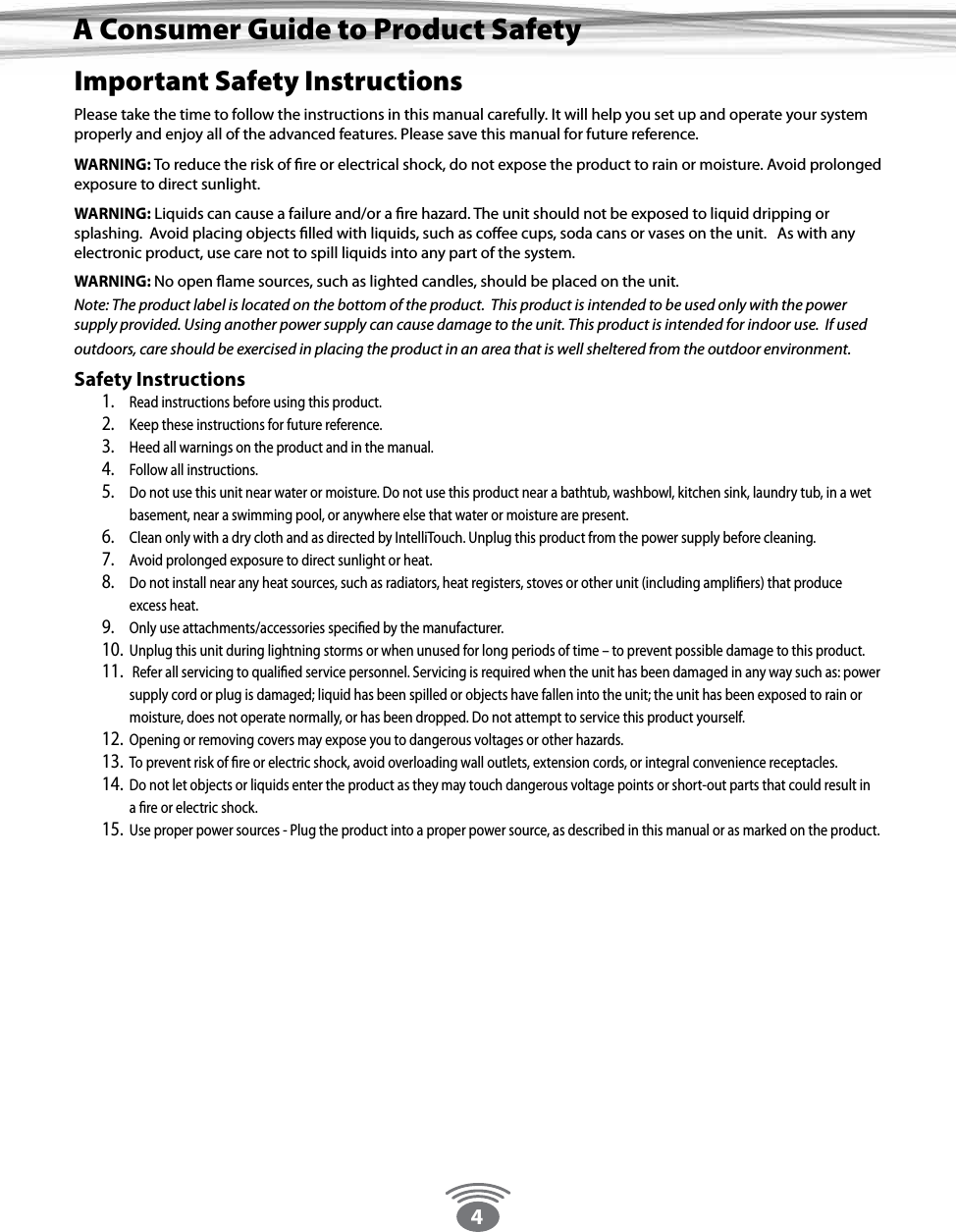

4Important Safety InstructionsPlease take the time to follow the instructions in this manual carefully. It will help you set up and operate your system properly and enjoy all of the advanced features. Please save this manual for future reference. WARNING: To reduce the risk of re or electrical shock, do not expose the product to rain or moisture. Avoid prolonged exposure to direct sunlight. WARNING: Liquids can cause a failure and/or a re hazard. The unit should not be exposed to liquid dripping or splashing. Avoid placing objects lled with liquids, such as coee cups, soda cans or vases on the unit. As with any electronic product, use care not to spill liquids into any part of the system. WARNING: No open ame sources, such as lighted candles, should be placed on the unit. Note: The product label is located on the bottom of the product. This product is intended to be used only with the power supply provided. Using another power supply can cause damage to the unit. This product is intended for indoor use. If used outdoors, care should be exercised in placing the product in an area that is well sheltered from the outdoor environment. Safety Instructions1. Read instructions before using this product. 2. Keep these instructions for future reference. 3. Heed all warnings on the product and in the manual. 4. Follow all instructions. 5. Do not use this unit near water or moisture. Do not use this product near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, or anywhere else that water or moisture are present. 6. Clean only with a dry cloth and as directed by IntelliTouch. Unplug this product from the power supply before cleaning. 7. Avoid prolonged exposure to direct sunlight or heat. 8. Do not install near any heat sources, such as radiators, heat registers, stoves or other unit (including ampliers) that produce excess heat. 9. Only use attachments/accessories specied by the manufacturer. 10. Unplug this unit during lightning storms or when unused for long periods of time – to prevent possible damage to this product. 11. Refer all servicing to qualied service personnel. Servicing is required when the unit has been damaged in any way such as: power supply cord or plug is damaged; liquid has been spilled or objects have fallen into the unit; the unit has been exposed to rain or moisture, does not operate normally, or has been dropped. Do not attempt to service this product yourself. 12. Opening or removing covers may expose you to dangerous voltages or other hazards. 13. To prevent risk of re or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles.14. Do not let objects or liquids enter the product as they may touch dangerous voltage points or short-out parts that could result in a re or electric shock. 15. Use proper power sources - Plug the product into a proper power source, as described in this manual or as marked on the product.A Consumer Guide to Product Safety

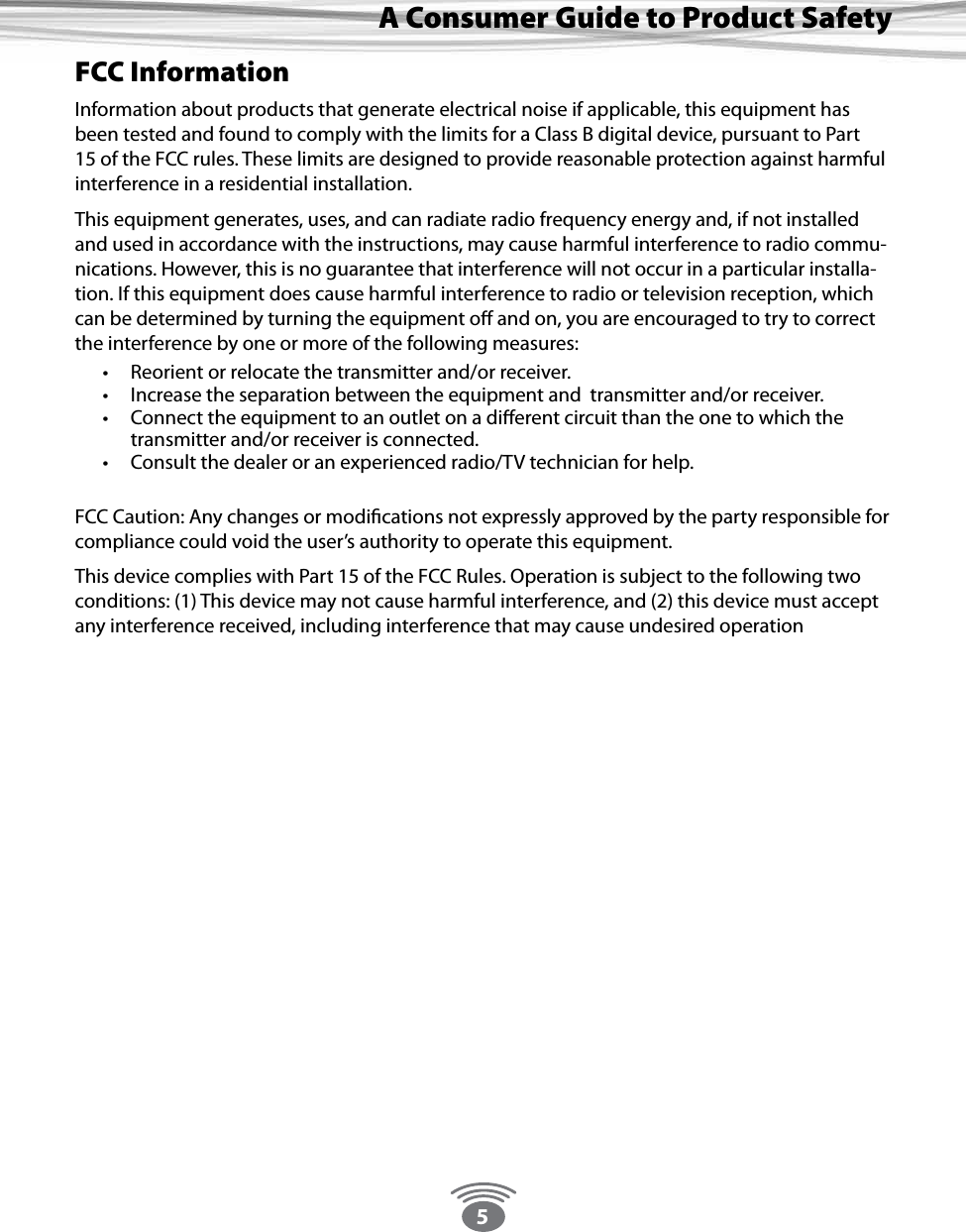

5A Consumer Guide to Product SafetyFCC InformationInformation about products that generate electrical noise if applicable, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio commu-nications. However, this is no guarantee that interference will not occur in a particular installa-tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, you are encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the transmitter and/or receiver. • Increase the separation between the equipment and transmitter and/or receiver. • Connect the equipment to an outlet on a dierent circuit than the one to which the transmitter and/or receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

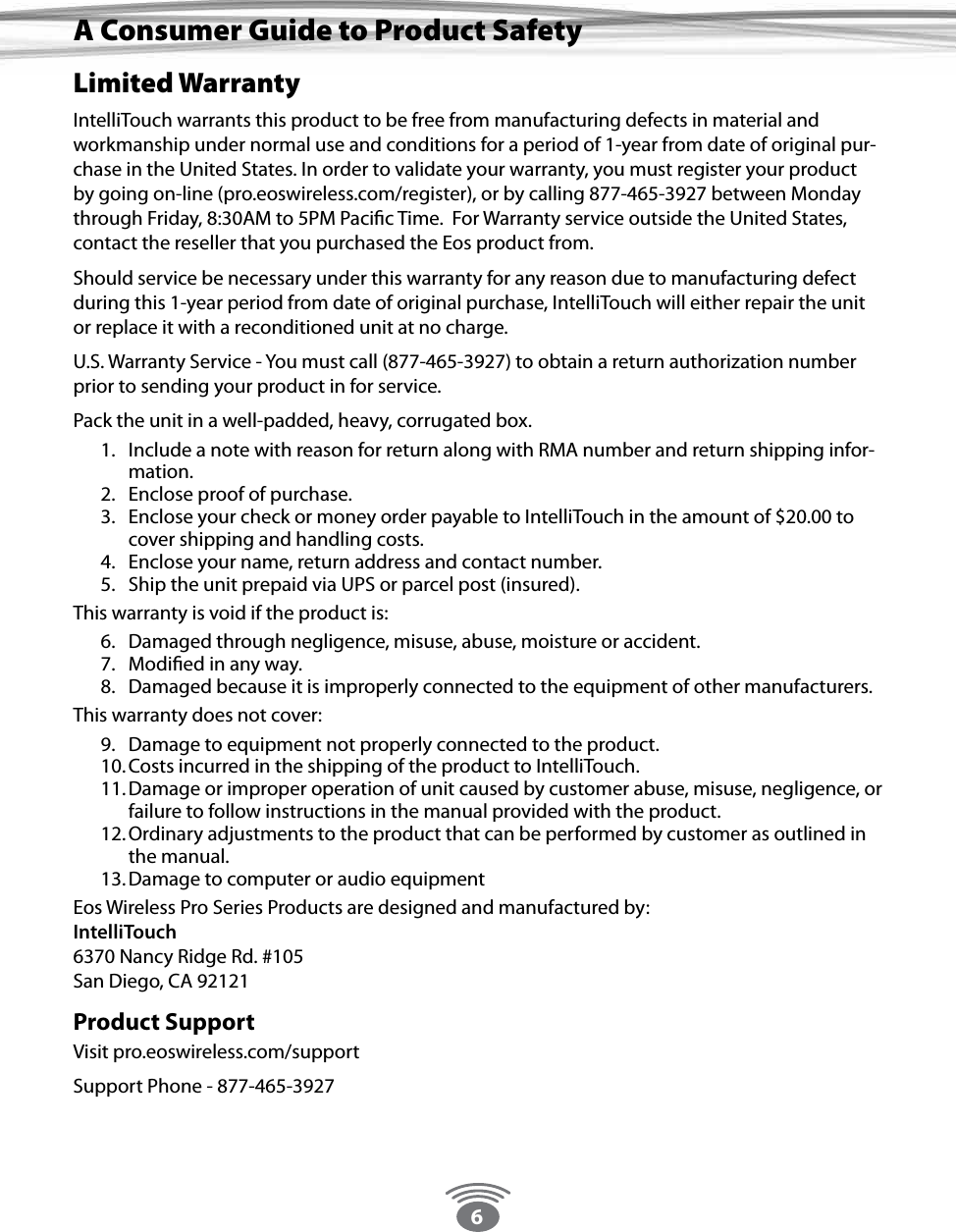

6Limited WarrantyIntelliTouch warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 1-year from date of original pur-chase in the United States. In order to validate your warranty, you must register your product by going on-line (pro.eoswireless.com/register), or by calling 877-465-3927 between Monday through Friday, 8:30AM to 5PM Pacic Time. For Warranty service outside the United States, contact the reseller that you purchased the Eos product from.Should service be necessary under this warranty for any reason due to manufacturing defect during this 1-year period from date of original purchase, IntelliTouch will either repair the unit or replace it with a reconditioned unit at no charge.U.S. Warranty Service - You must call (877-465-3927) to obtain a return authorization number prior to sending your product in for service.Pack the unit in a well-padded, heavy, corrugated box.1. Include a note with reason for return along with RMA number and return shipping infor-mation.2. Enclose proof of purchase.3. Enclose your check or money order payable to IntelliTouch in the amount of $20.00 to cover shipping and handling costs.4. Enclose your name, return address and contact number.5. Ship the unit prepaid via UPS or parcel post (insured).This warranty is void if the product is:6. Damaged through negligence, misuse, abuse, moisture or accident.7. Modied in any way.8. Damaged because it is improperly connected to the equipment of other manufacturers.This warranty does not cover:9. Damage to equipment not properly connected to the product.10. Costs incurred in the shipping of the product to IntelliTouch.11. Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow instructions in the manual provided with the product.12. Ordinary adjustments to the product that can be performed by customer as outlined in the manual.13. Damage to computer or audio equipmentEos Wireless Pro Series Products are designed and manufactured by: IntelliTouch 6370 Nancy Ridge Rd. #105 San Diego, CA 92121Product SupportVisit pro.eoswireless.com/supportSupport Phone - 877-465-3927A Consumer Guide to Product Safety

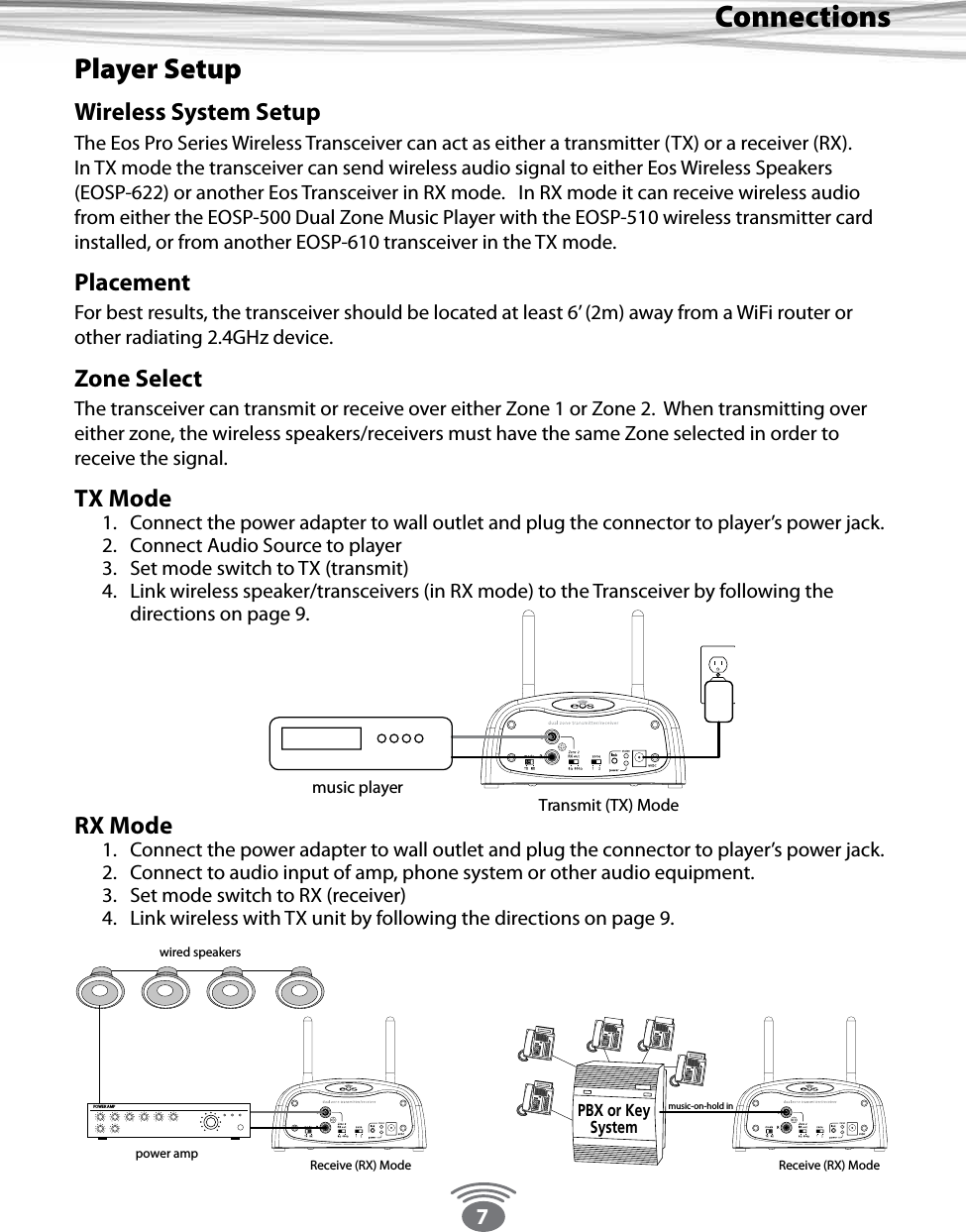

7ConnectionsPlayer SetupWireless System SetupThe Eos Pro Series Wireless Transceiver can act as either a transmitter (TX) or a receiver (RX). In TX mode the transceiver can send wireless audio signal to either Eos Wireless Speakers (EOSP-622) or another Eos Transceiver in RX mode. In RX mode it can receive wireless audio from either the EOSP-500 Dual Zone Music Player with the EOSP-510 wireless transmitter card installed, or from another EOSP-610 transceiver in the TX mode.PlacementFor best results, the transceiver should be located at least 6’ (2m) away from a WiFi router or other radiating 2.4GHz device.Zone SelectThe transceiver can transmit or receive over either Zone 1 or Zone 2. When transmitting over either zone, the wireless speakers/receivers must have the same Zone selected in order to receive the signal.TX Mode1. Connect the power adapter to wall outlet and plug the connector to player’s power jack.2. Connect Audio Source to player3. Set mode switch to TX (transmit)4. Link wireless speaker/transceivers (in RX mode) to the Transceiver by following the directions on page 9. RX Mode1. Connect the power adapter to wall outlet and plug the connector to player’s power jack.2. Connect to audio input of amp, phone system or other audio equipment.3. Set mode switch to RX (receiver)4. Link wireless with TX unit by following the directions on page 9. Transmit (TX) Modemusic playerpower amp Receive (RX) Mode Receive (RX) Modewired speakersPOWER AMP music-on-hold inPBX or KeySystem

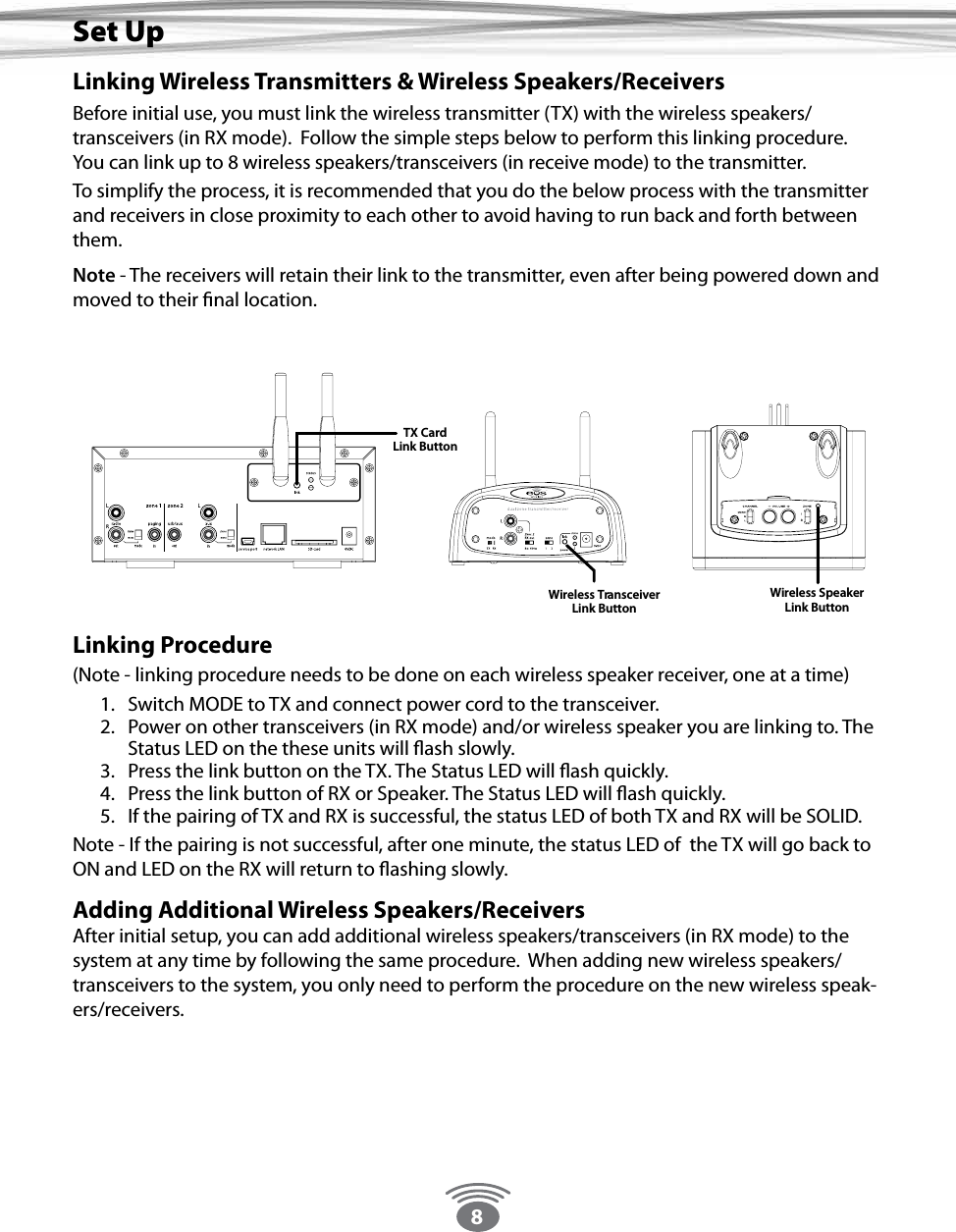

8Linking Wireless Transmitters & Wireless Speakers/ReceiversBefore initial use, you must link the wireless transmitter (TX) with the wireless speakers/transceivers (in RX mode). Follow the simple steps below to perform this linking procedure. You can link up to 8 wireless speakers/transceivers (in receive mode) to the transmitter. To simplify the process, it is recommended that you do the below process with the transmitter and receivers in close proximity to each other to avoid having to run back and forth between them. Note - The receivers will retain their link to the transmitter, even after being powered down and moved to their nal location. Linking Procedure (Note - linking procedure needs to be done on each wireless speaker receiver, one at a time)1. Switch MODE to TX and connect power cord to the transceiver. 2. Power on other transceivers (in RX mode) and/or wireless speaker you are linking to. The Status LED on the these units will ash slowly.3. Press the link button on the TX. The Status LED will ash quickly.4. Press the link button of RX or Speaker. The Status LED will ash quickly.5. If the pairing of TX and RX is successful, the status LED of both TX and RX will be SOLID.Note - If the pairing is not successful, after one minute, the status LED of the TX will go back to ON and LED on the RX will return to ashing slowly.Adding Additional Wireless Speakers/ReceiversAfter initial setup, you can add additional wireless speakers/transceivers (in RX mode) to the system at any time by following the same procedure. When adding new wireless speakers/transceivers to the system, you only need to perform the procedure on the new wireless speak-ers/receivers.Set UpTX CardLink ButtonWireless SpeakerLink ButtonTMWireless TransceiverLink Button

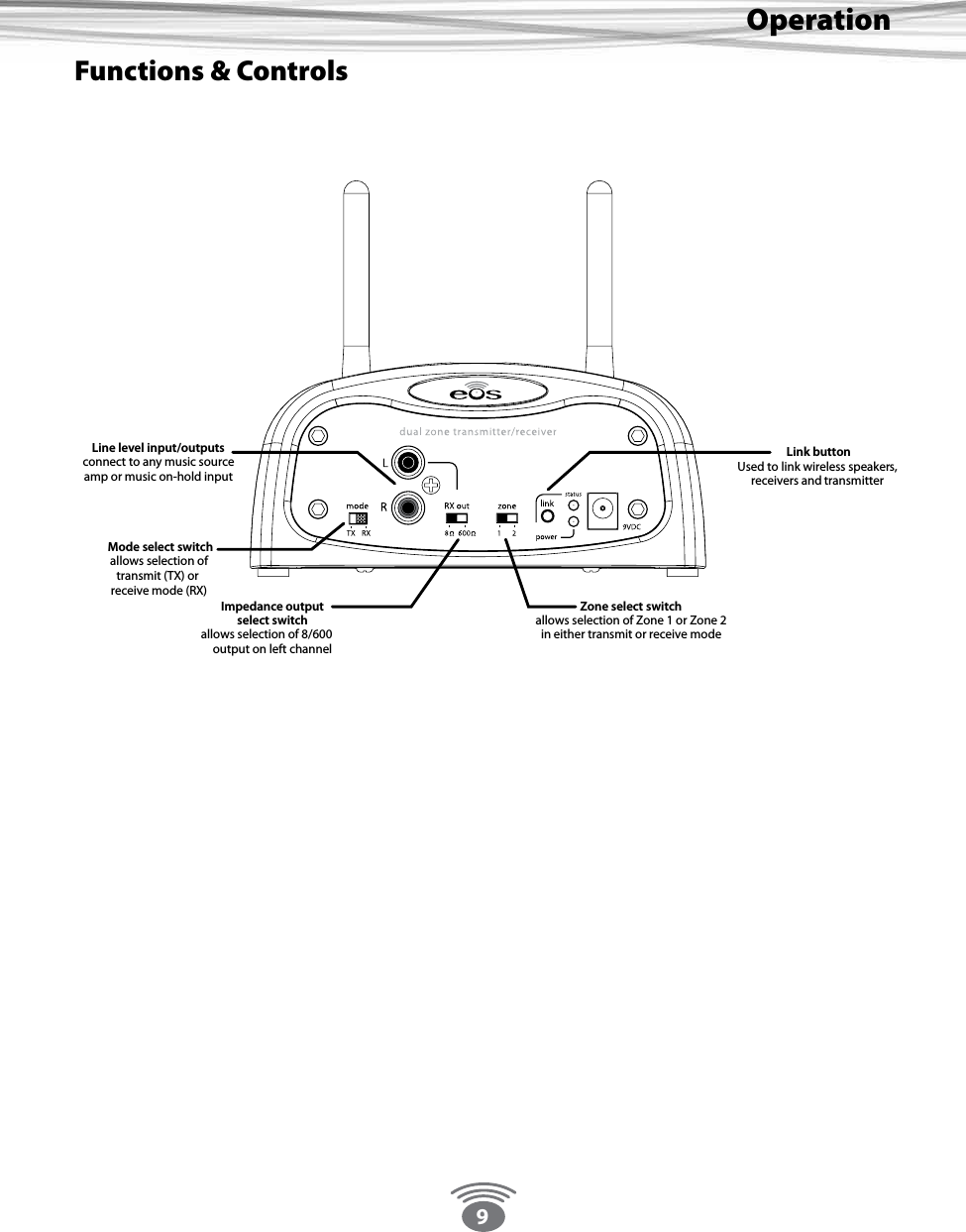

9OperationFunctions & ControlsLine level input/outputsconnect to any music sourceamp or music on-hold inputMode select switchallows selection of transmit (TX) or receive mode (RX)Impedance outputselect switchallows selection of 8/600 output on left channelZone select switchallows selection of Zone 1 or Zone 2in either transmit or receive modeLink buttonUsed to link wireless speakers,receivers and transmitter
877-465-3927www.eoswireless.com/procommercial wireless audioTM
