World’s First & Only Global Satellite TV Service Reception
1.05m Stabilized Ku-band Marine Satellite Antenna
t100W
PRODUCT BRIEF
Hands Free WorldView™ LNB
The t100W comes standard with Intellian’s 2nd Generation proprietary
WorldView LNB Module. Users regularly crossing from one global region
to another will never have to climb the mast to change a LNB module
again. The antenna automatically switches between LO Frequencies
and Polarizations as needed and continues providing seamless
entertainment anytime, anywhere.
Matching Dome Solution
The t100W’s radome matches the styling of Intellian’s v100GX VSAT
antenna, making the two a perfect solution for larger yachts or wher-
ever there is an emphasis on symmetrical design. The v100GX is one
of the most popular VSAT antennas on the market today, making the
t100W a convenient choice.
Global Satellite Services Compatibility
Intellian t100W provides the ultimate convenience to connect you
up to thousands of Free TV, Pay TV, Standard Denition, and High
Denition programming all over the world with one LNB module which
incorporates multi (8) LO frequencies.
Global Satellite Library
The t100W includes the pre-programmed global satellite library which
allows users to select the desired satellite while travelling from region
to region. Once the satellite is selected the WorldView LNB mod-
ule will automatically switch to the corresponding local frequency to
receive the signal.
Remote Management Capability
All Intellian t-Series antennas come equipped with an Intellian LAN
port. This important feature enables a vessel’s TVRO antenna to
be networked with any onboard Intellian satellite communications
antenna(VSAT, GX or FBB) so that onshore support staff can access
the t-Series antenna from anywhere in the world to ensure maximum
performance.
Wireless Connectivity
Any kind of wireless device such as PCs, laptops and smartphones
can connect to the ACU and monitor, control and change the settings
of the system wirelessly via Intellian’s Aptus control software.
PRODUCT BRIEF

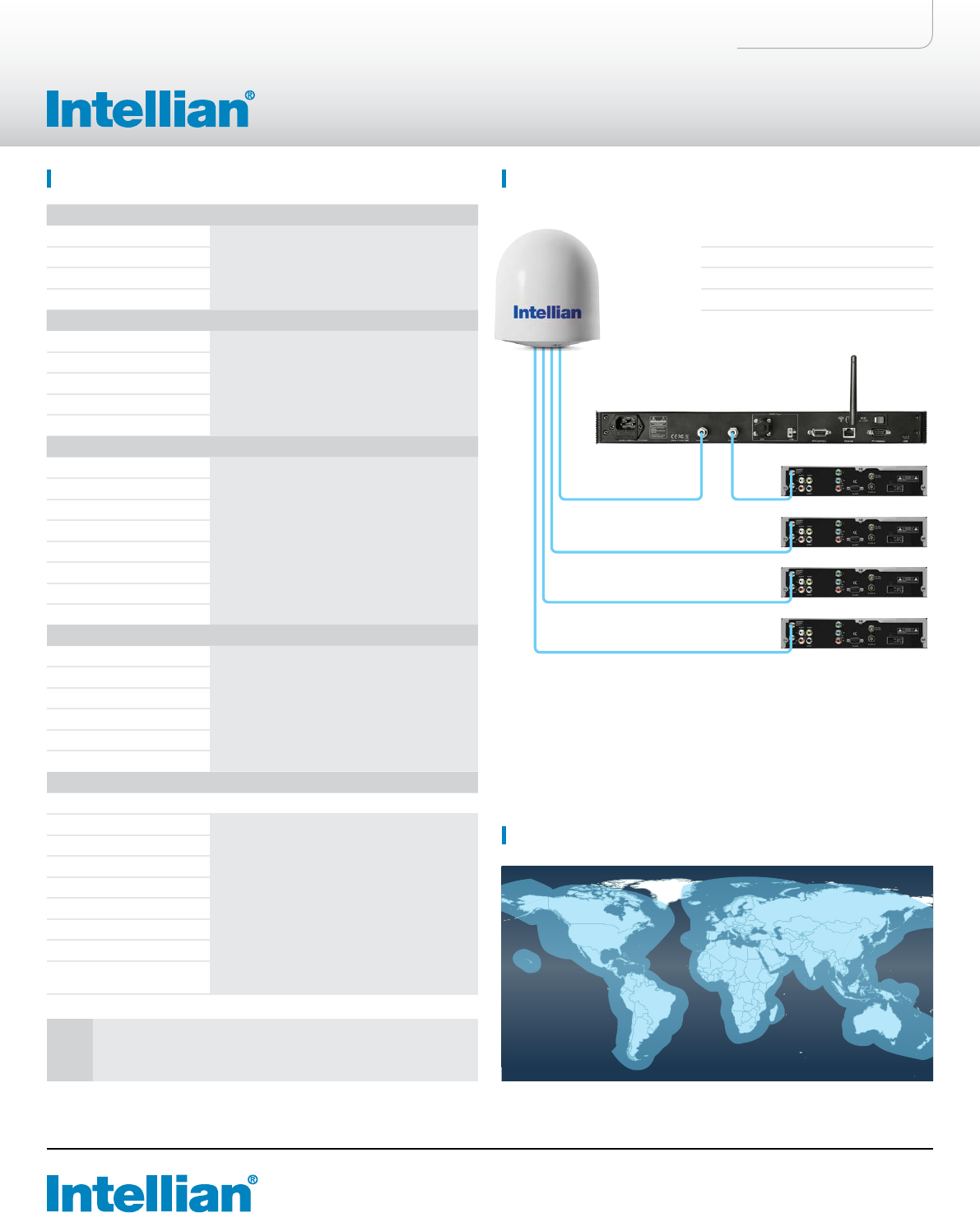

TECHNICAL SPECIFICATIONS
Technical Specifications
1.05m Ku-band 3-axis
Marine Satellite Antenna Systems
Part No. 2014L1-DS0923-V4
Physical
Radome Height 151.4cm / 59.63”
Radome Diameter 138cm / 54.33”
Reector Diameter 105cm / 41.3”
Weight 93.9kg / 207lbs
Environmental
Operating Temp. Range -25°C to +55°C / -13°F to +131°F
Storage Temp. Range -40°C to +80°C / -40°F to +176°F
Water Ingress IPX6
Approvals CE / FCC
Warranty 3 year parts and 1 year labor
Performance
Reception Frequency Ku-band (10.7~12.75GHz)
Polarization Circular / Linear auto-switchable
Minimum EIRP 42dBW
Azimuth Range 680º
Elevation Range -15º to +120º
Ship’s Motion Roll ±25°, Pitch ±15°, Yaw ±8° @ 6 sec period
Turning Rate Up to 12°/sec & 5°/sec²
RF Output Quad Output
Antenna Control Unit (ACU)
RF2
RF3
RF4
Receiver 1
RF1 RF
Receiver 2
Receiver 3
Receiver 4
*Receivers are not supplied
System Diagram
LNB Output RF1 RF2 RF3 RF4
Dual
• •
- -
Quad
••••
Coverage Map
Note
• LNB stability: ±10 kHz (Except at Universal 9.75 GHz)
• LNB LO frequencies can be extended
• LNB LO frequencies are automatically changed according to target satellites
• Polarization can be switched between circular and linear
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 38cm x 4.4cm / 17” x 15” x 1.7”
Weight 3.5kg / 7.7lbs
Display 2 line 40 Character VFD module
GPS Interface Built-in (NMEA 0183 GPS)
Power Requirement 100~240V AC, 50~60Hz, 2A
Power Consumption Typ.50W, Max. 100W
LNB LO Frequencies
Local Oscillator Frequency Polarization Area
11.250 GHz Dual Circular North America, Russia
10.500 GHz Dual Circular Latin America
10.750 GHz Single Circular Korea
10.750 GHz Dual Circular China
10.678 GHz Single Circular Japan
11.300 GHz Dual Linear South East Asia
10.700 GHz Dual Linear Australia
Universal
Low: 9.75 GHz High: 10.6 GHz Quad Linear Europe, Middle East, Africa,
some Asia countries
