Simple Conversion From Ku to Ka
The v100 can be easily and quickly converted from Ku-band system
to a Ka-band system with the mounting hardware equipped with an
integrated RF module consisting of the BUC and LNB. The BUC &
LNB assembly is attached to the rear side of the reector through a
simple process, with no need to balance the system after conversion.
The Ku-band feed can be easily and swiftly replaced with the Ka-band
feed and is included in the Ku-to-Ka Conversion kit.
Ku and Ka-Band Optimized Reflector
The v100 is designed and engineered to operate on Ku and Ka-bands
while maximizing the RF performance on both bands. The reector
of the v100 is capable of handling either Ku or Ka-Bands, eliminating
the need to replace the reector when switching between bands.
Frequency Tuned Radome
To ensure efcient operations for both Ku-band and Ka-band systems,
the signal loss of the radome itself was minimized and the performance
maximized with an optimized radome design that enhances both the
Ka-band an Ku-band system performance.
Patent Pending Intellian Global PLL LNB
The v100 is equipped with Intellian’s patent pending Global PLL LNB
as standard. Intellian’s new Global PLL LNB presents the world’s rst
Ku-band LNB module capable of recieving a full range of operating
frequencies from any VSAT satellite around th globe. The PLL LNB
incorporates user programmable support of an unlimited number of
LO (Local Oscillator) frequencies. This uniquely innovative capability of
remotely changing the frequencies of the LNB makes the v100 by far
the only system that is ready for Global Ku-band VSAT service to date.
Auto Beam Switching (ABS) Available
The v100 supports ABS via OpenAMIP protocol of iDirect and the
ROSS Open Antenna Management (ROAM) protocol of Comtech.
Gyro-Free Satellite Search Capabilty
Intellian’s new generation Gyro-free satellite search function enables
the v100 to acquire and lock onto the satellite without requiring a
separate input from the ship’s gyrocompass.
Ku-Band Marine Stabilized VSAT System
with 3-axis & 1m Reflector Diameter
v100
PRODUCT BRIEF
PRODUCT BRIEF

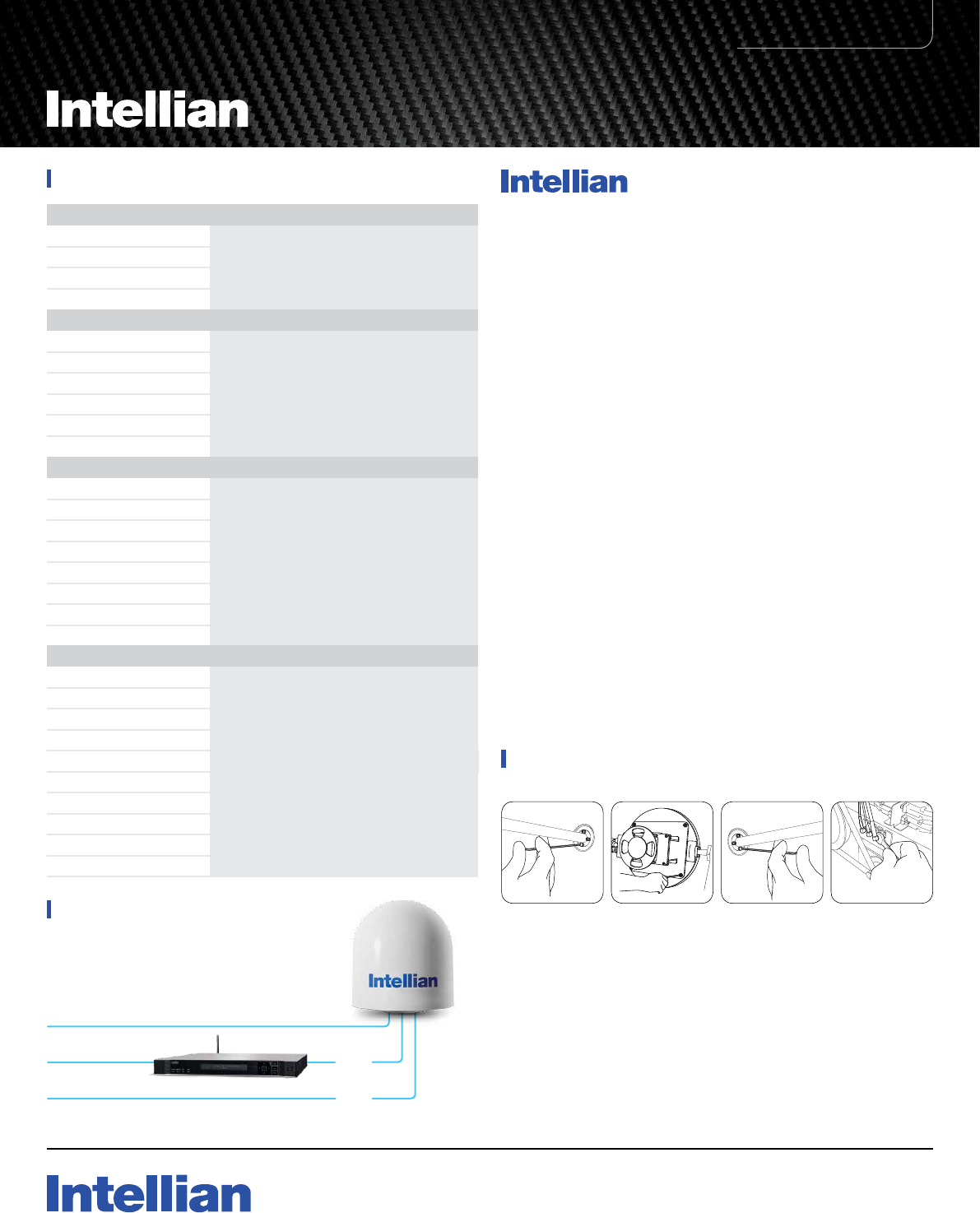

TECHNICAL SPECIFICATIONS
Technical Specifications
Physical
Radome Height 151.4cm / 59.63”
Radome Diameter 138.0cm / 54.33”
Reector Diameter 103cm / 41”
Weight Approx. 128kg / 282lbs
Stabilized Pedestal Assembly
Platform 3-axis : Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -20° to +115°
Cross-level Range Up to ±37°
Stabilization Accuracy 0.2° peak mis-pointing @ max ship motion condition
Motor Brake System Elevation, Cross-level
Reflector & Feed Assembly
TX Frequency 13.75 ~ 14.5GHz Ku-band
TX Gain 41.6dBi @ mid band
RX Frequency 10.7 ~ 12.75GHz Ku-band
RX Gain 39.4dBi @ mid band
G/T > 19.6dB/K (Clear Sky, 30° Elevation)
BUC Power 8W, 16W (optional)
LNB Intellian PLL LNB
Polarization Cross-pol and Co-pol
Part No. 2016v100-DS1201-V5
System Diagram
TX
Satellite Modem
RX
AC 100 ~ 240V
AC 100 ~ 240V
is a 1m Ku-band maritime stabilized
antenna, a ready-to-use system for Ka-band service.
The v100 offers a robust, affordable, plug and play conversion kit to
enable a smooth upgrade path from Ku to Ka service in as little as 10
minutes without requiring a factory trained technician. With the improved
Ku-band RF performance from the v110, the Ka-band RF performance
of the v100 is optimized for Ka-band service at the same time.
The v100’s high-gain, highly efcient reector and tuned radome ensure
the best service quality available when congured for Ku or Ka-band
operation. In addition, the v100 supports low elevation angle (-20°)
capability to quarantee reliable connection at extremely high latitude.
The v100’s seamless end-to-end solution is to offer hassle-free installation,
operation, and maintenance. The v100 provides a newly developed,
graphic-based antenna remote control program with an additional Software
Development Kit (SDK), allowing the NOC or service center to integrate
antenna monitoring and control into its existing network management
systems in a easier, user-friendly, and convenient manner.
The v100 is avaliable in 3 models that support 4W, 8W, and 16W BUC
sizes. All models are built with Co-pol and Cross-pol feed and come
equipped with Intellian’s Global PLL LNB as standard.
4 step Conversion
4. Use same cable connector for Ku-Band BUC/LNB assembly and
Ka-Band BUC/LNB assembly.
3. Attach the Ka-band feed by inserting 4 bolts.
1. Remove the Ku-band feed by removing 4 bolts.
2. Remove the Ku-band BUC/LNB assembly by taking 4 bolts out
and attach the Ka-band BUC/LNB assembly by inserting 4 bolts.
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 38.1cm x 4.4cm / 17” x 15” x 1.7”
Weight 3.5kg / 7.7lbs
Display 2 line 40 character graphic VFD module
Gyrocompass Interface NMEA / NMEA 2000
Modem Interface Ethernet port / RS-232C / I/O ports
Modem Protocol iDirect, Comtech, SatLink, Hughes, GILAT
Remote Management Yes
Wi-Fi Operation Yes
Management Port Yes
Power Requirement 100~240V AC, 50~60 Hz, 1A
Ku-Band Marine Stabilized VSAT System
with 3-axis & 1m Reflector Diameter
v100
v100
