PRODUCT BRIEF
Remote Management Solution
The v130 can be accessed, monitored, and controlled from any location
in the world. Furthermore, hundreds of routine maintenance activities can
be automated. These solutions include operating rmware upgrades,
tracking parameters resets and system diagnosis.
Save Installation and Maintenance Time
Simple design allows users to install and setup the system without the
need for a skilled engineer. The v130 provides the utmost in reliability
resulting in time and cost savings in maintenance.
Gyro-free Satellite Search Capability
Intellian’s new generation Gyro-free satellite search function enables the
v130 to acquire and lock onto the satellite without requiring a separate
input from the ship’s gyro-compass.
v130
Open Platform Compatibility
The v130 is fully integrated with ABS (Automatic Beam Switching) function
with leading service providers who use the embedded OpenAMIP protocol
of the iDirect platform and v130 is also compatible with various platforms
such as Hughes, Comtech, SatLink and more.
Superior RF Performance
Major RF components are designed and manufactured by Intellian’s solid
in-house engineering to achieve superior antenna gain and xpol isolation
recognized among the best performances in the industry.
Wide Elevation Range
The wide elevation range from -20° to 120° enables the v130 to have
seamless signal reception while the vessel is traveling near the Equator
or Polar Regions.
Marine Stabilized Ku-band
Communication Antenna System with 3-axis and 125cm Dish Diameter
PRODUCT BRIEF
Satellite
Modem
Antenna
Control Unit
TX
Modem InterfaceAntenna RX
Antenna RX
8W BUC Power (48 V DC)
*Modem is not supplied
Part No. 2013Q0-DS1128-V2_0
TECHNICAL SPECIFICATIONS
Technical Specifications
v130 125cm Ku-band 3-axis
Marine Satellite Antenna Systems
Radome & Antenna
Radome Height 168.9cm / 66.5”
Radome Diameter 165.2cm / 65”
Antenna Dish Diameter 125.0cm / 49.2”
Weight 149.7kg / 337lbs (variable w/ RF components)
Stabilized Pedestal Assembly
Pedestal Type 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -20º to +120º
Cross-level Range Up to ±37º
Stabilization Accuracy 0.2° peak mis-pointing @ max ship motion condition
Reflector & Feed Assembly
TX Frequency 13.75 ~ 14.5 GHz Ku-band
TX Gain 43.2 dBi @ Mid band
RX Frequency 10.95 ~ 12.75 GHz Ku-band
RX Gain 42.1 dBi @ Mid band
G/T > 20.2dB/K (Clear Sky, 30° Elevation)
BUC Power 8W, 16W (optional)
LNB Intellian PLL LNB
Polarized Feed Cross-pol and Co-pol as standard
LNB Pol Control Automatic LNB-pol angle control

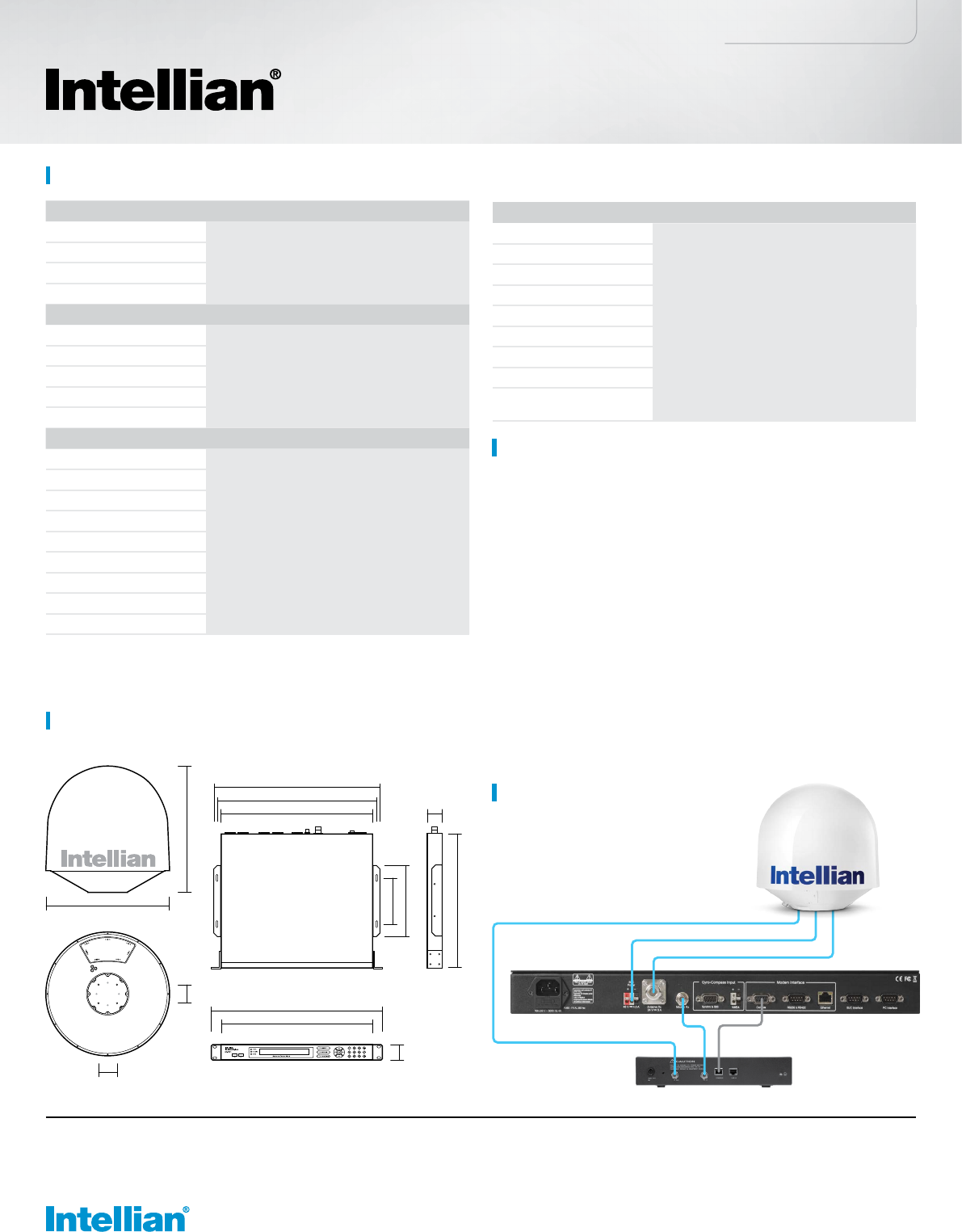

System Dimension
System Diagram
Intellian has more worldwide ofces. Addresses, phone numbers, and fax numbers are listed on the Intellian Website at intelliantech.com
Americas HQ
Irvine Office
Intellian Technologies USA, Inc.
T +1 949 727 4498
F +1 949 271 4183
Toll Free +1 888-201-9223
EMEA HQ
Rotterdam Office
Intellian B.V.
T +31 1 0820 8655
F +31 1 0820 8656
EMEA
Southampton Office
Intellian Ltd.
T +44 2380 019 021
F +44 2380 767 092
South America
Brazil Office
Intellian do Brasil Tecnologia Ltda.
T +55 21 3176 2048
F +55 21 9612 1431
APAC
Seoul Office
Intellian Technologies, Inc.
T +82 2 511 2244
F +82 2 511 2235
Global HQ
Innovation Center/Factory
Intellian Technologies,Inc
T +82 2 511 2244
F +82 2 511 2235
©2013 Intellian Technologies, Inc. All rights reserved. Intellian and the Intellian logo are registered trademarks. v130 and v-Series are trademarks of Intellian Technologies, Inc. in the U.S. and/or
various countries. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice. ISO9001 / ISO14001 Certied
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 38.1cm x 4.4cm / 17” x 15” x 1.7”
Weight 5.2kg / 11.5 lbs
Display 2 line 40 character graphic VFD module
Ship’s Gyrocompass Interface NMEA / Synchro
Modem Interface Ethernet port / RS-232C / I/O ports
Modem Protocol iDirect, Comtech, SatLink, Hughes, GILAT
Remote Management Yes
Wi-Fi Operation N/A
Power Requirement 100~240 V AC, 50~60 Hz
(max 350 W including 8 W BUC power)
Gyro-free Operation
Without requiring heading device input Quick setup to reduce
installation time
Remote Access
Built-in web interface, Remote rmware upgrade
Customized Satellite Library
Additional satellite information setting not required for installation.
Automatic Diagnosis
Encoder, Motor, Tilt/Gyro sensor, LNB pol control, LNB,
Antenna & ACU power, Modem connection, I/F
DC Power Separation
Rotary joint - TX and RX IF signal Slip ring - Antenna power and
8W BUC power
Key Features
46.5 cm (18.3")
48.5 cm (19.1")
3.2 cm (1.3")
43.1 cm (17")
45.3 cm (17.8")
47.3 cm (18.6")
4.4 cm (1.7")
13 cm (5.1")
20 cm (7.9")
38.1 cm (15")
168.9 cm (66.5")
165.2 cm (65")
24.7 cm (9.7")
24.7 cm (9.7")
