PRODUCT BRIEF
Automatic Polarization Switching
Featuring patented technology available only on select Intellian models,
the v240C allows you to effortlessly and automatically switch between
linear and circular c-band polarization, wherever you go, with ease and
convenience. Simply select a polarization from the ACU or PC-based
control software, and the unit does the rest of the work for you, auto-
adjusting itself to receive the desired signal.
Wide Elevation Angle
The v240C’s wide-look angle pedestal design is excellently suited for
extremely low or high latitude areas, such as the Scandinavian Peninsula
or the Equatorial regions. Empower your vessel with the ability to travel
far and wide, without the worry of signal loss!
Motor Brakes
Motor brakes on the elevation and cross-level components prevent dish
damage from sudden movements and/or shock when the unit is powered
off, in transport, or in storage.

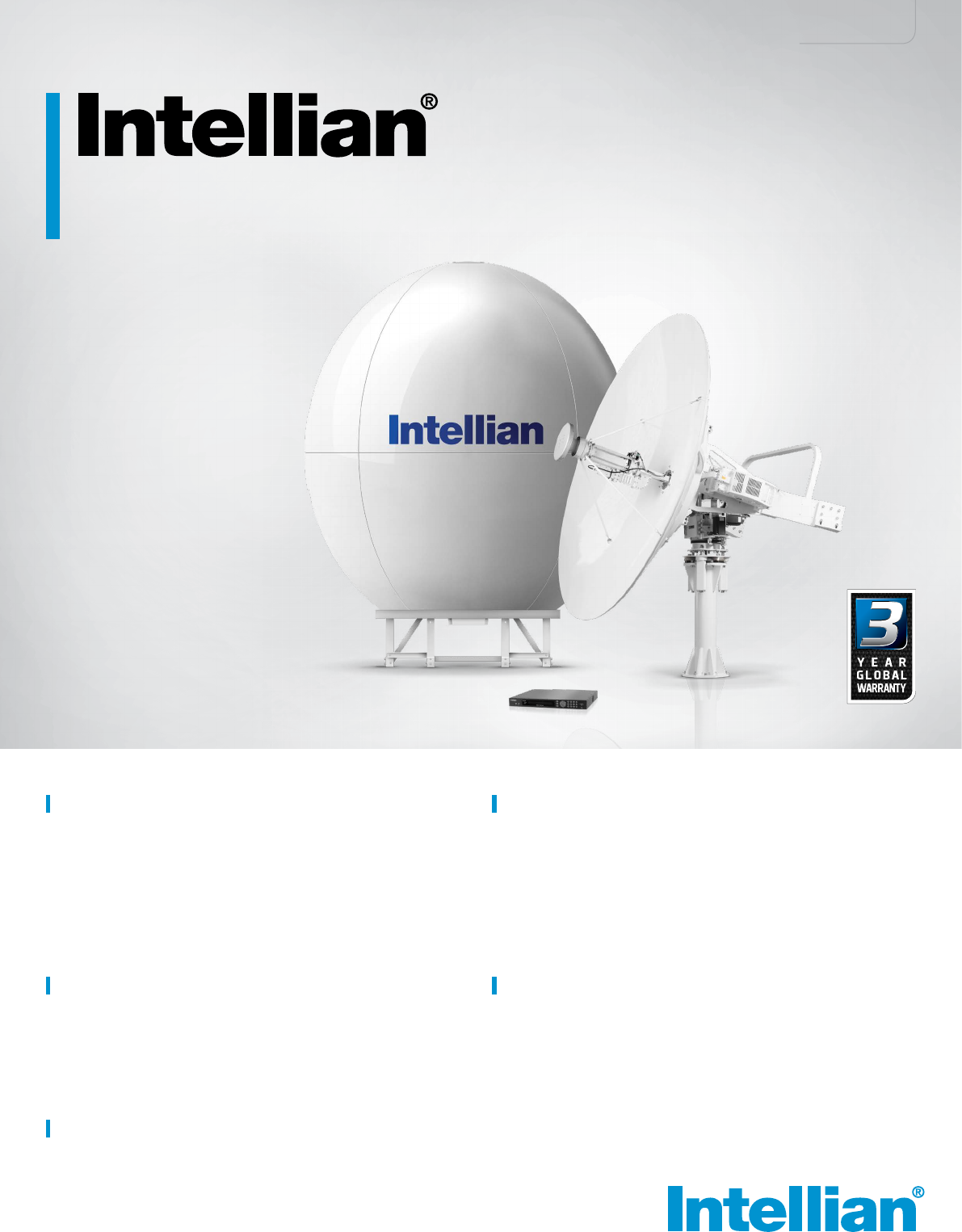

v240C
Easy Installation, Setup and Operation
With the v240C, installation and setup are easier than ever. Once a
satellite’s peak signal position is acquired during rst-time setup, the
unit will automatically re- adjust accordingly every time it boots (bow,
home sensor offset, azimuth, and elevation position), saving you huge
amounts of time and effort.
Antenna Dome Features
The v240C antenna dome is combined with 12 panels which makes
easier to assemble than equivalent products. The unit comes with an
optional temperature control assembly that automatically provides the
dome enclosure’s interior with air conditioned cooling as needed. No
matter what the temperature is outside the dome, you can rest assured
that the unit will be fully functioning under optimal temperature condi-
tions inside the dome.
2.4m C-band Circular and Linear Polarization
Maritime VSAT Antenna System
PRODUCT BRIEFTECHNICAL SPECIFICATIONS
v240C 2.4m C-band Circular and Linear Polarization
Maritime VSAT Antenna System

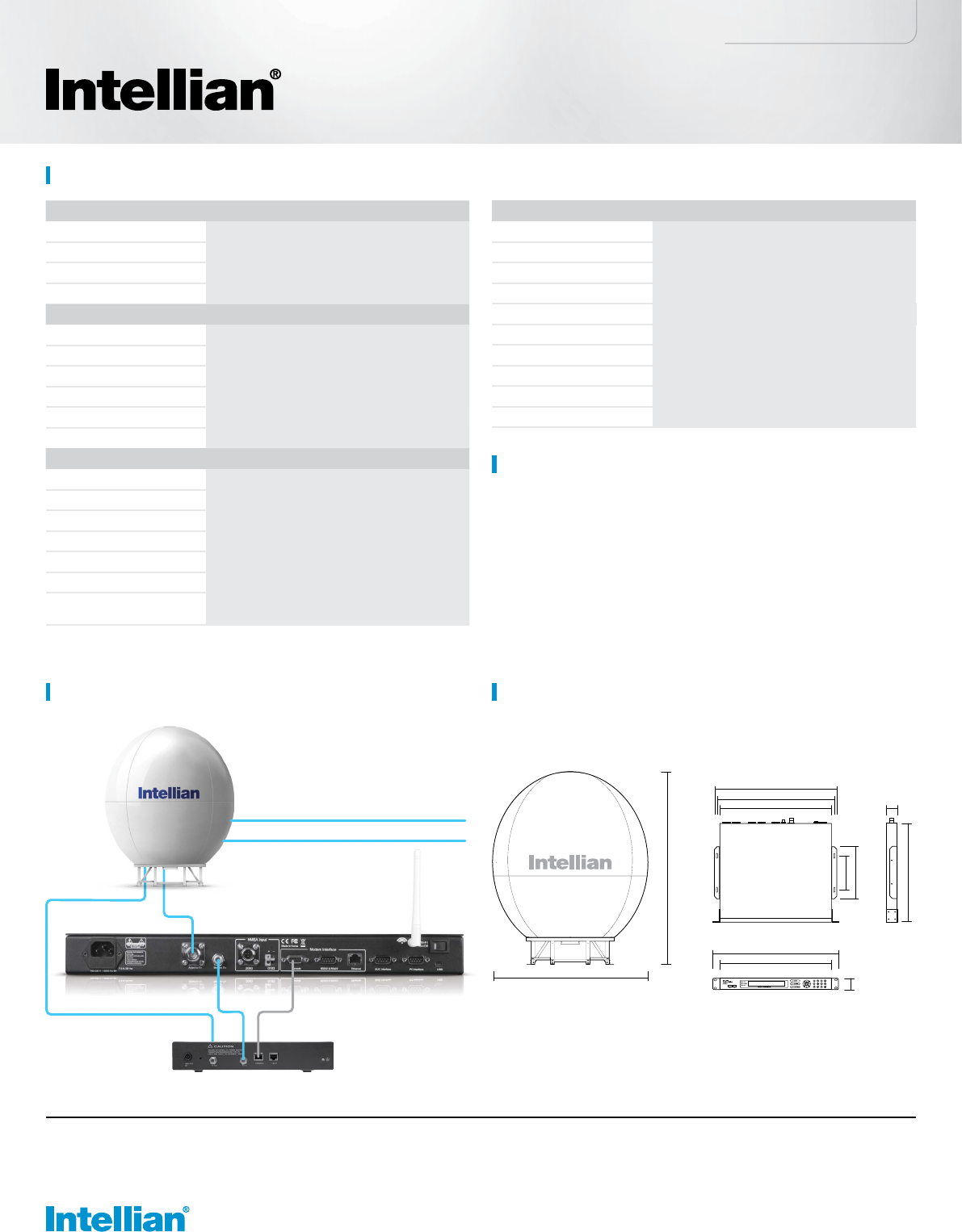

System Diagram
Technical Specifications
Radome & Antenna
Radome Height 410cm / 161.4”
Radome Diameter 330cm / 130.0”
Antenna Dish Diameter 240cm / 94.5”
Weight 670kg / 1477 lbs
Stabilized Pedestal Assembly
Pedestal Type 3-axis : Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -15° to +120°
Cross-level Range ±30°
Stabilized Accuracy 0.2° peak mis-pointing @ max ship motion condition
Motor Brake System Elevation, Cross-level
Reflector & Feed Assembly
TX Frequency 5.85GHz ~ 6.425GHz
TX Gain 41.7dBi @ 6.14GHz (with Radome)
RX Frequency 3.625 GHz ~ 4.2 GHz
RX Gain 37.7 dBi @ 3.91GHz (with Radome)
G/T 20.0dB/K (Clear Sky, 20° Elevation)
BUC Power 25W, 40W (optional)
Polarization Circular Polarization & Linear Polarization,
Auto Switching
System Dimension
Pa r t N o. 2013 R 0- D S1113-V 2 _1
Intellian has more worldwide ofces. Addresses, phone numbers, and fax numbers are listed on the Intellian Website at intelliantech.com
Americas HQ
Irvine Office
Intellian Technologies USA, Inc.
T +1 949 727 4498
F +1 949 271 4183
Toll Free +1 888-201-9223
EMEA HQ
Rotterdam Office
Intellian B.V.
T +31 1 0820 8655
F +31 1 0820 8656
EMEA
Southampton Office
Intellian Ltd.
T +44 2380 019 021
F +44 2380 767 092
South America
Brazil Office
Intellian do Brasil Tecnologia Ltda.
T +55 21 3176 2048
F +55 21 9612 1431
APAC
Seoul Office
Intellian Technologies, Inc.
T +82 2 511 2244
F +82 2 511 2235
Global HQ
Innovation Center/Factory
Intellian Technologies,Inc
T +82 2 511 2244
F +82 2 511 2235
©2013 Intellian Technologies, Inc. All rights reserved. Intellian and the Intellian logo are registered trademarks. v240C and v-Series are trademarks of Intellian Technologies, Inc. in the U.S. and/or
various countries. All other trademarks are the property of their respective owners. Information in this document is subject to change without notice. ISO9001 / ISO14001 Certied
46.5 cm (18.3")
48.5 cm (19.1")
3.2 cm (1.3")
43.1 cm (17")
45.3 cm (17.8")
47.3 cm (18.6")
4.4 cm (1.7")
13 cm (5.1")
20 cm (7.9")
38.1 cm (15")
161.3" (409.7 cm)
129.9" (330 cm)
Antenna Dome
OMT
NBD
PLL LNB
WG Filter
BUC
Cable R/J
FSK Modem
RF Adaptor Box
Router
ACU
50Ω
75Ω
BUC to OMT cable:
N(m) to N(m)
BUC to Cable R/J:
N(m) to SMA(m)
R/J to Adaptor
SMA(m) to SMA (m)
FSK to NBD :
F(m) to F(m)
Ant(Rx) Modem(Rx)
BUC to Cable R/J:
N(m) to SMA(m)
NBD to LNB
F(m) to F(m)
ACU Key Features
• Firmware updates can easily and reliably be made through the ACU
without any hardware replacements utilizing Intellian’s custom updating.
• Wi-Fi supported ACU provides convenient connection to the ACU
for setup and system monitoring.
• TCP/IP supports a wide range of modem interface formats
(including Ethernet, console, RS232).
Air Conditioner Power
220V AC
90~260V AC
Antenna
Control Unit
Modem InterfaceModem RXModem TX
Antenna RX
Satellite
Modem
*Modem is not supplied
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 38.1cm x 4.4cm / 17” x 15” x 1.7”
Weight 3.0kg / 6.6 lbs
Display 2 line 40 character graphic VFD module
Ship’s Gyrocompass Interface NMEA / NMEA 2000
Modem Interface Ethernet port / RS-232C / I/O ports
Modem Protocol iDirect, Comtech, SatLink, Hughes, GILAT
Remote Management Yes
Wi-Fi Operation Yes
Management Port N/A
Power Requirement 90~260V AC, 47~63 Hz, 1A
