Marine Stabilized Ku-band
3- axis Communication Antenna System with 60cm Reflector Diameter
v60G
PRODUCT BRIEF
Gyro-free satellite search capability
Intellian’s new generation gyro-free satellite search function enables
the v60G to acquire and lock onto the satellite without requiring a
separate input from the ship’s gyro-compass.
Aptus remote management
The v60G can be accessed, monitored, and controlled from any lo-
cation in the world. Additionally, routine maintenance activities can
be automated. Aptus helps automate rmware upgrades, tracking
parameter adjustment, and system diagnosis.
Wireless & Networking connectivity
The built in Wi-Fi enables connectivity with Intellian Aptus Mobile for
advanced system control and monitoring, including One-Touch satellite
library and rmware updates. The new Intellian LAN port on the ACU
provides networking connectivity to other Intellian systems enabling
integrated monitoring and control of all the Intellian networked devices.
Save installation and maintenance time
The simplied design of v60G allows users to install and setup the
system with out the need for a skilled engineer. Additionally, the v60G
provides the utmost in reliability resulting in time and cost savings in
maintenance.
Dual VSAT mediator
An available unit ensuring uninterrupted, always-on broadband com-
munications. Designed to communicate with two Antenna Control Units
(ACU) simultaneously, the Dual VSAT Mediator is ideal for redundant
antenna environments. The Mediator automates switching between
two antenna systems within 60 milliseconds.
Combined BUC power and TX signal
The v60G offers a single cable solution that supplies 48V DC power
and the TX signal together from its control unit via one RF cable.
Intellian makes it simpler to install or retrot.
TECHNICAL SPECIFICATIONS
Antenna TX + 48V BUC Power
Modem TX
Satellite
Modem
Antenna
Control Unit
Modem Interface
* Modem is not suppied
Modem RX
Antenna RX
Part No. 2016N1-DS1026_V7
Technical Specifications
Physical
Radome Height 84.5cm / 33.3”
Radome Diameter 78.0cm / 30.7”
Reector Diameter 60.0 cm / 23.6”
Weight 59.5kg / 131.2lbs (variable w/ RF components)
Stabilized Pedestal Assembly
Platform 3-axis / Azimuth, Elevation, Cross-level
Azimuth Range Unlimited
Elevation Range -10° to 100°
Cross-level Range ±30°
Stabilization Accuracy 0.2° peak mis-pointing @ max ship motion condition
Motor Brake System Elevation, Cross-level
Reflector & Feed Assembly
TX Frequency 13.75~14.5 GHz Ku-band
TX Gain 37dBi @ Mid band
RX Frequency 10.95~12.75 GHz Ku-band
RX Gain 35.6dBi @ Mid band
G/T 15.0dB/K (Clear Sky, 30° Elevation)
BUC 4W, 8W, 16W (optional)
LNB Intellian PLL LNB
Polarization Cross-pol & Co-pol / Cross-pol only
• Gyro-free Operation
Without requiring heading device input
Quick setup to reduce installation time
Fail safe redundancy
• Aptus software control
Built-in web interface
Automatic diagnosis
Remote rmware upgrade
Antenna monitor & control

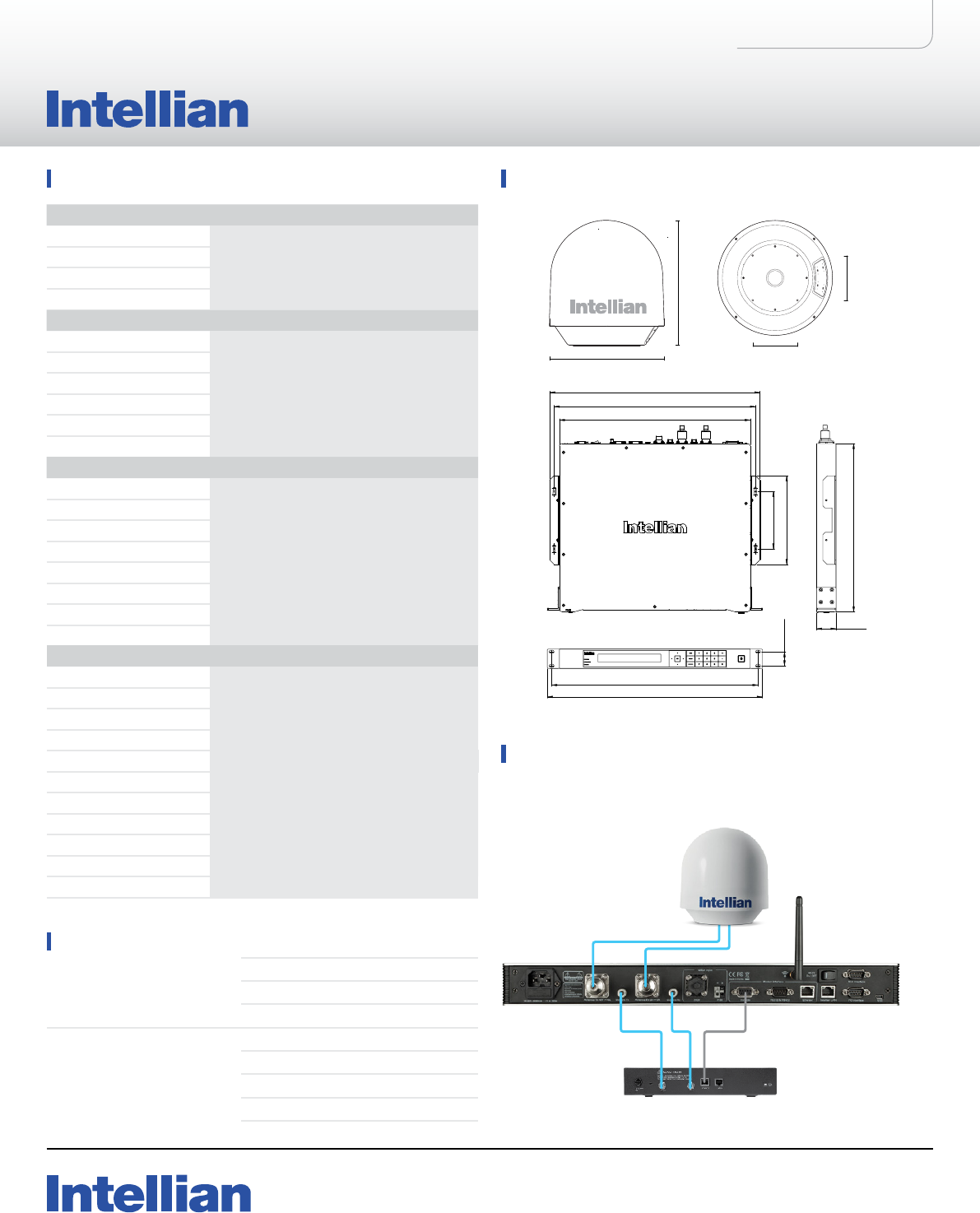

System Dimensions
System Diagram
Key Features
30.4 cm (12")
30.4 cm (12")
78 cm (30.7")
84.5 cm (33.3")
43.1 cm (17")
47.5 cm (18.7")
20.0 cm (7.9")
45.5 cm (17.9")
13.0 cm (5.1")
48.5 cm (19.1")
46.6 cm (18.4")
3.2 cm (1.3")
4.4 cm (1.7")
38 cm (15")
Two coaxial cables from antenna to ACU 8W BUC power through antenna TX line.
No ship gyrocompass connection required.
Antenna Control Unit
Dimensions (WxDxH) 43.1cm x 38.1cm x 4.4cm / 17” x 15” x 1.7”
Weight 3.5kg / 7.7lbs
Display 2 line 40 character graphic VFD module
Gyrocompass Interface NMEA / NMEA 2000
Modem Interface Ethernet port / RS-232C / I/O ports
Modem Protocol iDirect, Comtech, SatLink, Hughes, GILAT
Remote Management Yes
Wi-Fi Operation Yes
Management Port Yes
Intellian LAN Port Yes
Power Requirement 100~240V AC, 50~60 Hz, 4A
60cm Ku-band 3-axis
Marine Satellite Antenna Systems
v60G
