Intelligent Automation orporated GRIDLOCKMOD Perimeter Detection Device User Manual User Guide

Intelligent Automation, Incorporated Perimeter Detection Device User Guide

User Guide

GRIDLOCK User Guide rev 2 February 13, 2017 __________________________________________________________________ Copyright This documentation is protected by United States and international copyright and other intellectual and industrial property laws. It is solely owned by Intelligent Automation, Inc. and its licensors and is distributed under a restrictive license. This product, or any portion thereof, may not be used, copied, modified, reverse assembled, reverse compiled, reverse engineered, distributed, or redistributed in any form by any means without the prior written authorization of Intelligent Automation, Inc. RESTRICTED RIGHTS: Use, duplication, or disclosure by the U.S. Government is subject to restrictions of FAR 52.227-14(g) (2)(6/87) and FAR 52.227-19(6/87), or DFAR 252.227-7015 (b)(6/95) and DFAR 227.7202-3(a), and any and all similar and successor legislation and regulation. Disclaimer This documentation is provided “as is” without warranty of any kind, either expressed or implied, including but not limited to, the implied warranties of merchantability or fitness for a particular purpose. This documentation might include technical inaccuracies or other errors. Corrections and improvements might be incorporated in new versions of the documentation. Intelligent Automation, Inc. does not assume any liability arising out of the application or use of any products or services and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Intelligent Automation, Inc. products are not designed for use in life support appliances, devices, or other systems where malfunction can reasonably be expected to result in significant personal injury to the user, or as a critical component in any life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness. Intelligent Automation, Inc. customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify and hold Intelligent Automation, Inc. and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Intelligent Automation, Inc. was negligent regarding the design or manufacture of its products. Intelligent Automation, Inc. reserves the right to make corrections, modifications, enhancements, improvements, and other changes to its products or services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to Intelligent Automation, Inc.'s terms and conditions of sale supplied at the time of order acknowledgment or sale. Intelligent Automation, Inc. does not warrant or represent that any license, either express or implied, is granted under any Intelligent Automation, Inc. patent right, copyright, mask work right, or other Intelligent Automation, Inc. intellectual property right relating to any combination, machine, or process in which Intelligent Automation, Inc. products or services are used. Information published by Intelligent Automation, Inc. regarding third-party products or services does not constitute a license from Intelligent Automation, Inc. to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from Intelligent Automation, Inc. under the patents or other intellectual property of Intelligent Automation, Inc. © Intelligent Automation, Inc., Inc. 2017. All Rights Reserved.

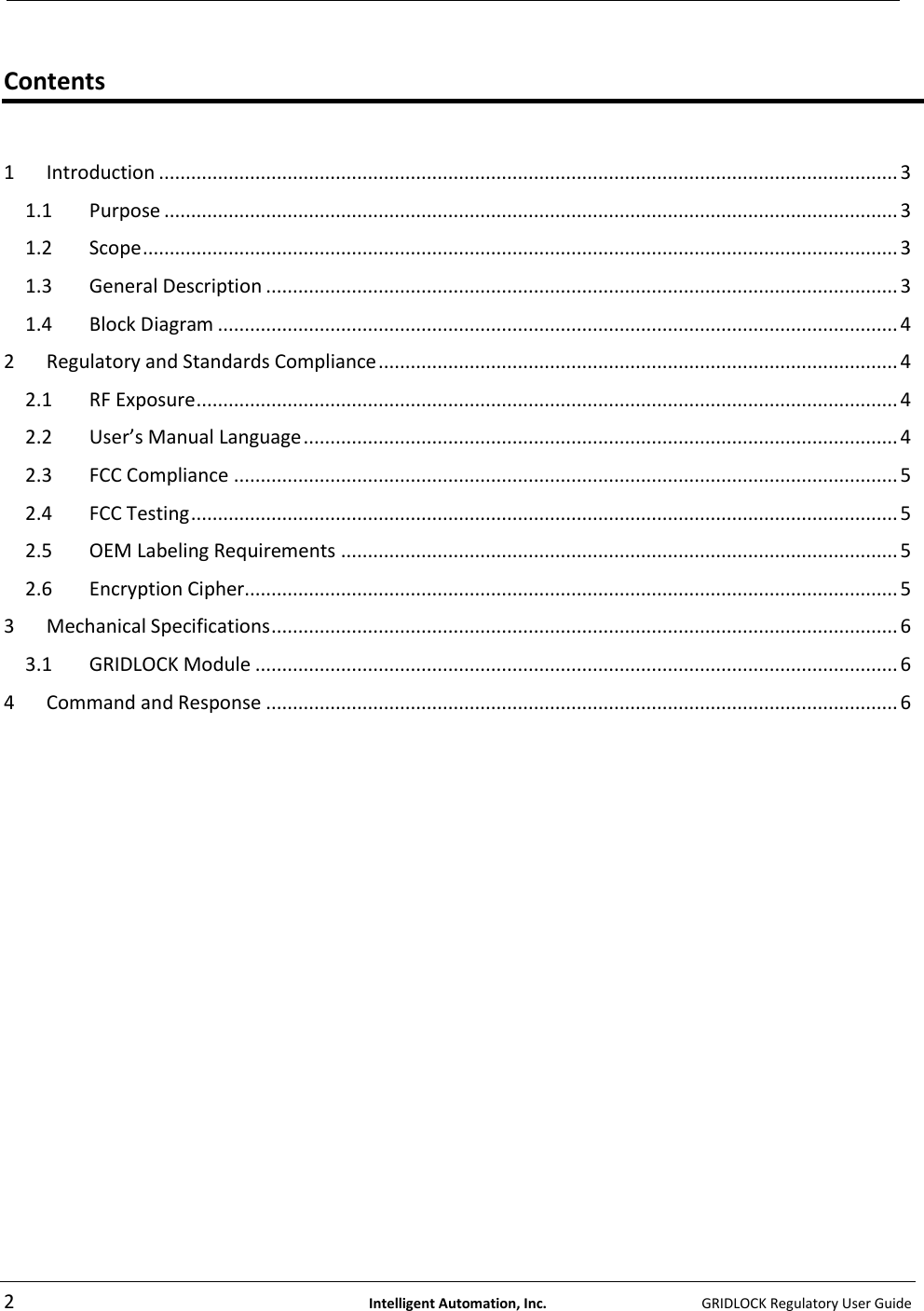

2 Intelligent Automation, Inc. GRIDLOCK Regulatory User Guide Contents 1 Introduction .......................................................................................................................................... 3 1.1 Purpose ......................................................................................................................................... 3 1.2 Scope ............................................................................................................................................. 3 1.3 General Description ...................................................................................................................... 3 1.4 Block Diagram ............................................................................................................................... 4 2 Regulatory and Standards Compliance ................................................................................................. 4 2.1 RF Exposure ................................................................................................................................... 4 2.2 User’s Manual Language ............................................................................................................... 4 2.3 FCC Compliance ............................................................................................................................ 5 2.4 FCC Testing .................................................................................................................................... 5 2.5 OEM Labeling Requirements ........................................................................................................ 5 2.6 Encryption Cipher.......................................................................................................................... 5 3 Mechanical Specifications ..................................................................................................................... 6 3.1 GRIDLOCK Module ........................................................................................................................ 6 4 Command and Response ...................................................................................................................... 6

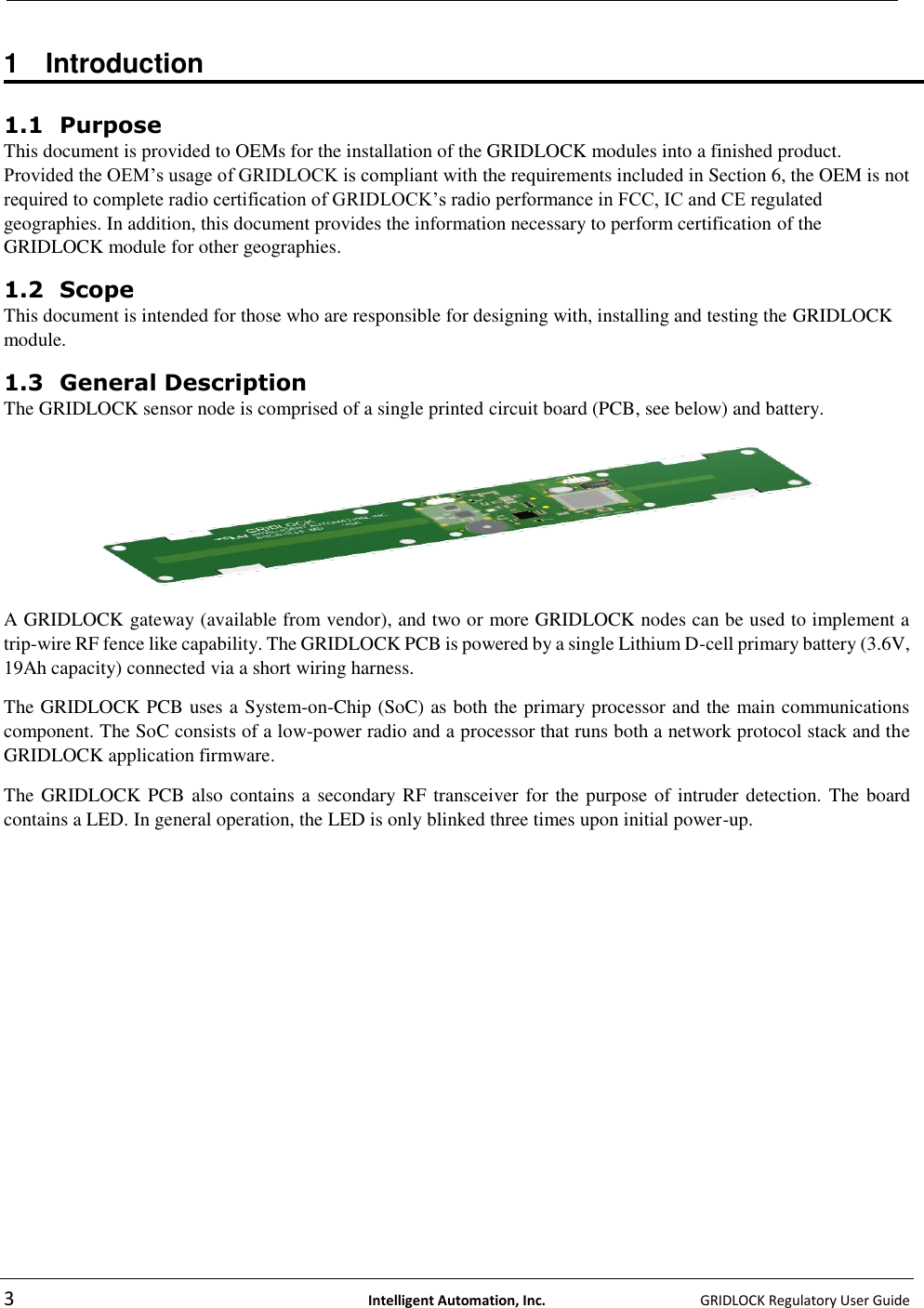

3 Intelligent Automation, Inc. GRIDLOCK Regulatory User Guide 1 Introduction 1.1 Purpose This document is provided to OEMs for the installation of the GRIDLOCK modules into a finished product. Provided the OEM’s usage of GRIDLOCK is compliant with the requirements included in Section 6, the OEM is not required to complete radio certification of GRIDLOCK’s radio performance in FCC, IC and CE regulated geographies. In addition, this document provides the information necessary to perform certification of the GRIDLOCK module for other geographies. 1.2 Scope This document is intended for those who are responsible for designing with, installing and testing the GRIDLOCK module. 1.3 General Description The GRIDLOCK sensor node is comprised of a single printed circuit board (PCB, see below) and battery. A GRIDLOCK gateway (available from vendor), and two or more GRIDLOCK nodes can be used to implement a trip-wire RF fence like capability. The GRIDLOCK PCB is powered by a single Lithium D-cell primary battery (3.6V, 19Ah capacity) connected via a short wiring harness. The GRIDLOCK PCB uses a System-on-Chip (SoC) as both the primary processor and the main communications component. The SoC consists of a low-power radio and a processor that runs both a network protocol stack and the GRIDLOCK application firmware. The GRIDLOCK PCB also contains a secondary RF transceiver for the purpose of intruder detection. The board contains a LED. In general operation, the LED is only blinked three times upon initial power-up.
4 Intelligent Automation, Inc. GRIDLOCK Regulatory User Guide 1.4 Block Diagram 2 Regulatory and Standards Compliance 2.1 RF Exposure The radiated output power of GRIDLOCK is far below the FCC radio frequency exposure limits. GRIDLOCK complies with FCC radiation exposure limits set forth for an uncontrolled environment. When nearby persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 20 cm (8 inches). GRIDLOCK shall not be co-located with any other transmitter within 20 cm; otherwise further transmitter testing may be required. 2.2 User’s Manual Language The user’s manual for end users must include the following information in a prominent location: IMPORTANT NOTE: To comply with FCC exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. IMPORTANT NOTE: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

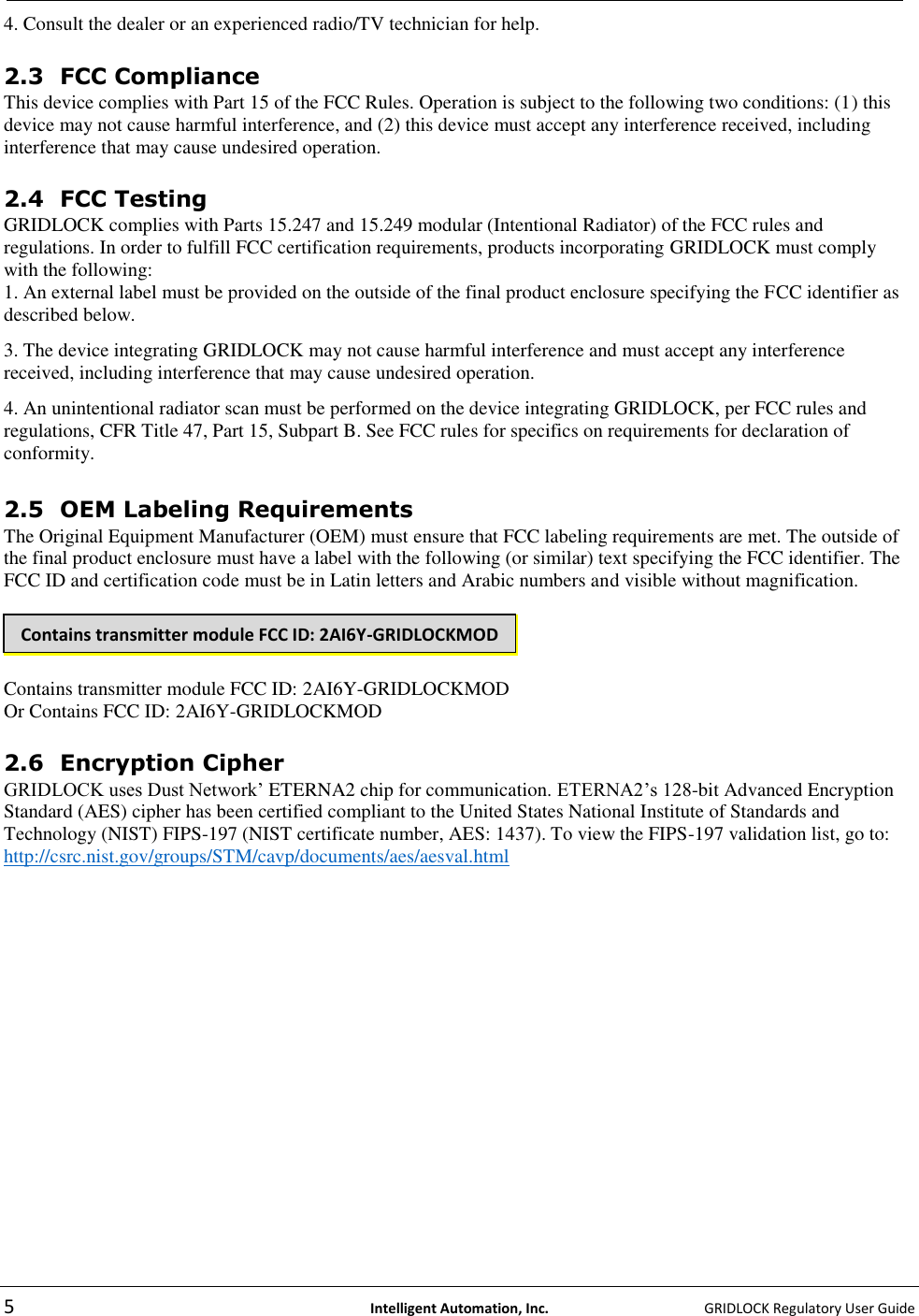

5 Intelligent Automation, Inc. GRIDLOCK Regulatory User Guide 4. Consult the dealer or an experienced radio/TV technician for help. 2.3 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.4 FCC Testing GRIDLOCK complies with Parts 15.247 and 15.249 modular (Intentional Radiator) of the FCC rules and regulations. In order to fulfill FCC certification requirements, products incorporating GRIDLOCK must comply with the following: 1. An external label must be provided on the outside of the final product enclosure specifying the FCC identifier as described below. 3. The device integrating GRIDLOCK may not cause harmful interference and must accept any interference received, including interference that may cause undesired operation. 4. An unintentional radiator scan must be performed on the device integrating GRIDLOCK, per FCC rules and regulations, CFR Title 47, Part 15, Subpart B. See FCC rules for specifics on requirements for declaration of conformity. 2.5 OEM Labeling Requirements The Original Equipment Manufacturer (OEM) must ensure that FCC labeling requirements are met. The outside of the final product enclosure must have a label with the following (or similar) text specifying the FCC identifier. The FCC ID and certification code must be in Latin letters and Arabic numbers and visible without magnification. Contains transmitter module FCC ID: 2AI6Y-GRIDLOCKMOD Or Contains FCC ID: 2AI6Y-GRIDLOCKMOD 2.6 Encryption Cipher GRIDLOCK uses Dust Network’ ETERNA2 chip for communication. ETERNA2’s 128-bit Advanced Encryption Standard (AES) cipher has been certified compliant to the United States National Institute of Standards and Technology (NIST) FIPS-197 (NIST certificate number, AES: 1437). To view the FIPS-197 validation list, go to: http://csrc.nist.gov/groups/STM/cavp/documents/aes/aesval.html Contains transmitter module FCC ID: 2AI6Y-GRIDLOCKMOD

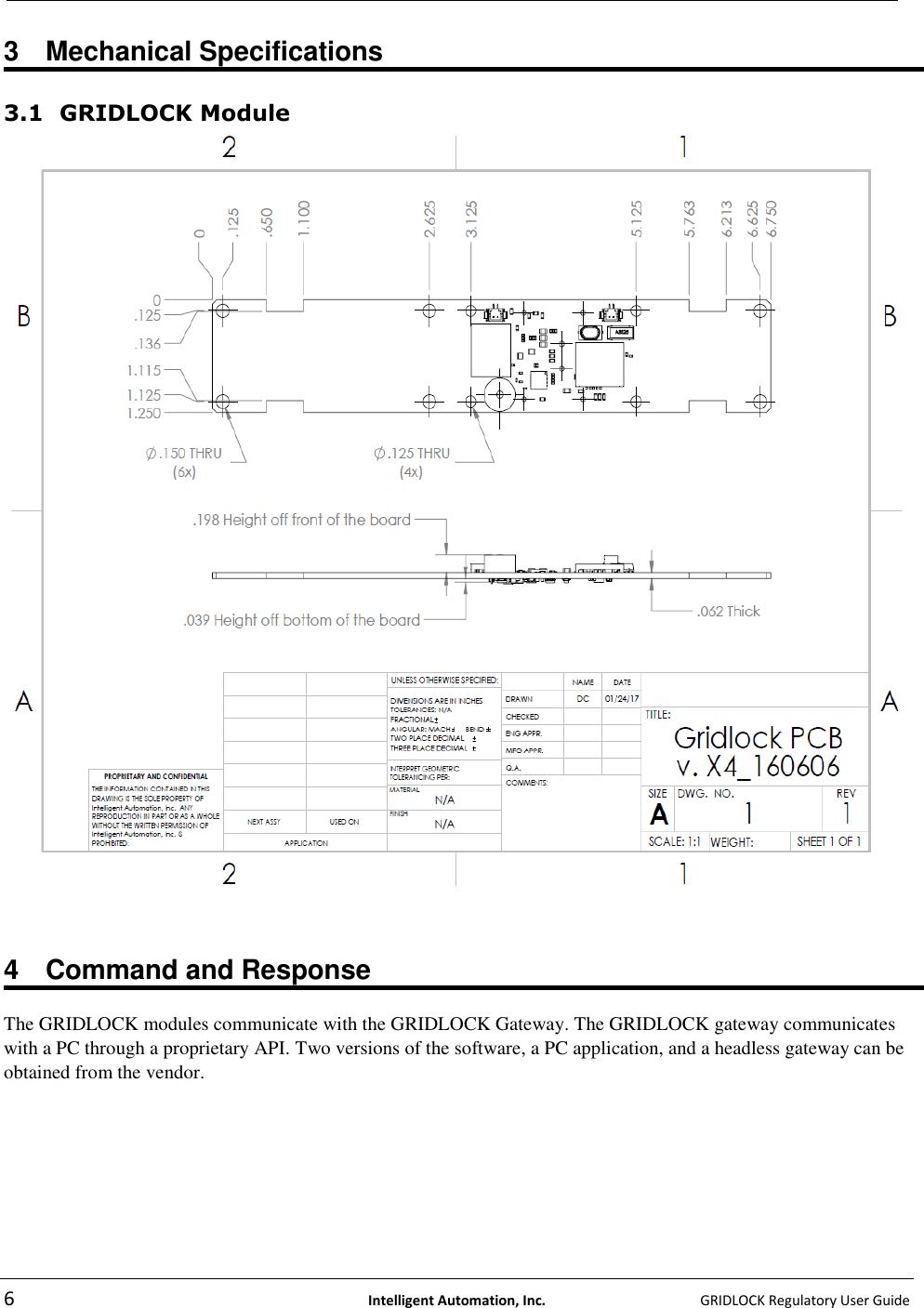

6 Intelligent Automation, Inc. GRIDLOCK Regulatory User Guide 3 Mechanical Specifications 3.1 GRIDLOCK Module 4 Command and Response The GRIDLOCK modules communicate with the GRIDLOCK Gateway. The GRIDLOCK gateway communicates with a PC through a proprietary API. Two versions of the software, a PC application, and a headless gateway can be obtained from the vendor.
