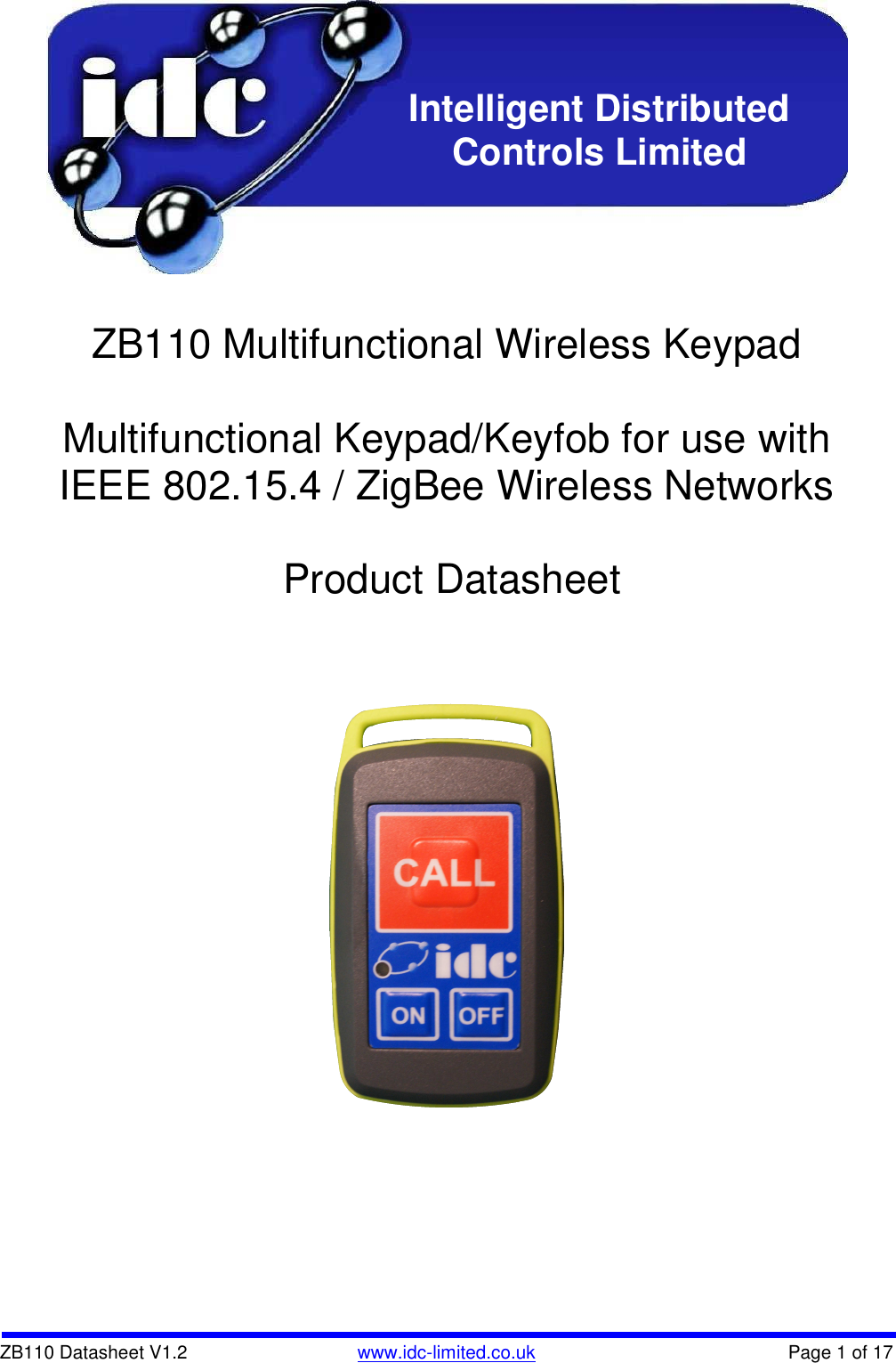

ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 1 of 17 ZB110 Multifunctional Wireless Keypad Multifunctional Keypad/Keyfob for use with IEEE 802.15.4 / ZigBee Wireless Networks Product Datasheet Intelligent Distributed Controls Limited

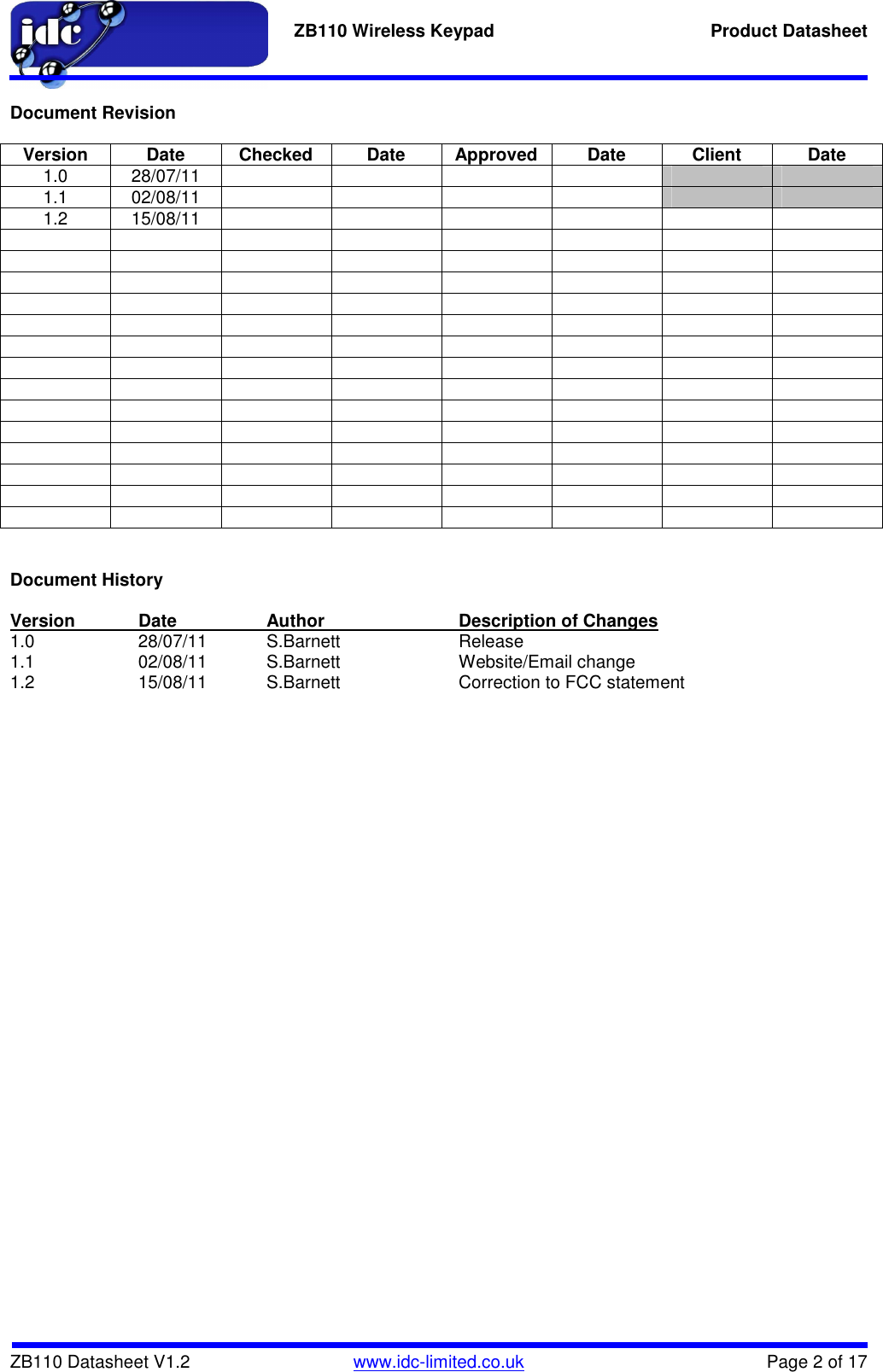

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 2 of 17 Document Revision Version Date Checked Date Approved Date Client Date 1.0 28/07/11 1.1 02/08/11 1.2 15/08/11 Document History Version Date Author Description of Changes 1.0 28/07/11 S.Barnett Release 1.1 02/08/11 S.Barnett Website/Email change 1.2 15/08/11 S.Barnett Correction to FCC statement

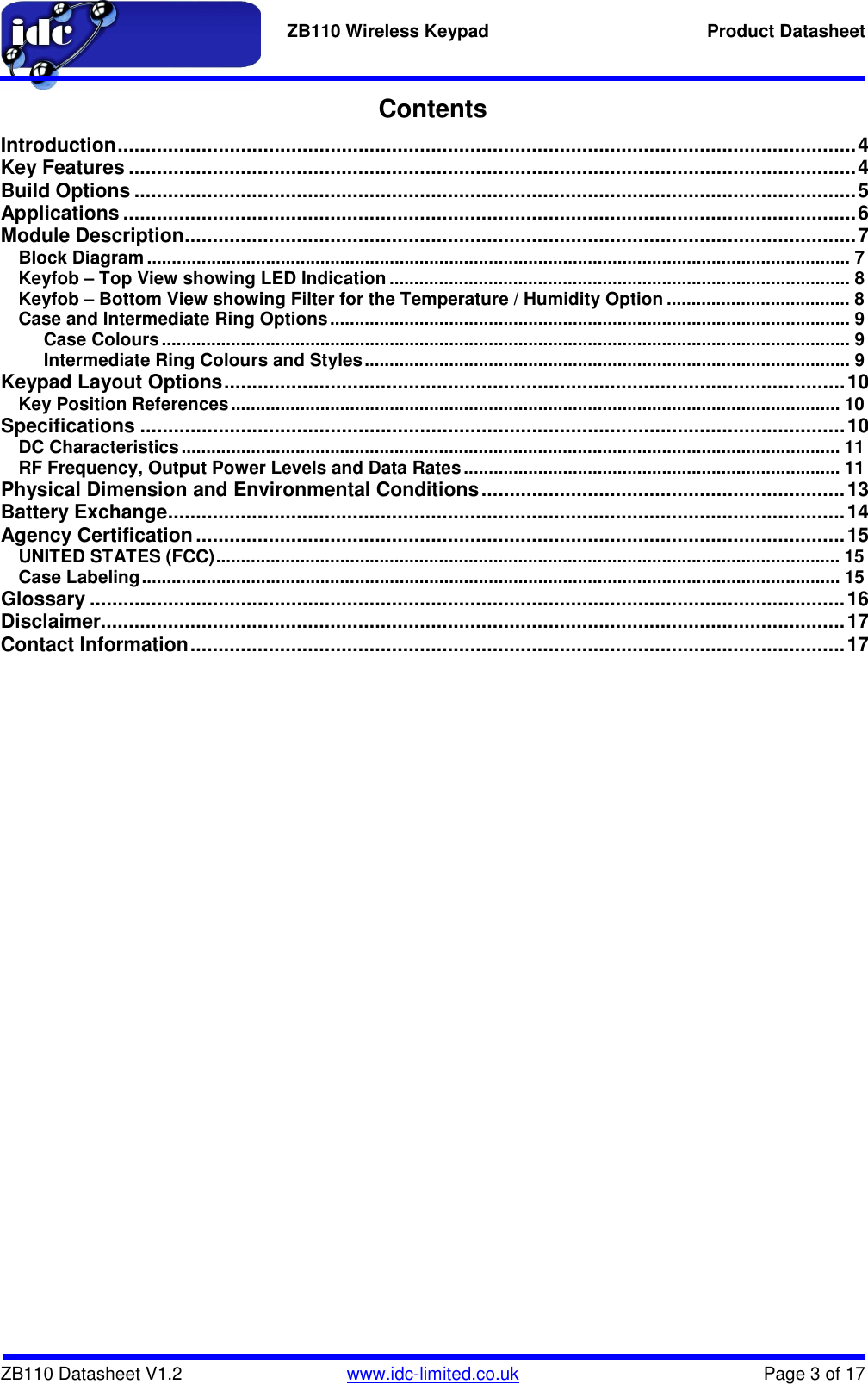

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 3 of 17 Contents Introduction .................................................................................................................................... 4 Key Features .................................................................................................................................. 4 Build Options ................................................................................................................................. 5 Applications ................................................................................................................................... 6 Module Description ........................................................................................................................ 7 Block Diagram .............................................................................................................................................. 7 Keyfob – Top View showing LED Indication ............................................................................................. 8 Keyfob – Bottom View showing Filter for the Temperature / Humidity Option ..................................... 8 Case and Intermediate Ring Options ......................................................................................................... 9 Case Colours ........................................................................................................................................... 9 Intermediate Ring Colours and Styles .................................................................................................. 9 Keypad Layout Options ............................................................................................................... 10 Key Position References ........................................................................................................................... 10 Specifications .............................................................................................................................. 10 DC Characteristics ..................................................................................................................................... 11 RF Frequency, Output Power Levels and Data Rates ............................................................................ 11 Physical Dimension and Environmental Conditions ................................................................. 13 Battery Exchange ......................................................................................................................... 14 Agency Certification .................................................................................................................... 15 UNITED STATES (FCC) .............................................................................................................................. 15 Case Labeling ............................................................................................................................................. 15 Glossary ....................................................................................................................................... 16 Disclaimer..................................................................................................................................... 17 Contact Information ..................................................................................................................... 17

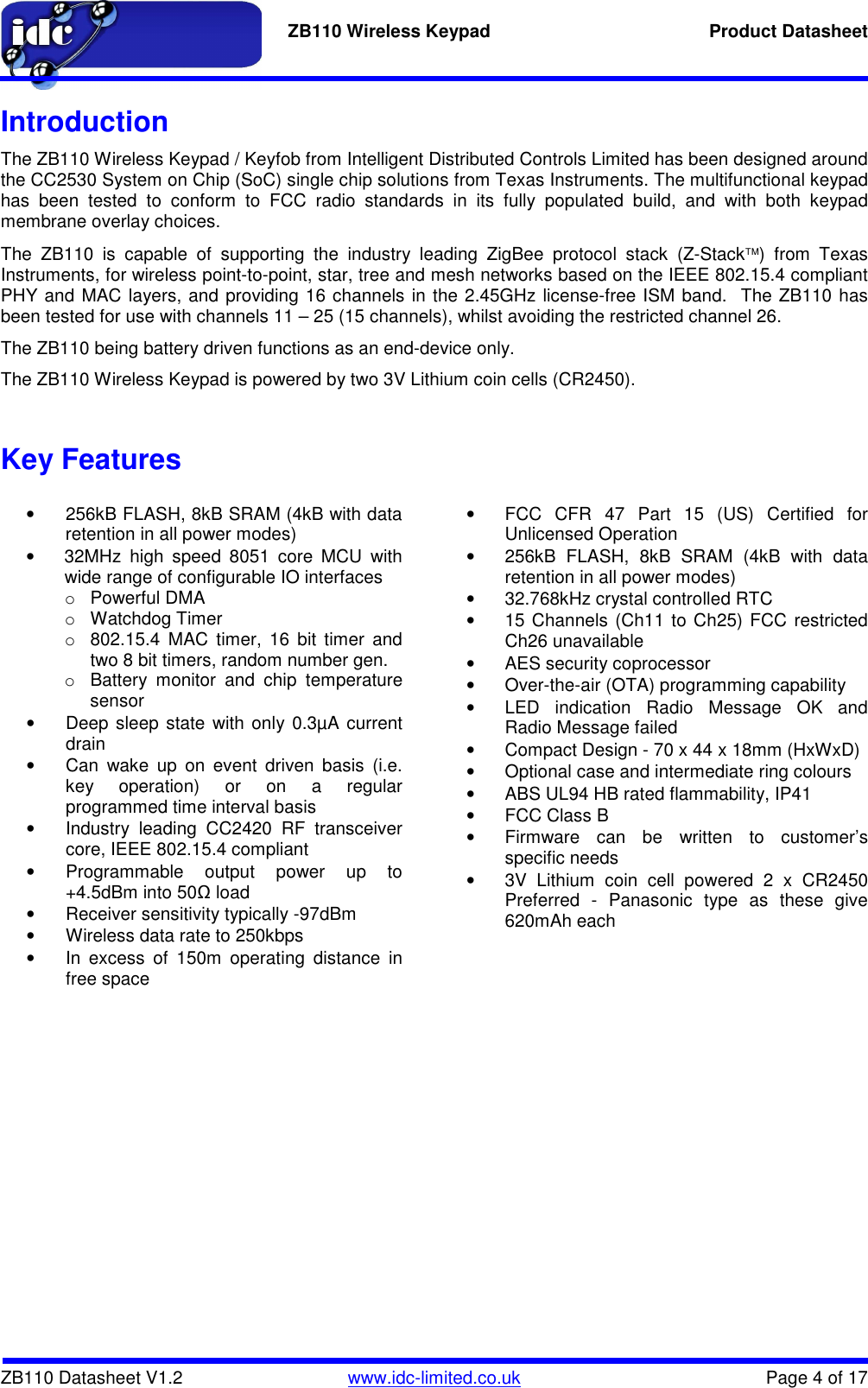

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 4 of 17 Introduction The ZB110 Wireless Keypad / Keyfob from Intelligent Distributed Controls Limited has been designed around the CC2530 System on Chip (SoC) single chip solutions from Texas Instruments. The multifunctional keypad has been tested to conform to FCC radio standards in its fully populated build, and with both keypad membrane overlay choices. The ZB110 is capable of supporting the industry leading ZigBee protocol stack (Z-Stack) from Texas Instruments, for wireless point-to-point, star, tree and mesh networks based on the IEEE 802.15.4 compliant PHY and MAC layers, and providing 16 channels in the 2.45GHz license-free ISM band. The ZB110 has been tested for use with channels 11 – 25 (15 channels), whilst avoiding the restricted channel 26. The ZB110 being battery driven functions as an end-device only. The ZB110 Wireless Keypad is powered by two 3V Lithium coin cells (CR2450). Key Features • 256kB FLASH, 8kB SRAM (4kB with data retention in all power modes) • 32MHz high speed 8051 core MCU with wide range of configurable IO interfaces o Powerful DMA o Watchdog Timer o 802.15.4 MAC timer, 16 bit timer and two 8 bit timers, random number gen. o Battery monitor and chip temperature sensor • Deep sleep state with only 0.3µA current drain • Can wake up on event driven basis (i.e. key operation) or on a regular programmed time interval basis • Industry leading CC2420 RF transceiver core, IEEE 802.15.4 compliant • Programmable output power up to +4.5dBm into 50Ω load • Receiver sensitivity typically -97dBm • Wireless data rate to 250kbps • In excess of 150m operating distance in free space • FCC CFR 47 Part 15 (US) Certified for Unlicensed Operation • 256kB FLASH, 8kB SRAM (4kB with data retention in all power modes) • 32.768kHz crystal controlled RTC • 15 Channels (Ch11 to Ch25) FCC restricted Ch26 unavailable • AES security coprocessor • Over-the-air (OTA) programming capability • LED indication Radio Message OK and Radio Message failed • Compact Design - 70 x 44 x 18mm (HxWxD) • Optional case and intermediate ring colours • ABS UL94 HB rated flammability, IP41 • FCC Class B • Firmware can be written to customer’s specific needs • 3V Lithium coin cell powered 2 x CR2450 Preferred - Panasonic type as these give 620mAh each

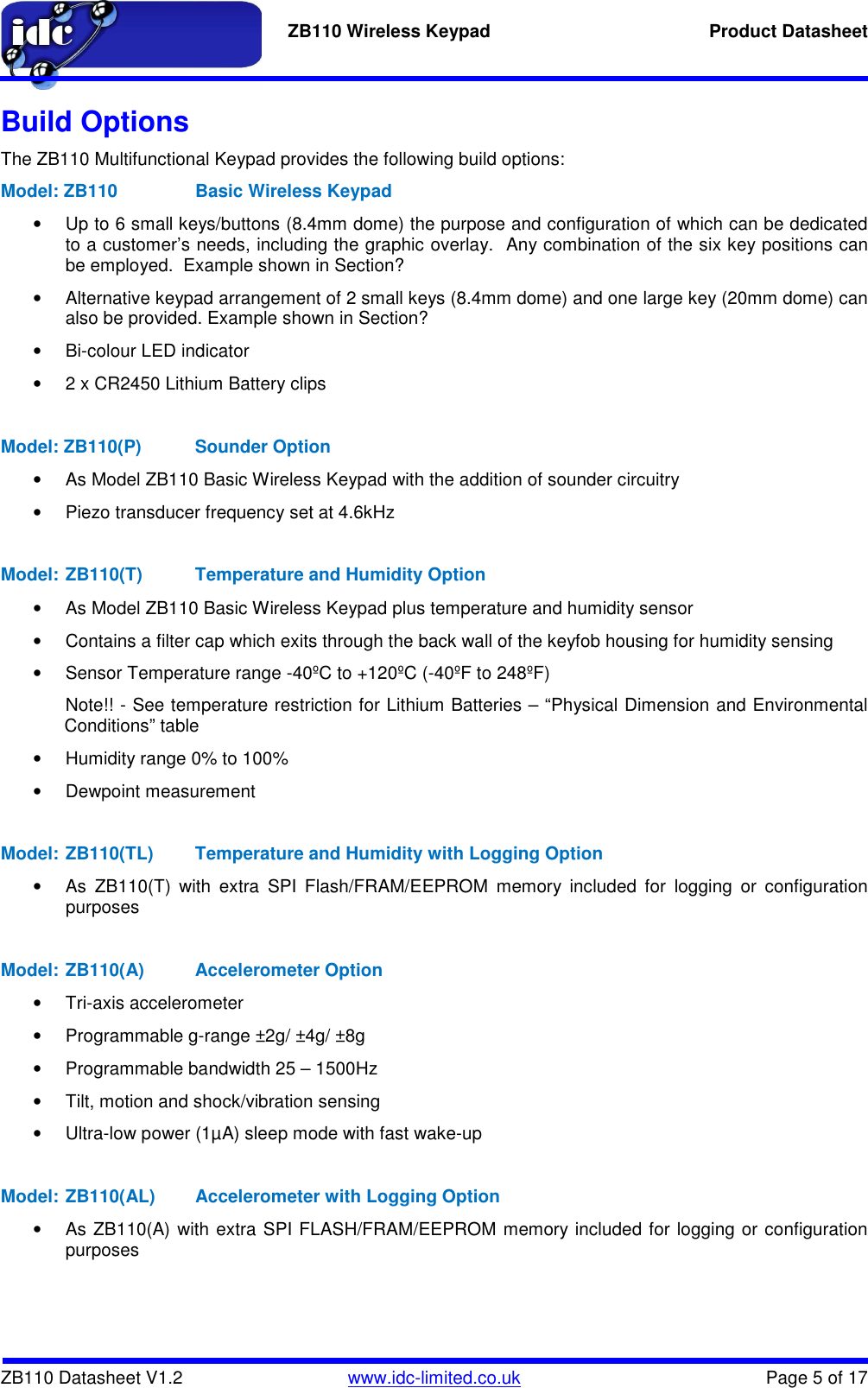

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 5 of 17 Build Options The ZB110 Multifunctional Keypad provides the following build options: Model: ZB110 Basic Wireless Keypad • Up to 6 small keys/buttons (8.4mm dome) the purpose and configuration of which can be dedicated to a customer’s needs, including the graphic overlay. Any combination of the six key positions can be employed. Example shown in Section? • Alternative keypad arrangement of 2 small keys (8.4mm dome) and one large key (20mm dome) can also be provided. Example shown in Section? • Bi-colour LED indicator • 2 x CR2450 Lithium Battery clips Model: ZB110(P) Sounder Option • As Model ZB110 Basic Wireless Keypad with the addition of sounder circuitry • Piezo transducer frequency set at 4.6kHz Model: ZB110(T) Temperature and Humidity Option • As Model ZB110 Basic Wireless Keypad plus temperature and humidity sensor • Contains a filter cap which exits through the back wall of the keyfob housing for humidity sensing • Sensor Temperature range -40ºC to +120ºC (-40ºF to 248ºF) Note!! - See temperature restriction for Lithium Batteries – “Physical Dimension and Environmental Conditions” table • Humidity range 0% to 100% • Dewpoint measurement Model: ZB110(TL) Temperature and Humidity with Logging Option • As ZB110(T) with extra SPI Flash/FRAM/EEPROM memory included for logging or configuration purposes Model: ZB110(A) Accelerometer Option • Tri-axis accelerometer • Programmable g-range ±2g/ ±4g/ ±8g • Programmable bandwidth 25 – 1500Hz • Tilt, motion and shock/vibration sensing • Ultra-low power (1µA) sleep mode with fast wake-up Model: ZB110(AL) Accelerometer with Logging Option • As ZB110(A) with extra SPI FLASH/FRAM/EEPROM memory included for logging or configuration purposes
ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 6 of 17 Applications • Home control o Remote control o Security Alarm requirements o Senior citizen panic button o Warden controlled housing • Industrial monitoring / control o Machinery condition monitoring – vibration, temperature etc. o Environmental monitoring – temperature, humidity o Fridge Plant and Chill storage monitoring o Remote control o Lighting control • Asset tracking and inventory management o Pallet tracking / location o Mobile machinery tracking / location o Car park management / location o Drop / damage detection • Building automation / management o Lighting o Temperature o Smoke/CO detectors • Security – o Access control o Role calling o Personnel tracking o Man-down detection

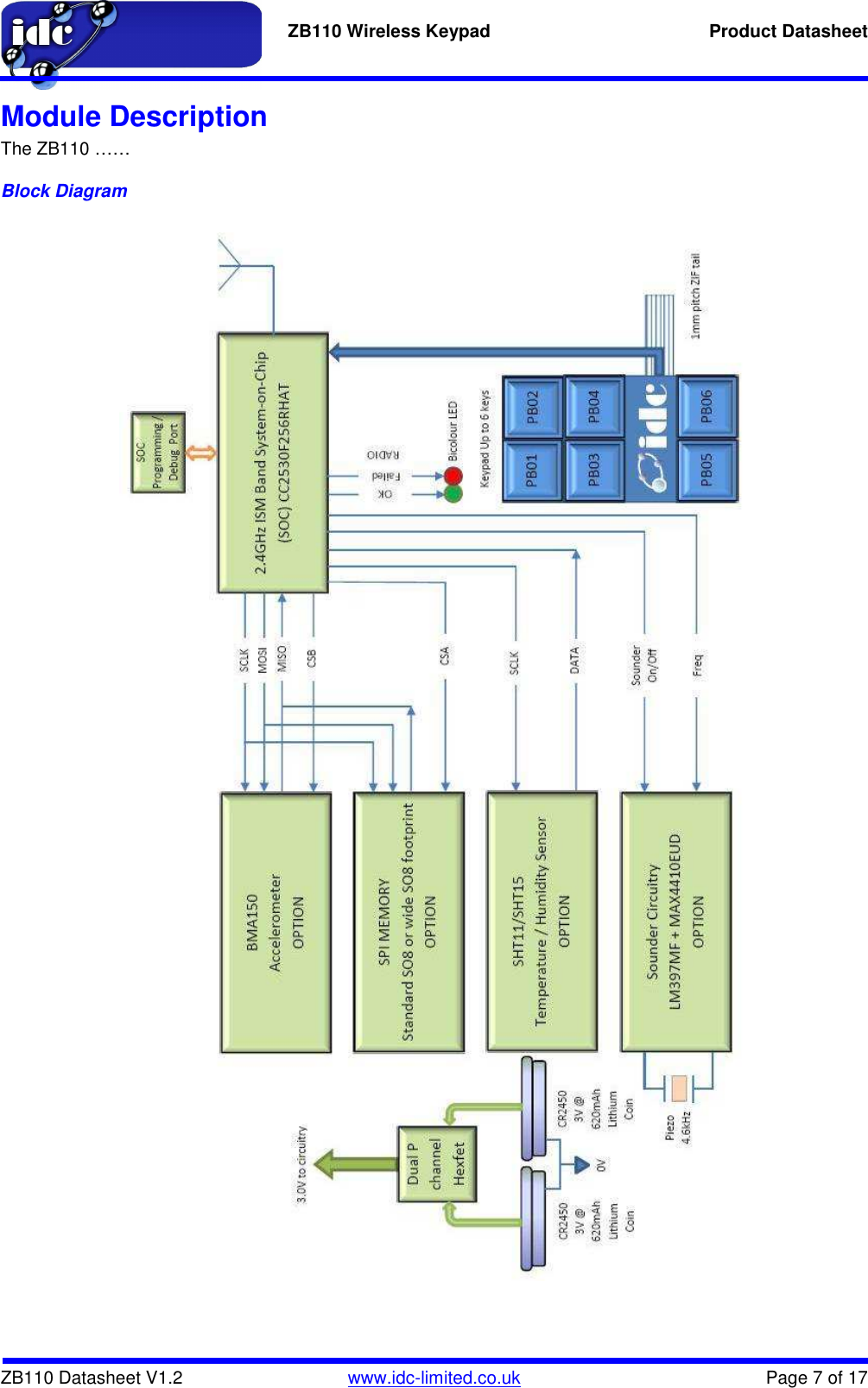

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 7 of 17 Module Description The ZB110 …… Block Diagram

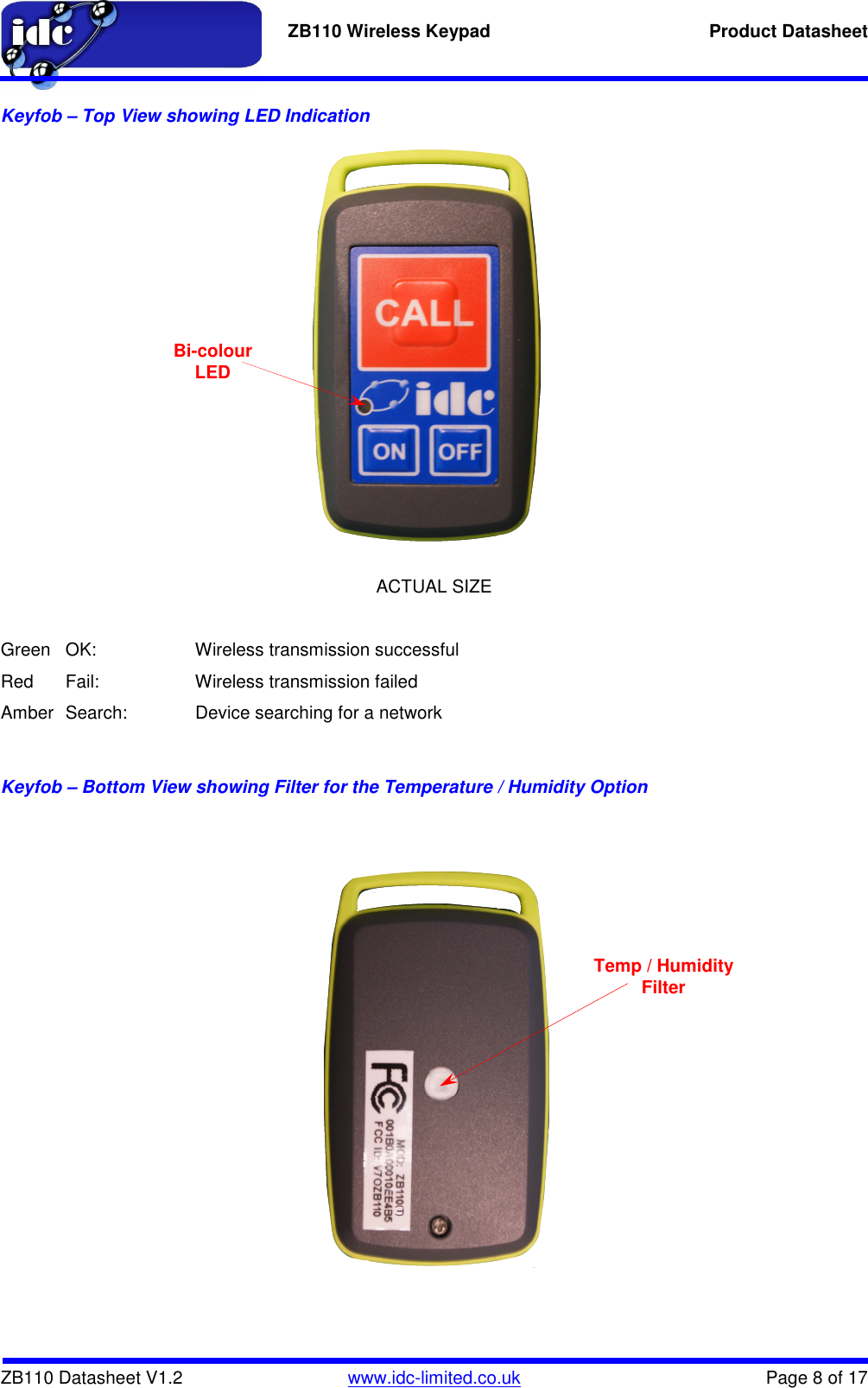

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 8 of 17 Keyfob – Top View showing LED Indication ACTUAL SIZE Green OK: Wireless transmission successful Red Fail: Wireless transmission failed Amber Search: Device searching for a network Keyfob – Bottom View showing Filter for the Temperature / Humidity Option Bi-colour LED Temp / Humidity Filter (T)

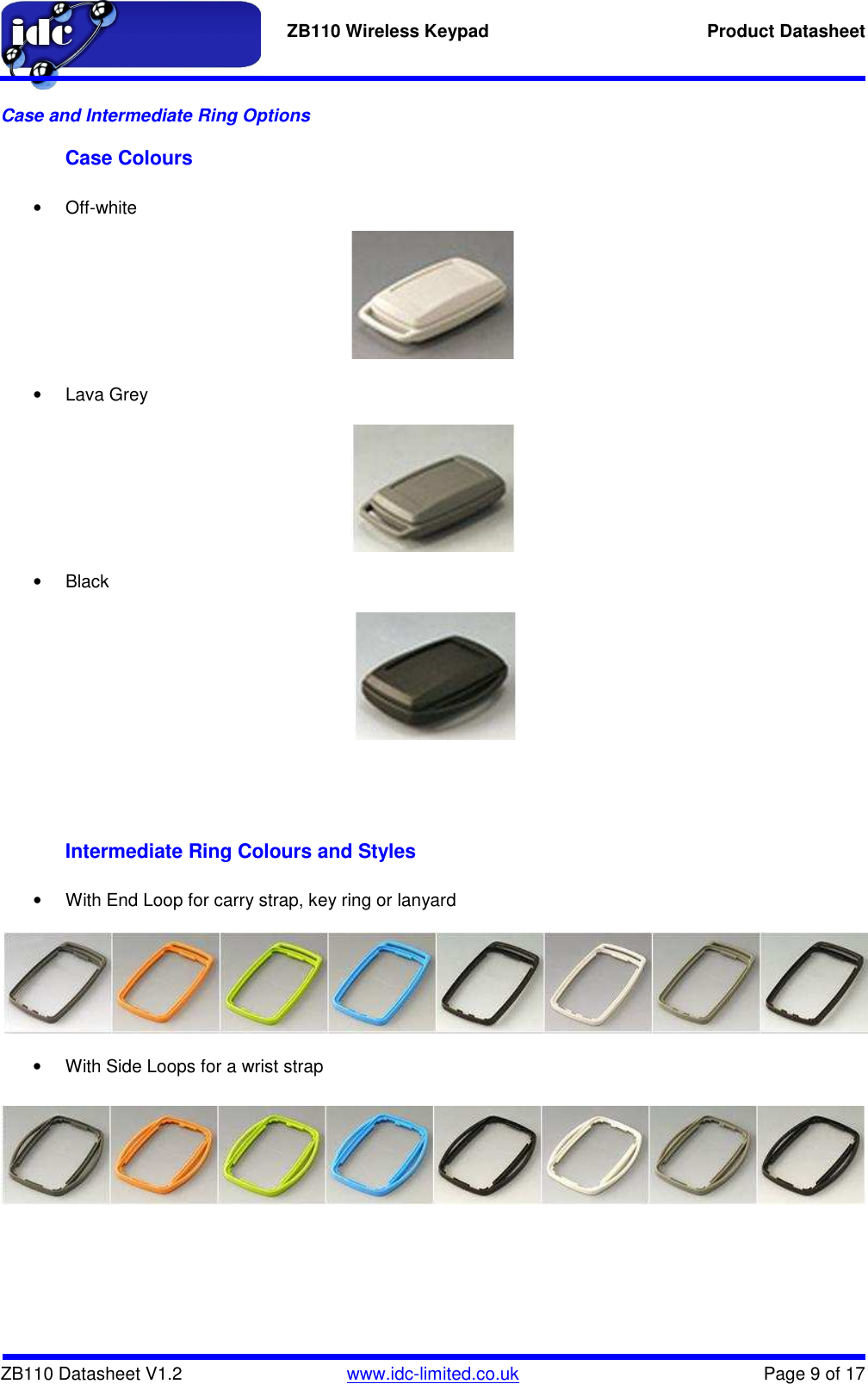

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 9 of 17 Case and Intermediate Ring Options Case Colours • Off-white • Lava Grey • Black Intermediate Ring Colours and Styles • With End Loop for carry strap, key ring or lanyard • With Side Loops for a wrist strap

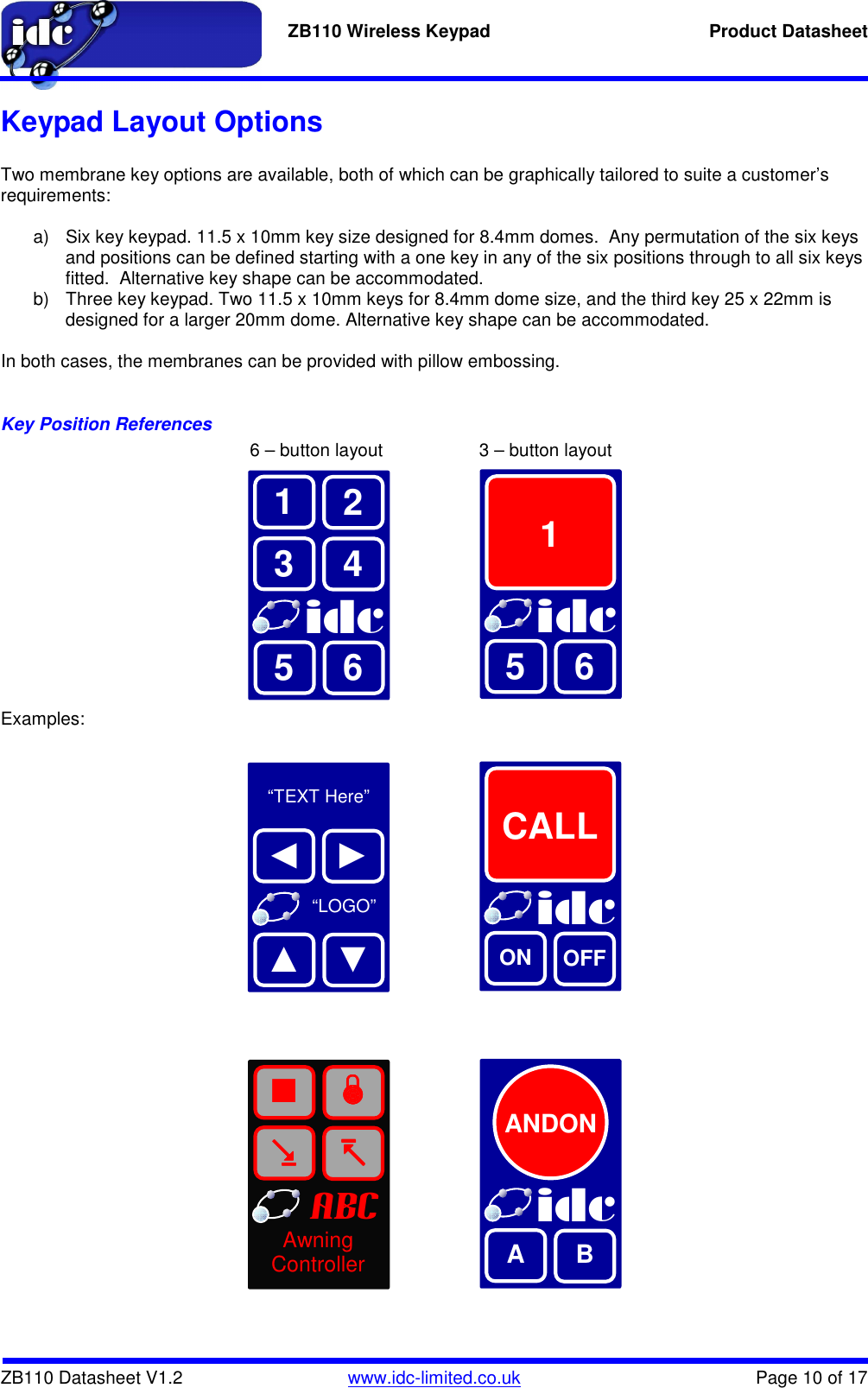

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 10 of 17 Keypad Layout Options Two membrane key options are available, both of which can be graphically tailored to suite a customer’s requirements: a) Six key keypad. 11.5 x 10mm key size designed for 8.4mm domes. Any permutation of the six keys and positions can be defined starting with a one key in any of the six positions through to all six keys fitted. Alternative key shape can be accommodated. b) Three key keypad. Two 11.5 x 10mm keys for 8.4mm dome size, and the third key 25 x 22mm is designed for a larger 20mm dome. Alternative key shape can be accommodated. In both cases, the membranes can be provided with pillow embossing. Key Position References 6 – button layout 3 – button layout Examples: idc 3 1 4 2 idc 1 5 6 5 6 “TEXT Here” “LOGO” ◄ ► idc CALL ▲ ▼ ON OFF   idc A B abc ■  Awning Controller ANDON

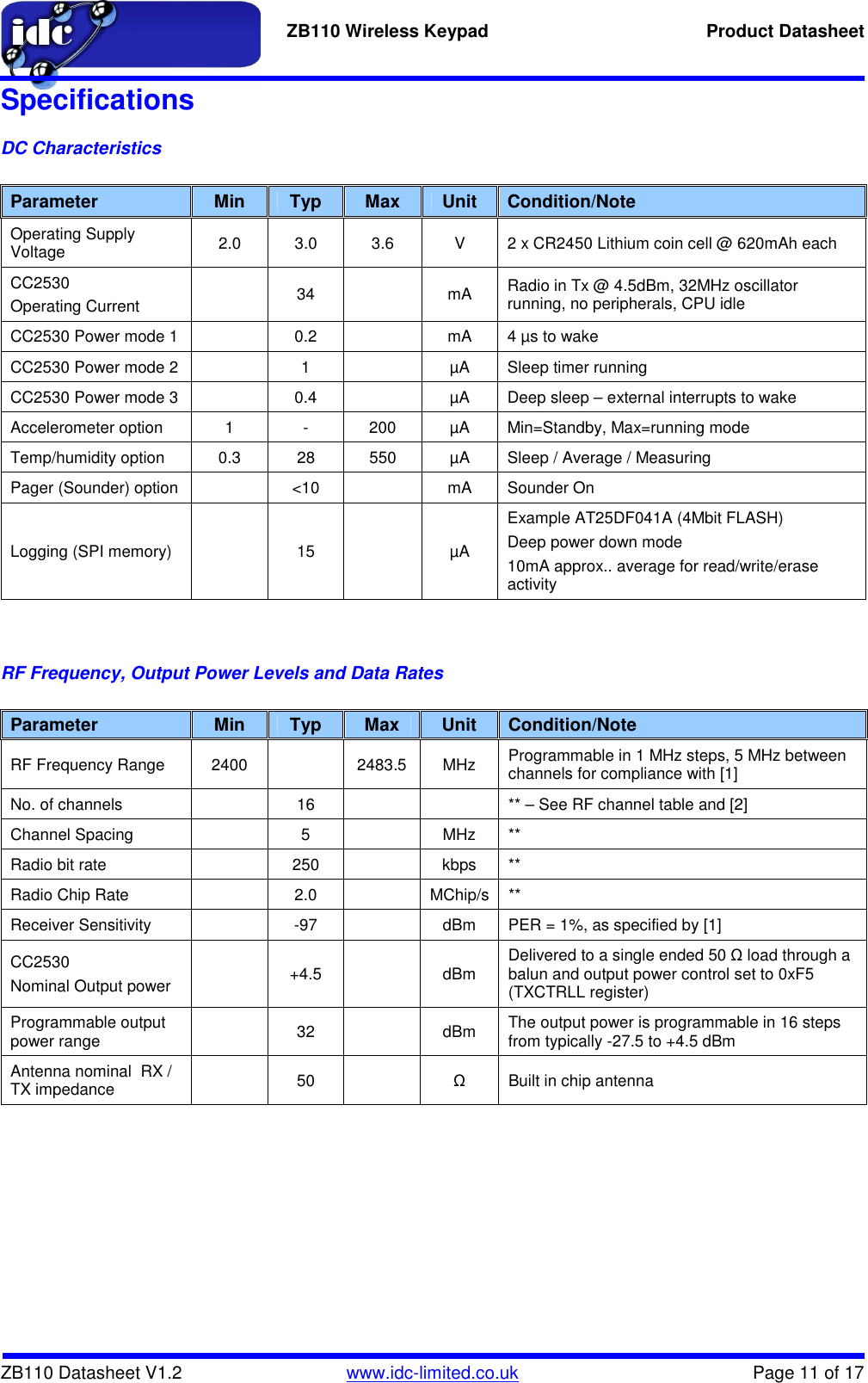

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 11 of 17 Specifications DC Characteristics Parameter Min Typ Max Unit Condition/Note Operating Supply Voltage 2.0 3.0 3.6 V 2 x CR2450 Lithium coin cell @ 620mAh each CC2530 Operating Current 34 mA Radio in Tx @ 4.5dBm, 32MHz oscillator running, no peripherals, CPU idle CC2530 Power mode 1 0.2 mA 4 µs to wake CC2530 Power mode 2 1 µA Sleep timer running CC2530 Power mode 3 0.4 µA Deep sleep – external interrupts to wake Accelerometer option 1 - 200 µA Min=Standby, Max=running mode Temp/humidity option 0.3 28 550 µA Sleep / Average / Measuring Pager (Sounder) option <10 mA Sounder On Logging (SPI memory) 15 µA Example AT25DF041A (4Mbit FLASH) Deep power down mode 10mA approx.. average for read/write/erase activity RF Frequency, Output Power Levels and Data Rates Parameter Min Typ Max Unit Condition/Note RF Frequency Range 2400 2483.5 MHz Programmable in 1 MHz steps, 5 MHz between channels for compliance with [1] No. of channels 16 ** – See RF channel table and [2] Channel Spacing 5 MHz ** Radio bit rate 250 kbps ** Radio Chip Rate 2.0 MChip/s ** Receiver Sensitivity -97 dBm PER = 1%, as specified by [1] CC2530 Nominal Output power +4.5 dBm Delivered to a single ended 50 Ω load through a balun and output power control set to 0xF5 (TXCTRLL register) Programmable output power range 32 dBm The output power is programmable in 16 steps from typically -27.5 to +4.5 dBm Antenna nominal RX / TX impedance 50 Ω Built in chip antenna
ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 12 of 17 The RF channels and associated frequencies defined by the IEEE 802.15.4 standard are as follows: [1] IEEE std. 802.15.4 - 2003: Wireless Medium Access Control (MAC) and Physical Layer (PHY) specifications for Low Rate Wireless Personal Area Networks (LR-WPANs). [2] Channel 26 is a restricted channel and for the ZB110 is unavailable.RF Channel Frequency RF Channel Frequency RF Channel Frequency 11 2405 MHz 17 2435 MHz 23 2465 MHz 12 2410 MHz 18 2440 MHz 24 2470 MHz 13 2415 MHz 19 2445 MHz 25 2475 MHz 14 2420 MHz 20 2450 MHz 26 [2] 2480 MHz 15 2425 MHz 21 2455 MHz 16 2430 MHz 22 2460 MHz

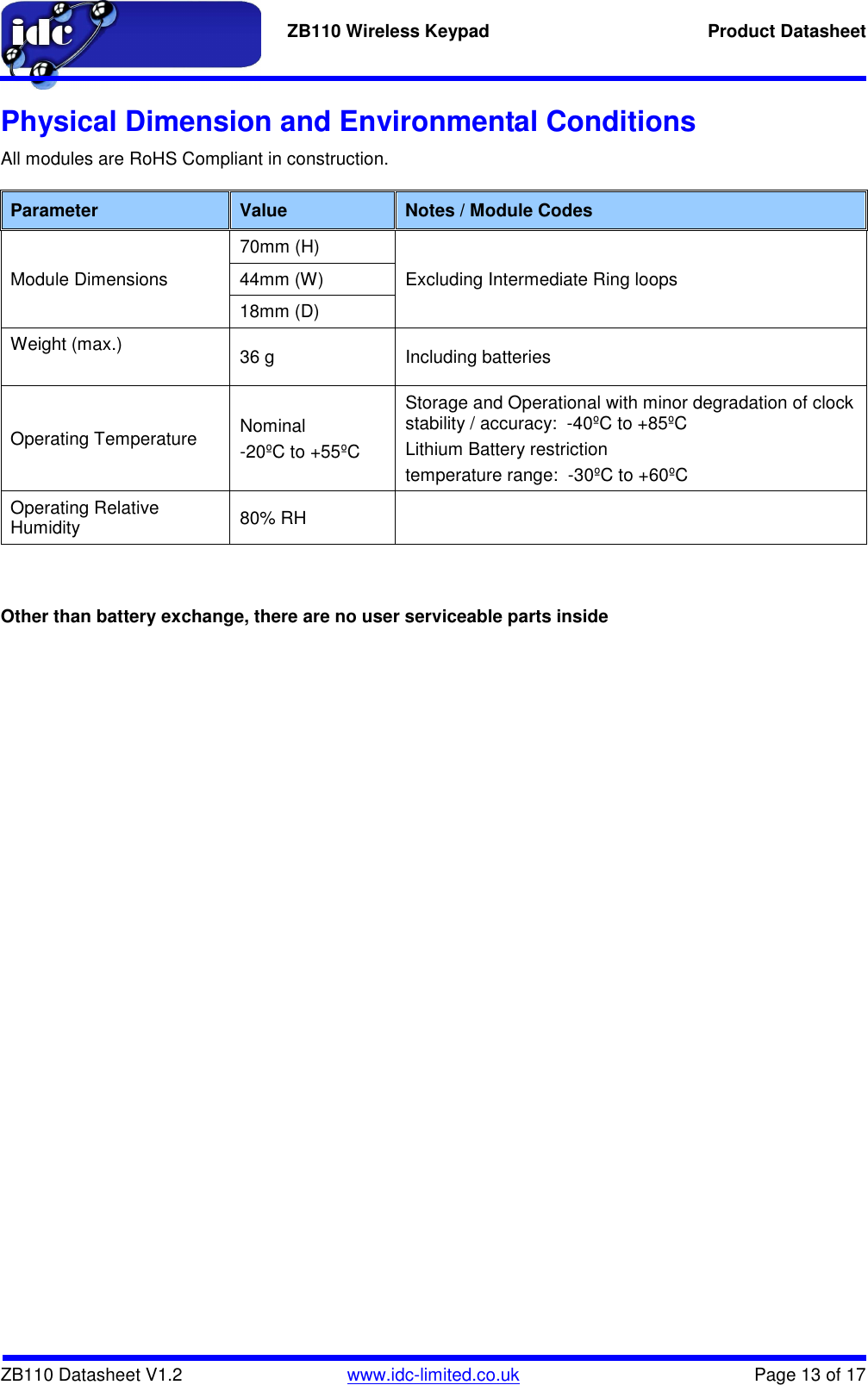

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 13 of 17 Physical Dimension and Environmental Conditions All modules are RoHS Compliant in construction. Parameter Value Notes / Module Codes Module Dimensions 70mm (H) Excluding Intermediate Ring loops 44mm (W) 18mm (D) Weight (max.) 36 g Including batteries Operating Temperature Nominal -20ºC to +55ºC Storage and Operational with minor degradation of clock stability / accuracy: -40ºC to +85ºC Lithium Battery restriction temperature range: -30ºC to +60ºC Operating Relative Humidity 80% RH Other than battery exchange, there are no user serviceable parts inside

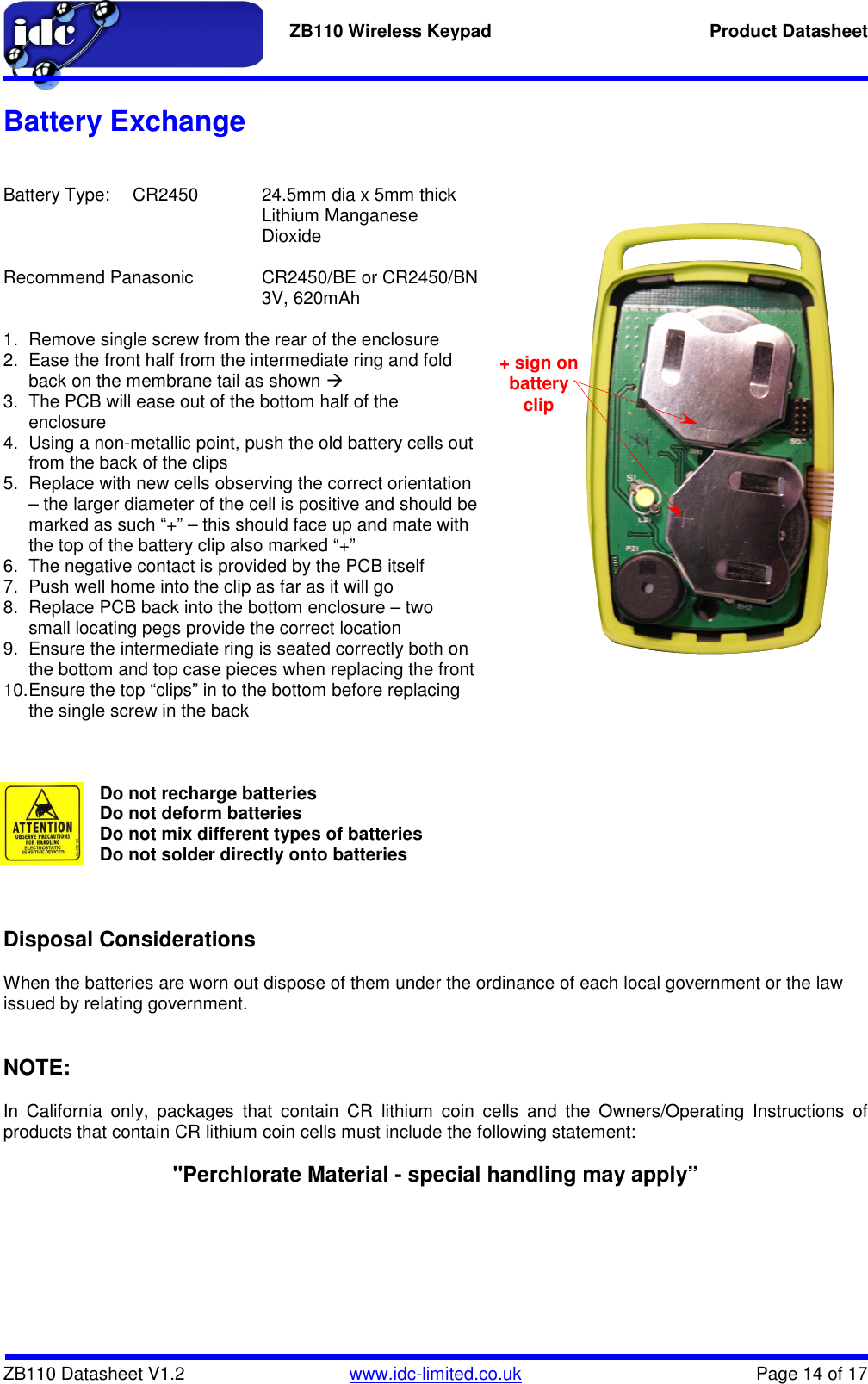

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 14 of 17 Battery Exchange Battery Type: CR2450 24.5mm dia x 5mm thick Lithium Manganese Dioxide Recommend Panasonic CR2450/BE or CR2450/BN 3V, 620mAh 1. Remove single screw from the rear of the enclosure 2. Ease the front half from the intermediate ring and fold back on the membrane tail as shown  3. The PCB will ease out of the bottom half of the enclosure 4. Using a non-metallic point, push the old battery cells out from the back of the clips 5. Replace with new cells observing the correct orientation – the larger diameter of the cell is positive and should be marked as such “+” – this should face up and mate with the top of the battery clip also marked “+” 6. The negative contact is provided by the PCB itself 7. Push well home into the clip as far as it will go 8. Replace PCB back into the bottom enclosure – two small locating pegs provide the correct location 9. Ensure the intermediate ring is seated correctly both on the bottom and top case pieces when replacing the front 10. Ensure the top “clips” in to the bottom before replacing the single screw in the back Do not recharge batteries Do not deform batteries Do not mix different types of batteries Do not solder directly onto batteries Disposal Considerations When the batteries are worn out dispose of them under the ordinance of each local government or the law issued by relating government. NOTE: In California only, packages that contain CR lithium coin cells and the Owners/Operating Instructions of products that contain CR lithium coin cells must include the following statement: "Perchlorate Material - special handling may apply” + sign on battery clip

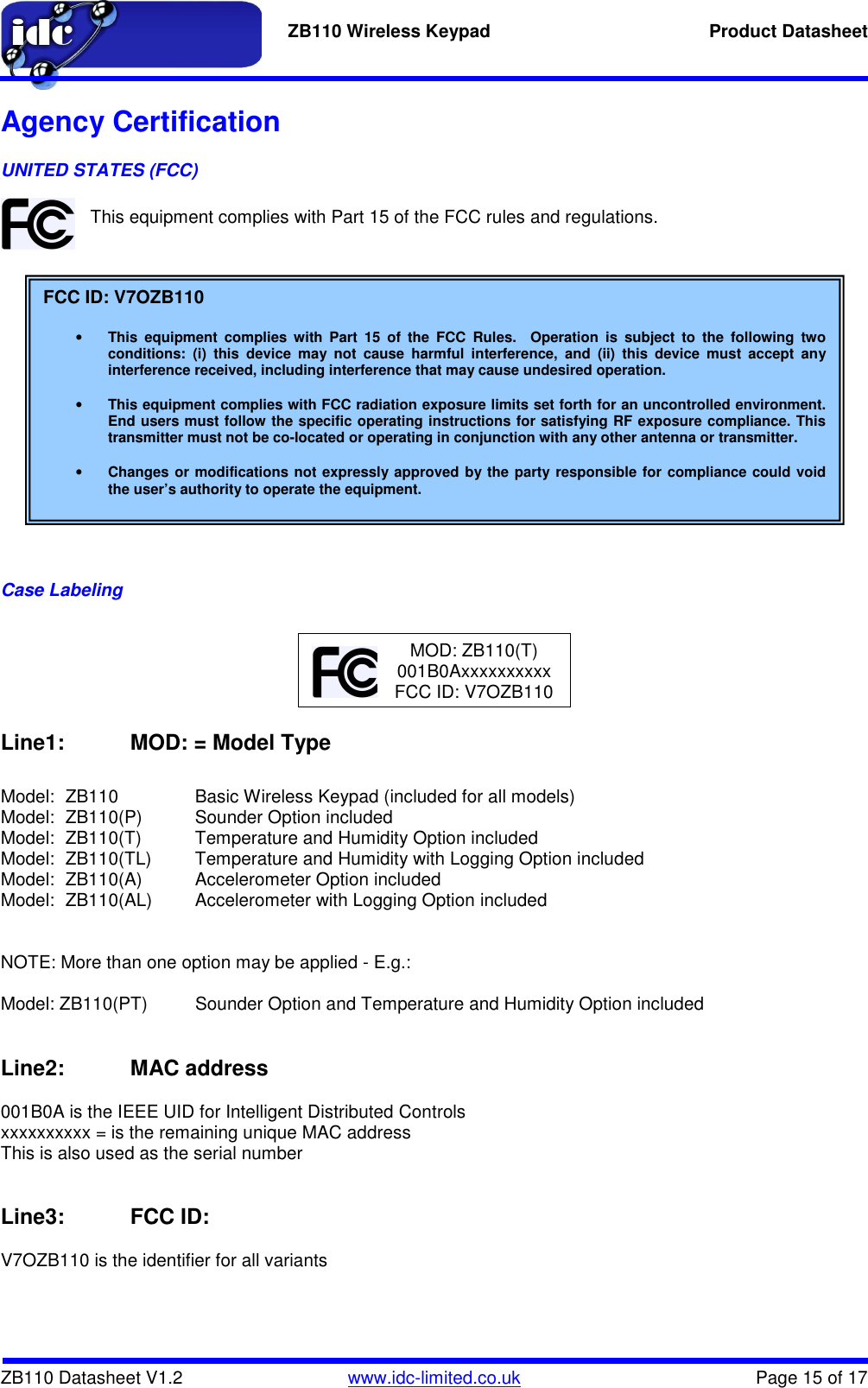

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 15 of 17 Agency Certification UNITED STATES (FCC) This equipment complies with Part 15 of the FCC rules and regulations. Case Labeling Line1: MOD: = Model Type Model: ZB110 Basic Wireless Keypad (included for all models) Model: ZB110(P) Sounder Option included Model: ZB110(T) Temperature and Humidity Option included Model: ZB110(TL) Temperature and Humidity with Logging Option included Model: ZB110(A) Accelerometer Option included Model: ZB110(AL) Accelerometer with Logging Option included NOTE: More than one option may be applied - E.g.: Model: ZB110(PT) Sounder Option and Temperature and Humidity Option included Line2: MAC address 001B0A is the IEEE UID for Intelligent Distributed Controls xxxxxxxxxx = is the remaining unique MAC address This is also used as the serial number Line3: FCC ID: V7OZB110 is the identifier for all variants FCC ID: V7OZB110 • This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i) this device may not cause harmful interference, and (ii) this device must accept any interference received, including interference that may cause undesired operation. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. MOD: ZB110(T) 001B0Axxxxxxxxxx FCC ID: V7OZB110

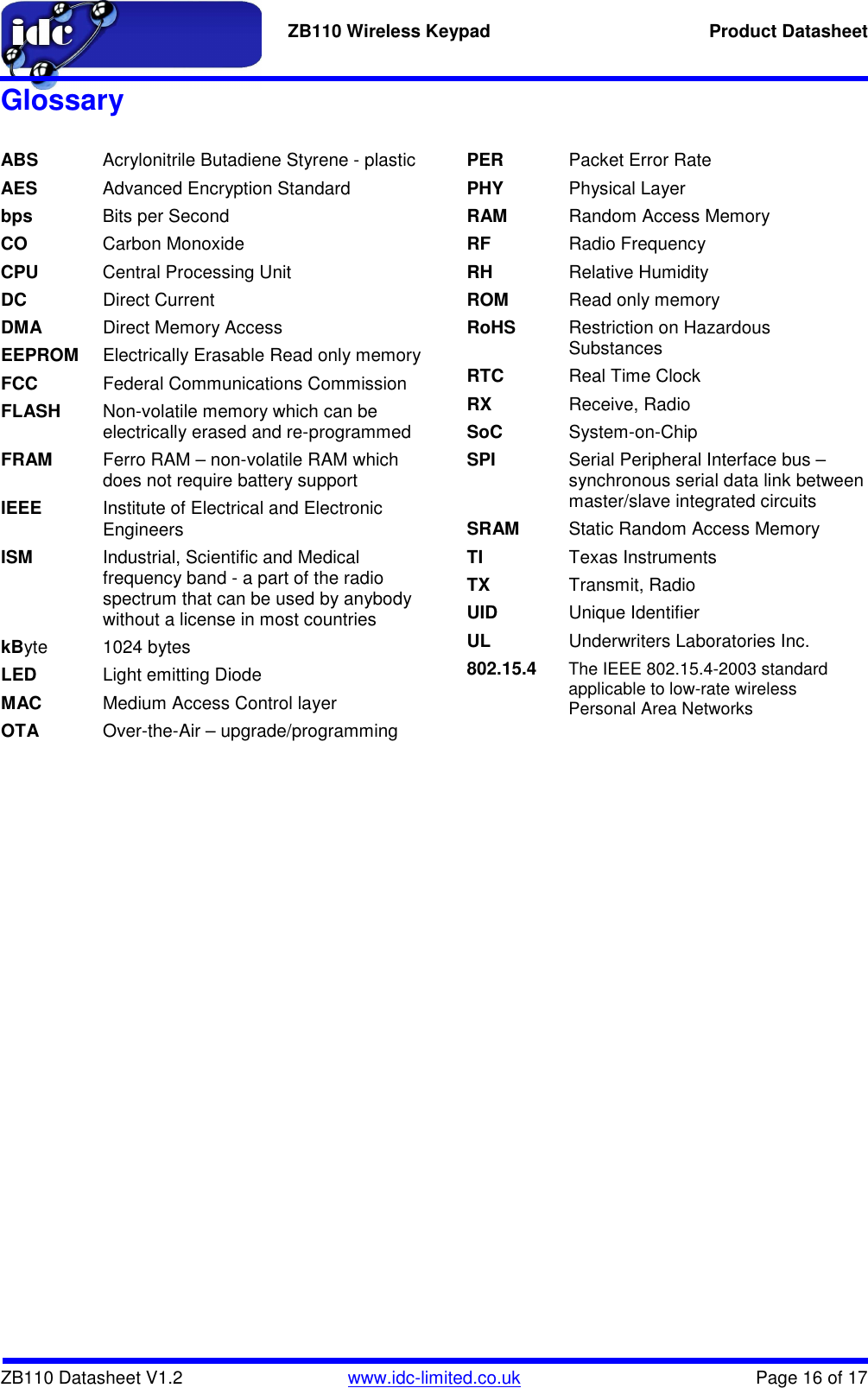

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 16 of 17 Glossary ABS Acrylonitrile Butadiene Styrene - plastic AES Advanced Encryption Standard bps Bits per Second CO Carbon Monoxide CPU Central Processing Unit DC Direct Current DMA Direct Memory Access EEPROM Electrically Erasable Read only memory FCC Federal Communications Commission FLASH Non-volatile memory which can be electrically erased and re-programmed FRAM Ferro RAM – non-volatile RAM which does not require battery support IEEE Institute of Electrical and Electronic Engineers ISM Industrial, Scientific and Medical frequency band - a part of the radio spectrum that can be used by anybody without a license in most countries kByte 1024 bytes LED Light emitting Diode MAC Medium Access Control layer OTA Over-the-Air – upgrade/programming PER Packet Error Rate PHY Physical Layer RAM Random Access Memory RF Radio Frequency RH Relative Humidity ROM Read only memory RoHS Restriction on Hazardous Substances RTC Real Time Clock RX Receive, Radio SoC System-on-Chip SPI Serial Peripheral Interface bus – synchronous serial data link between master/slave integrated circuits SRAM Static Random Access Memory TI Texas Instruments TX Transmit, Radio UID Unique Identifier UL Underwriters Laboratories Inc. 802.15.4 The IEEE 802.15.4-2003 standard applicable to low-rate wireless Personal Area Networks

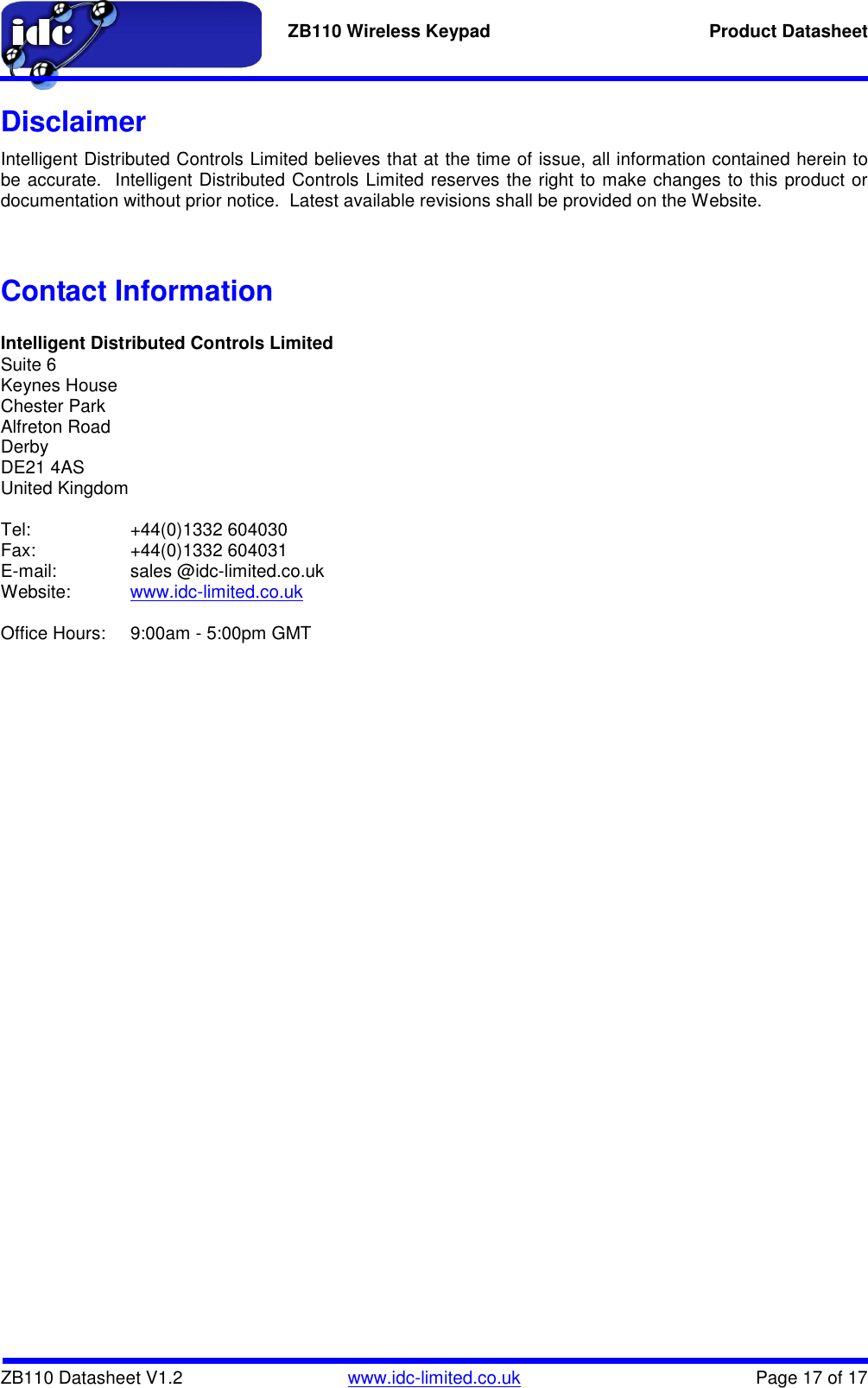

ZB110 Wireless Keypad Product Datasheet ZB110 Datasheet V1.2 www.idc-limited.co.uk Page 17 of 17 Disclaimer Intelligent Distributed Controls Limited believes that at the time of issue, all information contained herein to be accurate. Intelligent Distributed Controls Limited reserves the right to make changes to this product or documentation without prior notice. Latest available revisions shall be provided on the Website. Contact Information Intelligent Distributed Controls Limited Suite 6 Keynes House Chester Park Alfreton Road Derby DE21 4AS United Kingdom Tel: +44(0)1332 604030 Fax: +44(0)1332 604031 E-mail: sales @idc-limited.co.uk Website: www.idc-limited.co.uk Office Hours: 9:00am - 5:00pm GMT
