Intelligent Technology FS108E 8-Port Fast Ethernet Switch User Manual
Intelligent Technology Inc. 8-Port Fast Ethernet Switch
Users Manual
FCC Certifications
This Equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received; including interference that may cause
undesired operation.
CE
Mark
Warning
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class B for ITE, the
essential protection requirement of Council Directive 2004/108/EC
on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Company has an on-going policy of upgrading its products and it
may be possible that information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form
without written consent from the company.
Trademarks:
All trade names and trademarks are the properties of their
respective companies.
Copyright © 2012, All Rights Reserved.
1
Product Key Features
¾ Complies with 10M BASE-T specifications of the IEEE 802.3
standard
¾ Complies with 100M BASE-TX specifications of the IEEE
802.3u standard
¾ Supports full and half duplex for 10/100Mbps
¾ Provides 2K Buffer memory
¾ Wire-speed packet filtering and forwarding rate
¾ Provides 2K MAC address Table
¾ Store-and-forward architecture filters fragment & CRC error
packets
¾ Supports IEEE 802.3az energy efficient ethernet
¾ Supports auto MDI/MDI-X crossover detecting and auto
correction
¾ RoHS compliant
3

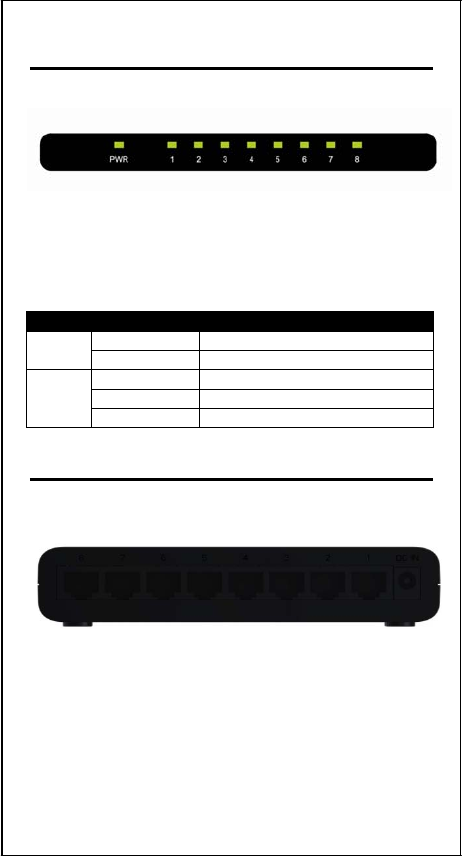

Front Panel
Please refer to the following description for the front panel:
Ethernet Ports:
This Switch includes 8* Fast Ethernet ports.
LED Definition:
LED Status Operation
Power Steady Green Power is on
Off Power is off
Link/Act Steady Green The port is connected
Blinking Green The port is transmitting/receiving data.
Off No connection
Rear Panel
The power adapter is plugged into the DC Jack of the rear panel, and
the rear panel is shown as below:
4
Installation
Before you install the switch, please check the following items in the
package：
z One 8-port Fast Ethernet Switch
z One Power adapter
z One user manual
1. Operating Environment
This switching hub must be installed and operated within the limits of
specified operating temperature 0~40°C(32~104°F) and humidity
(10~90% Non-condensing).
˙Do not place objects on top of the unit.
˙Do not obstruct any vents at the sides of the unit.
˙Do not position the unit near any heating source such as heater,
radiator or direct exposure to sun.
Prevent entering of water and moisture into the unit, If necessary,
use dehumidifier to reduce humidity.
2. Connecting the power
Connect the power adapter to the power connector of the unit; the
green Power LED on the front panel should be lit.
5
660-NB2-FS108E2A000
Station Connection
Connect each station to the switch by twisted-pair cable. Plug one
RJ-45 connector into a RJ-45 port of the switch, and plug the other
RJ-45 connector into the station’s network adapter. Power on the
switch and then system is ready.
Switches Connection
In making a switch interconnection, you could use any port to
connect another switch with straight or crossover cable. As all the
ports support auto MDI / MDI-X function, using a straight cable to
make a switch-to-switch connection is allowed.
For cable selection, see the following table：
Network Speed Cable Type Max. Length
10Mbps Cat. 3, 4, 5 UTP/STP 100 meters
100Mbps Cat. 5 UTP/STP 100 meters

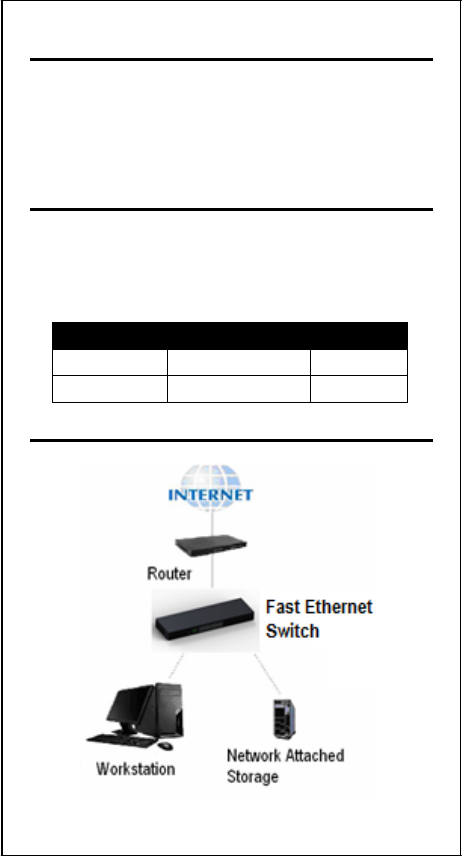

Network Application
6
Specification
Standard
IEEE 802.3 10 BASE-T
IEEE 802.3u 100 BASE-TX
IEEE 802.3az(EEE)
IEEE 802.3x
Interface 8* 10/100 Mbps RJ-45 Ethernet ports
Cable
Connections
RJ-45 (10BASE-T): Category 3,4,5
UTP/STP
RJ-45 (100BASE-TX): Category 5
UTP/STP
Network Speed 10/100 Mbps Auto-negotiation
MAC Address 2K
Buffer Memory 96K Bytes
Dimension 142mm(L)*85mm(W)*24mm(H)
Temperature Operating:
0
℃
~40
℃
(32℉~104℉),
Storage: -20°C ~ 70°C (-4℉~158°F)
Humidity Operating: 10% ~ 90% RH, non-condensing
Storage: 5%~95% RH, non-condensing
Power Supply External power adapter
EMI
FCC, CE Class B
7
