Intelligent Technology PF088A 8-Port Fast Ethernet Switch with 8-Port 802.3at PoE User Manual MANUAL PF084A PF088A
Intelligent Technology Inc. 8-Port Fast Ethernet Switch with 8-Port 802.3at PoE MANUAL PF084A PF088A
users manual

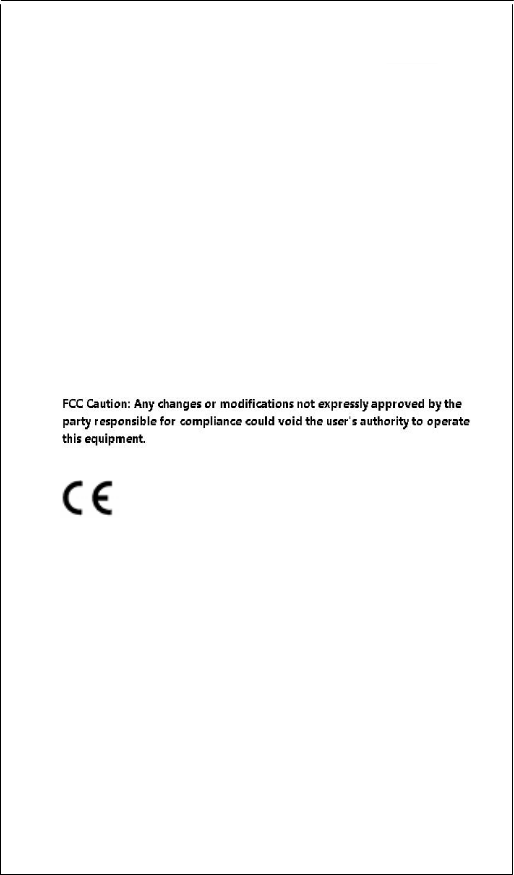

FCC Certifications
This Equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received;
including interference that may cause undesired operation.
CE Mark Warning
This equipment complies with the requirements
relating to electromagnetic compatibility, EN 55022 class B
for ITE, the essential protection requirement of Council
Directive
2004/108/EC on the approximation of the laws of the
Member States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products
and it may be possible that information in this document is
not up-to-date. Please check with your local distributors for
the latest information. No part of this document can be
copied or reproduced in any form without written consent
from the company.
Trademarks:
All trade names and trademarks are the properties of their
respective companies.
Copyright © 2011, All Rights Reserved.
1
LEDs Definition
This switch contains LEDs to show the activities and
information of the ports, including power LED and Link/
Act/PoE LEDs
Please refer to the front panel of the switch for the
positions of the LEDs :
PF088A
Look at the following table for the description of the LEDs:
LED
Status Operation
Power
Steady Green The switch is powered on
Off The switch is powered off
Link/ ACT
Steady Green Valid port connection
Blinking Green
Valid port connection and
there is data transmitting/
receiving
Off Port disconnected
PoE
Steady Green feeding power at PoE/PoE+
Off PoE/PoE+ function not active
2
