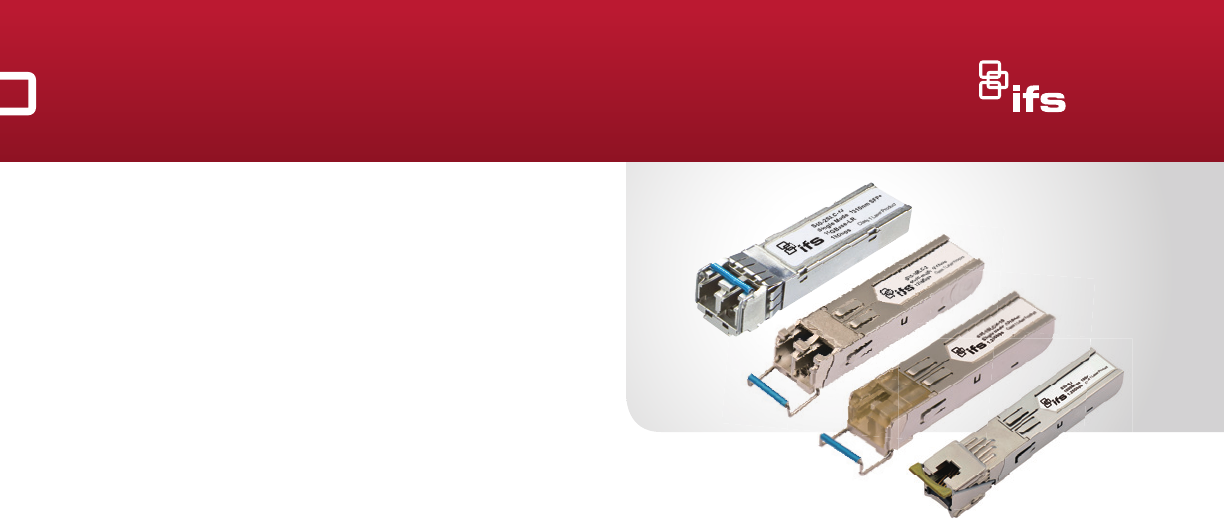

Mini-GBIC

SFP & SFP+

Transceivers

Small Form-factor Pluggable

Transceiver Modules

IFS® Line / Network Transmission

The IFS family of Small Form-factor Pluggable (SFP)

Transceiver Modules are designed for high performance

integrated duplex data transmission over optical fi ber.

These SFP transceiver modules are compliant with the

industry’s SFP Multi-source Agreement (MSA) standard.

The IFS SFP Transceiver Modules offer the ability to

enable the SFP ports on any Ethernet equipment that

have a built-in SFP Mini-GBIC interface. These modules

are hot-swappable without any interruption of the host

equipment operation.

These SFP modules are available in 100Base-FX/BX or

1000Base-TP/FX/BX confi gurations allowing for use of

either one fi ber or two fi ber transmission over single mode

or multi-mode optical fi ber. The 10 Gigabit SFP+ modules

are available for single mode and multi-mode fi ber for

use in IFS switches that support 10G SFP+ slots for high-

bandwidth switch trunking and communication links.

Additionally, certain SFPs are available as wide-temperature

versions for use in industrial equipment deployed in

harsh environments.

OVERVIEW

Design

• Plug-and-play capability for easy installation

• Hot-swappable

• Low power dissipation

Optical Performance

• Available in wide-temperature versions for harsh

industrial applications

• Data rates of 100Mbps, 1.25Gbps or 10Gbps

• Single mode or multi-mode fi ber

• 1 or 2 fi ber confi gurations

• RJ-45 1.25Gbps SFP available

Standards Compliance

• Mini-GBIC Interface compliant

• Multi-source Agreement (MSA) compliant

• Class 1 laser safety standard IEC 60825 compliant

Warranty

• 3-year warranty

STANDARD FEATURES

interlogix.com

Specifi cations

Pin Signal Name Description

1 VeeT Transmitter Ground

2 TX_FAULT Transmitter Fault Indication

3 TX_DISABLE Transmitter Disable

4 MOD_DEF (2) SDA Serial Data Signal

5 MOD_DEF (1) SCL Serial Clock Signal

6 MOD_DEF (0) TTL Low to indicate the SFP is present

7 RATE SELECT Not Connected (Open Circuit)

8 LOS Receiver Loss of Signal

9 VeeR Receiver Ground

10 VeeR Receiver Ground

11 VeeR Receiver Ground

12 RD- Inv. Received Data Out (Differential PECL, AC coupled)

13 RD+ Received Data Out (Differential PECL, AC coupled)

14 VeeR Receiver Ground

15 VccR Receiver Power Supply

16 VccT Transmitter Power Supply

17 VeeT Transmitter Ground

18 TD+ Transmit Data In (Differential PECL, AC coupled)

19 TD- Inv. Transmit Data In (Differential PECL, AC coupled)

20 VeeT Transmitter Ground

Electrical and Mechanical

Input Voltage 3.3V DC

Dimensions (W x D x H) 2.20 x 0.59 x 0.49 in. (59 x 15 x 12.4 mm)

Weight (ounces, grams) 0.6 oz, 18g

Storage Temperature -40ºC~85°C

Relative Humidity 5%~95% (non-condensing)

Reliability >50,000 hrs @ 25°C

Standards Compliance

EMI

EN55022:2010, Class A

EN61000-3-2: A1+A2:2009

EN61000-3-2: 2008

EMS

EN55024: 2010

IEC 61000-4-2:2008

IEC 61000-4-3:A1+A2:2010

IEC 61000-4-4:2012

IEC 61000-4-5:2005

IEC 61000-4-6:2008

IEC 61000-4-8:2009

IEC 61000-4-11:2004

AS/NZS Cispr22: 2010

Regulatory Standards FCC CFR 47, Part 15B, FDA 21 CFR 1040,

CE Directive 2004/108/EC, EN60825-1 Laser Safety

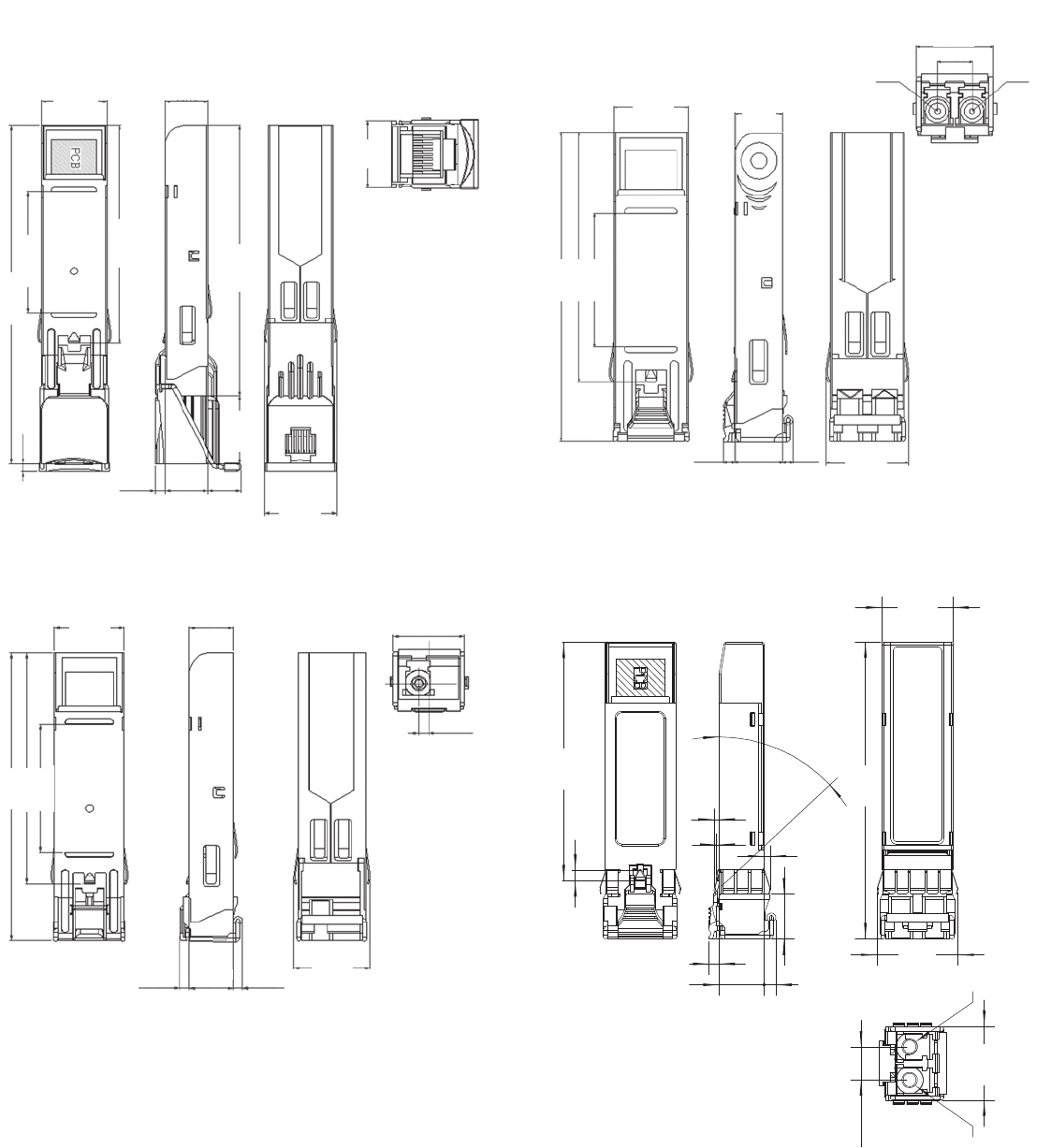

Dimensional Diagrams

Dimensions are in millimeters.

All dimensions are ±0.20mm unless otherwise specifi ed.

Copper SFP

70.00

24.90

45.20

13.40

56.00

8.60

14.00

15.00

2.20

6.85

1.7

2.20 8.60

13.80

13.80

RX

TX

6.25

Dual Fiber SFP

45.00

24.00

56.00

13.40

15.00

8.60

8.60 1.901.90

PCB

13.40

Single Fiber SFP 10 Gigabit SFP+

45.00

56.00

24.90

PCB

8.60

15.00

8.601.87 1.72

13.80

1.95

45

56

2

.91

.55

47º

1.16

2.218.5

1.9

8.55

13.4

15.2

13.9

6.25

TX RX

North America

T 855-286-8889

Latin America

T 561-998-6114

Mini-GBIC SFP & SFP+ Transceivers

Small Form-factor Pluggable Transceiver Modules

* 220m distance is based on 62.5/125 (OM1) fi ber. 550m distance is based on 50/125 (OM2) fi ber.

** Requires laser optimized 50/125 (OM3) fi ber to achieve 2km distance. FIber should be tested and verifi ed to OM3 standard.

*** 300m distance with 10G is based on 50/125 (OM3) fi ber.

Fast (100Mbps)

Part No. PHY Type # of

Fibers Fiber Type Connector TX

Wavelength

RX

Wavelength

Max.

Distance

Power

(dBm)

RX Sen.

(dBm)

Power

Budget

Operating

Temperature

100Base-FX

S20-2MLC-2 100Base-FX 2 Multi-mode LC 1310nm 1310nm 2km -20 ~ -14 -32 12 0 ~ 50°C

S25-2MLC-2 100Base-FX 2 Multi-mode LC 1310nm 1310nm 2km -20 ~ -14 -32 12 -40 ~ 75°C

100Base-LX

S20-2SLC-20 100Base-LX 2 Single mode LC 1310nm 1310nm 20km -15 ~ -8 -34 19 0 ~ 50°C

S25-2SLC-20 100Base-LX 2 Single mode LC 1310nm 1310nm 20km -15 ~ -8 -34 19 -40 ~ 75°C

100Base-BX

S20-1SLC/A-20 100Base-BX20-U 1 Single mode LC 1310nm 1550nm 20km -14 ~ -8 -32 18 0 ~ 50°C

S20-1SLC/B-20 100Base-BX20-D 1 Single mode LC 1550nm 1310nm 20km -14 ~ -8 -32 18 0 ~ 50°C

Ordering Information

Gigabit (1000Mbps)

Part No. PHY Type # of

Fibers Fiber Type Connector TX

Wavelength

RX

Wavelength

Max.

Distance

Power

(dBm)

RX Sen.

(dBm)

Power

Budget

Operating

Temperature

Copper-RJ45

S30-RJ SFP-1000T - Copper RJ-45 - - 100m - - - 0 ~ 50°C

1000Base-SX

S30-2MLC 1000Base-SX 2 Multi-mode LC 850nm 850nm 220m/550m* -9.5 ~ -4 -17 7.5 0 ~ 50°C

S35-2MLC 1000Base-SX 2 Multi-mode LC 850nm 850nm 220m/550m* -9.5 ~ -4 -17 7.5 -40 ~ 75°C

S30-2MLC-2 1000Base-SX2 2 Multi-mode LC 1310nm 1310nm 2km** -9 ~ -1 -19 10 0 ~ 50°C

1000Base-LX/LHX/ZX

S30-2SLC-10 1000Base-LX 2 Single mode LC 1310nm 1310nm 10km -9.5 ~ -3 -20 10.5 0 ~ 50°C

S35-2SLC-10 1000Base-LX 2 Single mode LC 1310nm 1310nm 10km -9.5 ~ -3 -20 10.5 -40 ~ 75°C

S30-2SLC-30 1000Base-LHX 2 Single mode LC 1310nm 1310nm 30km -2 ~ +3 -23 21 0 ~ 50°C

S35-2SLC-30 1000Base-LHX 2 Single mode LC 1310nm 1310nm 30km -2 ~ +3 -23 21 -40 ~ 75°C

S30-2SLC-70 1000Base-ZX 2 Single mode LC 1550nm 1550nm 70km 0 ~ +5 -24 24 0 ~ 50°C

S35-2SLC-70 1000Base-ZX 2 Single mode LC 1550nm 1550nm 70km 0 ~ +5 -24 24 -40 ~ 75°C

1000Base-BX

S30-1SLC/A-10 1000Base-BX10-U 1 Single mode LC 1310nm 1490nm 10km -9 ~ -3 -20 11 0 ~ 50°C

S30-1SLC/B-10 1000Base-BX10-D 1 Single mode LC 1490nm 1310nm 10km -9 ~ -3 -20 11 0 ~ 50°C

S30-1SLC/A-20 1000Base-BX20-U 1 Single mode LC 1310nm 1490nm 20km -8 ~ -2 -23 15 0 ~ 50°C

S30-1SLC/B-20 1000Base-BX20-D 1 Single mode LC 1490nm 1310nm 20km -8 ~ -2 -23 15 0 ~ 50°C

S30-1SLC/A-60 1000Base-BX60-U 1 Single mode LC 1310nm 1490nm 60km 0 ~ +5 -24 24 0 ~ 50°C

S30-1SLC/B-60 1000Base-BX60-D 1 Single mode LC 1490nm 1310nm 60km 0 ~ +5 -24 24 0 ~ 50°C

10 Gigabit (10,000Mbps)

Part No. PHY Type # of

Fibers Fiber Type Connector TX

Wavelength

RX

Wavelength

Max.

Distance

Power

(dBm)

RX Sen.

(dBm)

Power

Budget

Operating

Temperature

10 Gigabit (SFP+)

S40-2MLC 10GBase-SR 2 Multi-mode LC 850nm 850nm 300m*** -7.0 avg -11 7 0 ~ 70°C

S40-2SLC-10 10GBase-LR 2 Single mode LC 1310nm 1310nm 10km -8.0 avg -12 10 0 ~ 70°C

Legend

SFP Type Heading

Standard SFP

Hardened SFP (wide-temp)

interlogix.com

Specifi cations subject to change without notice.

© 2014 United Technologies Corporation.

All rights reserved.

Interlogix is part of UTC Building & Industrial Systems,

a unit of United Technologies Corporation.

408-3849 2014/08 (79013)
