Alliance Builder

User Manual

This document may not be copied or otherwise reproduced, in whole or in part, except as specifically

permitted under US and international copyright law, without the prior written consent from GE.

Document number/revision: 1054411A (September 2005).

Disclaimer THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. GE ASSUMES NO

RESPONSIBILITY FOR INACCURACIES OR OMISSIONS AND SPECIFICALLY DISCLAIMS ANY LIABILITIES,

LOSSES, OR RISKS, PERSONAL OR OTHERWISE, INCURRED AS A CONSEQUENCE, DIRECTLY OR INDIRECTLY,

OF THE USE OR APPLICATION OF ANY OF THE CONTENTS OF THIS DOCUMENT. FOR THE LATEST DOCU-

MENTATION, CONTACT YOUR LOCAL SUPPLIER OR VISIT US ONLINE AT WWW.GESECURITY.COM.

This publication may contain examples of screen captures and reports used in daily operations. Exam-

ples may include fictitious names of individuals and companies. Any similarity to names and addresses

of actual businesses or persons is entirely coincidental.

Trademarks and patents GE and the GE monogram are registered trademarks of General Electric.

Other trade names used in this document may be trademarks or registered trademarks of the manufac-

turers or vendors of the respective products.

Software license agreement IMPORTANT: THIS END-USER LICENSE AGREEMENT (“AGREEMENT”) IS A LEGAL AGREEMENT BETWEEN

GE SECURITY AND YOU. READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE INSTALLING

OR USING THIS SOFTWARE. THIS AGREEMENT PROVIDES A LICENSE FROM GE SECURITY TO USE THE

SOFTWARE. IT ALSO CONTAINS WARRANTY INFORMATION, DISCLAIMERS, AND LIABILITY LIMITATIONS.

INSTALLING AND/OR USING THE SOFTWARE CONFIRMS YOUR AGREEMENT TO BE BOUND BY THESE

TERMS AND CONDITIONS. IF YOU DO NOT AGREE WITH THESE TERMS AND CONDITIONS, DO NOT INSTALL

OR USE THE SOFTWARE OR, IF ALREADY INSTALLED, IMMEDIATELY CEASE ALL USE OF THE SOFTWARE AND

PROMPTLY UNINSTALL ALL COMPONENTS OF THE SOFTWARE.

1. License. In this Agreement, you, the purchaser of the rights granted by this Agreement, are

referred to as You or Your, whether an individual or a business entity of any kind. Subject to the

terms and conditions of this Agreement, GE Security Inc., a Delaware corporation, (“GE SECURITY”)

grants You a nonexclusive license to use the accompanying software (including any upgrades,

modified versions, updates, additions and copies of the software furnished to You during the term of

the Agreement) (“Software”), and all associated media, printed materials, and electronic documenta-

tion accompanying the Software (“Documentation”), but only in the country where acquired from

your supplier and/or authorized reseller (“Supplier”). In this Agreement, the Software and Documen-

tation are referred to as the Licensed Product.

All rights to and in the Licensed Product, including, but not limited to, copyrights, patents, trademarks,

and trade secrets, belong to GE SECURITY, and GE SECURITY retains title to each copy of the Software.

You may only install and use the Software on a single computer, workstation, or terminal (“Computing

Device”) at one time, unless You have purchased additional copies of the Software, in which case You

may install the software on the number of Computing Devices for which You have purchased copies of

the Software. You may not use the Software over a computer network. You may not transfer or

distribute the Licensed Product to others, in electronic format or otherwise, and this Agreement shall

automatically terminate in the event of such a transfer or distribution. You may not sell, rent, lease, or

sublicense the Software. You may not copy or modify the Licensed Product for any purpose, including

for backup purposes. You may use the original copy of the Software provided to You for backup

purposes. You agree that GE SECURITY at any time, upon reasonable notice, may audit Your use of the

Software for compliance with the terms and conditions of this Agreement.

2. Term. This Agreement is effective until terminated. You may terminate this Agreement by unin-

stalling all components of the Software from all Computing Devices and returning the Licensed

Product to GE SECURITY. GE SECURITY may terminate this Agreement if You breach any of these

terms and conditions. Upon termination of this Agreement for any reason, You agree to uninstall all

components of the Software and return the Licensed Product to GE SECURITY. All provisions of this

Agreement relating to (i) disclaimer of warranties; (ii) limitations on liability, remedies, and damages;

and (iii) GE SECURITY’s proprietary rights, shall survive termination of this Agreement.

3. Object code. The Software is delivered in object code only. You may not alter, merge, modify,

adapt, or translate the Software, nor decompile, disassemble, reverse-engineer, or otherwise reduce

the Software to a human-perceivable form, nor create derivative works or programs based on the

Software.

iii

4. Limited warranty. GE SECURITY warrants that for one (1) year from the date of delivery of the

Licensed Product (Software Warranty Period), the functions contained in the Software will be fit for

their intended purpose as described in the applicable Documentation from GE SECURITY, and will

conform in all material respects to the specifications stated in such Documentation. GE SECURITY

does not warrant that the operation of the Software will be uninterrupted or error-free. GE SECURITY

does warrant that the media on which the Software is furnished will be free from defects in materials

and workmanship under normal use for a period of thirty (30) days from the date of delivery (Media

Warranty Period). Except as specifically provided therein, any other software and any hardware

furnished with or accompanying the Software is not warranted by GE SECURITY. Your exclusive

remedy under this limited warranty for nonconforming Software shall be repair or replacement of

the Software, in the sole discretion of GE SECURITY. To obtain a repair or replacement of noncon-

forming Software, contact GE SECURITY Customer Service toll free at 888-GESECURity or online at

www.gesecurity.com during the Software Warranty Period. Your exclusive remedy

under this limited warranty for defective media is replacement of the defective media. To receive

replacement media under this limited warranty, return the defective media to Supplier during the

Media Warranty Period, with proof of payment.

EXCEPT AS EXPRESSLY PROVIDED ABOVE, THE LICENSED PRODUCT IS PROVIDED “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND, EXCEPT AS

EXPRESSLY PROVIDED ABOVE, YOU ASSUME THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF

THE LICENSED PRODUCT.

5. Limitation of liability. GE SECURITY’S SOLE OBLIGATION OR LIABILITY UNDER THIS AGREEMENT IS

THE REPAIR OR REPLACEMENT OF NONCONFORMING SOFTWARE AND/OR DEFECTIVE MEDIA

ACCORDING TO THE LIMITED WARRANTY ABOVE. IN NO EVENT WILL GE SECURITY BE LIABLE FOR ANY

DAMAGES, WHETHER CONSEQUENTIAL, INCIDENTAL, OR INDIRECT, NOR FOR ANY LOSS OF DATA,

LOSS OF PROFITS, OR LOST SAVINGS, ARISING OUT OF USE OF OR INABILITY TO USE THE SOFTWARE

OR DOCUMENTATION (OR ANY HARDWARE FURNISHED WITH THE SOFTWARE), EVEN IF GE SECURITY

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, NOR FOR ANY CLAIM BY ANY THIRD

PARTY.

6. General. Any hardware provided to You by GE SECURITY shall not be exported or reexported in

violation of any export provisions of the United States or any other applicable jurisdiction. Any

attempt to sublicense, assign, or transfer any of the rights, duties, or obligations hereunder shall be

void. This Agreement shall be governed by and interpreted under the laws of the State of New York,

United States of America, without regard to conflicts of law provisions. You hereby consent to the

exclusive jurisdiction of the state and federal courts located in Multnomah County, Oregon, to

resolve any disputes arising under or in connection with this Agreement, with venue in Portland,

Oregon.

Restricted rights legend. The Licensed Product is provided with RESTRICTED RIGHTS. In the event

the United States Government or an agency thereof is granted a license, the following additional

terms apply: Restricted Computer Software, as defined in the Commercial Computer Software–

Restricted Rights clause at Federal Acquisition Regulations 52.227-19, and the restrictions as

provided in subparagraphs (c)(1) and (c)(2) thereof; and as applicable, the Government’s rights to use,

modify, reproduce, release, perform, display, or disclose the Software also are restricted as provided

by paragraphs (b)(2) and (b)(3) of the Rights in Noncommercial Technical Data and Computer Soft-

ware–Small Business Innovative Research (SBIR) Program clause at DFARS 252.227-7018.

The manufacturer of the Licensed Product is GE Security Inc., 12345 SW Leveton Drive, Tualatin, OR

97062.

YOU ACKNOWLEDGE THAT YOU HAVE READ AND UNDERSTAND THIS AGREEMENT AND AGREE TO BE

BOUND BY ITS TERMS. YOU FURTHER AGREE THAT THIS AGREEMENT IS THE COMPLETE AND EXCLUSIVE

STATEMENT OF THE AGREEMENT BETWEEN YOU AND GE SECURITY, AND SUPERSEDES ANY PROPOSAL OR

PRIOR AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER COMMUNICATION RELATING TO THE SUBJECT

MATTER OF THIS AGREEMENT.

Intended use Use this product only for the purpose it was designed for; refer to the data sheet and user documenta-

tion. For the latest product information, contact your local supplier or visit us online at www.gese-

curity.com.

Alliance Builder

User Manual

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Conventions used in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety terms and symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Chapter 1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Alliance Builder overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Hardware requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Software requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product specific function limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Initial log on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

User interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Menu bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Toolbar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

View tabs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Left pane interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Status bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Property programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Creating projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Project wizards and templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

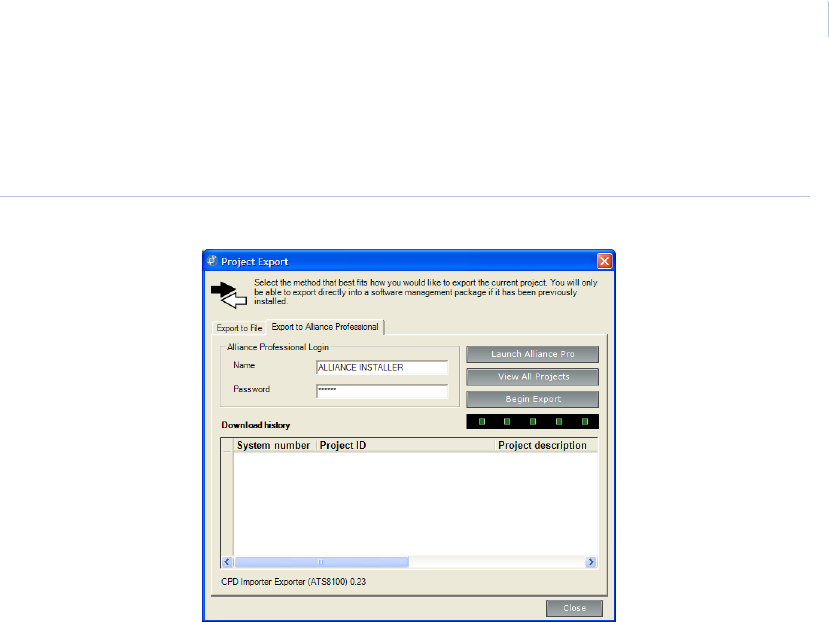

Import/export projects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Copy a topic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Print a topic or book. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Alliance system overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

RAS (remote arming stations) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

DGP (data gathering panels) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Zones (inputs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Relays (outputs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Alliance Builder

User Manual

Chapter 2. View tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

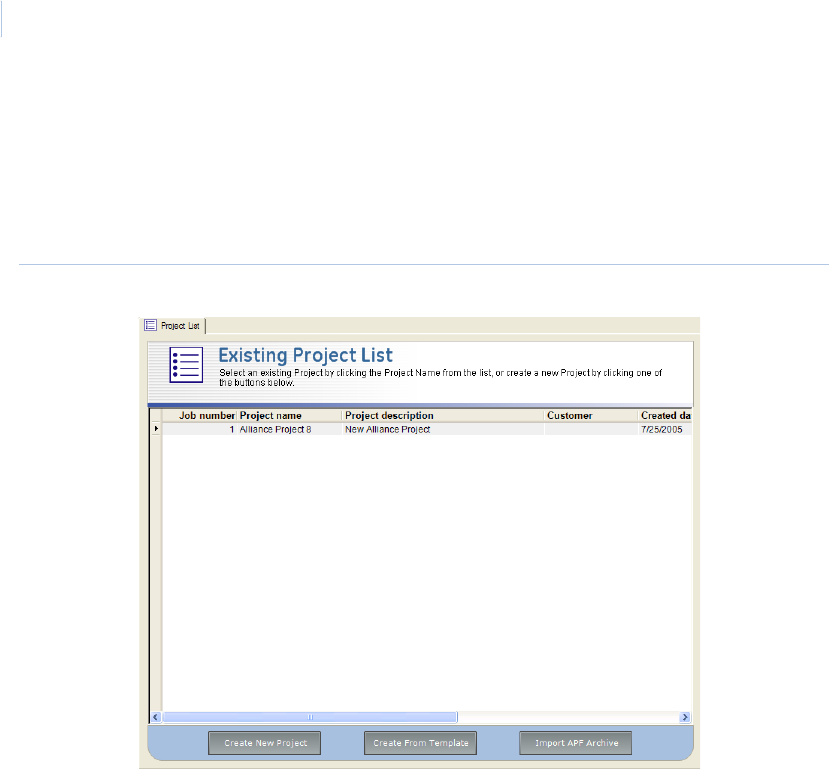

Project list tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Open projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Remove projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

View project properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Create new projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Create from template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Import APF archive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

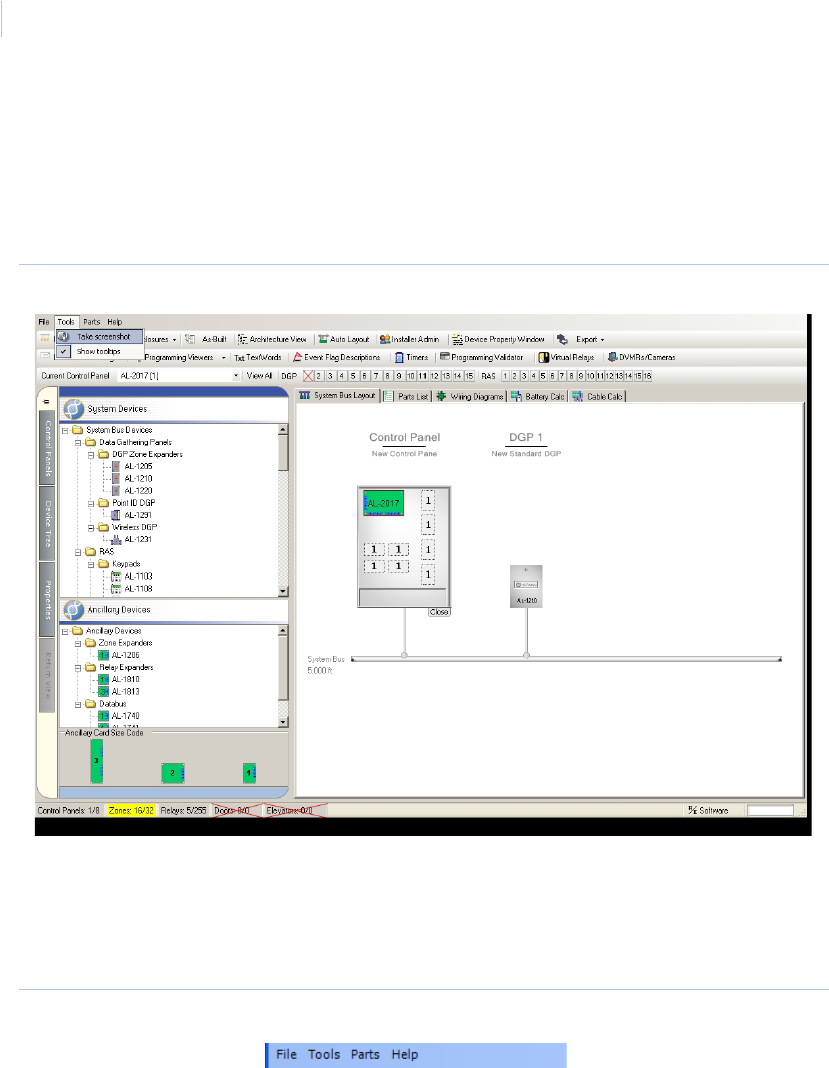

System bus layout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Control panel tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Add system devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Remove system devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Add ancillary devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Remove ancillary devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

View device properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

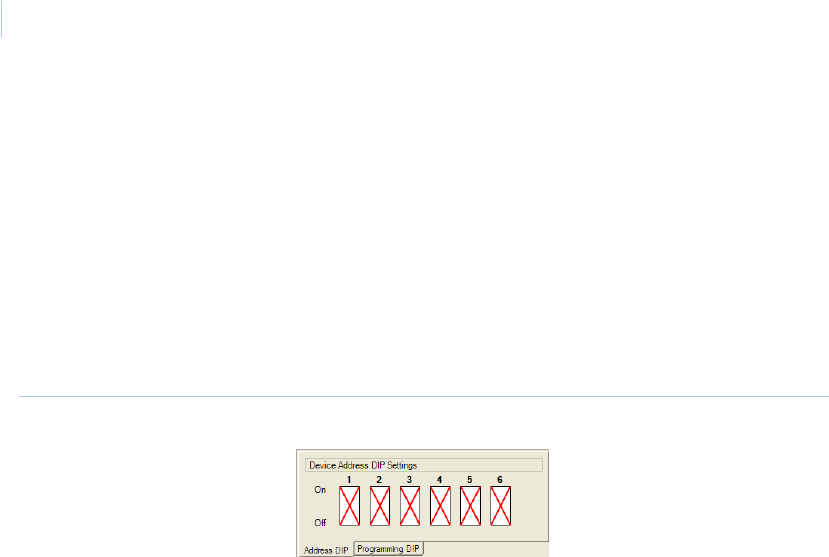

DIP switch tabs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Change device properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Add battery requirements to devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Add devices to a wireless DGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Add devices to a point ID DGP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Add cameras to a DVMR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Local bus layout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

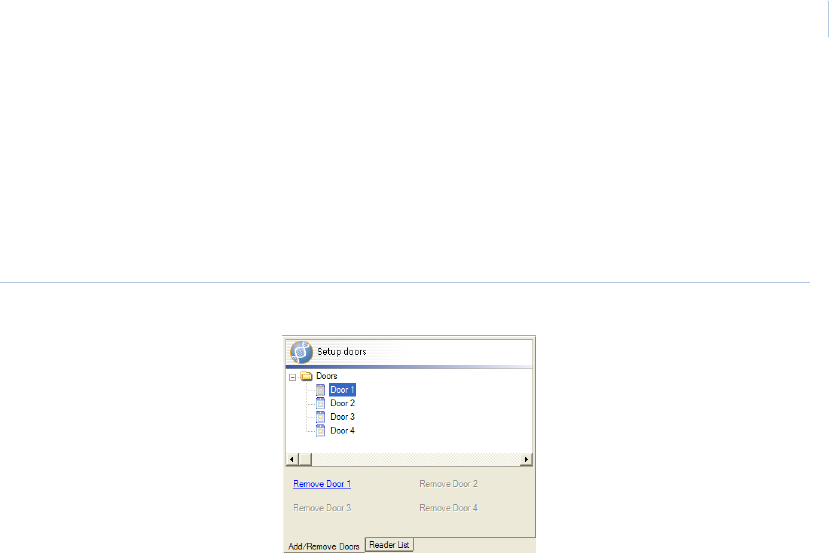

Add doors to a 4-door controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Card readers and keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Program DGP properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Program door properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Add elevators to a 4-elevator controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Card readers and keypads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Program DGP properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Program door/elevator properties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Control panel programming tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Programming features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Selected programming field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Selected properties field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

vii

Property programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Parts list tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

GE Security parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Add GE parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Remove GE parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Third party parts list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Import third party parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Organize the parts tree. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Edit third party parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Add third party parts to a project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Remove third party parts from a project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

User defined parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Print the parts list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Wiring diagrams tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

View wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Save wiring diagrams as images. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Print wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Battery calculation tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Cable calculation tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Graph setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Wire setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Calculate cable length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Print cable calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Alliance Builder

User Manual

viii

Chapter 3. Alliance Builder tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Device polling tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Enclosures tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

As-built tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Page setup options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Save the report as a PDF file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Print the report. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Print preview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Architecture view tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Auto layout tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Installer administration tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Dealer setup tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Installers tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Add installers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Installer types tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Project management tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Device property window tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Export tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Chapter 4. Panel/device tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Device addressing tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Software managed mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Manually managed mode (not available at this time) . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Device address configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Programming viewers tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95

RAS devices viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

DGP devices viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Zones viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Relays viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Relay control groups viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Doors viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Alarm groups viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Areas viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Time zones viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Wireless serial numbers viewer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Arm/disarm viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Text words tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Event flag descriptions tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Timers tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Alarm group restriction timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Alarm control timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Diagnostic timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

RAS access timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Siren timers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Programming validator tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Virtual relays tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

DVMRs/camera tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Current control panel tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

DGP/RAS numbering graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110

Alliance Builder

User Manual

Chapter 5. RAS programming features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

RAS (remote arming stations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Chapter 6. DGP programming features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

DGP (data gathering panels). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .122

4-door/elevator controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Elevator programming options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127

Point ID DGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Point ID devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .130

Wireless DGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Key fob programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .136

Chapter 7. Door programming features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Door/RAS numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Door access programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Door request-to-exit (RTE) programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Door alarm control programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Door reader programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Door hardware programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Door/floor groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .158

Chapter 8. Control panel programming features . . . . . . . . . . . . . . . . . . . . .159

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Control panel features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Memory expansion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Multiple panel systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Macro logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Alliance system macros . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Timers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Chapter 9. Access programming features . . . . . . . . . . . . . . . . . . . . . . . . . . .177

Areas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Area links programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Bank vault areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Alliance Builder

User Manual

xii

Chapter 10. Alarm control programming features . . . . . . . . . . . . . . . . . . . . .187

Alarm groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

Hard-coded alarm groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .191

Alarm group restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .198

Automatic arm/disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201

Automatic reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Chapter 11. Diagnostics programming features. . . . . . . . . . . . . . . . . . . . . . .205

Battery test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206

Clock correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207

Next service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209

Test call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210

Chapter 12. Reporting programming features . . . . . . . . . . . . . . . . . . . . . . . .213

Central Station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214

Communication programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .217

Reporting classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .221

Voice reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .223

xiii

Chapter 13. Time and date programming features . . . . . . . . . . . . . . . . . . . .225

Hard time zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Holidays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Chapter 14. Zone and relay programming features . . . . . . . . . . . . . . . . . . . .229

Relays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231

Soft time zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Zone shunts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246

Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Alliance Builder

User Manual

xiv

Chapter 15. Miscellaneous programming features . . . . . . . . . . . . . . . . . . . .251

Control panel options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .252

Custom LCD message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .263

Event Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

Predefined event flags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .265

Custom event flags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .266

Event flag description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .266

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .267

System event flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .269

Text words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .272

Chapter 16. Maintenance and support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .273

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274

MSDE database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274

CPD files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274

APF archive files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274

Recommended practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .275

Contacting technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Online publication library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .276

Appendix A. Boolean logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .277

Boolean logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Logical OR operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .278

Logical AND operator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .279

Logical NOT operator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .280

Combination logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .281

Examples of macros applied to Boolean logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .283

Commonly used macros. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .291

Appendix B. Card access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .297

Card and card reader types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .298

Card formats and data fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .298

Smart card programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .299

Reader configuration cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .300

System codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

Offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

IUM (intelligent user module) and memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .303

Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

Card read sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .306

Appendix C. Text word library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .307

Text word library . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .308

Appendix D. Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .323

Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324

System bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

4-door/elevator controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329

RAS numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 332

Appendix E. Zone event reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .333

Zone event reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .334

Appendix F. Zone types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .343

Zone types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .344

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .359

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .365

Alliance Builder

User Manual

xvi

Preface

This is the GE Alliance Builder User Manual. This document includes an overview of the

product and detailed instructions explaining:

• how to use the user interface; and

• what the programming features are.

There is also information describing how to contact technical support if you have questions

or concerns.

To use this document effectively, you should have the following minimum qualifications:

• a basic knowledge of the Alliance system components; and

• a basic knowledge of programming access and intrusion control panels.

Read these instructions and all ancillary documentation entirely before installing or

operating this product. The most current versions of this and related documentation may be

found on our website.

Alliance Builder

User Manual

Conventions used in this document

The following conventions are used in this document:

Safety terms and symbols

These terms may appear in this manual:

Bold Menu items and buttons.

Italic Emphasis of an instruction or point; special terms.

File names, path names, windows, panes, tabs, fields, variables, and other GUI

elements.

Titles of books and various documents.

Blue italic (Electronic version.) Hyperlinks to cross-references, related topics, and URL

addresses.

Monospace Text that displays on the computer screen.

Programming or coding sequences.

CAUTION: Cautions identify conditions or practices that may result in damage to the equipment

or other property.

WARNING: Warnings identify conditions or practices that could result in equipment damage or

serious personal injury.

Chapter 1 Introduction

This chapter provides an overview of Alliance Builder.

In this chapter:

Alliance Builder overview. . . . . . . . . . . . . . . . . . . . . . . . . .4

User interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Creating projects. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Import/export projects . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Alliance system overview . . . . . . . . . . . . . . . . . . . . . . . . .31

Alliance Builder

User Manual

Alliance Builder overview

To make designing and programming security systems faster and easier, Alliance Builder

employs standard Windows drag and drop functionality. The application automatically takes

care of many of the difficulties normally associated with security design including

addressing and numbering devices.

Use Alliance Builder to:

• Program and label system devices

• Provide a descriptive name to all system hardware

• Handle bus addressing

• Configure doors/elevators

• Apply all system limitation rules during configuration

• Visualize the system architecture

• Create a portable project file that details the configured architecture

• Provide an as-built report (see As-built tool on page 81) that includes:

- Project summary

- CSI specification

- Brochure

- System overview diagram

- Installer wiring information

- Bus layouts

- Device manuals/data sheets

- Point ID address summary

- Wireless serial number summary

- Video integration summary

- Parts list

- Battery calculations

- Cable calculations

- Wiring diagrams

Chapter 1

Introduction

Hardware requirements

Alliance Builder minimum requirements:

• 600 MHz Pentium 3 (or equivalent) CPU

•256MB RAM

• 200MB hard drive space for all required software

• SVGA Monitor, 1024 x 768 resolution, 16-bit high color

• 101 Keyboard

• Mouse or trackball device

• Network card

• Video card that supports DX7

Software requirements

Alliance Builder minimum requirements:

• Windows 2000, or Windows XP Home/Professional operating system

• Sufficient Windows permissions to install all components

Alliance Builder supports the optional ability to export parts lists to Excel spreadsheets. One

of the following applications must be installed to export Excel parts lists (without Excel, the

parts list can still be exported to a CSV file):

• Excel 2000

•Excel XP

• Excel 2003

Alliance Builder

User Manual

Product specific function limitations

The project design and programming options available in Alliance Builder are dependent on

the control panel and software management program you select for your project. These

products are selected when you create a new project or open an existing project. Your view

of Alliance Builder will reflect the limitations of the products you select.

For example, if you select a control panel that does not support 4-door controller DGP

devices, when you open the project in Alliance Builder the programming features for 4-door

controllers will not be available. The status bar will have the door totals cancelled out and

the 4- door controller DGP devices will not appear on the System device tree in the System

layout tab.

To ensure you have all the programming features required by your system, be careful to

select the appropriate control panel and software management program.

Chapter 1

Introduction

Control panel limitations

The Alliance control panels provide the features shown in Table 1.

Table 1. Control panel features

Feature AL-4X17 AL-3017 AL-2017

Areas 16 8 4

Maximum number of zones 256 64 32

Number of 8-zone expanders supported directly

on control panel

222

Maximum number of relays 255 255 255

Maximum number of doors 48 48 0

Maximum number of DGPs 15 15 15

Maximum number of system bus RAS devices 16 16 16

Default number of alarm groups 32 32 32

Default number of door groups 10 10 10

Default number of floor groups 10 10 0

Expandable memory support Yes Yes No

Clock relay controllers support Yes Yes Yes

Number of card holders 50 50 50

Number of users with names 50 50 50

Number of users with PIN 50 50 50

Access logged events 10 10 10

Alarm logged events 250 250 250

Onboard zones 16 8 8

Onboard relays (physical and virtual) 5 5 5

Alliance Builder

User Manual

Alliance management software program limitations

The Alliance management software programs provide the features shown in Table 2

Note: The firmware version in your control panel may also set limitations when you export your project

to an Alliance software management program.

Table 2. Alliance management software programs

Feature

Alliance

Professional

Alliance

Enterprise

Number of work stations 1 4

Database engine Borland BDE Microsoft MSDE

TCP/IP LAN connectivity Yes Yes

Software licensing required No Yes

Maximum number of control panels 8 32

Management via dial-up Yes Yes

Reports Yes Yes

Bulk user update Yes No

Graphical maps Yes Yes

Video integration Yes Yes

Maximum number of DVMRs 2 8

Photo ID licensing required No Yes

Chapter 1

Introduction

Initial log on

When you first execute the software, you access the Log on screen (Figure 1).

Figure 1. Log on screen

To log on the first time, use the following defaults:

Installer - ALLIANCE INSTALLER

Password - 998765

After you log on for the first time, we recommend that you change the default password. To

change the password, do the following:

1. Select the Installer administration tool near the top of the application window.

2. Select the Installers tab in the Installer administration window.

3. Select ALLIANCE INSTALLER in the list of installers and click Edit.

4. Change the password and confirm password information in the New/edit installer

window and click OK.

5. Click Close to exit the tool.

For more information, see Installer administration tool on page 85.

Alliance Builder

User Manual

User interface

Alliance Builder has a user interface that is easy to use and follows standard practices. The

user interface includes menus, toolbars, view tabs, status bars, and dialog boxes as shown in

Figure 2

Figure 2. Alliance Builder interface

Menu bar

The menu bar shown in Figure 3 is located at the top of the window.

Figure 3. Menu bar

Chapter 1

Introduction

File

The File menu includes the following options:

New project. Access the New project selection window to select the type of new

project you want to create. The choices are:

• Standard project using the New project wizard (see Create new projects on

page 39)

• Create a project based on an existing project or on a GE Security template (see

Create from template on page 41).

• Import a project via the Import project wizard (see Import/export projects on

page 28)

Close project. Closes the currently selected project and opens the Project list tab.

Save project. Saves the changes and updates that you have made to the current project.

Recent projects. Select a project to open from a list of recently created or updated

projects.

Project properties. Access the Alliance project properties window to view contact

numbers, customer information, and general information for the current project.

Logout. Log out without closing the application.

Exit. Closes the application.

Tools

The Tools menu provides the following options:

Take screenshot. Take a screenshot of the screen currently shown in Alliance Builder.

Show tooltips. Enable the blue bubble tooltips for Alliance Builder. This option does

not impact the standard Windows tooltips.

Parts

The Parts menu includes the following options:

Recommended parts options. When you add certain devices to the project in the

System layout tab, you have the option, through a dialog box, to also add

recommended parts for the device. The parts you check are added to the project and

Alliance Builder

User Manual

will appear on the parts list and in the As-built report. You can use this menu option

to set the program to automatically check all the recommended parts for the devices

you add to the layout.

Parts dialog behavior. Use this menu to indicate if you want Alliance Builder to

recommend parts when you add devices to the project.

Export parts. Export the current project's parts list or export all supported parts to a

file.

Import parts. Use this option to import parts lists to the Parts list tab. The Import third

party parts dialog box can also be accessed through the Parts list tab. See Import

third party parts on page 70 for details.

Organize third party parts. Use this dialog box to organize your third party parts list.

See Organize the parts tree on page 71 for details.

Edit third party parts. Use this dialog box to edit third party parts. The Third party

parts editor can also be accessed through the Parts list tab. See Edit third party

parts on page 72 for details.

Help

The Help menu includes the following options:

Launch help. Opens this Help program

Visit Alliance on the web. Provides a link to Alliance information on the web.

About Alliance Builder. Provides copyright and historical information about Alliance

Builder

View tip of the day. Select this option if you want to see the tip of the day when you

open Alliance Builder.

Enable all context tip. Select this option to enable all context tips.

Chapter 1

Introduction

Toolbar

The toolbar is located below the menu bar at the top of the program window (Figure 4).

Click an icon on the toolbar as a shortcut to dialogs and actions. The toolbar only gives

information and options for the currently selected control panel in the system layout. In

systems with multiple control panels, you must ensure that the correct control panel is

selected before using the toolbar (see Current control panel tool on page 109).

Figure 4. Toolbar

Alliance Builder tools

The top row of tools are used for programming functions that are not downloaded to the

control panel. These tools include:

•Device polling tool on page 80

•Enclosures tool on page 80

•As-built tool on page 81

•Architecture view tool on page 84

•Auto layout tool on page 84

•Installer administration tool on page 85

•Device property window tool on page 89

•Export tool on page 90

Alliance Builder

User Manual

Panel/device tools

The bottom two rows of tools are used for programming functions that will be downloaded

to the control panel. These tools include:

•Device addressing tool on page 94

•Programming viewers tool on page 95

•Text words tool on page 100

•Event flag descriptions tool on page 101

•Timers tool on page 102

•Programming validator tool on page 106

•Virtual relays tool on page 107

•DVMRs/camera tool on page 108

•Current control panel tool on page 109

•DGP/RAS numbering graphics on page 110

Chapter 1

Introduction

View tabs

The view tabs are located below the toolbar and to the right of the left pane interface.

Figure 5 shows the view tabs as they appear when a project is open. In this view the Project

list tab is hidden.

Figure 5. View tabs

The tabs include:

•Project list tab on page 36

•System bus layout tab on page 44

•Local bus layout tab on page 58

•Control panel programming tab on page 62

•Parts list tab on page 67

•Wiring diagrams tab on page 74

•Battery calculation tab on page 75

•Cable calculation tab on page 77

When you open Alliance Builder, the Project list tab will be active. To enable the other view

tabs, you must select a project on the list or create a new project (see Project list tab on

page 36). After you select or create a project, the System bus layout tab will open and

populate with the information for the selected project and the Project list tab will be hidden.

The System bus layout tab is a multilevel tab. From the System bus layout you can invoke

the Local bus layout tab or the Control panel programming tab (see System bus layout tab

on page 44).

Alliance Builder

User Manual

Left pane interface

The information available through the left pane interface (Figure 6) is determined by the

active view tab.

Figure 6. Left pane

The tabs to the left of the interface access the following information:

Control panels. A tree of the control panels currently in the project. See Control panel

tab on page 46.

Device tree. A tree of available devices (will change when you activate a view tab).

Properties. A tree of the device properties (will change when you activate a view tab)

Return view. Returns you to the System bus layout tab from the Local bus layout tab or

the Control panel programming tab.

When you select a view tab, the left pane interface will activate the tabs used for that view

tab and populate with the appropriate information. Any left pane tabs that are not active for

the selected view tab will be grayed out. See the specific view tab topic for information for

the left pane interface for that tab.

Chapter 1

Introduction

Status bar

The status bar (Figure 7), located at the bottom of the program window, provides a running

summary of the total number of various project capabilities for the currently selected control

panel and the maximum number allowed in a system.

Figure 7. Status bar

The status bar is provided as a read-only feature and the information is automatically

generated by Alliance Builder to reflect the present state of the system. The following

information is included:

Control panel. Number used/maximum number allowed

Zones. Number used/maximum number allowed

Relays. Number used/maximum number allowed

Doors. Number used/maximum number allowed

Elevators. Number used/maximum number allowed

As devices are added or removed from the system, the following colors indicate the state of

the project capabilities on the status bar.

Gray. This is the standard state for an attribute.

Blue. The attribute's numbers have changed.

Yellow. Over half the attribute's maximum allowed number is used. (50% maximum))

Red. The attribute is nearing the maximum number allowed. (90% maximum)

Black. The attribute is at the maximum number allowed and cannot be expanded.

(100% maximum)

Icons

Icons are used in Alliance Builder to indicate programming features. The icons are used in

the tool bars, view tabs and property programming trees to give visual clues to what is being

programmed and how the programming features interact in Alliance programming.

Alliance Builder

User Manual

Property programming

Property programming is accessed through property trees located in several areas of

Alliance Builder. Most property programming is done through the System bus layout tab for

specific device properties and through the Control panel programming tab for project-wide

properties.

You can change the value of most properties. However, some properties are set

automatically for you by Alliance Builder and cannot be changed. When a property is

selected, a gray color indicates the property is read-only and cannot be changed, while a

black color indicates a property that can be changed.

There are two lists of properties:

Alliance Builder properties. Alliance Builder properties are not downloaded to the

control panel. These properties are defined by Alliance Builder and include the part

number and the type of enclosure required. This information drives the Required

Alliance parts list (see Parts list tab on page 67). Most Alliance Builder properties

are read-only (grayed out) and cannot be changed.

Device properties. Device properties are downloaded to the control panel. These

properties are set to defaults by Alliance Builder, but can be programmed as

required for your application. In many cases, this will be a combined list of

categories in order to provide access to all relevant properties for a given device.

Figure 8shows the Device properties tab open on the System bus layout tab.

Figure 8. Device properties tree

Chapter 1

Introduction

There are several methods provided to change property values. The type of programming

feature and property value will determine the method used.

Double-click menus

Double-click a property name to access a drop-down navigation menu with various options

to make programming faster and easier. A typical menu is shown in the following example:

What’s this?

Create, assign, or view

Create and assign a new X.

Create and assign a new X and view in property window.

View assigned X in a property window.

Navigate to this X.

Reset or unassign

Reset to default.

Unassign the current value.

In the example shown, X is the name of the programming item. The specific drop-down

menu choices are determined by the type of programming feature and property selected.

The navigation menus will direct you to the programming item you need. For example, if

you have a RAS device and you want to assign event flag descriptions to a door event flag,

you would:

• Double-click on the door event flag.

• Select Create and assign a new event flag description and view in property window.

• Alliance Builder will create a new event flag and a property window will appear

with the item loaded.

• Click on the Description property and rename it.

• The event flag description in the property list on the tab will change to match the

change you made in the property window.

Alliance Builder

User Manual

Property editors

If you select a property name and there is a three-dot button to the right of the property

value, click the button to access a property editor window. The property editor will give you

the programming choices for the selected property. The programming choices are dynamic

and will change depending on your project configuration. Only the programming choices

that are available for your project are shown. To assign a programming option to the selected

property, most editors provide a list of options that you can either double-click or select and

click OK.

Property editors include:

Alarm groups editor. Assign an alarm group from the list. See also Alarm groups on

page 188 for more information.

Event flag description. Assign an event flag description form the list. Event flag

descriptions are programmed in the Event flag descriptions tool on page 101.

Hard/soft time zone editor. Assign an existing time zone from the list. Hard time

zones and soft time zones are programmed in the Control panel programming tab

on page 62.

Relay editor. Assign a relay from the list. Relays are programmed in the Control panel

programming tab on page 62. See Relays on page 230 for more information.

Reporting class. The reporting class editor provides a tree of 8 reporting classes with 6

conditions for each. Select a condition and then check the applicable reporting

boxes. See Reporting classes on page 221 for more information.

Text word editor. Assign a text word from the text word library. See Text words on

page 271 for more information.

Floors editor. Assign an existing floor from the list. Floors are programmed in the

Control panel programming tab on page 62.

Macro editor. Assign macros for control panels and 4-door/elevator controllers. You

can create new macros in this editor. See Macro logic on page 166 for more

information.

Zones editor. Assign an existing zone from the list. Zones are programmed in the

Control panel programming tab on page 62.

Chapter 1

Introduction

Arrow buttons

When you select some properties an arrow button is shown to the right of the property value.

Some arrow buttons provide drop-down menus with programming choices for that property

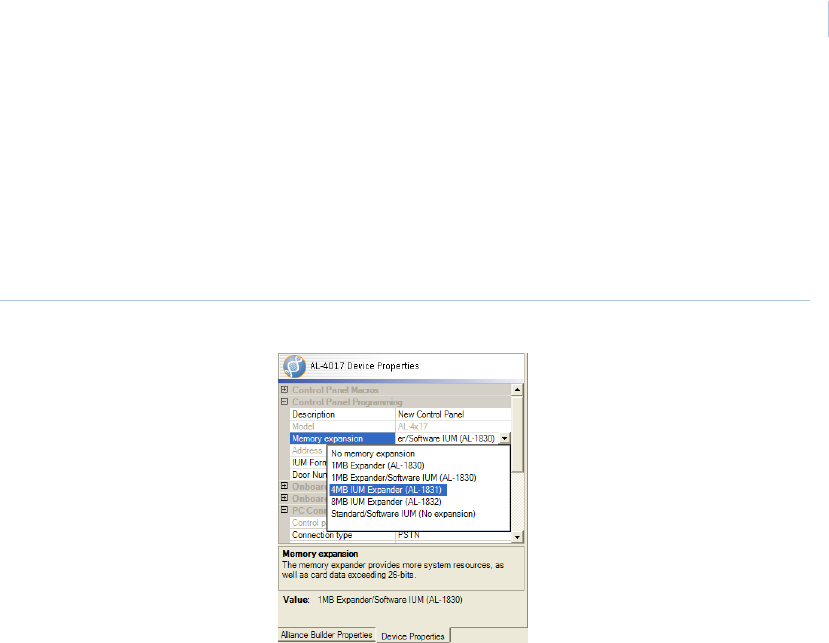

(Figure 9). The description displayed for the property name explains the implications of the

programming choices. When options require a numeric value, the acceptable range and unit

are provided to prevent you from entering an invalid value.

Figure 9. Property arrow menu

Some arrow buttons provide text boxes. These are used for property values such as

descriptions of zones and other programming features that are not downloaded to the control

panel. If there is default text in the box, you can overwrite the text to change it. There is a

character length limit that you will not be able to exceed.

Alliance Builder

User Manual

Device right-click menus

You can right-click devices on device trees and layout graphics to access drop-down menus.

Right-click a device on a device tree to get the drop-down menu shown in Figure 10.

Figure 10. Right-click menu

Right-click any device on the system layout graphic to access a variety of menu options. The

options available for each device depend on the type of device and how the device is

programmed. Options include:

Remove all devices from the control panel. This option is only available for control

panels. It allows you to remove all devices from the control panel.

Remove device. This option is not available for control panels. It allows you to remove

the DGP or RAS device, its enclosure, and all devices connected to the DGP or

RAS.

Click to view enclosure summary. Provides a read-only list of all devices/components

found within this enclosure.

Click to view a summary for this control panel. This option is only available for

control panels. It provides a brief describing and a read-only list of the control

panel’s capacities.

Device collections. This option provides the following choices:

•Click for zone collection editor. Opens the Onboard zone setup window. Use

this window to program zones.

Chapter 1

Introduction

•Click for relay collection editor. Opens the Onboard relay setup window. Use

this window to program relays.

•Click for door collection editor. Opens the Intelligent door setup window. Use

this window to program door options.

•Click to configure control panel macros. Opens the Control panel macro

collection editor. Use this editor to design up to 24 logic equations.

•Click to configure 4-door/elevator controller macros. Opens the 4-door/

elevator controller macro collection editor. Use this editor to design up to 48

logic equations.

•Click to configure point ID devices. Opens the Point ID device configuration

window (see Add devices to a point ID DGP on page 54).

•Click to configure wireless devices. Opens the Wireless transmitters setup

window (see Add devices to a wireless DGP on page 53).

Memory summary. Details limits for things such as alarm groups and door groups.

Alliance Builder

User Manual

Creating projects

Before you begin a project in Alliance Builder you will need to have some basic

information. This information includes both a general plan of the required elements of your

project and specific company data.

General project plan. To design a project in Alliance Builder you need to have a floor

plan with the number of doors and elevators that will need control devices as well as

an idea of the required location and type of control and sensor devices. This

information will help determine the number of areas and zones needed for your

project.

Company information. Alliance Builder requires company information when you

create a project. This information will also be used on reports and forms generated

by Alliance Builder. The information includes the company name, address, phone

number, and contacts.

Project wizards and templates

After you log on to Alliance Builder, the program opens at the Project list tab (see Project

list tab on page 36) shown in Figure 11 on page 25.

Chapter 1

Introduction

Figure 11. Project list tab

To create a new project, click Create new project. This invokes the Alliance project builder

wizard (see Create new projects on page 39) that will guide you through the necessary steps

to create a new project. In the wizard, you will provide project information and select a

control panel, enclosure, and other components that make up a basic Alliance system.

Completing the wizard creates a new project containing all of the project information and

components selected in the wizard and adds the project to the project list.

To create a new project using an existing project or a template, click Create from template

(see Create from template on page 41). This invokes the Template wizard that will guide

you through the necessary steps to create a new project. Using the Template wizard will

make the process of programming a project much faster and easier. Choose the template that

is closest to the project you need and the product selection and some of the properties

programming will be done automatically. When you complete the wizard, the new project

will be added to the project list.

Alliance Builder

User Manual

When you select the new project from the project list, the System bus layout tab (see System

bus layout tab on page 44) will open and populate the layout graphic with your new project

components. Add any additional Alliance hardware you require to the system by dragging

and dropping devices onto the layout from the device tree.

Basic programming sequence

After you have created a basic system using the project builder wizard or a template, we

recommend you do the following steps to complete your project:

1. Program the control panel's Alliance Builder properties. See Control panel on

page 160 and System bus layout tab on page 44.

2. Add any additional RAS devices needed to the system layout and program the

devices Alliance Builder properties. The as-built description option is especially

useful in larger systems to identify the device location in the project and ensure the

devices are located at the proper entrances and exits. See RAS (remote arming

stations) on page 112.

3. Program the DGP devices Alliance Builder properties. See DGP (data gathering

panels) on page 120.

4. Select the control panel and enter control panel programming in system properties

(memory format and IUM format). See Control panel on page 160.

5. Program the PC programming. (see Control panel programming tab on page 62)

6. Setup the areas needed for the project. (see Areas on page 178 and Control panel

programming tab on page 62)

7. Program the central station configuration and communication options. (see Central

Station on page 214 and Control panel programming tab on page 62)

To add the programming associated with zones, do the following:

1. Program the alarm groups. (see Alarm groups on page 188 and Control panel

programming tab on page 62)

2. Program the time zones. (see Hard time zones on page 226 and Control panel

programming tab on page 62)

3. Program the zones. (see Zones on page 236 and Control panel programming tab on

page 62)

Chapter 1

Introduction

4. If the number of zones is not sufficient, add required DGP devices or zone expander

devices. (see System bus layout tab on page 44)

5. Program the DGP Alliance Builder properties, then the zone programming for each

DGP device. (see System bus layout tab on page 44)

6. Program the relays. (see Relays on page 230 and Control panel programming tab on

page 62)

7. Add items from the GE parts list to ensure the number of zones equals the number

of detection sensors. (see Parts list tab on page 67)

8. Add speakers and accessories. (see Parts list tab on page 67)

Alliance Builder

User Manual

Import/export projects

All projects created in Alliance Builder have a unique identifier called a GUID (global

unique identifier). This identifier provides a mechanism to synchronize projects while

ensuring that two project numbers cannot point to the same deployed system. For example,

if an installer creates a project and the project is later modified. When the project is imported

back into Alliance Builder, the program will find the same identifier already exists in the

database and will ask if the existing project should be replaced with the newer one.

Project archive file

The following files are contained in an Alliance Builder project archive:

Alliance Builder. Details all the project definitions that identify the part numbers,

enclosure assignments, etc.

Panel defs. Control panel programming configuration.

Parts list.

Exporting process

Use the Export tool (see Export tool on page 90) to export a project to an archive file or to

Alliance Professional.

Importing process

To import projects, do the following:

1. From the Project list tab (see Project list tab on page 36), click Import APF

archive at the bottom of the tab. You can also use the menu bar (Menu bar on

page 34)to select File | New project. In the New project selection window, select

Import APF archive and click OK.

2. Browse to select the system configuration file you want to import.

3. Click Open.

You can not have two projects in Alliance Builder with the same project ID. If you try to

import a project and the project ID already exists in Alliance Builder, a warning box will

appear.

Chapter 1

Introduction

Recommended import/export strategy

To avoid adding programming time to the process, we recommend you follow these steps:

1. Design the entire project in Alliance Builder.

2. Export the project to an Alliance software management program.

3. Use the software management program to load the system to the control panel.

4. Check the system to see if additional programming is needed.

5. Make any required changes to the project in Alliance Builder.

6. Export the same project back to the software management program and load the

system to the control panel.

Alliance Builder

User Manual

Help

The Help Viewer provides a navigation pane with the following tabs:

Contents tab. Use the Contents tab to see a list of major categories of Help topics

organized into books. Double-click a book to expand it into a list of topics. Click a

topic to open it in the topic pane.

Index tab. Use the Index tab to see the Help index. Click an index entry to open a topic

that contains information relating to the index entry. If more than one topic is found,

a pop-up selection window with a list of related topics will appear. Click on a topic

on the list to access that topic.

Search tab. Use the Search tab to search the Help topics.

Glossarytab. Use the Glossary tab to find definitions for words used in Alliance

Builder.

You can Hide and Show the tabs by clicking the appropriate button

Copy a topic

In the topic pane of the Help Viewer, right-click inside the topic you want to copy, and select

the Select All option.

Inside the topic, right-click again, and select Copy. This copies the topic to the clipboard.

Click the location in your document where you want the information to appear.

In the Edit menu, select Paste.

Note: If you want to copy only part of a topic, select the part you want to copy, right-click the selection,

and select Copy. Words that are links to other topics and step numbers are not copied to the

Clipboard.

Print a topic or book

Right-click the topic you want to print, and select Print.

Use the Contents tab to print all topics within a book. Right-click the book and select Print.

In the Print topics window, select the Print the selected heading and all subtopics option

and click OK.

Chapter 1

Introduction

Alliance system overview

The Alliance system combines access control and intrusion in one system that is made up of

several different types of devices based around a control panel. The system components

must be set-up and programmed to function together within particular parameters that are

determined by the installer. Alliance systems can be very simple, with very few devices, or

very large and complex with a wide range of devices. Because of this flexibility, it is

important to understand the basic types of devices, how the system must be mapped, and

how devices are addressed.

RAS (remote arming stations)

A RAS is a device, usually a keypad or card reader, that controls arming and disarming of

areas within the Alliance system. A control panel can have up to 16 RAS devices connected

on the system bus. When a RAS device is connected to a 4-door/elevator controller DGP on

a local bus, up to four RAS devices are treated as a door by the Alliance system. A RAS

device can be used to:

• Display zone, system and area status

• Specify the areas that can be accessed by the user

• Handle basic user access via a PIN

• Assign addresses to control panels

• Provide programming via menus

• Provide specialized programming functions

For more information on RAS programming options, see RAS (remote arming stations) on

page 112.

RAS addressing

Most RAS devices have DIP switches that are used to set the RAS address on the RAS

device. Be aware that although the control panel supports up to 16 RAS devices on the

system bus and the system RAS address range is 1 to 16, the DIP switch address setting on

the RAS device will be 0 to 15. You must subtract 1 from the system RAS address to get the

correct DIP switch setting for the RAS device. For example, the first RAS device added to

the system bus will be RAS 1 with a DIP switch setting of address 0.

For more information on RAS addressing and numbering, see Numbering on page 324.

Alliance Builder

User Manual

DGP (data gathering panels)

A DGP, depending on the device type, can provide expansion capabilities, redundant

databases, access control, zone monitoring, siren notification, and many other features. DGP

devices connect to the control panel through the RS485 system bus. This system bus can

extend up to a distance of 5,000 feet from the control panel, allowing the installer to

distribute the system over a large area when needed and providing audible siren support to

areas that would normally be difficult to cover.

The Alliance control panel supports up to 15 DGP devices. During system operation, the

control panel will poll the DGP devices to obtain status information. Polling can be

continuous or event based depending on your system's configuration. Despite their similar

characteristics, control panels are not considered DGP devices.

For additional information on DGP devices and their programming options, see DGP (data

gathering panels) on page 120.

DGP addressing

DGP addresses are set by using DIP switches on the devices. While most DGP devices have

addresses that range from 1 to 15, some devices, such as the 4-door controller have

addresses that range from 1 to 12. When setting the address on the DGP device, it is

important to understand the Alliance addressing/numbering scheme to ensure that the

address is set correctly (see Numbering on page 324). Before setting the address, refer to the

specific device's installation instructions.

4-door/elevator controller DGP

The 4-door/elevator controllers provide intelligent doors (4-door controllers) and intelligent

doors//floors (4-elevator controllers) control for the system through RTE (request-to-exit),

antipassback, DOTL (door open too long), and access capabilities. The controller

accommodates up to 4 RAS devices per door. The Alliance control panel can support up to

12 controllers, for a system maximum of 48 intelligent doors.

For more information see 4-door/elevator controllers on page 123.

Point ID DGP

The Point ID DGP is capable of supervising a variety of addressable devices on a two-wire

loop. A two-wire local bus supplies the power to the bus devices and provides command and

Chapter 1

Introduction

status information exchange between the DGP and bus devices. The DGP is designed to sit

on the LAN of any existing configuration of Alliance products to expand the system with

addressable devices. The control panel supports up to 15 addressable point ID DGP devices.

For more information see Point ID DGP on page 129.

Wireless DGP

The wireless DGP can be located up to 110 feet (335 meters) from the control panel. The

DGP receives information from a range of compatible sensor types programmed into the

DGP. It features spatial diversity to minimize wireless signal nulls or dead spots and has a

nominal open-air receiving range of 1500 feet (460 meters). A repeater can also be used to

eliminate dead spots.

The control panel supports up to 15 wireless DGP devices. DGP devices can be powered

from the system data bus or through a remote auxiliary power supply. Fob buttons can be

programmed for users to arm and disarm or to control relays. For example, to remotely open

and close a garage door as well as arm or disarm an office security system.

The wireless DGP numbering follows normal DGP numbering. The actual zone numbers

will depend on the address settings for the DGP. Sensors communicating with a wireless

DGP will consume different numbers of zones, depending on the device category. Check the

sensor's installation/programming manual to determine the number of zones that are

consumed. For more information see Wireless DGP on page 132.

Expansion

Expansion modules provide a means of extending the zone (input) or relay (output) space.

Expansion modules can be connected to the control panel via the expansion channel or they

can be connected to a DGP device. The zone space consumed is dependent on the type of

expansion module used.

Zones (inputs)

A zone provides input status to the system, either through a DGP or directly through the

control panel. Zones are identified with a unique number. This number is assigned to the

zone during installation. All reports or displays regarding a particular zone's status will use

this unique number.

Alliance Builder

User Manual

The Alliance 4X17 series control panels have 16 on board zones that are referred to as hard-

wired zones because the zone (input) from a sensor is wired directly to the control panel via

a series of connectors (see Zones on page 236).

Zone types and behavior

The zone type basically defines the behavior of the system based on the zone's input status

or the actions taken when the input status transitions from one state to another. A zone's

status is communicated to the input connection either by digital methods (in the case of a

wireless DGP), or by analog (in the case of the control panel's hard-wired connection).

See Zone types on page 344 for a complete list of zone types.

Relays (outputs)

Relays follow the same numbering as zones (see Numbering on page 324). You can have a

maximum of 16 relays per device, regardless of expanders. A relay can be inverted to

reverse the active and normal state from normally open to normally on.

Relay programming

Events are mapped to relays through the following two methods:

• Macro logic programming applies a logical set of events to activate a relay output

(depends on output selection). For example, a system event 24-hour alarm and

particular zone event can be macro programmed to trigger a particular relay (see

Macro logic on page 166).

• Relay programming uses a single event to trigger a relay output. A door event flag is

the most common example (see Relays on page 230).

Chapter 2 View tabs

Use the view tabs to open, create, design, and program projects.

In this chapter:

Project list tab. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

System bus layout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Local bus layout tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Control panel programming tab . . . . . . . . . . . . . . . . . . . .62

Parts list tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Wiring diagrams tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Battery calculation tab . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Cable calculation tab . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Alliance Builder

User Manual

Project list tab

Use the Project list tab (Figure 12) to create new projects and to access a list of current

projects that includes the project name, the date it was last updated, the date it was created,

and the installer.

Figure 12. Project list tab

The project list displayed is dependent on your installer type (see Installer types tab on

page 87) and only contains the projects you have opened, created, or modified. If you want

to access a project that is not on the list, use the Menu bar and select File | Open Project to

access a list of all projects.

Open projects

To open a project, select the project name in the project list. Alliance Builder will open the

project in the System bus layout tab.

Chapter 2

View tabs

Remove projects

When you remove a project from the project list, you will destroy all database entries and

panel definitions for that project. All references to the project will be removed from Alliance

Builder. If you want to retain files, you need to archive the files you want to keep before you

remove a project.

To remove a project, do the following:

1. Right-click the project name on the list and select Delete project from the right-

click menu.

2. In the Confirm project delete window, make sure the Delete the project directory

and all sub files/directories check box is checked.

3. Click Yes.

View project properties

Project properties can be viewed and some properties can be changed from the Project list.

Any changes made to the properties will be reflected in the Project list.

To access project properties, do the following:

1. Right-click the project name on the list.

2. Select Properties from the right-click menu to open the Project properties window

(Figure 13).

Alliance Builder

User Manual

Figure 13. Project properties window

The Project properties window has the following tabs:

General. Provides general information that can be changed such as the project name,

description, job number, and the project folder directory (use the Change directory

link). Other information such as the installer name, the dates the project was created

and last modified, and the project ID can not be changed.

Customer information . All of the customer information can be changed including the

customer name, telephone number, and address.

Component summary. Provides a list of all components in the project. This

component summary is a reflection of the projects system layout and can not be

changed in this window.

Firmware. Provides information on the control panel firmware version. To change the

version information, use the drop-down menu.

You can also use the Click to view bus thumbnail link to see the system layout graphic for

the project.

Chapter 2

View tabs

Create new projects

We recommend that you create projects using the Create from template on page 41 option.

If however, you want to create a new project without using a template, click Create new

project. This accesses the Alliance Builder wizard. Use the Back, Next, and Cancel buttons

at the bottom of the wizard window to navigate through the steps in Table 3.

Table 3. New project wizard

Welcome Click Next.

Software platform Select a software platform from the drop-down list. The part

number, description, and attribute list are provided for the selected

item. Use this information to ensure that the selected software

platform is appropriate for your project. Click Next.

Project name and folder Enter a name for your project that will be used for the project list

and specify a project folder where all project files will be stored.

Click Next.

Project information Enter the project information specific to this project including the

job ID and a project description if required. Click Next.

Customer information Enter the customer information specific to this project including the

customer name, phone number, and address. Click Next.

Control panel Select the Alliance control panel for the project from the drop-down

list. A list of attributes is provided for the selected panel. Use this

information to ensure that the control panel selected is adequate

for your project requirements. Click Next.

Firmware version Select a firmware version from the drop-down menu. A list of

attributes is provided for the selected version. Use this information

to ensure the version selected is appropriate. Click Next.

Enclosure Select the appropriate enclosure for the control panel from the

drop-down list. A description and a graphical representation of

various board layouts for the selected enclosure is provided. Click

Next.

Transformer Select a transformer from the drop-down menu. The selection

available is driven by the device and enclosure already selected for

the project. A description is provided for the selected transformer.

Click Next.

Alliance Builder

User Manual

LCD keypad Choose an LCD keypad to the project by selecting the Select an LCD

keypad option and using the drop-down list. The Part description

box provides a description of the keypad you select. Since all

Alliance projects require an LCD keypad, if you select the No LCD

keypad option, you must add a keypad to the system in the System

layout tab. Click Next.

Required users Select a memory module from the drop-down list. A list of attributes

is provided for the selected module. Use this information to ensure

that the selected module meet's your user requirements. Click Next.

PC connectivity options Select the interface option required for your system. The Part

description box provides a description of the selected option. Click

Next.

Completed wizard Click Finish to complete the new project creation and add the

project to the project list.

Table 3. New project wizard (continued)

Chapter 2

View tabs

Create from template

Click Create from template to create a new project based on the existing project or

template that is closest to your application’s requirements. Template choices are listed in

Templates on page 42. The wizard directs you through the steps in Table 4:

Table 4. Create from template wizard

Welcome Click Next.

Specify a project name/folder Enter a name for your project that will be used for the project list

and specify a project folder where all project files will be stored.

Click Next.

Project information Enter the project information specific to this project including the

job ID and a project description if required. Click Next.

Enter customer information Enter the customer information specific to this project including the

customer name, phone number, and address. Click Next.

Template type Select the type of source template you want to use for the project

by choosing one of the following options:

Select a GE Security default program as a starting point for your

new project.

If you select this option, do the following:

•Click Next, the wizard provides a list of GE templates.

• Select a template category from the drop-down list and select

a template from the list of templates in that category. A device

totals list will display for the selected template system as well

as a brief overview description. See Templates on page 42 for a

complete list of the available templates.

• To get a list of the attributes for the control panel in the

selected system, click Tell me about this control panel. The

Control panel summary window details the control panel

attributes and limits.

•Click Next to accept the selected template.

Create a new project based on a previously designed project.

If you select this option, do the following:

•Click Next, the wizard provides a list of existing projects.

• Select a project from the list for your template and click Next.

Completed wizard Click Finish to complete the wizard. The new project is added to the

existing project list on the Project List tab.

Alliance Builder

User Manual

Templates

The following templates are available through the Create from template wizard:

Easy

1. Basic intrusion using dial-up.

2. Basic intrusion using direct connect.

3. Expanded intrusion using direct connect.

4. DGP expanded intrusion using direct connect.

5. Intrusion using direct connect and 4 Smart RAS access.

6. Intrusion using direct connect and 4 Smart RAS access w/OC.

7. Intrusion using direct connect and a 4-Wiegand RAS access relay at the panel.

Moderate

1. Intrusion using direct connect and 4-Wiegand RAS access relay at the door.

2. Intrusion using direct connect and 4-door controller DGP with Smart readers.

3. Intrusion using direct connect and 4-door controller DGP with Wiegand readers.

4. Wireless intrusion using direct connect.

5. Point ID intrusion using direct connect.

Experienced

1. Intrusion using direct connect and 4-door controller DGP with Wiegand readers

antipassback.

2. Intrusion using direct connect and 4-door control DGP with Smart readers

antipassback.

3. Intrusion using direct connect and 4-elevator controller DGP with Smart readers.

Chapter 2

View tabs

Import APF archive

To import a project from an Alliance software management program or another Alliance

Builder program, do the following:

1. Click Import APF archive.

2. Browse to select the system configuration file you want to import.

3. Click Open.

You can not have two projects in Alliance Builder with the same project ID. If you try to

import a project and the project ID already exists in Alliance Builder, a warning box will

appear.

See Import/export projects on page 28 for more information on importing and exporting

projects.

Alliance Builder

User Manual

System bus layout tab

The System bus layout tab (Figure 14) provides an interactive graphical representation of the

system. Use this tab to design your project and to program the properties for the devices in

your project.

Figure 14. System bus layout tab

The graphic in the layout will always represent the currently selected control panel. When

you open a project, the layout will automatically populate with the information for that

project and the programming options supported by that project will be active.

Chapter 2

View tabs

The System bus layout tab is a multilevel tab. From this tab you can invoke the following

additional tabs:

Local bus layout tab. To invoke the Local bus layout tab, double-click a 4-door or 4-

elevator control DGP device graphic on the System bus layout. The Local bus layout

tab will populate with the information of the selected DGP device. See Local bus

layout tab on page 58.

Control panel programming tab. To invoke the Control panel programming tab,

double-click the control panel graphic on the System bus layout tab.The Control

panel programming tab provides programming options for the control panel and the

Alliance system. See Control panel programming tab on page 62.

Left pane tabs

The tabs on the left side of the left pane interface access the following:

Control panel tab. The Control panel tab contains a list of the control panels in the

project.

Device tree tab. The Device tree tab contains a list of system devices and a list of

ancillary devices that you can add to the system layout by dragging and dropping.

Only those devices supported by the current control panel and your software

platform will be available in the device tree.

Properties tab. The Properties tab includes both properties that are set by Alliance

Builder and properties that you can change for the selected device.

Return view tab. The Return view tab returns you to the System bus layout tab from

the Local bus layout tab or the Control panel programming tab.

Alliance Builder

User Manual

Control panel tab

Use the Control panel tab to see what control panels are currently in your project. You can

also use the tab to add and delete control panels from your project, and view control panel

documentation.

To add a control panel to the list, do the following:

1. Right-click the Project control panels folder.

2. Select a control panel from the list (Figure 15).

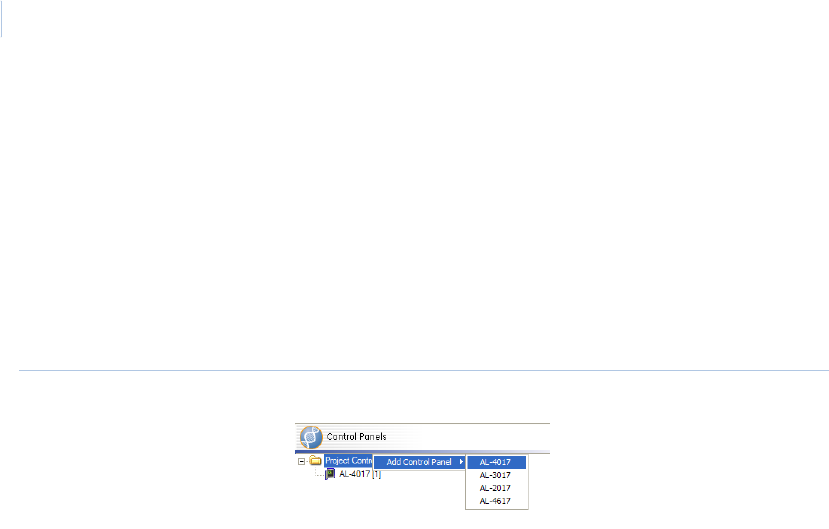

Figure 15. Control panel tree

3. Use the Enclosure selection dialog box to choose the appropriate enclosure and

additional parts for the selected control panel and click OK.

The layout graphic will reflect the new control panel and its system bus.

To delete a control panel or to view control panel documentation, do the following:

1. Right-click the panel on the tree

2. Select one of the following options from the drop-down menu:

• What’s this?

• View installation manual

• View programming manual

• View product datasheet

• Delete control panel

When you have more than one control panel in a project, you must always be aware of

which control panel is currently selected. All programming options and graphics will reflect

the currently selected control panel.

You cannot use this tab to change the currently selected control panel, you must use the

Current control panel tool on page 109.

Chapter 2

View tabs

Add system devices

To add a system device to the layout graphic, open the Device tree tab (Figure 16). Click on

the device in the system bus devices list and drag and drop it onto the layout graphic. This

will place the device on the graphic and Alliance Builder will set the device address and

default properties. Some devices require enclosures and other properties to be selected

before they can be added to the layout. When you select one of these devices, a dialog box

opens and you must supply the required information before the device is added to the layout.

Figure 16. Device tree tab

The rules regarding device placement include:

• A control panel must be on the system bus layout before any other device can be

added.

• The first RAS device added to the system must be a keypad.

• As devices are added to the layout, the changes are reflected in the status bar at the

bottom of the window. Devices can not be added to the layout if their addition will

exceed the maximum number allowed for the system as indicated in the status bar

(see Status bar on page 17).

Remove system devices

To remove a system device from the layout area, right-click the device and select Remove

device from the right-click menu, or left-click the device to select it and hit the Delete key on

your keyboard. Since a control panel is required for all systems, Alliance Builder will not

allow you to remove the only control panel from the layout.

Alliance Builder

User Manual

If you are removing a device, such as a DGP, that includes ancillary devices in the same

enclosure, a confirmation box requires you to confirm the removal of all devices and the

enclosure. You cannot remove the DGP device without removing all other devices in the

enclosure and the enclosure itself.

After devices are removed, Alliance Builder will renumber and configure the remaining

devices in the layout area and the status bar will reflect the those changes.

Use the Auto layout tool on page 84 to update the layout spacing after you remove devices.

Add ancillary devices

Ancillary devices are used to expand the functionality of your system. To access these

devices, open the Device tree tab. Ancillary devices are categorized by their size as shown in

the card size code area below the ancillary device list.

Installation of ancillary devices adheres to the following logic:

Occupied locations. Alliance Builder keeps track of installed devices and prohibits

new devices from being placed in the same locations.

Physical fit. Alliance Builder searches to see if a location is available in the enclosure

that matches the size of the device being placed.

Device type. Alliance Builder determines whether the type of ancillary device being

added exceeds the number allowed under the system's electronic and firmware rules.

System input/output maximums. Alliance Builder will not allow placement of a

device if the addition of the device will cause the system to exceed the maximum

number of zones or relays allowed as shown in the status bar.

You can add an ancillary device to an existing enclosure or directly onto the system layout

(size 1 and 2 devices only).

Add ancillary devices to an existing enclosure

Select the device in the ancillary device list and drag and drop it into an existing enclosure

on the system layout. Each enclosure has a maximum number of ancillary devices that it can

accommodate. This number depends not only on the number of card locations in the

enclosure, but also on electronic and firmware limitations. Alliance Builder will not allow

you to drop an ancillary device in an enclosure that does not have the proper space for it.

Chapter 2

View tabs

Add ancillary devices to the system bus

To add an ancillary device to the system bus, do the following:

1. Select the device in the ancillary device list and drag and drop it onto the system

bus.

2. In the Expander connection window use the Connect this expander to drop-down

menu to associate this device with a control panel. A description of the selected

control panel is provided.

3. Click OK to close the window.

4. In the Enclosure selection and recommended/default parts window, select the

enclosure for the device and select any recommended parts to associate with the

device.

5. Click OK to close the window.

Remove ancillary devices

To remove ancillary devices from the system layout, right-click the device and select

Remove device from the right-click menu, or left-click the device to select it and hit the

Delete key on your keyboard. Only the ancillary device that is selected will be removed.

Other devices in the same enclosure will not be affected.

View device properties

All devices in the layout have properties associated with them. To display the properties for

a device that has been added to the layout, left-click the device. This will open the

Properties tab. The description box below the properties list provides a brief description of a

property when it is selected and the value box indicates what is currently programmed. You

can also mouse over a property to view a brief description.

The following two lists of properties are provided:

Alliance Builder properties. Alliance Builder properties are not downloaded to the

control panel. These properties are defined by Alliance Builder and include the part

number and the type of enclosure required. This information drives the required

Alliance parts list (see Parts list tab on page 67). Most Alliance Builder properties

are read-only (grayed out) and can not be changed.

Alliance Builder

User Manual

Device properties. Device properties are downloaded to the control panel. These

properties are set to defaults by Alliance Builder, but can be programmed as

required for your application. In many cases this will be a combined list of

categories in order to provide access to all relevant properties for a given device.

DIP switch tabs

The two tabs at the bottom of the device properties list provide graphical representations of

the physical DIP switch settings required by some Alliance devices. If a device is selected

that does not require DIP switch settings, the graphics will be disabled (Figure 17).

Figure 17. DIP switch tabs

Address DIP tab. Some Alliance devices have address DIP switches that need to be set

on the device to reflect the device's address number on the system or local bus.

When a device is added to the system layout, Alliance Builder automatically assigns

an address to the device and sets the graphic on this tab to reflect that number. You

can not change this graphic or the device number in the Alliance Builder properties

list, and you must manually set the DIP switches on the device to match the graphic

in Alliance Builder.

Programming DIP tab. Some Alliance devices have programming DIP switches that

can be set based on the required functionality of the device, or other devices

connected to the device. Some device programming DIP switches will be

automatically set for a device based on system logic. To change a device's

programming DIP switch settings, change the related property in the device

properties list. The programming DIP switch graphic will change to reflect the

programming in the device properties list. You must manually set the DIP switches

on the device to match the graphic in Alliance Builder.

Chapter 2

View tabs

Change device properties

You can change the value of most device properties. However, some properties are set

automatically for you by Alliance Builder and cannot be changed. When a property is

selected, a gray color indicates the property is read-only and can not be changed, while a

black color indicates a property that can be changed.

There are several methods provided to change property values. The type of programming

feature and property value will determine the method used. See Property programming on

page 18 for information on the following methods of changing properties:

• Double-click menus

• Property editor buttons

• Arrow buttons

• Right-click menus

Add battery requirements to devices

When you select a device on the layout graphic that has a power source, the property list will

show a battery requirement option. Select this option to access the Power distribution

window.

Power distribution window

Use this window to assign devices that draw power (power sinks) to the power source device

you are programming. Drag the power sink device from the tree at the left and drop it below

the power source device in the list on the right. To delete a power sink device from the right-

hand list, select the device and click Delete on your keyboard.

Alliance Builder

User Manual

In the Power sinks tree:

• All system bus devices are listed. Once a device from the tree has been assigned to a

power source device, it cannot be assigned to any other power source.

• Power source devices on the tree will have an * by their names. They are shown on

the tree to indicate the power sink devices assigned to them.

• All relays for the power source device are shown in angle brackets. When

programming relays for the internal/external siren and strobe, the values will be

higher since the current draw for these relays is higher.

• All zones for the power source device are shown in angle brackets.

• Use the Custom entry tree listing (the last item on the tree) to add anything that

doesn’t fall into the regular categories. This could include such things as Point ID

devices.

Use the Selected parameters field to indicate the following information for the power source

device:

• Description

• Standby current

• Alarm current

• Active current

• Duty cycle

• Relay inverted

The Summary field provides the following totals for the power source device:

• Total activation current (mA)

• Total base current (mA)

• Device power supply current (mA)

Default current editor

Use the Edit zone sensor/relay current defaults link at the bottom of the window to access

the Default current editor. This editor allows you to specify default values for zones and

relays. If you are using a similar set of sensors, this will prevent you from having to adjust

all the similar items you assign to the power source device.

Chapter 2

View tabs

Select the item to edit from the drop-down menu and use the up/down arrows to set the

following parameters:

• Default standby current

• Default alarm current

• Default active current

Click Close to save the defaults.

Parameter dialog box

Use the up/down arrows to set the following parameters:

• Required number of hours in standby

• Required number of minutes in alarm

• Required number of seconds in active.

In the Required number of seconds active utility (badge rate), set the following

parameters.

• Card activation

• Seconds

•Minutes

•Hours

Click Apply to generate the value for Required number of seconds in active.

Add devices to a wireless DGP

After you drag-and-drop a wireless DGP on the system layout, you can add and program

wireless devices for the DGP.

To add devices to a wireless DGP, do the following:

1. Either right-click the wireless DGP graphic on the system layout and select Device

collections | Click to configure wireless devices from the drop-down menu, or

double-click the graphic. Both actions access the same Wireless transmitter setup

window.

2. In the Wireless transmitter setup window, depending on the type of device you want,

right-click the Zone sensors, 16 total zones, or Key FOBs folder on the tree.

Alliance Builder

User Manual

3. Select Add wireless zone transmitter or Add wireless key FOB.

4. In the Wireless selection window, use the arrow button to access a drop-down list of

devices and select a device from the list. Alliance Builder provides a description for

the selected device in the Description field.

5. Select a 7-digit serial ID number by clicking View all serial numbers. This opens

the Wireless serial number window that provides a list of all wireless devices

currently in the project.

6. Click Close to exit this window and return to the Wireless selection window.

7. If you are adding a zone transmitter device, specify the number of zones by

selecting one of the options in the Specify the number of zones for this sensor field.

The number of zones is a reflection of the device type of the transmitter. If you are

adding a key FOB device, use the Specify FOB button functionality field to specify

if the buttons will be user, relay, or unused. If you choose relay, click the 3-dot

button to access the Relay editor and double-click a relay from the list provided to

assign it to the key FOB buttons.

8. Click OK to close the window and return to the Wireless transmitter setup window.

Program wireless device properties

You can also use the Wireless transmitter setup window to program certain properties for

devices you have added to the tree. Click on the device in the tree to select it. Alliance

Builder supplies most of the information shown to the right of the tree. You can, however,

type in a description for the device in the Description box.

When you have finished adding and programming devices, click Close to exit the window.

Add devices to a point ID DGP

After you drag-and-drop a point ID DGP on the system layout, you can add and program

point ID devices for the DGP.

To add devices to a point ID DGP, do the following:

1. Either right-click the point ID DGP graphic on the system layout and select Device

collections | Click to configure point ID devices from the drop-down menu, or

double-click the graphic. Both actions access the Point ID configuration window.

Chapter 2

View tabs

2. In the Point ID configuration window, right-click the Total point ID devices folder

on the tree.

3. Select Add new point ID device.

4. In the Point ID selection window, use the arrow button to access a drop-down list of

devices and select a device from the list.

5. The Selected attributes field shows a description, category, and zone/relay number

for the selected device. Click OK to add the device.

Program point ID device properties

You can also use the Point ID configuration window to program properties for devices you

have added to the tree. To program devices, click on the device in the tree to select it.

Alliance Builder supplies most of the information shown on the General tab. You can,

however, change the default value in the Point ID address field by clicking the 3-dot button

and selecting an available address from the list provided. You can also type in a description

for the device in the Description box.

If the device selected is a I/O device, two additional tabs are provided for programming zone

and relay options. The Zones tab provides a drop-down menu to select one of the following

for each zone:

Undefined. This is the default.

Double EOL. Double EOL (end-of-line) is a two-resistor configuration.

Single EOL. Single EOL (end-of-line) is a one-resistor configuration.

Zone is off. This indicates the zone not used.

The Relay tab provides a drop-down menu to select one of the following for each relay:

Undefined. This is the default.

Temporal. Siren output. Relay is off until event occurs.

Off/on. Relay is timed for on/off intervals.

On. Relay is always on (closed loop).

The Relay tab also provides a Supervised check box to program the relay as supervised.

When you have finished adding and programming devices, click Close to exit the window.

Alliance Builder

User Manual

Add cameras to a DVMR

After you have added a DVMR device to the system layout, you can add cameras to the

device. double-click the DVMR device graphic on the layout. Alliance Builder will open the

DVMR setup window. Use this window to specify DVMR parameters and to add and remove

cameras.

Set DVMR parameters

Most of the DVMR setup field is read-only information supplied by Alliance Builder and

dependent on the type of DVMR selected. You can overwrite the default text in the

Description box and select a Video standard from a drop-down menu. LAN settings that

can be programmed include a password, IP address, and Port number.

Click View all IP addresses assigned to DVMRs to open a window with a read-only list

containing the number, description, and IP address for all DVMR devices in your project.

Consult with your IT administration for network release details.

Cameras

The Defined cameras for this DVMR field provides a tree with the current camera

information of the selected DVMR.

To add a camera, do the following:

1. Right-click the Cameras folder.

2. Select the camera you want from the drop-down menu. The cameras are divided into

several categories and your application should drive your selection.

3. The camera will be added to the Defined cameras for this DVMR tree and will be

reflected in the Parts list.

4. To add a description to a camera, click the camera on the tree and overwrite the

default text in the Description box in the Selected camera field. The other

information in the Selected camera field is read-only and supplied by Alliance

Builder.

5. To remove a camera from the tree, do the following:

6. Select the camera on the tree.

7. Right-click the camera and select Remove camera.

Chapter 2

View tabs

8. Click Yes in the confirmation box. The camera will be removed from the cameras

tree and Parts list.

9. Click Close to exit the window.

Alliance Builder

User Manual

Local bus layout tab

After you have added a 4-door or 4-elevator controller DGP on the System bus layout tab,

double-click the DGP graphic to invoke the Local bus layout tab (Figure). The Local bus

layout will populate with the information for the selected DGP.

Figure 18. Local bus layout tab

Chapter 2

View tabs

Add doors to a 4-door controller

You can add and remove doors with card readers and keypads to the 4-door controller DGP

on the Local bus layout. Select a door from the Doors list on the Add/remove doors tab and

drag and drop it on the local bus graphic. To remove a door from the graphic, click the

Remove door option for the door number you want to remove (Figure 19).

Figure 19. Add/remove doors

Card readers and keypads

To add local bus devices to a door, use the Readers list tab. Select a device from the device

tree and drag and drop it in the door graphic. The first device on each door must be a card

reader because the first device is connected to the reader keypad which is a wired device.

To view properties for local bus devices, click the device graphic. The Properties tab will

populate with the properties for that device. Only the Description property can be changed,

all other properties are read-only. You can overwrite the default text for the description

property to identify the device for system programming.

If DIP switches are used on the device to set the device address, the graphic in the Device

address DIP settings field will indicate how the DIP switches should be set. The graphic will

be disabled if the device selected does not have DIP switches.

To remove a local bus device, right-click the device graphic and select Remove device from

the list.

Alliance Builder

User Manual

Program DGP properties

Although basic DGP programming for the 4-door controller can be done from the System

bus layout tab, you can also access the same programming from the Local bus layout tab.

Use the Click to view 4-door controller properties link at the top of the local bus graphic

to populate the selected properties options with information for the DGP. Use the methods

detailed in Property programming on page 18 to program the options.

Program door properties

Use the Click to setup door link at the top of each door graphic to program door properties

for each door. Use the methods detailed in Property programming on page 18 to program

the options. If you need more information about programming options, see Doors on

page 138.

When you are finished adding and programming doors and devices to the DGP, click

Return view on the left pane to return to the system layout graphic.

Add elevators to a 4-elevator controller

You can add doors/elevators with card readers and keypads to the DGP on the Local bus

layout tab. Select a door/elevator from the Doors/elevators list on the Add/remove doors tab

and drag and drop it on the Local bus layout graphic. To remove a door/elevator from the

graphic, click Remove door/elevator for the number you want to remove.

Card readers and keypads

To add local bus devices to a door/elevator, use the Readers list tab. Select a device from the

device tree and drag and drop it in the graphic. Note that the first device on each door/

elevator must be a card reader.

To view properties for local bus devices, click the device graphic. The Properties tab will

populate with the properties for that device. Only the Description property can be changed,

all other properties are read-only. You can overwrite the default text for the description

property to identify the device for system programming.

If DIP switches are used on the device to set the device address, the graphic in the Device

address DIP settings field will indicate how the DIP switches should be set. The graphic will

be disabled if the device selected does not have DIP switches.

Chapter 2

View tabs

To remove a local bus device, right-click the device graphic and select Remove device from

the list.

Program DGP properties

Although basic DGP programming for the 4-elevator controller can be done from the System

bus layout tab, you can also access the same programming from the Local bus layout tab.

Use the Click to view 4-elevator controller properties link at the top of the local bus

graphic to populate the selected properties options with information for the DGP. Use the

methods detailed in Property programming on page 18 to program the options.

Program door/elevator properties

Use the Click to setup Door link at the top of each door graphic to program door properties

for each door. Select either Click to view Door properties or Click to view elevator

properties from the list. The selected properties options will populate with the information

for that specific door or elevator. Use the methods detailed in Property programming on

page 18 to program the options. If you need more information about programming options,

see Doors on page 138 and Elevator programming options on page 127.

When you are finished adding and programming doors and devices to the DGP, select the

Return view tab on the left pane to return to the System bus layout tab.

Alliance Builder

User Manual

Control panel programming tab

To access the Control panel programming tab (Figure 20), double-click the control panel

graphic on the system bus layout. Use the Control panel programming tab to program most

system programming features. The available features are accessed through category buttons

at the bottom of the window.

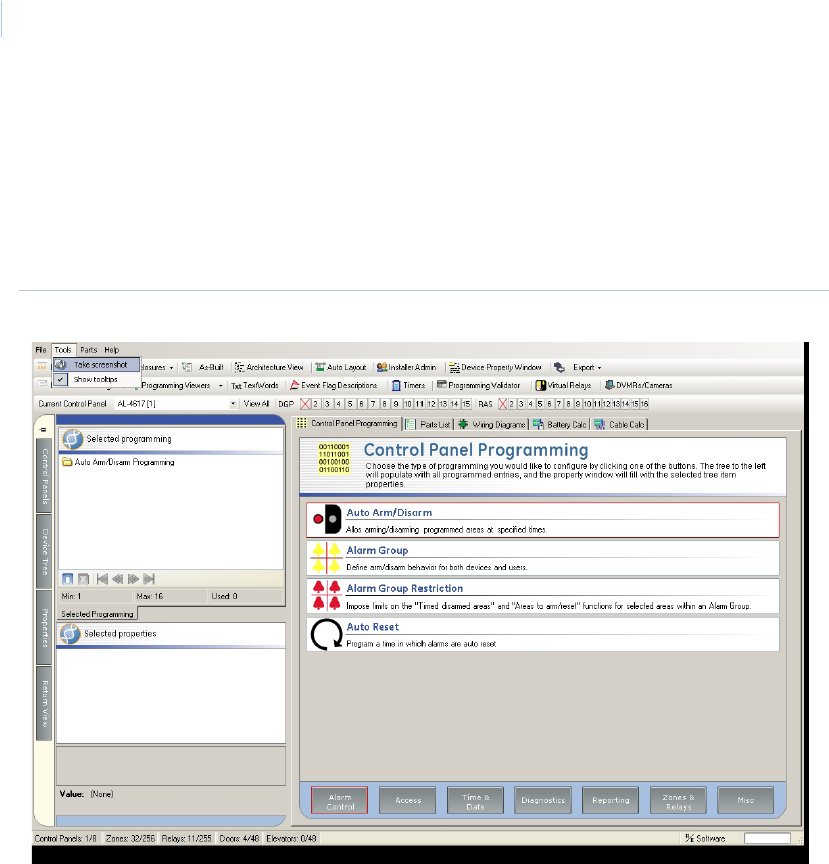

Figure 20. Control panel programming tab

Click a category button to get a list of programming features for that category (see

Programming features on page 63), then click a programming feature from the list. The tree

in the Selected programming field will populate with all programming records for that

feature. Select an item on the tree and the Selected properties field below the tree will fill

with the selected item's properties.

To return to the System bus layout tab, select the Return view tab on the left pane.

Chapter 2

View tabs

Programming features

The following programming features are available:

Alarm control

Auto arm/disarm. This feature allows you to arm/disarm programmed areas at

specified times. For more information, see Automatic arm/disarm on page 201.

Alarm group. Alarm groups are assigned to each RAS device in the system and dictate

the areas the device has control over, the times the alarm group is valid, the menus

that will be accessible, and the functionality that is supported by the RAS device.

For more information, see Alarm groups on page 188.

Alarm group restrictions. Alarm group restrictions impose limits on the Timed

disarmed areas and Areas to arm/reset functions for selected areas within an alarm

group. For more information, see Alarm group restrictions on page 197.

Auto reset. Auto reset allows you to automatically reset alarms after a specified period

of time. For more information, see Automatic reset on page 203.

Access

Areas. Areas define a physical space within a building to establish intrusion protection,

through zones, and to tie those zones to RAS devices through alarm groups. For

more information, see Areas on page 178.

Area links. Area links tie several areas together to create a common area. For more

information, see Area links programming on page 184.

Regions. Regions are used in establishing boundaries within 4-door/elevator

controllers. The system allows you to assign regions to both the IN and OUT readers

on the 4-door/elevator controller. When a user is granted access at a door, the user is

assigned that particular region. For more information, see Regions on page 186.

Bank vault areas. Bank vault areas are areas designated as high security requirements.

The system will automatically arm all bank vault areas after a preset delay. For more

information, see Bank vault areas on page 185.

Floor. Floors descriptions are used to identify floors within elevators during

programming. They are not downloaded to the control panel.

Alliance Builder

User Manual

Time and date

Hard time zones. Hard time zones define periods of time, including the time and of

day and the day of the week and holidays that are typically used to allow or prevent

certain actions from taking place. For more information, see Hard time zones on

page 226.

Holidays. Holidays are used in conjunction with time zones in order to define

additional access parameters. For more information, see Holidays on page 228.

Diagnostics

Next service call. This feature allows you to set a date for programmed text to display

on the LCD arming station indicating that the next routine service call is due. For

more information, see Next service on page 209.

Test call. The test call performs a regular interval report call to the central station to

ensure that central station reporting is working and that no problems have occurred

that would prevent it from reporting access and alarm events. For more information,

see Test call on page 210.

Clock correction. The clock correction feature allows you to program a correction

factor that compensates for a control panel clock that may be running slightly fast or

slow. For more information, see Doors on page 138.

Battery test. The battery test tests the state of batteries connected to system bus

devices. For more information, see Battery test on page 206.

Reporting

Central station configuration. The central station configuration defines the line

account number, phone number, etc. For more in formation, see Central Station on

page 214.

Central station communications. Central station communications defines how

messages will be recorded and what medium will be used. For more information,

see Communication programming on page 217.

Reporting class. Reporting classes let you specify what is reported in the event of an

alarm. For more information, see Reporting classes on page 221.

Chapter 2

View tabs

Zones and relays

Zone. A zone, also known as an input, is typically a sensor wired either directly into the

control panel, through a DGP, or through an expander board. For more information,

see Zones on page 236.

Zone shunts. A zone shunt will bypass a zone for a specified period of time when the

zone is in the active state. For more information, see Zone shunts on page 246.

Relay . Relays can be either physical relays attached to the control panel and relay

expander boards, or logical relays used in macros. For more information, see Relays

on page 230.

Soft time zones. Soft time zones, similar to system macros, are programmable logic

that can be used to enable/disable certain actions. For more information, see Soft

time zones on page 233.

Miscellaneous

Control panel options. Control panel options are a collection of options that will affect

all related functionality in the system. For more information, see Control panel

options on page 252

System event flags. System event flags deal with system-level events. When the

specified conditions occur, the system will cause the programmed event flag to be

raised. For more information, see System event flags on page 268.

Event flag description. Event flag descriptions are used to fully describe the meaning

of the custom event flags. They should be used so that any installer can easily

understand the purpose behind each event flag, especially when it comes to

programmable logic (Macros). Event flag descriptions 1 to 16 are predefined and

cannot be changed. For more information, see Event Flags on page 264.

Custom LCD message. The custom LCD message allows you to modify the text

displayed on the RAS devices connected to the control panel. For more information,

see Custom LCD message on page 263.

Text words. Text words are used to add descriptions to system components. These

descriptions can be downloaded to the control panel. Up to 100 user-defined text

words can be added to the text word library. Use the Text word tool to view the pre-

defined library of text words. For more information, see Text words on page 271.

Alliance Builder

User Manual

Selected programming field

The Selected programming field at the top of the left pane interface contains a tree of all of

the selected feature's programmed records. For some programming features, such as Zones,

Alliance Builder will populate the tree with all records required by the current project. These

requirements reflect the devices currently on the system layout. Other types of features, such

as Holidays, require you to add the records you need for the system using the Add file icon

below the tree. Records you add to the tree can also be deleted using the Delete icon.

Features that rely on Alliance Builder to supply the required records will have the add and

delete icons disabled.

Selected properties field

When you select a record in the Selected programming field, the Selected properties field

below the tree will fill with the programming properties for the selected record. The list

indicates the property name on the left and the programming value on the right. When you

select a property name on the list, a description of the property appears in the description

box below the list, as well as the current value programmed for the property. Properties that

cannot be changed, such as the control panel address, will be grayed out.

Property programming

You can change the value of most device properties. However, some properties are set

automatically for you by Alliance Builder and cannot be changed. When a property is

selected, a gray color indicates the property is read-only and can not be changed, while a

black color indicates a property that can be changed.

There are several methods provided to change property values. The type of programming

feature and property value will determine the method used. See Property programming on

page 18 for information on the following methods of changing properties:

• Double-click menus

• Property editor buttons

• Arrow buttons

• Right-click menus

Chapter 2

View tabs

Parts list tab

Use the Parts list tab to view, edit, and print parts lists for your project. The tabs at the

bottom of the pane provide access to the following three parts lists:

GE Security parts list. Required and optional GE parts

Third party parts list. Imported non-GE parts

User defined parts list. Text-only part information

GE Security parts list

The GE Security parts list tab (Figure) provides a list of required and optional GE parts.

Alliance Builder automatically populates the list with the parts required by the project as

shown in the System layout tab. GE parts not required by the system layout can be added

from the GE parts tree in the left pane.

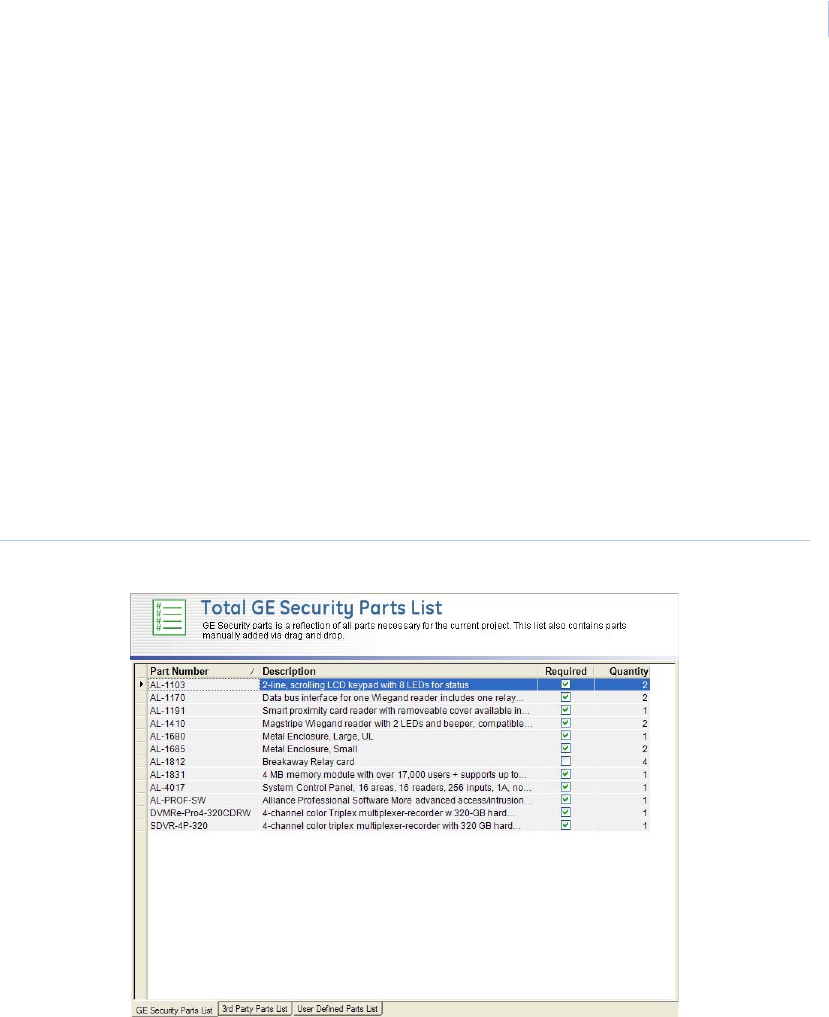

Figure 21. GE Security parts list

Alliance Builder

User Manual

The parts list provides the following information:

• Part number

• Description of the part

• Check box that indicates if the part is required by the project in the system layout

(only parts that have been added to the system layout graphic are indicated as

required parts)

• Quantity required

Add GE parts

To add an optional GE part to the parts list, do the following:

1. Select a part from the parts tree in the left pane interface (Figure 22). When a part is

selected, a brief description of the part will display in the Selected information field.

Figure 22. GE parts tree

2. Drag and drop the part from the tree to the parts list. You can only add one part at a

time, you can not drag and drop folders.

Chapter 2

View tabs

3. The parts list will reflect the change.

Alliance Builder will not change the system layout graphic to reflect GE optional parts

added to the parts list. To change the system layout you must use the System layout tab.

To add required GE parts, do one of the following:

• Add the device in the System bus layout tab. Alliance Builder will update the parts

list to reflect changes in the system layout.

• Or, right-click on the required check box of a part on the parts list to add a check to

the box. The system layout will not be changed.

Remove GE parts

To remove an optional GE part, do one of the following:

• Select a part on the parts list (you can only remove one part number at a time) and

hit the Delete key on your keyboard.

• Or, change the value in the Quantity required column to 0.

To remove required GE parts, do one of the following:

• Remove the device in the System bus layout tab. Alliance Builder automatically

updates the parts list to reflect changes to the system layout.

• Or, right-click the required check box to remove the check from the box and then hit

the Delete key on your keyboard.

• Or, change the value in the Quantity required column to 0.

Third party parts list

The Third party parts list tab provides a list of parts with the following information:

• Part number

• Description of the part

• Quantity required

The left pane interface is used to store imported parts in a parts tree (Figure 23) that can be

added to the parts list. The left pane also allows you to import part files, organize, and edit

the parts tree.

Alliance Builder

User Manual

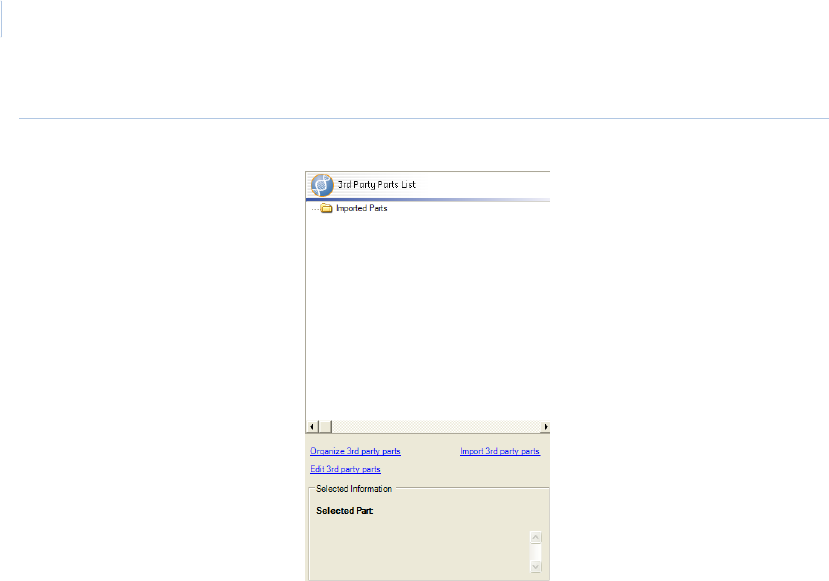

Figure 23. Third party parts tree

Import third party parts

You can add parts to the parts tree by importing Excel files, text files (CSV), or clipboard

text from your PC. To import the file or text, click Import Third party parts (Figure 23).

Select the source for the parts in the Import Third party parts dialog box.

If you select Microsoft Excel file, do the following:

1. In the File browser dialog box, indicate the location of the file you want to import

and click Open.

2. Click OK.

3. In the Parts import mapping dialog box, select the appropriate part number and

description columns.

4. Click OK.

The information from the source file is added to the parts tree and you can add it to the third

party parts list.

Chapter 2

View tabs

If you select Comma separated values text file (CSV), do the following:

1. Click OK.

2. In the File browser dialog box, indicate the location of the file you want to import.

3. Click OK.

4. In the Parts import mapping dialog box, select the appropriate part number and

description columns.

5. Click OK.

The information from the source file is added to the parts tree and you can now add it to the

third party parts list.

If you select Windows clipboard (copy/paste), do the following:

1. Click OK. All information on your PC clipboard will be copied. Be sure only the

appropriate text is on the clipboard.

2. In the Parts import mapping dialog box, select the appropriate part number and

description columns.

3. Click OK.

The information from your clipboard is added to the parts tree and you can add it to the third

party parts list.

Organize the parts tree

To make parts in the tree easier to find, you can organize the parts in folders and subfolders.

However, to add parts from the parts tree to the parts list, you must open the folders and add

the parts one at a time. You can not drag and drop folders from the parts tree to the parts list.

To organize the parts tree, do the following:

1. Click Organize third party parts (Figure 23).

2. To add a folder in the Organize part list dialog box, click on the node where you

would like the folder to be placed, and click Add folder.

3. To remove a folder, select the folder and click Delete folder.

4. To move parts from one folder to another, select the item and drag and drop it in the

new folder.

Alliance Builder

User Manual

5. Click Close to exit the dialog box.

The changes made will be reflected in the Third party parts tree tab.

Edit third party parts

To change a part number or description for a part, do the following:

1. In the left pane, click Edit third party parts (Figure 23).

2. In the Custom parts editor dialog box, select and overwrite the part number or

description.

3. To remove a part, select the part and hit the Delete key on your keyboard.

4. To add a part, click Add a new part and overwrite the default text in the part

number and description columns.

5. Click OK to exit the dialog box.

Add third party parts to a project

To add a part, do the following:

1. Select a part from the parts tree. When a part is selected the description provided for

that part will display in the Selected information field.

2. Drag and drop the part into the parts list. You can only add one part at a time, you

can not drag and drop folders from the parts tree.

Remove third party parts from a project

To remove a part, do the following:

1. Select a part in the parts list. You can only remove one part number at a time.

2. Hit the Delete key on your keyboard.

User defined parts list

The User defined parts list tab provides a place to add any required additional text. The text

box allows you to create a column of text that you can add, edit, and delete. Any information

Chapter 2

View tabs

added in the text box will print with the other parts lists and will be part of the As-built

report. The left pane is not used and is not available from this tab.

To add an item, do the following:

1. Click Add new item.

2. Type the text in the new item line in the Description text box.

To edit an item, do the following:

1. Select the item line in the Description text box.

2. Type the new information in the item line.

To delete an item, do the following:

1. Select the item line in the Description text box.

2. Click Delete selected item.

Print the parts list

To print the parts list, use the As-built tool on page 81.

Alliance Builder

User Manual

Wiring diagrams tab

The Wiring diagrams tab provides a technical point of reference for the configuration and

wiring of all devices in your project. The diagrams will reflect your project settings and the

programming you have completed in Alliance Builder. The diagrams include programming

details such as:

• Zone names

• Relay names

•Door names

• Address and programming DIP switch settings.

You can also access wiring diagrams for all devices in your project by using the As-built

tool. From the As-built tool you can choose to print the wiring diagrams in high or low

resolution and you can request a zone, relay, and/or door index.

View wiring diagrams

You can only view one diagram at a time. Use the device tree in the left pane to select a

device and the diagram for that device will appear. Only devices that are included in the

system layout will be available in the device tree.

Save wiring diagrams as images

To save a wiring diagram as an image, right-click the device in the tree in the left pane and

select Save diagram to image. Use the Save as box to select the type of image you want

(Jpeg, Bitmap, GIF, or Png) and browse to the folder where you want the image saved.

Print wiring diagrams

To print the wiring diagrams, you must use the As-built tool on page 81.

Chapter 2

View tabs

Battery calculation tab

Use the Battery calculation tab to calculate the backup battery requirements for your project.

Before doing the calculation, you must use the System layout tab to specify the following

information for each device in your project containing a power supply:

• The required number of hours in standby

• The required number of minutes in alarm

• The required number of seconds in active

After you add this information in the System layout tab, click Calculate on the Battery

calculation tab to start the battery calculation. The following system battery requirements

will be calculated and shown in the System battery requirements field:

• Standby Amp-hours

• Alarm Amp-hours

• Active Amp-hours

• Minimum battery power required

• Total standby battery power required

• Battery derating factor

If you have more than one control panel in your project, use the Control panel address drop-

down menu to select the control panel and the battery information for that control panel will

populate the window. The System devices field outlines all power source devices contained

in the selected control panel. Select a device on this tree and all devices drawing power from

the selected device are outlined in the Ancillary devices field.

The Power sources field includes the following information for all power source devices:

• Description

• Hours in standby

• Minutes in alarm

• Seconds in alarm

Alliance Builder

User Manual

The Power sink objects field lists the following information for all devices drawing power:

• Description

• Duty cycle

• Standby current (mA)

• Alarm current (mA)

• Active current (mA)

All fields in the Battery calculation tab are read-only. Use this tab to check the results of the

battery calculation and to determine if any devices need to be redistributed. To make any

needed changes, you must go System bus layout tab on page 44 and change the information

programmed there.

Use the As-built tool on page 81 to get a printed document of battery calculations for each

power source device in your project. This document will show the details for the power

source device, all devices drawing power from that power source, and the calculations made

to generate the final battery requirement value.

If a power source device does not have any devices drawing power from it, the device will

not have a document page in the As-built report.

Chapter 2

View tabs

Cable calculation tab

Use the Cable calculation tab to produce the cable length requirements for selected cable

types. The calculation results are used in the As-built report.

Use the Graph setup and Wire setup tabs to set the parameters for the calculation.

Graph setup tab

Use the Graph setup tab to set the X and Y axis range for the graph. To return to the default

settings, click Reset.

Wire setup tab

Use the Wire setup tab to set the following parameters:

• Power supply (volts)

• Minimum voltage

• Wire DC resistance (ohms/km

• Added wires to reduce resistance

• Number of power supply wires

Calculate cable length

To calculate cable length, do the following:

1. Set the graph parameters in the Graph setup tab.

2. Set the wire parameters in the Wire setup tab.

3. Select the wire type in the Selected wiring field.

4. Click Update graph.

Print cable calculation

To print the results of the cable calculation, you must use the As-built tool on page 81.

Alliance Builder

User Manual

Chapter 3 Alliance Builder tools

The top row of tools in the tool bar are used for programming

functions that are not downloaded to the control panel.

In this chapter:

Device polling tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Enclosures tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

As-built tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Architecture view tool . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Auto layout tool. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Installer administration tool. . . . . . . . . . . . . . . . . . . . . . .85

Device property window tool . . . . . . . . . . . . . . . . . . . . . .89

Export tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

Alliance Builder

User Manual

Device polling tool

The control panel uses polling to communicate with all DGP and RAS devices and gather

status information. If a DGP or RAS device is not polled, alarms on any zones associated

with the device are not reported or logged.

Use the Device polling tool to indicate if you want the control panel to poll devices. We

recommend you select Enable all polling to ensure that all devices on the system are

programmed to be polled by the control panel. This tool can save you a lot of time by

enabling polling for all devices and eliminating the need to program each device to be

polled.

Select Disable all polling if you want to wait until you complete your programming before

you enable polling or if you want to only enable polling for specific devices.

Enclosures tool

Use the Enclosures tool to open or close all device enclosures on the System bus layout tab.

Chapter 3

Alliance Builder tools

As-built tool

The As-built tool (Figure) gathers information from different locations in Alliance Builder

and creates a dated report of your project. This report can be saved as a PDF file and printed.

Any or all of the following components can be selected for the report:

Project summary. High-level executive summary that includes customer information

and tables that list project properties such as zones and doors. You can choose to

have the information presented in a single properties table or in multiple tables for

each category of information.

CSI specifications. Summary of Alliance specifications that are constant for all

Alliance systems. This summary is approximately 30 pages in length.

Brochure. Add an Alliance brochure to the report.

System overview diagram. Details possible Alliance configurations, but is not tied to

the devices selected in the project.

Installer wiring info. Choose if you want to add a breakaway relay wiring diagram

and/or a telephone wiring diagram to the report.

Bus layouts. Provides a graphic representation for the system and local bus layouts as

shown in the System bus layout tab and the Local bus layout tabs.

Device manuals/datasheets. Provides datasheets for each device type used in the

system. Select the options you want. When you add these options it can significantly

increase the size of the As-built report.

Point ID address summary. Provides a table with the addresses for all point ID

devices in the project.

Wireless serial number summary. Provides a table with the serial number for all

wireless devices in the project.

Video integration summary. Provides tables of all TCP/IP video equipment, such as

DVMRs and cameras as shown in the DVMRs/cameras tool.

Parts list. Lists all parts for the project shown in the Parts list tab. You can choose to

have the parts separated into two tables, Alliance parts and third party parts, or you

can choose to have them combined into a single parts table.

Battery calculations. Battery requirement calculations as for your project devices.

Alliance Builder

User Manual

Cable calculations. Cable length requirements as calculated in the Cable calculation

tab

Wiring diagrams. Wiring diagrams for all devices in the system as shown in the

Wiring diagrams tab. You can choose to have the diagrams print in high or low

resolution. Selecting high resolution can greatly affect the quality of the print, but

will also greatly increase the size of the print file. You can also choose to include a

door, relay, and zone index.

Page setup options

You can choose what type of branding you want the As-built report to show. If you select

Use standard GE Security name/logo, the report will print with the GE name and logo on

every page. If you want to have a different company name and logo on the report, select Use

dealer company name/logo (if defined). The logo must be defined in the Installer

administration tool and must have a white background. It cannot be a transparency.

Save the report as a PDF file

We recommend you save the report as a PDF file and print the report from the PDF file. To

save the report as a PDF file, do the following:

1. Select all of the required components from the list by selecting them individually or

by clicking Check all.

2. Click Save to PDF.

3. When the dialog box appears, indicate where you want to store the file and click

Save. The progress bar at the bottom right corner of the window will indicate when

the process is complete. You can then print the PDF.

4. Click Close to exit the tool.

Chapter 3

Alliance Builder tools

Print the report

For the best print job, we recommend that you print from a PDF file, as detailed in the

section above. But, if you want to print directly from the report, do the following:

1. Select all of the required components from the list.

2. Click Print.

3. Click Close to exit the tool.

Print preview

To see what the printed report will look like and how long it will be, click Print preview.

The Print preview window shows how each page will print and indicates the number of

pages the report will take. You can use the icons provided to view different page layouts and

zoom in and out to view page details.

Alliance Builder

User Manual

Architecture view tool

Use the Architecture view tool to get an overview of how project devices relate to the system

and local buses. The device tree in this tool contains all devices in the system layout graphic

and indicates the devices supported by each DGP and control panel. The tree indicates the

relationships and ties between the devices as well as how the devices are organized in the

enclosures.

This tool is a read-only feature. If you want to add, edit, or remove devices, you must make

the changes in the System bus layout tab.

Auto layout tool

As you add and remove devices in the System bus layout tab, the graphic can develop gaps

and awkward spacing between elements. Use the Auto layout tool to pull the graphic

together, eliminating and adjusting space between elements to ensure a clean and compact

graphic

Chapter 3

Alliance Builder tools

Installer administration tool

Use the Installer administration tool to add dealer setup information and to add, edit, and

remove both installers and installer types.

Dealer setup tab

Use the Dealer setup tab to add general information about the dealer that employs this

installer. The information entered here is typically used whenever forms are printed through

Alliance Builder. Fill in all applicable fields. If a company logo is required to print on the

forms, use the browse button to locate the logo and import it into Alliance Builder. The logo

needs to have a white background. A transparency cannot be used. Click Clear logo to

remove the imported logo and default to the GE Security logo.

Installers tab

Select the Installers tab to add, edit, or remove installers. The tab provides a list of all

existing installers with the following details:

limited to 16 characters entered as uppercase letters.

Description. The installer type in the description box dictates the functionality and

permissions for the installer.

Project directory. The default directory indicates where project files will be stored for

this installer.

Add installers

To add installers to the list, do the following:

1. Click Add.

2. When the New/edit installer window appears, fill in the installer name (a unique

mobile phone number, email address, password, and confirm password. Select the

installer type from the drop-down list.

Alliance Builder

User Manual

3. If the installer type selected permits the installer to create projects, indicate in the

project directory where the project files for this installer should be stored.

4. Click OK.

5. The installer will be added to the installers list.

6. Click Close to exit the tool.

Edit installers

Although you can edit information for all installers, you can only edit the password or

directory information for Alliance Installer. All other information for Alliance Installer

cannot be changed.

To edit an existing installer's information, do the following:

1. Select an installer name from the list.

2. Click Edit.

3. Change the existing information in the New/edit installer window.

4. Click OK.

5. The new information will show in the installers list.

6. Click Close to exit the tool.

Remove installers

All installers can be removed from the system except Alliance Installer. This ensures that the

system always has a default installer. Before removing an installer you must use the Project

management tab to reassign any projects for that installer. Alliance Builder will not allow

you to remove an installer that has assigned projects, but will provide a warning notice to

alert you to the situation.

To remove an existing installer, do the following:

1. Select an installer name from the list.

2. Click Remove.

3. When the confirmation box appears, reconfirm the removal.

4. Click Close to exit the tool.

Chapter 3

Alliance Builder tools

Installer types tab

Select the Installer types tab to add, edit or remove installer types. The tab provides a list of

all existing installer types.

Add installer types

To add installer types, do the following:

1. Click Add.

2. Enter the name for the new installer type. The name must be in 5 to 16 alphanumeric

characters long.

3. Select the permissions and functions you want to give this installer type.

4. Click OK. The new installer type will be added to the installer type list and be

available for selection when new installers are added.

5. Click Close to exit the tool.

Edit installer types

You cannot change or edit the Alliance Installer type. The permissions and functions for this

installer type are set by Alliance Builder.

If you edit an installer type that has already been assigned to active installers, those installers

will be affected by the changes to the installer type the next time they use Alliance Builder.

To change information for an existing installer type, do the following:

1. Select the installer type from the installer types list.

2. Click Edit.

3. Change the existing information for the installer type.

4. Click OK.

5. Click Close to exit the tool.

Remove installer types

The Alliance Installer type cannot be removed. This ensures that the system always has a

default installer type.

Alliance Builder

User Manual

You cannot remove an installer type that has been associated with installers. The installers

must be removed or their installer type changed before the installer type can be removed. If

you attempt to remove an associated installer type, Alliance Builder will provide a warning

notice to alert you to the situation.

To remove an existing installer type, do the following:

1. Select an installer type from the list.

2. Click Remove.

3. When the confirmation box appears, reconfirm the removal.

4. Click Close to exit the tool.

Project management tab

Use the Project management tab to manage all projects that your permissions include. To

delete a project, select the project on the list and click Delete selected projects. To reassign

projects, select the project from the list and click Reassign selected projects. It is important

to always reassign projects before removing the installers assigned to the projects. The

project list on the Project management tab is a reflection of the project list on the Project list

tab and is provided in this tool to make programming user information faster and easier.

Chapter 3

Alliance Builder tools

Device property window tool

The Device property window tool invokes the property window. This window enables you to

program the selected property while easily accessing related information in other areas of

Alliance Builder. This can save you a lot of time when you are programming two related

features and need to be able to see and program them at the same time.

If you have the property window open in a programming area and you change related

properties in the main interface, the information in the property window will not show the

changes. When you click on the property window it will show the updated information.

When you have finished programming the item, click Close to exit the tool. All

programming done in the property window will be saved and reflected in your project.

See Property programming on page 18 for details on various methods of changing property

programming.

Alliance Builder

User Manual

Export tool

Use the Export tool to export a project to an archive file or to software management systems.

Select your software management system from the drop-down menu. If a software

management system is not supported by Alliance Builder it will be inactive (grayed out).

To export a project to an archive file, do the following:

1. Select the Export to file tab (Figure 24).

Figure 24. Export to file

2. Use the Browse button to designate the location for the file.

3. If you want password protection, select Password protect this archive and type a

password in the box.

4. Click Create archive.

Chapter 3

Alliance Builder tools

To export a project to Alliance Professional, do the following:

1. Select the Export to Alliance Professional tab (Figure 25).

Figure 25. Export to Alliance Professional

2. Alliance Professional must be loaded on your computer. If you have not launched

Alliance Professional since loading the program, type in your name and password

and click Launch Alliance Professional. Launching the program creates a database

that is necessary for the export function.

3. Click Begin export.

4. Click Close to exit the tool.

If you want to view a list of projects that have been exported to Alliance Professional, click

View all projects. The exported projects will appear in the Download history field and will

include the following information for each project:

• System number

• Project ID

• Project description

• Download (export) date

Alliance Builder

User Manual

Chapter 4 Panel/device tools

The bottom two rows of tools in the tool bar are used for

programming that will be downloaded to the control panel.

In this chapter:

Device addressing tool . . . . . . . . . . . . . . . . . . . . . . . . . . .94

Programming viewers tool . . . . . . . . . . . . . . . . . . . . . . . .95

Text words tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Event flag descriptions tool . . . . . . . . . . . . . . . . . . . . . .101

Timers tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Programming validator tool . . . . . . . . . . . . . . . . . . . . . .106

Virtual relays tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

DVMRs/camera tool . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Current control panel tool . . . . . . . . . . . . . . . . . . . . . . .109

DGP/RAS numbering graphics. . . . . . . . . . . . . . . . . . . .110

Alliance Builder

User Manual

Device addressing tool

The Device addressing tool allows you to view the device addresses for your project.

Software managed mode

The software manages the addressing and makes programming the project easier, ensuring

that the device addresses are always correct. Devices will be automatically addressed as they

are added to the project and updated as changes are made.

If a project is imported, the addresses already set in the project will change to follow the

software addressing rules.

Manually managed mode (not available at this time)

Device address configuration

The Device address configuration window lists all device addresses assigned to DGP and

RAS system devices. The information is a read-only feature. The following information is

provided for all devices on the DGP and RAS tabs:

Part number. The Alliance part number for the device

Description. The description supplied by Alliance Builder

Address number. The address number for the device in the project

Chapter 4

Panel/device tools

Programming viewers tool

Use this tool to quickly display properties programmed in your project. Although not all

programmed properties are listed, the basic properties for each category are shown.

The Programming viewer tool is a read-only feature and cannot be used to edit the

information shown.

RAS devices viewer

This viewer shows the following basic RAS device properties programmed in the project:

Address. System address number (1 to 16) assigned by Alliance Builder

Description. RAS description

Alarm group. Alarm group (1 to 138) assigned to the RAS

Door event flag. Event flag (0 to 255) assigned to the RAS

Is polled. If checked, the RAS is programmed to be polled.

LCD RAS. If checked, the RAS has an LCD keypad.

Use entry/exit buzzer. If checked, the RAS buzzer will sound when associated entry/

exit timers start.

The properties shown in the viewer are programmed in the System bus layout tab. For

information on all RAS programming options, see RAS (remote arming stations) on

page 112.

DGP devices viewer

This viewer shows the following basic DGP device properties programmed in the project:

Address. System address number (1 to 15) assigned by Alliance Builder

Description. DGP description

Is polled. If checked, the DGP is programmed to be polled.

DGP type. DGP type (standard, 4-door controller, wireless, or point ID) indicated by

the DGP part number

Alliance Builder

User Manual

The properties shown in the viewer are programmed in the System bus layout tab. For

information on all DGP programming options, see DGP (data gathering panels) on

page 120, 4-door/elevator controllers on page 123, Point ID DGP on page 129, and

Wireless DGP on page 132.

Zones viewer

This tab shows the following basic zone properties programmed in the project:

Number. Zone number.

Name. Descriptive zone name that will be transferred to the control panel and RAS.

Zone type. Zone type (0 to 70) that specifies the behavior associated with the zone.

Zone reporting code. The reporting code is a reflection of the zone type that is sent to

the central station.

Assigned areas. Areas assigned to the zone.

The properties shown in the viewer are programmed in the Control panel programming tab.

For information on all zone programming options, see Zones on page 236.

Relays viewer

This tab shows the following basic relay properties programmed in the project:

Number. Relay number.

Type. Physical or virtual.

Description. Relay description.

Event flag. Event flag that will activate the relay.

Time zone. Time zone (0 to 64) when the relay can be active or inactive

The properties shown in the viewer are programmed in the Control panel programming tab.

For information on all relay programming options, see Relays on page 230.

Chapter 4

Panel/device tools

Relay control groups viewer

This tab shows information for all relay control groups currently defined for your project.

The list will show if there are any duplicate relay control groups assigned to more than one

RAS device.

RAS address. The address of the RAS associated with the relay control group.

Description. Relay control group description.

Relay number. The relay number of the first relay of the relay control group.

Event flag. The event flag activated for the relay.

Click on a sub item to see the RAS devices programmed for that relay.

To remove a relay control group, select the line on the list and use your delete key. This is

the only way to remove a relay control group without removing the associated RAS device.

For information on relay control group programming, see RAS (remote arming stations) on

page 112.

Doors viewer

This tab shows the number and description of all doors programmed to be supported by the

control panel. This includes up to 16 RAS devices on the system bus, as well as up to 48

intelligent doors on 4-door controller local buses.

Number. Door number which is either a RAS address or just a Door number.

Description. Door description used for programming purposes, not downloaded to the

control panel

Type. The type is a combination of:

• Device type (card reader or keypad)

• Door type (RAS or intelligent door)

To find a particular door on the list, type in the door name or number in the appropriate

search box and click Search.

The status bar at the bottom of the viewer indicates the minimum, maximum, and number of

doors used.

Alliance Builder

User Manual

The properties shown in the viewer are programmed in the Local bus layout tab. For

information on all door programming options, see Doors on page 138.

Alarm groups viewer

This tab shows the following basic alarm group properties programmed for the project:

Number. Alarm group number.

Name. Descriptive alarm group name that will be transferred to the control panel and

the RAS device.

Description. Alarm group description.

Areas. Areas where the alarm group will have alarm control.

Time zone. The time zone assigned to the alarm group defines when the alarm group is

active.

Is user alarm group. If checked, the alarm group is assigned to users. If not checked,

the alarm group is assigned to RAS/Door devices.

The properties shown in the viewer are programmed in the Control panel programming tab.

For information on all alarm group programming options see Alarm groups on page 188.

Areas viewer

This tab shows the following basic area properties programmed in the project:

Number. Area number.

Name. Descriptive area name that will be transferred to the control panel and RAS

Entry time. Amount of time programmed for the entry timer

Exit time. Amount of time programmed for the exit timer

Armed event flag. The event flag activated when the area is armed

Disarmed event flag. The event flag activated when the area is disarmed

The properties shown in the viewer are programmed in the Control panel programming tab.

For information on all area programming options, see Areas on page 178.

Chapter 4

Panel/device tools

Time zones viewer

This tab shows the following information for all time zones programmed for the project:

Number. Time zone number

Description. Time zone description

Type. Hard or soft time zone

The properties shown in the viewer are programmed in the Control panel programming tab.

For information on all time zone programming options, see Hard time zones on page 226

and Soft time zones on page 233.

Wireless serial numbers viewer

This tab shows the following information for wireless devices currently used in your project:

Type. The type of wireless device

Part number. The part number used to order the device

Description. A programming description for the device.

DGP address. The DGP system address number for the wireless DGP that controls the

device.

Serial number. Each wireless device added to the project requires a unique serial

number that is typically listed on the outside of its shipping box.

The properties shown in the viewer are programmed in the System bus layout tab. For

information on all wireless device programming options, see Wireless DGP on page 132.

Arm/disarm viewer

This tab shows all zones and alarm groups assigned to a selected area programmed for the

project.

When an area is selected in the Area field, the area's related zone and alarm group

information will display. This indicates the zones and areas that users in a specific alarm

group can arm and disarm.

The properties shown in the viewer are programmed in the Control panel programming tab.

Alliance Builder

User Manual

100

Text words tool

Use the Text words tool to view the text word library (see Text word library on page 308).

The library contains up to 900 predefined text words and up to 100 user-defined text words.

The library includes a number and description for each text word. A text word can be a

single word or a short phrase, such as Area Ten, with a maximum of 16 characters.

Text words are downloaded to the control panel and are used to display words and phrases in

LCD keypads, reports, and software management programs.

To find specific text words, scroll through the list or enter the text word or a text word

number in the appropriate search box and click Search.

To add user-defined words to the library, use the Control panel programming tab.

Chapter 4

Panel/device tools

101

Event flag descriptions tool

Event flags are one of the most important aspects of the Alliance system. Event flags are

used by the system in order to signal an event. When a certain event occurs event flags are

raised to notify other programming options to perform specified functions. Use this tool to

view the event flags for your project.

The event flag descriptions are not downloaded to the control panel, but are used to make

programming the system easier. It is very important to document event flag descriptions.

These descriptions help to eliminate mistakes and confusion when you need to make

changes in the future.

There are two types of event flags, predefined and custom. Predefined event flags,

numbered from 1 to 16, can not be changed or removed (see Predefined event flags on

page 265). Custom event flags can be added, edited, or removed from the list by changing

the programming in the Panel programming tab.

The list includes the following information:

Number. Event flag number (1 to 255)

Description. A brief description that indicates to the installer the purpose of the event

flag for programming options.

To search the list for a particular event flag, type in the event flag name or number in the

appropriate search box and click Search.

To see how many event flag descriptions have been programmed, see the minimum,

maximum, and amount used in the status bar at the bottom of the tool.

Alliance Builder

User Manual

102

Timers tool

Use the Timers tool to program timers for the system.

Select the tab for the type of timer you want to program, then use the up/down buttons to set

the time for each timer needed. You can enter a value instead of using the up/down buttons,

but if the value entered is outside the accepted range, it will default to the maximum value

within the range. We recommend you always use the up/down arrows to avoid programming

errors.

Timers are accurate to +/- 1 of the value entered, therefore avoid programming values of 1

second or 1 minute. If a timer is set to 0, it will not be used.

To get a brief description of each timer, select a tab and mouse over the timer option.

Alarm group restriction timers

Alarm group restriction timers determine the amount of time the associated areas will be

disarmed. After the specified amount of time has elapsed, the area will automatically rearm.

If the time is left at zero for an alarm group restriction timer, the associated area will not

automatically rearm.

To set alarm group restriction timers, do the following:

1. Use the up/down buttons to set the time (in minutes) for each alarm group restriction

needed (1 to 7).

2. Click Close to exit the tool.

Chapter 4

Panel/device tools

103

Alarm control timers

The following alarm control timers are provided:

Warning time. The time a warning will sound indicating the areas are about to

arm.(Alarm group restrictions must be used and areas must be programmed for

timed disarmed)

Delay reporting alarms time. The delay time before a burglar alarm (BA) or BA class

tamper alarm (TA) is reported to the central station. It can be used to prevent alarm

reporting for users that have problems disarming their area in time.

Double-knock interval. The maximum permitted time between a zone becoming

active for first time becoming active for the second time. If this time is exceeded, an

alarm condition is registered. This timer is used in conjunction with the double-

knock duration timer.

Delayed disarm alarm time. The delay time before an alarm from a delayed disarmed

alarm is reported to the central station.

Local alarm reminder. The time that can elapse between acknowledging a local alarm

and an alarm reoccurring, including the audible alert.

Double-knock duration. The maximum permitted time a zone may remain active. If

the time is exceeded, an alarm condition is registered. This timer is used in

conjunction with the double-knock interval timer.

To set alarm control timers, do the following:

1. Use the up/down buttons to set the time for any required control timers.

2. Click Close to exit the tool.

Alliance Builder

User Manual

104

Diagnostic timers

The following diagnostic timers are provided:

Zone test time. The maximum time required to perform a test on an individual zone.

Technician service time. The time a technician, with service technician privileges, has

to service the system.

Disarm test time. The time available to do a disarm test.

Event flag test time. The time the testing event flag is triggered to activate devices in

order to perform an arm test. The event flag will only be triggered for half the

programmed time. The remaining time is used to allow the device to switch back to

the normal state.

AC fail time. The delay time before an AC fail is reported to the central station.

Arm test time. The time available to do a arm test.

To set diagnostic timers, do the following:

1. Use the up/down buttons to set the time for any required diagnostic timers.

2. Click Close to exit the tool.

RAS access timers

The following RAS access timers are provided:

RAS unlock time. The time a door's RAS device will be unlocked when the door's

corresponding event flag has been triggered. This time applies to all system doors.

Screensaver timeout. The time it takes for the RAS screensaver to time out. The

screensaver timer will be reset with the programmed time every time a RAS key is

pressed when the screensaver is active.

RAS card + PIN timeout. If a user is required to enter a PIN and badge a card in order

to gain access, this is the maximum time allowed between the two actions. If the

time elapses, the user must repeat the process until the user is locked out.

To set the access timers, do the following:

1. Use the up/down buttons to set the time for any required access timers.

2. Click Close to exit the tool.

Chapter 4

Panel/device tools

105

Siren timers

The following siren timers are provided:

External siren time. The time for the on-board external siren drivers to activate.

External siren delay time. The time that elapses before the external siren cuts-off after

activation.

Internal siren time. The time for the on-board internal siren drivers to activate.

Internal siren delay time. The time that elapses before the internal siren cuts-off after

activation.

To set siren timers, do the following:

1. Use the up/down buttons to set the time for any required siren timers.

2. Click Close to exit the tool.

Alliance Builder

User Manual

106

Programming validator tool

Use the Programming validator tool to search the project for problems with programming

options. The Programming validator window provides a list of errors found in the system

with the error type, programming category, property, property type, and number in error.

This tool is only used to indicate the errors found. To correct the errors, you must go back to

the programming category indicated to change the programming and resolve the problem.

Select an error row in the list and use the Click to invoke property for the selected row

link. The property window will open containing the programming related to the error.

Correct the programming error and click Close to exit the window.

Chapter 4

Panel/device tools

107

Virtual relays tool

Use the Virtual relays tool to create relays that do not exist in hardware, but can be used for

general programming.

To add virtual relays, do the following:

1. Right-click on the folder and select Add virtual relay.

2. In the number assignment window, select a number from the list for the relay and

click OK or double-click the number to make the assignment.

3. Use the Relay programming field to program the relay. Give the relay a description,

indicate if it is inverted, and specify the parameters that determine how this relay

will be activated.

4. Click Close to exit the tool.

To remove virtual relays from the list, do the following:

1. Right-click on the relay on the list and select Remove virtual relay.

2. Click Close to exit the tool.

For additional information on relays, see Relays on page 230. For information on

programming physical relays, see Control panel programming tab on page 62.

Alliance Builder

User Manual

108

DVMRs/camera tool

Use the read-only DVMRs/cameras tool to view DVMRs and cameras defined in your

project. Use the drop-down menu to select how you want to view the list. If you select

DVMR/cameras, you will get a list that includes the item, description, DVMR number,

camera number, and preset number.

You must use the System bus layout tab to add DVMRs to the system and program the

cameras (see Add cameras to a DVMR on page 56).

Chapter 4

Panel/device tools

109

Current control panel tool

The Current control panel tool (Figure 26) includes the following options:

Control panel. Select the control panel you want to program from the drop-down list.

View all. View a list of all control panels for the current project along with related

device totals for each control panel.

Figure 26. Current control panel tool

Since Alliance systems can have up to seven individually programmed control panels, it is

very important to always know which control panel is currently selected. In systems with

only one control panel, this will not be an issue. Alliance will automatically name the first

control panel you add to the system Control Panel (1). That control panel will remain

selected until another control panel is added to the system.

For systems with multiple control panels, the information shown in the menus, toolbar,

tabs, and status bar will reflect only the information for the control panel indicated in

the current control panel field.

To add or remove control panels from the project, see Control panel tab on page 46.

Alliance Builder

User Manual

110

DGP/RAS numbering graphics

Use the DGP/RAS numbering graphics (Figure 27) to quickly see the number of DGP and

RAS devices that have been used in your project and the number of devices you can add to

your project. Alliance builder will keep track of the devices and update the graphics as

devices are added or deleted from your project. For information on how numbering is

applied to Alliance projects, see Numbering on page 324.

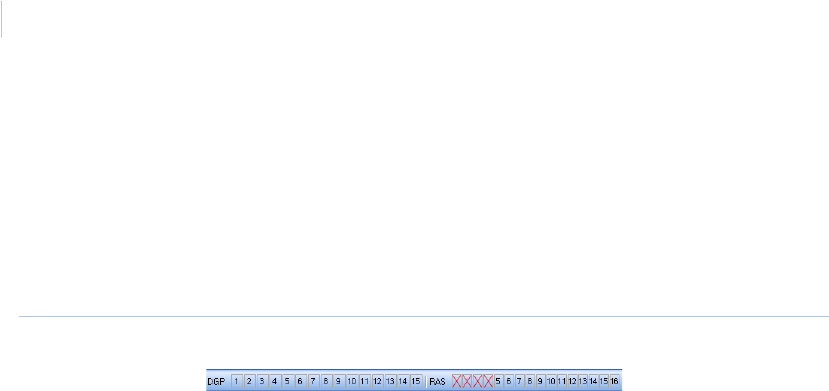

Figure 27. DGP/RAS numbering graphics

Chapter 5 RAS programming

features

This chapter provides an overview of remote arming station

(RAS) devices and programming features.

Alliance Builder

User Manual

112

RAS (remote arming stations)

RAS (remote arming stations) are keypads and card readers used to control arming and

disarming of areas in system, access control, and system programming (LCD keypads).

Keypads and readers can use various input methods to arm and disarm areas such as user

PIN codes, 3x Badging, and PIN + card. A maximum of 16 RAS devices are allowed on the

system bus and an additional 16 RAS devices are allowed per local bus/ reader ports. Most

keypads and readers can connect directly to the system or a local bus in the system.

However, Wiegand readers require an AL-1170 reader interface device.

The ability to arm and disarm areas from the RAS device is governed by both the assigned

RAS alarm group and the alarm group assigned to the user. Both alarm groups must have

alarm control enabled in order to arm/disarm areas. Once a user either enters their PIN code

at a keypad or badges their card at a reader, depending on a combination of RAS/alarm

group options, the system will arm/disarm. For example, if a card reader with the card auto

disarm option enabled and an assigned alarm group allowing alarm control is accessed by a

user with equivalent privileges, the system will disarm all areas that match between the two

alarm groups.

Although many people consider keypads and card-readers to be doors, the system treats the

first 16 devices on the system bus as simply RAS devices. The system only considers RAS

devices doors when they are connected to a 4-door controller local bus. The main distinction

between the two is the lack of intelligent capability found in the basic RAS device. Basic

RAS devices have no built-in provisions for features such as antipassback, request to exit,

and door shunting. These are all features found within doors connected to 4-door controllers.

Types

Alliance provides the following types of RAS devices:

Keypads. Keypads arm and disarm areas and allow access through user PIN numbers.

Some keypad devices include an LCD display that can show information about the

system, such as when a zone is in alarm, and also allow an installer to program the

system.

Readers. Readers arm and disarm areas and allow access through user cards. The

system supports Smart Card readers as well as mag swipe readers.

Interface modules. Interface modules support the ability to add Wiegand readers to the

RS485 bus. Applicable to both the system and the local bus.

Chapter 5

RAS programming features

113

Functions

RAS devices can be used for the following functions:

Arm/disarm. RAS devices can be used to arm or disarm areas by a privileged user.

System programming. LCD keypads allow a privileged user to make programming

changes to the security system via the keypad interface.

User programming. If a user with sufficient privilege accesses an LCD keypad, a user

can be added or edited directly from the keypad.

Monitoring. Area alarms and access can be monitored using an LCD keypad.

Open door. RAS devices can provide access capability. Typical uses include entering a

PIN code on a keypad or badging a card reader in order to open a door.

Programming

The following programming options are available for RAS devices:

RAS number

Range: 1 to 16

Specify which RAS is being programmed (same as the system bus address). The first

RAS device address on the system bus must be an LCD keypad. The DIP switch setting

applied to the device will be one less then the assigned address. For example, RAS

address 1 would require setting the DIP switches to zero (1 – 1 = 0).

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Area alarm group

Range: 1 to 138

The area alarm group assigned to a RAS device determines which areas can be armed

and disarmed by the device.

Alliance Builder

User Manual

114

Door event flag

Range: 0 to 255

The door event flag is raised when the RAS device grants access to a user. This event

flag is typically used by a number of other programming features within the system,

such as macro programming. The unlock time option in Timers programming (see RAS

unlock time on page 174) determines how long the door will remain open.

Menu alarm group

Range: 1 to 138

The menu alarm group assigned to a RAS device determines which features can be

accessed via the keypad, such as the installation menu, system status, history, and device

control. In order for a user to access certain menu options, the user must have the same

menu permissions enabled (through the alarm group assigned to the user) as the RAS

device.

Chapter 5

RAS programming features

115

Relay (output) control group

Range: 0 to 32

Purpose: Specify the relay control group connected to the RAS device. When a relay

control group is assigned to a RAS device, the open collector relay (OUT) terminal

follows the first relay of the relay control group. See Numbering on page 324. Table 5

shows relay groups and their related relay numbers.

Table 5. Relay numbering

Group Relay number Group Relay number

1 1 17 129

2 9 18 137

317 19145

425 20153

533 21161

641 22169

749 23177

857 24185

965 25193

10 73 26 201

11 81 27 209

12 89 28 217

13 97 29 225

14 105 30 233

15 113 31 241

16 121 32 249

Alliance Builder

User Manual

116

RAS options

Poll RAS Enabled: The control panel will continuously poll the RAS device.

Disabled: The control panel will not poll the RAS device.

LCD keypad Enabled: The RAS device has an LCD display.

Disabled: The RAS device does not have an LCD display.

Toggle area status Enabled: Provides the ability to toggle area status via the keypad. The

user PIN is entered, followed by ON, OFF, or ENTER. If a list appears,

pressing the area number and then ENTER will toggle the area status.

Enabling this option will cause the ON and OFF keys to lose their default

functionality.

Disabled: Normal alarm control functionality.

This option assumes the RAS device is an LCD keypad.

Do not use this option if the ENTER key opens door only option is enabled.

ENTER key opens door only Enabled: The ENTER key can be used to open a door.

Disabled: The ENTER key opens a door and provides alarm/reset control.

This option saves the user from having to click the ON/OFF keys when

performing alarm control.

It is highly recommended that this option be enabled for the best possible

LCD keypad user interface.

Alarm codes opens door Enabled: When a user either badges their card or enters a PIN, and has

alarm control (via alarm group and door group), the door will open. For

example, when enabled, this option causes the door event flag to be

raised, which in turn, opens the door.

Disabled: Under the same scenario, the door will not open.

Display shunted zones on RAS Enabled: When a zone is shunted, Zone shunted will appear on the

display.

Disabled: Nothing is displayed when the zone is shunted.

This option assumes the RAS device is an LCD keypad.

Arm/disarm using one key Enabled: Allows the user to arm or disarm an area by entering their user

code and the area number without having to press ENTER on the keypad

after selecting the area.

Disabled: The user will need to press ENTER on the keypad after entering

their user code to arm or disarm an area.

Chapter 5

RAS programming features

117

Card auto disarm Enabled: Badging cards disarms areas without using the OFF key.

Disabled: Badging cards does not disarm areas. Areas are disarmed

manually.

This option assumes the RAS device is a card reader.

Disable status LEDs Enabled: The card reader LEDs will be displayed when the control panel

polls the RAS device.

Disabled: Normal card reader LED function.

This option assumes the RAS device is a card reader.

Certain door reader settings override this function. It may be necessary

to alter the LED option in Door reader programming (see LED on

page 151).

Card always arms/disarms Enabled: Badging a card reader allows arming/disarming areas without

using the ON/OFF keys.

Disabled: Normal alarm control.

This option assumes the RAS device is a card reader.

The card’s user alarm group and the RAS device's (card reader's) alarm

group must both allow arm/disarm functions in order for this function to

work.

Reset without code Enabled: Allows users to reset alarms by pressing ENTER, ENTER, 0,

ENTER on the keypad. The areas in alarm have to be assigned to the RAS

alarm group.

Disabled: Reset can only occur by entering the user PIN code and

navigating through the menu on the keypad.

This option assumes the RAS device is an LCD keypad.

Restrict alarm group

restriction to disarm

Enabled: Users with alarm group restrictions can only disarm or delay

automatic arming. It cannot be used for alarm group restrictions with

arm and reset.

Disabled: There is no restriction.

Use entry/exit buzzer Enabled: The RAS device buzzer sounds when the entry/exit timers

associated with the area assigned to the RAS device start.

Disabled: The RAS buzzer will not sound when the entry/exit timers start.

The entry time must be over 10 seconds.

Timed lockout on wrong

codes

Enabled: When an invalid code (defined as five consecutive invalid

entries) is entered, the RAS device will lockout for 90 seconds.

Disabled: The RAS device is available after an invalid code is entered.

Alliance Builder

User Manual

118

Card arms after 3 badges Enabled: Allow the user to arm the assigned areas by badging their card

three consecutive times within a ten second window.

Disabled: Three times badging functionality is disabled.

This option assumes the RAS device is a card reader.

Chapter 6 DGP programming

features

This chapter provides an overview of data gathering panels

(DGP) devices and programming features.

In this chapter:

DGP (data gathering panels) . . . . . . . . . . . . . . . . . . . . .120

4-door/elevator controllers. . . . . . . . . . . . . . . . . . . . . . .123

Point ID DGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

Wireless DGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Alliance Builder

User Manual

120

DGP (data gathering panels)

DGP (data gathering panels), depending on the device type, can provide expansion

capabilities, redundant databases, access control, zone monitoring, and many other features.

DGP devices connect to the control panel through the RS485 system bus. During system

operation, the control panel will continuously poll the DGP in order to obtain status

information.

There are a maximum of 15 DGP devices allowed per control panel (for 4-door/elevator

controllers, the maximum number is 12). By default, each DGP device consumes a single

DGP address. Typically, DIP switches are used to assign the address on the device itself.

However, by expanding a DGP device with zone and relay expansion devices, a DGP can

consume two addresses. Under this scenario, other devices within the system cannot use the

second address (see Numbering on page 324).

Types

Alliance provides the following types of DGP devices:

Standard DGP. Supports standard DGP options, such as zone/relay expansion.

4-door controller DGP. The 4-door controller DGP is a specialized device for

providing intelligent door control in the system. Each 4-door controller can control

four doors, each with two IN-readers and two OUT-readers. The 4-door controller is

intelligent in that it contains a sub-set of the control panel database with all of the

user’s access rights for the doors it controls. If the control panel should stop

functioning for any reason, the 4-door controller would continue to provide access

and logging. The 4-door controller does not provide any zone expansion

capabilities. See 4-door/elevator controllers on page 123.

4-elevator controller DGP. The 4-elevator controller DGP is similar to the 4-door

controller, with the addition of elevator control for the system. See 4-door/elevator

controllers on page 123

Wireless DGP. A wireless DGP is similar to a standard DGP, except the devices

controlled by the DGP are wireless devices. See Wireless DGP on page 132.

Point ID DGP. A point ID DGP is similar to a standard DGP, except the devices

controlled by the DGP are addressed. See Point ID DGP on page 129.

Chapter 6

DGP programming features

121

Functions

DGP devices can be used for the following functions:

Polled by control panel. The control panel will communicate with the DGP device

over the system bus in order to gather status information.

Siren. Some DGP devices are equipped with their own siren which will sound when

one of the zones goes into alarm

Zone/relay expansion. Most DGP devices can support up to 32 zones through

expansion (some DGPs, such as the 4-door controller do not support zone

expansion). Relay expansion is typically limited to 16 relays (two 8-way relay

expansion boards)

Redundant databases. Some DGP devices, such as the 4-door controller, maintain an

independent database from the control panel. If the system bus is severed, the device

does not have to communicate with the control panel in order to grant access to a

user.

Bus address. A DGP is assigned a bus address that, in turn, determines the zone/relay

numbering.

Localized wiring. DGP devices provide the capability to install zones, relays and

power to a location that is a substantial distance from the control panel. This allows

fewer wires to be run and localized power and battery backup to be used.

Doors/floors. Some DGP devices provide additional intelligent functionality, such as

the 4-door and 4-elevator controllers.

Alliance Builder

User Manual

122

Programming

The following programming options are available for DGP devices:

DGP number

Range: 1 to 15 (for a 4-door/elevator controller DGP, the range is 1 to 12)

Specify which DGP is being programmed (the system bus address).

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Poll DGP

Determine if the control panel should poll this DGP device. If a DGP is not polled,

alarms on any zones associated with the DGP are not reported or logged.

DGP type

Specify the type of DGP you are programming (see Types on page 120). The options

include:

•Standard DGP

• 4-Door Controller DGP

• 4-Elevator Controller DGP

• Wireless DGP

•Point ID DGP

Chapter 6

DGP programming features

123

4-door/elevator controllers

The 4-door controller provides intelligent door control for the system, including RTE

(request to exit), antipassback, region support, DOTL (door open too long), and various

access capabilities. The 4-elevator controller is similar to the 4-door controller with the

addition of elevator control. A maximum of twelve 4-door/elevator controllers are allowed

per control panel.

Although they are similar to the control panel, the 4-door/elevator controllers are

programmed as DGPs (data gathering panels). As such, the system requires that you add the

controllers as a DGP in DGP programming before you program the 4-door/elevator

controller programming options.

The four reader ports located on the controller are, by default, the IN readers for the door.

Each of these four doors has one reader port assigned. The reader ports have the following

assignments:

• Reader Port 1: Assigned bus address 1 (RAS 1)

• Reader Port 2: Assigned bus address 2 (RAS 2)

• Reader Port 3: Assigned bus address 3 (RAS 3)

• Reader Port 4: Assigned bus address 4 (RAS 4)

Some devices, such as the Wiegand reader, do not have provisions for bus addresses.

Therefore, when configuring RAS devices within the controller, the first four RAS numbers

correspond to the reader ports. The reader port number follows the RAS number/address.

Door RAS numbering

Table 6 shows the door RAS numbering scheme.

Table 6. Door RAS numbering

Door number IN RAS address IN RAS address OUT RAS address OUT RAS address

Door 1 1 (reader port 1) 5 9 13

Door 2 2 (reader port 2) 6 10 14

Door 3 3 (reader port 3) 7 11 15

Door 4 4 (reader port 4) 8 12 16

Alliance Builder

User Manual

124

Functions

The 4-door/elevator controller DGP devices can be used for the following functions:

Unique DGP programming. Provides programming that goes outside the bounds of

the DGP programming section

Output controllers. Specifies output controllers connected to the door/elevator

controller

RAS devices. Configures RAS devices connected to the door/elevator controller’s local

bus

Timers. Assigns specific times for badging a reader or entering a PIN on a keypad

Events. Configures door/elevator controller specific events

Card batches. Handles card batching

Note: Only applicable to door/elevator controllers without IUM memory modules.

Programming

The following programming options are available for 4-door/elevator controllers:

DGP

Range: 1 to 12

Specify the DGP bus address. This should be the same as the address specified in DGP

programming for this controller (see DGP number on page 122).

Description

Specify a 40-character text description of the DGP. The description is not transferred to

the device, and is only used by the management software.

Output controllers

Range: 0 to 32

Specify the number of non-clocked (not driven by a clock on the control panel) output

controllers connected to the controller. The controller can only access the first 16 relays,

Chapter 6

DGP programming features

125

while the system can access relays that go beyond the first 16. For example, if a

controller has four 8-way relay expansion boards attached, the controller can access

logical relays 1 to 16, but the rest of the system can access logical relays 17 to 32.

Number of prefix digits

Range: 0 to 4

This value should mirror the Number of prefix digits on page 254.

Poll RAS

Specify which local bus RAS devices should be polled by the controller. Refer to

Table 6, Door RAS numbering on page 123 for more information on how to identify

RAS devices on the controller.

LCD RAS fitted

Specify which local bus RAS devices are LCD keypads. Refer to Table 6, Door RAS

numbering on page 123 for more information on how to identify RAS devices on the

controller.

RAS RTE zone

Specify which local bus RAS devices support RTE (request-to-exit) and require the

button to be wired to the RTE/IN terminal on the RAS device. Refer to Table 6, Door

RAS numbering on page 123 for more information on how to identify RAS devices on

the controller.

Toggle RAS

Enable/disable local bus RAS toggle mode (only supported by keypad devices).

Enabled: A single key will toggle arming/disarming.

Disabled: Two distinct keys will arm/disarm.

Alliance Builder

User Manual

126

Table 7 shows the keypad input and toggle modes.

Card to PIN time

If a user is required to enter a PIN and badge a card in order to gain access, this is the

maximum time allowed between the two actions. If the time elapses, the user must

repeat the process.

Two card time

If two users are required to enter a PIN or badge a card in order to gain access, this is the

maximum time allowed between the first user entering a PIN or badging a card and the

second user entering a PIN or badging a card. If the time elapses, the users must repeat

the process.

Multiple badge time

If a door has been programmed to support the 3x badge option in RAS programming (see

RAS options on page 116), this is the maximum time allowed between the first badge

and the third badge. If the time elapses, the user must repeat the process.

Region count limit

Set a value which, when reached, will cause the region count limit flag to be raised. This

event flag can then be used in door macro logic programming.

Table 7. Keypad inputs and toggle modes

Keypad input Toggle mode

PIN + ENTER or # Enabled: Toggles the arm/disarm state

Disabled: Arms

PIN + MENU or * Enabled: Toggles the arm/disarm state

Disabled: Disarms

Chapter 6

DGP programming features

127

Elevator programming options

The following options are only used by the 4-elevator controller and do not apply to the 4-

door controller.

Starting floor number

Specify the starting floor this 4-elevator controller will control.

Last floor number

Specify the last floor this 4-elevator controller will control.

Starting relay number

Specify the starting physical relay number this 4-elevator controller will use to arm/

disarm floors.

Zones monitor floor selected

Specify how zones are used to monitor floors.

Enabled: Zones are used to monitor the selected floor and a report is sent to the printer

and management software.

Disabled: Zones are used for alarm monitoring.

Wait for floor selection

Specify how the elevator will wait for floor selection.

Enabled: The elevator will wait for only one floor to be selected before going on.

Disabled: When the user is allowed access to multiple floors, multiple floor may be

selected.

Starting zone number

Specify the starting zone number this 4-elevator controller will use to monitor floors.

Alliance Builder

User Manual

128

Elevator override group

Specify a floor group number programmed with floors and a time zone. The elevator

override group determines the floors that may be freely accessed in the elevator controls

and the times the floors can be disarmed without using a valid card or PIN at the elevator

reader.

Security zone number

Specify the zone number that will control the elevator security group. The zones monitor

floor selected option must be disabled, if the security group zone is used.

Elevator security group

Specify a floor group number. Each floor group is programmed with floors and a time

zone. The elevator override group determines the floors that may be freely accessed in

the elevator controls and the times that the floors may be accessed provided the security

group zone is switched on.

Total floors

Specify the number of floors available for this 4-elevator controller.

Chapter 6

DGP programming features

129

Point ID DGP

The point ID DGP controls addressable point ID devices. Although similar to a control

panel, the point ID DGP is programmed as a DGP (data gathering panel). As such, the

system requires that you add the DGP to the system in DGP programming. All other point

ID specific programming options are covered in this section.

Once the DGP is added to the system, you can add/configure point ID devices through point

ID device programming. Point ID devices have onboard DIP switches used to assign a point

ID address. The combination of DGP/point ID address results in a physical zone number

(see Numbering on page 324) in the Alliance system. In addition, the DGP has a learn mode

used to automatically obtain device information without specific programming.

The DGP default polling mode (extended) polls up to 16 devices with reporting information

such as device changed and antimask tamper.

Programming

The following programming options are available for point ID DGP devices:

DGP number

Range: 1 to 15

Specify the DGP address that the DGP will have in the Alliance system. This should be

the same as the address specified in DGP programming for this controller (see DGP

number on page 122).

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

DGP address mode

Specify the number of DGP addresses reserved for the DGP that drives the total number

of point ID devices allowed for the DGP. The choices are:

1 DGP address. Allows up to 16 zones and 16 relays with 1 address.

Alliance Builder

User Manual

130

1 DGP address plus expansion. Allows up to 32 zones and 16 relays with 2 addresses.

Since each DGP address is limited to a maximum of 16 zones, when the number of

zones exceeds 16, this mode reserves 2 consecutive DGP addresses.

Point ID devices

The category assigned to the device dictates the programming options available to the

device. For some DGP devices the address is the only information that needs to be

programmed. Other devices, such as IO devices require additional features to be

programmed.

Point ID device categories

All point ID devices are assigned one of the following categories:

• Miscellaneous

•PIR

• Glassbreak

• Conventional smoke

• Analog smoke

•IO

Point ID device zone/relay numbering

When a point ID device is added to a point ID DGP, the device is assigned a system zone

number. This number is based on both the DGP system address (see Numbering on

page 324) and the address assigned to the device using the DIP switches. The zone range is

determined by the DGP address mode assigned to the DGP. If the mode is set to 1 DGP

address, the maximum number of zones will be 16. If the mode is set to 1 zone address plus

expansion, the maximum number of zones will be 32.

Example 1. The point ID DGP system address is set to 2 and the device is assigned

point ID device address 1. Since the DGP 2 zone range is 33 to 48 and the device

address is 1, the associated zone number for the device will be 33.

Example 2. The point ID DGP system address is set to 3 and the device is assigned

point ID device address 4. Since the DGP 3 zone range is 49 to 64 and the device

address is 4, the associated zone number for the device will be 52.

Chapter 6

DGP programming features

131

Relay numbering follows the same rules, but to configure relays, the point ID device

category must be an IO and the device must have onboard relays.

Example 1. The point ID DGP system address is set to 2 and the device is assigned

point ID device address 1. Since the DGP 2 zone range is 33 to 48 and the device

address is 1, the associated relay number for the device is 33.

Example 2. The point ID DGP system address is set to 3 and the device is assigned

point ID device address 4. Since the DGP 3 zone range is 49 to 64 and the device

address is 4, the associated relay number for the device will be 52.

Memory locations

For point ID IO devices nine memory locations are provided for additional programming.

Binary values are assigned to the locations to program the following options:

• Output/relay programming

•Zone types

• Output/relay supervision

•EOL value

• Number of inputs/zones and/or number of output/relays

Refer to the installation manual for the point ID DGP for details on programming memory

locations.

Alliance Builder

User Manual

132

Wireless DGP

The wireless DGP provides wireless zones and fobs as well as standard DGP functions.

Each DGP can support up to 32 zones and up to 16 fob sensors. Zone sensors can be

anything from glassbreak detectors to PIR devices, while key fobs are tied to user or relay

numbers and provide on/off or arm/disarm facilities such as panic buttons.

Every wireless device is assigned a unique serial number during manufacturing. The serial

number can be found on the box label for the device. Once the serial number has been

entered into the system, up to four zones will be assigned to the device. Supervision options

are also available.

Programming

The following programming options are available for wireless DGP devices:

DGP number

Range: 1 to 15

Specify the DGP address that this wireless DGP will use in the Alliance system. This

should be the same as the address specified in DGP programming for this controller (see

DGP number on page 122).

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

DGP mode

Specify the number of zones the DGP supports and consequently the number of DGP

addresses the DGP takes up in the system. DGP modes include the following:

Standard, 29 zones. Provides 29 wireless zones and consumes two DGP addresses.

Zones 1, 2, and 3 are used to transmit up to 29 device tamper, supervision fail, and

battery low events as a single global event.

Chapter 6

DGP programming features

133

Standard, 13 zones. Provides 13 wireless zones and consumes one DGP address.

Zones 1, 2, and 3 are used to transmit up to 13 device tamper, supervision fail, and

battery low events as a single global event.

Extended, 32 zones. Provides 32 wireless zones and consumes two DGP addresses.

Enables all 32 zones with device tamper, supervision fail, and battery low events to

be handled transparently by protocol.

Extended, 16 zones. Provides 16 wireless zones and consumes one DGP address.

Enables all 16 zones with device tamper, supervision fail and battery low events to

be handled transparently by protocol.

Supervision time

Range: 1 to 32 hours

Set the time period for testing the supervision flags of all active sensors.

Back tamper

Enable or disable the back tamper switch on the DGP.

Serial number

Specify the serial number for the sensor. The serial number is preset in the wireless

sensor during manufacturing and identifies each sensor to the DGP to enable

communication between the DGP and the sensor. For convenience, the serial number is

presented in HEX notation with digits 0 to 9 and characters A, B, C, D, E and F.

Alliance Builder

User Manual

134

Sensor type

Specify the sensor type. The sensor type is preset in the wireless sensor during

manufacturing and defines the style of sensor being used. When programming the

sensor type value, ensure that the reported sensor type is consistent with the device

being programmed. Table 8 shows the available sensor types.

Table 8. Sensor types

Type Description

1 Bill trap

2Smoke detector

3Panic

4PIR

5 Recessed door window sensor

6 Thermal detector

7 Carbon monoxide sensor

8Not assigned

9 Glassbreak/shock sensor

10 Door window sensor

11 1 or 2-button panic sensor

12 Fire pull

13 Glass guard

14 Freeze sensor

15 2 or 4-button key fob

16 Not assigned

17 Not assigned

18 Supervised interior siren

19 4-point sensor

20 to 31 Not assigned

Chapter 6

DGP programming features

135

Sensors that are currently supported by the Alliance wireless DGP are listed in Table 9.

Wireless devices zone numbering

When a wireless device is added to a wireless DGP, the device is assigned up to four

system zone numbers. The number of zones assigned depends on the type of device. For

example, the 4-point sensor should have all four zones assigned. Each wireless DGP has

from 13 to 32 zones allocated, depending on the DGP mode programmed. The system

zone number assigned to the wireless device is based on both the DGP system address

(see Numbering on page 324) and the number of zones assigned to the device.

Example 1. The wireless device is allocated 1 zone and is the first device being

programmed. The wireless DGP system address is DGP 2 with a zone range of 33 to

48. The associated zone number for the device will be 33.

Example 2. The wireless device is allocated 2 zones and is the second device being

programmed. The wireless DGP system address is DGP 2 with a zone range of 33 to

48. The associated zone numbers for the device will be 34 and 35.

Example 3. The wireless device is allocated 1 zone and is the third device being

programmed. The wireless DGP system address is DGP 2 with the zone range of 33

to 48. The associated zone number for the device will be 36.

Table 9. Sensors supported by Alliance wireless DGP

ITI stock code Sensor type

60-707-0195R 2-button SAW keychain touchpad

60-670-95R SAW door/window sensor

60-741-95 Recessed micro door/window sensor

60-639-95R SAW PIR motion sensor

60-873-95 Wireless ShatterPro glassbreak sensor

60-578-10-95 Water-resistant pendant panic sensor

Alliance Builder

User Manual

136

Supervision flag

Supervision options set the supervision mode for each zone. Supervision may be

controlled by the first relay of each DGP. For example, relay 17 would control the

supervision for DGP 1. The following supervision flags are available:

Enabled. Supervision is enabled.

Disabled. Supervision is disabled.

Relay controlled. Supervision is controlled by the state of the first relay number for the

wireless DGP. For example, relay 17 for DGP 1.

Key fob programming

Each wireless DGP supports up to 16 key fob devices. Depending on the type, each key fob

will have two or four buttons which offer the options shown in Table 10.

Serial number

The sensor serial number specifies the sensor that the fob will trip when activated.

Table 10. Key fob options

Key fob button function Description

User When the button is pressed, the assigned user number will arm/disarm

the system.

Relay When the button is pressed, the assigned relay is activated/deactivated.

Unused The button is not used.

Chapter 7 Door programming

features

This chapter provides an overview of doors and door

programming features.

In this chapter:

Door access programming . . . . . . . . . . . . . . . . . . . . . . .141

Door request-to-exit (RTE) programming . . . . . . . . . . .146

Door alarm control programming 148

Door reader programming . . . . . . . . . . . . . . . . . . . . . . .150

Door hardware programming. . . . . . . . . . . . . . . . . . . . .154

Door/floor groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Alliance Builder

User Manual

138

Doors

Doors are one of the most important concepts to understand within the Alliance system. The

terminology dealing with doors can present difficulties to installers and lead to confusion.

Although most systems define doors as keypad/card-reader devices (RAS devices), the

Alliance system supports a maximum of 64 doors in a combination of up to 16 RAS devices

and 48 intelligent doors.

System bus RAS devices are:

• Configured in the arming station

• Considered doors only in door group programming and assigned a door number

between 1 and 16 that reflects the RAS device's system bus address

Intelligentdoors are:

• Comprised of one to four RAS devices per door connected to a 4-door/elevator

controller

• Configured in door programming

• Assigned door numbers between 17 and 64 in door access programming

Another significant difference between a system bus RAS device and a door is the physical

connection itself. The system bus uses a proprietary bus format, so non-Alliance devices

require an AL-1170 module interface. For example, it is impossible to add a standard

Wiegand reader directly on the system bus (it must be connected to an AL-1170), while the

4-door controller provides each door with a dedicated reader port that is capable of accepting

either an Alliance or non-Alliance reader device directly. There is no need to add an AL-

1170 when connecting a Wiegand reader to the 4-door controller's reader port. In fact, you

can view the reader port as an onboard AL-1170.

The four reader ports located on the 4-door/elevator controller are, by default, the IN readers

for the door. Each of these four doors has one reader port assigned. The reader ports have the

following assignments:

• Reader Port 1: Assigned bus address 1 (RAS 1).

• Reader Port 2: Assigned bus address 2 (RAS 2).

• Reader Port 3: Assigned bus address 3 (RAS 3).

• Reader Port 4: Assigned bus address 4 (RAS 4).

Some devices, such as Wiegand readers, do not have provisions for bus addresses.

Therefore, when configuring RAS devices within a 4-door controller, the first four RAS

Chapter 7

Door programming features

139

numbers correspond to the reader ports. The reader port number follows the RAS number/

address.

Door/RAS numbering

Table 11 shows the door/RAS numbering scheme.

Functions

Doors can be used for the following functions:

Onboard relays. Each door can directly access one of the four onboard relays on the 4-

door controller. Under most circumstances, this relay is assigned the unlock relay.

Onboard zones. Each door can directly access up to four onboard zones on the 4-door

controller. These zones will typically be used to support the controller's intelligent

features.

Up to four reader devices. Each door is comprised of one to four reader devices,

depending on required functionality.

Shunt support. Each door supports one of several zone shunt options.

Region control. Each door supports region control through antipassback.

Hardware timers. Each door provides several dedicated timers, for use with shunts,

door unlocking, and extended access.

Request to exit (RTE). Each door supports a dedicated RTE function.

Alarm control. An alarm group is assigned to each door, defining arm/disarm

behavior.

Table 11. Door/RAS numbering scheme

Door number IN RAS address IN RAS address OUT RAS address OUT RAS address

1st Door 1 or (Reader Port

5913

2nd Door 2 or (Reader Port 2) 6 10 14

3rd Door 3 or (Reader Port 3) 7 11 15

4th Door 4 or (Reader Port 4) 8 12 16

Alliance Builder

User Manual

140

Advanced reader support. Each door supports numerous different reader types, such

as Wiegand and Alliance smart card. The same holds true for card formats. Each

door also provides numerous LED options.

Keypad/reader interface. The 4-door controller has its own local bus, supporting the

full range of RAS devices. In addition, the 4-door controller also provides four

reader ports, which can directly interface with Wiegand readers or Alliance readers;

therefore, it is not necessary to equip each reader with AL-1170 interface boards.

Door-open-too-long (DOTL). Each door supports a DOTL function.

Chapter 7

Door programming features

141

Door access programming

The following door access programming options are available for doors:

Door number

Range: 17 to 64

Specify which door is being programmed.The door number is based on the 4-door

controller DGP address, as well as the logical door number. For example, a 4-door

controller with an address of 1 would yield doors 17 to 20, where door 17 maps to Door

1, door 18 maps to Door 2, etc.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Unlock time

Range: 0 to 255 (seconds)

Specify the amount of time the door unlocks when a user is granted access. This value is

the total number of seconds the unlock relay will remain active.

Extended access time

Range: 0 to 255 (seconds)

Specify the amount of time the door unlocks when a user with extended access is

granted access. This value is the total number of seconds the unlock relay will remain

active. This option is useful when additional time should be granted to special users to

meet ADA requirements.

Door shunt option

Specify one of several different door-shunting options. Door shunting is the ability to

bypass an open door that might ordinarily generate an alarm.The door will remain

shunted for the period of time defined in the shunt time option. Door shunt options

include:

Alliance Builder

User Manual

142

No shunting. The door is not shunted.

Zone shunting. The door is shunted for the specified shunt time. If the door is left open

longer than the shunt time, an alarm is generated based on the zone type.

Zone shunting and DOTL. The door is shunted for the specified shunt time. If the

door is left open longer than the shunt time, a DOTL (door open too long) alarm is

generated. Enables forced door and DOTL to be reported on separate zone numbers.

Autoshunting and DOTL. If the area assigned to the door is disarmed, shunting of the

door begins when the door zone is active (no code or card required). Enables forced

door and DOTL to be reported on separate zone numbers.

Shunt time

Range: 0 to 255 (seconds)

Specify the amount of time the door can be open when a user is granted access without

generating an alarm. This value is the total number of seconds user has to pass through

the door, and shuts it again.

Extended shunt time

Range: 0 to 255 (seconds)

Specify the amount of time the door is can be open when a user with extended access is

granted access. This option is useful when additional time should be granted to special

users to meet ADA requirements.

Warning time

Range: 0 to -255 (seconds)

Specify the amount of time for a relay to activate before the shunt/extended shunt time

expires.

Low security time zone

Range: 0 to 24

Chapter 7

Door programming features

143

Define the hard time zone which, when valid, only requires a valid card/PIN to open the

door. When the time zone is invalid and the card + PIN IN reader or card + PIN OUT

reader option is enabled, a valid card and PIN is required in order to open the door.

IN/OUT region

Range: 0 to 254

Establish a region for either the IN or OUT reader, where the number corresponds to a

previously configured region. The region defines a boundary for the assigned reader.

When a user is granted access to a door configured with a region, the region number is

recorded against the user code; therefore, when regions are employed with certain

antipassback settings, the user could be denied access at the same reader twice. As soon

as the user passes through the OUT region, the user is cleared from that region. If hard

antipassback were enabled, the user would then be able to re-enter the region.

Note: Region 0 acts as Off Premises while region 255 is used for Region Disabled.

Passback

Define region behavior for the IN and OUT readers. Depending on the setting, the

system will either grant or deny a user access to the same region twice in succession.

To clear a hard antipassback violation, the user must pass through another keypad/reader

in order to change the region number that has been recorded against the user number or

the card must be reprogrammed in the User menu. The region record is reset when the

user is downloaded into the 4-door controller.

The door must be opened after the reader is used before antipassback will take effect.

The door contacts must be wired to the 4-door controller.

Regions must be programmed for the IN/OUT regions in order for this option to

function. Passback choices include:

No antipassback. No control for passback. A valid card/PIN opens the door without

generating an alarm. Entering a region twice without leaving is possible.

Soft antipassback. A valid card/PIN opens the door when used to enter the region the

second time without leaving the first, but a report is generated.

Hard antipassback. A valid card/PIN does not open the door when used to enter the

region a second time without leaving the first. A report is generated.

Alliance Builder

User Manual

144

Door options

Card plus PIN IN reader Enabled: In order to open the door from the IN reader, the user must

badge their card and enter their PIN on the keypad.

Disabled: In order to open the door from the IN reader, the user must

either badge their card or enter their PIN on the keypad.

Card plus PIN OUT reader Enabled: In order to open the door from the OUT reader, the user must

badge their card and enter their PIN on the keypad.

Disabled: In order to open the door from the OUT reader, the user must

either badge their card or enter their PIN on the keypad.

IN reader no PIN if time zone Enabled: In order to open the door from the IN reader during the low

security time zone, only a valid card is required.

Disabled: In order to open the door from the IN reader during the low

security time zone, a valid card or a valid PIN is required.

OUT reader no PIN if time zone Enabled: In order to open the door from the OUT reader during the low

security time zone, only a valid card is required.

Disabled: In order to open the door from the OUT reader during the low

security time zone, a valid card or a valid PIN is required.

Two cards IN reader Enabled: In order to open the door from the IN reader, two different

users need to present their card/PIN in the 2 card time option in 4-door

controller programming (see Two card time on page 126).

Disabled: In order to open the door from the IN reader, only 1 user is

needed to present their card/PIN.

Two cards OUT reader Enabled: In order to open the door from the OUT reader, two different

users need to present their card/PIN in the 2 card time option in 4-door

controller programming (see Two card time on page 126).

Disabled: In order to open the door from the OUT reader, only 1 user is

needed to present their card/PIN.

IN reader bypass region 0 users Enabled: In order to open the door from the IN reader, the user must

already be in a defined region.

Disabled: Users with region 0 will be granted access to the IN reader.

In most cases, region 0 is understood to be off premises.

OUT reader bypass region 0

users

Enabled: In order to open the door from the OUT reader, the user must

already be in a defined region.

Disabled: Users with region 0 will be granted access to the OUT reader.

In most cases, region 0 is understood to be off premises.

Chapter 7

Door programming features

145

Shunt until door closed Enabled: Shunt the defined zones as programmed in the shunt zones

option in Door hardware programming (see Shunt zones on page 155)

until the door is closed. When the door is opened and the shunt is not

active, the zone will generate an alarm.

Disabled: The shunt timer will be used.

Cancel shunt after door secures Enabled: Shunt the defined zones as programmed in the shunt zones

option in Door hardware programming (see Shunt zones on page 155)

until the door is closed. Opening the door again within the shunt time is

not possible, and will generate an alarm.

Disabled: The shunt timer will be used and the door can be reopened

during the shunt time.

Alliance Builder

User Manual

146

Door request-to-exit (RTE) programming

The following programming options are available for the door request-to-exit feature:

RTE time zone

Range: 0 to 24

Define a valid time in which a RTE (request-to-exit) button will unlock and/or shunt a

door in order to allow exiting. When the time zone is valid, pressing the RTE button will

unlock and/or shunt the door; if the time zone is not valid, pressing the RTE button will

not unlock and/or shunt the door.

RTE

Define the RTE (request-to-exit) behavior by choosing one of the following:

RTE timed. When the RTE button is pressed, the door unlocks for the unlock time.

RTE held. As long as the RTE button is pressed, the door is held unlocked for as long

as the unlock time or the button continues to be pressed, whichever is longer.

RTE only shunts. When the RTE button is pressed, the zone is shunted, but the door

does not open.

Chapter 7

Door programming features

147

RTE options

IN RTE disabled when armed Enabled: The RTE button does not unlock the IN door if any of the areas

assigned to the door are armed.

Disabled: The RTE button unlocks the IN door regardless of the status of

the areas assigned to the door.

The RTE button must be wired to the 4-door controller.

Area assignments are made in the Area option in Door hardware

programming (see Areas on page 156).

OUT RTE disabled when

armed

Enabled: The RTE button does not unlock the OUT door if any of the areas

assigned to the door are armed.

Disabled: The RTE button unlocks the OUT door regardless of the status

of the areas assigned to the door.

The RTE button must be wired to the 4-door controller.

Area assignments are made in the Area option in Door hardware

programming (see Areas on page 156).

Request-to-exit reporting Enabled: When RTE zone is active, a report is generated and sent to both

the printer and management software.

Disabled: No report is generated.

Alliance Builder

User Manual

148

Door alarm control programming

The following programming options are available for the door alarm control feature:

Alarm group

Range: 1 to 138

Define arm/disarm behavior for the door. The time zone defines when alarm control can

be made. Alarm control is governed by alarm group attributes such as the disarm only

option in Alarm group programming.

Alarm

Specify the type of alarm control available for the door from the following choices:

No alarm control. Arm/disarm is disabled for the reader.

Alarm control on first badge. Areas are disarmed on the first badge if access granted.

Badging three times will arm the areas.

Alarm control on third badge. Areas are armed/disarmed on the third badge if access

granted.

Alarm control with button I/F. Not supported

Alarm always (disarm = IN, arm = OUT). If access is granted at the IN reader, areas

defined within the alarm group are disarmed. If access is granted at the OUT reader,

areas defined within the alarm group are armed.

Authorized RAS

Range: 0 to 16 (these are system bus RAS devices)

This option supports the ability to provide a user interface to the door controller reader.

It assumes the specified RAS is an LCD keypad. For example, when a user badges their

card, the specified LCD keypad provides alarm control options, such as arm/disarm.

The RAS must have toggle area status in RAS programming (see RAS options on

page 116) enabled in order to function.

Chapter 7

Door programming features

149

IN/OUT denied if area armed

Prevent a user opening a door using the IN/OUT reader when any of the areas assigned

to the door are armed. If enabled, a valid card/PIN will not open a door if any of the

areas assigned to the door are armed. If disabled, the door will open regardless of the

area’s armed status.

The areas mentioned here do not come from the alarm group; rather, they come from the

areas listed in the Area option in Door hardware programming (see Areas on page 156).

Alliance Builder

User Manual

150

Door reader programming

The following programming options are available for the door reader feature:

Cardformat

Specify the card/key/token/reader data format when not using IUM memory. Table 12

describes the various formats.

Override time zone

Range: 0 to 24

Specify the time in which the door will unlock. When the time zone is valid, free access

is allowed.

Table 12. Card formats

Format Description

Wiegand 27-bit For Indala ESP range of proximity readers supplied by Aritech

Aritech ASC For AL-1191 proximity readers.

Kastle 32-bit Kastle format cards.

Wiegand 26-bit For standard 26-bit Wiegand format readers, including Wiegand swipe

readers supplied by Alliance. Have a 16-bit card number (0-65534) and an

8-bit system code (0-255).

Indala ASC 27-bit For Indala ASP range of proximity readers using 27 bit Wiegand format.

Indala ASC 26-bit Not used in Europe.

Wiegand 32-bit For 32-bit Wiegand format readers. Uses a 16-bit card number and 16-bit

system code.

Mag. Card Alliance For Alliance format magnetic swipe cards.

Mag. Card Midas For Midas format magnetic swipe cards.

C36-bit For C36-bit format.

Wiegand 30-bit For Wiegand 30-bit format.

Wiegand 32-bit For Wiegand 32-bit format.

Chapter 7

Door programming features

151

LED

Specify how the reader displays the status LED. Table 13 describes the LED status

options.

Note: On readers with dual LED control lines, the second LED can be programmed to indicate

other conditions in DGP macro logic programming.

Table 13. LED status options

LED Description

LED on when door locked The LED turns on when the door is locked

LED on when door unlocked The LED turns on when the door is unlocked

LED on when area armed The LED indicates if the area assigned to the door is armed.

If more than one area is assigned, all areas must be armed before the LED

changes.

LED on when area disarmed The LED indicates if the area assigned to the door is disarmed.

If more than one area is assigned, all areas must be disarmed before the

LED changes.

Two LEDs disarmed/armed Readers with dual LED control lines connected indicate the area disarmed

and armed with different color LEDs.

Two LEDs valid/void Readers with dual LED control lines connected indicate user valid or void

with different color LEDs.

No LED No LED control.

Alliance Builder

User Manual

152

Reader options

Hold door unlocked Enabled: The door lock will not relock until the door is closed.

Disabled: The door lock will relock, regardless of the door being open or

closed, after the unlock time expires.

Unlock time zone after entry Enabled: Before the override time zone unlocks the door, a user needs to

enter the area.

Disabled: Automatic unlock will start at the override time zone’s start

time.

Log door open/close Enabled: When the door contact zone goes active then back to normal (a

door is opened/closed), a report is sent to both the printer and

management software.

Disabled: Depending on zone type, no report is generated unless an

alarm occurs.

Report forced door Enabled: When the door is forced open without a valid card/PIN, a report

is sent to both the printer and management software.

Disabled: Depending on zone type, no report is generated unless an

alarm occurs.

Hold door unlocked until door

opens

Enabled: When a user is granted access at a door, the door relay will stay

active until the door contact zone goes from active to normal (a door is

opened/closed).

Disabled: The door relay will perform normally.

Report door closed and

locked

Enabled: When a door is closed AND locked, a report is sent to both the

printer and management software.

Disabled: Depending on zone type, no report is generated unless an

alarm occurs.

LogDOTL Enabled: When the door remains open after the shunt timer expires, a

DOTL (door-open-too-long) report is sent to both the printer and

management software.

Disabled: Depending on zone type, no report is generated unless an

alarm occurs.

Time attendance reader Not Supported

Chapter 7

Door programming features

153

Pulsed lock and unlock output Enabled: Special lock strike opening is enabled. Two separate relays are

pulsed at different times.

Disabled: Normal lock strike opening.

This option should only be enabled on locks that require two separate

relays to be pulsed at different times in order to open and two separate

zones for monitoring.

Disable duress Enabled: Duress functionality is disabled for this door.

Disabled: Duress functionality is enabled for this door.

Map open/unlocked to

unlocked

Enabled: When the door is unlocked, an unlocked report is sent to both

the printer and management software.

Disabled: Unlocking is not reported.

An unlock condition exists if the door is not closed and is locked.

Alliance Builder

User Manual

154

Door hardware programming

All zones and relays used in this section are required to come from on board the 4-door/

elevator controller. Any onboard zones set to zone type 0 (Disabled), in the zone type option

in Zone programming, revert to being normal DGP system zones. Any zones assigned as

door contacts or DOTL (door-open-too-long) must be assigned a zone type so that the

control panel responds to generated alarms.

The following programming options are available for door hardware:

Unlock relay

Range: (depends on 4-door/elevator controller address and door number)

Specify the relay that is activated when a user is granted access and the door is

unlocked.

DOTL relay

Range: (depends on 4-door/elevator controller address and door number)

Specify the relay that is activated when the DOTL (door-open-too-long) zone is active,

due to the shunt timer expiring.

Forced relay

Range: (depends on 4-door/elevator controller address and door number)

Specify the relay that is activated when the door contact zone is active without the

system having granted access (a forced door condition).

Warning relay

Range: (depends on 4-door/elevator controller address and door number)

Specify the relay that is activated (during the warning time) when the shunt timer is

about to expire. For example, a separate buzzer might be tied to this relay in order to let

the user know that the door needs to be closed.

Chapter 7

Door programming features

155

Fault relay

Unsupported at this time.

RTE zone

Range: (depends on 4-door/elevator controller address and door number)

Specify the zone that activates the RTE (request-to-exit) function.

DOTL zone

Range: (depends on 4-door/elevator controller address and door number)

Specify the zone used to report a DOTL (door-open-too-long) condition.

Door contact zone

Range: (depends on 4-door/elevator controller address and door number)

Specify the zone used for the door contact. This zone lets the 4-door/elevator controller

know when a door is opened/closed, especially during a forced door condition.

Monitor second door zone

Range: (depends on 4-door/elevator controller address and door number)

If enabled, the system will treat the spare zone as a second door contact; otherwise, the

spare zone is available for other purposes.

Shunt zones

Specify which zones, assigned to the current door, require shunting. This zone is

typically the door contact zone.

Interlock zones

Specify which door contact zones should be used in order to prevent doors from being

accessed at the same time when door are on separate door controllers.

Alliance Builder

User Manual

156

For example, to interlock Door 1 with Door 2, a contact on Door 2 must be wired to the

spare zone on Door 1, and a contact on Door 1 must be wired to the spare zone on Door

2. The spare zone becomes the interlocking zone.

If a zone is being used for interlocking and no other door uses it for the door contact

zone (this should be the case), then the 4-door/elevator controller will insert a 2-second

delay before opening the door in order to allow for settling times.

A maximum of eight zones can be used for interlocking.

Areas

Specify the areas used by the door reader's LED options, alarm control, entry denied if

area armed, and IN/OUT RTE disabled. The 4-door/elevator controller will look at the

specified areas when requesting status information from the control panel.

It is important to remember that the areas specified here are not used for area control.

The purpose of this option is to enable the 4-door/elevator controller to identify the

status of areas and know whether or not to send an arm/disarm command to the control

panel.

The alarm groups specified in Door alarm control programming will dictate which areas

have alarm control, not the areas specified here.

Chapter 7

Door programming features

157

Door/floor groups

Door and floor groups are programmed using an Alliance management software program,

they are not programmed in Alliance Builder. These groups dictate when access is granted to

4-floor controller floors (1 to 64) and 4-door controller intelligent doors (1 to 64). Each

device within the door/floor group may have unique time zones assigned.

The door group considers all RAS/intelligent doors as simply doors. RAS devices connected

to the system bus (1 to 16) are configured in RAS Programming, while all other RAS

devices that make up intelligent doors (17 to 64) are configured in Door Programming.

When a door/floor group is added or programmed, the system will automatically populate

the door/floor list with all known doors/floors (system RAS devices and intelligent doors/

floors).

Functions

Door/floor groups can be used for the following functions:

Assign unique times. Each RAS device that appears in the door group allows unique

hard/soft time zone assignment.

User assignment. Door/floor groups are assigned to users in order to grant access.

Failure to assign a user any door/floor groups would result in the user being unable

to access any doors/floors. Furthermore, an invalid time zone would also deny

access.

Alliance Builder

User Manual

158

Programming

The following programming options are available for door/floor groups:

Door/floor group number

Range: 1 to 128 (without memory expansion the range is 1 to 10)

Specify which door/floor group is being programmed.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Doors/floors

Specify the following:

Door/floor number. The assigned system bus RAS (range 1 to 16) intelligent door

(range 17 to 64) or floor (range 1 to 64) address/number.

Door/floor description. The door/floor description, taken from either the RAS device,

or door/floor programming sections.

Time zone. Specifies the time period access will be granted for this door/floor. The

range is 1 to 41.

Note: Note: Only system RAS devices (1 to 16) can be assigned a soft time zone, range 26 to

41. Floors cannot be assigned a soft time zone.

Time zone description. Programmed in Hard time zone Description on page 227 or

Soft time zone Description on page 234.

Chapter 8 Control panel

programming features

This chapter provides an overview of control panels and control

panel programming features.

In this chapter:

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Macro logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166

Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171

Alliance Builder

User Manual

160

Control panel

The Alliance system is based on the Alliance control panel. The control panel is responsible

for managing the vast majority of the security system. The control panel:

• Communicates with all system bus devices, ensuring that the devices are responding

correctly, as well as gathering status information

• Maintains user database and associated databases

• Communicates to PC management software through a variety of physical mediums,

such as RS232 and PSTN

• Provides expandable resources, such as users and alarm groups, through memory

modules

• Reports alarms to central stations through on-board dialers

• Controls hardware, such as opening doors and bypassing zones

• Supports external printers added to the control panel through additional board

interfaces mounted on the panel, allowing certain events to be logged in real-time

• The control panel maintains the vast majority of programming options available.

For example, the control panel handles adding/removing keypads to the system bus

via keypad/management software. See RAS (remote arming stations) on page 112.

Chapter 8

Control panel programming features

161

Control panel features

Table 14 shows the features provided by the Alliance control panels.

Table 14. Control panel features

Feature AL-4X17 AL-3017 AL-2017

Areas 161616

Maximum number of zones 256 64 32

Number of 8-zone expanders supported directly on

control panel

222

Maximum number of relays 255 255 255

Maximum number of doors 48 48 0

Maximum number of DGPs 15 15 15

Maximum number of system bus RAS devices 16 16 16

Default number of alarm groups 32 32 32

Default number of door groups 10 10 10

Default number of floor groups 10 10 0

Expandable memory support Yes Yes No

Clock relay controllers support Yes Yes Yes

Number of card holders 50 50 50

Number of users with names 505050

Number of users with PIN 50 50 50

Access logged events 10 10 10

Alarm logged events 250 250 250

Onboard zones 16 8 8

Onboard relays (physical and virtual) 5 5 5

Alliance Builder

User Manual

162

Memory expansion

The ability to support a larger number of resources is dictated by the attached memory

module. Table 15 shows the available memory modules and their respective limits.

Note: Memory expansion must be paired between control panels and 4-door controllers. For example,

adding a 4 MB IUM on the control panel requires adding the same memory type for all 4-door

controllers.

IUM, not only increases the number of resources, but also expands the card data from 26 bits

to 48 bits.

When upgrading a control panel with an IUM, first do a full upload of the control panel to

the management software in order to back up the system. Next, install the IUMs on both the

control panel and all 4-door/elevator controllers (they must be paired). Reset the control

panel by using the Kill Jumper. Go back to the saved system and select the appropriate IUM

and download the system back to the control panel.

Table 15. Memory modules

Memory related resource

1 MB (non

IUM) 4 MB IUM 8 MB IUM

Door groups 128 128 128

Alarm groups 138 138 138

Floor groups 128 128 128

Logged alarm events 1000 1000 1000

Logged access events 1000 1000 1000

Card holder users 11466 17873 65535

Users with names 200 200 200

Users with PIN 1000 1000 1000

Chapter 8

Control panel programming features

163

Multiple panel systems

A multiple panel system is defined as an Alliance system containing more than one control

panel. If a significant number of resources, such as doors and zones, are required, the panels

may be networked. Although a maximum of sixteen control panels may be networked within

a single system, the maximum recommended number due to real-world performance, is

seven. The ability to network multiple control panels within a single system is facilitated by

RS485 to RS232 interface converter ancillary boards.

Communications

Communications between the outside world and the control panel occur over the RS232 or

PSTN. In the case of PSTN, the control panel must have the on-board dialer configured with

the appropriate telephone lines, while the RS232 option requires outfitting the control panel

with an optional Computer/Printer Interface Module.

Printing

As events occur, they can be logged to an optional printer. The printer is connected to the

control panel through optional interface boards, such as the Computer/Printer Interface

Module.

Alliance Builder

User Manual

164

Functions

Control panels can be used for the following functions:

RAS/DGP communication. All RAS/DGP devices communicate with the control

panel over the system bus. These devices obtain data from the control panel, provide

status information, as well as generate alarms.

Software communications. Alliance management software communicates directly

with the control panel in order to monitor events, perform device control (i.e. unlock

doors), and program users. This is accomplished over several communications

options, including RS232 and PSTN.

User database. Authorized users are stored within the control panel. RAS devices

connected to the system bus will obtain authorization when a PIN/card is presented

from the control panel.

Smart card devices will buffer a limited number of users in their respective memory.

In the event a bus failure occurs, a card is likely to function.

RAS devices attached to 4-door controllers obtain user information from the door

controller, rather than the control panel (redundant user database).

Resources. The memory module attached to the control panel defines the maximum

number of programming elements.

Multiple panel configurations. Each control panel is assigned a unique address

identifier. This address is used when configuring systems containing more than one

control panel.

Chapter 8

Control panel programming features

165

Programming

The following programming options are available for control panels:

Control panel number

Range: 1 to 7

Specify the control panel number.

Note: The total number of control panels allowed per system is less than the specification in

order to account for latency issues.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Model

Specify the control panel model. The selected model will dictate the overall capabilities

and limits of the system.

Memory

Specify the memory module attached to the control panel.

Note: Memory expansion must be paired between control panels and all 4-door/elevator

controllers.

Address

Assign a unique address for each control panel within a system. Although the control

panel address is only programmed using the keypad, when management software

programs create additional panels the database treats them as control panel 2, 3, etc.

Alliance Builder

User Manual

166

Macro logic

Macro logic provides a tool for activating event flags when specific events occur. These

events provide inputs to logic equations. When the result of the equation is true, the macro

event tied to the equation will follow.

Up to four event flag inputs may be included in the logic equation. Each macro input in the

logic equation can be programmed as an AND or an OR function and may be inverted.

Options are provided so that the macro's result will trigger a macro output which may be a

pulse, timed, on delay, off delay, or latched when activated.

The event flags used here are pre-defined event flag numbers as listed in the macro event

flags. Some can only be used for macro inputs, some for macro outputs, and some may be

used for both. Before programming a macro, it is important to understand the basics of

Boolean logic. For information on Boolean logic, see Boolean logic on page 278.

Alliance system macros

Both control panels and 4-door/elevator controllers have programmable macros. The

following are basic elements of a macro with their attributes:

Macro. Number and description

Four inputs. Event flag number or relay number

Logical equation. AND (NAND) or OR (NOR)

Timing. Pulse, delay ON, delay OFF, or latched

Output. Event flat number or zone number

Macro logic number

Range: Control panel 1 to 24, 4-door/elevator controller 1 to 48

Identifies the macro or program number.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Chapter 8

Control panel programming features

167

Input

Range: 1 to 4

Provides input as an operand in the Boolean equation for the macro. Any input can be

inverted prior to the gate operator.

Input type. The user can select the type of input for each of the four inputs. The state

of the input defined in the input type can be inverted prior to the function.

Output

Defines the behavior and output type that, if the result of the equation is true, the macro

will act on or active.

If the output type is allocated to a zone, the zone selected will not function. Because of

this mode of operation, the zone number assigned may be a phantom zone, not

physically available.

Unless inverted (NOT), the zone will be in an alarm condition when the macro activates

and normal when the macro resets.

The output may be optionally inverted, the NOT function.

Output type. Identifies the type of output and what output will be acted on. Note that

the output result has the inverted option.

Alliance Builder

User Manual

168

Output function. The output function allows the user to define what type of output

function will be activated by the macro as shown in Table 16.

Output duration

Specify the time period applied to the output function. Only applicable for time-based

output functions, such as timed and delay. The range is from 1 to 255 and the time

period varies between seconds or minutes, depending on output function selected.

Table 16. Output functions

Function name Description

Disabled Macro is disabled.

Non-timed The output follows the result of the logic equation only. If an event flag or

output for this macro changes, the logic equation will be calculated again.

Pulsed Activates the output for the programmed time or the active period of the

logic result whichever is the shortest. On pulse (1 to 255 seconds), on pulse

(1 to 255 minutes)

Timed Activates the output for the specified time period regardless of the macro

output changing. On timed (1 to 255 seconds) on timed (1 to 255 minutes)

Delayed Activates the output after the specified timer expires, unless the result of

the logic equation is no longer valid. On delay (1 to 255 seconds), on delay

(1 to 255 minutes)

Non-delayed Follows the results of the logic equation, but remains active for the time

programmed after the result of the logic equation is no longer active. Off

delay (1 to 255 seconds), off delay (1 to 255 minutes)

Latched When the output function is set to latched, the macro is not looking to the

logical expressions OR or AND for all inputs.

The first three inputs will be handled as SET inputs and the fourth input will

be handled as a RESET input of a RS Flip-flop.

The RESET will always predominate the SET inputs.

Inverting the input conditions or output conditions is still applicable.

Chapter 8

Control panel programming features

169

Printers

Printer programming not only configures a printer connected to the system, but also dictates

how and when the printer will output events. In order to interface a printer to the control-

panel, a printer/computer-printer interface board is required.

Programming

The following programming options are available for printers:

Printer type

Specify the type of printer connected to the interface board. Table 17 details the printer

types.

Printer time zone

Range: 0 to 64 (includes hard and soft time zones)

Specify the time zone when the printer is active.

Table 17. Printer types

Printer type Description

Epson Baud: 9600, Word: 7 bit, Parity: Even, Stop: 1

Laser HPII Baud: 9600, Word: 8 bit, Parity: None, Stop: 1

Laser HPII Baud: 19200, Word: 8 bit, Parity: None, Stop: 1

Epson Baud: 9600, Word: 7 bit, Parity: Odd, Stop: 1

Epson Baud: 9600, Word: 7 bit, Parity: None, Stop: 1

Epson Baud: 9600, Word: 8 bit, Parity: None, Stop: 1

Epson Baud: 9600, Word: 8 bit, Parity: Odd, Stop: 1

Epson Baud: 9600, Word: 8 bit, Parity: Even, Stop: 1

Alliance Builder

User Manual

170

Real-time printing

If enabled, the printer will print events as they occur; otherwise, they will not be printed.

Alarm events

If enabled, all alarm events will be printed; otherwise, they will not be printed.

Access control events

If enabled, all access control events will be printed; otherwise, they will not be printed.

Print outside of time zone

If enabled, the printer will only be active outside the specified time zone; otherwise, the

printer is only active during the time zone.

Chapter 8

Control panel programming features

171

Timers

Custom hardware timers can be triggered in the system by various events. When an event

flag tied to one of the timers is raised, the system starts the timer, which runs for the

specified time. When the timer elapses, the system generally performs other actions, such as

arming or disarming an area.

Timers are system-wide, meaning other programming features make use of defined timers in

order to determine how long a certain feature will be enabled or disabled. For example, RAS

devices will open a door for the time defined in the RAS unlock time option.

In general, if some other programming feature refers to a period of time that is not defined

within the scope of that feature, the time period will usually be defined in timer

programming.

Note: Timers are accurate to +/- 1 the value entered (a timer set for 20 seconds will fall between 19 and 21

seconds). Therefore, avoid using values of 1 second/minute.

Functions

Timers can be used for the following functions:

Timed events. Use timers to program how long certain events and system states will be

able to run.

Testing. Use timers to set a certain period of time in which the system can be tested

without generating alarms.

System flexibility. Use timers to set an appropriate amount of time for users to perform

actions without generating an alarm. For example, if a user required a door to stay

unlocked for a significant amount of time, you can program the door unlock time to

keep the door unlocked for the necessary amount of time without generating an

alarm.

Alliance Builder

User Manual

172

Programming

The following programming options are available for timers:

Alarm group restriction 1 to 7 disarmed time

Range: 0 to 255 (minutes)

Determine the amount of time the associated areas will be disarmed. After the specified

amount of time has elapsed, the area will be automatically armed again. The alarm

group restriction must be programmed for timed disarm in Alarm group restriction

programming (see Timed disarmed areas on page 198) and be assigned to an alarm

group for this timer to be used.

Program the individual times for each alarm group restriction (1 to 7) for the period of

time the associated area should be disarmed. The associated area will be armed after the

specified timer expires.

If the Alarm group restriction disarmed time is left at zero and the restriction is

programmed for an alarm group, the associated area will not be rearmed.

The Alarm group restriction disarmed time will be overridden by the Area disarmed

time if any time, but zero, has been programmed for the associated area.

If the alarm group restriction is being used in conjunction with Autoarm/disarm

programming, the Alarm group restriction disarm time is the delayed arming time.

Disarm test time

Range: 0 to 255 (minutes)

Specify the time available to do a disarm test.

Arm test time

Range: 0 to 255 (minutes)

Specify the time available to do an arm test.

Chapter 8

Control panel programming features

173

Warning time

Range: 0 to 255 (minutes)

Specify the duration of the warning time. When alarm group restrictions are used and

areas are programmed for timed disarm, a warning will sound (if a warning time is

programmed) indicating the areas are about to arm.

Delayed disarmed alarm time

Range: 0 to 255 (seconds)

Specify the delay time before an alarm from a delayed disarmed alarm is reported to the

central station. The delay time is overridden if another delayed zone has already been

activated.

Suspicion time

Range: 0 to 255 (seconds)

Specify the length of time that a camera continues to operate after a suspicion zone has

switched to normal state.

Service time

Range: 0 to 255 (minutes)

Specify the amount of time a technician, who has been given service technician

privileges, has to service the system.

Local alarm reminder time

Range: 0 to 255 (minutes)

Specify the time that can elapse between acknowledging a local alarm and an alarm

reoccurring, including the audible alert.

Individual zone test time

Range: 0 to 255 (minutes)

Specify the maximum time required to perform a test on an individual zone.

Alliance Builder

User Manual

174

RAS unlock time

Range: 0 to 255 (seconds)

Specify the amount of time a door's RAS device will be unlocked when the door’s

corresponding event flag has been triggered. This time applies to all system doors.

Testing event flag time

Range: 0 to 255 (seconds)

Specify the time the testing event flag is triggered to activate devices in order to perform

an arm test. The event flag will only be triggered for half the programmed time. The

remaining time is used to allow the device to switch back to the normal state.

External siren time

Range: 0 to 255 (minutes)

Specify the amount of time for the on board external siren drivers to activate.

Internal siren time

Range: 0 to 255 (minutes)

Specify the amount of time for the on board internal siren drivers to activate.

AC fail delay time

Range: 0 to 255 (minutes)

Specify the delay time before AC fail is reported to the central station. Enter the value 0

for no delay.

Sirens delay time

Range: 0 to 255 (minutes)

Specify the time that elapses before sirens cut-off after activation.

Chapter 8

Control panel programming features

175

Reporting alarms delay time

Range: 0 to 255 (seconds)

Specify the delay time before a burglar alarm (BA) or BA class tamper alarm (TA) is

reported to the central station. It can be used to prevent alarm reporting for users that

have problems disarming their area in time. After a burglar alarm or input tamper

activation, there will be a delay of the specified time before the burglar alarm (BA) or

BA class tamper alarm (TA) will be reported to the central station. All other alarms are

reported immediately, without delay.

A to B alarm delay time

Range: 0 to 255 (minutes)

Specify the delay time that the system waits for a second alarm. If the second alarm

happens within the delay time, it will be reported as a verified alarm.

Screensaver timeout time

Range: 0 to 255 (seconds)

Specify the amount of time it takes for the RAS device screensaver to time out. The

screensaver timer will be reset with the programmed period every time you press a RAS

key when the screensaver is not active. To manually activate the screensaver, press the

CLEAR key at the Enter Code prompt.

RAS card and PIN timeout

Range: 0 to 255 (seconds)

Specify the delay time between badging the card and entering the PIN.

Double-knock interval

Range: 0 to 255 (minutes)

If enabled for a particular zone, the double-knock interval specifies the maximum

permitted time between a zone becoming active for the first time and becoming active

for a second time. If the time a zone remains active exceeds the permitted time, an alarm

condition is registered.

Alliance Builder

User Manual

176

Double-knock duration

Range: 0 to 255 (seconds)

If enabled for a particular zone, the double-knock duration specifies the maximum

permitted time a zone may remain active. If the time a zone remains active exceeds the

permitted time, an alarm condition is registered. If this value is set to zero, an alarm is

not generated by prolonged activation, but is determined by the double-knock interval.

Chapter 9 Access programming

features

This chapter provides an overview of access programming

features.

In this chapter:

Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .178

Bank vault areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .186

Alliance Builder

User Manual

178

Areas

An area defines a physical space within a building. The primary purpose of the area is to

establish intrusion protection, facilitated through one or more zones, and to tie those zones

to RAS devices (accomplished through alarm groups).

Each zone added to the system is assigned one or more areas. The zones controlled by RAS

devices for the purpose of arming/disarming the area. Zones are not directly armed, rather

their associated areas are. For example, when a user arms a specified area through a keypad,

the system will treat all zones assigned to that area as being in the armed state. When an

assigned zone enters the active state it will cause the system to generate an alarm.

Areas also define numerous event flags that may be used in performing other system

functions. For example, you can assign specific event flags to be raised whenever the area is

either armed or disarmed.

Areas also support several central station reporting options. When an alarm is generated, the

system will use the Reporting options on page 181 in order to determine which central

station to call.

Functions

Areas can be used for the following functions:

Intrusion. Zones can be assigned to a combination of areas, in order to provide

intrusion control.

Reporting. Areas define which central stations should be called in the event an alarm is

generated for that area.

Arm/disarm. Zones assigned to an area can be armed/disarmed through a RAS device

(keypad/card reader).

Entry/exit. Areas define timers that allow specified periods of time to elapse before

generating an alarm when the system is armed/disarmed.

Event flags. Each area supports numerous event flags that can be used by other

programming options, such as system macros.

Text words. The area name is stored as a system text word in the control-panel that can

be seen in the RAS devices.

Chapter 9

Access programming features

179

Programming

The following programming options are available for areas:

Area Number

Range: 1 to 16

Specify the area to program.

Name

Range: Up to 16 characters

Specify the name given to the area. The name is converted into a system text word, and

is transferred to the control panel. As a result, the name will appear within RAS keypad

devices.

Since the system only allows up to 100 user-defined text words, try to reuse existing text

words in the Text word library on page 308.

Entry time

Range: 0 to 255 (seconds)

When entering an armed area containing entry/exit zones, the entry timer should be set

to permit the user ample time to disarm the system before generating an alarm. Each

area supports one entry timer.

Entry/exit zones are defined as zone types 3 (entry/exit alarm), 4 (access zone), 13

(entry/exit without arm check), 14 (access without arm check), 41 (entry/exit emergency

door), and 42 (entry/exit emergency door with code). However, the timer will only start

with zone types 3, 13, 41, and 42.

If zones are assigned to more than one area, the longest entry/exit time is used. The entry

time must be more than 10 seconds. The default is set at 30 seconds.

Alliance Builder

User Manual

180

Exit time

Range: 0 to 255 (seconds)

When exiting an area that has been armed containing entry/exit zones, the exit timer will

start in order to give the user ample time to leave the premises before generating an

alarm. Each area supports one exit timer.

If zones are assigned to more than one area, the longest entry/exit time is used.

Key box timer

Range: 0 to 255 (minutes)

The key box timer determines the exit time by the duration specified in minutes.

Immediately after the exit timer expires, the key box timer starts. Before this additional

key box timer expires the zone must be closed. If it is not closed, a full alarm will be

triggered again even if the previous trigger was also an alarm. During the exit timer and

key box timer, openings and closings will not be registered and will not generate an

alarm.

Area disarmed time

Range: 0 to 255 (minutes)

When using alarm group restrictions, the restriction provides an option to disarm the

area for a specified period of time. Under normal circumstances, this time comes from

programming in Timers on page 171. If the time is set in this option to any value other

than zero, it will override the value programmed in Timers programming.

If the alarm group restriction disarmed time in Timers programming is set to zero in

order to specify that the area will not rearm, the time set here will apply for the area.

Chapter 9

Access programming features

181

Reporting options

Report to central station 1 Enabled: Reports opening/closing and late-to-close access events

to central station 1.

Disabled: Does not report to central station 1.

Report to central station 2 Enabled: Reports opening/closing and late-to-close access events

to central station 2.

Disabled: Does not report to central station 2.

Report to central station 3 Enabled: Reports opening/closing and late-to-close access events

to central station 3.

Disabled: Does not report to central station 3.

Report to central station 4 Enabled: Reports opening/closing and late-to-close access events

to central station 4.

Disabled: Does not report to central station 4.

Enable audio listen-in

(Not supported in the US)

Enabled: Audio listen-in will be enabled.

Disabled: Audio listen-in will be disabled.

Report exit faults Enabled: On an exit fault a local alarm is generated and a special

exit fault signal is reported to the central station.

Disabled: Exit faults will not be reported to the central station.

Prevent arming if all zones

bypassed

Enabled: The area cannot be armed if all zones in the area are

bypassed.

Disabled: The area can be armed if all zones in the area are

bypassed.

Area disarm channel Program the channel for a disarmed event with channel numbers

00 - 99 for each area. Leave blank to disable.

Area arm channel Program the channel for an armed event with channel numbers 00

- 99 for each area. Leave blank to disable.

Alliance Builder

User Manual

182

Event flags

External siren event flag When the area is armed, the specified event flag is raised when a

zone generates an alarm. This will cause the external siren to

sound.

The default is event flag 1.

Disarmed event flag The specified event flag is raised when the area is disarmed.

Zone active event flag The specified event flag is raised when a zone assigned to the area

becomes active.

Zones that can be used to change the status of an area, cameras,

or unused zones, are excluded.

Bypass event flag The specified event flag is raised when a zone assigned to the area

has been bypassed.

Armed alarm event flag The specified event flag is raised when the area is armed.

Disarmed alarm event flag The specified event flag is raised when the area is disarmed.

Internal siren event flag When the area is armed, the specified event flag is raised when

any zone assigned to this area generates an alarm. This will cause

the internal siren to sound.

The default is event flag 13.

Exit event flag The specified event flag is raised when the exit timer is running.

Entry event flag The specified event flag is raised when the entry timer is running.

Local alarm event flag The specified event flag is raised when emergency doors and 24-

hour local alarm zone generate an alarm.

Warning event flag The specified event flag is raised when an alarm group restriction

timer is running and the area is about to be armed or a test mode

is in progress and the test is about to end.

Camera event flag The specified event flag is raised when a zone having the camera

event generates an alarm, and the area is disarmed. The flag is

used to control cameras.

Prealarm event flag The specified event flag is raised when a delayed disarmed alarm

zone is active and the delay time is running. Used to provide visual

indication of a possible alarm. The event flag is only activated for

the delayed period.

Chapter 9

Access programming features

183

Out-of-hours time zone The specified event flag is raised when an area is disarmed, when it

should be armed.

Generates a report if the area is disarmed while the area should be

armed. The message reported depends on the type of

transmission protocol.

This option is commonly used in conjunction with Auto arm/disarm

programming.

Antimask event flag If an attempt to arm an area that has the anti-mask event flag set

to a non-zero value and any inputs associated with this area are

active, the event flag is set for 5 minutes. The antimask event flag is

active for the duration of the timer and is reset when either the

timer's time elapses or the area is successfully armed.

This event flag is commonly used with PIR detectors with an anti-

mask feature. An output is assigned to the anti-mask event flag

that is wired to the detectors. When this output is activated, the

detectors must be triggered by a walk test in order for them to

become normal after the output is deactivated (after 5 minutes).

Latched reset event flag This event flag is triggered when two valid disarm codes are

entered within 5 minutes for an area and the area is disarmed. The

event flag is set for 5 seconds. For an additional 4 seconds the zone

67 (latched detector) associated with the area is disabled for a total

disabled time of 9 seconds. Zone 67 is a 24-hour alarm conditional

bypass that is conditional on the 9-second timer.

Alarm A event flag The specified event flag is raised when an area identifies a first

alarm.

Alarm B event flag The specified event flag is raised when an area identifies a second

alarm.

Tamper alarm event flag Unsupported

Alliance Builder

User Manual

184

Area links programming

Area links support the ability to tie several areas together to create a common area. This will

impact how the system handles arming and disarming as described below:

Arming. The common area will only arm when all linked areas have been armed.

Disarming. The common area will disarm when any linked area is disarmed.

For example, area 1 is defined as the common area, and is linked to areas 2, 3, and 4. When

any of the linked areas (2, 3, or 4) are disarmed, area 1 (common) is disarmed. When all

three linked areas are armed, the shared area will also be armed.

Each area will continue to have its own entry/exit times programmed in Area programming,

regardless of the programmed area links.

Common area number

Range: 1 to 16

Specify the common area number.

Link to area

Specify the areas that should be linked to the common area.

Chapter 9

Access programming features

185

Bank vault areas

Bank vault areas are areas designated for high security requirements. By specifying which of

the 16 areas should be promoted to bank areas, the system will automatically arm all other

bank vault areas after a preset delay. The delay time is based on the alarm group restriction

timer and will only start when all bank vault areas are armed.

For example, a building has three office areas (areas 3, 4, and 5) along with two common

areas (areas 1 and 2). The desired end result is to arm the common areas at a specified time

after the last office area is armed. To accomplish this you would:

• Promote areas 3, 4, and 5 to bank vault areas.

• In Control panel options programming, set Disable auto insert of alarm group

restriction to disabled (see System options on page 258). This will enable the bank

vault areas feature.

• The common area are linked to bank vault areas 3, 4, and 5. This is programmed in

Area links programming.

• Create an area group restriction in order to specify which common areas are

included. In Alarm Group Restriction programming, enable areas 1 and 2 in the

Timed disarm areas option (see Timed disarmed areas on page 198).

• To program the preset delay, specify the Alarm group restriction disarmed time

value in Timers programming (see Alarm group restriction 1 to 7 disarmed time on

page 172). The timer used is based on the alarm group restriction number used

above.

• In order for this function to work properly, the alarm group must include the areas

assigned to the alarm group restriction (areas 1 and 2).

Programming

The following programming options are available for bank vault areas:

Areas

Range: 1 to 16

Specify the areas to promote to bank vault areas.

Alliance Builder

User Manual

186

Regions

Regions are used in establishing boundaries within 4-door/elevator controllers. The system

allows you to assign regions to both the IN and OUT readers on the 4-door/elevator

controller. When a user is granted access at a door, the user is assigned that particular region.

When used in conjunction with antipassback programmed in Door access programming

(see Passback on page 143), users can be prevented from accessing the same reader twice,

or access may be granted but a report will be generated.

Functions

Regions can be used for the following functions:

Establish boundaries. Regions set up boundaries when used in conjunction with the

antipassback feature. For example, a user can be denied access at the same reader

they have already used to enter the region.

Monitor user location. When a user is granted access at a door supporting regions, the

region number is added to the report.

Programming

The following programming options are available for regions.

Region number

Range: 0 to 255

Specify which region is being programmed.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Chapter 10 Alarm control

programming features

This chapter provides an overview of alarm control

programming features.

In this chapter:

Alarm groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .188

Alarm group restrictions. . . . . . . . . . . . . . . . . . . . . . . . .197

Automatic arm/disarm . . . . . . . . . . . . . . . . . . . . . . . . . .201

Automatic reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .203

Alliance Builder

User Manual

188

Alarm groups

Alarm groups define alarm control for the Alliance system. This impacts users, doors, zones,

as well as RAS devices. An alarm group is assigned to each RAS device in the system and

will dictate the areas the device/user has control over, the times the alarm group is valid, the

menus that will be accessible (if the RAS is a keypad), and the functionality that is supported

by the RAS device.

Alarm groups fall into two distinct categories:

User alarm group. The alarm group assigned to the user determines what alarm

control capability, if any, the user is granted.

RAS and door alarm group. The alarm group assigned to the RAS or door device

determines what alarm control capability is supported by the device.

When an alarm group is created, the user alarm group option will decide the category. This is

why, under some programming options, the alarm group choices will be much shorter than

the total number of groups defined for the entire system. For example, when adding a user to

the system, the choice of alarm groups would be limited to only those groups with the user

alarm group option enabled.

It is important to understand how the system resolves the capabilities of a user at a RAS

device. For example, when a user approaches a RAS keypad and enters their PIN the keypad

will compare the alarm group capabilities defined for the RAS keypad with the alarm group

capabilities defined for the user. Only those capabilities that match between the two will be

allowed. A RAS device that is not programmed to allow alarm control (based on the

assigned alarm group) will not allow alarm control, even by a user with an alarm group with

that capability.

Chapter 10

Alarm control programming features

189

Hard-coded alarm groups

The system, by default, provides the ten hard-coded alarm groups shown in Table 18.

Table 18. Hard-coded alarm groups

Number Name Description

1 No access All user menu options disabled

Cannot access any areas

Assigned to users

2 Master RAS or door All user menu options enabled

Access to areas 1 to 16

All alarm group restrictions enabled

Assigned to devices

3 Master code access All user menu options enabled

Access to areas 1 to 16

Assigned to devices

4 8-Area master RAS (1 to 8) All user menu options enabled

Access limited to areas 1 to 8

All alarm group restrictions enabled

Assigned to devices

5 8-Area master RAS (9 to 16) All user menu options enabled

Access limited to areas 9 to 16

All alarm group restrictions enabled

Assigned to devices

6 Master installer All user menu options enabled

Access to areas 1 to 16

No alarm control

Assigned to devices

7 Manager All user menu options enabled, except

Installer programming

Access to areas 1 to 16

Assigned to users

Alliance Builder

User Manual

190

Functions

Alarm groups can be used for the following functions:

Alarm control. The ability of a user to arm/disarm the system.

Users. When adding a user to the system, the assigned alarm group will dictate the user

alarm capabilities.

RAS devices. When adding a RAS device to the system, the assigned alarm group will

dictate the possible alarm control capabilities supported by the device, as well as

which areas the RAS can control. The RAS device also allows setting a different

alarm group in order to dictate the possible menu selections.

Intelligent doors. When adding an intelligent door to the system, the assigned alarm

group will dictate the possible alarm control capabilities supported by the door.

Alternate. Each alarm group allows setting an alternate alarm group in case the original

is disabled due to an invalid time zone.

8 Spare alarm group All user menu options disabled

Cannot access any areas

Assigned to devices

9 Master service All user menu options enabled

Access to areas 1 to 16

Time zone 25 assigned

No alarm control

Assigned to users

Note: Alarm group 9 assigns the

special soft time zone 25,

reserved for service technicians.

Refer to Soft time zones on

page 233 for more details.

10 Spare alarm group All user menu options disabled

Cannot access any areas

Assigned to devices

Table 18. Hard-coded alarm groups (continued)

Number Name Description

Chapter 10

Alarm control programming features

191

Programming

The following programming options are available for alarm groups:

Alarm group number

Range: 1 to 138

Specify the alarm group to program.

Note: Alarm groups 1 to 10 are hard coded. Refer to Hard-coded alarm groups on page 189.

Alarm group name

Range: Up to 16 characters.

Specify the name of the alarm group. The name is converted into a system text word,

and is subsequently transferred to the control panel. As a result, the name will appear

within RAS keypad devices.

Since the system only allows up to 100 user-defined text words, try to reuse existing text

words in the text word library (see Text word library on page 308).

Description

Specify a 40-character text description of the alarm group. The description is not

transferred to the device, and is only used by the management software.

Areas

Range: 1 to 16

Specify the areas where the alarm group will have alarm control.

Time zone

Range: 0 to 64 (includes both soft and hard time zones)

Specify the day/time the alarm group is valid.

Alliance Builder

User Manual

192

Alternate alarm group

Range: 1 to 138

When the system is performing some functionality that depends on a valid alarm group,

the control panel will resort to the alternate alarm group if the alarm group’s time zone is

invalid. The system will go two levels deep. For example, the system would check the

validity of the primary alarm group, then its alternate alarm group, and ultimately the

alternate’s alternate alarm group.

Chapter 10

Alarm control programming features

193

Alarm group options

User alarm group Enabled: The alarm group is assigned to users.

Disabled: The alarm group is assigned to RAS devices

Alarm system control Enabled: Allows arming and disarming areas assigned to the alarm group.

Disabled: No arming or disarming is allowed. Other access control

functionality defined within the alarm group is still allowed.

List of areas Enabled: After a user enters a valid PIN code on an LCD keypad, all areas

assigned to the user are displayed. The user can then select which areas

to arm/disarm from the menu provided.

Disabled: After a user enters a valid PIN code, the areas assigned to the

user are immediately armed/disarmed once the ON and OFF keys are

pressed.

Keyboard duress Enabled: Allows a user to activate the duress function. This will cause a

silent signal to be sent to the central station, notifying them that a user

has disarmed the system while under threat.

Disabled: Duress function is disabled for this user.

The Duress type on page 255 must be configured in order for this function

to work correctly.

Reset system alarms Enabled: Allows a user to reset latching system alarms, such as DGP

tamper, siren fail, and low battery.

Disabled: Reset latching system alarms is disabled for this user.

Disable automatic unbypass Enabled: During system disarm; any zones assigned to the alarm group

that are in the active state are not automatically bypassed.

Disabled: During system disarm; any zones assigned to the alarm group

that are in the active state are bypassed.

The automatic unbypass when area disarmed option in Control panel

options (see System options on page 258) programming, must be enabled

in order for this function to work correctly.

Arm and reset only Enabled: Alarm control is restricted to only arming and reset functionality.

Disabled: There are no alarm control restrictions.

The alarm system control option must be enabled in order for this function

to work correctly.

Alliance Builder

User Manual

194

Disarm only Enabled: Alarm control is restricted to only disarming.

Disabled: There are no alarm control restrictions.

The alarm system control option must be enabled in order for this function

to work correctly.

Alarm reset only Enabled: Alarm control is restricted to only resetting alarms.

Disabled: There are no alarm control restrictions.

The alarm system control option must be enabled in order for this function

to work correctly.

Auto bypass active zones Enabled: When arming areas begins, all zones in the active state are

bypassed and the system is armed without generating any alarms.

Disabled: The system cannot be armed if there are zones in the active

state. If this option is disabled and you would like to enable forced arming,

the forced arming option must be enabled.

Forced arming Enabled: Areas assigned to the alarm group will be armed, despite any

zones that might be in the active state.

Disabled: Areas assigned to the alarm group cannot be armed as long as

there are zones in the active state.

When zones in the active state are forced to arm, the zone could raise an

alarm. This will depend on the zone types assigned (2, 4, 28, and 68).

Prevent forced disarming Enabled: Areas cannot be disarmed if there are any zones in the active

state.

Disabled: Areas can be disarmed, despite any zones being in the active

state.

This option is specific to zone types 1 (disarmed alarm) and 11 (disarmed

delayed alarm).

Alarm group restrictions 1 to

Enabled: The corresponding alarm group restriction is activated.

Disabled: The corresponding alarm group restriction is disabled.

Only one restriction per alarm group is allowed. Enabling one restriction

will disable all others.

No arming if restriction not

timing

Enabled: An area cannot be armed if a user without an alarm group

restriction disarmed it.

Disabled: Normal alarm group restrictions apply.

If an area has been disarmed and an alarm group restriction timer is not

running, the alarm group restriction timer cannot be started. As soon as

the alarm group restriction timer expires, the area is armed.

Chapter 10

Alarm control programming features

195

Alarm group menu options

These options dictate which system menus a user may access when using an LCD keypad. In

order to access the menu, the following two conditions must be met:

• The alarm group assigned to the user must have the menu option enabled.

• The alarm group assigned to the LCD keypad must also have the menu option

enabled.

The user does not have to be assigned the same alarm group as the one assigned to the

keypad; they only have to have the same menu options enabled. Table 19 shows the alarm

group menu options.

Change own PIN only Enabled: Users can only change their own PIN codes.

Disabled: Users can change other user's PIN codes. This will also allow

users to access System Menu 14, which provides menus for deleting,

displaying, and creating users.

This option impacts a user's ability to create, delete, and change door

groups, floor groups, and user names.

Table 19. Alarm group menu options

Menu number Menu name Description

1 Panel status Provides system information.

2 Active zones Shows zones not in the normal state

(active or tampered).

3 Zones in alarm Shows any zones in alarm.

4 Bypassed zones Shows any bypassed zones.

5 History Lists all events in the control-panel event

buffer.

6 Test report Perform an arm/disarm test.

7 Service menu Allows the user to request a service call or

establish a connection to a remote service

center in order to program the system

over the telephone network.

Alliance Builder

User Manual

196

8 Film counters Displays the current frame number

position on each of the security camera

films.

9 List zone names List all known zone names.

10 Bypass zone Bypass a zone.

11 Unbypass zone Unbypass any zone previously bypassed.

12 Test zone Test a specific zone.

13 Start automatic disarm test Perform an automatic disarm test.

14 Program users Modify user database.

15 Time and date Modify system time and date.

16 Bypass/unbypass RAS/DGP Bypass/unbypass any RAS/DGP device.

17 Enable/disable service tech Enable/disable the service technician’s

code.

18 Reset cameras Reset the film frame count on a camera to

zero. This is done when you have changed

the film in a camera.

19 Installer programming Access installer-programming databases.

20 Door and floor groups Modify door and floor group databases.

21 Holidays Modify holiday database.

22 Open door Open a door for the programmed unlock

time.

23 Unlock, lock, disable, enable Door can be unlocked until locked again

with this menu. Disable or enable doors.

24 Print history Force the system to output events to a

printer.

Table 19. Alarm group menu options (continued)

Menu number Menu name Description

Chapter 10

Alarm control programming features

197

Alarm group restrictions

Alarm group restrictions impose limits on the Timed disarmed areas and Areas to arm/reset

functions for selected areas within an alarm group. Each alarm group is limited to only one

restriction.

In order to support alarm group restrictions, the following criteria must be met:

• The corresponding restriction must be enabled within the alarm group itself.

• The areas defined within the restriction are also defined within the alarm group.

The one exception to the second rule is if the alarm group enables any of the following

options: disarm only, arm/reset only, or alarm reset only in Alarm groups programming. In

this case, the areas in the restriction do not need to match those defined in the alarm group.

If there are areas assigned to the alarm group, but not to the restriction, they will have

standard system control functions as specified in the alarm group.

Example 1

Cleaners are only allowed to arm/reset areas 1, 2, and 3. They are not allowed to disarm any

of these three areas. They can, however, disarm area 4. The implications are:

• An alarm group exists defining areas 1, 2, 3, and 4, and is assigned to the cleaners.

• This alarm group enables alarm group restriction 1, which has been configured to

only allow arm/reset for areas 1, 2, and 3.

Example 2

A security guard has permission to disarm areas 3, 4, and 5. After 15 minutes, the areas

rearm automatically. The implications are:

• An alarm group exists defining areas 3, 4, and 5, and is assigned to the security

guard.

• This alarm group enables alarm group restriction 3, which has been configured to

set areas 3, 4, and 5 for timed disarm.

•The alarm group restriction disarmed time option in Timers programming (see

Alarm group restriction 1 to 7 disarmed time on page 172) is set to 15 minutes.

Alliance Builder

User Manual

198

Functions

Alarm group restrictions can be used for the following functions:

Specify area alarm control limitations. Allows restricting alarm control to specified

areas. For some areas, a user is able to arm/disarm. In others, they may only disarm.

Incorporate delays in area disarm functionality. Apply hardware timers when

certain areas are disarmed.

Programming

The following programming options are available for alarm group restrictions:

Restriction number

Range: 1 to 7

Specify the alarm group restriction to program.

Name

Range: Up to 16 characters

Specify the name of the alarm group restriction. The name is converted into a system

text word, and is subsequently transferred to the control panel. As a result, the name will

appear within LCD RAS keypad devices.

Since the system only allows up to 100 user-defined text words, try to reuse existing text

words in the text word library (see Text word library on page 308).

Timed disarmed areas

Range: 1 to 16

Specify the areas to program for time disarm. This includes:

• Areas that automatically rearm after a timed disarmed period

• Automatic arm/disarm areas to enable the postponed and warning time

• The timed areas required when programming vault areas

Chapter 10

Alarm control programming features

199

The time for the restriction is defined in the alarm group restriction disarmed time

option in Timers programming (see Alarm group restriction 1 to 7 disarmed time on

page 172).

Areas to arm/reset

Range: 1 to 16

Specify the areas that limit alarm control to arm/reset. This allows a user to arm areas

specified by the user’s alarm group or to reset alarms in those areas the user cannot

disarm.

Timed disarmed areas and areas to arm/reset

When enabling areas for both functions, a user entering a code causes all the timed

disarm functions to apply, except when re-entering a code, in which case, the arm/reset

function applies. In the latter case, the system is armed regardless of any running timers.

Alternate alarm group restrictions

Specify additional restrictions when the original alarm group is not valid due to an

invalid time zone. Each alarm group can be programmed to accept a single alternate

alarm group. When the primary alarm group assigned for example, to a user is invalid

due to an invalid time zone, the system will check to see if an alternate is defined. If so,

the system will use the alternate. Under this scenario, the system will use the alternate

alarm group restriction properties.

Table 20 shows an example of an alarm group set up.

Table 20. Alarm group example

Option Alarm group 31 Alarm group 32 Alarm group 33

Areas 1 and 2 1 and 2 1

Alarm group restriction 4 4 4

Time zone 1 2 0

Alternate alarm group 32 33 None

Alliance Builder

User Manual

200

Table 21 shows how the alternate alarm group restrictions are configured for the

example.

Alarm group 31 is assigned to user 1.

When time zone 1 is valid. User 1 will have alarm group 31 with alarm group

restriction 4. The user has full control over area 1 and can arm/reset area 2.

When time zone 1 is invalid, but time zone 2 is valid. User 1 will have the first

alternate alarm group with alarm group restriction 4. The user has full control over

area 1 and timed disarm for area 2.

When time zone 1 and time zone 2 are invalid. User 1 will have the second alternate

alarm group with alarm group restriction 4. The user has timed disarm for area 1 and

no control over area 2.

Table 21. Alternate alarm group restrictions configuration

Option Standard First alternate Second alternate

Timed disarm area 2 1

Arm/reset area 2

Chapter 10

Alarm control programming features

201

Automatic arm/disarm

This feature allows you to arm/disarm programmed areas at specified times. This works:

When the programmed time becomes valid, the system will disarm all areas assigned to the

programmed alarm group.

When the programmed time is about to become invalid, all keypad buzzers will

intermittently sound their warning buzzer. A user may postpone the arming time by either

entering their PIN or badging their card during the warning time.

When the programmed time becomes invalid, the exit timer starts and all areas assigned to

the programmed alarm group are armed.

Up to four off and on times may be programmed per time zone, but you cannot have a time

zone disarm before midnight and rearm after midnight. If this is required, use one time zone

with an end time of 24:00, and another time zone with a start time of 00:00.

Functions

Automatic arm/disarm can be used for the following functions:

Hands free arm/disarm. This feature guarantees that the system will arm/disarm at

specified times, without any user interaction

Variable arm/disarm options. A number of arm/disarm options are available, based

on the alarm group configuration.

Programming

The following programming options are available for automatic arm/disarm.

Program number

Range: 1 to 16

Specify the automatic arm/disarm option to program. Each combination of a time zone

and an alarm group is called a program. There are 16 programs, one for each possible

area. A different program must be completed for each area, or set of areas where a

different function is required.

Alliance Builder

User Manual

202

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Time zone number

Range: 0 to 24

Specify the days/times when the system automatically arms/disarms the associated

areas. This option is limited to only hard time zones.

The time zone start time dictates when the areas will disarm. The time zone end time

dictates when the areas will arm.

Alarm group number

Specify the alarm group to associate with the current program number. Since an alarm

group defines alarm control for specified areas, this has the side effect of dictating which

areas will be armed/disarmed.

The alarm group settings also determine the arm/disarm functionality. For example, if

the alarm group’s arm and reset only option in Alarm group programming is enabled,

assigned areas will only arm. If the alarm group’s disarm only option in Alarm group

programming is enabled, the assigned areas will disarm.

An alarm group defines its own time zone. The assigned time zone dictates whether or

not the alarm group is valid. Since this option also ties in a time zone, the assigned alarm

group does not need a defined time zone. If you use an existing alarm group with a

defined time zone, make sure the same time zone is used in the Time zone number option

above.

Chapter 10

Alarm control programming features

203

Automatic reset

Automatic reset provides a mechanism that can automatically reset alarms after a specified

period of time. When an automatic reset is configured for an alarm group, all alarms

contained in the alarm group are reset after the amount of time specified has expired post

alarm. The automatic reset function is useful in instances where it may not be possible to

reset alarms manually.

Programming

The following programming options are available for automatic reset:

Time before alarm will reset

Range: 1 to 255 minutes

Specify the amount of time that will elapse after an alarm has been triggered and before

the alarm group it belongs to automatically resets.

Alarm group to use when resetting

Range: Any valid alarm group 1 to 138

Specify the alarm group that will be automatically reset after an alarm in the group has

been triggered.

Alliance Builder

User Manual

204

Chapter 11 Diagnostics programming

features

This chapter provides an overview of diagnostic programming

features.

In this chapter:

Battery test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206

Clock correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207

Next service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .209

Test call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .210

Alliance Builder

User Manual

206

Battery test

The battery test tests the state of batteries connected to system bus devices. All batteries are

tested in sequence in order to prevent power problems. If a battery is disconnected for more

then 10 minutes, a warning will be given. During the battery test, all of the panels and

auxiliary driven devices are powered from the battery. Devices are tested one at a time to

ensure that not all of the devices switch to battery test at the same time.

Programming

The following programming options are available for the battery test:

Frequency

Specify when the battery test should be conducted. The choices include:

Disabled. The battery test is not conducted.

Every working day. The battery test is conducted each day.

Every Monday. The battery test is conducted each Monday.

First Monday of the month. The battery test is conducted on the first Monday of each

month.

Start time

Specify the time of day, in hours and minutes, when the battery test will start.

Run time

Range: 2 to 255 (minutes)

Specify the time period that the battery test will run.

Test on holiday

If enabled, the battery test will be conducted on holidays. This implies that the test will

likely occur outside the bounds of the specified frequency.

Chapter 11

Diagnostics programming features

207

Clock correction

This option allows you to program a correction factor that compensates for a control panel

clock that may be running slightly fast or slow.

Programming

The following programming options are available for the clock correction feature:

Clock correction

Range: 119 to 199 seconds per day

Specify the amount of time to compensate a control panel per day.

Daylight savings start month

Range: January through December

Specify the month that daylight savings time begins.

Daylight savings end month

Range: January through December

Specify the month that daylight savings time ends.

Start daylight savings

Range: See daylight savings start/end table.

Specifies the Sunday of the month when daylight savings time begins.

End daylight savings

Range: See daylight savings start/end table.

Specify the Sunday of the month when daylight savings time ends.

Alliance Builder

User Manual

208

Daylight savings start/end table

Table describes the daylight savings time start/end choices.

Table 22. Daylight savings start/end

Option Description

Disable No daylight savings time setting required.

First Sunday Daylight savings time starts/ends on the first Sunday of the specified

month.

Second Sunday Daylight savings time starts/ends on the second Sunday of the specified

month.

Third Sunday Daylight savings time starts/ends on the third Sunday of the specified

month.

Fourth Sunday Daylight savings time starts/ends on the fourth Sunday of the specified

month.

Last Sunday Daylight savings time starts/ends on the last Sunday of the specified

month.

Chapter 11

Diagnostics programming features

209

Next service

This option allows you to set a date for programmed text to display on the LCD arming

station indicating that the next routine service call is due.

Programming

The following programming options are available for the nest service feature:

Next service date

Specify the date on which the next routine, service call is due.

Next service text

Specify the 32 characters of customized text that will be displayed on the LCD arming

station for the programmed next service date.

This option will be used to remind end-users when the next routine service call is due

and can also be used for those end-users who have opted not to have a service/

maintenance contract.

The control panel can be armed, disarmed, or controlled normally by the end-user.

However, the programmed service text will continue to appear on the display of the

RAS device until the engineer has entered the Engineer menu.

Alliance Builder

User Manual

210

Test call

Test call performs a regular interval report call to the central station. This allows the system

to ensure that central station reporting is working and that no problems have occurred that

would prevent it from reporting access and alarm events. All tests are reported as a test call

to the central station.

Types

The following types of test calls are available:

No test. No automatic test calls made, test calls must be activated manually.

Enable automatic test. The disarm or arm test starts automatically when the system is

disarmed or armed.

Manual disarm test/automatic arm test. The arm test starts automatically when the

system is armed. The disarm test can only be done using user menu 13 on the LCD

keypad, Start Auto Disarm Test.

Automatic disarm test only. The disarm test starts automatically when the system is

disarmed. No arm test is available.

Programming

The following programming options are available for the test call feature:

Start test call at

Range: 24-hour time format (hh:mm)

Specify the time the test call should be made. The time programmed is based on the

control panel's real time clock.

Test call interval

Range: 2 digits (hours)

Specify the interval between test calls.

Chapter 11

Diagnostics programming features

211

Extend test call

If enabled, the test call will be performed only if no events have been reported to central

station 1 during the text call interval; otherwise, the test call will be performed as

specified regardless of events reported to the central station.

Alliance Builder

User Manual

212

Chapter 12 Reporting programming

features

This chapter provides an overview of reporting programming

features.

In this chapter:

Central Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214

Reporting classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .221

Voice reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .223

Alliance Builder

User Manual

214

Central Station

The system supports up to four different central stations, each allowing a variety of different

formats. When certain events take place, the central station configuration is used to

determine if the events are reported and what format will be used.

Programming

The following programming options are available for the central station:

Central station number

Range: 1 to 4

Specify the central station to program.

Description

Specify a 40-character text description. The description is only used by the management

software.

First phone number

Specify the main central station phone number.

Second phone number

Specify the backup central station phone number.

System account number

Range: 4 to 6 digits (enter 0000 if system event reporting is not required)

Specify the alarm system reporting to the central station. The account number is used to

identify system events not linked to an area.

Area account number 1 to 16

Range: 4 to 6 digits (enter 0000 if system event reporting is not required)

Chapter 12

Reporting programming features

215

Specify the area account number for a specific system area. Area account number 1

handles area 1; area account number 2 handles area 2, etc.

Do not program more account numbers than there are areas in the system. For example,

a system consisting of only Area 1 and 2 should program the two area account numbers,

plus the system account number (if required).

For SIA/XSIA reporting, programming the same area account code for different areas

within 1 central station will result in common area reporting: the first area with that

account code that disarms will send an opening. The last to close will send the closing.

Format

Define the central-station reporting format.

0 = Disabled

1 = Tecom Dialer V1 (only used in Australia)

2 = Contact ID - Small

3 = Contact ID - Large

4 = SIA - Small

5 = SIA - Large

6 = XSIA - Small

7 = XSIA - Large

8 = 200 baud FSK Format 1

9 = 200 baud FSK Format 2

10 = 200 baud FSK Format 3

11 = 200 baud FSK Format 4

12 = X25 Enai

13 = Voice Reporting - Acknowledge

14 = Voice Reporting - No Acknowledge

18 = Securitel Serial

19 = Securitel PIN

Alliance Builder

User Manual

216

Securitel is a direct line format. This implies that the panel will not report other

programmed CSXs, or answer incoming calls to the on-board modem unless there’s an

error. Only one central station can be programmed to Securitel.

If X25 Enai format is selected, the panel will automatically assume that the connection

type is ISDN-D channel.

The difference between Small reporting and Large reporting is the amount of system

events that will be reported. The Large formats will report most system events, while the

Small formats will report summarized events.

Connection type

Define what physical medium is used to call the central station. Options include:

PSTN. Uses the on board dialer to make the call

ISDN. Uses the AL-7100 plug-in dialer device to make call

GSM. Hardware is not yet available

Use Bell 103 protocol

Enable to use the Bell 103 modem tones for the PSTN/ISDN analog line connection.

Dual reporting

If enabled, an acknowledgement should be received from both central station telephone

numbers. If disabled, the first acknowledgement received will close down the dialer,

unless there are more reports pending (commonly referred to as alternate reporting).

Disable reporting bypasses

If enabled, bypasses are not reported. If disabled, they will be reported.

XSIA max characters: 16 (off) 30 (on)

Enable to specify the maximum number of XSIA characters is 30; otherwise, the

maximum is 16.

Chapter 12

Reporting programming features

217

Suppress FTC for voice reporting

Enable to suppress the Report Fail (FTC) message and fault LED on the RAS. This

option is only applicable if voice reporting is the selected protocol.

X25 account code

Range: 8 digits maximum

Specify the account code for X25 protocols.

X25 line type

Set the polling time of the line from one of the following options:

0. Permanent 15 minutes polling

1. Permanent 90 seconds polling

Communication programming

Communication programming establishes all system wide central station communication

options. The settings programmed here are used in conjunction with the central station

reporting setup.

PABX number

Range: 18 digits maximum

A PABX (private automatic branch exchange) number includes a number that precedes

the phone number in order to connect to an outside line. This should only be used if the

dialer is connected via a PABX to the telephone network. In most cases, either 9 or 0 is

used to access an outside line.

MSN number

Range: 17 digits maximum (may not contain the characters P and T, but only digits

between 0 and 9)

Alliance Builder

User Manual

218

Specify the number used for an ISDN dialer. The number is sent to the ISDN network

when dialing out to the central station. This number is also used for remote

programming when dialing in.

Dial-tone detection

Specify the appropriate dial tone. If dial tone detection is not disabled, dial tone

detection will occur at the beginning of the dialing process, after dialing the PABX

number, or when an ‘*’ (asterisk) character is identified in the dialed number. Dial tone

options are shown in Table 23.

X25 TEI value

Range: 1 to 63

Specify the value given by the telecom for the ISDN connection.

Audio listen-in time

Range: 10 to 255 (seconds)

Specify the total audio time transmitted.

Audio listen-in frame time

Range: 30 to (Audio listen-in time) (seconds)

Specify the frame interval that the audio is transmitted. Audio listen-in time option

dictates maximum range.

Table 23. Dial tone options

Dial tone Description

0 Disabled

1CTR21

2Netherlands

3UK

4Other

Chapter 12

Reporting programming features

219

Central station communications options

Tone dialing Enabled: Use tone dialing for PSTN telephone lines.

Disabled: Use pulse dialing for PSTN telephone lines.

This option is not used for ISDN connections.

Enabled line fault monitor Enabled: The system will detect if the line voltage on the telephone

network is within limits. If not, a telephone line fault condition will be

activated.

Disabled: Line fault monitoring is disabled.

This option should only be used for PSTN connections.

3-digit SIA extensions Enabled: SIA and XSIA reporting uses 3-digit numbers.

Disabled: SIA and XSIA reporting uses 2-digit numbers.

When 2-digit numbers are used, any number above 99 (3-digit

numbers) will be converted to 99.

ISDN point-to-point Enabled: ISDN point-to-point enabled.

Disabled: ISDN point-to-multipoint enabled.

This option should only be used for ISDN connections.

Enable ISDN line\fault monitor Enabled: The system will detect if the line voltage on the ISDN network

is within limits. If not, a telephone line fault condition will be activated.

Disabled: Line fault monitoring is disabled.

This option should only be used for ISDN connections.

200 Baud reverse area armed/

disarmed

Enabled: Disarm events are reported as type R and arm events are

reported as type A.

Disabled: Disarm events are reported as type A and arm events are

reported as type R.

Report AC fault Enabled: Should be enabled for all countries except Ireland.

Disabled: By default for Ireland.

This option is ignored if the enable buzzer on AC/line fault option is

enabled in Control panel options programming (see System options on

page 258).

Alliance Builder

User Manual

220

Report line fault Enabled: Should be enabled for all countries except Ireland.

Disabled: By default for Ireland.

This option is ignored if the enable buzzer on AC/line fault option is

enabled in Control panel options programming (see System options on

page 258).

Enable GSM line fault

monitoring

Hardware is not yet available for this option.

SIA area modifier Enabled: The area modifier code packet will be added to the SIA

transmission. This allows the user to send to multiple areas using the

same amount of code.

Disabled: The area modifier code packet will not be added to the SIA

transmission.

Chapter 12

Reporting programming features

221

Reporting classes

Reporting classes let you specify what is reported in the event of an alarm. When a zone

triggers an alarm the assigned reporting class is reported to the configured central stations.

Programming

The following programming options are available for reporting classes:

Reporting class

Range: 1 to 8

Select the reporting class that you would like to program. Table 24details the reporting

classes.

Reporting condition

Range: 1 to 6

Table 24. Reporting classes

Reporting class Name

1Medical

2Emergency alarms

3 Panic alarms

4 Burglar alarms

5 General alarms

6 24-Hour alarm

7Emergency supervisory

8 System alarms

Alliance Builder

User Manual

222

Select the condition to program. Every class can report 6 conditions detailed in

Table 25.

Report to central station

Range: 1 to 4

Specify the central stations this reporting class will report to when the designated

reporting condition is triggered.

Enable audio listen-in

Enable audio listen-in for the reporting class condition specified.

Table 25. Reporting conditions

Reporting condition Name

1Alarms

2 Alarms restore

3 Tamper

4 Tamper restore

5 Bypass

6 Bypass restore (unbypass)

Chapter 12

Reporting programming features

223

Voice reporting

Voice reporting works in conjunction with a voice communications module to send voice

reports to a specified phone number.

Programming

The following programming options are available for voice reporting:

Event number

Range: 1 to 25

Specify the event to associate this voice report with. Each voice report can be

programmed using either a standard event number (1 to 11) or an event number that

exists in the user defined event tables (12 to 25) as shown in Table 26. Using an event

from the user tables (12 to 25) allows for greater flexibility as macros can then be used

to trigger these event codes from various sources.

Note that event code 12, 130 BA Burglary, and event code 1, Burglar Alarm, are the

same event code (130). If event code 12, 130 BA Burglary, is programmed with an

alarm message, it will have priority over event code 1, Burglar Alarm.

Table 26. Event numbers

Event number Name

1 Burglar Alarm

2 Tamper Alarm

3Hold-up Alarm

4Panic Alarm

5Emergency Alarm

6 Medical Alarm

7 Technical Alarm

8AC Fail

9DGP Offline

Alliance Builder

User Manual

224

Voice message number

Range: 0 to 14

Specify the voice message that has been programmed on the AL-7200 communications

module to be used with this voice report. The value of 0 (zero) specifies that no voice

message should be used.

Description

Add comments about the specified voice report. This information is not downloaded to

the control panel.

10 Area Armed

11 Area Disarmed

12 130 BA Burglary

13 131 BA Perimeter

14 132 BA Interior

15 133 BA 24-Hour

16 134 BA Entry/Exit

17 135 BA Day/Night

18 136 BA Outdoor

19 137 BA Tamper

20 138 BA Near Alarm

21 140 UA General Alarm

22 YT Battery Low

23 YR Battery Restore

24 AR AC Restore

25 ZR Technical Restore

Table 26. Event numbers (continued)

Event number Name

Chapter 13 Time and date

programming features

This chapter provides an overview of time and date

programming features.

Hard time zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .226

Holidays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .228

Alliance Builder

User Manual

226

Hard time zones

Hard time zones define periods of time, including the time of day and the day of the week.

They are typically used to allow or prevent certain actions from taking place.

The control panel provides 25 hard time zones. The first time zone (Time Zone 0) is hard-

wired to 24-hours and cannot be changed. The other hard time zones contain four sub-time

zones allowing different start/end times, as well as days of the week. In addition, each sub-

time zone allows inclusion of holidays above and beyond the times/dates specified. A time

zone is considered active as long as one of the four sub-time zones is valid. If holidays are

enabled for the time zone, then it is possible for all four sub-time zones to be invalid, but the

overall time zone to be active due to the current day falling on one of the defined holidays.

Functions

Hard time zones can be used for the following functions:

Door group. Dictates the times a user assigned to a door group can access RAS devices

on the system bus, as well as intelligent doors found on the 4-Door Controller.

Alarm group. Dictates the times a user assigned to an alarm group can control (arm/

disarm) specified areas.

Floor group. Dictates the times a user assigned to a floor group can access

programmed floors.

Relay. Dictates the times a relay may be activated when mapped to an event flag.

Macro logic. Because macros inherently use event flags as input, time zones dictate the

times when macros are functional.

Chapter 13

Time and date programming features

227

Programming

The following programming options are available for hard time zones:

Time zone number

Range: 1 to 24. Time zone 0 defaults to 24-hours.

Specify which hard time zone is being programmed.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Start time

Specify the start time for the time zone, in hours and minutes.

End time

Specify the end time for the time zone, in hours and minutes.

Days of the week

Specify the days of the week the time zone will be active.

Include holidays

If enabled, the time zone will be valid for all days defined by the system holidays.

Alliance Builder

User Manual

228

Holidays

Holidays are used in conjunction with time zones in order to define additional access

parameters. Under many programming options, a given function will only take place when

the assigned time zone is valid/invalid. When the holiday becomes valid, regardless of the

days programmed within the time zone, the overall time zone state becomes valid.

Functions

Holidays can be used for the following functions:

Additional time zone parameter. Provides an additional access parameter to the time

zone. If a time zone would normally be invalid, a holiday could cause it to become

valid if the current day matches the holiday.

Additional access parameter. A user is normally denied access to a door when all

existing time zones are invalid. If the holiday is valid, however, access will be

granted.

Programming

The following programming options are available for holidays:

Holiday number

Range: 1 to 64

Specify which time zone is being programmed.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Date

Specify the date given to the holiday.

Chapter 14 Zone and relay

programming features

This chapter provides an overview of zone and relay

programming features.

In this chapter:

Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .230

Soft time zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .233

Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .236

Zone shunts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .246

Alliance Builder

User Manual

230

Relays

A relay can have one of the following forms:

Physical. A physical relay can be found on some of the control boards, as well as relay

expander boards. Each physical relay is numbered based on the device bus address

of the parent device. See Numbering on page 324.

Logical. A relay can be used within the system for logical purposes, without any

associated physical relay. For example, an event flag is raised due to a system

macro, which then causes the logical relay to go active. This logical relay may then

be used in soft time zone programming. In this case, there is no physical relay

involved in the process. In fact, the relay can be viewed as a variable that is assigned

a true/false logic value.

Either a time zone or an event flag will drive the relay state. In the case of event flags, some

relay numbers have associated hard-wired event flags.

Relay numbers hard-wired to event flags

Table 27 lists the relay numbers hard-wired to event flags.:

Table 27. Relays hard-wired to event flags

Relay number Event flag

2 Event flag 2 (strobe)

3 Event flag 1 (external siren)

12 Constant DC voltage at the siren output

13 A warble tone at the siren output

14 A saw-tooth tone at the siren output

15 Two tones at the siren output

Event flag 13 (internal siren)

16 An inverted sawtooth tone at the siren output

Event flat 1 (control panel external siren)

32,48,64,80,96…240 Event flag 1 (DGP external siren)

Chapter 14

Zone and relay programming features

231

Functions

Relays can be used for the following functions:

Event flag. Associate the relay with an event flag. When the event flag is raised, fire

the relay.

Time zone. Associate the relay with a time zone. The time zone state will drive the

relay.

System macro. Relays are used as inputs in constructing the macro equation.

Siren tones. Hard-wired relays are used to produce different siren tones.

Programming

The following programming options are available for relays:

Relay number

Range: 1 to 255. (See Numbering on page 324)

Specify which relay is being programmed.

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Activated by event flag

Range: 1 to 255

Specify the event flag which, when raised, will cause the relay to become active. This

option assumes the time zone is not valid. If the time zone is valid, then the time zone

state will drive the relay.

Inactive during time zone

When the time zone is valid, the relay is never activated. When the time zone is invalid,

the event flag will drive the relay.

Alliance Builder

User Manual

232

Time zone

Range: 0 to 64

Specify the time zone when the relay can be active or inactive. When a time zone is

valid and assigned to a relay, the relay state is completely driven by the time zone state,

regardless of the event flag state. When the time zone becomes invalid, the relay is then

driven by the event flag state.

Output inverted

If enabled, the overall logical result is reversed. The relay is inactive when this option is

set if, based on all programmed options, the relay would normally be active.

Set output text

Specify the text message that is displayed by the management software when the relay

state is set.

Reset output text

Specify the text message that is displayed by the management software when the relay is

reset.

Chapter 14

Zone and relay programming features

233

Soft time zones

The control panel provides 16 programmable soft time zones. Soft time zones, are similar to

system macros in that they are programmable logic that can ultimately be used to enable/

disable certain actions. Soft time zones are also used to program keypad function keys (F1-

F4). Soft time zones are only active when the associated relay is active. The state of the relay

will drive the state of the time zone. A special soft time zone is provided that can prevent

service technicians from accessing the control panel.

Functions

Soft time zones can be used for the following functions:

Door group. Dictates whether or not a door can be opened when a soft time zone is

assigned to the door group.

Relay. A soft time zone is only valid when the relay that is associated with the time

zone is active; otherwise, it is invalid.

Types

Alliance provides the following types of soft time zones:

Service technician. Soft time zone 25 is hard-wired and cannot be programmed. This

time zone is used to grant/deny access to the service technician.

Programmable. Soft time zones 26 to 41 are standard soft time zones.

RAS function keys. Soft time zones 42 to 63 are assigned to specific RAS function

keys.

Programming

The following programming options are available for soft time zones:

Soft time zone number

Range: 26 to 41

Specify which time zone is being programmed.

Alliance Builder

User Manual

234

Description

Specify a 40-character text description. The description is not transferred to the device,

and is only used by the management software.

Output to follow

Specify the relay (output) assigned to the time zone. The time zone validity follows the

relay state. For example, the time zone is active when the assigned relay is active and is

inactive when the assigned relay is inactive.

Service technician setup

The system provides soft time zone 25. This time zone is hard-wired and cannot be

programmed. It is used in alarm group 9 to grant access to an installer servicing the

system. The state of the time zone is only active when Service technician (menu 17) is

enabled.

Function key programming

In order to program the keypad function keys, the RAS device address must be between

0 and 4. Also, the relay you want to become active when a function key is pressed must

have the associated soft time zone programmed.

Example. To activate relay 100 when F1 is pressed on RAS number 1:

• Create relay 100.

• Based on the table x, soft time zone 42 must be used. In the time zone option in

Relay programming (see Time zone on page 232), assign time zone 42.

Chapter 14

Zone and relay programming features

235

Function keys

Table details the function keys.

Table 28. Function keys

Function key Soft time zone range

RAS 1 function keys (F1-F4) 42 to 45

RAS 2 function keys (F1-F4) 46 to 49

RAS 3 function keys (F1-F4) 50 to 53

RAS 4 function keys (F1-F4) 54 to 57

RAS 5 function keys (F1-F4) 58 to 61

RAS 1 to 16: F1 function key pressed more than 2

seconds.

RAS 1 to 16: F2-F4 function keys pressed more than

2 seconds.

Alliance Builder

User Manual

236

Zones

A zone, also known as an input, is typically a sensor wired either directly into the control

panel, through a DGP, or through an expander board. When the zone is in its active state, a

signal is passed to the control panel and depending on a variety of conditions, further action

may be taken. Typical sensors include:

• Motion sensors

• Glassbreak sensors

• Buttons (such as push buttons or RTE buttons)

Within the system, zones can also be used in conjunction with event flags in order to

establish logical states. Each zone is programmed to accept an event flag that is raised

whenever the zone becomes active. For example, system macros are based on creating

logical equations from a series of event flags. When one or more event flags are active (in a

logical true state), the system will perform some other function.

In general, the control panel will constantly monitor zones for changes in state in order to

execute some other action. In some cases this will include notifying the central station that

an alarm has occurred.

Zones are assigned to either alarm groups or areas, but not both. The zone type will

determine which is required. An alarm group is assigned for zone types 6, 31, 34, and 35.

These zones are typically used for keyswitches to arm and disarm areas. The affected areas

will come from the assigned alarm group definition.

All other zone types are assigned areas so that alarm information can be sent to the

respective areas and central station. Also, in assigning areas to zones, the alarm can be reset

when the alarm occurs. In general, zones are assigned specific areas in order to dictate which

areas will be in alarm when the zone becomes active.

The control panel uses the zone type to determine how to treat the zone when an

assigned area is armed or disarmed. The system supports seventy different zone types, as

shown in Zone types on page 344 and it is important to clearly understand the ramifications

in choosing one type over another such as:

Armed zone types. The system will only generate an alarm if the associated area is

armed.

Disarmed zone types. The system will only generate an alarm if the associated area is

disarmed.

Chapter 14

Zone and relay programming features

237

Entry/exit zone types. Areas define the entry/exit times, therefore, the system will use

the longest time associated with the zone. For example, if an entry/exit zone is

assigned to areas 1 through 3 and the zone is in alarm, the system will use the

longest entry/exit time defined within those three areas.

Event flags and zones are closely linked. When a zone goes into alarm, the assigned zone

event flag is raised. This event flag may be used in a variety of ways, depending on the

required functionality. A typical use is to associate the event flag with a relay. When the

zone goes into alarm, the event flag is raised and trips the relay.

Each zone provides numerous system-wide event flags that can be raised during an alarm.

These include:

• Internal/external siren

• Keypad buzzer

• Armed/disarmed alarm

Text words are used in defining the zone name. Unlike numerous other program elements,

zone name text words are downloaded to the panel. LCD keypads will use these text words

when displaying the zone names. When used effectively, this makes it very easy to identify

zones from keypads or through management software.

Functions

Zones can be used for the following functions:

Central station. Zones can be configured to notify programmed central stations during

alarm condition.

Event flags. When a zone goes into alarm, the assigned zone event flag is raised, along

with numerous other system-level event flags.

Relays. Along with the event flags, zones can be programmed so that the state will

cause physical relays to activate.

Area alarm control. Zones can be configured to arm/disarm assigned areas by

authorized users.

Macros. Macros can accept event flags as inputs within the logic equation. Any of

these inputs can correspond with zone event flags.

Alliance Builder

User Manual

238

Programming

The following programming options are available for zones.

Zone number

Range: 1 to 256

Specify which zone is being programmed.

Zone name

Range: Up to four text words and/or four numbers.

Specify the name of the zone. The name is converted into text words, and is

subsequently transferred to the control panel. As a result, the name will display in LCD

RAS keypad devices.

Each zone name conforms to the following scheme, where TW represents a text word,

and number represents an optional numeric value between 1 and 255.

TW1 + number 1 + TW2 + number 2 + TW3 + number 3 + TW4 + number 4

Under this scheme, it is possible to have up to four text words and four numbers. When

dealing with text words, use single quotes when delimiting multi-word text words.

Example. ‘Front Main Door’ 21 ‘First Floor’

In this case, the system will view the first series of characters as a single multi-word

text word. When the system displays the full zone name, it would appear as:

“Front Main Door 21 First Floor”

Care should be taken when single-quoting unique text. The system only provides

100 custom user-defined text words. Reuse as many of the predefined text words in

the text word library as possible, to ensure that you do not run out of text word

resources.

The numeric field that separates each of the four text words is optional. If a number

exists between text words and exceeds 255, the system will view this as a text word.

Chapter 14

Zone and relay programming features

239

Zone type

Range: 0 to 70

Specify the behavior associated with the zone when the system is armed or disarmed.

See Zone types on page 344.

Areas

Range: 1 to 16

Specify which areas are assigned to the zone. When the zone goes into alarm, the

assigned areas are notified and will dictate what the system should do with the alarm

condition (i.e. report the alarm to the central station). The ability to program areas is

determined by zone type. Either areas or alarm groups can be assigned zones, but not

both.

Alarm group

Range: 1 to 138

Specify the assigned alarm group. The primary use is to arm/disarm areas for limited

zone types. The ability to program alarm groups is determined by zone type. Only zone

types 6 (pulsed keyswitch), 31 (latching keyswitch), 34 (area disarmed/alarm group

restriction armed), and 35 (area alarm group restriction armed only) allow you to specify

the alarm group.

Either areas or alarm groups can be assigned zones, but not both.

Zone event

Range: 0 to 255

Specify the event flag that is raised when the zone becomes active. Some event flags

will be active 24 hours a day, others when armed or disarmed. The zone type will

determine these circumstances, and consequently, whether or not a zone is active.

Alliance Builder

User Manual

240

Reporting code

Specify the alarm to be reported when the zone generates an alarm. The reported event

is taken from Reporting class programming (see Reporting classes on page 221). The

actual message that is reported to the central station depends on the selected protocol

and the selected class and sub-class. The class holds the basic reporting range (i.e.

medical, panic), while the sub-class is used to provide further differentiation for the

event being reported.

Test option

Purpose: Specify the zone testing procedure during arm/disarm test. In order to enable

zone testing, the test mode option in Control panel options programming (see Test mode

on page 253) must be configured. Table 29details the test types.

Table 29. Test types

Test type Description

No testing required The zone is not testing during an arm/disarm test. The zone is disabled

during the disarmed test.

Test during disarm The zone is tested during a disarm test. The zone is disabled during the

test.

Tested in arm test and

disarmed

The zone is tested during both the arm/disarm test.

Test during arm test The zone is tested during the arm test.

Set event flag 13 during

disarm test (internal siren)

The zone is tested during the disarm test, and event flag 13 is raised. This

test is intended for testing devices activated by disarmed alarm zones,

such as panic alarm buttons.

Set pre-alarm during disarm

test

The zone is tested during the arm test and will raise the pre-alarm event

flag defined in Area programming. This test is intended for devices that are

activated during the delayed panic alarm button time.

Frequently used detector Indicates this zone will be used during remote diagnostics in order to

determine which zone has not been triggered during the last six hours after

the last arming.

Chapter 14

Zone and relay programming features

241

Enable soak test

Purpose: Enable the zone soak test mode. The soak test period is started when this

option is enabled. This period of time, from 0 to 255 days, is set in soak test days in

Control panel options programming (see Soak test days on page 257). If the value is set

to zero, the soak test period is infinite and must be disabled by the user. The test results

are logged in the history file.

The soak test can be used to diagnose problems without causing false alarms. When a

zone is set to soak test, it does not:

• Report to central station

• Activate siren

• Activate strobe

• Activate any outputs (relays)

The change of the zone state is logged in the history file with events soak alarm and soak

alarm restore. If the zone does not go into alarm during the soak test period, the enable

soak test option for that zone will be reset when the soak test period has elapsed. If the

zone goes into alarm during the soak test period, the soak test period is extended by the

amount of time specified in soak test days.

Engineer walk test

Allow an engineering walk test to be conducted by a service technician.The engineer

walk test is done when areas are not armed so that alarms do not report to the central

station or activate relays. During this test, each zone’s frequently-used status will be

updated as in normal access mode.

Alliance Builder

User Manual

242

Double knock

Configure a zone for double knock activation in a certain time interval. If this option is

enabled and a zone becomes active, at the point where the alarm condition will normally

be activated, two zone timers will be triggered. An interval timer is preset (with the

value programmed in Double-knock interval on page 175) and begins counting down. A

duration timer is also preset (with the value contained in Double-knock duration on

page 176), and counts down.

Only the following zone types can use the double knock option:

Type 1. Disarmed alarm

Type 2. Armed alarm

Type 4. Access alarm

Type 14. Access alarm (no arm check)

Chapter 14

Zone and relay programming features

243

Event flags

External siren Enabled: The external siren event flag, specified in Area programming, is

activated during an alarm, and all areas assigned to the zone are armed.

Disabled: The external siren event flag is not activated by an alarm.

Keypad buzzer Enabled: When the zone is in alarm, the RAS device buzzers are activated.

The system will determine which RAS devices should be buzzed based on

the assigned areas defined for the zone. The system will then go through

each RAS device, determining the assigned areas through the

programmed alarm group. Any RAS device whose area list matches the

zone area will be buzzed.

Disabled: The RAS device buzzers are not activated during an alarm.

Make all events 24 hour Enabled: All armed/disarmed event flags are raised when the zone is in

alarm, regardless of area status.

Disabled: The armed/disarmed event flags are raised strictly based on the

status of the assigned areas.

Trigger armed alarm event

flag 2, 3, 4, 5, 9, 11

Enabled: Event flag 2 is raised when the zone is in alarm and the area is

armed.

Disabled: Event flag 2 is not raised when the zone is in alarm.

Trigger disarmed alarm

event flag 6, 7, 13

Enabled: Event flag 6 is raised when the zone is in alarm and the area is

disarmed.

Disabled: Event flag 6 is not raised when the zone is in alarm.

Trigger event flag 8, 24-hour Enabled: Event flag 8 is raised when the zone is in alarm regardless of the

area status.

Disabled: Event flag 8 is not raised when the zone is in alarm.

Internal siren event flag Enabled: The internal siren event flag is raised when the zone is in alarm.

Disabled The internal siren event flag is not raised when the zone is in

alarm.

The internal siren event flag is programmed in Area programming (see

Event flags on page 182) for each of the areas assigned to the zone.

Trigger zone event flag when

active

Enabled: The zone event flag is raised when the zone is active, regardless

of the status of the areas assigned to the Zone.

Disabled: The zone event flag is only raised when the zone is in alarm (i.e.

the zone is active and the area is armed).

Alliance Builder

User Manual

244

Trigger camera event Enabled: The camera event flag is raised whenever the zone is in alarm

and the area is disarmed.

Disabled: The camera event flag is not raised.

You must program the camera event flag number option in Area

programming (see Event flags on page 182) for each of the areas having

cameras assigned to the zone.

To activate the camera event flag when the area is armed, enable the

make all events 24 hour option.

When this option is enabled, the internal siren event flag option is ignored.

Print zone when active Enabled: When the zone is active, a report is generated to the printer, as

well as the management software.

Disabled: A report is not generated to either the printer or the

management software when the zone is active.

Chapter 14

Zone and relay programming features

245

Reporting

Zone channel

Not Supported

Report alarm to central

station 1, 2,3, and 4

Enabled: When the zone is in alarm, a report will be sent to the specified

central station.

Disabled: No report is sent to the specified central station.

The selected central station corresponds to Central station programming.

For example, enabling central station 1 would result in the system

sending a report to central station number 1.

Enable engineer reset for

alarms

Enabled: Engineer reset is enabled for all alarms in this zone. For example,

when enabled, the user cannot arm the areas belonging to the zone until

an engineer reset has been performed.

Disabled: No engineer reset.

Note: An engineer reset may be performed through programming menu

51 on an LCD keypad.

Enable engineer reset for

tamper alarms

Enabled: Engineer reset is enabled for tamper alarms in this zone. For

example, when enabled, the user cannot arm the areas belonging to the

zone until an engineer reset has been performed.

Disabled: No engineer reset.

Note: An engineer reset may be performed through programming menu

51 on an LCD keypad.

Disable bypass Enabled: A user cannot bypass this zone.

Disabled: A user can bypass this zone.

Alliance Builder

User Manual

246

Zone shunts

A zone shunt will bypass a zone for a specified period of time when the zone is in the active

state. When a zone associated with a zone shunt becomes active or when the programmed

output is active, a timer is started. As long as the timer is running, the zone will not cause an

alarm to be generated. During this time frame, a warning timer can also be specified that

could be applied to indicate that the zone is about to become active. As soon as the shunt

timer expires, the zone will generate an alarm if it is in the active state.

Functions

Zone shunts can be used for the following functions:

Doors. When an unlock relay is initiated, you can bypass certain zones for a specific

period of time.

Alarms prevention. Prevents zones that become active from generating alarms for a

specified period of time.

Warnings. Can be programmed to give warning that the zone shunt is about to expire.

Output to start timer. An optional output can be used to start the shunt timer.

Shunt event flag. Raises a shunt event flag that can be used by other programming

mechanisms. For example, when a zone is shunted, trigger a relay in order to

perform some other function.

Shunt behavior. Provides several options that dictate the behavior of the zone shunt.

Chapter 14

Zone and relay programming features

247

Programming

The following programming options are available for zone shunts:

Shunt number

Range: 1 to 16

Specify which zone shunt is being programmed.

Description

Specify a 40-character text description of the zone shunt. The description is not

transferred to the device, and is only used by the management software.

Zone number to shunt

Range: 0 to 255

Specify the zone number to be shunted for the programmed time.

Shunt warning time

Range: 0 to 255 (seconds)

Specify the period of time prior to the shunt timer expiring that the shunt warning event

flag should be raised.

Relay number

Range: 0 to 255

Specify the relay to start the shunt timer. If the relay is always active, the zone will

always be shunted. As soon as the relay deactivates, the shunt timer will begin. When a

relay is used, the total shunt time is the time the relay remains in the active state plus the

shunt time.

Alliance Builder

User Manual

248

Shunt event number

Range: 0 to 255

Specify the event flag that is raised during the shunt time period.

Shunt time

Range: 0 to 254 (refer to table)

Specify the period of time in which the zone will be shunted. While the timer is running,

a zone in the active state will not generate an alarm. Table 30 shows the shunt time

ranges.

When programming one to two minute periods, set the time in seconds. Do not use a

time of 0 seconds for doors if cancel door event is disabled. This could cause the zone to

be shunted indefinitely.

Shunt warning event number

Range: 0 to 255

Specify the event flag that is raised when the shunt warning timer is active.

Table 30. Shunt time ranges

Shunt time range Description

1-127 Time period in seconds.

128 + number of minutes Time period in minutes.

Under this condition, add 128 to the total of the number of minutes.

Chapter 14

Zone and relay programming features

249

Zone shunt options

Door open command Enabled: A RAS keypad OUT relay is used to start the shunt timer, or a shunt

output is used to start the shunt timer.

The shunt timer resets if the zone does not switch to the active state within:

• Three seconds if the shunt time is programmed for 1 to 127 seconds

• Three minutes if the shunt time is programmed for 1 to 127 minutes.

If this option is enabled, entry/exit shunt must be disabled.

Disabled: The programmed zone state starts the shunt timer.

Zones holds event Enabled: A 2-second delay is applied after the zone switches to the normal

state, and before it cancels the door event flag and shunt timer.

Disabled: There is no delay.

Shunt when disarmed Enabled: The assigned zone will be shunted when the areas associated with

the zone are disarmed.

Disabled: The assigned zone will not be shunted when the areas associated

with the zone are disarmed.

Entry/exit shunt Enabled: The assigned zone is treated as an entry/exit zone. A code must be

entered to start the shunt timer; otherwise, an alarm is generated.

If this option is enabled, door open command must be disabled.

Disabled: The assigned zone is not treated as an entry/exit zone.

Shunt when armed Enabled: The assigned zone will be shunted when the areas associated with

the zone are armed.

Disabled: The assigned zone will not be shunted when the areas associated

with the zone are armed.

Log door open/close Enabled: The assigned zone will be logged to the printer as door open or door

closed when the zone becomes active.

If print zone when active in Zone programming (see Event flags on page 243) is

enabled for the assigned zone, a door open message is sent twice.

Disabled: No reporting is logged to the printer.

Cancel door event Enabled: When the assigned zone switches to the deactivated state, the door

unlock event and the shunt timer are cancelled.

Disabled: When the assigned zone switches to the deactivated state, the door

unlock event and the shunt timer will continue to run for the programmed time.

Alliance Builder

User Manual

250

Chapter 15 Miscellaneous

programming features

This chapter provides an overview of miscellaneous

programming features.

Control panel options . . . . . . . . . . . . . . . . . . . . . . . . . . .252

Custom LCD message. . . . . . . . . . . . . . . . . . . . . . . . . . .263

Event Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .264

System event flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .268

Text words . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .271

Alliance Builder

User Manual

252

Control panel options

System options are a collection of options that affect various functions in the system. Due to

the global nature of system options, any system option that is set will affect all related

functionality in the system.

For example, if the bypass zone tamper option is enabled, all zone tamper alarms in the

entire system will be bypassed.

Programming

The following programming is available for the control panel options:

Areas for total disarm

Areas specified for total disarm will bypass all of their zones when disarmed, including

zones that are not disarmed normally such as 24-hour zones. Tamper alarms still

function for all zones, regardless of whether or not the zone is included in an area

specified for total disarm.

For example, Zone 6, a motion sensor in a room, is programmed as a 24-hour zone type

and is assigned to areas 1 and 16. Area 16 is programmed for total disarm in system

options.

When servicing the room where the sensor is located, area 16 will be disarmed. Zone 6

will be disarmed because it is a part of area 16.

Table 31 shows the state of zone 6 in response to the arm and disarm states of the areas

it belongs to in the example above.

Table 31. Zone behavior for example

Area 1 state Area 16 state Zone 6 behavior (24-hour zone)

Armed Armed Normal operation.

Disarmed Armed Normal operation.

Armed Disarmed Zone disabled (except for tamper.)

Disarmed Disarmed Zone disabled (except for tamper.)

Chapter 15

Miscellaneous programming features

253

Film low

Range: 0 to 9999

Specify the film low frame count for the system. When the film frame count for system

still video or still photo cameras is reached, the system will report a film low warning to

the central station.

Film out

Range: 0 to - 9999

Specify the film out frame count. When the film out frame count for system still video

or still photo cameras is reached, the system will report a film out warning to the central

station.

Test mode

Specify the test call mode for the system. The type of test call selected determines the

system tests that will be performed and at what interval they will take place. Table 32

describes the test call types.

Output controllers

Specify the number of output controllers attached to the control panel. This does not

include output controllers attached to system DGP devices.

Table 32. Test call types

Test call type Description

No test No automatic test calls made, test calls must be activated manually.

Enable automatic test The disarm or arm test starts automatically when the system is disarmed

or armed.

Manual disarm test/

automatic arm test

The arm test starts automatically when the system is armed. The disarm

test can only be done using user menu 13 on the LCD keypad, Start

Automatic disarm Test.

Automatic disarm test only The disarm test starts automatically when the system is disarmed. No arm

test is available.

Alliance Builder

User Manual

254

Zone event text word

Range: 0 to 999

When zones 57 and 58 are active, the zone event text word will be displayed on all

system LCD keypads. The zone event text word can be either a text word from the word

library or a user-defined text word.

Number of prefix digits

Range: 1 to 4

The alarm code prefix enables user codes to be used for both access control and alarm

control. The prefix indicates the number of digits that have to be entered to have alarm

control. If those digits are not entered (left blank), only access control may be

performed.

For example, if the alarm code prefix is two digits, and a users PIN code is 123456, then

123456 will be entered for alarm control or 3456 for access control.

LCD rotation speed

Range: 0 to 15

Specify the rotation speed for text displayed on LCD keypads. The default value is 8.

Any value from 9 to 15 decreases the text rotation speed. Any value from 1 to 7

increases the text rotation speed.

Time before rotate

Range: 0 to 15

Specify the time before LCD text starts to rotate. The default value is 8. Any value from

9 to 15 increases the time before text rotation starts. Any value from 1 to 7 decreases the

time before text rotation starts.

User offset

Range: -65536 to 65536

The user offset provides the ability for the control panel to adjust the numeric value of

user numbers being reported to the management software. The number entered will be

Chapter 15

Miscellaneous programming features

255

added (subtracted if it is negative) to the user number in the control panel and sent to the

management software. This can be used in conjunction with the system code offsets.

This option is of particular benefit to the management software administrator. A typical

application would be to have numbers appearing in reports conform to a specific

numeric range.

End-of-line (EOL) resistor

Range: 10K; 4.7k; 2.2k

Specify the value to set the type of end-of-line resistor that is used in the system.

Duress type

Specify the duress type to use to activate the duress function. The duress function

activates a silent signal to alert security personnel via the central station.

For example, if a user is forced under threat to disarm the system, they can enter a

disarm code plus duress code to disarm the system and silently send a duress signal to

the central station.

Increment last digit. A duress digit in conjunction with the PIN code is used. The

duress digit is the last digit of the PIN, plus one (1). If the last digit of the PIN code

is 9, then the duress digit is 0.

For example, if the user’s PIN code is 1234, the duress digit will be 5. To disarm the

system and active the duress signal the user will enter 12345.

Add zero to end. If the user adds a zero to their PIN code the duress signal is sent to

the central station.

For example, if the user’s PIN code is 1234, the duress digit will be 0. To disarm the

system and active the duress signal the user will enter 12340.

Siren type

Specify the one of the following siren types:

Standard (speaker tone). The 16th output is activated and a saw tooth signal is

generated at the siren output.

Alliance Builder

User Manual

256

Volts on. The 16th output is activated and a constant DC voltage is set at the siren

output.

Programmable tones (speaker or volts). The 12th, 13th, 14th, 15th, and 16th outputs

are mapped to the siren output. These outputs have priority 1 to 5 respectively.

Therefore, output 12 will have a higher priority than output 16 when both are active,

thus generating a DC voltage at the siren output.

Table 33 shows the type of output generated when the programmable tones siren type

option is selected (different outputs are activated.)

Alliance system code

Range: 0 to 65536

Specify an optional system code assigned to the control panel. This code is only useful if

the installer would like to make it difficult to perform engineering resets by the end

users. This code is input into an equation in order to generate the reset code.

Because the reset code is determined by two sets of values, this option makes it much

more difficult to perform and engineering reset and consequently add more security to

the system.

System codes A and B

Specify the system codes for this control panel. The control panel will only accept user

cards with these codes. Type a code from 1 to 10 digits in length, or type 0 (zero) to

specify no code.

Table 33. Outputs generated

Output Ge n e r a t e s

12th Constant DC voltage at the siren output

13th A warble tone at the siren output

14th A saw tooth tone at the siren output

15th Two tones at the siren output

16th An inverted saw tooth tone at the siren output

Chapter 15

Miscellaneous programming features

257

There are two system codes (A and B), which allow the control panel to accept two sets

of cards with different system codes.

Offset A and B

Range: -32767 to 32767

Specify the number to be added or subtracted from the actual user card ID number. The

control panel will calculate the user number using the following calculation:

User Number = CARD ID + (or -) card offset

The calculated user number is used for programming the user and when reporting events

to the central station, or the computer.

Offset A and B is used in conjunction with the respective system code. System code A is

mapped to Offset A and System code B is mapped to Offset B.

Soak test days

Range: 1 to 255 days

Specify the number of days for the soak test period. The soak test period is started when

enable soak test is set in Zone programming. If soak test days is left blank, the soak test

period is infinite and must be disabled by the user.

The soak test can be used to diagnose problems without causing false alarms. When a

zone is set to soak test, it does not:

• Report to central station

• Activate siren

• Activate strobe

• Activate any outputs (relays)

The change of the zone state is logged in the history file with events soak alarm and soak

alarm restore. If the zone does not go into alarm during the soak test period, the enable

soak test option for that zone will be reset when the soak test period has elapsed. If the

zone goes into alarm during the soak test period, the soak test period is extended by the

amount of time specified in soak test days.

Alliance Builder

User Manual

258

System options

Dual zone Enabled: Dual zone operation is activated. For dual zone to operate every

zone needs two 4k7 resistors, enabling the panel to detect whether a

zone is in a normal state, active or tampered. This is a global setting and

affects all zones.

Disabled: Dual zone operation is disabled.

Automatic unbypass when

area disarmed

Enabled: Zones in a normal bypassed state are unbypassed when any of

the areas assigned to the zone are disarmed. This ensures that bypassed

zones are not ignored or overlooked during disarm. This option is only

valid if the alarm group is programmed for the automatic unbypass

option in Alarm groups programming.

Disabled: Zones are not unbypassed when areas assigned to the zone

are disarmed.

Display one zone at a time Enabled: One zone at a time is displayed on the LCD keypad even though

there may be more than one in the list of zones to be displayed. The user

must scroll through the zones to view them all.

Disabled: Zones are displayed as a list of numbers and it is necessary to

select the zone number to display the individual zone name.

User name file Enabled: Prompts for the user name when programming user codes

using the LCD keypad.

Disabled: Will not prompt for the user name when programming user

codes using the LCD keypad.

System alarms set siren and

strobe

Enabled: The dedicated tamper zones on the control panel and the DGP

devices activate the siren and the strobe when in alarm.

Disabled: The dedicated tamper zones do not activate the siren and

strobe when in alarm.

Latching systems alarms Enabled: System alarms latch and require a code to reset them. This

ensures that users, who have the appropriate authority, are assigned an

alarm group that has reset system alarms enabled in Alarm groups

programming.

Disabled: System alarms automatically reset and report the restore

when the alarm condition is no longer present.

System alarms include RAS (arming station) or DGP offline, cabinet

tamper, siren tamper, AC fail, fuse fail, and low battery.

Chapter 15

Miscellaneous programming features

259

Siren testing Enabled: Enables a siren test for three seconds when the arm test is

started.

Disabled: Sirens are not tested when the arm test is started.

Refer to Siren type option.

Disable “0 ENTER” for camera

reset

Enabled: Users cannot enter 0 ENTER on an LCD keypad to stop cameras

operating. The cameras continue to operate until someone who is

authorized to control cameras resets them.

Disabled: When a user enters 0 ENTER on an LCD keypad, the camera

operating is stopped.

Disable insert of alarm group

restriction

Enabled: Disables the option to treat areas as vaults. By disabling this

option, the non-vault areas will not be automatically armed.

Disabled: Ability to treat areas as vaults is enabled.

See Alarm group restrictions on page 197.

Disable code for displaying Enabled: The PIN code is not displayed when programming a user on the

LCD keypad, instead the display shows PIN codes can not be viewed.

Disabled: User PIN codes are displayed when programming users on the

LCD keypad.

Disable flashing area LEDs Enabled: The area LED on system keypads will not flash when there is an

alarm and/or tamper alarm in a given area.

Disabled: Keypad area LEDs will flash when there is an alarm and/or

tamper alarm in a given area.

Two users for user

programming

Enabled: Two users are required to enter their PIN codes before access is

granted to program users. This does not apply to the Master user

account.

Disabled: Only standard PIN code access is required to program users.

Display alarms instantly Enabled: Alarm details are displayed immediately on LCD arming

stations after an alarm has taken place.

Disabled: Alarm details are not displayed immediately on LCD arming

stations after an alarm has taken place. To view alarms on the LCD

arming station, you must press ENTER on the key pad twice.

Siren only after fail to report Enabled: Siren event flags are only activated on alarms if the control

panel has failed to report to the central station. Fail to communicate (FTC)

is registered at the end of the fourth dial attempt. The siren activates for

the normal siren cutoff time programmed.

Disabled: Sirens will operate on related alarms.

Alliance Builder

User Manual

260

Financial options Enabled: Activates three special options (generally applicable to financial

institution installations).

1. Film counters are enabled during the disarm test mode.

2. Alarm group restriction 2 or alarm group restriction 6 disables delayed

disarmed alarm zones. See Alarm group restrictions on page 197.

3. Minimum PIN code length is set to 5 digits.

Disabled: System operation is normal.

Enable buzzer on AC/line fault Enabled: The keypad buzzer will be sounded when there is an AC/line

fault.

Disabled: The keypad LED will flash upon an AC/line fault.

Enable call central station

display

Enabled: System LCD keypads indicate that the system has successfully

reported and/or is currently contacting the central station with the report

of a burglar alarm or tamper activation.

Disabled: System LCD keypads will not indicate successful burglar alarm

or tamper activation reports to the central station.

Enable log limitations Enabled: Limits the number of times a zone can log and report a change-

of-state event within the same arm/disarm cycle. The zone log limit is set

to three change-of-state event reports.

Disabled: No limit is imposed on zone logging.

Indicate bypassed zones Enabled: Alerts the user at the RAS device with an optical and audible

indication that zones are bypassed in an area that is being armed. The

bypassed zones will be listed and the user prompted with the option to

arm the system.

Disabled: The RAS device will not indicate bypassed zones.

Display user flags Enabled: Special user flags are displayed when programming users. The

special user flags include two card function, guard, visitor, trace user, card

only, privileged, and extended access.

Disabled: The special user flags are not displayed.

Delayed disarmed alarm

lockout

Enabled: An alarm can only be cancelled if the zone is in a normal state.

Delayed disarmed alarms are locked out until the alarm device is reset

(and the zone has switched to a normal state). This only applies to

latching delayed disarmed alarms.

Disabled: Normal operation. Delayed disarmed alarms are not locked

out.

Chapter 15

Miscellaneous programming features

261

Zone expansion fitted Enabled: Indicates that an 8-zone expander is attached to the control

panel.

Disabled: Indicates that an 8-zone expander is not attached to the

control panel.

Bypass zone tamper Enabled: When a zone is bypassed, the tamper is also bypassed. No

tamper alarm will occur.

Disabled: Tamper alarms will occur normally.

Report multiple alarms Enabled: Reports multiple alarms as a separate alarm for each alarm

that occurs.

Disabled: Only the first alarm will be reported. Any following alarms that

occur will not be reported.

Report multiple restores Enabled: Reports a restore for every alarm that occurs.

Disabled: Reports only one restore for every zone that generates an

alarm.

Engineer reset on system

alarms

Enabled: After a system alarm, an engineer reset is required. A user

cannot arm any areas until an engineer reset is done.

Disabled: Areas can be armed after a system alarm without an engineer

reset.

Engineer reset on system

tampers

Enabled: After a system tamper alarm, an engineer reset is required. A

user cannot arm any areas until an engineer reset is done.

Disabled: Areas can be armed after a system tamper alarm without an

engineer reset.

Arm with no battery Enabled: The control panel will arm without a battery attached.

Disabled: the control panel will not arm if the battery is missing.

User can do engineer reset Enabled: A user can do an engineer reset. The user has to give the code

that is shown on the display to the installer who can then find a reset

code.

Disabled: An engineer reset can only be done by using a dedicated zone

65 or through the LCD keypad installer programming menu.

Alliance Builder

User Manual

262

Engineer entry protect Enabled: A user can only enter LCD keypad installer programming by

opening the box tamper within 120 seconds. This displays ‘Open box

tamper' on the LCD keypad. During the 120 seconds or when in the

installer menu, the box tamper alarm will be disabled. When the installer

menu is exited, the installer has 120 seconds to close the box tamper

before the tamper alarm is activated. This is used to protect against

unauthorized entry by an installer.

Disabled: An authorized user can always enter LCD keypad installer

programming. Opening the box will always cause a tamper alarm.

Send arming after exit Enabled: When armed, an area will defer the reporting of arming to the

central station until the exit time has ended.

Disabled: An area will not defer the reporting of arming to the central

station.

Bypass alarm reporting on

exit fault

Enabled: Bypasses reporting of alarms with a reporting code of 17-24

(burglar alarm) when the exit timer is running. Alarms that occur during

the exit time will set the exit fault flag and disable further alarms on the

assigned areas until the areas are disarmed.

Disabled: Alarms are reported immediately.

Disable tamper reporting in

disarm

Enabled: Zone tamper and restore events will not report to the central

station if the assigned areas are disarmed. If a tamper occurs while

disarmed, the action will log.

Disabled: Zone tamper and restore events will report to the central

station if the assigned areas are disarmed.

Bypass external siren and

strobe for tamper in disarm

Enabled: Zone and system tampers will only activate the internal siren.

Disabled: Internal and external sirens and the strobe will activate as a

result of tamper events.

Installer dual code Enabled: Two users are required to enter their PIN codes to enable

installer programming. The second code must be a valid user code with

no access to the installer menu.

Disabled: Two user PIN codes are not required to enable installer

programming.

Chapter 15

Miscellaneous programming features

263

Custom LCD message

The custom LCD message allows you to modify the text displayed on the RAS devices

connected to the control panel. You may enter up to 32 characters for this text. You will only

see this text displayed on the RAS device if there are no alarms or system messages.

Programming

The following programming option is available for the custom LCD message feature:

Text

Specify the 32 characters of customized text that will be displayed on the LCD arming

station (RAS) in place of the normal Alarms display. The 32 characters can include

numbers, spaces, or punctuation but the following characters are not allowed:

~ @ ^ ` {

Alliance Builder

User Manual

264

Event Flags

Event flags are used by the system in order to signal an event. When a certain event occurs

event flags are raised to notify other programming options to perform a specified function.

Below are a few common event flag uses.

Relays. Relay programming associates an event flag with a physical/logical relay.

When the event flag is raised, the relay will fire.

Doors. Each RAS device supports a door event flag that is raised whenever a user is

granted access.

Macro logic. Macro logic uses event flags in AND/OR logic sequences. For example, a

macro might require two event flags to be true/active to raise another event flag and

cause a specified action.

Internal/external sirens. Zone programming supports the ability to raise an event flag

that causes the control panel to sound a siren.

System events. Raise an event flag whenever an A/C failure takes place.

In general, event flags fall into two categories, predefined and custom event flags.

Chapter 15

Miscellaneous programming features

265

Predefined event flags

The system predefines 16 event flags that are primarily used in area programming. Table

describes these predefined event flags.

Table 34. Predefined event flags

Event flag number Event flag name Description

1 External siren Flag is raised when any external siren activates in

any area.

2 Armed alarm Flag is raised when a zone generates an alarm and

all areas assigned to the zone are armed. It is also

used to activate the system strobe by default.

3 Armed alarm Same as event flag 2.

4 Armed alarm Same as event flag 2.

5 Armed alarm Same as event flag 2.

6 Disarmed alarm Flag is raised when a zone generates an alarm and

one or more of the areas assigned to the zone are

disarmed.

7 Disarmed alarm Same as event flag 6.

8 24 hour alarm Flag is raised when any zone generates an alarm.

9 Armed alarm Same as event flag 2.

10 Armed alarm Same as event flag 2.

11 Armed alarm Same as event flag 2.

12 Armed alarm Same as event flag 2.

13 Internal siren Flag is raised when any internal siren activates in

any area.

14 N/A Do not use.

15 N/A Do not use.

16 Testing Flag is raised during the arm test. The flag will remain

active for 50 per cent of the testing event flag time

option in timers programming.

Alliance Builder

User Manual

266

Enabling certain options in zone programming will cause these flags to be raised.

Example. Enabling the external siren option in Zone programming will cause the

external siren event flag to be raised during an alarm condition.

Event flag description. Defines event flag number 1 as external siren.

Area. Allows the user to associate an event flag number with the external siren event

flag option in Area programming. In this case, event flag number 1 is assigned.

Zone. Supports an option that will sound the external siren if the zone goes into alarm.

When the zone does go into alarm, the system will first determine if the siren event

flag should be raised. If the option is enabled, the system will fetch the event flag

from the assigned area, and raise it. Once that particular event flag is raised, the

system will then sound the alarm because there is an understanding within the

system that the external siren will be activated whenever event flag number 1 is

raised.

Custom event flags

Custom event flags are typically used in options such as macro logic programming and RAS

programming. For example, the door event flag option in RAS programming is raised

whenever the RAS device grants access to a user.

Event flag description

Event flag descriptions are used to fully describe the meaning of the custom event flags.

They should be used so that any installer can easily understand the purpose behind each

event flag, especially when it comes to programmable logic (Macros).

Chapter 15

Miscellaneous programming features

267

Functions

Event flags can be used for the following functions:

Readability . Event flag descriptions make it easier for installers to read/understand the

event flag.

General programming. While setting up the system, numerous programming options

offer the ability to choose an event flag. The process of assigning an event flag for

these options is significantly easier when you have a clear description of the event

flag rather than just an event flag number.

Programming

The following programming options are available for event flags:

Event flag number

Range: 1 to 255

Specifies which event flag is being programmed.

Description

A 40-character text description. The description is not transferred to the device, and is

only used by the management software.

Alliance Builder

User Manual

268

System event flags

System event flags deal with system-level events. When the specified conditions occur, the

system will cause the programmed event flag to be raised. The system event flags will latch

if the latching system alarms option is enabled in System options programming. Do not

assign any of the 16 predefined event flags to any of the system event flags and ensure that

the event flags assigned are not used in other programming options (areas, zones, etc.).

Functions

System event flags can be used for the following functions:

System level monitoring. Associate custom event flags with system events.

Indicators. Provide a visual indication when specified events take place. For example,

use an LED to indicate that the computer connection is OK.

RAS keypad buzzer. Cause RAS devices to sound their warning buzzer.

Chapter 15

Miscellaneous programming features

269

Programming

Table 35 shows the programming options available for system event flags.

Table 35. System event flag programming options

Event flag Description

AC fail Flag is raised when an AC failure condition exists on the control panel or

any DGP.

Low battery Flag is raised when a low battery condition exists on the control panel or

any DGP.

Fuse fail Flag is raised when a fuse fail condition exists on the control panel or any

DGP.

Tamper Flag is raised when a tamper condition exists on the control panel or any

DGP.

Siren fail Flag is raised when a siren failure condition exists on the control panel or

any DGP.

DGP bypassed Flag is raised when a DGP has been isolated via the bypass/unbypass

command.

See Alarm groups on page 188.

DGP offline Flag is raised when a DGP has been programmed to be polled by the

control panel, but is not responding.

RAS offline Flag is raised when a RAS device has been programmed to be polled by the

control panel, but is not responding.

Duress Flag is raised when a keyboard duress alarm occurs.

Filmout Flag is raised when the film count for a camera exceeds the programmed

Film Out level.

The film out option is programmed in System options programming.

Report fail – fail to

communicate (FTC)

Flag is raised when the control panel fails to report to the central station.

FTC is initiated after the fourth attempt.

Test mode Flag is raised when the control panel is in test mode.

All armed Flag is raised when no areas are disarmed, there are no alarm conditions,

and no entry/exit timers running.

Alliance Builder

User Manual

270

Keypad buzzer When the assigned flag is raised, the keypad warning beepers are

activated.

Dialer is off-hook/active Flag is raised whenever the dialer is off-hook. Since not all reporting is via

PSTN, dialer active more accurately represents this event.

External siren test Flag is raised during the external siren test. This event flag could then be

used to switch a relay to disconnect the siren auxiliary power for testing.

All armed pulse Flag is raised when the system is fully armed. Each of the following criteria

must be true in order for the system to raise the flag:

• All areas with inputs assigned are armed

• No alarm conditions (no inputs isolated)

• No entry/exit timers are running

Computer connection active Flag is raised when the connection between the control panel and the

management software is active.

Line fault Flag is raised during line fault conditions. The control panel will constantly

monitor the line determined by Central station communications

programming to determine if the line is in fault.

Battery test Flag is raised during battery test.

Engineer walk test running Flag is raised during an engineer walk test.

Engineer walk test reset After each walk test, a new engineer walk test reset system event flag will

be activated for 5 seconds.

Table 35. System event flag programming options (continued)

Event flag Description

Chapter 15

Miscellaneous programming features

271

Text words

Text words provide the functionality to display descriptive names for system resources, such

as zones and alarm groups, on the LCD keypad. By default, the system provides up to 900

predefined default text words in the text word library (see Text word library on page 308).

You can also add up to 100 user-defined text words to customize the library to your specific

needs.

Not all system resources use text words. For instance, although DGP programming supports

a description property, this is not treated as a text word, nor is it downloaded to the panel.

Therefore the DGP description will not be shown on the LCD keypads.

When creating a name for a system resource that does use text words, the existing text word

library is searched for any matches in the resource name and existing text words are used. If,

however, the words contained in the name/description do not exactly match one of the

predefined words, you can add a user-defined text word. The Text word tool on the toolbar

provides a searchable list of both predefined and user-defined text words.

Functions

Text words can be used for the following functions:

Resource naming. Text words allow system resources to have associated custom

names, which are reported on LCD keypads for ease of use and clarity.

Reporting. System resources with text word names will show the text word name for

reporting and logging.

For example, if zone 1 was assigned the text word Front Door Main Entrance Zone

and the zone is in alarm, then that exact zone name is reported, along with the zone

number.

Under most circumstances, text words are limited to 16 characters. Zones, however,

allow up to four text words and four numbers. The above example incorporates

more than one text word.

Alliance Builder

User Manual

272

Programming

The following programming options are available for text words:

Text word number

Range: 900 to 999

Specify the user-defined text word number.

Control panel number

Specify the control panel that is associated with this user-defined text word.

Description

Range: 1 to 16 characters

Specify the text word description to be stored in the user-defined word library. The

description can include spaces, for example, Joe Doe Security.The following characters

are not allowed: ~ @ ^ | \ {

Chapter 16 Maintenance and support

This chapter provides information on maintenance procedures

and technical support contact information.

In this chapter:

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .274

Contacting technical support . . . . . . . . . . . . . . . . . . . . .276

Alliance Builder

User Manual

274

Maintenance

Alliance Builder relies on specific data sources and files to store data. It is essential that

these data sources and files remain intact at all times. Alliance Builder automatically

manages these data sources, their locations and relationships with no action required by the

user. However, if data sources are changed, or data files removed, the relationships that

Alliance Builder relies on will be broken and may result in lost projects.

A brief explanation of the data sources, files, and relationships that Alliance Builder uses to

store data is provided in the following sections.

MSDE database

Alliance Builder uses Microsoft's MSDE database engine to store application data as well as

projects created in Alliance Builder. Alliance Builder relies on the database to store

information about project file locations, properties for devices that have been created and

much more. All information stored in the MSDE database is managed by Alliance Builder

and is not intended to be modified by the user in any way. Any modifications to the database

and the data it contains could adversely effect projects that have been created in Alliance

Builder or may even effect the overall operation of Alliance Builder itself.

CPD files

Alliance Builder uses CPD files to store project programming information. A CPD file is

created for each control panel that is added to a project, so there is a direct relation between

the number of control panels in a system and the number of these files that exist for a

project. The files are stored in the project directory chosen when a new project is created and

are managed by Alliance Builder. CPD files should never be moved, removed, or edited by

the user in any way. All interaction with these files should occur automatically from within

Alliance Builder.

APF archive files

Alliance Builder 8200 APF archive files are used when exporting or importing projects.

Alliance Builder uses information stored in the MSDE database as well as information

stored in the CPD files to create an APF archive. The archives contain all necessary

programming and project information for a project to be transferred to Alliance 8100,

Chapter 16

Maintenance and support

275

Alliance 8300, or another Alliance Builder 8200. If any information for a project is moved

or removed from the database, or if required CPD files are moved or removed, the APF

archive file will not be complete and will not contain all of the necessary project

information.

Recommended practice

Alliance Builder requires information stored in the MSDE database and the project CPD

files to function correctly. Alliance Builder manages this information and the location of

these files, so no user interaction is required. Users should not modify or manipulate data

stored in the MSDE database or project CPD files in any way. A safe approach is to restrict

users to only interact with Alliance APF archives. Alliance APF archive files are intended to

be moved or removed by the user and will not effect Alliance Builder operation and project

integrity if they are manipulated.

Alliance Builder

User Manual

276

Contacting technical support

For assistance installing, operating, maintaining, and troubleshooting this product, refer to

this document and any other documentation provided. If you still have questions, you may

contact technical support during normal business hours (Monday through Friday, excluding

holidays, between 6 a.m. and 5 p.m. Pacific Time).

Note: Be ready at the equipment before calling for technical support.

Online publication library

Another great resource for assistance with your GE product is our online publication library,

available to all of our customers. To access the library, go to our website at the following

location:

http://www.gesecurity.com

In the Tools area at the top, click the Publication Library link. After you register and log on,

you may search through our online library for the documentation you need.1

Table 36. Sales and support contact information

Sales Technical support

Phone Toll-free: 888.GESECURity (888.437.3287 in the US, including Alaska and Hawaii;

Puerto Rico; Canada). Outside the toll-free area: 503.885.5700.

E-mail info@gesecurity.com generaltech@ge.com

Fax 800.483.2495 541.752.9096 (available 24 hours a day)

1. Many GE documents are provided as PDFs (portable document format). To read these documents, you

will need Adobe Acrobat Reader, which can be downloaded free from Adobe’s website at

www.adobe.com.

Appendix A Boolean logic

This appendix provides an overview of Boolean logic and

examples of macros applied to Boolean logic.

Alliance Builder

User Manual

278

Boolean logic

A Boolean logic equation consists of three basic components, inputs or operands, operators,

and a result X. The Alliance system applies Boolean logic to create macros.

Inputs (operand). An input, in a logic equation, can have only one of two possible

values or states. Some examples of the logical state of an operand is True or False,

Set or Clear, Off or On, 1 (one) or 0 (zero), Active or Inactive, and Yes or No. In the

Alliance system for instance, a zone alarm event flag is set or clear, it is true if in

alarm and false if not in alarm.

Result X (output). The result of the equation is based on the operations performed on

the inputs (operands). The value of the result is either true or false. If true, the macro

will be performed.

Operators. Operators perform logical operations on the inputs (operands). These

operands can be considered logic gates with multiple inputs and a single output.

Each operator can be called a gate, such as OR gate or AND gate. When defining a

macro within the Alliance system, it is beneficial to understand the symbols of a

gate and how it is wired into the logic.

Logical OR operator

The OR operator performs a logical OR on the inputs and can be summarized as any 1 in

results in a 1 out, or any true input will result in a true result.

If A or B are active, then the result X is active. In Table 37 for the OR gate symbol, the

notation for an OR operation is +, as in A + B and is said A OR B.

A OR B = X

Table 37. OR gate

Input A Input B Output X

False False False

True False True

False True True

True True True

Appendix A

Boolean logic

279

Logical AND operator

The AND operator performs a logical AND operation on the input and can be summarized

as an 0 results in a 0 out.

In Table 38 for the AND gate symbol, the notation for an AND operation is *, as in A * B

and is said A AND B.

A AND B = X

Table 38. AND gate

Input A Input B Output X

False False False

True False False

False True False

True True True

Alliance Builder

User Manual

280

Logical NOT operator

A NOT can be applied individually to an input or any output of a gate. Essentially the

operation inverts the state, a NOT true equals false, either going into the gate or out of the

gate.

Inverter NOT symbol

In the inverter NOT symbol, notice that the / notation preceding the A in X = /A indicates

that the value of X (output) is the opposite of A (the input). The bubble is actually the

inverter and as such can be applied to any input to any gate or output of any gate, as in the

following figure:

The notation for a NOT operation is / as in /A * B and is said NOT A AND B. To have a true

output X, A must be false AND B must be true.

/A * B = X

Table 39. NOT gate

Input A Input B Output X

False False False

True False False

False True True

True True False

Appendix A

Boolean logic

281

Combination logic

The Alliance system allows the user to define macros with up to four logical inputs, each

having three basic operators with one output. In some situations it may be that all inputs are

OR gated or AND gated resulting in the following figures.

Input OR gate

Input AND gate

These are logic equations of the simplest form. To have a positive output on the 4 input OR

gate any one of the four inputs needs only be true or positive. However, all inputs to the

AND gate must be true to have a true output.

Many macros consist of a combination of gates to drive an output and the programmer must

have a basic understanding of how to use a combination of logic gates to drive the output.

Each input will have the ability to be OR gated or AND gates with the following input.

(1 AND 2) OR 3 OR 4 = X

This logic function with inputs 1 and 2 AND gated results in the gate providing one input to

a 3 input OR gate. If either 3 or 4 are true the output will be true. If both inputs 1 and 2 are

true, the output will be true because the output of the AND gate for inputs 1 and 2 are OR

gated to the result.

(1 OR 2 OR 3) AND 4 = X

Alliance Builder

User Manual

282

Input 4 must be true and any one of inputs 1, 2, or 3 must be true for X to be true. Input 4

enables any of the OR gated inputs to drive X.

Appendix A

Boolean logic

283

Examples of macros applied to Boolean logic

The following examples are guidelines to help you create macros and map them to the

underlying Boolean logic.

Example 1. 4 input OR gate

The inputs are activated by an output (relay) activating or an event flag activating. All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR. The logical equation can be combined with any output function except for the latched

output function.

Logical symbol

Logical equation. Input 1 + Input 2 + Input 3 + Input 4 = Output

Table 40. Example 1

Input OR/AND Result

1 OR If any of the inputs activate, collectively, or individually, the output

will be triggered.

2OR

3OR

4OR

Alliance Builder

User Manual

284

Example 2. 2 input AND gate + 2 input OR gate combined

The inputs are activated by an output (relay) activating or an event flag activating. All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR. The logical equation can be combined with any output function except for the latched

output function.

Logical symbol

Logical equation. Input 1 + (Input 2 * Input 3) + Input 4 = Output

Table 41. Example 2

Input OR/AND Result

1 OR If input 1activates, the output will be triggered.

AND

If inputs 2 and 3 activate, the output sill be triggered.

4 OR If input 4 activates, the output will be triggered.

Appendix A

Boolean logic

285

Example 3. 2 input AND gate + 2 input OR gate combined

The inputs are activated by an output (relay) activating or an event flag activating. All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR. The logical equation can be combined with any output function except for the latched

output function.

Logical symbol

Logical equation. Input 1 + input 2 + (Input 3 * Input 4) = Output

Table 42. Example 3

Input OR/AND Result

1 OR If either input 1 or input 2 activates, the output will be triggered OR

2OR

AND

Inputs 3 and 4 have to activate simultaneously to tripper the output.

Alliance Builder

User Manual

286

Example 4. Combination not applicable, do not use

Do not use this combination! The exact logical equation with different inputs can be

achieved by the combination in example 6.

Logical symbol

Logical equation. Input 1 = Output

Input 2 * Input 3 * Input 4 = Not operational

Note: Alliance Builder cannot perform this combination.

Table 43. Example 4

Input OR/AND Result

1 OR If input 1 activates, the output will be triggered.

2 AND Input 2 NOT OPERATIONAL

3 AND Input 3 NOT OPERATIONAL

4 AND Input 4 NOT OPERATIONAL

Appendix A

Boolean logic

287

Example 5. 2 input AND gate + 2 input OR gate combined

The inputs are activated by an output (relay) activating or an event flag activating. All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR.The logical equation can be combined with any output function except for the latched

output function.These rules apply to all examples, except for example 8, the actual latched

output function example.

Logical symbol

Logical equation. (Input 1 * Input 2) + Input 3 + Input 4 = Output

Table 44. Example 5

Input OR/AND Result

1 AND Inputs 1 and 2 must activate simultaneously to trigger the output OR

2AND

Input 3 OR

Input 4 will trigger the output.

Alliance Builder

User Manual

288

Example 6. 3 input AND gate + 1 OR input combined

The inputs are activated by an output (relay) activating or an event flag activating. All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR. The logical equation can be combined with any output function except for the latched

output function.These rules apply to all examples, except for example 8, the actual latched

output function example.

Logical symbol

Logical equation. (Input 1 * Input 2 * Input 3) + Input 4 = Output

Table 45. Example 6

Input OR/AND Result

1ANDInput 1 AND

Input 2 AND

2AND

AND

Input 3 have to activate simultaneously to trigger the output OR

input 4 can trigger the output directly.

Appendix A

Boolean logic

289

Example 7. 4 input AND gate

The inputs are activated by an output (relay) activating or an event flag activating.All inputs

may be optionally individually inverted, the NOT function. Any unused inputs should be set

to OR. The logical equation can be combined with any output function except for the latched

output function. These rules apply to all examples, except for example 8, the actual latched

output function example.

Logical symbol

Logical equation. Input 1 * Input 2 * Input 3 * Input 4 = Output

Table 46. Example 7

Input OR/AND Result

AND

Input 1 AND

Input 2 AND

Input 3 AND

Input 4 have to activate simultaneously to trigger the output.

Alliance Builder

User Manual

290

Example 8. RS flip-flop: 3 x SET inputs, 1 x RESET input

When the output function is set to latched, the macro is not looking at all to logical

expression OR or AND for all input.The first 3 inputs will be handled as SET inputs and the

fourth input will be handled as a RESET input of a RS flip-flop.The RESET will always

predominate the SET inputs.Inverting the input conditions or output conditions is still

applicable.

Logical symbol

Logical equation. Input 1 + Input 2 + Input 3 = SET output

Input 4 = RESET output

Table 47. Example 8

Input OR/AND Result

OR/AND

SET the RS flip-flop output

4 OR/AND RESET the RS flip-flop

Appendix A

Boolean logic

291

Commonly used macros

The following are examples of commonly used, helpful macros.

Door control using different door unlock time

Description. Door control using different door unlock time. The door unlock time

(doors 1 to 16) is a global setting.

Setup

Macro programming

RAS event flag set RAS EF

Event to output Door unlock output triggers on DOOR UNLOCK EF

Macro output Timed (1 to 255 seconds)

Input flag Timed - required time

Input 1 EF RAS EF

Input 2 Undefined OR

Input 3 Undefined OR

Input 4 Undefined OR

Door unlock

Activate EF EF

Alliance Builder

User Manual

292

Operate door when area is not armed

Description. Only allow a door to be opened when area is not armed.

Setup

Macro programming

RAS event flag set RAS EF

Area

Area disarmed EF EF

Event to output Door unlock output triggers on DOOR UNLOCK EF

Macro output Timed (1 to 255 seconds)

Timed - required time

Input 1 EF RAS EF

Area

Input 2 EF EF AND

Input 3

Input 4

Door unlock

Activate EF EF

Door unlock EF = RAS EF x Area EF

Appendix A

Boolean logic

293

Use function keys to set an output

Description. Use the function keys to set an output/arm a system using a function key.

Setup

Macro programming

Event to output OPUT setup for activating on time zone 42 or above

Alarm group Setup alarm group AGRP for area with alarm system control and

arm only

Input Input IPUT setup as type 5 using alarm group AGRP

Macro output Timed (1 to 255 seconds)

Timed - 2 seconds

Input 1 O/P OPUT

Input 2

Input 3

Input 4

Activate I/P IPUT

Alliance Builder

User Manual

294

Provide latch functionality for entry/exit loop

Description. Setup an EF providing latch functionality (suitable for detectors in entry/

exit loop).

Setup

Macro programming

Event to output Latch OPUT triggered by LATCH EF

Area Area disarmed EF (AREA EF)

Entry EF (EE EF)

Exit EF (EE EF)

Macro output Non-Timed

Area

Input 1 EF EF Not

Input 2 EF EF Not AND

Input 3 OR

Input 4 OR

Activate EF LATCH EF

Appendix A

Boolean logic

295

Activate a buzzer when a zone is active and area is not armed

Description. Activate a buzzer when a zone is active and the area is disarmed.

Setup

Macro programming

System EF Keypad buzzer triggered by CHIME EF

Area Area disarmed EF (AREA EF)

Inputs Zone EF IPUT EF

Zone EF when active = YES

Macro output On timed (1 to 255 seconds)

Time = TIMED

AREA

Input 1 EF EF

IPUT

Input 2 EF EF AND

Input 3

Input 4

Activate EF CHIME EF

Alliance Builder

User Manual

296

Activate buzzer when zone is active

Description. Activate a buzzer when a zone is active and the area is disarmed but only

out-of-hours.

Setup

Macro programming

System EF Keypad buzzer triggered by CHIME EF

Area Area disarmed EF (AREA EF)

Inputs Zone EF IPUT EF

Zone EF when active = YES

OOH time zone Out-of-hours

Time zones time zone OOH

Event to output OP

Triggers on IPUT

Disabled by OOH

time zone

Macro output On-timed (1 to 255 seconds)

Timed - TIMED

AREA

Input 1 EF EF

Input 2 O/P OOH OP EF AND

Input 3

Input 4

Activate EF CHIME EF

Appendix B Card access

This appendix provides an overview of how the Alliance

system uses card readers for access control. Alliance provides

user input through personalized cards for each user that has

access to the areas controlled by the system.

In this appendix:

Card and card reader types 298

Card formats and data fields . . . . . . . . . . . . . . . . . . . . .298

Smart card programming . . . . . . . . . . . . . . . . . . . . . . . .299

Reader configuration cards . . . . . . . . . . . . . . . . . . . . . .300

System codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

Offset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

IUM (intelligent user module) and memory . . . . . . . . . .303

Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

Card read sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . .306

Alliance Builder

User Manual

298

Card and card reader types

There are three basic types of cards and card readers.

Magnetic swipe. Magnetic scope cards have a magnetic strip along the edge of the card

that contains encoded information about the user. The information is communicated

when the card is moved through the card slot of the reader. The information stored

on these cards must be specified during the purchasing process. The Alliance system

currently supports several magnetic readers and keypads.

Wiegand. Wiegand proximity cards have user information embedded on the card. This

information must be specified during the purchasing process. The cards are read by

placing them in close proximity to a Wiegand reader.

Smart cards. Smart cards allow the Alliance administrator to program access cards

through an Alliance management software program. These cards can be

reprogrammed as needed. Smart cards are read by placing them in close proximity

to a proximity card reader.

Card formats and data fields

When a card is read by a reader, the system code and the card number are communicated.

Depending on the type of card used, this information is either embedded on the card when

purchased, or programmed by the Alliance smart card programmer.

The following types of formats can be used with an Alliance system:

magnetic swipe card. System code range from 0 to 65535, card number range from 0

to 65535.

26-bit Wiegand. System code range from 0 to 255, card number range from 0 to

65535.

27-bit Tecom Wiegand. System code range from 0 to 247, card number range from 0

to 65535.

Smart card. Aritech Wiegand ASC (recommended), 26-bit Wiegand

Appendix B

Card access

299

Smart card programming

When a smart card is purchased, it has no embedded information and must be programmed

to communicate with the reader. To program smart cards, you use an Alliance management

software program and a card programmer. The programming password and the site codes are

two key elements that you must know prior to programming. You must also have a basic

understanding of the Alliance system.

Smart card programming options include:

Com port. Specify a Com port that has been designated as a card programmer port. If

no port has been designated, identify a Com port.

Connection password. A connection password is required to connect the card

programmer so that unauthorized cards cannot be programmed. This password can

be any numeric password up to 10 characters in length.

Poll rate. The poll rate allows you to specify how often Alliance will poll the card

programmer. We recommend a setting of 100.

Activate programmer. When you activate programmer, you allow the programmer to

operate.

Master overwrite password. This password can be any numeric password up to 10

characters in length and is blank by default. This password is required in the

following situations:

• When a new card for a user is created and that user already has a card issued.

• When a request is made to rewrite data to a card that already has data.

This password can only be changed by operators with the correct security access.

The connection and master passwords are stored in the card programmer and, although

initially blank, will after programming require the existing password to program a new

password.

Alliance Builder

User Manual

300

Reader configuration cards

Reader configuration cards allow an operator to specify the access settings needed for the

readers and write all the necessary data to one particular card. The operator can then move

around the building, badging at readers that need to be programmed. This will default each

reader to the information settings stored on the configuration card. The information on the

card can also be read back and rewritten to allow your settings to be changed when

necessary. Factory-set default settings are also available.

Reader settings include:

Valid card beep. Sound one beep when a valid card is badged in addition to other

beeps that will sound due to control panel operation, such as four beeps for a valid

card.

Watchdog. Transmit a watchdog data stream when in offline mode when no valid card

is present.

Read option card. The smart card reader can be set up using a configuration (option)

card. To disable changing the configuration more than once with a configuration

card. Disable this option.

Online blue LED options. The setting of the blue LED operation when online can be

changed between Door open only and Disarmed plus door open.

Online red LED options. The setting of the red LED operation when online can be

changed between Armed and Armed plus door open.

Offline LED options. When offline, the LEDs can be controlled using a one-wire or

two-wire operation.

Valid card LED flash. Allows the blue LED to give a short flash when a valid card is

badged (on during credit transactions).

Night light. Allows the blue LED to partially light up to show directions in a dark

room. When the red or blue LED is active, the night light will be off.

Reader address. Set the RAS address for this reader. When not set, only the other

options will be programmed. The RAS must be polled before the reader can be used.

Protocol options. The smart card reader supports the following formats to transmit

data:

• Aritech Wiegand ASC

Appendix B

Card access

301

• Magnetic swipe (clock data)

Door output. The smart card reader has an open collector output available (the violet

wire) that can be activated by one of the following events:

• Door output door event flag is active on a valid card being badged.

• Tamper output RAS tamper is active.

• Card present output (magnetic swipe only) card is badged.

• Credit output timed on a valid credit transaction activates the output for a set

period as programed in the output time factor.

• Credit output latched on a valid credit transaction toggles the output. The next

transaction will reset it.

Request-to-exit control. Set the supports for request-to-exit. Request-to-exit is

available only in online mode and uses the LED 2 input. When connected to ground,

the door will open. The output option has to be set to door output.

Security mode. The security mode is used to determine if programmed smart cards

with credits and user-defined cards can be read, or only blank, unprogrammed cards

with a unique serial number and user-defined cards. To use the unsecured mode, a

special memory module is required.

Reader token values. A token is a value representing dollars, cents, time, or just a

number. You can set how many credits equal one token. For example, at a library

photocopier, each time a letter-sized copy is made with the card, one token worth ten

cents is deducted. While for legal size copies, two tokens are deducted.

Reader credit account number. Credit account number to subtract the used token

values from (one of four available). See also credit units.

Reader location number. Select a reader location number from 1 to 4. The location

number may represent an area, floor, group of floors, building, or group of

buildings.

Output time factor. The output time factor is used to modify the pulse width output of

the credit output pulsed option. The output time factor is in a range from 1 to 256.

The pulse for the Credit output pulsed is the output time factor multiplied by 0.01

seconds. This gives a pulse width in the range from 0.01 to 2.56 seconds. The

activation time for the Credit output timed option is the output time factor multiplied

by the token value of the reader. This gives a time in the range of 1 second to 193

days.

Alliance Builder

User Manual

302

System codes

A system code, sometimes referred to as a facility or site code, is a numeric value stored in

the control panel and on access cards. The Alliance system has two system codes, A and B.

This allows the use of cards with different system codes.

Offset

The offset is a numeric field that is stored in the system and is used to link to the card owner.

Each card communicates a unique card number. Offsets range from -32767 to 32767 and

specify the number to be added or subtracted from the actual user card ID number. The

control panel will determine the user number using the following calculation:

User number = Card ID + (or-) card offset

Example. The card offset is programmed as -5000. The actual physical card ID number

is 5001. The card will be programmed as User 1 and will report as User 1.

The calculated user number is used for programming the user and reporting events to the

central station or control panel. A and B are used in conjunction with the respective system

code. System code A is mapped to offset A and system code B is mapped to offset B.

Appendix B

Card access

303

IUM (intelligent user module) and memory

The hardware memory configuration of the Alliance system will determine the capacity of

resources available. The largest impact is in consideration to the amount and types of users.

When designing your system this factor must be taken under consideration.

The following types of hardware memory configurations can be used in an Alliance system:

• Standard (no memory expansion)

• 1 MB expansion software IUM

• Expanded 1 MB (non-IUM)

• 4 MB IUM (SIUM)

• 8 MB IUM (LIAUM)

Systems can be upgraded by ordering the memory upgrade kits. The type of configuration

must be consistent throughout the Alliance system. This includes all controllers that come

with a memory module such as control panels and 4-door/elevator controllers. Where

systems include both, both must have the same memory configuration.

Each type of memory configuration has limitations on users and user types. There are also

software IUM options only available with firmware versions F and above.

Table 48 shows the limitations for each type of memory configuration.

Table 48. Memory configuration limitations

Standard

1 MB

expansion

software IUM

1 MB

expansion

module

4 MB

IUM module

8 MB

IUM module

Users with cards 50 2000 2000 17873 65535

Users with names 50 200 200 200 200

Users with PINs 50 2000 1000 1000 1000

Alarm events 250 1000 1000 1000 1000

Access events 10 1000 1000 1000 1000

Alarm groups 74 138 138 138 138

Floor group 10 128 128 128 128

Door groups 10 128 128 128 128

Alliance Builder

User Manual

304

Users

The database related to a user includes the following:

• User number (1 to 65,535)

• User name (16 characters)

• Alarm group (0 to 138)

• Door group (0 to 128)

• Floor group (1 to 64)

• PIN (4 to 10-digit sequence)

• Contact details

• Check boxes for Card only, Extended access, Trace, and Privileged

• Smart card options

The user database contains the following fields:

User number. The user number is a value between 1 and 65,535 and is used by the

system to link a PIN or card to the functions it will do and the doors it can enter.

When programming cards, the ID number programmed in the card is the user

number (unless your system uses a card offset or intelligent user modules).

User numbers above 50 will only be accepted if a 1 MB, 4 MB, or 8 MB user

memory module is used. User numbers above 11,466 will only accepted if a 4 MB

or 8 MB user memory module is used.

User name. The user name is a text name with up to 40 characters (up to 20 characters

for the first name and up to 20 characters for the last name). Only the first 200

names (50 if the system does not have memory expansion) and only the first 16

characters of each name will be downloaded.

Department. A department indicates the area that a user works in. Department details

are entered in Admin-Department. Department details are only available for

registered photo ID users.

User type. User types define the type of users for enhanced security and are only

available in combination with a 4-door/elevator controller. User types include:

• Normal - Normal operation

• Two cards - Requires two valid user codes/cards to be presented to do any alarm

or access control functions

Appendix B

Card access

305

• Guard - The user’s code/card can only do functions when used in conjunction

with a visitor’s code/card.

PIN/card number. The PIN/card number holds the personal identification number for

the user.

Confirm PIN/card number. The PIN/card number is hidden. To check that typing

errors have not occurred, the number has to be typed in again in the Confirm PIN/

card number box.

Users 1 to 1000 can have a PIN and/or card.

Users 1001 to 11,466 can only have a card, unless a software IUM is used. The PIN

is created and is only valid when used with Card and PIN function on a 4-door/

elevator controller.

All users can have a name in the software, however, only the first 200 names will be

downloaded (50 if the system does not have any memory expansion).

Trace. All alarm and access functions done by the user will cause a trace message to be

sent to the application software.

Card only. The user will not be able to use the PIN code. This allows the PIN code

field to be used to program cards on formats not normally compatible with a special

reader is used.

Privileged. The user’s code/card will override any antipassback restrictions.

Extended access. The user will be allowed extended door unlock times.

Alarm group. The user’s alarm group is used to assign alarm control and menu

functions.

Door group. The user’s door group determines through which doors and at what times

the user can access the facility.

Floor group. The user’s floor group determines through which floors and at what times

the user can access the facility.

Comments. Add comments regarding the current user.

Card issue. When using card readers in combination with IUM modules or when smart

cards are being programmed with a smart card programmer, the following card

details can be edited.

• User number - The selected user number

Alliance Builder

User Manual

306

• Card status - The current status of the card (active, disabled, void, reassigned, or

lost).

• Raw card data - Shows a special number

• Credit issue - Adds credits to a user. Every user can have credits for up to four

different accounts.

• Card security - Set the access level and the locations where the credits can be

used.

Card read sequence

The typical card read operation is illustrated in the following steps:

• User 1 (facility code 100, card ID 5001) presents their card to a reader.

• The reader sends the card information to the control panel (facility code A: 100, B: 0

(not used), offset A: -5000, B: 0 (not used).

• The control panel queries the user database manager (User 1 record, name, PIN:

12345, user: 1).

• The databases returns the record of the card holder to the control panel and records

the access event for User 1 in the event storage manager (event buffer, event access

User 1).

• The control panel sends an Access Granted message to the reader.

• The reader notifies the user (beep, LED change, RTE) that access is granted.

Appendix C Text word library

By default, the system provides up to 900 predefined

commonly used text words (referred to as the text word

library). You can also define up to 100 additional text words to

customize the library to your specific needs. The Text words

tool on page 100 provides a searchable list of both predefined

and user defined text words.

Alliance Builder

User Manual

308

Text word library

Above 001 Area nine 340

Access 002 Area ten 341

Accountant 003 Area eleven 342

Accounts 264 Area twelve 343

Accounts manager 417 Area thirteen 344

Across 004 Area fourteen 345

Admin 404 Area fifteen 346

Administration 418 Area sixteen 347

Air conditioning 272 Armored car 410

Alarm 005 Arming 009

All 006 Art 421

All area user code 362 Assistant 265

All ATMs 520 Assistant manager 367

Amenities 419 Assistant manager day 369

Analog 295 Assistant principal 422

Ancillary staff 420 Assoc. administrator 423

And 514 At 010

APC 007 ATM 011

Area 008 Atrium 308

Area one 332 Audio 012

Area two 333 Auto 013

Area three 334 Auto arm 350

Area four 335 Auto disarm 351

Appendix C

Text word library

309

Area five 336 Automatic 014

Area six 337 Auto reset 381

Area seven 338 Aux 015

Area eight 339 AV production 424

Back 016 Board 024

Baker 349 Boardroom 025

Baker 1 376 Body 026

Baker 2 377 Boiler 027

Bar 017 Bottom 028

Basement 018 Box 326

Bathroom 019 BRD 539

Battery 273 BRG 267

Bay 020 Building 029

Beam 021 Bulk store 425

Bedroom 022 Business 030

Bell 023 Button 031

Alliance Builder

User Manual

310

Cabinet 032 Cleaner admin 413

Cage 033 Clerk 049

Call 034 Clip 050

Calibration 293 Cold 051

Camera 035 Combination 052

Canteen 036 Commerce 428

Car 037 Commercial 053

Caroline 038 Communication 054

Cash 039 Compactor 055

Cash office 408 Computer 056

CCTV 040 Computer room 429

Ceiling 041 Conference 057

Cellar 042 Conference room 430

Central 043 Contact 058

Central bulk store 426 Control 059

Center 431 Corridor 299

Charge 045 Count 358

Chief 046 Counter 060

Cigarettes 047 Cover 325

City 048 Covered area 432

Class room 427 Covering 061

Cleaner 352 Curtain 522

Cleaner selling 411 Custody 269

Cleaner front 412 Customer 062

Appendix C

Text word library

311

Dairy 274 Door 069

Dark room 433 Door keypad 543

Data 304 Doors 465

Delayed 063 Double 503

Desk 266 DOTL 275

Detector 064 Downstairs 070

Developmental 434 Driveway 071

DGP 065 Drug 072

Dining 066 Dry craft 436

Digital 296 DUALTEK 074

Dispatch 067 Duct 073

District facility 435 Dump 330

Dock 068 Duress 075

Early 437 Enquiry 081

East 086 Entry 082

Education 438 Entry/display area 440

Electric 077 Equipment 083

Electrical 078 Equipment store 441

Electronics 439 Evaluation 298

Emergency 079 Exit 084

Engineering 297 Exterior 085

End 080 External 086

Alliance Builder

User Manual

312

Factory 087 FLR 323

Factory manager 442 Foil 095

Fail 276 Food 277

Failure 088 Forced door 278

Fashion 089 Foyer 096

Fence 090 Freezer 097

File 091 Front 098

Film 092 Front counter 379

Fire 093 Front door keypad bank 1 538

Fitness testing 443 Front door keypad bank 2 542

Floor 094

Games 099 Group 12 386

Gaming 283 Group 13 387

Gas 100 Group 14 388

Garden 101 Group 15 389

Garage 102 Group 16 390

Gate 103 Group 17 391

General 104 Group 18 392

General circulation 445 Group 19 393

General staff 530 Group 20 394

General staff 1 519 Group 21 395

General staff 2 532 Group 22 396

GLA 446 Group 23 397

Appendix C

Text word library

313

GLA/stage 447 Group 24 398

Glass 105 Group 25 399

Goods 328 Group 26 400

Graphics 448 Group 27 401

Grd/Flr 312 Group 28 401

Groundsman store 449 Group 29 403

Ground 106 Guard 450

Group 303 Gun 279

Group 11 385 Gym 315

Hall 107 High SSO 527

Hallway 444 Holdup 110

Hand 108 Holdup bar 361

Hatch 327 Holdup button 382

Heat 109 Home economics 451

High level user master 364

In 111 Instrument store 452

Inertia 280 Interior 113

Inner 281 Internal 114

Input 112 Isolate 524

Alliance Builder

User Manual

314

Janitor 453 Junction 365

Jewelry 115

Key 355 Kiosk 348

Keypad 302 Kitchen 117

Keyswitch inhibited 353 Kamahira 384

Kick bar 116

Landing 118 Loans 127

Lay by 282 Lobby 128

Learning 454 Lock 129

Left 119 Long range 130

Lending 120 Loss prevention 375

Level 121 Lounge 131

Library 122 Low 284

Lift 123 Low level user master 363

Light 124 Low SSO 528

Liquor 125 Lower 132

Loading 126 Lunch 133

Appendix C

Text word library

315

Machine 134 Meat 329

Machine store 455 Mechanic 523

Magnetic 135 Medical 141

Main 136 Meeting 316

Main admin office 436 Mens 142

Main entry 457 Metal workshop 460

Mains 285 Microwave 143

Makash 318 Middle 144

Manager 137 Money 145

Manchester 138 Motion 146

Manual 458 Motor 147

Master 139 Multipurpose room 461

Master Advisor 044 Music 462

Mat 140 Music practice 463

Materials store 459 MYCP & interview 464

ND 313 Noise makers isolated 354

Near 148 North 152

New 268 North West 153

Next 149 North East 154

Next to 150 Note 155

Night 151 Number 156

Night manager 370

Alliance Builder

User Manual

316

Off 157 Orchestral 466

Office 158 Out 360

Officer 159 Outer 286

On 160 Over 162

Open 161

Panel 163 Pneumatic 357

Panic 164 Point 171

Park 165 Pool 172

Passage 467 Popup 356

Passive 166 Port 173

Patrol 468 Power 174

Patrol 2 531 Preschool 471

Patrol 3 533 Preparation 472

Penset 167 Principal 473

Performing art center 469 Print 311

Perimeter 168 Printery 474

Personnel 321 Production 475

Phone 169 Productivity 310

PIR 170 Professional support 476

360 PIR 322 Protection 175

Pit 287 Public waiting 477

Plant 288 Pull 176

Playroom 470 Pump 177

Appendix C

Text word library

317

Quiet learning 478

Rack 178 Representative 190

Radio 179 Reprographic production 480

Raid 180 Request to exit 518

Ramp 181 Research 264

RAS 317 Resource center 481

Reader 182 Resource store 482

Rear 183 Retrofit 300

Receiving 184 RF 306

Receiving dock 407 Right 191

Receiving door 378 Riser 309

Reception 185 Road 192

Record 186 Roller door 193

Reed switch 187 Roof 194

Reference 479 Room 195

Refrigeration 188 RSB 263

Remote 189

Alliance Builder

User Manual

318

Safe 197 SRT 219

Sales 305 SSO 544

Savings 270 ST 314

School 483 Staff 220

Science 484 Staff & amenities 495

Screen 198 Staff areas 1 to 4 525

Secretary 199 Staff areas 5 to 8 526

Security 324 Staff door 380

Seismic 207 Staff window bypass 521

Selling 200 Staff entry 409

Senior staff 529 Staff lounge 496

Senior staff second TZ 535 Staff room 487

Senior staff third TZ 537 Staff second TZ 534

Sensor 201 Staff third TZ 536

Servery 485 Stair 221

Service 202 Stairway 222

Service bay 405 Station 223

Service manager 486 Stereo 224

Services room 487 Stop 290

Shop 203 Stock hand 371

Short Tom 204 Stock hand 1 372

Show 205 Stock hand 2 373

Side 206 Stock hand 3 374

Sign 208 Stock room 406

Single 488 Store 225

Appendix C

Text word library

319

Siren 209 Store manager 366

Shutter 210 Store manager day 368

Sliding 211 Store room 331

Small 289 Storage 226

Small equipment store 489 Strobe 227

Small group 490 Strong room 359

Smoke 212 Strike 228

Sound 213 Student center 498

South 214 Student waiting 499

South East 215 Studies 500

South West 216 Studio 501

Spare 217 Substation 319

Special 491 Sump 291

Special access 1 414 Supermarket 229

Special access 2 415 Supervisor 230

Special access 3 416 Surveillance 231

Special education area 492 Switch 232

Sports store 493 Switchboard 292

Spray 494 System 233

Sprinkler 218

Alliance Builder

User Manual

320

Tamper 234 Textile store 509

Tape 235 The Challenger 044

Teacher 504 Time 238

Teacher work 505 To 239

Tea room 502 Toilet 240

Technical 301 Tool 241

Technician 506 Top 242

Telecom 320 Trading 271

Teller 236 Trades 510

Temp GLA 507 Transmitter 243

Temp typing 508 Trap 244

Temperature 237 Typing GLA 511

Ultrasonic 245 Upper 246

Under 512 Upstairs 247

Unit 513

Valve 248 Ventilator 251

Vault 249 Video 252

Vault RAS bank 1 540 Voltage 253

Vault RAS bank 2 541 Volumetric

Vent 250

Appendix C

Text word library

321

Wall 254 Wired grid 258

Warehouse 255 Women's 259

West 256 Wood workshop 516

Wet craft 515 Work room 517

Window 257 Workshop 260

Yard 261

Zone 262

Alliance Builder

User Manual

322

Appendix D Numbering

This appendix provides an overview of Alliance system

numbering.

In this appendix:

System bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324

4-door/elevator controller . . . . . . . . . . . . . . . . . . . . . . .329

RAS numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .332

Alliance Builder

User Manual

324

Numbering

Although Alliance Builder can handle the addressing/numbering for you, a basic knowledge

of the numbering scheme will make programming the system and understanding the

restrictions easier. Alliance systems can be very large and system components must be set-

up to function together. The system addressing and numbering scheme is an essential

element in this process.

It is important to understand the difference between addresses and numbers and how they

relate to each other:

Addresses. Assigned to control panels, DGP devices, and RAS devices.

Numbers. Assigned to zones (inputs) and relays (outputs) on a device and are directly

tied to the address of that device.

Each zone and relay is assigned a unique number. These numbers are grouped in blocks of

16 that are tied to a specific device address.

System bus

When mapping a system with DGP devices and expansion modules, you must know how

many addresses are consumed by each component in the system. Systems with an AL-4017

or an AL-4617 control panel can support up to 16 addresses. Each address will consume up

to 16 zone numbers for a total of up to 256 possible zones.

Zone numbers 1 through 16 are control panel zones because by default the control panel

address is 0.

Appendix D

Numbering

325

Table 49 shows the 16 system addresses and their related zones.

Since the control panel consumes address 0, up to 15 addresses that can be used for DGP

devices. By default each DGP device consumes a single DGP address. However, by

expanding the number of zones a DGP device can control with a zone expansion module, a

DGP device can consume zone numbers available in two addresses. Other DGP devices in

the system can not use the second address or any of the 16 zone numbers assigned to the

address.

Table 49. Addresses and zones

Address Zones

0 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

1 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32

2 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48

3 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64

4 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80

5 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96

6 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112

7 113, 114, 115, 116, 117, 118, 119, 120, 121, 122, 123, 124, 125, 126, 127, 128

8 129, 130, 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144

9 145, 146, 147, 148, 149, 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160

10 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176

11 177, 178, 179, 180, 181, 182, 183, 184, 185, 186, 187, 188, 189, 190, 191, 192

12 193, 194, 195, 196, 197, 198, 199, 200, 201, 202, 203, 204, 205, 206, 207, 208

13 209, 210, 211, 212, 213, 214, 215, 216, 217, 218, 219, 220, 221, 222, 223, 224

14 225, 226, 227, 228, 229, 230, 231, 232, 233, 234, 235, 236, 237, 238, 239, 240

15 241, 242, 243, 244, 245, 246, 247, 248, 249, 250, 251, 252, 253, 254, 255, 256

Alliance Builder

User Manual

326

Example 1

If the control panel on the system bus has an 8-zone expansion module, the control panel

will consume the 16 zones in address 0 (zones 1 through 16) and the first 8 zones in address

1 (zones 17 through 24). In this instance, zones 25 through 32 will not be used by the control

panel and will not be available for any other device. The dark gray shading in Table 50

indicates the addresses and zones consumed by the control panel. The first address available

for a DGP will be address 2.

Table 50. Example 1

Address Zones

01, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

117, 18, 19, 20, 21, 22, 23, 24,
