E S L

Installation and Operations Manual

ESL 1500 Series

Fire Alarm Control Panel

Table of Contents

Precautions and Warnings ............................................................. 1

System Overview .............................................................................. 1

Panel Listing ............................................................................................................. 1

Panel Description .............................................................................. 2

Ordering Information .................................................................................................. 2

Installing the Panel ............................................................................ 3

Optional Zone Expansion and Communicator Module Installation ........................... 4

Panel Controls .................................................................................... 4

Control Switches ....................................................................................................... 4

Normal Condition ....................................................................................................... 5

Alarm Condition ......................................................................................................... 5

Alarm Verification ....................................................................................................... 5

Zone Disconnect ........................................................................................................ 5

System Reset ............................................................................................................. 6

Trouble Condition ....................................................................................................... 6

Supervisory Functions ................................................................................................ 6

Remote Test (Drill) ..................................................................................................... 6

Field Wiring ....................................................................................... 7

Installation Recommendations/Precautions .............................................................. 9

Field Wiring Checkout Procedures ........................................................................... 10

Alarm Initiating Devices ............................................................................................ 10

Alarm Indicating Devices .......................................................................................... 10

Connecting Supplementary Contacts ....................................................................... 10

Connecting Optional Remote Notification Devices .................................................. 12

Programming .................................................................................... 12

BMB Programming .................................................................................................. 12

ZEM Programming .................................................................................................. 13

Testing and System Checkout ......................................................... 13

Maintenance ............................................................................................................ 13

Troubleshooting ............................................................................... 14

Specifications ................................................................................... 15

Appendix A, Compatible Equipment .............................................. 16

Appendix B, Standby Battery Power Worksheet .......................... 18

Appendix C, 1500 Series Operating Instructions ......................... 19

Table of Figures and Tables

Figures

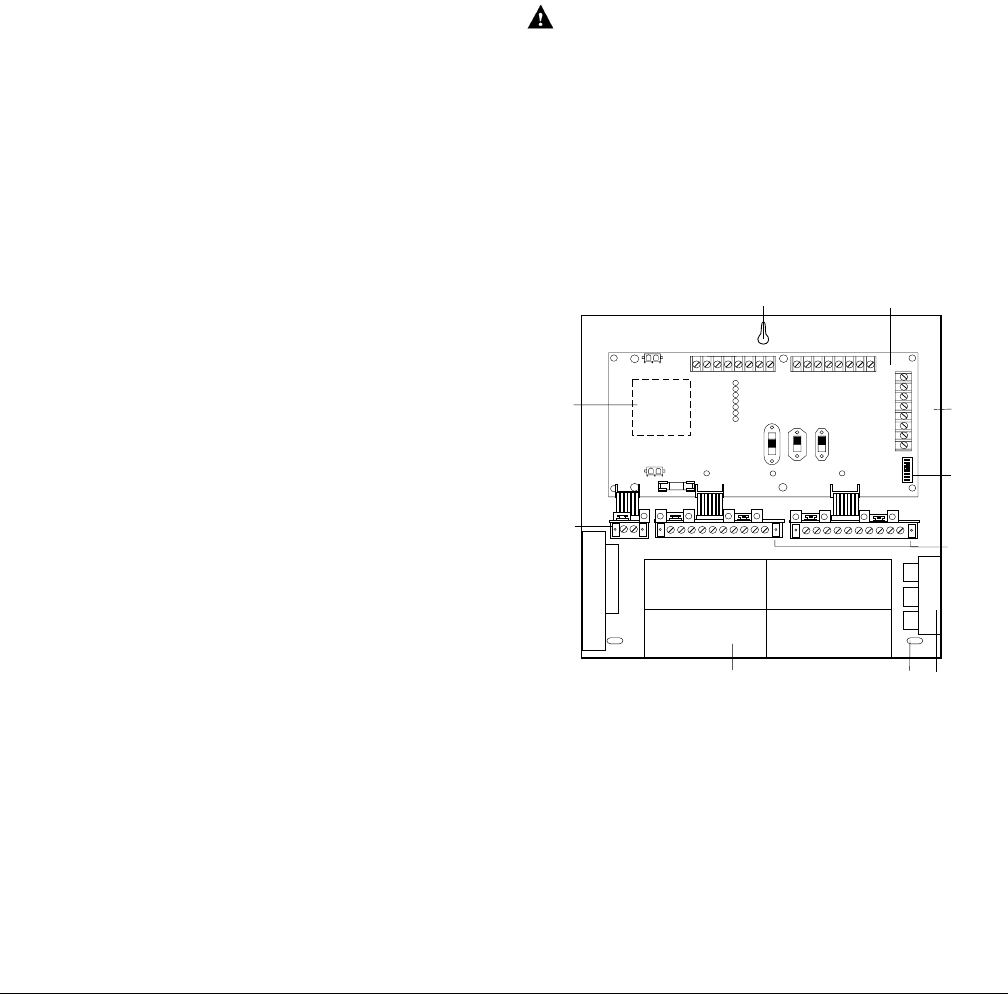

Figure 1. Internal Panel Configuration........................................................................ 3

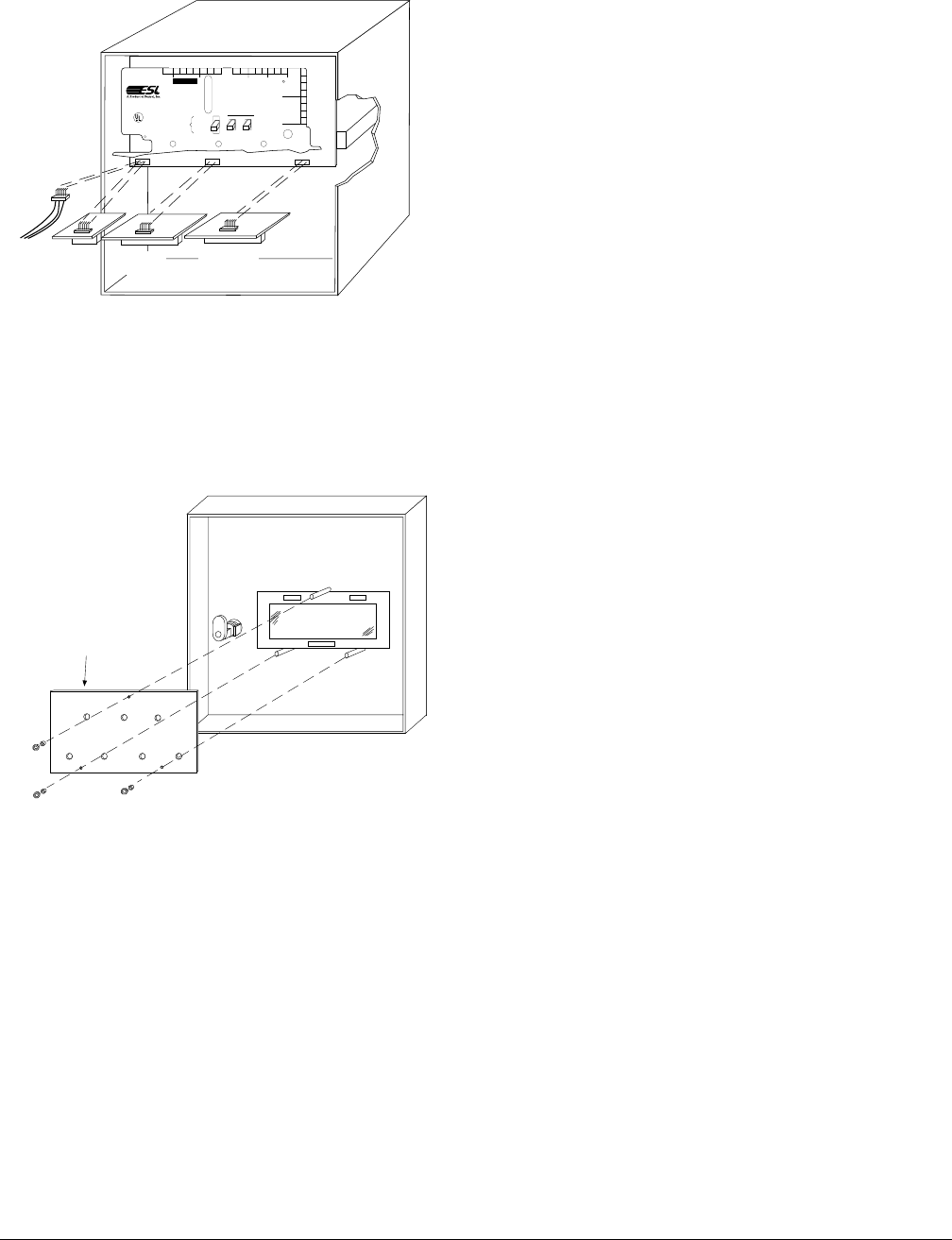

Figure 2. ZEM or LEM Installation ............................................................................. 4

Figure 3. Window Label Installation ........................................................................... 4

Figure 4. Template Diagram ...................................................................................... 6

Figure 5. Class A System Wiring Diagram ................................................................ 7

Figure 6. Class B System Wiring Diagram ................................................................ 8

Figure 7. Power Limited Routing ............................................................................... 9

Figure 8. Zone Relay Module (ZRM) Wiring Diagram ............................................... 11

Figure 9. Zone Relay Module (ZRM) Placement ........................................................ 11

Figure 10. Terminal Connections ................................................................................ 11

Figure 11. Local Energy Module (LEM) Wiring Diagram..............................................12

Figure 12. BMB Default Settings................................................................................. 12

Figure 13. ZEM Default Settings .................................................................................13

Figure 14. ZEM Programming Switches Location...................................................... 13

Tables

Table 1. Ordering Information...................................................................................... 2

Table 2. Status Indicators............................................................................................ 5

Table 3. Wire Resistance ........ .................................................................................. 9

Table 4. Alarm Indicating Circuit Wire Size................................................................. 9

Table 5. BMB Programming Features .........................................................................12

Table 6. ZEM Programming Features .........................................................................13

Table 7. Troubleshooting Guide .................................................................................. 14

Table 8. Compatible Indicating Devices..................................................................... 16

Table 9. Two-Wire Smoke Detector Compatibility .................................................... 17

Table 10. Four-Wire Smoke Detector Compatibility ................................................... 17

ESL 1500 Series Fire Alarm Control Panel

Precautions and Warnings

The equipment described in this manual is Listed by Underwriters

Laboratories, Inc. for use in fire alarm signaling systems, only

when installed in accordance with this manual and National Fire

Protection Association’s National Fire Alarm Code (NFPA 72); the

National Electrical Code (NFPA 70); the Life Safety Code (NFPA

101); and the local authority having jurisdiction (AHJ). The

installer must be familiar with and understand all applicable codes

before beginning installation.

To ensure proper operation of this equipment:

•Do not deviate from any installation instructions

contained in this manual.

•Do not assume any installation details not shown in

this manual.

•Do not alter any mechanical or electrical features of

the equipment supplied.

•Be familiar with the building code, fire prevention

code, and/or other authority having jurisdiction

(AHJ) in the locale of the installation.

It is the responsibility of the installer to ensure that the wiring

and devices installed in the system meet current national

electrical code, NFPA standards, and state and local building

code requirements.

Warning

Under abnormal conditions, AC line voltages may be

present on any terminal. Touching any component could be

hazardous and result in loss of life. A short circuit can

result in arcing that could cause molten metal injuries to

testing personnel.

To minimize this possibility, only qualified technicians

familiar with electrical hazards should perform these

procedures. Safety glasses should be worn by such

personnel, and instruments used for voltage measurement

should be designed for the purpose and should be in good

mechanical and working order.

If any application or installation information is not understood, or

is not covered in this manual, please contact:

Technical Services: 800.648.7424

Sales: 800.547.2556

System Overview

The ESL 1500 Series Control Panels are designed to provide

reliable and economical fire alarm control solutions for commer-

cial, industrial, residential, and institutional applications. The 1500

Series consists of three base models, equipped with one (Model

1501), three (1503), or five (1505) zones. The unique modular

design makes it easy and practical to add features such as extra

relays, remote annunciators or added fire zones (up to 5).

All models come equipped with a Basic Master Board (BMB),

which provides all common system functions for alarm, fault, and

supervisory monitoring, together with one initiating and two

indicating circuits. Models 1503 and 1505 also include Zone

Expander Modules (ZEM), expanding the systems capability from

three zones up to a maximum of five zones.

One housing is common to all three system configurations. The

cabinet holds all standard and optional modules as well as

necessary standby batteries for either 24 or 60 hour protection.

Combine the versatile 1500 Series with the complete line of

compatible ESL smoke detectors, pull stations, and indicating

devices for a reliable fire control system. See Appendix A for a list

of UL Listed compatible devices.

Panel Listings

All 1500 Series systems function in accordance with the National

Fire Alarm Code (NFPA 72) for the following types of systems:

Control Station Signaling Systems

Local

Auxiliary

Types of Signaling Service

Automatic Fire Alarm

Manual Fire Alarm

Waterflow Alarm

Supervisory Fire Alarm (NFPA 72 local only)

Elevator Recall

The 1500 Series is currently listed by these organizations:

UL 864

California State Fire Marshall #7165-0447-121

MEA (New York City) #472-86-SA

2ESL 1500 Series Fire Alarm Control Panel

Panel Description

Standard Features:

•Modular design; 1, 3, or 5 zones

•Power limited

•1.5 Amp. 24 VDC FWR output

•All functions DIP switch activated

•Built-in walktest and alarm verification

•Sprinkler supervisory and waterflow alarm activation

•Class A (Style D) or Class B (Style B) initiating wiring

•Reliability of surface mount design

•Superior lightning protection

Optional Features:

•Local Energy Module (LEM)

•Zone Relay Module (ZRM) 5 relays

•Remote Annunciators (RA)

Table 1. Ordering Information

Model Title Description

1501 Single zone fire panel 1 initiating circuit,

2 indicating circuits

1503 Three zone fire panel 3 initiating circuits,

2 indicating circuits

1505 Five zone fire panel 5 initiating circuits,

2 indicating circuits

1500-BMB Basic Master Board 1 initiating circuit,

2 indicating circuits

1500-ZEM Zone Expansion Module 2 initiating circuits,

Class A or B

1500-LEM Local Energy Module Connect to Listed

master box

1500-ZRM-5 1500 Zone Relay Module 5 relays

1500-SH System housing System housing

with transformer

1500-TK Flush mount trim ring Mounting panel

semi-flush with wall

1500-TR Transformer Transformer

replacement

1500-2.7 End-of-line resistor Initiating and

indicating circuits

2.7 Ky 1/2 W

1500-RA-5A Remote Annunciator 5 alarm zones w/

trouble and

sounder

204-12/24 V Power supervision unit EOL power

supervisory unit

405-01 Polarity reversal relay Single circuit,

24 VDC

ESL 1500 Series Fire Alarm Control Panel

Installing the Panel

To install the unit, follow these 12 steps, and refer to the proper

sections for more information.

1. Create System Diagram: Prepare a carefully laid out

drawing of the complete wiring system hookup. Maintain this

drawing as a permanent record of the systemapplication and

include any future modifications.

Note

“As-built” drawings and this manual should be available at all

times to verify agreement between the connected equipment

and the drawings.

2. Inspect Equipment: Carefully unpack the system compo-

nents and inspect for shipping damage. Report any shipping

damage to place of purchase.

3. Mount Cabinet: Mount the cabinet in a clean, dry, vibration

free area, where the temperature range does not exceed 0°

to 49° C (32° to 120° F). Mount only in interior locations.

Allow adequate space for 180 degree door swing and free

access to sides for conduit entry. Locate the top of the cabinet

approximately six feet (1.8m) above the floor, with the hinge

mounting on the left. Mounting holes in the back of the

cabinet are designed so the cabinet can be mounted without

removing any control equipment. Mount the cabinet to the

wall by first installing the top center mounting screw, leaving

enough space so the cabinet can be hooked over the screw

head. Use screws or bolts no smaller than #10 or 3/16 inches

in diameter. For easier access, remove the door by gently

lifting it from the hinges.

4. Connect Conduit: Complete all connections to the cabinet

with conduit fittings or bushings. Use the knockouts

provided in the sides of the cabinet.

5. Pull Wire: Pull all system wiring through installed conduit

following the guidelines of Article 760 of the National

Electrical Code (NFPA 70) and/or local codes for fire alarm

systems. Observe power limiting codes when running wire.

See Installation Recommendations/Precautions for more

information.

6. Program Components: Before wiring, examine installation

of all modules, chassis and sub-assemblies to ensure proper

mechanical and electrical connections and programming

switches have been selected. See Programming for options.

7. Connect AC: Connect line voltage to transformer leads

located under the BMB. Transformer wires are long enough

so you do not need to remove the circuit board.

8. Connect Batteries: Determine the total system power

requirements by using the Standby Battery Power Worksheet

in Appendix B.

9. System Check: Make certain the 1500 panel is operating

properly before connecting field wiring by performing a

system check. ESL makes this easy by factory installing end-

of-line resistors to the proper Class B zone terminals. To test

the panel, make sure all switches are in their normal position

and power the system by connecting AC and then the

batteries. (Note: if new batteries with low terminal voltage are

used, the Low/No Battery LED may activate. The Low

Battery indicator will deactivate after the batteries are fully

charged - no longer than 48 hours.) No fault indications

should be present. If faults are present, see Table 6. Trouble-

shooting Guide. System check is now complete.

10. Check Field Wiring: Check the integrity of all field wiring

following directions defined in the Field Wiring Checkout

Procedures.This check must be performed before connecting

wiring to the system. Be certain all external wiring is correct

(no opens, shorts, or grounds) and is terminated with the

correct end-of-line devices.

11. Connect Field Wiring: Connect each circuit in turn,

following wiring diagrams provided. Do not make all

connections at once. This procedure will let you bring your

system on-line in stages and quickly identify which portion of

your system is not working.

Note

NFPA 72, Chapter 7 - Inspection, Testing, and Maintenance

should serve as the guideline for all system tests.

12. Test System: Apply power and perform operational tests as

outlined under Testing and System Checkout.

Caution

Read and understand all instructions before beginning

installation. System reliability depends upon proper

installation, testing, and maintenance. Review all national

and local codes before attempting installation. Refer to

National Fire Alarm Code (NFPA 72) for proper location,

mounting, etc. of smoke detectors, heat detectors, and

other alarm initiating devices. Call Technical Support at

800.648.7424 if you have installation questions.

Figure 1. Internal Panel Confirguration

12345678

Zone #1 trouble

Supervisory

Low/no AC

Low/no battery

Ground fault

Indicating #1 trouble

Indicating #2 trouble

1. Mounting hole

2. Basic Master Board (BMB)

3. Housing backbox

4. Programming switches

5. Zone Expander Modules (ZEM)

6. Mounting location for Zone Relay Module 1500-ZRM-5

7. Mounting hole (TYP)

8. Battery area

9. Local Energy Master Box Trip Module 1500-LEM

10. 1500-TR Transformer

4ESL 1500 Series Fire Alarm Control Panel

Optional Zone Expansion and

Communicator Module Installation Panel Controls

Control Switches

System Reset

Resets control unit, provided the alarm condition has been cleared.

Also interrupts power to the alarm initiating circuits of all zones

and to the auxiliary power output. The integral sounder will

activate when the System Reset switch is activated.

Sounder Silence

Activating the switch during a trouble condition will silence the

integral sounder. When all system faults are cleared, a “ringback”

feature will resound the integral sounder to indicate that the switch

is in the silence position. Fault LEDs will remain active until all

faults have been corrected.

Zone Disconnect/Walktest

A three position switch provides for normal, test, and disable

functions for each zone. Under standard conditions, no LEDs will

light when the switch is in the “normal” position.

Note

For maintenance use only! Notify your local fire department

and receiving station before operating switch.

Zone Disconnect disables the alarm indicating devices so that

service may be performed without sounding an alarm. When a

zone is disabled, zone and system trouble LEDs will light and the

integral trouble sounder will activate. An alarm received from any

zone that has not been disabled will activate the indicating devices

as normal. The zone disconnect switch is defeated when a zone has

been programmed for waterflow service. See BMB Programming.

Walktest makes it possible for one service person to functionally

test initiating devices without having to constantly return to reset

the control panel. When activiated, the walktest feature sounds the

indicating devices for approximately two seconds and then resets

the system. Only an alarm from the zone with the walktest

activated will reset the system; all other zones will function

normally. To silence the indicating devices during the walktest

mode, see BMB Programming.

24 VAC

AC IN

24 VDC

BATTERY IN

ZONE

TROUBLE

SUPERVISORY

LOW/NO AC POWER

LOW/NO BATTERY

GROUND FAULT

INDICATING 1 TROUBLE

INDICATING 2 TROUBLE

SYSTEM

POWER LIMITED

NORMAL NORMAL

RESET SOUNDER

SILENCE

SYSTEM

TROUBLE ZONE

ALARM

WALKTEST

NORMAL

DISCONNECT

ZONE

POWER

NOT USED–8

NOT USED–7

NOT USED–6

ZONE 2 SUP.–5

ZONE 1 RA–4

SILENT WALKTEST–3

ZONE 1 WATERFLOW–2

ALARM VERIFICATION–1

INDICATING

Z1RA– COM NO NC COM NC NO

TROUBLE RELAY ALARM RELAY

CASE

GROUND Z1B+ Z1A+ Z1A– Z1B– AUX

24VFWR

SYS

GND FIRE

DRILL

ZONE 1

SENTROL, INC.

10831 SW Cascade Boulevard

Portland, Oregon 97223

SYSTEM

+15VDC

B–

B+

A+

A–

B–

B+

A+

A–

12345 SW Leveton Dr.

Tualatin, OR 97062

Figure 2. ZEM or LEM Installation

LEM ZEM ZEM

Figure 3. Window Label Installation

1505 window label shown

The window label must

be changed when

expanding zones.

ESL 1500 Series Fire Alarm Control Panel

Table 2. Status Indicators

Optional Remote Notification Disconnect

Applies to LEM optional module. Disconnects system from remote

sites. When activated, the trip circuit fault LED and system fault

condition will exist and remain until the switch is returned to the

normal position.

Note

Notify the local fire department and the receiving station

before disconnecting the LEM from the system.

Indicator Normal Color Description

AC Power On Green Indicates main power is

operating from AC power

source. If LED not

activated, service

immediately.

System Off Yellow Indicates fault or

Trouble abnormal condition. May

indicate system is

inoperable; service

immediately.

Zone Alarm Off Red Indicates when an alarm

(by zone) condition is detected by

its zone.

Normal Condition

Under normal operating conditions only the green “AC POWER”

LED should be on (no alarm or faults). All control switches must

be in their normal, standby position.

Alarm Condition

An alarm can be initiated by means of a smoke detector, heat

detector, manual alarm station, waterflow alarm device, or other

UL Listed initiating device. The red zone alarm LED will light and

the integral sounder will provide a continuous, steady audible

signal. Both alarm indicating circuits will activate and sound a

general alarm. A set of dry, Form C supplementary common alarm

contacts will transfer and remain latched until the system RESET

switch is operated. When used, the supervised zone alarm output

will energize. If provided, the remote communicator circuit will

activate to summon organized assistance.

Alarm Verification

When activated, alarm verification is very effective in reducing

nuisance alarms. Nuisance alarms are reduced by requiring 2

separate alarm signals to activate the system alarm, thereby

verifying the initial alarm.

When the first alarm is received from an initiating device, the

verification feature inhibits an alarm output for approximately 12

seconds. After this period, power is reapplied to the initiating

circuits. If a second alarm signal is received within 2 minutes, a

system alarm is generated; if not, the system resets and no alarm is

generated. An alarm from a manual station or heat detector,

however, is never delayed more than 15 seconds. To activate

alarm verification, see BMB Programming.

Note

When using alarm verification, total alarm delay (alarm

verification + smoke detector power-up time) cannot exceed

60 seconds according to the National Fire Alarm Code (NFPA

72) or 30 seconds for installations governed by the California

State Fire Marshall. Alarm delay includes verification time

(12 seconds) and smoke detector power-up time. Smoke

detector power-up time varies by manufacturer, however,

ESL’s 429, 449, 521, 541, and 700 Series detectors meet both

CSFM and NFPA requirements (ESL detector power-up time

is 15 seconds).

During alarm verification, the Zone LED, Remote Annuncia-

tor and the Zone Relay Module (ZRM) may activate briefly

(approximately 12 seconds) during the initial alarm signal.

Zone Disconnect

Note

For maintenance use only! Notify local fire department and

receiving station before operating the switch if the control

panel is monitored, as a “trouble” signal will be transmitted.

When activated prior to an alarm condition, this switch

disconnects the local zone alarm from the auxiliary alarm relay and

alarm indicating circuits. When activated, the red local alarm zone

LED turns on and, if used, the supervised remote annuncitator

LED lights. Only the disconnected zone is affected; alarm signals

from other zones remain active.

When activated after an alarm condition, the auxiliary alarm

relay remains latched and alarm indicating circuits are turned off.

The red local alarm zone LED remains on and, if used, the

supervised remote annunciator remains on. Only the disconnected

zone is affected; alarm signals from other zones remain active.

Additionally, if an initiating device is still in alarm when a zone

disconnect switch is returned to normal, the alarm will again be

transmitted to both the alarm indicating circuits and the integral

sounder.

6ESL 1500 Series Fire Alarm Control Panel

System Reset

System reset can only be accomplished when all actuated alarm

devices have been restored to their normal, standby condition.

Note

Operating the system reset switch will return all alarm

initiating circuits and system-powered inititating devices to

their normal standby condition. Mechanical initiating devices

such as most fixed termperature heat detectors and manual

stations must be replaced or manually reset or the system will

alarm again when the reset switch is released.

Trouble Condition

Activation of the fault signal under normal operation indicates a

condition that requires immediate correction. A fault signal

involves illumination of the system trouble LED (yellow) and

individual diagnostic LED’s (yellow) generally associated with the

specific circuit affected. The integral sounder will sound a slow

intermittent signal and a set of dry, Form C contacts will transfer.

Moving the SOUNDER SILENCE switch to the silence position

will silence the audible trouble signal, but will not restore the Form

C contacts. Restoration to normal can only be achieved when all

faults have been corrected and all switches have been returned to

normal position. Trouble reset occurs automatically when this is

accomplished. If the SOUNDER SILENCE switch is off-normal at

the time all faults are clear, the “ringback” feature will alert the

operator.

Supervisory Functions

Zone 2 of the control panel can be programmed for supervisory

service. A common supervisory application would include

sprinkler water valve tamper switch monitoring. During a

supervisory alarm, the integral sounder activates a rapidly pulsing

tone and the zone 2 red local alarm LED lights. In addition, the

supervisory LED on the BMB will activate. During supervisory

trouble, the integral sounder activates a rapidly pulsing tone, zone

2 yellow local trouble LED lights and the system trouble relay

contacts transfer.

Remote Test (Drill)

A remote test (drill) function is provided for testing the 1500

System. Closing a listed normally-open switch connected to

terminals “SYS GND” and FIRE DRILL” (see Figure 5) will result

in actuating both the alarm indicating circuits and the integral

sounder. The common alarm relay will not operate, nor will an

optional remote notification circuit. Any alarm signaling devices

connected to the indicating circuits will be activated. During the

test/drill, the indicating supervisory circuit will be tested as well,

resulting in the illumination of the indicating circuit fault LED’s

and the system trouble LED. The integral sounder will sound a

slow intermittent signal.

Figure 4. Template Diagram

24 VAC

AC IN

24 VDC

BATTERY IN

ZONE 1 TROUBLE

SUPERVISORY

LOW/NO AC POWER

LOW/NO BATTERY

GROUND FAULT

INDICATING 1 TROUBLE

INDICATING 2 TROUBLE

SYSTEM

POWER LIMITED

NORMAL NORMAL

RESET SOUNDER

SILENCE

SYSTEM

TROUBLE ZONE

ALARM

WALKTEST

NORMAL

DISCONNECT

ZONE 1

POWER

COMMUNICATOR ZONE 2 ZONE 3 ZONE 4 ZONE 5

DISCONNECT WALKTEST DISCONNECT WALKTEST DISCONNECT WALKTEST

ALARM TRBL

NORMAL

DISCONNECT

NORMAL TRBL ALARM TRBL

NORMAL ALARM TRBL

NORMAL

DISCONNECT WALKTEST

NOT USED–8

NOT USED–7

NOT USED–6

ZONE 2 SUP.–5

ZONE 1 RA–4

SILENT WALKTEST–3

ZONE 1 WATERFLOW–2

ALARM VERIFICATION–1

INDICATING

Z1RA– COM NO NC COM NC NO

TROUBLE RELAY ALARM RELAY

CASE

GROUND Z1B+ Z1A+ Z1A– Z1B– AUX

24VFWR

SYS

GND FIRE

DRILL

ZONE

SENTROL, INC.

12345 SW Leveton Drive

Tualatin, Oregon 97062

SYSTEM

+15VDC

B–

B+

A+

A–

B–

B+

A+

A–

Z2B+ Z2A+ Z2A- Z2B- Z2RA- Z3B+ Z3A+ Z3A- Z3B- Z3RA- Z4B+ Z4A+ Z4A- Z4B- Z4RA- Z5B+ Z5A+ Z5A- Z5B- Z5RA-

ESL 1500 Series Fire Alarm Control Panel

Field Wiring

Class A System Wiring Diagram

Connect to

120 V AC

60Hz

Connector from

transformer

Blk

Wht

Case

ground

Auxiliary

power(+)

Optional drill

test switch

Fire drill

1678

Local Zone 1 alarm

(Supervised)

System 15VDC

System trouble

contacts Auxiliary alarm

contacts BMB standoff

910111213141516

Zone 1

alarm

System

trouble

power

Connector from

24 V DC battery in

BMB

8-Not used

7-Not used

6-Not used

5-Zone 2 supervisory

4-Zone 1 remote annunciator

3-Silent walktest

2-Zone 1 waterflow

1-Alarm verification

B+ A+ A- B- RA B+ A+ A- B-

LEM

ZEM

Zone 4 & 5

ZEM

Zone 2 & 3

System

GND

12345678

429C

2.7K EOL

Resistor 1/2W

Pull station

Heat sensor

2.7K EOL

Resistor

1/2W

449C

Zone 2 Zone 3 Zone 4 Zone 5

2.7K EOL

Resistor

1/2W

204-12/24V

Power

supervision relay

2.7K EOL

Resistor 1/2W

B+ A+ A- B- RA B+ A+ A- B-

B+ A+ A- B-

B-

B+

A+

A-

B-

B+

A+

A-

Zone 1 is shown with 4-wire

detectors, wired in Class A (Style D)

C N/O N/C C N/C N/O

Power ON

(standby condition)

2.7K EOL

Resistor 1/2W

2.7K EOL

Resistor 1/2W

Zone 2 is shown with 2-wire

detectors, wired in Class A (Style D)

Zone 5 is shown with 2-wire heat

detectors and pull stations, wired in

Class A (Style D)

2.7K EOL

Resistor 1/2W

Bell circuit 1 is shown with Class

(Style Z) wiring

Figure 5. Class A System Wiring Diagram

8ESL 1500 Series Fire Alarm Control Panel

B-

B+

A+

A-

B-

B+

A+

A-

Connect to

120 V AC

60Hz

Connector from

transformer

Blk

Wht

Case

ground

Auxiliary

power (+)

Optional drill

test switch

Fire drill

B+ A+ A- B-

678

Local Zone 1 alarm

(Supervised)

System 15VDC

System trouble

contacts Auxiliary alarm

contacts BMB standoff

910111213141516

C N/O N/C C N/C N/O

Power ON

(standby condition)

Zone 1

alarm

System

trouble

power

Connector from

24 V DC battery in

BMB

8-Not used

7-Not used

6-Not used

5-Zone 2 supervisory

4-Zone 1 remote annunciator

3-Silent walktest

2-Zone 1 waterflow

1-Alarm verification

B+ A+ A- B- RA B+ A+ A- B-

LEM

ZEM

Zone 4 & 5

ZEM

Zone 2 & 3

System

GND

12345678

429C

521B

429C

521B

2.7K EOL

Resistor 1/2W

Pull station

Heat sensor

449C

541C

449C

541C

Zone 2 Zone 3 Zone 4 Zone 5

204-12/24V

Power

supervision relay

B+ A+ A- B- RA B+ A+ A- B-

2.7K EOL

Resistor 1/2W

2.7K EOL

Resistor 1/2W

2.7K EOL

Resistor 1/2W

2.7K EOL

Resistor 1/2W

2.7K EOL

Resistor

1/2W

2.7K EOL

Resistor 1/2W

Zone 2 is shown with

2-wire detectors, wired in

Class B (Style B)

Zone 5 is shown with

2-wire heat detectors

and pull stations, wired

in Class B (Style B)

Zone 1 is shown with 4-wire

detectors, wired in Class B (Style B)

Bell circuit 1 is shown with Class B

(Style Y) wiring

Figure 6. Class B System Wiring Diagram

Class B System Wiring Diagram

ESL 1500 Series Fire Alarm Control Panel

Installation Recommendations/

Precautions

Note

The 1500 System is capable of power limited operation per

NEC Article 760, Section C. All circuits are power limited

except: CASE GND, TRB COM, TRB NO, ALM COM,

ALM NC, and LEM terminals. Non-power limited circuits

must be separated from power limited circuits by a minimum

of 1/4 inches (0.6cm). See Figure 7 for one method of routing

power limited wiring.

Caution

Do not route LEM field wires in close proximity of high

voltage wiring. LEM filed wiring must not exceed 3280

feet (1000m).

Verify wire sizes are adequate for all indicating and initiating

circuits. The maximum allowable initiating zone resistance is 100

Ohms. (Exception: When ESL 2-wire smoke detectors with

integral sounders are used, maximum initating zone resistance is

50 Ohms. See Table 3.)

Table 3. Wire Resistance

Gauge Ohms per 1000 ft. @ 20°C of

single conductor copper wire

12 1.6

14 2.5

16 4.0

18 6.4

20 10.0

22 16.0

Many audible/visual signaling appliances cannot tolerate more

than a 20 percent voltage drop from the specified device voltages.

See Table 4 to determine maximum distance for wire gauge used.

Table 4. Alarm Indicating Circuit Wire Size

Total device Max. ft. of paired wire from B+ to

load (Amps) EOL resistor

18AWG 16AWG 14AWG 12AWG

.100 1500 2500 4000 6200

.500 300 500 800 1290

1.000 150 250 400 620

(Maximum voltage drop allowable: 2 VDC)

Incoming AC voltage should be stable at a nominal 120 volts.

This is especially important in new construction where incoming

power may be high or unstable with temporary connections often

causing large, inductive voltage spikes.

Ground the system properly. The AC imput, power supply/battery

charger should use an isolated ground, not a conduit ground. Do

not connect this system to a conduit or green wire circuit that also

is used to power resistance heating, motors, fans, air conditioning

equipment, or florescent lighting circuits since leakage currents

into the ground return could damage system components. A

separate earth ground or cold water pipe with properly bypassed

water meter should be used. Provide a separate earth ground, if

water mains are non-conductive.

Run signal wires separately. Most supervised circuits use voltage

or current sensing circuits which are very sensitive to induced

voltages on the sensor wiring. Therefore, under no circumstances

run AC power, speaker, public address, intercom, or switch control

wiring with inductive loads in the same conduit or in the immedi-

ate vicinity of the control wiring.

Do not overlook adequate lightning protection. Lightning

damage commonly occurs from three sources:

1. Through alarm loop wiring

2. Through AC power inputs

3. Through earth ground or power ground connections

The 1500 System has substantial lightning protection incorporated

in all three areas. However, proper lightning protection for AC

power must be accomplished where the wire enters the building.

Arrestor circuitry and earth grounding should be in accordance

with Article 250 of the National Electrical Code.

There is no known protective device available which is capable of

protecting equipment from damage caused by “direct hit” strikes of

lightning due to the extremely high energy released (10 million to

100 million volts @ 10,000 to 30,000 amps). However, line surges

from indirect strikes can be minimized.

Additional protection is suggested in areas subject to above-

average lightning activity or induced voltage spikes and fluctua-

tions due to power line load switching.

Figure 7. Power Limited Routing

1. Case ground

2. Power limited Zone 1 and Remote Annunciator

3. Non-power limited trouble and alarm contacts

4. Power limited bell circuits

5. Power limited Zone 2 through 5 and Remote Annunciator

6. Housing backbox

7. Battery area

8. Non-power limited LEM

9. Non-power limited 28 VAC

12345 6 7 8

10 11 12 13 14 15 16

12345 6 7 8

912345 6 7 8

ESL 1500 Series Fire

Alarm Control Panel

10 ESL 1500 Series Fire Alarm Control Panel

Connecting Supplementary Contacts

Note

Supplementary Alarm and Trouble Contacts are for power

limited applications only (see Installation Recommendations/

Precautions). When supplementary contacts are connected to

a power limited circuit, these outputs meet power limited

code and do not require separation.

Supplementary Alarm Contacts

Dry, Form C contacts are provided for controlling supplementary

alarm functions from the BMB. Contacts are rated 2A @ 30 VDC

resistive. Terminals are ALM COM, ALM NC, and ALM NO.

Contacts transfer in alarm.

Supplementary Trouble Contacts

Dry, Form C contacts are provided for controlling supplementary

fault functions from the BMB. Contacts are rated 2A @ 30 VDC

resistive. Terminals are TRB COM, TRB NC, and TRB NO. The

trouble relay is normally energized and will activate even if both

AC and battery power are removed.

Optional Zone Relay Module (ZRM)

Additional relays may be added using the optional ZRM-5. Make

electrical connections using Figure 8. After connections are made,

use directions in Installing Optional ZRM and Snap Track to finish

the installation.

Field Wiring Checkout Procedures

Note

Make sure that AC and battery power are

disconnected before proceeding.

1. Test all field wiring before connecting any equipment.

A. Insure no unwanted voltages are present on circuit

conductors and ground. They are a hazard and may prevent

proper system operation.

B. All wiring except those intentionally and permanently

grounded must be tested for isolation from ground using an

insulation testing device such as a “Megger”.

Note

Caution must be exercised when using voltage

generating test instruments such as a “Megger”. Damage

to equipment could result if the equipment is connected

(wired) during wiring tests.

C. All wiring, other than those intentionally connected

together, must be tested for conductor-to-conductor

isolation using an insulation testing device.

2. With each circuit pair short-circuited at the end of the circuit,

measure circuit resistance with an ohmeter. Record the circuit

resistance of each circuit and store this data with the control

panel. Loop resistance must be less than 100 ohms on

initiating zones.

3. Perform testing as described previously after any addition,

deletion, or mechanical or electrical damage to the system

has occurred.

4. A periodic test should be performed in accordance with the

schedules recommended in NFPA 72, Chapter 7, or more

frequently, if required by the authority having jurisdiction.

Whenever possible a 100 percent test should be performed.

When less than a 100 percent test is performed, a record must

be maintained of the devices tested each time, so different

devices are tested in subsequent tests.

Alarm Initiating Devices

This section describes how to field wire initiating devices such as

smoke detectors, pull stations, and heat detectors. Refer to Figure 5

for Class A (Style D) and Figure 6 for Class B (Style B) wiring.

Two-Wire Smoke Detectors, Heat Detectors, and

Manual Pull Stations

•Connect only two-wire smoke detectors UL Listed as

compatible to the 1500 Series Fire Control Panel. Refer to the

list of compatible detectors in Appendix A.

•Two-wire detectors receive their power direct from the zone

terminals and transmit the alarm signal via the same wires. Be

certain to observe polarity when installing detectors.

•All initiating devices must be wired sequentially for proper

supervision with the end-of-line resistor (2.7K Ohm 1/2 W)

installed after the last device. ESL has detectors available with

EOL built in.

Four-Wire Smoke Detectors

•Four-wire detector power is shared with indicating circuits;

do not exceed total power requirements of 1.5 Amps.

•Always supervise four-wire detector power with an end-of-

line power supervisory device (ESL model 204-12/24V) after

the last unit.

See Figure 5 for Class A (Style D) wiring and Figure 6 for Class B

(Style B) connection to the panel.

Sprinkler System Waterflow and Supervisory

Devices

Normally open contact type waterflow alarm devices may be

connected, along with conventional manual alarm stations or heat

detectors. All zones to which waterflow alarm devices are

connected may be programmed such that the system alarm

indicating devices cannot be silenced. See Programming.

Supervisory signals for status reporting of waterflow control

valves, supplies, etc. must be connected to a separate zone, and

programmed for supervisory status. Only Zone 2 can be pro-

grammed for this feature. See Programming.

Alarm Indicating Devices

Use only polarized UL Listed signaling devices rated for 24 VDC,

see list of devices in Appendix A. See Figure 5 for Class A (Style

Z) wiring and Figure 6 for Class B (Style Y) connection to the

panel.

Note

Maximum indicating current per circuit is 1 Amp; however,

total operating current cannot exceed 1.5 Amps. Choose

the correct wire size for maximum voltage drop of 2 VDC at

the furthest device on the circuit (see Table 3).

Supplementary Alarm and Trouble Contacts are for power

limited applications only.

ESL 1500 Series Fire Alarm Control Panel

Figure 10. Terminal Connections

Zone 1 input

Zone 2 input

Zone 3 input

Zone 4 input

Zone 5 input

+ 15 VDC

TB1 TB2

Tip

Case Ground

SYS-

Communicator

ESL 1500 BMB

Z2RA- Z3RA- Z4RA Z5RA-

Trouble input

TB3

ALM NO

ALM NC

TRB NC

TRB NO

TRB COM

RA+15

Z1RA-

1500 RA5A

12345678

Zone #1 trouble

Supervisory

Low/no AC

Low/no battery

Ground fault

Indicating #1 trouble

Indicating #2 trouble

Figure 9. Zone Relay Module (ZRM) Placement

1. Mounting Hole

2. Basic Master Board (BMB)

3. Housing backbox

4. Programming switches

5. Zone Expander Modules (ZEM)

6. Mounting location for Zone Relay Module 1500-ZRM-5

7. Mounting Hole (TYP)

8. Battery area

9. Local Energy Master Box Trip Module 1500-LEM

10. 1500-TR Transformer

Installing Optional ZRM and Snap Track

1 Remove the protective tape from the adhesive mounting strip

on the snap track supplied with the unit.

2 Mount the snap track on the lower, right side of the cabinet.

See Figure 9.

3 Using the slots in the snap track as a template, drill two holes

through the cabinet side wall, one near each end of the snap

track, using a #13, #14, #15, or 3/16” diameter drill and

deburr.

4 Install the supplied push rivets from the outside of the

cabinet through both the cabinet side wall and the snap track,

driving the push pins flush with the rivet head. In semi-flush

mounting installations, install the push rivets from the inside

of the cabinet.

COM

COIL

N/O

N/C

COIL

N/P

N/C

COIL

N/O

N/C

COIL

N/O

N/C

COIL

N/O

N/C

D6 D1

Figure 8. Zone Relay Module (ZRM) Wiring Diagram

System+15 VDC of BMB

To Z1RA-of BMB

(Zone)

To Z2RA-of ZEM

(Zone 2)

To Z3RA-of ZEM

(Zone 3)

To Z4RA-of ZEM

(Zone 4)

To Z5RA-of ZEM

(Zone 5)

TB1 5 Complete electrical connections between the ZRM and the

BMB before mounting it to the snap track. Then snap the

connected DAC and/or ZRM into the snap track with the

terminals toward the front of the cabinet.

6 Dress wire leads to comply with the requirements of the

National Electrical Code, Article 760, Section C.

12 ESL 1500 Series Fire Alarm Control Panel

Connecting Optional Remote Notification

Devices

1500-RA-5A

Note

When using remote annunciators other than the ESL

1500-RA-5A, be sure all circuits have a series resistance of at

least 1K ohm. Maximum current should be 15mA per zone.

The control unit can properly power one remote annunciator.

When a remote annunciator is used, both the BMB and ZEM must

be programmed to provide supervision. See Programming. The

remote annunciator circuit is supervised as long as no other

devices are connected to the same terminals; otherwise, the devices

will not be supervised. See Figure 10 for the wiring diagram.

1500-LEM

The Local Energy Module (LEM) trip circuit is designed to

interface to a Listed Master Box with a local energy trip mecha-

nism. This optional module provides a supervised trip circuit from

the 1500 system that activates the Master Box upon a system

alarm. Make connections as detailed in Figure 11.

For systems which include remote annunciation 1500-RA-5A, use

Figure 10. Remove all power from the system before beginning

procedure.

Figure 12. BMB Default Settings

12345678

8-Not used

7-Not used

6-Not used

5-Zone 2 Supervisory

4-Zone 1 Remote Annunciator

3-Silent Walktest

2-Zone 1 Waterflow

1-Alarm Verification

Programming

BMB Programming

All programming selections are controlled by switches located in

the lower right corner of the BMB. Table 5 shows default (factory)

prgramming along with a description of each feature.

Table 5. BMB Programming Features

Switch Factory Feature Description

# Position

8,7,6 off not used not used

5 off zone 2 supervisory Disables fire alarm signal

and provides distinctive

audible and visual

supervisory signals.

Must also program

ZEM zone 2 switches 3, 4,

5, & 6.

See

ZEM Progamming

4 off zone 1 remote Provides supervised

annunciator connection to remote alarm

indicator.

3 off silent walk test Silences indicating circuits

1 & 2 during walk test

mode. See

Zone

Disconnect/Walktest

2 off zone 1 waterflow* Disables alarm disconnect

switch. Signals cannot be

silenced.

1 off alarm verification Two consecutive alarm

input signals required for

alarm output.

See

Alarm Verification

* Do not program zone for waterflow in conjuction with walktest

because the communicator or optional LEM module may transmit

an alarm condition. In addition, the sytem alarm relay will be

activiated.

Figure 11. Local Energy Module (LEM) Wiring Diagram

TB1 (opposite side)

Local Energy Master box

trip module (LEM)

Master box trip coil

14.6 Ohms, 24 VDC

0.26A min. 0.35A max.

City fire alarm ckt.

Max. line resistance 10 Ohms

- 24 V alarm output

DS1 (trouble)

Normal

Disconnect

ESL 1500 Series Fire Alarm Control Panel

Testing and System Checkout

Following installation and programming of the unit, a complete

test of the entire system must be conducted to assure proper

operation. NFPA 72, National Fire Alarm Code should serve as the

guide. Follow the recommended procedures, restoring all switches

and wiring to normal before proceeding to the next step.

Notify all building personnel and the fire department and

monitoring facilities before and after system testing.

After testing all systems and restoring the panel to its normal

operating condition, remove, and mount the 1500 Series Operating

Instructions, Appendix C, in a visible position near the control

unit. In a household fire warning system, test weekly. Disconnect

the AC power source during testing. If after testing low battery

conditions exists, replace the batteries.

Maintenance

Batteries

The 1500 Series control unit uses two sealed lead-acid batteries as

the secondary power source. The batteries must be replaced if the

Low Battery LED remains on for more than 48 hours (meaning

one or more of the battery cells are dead or the batteries will not

hold a charge). If the batteries are dead, replace with batteries of

the same size and electrical rating, with a maximum size of 12V, 12

Amp hours and dimensions of 4” x 4” x 6” (10cm x 10cm x 15cm).

Note

When replacing batteries, always replace both batteries, even

if only one appears dead. The typical battery life is 3 to 5

years, depending on usage. See the manufacturer’s specifica-

tions for the particular battery used.

The battery charging ciruit drops out if the charge falls below

15 VDC at batteries.

Fuses

The fuse located in the lower left corner of the BMB is provided

for overcurrent protection. The fuse can be tested with an ohmeter

or visually inspected. If the fuse is blown, replace with a type 3AG,

1 1/4” (3cm) x 1/4” (0.6cm), 6 Amp Fast Blow fuse.

ZEM Programming

All programming selections are controlled by switches located in

the front right center of the ZEM. Table 6 shows default (factory)

programming along with a description of each feature.

Table 6. ZEM Programming Features

Switch Factory Feature Description

# Position

8 off zones 3 & 5 Alarm disconnect switch

waterflow* enabled. Signals can be

silenced.

7 off zone 2 & 4 Alarm disconnect switch

waterflow* enabled. Signals can be

silenced.

6 off zone 2 Fire alarm signal enabled.

supervisory Yellow supervisory LED on

1500-BMB is diabled. See

Supervisory Functions

5 off zone 2 Fire alarm signal enabled.

supervisory Yellow supervisory LED on

1500-BMB is disabled. See

Supervisory Functions

4 on zone 2 Fire alarm signal enabled.

supervisory Yellow supervisory LED on

1500-BMB is disabled. See

Supervisory Functions

3 on zone 2 Fire alarm signal enabled.

supervisory Yellow supervisory LED on

1500-BMB is disabled. See

Supervisory Functions

2 on zone 3 & 5 Remote Connection to remote

Annunciator indicator not supervised.

1 on zone 2 & 4 Remote Connection to remote

Annunciator indicator not supervised.

* Do not program zones for waterflow in conjunction with walktest

because the communicator or optional LEM module may transmit

an alarm condition. In addition, the sytem alarm relay will be

activiated.

12345678

Figure 13. ZEM Default Settings

8-Zones 3 and 5 Waterflow

7-Zones 2 and 4 Waterflow

6-Zone 2 Supervisory

5-Zone 2 Supervisory

4-Zone 2 Supervisory

3-Zone 2 Supervisory

2-Zones 3 and 5 Remote Annunciator

1-Zones 2 and 4 Remote Annunciator

Figure 14. ZEM Programming Switches Location

1. Terminal Block

2. 7-Pin Header

3. DIP Switches

1 2 3

14 ESL 1500 Series Fire Alarm Control Panel

Troubleshooting

Table 6 provides a quick reference troubleshooting guide for the system. This guide will aide in diagnosing and locating most system

faults quickly and efficiently. If you cannot resolve the fault with the assistance of this guide, call Technical Services at 800.648.7424.

Table 6. Troubleshooting Guide

Trouble indicators Possible cause Corrective action

End-of-line resistor value incorrect or missing Meter circuit to verify proper resistance

Loss of power to power supervision relay Meter voltage on circuit

Polarity reversal relay wired incorrectly Check circuit diagram to confirm wiring

Loose connection or broken wire Check for opens in circuit

Zone 1-5 trouble LED Disconnect/Walktest switch not in normal position Put Disconnect/Walktest switch in normal position

System trouble LED Faulty waterflow switch Repair or replace waterflow switch

Trouble sounder slow Initiating device missing from circuit Check for any devices that may have been removed from the

intermittent initiating circuit

“Class A” wires crossed in circuit Make sure polarity is observed completely through circuit

“Class B” wires connected to wrong terminals Make sure wires are connected to “Class B” terminals

Incompatible two wire detector Check UL compatibility listing to verify the detector is listed for

use with the panel

Overcurrent or lightning damage Check for burn marks or other signs of overcurrent damage.

Return to factory for service. Replace board if traces are damaged.

Supervisory trouble LED Zone 2 supervisory device tripped Check initiating device on zone 2

Rapid trouble beep

Zone 2 alarm LED

Remote annunciator zone 2

System trouble LED Open in zone 2 circuit Check zone 2 for broken wires or opens in circuit

Zone 2 trouble LED

Rapid trouble beep Disconnect/Walktest switch not in normal position Put Disconnect/Walktest switch in normal position

Loss of AC (line voltage) If line voltage is too low, upgrade or move to new circuit

Low/No AC power Low AC power If secondary shows less than 22 VAC replace transformer

System trouble LED Less than 94 VAC at transformer primary-no load

Trouble sounder slow Less than 102 VAC with maximum load

intermittent Less than 22 VAC at transformer secondary-no load

Damaged transformer or loose connection Check for loose or broken connections

Battery low Replace batteries

Low/No battery LED Less than 24 VDC

System trouble LED Battery missing or less than 20 VDC Replace batteries

Trouble sounder slow Blown fuse If fuse is blown, determine why fuse was blown, correct problem,

intermittent and replace fuse

Open in battery harness If there is an open or break in the battery harness, replace it

Ground fault LED Ground on any circuit, other than alarm or trouble Remove one wire at a time until ground fault LED and system

System trouble LED contacts trouble LED goes out. Repair circuit causing fault condition.

Trouble sounder slow Ground in transformer Remove AC input from board, if ground fault LED goes out,

intermittent there is a ground in the transformer-replace transformer

End-of-line reistor value incorrect or missing Meter circuit to verify proper resistance

Polarity reversed in circuit Check circuit diagram to confirm wiring and polaity

Loose connection or broken wire Check for opens in circuit

Indicating 1-2 trouble LED Indicating device missing from circuit Check for any devices that may have been removed from the

System trouble LED indicating circuit

Style “Z” wires crossed in circuit Make sure polarity is observed completely through circuit

Style “Y” wire connected to wrong terminals Make sure wires are connected to style “Y” terminals

Overcurrent or lightning damage Check for burn marks or other signs of overcurrent damage.

Return to factory for service. Replace board if traces are damaged.

System trouble LED Bad ZEM connection Check connector pins where ZEM connects to the BMB

Trouble sounder slow ZEM malfunction Check for signs of damage to the BMB or ZEM

intermittent BMB malfunction Return to factory for service or replace boards.

(with no other indicators)

ESL 1500 Series Fire Alarm Control Panel

Specifications

General

Operating temperature............................ 0° to 49°C (32° to 120°F)

Housing

Type...............................Steel with hinged/removable, locking door

Size.........................................................14.0 in. x 14.0 in. x 4.5 in.

............................................................(35.6cm x 35.6cm x 11.4cm)

Finish.....................................................Red, sand textured, enamel

Weight....................................................... 15 lbs. max. w/o battery

1500-BMB- Basic Master Board

Power

Input power................................................120 VAC, 60Hz, 56 V A

Standby power.................................................................... 24 VDC

Auxiliary power output........................... 24 VDC FWR, 1.0 A max

...............................................................(32.1 VDC max. - no load)

Note

Auxiliary power output supply is shared with power for

indicating circuit. Consider total requirements.

(I aux + I IND#1 + I IND#2 = 1.5 A)

Optional standby battery...................................................... 24 Volt

Battery charger rate.................................................... 700 mA max.

Battery charge voltage..................................................... 29 V max.

Alarm initiating circuits

Number of circuits.............................................. One - model 1501

......................................................................... Three - model 1503

........................................................................... Five - model 1505

Type....................................... Class A or B, Latched (Style B or D)

End-of-line.................................................... 2.7 K Ohms, 1/2 Watt

Loop powered device current............................................... 2.0 mA

Alarm current........................................................................ 15 mA

Maximum current................................................................. 60 mA

Maximum voltage............................................................... 17 Volts

Normal circuit voltage..................................................... 14.7 Volts

Minimum voltage............................................................ 13.5 Volts

Maximum ripple voltage..................................... 500 Millivolts AC

Maximum line resistance ..... 100 Ohms (Compatibility Ident. C01)

.............................................50 Ohms (Compatibility, Ident. C01A)

Alarm indicating circuits

Number of circuits ........................ Two Class A or B (Style Y or Z)

Maximum current per circuit............................................ 1.0 Amps

Maximum total current .................................................... 1.5 Amps

Output voltage ........................................................ 24 VDC, FWR

End-of-line ................................................... 2.7 K Ohms, 1/2 Watt

Supplementary alarm/trouble contacts

System trouble ...................................... 2.0 A @ 30 VDC resistive

System alarm ........................................ 2.0 A @ 30 VDC resistive

Sounder output

Alarm......................................................................Constant output

Fault ....................................................... -0.25 sec. on; 2.5 sec. off

Supervisory ........................................... -0.25 sec. on; 0.25 sec. off

Remote indicator

Voltage .............................................................................. 12 VDC

Current ........................................................................ 15 mA max.

1500-ZEM - Zone Expander Module

Initiating circuits

Number of circuits ................................................................... Two

Type ....................................... Class A or B, latched (Style B or D)

End-of-line.................................................... 2.7 K Ohms, 1/2 Watt

Loop powered device current............................................... 2.0 mA

Alarm current ....................................................................... 15 mA

Maximum current ................................................................ 60 mA

Maximum voltage .............................................................. 17 Volts

Normal circuit voltage .................................................... 14.7 Volts

Minimum voltage ........................................................... 13.5 Volts

Maximum ripple voltage .................................... 500 Millivolts AC

Maximum line resistance ..... 100 Ohms (Compatibility Ident. C01)

.............................................50 Ohms (Compatibility Ident. C01A)

Remote Indicator

Voltage .............................................................................. 12 VDC

Current ........................................................................ 15 mA max.

1500-LEM - Local Energy Module

Output characteristics

Standby ................................................................ 2 VDC (no load)

Alarm ....................................................................... 24 VDC FWR

Trouble ................................................................................ 0 VDC

Alarm current ............................................................ 320 mA max.

Standby current ...................................................................... 1 mA

1500-ZRM-5 - Zone Relay Module

Output characteristics

Voltage .............................................................................. 12 VDC

Standby current ..................................................... 0 mA per circuit

Alarm current ...................................................... 15 mA per circuit

Contact ratings ................................................. 3 A @ 30 VAC/DC

1500-RA-5A - Remote Annunciator

Output Characteristics

Number of zones ................................................ 5 alarm, 1 trouble

Voltage .............................................................................. 12 VDC

Standby current ..................................................... 0 mA per circuit

Trouble current .................................................................... 50 mA

Alarm current ...................................................... 15 mA per circuit

16 ESL 1500 Series Fire Alarm Control Panel

Table 8. Compatible Indicating Devices

Manufacturer Part Number

Amseco SLB24-75C

Amseco SLB24G-75C

Amseco SMS1-3A

EST G1(R)-HOV110

EST G1(R)-HOV15

EST G1(R)-HOV75

EST G1(R)-V15

EST G1(R)-V75

EST G1(R)-HO

EST G1(R)-H

EST G1(R)-P

EST G1M

EST G1M-RM

Gentex ST24-15/75WR

Gentex GES24-15/75WR

Gentex HS24-15/75WR

Gentex GEC24-15/75WR

Gentex HS24-110WR

Gentex GEC24-110WR

System Sensor S241575

System Sensor S24110

System Sensor P241575

System Sensor P24110

System Sensor SC241575

System Sensor PC241575

System Sensor SP2R241575

System Sensor SP2R24110

System Sensor MDL

Wheelock NS-24MCW

Wheelock NS4-24MCW

Wheelock RSS-24MCW-FR

Wheelock RSS-24MCW-FW

Wheelock RSSP-24MCW-FR

Wheelock ET70-24MCW-FR

Wheelock ET70-R

Wheelock MPS-100

Wheelock MPS-400X

Wheelock SM-12/24-R

Wheelock DSM-12/24-R

Appendix A

Compatible Equipment

The equipment listed here is compatible with the ESL 1500 Series

Fire Control Panel. Use ONLY UL Listed compatible equipment

with the 1500 Series to assure proper operation. Should you

have any questions about compatibility, call technical services at

800.648.7422.

Initiating Devices

Compatible Equipment:

•All UL Listed non-coded manual alarm stations and heat

detectors, including ESL Series 103 and 104.

•Compatible indicating devices shown in Table 8.

•UL Listed two-wire smoke detectors shown in Table 9.

•UL Listed four-wire smoke detectors shown in Table 10.

ESL 1500 Series Fire Alarm Control Panel

Detector Series Detector Models Maximum Line Control Unit Compatibliity Number

Resistance Compatibility Identifier per Circuit

(Ohms) Identifier

ESL 400 Series 429C, 429CT 100 C01 S10A 20

Self-Diagnostic 429CRT, 429CST 100 C01 S11A 20

ESL 500 Series 521B 100 C01 DIP SW 1 ON S09A 20

and ESL 500N Series DIP SW 1 OFF S10A

521BXT 100 C01 DIP SW 1 ON S09A 20

DIP SW 1 OFF S10A

521CRXT 100 C01 S11A 20

ESL 700 Series (Heads) 711U, 711UT, 712U, 100 C01 S10A 20

With 700 Series Bases 713-5U, 721UT,741UT

702U, 702E, 702U 100 C01 S00 NA

mounting base

731U 4 wire 100 C01 S11A 20

702RE, 702RU 100 C01 S00 NA

mounting base

Table 9. Two-Wire Smoke Detector Compatibility

(Any of these two-wire detectors may be used mixed and matched on the system.)

ESLSeries Suffix Letters

449 C, CT, CRT, CST, CSRT, CSRH, and CTE

541 C, CXT, NC, NCXT, NCRT, NCST, NCSRT,

NCSRH, NCTE

741UT with 702U base U

(Any of these four-wire detectors may be used mixed and matched on the system.)

Table 10. Four-Wire Smoke Detector Compatibility

18 ESL 1500 Series Fire Alarm Control Panel

Appendix B

ESL 1500 Series Standby Battery Power Worksheet

1500 Series System Standby Current Total Standby Alarm Current Total Alarm

Components Per Device Current Per Device Current

1500-BMB (Zone 1) 100 mA 200 mA

Indicating Circuit #1 5 mA 1 Amp = 1000 mA mA

Indicating Cicuit #2 5 mA 1 Amp = 1000 mA mA

Auxiliary System Power mA 1 Amp = 1000 mA mA

1500-ZEM (Zone 2) 8 mA mA 70 mA mA

1500-ZEM (Zone 3) 8 mA mA 70 mA mA

1500-ZEM (Zone 4) 8 mA mA 70 mA mA

1500-ZEM (Zone 5) 8 mA mA 70 mA mA

1500-LEM 1 mA 320 mA

1500-ZRM-5 0 mA 75 mA

1500-RA5A 0 mA mA 75 mA mA

mA mA

Total Current Requirements mA mA

mA X .001 Amp/mA X ___________ hours = _____________ Ah Standby AMP - Hours

mA X .001 Amp/mA X ____________ minutes X .0167 hour/min = _____________ Ah Alarm Amp - hours

Total Standby Battery Power = ____________ Ah X 1.15 = ____________ Ah

Examples of 12 Ah Maximum Loading

24 hour standby 60 hour standby

15 minute alarm 15 minute alarm

Maximum standby current (mA) 416 167

Maximum alarm current (mA) 1500 1500

Maximum battery capacity (Ah) 12 12

Total Standby

Current Conversion

Factor Required # of

Hours in Standby

Total Alarm

Current Conversion

Factor Required # of

Minutes in Alarm Conversion

Factor

Battery Capacity

Derating Coefficient 12 Ah

Maximum

ESL 1500 Series Fire Alarm Control Panel

Appendix C

1500 Series Operating Instructions

Refer to the 1500 Series Installation Manual for more information

Normal Standby Condition

• Green “AX POWER” LED “ON”

• All other LEDs “OFF”

• All switches in “NORMAL” position

Alarm Condition

• Red local zone alarm LED “ON”

• Integral sounder sounds a steady signal

• Auxiliary alarm relay contacts transfer and latch

• Supervised remote annunciator indication is “ON”

• Indicating circuits turn “ON”

Alarm Disconnect Switch Operated (Prior to Alarm

Condition)

For Maintenance Use Only

• Disconnects local zone alarm from the auxiliary alarm relay

• Disconnects local zone alarm from the alarm indicating cirucits

• Red local zone alarm LED turns “ON”

• Supervised remote annunciator indication is “ON”

• Alarm signal from any other zone is not affected

Alarm Disconnect Switch Operated (After Alarm

Condition)

For Maintenance Use Only

• Auxiliary alarm relay contacts remain latched

• Alarm indicating circuits are turned “OFF”

• Red local zone alarm LED remains “ON”

• Supervised remote annunciator indication remains “ON”

• Alarm signal from any other zone is not affected

Reset Switch Operated

• Initiating circuit power removed (smoke detectors reset)

• Indicating circuits turn “OFF”

• Integral sounder sounds steady signal

• Auxiliary alarm relay is reset

Reset Switch Released

• System restored to normal unless initiating devices are not reset

Trouble Condition

• Yellow system trouble LED is “ON”

• Yellow diagnostic LED is “ON”

• Integral sounder sounds a slow intermittent signal

• System trouble relay contacts transfer

Sounder Silence Switch Operated

• Integral sounder is “OFF” when system trouble is present

• Integral sounder is “ON” when system is in normal standyby

condition

• System trouble relay contacts are not affected

• Will not silence supervisory alarm, supervisory trouble, or

system alarm signals

Supervisory Alarm Signal

• Integral sounder sounds a fast intermittent signal

• Zone #2 red local zone alarm LED is “ON”

• Zone #2 supervised remote annunciator indication is “ON”

• Auxiliary alarm relay contact do not transfer

• Indicating circuits are not activated

• Yellow supervisory LED is “ON”

Supervisory Trouble Signal

• Indicating sounder sounds a fast intermittent signal

• Zone #2 yellow local zone trouble LED is “ON”

• System trouble relay contacts transfer

• Yellow supervisory LED is “ON”

Remote Test (Fire Drill)

• Indicating circuits turn “ON”

• Integral sounder sounds a slow intermittent signal

• Auxiliary alarm relay contacts do not transfer

• LEM module does not transmit

• Keying the test switch will pulse the indicating circuits

ESL 12345 SW Leveton Dr., Tualatin, OR 97062 Sales: 800.547.2556 Technical Services: 800.648.7424

Testing - Disconnect the AC power source during testing. If, after testing, a low battery condition exists, replace the batteries.

“This equipment should be installed in accordance with the National Fire Protection Association’s Standard 72 (NFPA,

Batterymarch park, Quincy, MA 02269). Printed information describing proper installation, operation, testing, maintenance,

evacuation planning, and repair service is to be provided with this equipment.”

Warning:

Owner’s instruction notices: “Not to be removed by anyone except occupant.’

For Service Contact:

_________________________________________________________________________________________________________

________________________________________________________________________________________________________

Remove this page, frame, and mount adjacent to control unit.

Interlogix, Caddx, ESL, ITI and Sentrol are trademarks of Interlogix,Inc.

All other trademarks are properties of their respective owners.

12603 Rev. G 08/01

64812687 Rev. G

ESL 1500 Series Fire Alarm Control Panel Install & Operations Manual Aug 2001

Navigation menu

Versions of this User Manual:

Views

Navigation
