The TruVision® HD-TVI Bullet Camera by Interlogix delivers cost

effective surveillance with high resolution HD-TVI technology and

up to 1080p image quality over existing coaxial cable. The bullet

camera model also offers a familiar form factor that features a

pre-installed wall mount with cable management and is IP66

rated for outdoor installation.

With the ability to see in low-light conditions, the HD-TVI

Bullet Camera provides color images by day and black-and-

white images in night-time applications (in conjunction with IR

illumination). With quick and easy installation, the HD-TVI Bullet

Camera is ideal for new or existing projects and helps users stay

within budget constraints without compromising security needs.

OVERVIEW

Video

• 720p or 1080p HD resolution options

• 960H CVBS output support on select models

• Fixed, varifocal or motorized lens options

• HD-TVI technology for transmitting HD quality video over

existing coax cable

• HD-TVI and 960H CVBS dual output on select models

Video Enhancements

• 720p models provide DWDR

• 1080p models provide True WDR (120 dB)

• True day/night functionality and infrared illuminators with

Smart IR function for capturing images in various lighting

scenarios

Installation and Environment

• IP66 Environmental rating

• OSD control on select models – TruVision coax

and built-in menu button

• Cable protection/management

• Multiple mounting options

Warranty

• 3-year warranty

STANDAR D FE ATURES

HD-TVI Analog

Bullet Cameras

720p and 1080p

Resolution Cameras

IP66

FULL HD

1080P960HIR

Illumination

OSD

On Screen Display

12VDC

24VAC

720p HD-TVI 1080p HD-TVI

TVB-4401

TVB-2401

TVB-4402

TVB-2402

TVB-4403

TVB-2403

TVB-4404

TVB-2404

TVB-4405

TVB-2405

TVB-4406

TVB-2406

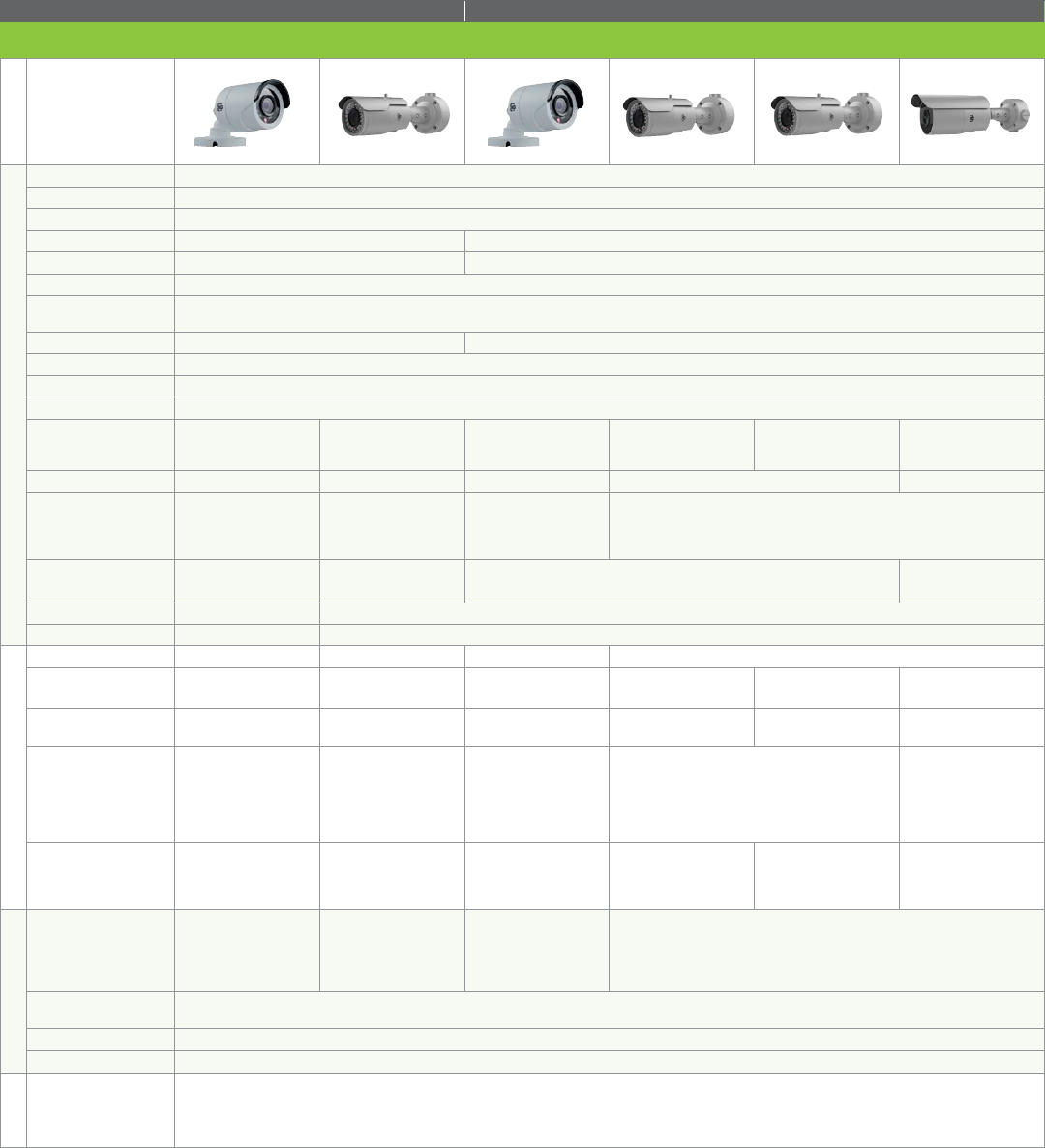

Camera

Image Sensor 1/3" CMOS

Standard HD-TVI

Signal System NTSC/PAL

Resolution 720p Analog 1080p Analog

Effective Pixels 1280 (H) x 720 (V) 1920 (H) x 1080 (V)

Synchronization Internal

Day/Night

IR cut filter with auto switch

Wide Dynamic Range

DWDR 120 dB WDR available on HD-TVI output only (If WDR is enabled, then the 960H output is disabled)

Electronic Shutter

NTSC: 1/30 s to 1/50,000 s; PAL: 1/25 s to 1/50,000 s

Minimum Illumination

Color: 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On); 0 lux with IR On

Digital S/N Ratio 52 dB (AGC Off)

Lens 3.6mm @ f2.2 2.8~12mm @ f1.4 3.6mm @ f2.2 2.8~12mm @ f1.4 2.8-12mm @ f1.4

motorized

5~50mm @ f2.0~f3.0

motorized zoom and

auto focus

IR Range 66 ft. (20m) 132 ft. (40m) 66 ft. (20m) 132 ft. (40m) 330 ft. (100m)

On Screen Display (OSD) N/A

OSD button; TruVision

Coax OSD control on

TVI; TruVision Coax OSD

control on 960H

N/A OSD button; TruVision Coax OSD control on TVI; TruVision Coax OSD control

on 960H

OSD Languages N/A English and Chinese English, Japanese, Chinese, Korean, German, French, Italian, Spanish, Polish,

Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic English and Chinese

Video Output HD-TVI Dual output: TVI and 960H Composite (when WDR is enabled, 960H output will be disabled)

Video Connector 1 - 75Ω / BNC @ TVI 1 - 75Ω / BNC @ HD-TVI; 1 - 75Ω / BNC @ 960H

Electrical/Mechanical

Voltage Input 12VDC 12VDC/24VAC 12VDC 12VDC/24VAC

Current 300 mA 12VDC: 300 mA (Max.)

24VAC: 210 mA (Max.) 330 mA 12VDC: 375 mA (Max.)

24VAC: 270 mA (Max.)

12VDC: 1 A (Max.)

24VAC: 500 mA (Max.)

12VDC: 1.67 A (Max.)

24VAC: 830 mA (Max.)

Power Consumption 12VDC: 3W (Max.) 12VDC: 4W (Max.)

24VAC: 6W (Max.) 12VDC: 4W (Max.) 12VDC: 5W (Max.)

24VAC: 6W (Max.)

12VDC: 12W (Max.)

24VAC: 12W (Max.) 20W (Max.)

Dimensions 2.76 × 5.89 in. (70 ×

149mm)

Without back box: 4.13

x 3.74 x 10.4 in. (105 x

94.7 x 265.4mm)

With back box: 4.13 x

3.74 x 11.86 in. (105 x

94.7 x 301.4mm)

2.76 × 5.89 in. (70 ×

149mm)

Without back box: 4.13 x 3.74 x 10.4 in. (105 x 94.7

x 265.4mm)

With back box: 4.13 x 3.74 x 11.86 in. (105 x 94.7

x 301.4mm)

Without back box: 4.26

x 4.5 x 12.5 in. (108.3 x

114.1 x 317.5mm)

With back box: 4.26 x

4.5 x 13.92 in. (108.3 x

114.1 x 353.5 mm)

Weight 0.64 lbs. (291g)

Without back box: 1.89

lbs. (860g)

With back box: 2.36 lbs.

(1075g)

0.68 lbs. (291g)

Without back box: 1.89

lbs. (860g)

With back box: 2.36 lbs.

(1075g)

Without back box: 1.94

lbs. (880g)

With back box: 2.41 lbs.

(1095g)

Without back box: 3.5

lbs. (1.59kg)

With back box: 3.98 lbs.

(1.805kg)

Environmental

Operating Temperature

(cold start)

12VDC: -22°F~140°F

(-30°C~60°C);

12VDC: -22°F~140°F

(-30°C~60°C);

24VAC: -40°F~140°F

(-40°C~60°C) with

heater on

12VDC: -22°F~140°F

(-30°C~60°C)

12VDC: -22°F~140°F (-30°C~60°C) ;

24VAC: -40°F~140°F (-40°C~60°C) with heater on

Humidity

(non-condensing) < 90%

Environmental Rating IP66

Vandal Rating N/A

Regulation

Compliance FCC, CE, UL, RCM, REACH, RoHS, WEEE

Specifications

10.44 in.

(265.4 mm)

3.72 in.

(94.7 mm)

5.88 in.

(149.5 mm)

2.76 in.

(70 mm)

n 70

Dimensional Diagrams

TVB-4401, TVB-2401, TVB-4403, TVB-2403 Fixed Bullet Camera

TVB-4402, TVB-2402, TVB-4404, TVB-2404 Varifocal Bullet Camera

TVB-4405, TVB-2405 2.8~12mm Motorized Varifocal Lens Bullet Camera

TVB-4406, TVB-2406 5-50mm Motorized Varifocal Lens Bullet Camera

11.85 in.

(301.1 mm)

4.36 in.

(110.7 mm)

4.33 in.

(110 mm)

4.26 in.

(108.20 mm)

13.92 in.

(353.56 mm)

4.5 in.

(114.1 mm)

Ordering Information

NTSC

TVB-4401 TruVision® HD-TVI Analog Bullet Camera, 720p, 3.6mm Lens, True D/N, DWDR, 20m IR, HD-TVI Output,

12VDC, IP66, NTSC

TVB-4402 TruVision HD-TVI Analog Bullet Camera, 720p, 2.8~12mm VF Lens, True D/N, DWDR, 40m IR, 960H

Monitor or HD-TVI Selectable Output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4403 TruVision HD-TVI Analog Bullet Camera, 1080p, 3.6mm Lens, True D/N, WDR, 20m IR, 960H Monitor &

HD-TVI Dual-output, Coax OSD Control, 12VDC, IP66, NTSC

TVB-4404 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm VF Lens, True D/N, WDR, 40m IR, 960H

Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4405 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm Motorized VF Lens, True D/N, WDR, 40m IR,

960H Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4406 TruVision HD-TVI Analog Bullet Camera, 1080p, 5~50mm Motorized VF Lens, True D/N, WDR, 100m IR,

960H Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

PAL

TVB-2401 TruVision HD-TVI Analog Bullet Camera, 720p, 3.6mm Lens, True D/N, DWDR, 20m IR, HD-TVI Output,

12VDC, IP66, PAL

TVB-2402 TruVision HD-TVI Analog Bullet Camera, 720p, 2.8~12mm VF Lens, True D/N, DWDR, 40m IR, 960H

Monitor or HD-TVI Selectable Output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2403 TruVision HD-TVI Analog Bullet Camera, 1080p, 3.6mm Lens, True D/N, WDR, 20m IR, 960H Monitor &

HD-TVI Dual-output, Coax OSD Control, 12VDC, IP66, PAL

TVB-2404 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm VF Lens, True D/N, WDR, 40m IR, 960H

Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2405 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm Motorized VF Lens, True D/N, WDR, 40m IR,

960H Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2406 TruVision HD-TVI Analog Bullet Camera, 1080p, 5~50mm Motorized VF Lens, True D/N, WDR, 100m IR,

960H Monitor & HD-TVI Dual-output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

Accessories

TVB-BB1 TruVision Bullet Camera Back Box (use w/TVI and IP Fixed Lens Bullet)

TVB-2G-AD Adapter for TruVision TVI and IP Fixed Lens Bullet Camera and LWB Bracket to 2 Gang Box

HD-TVI Analog Bullet Cameras

720p and 1080p Resolution Cameras
