GE Security Product Data Sheet
www.GESecurity.com

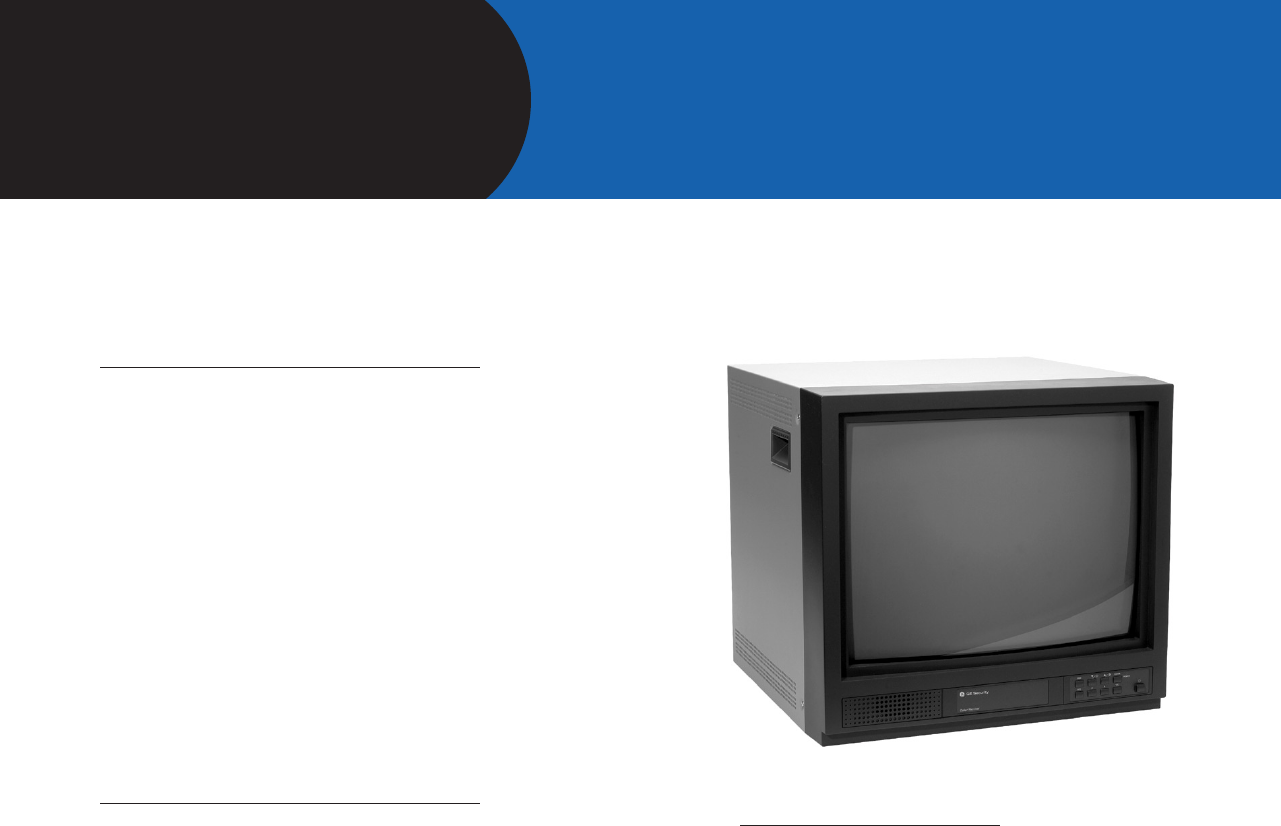

MVC-21S
Color Monitor with Audio
g
Overview
GE Security’s MVC-21S offers 500 TV lines of resolution and a 21-inch
actual viewing area. When viewing images from 16 cameras at one
time, each view appears in an area that is 5.25 inches from corner to
corner.
The MVC-21S is housed in a durable metal cabinet and includes a
built-in speaker. Front panel controls and an onscreen display make
the MVC-21S easy to operate. It has two BNC video inputs and one
Y/C video input.
The MVC-21S’s looping video inputs are self-terminating. This enables
you to use the MVC-21S by itself or daisy chain it with additional
monitors or other CCTV equipment. The MVC-21S also includes auto
video-loss detect and auto no-signal detect functions. Should the
video signal to the monitor be cut off or fall below a preset threshold,
the MVC-21S will sound an audible alarm.
Outstanding Features
The MVC-21S also includes a built-in three-channel switcher. The
monitor sequences through all connected cameras automatically. You
can also call up cameras manually using the front panel controls.
The MVC-21S’s universal 100 to 240 VAC power input draws 80 W of
power. Its NTSC and PAL compatible scanning system automatically
detects camera video format. The monitor operates effectively in
temperatures ranging from 14° to 194° F (-10° to 50° C).
Standard Features
21-inch viewing area
l
Resolution: 500 TV lines
l
Durable metal cabinet
l
Front panel controls and onscreen display
l
Built-in three-channel auto or manual switcher
l
Built-in microprocessor digital control
l
Self-terminating, looping video inputs
l
Auto video-loss detect
l
Auto no-signal detect
l
Dwell time control
l
Built-in speaker
l
Universal power supply: 100 to 240 VAC
l
NTSC/PAL compatible with auto detect function
l
MVC-21S
Color Monitor with Audio
Specifications
MVC-21S 21-inch Color Monitor
CRT: 21 in diagonal, flat screen (FST) color monitor
l
Input power: 100 to 200 VAC, 50/60 Hz
l
Power consumption: 80 W (max)
l
Video input composite: 1.0 V pk-pk at 75 ohm load
l
Scanning frequency: 15.734 KHz / 60 Hz (NTSC), 16.625 KHz / 50 Hz
(PAL)
l
Resolution: > 500 TVL (center)
l
Video connectors: Video BNC in x 2, Y/C in x 1, Video BNC out x 2, Y/C
out x 2
l
Weight: 59.52 lb (27 kg)
l
Operating temperature: 14° to 194° F (-10° to 50° C)
l
Humidity: 10 to 90 percent
l

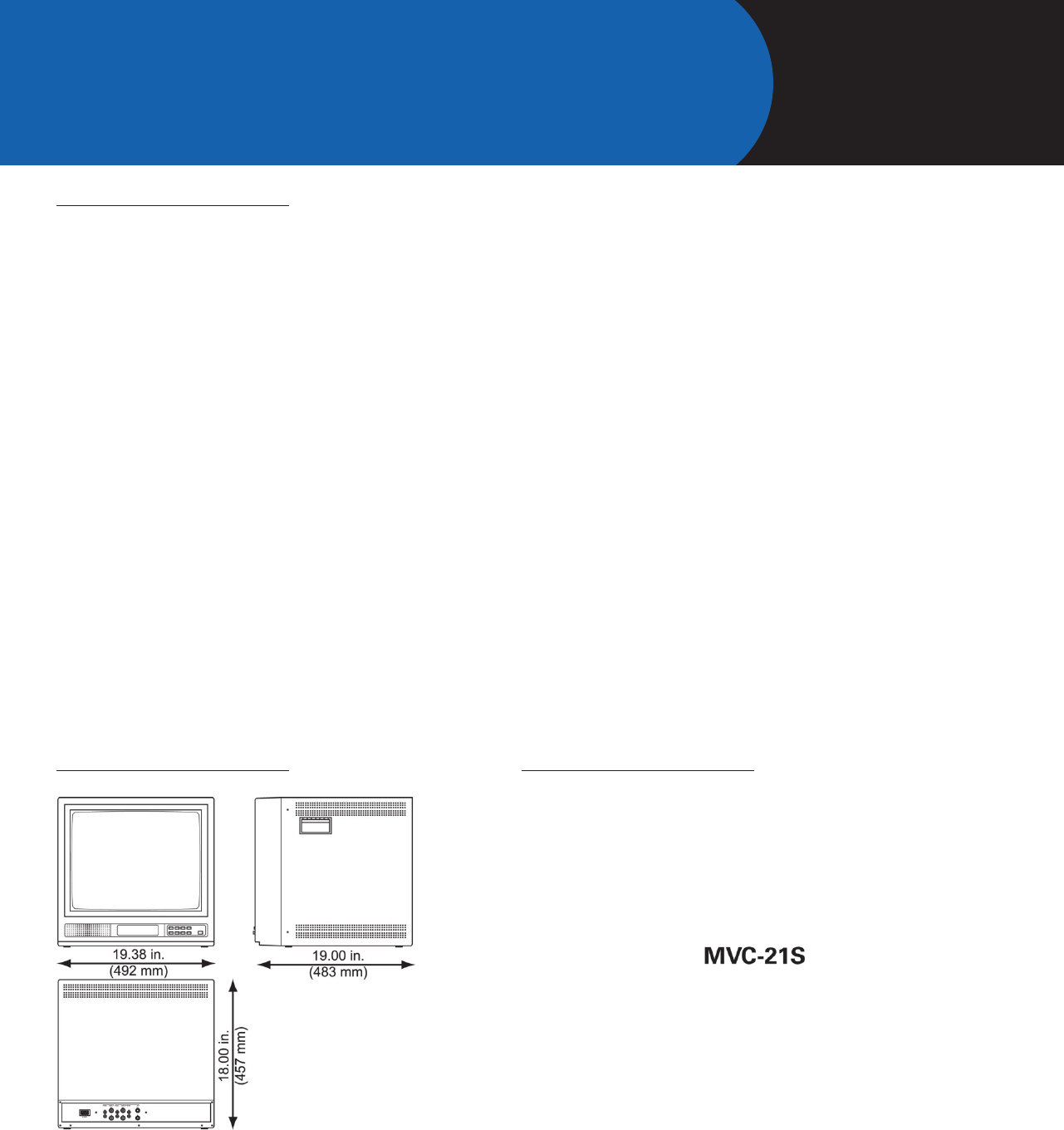

Related Diagram Ordering Information
