S E N T R O L

P R O D U C T I N F O R M A T I O N B U L L E T I N

The ShatterPro™ Plus is an acoustic glassbreak

sensor combined with a passive infrared motion

detector (PIR) for the purpose of eliminating occupant

generated false alarms. It will extend acoustic

glassbreak technology to occupied areas, allowing

these sensors to be armed while people or pets are

present. Simply put, when a person enters the field of

view of the motion detector the glassbreak sensor is

shunted during the period of occupancy. This elimi-

nates false alarms generated from normal noise levels

during occupied hours at work or at home. The

ShatterPro™ Plus can be wired into a 24-hour perim-

eter loop, free from concerns about false alarms

generated by a noisy environment.

The ShatterPro™ Plus utilizes all the features of the

ShatterPro II; excellent detection, false alarm immunity

in quiet environments, new test feature and the hand

clap end user feature. The PIR sensor utilizes Sentrol's

SureShot™ signal analysis and detection patterns.

ShatterPro™ Plus can also function as a combined

PIR/glassbreak with individual alarm outputs to the

panel for separate zoning. This allows for a separate

PIR alarm and separate glassbreak alarm.

• 24-hour acoustic glassbreak

application

• Motion-sensitive sensor "knows"

the area is occupied and

eliminates occupant generated

false alarms

• High-quality ShatterPro II

analysis combined with Sentrol

motion signal analysis

• Two-relay output for arming

either perimeter or interior loop

or both

• Can function as two sensors in

one package (PIR/Glassbreak)

Patent pending.

SHATTERPRO™ PLUS

Motion-Sensitive

Acoustic Glassbreak

Sensor

Model number: 5885

CORPORATE HEADQUARTERS Sentrol reserves the right

to change specifications

without notice.

©1998 Sentrol

12345 SW Leveton Dr., Tualatin, OR 97062

Tel.: 503.692.4052 Fax: 503.691.7566

http://www.sentrol.com

U.S. & Canada: 800.547.2556

Technical Service: 800.648.7424

FaxBack: 800.483.2495

SENTROL

G-2294 FLG20K 0496

Sentrol ShatterPro™ Plus

Specifications:

Electrical

Operational voltage ........................................... 9 to 16 V DC

Current draw ................................ 15 mA typical; 30 mA max.

Alarm outputs ...... Normally closed, open 4 seconds on alarm

On resistance ................................................. 5 to 15 Ohms

Off resistance ..................................................... 20 MOhms

Maximum loop rating

(relay or tamper loop) ................................ 16 V DC, 50 mA

Fails safe and opens on power loss

Environmental

Lightning suppression ................... 400 watts for 1 msec pulse

Operating temperature ............ 0°F to 120°F (-18°C to +50°C)

RFI immunity ......................... 20 V/meter from 1 to 1000MHz

Humidity .................................... 10% to 90% noncondensing

LED Indicator

Glassbreak alarm .............................................. 4 sec. solid red

Glassbreak test mode .................... 1 Hz blinking red/1 minute

Glassbreak latched ..................................................... solid red

Hand Clap Test ...................................................... 2 red blinks

PIR alarm ...................................................... 4 sec. solid green

PIR shunting Glassbreak ........................... 1 Hz blinking green

Accoustic Glassbreak Features

Housing material ........................... Flame retardant ABS plastic

Microphone ............................. Omni directional 360° electret

Sensitivity setting .................................................... Factory set

Range .............................. 15' (4.6 m) to farthest point of glass

15' (4.6 m) to farthest point of glass

Glass types detected

Plate glass ............................................... Up to 1⁄4" (6.4 mm)

Tempered glass ...................................... Up to 1⁄4" (6.4 mm)

Wired glass ............................................. Up to 1⁄4" (6.4 mm)

Laminated glass ...................................... Up to 1⁄4" (6.4 mm)

Mounting location ..... Ceiling or any wall except opposite wall

Minimum distance from glass ................................... 3.3' (1 m)

Minimum glass size ........................................................ 1' x 2'

Dimensions ................................................. 3.70" (9.40 cm) H

2.20" (5.59 cm) W

1.20" (3.05 cm) D

Color .................................................................... White/white

PIR Features

Pulse count ............................. Bi-directional, 1 zone (2 pulses)

with Motion Verification

Range .....................................................................................

1. Wide Angle (90°) ..................... 30' x 30' (9.14 m x 9.14 m)

2. 360° Ceiling .... 15' x 20' (4.57 m x 6.10 m) at 8' (2.44 m) high

16' x 30' (4.88 m x 9.14 m) at 12' (3.65 m) high

Ceiling mounting height up to 12' (3.65 m)

3. Single Spot ............................................. 40' (12.19 m) range

4. Vertical Barrier ........................................ 40' (12.19 m) range

5. Pet Alley (90°) ........................................... 30' (9.14 m) range

Ordering Information

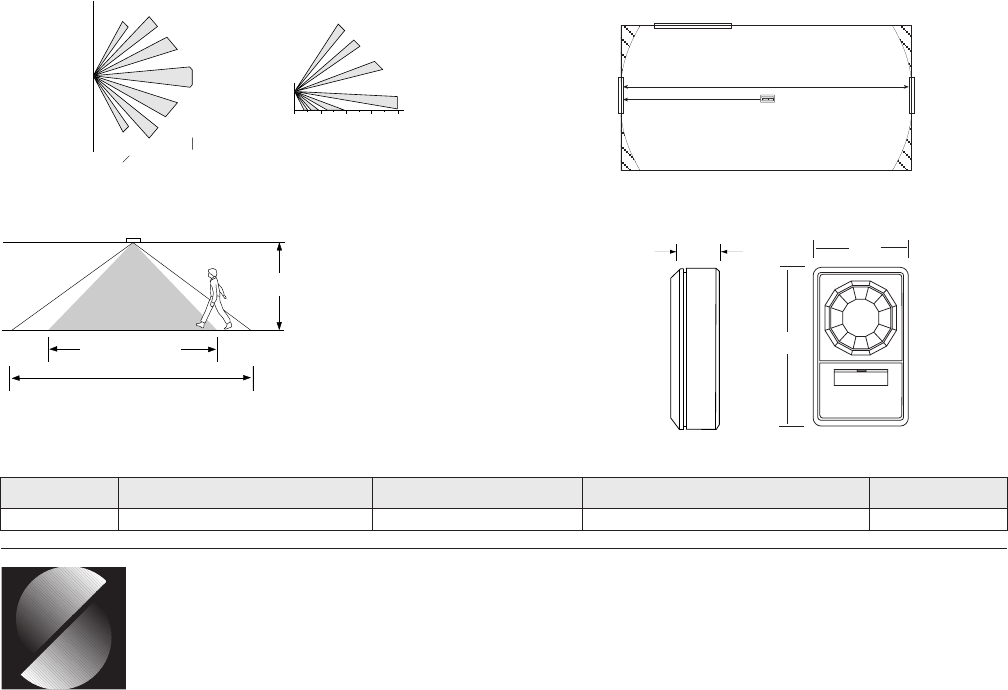

Lens Coverage ______________________________________

Wall Mount No Mask

54° 38.4°

20°

0°

20° 010'

3.0 m 20'

6.1 m 30'

9.1 m 40'

12.2 m

38.4°

54°

30'

91.1 m 40'

12.2 m

7'

2.1 m

Top View Side View

8'

(2.4 m)

15' (4.6 m) x 20' (6.2 m)

capture zone

25' (7.2 m) diameter

coverage pattern

360° Ceiling Mount

Model Description Loop Type Electrical Configuration Listing

5885-W ShatterPro™ Plus Normally Closed N.C.

Note: Intruder must enter

capture zone in order to

be detected. False alarm

sources, such as heaters,

should be kept out of the

coverage pattern.

Mounting Location Range __________________________

Dimensions _________________________________________

1.20"

3.05cm

➝

➝

➝

➝

2.20”

(5.6cm)

3.70”

(9.4cm)

15' (4.6 m)

30' (9.2 m)

15' (4.6 m)

30' (9.2 m)
