The TruVision® line from Interlogix represents integrated

video solutions for advanced surveillance capabilities.

Comprehensive coverage.

Unmatched performance.

The next-generation video offering

Designed to deliver leading image capture capability to secure

the most demanding applications, TruVision IP components

adhere to open standards for easy deployment. Megapixel

cameras, recording devices and VMS software work seamlessly

together to form a ready-made IP solution ideally suited for

environments where high-quality resolution and ease of use

are a must:

· Schools and higher education

· Banks and ﬁnancial institutions

· Ofﬁce buildings

· Retail spaces

· Public venues

Developed by Interlogix,

a recognized leader in

innovative security

technology, the TruVision®

line brings the beneﬁt of

digital security monitoring

to commercial applications.

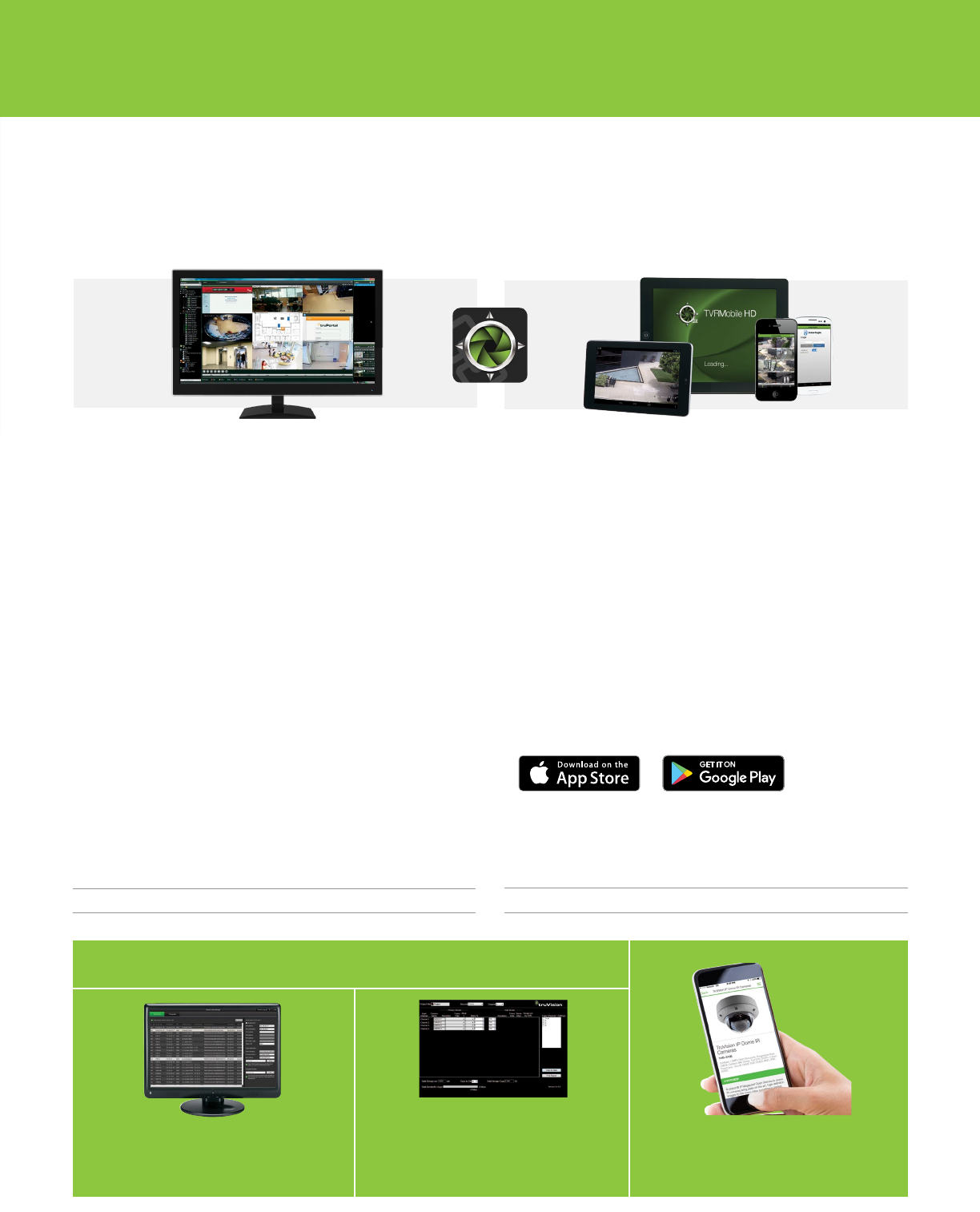

TruVision software provides advanced video management capabilities within a streamlined, user-friendly

interface. Compatible with Interlogix® TruVision brand cameras and recorders, TruVision Navigator is a

video management software solution that’s highly ﬂexible and scalable. Available mobile apps allow you to

access the system and monitor your facilities even while you’re away.

TruVision® Software

Compatible with Apple® iOS and Android™ phones and tablets,

TVRMobile allows users to access and monitor their TruVision

video surveillance system from anywhere in the world.

• Real-time monitoring of analog, HD-TVI or H.264/H.265 IP

video via TruVision recorders or directly from TruVision IP

cameras

• Send events from a TruVision device directly to your phone

using push notiﬁcations

• Remote connection via Wi-Fi®, 3G, 4G or LTE network

• No limit to the number of devices that can be added

• Free downloads via iTunes® App Store or Android Market

TruVision Video Tools

TruVision Navigator 7 represents an ideal commercial Video

Management System (VMS) that provides a ﬂexible migration

path to IP supporting both TruVision analog and H.264/H.265

IP products. It’s not only easy to install and use, but also offers

greater scalability to accommodate future growth.

• Supports Analog and HD-TVI video through TruVision recorders

• Supports H.264/H.265 IP video directly through TruVision

cameras or recorders

• Maps, multiple video viewing tabs and live alarm monitoring

• Logical view in device tree and logical event ﬁltering in notiﬁer

• TruPortal™ Access Control integration with video/door

controller linking

• IFS® network switch integration for discovery, login, conﬁguration

• Scalable for stand-alone or larger commercial (SME) server/

client applications

TruVision Navigator 7 Ordering Information

DOWNLOAD ONLY http://www.interlogix.com/navigator

TVRMobile AppTruVision Navigator 7

TVRMobile App Ordering Information

DOWNLOAD ONLY interlogix.com/video/category/software

Easily search and conﬁgure TruVision IP

devices on a network.

TruVision Device Manager Calculate storage requirements for

TruVision H.264/H.265 recorders based

on camera count, resolution, fps, etc.

TruVision Calculator

Find the right TruVision IP camera using

the mobile app.

TruVision IP Camera App

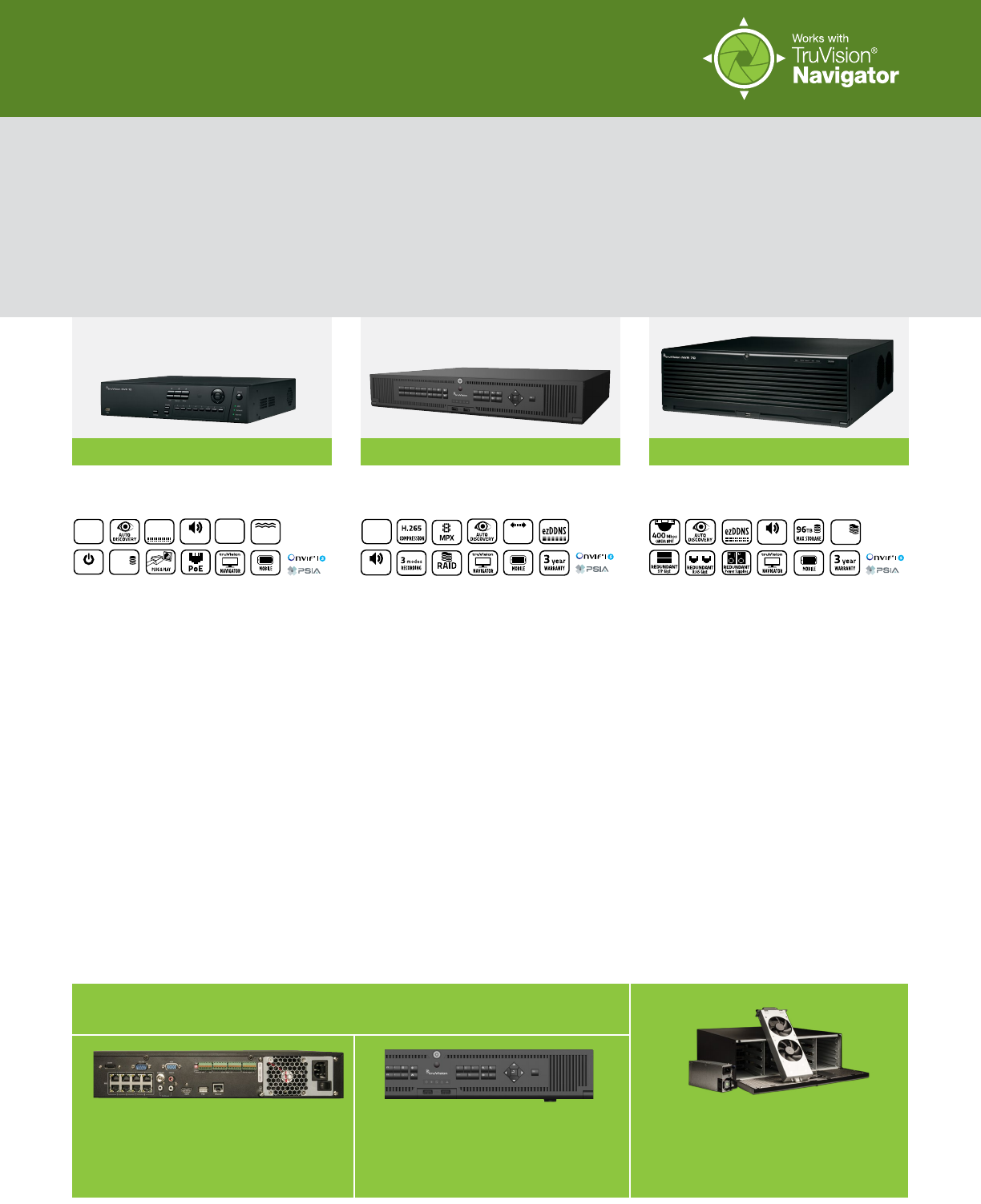

IP Network Video Recorders

TruVision network video recorders offer user-friendly operation, ﬂexible conﬁguration, as well as easy

installation. Live/playback high deﬁnition IP video can be accessed through front panel controls,

TruVision Navigator or web browser.

NVR 22 SeriesNVR 10 Series

• H.264/H.265 support

• Supports up to 32 IP cameras (TruVision,

ONVIF and PSIA) in real-time (30fps)

• Up to 200Mbps incoming bandwidth

• Built-in 8- or 16-port PoE Switch (NVR 22S)

• Automatic PoE power budget allocation

• Front panel accessible HDD bays for

easy storage expansion

• RAID support (TVN22P Series only)

• Hot-spare redundancy

• Network redundancy

• Start-up wizards, auto discovery tools

and ezDDNS service make conﬁguration

quick and easy

• HDMI ports for local high deﬁnition viewing

• Available mobile apps for remote monitoring

• 3-year warranty

• Supports up to 16 IP cameras (TruVision,

Onvif® and PSIA) in real-time (30fps)

• Up to 80Mbps incoming bandwidth

• Built-in 4- or 8-port PoE switch

• Plug and Play conﬁguration

• Start-up wizards, auto discovery tools

and ezDDNS service make conﬁguration

quick and easy

• HDMI ports for local high deﬁnition

viewing

• Integration with TruPortal™ access

control

• Available mobile apps for remote

monitoring

• 3-year warranty

COMPRESSION

H.264

STORAGE

BANDWIDTH

SMART

AUDIO

COMPRESSION

H.264 ezDDNS RECORDING

3 modes

AUDIO

TruVision® IP Products

HDD STORAGE

6TB

REMOTE

START-UP WIZARD

Plug & Play Full Featured High Capacity

NVR 70 Series

• Supports up to 128 IP cameras (TruVison,

ONVIF and PSIA) in real-time (30fps)

• Up to 400Mbps incoming bandwidth

• Front panel accessible HDD bays for up

to 16 drives for easy storage expansion

• High fault-tolerant design includes

network, fans, and power supply

redundancy

• Built-in SFP ﬁber ports for high

bandwidth network connectivity

• Integration with TruPortal, OnGuard

access control

• Available mobile apps for remote

monitoring

• 3-year warranty

AUDIO RAID STORAGE

64TB

Built for easy operation and reliability

Built-in remote PoE power and

automatic conﬁguration for easy

installation of TruVision IP cameras.

Plug & Play PoE Switch

Direct access to camera channels and

controls with the drop-down lockable

front panel allowing storage expansion.

Versatile Front Panel Design

Up to 16 HDD bays and full redundancy

for mission-critical applications.

High storage capacity with a high

fault-tolerant design

Network Video Recorders Comparison Table

NVR 10C

NVR 10

NVR 22

NVR 22S

NVR 22Plus

NVR 70

Channels,

Bandwidth

& Resolution

Max. IP channels 48/16 8/16 8/16 16/32 128

Total bandwidth available (Mbps) inward 20 40/80 80/160 80/160 256/320 400

Average bandwidth per channel (Mbps) inward

5 5 10 10 10 5

Bandwidth allocation Fully flexible Fully flexible Fully flexible Fully flexible Fully flexible Fully flexible

Real-time recording Full HD Full HD Full HD Full HD Full HD Full HD

HD recording per channel (fps) 30 30 25/30 25/30 25/30 30

PoE

PoE ports 48/8 —8/16 — —

Total PoE budget 50W 120W —120/200W — —

Average budget per port 12.5W 15W —Auto-PoE — —

Maximum budget for 1 port 30W 30W —30W — —

PoE-af • • —•— —

PoE-at • • —•— —

Network

& Streaming

Plug-and-play IP configuration • • —•— —

ONVIF support • • • • • •

PSIA support • • • • • •

Gigabit ethernet (RJ45/SFP) ports 1 1 2 1 2 2

Redundant NIC ports — — •—• •

Load balancing — — •—• •

ezDDNS • • • • • •

Maximum outgoing streams 64 64 128 128 128 256

Maximum outgoing bandwidth (Mbps) 40 80/80 256 256 256 400

Storage

Max storage (TB) 24/6 24 24 48 96 non-RAID

64 Raid

Front side accessible HDDs — — • • • •

Expandable internal storage — — • • • •

Dual stream recording — — — — — •

Hot spare backup/recovery — — • • • •

HDD redundancy — — • • • •

RAID support — — — — 0/1/5/10 0/1/5/10

NAS and eSATA support — — • • • •

Local Viewing

& Controls

Front panel controls • • • • • —

HDMI • • 1 1 2 —

VGA • • 1 1 2 —

BNC output — — • • • —

Keypad support TVK-800 TVK-800 TVK-800 TVK-800 TVK-800 TVK-800

USB slots 2 2 3 3 3 3

General

Features

Text insertion — — — — — •

CD/DVD burner via USB via USB via USB via USB via USB —

Reverse playback • • • • • •

Alarm I/O 4/1 4/1 16/4 16/4 16/4 16/8

Rack mountable —• • • • •

Redundant Power Supplies — — — — — •

Software

Support

TruVision® Navigator • • • • • •

TVRmobile • • • • • •

OnGuard®• • Pending Pending Pending •

TruPortal™• • Pending Pending Pending Pending

NVR 10

TVN-1004CS-1T TruVision NVR 10 Compact, 4-Channels/PoE Switch, 20Mbps, 1TB

Storage

TVN-1004CS-2T TruVision NVR 10 Compact, 4-Channels/PoE Switch, 20Mbps, 2TB

Storage

TVN-1008S-2T TruVision NVR 10, 8-Channels/PoE Switch, 40Mbps, 2TB Storage

TVN-1008S-4T TruVision NVR 10, 8-Channels/PoE Switch, 40Mbps, 4TB Storage

TVN-1016S-3T TruVision NVR 10, 16-Channels/8-port PoE Switch, 80Mbps, 3TB

Storage

TVN-1016S-6T TruVision NVR 10, 16-Channels/8-port PoE Switch, 80Mbps, 6TB

Storage

NVR 22

TVN-2208-4T TruVision NVR 22, H.265, 8-Channel IP, 4TB Storage

TVN-2208-8T TruVision NVR 22, H.265, 8-Channel IP, 8TB Storage

TVN-2208-12T TruVision NVR 22, H.265, 8-Channel IP, 12TB Storage

TVN-2216-4T TruVision NVR 22, H.265, 16-Channel IP, 4TB Storage

TVN-2216-8T TruVision NVR 22, H.265, 16-Channel IP, 8TB Storage

TVN-2216-8T TruVision NVR 22, H.265, 16-Channel IP, 16TB Storage

NVR 22S

TVN-2208S-4T TruVision NVR 22S, H.265, 8-Channel PoE, 4TB Storage

TVN-2208S-8T TruVision NVR 22S, H.265, 8-Channel PoE, 8TB Storage

TVN-2208S-12T TruVision NVR 22S, H.265, 8-Channel PoE, 12TB Storage

TVN-2216S-4T TruVision NVR 22S, H.265, 16-Channel PoE, 4TB Storage

TVN-2216S-8T TruVision NVR 22S, H.265, 16-Channel PoE, 8TB Storage

TVN-2216S-12T TruVision NVR 22S, H.265, 16-Channel PoE, 12TB Storage

TVN-2216S-24T TruVision NVR 22S, H.265, 16-Channel PoE, 24TB Storage

NVR 22P

TVN-2216P-6T TruVision NVR 22Plus, H.265, 16-Channel IP, 2U, 6TB Storage

TVN-2216P-12T TruVision NVR 22Plus, H.265, 16-Channel IP, 2U, 12TB Storage

TVN-2216P-24T TruVision NVR 22Plus, H.265, 16-Channel IP, 2U, 24TB Storage

TVN-2232P-6T TruVision NVR 22Plus, H.265, 32-Channel IP, 2U, 6TB Storage

TVN-2232P-12T TruVision NVR 22Plus, H.265, 32-Channel IP, 2U, 12TB Storage

TVN-2232P-24T TruVision NVR 22Plus, H.265, 32-Channel IP, 2U, 24TB Storage

TVN-2232P-48T TruVision NVR 22Plus, H.265, 32-Channel IP, 2U, 48TB Storage

NVR 70

TVN-7001-16T TruVision NVR 70, 128 Channels, 3U, 16TB

TVN-7001-32T TruVision NVR 70, 128 Channels, 3U, 32TB

TVN-7001-48T TruVision NVR 70, 128 Channels, 3U, 48TB

TVN-7001-64T TruVision NVR 70, 128 Channels, 3U, 64TB

TVN-7001-96T TruVision NVR 70, 128 Channels, 3U, 96TB

TVN-7001R-16T TruVision NVR 70, RAID. 128 Channels, 3U, 16TB

TVN-7001R-32T TruVision NVR 70, RAID. 128 Channels, 3U, 32TB

TVN-7001R-48T TruVision NVR 70, RAID. 128 Channels, 3U, 48TB

TVN-7001R-64T TruVision NVR 70, RAID. 128 Channels, 3U, 64TB

TVN-7001-FAN TruVision NVR 70, Spare Part, Fan

TVN-7001-PS TruVision NVR 70, Spare Part, Power Supply

TruVision® IP Products

Network Video Recorders Ordering Information

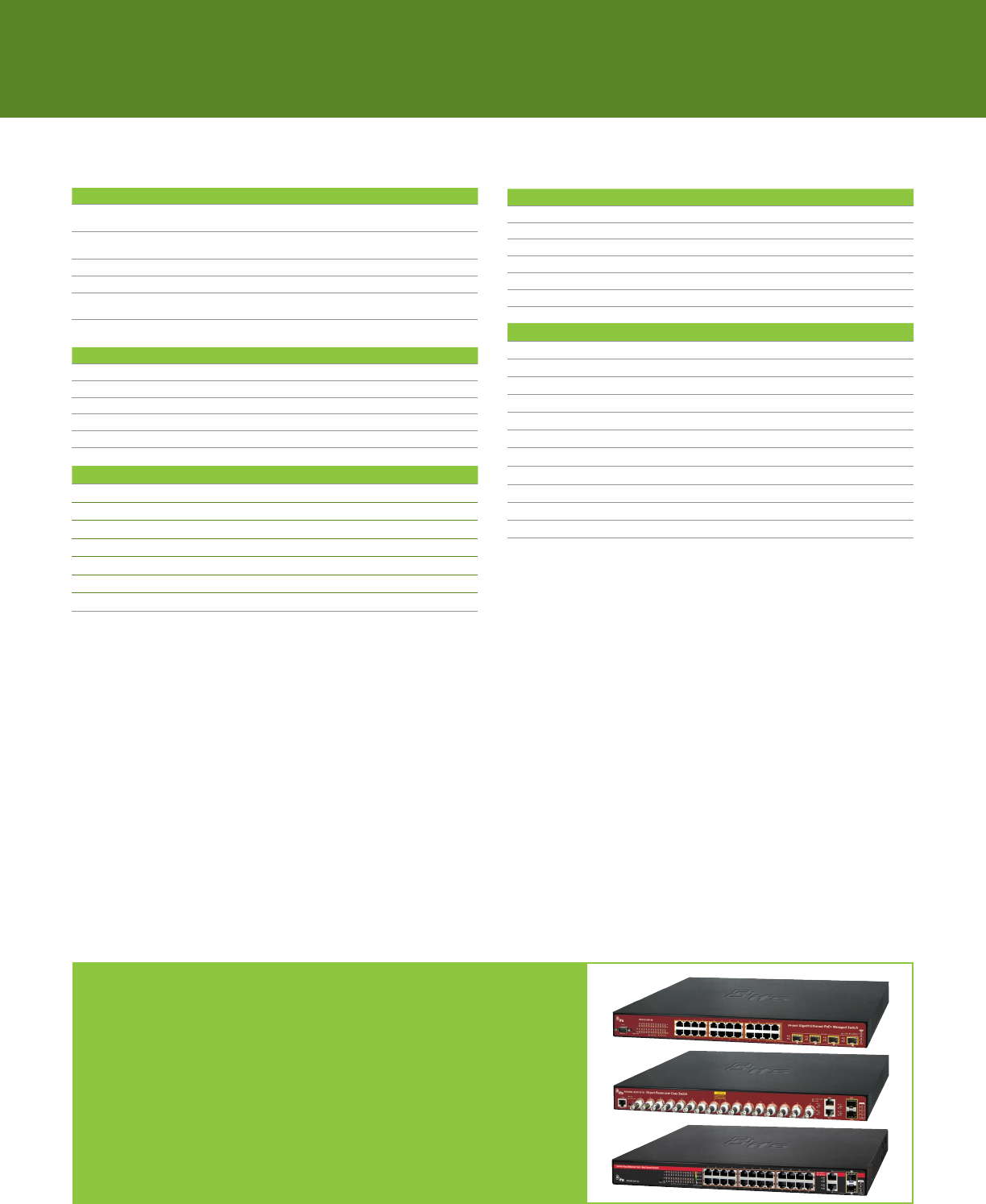

IFS® Network Switches

Delivering robust electrical power and data connection to IP cameras,

IFS technology is designed to meet modern network demands. These

advanced network switches offer high bandwidth, isolated PoE ports,

extra SFP ﬁber ports and network and cable diagnostics.

interlogix.com/transmission

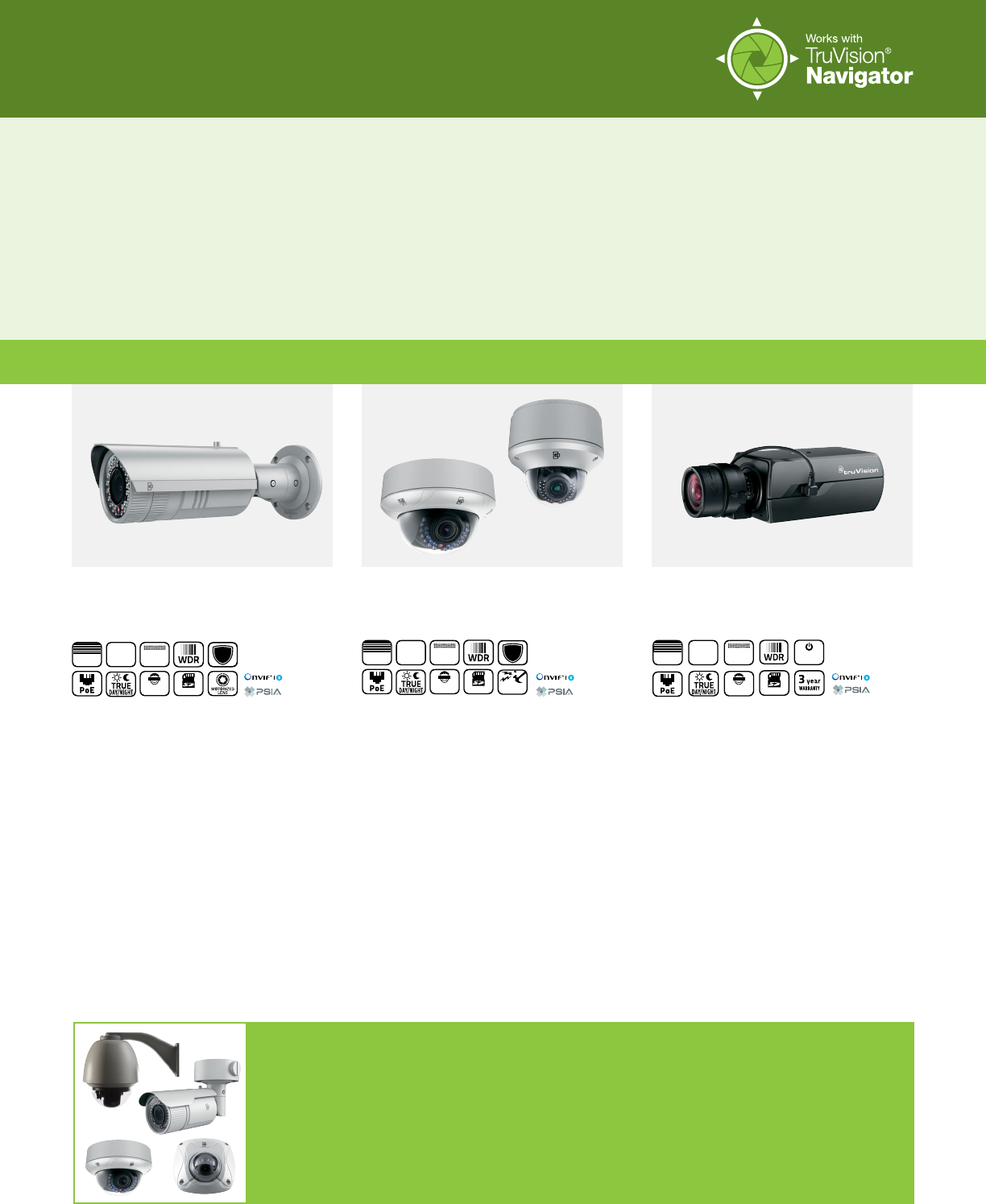

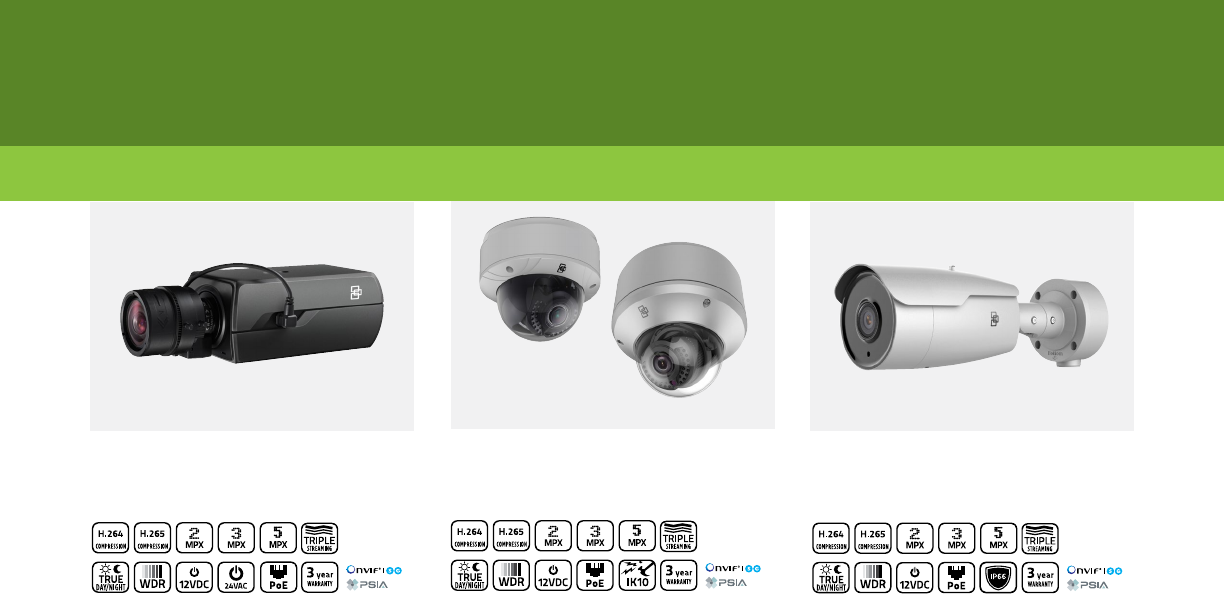

• Motorized varifocal lens technology

provides remote autofocus

• Long zoom and IR range

• Up to 120dB of Wide Dynamic Range

(WDR) performance for contrasting

lighting environments

• Intelligence features including face

detection, cross line and intrusion

detection

• Integrated motion detection and privacy

masking

• 3-year warranty

• Select models feature real-time video

streaming up to 1080p resolution to

capture every detail

• Up to 120dB of Wide Dynamic Range

(WDR) performance for contrasting

lighting environments

• Alarm inputs and outputs provide easy

notiﬁcation and control of events

• Intelligence features including face

detection, cross line and intrusion

detection

• Edge recording supports up to 128GB

Micro SD/SDHC/SDXC card for video

playback

• 3-year warranty

COMPRESSION

H.264

PROGRESSIVE

SCAN FPS

30/25 IP66

PRIVACY

MASK SD Card IK10

COMPRESSION

H.264

PROGRESSIVE

SCAN FPS

30/25 IP66

PRIVACY

MASK SD Card

• Select models feature real-time video

streaming up to 1080p resolution for

exceptionally detailed image capture

• Auto back focus for easy installation

• True day/night

• Browser-supported mono and

bi-directional audio to expand IP stream

to include audio

• Intelligence features including face

detection, cross line and intrusion

detection

• 3-year warranty

PROGRESSIVE

SCAN COMPRESSION

H.264

SD Card

FPS

30/25 12VDC

24VAC

PRIVACY

MASK

1.3MPx and 3MPx

Intelligent IP Bullet Cameras

1.3MPx and 3Mx

Intelligent IP Box Cameras

1.3MPx and 3MPx

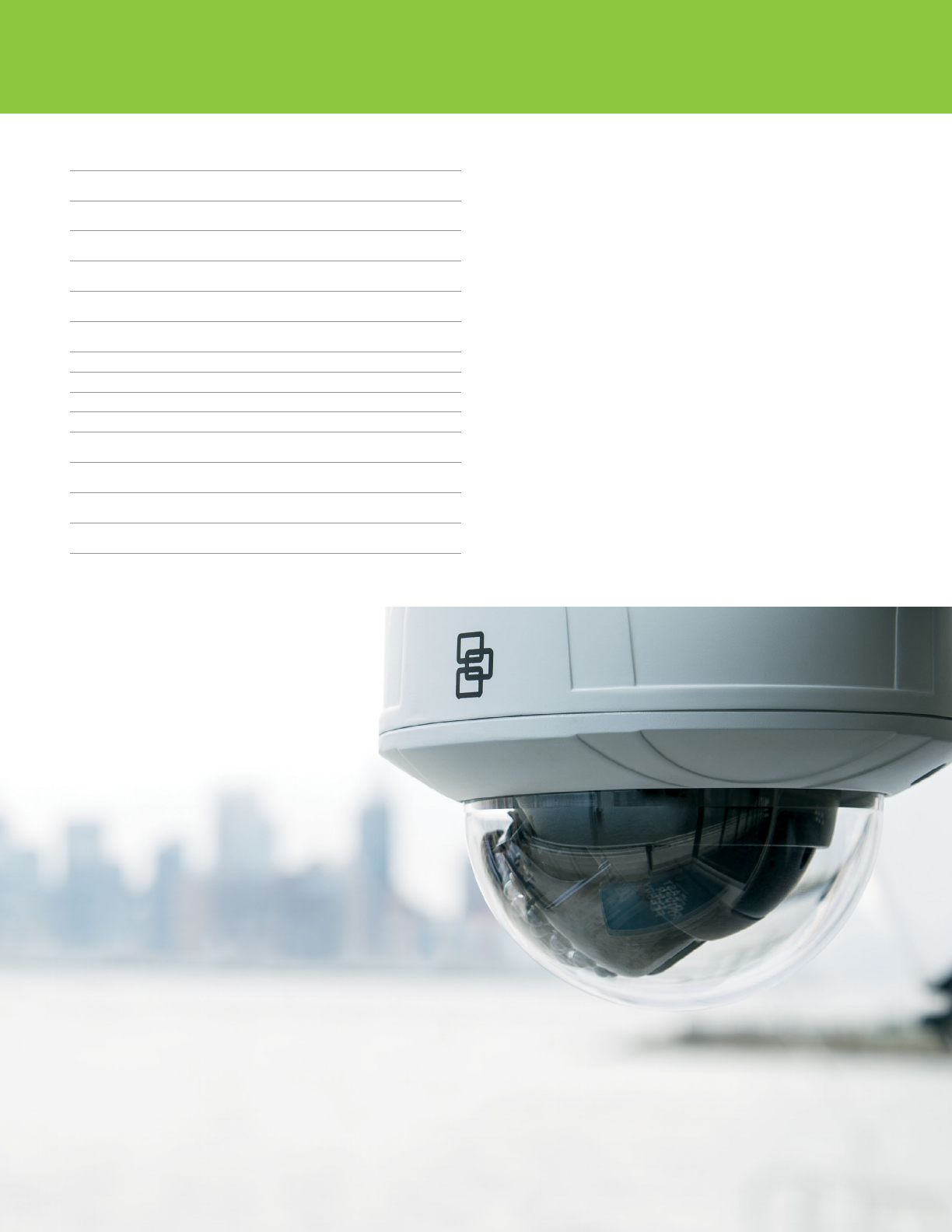

Intelligent IP Dome Cameras

IP Cameras

TruVision® IP cameras deliver superior image quality and perform seamlessly with a variety of video

management software platforms and recorders. In addition, there are several form-factors available to

meet multiple video needs.

IP Open Standards Cameras

Designed for ﬂexible security solutions

TruVision cameras are engineered to meet ONVIF®/PSIA open standards allowing seamless

interoperability with a variety of video management systems and recorders.

TruVision® IP Products

Varifocal Lens Varifocal (Motorized) Lens

1.3MPx 3MPx 1.3MPx 3MPx

TVD-3201 TVD-3202 TVD-3203 TVD-3204 TVD-3205

Sensor 1/3" Progressive Scan, CMOS

Resolution 1280(H) x 960(V) @ 30 fps Max. 2048(H) x 1536(V)

@ 20fps

1280(H) x 960(V) @ 30 fps Max. 2048(H) x 1536(V) @ 20fps

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC off)

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC

ON); B/W: 0 lux with IR On

Color: 0.1 lux @ f1.2 (AGC

ON); B/W: 0 lux with IR On

Color: 0.01 lux @ f1.2 (AGC

ON); B/W: 0 lux with IR On

Color: 0.1 lux @ f1.2 (AGC ON);

B/W: 0 lux with IR On

Lens 2.8~12mm 2.8~12mm (motorized) 8~32mm (motorized)

Video Output 1 Vp-p composite output (75 ohm/BNC) Internal BNC port for installation only

IR Range 98 ft. (30m) 164 ft. (50m)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Face Detection, Cross Line, Intrusion Detection, De-focus Detection, Scene Change Detection, Region

Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Object Counting, Audio Exception Detection

I/O 1 input / 1 output 2 input / 2 output

Audio --

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af) 24VAC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C) -40°F~140°F(-40°C~60°C), with heater on

Environmental Rating IP66

Vandal Rating IK10

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

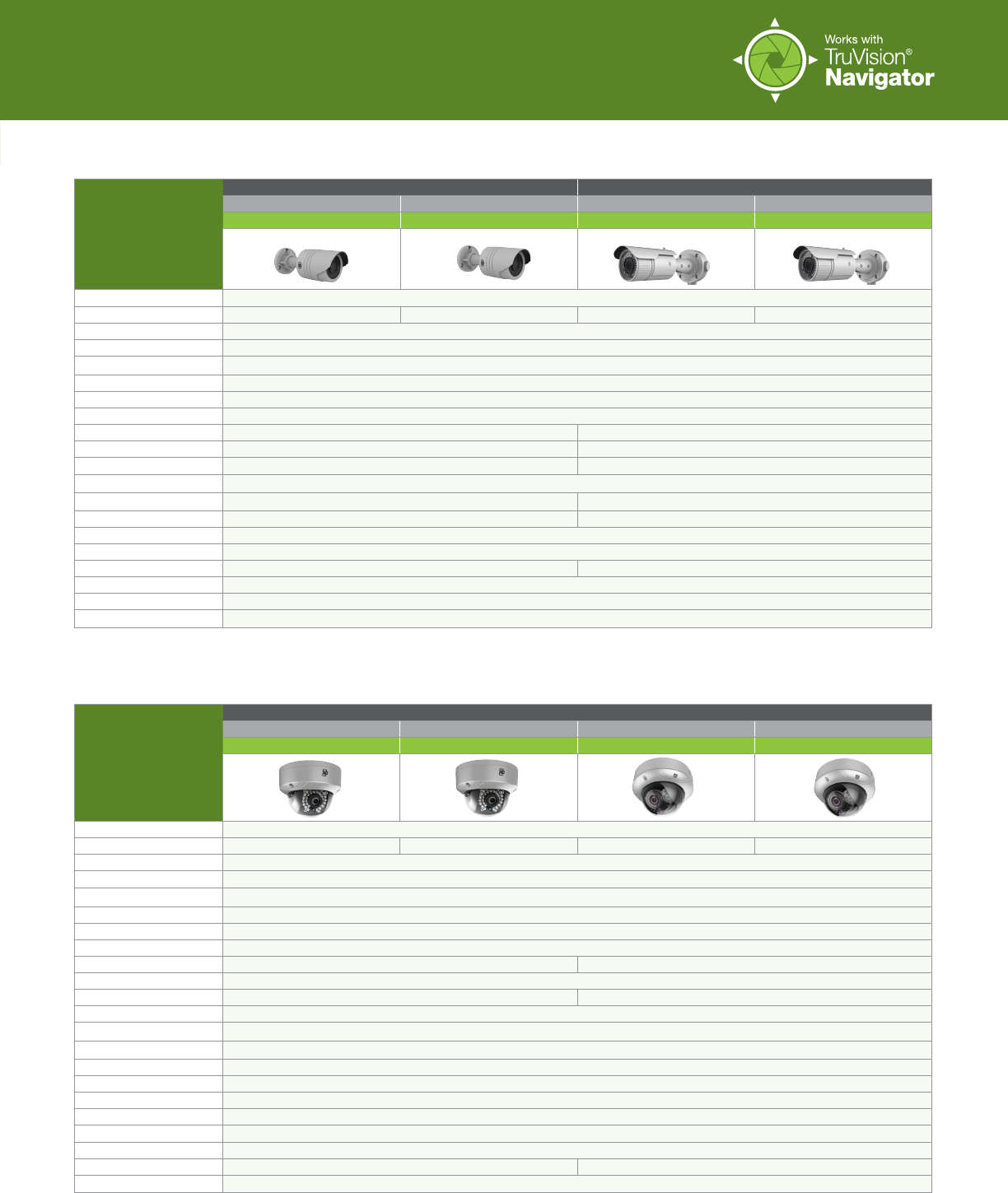

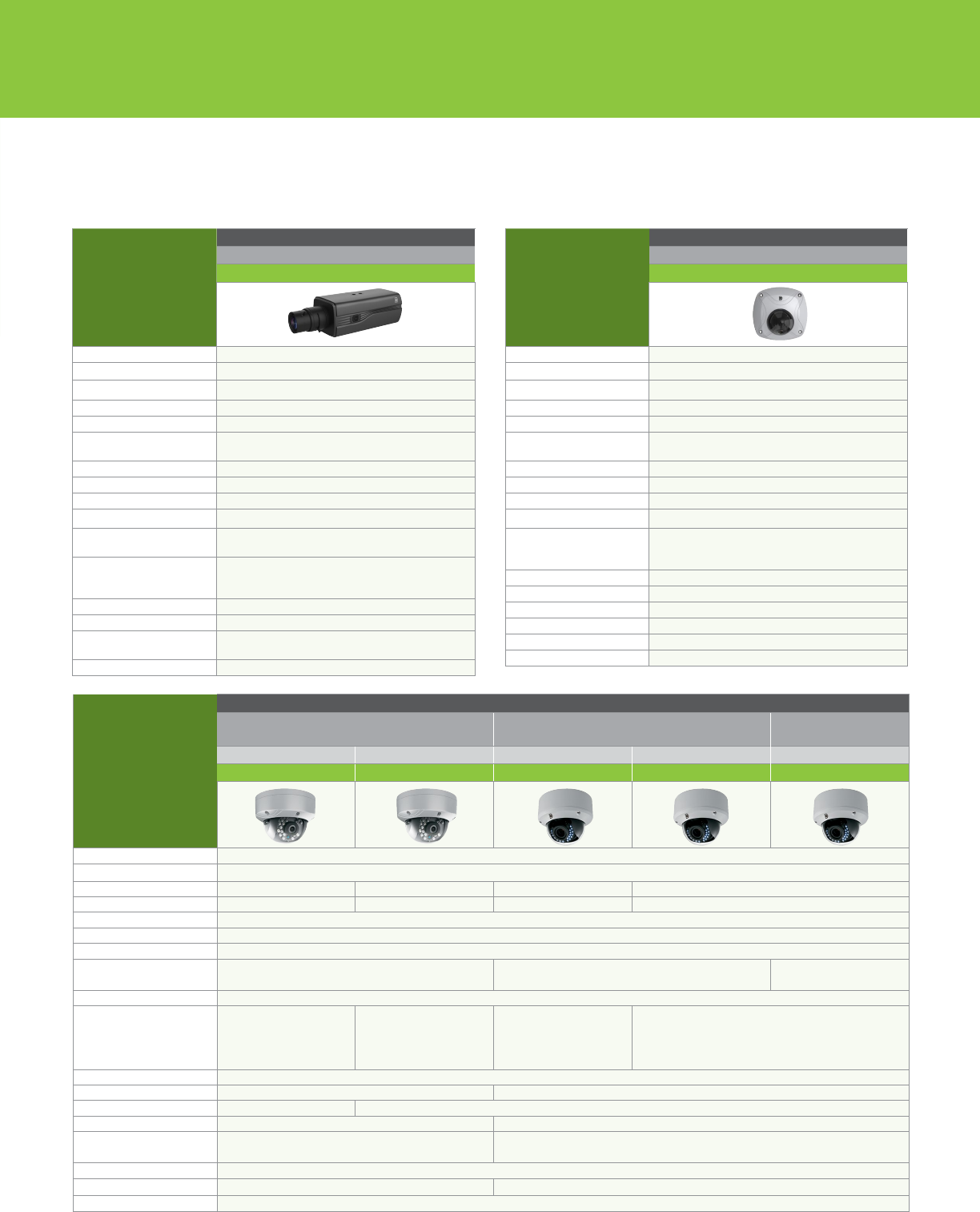

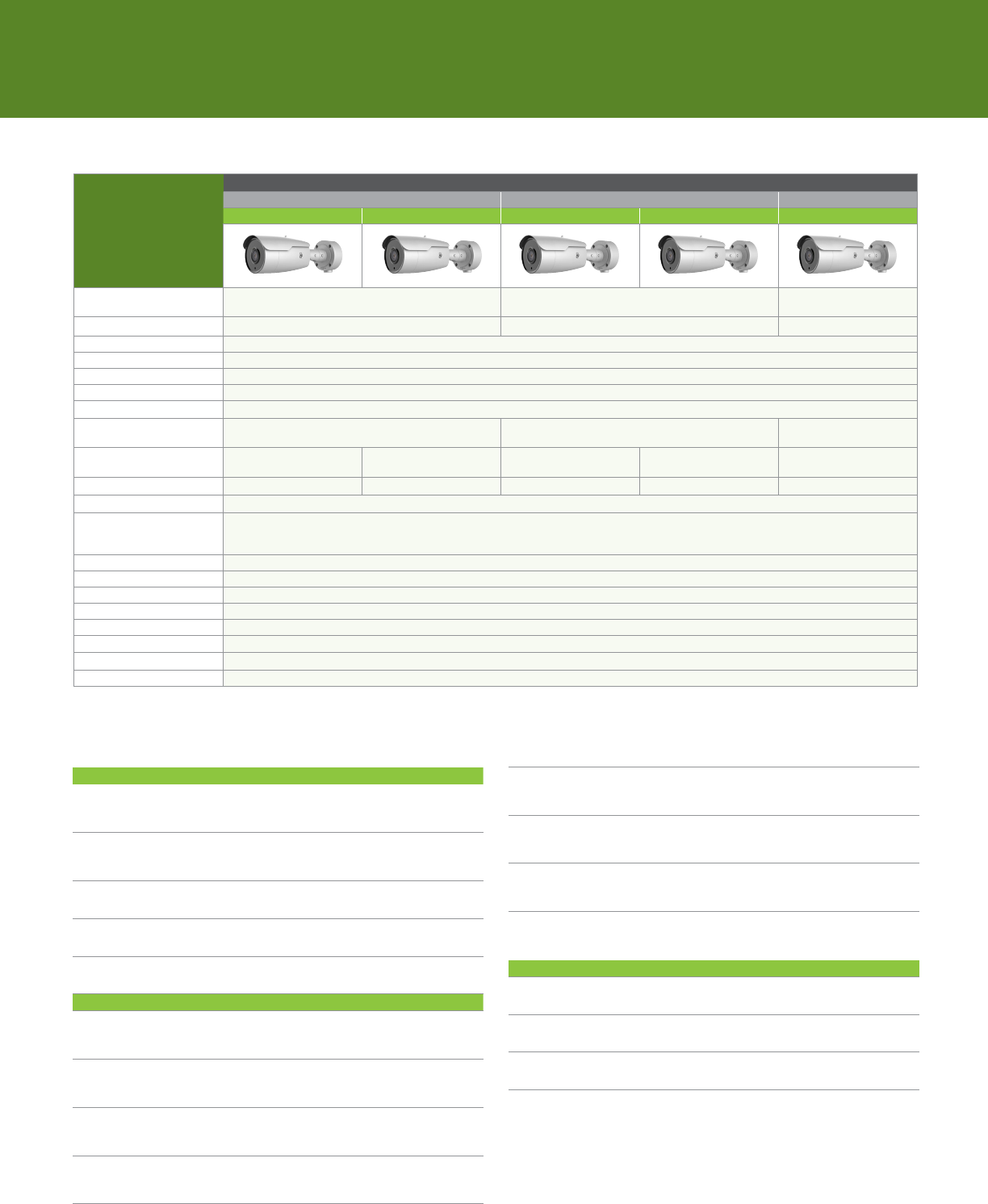

Intelligent IP Bullet Cameras Speciﬁcations

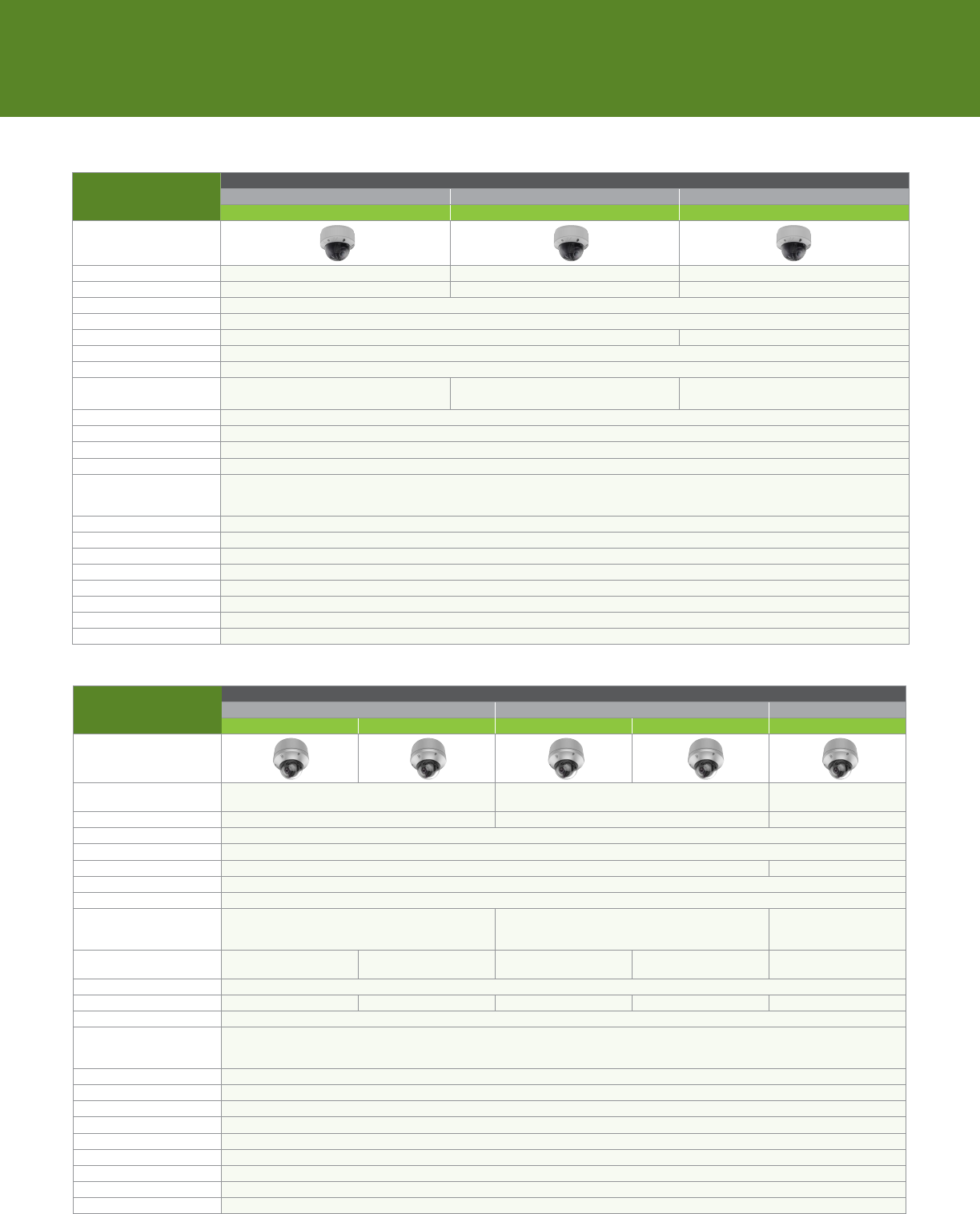

Intelligent IP Dome Cameras Speciﬁcations

Varifocal (Motorized) Lens

1.3MPx 3MPx

TVB-3201 TVB-3202 TVB-3203

Sensor 1/3" Progressive Scan, CMOS

Resolution 1280(H) x 960(V) @ 30fps Max. 2048(H) x 1536(V) @ 20fps

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC off)

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On); B/W: 0 lux

with IR On

Color: 0.1 lux @ f1.2 (AGC On); B/W: 0 lux with IR On

Lens 2.8~12mm (motorized) 8~32mm (motorized)

IR Range 98 ft. (30m) 164 ft. (50m)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Face Detection, Cross Line, Intrusion Detection, De-focus Detection, Scene Change Detection, Region

Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Object Counting, Audio Exception Detection

I/O 1 input / 1 output

Audio --

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -40°F ~ 140°F (-40°C ~60°C), with heater on

Environmental Rating IP66

Vandal Rating --

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

Intelligent IP Cameras Ordering Information

1.3MPX AND 3MPX INTELLIGENT IP BULLET CAMERAS

NTSC

TVB-3201 TruVision® IP Bullet Camera, 1.3MPx, 2.8~12mm Motorized Lens,

WDR, True D/N, 30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, NTSC

TVB-3202 TruVision IP Bullet Camera, 3MPx, 2.8~12mm Motorized Lens,

WDR, True D/N, 30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, NTSC

TVB-3203 TruVision IP Bullet Camera, 3MPx, 8~32mm Motorized Lens,

WDR, True D/N, 50m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, NTSC

PAL

TVB -1201 TruVision IP Bullet Camera, 1.3MPx, 2.8~12mm Motorized Lens,

WDR, True D/N, 30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, PAL

TVB -1202 TruVision IP Bullet Camera, 3MPx, 2.8~12mm Motorized Lens,

WDR, True D/N, 30m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, PAL

TVB -1203 TruVision IP Bullet Camera, 3MPx, 8~32mm Motorized Lens,

WDR, True D/N, 50m IR, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66, PAL

1.3MPX AND 3MPX INTELLIGENT IP DOME CAMERAS

NTSC

TVD-3201 TruVision IP Vandal Dome Camera, 1.3MPx, 2.8~2mm VF Lens, WDR,

True D/N, 30m IR, Audio, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, IP66, IK10, NTSC

TVD-3202 TruVision IP Vandal Dome Camera, 3MPx, 2.8~2mm VF Lens, WDR,

True D/N, 30m IR, Audio, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, IP66, IK10, NTSC

TVD-3203 TruVision IP Motorized Lens Dome Camera, 1.3MPx, 2.8~2mm

Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm, SD/SHDC

Slot, Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, NTSC

TVD-3204 TruVision IP Motorized Lens Dome Camera, 3MPx, 2.8~2mm

Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm, SD/SHDC

Slot, Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, NTSC

TVD-3205 TruVision IP Motorized Lens Dome Camera, 3MPx, 8~32mm Motorized

Lens, WDR, True D/N, 50m IR, Audio, Alarm, SD/SHDC Slot,

Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, NTSC

PAL

TVD -1201 TruVision IP Vandal Dome Camera, 1.3MPx, 2.8~2mm VF Lens, WDR,

True D/N, 30m IR, Audio, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, IP66, IK10, PAL

TVD -1202 TruVision IP Vandal Dome Camera, 3MPx, 2.8~2mm VF Lens, WDR,

True D/N, 30m IR, Audio, Alarm, SD/SHDC Slot, Intelligence, PoE

(802.3-af)/12VDC, IP66, IK10, PAL

TVD -1203 TruVision IP Motorized Lens Dome Camera, 1.3MPx, 2.8~2mm

Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm, SD/SHDC

Slot, Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, PAL

TVD -1204 TruVision IP Motorized Lens Dome Camera, 3MPx, 2.8~2mm

Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm, SD/SHDC

Slot, Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, PAL

TVD -1205 TruVision IP Motorized Lens Dome Camera, 3MPx, 8~32mm Motorized

Lens, WDR, True D/N, 50m IR, Audio, Alarm, SD/SHDC Slot,

Intelligence, PoE (802.3-af)/12VDC, IP66, IK10, PAL

1.3MPX AND 3MPX INTELLIGENT IP BOX CAMERAS

NTSC

TVC-3201 TruVision® IP Box Camera, 1.3MPx, WDR, True D/N, Auto

Back Focus, Audio, Alarm, SD/SDHC Slot, Intelligence, PoE

(802.3-af)/12VDC/24VAC, NTSC

TVC-3202 TruVision IP Box Camera, 3MPx, WDR, True D/N, Auto

Back Focus, Audio, Alarm, SD/SDHC Slot, Intelligence, PoE

(802.3-af)/12VDC/24VAC, NTSC

PAL

TVC-1201 TruVision IP Box Camera, 1.3MPx, WDR, True D/N, Auto

Back Focus, Audio, Alarm, SD/SDHC Slot, Intelligence, PoE

(802.3-af)/12VDC/24VAC, PAL

TVC-1202 TruVision IP Box Camera, 3MPx, WDR, True D/N, Auto

Back Focus, Audio, Alarm, SD/SDHC Slot, Intelligence, PoE

(802.3-af)/12VDC/24VAC, PAL

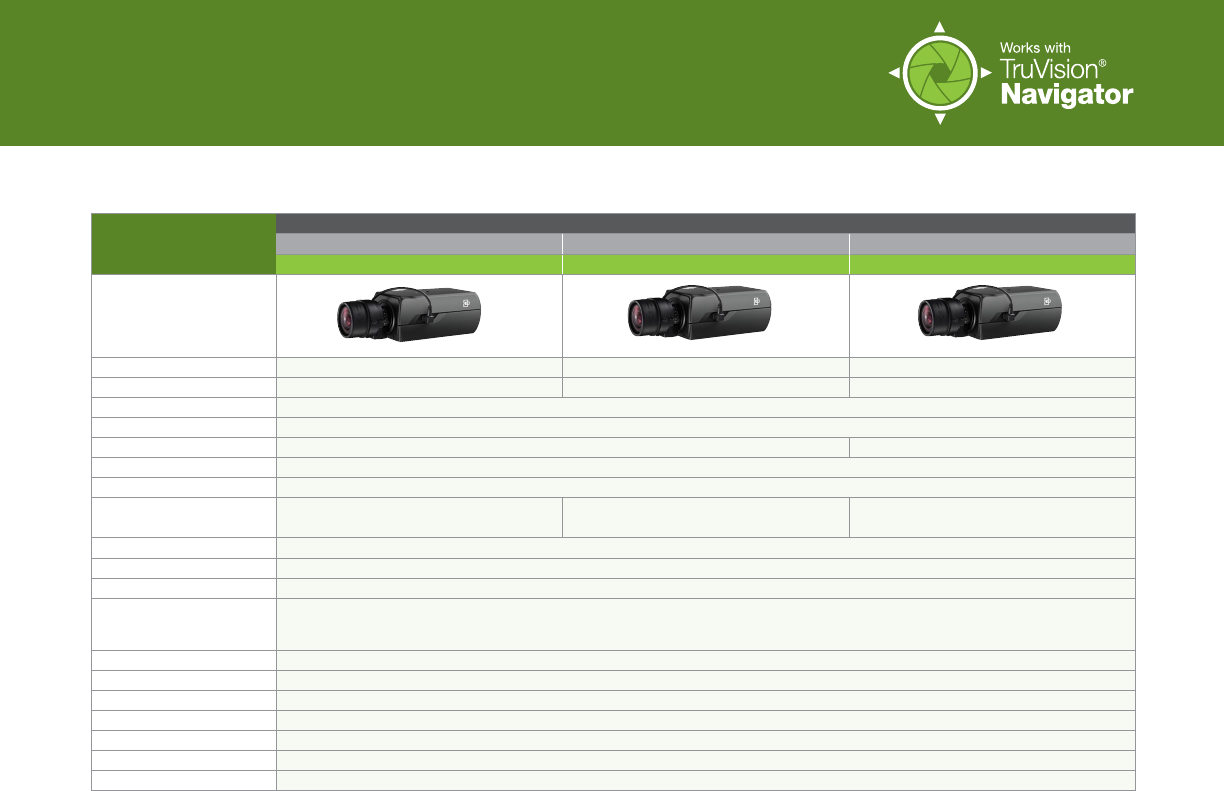

IP Box Camera with Audio

1.3MPx 3MPx

TVC-3201 TVC-3202

Sensor 1/3" Progressive Scan, CMOS

Resolution 1280(H) x 960(V) @ 30fps Max. 2048(H) x 1536(V) @ 20fps

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On) Color: 0.1 lux @ f1.2 (AGC On); B/W: 0.01 lux @ f1.2 (AGC On)

Lens C/CS (with auto back focus)

Video Output 1 Vp-p composite output (75 ohm/BNC)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Face Detection, Audio Exception Detection, Cross Line, Intrusion Detection, De-focus

Detection, Scene Change Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended

Baggage Detection, Object Counting, Audio Exception Detection

I/O 1 input / 1 output

Audio Input: 1 ch. 3.5mm audio interace (2.0-2.4 Vp-p, 1K ohm), 1 built-in microphone

Output: 1 ch. 3.5mm audio interface (Line level, 600 ohm)

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / 24VAC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating --

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

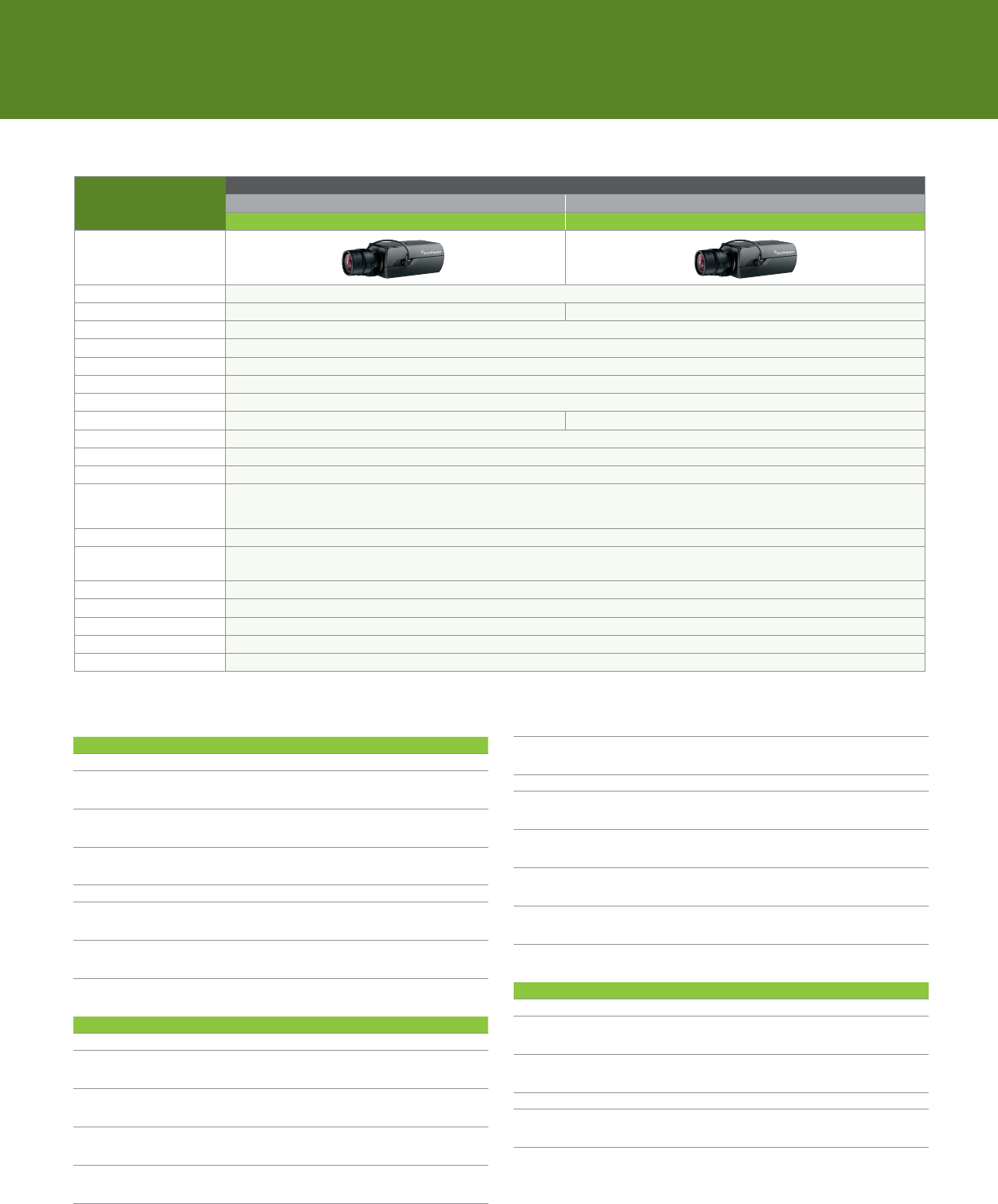

1.3MPx and 3MPx Intelligent IP Box Cameras Speciﬁcations

TruVision® IP Products

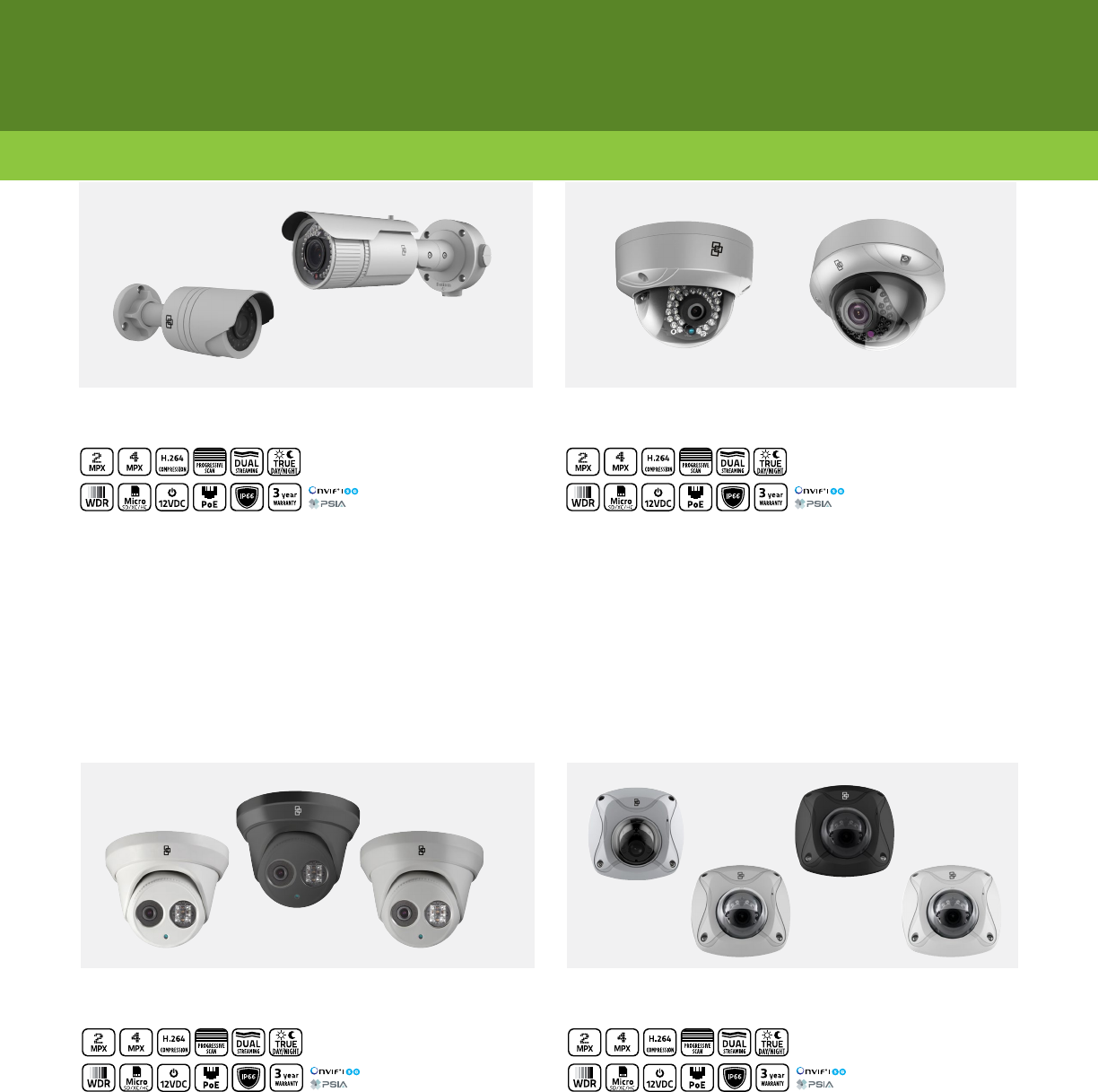

Series 3 Bullet IR Cameras

• Integrated Motion Detection, Tamper proof and Privacy masking

• Advanced Cross line and Intrusion detection

• Edge recording supports up to 128GB Micro SD/SDHC/SDXC for

video playback (on select models, card not included)

• External alarm I/O support (Varifocal lens models only)

• External audio I/O support and auxiliary power output (12VDC,

50mA) (Varifocal lens models only)

• 3-year warranty

IP Open Standards Cameras

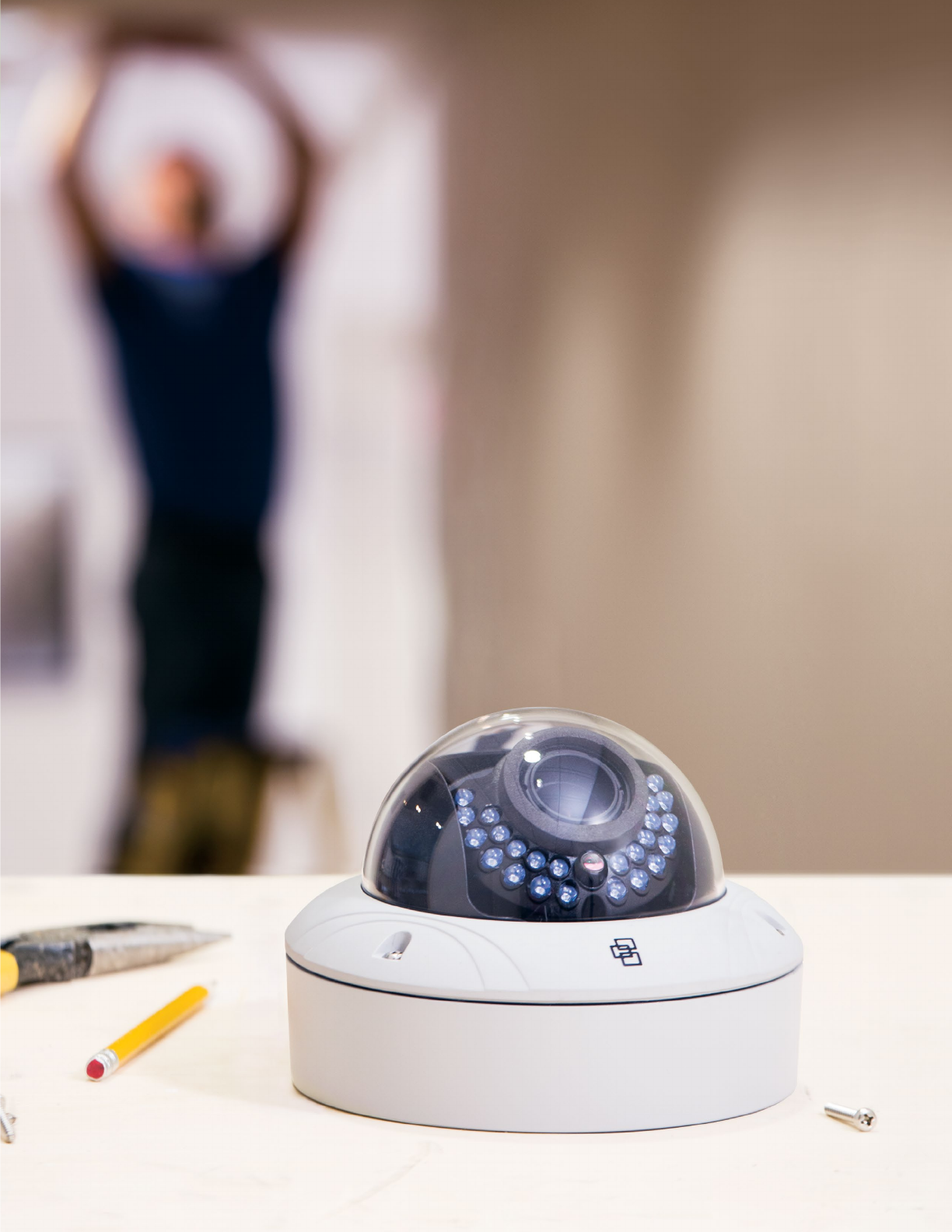

Series 3 Dome IR Cameras

• Advanced Cross line and Intrusion detection

• Edge recording supports up to 128GB Micro SD/SDHC/SDXC for

video playback (card not included)

• External alarm I/O support

• External audio I/O support and auxiliary power output (12VDC,

50mA)

• IK8 or IK10 Vandal rating

• 3-year warranty

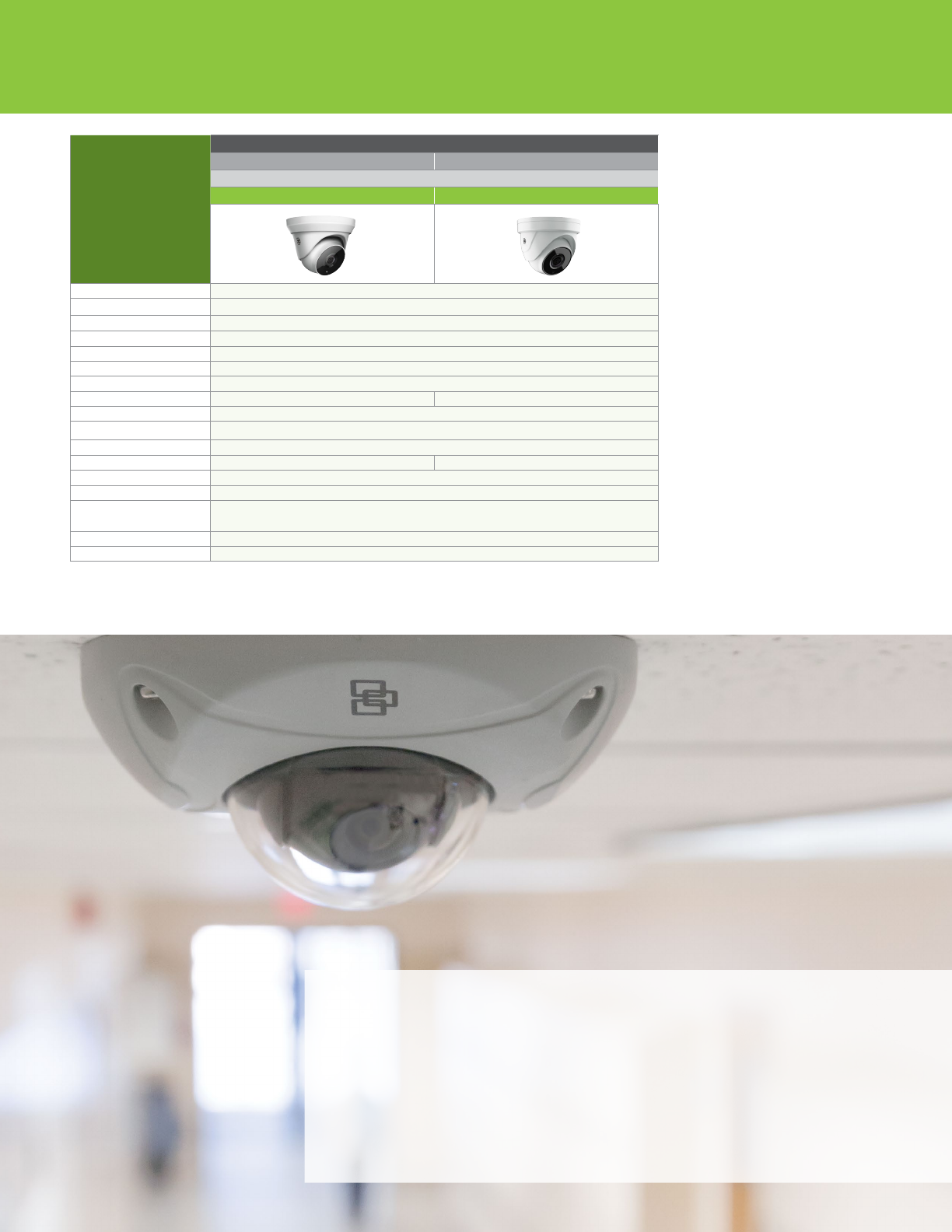

Series 3 Turret IR Cameras

• Integrated Motion Detection, Tamper proof and Privacy masking

• Advanced Cross line and Intrusion detection

• Housing color options - gray, white or black (on select models)

• 3-year warranty

Series 3 Wedge IR Cameras

• Low proﬁle format

• Edge recording up to 128GB for video playback (card not

included)

• External alarm I/O support

• External audio I/O support and built-in Mic

• IK8 Vandal rating

• 3-year warranty

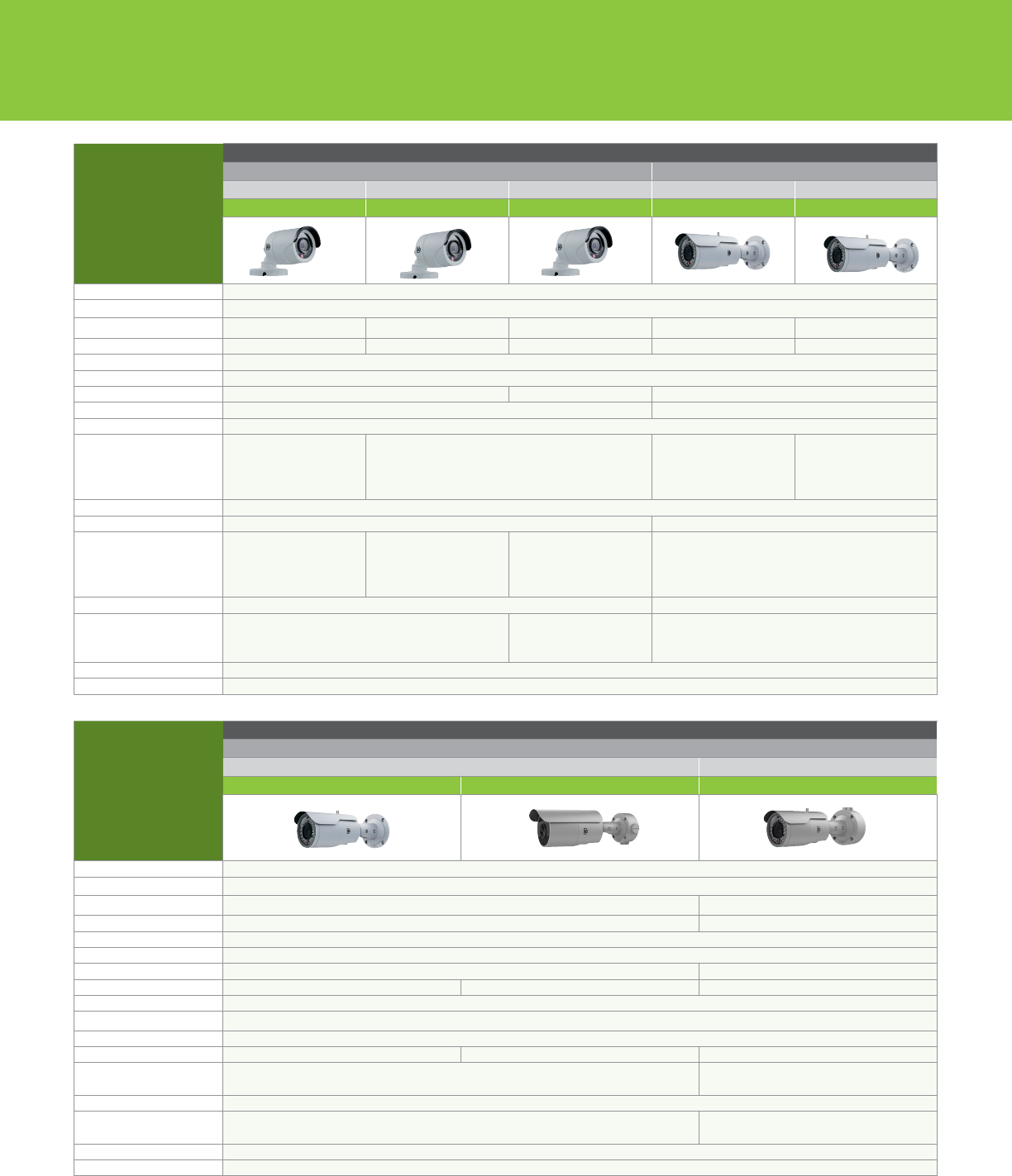

Series 3 Bullet Cameras Speciﬁcations

Fixed Lens Varifocal Lens

2MPx 4MPx 2MPx 4MPx

TVB-5301 TVB-5302 TVB-5303 TVB-5304

Sensor 1 / 3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2688(H) x 1520(V) 1920(H) x 1080(V) 2688(H) x 1520(V)

Multiple Streaming Dual

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination 0.01 lux @ f1.2 (AGC On); 0 lux with IR On

Lens 4mm @ f2.0 2.8~12mm @ f1.4

IR Range 82 ft. (25m) 98 ft. (30m)

Local Storage -- Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Dual VCA, Intrusion Detection, Cross Line, Hallway View, ROI

I/O -- 1 input / 1 ouput

Audio -- 1 Mic-in (line leve ) / 1 output

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Auxiliary Power -- 12 VDC / 50mA

Operating Temp -22°F~14 0°F (-30°C~60°C)

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 3 IP Dome Cameras Speciﬁcations

Fixed Lens

2MPx 4MPx 2MPx 4MPx

TVD-5301 TVD-5302 TVD-5303 TVD-5304

Sensor 1 / 3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2688(H) x 1520(V) 1920(H) x 1080(V) 2688(H) x 1520(V)

Multiple Streaming Dual

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination 0.01 lux @ f1.2 (AGC On); 0 lux with IR On

Lens 2.8mm @ f2.0 2.8~12mm @ f1.4

Video Output 1 - 75 ohm / BNC (Composite NTSC/PAL)

IR Range 49 ft. (15m) 98 ft. (30m)

Local Storage Micro SD / SDHC/ SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Dual VCA, Intrusion Detection, Cross Line, Hallway View, ROI

I/O 1 input / 1 ouput

Audio 1 Mic-in (line level) / 1 output

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Auxiliary Power 12 VDC / 50mA

Operating Temp -22°F~14 0°F (-30°C~60°C)

Environmental Rating IP66

Vandal Rating IK8 IK10

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

TruVision® IP Products

Fixed Lens

2MPx 4MPx

TVW-5301 TVW-5302 TVW-5303 TVW-5304 TVW-5305

Sensor 1 / 3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2688(H) x 1520(V)

Multiple Streaming Dual

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination 0.01 lux @ f1.2 (AGC On) 0.01 lux @ f1.2 (AGC On); 0 lux with IR On

Lens 2mm @ f2.0 2.8mm @ f2.0

IR Range -- 33 ft. (10m)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Dual VCA, Intrusion Detection, Cross Line, Hallway View, ROI

I/O 1 input / 1 output

Audio 1 Mic-in (line level) / 1 output

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating IP66

Vandal Rating IK8

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

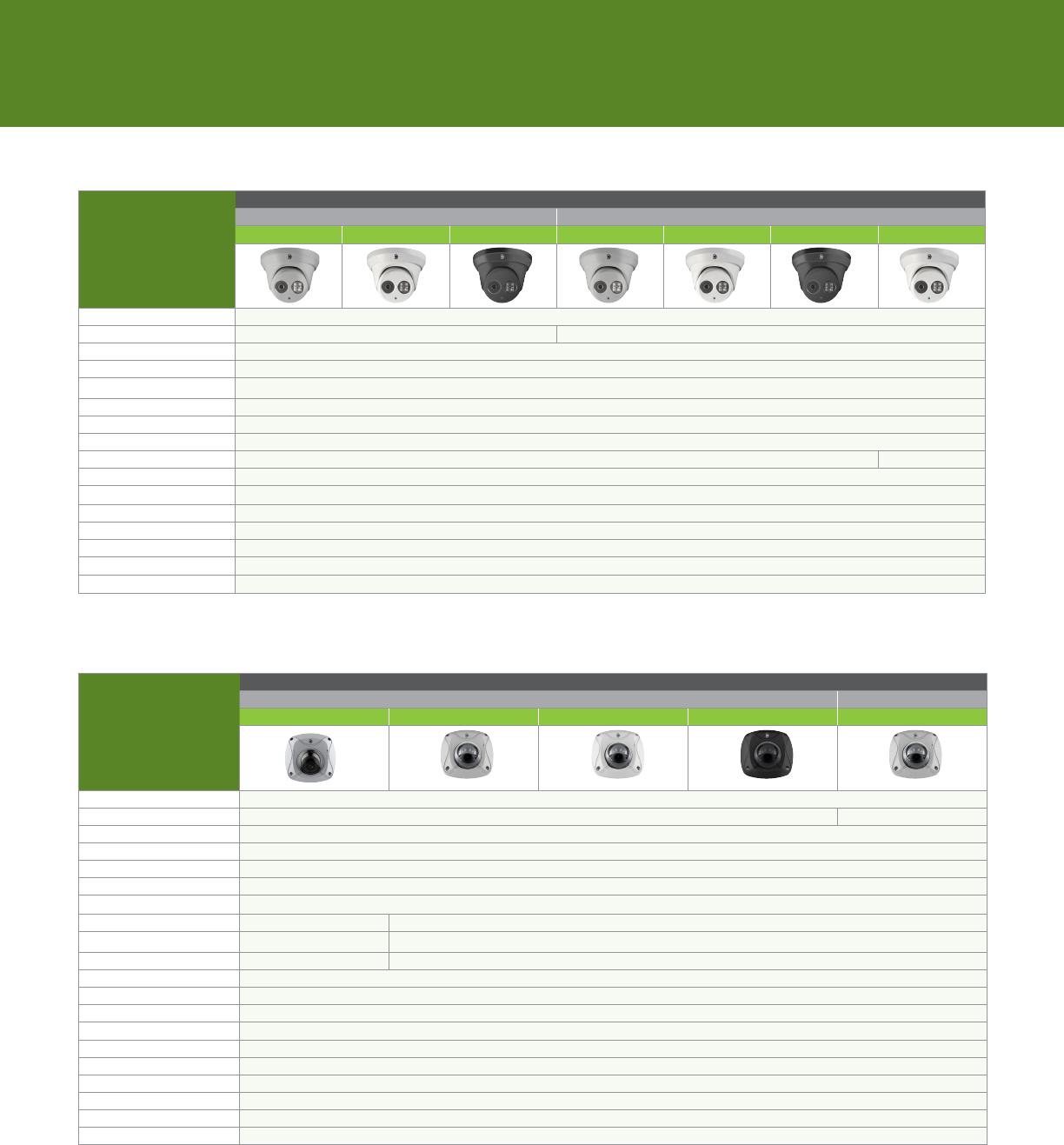

Series 3 Turret Cameras Speciﬁcations

Fixed Lens

2MPx 4MPx

TVT-5301 T V T-5302 TVT-5303 TVT-5304 TVT-5305 TVT-5306 T V T-5307

Sensor 1 / 3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2688(H) x 1520(V)

Multiple Streaming Dual

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination 0.01 lux @ f1.2 (AGC On); 0 lux with IR On

Lens 2.8mm @ f2.0 4mm @ f2.0

IR Range 98 ft. (30m)

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Dual VCA, Intrusion Detection, Cross Line, Hallway View, ROI

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -22°F~14 0°F (-30°C~60°C)

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 3 IP Dome Cameras Speciﬁcations

Series 3 IP Cameras Ordering Information Speciﬁcations

2MPX AND 4MPX H.264 IP BULLET CAMERAS

TVB-5301 TruVision IP Fixed Lens Bullet Camera, 2MPx, 4mm, True D/N, WDR,

25m IR, IP66, PoE (802.3-af)/12VDC

TVB-5302 TruVision IP Fixed Lens Bullet Camera, 4MPx, 4mm, True D/N, WDR,

25m IR, IP66, PoE (802.3-af)/12VDC

TVB-5303 TruVision IP VF Bullet Camera, 2MPx, 2.8~12mm, True D/N, WDR,

30m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, PoE

(802.3-af)/12VDC, Aux. Output 12VDC/50mA

TVB-5304 TruVision IP VF Bullet Camera, 4MPx, 2.8~12mm, True D/N, WDR,

30m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, PoE

(802.3-af)/12VDC, Aux. Output 12VDC/50mA

2MPX AND 4MPX H.264 IP DOME CAMERAS

TVD-5301 TruVision IP Fixed Lens Dome Camera, 2MPx, 2.8mm, True D/N, WDR,

15m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, IK8, PoE

(802.3-af)/12VDC, BNC, Aux. Output 12VDC/50mA

TVD-5302 TruVision IP Fixed Lens Dome Camera, 4MPx, 2.8mm, True D/N, WDR,

15m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, IK8, PoE

(802.3-af)/12VDC, BNC, Aux. Output 12VDC/50mA

TVD-5303 TruVision IP VF Lens Dome Camera, 2MPx, 2.8~12mm, True D/N,

WDR, 30m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, IK10,

PoE (802.3-af)/12VDC, BNC, Aux. Output 12VDC/50mA

TVD-5304 TruVision IP VF Lens Dome Camera, 4MPx, 2.8~12mm, True D/N,

WDR, 30m IR, Audio, Alarm, Micro SD/SDHC/SDXC Slot, IP66, IK10,

PoE (802.3-af)/12VDC, BNC, Aux. Output 12VDC/50mA

2MPX AND 4MPX H.264 IP TURRET CAMERAS

TVT-5301 TruVision IR Fixed Lens Turret Camera, 2MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, Gray

TVT-5302 TruVision IR Fixed Lens Turret Camera, 2MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, White

TVT-5303 TruVision IR Fixed Lens Turret Camera, 2MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, Black

TVT-5304 TruVision IR Fixed Lens Turret Camera, 4MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, Gray

TVT-5305 TruVision IR Fixed Lens Turret Camera, 4MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, White

TVT-5306 TruVision IR Fixed Lens Turret Camera, 4MPx, 2.8mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, Black

TVT-5307 TruVision IR Fixed Lens Turret Camera, 4MPx, 4mm, True D/N, WDR,

30m IR, PoE (802.3-af)/12VDC, IP66, White

2MPX AND 4MPX H.264 IP WEDGE CAMERAS

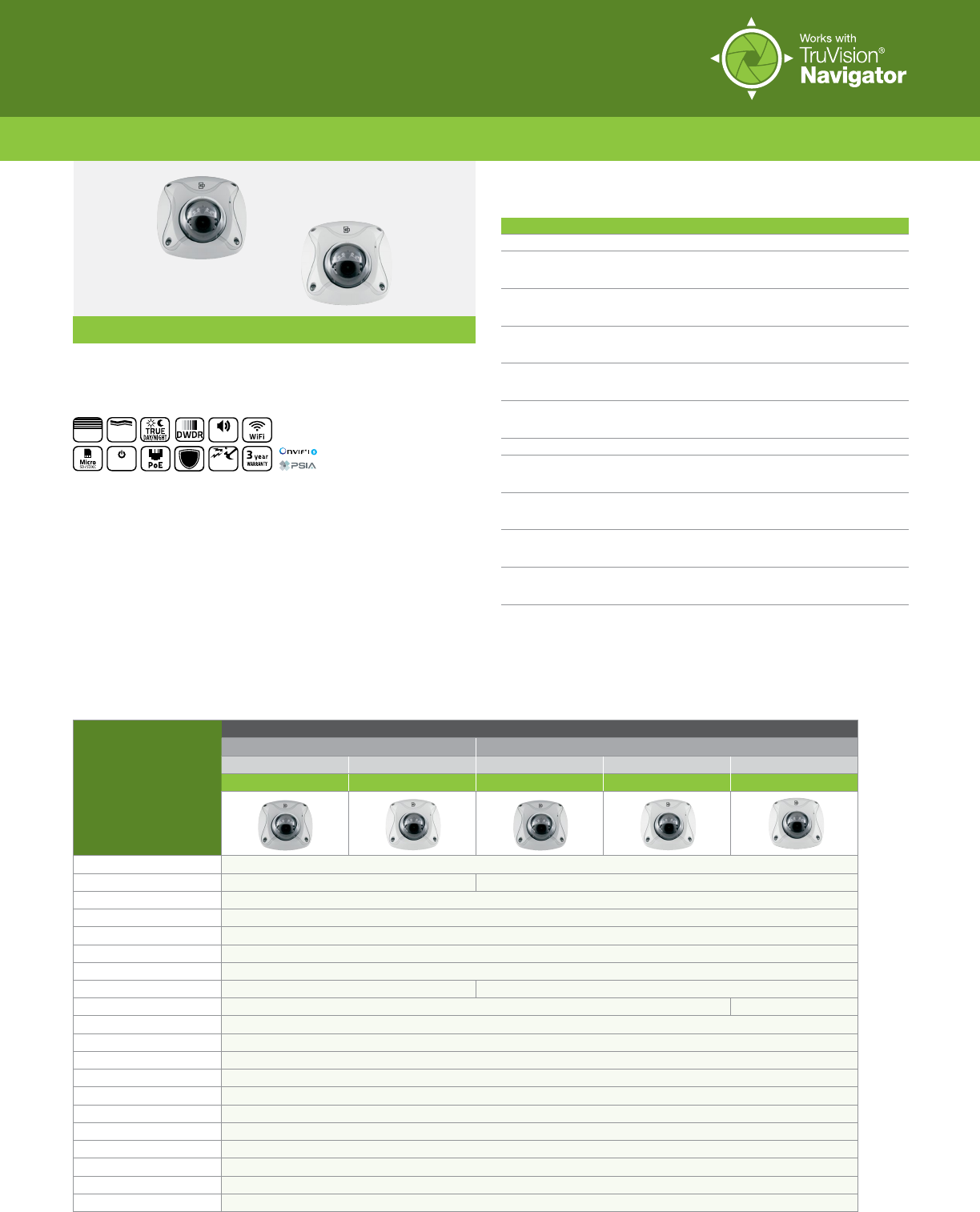

TVW-5301 TruVision Wedge Fixed Lens Camera, 2MPx, 2mm, True D/N,

WDR, Built-in Mic, Audio, Alarm, Micro SD/SDHC/SDXC Slot, PoE

(802.3-af)/12VDC, IP66, IK8, Gray

TVW-5302 TruVision IR Wedge Fixed Lens Camera, 2MPx, 2.8mm, True D/N,

WDR, 10m IR, Built-in Mic, Audio, Alarm, Micro SD/SDHC/SDXC Slot,

PoE (802.3-af)/12VDC, IP66, IK8, Gray

TVW-5303 TruVision IR Wedge Fixed Lens Camera, 2MPx, 2.8mm, True D/N,

WDR, 10m IR, Built-in Mic, Audio, Alarm, Micro SD/SDHC/SDXC Slot,

PoE (802.3-af)/12VDC, IP66, IK8, White

TVW-5304 TruVision IR Wedge Fixed Lens Camera, 2MPx, 2.8mm, True D/N,

WDR, 10m IR, Built-in Mic, Audio, Alarm, Micro SD/SDHC/SDXC Slot,

PoE (802.3-af)/12VDC, IP66, IK8, Black

TVW-5305 TruVision IR Wedge Fixed Lens Camera, 4MPx, 2.8mm, True D/N,

WDR, 10m IR, Built-in Mic, Audio, Alarm, Micro SD/SDHC/SDXC Slot,

PoE (802.3-af)/12VDC, IP66, IK8, Gray

• Motorized varifocal lens technology

that provides remote autofocus

• Long zoom and IR range

• Intelligence features including face

detection, cross line detection, object

removal, object left behind, object

counting

• Edge recording on up to 128GB for video

playback (card not included)

• Auxiliary power output (12VDC/50mA @

12VDC line level)

• 3-year warranty

• Intelligence features including face

detection, cross line detection, object

removal, object left behind, object

counting

• Alarm inputs and output provide easy

notiﬁcation and control of events

• Edge recording on up to 128GB for video

playback (card not included)

• Analog BNC video out connection

• Auxiliary power output (12VDC/50mA @

12VDC line level)

• 3-year warranty

• Intelligence features including face

detection, cross line detection, object

removal, object left behind, object

counting

• Easily controlled alarm input and output

notiﬁcations

• Edge recording on up to 128GB for video

playback (card not included)

• External analog BNC video out

connection

• 3-year warranty

Series 4 H.265 IP

Bullet Cameras

Series 4 H.265 IP

Box Cameras

Series 4 H.265 IP

Dome Cameras

TruVision® IP Products

IP Open Standards Cameras

IP Box Camera (with Audio)

2MPx 3MPx 5MPx

TVC-5401 TVC-5402 TVC-5403

Sensor 1 / 1.8" Progressive Scan, CMOS 1 / 2.8" Progressive Scan, CMOS 1 / 1.8" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2048(H) x 1536(V) 2592(H) x 1944(V)

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB) DWDR

Digital S/N Ratio 52 dB (AGC Off)

IP Compression/Standard H.264 / H.265 / MJPEG

Minimum Illumination Color: 0.002 lux @ f1.2 (AGC On);

B/W: 0.0002 lux @ f1.2 (AGC On)

Color: 0.008 lux @ f1.2 (AGC On);

B/W: 0.0005 lux @ f1.2 (AGC On)

Color: 0.01 lux @ f1.2 (AGC On);

B/W: 0.001 lux @ f1.2 (AGC On)

Lens C/CS (with auto iris)

Video Output 1 - 75 ohm / BNC (Composite NTSC/PAL)

Local Storage Micro SD / SDHC/ SDXC slot, up to 128GB

Intelligence Face Detection, Audio Exception Detection, Intrusion Detection, De-focus Detection, Region of Interest (ROI), Electronic Image Stabilization

(EIS), Defog, Scene Change Detection, Cross Line Detection, Advanced Motion Detection, Region Entrance Detection, Region Exit

Detection, Object Removal, Object Left Behind, Object Counting

I/O 1 input / 1 output

Audio Input: Audio in / Mic in (line level); Output: Audio out (line level)

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / 24VAC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating --

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 4 Box Cameras Speciﬁcations

TruVision® IP Products

Indoor Dome Cameras (Varifocal Motorized Lens)

2MPx 3MPx 5MPx

TVD-5401 TVD-5402 TVD-5403

Sensor 1 / 1.8" Progressive Scan, CMOS 1 / 2.8" Progressive Scan, CMOS 1 / 1.8" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) 2048(H) x 1536(V) 2592(H) x 1944(V)

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB) DWDR

Digital S/N Ratio 52 dB (AGC Off)

IP Compression/Standard H.264 / H.265 / MJPEG

Minimum Illumination Color: 0.002 lux @ f1.2 (AGC On);

0 lux with IR On

Color: 0.008 lux @ f1.2 (AGC On);

0 lux with IR On

Color: 0.01 lux @ f1.2 (AGC On);

0 lux with IR On

Lens Type 2.8~12mm @ f1.2 (motorized)

Video Output 1 - 75 ohm / BNC (Composite NTSC/PAL)

IR Range 98 ft. (30m)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Face Detection, Audio Exception Detection, Intrusion Detection, De-focus Detection, Region of Interest (ROI), Electronic Image Stabilization

(EIS), Defog, Scene Change Detection, Cross Line Detection, Advanced Motion Detection, Region Entrance Detection, Region Exit

Detection, Object Removal, Object Left Behind, Object Counting

I/O 1 input / 1 output

Audio Audio in (mic in - line level) / Audio out

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Auxiliary Power 12VDC / 50mA @12VDC Line level

Operating Temp -22°F~140°F (-30°C~60°C)

Vandal Rating IK10

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 4 Indoor Dome Cameras Speciﬁcations

Outdoor Dome Cameras (Varifocal Motorized Lens)

2MPx 3MPx 5MPx

TVD-5404 TVD-5405 TVD-5406 TVD-5407 TVD-5408

Sensor 1 / 1.8" Progressive Scan, CMOS 1 / 2.8" Progressive Scan, CMOS 1 / 1.8" Progressive

Scan, CMOS

Resolution 1920(H) x 1080(V) 2048(H) x 1536(V) 2592(H) x 1944(V)

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB) DWDR

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / H.265 / MJPEG

Minimum Illumination Color: 0.002 lux @ f1.2 (AGC On);

0 lux with IR On

Color: 0.008 lux @ f1.2 (AGC On);

0 lux with IR On

Color: 0.01 lux @ f1.2

(AGC On);

0 lux with IR On

Lens 2.8~12mm @ f1.2

(motorized)

8~32mm @ f1.2

(motorized)

2.8~12mm @ f1.2

(motorized)

8~32mm @ f1.2

(motorized)

2.8~12mm @ f1.2

(motorized)

Video Output 1 - 75 ohm / BNC (Composite NTSC/PAL)

IR Range 98 ft. (30m) 164 ft. (50m) 98 ft. (30m) 164 ft. (50m) 98 ft. (30m)

Local Storage Micro SD / SDHC/ SDXC slot, up to 128GB

Intelligence Face Detection, Audio Exception Detection, Intrusion Detection, De-focus Detection, Region of Interest (ROI), Electronic Image Stabilization

(EIS), Defog, Scene Change Detection, Cross Line Detection, Advanced Motion Detection, Region Entrance Detection, Region Exit

Detection, Object Removal, Object Left Behind, Object Counting

I/O 1 input / 1 output

Audio Audio in (mic in - line level) / Audio out

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / 24VAC / PoE (IEEE 802.3af / 802.3 at w/Heater)

Auxiliary Power 12VDC / 50mA @ 12VDC Line level

Operating Temp -40°F~140°F (-40°C~60°C) with Heater On

Environmental Rating IP66

Vandal Rating IK10

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 4 Outdoor Dome Cameras Speciﬁcations

Series 4 Bullet Cameras Speciﬁcations

Varifocal (Motorized) Lens

2MPx 3MPx 5MPx

TVB-5401 TVB-5402 TVB-5403 TVB-5404 TVB-5405

Sensor 1 / 1.8" Progressive Scan, CMOS 1 / 2.8" Progressive Scan, CMOS 1 / 1.8" Progressive

Scan, CMOS

Resolution 1920(H) x 1080(V) 2048(H) x 1536(V) 2592(H) x 1944(V)

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 52 dB (AGC off)

IP Compression/Standard H.264 / H.265 / MJPEG

Minimum Illumination Color: 0.002 lux @ f1.2 (AGC On); 0 lux with IR On Color: 0.008 lux @ f1.2 (AGC On); 0 lux with IR On Color: 0.01 lux @ f1.2

(AGC On); 0 lux with IR On

Lens 2.8~12mm @f1.2

(motorized)

8~32mm @f1.2

(motorized)

2.8~12mm @f1.2

(motorized)

8~32mm @f1.2

(motorized)

2.8~12mm @f1.2

(motorized)

IR Range 164 ft. (50m) 262 ft. (80m) 164 ft. (50m) 262 ft. (80m) 164 ft. (50m)

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Face Detection, Audio Exception Detection, Intrusion Detection, De-focus Detection, Region of Interest (ROI), Electronic Image Stabilization

(EIS), Defog, Scene Change Detection, Cross Line Detection, Advanced Motion Detection, Region Entrance Detection, Region Exit Detection,

Object Removal, Object Left Behind,Object Counting

I/O 1 input / 1 output

Audio Audio in (mic in - line level) / Audio out

Standard & Integration ONVIF (Proﬁle G/S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af / 802.3 at w/Heater)

Auxiliary Power 12VDC / 50mA @ 12VDC Line level

Operating Temp -40°F ~ 140°F (-40°C ~60°C) with heater on

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

Series 4 IP Cameras Ordering Information

2MPX, 3MPX AND 5 MPX H.264/H.265 IP BULLET CAMERAS

TVB-5401 TruVision® 2MPx Low Light IP Bullet Camera, H.265/H.264, 2.0MPx,

2.8~12mm Motorized Lens, Super Low Light, WDR, True D/N, 50m IR,

Audio, Alarm, BNC, Micro SD/SDHC Slot, Intelligence, PoE (802.3-af)/

12VDC, Heater IP66

TVB-5402 TruVision 2MPx Low Light IP Bullet Camera, H.265/H.264, 2.0MPx,

8~32mm Motorized Lens, Super Low Light, WDR, True D/N, 80m

IR, Audio, Alarm, BNC, Micro SD/SDHC Slot, Intelligence, PoE

(802.3-af)/12VDC, Heater, IP66

TVB-5403 TruVision 3MPx IP Bullet Camera, H.265/H.264, 3.0MPx, 2.8~12mm

Motorized Lens, WDR, True D/N, 50m IR, Audio, Alarm, BNC, Micro

SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC, Heater, IP66

TVB-5404 TruVision 3MPx IP Bullet Camera, H.265/H.264, 3.0MPx, 8~32mm

Motorized Lens, WDR, True D/N, 80m IR, Audio, Alarm, BNC, Micro

SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC, Heater, IP66

TVB-5405 TruVision 5MPx IP Bullet Camera, H.265/H.264, 5.0MPx, 2.8~12mm

Motorized Lens, WDR, True D/N, 50m IR, Audio, Alarm, BNC, Micro

SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC, Heater, IP66

2MPX, 3MPX AND 5 MPX H.264/H.265 IP DOME CAMERAS

TVD-5401 TruVision 2MPx Low Light IP Mini Dome Camera, H.265/H.264,

2.0MPx, 2.8~12mm Motorized Lens, Super Low Light, WDR, True

D/N, 30m IR, Audio, Alarm, BNC, Micro SD/SDHC Slot, Intelligence,

PoE (802.3-af)/12VDC, Indoor, IK10

TVD-5402 TruVision 3MPx IP Mini Dome Camera, H.265/H.264, 3.0MPx,

2.8~12mm Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm,

BNC, Micro SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC, Indoor,

IK10

TVD-5403 TruVision 5MPx IP Mini Dome Camera, H.265/H.264, 5.0MPx,

2.8~12mm Motorized Lens, DWDR, True D/N, 30m IR, Audio, Alarm,

BNC, Micro SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC, Indoor,

IK10

TVD-5404 TruVision 2MPx Low Light IP Outdoor Dome Camera, H.265/H.264,

2.0MPx, 2.8~12mm Motorized Lens, Super Low Light, WDR, True

D/N, 30m IR, Audio, Alarm, BNC, Micro SD/SDHC Slot, Intelligence,

12VDC/24VAC/PoE (802.3-af/802.3at with heater), Heater, IP66, IK10

TVD-5405 TruVision 2MPx Low Light IP Outdoor Dome Camera, H.265/H.264,

2.0MPx, 8~32mm Motorized Lens, Super Low Light, WDR, True

D/N, 50m IR, Audio, Alarm, BNC, Micro SD/SDHC Slot, Intelligence,

12VDC/24VAC/PoE (802.3-af/802.3at with heater), Heater, IP66, IK10

TVD-5406 TruVision 3MPx Outdoor Dome Camera, H.265/H.264, 3.0MPx,

2.8~12mm Motorized Lens, WDR, True D/N, 30m IR, Audio, Alarm,

BNC, Micro SD/SDHC Slot, Intelligence, 12VDC/24VAC/PoE

(802.3-af/802.3at with heater), Heater, IP66, IK10

TVD-5407 TruVision 3MPx Outdoor Dome Camera, H.265/H.264, 3.0MPx,

8~32mm Motorized Lens, WDR, True D/N, 50m IR, Audio, Alarm,

BNC, Micro SD/SDHC Slot, Intelligence, 12VDC/24VAC/PoE

(802.3-af/802.3at with heater), Heater, IP66, IK10

TVD-5408 TruVision 5MPx Outdoor Dome Camera, H.265/H.264, 5.0MPx,

2.8~12mm Motorized Lens, DWDR, True D/N, 30m IR, Audio,

Alarm, BNC, Micro SD/SDHC Slot, Intelligence, 12VDC/24VAC/PoE

(802.3-af/802.3at with heater), Heater, IP66, IK10

2MPX, 3MPX AND 5 MPX H.264/H.265 IP BOX CAMERAS

TVC-5401 TruVision 2MPx Low Light IP Box Camera, H.265/H.264, 2.0MPx,

Super Low Light, WDR, True D/N, Auto Back Focus, Audio, Alarm,

BNC, Micro SD/SDHC Slot, Intelligence, PoE (802.3-af)/12VDC/24VAC

TVC-5402 TruVision 3MPx IP Box Camera, H.265/H.264, 3.0MPx, WDR, True

D/N, Auto Back Focus, Audio, Alarm, BNC, Micro SD/SDHC Slot,

Intelligence, PoE (802.3-af)/12VDC/24VAC

TVC-5403 TruVision 5MPx IP Box Camera, H.265/H.264, 5.0MPx, DWDR, True

D/N, Auto Back Focus, Audio, Alarm, BNC, Micro SD/SDHC Slot,

Intelligence, PoE (802.3-af)/12VDC/24VAC

TruVision® IP Products

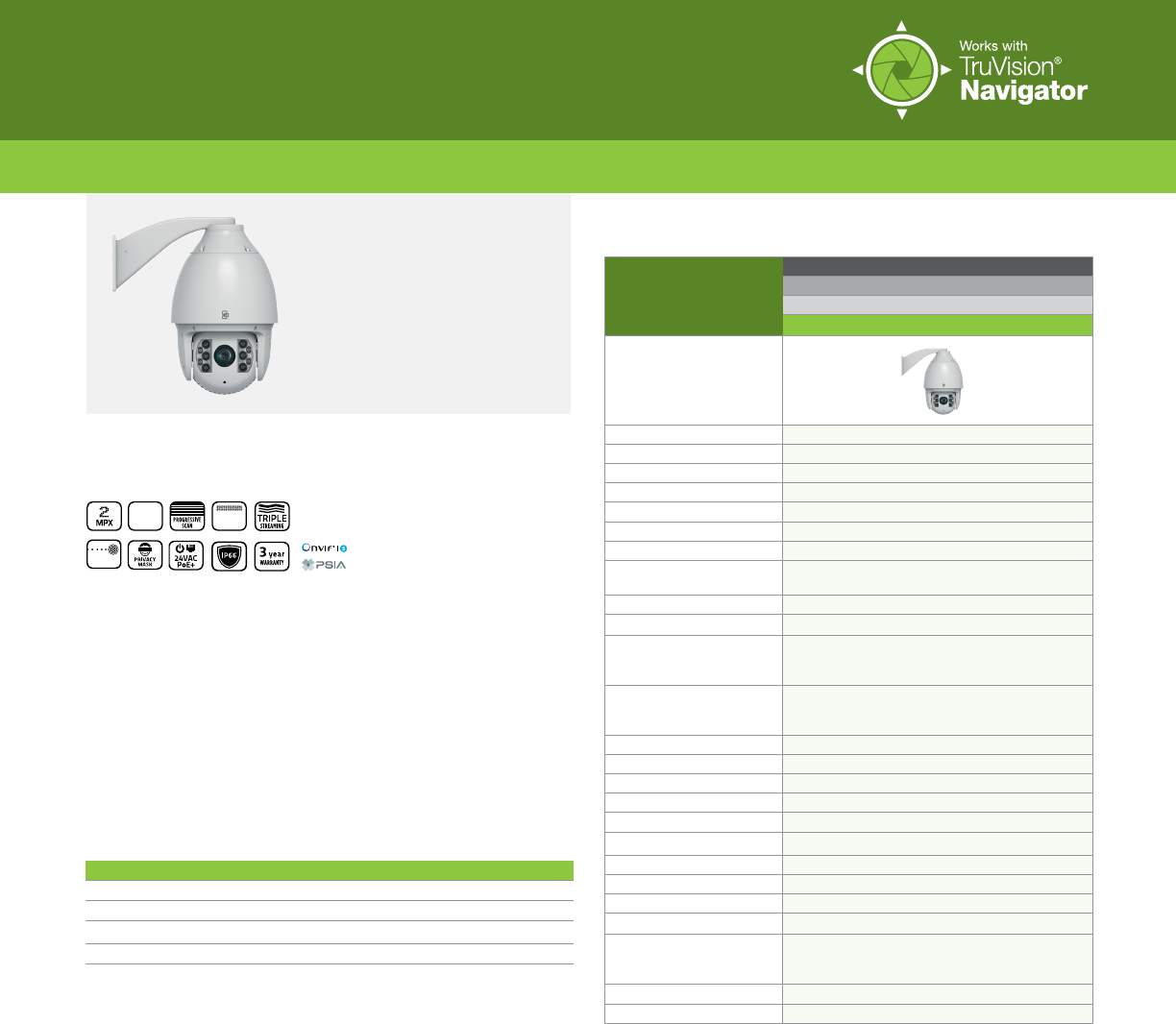

IR IP Megapixel PTZ

Dome Camera

IP Megapixel PTZ Cameras

• 1/3-inch progressive scan CMOS

• 2MPx Full HD sensor

• 30x optical (16x digital)

• True Day/Night

• Up to 492 ft. (150m) IR

• 3-year warranty

COMPRESSION

H.264

FPS

30/25

AUTO

TRACKING

Indoor/Outdoor

Wall/Pendant Mount

2MPx

TVP-3122

Sensor 1/3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V)

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range DWDR

Digital S/N Ratio 55 dB

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.03 lux @ f1.6, 1/30 s, 50 IRE (AGC On);

B/W: 0 lux with IR On

Lens 4.3~129mm (f1.6~f5.0)

Zoom Range 30X Optical / 16X Digital

Pan Range and Speed Range: 360° endless

Manual Speed: 0.1°-160°/s;

Preset Speed: 240°/s

Tilt Range and Speed Range: -5°-90°

Manual Speed: 0.1°-120°/s

Preset Speed: 200°/s

Image Flip Auto Flip

Video Output 1 - 75 ohm / BNC (Composite NTSC/PAL)

IR Range up to 492 ft. (150m)

Presets 256

Local Storage Micro SD / SDHC / SDXC Slot, up to 64GB

Intelligence Motion Detection, Defog, Privacy Mask

I/O 7 inputs / 2 outputs

Audio 2-way

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 24VAC / PoE+ (IEEE 802.3at)

Operating Temp 24VAC: -40°F~149°F (40°C~65°C); PoE+:

-22°F~149°F (30°C~65°C);

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

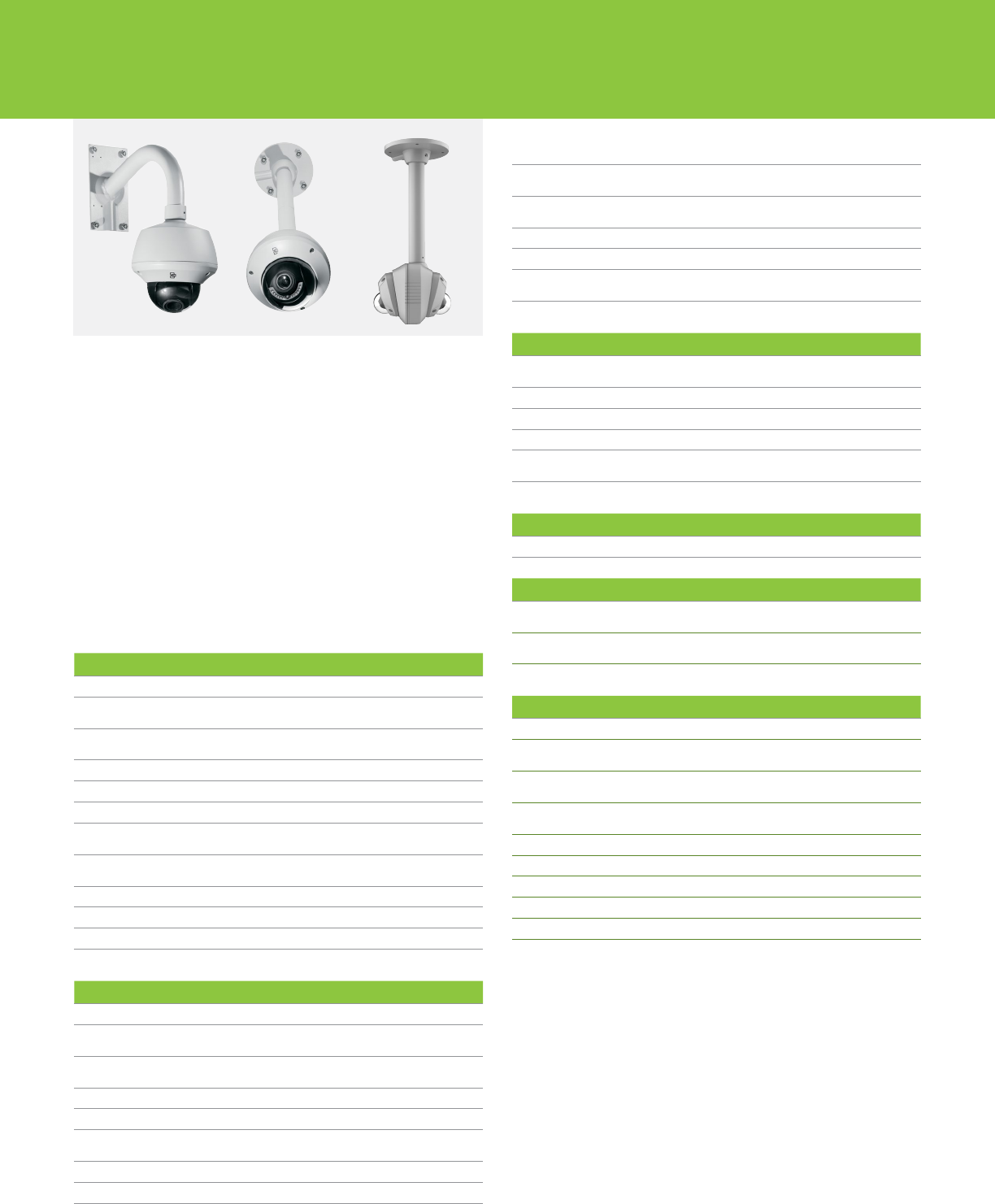

IR IP Megapixel PTZ Dome Camera Speciﬁcations

IP Megapixel PTZ Cameras Ordering Information

IR IP MEGAPIXEL PTZ CAMERAS

NTSC

TVP-3122 TruVision 2MPx Full HD Pendant 30X, IR PTZ Dome

PAL

TVP-1122 TruVision 2MPx Full HD Pendant 30X, IR PTZ Dome

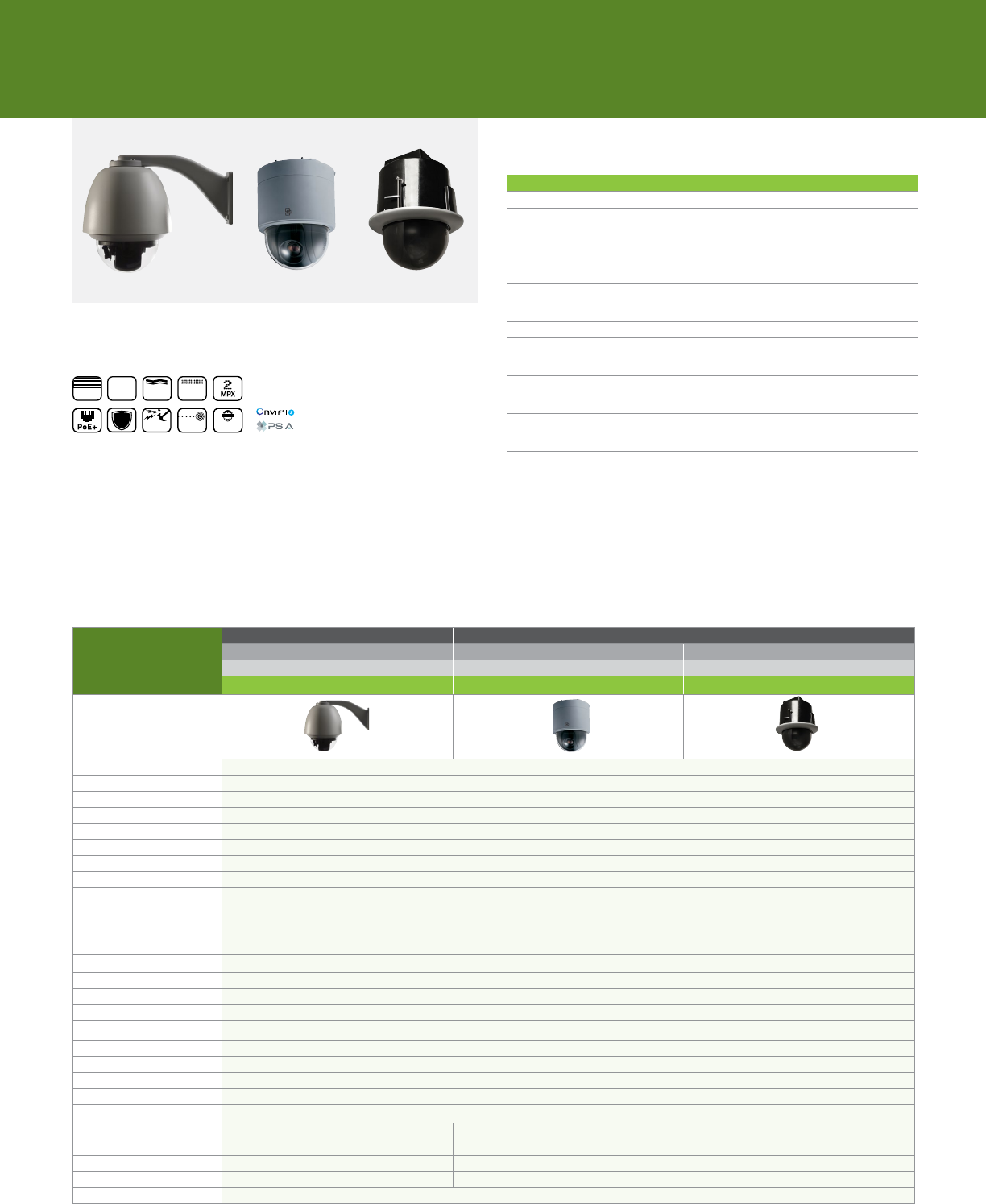

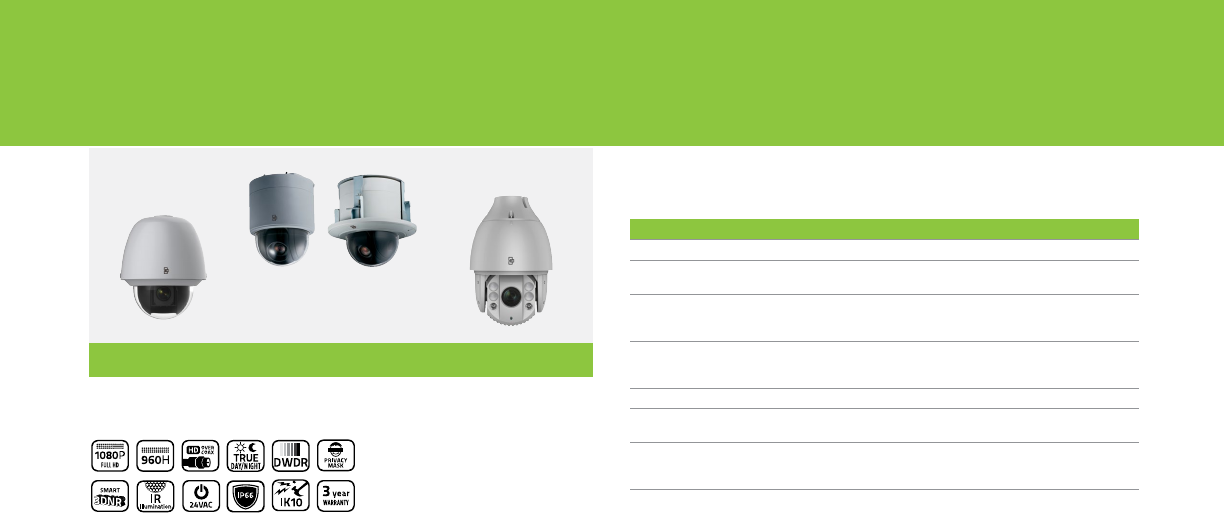

IP Megapixel PTZ

Dome Cameras

• Progressive-scan 2MPx 20X optical zoom offers clear images at

both short- and long-range distances

• Digital wide dynamic range functionality enables viewing in bright

and dark areas simultaneously

• User-friendly design installs quickly and easily, right out of the box

• 3-year warranty

PROGRESSIVE

SCAN

COMPRESSION

H.264

STREAMING

DUAL

FPS

30/25

IP66

IK10 AUTO

TRACKING

PRIVACY

MASK

Outdoor Indoor

Wall/Pendant Mount Surface Mount Flush Mount

2MPx 2MPx 2MPx

TVP-3104 TVP-3105 TVP-3106

Sensor 1/3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) @ 30fps

Multiple Streaming Triple

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range DWDR

Digital Noise Reduction 3D

Digital S/N Ratio 50 dB

Electronic Shutter NTSC: 1/30 - 1/10,000 s; PAL: 1/25 - 1/10,000 s

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.05 lux @ f1.6 (AGC On); B/W: 0.005 lux @ f1.6 (AGC On)

Lens 4.7~94mm @ f1.6~f3.5

Zoom Range 20X Optical / 16X Digital

Pan Range and Speed 360° Endless, Manual Speed 0.1°-300° per sec, Preset Speed 540° per sec

Tilt Range and Speed -5° to 90° (Auto Flip), Manual Speed 0.1°-240° per sec, Preset Speed 400° per sec

Video Output 1 Vp-p composite output (75 ohm/BNC)

Presets 256

Intelligence Auto-tracking, Region of Interest, Electronic Image Stabilization, Defog, Audio Exception Detection, Motion Detection

Privacy Mask 24 Zones

I/O 7 inputs / 2 outputs

Audio Bi-directional

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 24VAC/PoE+ (IEEE 802.3at)

Operating Temp PoE+: -22°F~149°F (-30°C~65°C);

24VAC: -40°F~149°F (-40°C~65°C)

-14°F~122°F (-25°C~50°C)

Environmental Rating IP66 IP54

Vandal Rating IK10 --

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

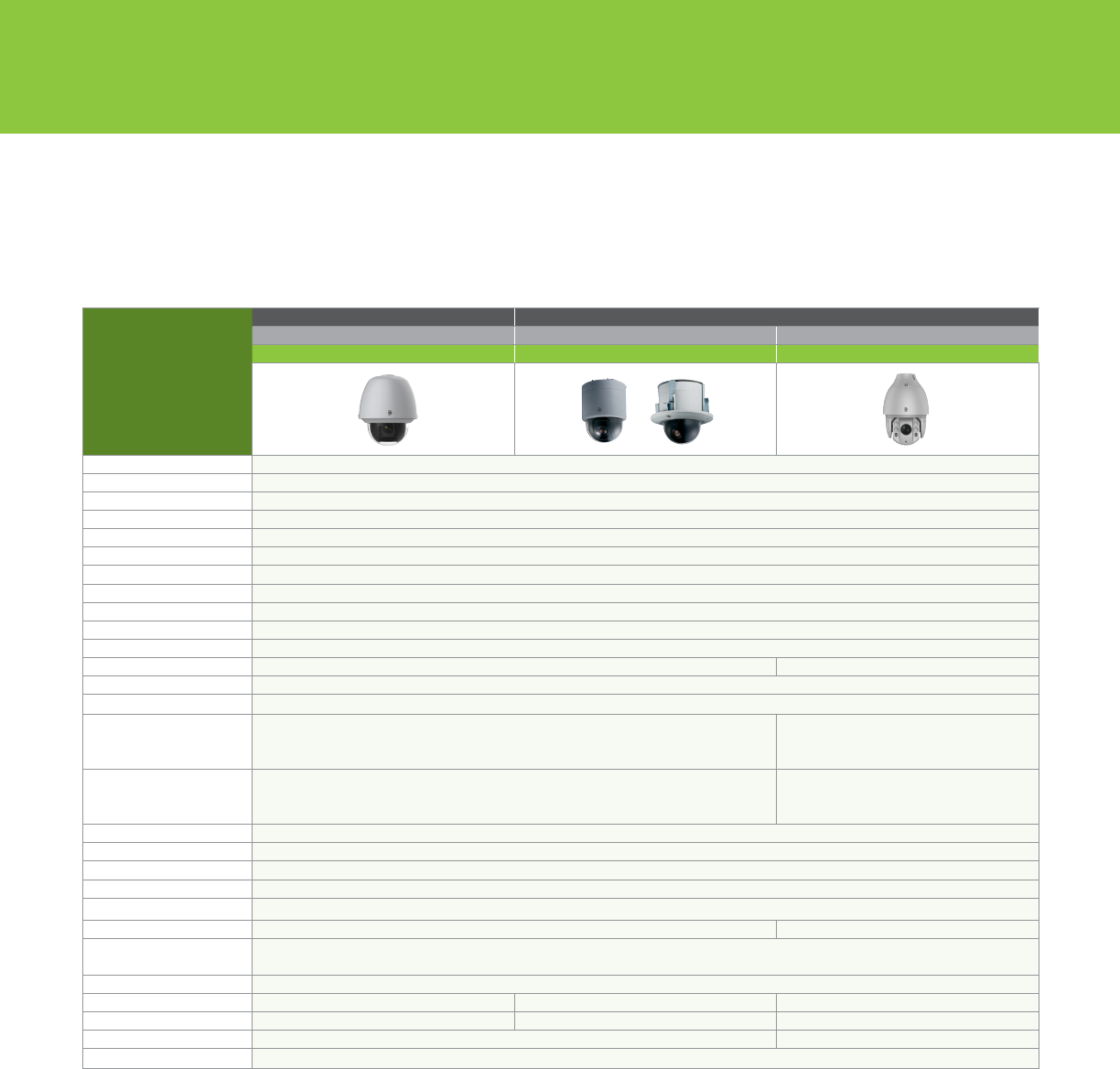

20X Optical/16X Digital IP PTZ Cameras Speciﬁcations

IR IP Megapixel PTZ Dome Camera Speciﬁcations

IP Megapixel PTZ Cameras Ordering Information

IP MEGAPIXEL PTZ CAMERAS

NTSC

TVP-3104 TruVision 2MPx, NTSC, Pan/Tilt/Zoom Dome Pendant Outdoor,

CMOS, True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA,

20X Optical Zoom, SD Card Slot, PoE+/24VAC

TVP-3105 TruVision 2MPx, NTSC, Pan/Tilt/Zoom Dome Surface Mount Indoor,

CMOS, True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA,

20X Optical Zoom, SD Card Slot, PoE+/24VAC

TVP-3106 TruVision 2MPx, NTSC, Pan/Tilt/Zoom Dome Flush Mount Indoor,

CMOS, True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA,

20X Optical Zoom, SD Card Slot, PoE+/24VAC

PAL

TVP-110 4 TruVision 2MPx, PAL, Pan/Tilt/Zoom Dome Pendant Outdoor, CMOS,

True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA, 20X

Optical Zoom, SD Card Slot, PoE+/24VAC

TVP-110 5 TruVision 2MPx, PAL, Pan/Tilt/Zoom Dome Surface Mount Indoor,

CMOS, True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA,

20X Optical Zoom, SD Card Slot, PoE+/24VAC

TVP-110 6 TruVision 2MPx, PAL, Pan/Tilt/Zoom Dome Flush Mount Indoor,

CMOS, True D/N, DWDR, Motorized IR Cut Filter, H.264, ONVIF/PSIA,

20X Optical Zoom, SD Card Slot, PoE+/24VAC

TruVision® IP Products

360° Indoor/Outdoor Dome Cameras

• Up to 10m (33 ft.) IR range

• 2-way audio, built-in mic and speaker

• 360° view angle

• Multiple ePTZ streams with preset and patrol functions.

With multiple streams, each individual stream consumes

a separate channel on TruVision® NVRs

• 3-year warranty

Specialty IP Open Standards Cameras

360° Panoramic

COMPRESSION

H.264

12VDC

PoE

MPX

360°VANDAL

RESISTANT IP66

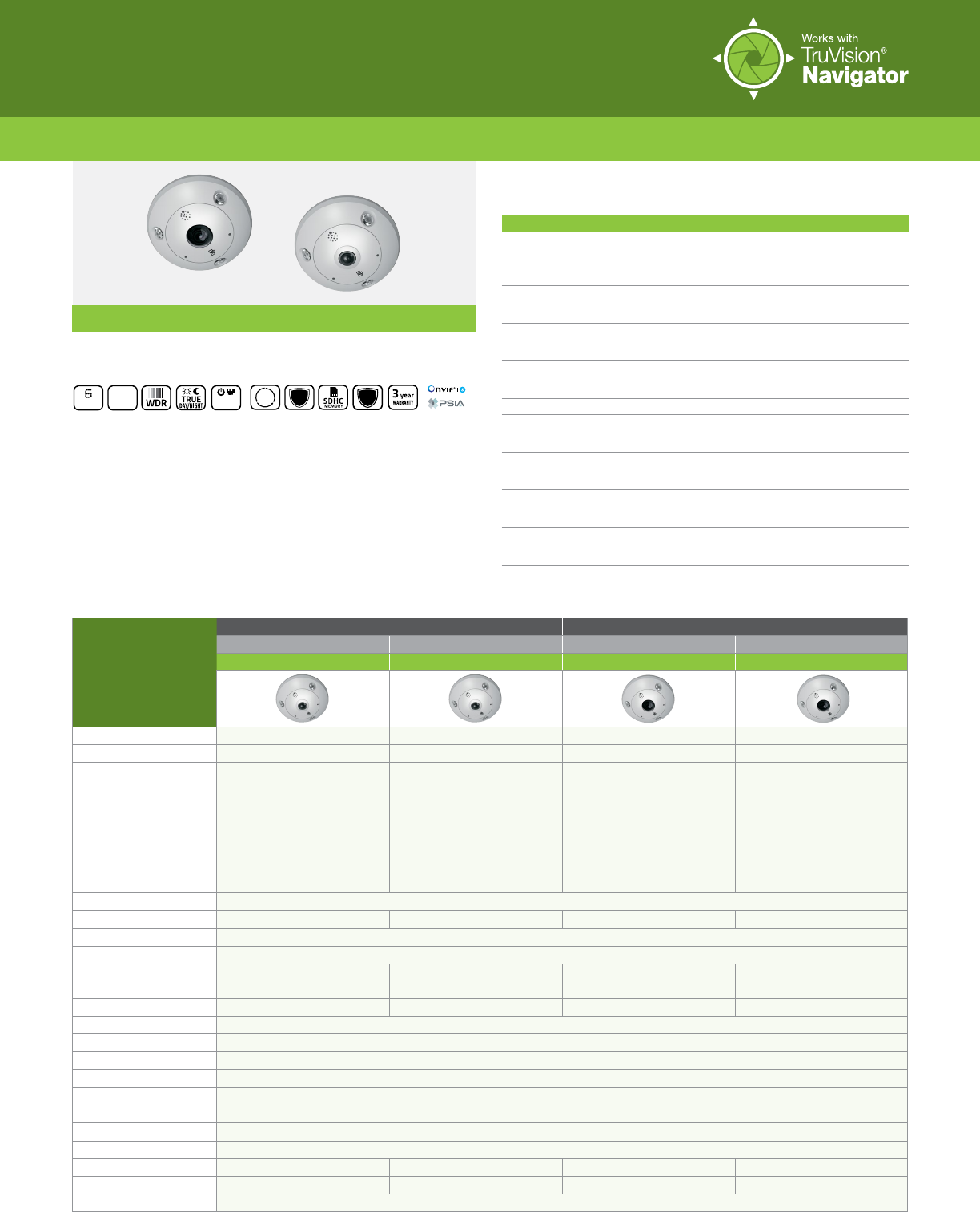

360° Indoor/Outdoor Dome Cameras Comparison Table

Indoor Outdoor

3MPx 6MPx 3MPx 6MPx

TVF-3101 TVF-3103 TVF-3102 TVF-3104

Sensor 1/3" Progressive Scan, CMOS 1/1.8" Progressive Scan, CMOS 1/3" Progressive Scan, CMOS 1/1.8" Progressive Scan, CMOS

Resolution 2048(H) x 1536(V) @ 30 fps 3072(H) x 2048(V) @ 30fps 2048(H) x 1536(V) @ 30 fps 3072(H) x 2048(V) @ 30fps

Multiple Streaming High-frame Mode Support: 60Hz:

1 x ﬁsheye (2048 x 1536, 25fps)

or (1536 x 1536, 30fps) or 4 x PTZ

(800 x 600, 30fps); Multi-channel

Mode Support: 60Hz: 1 x ﬁsheye

(1536 x 1536, 20fps) and 1 x

panaromic (1600 x 1200, 20fps)

and 3 x PTZ (800 x 600, 20fps)

High-frame Mode Support: 60Hz:

1 x ﬁsheye (3072 x 2048, 25fps)

or (2048 x 2048, 30fps) or 4 x PTZ

(1024 x 768, 30fps); Multi-channel

Mode Support: 60Hz: 1 x ﬁsheye

(1280 x 1280, 15fps) and 1 x

panaromic (2048 x 1536, 15fps)

and 3 x PTZ (1024 x 768, 15fps)

High-frame Mode Support: 60Hz:

1 x ﬁsheye (2048 x 1536, 25fps)

or (1536 x 1536, 30fps) or 4 x PTZ

(800 x 600, 30fps); Multi-channel

Mode Support: 60Hz: 1 x ﬁsheye

(1536 x 1536, 20fps) and 1 x

panaromic (1600 x 1200, 20fps)

and 3 x PTZ (800 x 600, 20fps)

High-frame Mode Support: 60Hz:

1 x ﬁsheye (3072 x 2048, 25fps)

or (2048 x 2048, 30fps) or 4 x PTZ

(1024 x 768, 30fps); Multi-channel

Mode Support: 60Hz: 1 x ﬁsheye

(1280 x 1280, 15fps) and 1 x

panaromic (2048 x 1536, 15fps)

and 3 x PTZ (1024 x 768, 15fps)

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range WDR (120 dB) DWDR WDR (120 dB) DWDR

Digital S/N Ratio 50 dB

IP Compression/Standard H.264 / MJPEG

Minimum Illumination 0.1 lux @ f1.2 (AGC On); 0.28 lux

@ f 2.0 (AGC On); 0 lux with IR On

0.05 lux @ f1.2 (AGC On); 0.3 lux

@ f 2.8 (AGC On); 0 lux with IR On

0.1 lux @ f1.2 (AGC On); 0.28 lux

@ f 2.0 (AGC On); 0 lux with IR On

0.05 lux @ f1.2 (AGC On); 0.3 lux

@ f 2.8 (AGC On); 0 lux with IR On

Lens 1.19mm @ f2.0 1.27mm @ f2.8 1.19mm @ f2.0 1.27mm @ f2.8

IR Range up to 33 ft. (10m)

Local Storage Micro SD / SDXC slot, up to 64GB

Intelligence --

I/O --

Audio Bi-directional, built-in speaker & mic

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -22°F~14 0 °F (-30°C~60°C)

Environmental Rating -- -- IP66 IP66

Vandal Rating -- -- IK10 IK10

Certiﬁcation FCC, CE, UL, REACH, RoHS, WEEE

Specialty IP Cameras Ordering Information

360° INDOOR/OUTDOOR DOME CAMERAS

NTSC

TVF-3101 TruVision 360° Dome, 3MPx, WDR, 1.19mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC

TVF-3102 TruVision 360° Dome, 3MPx, WDR, 1.19mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC, IP66, IK10

TVF-3103 TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC

TVF-3104 TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC, IP66, IK10

PAL

TVF-1101 TruVision 360° Dome, 3MPx, WDR, 1.19mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC

TVF-1102 TruVision 360° Dome, 3MPx, WDR, 1.19mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC, IP66, IK10

TVF-1103 TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/12VDC

TVF-1104 TruVision 360° Dome, 6MPx, DWDR, 1.27mm Fisheye Lens, True D/N,

10m IR, 2-Way Audio (built-in mic & speaker), SD/SDHC Slot, PoE

(802.3af)/ 2VDC, IP66, IK10

360° Indoor/Outdoor Dome Cameras Comparison Table

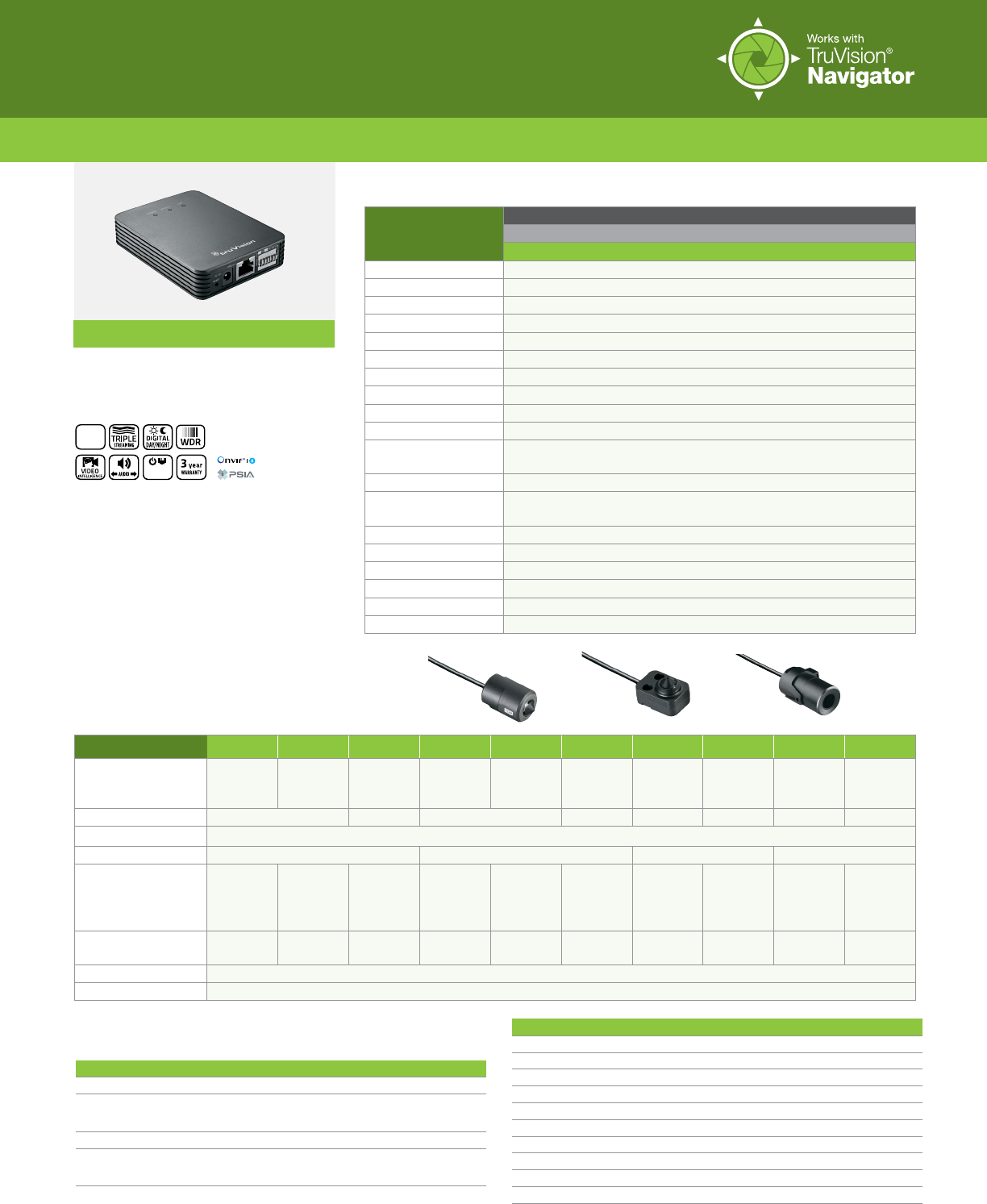

Indoor Covert IP Camera

1.3MPx

TVA-3101

Sensor 1/3" Progressive Scan, CMOS

Resolution 1280(H) x 960(V) @ 30fps

Multiple Streaming Triple

Day/Night Digital D/N

Wide Dynamic Range WDR (120 dB)

Digital S/N Ratio 50 dB

IP Compression/Standard H.264 / MPEG4 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC ON)

Lens 2mm @f2.0 or 3.7mm @ f2.3 or 4mm @ f2.0

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Face Detection, Audio Exception

Detection, Cross Line, Intrusion Detection, De-focus Detection, Scene Change Detection

I/O 1 input / 1 output

Audio Input: 1 ch. 3.5mm audio interface (2.0-2.4 Vp-p, 1K ohm); Output: 1 ch. 3.5mm

audio interface (Line level, 600 ohm)

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating Indoor

Vandal Rating --

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

1.3MPx Covert IP Camera Comparison Table

TVL-0101 TVL-0102 TVL-0103 TVL-0104 TVL-0105 TVL-0106 TVL-0107 TVL-0108 TVL-0109 TVL-0110

Lens Type Pinhole,

3.7mm @

f2.3

L-Shape,

3.7mm @

f2.3

Cylinder,

4mm @ f2

Pinhole,

3.7mm @

f2.3

L-Shape,

3.7mm @

f2.3

Cylinder,

4mm @ f2

L-shape,

2.0mm @

f2.0

Cylinder,

2.0mm @

f2.0

L-shape,

2.0mm @

f2.0

Cylinder,

2.0mm @

f2.0

Field of View (FOV) 57° 73° 57° 73.1° 115° 120° 115° 120°

Connection RJ12

Cable Length 6.5 ft (2m) 26.2 ft. (8m) 6.5 ft (2m) 26.2 ft. (8m)

Dimensions 1.02 x 1.58

in. (26 x

40mm)

1.46 x 1.02

x 0.98 in.

(37 x 26 x

25mm)

1.02 x 2

in. (26 x

51mm)

1.02 x 1.58

in. (26 x

40mm)

1.46 x 1.02

x 0.98 in.

(37 x 26 x

25mm)

1.02 x 2

in. (26 x

51mm)

1.92 x 1.21

x 1.24 in.

(48.7 x 30.7

x 31.5mm)

1.02 x 2

in. (26 x

51mm)

1.92 x 1.21

x 1.24 in.

(48.7 x 30.7

x 31.5mm)

1.02 x 2

in. (26 x

51mm)

Weight 0.25 lbs.

(113g)

0.22 lbs.

(99g)

0.28 lbs.

(127g)

0.51 lbs.

(231g)

0.49 lbs.

(222g)

0.53 lbs.

(240g)

0.53 lbs.

(240g)

0.28 lbs.

(127g)

0.28 lbs

127g)

0.53 lbs.

(240g)

Storage Temperature -4°F~158°F (-20°C~70°C)

Operating Temperature -22°F~140°F (-30°C~60°C)

Covert Lens Comparison Table

1.3MPX COVERT IP CAMERA*

NTSC

TVA-3101 TruVision Covert Camera, 1.3MPx, WDR, Digital D/N, Single

Lens, Audio, Alarm, SD/SHDC/SDXC Slot, Intelligence, PoE

(802.3-af)/12VDC, NTSC

PAL

TVA -1101 TruVision Covert Camera, 1.3MPx, WDR, Digital D/N, Single

Lens, Audio, Alarm, SD/SHDC/SDXC Slot, Intelligence, PoE

(802.3-af)/12VDC, PAL

*Lenses ordered separately

1.3MPx Covert IP

Camera

• 1/3" CMOS image sensor

• Embedded video intelligence: cross line,

intrusion, de-focus and face detection

capabilities

• Up to 120dB WDR

• Region of Interest (ROI) function and

bi-directional audio

• 3-year warranty

Covert

12VDC

PoE

COMPRESSION

H.264

Specialty IP Products Ordering Information

COVERT LENS OPTIONS

TVL-0101 TruVision Covert Lens, 1.3MPx, Pinhole, 3.7mm, 2m Cable

TVL-0102 TruVision Covert Lens, 1.3MPx, L-shape, 3.7mm, 2m Cable

TVL-0103 TruVision Covert Lens, 1.3MPx, Cylinder, 4mm, 2m Cable

TVL-0104 TruVision Covert Lens, 1.3MPx, Pinhole, 3.7mm, 8m Cable

TVL-0105 TruVision Covert Lens, 1.3MPx, L-shape, 3.7mm, 8m Cable

TVL-0106 TruVision Covert Lens, 1.3MPx, Cylinder, 4mm, 8m Cable

TVL-0107 TruVision Covert Lens, 1.3MPx, L-shape, 2mm, 2m Cable

TVL-0108 TruVision Covert Lens, 1.3MPx, Cylinder, 2mm, 2m Cable

TVL-0109 TruVision Covert Lens, 1.3MPx, L-shape, 2mm, 8m Cable

TVL- 0110 TruVision Covert Lens, 1.3MPx, Cylinder, 2mm, 8m Cable

Pinhole L-shape Cylinder

Specialty IP Open Standards Cameras

1.3MPx and 3MPx IP Wi-Fi

Wedge IR Cameras

• Supports IEEE802.11b/g/n Wi-Fi® standards

• DWDR and/or real-time video streaming up to 1080p resolution to

capture every detail

• Encryption security support for 64/128-bit WEP, WPA/WPA2,

WPA-PSK/WPA2-PSK, WPS standards

• Intelligence features including cross line and intrusion detection

• Corrosion resistant

• 3-year warranty

Wi-Fi Corrosion Resistant

STREAMING

DUAL

PROGRESSIVE

SCAN

IP66

AUDIO

12VDC IK8

Specialty IP Cameras Ordering Information

1.3MPX AND 3MPX IP WI-FI® WEDGE IR CAMERAS

NTSC

TVW-3103 TruVision IP Wi-Fi Wedge Camera, 1.3MPx, 2.8mm Fixed Lens,

DWDR, True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC,

Corrosion Resistant, IP66, IK8, Audio, Gray Housing, NTSC

TVW-3104 TruVision IP Wi-Fi Wedge Camera, 1.3MPx, 2.8mm Fixed Lens,

DWDR, True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC,

Corrosion Resistant, IP66, IK8, Audio, White Housing, NTSC

TVW-3105 TruVision IP Wi-Fi Wedge Camera, 3MPx, 2.8mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, Gray Housing, NTSC

TVW-3106 TruVision IP Wi-Fi Wedge Camera, 3MPx, 2.8mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, White Housing, NTSC

TVW-3116 TruVision IP Wi-Fi Wedge Camera, 3MPx, 6mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, White Housing, NTSC

PAL

TVW-1103 TruVision IP Wi-Fi Wedge Camera, 1.3MPx, 2.8mm Fixed Lens,

DWDR, True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC,

Corrosion Resistant, IP66, IK8, Audio, Gray Housing, PAL

TVW-1104 TruVision IP Wi-Fi Wedge Camera, 1.3MPx, 2.8mm Fixed Lens,

DWDR, True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC,

Corrosion Resistant, IP66, IK8, Audio, White Housing, PAL

TVW-1105 TruVision IP Wi-Fi Wedge Camera, 3MPx, 2.8mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, Gray Housing, PAL

TVW-1106 TruVision IP Wi-Fi Wedge Camera, 3MPx, 2.8mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, White Housing, PAL

TVW-1116 TruVision IP Wi-Fi Wedge Camera, 3MPx, 6mm Fixed Lens, DWDR,

True D/N, 10m IR, SD/SHDC Slot, PoE (802.3-af)/12VDC, Corrosion

Resistant, IP66, IK8, Audio, White Housing, PAL

Fixed Lens

1.3MPx 3MPx

Gray White Gray White White

TVW-3103 TVW-3104 TVW-3105 TVW-3106 TVW-3116

Sensor 1/3" Progressive Scan, CMOS

Resolution 1280(H) x 960(V) @ 30fps Max. 2048(H) x 1536(V) @ 20fps

Multiple Streaming Dual

Day/Night True D/N, IR cut ﬁlter

Wide Dynamic Range DWDR (72 dB)

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On); B/W: 0 lux with IR On Color: 0.07 lux @ f1.2 (AGC On); B/W: 0 lux with IR On

Lens 2.8mm @ f2.0 6mm @ f2.0

IR Range 33 ft. (10m)

Local Storage Micro SD / SDHC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Cross Line, Intrusion Detection

I/O 1 input / 1 output

Audio Input - Built-in / Output - External

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE 802.3af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating IP66

Vandal Rating IK8

Certiﬁcation R&TTE, FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

IP Wi-Fi® Wedge IR Cameras Comparison Table

TruVision® IP Products

Specialty IP Open Standards Cameras

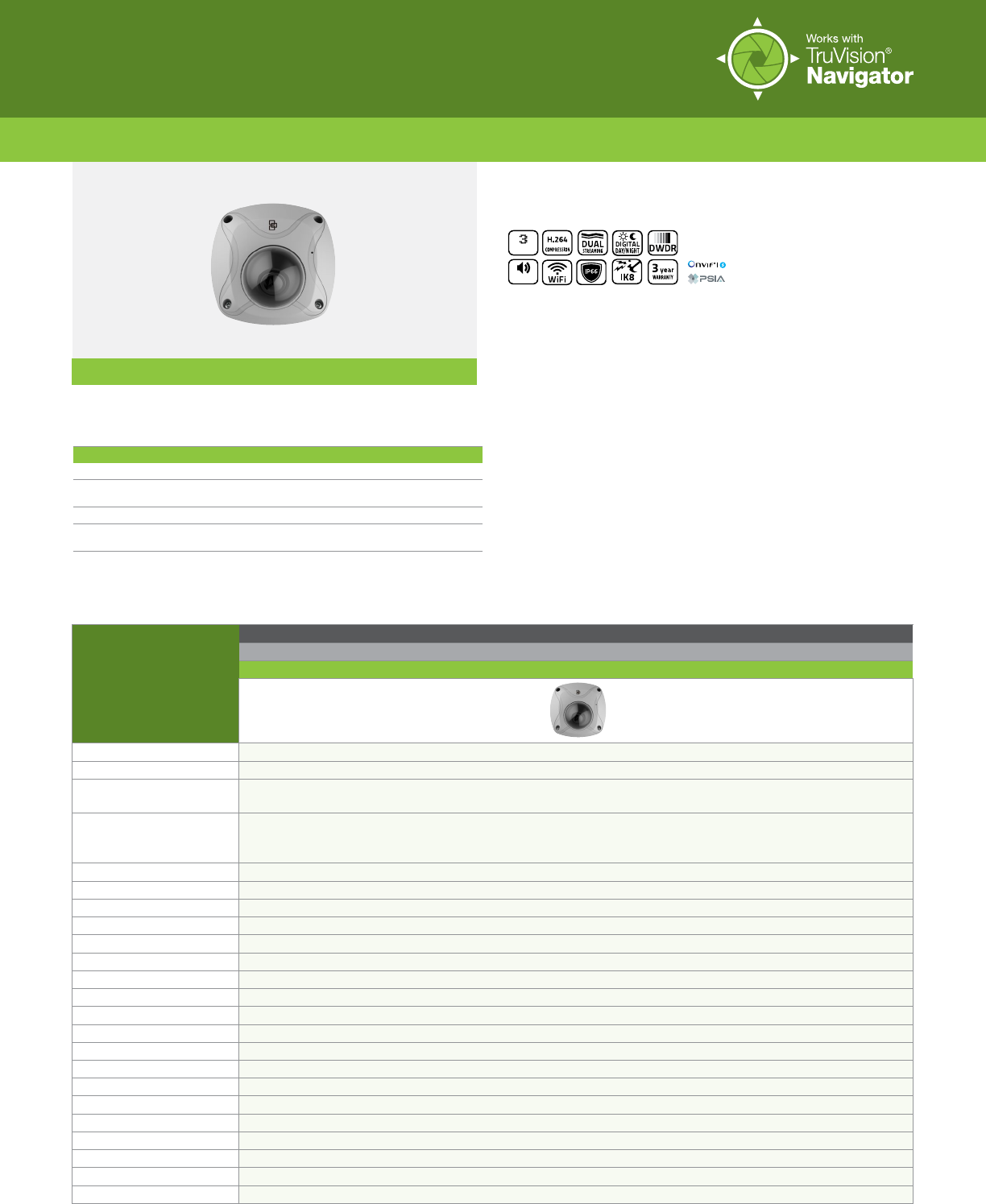

Wi-Fi Panoramic

Wi-Fi Panoramic Wedge Camera

• 3MPx

• Up to 160 horizontal ﬁeld of view that does not require de-warping

• H.264/MJPEG compression technology with dual-streaming

capability accommodating multiple settings

• IEEE802.11b/g/n Wi-Fi® standards support

• 3-year warranty

MPX

AUDIO

Specialty IP Cameras Ordering Information

WI-FI® PANORAMIC WEDGE CAMERAS

NTSC

TVW-3130 TruVision® Panoramic Wi-Fi Wedge Camera, 3MPx, 1.6mm Lens,

Digital D/N, Audio, Alarm, PoE (802.3-af)/12VDC, IP66, IK8, NTSC

PAL

TVW-1130 TruVision Panoramic Wi-Fi Wedge Camera, 3MPx, 1.6mm Lens, Digital

D/N, Audio, Alarm, PoE (802.3-af)/12VDC, IP66, IK8, PAL

3MPx

Gray

TVW-3130

Sensor 1/3" Progressive Scan, CMOS

Resolution 1920(H) x 1080(V) @ 15fps (60Hz); 1776(H) x 1340(V) @ 15fps (60Hz)

Maximum Real-Time Resolution

(@ fps)

2144(H) x 604(V) @ 30 fps (60Hz); 2080(H) x 784(V) @ 30 fps (60Hz);

1280(H) x 960(V) @ 30 fps (60Hz); 1280(H) x 720(V) @ 30 fps (60Hz)

Field of View (H&V) @ resolution

for wall mount application

(H)-80° to +80° (V)33° to 75° @ 2144 × 604; (H)-77° to +77° (V)26° to 80° @ 2080 × 784;

(H)-71° to +71° (V)15° to 90° @ 1920 × 1080; (H)-71° to +71° (V)15° to 90° @ 1280 × 720;

(H)-64° to +64° (V) 6° to100° @ 1776 × 1340; (H)-64° to +64° (V)6° to 100° @ 1280 × 960

Multiple Streaming Dual

Day/Night Digital D/N

Wide Dynamic Range DWDR

Digital S/N Ratio 50 dB (AGC Off)

IP Compression/Standard H.264 / MJPEG

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On)

Lens 1.6mm @ f1.6

IR Range --

Local Storage Micro SD / SDHC / SDXC slot, up to 128GB

Intelligence Motion Detection, Tamper Proof, Privacy Mask, Cross Line, Intrusion Detection

I/O Alarm I/O

Wireless Standards IEEE802.11b, 802.11g, 802.11n

Audio Input - Built-in Mic / Output - External

Standard & Integration ONVIF (Proﬁle S), PSIA, CGI

Voltage Input 12VDC / PoE (IEEE802.3-af)

Operating Temp -22°F~140°F (-30°C~60°C)

Environmental Rating IP66

Vandal Rating IK8

Certiﬁcation R&TTE, FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

Wi-Fi® Panoramic Wedge Camera Comparison Table

Specialty IP Open Standards Cameras

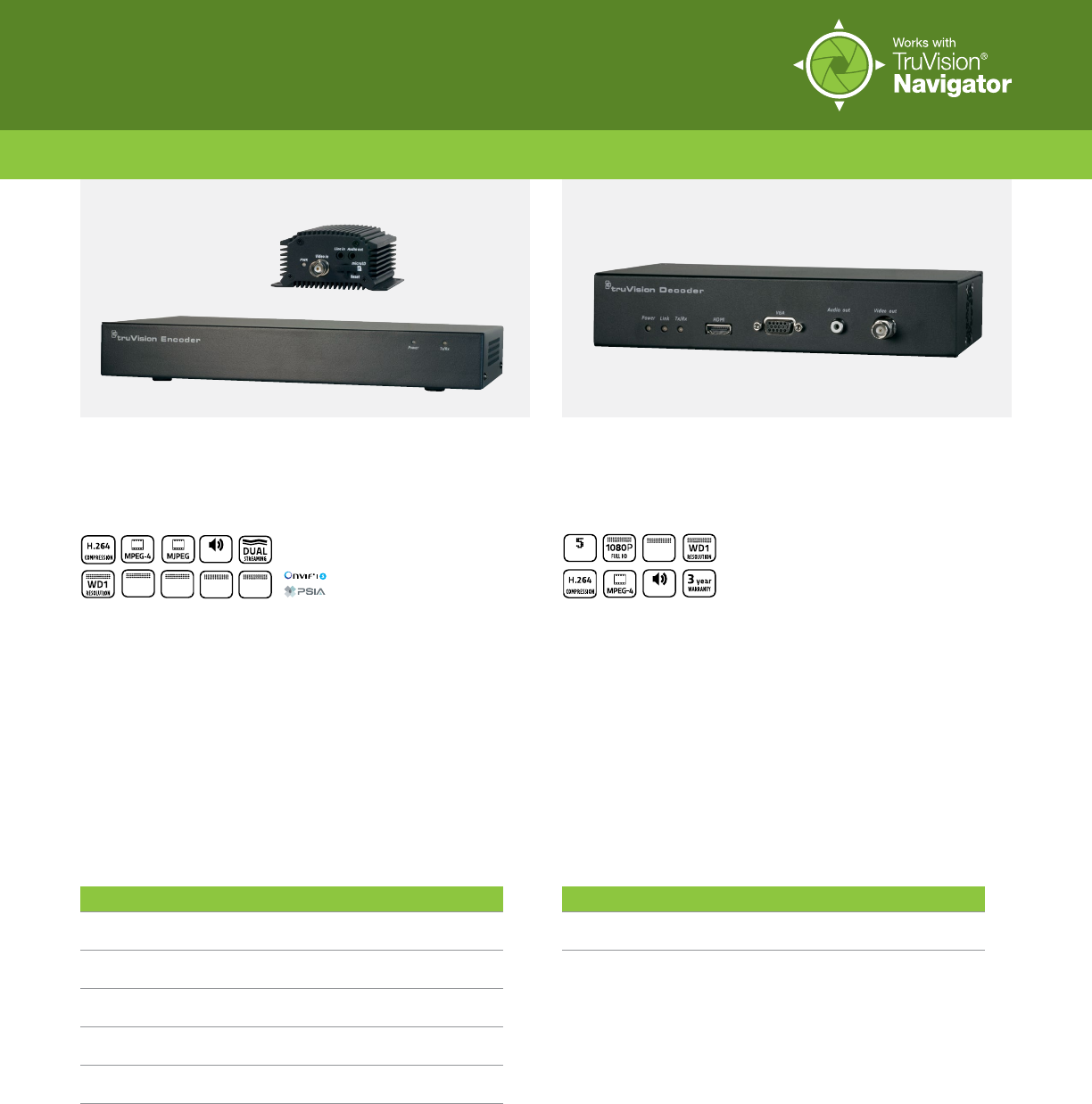

TVE Series IP

Video Encoders

High Deﬁnition IP

Video Decoder

AUDIO

RESOLUTION

CIF

RESOLUTION

QCIF

RESOLUTION

2CIF

RESOLUTION

4CIF

ENCODERS

TVE-110 TruVision® IP Encoder, 1-Channel, 960H, Audio, Alarm,

RS-485, PoE (802.3-af) / 12VDC, Compact

TVE-410 TruVision IP Encoder, 4-Channel, 960H, Audio, Alarm,

RS-485, PoE (802.3-af) / 12VDC, Compact

TVE-810 TruVision IP Encoder, 8-Channel, 960H, Audio, Alarm,

RS-485, 12VDC, Desktop

TVE-1610 TruVision IP Encoder, 16-Channel, 960H, Audio, Alarm,

RS-485, 12VDC, 19", Rack Mount

TVE-RMB TruVision Encoder Rack Mount Bracket (use with TVE-

110/410/810)

MPX HD-4CIF

720P

AUDIO

DECODER

TVE-DEC11 TruVision IP Video Decoder to BNC, HDMI and VGA

Output, Audio, Alarm, 12VDC

• 1-, 4-, 8- and 16-channel encoders

• Supports H.264, MPEG4 and MJPEG compression

• Encoding resolution 960H, 4CIF, 2CIF, CIF and QCIF

• Dual-streaming functionality

• ONVIF Proﬁle S, PSIA and CGI support

• Bi-directional audio support

• Alarm input/output support

• 3-year warranty

• Multi-channel decoder

• Choice between three video output (HDMI, VGA and BNC)

• Full HD output

• Views based on alarm activity

• Sequence up to 64 cameras

• Real-time decoding

• Supports up to 16-channel views on one display

• 3-year warranty

TruVision® IP Products

Encoders and Decoders

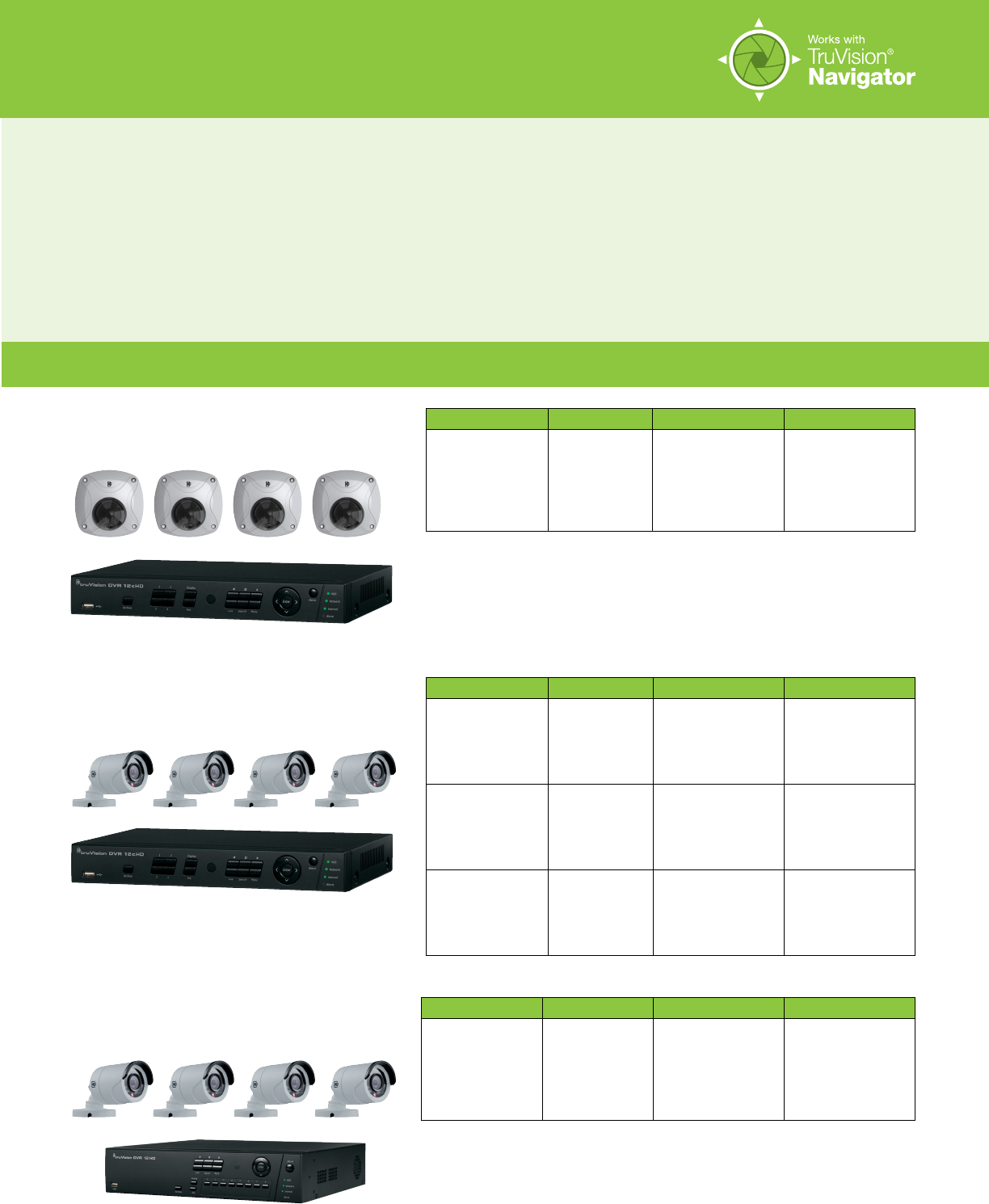

TruVision® IP Products

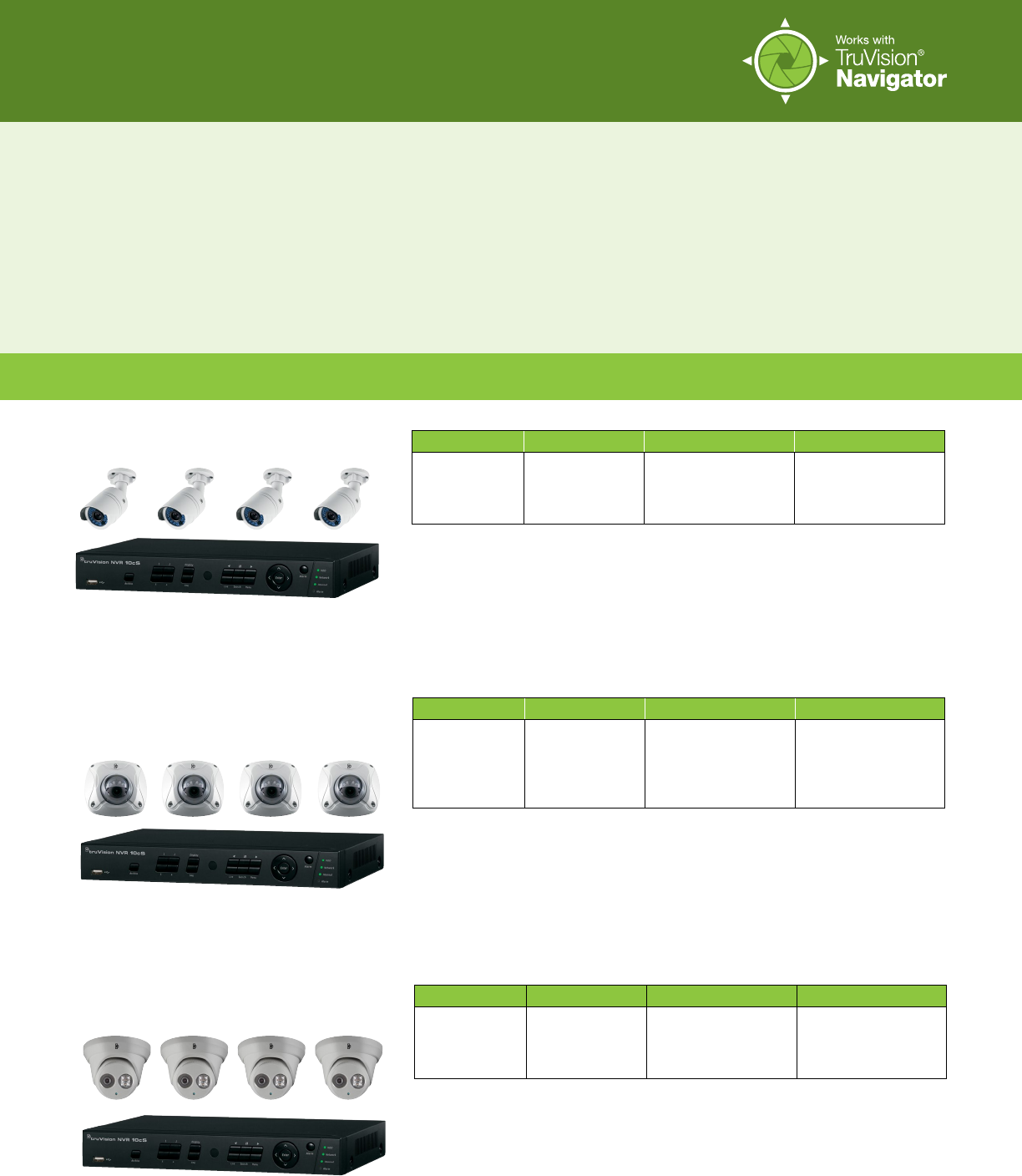

IP/PoE NVR & Megapixel Camera Kits

The TruVision NVR 10 IP video kit from Interlogix provides a complete, cost-effective surveillance solution

that is also incredibly easy to install. Available in 4- and 8-channel conﬁgurations, each kit includes four

TruVision cameras with no IP conﬁguration or programming required.

NVR 10 and Megapixel Camera Kit (4-channel)

Model Description NVR Cameras

TVN-1004-KW4 4-Channel Kit

w/4 2MPx Wedge

Cameras Kit

1 x TVN-1004cS-2TB

4-Channel NVR 10

Compact w/Built-in 4-Port

PoE Switch, 2TB Storage

4 x TVW-5302

2MPx Open Standards

Low-proﬁle Mini Dome

IR Wedge (2.8mm lens)

Cameras

Model Description NVR Cameras

TVN-1004-KB4 4-Channel Kit w/4

2MPx IR Bullet

(4mm lens)

Cameras Kit

1 x TVN-1004cS-1TB

4-Channel NVR 10

Compact w/Built-in 4-Port

PoE Switch, 1TB Storage

4 x TVB-5301

2MPx Open Standards IR

Bullet (4mm lens) Cameras

4-channel NVR with 4 IR Bullet IP Cameras

4-channel NVR with 4 IR Wedge IP Cameras

Model Description NVR Cameras

TVN-1004-KT1 4-Channel Kit

w/4 2MPx Turret

Cameras Kit

1 x TVN-1004cS-1TB

4-Channel NVR 10

Compact w/Built-in 4-Port

PoE Switch, 1TB Storage

4 x TVT-5301

2MPx Open Standards IR

Turret (2.8mm lens)

Cameras

4-channel NVR with 4 IR Turret IP Cameras

TruVision® IP Products

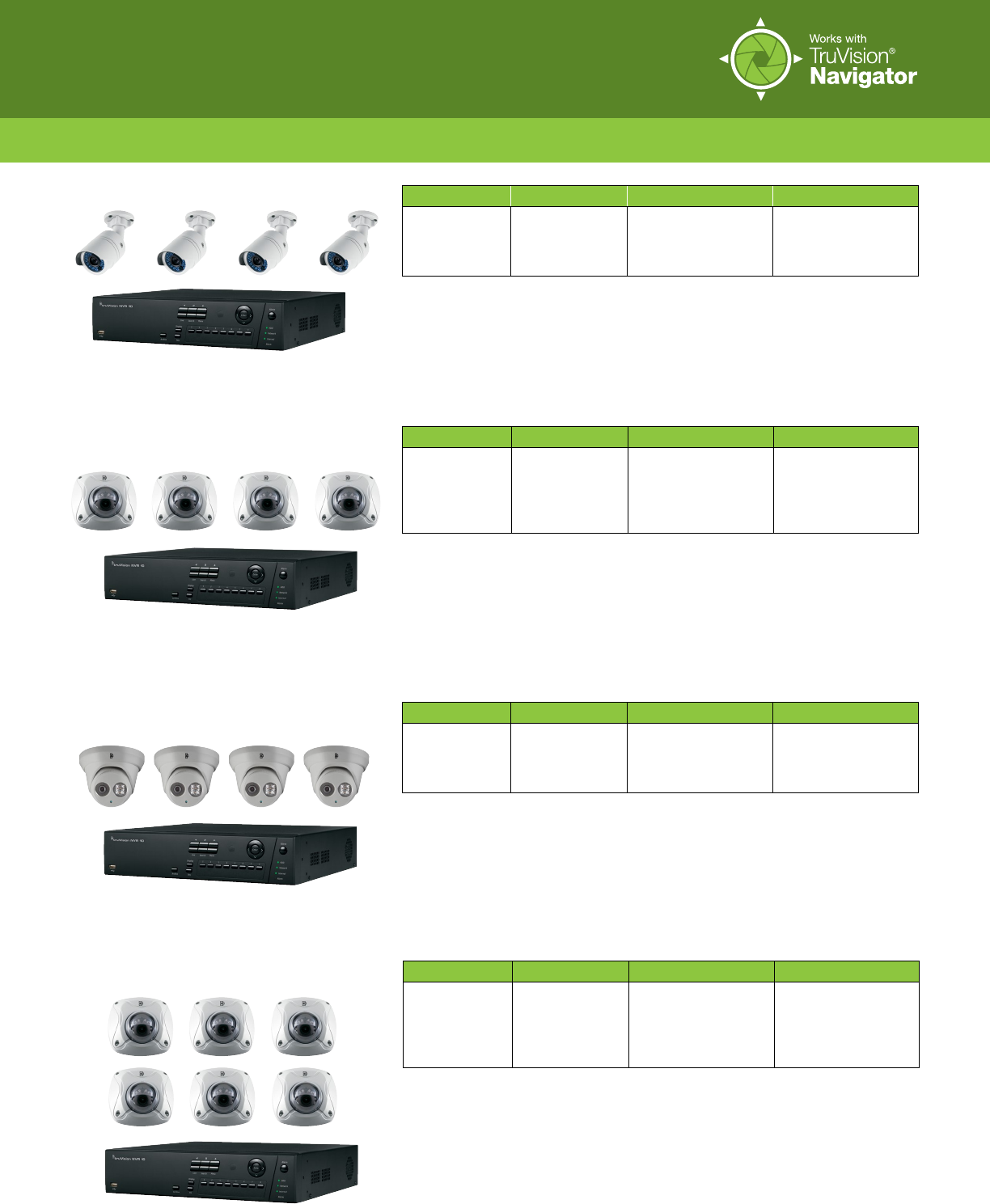

NVR 10 and Megapixel Camera Kit (8-channel)

Model Description NVR Cameras

TVN-1008-KW4 8-Channel Kit

w/4 2MPx Wedge

Cameras Kit

1 x TVN-1008S-2TB

8-Channel NVR 10 w/Built-

in 8-Port PoE Switch, 2TB

Storage

4 x TVW-5302

2MPx Open Standards

Low-proﬁle Mini Dome

IR Wedge (2.8mm lens)

Cameras

Model Description NVR Cameras

TVN-1008-KB4 8-Channel Kit w/4

2MPx IR Bullet

(4mm lens)

Cameras Kit

1 x TVN-1008S-2TB

8-Channel NVR 10 w/Built-

in 8-Port PoE Switch, 2TB

Storage

4 x TVB-5301

2MPx Open Standards IR

Bullet (4mm lens) Cameras

8-channel NVR with 4 IR Bullet IP Cameras

8-channel NVR with 4 IR Wedge IP Cameras

Model Description NVR Cameras

TVN-1008-KT1 8-Channel Kit

w/4 2MPx Turret

Cameras Kit

1 x TVN-1008S-2TB

8-Channel NVR 10 w/Built-

in 8-Port PoE Switch, 2TB

Storage

4 x TVT-5301

2MPx Open Standards IR

Turret (2.8mm lens)

Cameras

8-channel NVR with 4 IR Wedge IP Cameras

Model Description NVR Cameras

TVN-1008-KW5 8-Channel Kit

w/6 2MPx Wedge

Cameras Kit

1 x TVN-1008S-2TB

8-Channel NVR 10 w/Built-

in 8-Port PoE Switch, 2TB

Storage

6 x TVW-5302

2MPx Open Standards

Low-proﬁle Mini Dome

IR Wedge (2.8mm lens)

Cameras

8-channel NVR with 6 IR Wedge IP Cameras

DESIGNED

TO MEET THE

MOST DEMANDING

STANDARDS.

YOURS.

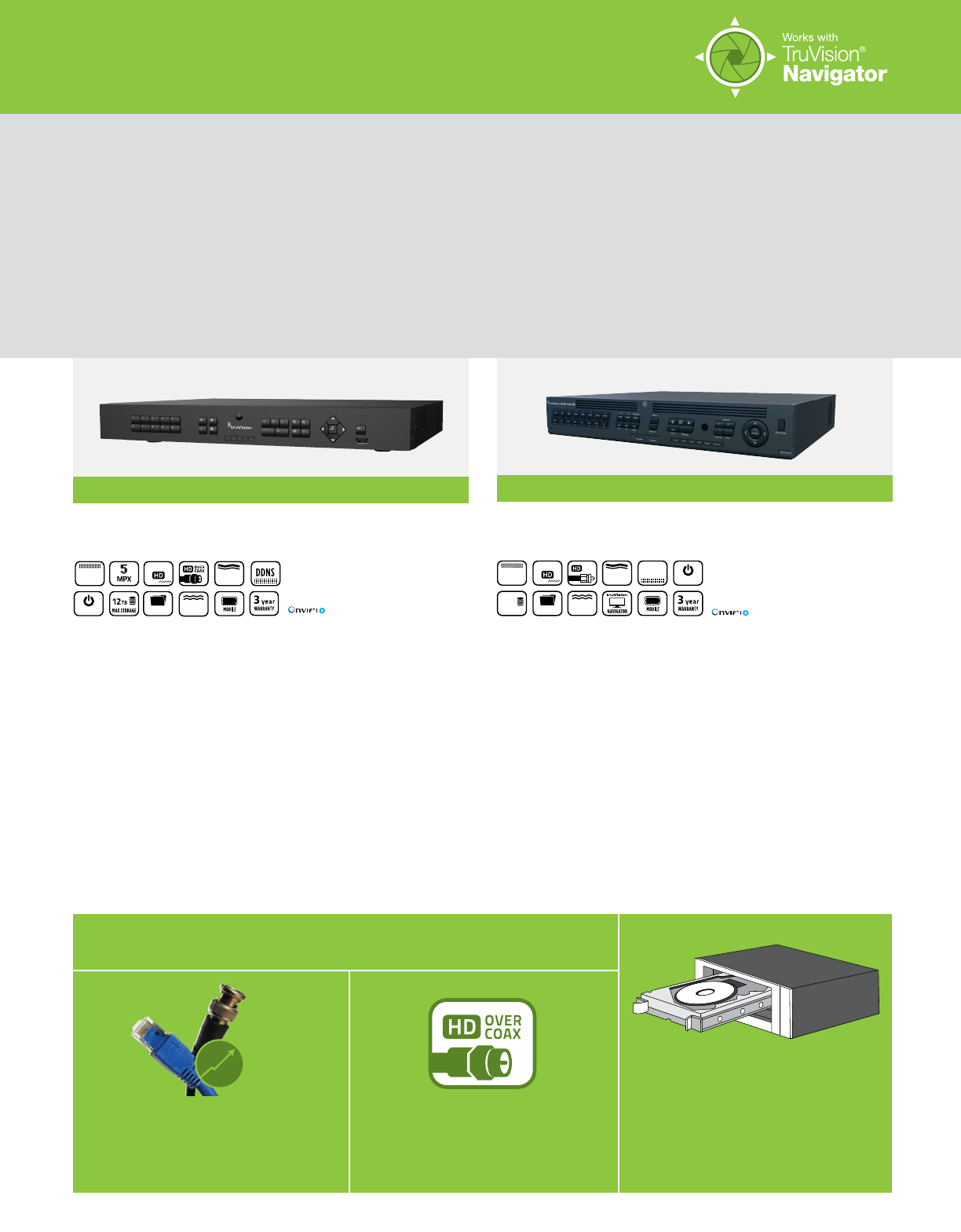

High Resolution Hybrid Recorder

DVR 15HD Series

• 4-, 8- or 16-channel real-time recording

• Connect standard, HD-TVI or IP cameras

• TVI over coax technology supports up to 5MPx resolution

• High deﬁnition TVI cameras can be used with standard RG59

coax cable

• Swap analog channels for IP cameras

• Up to 12TB internal storage

• HDMI ports for local high deﬁnition viewing

HD-Hybrid Digital Video Recorders

TruVision’s HD-TVI technology delivers up to 5MPx high deﬁnition quality video over standard analog coax

cable. These recorders are a true hybrid design supporting a combination of standard analog, HD-TVI and

IP cameras.

FULL HD

1080P

REMOTE

START-UP WIZARD QUICK ARCHIVE

STREAMING

DUAL

HYBRID

01011101011011

High Deﬁnition Hybrid Recorder

DVR 44HD Series

• 8- or 16-channel real-time recording

• Connect standard or TVI analog cameras

• TVI over coax technology supports up to 1080p HD resolution

• High deﬁnition TVI cameras can be used with standard RG59

coax cable

• Easy full channel one-for-one exchange for analog to IP

cameras

• User-serviceable internal hard disk drives are accessible via

the drop-down front panel

• Up to 16TB internal storage

• HDMI ports for local high deﬁnition viewing

STREAMING

DUAL

OVER

COAX ezDDNS

FULL HD

1080PHYBRID

01011101011011 START-UP WIZARD

REMOTE

QUICK ARCHIVE

HDD STORAGE

16TB

High-deﬁnition video made easy

Protects your cabling investment by

supporting analog, HD-TVI and IP

cameras.

Analog to IP Migration

Reduce installation and cabling costs

using existing analog coax cable to

record and view up to 5MPx HD video.

HD Video over Existing Coax

Drop-down, lockable front panel

provides convienent direct access to

camera channels and controls, as well

as user-accesible storage expansion.

(DVR 44HD Only)

Expandable Storage

ROI

TruVision® HD/Analog Products

Analog/Hybrid Digital Video Recorders Comparison Table Analog/HD-Hybrid

Video Recorders

Ordering Information

DVR 15CHD

TVR-1504cHD-1T TruVision® DVR 15HD Hybrid,

3-5MPx HD, 4 Channels, 1TB

Storage

TVR-1504cHD-2T TruVision® DVR 15HD Hybrid,

3-5MPx HD, 4 Channels, 2TB

Storage

TVR-1504cHD-4T TruVision® DVR 15HD Hybrid,

3-5MPx HD, 4 Channels, 4TB

Storage

DVR 15HD

TVR-1508HD -2T TruVision DVR 15HD Hybrid,

3-5MPx HD, 8 Channels, 2TB

Storage

TVR-1508HD -4T TruVision DVR 15HD Hybrid,

3-5MPx HD, 8 Channels, 4TB

Storage

TVR-1508HD -8T TruVision DVR 15HD Hybrid,

3-5MPx HD, 8 Channels, 8TB

Storage

TVR-1516HD-2T TruVision DVR 15HD Hybrid,

3-5MPx HD, 16 Channels, 2TB

Storage

TVR-1516HD-4T TruVision DVR 15HD Hybrid,

3-5MPx HD, 16 Channels, 4TB

Storage

TVR-1516HD-8T TruVision DVR 15HD Hybrid,

3-5MPx HD, 16 Channels, 8TB

Storage

TVR-1516HD-12T TruVision DVR 15HD Hybrid,

3-5MPx HD, 16 Channels, 12TB

Storage

DVR 44HD

TVR-4408HD-2T TruVision DVR 44HD, 1080p HD,

H.264, 8-Channels, 2TB Storage

TVR-4408HD-4T TruVision DVR 44HD, 1080p HD,

H.264, 8-Channels, 4TB Storage

TVR-4408HD-8T TruVision DVR 44HD, 1080p HD,

H.264, 8-Channels, 8TB Storage

TVR-4408HD-12T TruVision DVR 44HD, 1080p HD,

H.264, 8-Channels, 12TB Storage

TVR- 4416HD -2T TruVision DVR 44HD, 1080p HD,

H.264, 16-Channels, 2TB Storage

TVR-4416HD-4T TruVision DVR 44HD, 1080p HD,

H.264, 16-Channels, 4TB Storage

TVR-4416HD-8T TruVision DVR 44HD, 1080p HD,

H.264, 16-Channels, 8TB Storage

TVR-4416HD-16T TruVision DVR 44HD, 1080p

HD, H.264, 16-Channels, 16TB

Storage

DVR 15cHD DVR 15HD DVR 44HD

Channels &

Performance

Analog channels 48/16 8/16

Maximum IP channels 48/16 8/16

Real-time recording

Full HD 1080p Full HD 1080p Full HD 1080p

Max resolution analog / IP 5MPx / 4MPx 5MPx / 4MPx 1080p / 2MPx

Audio channels analog 4 4 4

Network &

Streaming

Ethernet ports (1) 10/100 Mbs (1) 10/100/1000

Mbs

(1) 10/100/1000

Mbs

DDNS • • •

Maximum outgoing video

streams 128 128 128

Maximum in/out combined

bandwidth (Mbps) 96 128 200

ONVIF • • •

Storage

Max storage (TB) 48/12 16

SATA interfaces 1 2 4

HDD redundancy —• •

Front side accessible HDDs ——•

Expandable internal storage ——•

eSATA support ——•

NAS support • • •

Dual stream recording ——•

Auto archive ——•

Local Viewing

& Controls

Front panel controls • • •

Browser interface • • •

HDMI • • •

VGA • • •

BNC output Event Only TVK-800 •

Bidirectional audio • • •

Alarm input/output 4/1 8-ch: 8/4;

16-ch: 16/4 16/4

Keypad support TVK-800 TVK-800 TVK-800

USB slots 2 2 3

General

Features

Analytics on analog channels • • •

Text insertion — — •

CD/DVD burner Via USB Via USB Via USB

Reverse playback • • •

Size 1U 1U 1.5U

Rack mountable —• •

Software

Support

TruVision Navigator • • •

TVRmobile • • •

Advisor®Pending Pending •

OnGuard®Pending Pending •

TruPortal™Pending Pending •

TruVision® HD/Analog Products

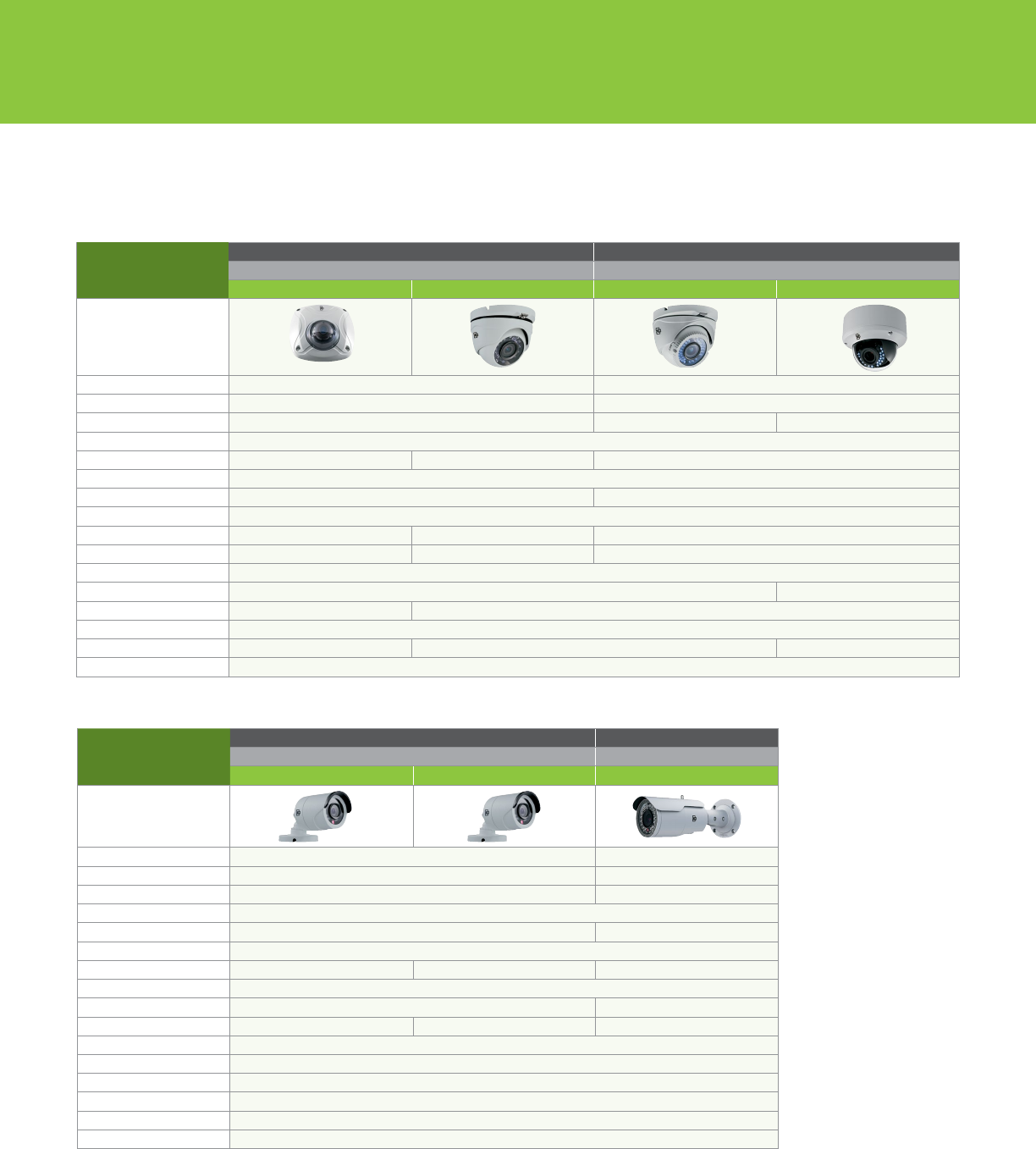

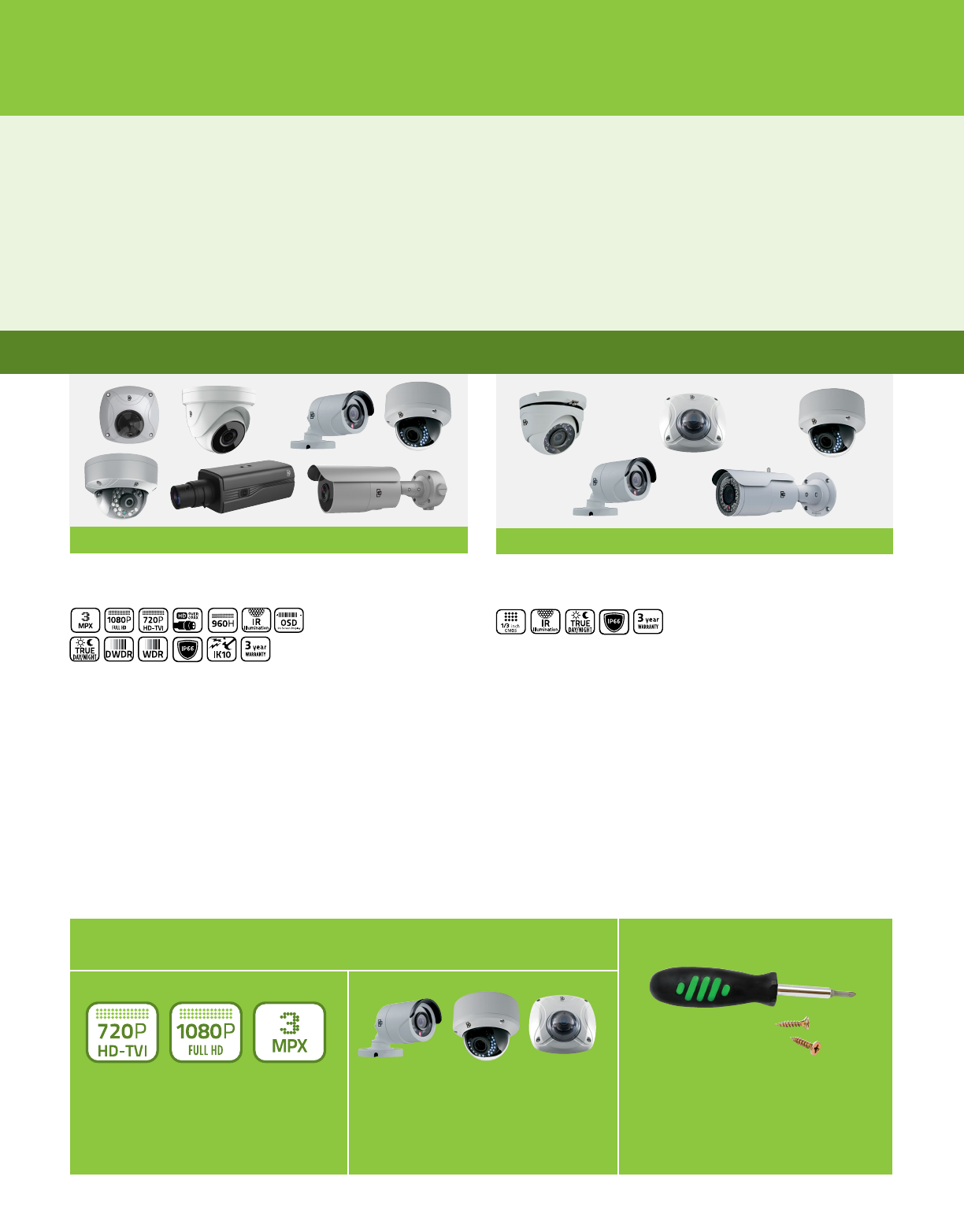

HD-TVI Analog Cameras

Analog Cameras

TruVision analog camera line support standard analog, 960H and HD-TVI techology. TruVision's HD-TVI

technology delivers up to 3MPx high deﬁnition quality video over standard analog coax cable.

• Box, Bullet, Dome, Turret and Wedge form factors

• 720p, 1080p, 3MPx HD resolutions

• Select modules also support 960H resolution

• 720p models provide DWDR; 1080p and 3MPx models provide

True WDR (120 dB)

• True Day/Night functionality and IR Illuminators with Smart IR

function on select models

• 3-year warranty

HD-TVI / Analog Cameras

HD-T VI

Performance, ﬂexibility and ease of use

HD-TVI cameras provide up to 3MPx

video resolution with exceptional low-light

performance under dynamic conditions.

Improved Performance Solutions to meet a variety of operating

conditions, from ﬁxed and varifocal

choices, form-factor styles and indoor/

outdoor environments.

Multiple Form-factor Choices Designed to be installed quickly and

easily. Many cameras install with just

two screws. Select models offer OSD

control and built-in cable protection/

management.

Easy to install

Value-line Cameras

• 700TVL or 720 TVL resolution

• Up to 66 ft. (20m) or 132 ft. (40m ft.) IR Illumination for optimal

viewing

• IP66 rated enclosure

• IR Cut Filter with auto switch

• Cost-effective and easy to install

• 3-year warranty

Analog

The TruVision® line includes a comprehensive family of HD-TVI infrared (IR) cameras for stand-alone or integrated installations, designed for

up to 3MPx image quality over existing coaxial cable.

HD-TVI Cameras Speciﬁcations

Box Camera

1080p

TVC-4401

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 1080p

Effective Pixels 1920(H) x 1080(V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/50,000 s;

PAL: 1/25 s to 1/50,000 s

Digital S/N Ratio 52 dB (AGC Off)

Lens Type C/CS (with auto back focus)

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range 120 dB

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On);

B/W: 0.001 lux @ f1.2 (AGC On)

Video Output Dual output: HD-TVI and 960H Composite

(when WDR is enabled, 960H output will be

disabled)

Voltage Input 12VDC / 24VAC

Power Consumption 12W (max.)

Operating Temp 12VDC: -22°F~14 0 °F (-30°C~60°C);

24VAC: -22°F~14 0 °F (-30°C~60°C)

Certiﬁcation UL, CE, FCC, C-Tick, REACH, RoHS, WEEE

Dome Cameras

Fixed Lens Varifocal Lens

Varifocal Lens

(motorized)

720p 1080p 720p 1080p 1080p

TVD-4401 TVD-4403 TVD-4402 TVD-4404 TVD-4405

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 720p Analog 1080p Analog 720p Analog 1080p Analog

Effective Pixels 1280(H) x 720(V) 1920(H) x 1080(V) 1280(H) x 720(V) 1920 (H) x 1080 (V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/30,000 s; PAL: 1/25 s to 1/50,000 s

Digital S/N Ratio 52 dB (AGC Off)

Lens 2.8mm @ f2.2 2.8~12mm @ f1.4 2.8~12mm @ f1.4

(motorized)

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range DWDR 120 dB WDR on HD-TVI

output only (if WDR is

enabled, then the 960H

output is disabled)

DWDR 120 dB WDR on HD-TVI output only (if WDR is en-

abled, then the 960H output is disabled)

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On); 0 lux with IR On

IR Range Up to 66 ft. (20m) Up to 132 ft. (40m)

Video Output HD-TVI Dual output: HD-TVI and 960H Composite (when WDR is eanbled, 960H output will be disabled)

Voltage Input 12 VDC 12VDC / 24VAC

Operating Temp 12VDC: -22°F~14 0 °F (-30°C~60°C) 12VDC: -22°F~140 °F (-30°C~60°C);

24VAC: -40°F~140°F (-40°C~60°C) with heater on

Environmental Rating IP66

Vandal Rating -- IK10

Certiﬁcation FCC, CE, UL, RCM, REACH, RoHS, WEEE

Wedge Camera

1080p

TVW-4401

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 1080p Analog

Effective Pixels 1920(H) x 1080(V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/50,000 s;

PAL: 1/25 s to 1/50,000 s

Digital S/N Ratio 62 dB (AGC Off)

Lens 2.8mm @ f1.4

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range 120 dB

Minimum Illumination Color: 0.01 lux @ f1.2 (AGC On);

B/W: 0.001 lux @ f1.2 (AGC On);

0 lux with IR On

IR Range 33 ft. (10m)

Video Output HD-TVI

Voltage Input 12VDC

Power Consumption 12W (max.)

Operating Temp 12VDC: -22°F~14 0°F (-30°C~60°C)

Certiﬁcation FCC, CE, UL, RCM, REACH, RoHS, WEEE

TruVision® HD/Analog Products

Bullet Cameras

Varifocal Lens (motorized)

1080p 3MPx

TVB-4405 TVB-4406 TVB-4408

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 1080p Analog 3MPx Analog

Effective Pixels 1920(H) x1080 (V) 2052(H) x 1536(V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/30,000 s; PAL 1/25 s to 1/50,000 s

Digital S/N Ratio 52 dB (AGC Off) >62 dB

Lens 2.8~12mm @ f1.4 motorized 5~50mm @ f2.0~f3.0 motorized 2.8~12mm @ f1.4 motorized

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range 120 dB WDR on HD-TVI output only (if WDR is enabled, then the 960H output is disabled)

Minimum Illumination Color 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On); 0 lux with IR On

IR Range Up to 132 ft. (40m) Up to 330 ft. (100m) Up to 132 ft. (40m)

Video Output Dual output: HD-TVI and 960H Composite (when WDR is enabled,

960H output will be disabled)

3MPx TVI or 960H Analog

Voltage Input 12 VDC / 24 VAC

Operating Temp 12VDC: -22°F~14 0 °F (-30°C~60°C);

24VAC: -40°F~140°F (-40°C~60°C) with heater on

-40°F~140°F (-40°C~60°C),

Humidity <90% (non-condensing)

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, RCM, REACH, RoHS, WEEE

Bullet Cameras

Fixed Lens Varifocal Lens

720p 1080p 3MPx 720p 1080p

TVB-4401 TVB-4403 TVB-4407 TVB-4402 TVB-4404

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 720p Analog 1080p Analog 3MPx Analog 720p Analog 1080p Analog

Effective Pixels 1280(H) x 720(V) 1920(H) x1080 (V) 2052(H) x 1536(V) 1280(H) x 720(V) 1920(H) x 1080(V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/30,000 s; PAL 1/25 s to 1/50,000 s

Digital S/N Ratio 52 dB (AGC Off) >62 dB 52 dB (AGC Off)

Lens 3.6mm @ f2.2 2.8~12mm @ f1.4

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range DWDR 120 dB WDR on HD-TVI output only

(if WDR is enabled, then the 960H output is disabled)

DWDR 120 dB WDR on HD-TVI

output only (if WDR is

enabled, then the 960H

output is disabled)

Minimum Illumination Color 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On); 0 lux with IR On

IR Range Up to 66 ft. (20m) Up to 132 ft. (40m)

Video Output HD-TVI Dual output: HD-TVI and

960H Composite (when

WDR is enabled, 960H

output will be disabled)

3MPx TVI or 960H

Analog

Dual output: TVI and 960H Composite (when WDR is

enabled, 960H output will be disabled)

Voltage Input 12 VDC 12 VDC / 24 VAC

Operating Temp 12VDC: -22°F~14 0 °F (-30°C~60°C) -40°F~140°F

(-40°C~60°C), Humidity

<90% (non-condensing)

12VDC: -22°F~14 0 °F (-30°C~60°C);

24VAC: -40°F~140°F (-40°C~60°C) with heater on

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, RCM, REACH, RoHS, WEEE

Turret Cameras

Fixed Lens Varifocal Lens (motorized)

3MPx

TVT-4401 T V T-4402

Sensor 1/3" Progressive Scan, CMOS

Standard HD-TVI

Resolution 3MPx Analog

Effective Pixels 2052(H) x 1536(V)

Synchronization Internal

Electronic Shutter NTSC: 1/30 s to 1/30,000 s; PAL 1/25 s to 1/50,000 s

Digital S/N Ratio >62 dB

Lens 2.8mm ﬁxed 2.8~12mm @ f2.0~f3.0 motorized VF

Day/Night IR cut ﬁlter with auto switch

Wide Dynamic Range 120 dB WDR on HD-TVI output only (if WDR is enabled, then the 960H output is disabled)

Minimum Illumination Color 0.01 lux @ f1.2 (AGC On); B/W: 0.001 lux @ f1.2 (AGC On); 0 lux with IR On

IR Range Up to 66 ft. (20m) Up to 132 ft. (40m)

Video Output 3MPx TVI or 960H Analog

Voltage Input 12 VDC

Operating Temp -40°F~140°F (-40°C~60°C),

Humidity <90% (non-condensing)

Environmental Rating IP66

Certiﬁcation FCC, CE, UL, RCM, REACH, RoHS, WEEE

Up to 3MPx HD quality with

the installation ease of existing

analog coax systems

TruVision® HD/Analog Products

Analog Cameras Speciﬁcations

Fixed Lens Varifocal Lens

700 TVL 720 TVL

TVW-4101 TVT-4201 TVT-4202 TVD-4202

Sensor 1/3" CMOS 1/3", 1.3MPx, 1280H, CMOS

Resolution 700TVL 720TVL

Effective Pixels 976 (H) x 496 (V) 1305 (H) x 1049 (V) 1280 (H) x 960 (V)

Day/Night True D/N

Wide Dynamic Range DWDR -- DWDR

Digital S/N Ratio 62 dB

Electronic Shutter 1/60 s to 1/100,000 s 1/30 s to 1/30,000 s

Minimum Illumination 0.1 lux @ f1.2 (AGC ON); 0 lux with IR ON

IR Range Up to 33 ft. (10m) Up to 66 ft. (20m) Up to 132 ft. (40m)

Lens 2.8mm 3.6mm @ f2.5 2.8~12mm @ f1.4

Video Output 1 Vp-p composite output (75 ohm/BNC)

Voltage Input 12 VDC 12 VDC / 24 VAC

Operating Temp -4°F~15 8 °F (-20°C~70°C) -40°F~140 °F (-40°C~60°C)

Environmental Rating IP66

Vandal Rating IK8 -- IK10

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

The TruVision value line of cameras includes a comprehensive family of analog infrared (IR) cameras designed for excellent image quality at a

cost-effective price.

Fixed Lens Varifocal Lens

700 TVL 720 TVL

TVB-4201 TVB-4202 TVB-4203

Sensor 1/3" CMOS 1/3", 1.3MPx, 1280H, CMOS

Resolution 700TVL 720TVL

Effective Pixels 976 (H) x 496 (V) 1305 (H) x 1049 (V)

Day/Night True D/N

Wide Dynamic Range -- DWDR

Digital S/N Ratio 62 dB

Electronic Shutter 1/60 s to 1/100,000 s 1/60 s to 1/100,000 s 1/30 s to 1/30,000 s

Minimum Illumination 0.1 lux @ f1.2 (AGC On); 0 lux with IR On

IR Range Up to 66 ft. (20m) Up to 132 ft. (40m)

Lens 3.6mm @ f2.5 6mm @ f2.5 2.8~12mm @ f1.4

Video Output 1 Vp-p composite output (75 ohm/BNC)

Voltage Input 12 VDC

Operating Temp -40°F~14 0 °F (-40°C~60°C)

Environmental Rating IP66

Vandal Rating --

Certiﬁcation FCC, CE, UL, C-Tick, REACH, RoHS, WEEE

HD-TVI/Analog Cameras Ordering Information

HD-TVI BULLET CAMERAS

NTSC

TVB-4401 TruVision HD-TVI Analog Bullet Camera, 720p, 3.6mm Lens, True D/N,

DWDR, 20m IR, HD-TVI Output, 12VDC, IP66, NTSC

TVB-4402 TruVision HD-TVI Analog Bullet Camera, 720p, 2.8~12mm VF Lens,

True D/N, DWDR, 40m IR, 960H Monitor or HD-TVI Selectable Output,

Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4403 TruVision HD-TVI Analog Bullet Camera, 1080p, 3.6mm Lens, True

D/N, WDR, 20m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC, IP66, NTSC

TVB-4404 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm VF Lens,

True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4405 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm Motorized

VF Lens, True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4406 TruVision HD-TVI Analog Bullet Camera, 1080p, 5~50mm Motorized

VF Lens, True D/N, WDR, 100m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, NTSC

TVB-4407 TruVision HD-TVI Analog Bullet Camera, 3MPx (use with 3MPx or

higher TVI recorders), 3.6mm Lens, True D/N, WDR, 20m IR, Dual-

Output 960H Monitor or HD-TVI, Coax OSD Control, 12VDC, IP66,

NTSC

TVB-4408 TruVision HD-TVI Analog Bullet Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8~12mm Motorized Lens, True D/N, WDR,

40m IR, Dual-Output 960H Monitor or HD-TVI, Coax & Button OSD

Control, 12VDC/24VAC, IP66, NTSC

PAL

TVB-2401 TruVision HD-TVI Analog Bullet Camera, 720p, 3.6mm Lens, True D/N,

DWDR, 20m IR, HD-TVI Output, 12VDC, IP66, PAL

TVB-2402 TruVision HD-TVI Analog Bullet Camera, 720p, 2.8~12mm VF Lens,

True D/N, DWDR, 40m IR, 960H Monitor or HD-TVI Selectable Output,

Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2403 TruVision HD-TVI Analog Bullet Camera, 1080p, 3.6mm Lens, True

D/N, WDR, 20m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC, IP66, PAL

TVB-2404 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm VF Lens,

True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2405 TruVision HD-TVI Analog Bullet Camera, 1080p, 2.8~12mm Motorized

VF Lens, True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2406 TruVision HD-TVI Analog Bullet Camera, 1080p, 5~50mm Motorized

VF Lens, True D/N, WDR, 100m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, PAL

TVB-2407 TruVision HD-TVI Analog Bullet Camera, 3MPx (use with 3MPx or

higher TVI recorders), 3.6mm Lens, True D/N, WDR, 20m IR, Dual-

Output 960H Monitor or HD-TVI, Coax OSD Control, 12VDC, IP66,

PAL

TVB-2408 TruVision HD-TVI Analog Bullet Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8~12mm Motorized Lens, True D/N, WDR,

40m IR, Dual-Output 960H Monitor or HD-TVI, Coax & Button OSD

Control, 12VDC/24VAC, IP66, NTSC

HD-TVI BOX CAMERAS

NTSC

TVC-4401 TruVision HD-TVI Box Camera, 1080p, C/CS Lens, True D/N,

WDR, 960H Monitor & TVI Dual-output, TVI & Button OSD Control,

12VDC/24VAC, NTSC

PAL

TVC-2401 TruVision HD-TVI Box Camera, 1080p, C/CS Lens, True D/N,

WDR, 960H Monitor & TVI Dual-output, TVI & Button OSD Control,

12VDC/24VAC, PAL

HD-TVI DOME CAMERAS

NTSC

TVD-4401 TruVision HD-TVI Analog Dome Camera, 720p, 2.8mm Lens, True D/N,

DWDR, 20m IR, HD-TVI Output, 12VDC, IP66, Plastic, NTSC

TVD-4402 TruVision HD-TVI Analog Dome Camera, 720p, 2.8~12mm VF Lens,

True D/N, DWDR, 40m IR, 960H Monitor or HD-TVI Selectable Output,

Coax & Button OSD Control, 12VDC/24VAC, IP66, IK10, NTSC

TVD-4403 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8mm Lens, True

D/N, WDR, 20m IR, 960H Monitor & HD-TVI Dual-output, 12VDC,

IP66, Plastic, NTSC

TVD-4404 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8~12mm VF Lens,

True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC/24VAC, IP66, IK10, NTSC

TVD-4405 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8~12mm Motorized

VF Lens, True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, IK10, NTSC

PAL

TVD-2401 TruVision HD-TVI Analog Dome Camera, 720p, 2.8mm Lens, True D/N,

DWDR, 20m IR, HD-TVI Output, 12VDC, IP66, Plastic, PAL

TVD-2402 TruVision HD-TVI Analog Dome Camera, 720p, 2.8~12mm VF Lens,

True D/N, DWDR, 40m IR, 960H Monitor or HD-TVI Selectable Output,

Coax & Button OSD Control, 12VDC/24VAC, IP66, IK10, PAL

TVD-2403 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8mm Lens, True

D/N, WDR, 20m IR, 960H Monitor & HD-TVI Dual-output, 12VDC,

IP66, Plastic, PAL

TVD-2404 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8~12mm VF Lens,

True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-output, Coax &

Button OSD Control, 12VDC/24VAC, IP66, IK10, PAL

TVD-2405 TruVision HD-TVI Analog Dome Camera, 1080p, 2.8~12mm Motorized

VF Lens, True D/N, WDR, 40m IR, 960H Monitor & HD-TVI Dual-

output, Coax & Button OSD Control, 12VDC/24VAC, IP66, IK10, PAL

HD-TVI TURRET CAMERAS

NTSC

TVT-4401 TruVision HD-TVI Analog Turret Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8mm Lens, True D/N, WDR, 20m IR, Dual-

Output 960H Monitor or HD-TVI, Coax OSD Control, 12VDC, IP66,

NTSC

TVT-4402 TruVision HD-TVI Analog Turret Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8~12mm Motorized Lens, True D/N, WDR,

40m IR, Dual-Output 960H Monitor or HD-TVI, Coax & Button OSD

Control, 12VDC/24VAC, IP66, NTSC

PAL

TVT-2401 TruVision HD-TVI Analog Turret Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8mm Lens, True D/N, WDR, 20m IR, Dual-

Output 960H Monitor or HD-TVI, Coax OSD Control, 12VDC, IP66,

PAL

TVT-2402 TruVision HD-TVI Analog Turret Camera, 3MPx (use with 3MPx or

higher TVI recorders), 2.8~12mm Motorized Lens, True D/N, WDR,

40m IR, Dual-Output 960H Monitor or HD-TVI, Coax & Button OSD

Control, 12VDC/24VAC, IP66, PAL

HD-TVI WEDGE CAMERAS

NTSC

TVW-4401 TruVision HD-TVI Wedge Camera, 1080p, 2.8mm Lens, True D/N,

WDR, 10m IR, TVI Output, TVI & Button OSD Control, 12VDC, IP66,

IK8, NTSC

PAL

TVW-2401 TruVision HD-TVI Wedge Camera, 1080p, 2.8mm Lens, True D/N,

WDR, 10m IR, TVI Output, TVI & Button OSD Control, 12VDC, IP66,

IK8, PAL

VALUE-LINE ANALOG CAMERAS

NTSC

TVW-4101 TruVision IR Wedge Camera, 700TVL, 2.8mm Fixed Lens, True D/N,

10m IR, 12VDC, NTSC

TVB-4201 TruVision Bullet Camera, 700TVL, 3.6mm Lens, True D/N, 20m IR,

12VDC, IP66, NTSC

TVB-4202 TruVision Bullet Camera, 700TVL, 6mm Lens, True D/N, 20m IR,

12VDC, IP66, NTSC

TVB-4203 TruVision Bullet Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 40m IR, OSD, 12VDC, IP66, NTSC

TVD-4202 TruVision Dome Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 3-Axis, 40m IR, OSD, 12VDC/24VAC, IP66, IK10,

NTSC

TVT-4201 TruVision Turret Camera, 700TVL, 3.6mm Lens, True D/N, 20m IR,

12VDC, IP66, NTSC

TVT-4202 TruVision Turret Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 40m IR, 12VDC, IP66, NTSC

PAL

TVW-2101 TruVision IR Wedge Camera, 700TVL, 2.8mm Fixed Lens, True D/N,

10m IR, 12VDC, PAL

TVB-2201 TruVision Bullet Camera, 700TVL, 3.6mm Lens, True D/N, 20m IR,

12VDC, IP66, PAL

TVB-2202 TruVision Bullet Camera, 700TVL, 6mm Lens, True D/N, 20m IR,

12VDC, IP66, PAL

TVB-2203 TruVision Bullet Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 40m IR, OSD, 12VDC, IP66, PAL

TVD-2202 TruVision Dome Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 3-Axis, 40m IR, OSD, 12VDC/24VAC, IP66, IK10, PAL

TVT-2201 TruVision Turret Camera, 700TVL, 3.6mm Lens, True D/N, 20m IR,

12VDC, IP66, PAL

TVT-2202 TruVision Turret Camera, 1280H Sensor, 720TVL, 2.8~12mm Varifocal

Lens, True D/N, 40m IR, 12VDC, IP66, PAL

TruVision® HD/Analog Products

HD-TVI 1080p Analog PTZ Cameras

• 1/3" Progressive scan CMOS sensor

• 30X optical zoom, 16X digital

• 1080p HD resolution

• 3DNR and DWDR

• HD-TVI - TruVision-Coax (UTC), by default support

• Interlogix® RS-485, RS422 Digiplex, RS422 ASCII protocols as

well as select third-party protocols support

• IR illumination (on select models)

• IP66 or IP54 on select models

• 3-year warranty

HD-T VI

HD-TVI/Analog PTZ Cameras Ordering Information

HD-TVI PTZ CAMERAS

NTSC

TVP-4401 TruVision HD-TVI PTZ Dome, 1080p, 30X, DWDR, Wall Mount, Monitor

& TVI Dual-output, TVI/RS485/RS422 Control, 24VAC, IP66, NTSC

TVP-4402 TruVision HD-TVI PTZ Dome, 1080p, 30X, DWDR, Surface/Flush

Mount, Monitor & TVI Dual-output, TVI/RS485/RS422 Control, 24VAC,

IP66, NTSC

TVP-4403 TruVision HD-TVI IR PTZ Dome, 1080p, 30X, DWDR, 150m IR,

Pendant/Wall Mount, Monitor & TVI Dual-output, TVI/RS485/RS422

Control, 24VAC, NTSC

PAL

TVP-2401 TruVision HD-TVI PTZ Dome, 1080p, 30X, DWDR, Wall Mount, Monitor

& TVI Dual-output, TVI/RS485/RS422 Control, 24VAC, IP66, PAL

TVP-2402 TruVision HD-TVI PTZ Dome, 1080p, 30X, DWDR, Surface/Flush

Mount, Monitor & TVI Dual-output, TVI/RS485/RS422 Control, 24VAC,

IP66, PAL

TVP-2403 TruVision HD-TVI IR PTZ Dome, 1080p, 30X, DWDR, 150m IR,

Pendant/Wall Mount, Monitor & TVI Dual-output, TVI/RS485/RS422

Control, 24VAC, PAL

HD-TVI/Analog PTZ Cameras Comparison Table

The TruVision® HD-TVI PTZ cameras utilizes our latest HD-TVI technology to provide powerful, cost-effective surveillance for retail,

commercial and small business applications.* With advanced features such as True Day/Night surveillance and Digital Wide Dynamic

Range imaging, the 30X Optical (16X Digital) cameras provide optimal image quality in a variety of indoor or outdoor environments.

Motion detection, privacy masking and electronic image stabilization provide additional value to any surveillance system.

Outdoor Indoor

Wall Mount Surface/Flush Mount Pendant/Wall Mount

TVP-4401 TVP-4402 TVP-4403

Sensor 1/3" CMOS

Standard H D-T VI

Resolution 1080p on HD-TVI (White) BNC output / 960H on (Black) BNC output

Effective Pixels 1920(H) x 1080(V)

Synchronization System Internal

Day/Night True D/N IR cut ﬁlter

Wide Dynamic Range DWDR

Digital Noise Reduction 3D-DNR

Digital S/N Ratio 52 dB (AGC Off)

Electronic Shutter 1 - 1/10,000 s

Minimum Illumination Color: 0.02 lux @ f1.6 (AGC ON); BW: 0.002 lux @ f1.6 (AGC ON); 0 lux IR On

IR Range N/A Up to 492 ft. (150m)

Lens 4.0~120mm @ f1.6~f4.4

Zoom Range 30X Optical / 16X Digital

Pan Range and Speed Range: 360° Endless;

Manual Speed: 0.1°~250° per sec;

Preset Speed: 300° per sec

Range: 360° Endless;

Manual Speed: 0.1°~160° per sec;

Preset Speed: 240° per sec

Tilt Range and Speed Range: -5° ~ 90°;

Manual Speed: 0.1°~150° per sec;

Preset Speed 200° per sec

Range: -15° ~ 90°;

Manual Speed: 0.1°~120° per sec;

Preset Speed 200° per sec

Image Flip Auto Flip

Video Output Dual output 960H and HD-TVI

Presets 256

Patrol 8 - up to 32 presets per patrol

Intelligence Image ﬂip, Defog, Image Freeze, Smart IR

Alarm I/O 2 input / 1 output --

PTZ Protocol HD-TVI - TruVision-Coax (UTC), by default;

960H BNC - Interlogix RS485 protocol, Pelco-P, Pelco-D, RS422 Digiplex, RS422 ASCII, BOSCH_Code, AD-Code

Voltage Input 24 VAC

Operating Temp -22°F~149°F (-30°C ~65°C) -14°F~122°F (-10°C~50°C) -22°F~149°F (-30°C ~65°C)

Environmental Rating IP66 IP54 IP66

Vandal Rating IK10 N/A

Certiﬁcation FCC, CE, UL, WEEE, RoHS, REACH

TruPortal is designed to be part of a multi-

faceted security system, working effectively

with additional components. The TruPortal

system provides TruVision video integration

with access events, along with scheduled

and manual data backup capabilities.

Seamless

integration

for complete

coverage

TruVision® HD/Analog Products

HD-Hybrid Recorder & HD-TVI Camera Kits

The TruVision® DVR 12HD with HD-TVI cameras kit provides a complete, cost-effective, HD surveillance solution

that leverages existing coax cabling. Available in 4- and 8-channel conﬁgurations, each kit includes four TruVision

HD-TVI analog cameras and a HD-Hybrid recorder.

DVR 12HD and HD-TVI Analog Camera Kit

Model Description HD-Hybrid Recorder HD-TVI Cameras

TVR-1204HD-KB1 4-Ch HD-Hybrid

1TB DVR w/4

720p IR Bullet

Cameras Kit

1 x TVR-1204CHD-1T

4-Channel DVR 12HD

Compact, 1080p HD,

1TB Storage

4 x TVB-4401

HD-TVI Analog Bullet,

720p, 3.6mm lens, True

D/N, DWDR, IR, HD-TVI

output, 12VDC, IP66

TVR-1204HD-KB5 4-Ch HD-Hybrid

1TB DVR w/4

1080p IR Bullet

Cameras Kit

1 x TVR-1204CHD-1T

4-Channel DVR 12HD

Compact, 1080p HD,

1TB Storage

4 x TVB-4403

HD-TVI Analog Bullet,

1080p, 3.6mm lens,

True D/N, WDR, IR, HD-

TVI output, 12VDC, IP66

TVR-1204HD-KB6 4-Ch HD-Hybrid

2TB DVR w/4

1080p IR Bullet

Cameras Kit

1 x TVR-1204CHD-2T

4-Channel DVR 12HD

Compact, 1080p HD,

2TB Storage

4 x TVB-4403

HD-TVI Analog Bullet,

1080p, 3.6mm lens,

True D/N, WDR, IR, HD-

TVI output, 12VDC, IP66

Model Description HD-Hybrid Recorder HD-TVI Cameras

TVR-1208HD-KB1 8-Ch HD-Hybrid

2TB DVR w/4

1080p IR Bullet

Cameras Kit

1 x TVR-1208HD-2T

8-Channel DVR 12HD,

1080p HD, 2TB

Storage

4 x TVB-4403

HD-TVI Analog Bullet,

1080p, 3.6mm lens,

True D/N, WDR, IR,

960H & HD-TVI output,

12VDC, IP66

4-channel HD-Hybrid DVR with

4 HD-TVI Bullet Cameras

8-channel HD-Hybrid DVR with

4 HD-TVI Bullet Cameras

Model Description HD-Hybrid Recorder HD-TVI Cameras

TVR-1204CHD-KW1 4-Ch HD-Hybrid

1TB DVR w/4

1080p IR Wedge

Cameras Kit

1 x TVR-1204CHD-1T

4-Channel DVR 12HD

Compact, 1080p HD,

1TB Storage

4 x TVW-4401

HD-TVI Analog Wedge,

1080p, 2.8mm lens,

True D/N, WDR, IR,

HD-TVI output, 12VDC,

IP66, IK8

4-channel HD-Hybrid DVR with

4 HD-TVI Wedge Cameras

TruVision® LED Monitors

LED Monitors

Engineered for 24/7 operation, TruVision LED color monitors feature 3D

comb ﬁlters for optimum picture quality.

• Up to 3000:1 contrast for sharp, clear images

• Multiple inputs including BNC, VGA, HDMI

• 17", 19", 21.5", 27", 32" and 42" options meet a full range of video surveillance needs

Model Max. Resolution Contrast Response Time (Tr/Tf) Panel Lamp Life VESA™ Mount Size

TVM-1701 17", 1280 x 1024 1000:1, 5ms 50,000 100 x 100mm

TVM-1901 19", 1280 x 1024 1000:1, 5ms 50,000 100 x 100mm

TVM-2150 21.5", 1920 x 1080 1000:1, 5ms 50,000 100 x 100mm

TVM-2700 27", 1920 x 1080 1000:1, 12ms 50,000 200(100) x 100mm

TVM-3200 32", 1920 x 1080 3000:1, 6.5ms 50,000 200(400) x 200mm

TVM-4200 42", 1920 x 1080 3000:1, 6.5ms 30,000 200(400) x 200mm

LED Monitors Comparison Table

MONITORS

T V M-17 01 TruVision LED 17" Monitor, HDMI/VGA/BNC

TVM-1901 TruVision LED 19" Monitor, HDMI/VGA/BNC

TVM-2150 TruVision LED 21.5" Full HD Monitor, HDMI/VGA/BNC

TVM-2700 TruVision LED 27" Full HD Monitor, HDMI/VGA/BNC

TVM-3200 TruVision LED 32" Full HD Monitor, HDMI/DVI/S-VIDEO/VGA/BNC

TVM-4200 TruVision LED 42" Full HD Monitor, HDMI/DVI/S-VIDEO/VGA/BNC

LED Monitors Ordering Information

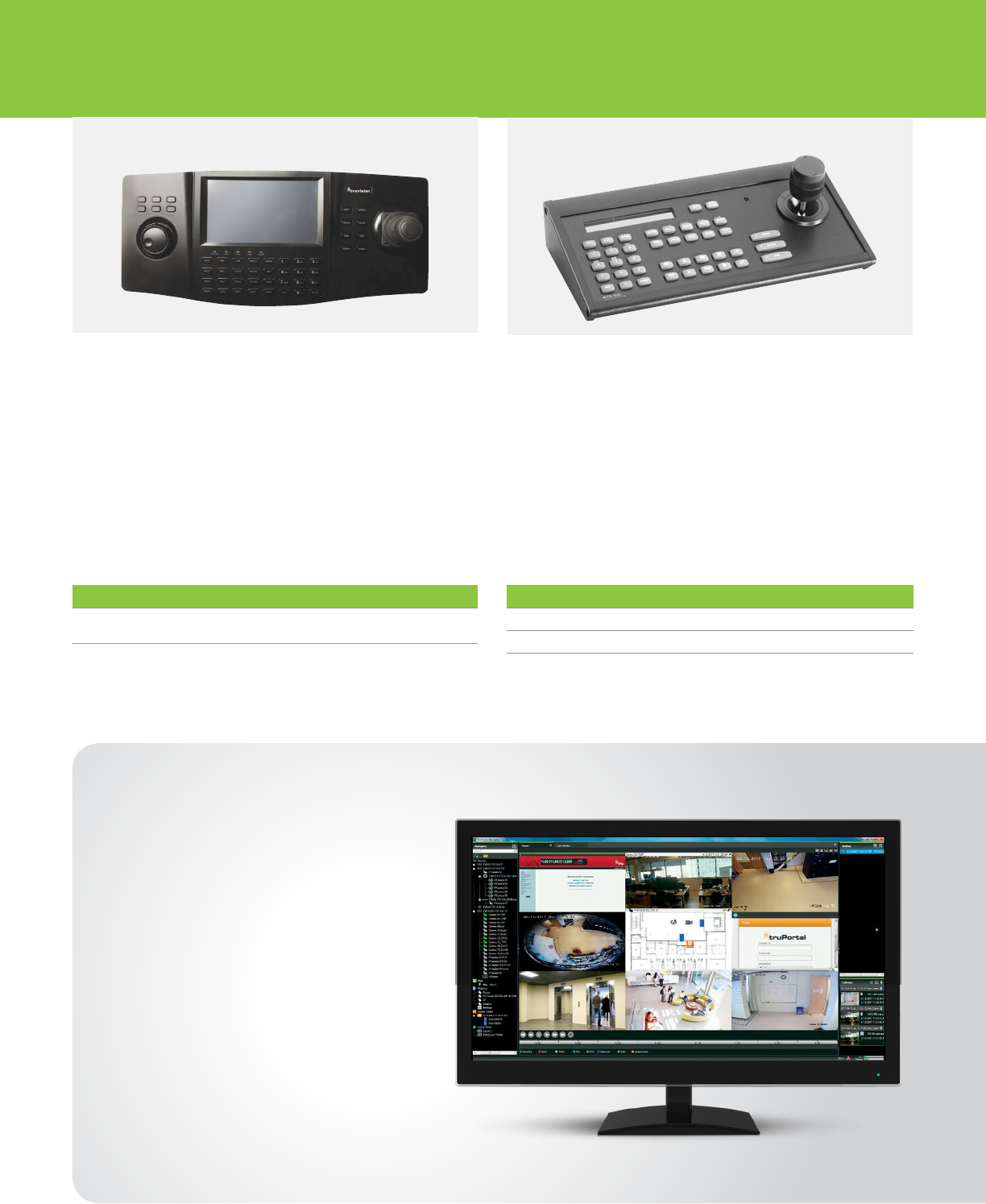

TruVision® Keypads

TVK-800 IP Keypad

Interlogix offers the TVK-800 as a full-featured IP

keypad, designed to be used with the TruVision line of

recorders, encoders and cameras.

• IP Keypad with LCD touch screen and 4-axis joystick

IP KEYPAD

TVK-800 TruVision IP Keypad, 7" LCD Touch Screen, 4-axis Joystick,

12VDC, PoE

Keypad Ordering Information

KTD-405 Analog Keypad

The KTD-405 Series controller keyboards are

compatible with TruVision switchers, domes and

DVRs.

ANALOG KEYPAD

KTD-405 TruVision Three-axis Variable Speed Controller Keypad

KTD-405-2D TruVision Two-axis Variable Speed Controller Keypad

TruVision

Navigator v7

Centralized

security system

management

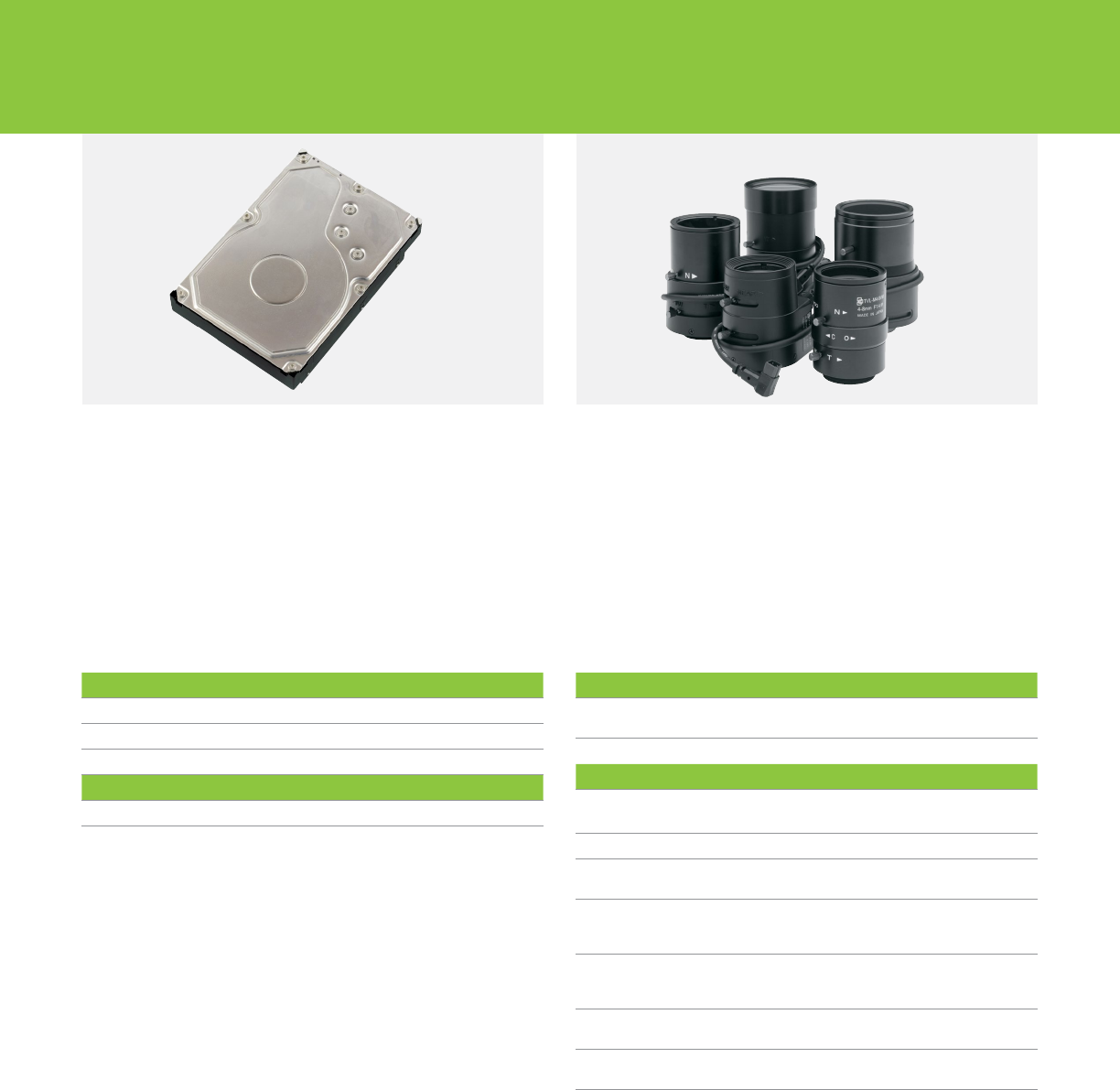

TruVision® Hard Drives and Lenses

Hard drives

Interlogix offers a complete line of internal hard

drives designed for 24/7, always on, high-deﬁnition

surveillance security systems for use in TruVision

analog HD-hybrd and NVR recorders.

NON-RAID HDD

TVN-HDD-4T TruVision NVR HDD Expansion Kit, 4TB Storage

TVN-20XX-HDD-2T TruVision NVR HDD Expansion Kit, 2TB Storage

TVN-HDD-6T TruVision NVR HDD Expansion Kit, 6TB Storage

RAID HDD

TVN-HDDR-4T TruVision NVR HDD Expansion Kit, 4TB Storage, RAID

Hard Drive Ordering Information

Lenses

Interlogix offers a complete line of 1/3-inch format

lenses. High quality multi-coated glass lens

elements provide excellent contrast and color

rendition. All lenses feature metal CS mounts.

VARIFOCAL MANUAL IRIS

YV2.1X2.8SR4A-2 Megapixel 1/3" 2.8-6mm F1.3, Day/Night Manual Iris, IR

Corrected

YV2.8X2.8SA-2 Megapixel 1/3" 2.8-8mm F1.2, Manual Iris

VARIFOCAL AUTO-IRIS

YV2.1X2.8SR4A-

SA2

Megapixel 1/3" 2.8-6mm F1.3, Day/Night Auto Iris DC,

IR Corrected

YV2.8X2.8SA-SA2 Megapixel 1/3" 2.8-8mm F1.2, Auto Iris DC

YV10X5HR4A-SA2 Megapixel 1/3" 5-50mm F1.5, Day/Night Auto Iris DC, IR

Corrected

TVL-001 TruVision 1.3 - 3MPx Lens, 2.7~12mm VF, F1.2, CS

Mount, 1/2.7 inch, CS, Auto Iris, IR Sensitive, for 1.3 -

3MPx Box Cameras

TVL-002 TruVision 1.3 - 3MPx Lens, 5~50mm VF, F1.7, CS

Mount, 1/2.7 inch, CS, Auto Iris, IR Sensitive, for 1.3 -

3MPx Box Cameras

TVL-003 TruVision 8MPx Lens, 3.8~16mm VF, F1.5, CS, IR

Sensitive, for 4 - 8MPx Box Cameras

TVL-004 TruVision 8MPx Lens, 11~40mm VF, F1.5, CS, IR

Sensitive, for 4 - 8MPx Box Cameras

Lens Ordering Information

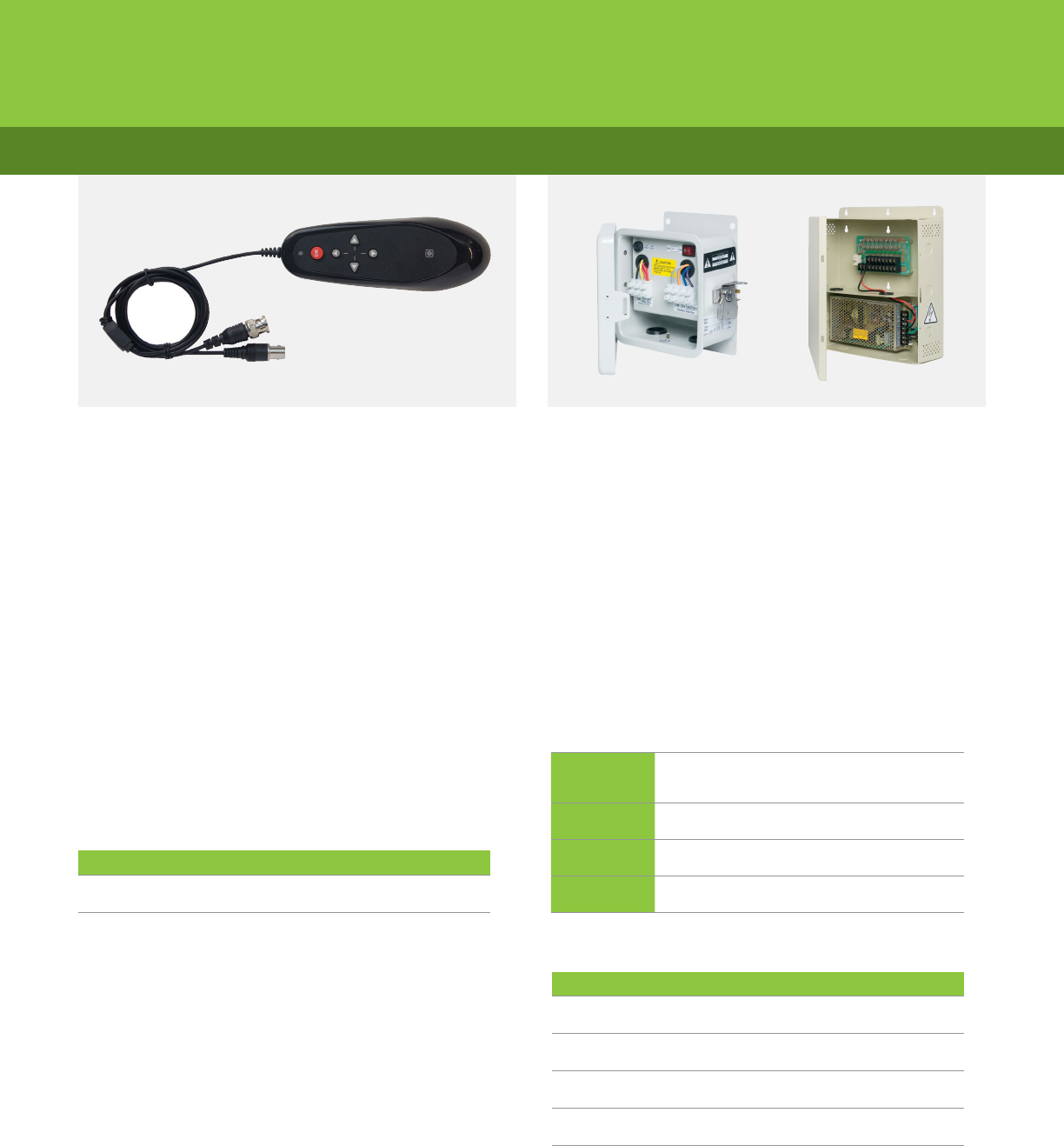

TruVision® Controllers & Power Supplies

TVS-C200 Coaxial Controller

An invaluable service tool, this 960H coaxial

controller provides easy remote conﬁguration of

TruVision cameras.

• Cameras support TruVision coax OSD control protocol on

960H output

• Installed in line with the coaxial cable between camera

and DVR

• Allows easy access to the camera’s on-screen menu for

quick conﬁguration

• Compatible with Analog Series 2 and HD-TVI cameras

(not compatible with 3MPx HD-TVI cameras)

• Powered by 2 AAA batteries (not included) or 12VDC

Camera Service Tools and Power

Model Channels Description

TVPS-01-24AC 1 AC Single-Position Outdoor PTZ Power

Supply, 120/240VAC Input, 24/28VAC

Output @ 4A

TVPS-16-12DC 16 DC Sixteen (16) Output 12VDC Power Supply,

12VDC @ 1.125 Amps (18A total)

TVPS-4-12DC 4 DC Four (4) Output 12VDC Power Supply,

12VDC @ 1.25 Amps (5A total)

TVPS-8-12DC 8 DC Eight (8) Output 12VDC Power Supply,

12VDC @ 1.06 Amps (8A total)

Power Supplies Comparison Table

Power Supplies Ordering Information

POWER SUPPLIES

TVPS-01-24AC Single-position Outdoor PTZ Power Supply,

120/240VAC Input, 24/28VAC Output @ 4A

TVPS-16-12DC Sixteen (16) Output 12VDC Power Supply,

12VDC @ 1.125 Amps (18A total)

TVPS-4-12DC Four (4) Output 12VDC Power Supply,

12VDC @ 1.25 Amps (5A total)

TVPS-8-12DC Eight (8) Output 12VDC Power Supply,

12VDC @ 1.06 Amps (8A total)

Power Supplies

TruVision power supplies are designed speciﬁcally

for Interlogix™ cameras, delivering optimal power

for robust, reliable performance.

• Universal Input Voltage (120VAC/240VAC)

• 4, 8 or 16 High-Output Channels (TVPS DC Series)

• IP66/NEMA4X Rating (TVPS AC Series)

Coaxial Controller Ordering Information

COAXIAL CONTROLLER

TVS-C200 TruVision Coax OSD Controller for TruVision Series 2

and HD-TVI Cameras

TruVision® Mounts and Bubbles

TruVision Camera Mounts

and Bubbles

TruVision camera mounts offer a lightweight yet

durable metal construction for installation ﬂexibility

and long-lasting support.

• Compatible with Interlogix dome and wedge cameras

• High-quality metal construction provides added durability

Universal Mounts Ordering Information

BACK BOXES AND ADAPTERS

TVD-BB1 TruVision Dome Back Box (use w/Plastic Dome)

TVD-BB3 TruVision Dome Back Box (use w/TVD-6/-7 Series Analog Dome, IP Indoor

VF Domes, IP Outdoor Domes)

TVD-BB3A TruVision Dome Angled Back Box (use w/TVD-6/-7 Series Analog Dome, IP

Indoor VF Domes, IP Outdoor Domes)

TVW-AWB-1 TruVision Outdoor Angled Back Box for Wedge Cameras

TVW-AWB-2 TruVision Indoor Angled Back Box for Wedge Cameras

TVW-2G-AD TruVision Double Gang Electrical Box Adapter Plate for Wedge Cameras

TVF-BBM TruVision 360° Dome Round Back Box, Conduit Ports, Gang Box

Compatible, Metal, Indoor/Outdoor

TVF-WBM TruVision 360° Dome Round Angled Back Box, Conduit Ports, Gang Box

Compatible, Metal, Indoor/Outdoor

TVD-SNB-BB TruVision TVD-SNB Back Box, 4-directional Conduit, Indoor & Outdoor

TVD-LWB-AD TruVision LWB Bracket Adapter to TVD-SNB-BB Back Box

TVB-BB1 TruVision Bullet Camera Back Box (for Fixed Lens Bullet)

TVB-2G-AD TruVision Double Gang Box Adapter Plate (for Fixed Lens Bullet or LWB Wall

Mount)

WALL MOUNTS AND ADAPTERS

TVD-M2-WM TruVision Dome Wall Mount (use w/TVD VF Domes)

TVD-LWB-1 TruVision Dome Bracket, L-shape, Indoor (use w/TVW Analog/IP Wedge

and HD-TVI Fixed Lens Dome Cameras)

TVD-LWB-2 TruVision Dome Bracket, L-shape, Indoor (use w/TVD Analog/HD-TVI VF

Domes and IP Motor Lens Outdoor Dome)

TVD-LWB-AD TruVision LWB Bracket Adapter to TVD-SNB-BB Back Box

TVD-LWB-S Dome Camera Wall Mount Shield (use w/TVD-LWB-1 or TVD-LWB-2)

TVD-SNB TruVision Dome Swan Neck Bracket (use w/TVD-CB5A, TVD-CB#, TVD-

CB2, TVW-DVM)

TVD-CB2 TruVision Dome 2-inch Cup Base

TVD-CB3 TruVision Dome 3-inch Cup Base

TVD-CB5A TruVision Integrated Dome 5-inch Cup Base (use w/TruVision IP Outdoor

Dome Cameras, TVD-SNB, TVD-PPB)

TVF-CBM TruVision 360° Dome Cup Base (use w/TVD-PPB for Pendant Mount or

TVD-SNB for Wall Mount)

TVW-DVM Dual View Mount for Wedge (use w/TVD-PPB and TVD-SNB)

DR-RWM-AD Adapater for TVD Plastic Dome to DR & TVD-M2-WM Wall Mount Bracket

TVD-M-CMA TruVision Corner Mount Adapter (use w/TVD-SNB, TVC VF/Motor Lens IP

Bullet Cameras and TVD-HD-TVI/Analog VF Bullet Cameras)

TVD-M-PMA TruVision Pole Mount Adapter (use w/TVD-SNB, TVC VF/Motor Lens IP

Bullet Cameras and TVD-HD-TVI/Analog VF Bullet Cameras)

PENDANT MOUNTS AND ADAPTERS

TVD-PPB TruVision Dome Pendant Mount Bracket (use w/TVD-CB5A, TVD-CB3,

TVD-CB2, TVW-DVM)

TVW-DVM Dual View Mount for Wedge (use w/TVD-PPB and TVD-SNB)

TVD-CB2 TruVision Dome 2-inch Cup Base

TVD-CB3 TruVision Dome 3-inch Cup Base

TVD-CB5A TruVision Integrated Dome 5-inch Cup Base (use w/TruVision IP Outdoor

Dome Cameras, TVD-SNB, TVD-PPB)

TVD-CBM TruVision 360° Dome Cup Base (use w/TVD-PPB for Pendant Mount or

TVD-SNB for Wall Mount)

FLUSH MOUNTS

TVD-M2-FM TruVision Indoor Flush Mount (use w/TVD IP VF Domes)

TVD-VFM TruVision VF Dome Flush Mount (for Analog and TVI)

360° CAMERA ACCESSORIES

TVF-BBM TruVision 360° Camera Round Back Box, Conduit Ports, Gang Box

Compatible, Metal, Indoor/Outdoor

TVF-WBM TruVision 360° Camera Round Angled Back Box, Conduit Ports, Gang Box

Compatible, Metal, Indoor/Outdoor

TVF-CBM TruVision 360°Camera Cup Base (use with TVD-PPB for Pendant Mount or

TVD-SNB for Wall Mount)

PTZ CAMERA ACCESSORIES

TVP-WMB TruVision PTZ Dome Wall Mount Bracket

TVP-WM-PM TruVision PTZ Dome Pole Mount Adapter (use w/TVP-WMB Wall Mount

Bracket)

TVP-WM-CM TruVision PTZ Dome Corner Mount Adapter (use w/TVP-WMB Wall Mount

Bracket)

1060050A TruVision Pendant Adapter for PTZ, 1 1/4 NPT, Rubber Booth, UTC Gray

(use with Outdoor Pendant)

GEA-102 TruVision Wall Mount, Cast Aluminum

GEA-104 TruVision Parapet Swing-Arm Mount

GEA-105 TruVision Corner-Mount Adapter

GEA-106 TruVision Pole-Mount Adapter

GEA-107 TruVision Roof-Mount Adapter

Dome Bubbles Ordering Information

TVD -BHS-1B TruVision IP Wedge Bubble & Housing Spare, Clear, Metal Housing, Mic

Hole, Black

TVD-BHS-1BP TruVision IP Wedge Bubble & Housing Spare, Clear, Plastic Housing, Wi-Fi®

Version, Mic Hole, Black

TVD -BHS-1G TruVision IP Wedge Bubble & Housing Spare, Clear, Metal Housing, Mic

Hole, Gray

TVD-BHS-1GP TruVision IP Wedge Bubble & Housing Spare, Clear, Plastic Housing, Wi-Fi®

Version, Mic Hole, Gray

TVD -BHS -1W TruVision IP Wedge Bubble & Housing Spare, Clear, Metal Housing, Mic

Hole, White

TVD -BHS -1WP TruVision IP Wedge Bubble & Housing Spare, Clear, Plastic Housing, Wi-Fi®

Version, Mic Hole, White

TVD-BS-1C TruVision Wedge Bubble Spare, Clear

TVD-BS-1S TruVision Wedge Bubble Spare, Smoked

TVD-BS-2C TruVision Plastic Dome Bubble Spare, Clear

TVD-BS-2S TruVision Plastic Dome Bubble Spare, Smoked

TVD-BS-3C TruVision Dome Bubble Spare for IP VF and TVD-6/-7 Series Analog VF,

Clear

TVD-BS-3S TruVision Dome Bubble Spare for IP VF and TVD-6/-7 Series Analog VF,

Smoked

TVD-BS-5C TruVision Dome Bubble Spare for IP 12/32 Motor Lens, 22/42 and 24/44

Series Analog VF, Clear

TVD-BS-5S TruVision Dome Bubble Spare for IP 12/32 Motor Lens, 22/42 and 24/44

Series Analog VF, Smoked

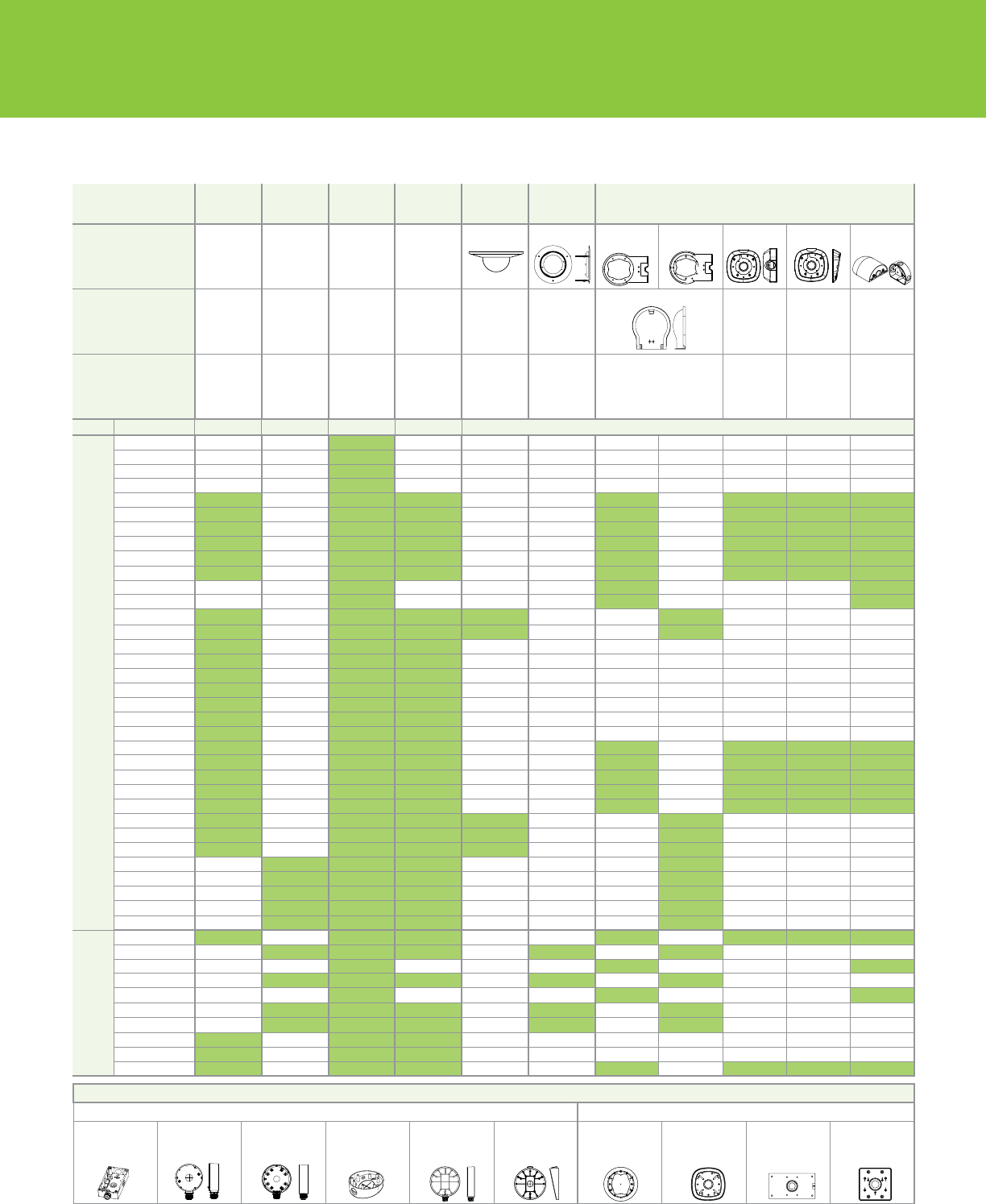

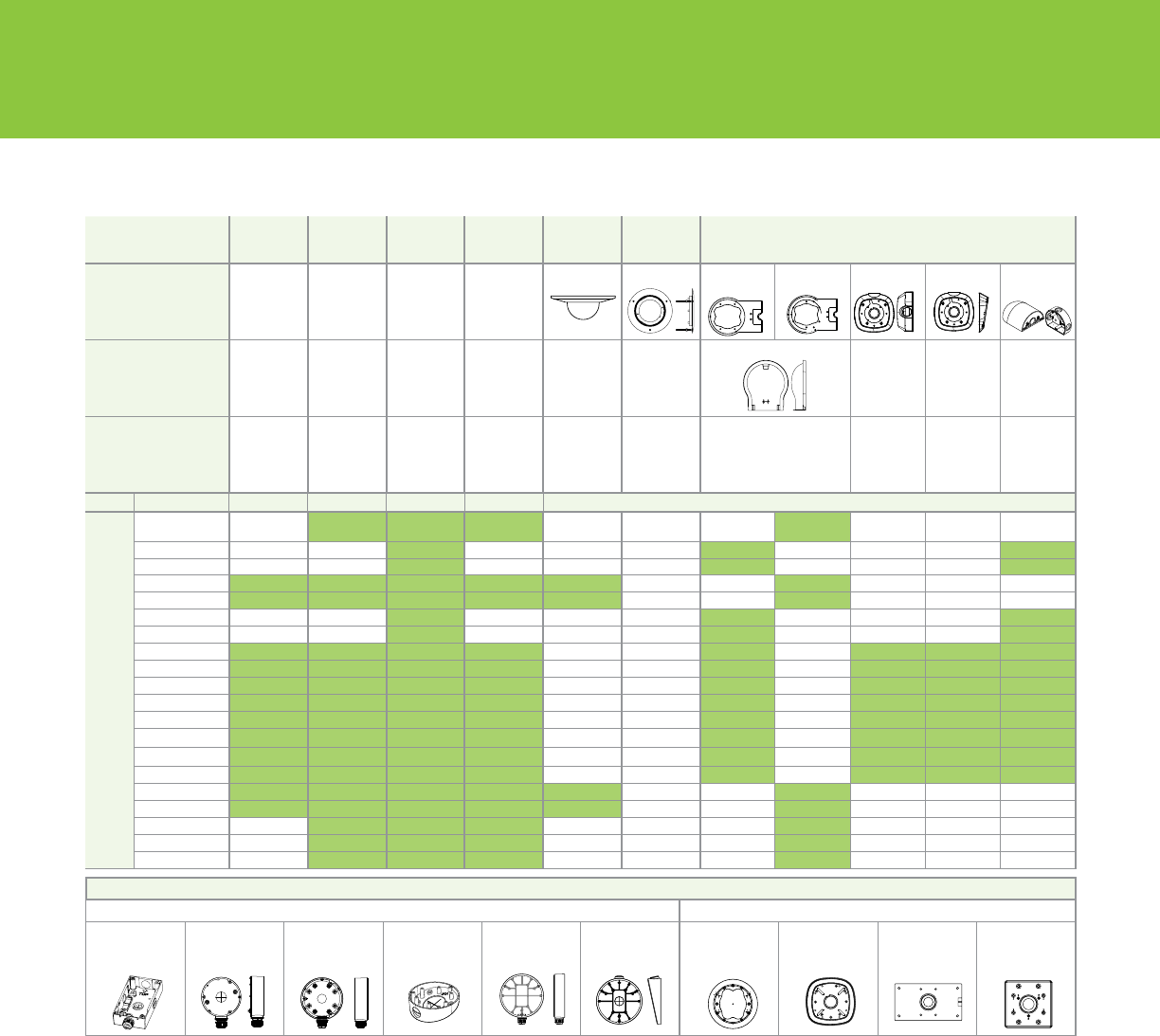

Secure critical

infrastructure with

TruVision® on board.

Adapter Plate

Included

Back Box

Included

Mounting to a

Back Box

Mounting to

2 Gang

Electrical Box

Flush Mount

Fixed Lens

Flush Mount

VF Lens Wall Mount Wall Mount Pendant Mount

Mounting Brackets Refer to

legend below

Refer to

legend below

TVD-M2-FM TVD-VFM TVD-LWB-1

((1+9) or 10*)

TVD-LWB-2

((1+9) or 10*)

TVD -AWB-1 TVD-AWB-2 DR Series

DR-RWM

TVD-SNB (1, 11, 12) TV D -M 2-WM

(1, 11, 12)

TVD-PPB

Accessories

TVD-LWB-S

Threaded Pipe Mounts

TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM

Cat. SKU

TVF-3101 5, 6

TVF-3102 5, 6

TVF-3103 5, 6

TVF-3104 5, 6

TVW-3103 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3104 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3105 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3106 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3116 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3130 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVD-5301 2 7 7 7 7

TVD-5302 2 7 7 7 7

TVD-5303 B3, 4 B B BB B B

TVD-5304 B3, 4 B B B B B B

TVT-5301 D(3 or 4) + D D D D D

TVT-5302 D(3 or 4) + D D D D D

TVT-5303 D(3 or 4) + D D D D D

TVT-5304 D(3 or 4) + D D D D D

TVT-5305 D(3 or 4) + D D D D D

TVT-5306 D(3 or 4) + D D D D D

TVT-5307 D(3 or 4) + D D D D D

TVW-5301 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-5302 A(3 or 4) A + 7 8AA + 7 AA + 7 A

TVW-5303 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVW-5304 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVW-5305 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVD-5401 C3, 4 C C C C C C

TVD-5402 C3, 4 C C C C C C

TVD-5403 C3, 4 C C C C C C

TVD-5404 F F F F Remove F Remove F

TVD-5405 F F F F Remove F Remove F

TVD-5406 FFF FRemove F Remove F

TVD-5407 FFF FRemove F Remove F

TVD-5408 F F F F Remove F Remove F

Analog

TVW-4101 A(3 or 4) + 7 8 A A + 7 A A + 7 A

TVD-4202 E E E E E E E

TVD-4401 2 7 7 7 7

TVD-4402 E E E E E E E

TVD-4403 2 7 7 7 7

TVD-4404 EEE EE E E

TVD-4405 EEE EE E E

TVT-4401 D(3 or 4) + D D D D D

TVT-4402 D(3 or 4) + D D D D D

TVW-4401 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

Optional Back Boxes and Adapters Optional Corner and Pole Mounts, Shield Included Adapters and Back Boxes

Wall/Ceiling Mount Adapters Corner/Pole Mount Shield Adapters Back Boxes

(1)

TVD-SNB-BB

Wall Mount

Back Box

(2)

TVD-BB1

Dome Back Box

(3)

TVD-BB3

Dome Back Box

(4)

TVD-BB3A

Dome Angled

Back Box

(5)

TVF-BBM

360° Back Box

(6)

TVF-WBM

360° Angled Back

Box

(7)

DR-RWM-AD

Dome/Wedge

Adapter Plate

(8)

TVW-2G-AD

2 Gang Elec. Box

Adapter

(9)

TVD-LWB-AD

LWB Wall Mount

Adapter Plate

(10)

TVD-2G-AD

Recessed

2 Gang Adapter*

(11)

TVD-M-CMA

Corner Mount

(12)

TVD-M-PMA

Pole Mount

TVD-LWB-S

Dome Shield

(A)

Wedge Adapter

Plate

(B)

IP Manual VF Lens

Dome Adapter Plate

(C)

IP Indoor VF Dome

Adapter Plate

(D)

Turret Adapter

Plate

(E)

Analog Manual VF

Lens Dome Back Box

(F)

Motorized Lens

Dome Back Box

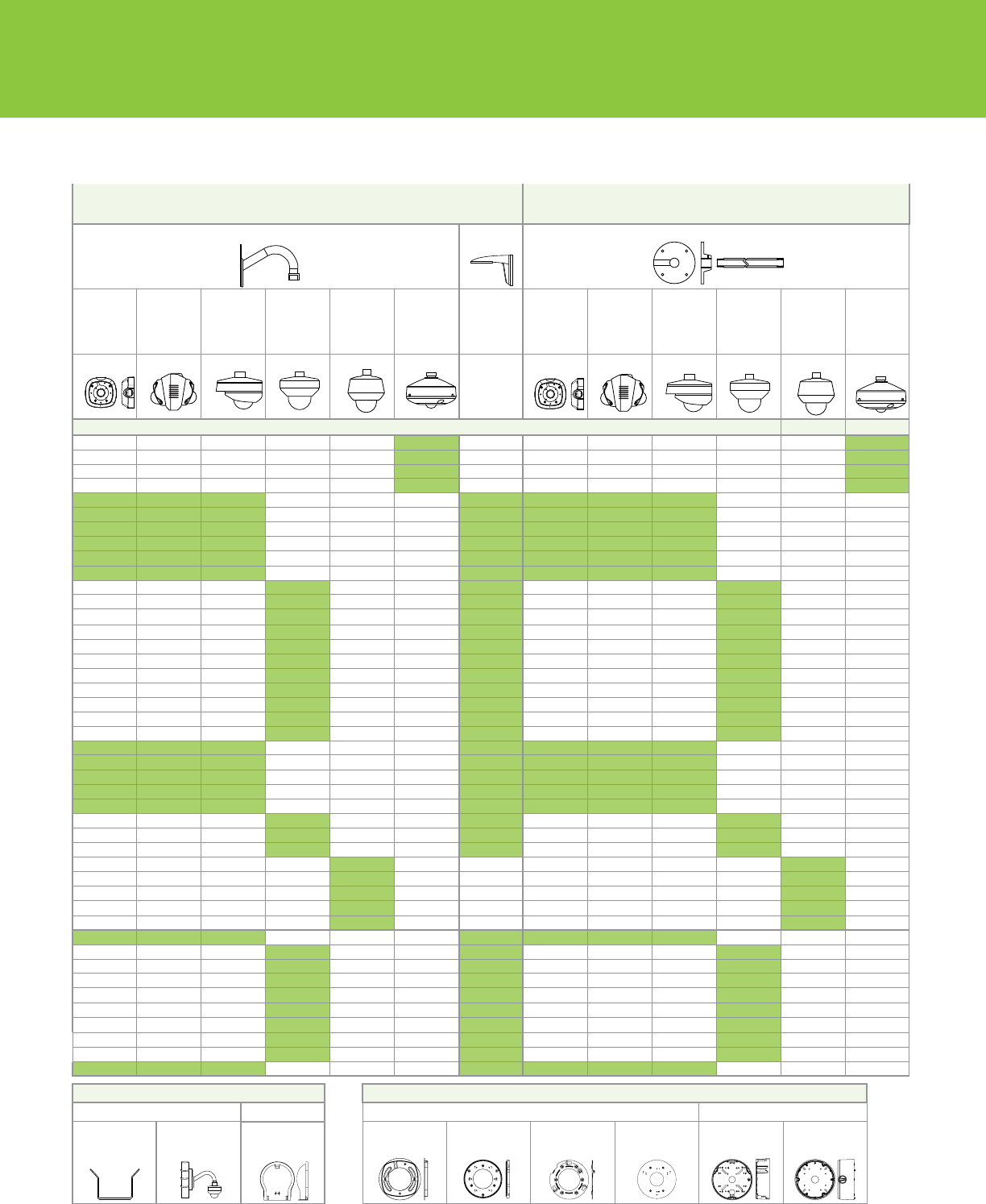

Camera Mount Selection Guide

TruVision® Mounts and Adapters

*Note: Not compatible with surface mount/all-weather 2 gang box.

Adapter Plate

Included

Back Box

Included

Mounting to a

Back Box

Mounting to

2 Gang

Electrical Box

Flush Mount

Fixed Lens

Flush Mount

VF Lens Wall Mount Wall Mount Pendant Mount

Mounting Brackets Refer to

legend below

Refer to

legend below

TVD-M2-FM TVD-VFM TVD-LWB-1

((1+9) or 10*)

TVD-LWB-2

((1+9) or 10*)

TVD -AWB-1 TVD-AWB-2 DR Series

DR-RWM

TVD-SNB (1, 11, 12) TV D -M 2-WM

(1, 11, 12)

TVD-PPB

Accessories

TVD-LWB-S

Threaded Pipe Mounts

TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM

Cat. SKU

TVF-3101 5, 6

TVF-3102 5, 6

TVF-3103 5, 6

TVF-3104 5, 6

TVW-3103 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3104 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3105 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3106 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3116 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3130 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVD-5301 2 7 7 7 7

TVD-5302 2 7 7 7 7

TVD-5303 B3, 4 B B BB B B

TVD-5304 B3, 4 B B B B B B

TVT-5301 D(3 or 4) + D D D D D

TVT-5302 D(3 or 4) + D D D D D

TVT-5303 D(3 or 4) + D D D D D

TVT-5304 D(3 or 4) + D D D D D

TVT-5305 D(3 or 4) + D D D D D

TVT-5306 D(3 or 4) + D D D D D

TVT-5307 D(3 or 4) + D D D D D

TVW-5301 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-5302 A(3 or 4) A + 7 8AA + 7 AA + 7 A

TVW-5303 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVW-5304 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVW-5305 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

TVD-5401 C3, 4 C C C C C C

TVD-5402 C3, 4 C C C C C C

TVD-5403 C3, 4 C C C C C C

TVD-5404 F F F F Remove F Remove F

TVD-5405 F F F F Remove F Remove F

TVD-5406 FFF FRemove F Remove F

TVD-5407 FFF FRemove F Remove F

TVD-5408 F F F F Remove F Remove F

Analog

TVW-4101 A(3 or 4) + 7 8 A A + 7 A A + 7 A

TVD-4202 E E E E E E E

TVD-4401 2 7 7 7 7

TVD-4402 E E E E E E E

TVD-4403 2 7 7 7 7

TVD-4404 EEE EE E E

TVD-4405 EEE EE E E

TVT-4401 D(3 or 4) + D D D D D

TVT-4402 D(3 or 4) + D D D D D

TVW-4401 A(3 or 4) A + 7 8 A A + 7 AA + 7 A

Optional Back Boxes and Adapters Optional Corner and Pole Mounts, Shield Included Adapters and Back Boxes

Wall/Ceiling Mount Adapters Corner/Pole Mount Shield Adapters Back Boxes

(1)

TVD-SNB-BB

Wall Mount

Back Box

(2)

TVD-BB1

Dome Back Box

(3)

TVD-BB3

Dome Back Box

(4)

TVD-BB3A

Dome Angled

Back Box

(5)

TVF-BBM

360° Back Box

(6)

TVF-WBM

360° Angled Back

Box

(7)

DR-RWM-AD

Dome/Wedge

Adapter Plate

(8)

TVW-2G-AD

2 Gang Elec. Box

Adapter

(9)

TVD-LWB-AD

LWB Wall Mount

Adapter Plate

(10)

TVD-2G-AD

Recessed

2 Gang Adapter*

(11)

TVD-M-CMA

Corner Mount

(12)

TVD-M-PMA

Pole Mount

TVD-LWB-S

Dome Shield

(A)

Wedge Adapter

Plate

(B)

IP Manual VF Lens

Dome Adapter Plate

(C)

IP Indoor VF Dome

Adapter Plate

(D)

Turret Adapter

Plate

(E)

Analog Manual VF

Lens Dome Back Box

(F)

Motorized Lens

Dome Back Box

7.63 in.

(194mm)

4.60 in.

(Ø117mm)

5.62 in.

(143mm)

TruVision® Mounts and Bubbles

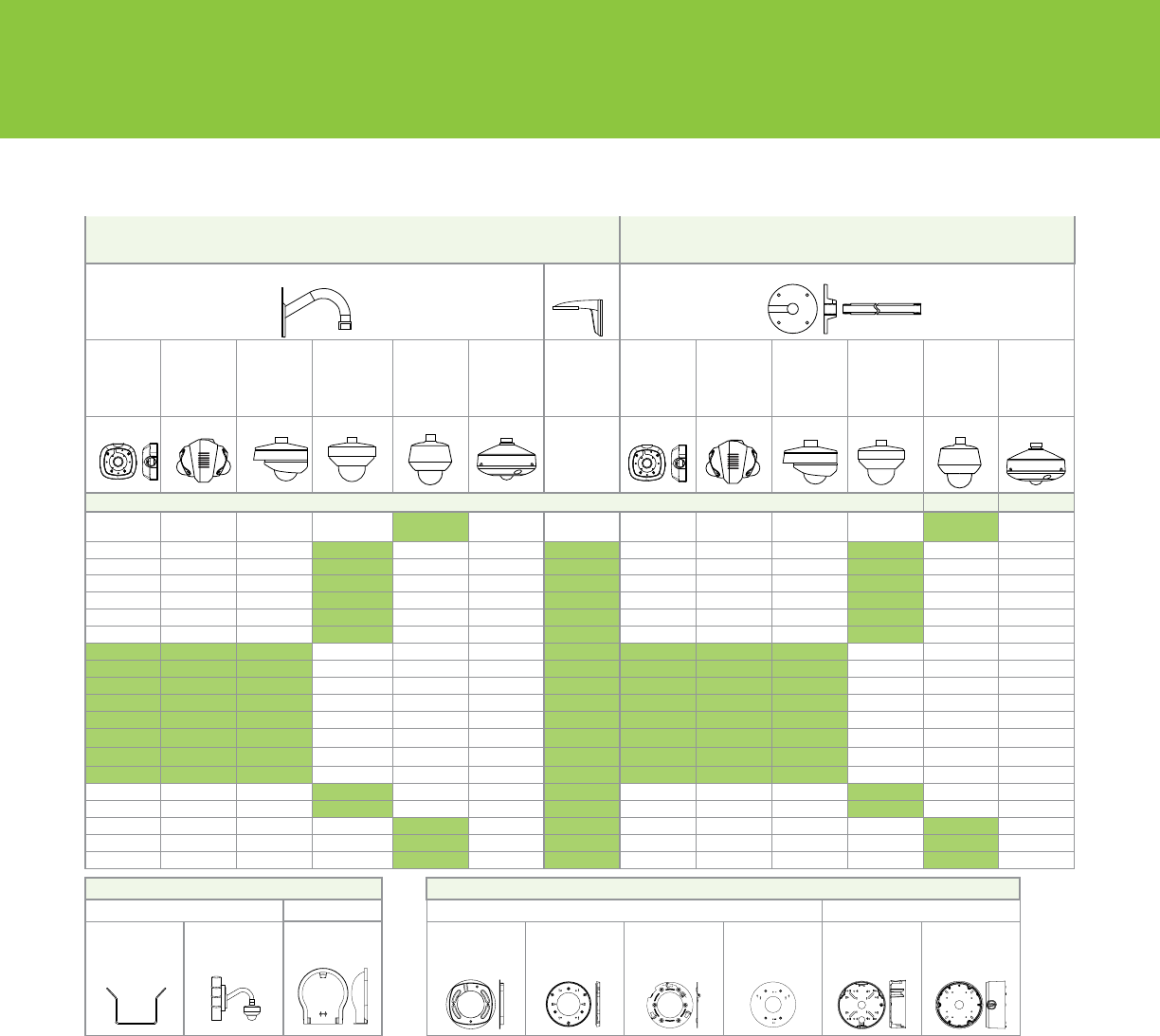

Adapter Plate

Included

Back Box

Included

Mounting to a

Back Box

Mounting to

2 Gang

Electrical Box

Flush Mount

Fixed Lens

Flush Mount

VF Lens Wall Mount Wall Mount Pendant Mount

Mounting Brackets Refer to

legend below

Refer to

legend below

TVD-M2-FM TVD-VFM TVD-LWB-1

((1+9) or 10*)

TVD-LWB-2

((1+9) or 10*)

TVD -AWB-1 TVD-AWB-2 DR Series

DR-RWM

TVD-SNB (1, 11, 12) T VD - M2-W M

(1, 11, 12)

TVD-PPB

Accessories

TVD-LWB-S

Threaded Pipe Mounts

TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM

Cat. SKU

TVD-M5225E-

3M-N F F F F Remove F Remove F

TVD-3101 2 7 7 7 7

TVD-3102 2 7 7 7 7

TVD-3103 B3, 4 B B B B B B

TVD-3104 B3, 4 B B B B B B

TVD-3105 2 7 7 7 7

TVD-3106 2 7 7 7 7

TVW-3101 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3102 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3107 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3108 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3109 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3117 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3118 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3119 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVD-3201 B3, 4 B B B B B B

TVD-3202 B3, 4 B B B B B B

TVD-3203 F F F F Remove F F Remove F

TVD-3204 F F F F Remove F F Remove F

TVD-3205 F F F F Remove F F Remove F

Optional Back Boxes and Adapters Optional Corner and Pole Mounts, Shield Included Adapters and Back Boxes

Wall/Ceiling Mount Adapters Corner/Pole Mount Shield Adapters Back Boxes

(1)

TVD-SNB-BB

Wall Mount

Back Box

(2)

TVD-BB1

Dome Back Box

(3)

TVD-BB3

Dome Back Box

(4)

TVD-BB3A

Dome Angled

Back Box

(5)

TVF-BBM

360° Back Box

(6)

TVF-WBM

360° Angled Back

Box

(7)

DR-RWM-AD

Dome/Wedge

Adapter Plate

(8)

TVW-2G-AD

2 Gang Elec. Box

Adapter

(9)

TVD-LWB-AD

LWB Wall Mount

Adapter Plate

(10)

TVD-2G-AD

Recessed

2 Gang Adapter*

(11)

TVD-M-CMA

Corner Mount

(12)

TVD-M-PMA

Pole Mount

TVD-LWB-S

Dome Shield

(A)

Wedge Adapter

Plate

(B)

IP Manual VF

Lens Dome

Adapter Plate

(C)

IP Indoor VF

Dome Adapter

Plate

(D)

Turret Adapter

Plate

(E)

Analog Manual

VF Lens Dome

Back Box

(F)

Motorized Lens

Dome Back Box

Camera Mount Selection Guide

*Note: Not compatible with surface mount/all-weather 2 gang box.

Adapter Plate

Included

Back Box

Included

Mounting to a

Back Box

Mounting to

2 Gang

Electrical Box

Flush Mount

Fixed Lens

Flush Mount

VF Lens Wall Mount Wall Mount Pendant Mount

Mounting Brackets Refer to

legend below

Refer to

legend below

TVD-M2-FM TVD-VFM TVD-LWB-1

((1+9) or 10*)

TVD-LWB-2

((1+9) or 10*)

TVD -AWB-1 TVD-AWB-2 DR Series

DR-RWM

TVD-SNB (1, 11, 12) T VD - M2-W M

(1, 11, 12)

TVD-PPB

Accessories

TVD-LWB-S

Threaded Pipe Mounts

TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM TVW-AWB-1 TVW-DVM TVD-CB2 TVD-CB3 TVD-CB5A TVF-CBM

Cat. SKU

TVD-M5225E-

3M-N F F F F Remove F Remove F

TVD-3101 2 7 7 7 7

TVD-3102 2 7 7 7 7

TVD-3103 B3, 4 B B B B B B

TVD-3104 B3, 4 B B B B B B

TVD-3105 2 7 7 7 7

TVD-3106 2 7 7 7 7

TVW-3101 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3102 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3107 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3108 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3109 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVW-3117 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3118 A(3 or 4) A + 7 8AA + 7 A A + 7 A

TVW-3119 A(3 or 4) A + 7 8 A A + 7 A A + 7 A

TVD-3201 B3, 4 B B B B B B

TVD-3202 B3, 4 B B B B B B

TVD-3203 F F F F Remove F F Remove F

TVD-3204 F F F F Remove F F Remove F

TVD-3205 F F F F Remove F F Remove F

Optional Back Boxes and Adapters Optional Corner and Pole Mounts, Shield Included Adapters and Back Boxes

Wall/Ceiling Mount Adapters Corner/Pole Mount Shield Adapters Back Boxes

(1)

TVD-SNB-BB

Wall Mount

Back Box

(2)

TVD-BB1

Dome Back Box

(3)

TVD-BB3

Dome Back Box

(4)

TVD-BB3A

Dome Angled

Back Box

(5)

TVF-BBM

360° Back Box

(6)

TVF-WBM

360° Angled Back

Box

(7)

DR-RWM-AD

Dome/Wedge

Adapter Plate

(8)

TVW-2G-AD

2 Gang Elec. Box

Adapter

(9)

TVD-LWB-AD

LWB Wall Mount

Adapter Plate

(10)

TVD-2G-AD

Recessed

2 Gang Adapter*

(11)

TVD-M-CMA

Corner Mount

(12)

TVD-M-PMA

Pole Mount

TVD-LWB-S

Dome Shield

(A)

Wedge Adapter

Plate

(B)

IP Manual VF

Lens Dome

Adapter Plate

(C)

IP Indoor VF

Dome Adapter

Plate

(D)

Turret Adapter

Plate

(E)

Analog Manual

VF Lens Dome

Back Box

(F)

Motorized Lens

Dome Back Box

7.63 in.

(194mm)

4.60 in.

(Ø117mm)

5.62 in.

(143mm)

TruVision® Mounts and Bubbles

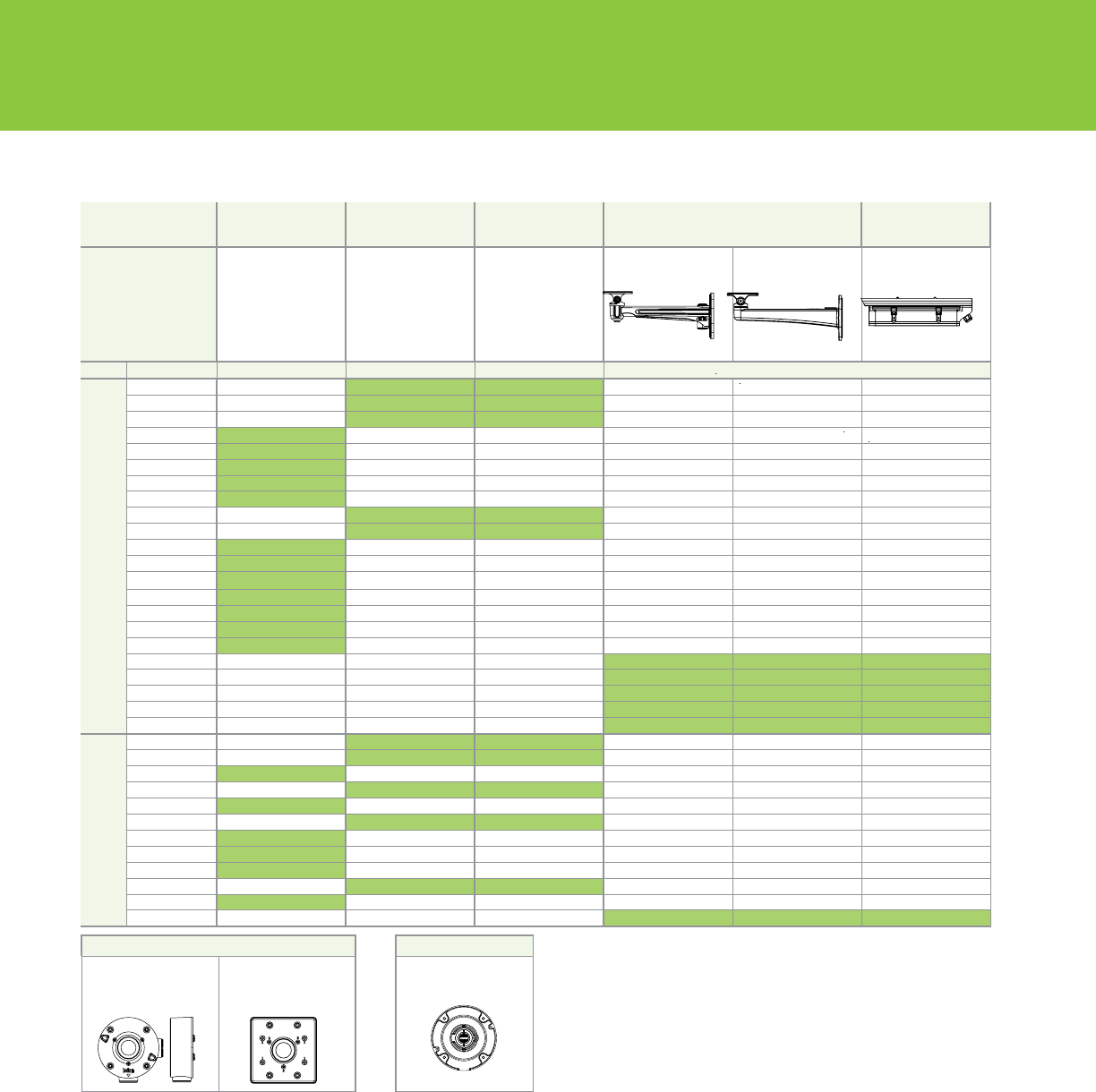

Back Box Included Mounting to a Back Box

Mounting to a Recessed

2 Gang Electrical Box Wall Mount

Box Camera Outdoor

Housing w/Heater and

TVC-M2-WM Wall Mount

Mounting Brackets Refer to legend below.

TVC-M-WM TVC-M2-WM TVC-OH2-H

Cat. SKU

TVB-3101 1 2

TVB-3102 1 2

TVB-3103 1 2

TVB-3104 A

TVB-3105 A

TVB-3201 A

TVB-3202 A

TVB-3203 A

TVB-5301 1 2

TVB-5302 1 2

TVB-5303 A

TVB-5304 A

TVB-5401 A

TVB-5402 A

TVB-5403 A

TVB-5404 A

TVB-5405 A

TVC-3201

TVC-3202

TVC-5401

TVC-5402

TVC-5403

ANALOG

TVB-4201 1 2

TVB-4202 1 2

TVB-4203 A

TVB-4401 1 2

TVB-4402 A

TVB-4403 1 2

TVB-4404 A

TVB-4405 A

TVB-4406 A

TVB-4407 1 2

TVB-4408 A

TVC-4401

Optional Back Box and Adapter Included Back Box

(1)

TVB-BB1

Fixed Lens Bullet Back Box

(2)

TVB-2G-AD

Recessed 2 Gang Box*

Adapter Plate

(A)

VF Lens Bullet Back Box

Bullet and Box Camera Mount Selection Guide

*Note: Not compatible with surface mount/all-weather 2 gang box.

Better education starts

with with safe schools.

Featuring components that are easy to

install and operate, TruVision® solutions

provide optimal video coverage for

schools of all sizes.

TruVision® comprehensive solutions are developed and supported by

Interlogix, a leading provider of security and life safety solutions including

advanced video, recording and wireless transmission technology.

Through an ongoing commitment to secure and protect people,

property and assets, Interlogix continues to develop innovative and

reliable products that meet the demands of the modern world.

interlogix.com/truvision

Speciﬁcations subject to change without notice.

reserved. Interlogix is part of UTC Climate, Controls &

Security, a unit of United Technologies Corporation.

Apple® and iTunes® are registered trademarks of Apple

Inc. Android™ is a trademark of Google Inc. Windows® is a

registered trademark of Microsoft Inc. ONVIF® is a trademark

of Onvif Inc. PSIA® is a registered trademark of PSIA Alliance.

Wi-Fi® is a registered trademark of Wi-Fi Alliance®. All other

trademarks are the property of their respective owners.

2017/06 (GSP-1832)

interlogix.com

@Interlogix Interlogix Channel

InterLogix Truvision Family Brochure Web User Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
