Interactive Technologies IQ70 Marine Remote Control Transceiver User Manual manual

Interactive Technologies, Inc. Marine Remote Control Transceiver manual

manual

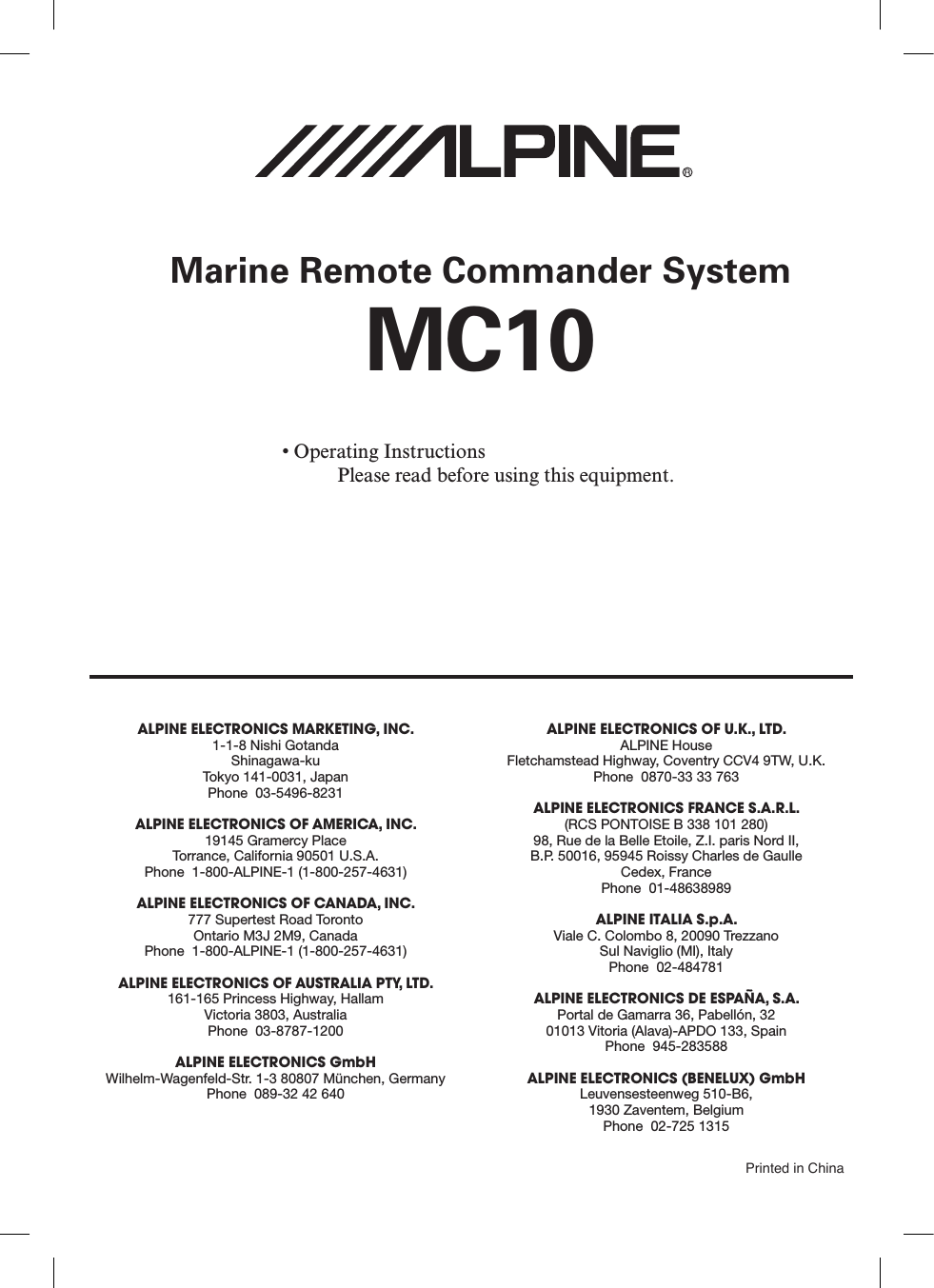

• Operating Instructions Please read before using this equipment.Marine Remote Commander SystemMC101-1-8 Nishi GotandaShinagawa-kuTokyo 141-0031, JapanPhone 03-5496-823119145 Gramercy PlaceTorrance, California 90501 U.S.A.Phone 1-800-ALPINE-1 (1-800-257-4631)777 Supertest Road Toronto Ontario M3J 2M9, CanadaPhone 1-800-ALPINE-1 (1-800-257-4631)161-165 Princess Highway, HallamVictoria 3803, AustraliaPhone 03-8787-1200Wilhelm-Wagenfeld-Str. 1-3 80807 München, GermanyPhone 089-32 42 640ALPINE HouseFletchamstead Highway, Coventry CCV4 9TW, U.K.Phone 0870-33 33 763(RCS PONTOISE B 338 101 280)98, Rue de la Belle Etoile, Z.I. paris Nord II,B.P. 50016, 95945 Roissy Charles de GaulleCedex, FrancePhone 01-48638989Viale C. Colombo 8, 20090 TrezzanoSul Naviglio (MI), ItalyPhone 02-484781Portal de Gamarra 36, Pabellón, 3201013 Vitoria (Alava)-APDO 133, SpainPhone 945-283588Leuvensesteenweg 510-B6,1930 Zaventem, BelgiumPhone 02-725 1315Printed in China

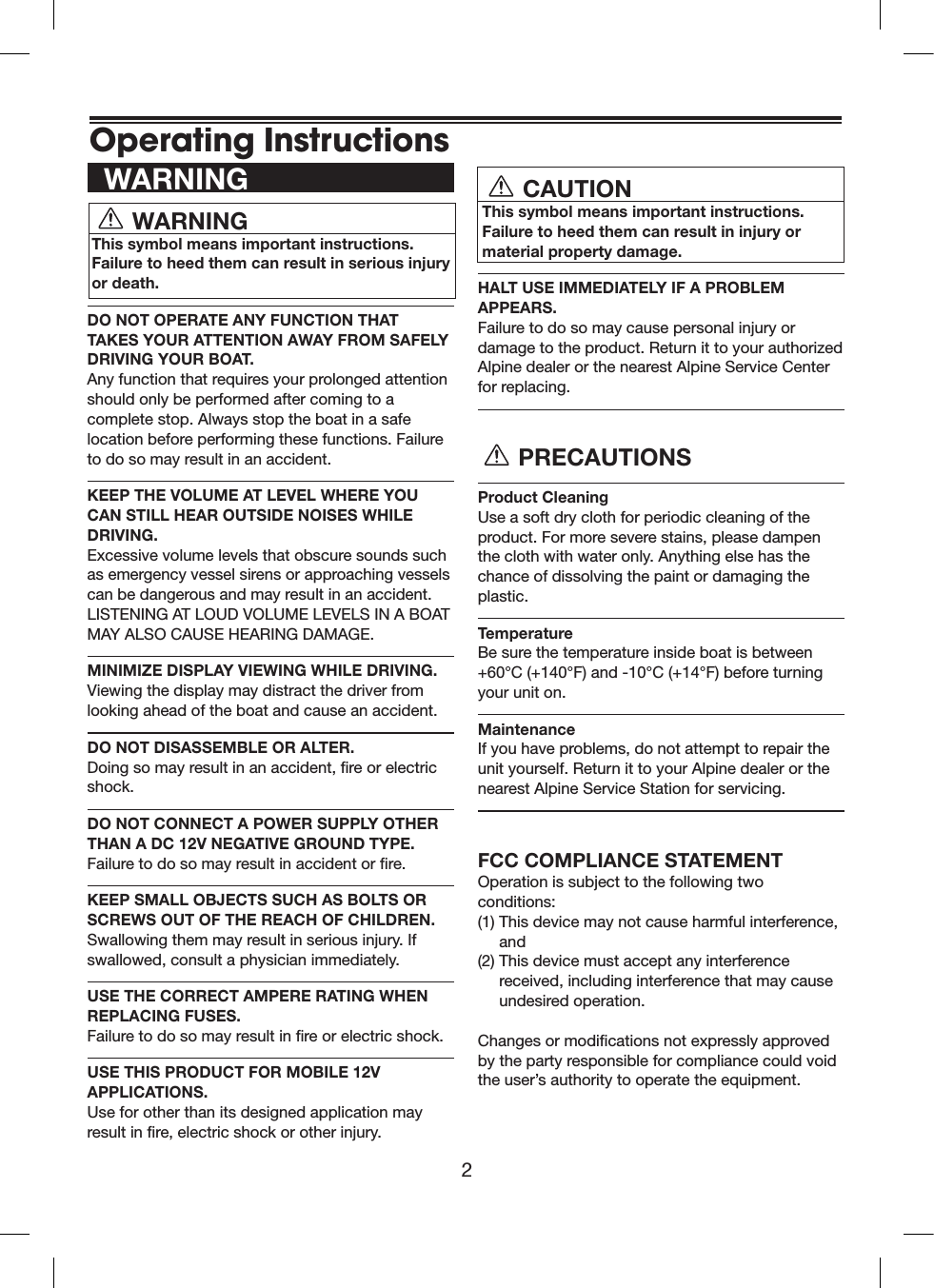

2 WARNING WARNING This symbol means important instructions. Failure to heed them can result in serious injury or death.DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR BOAT. Any function that requires your prolonged attention should only be performed after coming to a complete stop. Always stop the boat in a safe location before performing these functions. Failure to do so may result in an accident.KEEP THE VOLUME AT LEVEL WHERE YOU CAN STILL HEAR OUTSIDE NOISES WHILE DRIVING. Excessive volume levels that obscure sounds such as emergency vessel sirens or approaching vessels can be dangerous and may result in an accident. LISTENING AT LOUD VOLUME LEVELS IN A BOAT MAY ALSO CAUSE HEARING DAMAGE.MINIMIZE DISPLAY VIEWING WHILE DRIVING. Viewing the display may distract the driver from looking ahead of the boat and cause an accident.DO NOT DISASSEMBLE OR ALTER. Doing so may result in an accident, re or electric shock.DO NOT CONNECT A POWER SUPPLY OTHER THAN A DC 12V NEGATIVE GROUND TYPE. Failure to do so may result in accident or re.KEEP SMALL OBJECTS SUCH AS BOLTS OR SCREWS OUT OF THE REACH OF CHILDREN. Swallowing them may result in serious injury. If swallowed, consult a physician immediately.USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES. Failure to do so may result in re or electric shock.USE THIS PRODUCT FOR MOBILE 12V APPLICATIONS. Use for other than its designed application may result in re, electric shock or other injury. CAUTION This symbol means important instructions. Failure to heed them can result in injury or material property damage.HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for replacing. PRECAUTIONSProduct Cleaning Use a soft dry cloth for periodic cleaning of the product. For more severe stains, please dampen the cloth with water only. Anything else has the chance of dissolving the paint or damaging the plastic.Temperature Be sure the temperature inside boat is between +60°C (+140°F) and -10°C (+14°F) before turning your unit on.Maintenance If you have problems, do not attempt to repair the unit yourself. Return it to your Alpine dealer or the nearest Alpine Service Station for servicing.FCC COMPLIANCE STATEMENTOperation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, including interference that may cause undesired operation.Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

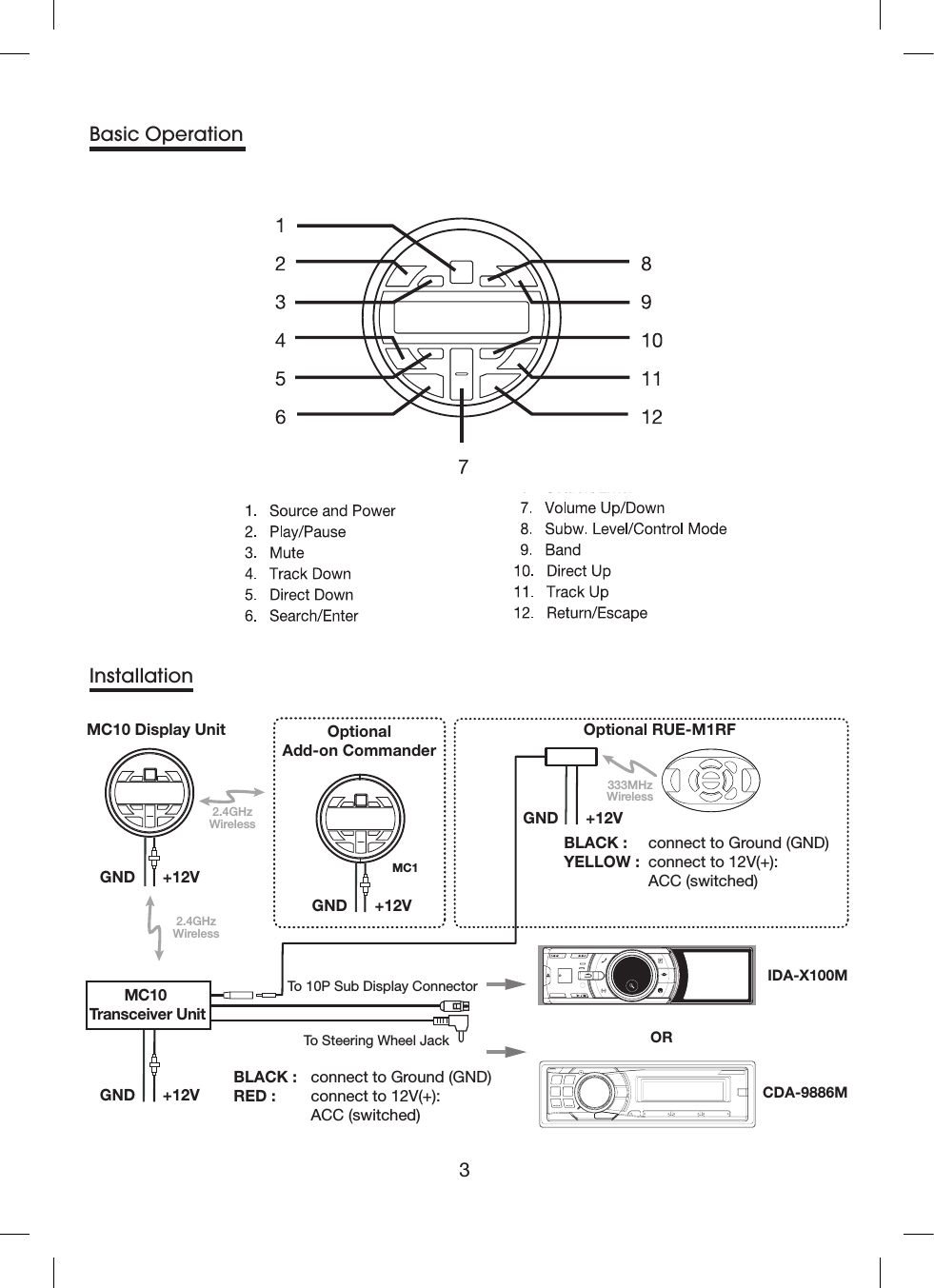

3MC10 Display UnitTo Steering Wheel JackOptionalAdd-on CommanderOptional RUE-M1RFTo 10P Sub Display Connector BLACK : connect to Ground (GND) YELLOW : connect to 12V(+): ACC (switched) BLACK : connect to Ground (GND) RED : connect to 12V(+): ACC (switched) MC10 Transceiver UnitCDA-9886MIDA-X100MOR MC1+12VGND+12VGNDInstallation2.4GHzWireless+12VGND+12VGND333MHzWireless2.4GHzWirelessBasic OperationBasic OperationBasic OperationBasic OperationInstallation

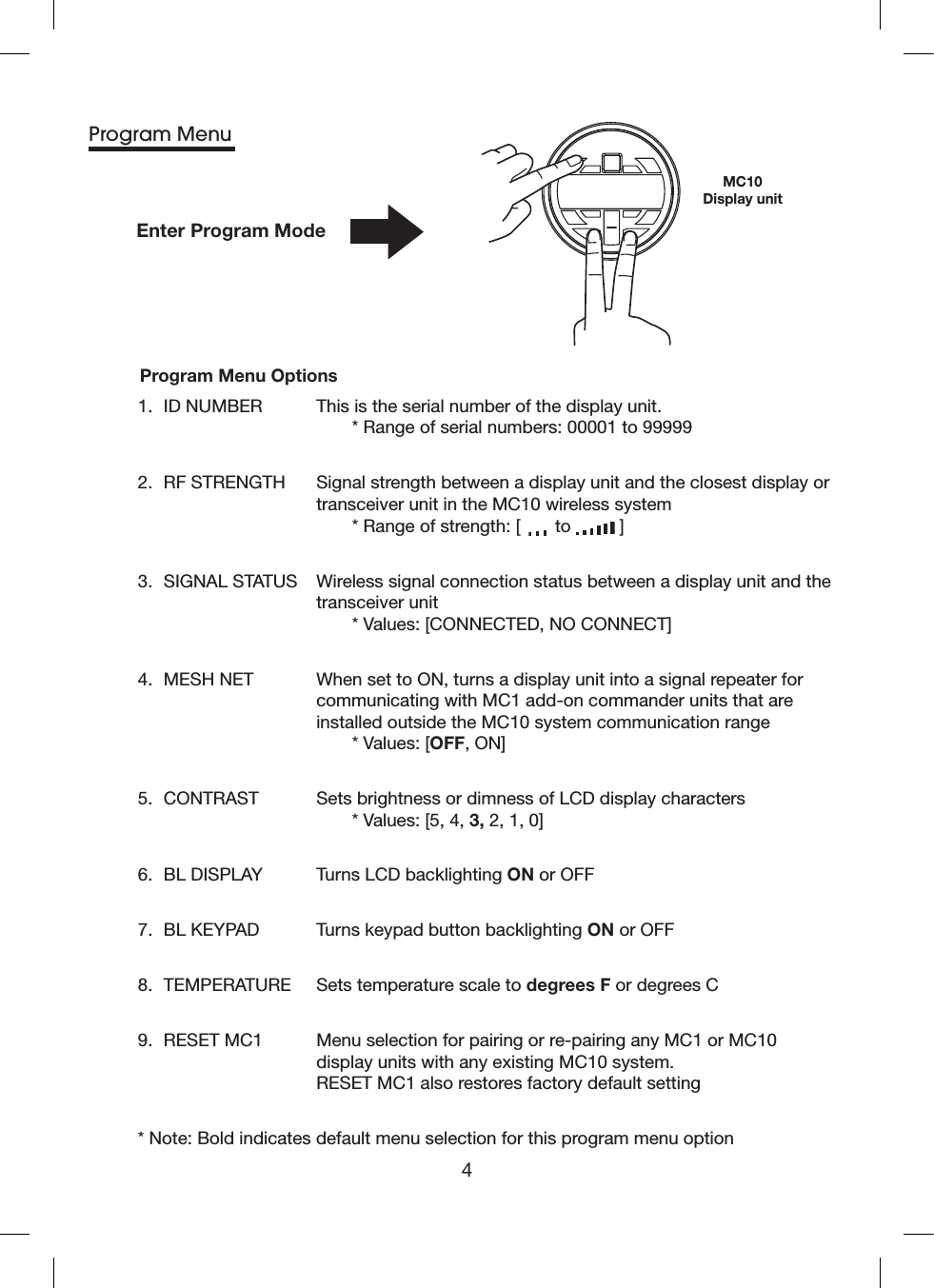

4Enter Program ModeMC10Display unitProgram Menu1. ID NUMBER This is the serial number of the display unit. * Range of serial numbers: 00001 to 999992. RF STRENGTH Signal strength between a display unit and the closest display or transceiver unit in the MC10 wireless system * Range of strength: [ to ]3. SIGNAL STATUS Wireless signal connection status between a display unit and the transceiver unit * Values: [CONNECTED, NO CONNECT] 4. MESH NET When set to ON, turns a display unit into a signal repeater for communicating with MC1 add-on commander units that are installed outside the MC10 system communication range * Values: [OFF, ON]5. CONTRAST Sets brightness or dimness of LCD display characters * Values: [5, 4, 3, 2, 1, 0]6. BL DISPLAY Turns LCD backlighting ON or OFF 7. BL KEYPAD Turns keypad button backlighting ON or OFF 8. TEMPERATURE Sets temperature scale to degrees F or degrees C 9. RESET MC1 Menu selection for pairing or re-pairing any MC1 or MC10 display units with any existing MC10 system. RESET MC1 also restores factory default setting* Note: Bold indicates default menu selection for this program menu optionProgram Menu Options

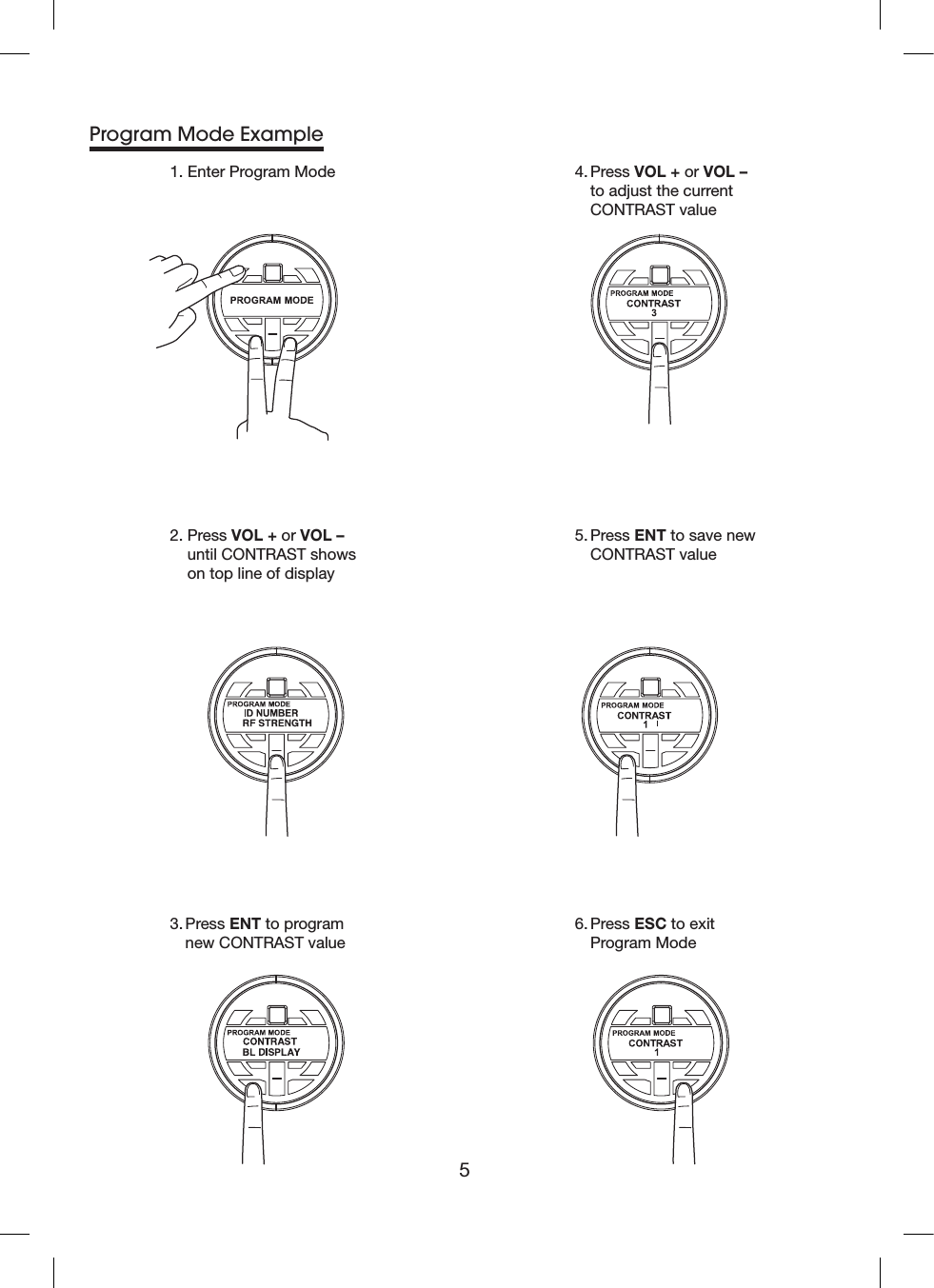

51. Enter Program Mode3. Press ENT to program new CONTRAST value 4. Press VOL + or VOL – to adjust the current CONTRAST value2. Press VOL + or VOL – until CONTRAST shows on top line of display5. Press ENT to save new CONTRAST value 6. Press ESC to exit Program Mode Program Mode Example

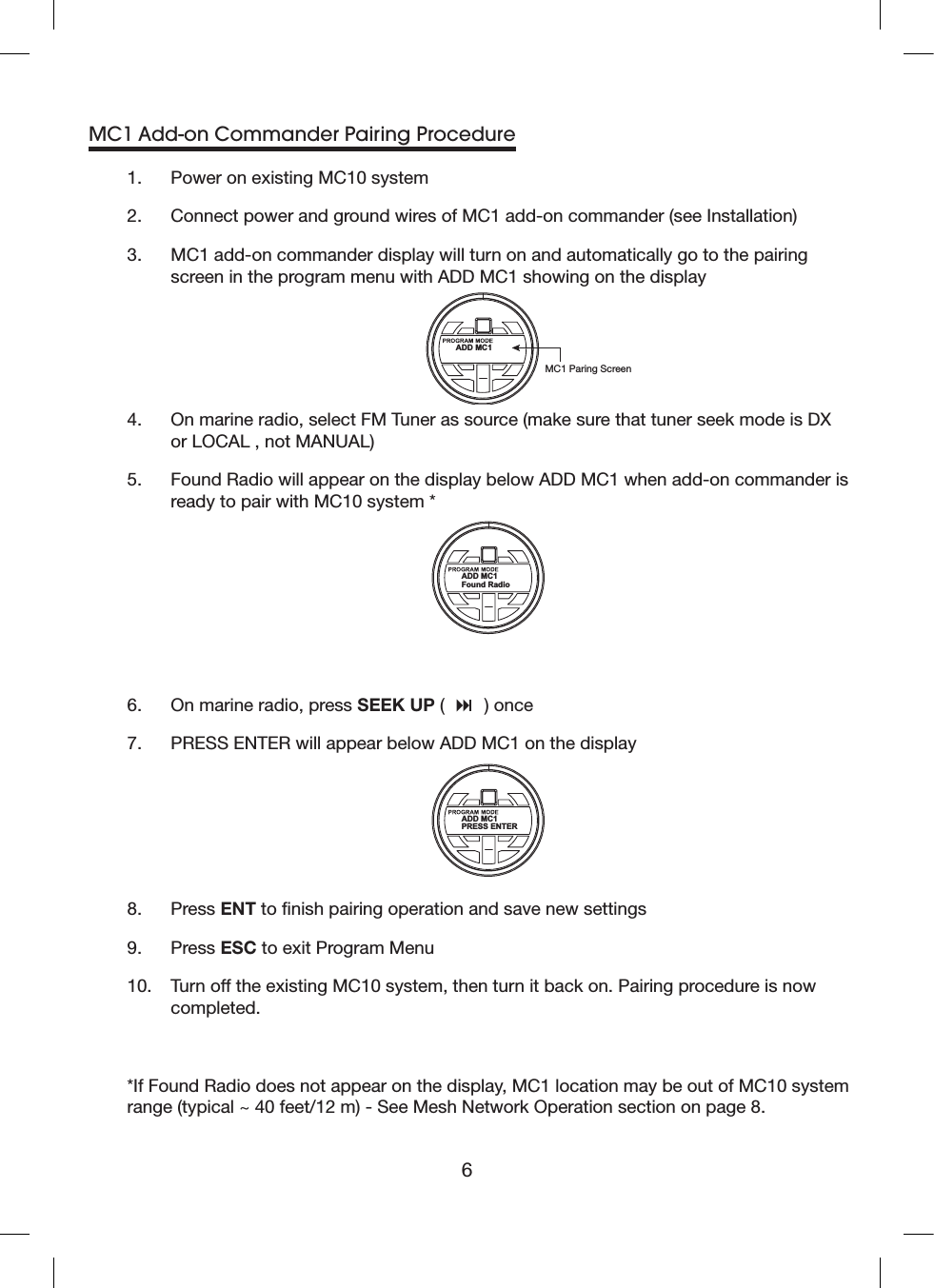

6MC1 Add-on Commander Pairing Procedure1. Power on existing MC10 system2. Connect power and ground wires of MC1 add-on commander (see Installation) 3. MC1 add-on commander display will turn on and automatically go to the pairing screen in the program menu with ADD MC1 showing on the displayADD MC1MC1 Paring Screen4. On marine radio, select FM Tuner as source (make sure that tuner seek mode is DX or LOCAL , not MANUAL)5. Found Radio will appear on the display below ADD MC1 when add-on commander is ready to pair with MC10 system *ADD MC1Found Radio6. On marine radio, press SEEK UP ( ) once7. PRESS ENTER will appear below ADD MC1 on the displayADD MC1PRESS ENTER8. Press ENT to nish pairing operation and save new settings9. Press ESC to exit Program Menu10. Turn off the existing MC10 system, then turn it back on. Pairing procedure is now completed.*If Found Radio does not appear on the display, MC1 location may be out of MC10 system range (typical ~ 40 feet/12 m) - See Mesh Network Operation section on page 8.

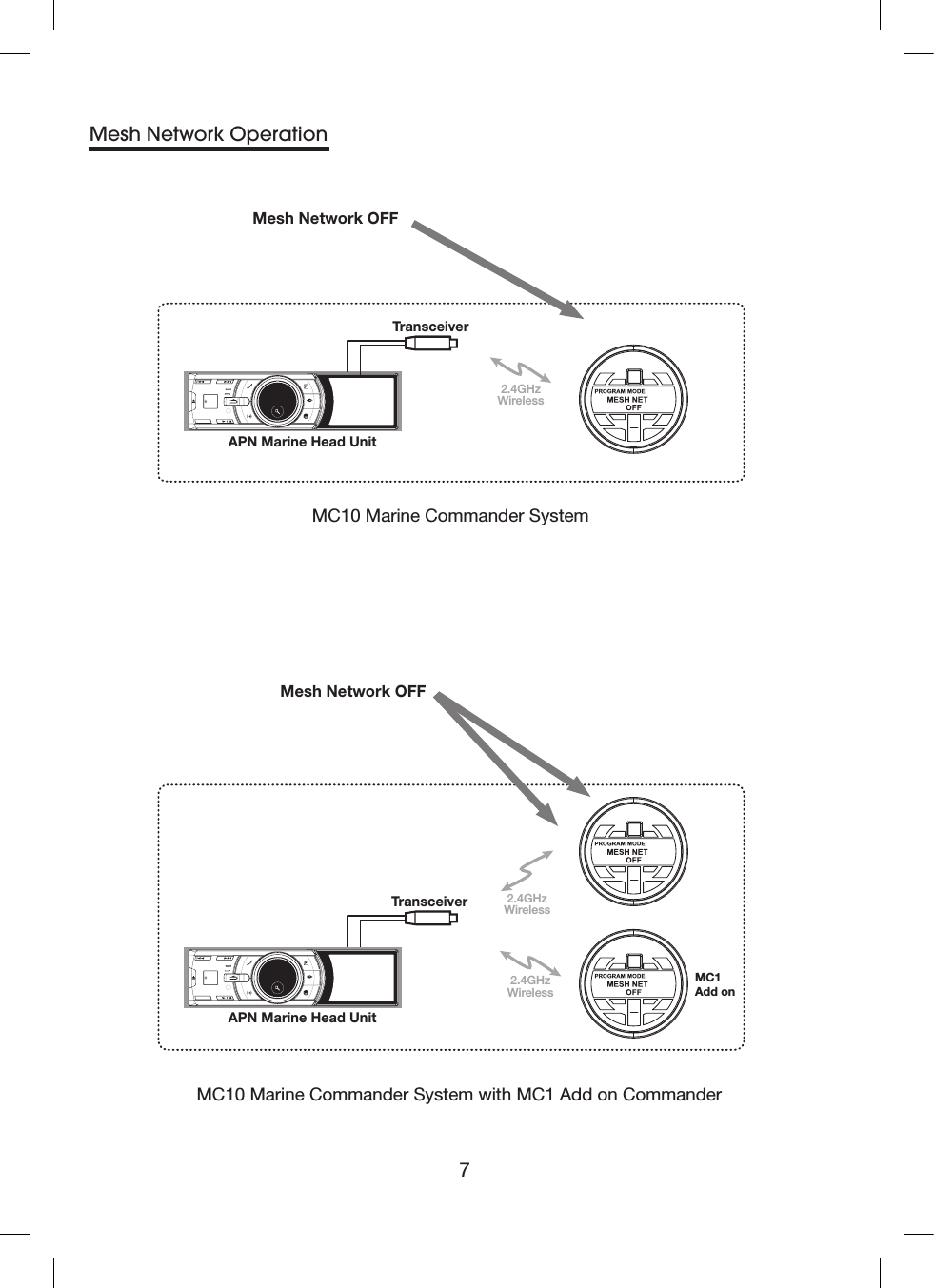

7Mesh Network OperationMesh Network OFFAPN Marine Head UnitMC10 Marine Commander SystemMesh Network OFFAPN Marine Head UnitMC10 Marine Commander System with MC1 Add on CommanderMC1Add onTransceiverTransceiver2.4GHzWireless2.4GHzWireless2.4GHzWireless

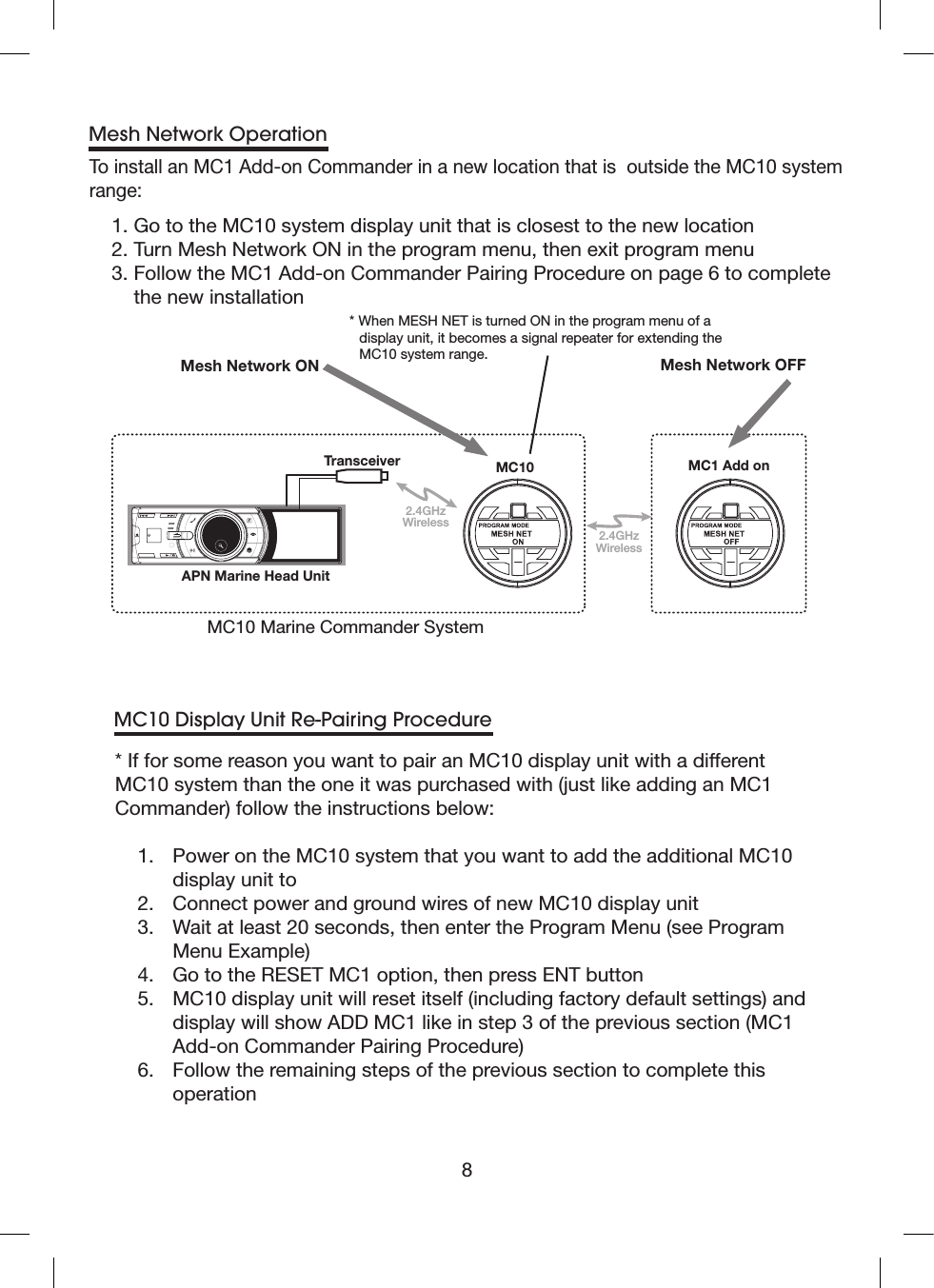

8MC1 Add onMC10APN Marine Head UnitMesh Network ON* When MESH NET is turned ON in the program menu of a display unit, it becomes a signal repeater for extending the MC10 system range.MC10 Marine Commander System2.4GHzWireless2.4GHzWirelessTransceiverMesh Network OFFMesh Network Operation* If for some reason you want to pair an MC10 display unit with a different MC10 system than the one it was purchased with (just like adding an MC1 Commander) follow the instructions below:1. Power on the MC10 system that you want to add the additional MC10 display unit to2. Connect power and ground wires of new MC10 display unit3. Wait at least 20 seconds, then enter the Program Menu (see Program Menu Example)4. Go to the RESET MC1 option, then press ENT button5. MC10 display unit will reset itself (including factory default settings) and display will show ADD MC1 like in step 3 of the previous section (MC1 Add-on Commander Pairing Procedure)6. Follow the remaining steps of the previous section to complete this operationMC10 Display Unit Re-Pairing ProcedureTo install an MC1 Add-on Commander in a new location that is outside the MC10 system range:1. Go to the MC10 system display unit that is closest to the new location2. Turn Mesh Network ON in the program menu, then exit program menu3. Follow the MC1 Add-on Commander Pairing Procedure on page 6 to complete the new installation
