Congratulations on the purchase of your Radio controlled
snowmobile. Your new snowmobile is modeled after the real life and
is specifically designed to be used outdoors on flat, packed snow.
However to make your model more versatile, we have included a
second set of (indoor) skis with built-in wheels to allow you to use
your sled indoors on low-pile carpet. .
The design of the radio controlled Snowmobile closely follows its
full-size counterpart in terms of styling and functionality featuring
true front and rear suspension systems, a high speed drive track,
powerful electric motors and even a scale rider figure!
Use under adult supervision!
Copyright © 2006 INTERACTIVE TOY CONCEPTS LTD. - Printed in China
Radio
Controlled
Snowmobile
• Radio-Controlled Model • Outdoor / Indoor Use
• Quiet & Clean Electric Power.
• Requires a 9V Battery for the Transmitter • Requires a 9.6 V
rechargeable NiCd or NiMH battery for snowmobile
(may be included in this package).
CCAAUUTTIIOONN::
EELLEECCTTRRIICCAALLLLYY
OOPPEERRAATTEEDD
PPRROODDUUCCTT::
AC CHARGER USED BY ADULT ONLY.
NOT RECOMMENDED FOR CHILDREN UNDER 8
YEARS OF AGE. AS WITH ALL ELECTRIC
PRODUCTS, PRECAUTIONS SHOULD BE
OBSERVED DURING HANDLING AND USE TO
PREVENT ELECTRIC SHOCK.
INPUT:
AC120V
60HZ
13W
OUTPUT:
DC12V
300mA
UL
LISTED
CHARGER
The Snowmobile is quite rugged but, as with any sophisticated device, you must learn how
to operate it and care for it. Please read this manual thoroughly and be sure to operate your
model only under adult supervision.
Do not attempt to open the body of the snowmobile or to modify the snowmobile or radio
control unit in any way. Doing so will void your warranty and may result in permanent
damage to your model.
Glossary
Motor: The snowmobile has a sealed electric motor for propulsion and a separate
electric motor for steering.
Battery Pack: The Snowmobile
uses a standard 9.6 V NiCd or
NiMH rechargeable battery pack
with a standard Tamiya-style
connector plug. This battery pack
is used to power the electric drive
and steering motors as well as the radio receiver. Run time is approximately 10 to
15 minutes of constant use on a full charge.
Transmitter: The radio control transmitter allows you to control the model's
direction of motion. The left stick causes the model to move forward or backward
and the right stick causes the sled to turn left or right.
Your Snowmobile package contains the following
Transmitter
Transmitter antenna
Snowmobile
Indoor Skis
Prepare the Transmitter
Install remote control unit battery:
Requires 1 X 9V battery (not included).
1) Slide opens the battery door.
2) Install a 9V alkaline battery as the picture shown, ensuring that the polarity is
correct.
3) Replace the battery door.
4) Insert the transmitter antenna into the top of the transmitter and thread it into
place. Do not overtighten.

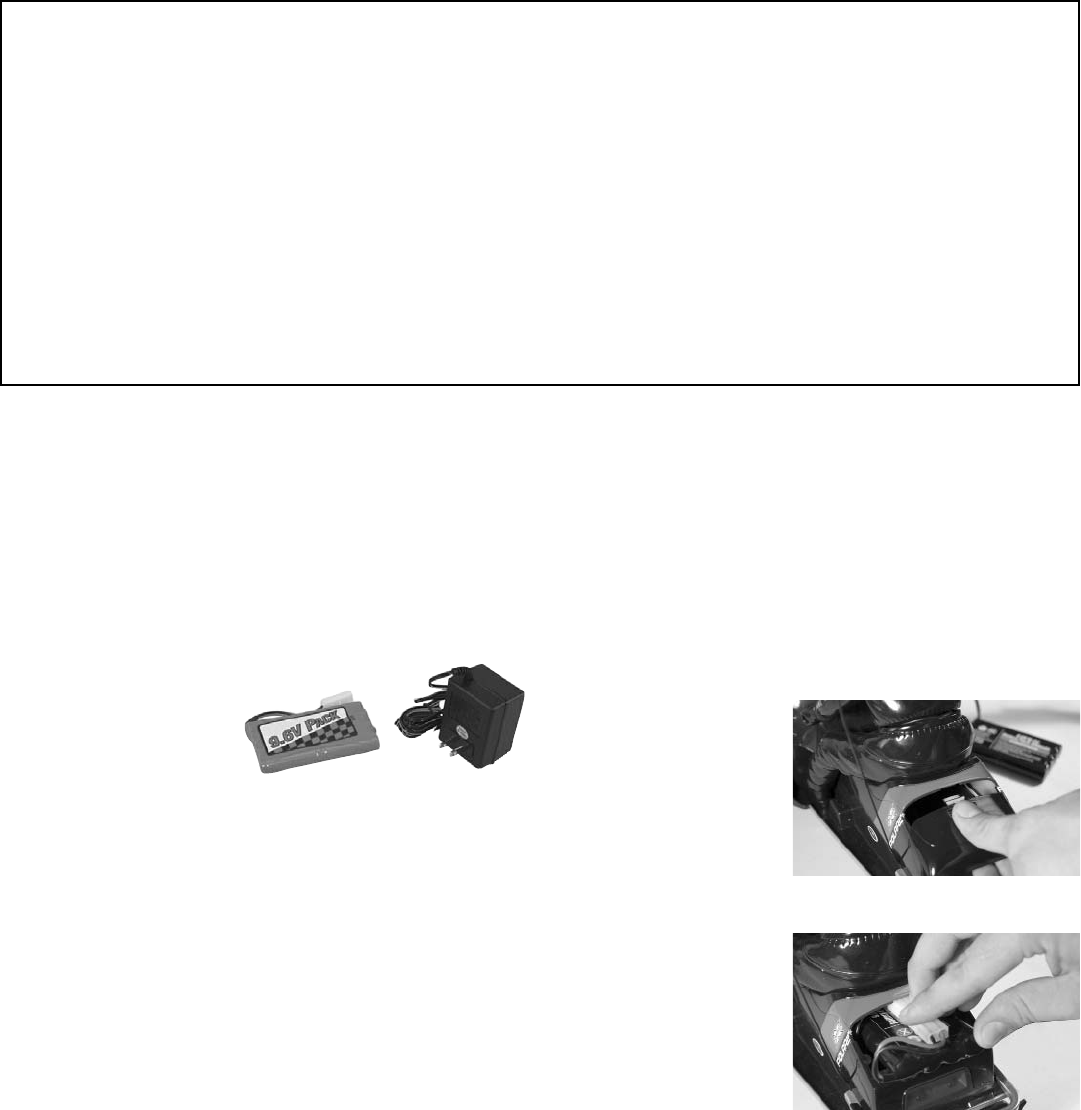

Charge the Onboard Battery Pack
1) Charge your 9.6V NiCd or NiMH battery pack. Follow the instructions included
with your AC or DC charger.
2) After each snowmobiling session, remove the battery pack from the snowmobile
and allow it to cool before recharging. Failure to do so will significantly shorten
its lifespan.
IMPORTANT Battery Information:
“*Install or replace the batteries by adult only.”
1) Never allow the battery pack to become hot during charging - this will cause
permanent damage. Warm is okay - hot is not!
2) Never leave a battery pack unattended while it is being charged.
3) Never recharge a warm or hot battery. Always allow the battery to cool to
ambient temperature.
4) Do not overcharge the battery pack by letting it charge for too long.
5) Rechargeable batteries are to be removed from toy before being charged.
6) Rechargeable batteries are to be charged only under adult supervision.
Pre-Use Preparation
1) Before turning on your transmitter, make sure that no one in the vicinity is using
a radio controlled model on the
same frequency as yourself. The
frequency of your model is shown
on the tag located on the lower
right, of your transmitter's face.
2) Open the battery compartment
located at the rear of the
snowmobile, by gently pushing
down while pulling backwards on
it.Then, gently pull the power plug partway out and plug in a freshly charged
battery (ensuring that the
plug orientations are correct).
Close the battery compartment
hatch.
3) Switch on the transmitter and
confirm that the red power LED
illuminates. Note: always switch
on the transmitter first and turn it
off last. The snowmobile should
never be on while the transmitter
is off. If it is, then the receiver may
receive stray radio signals and cause the motors to switch on and off at random
times - this can be quite dangerous.
4) Slide the sled's power switch (located under the windscreen) to the 'on' position.
5) While an assistant holds the model off the ground perform the following tests.
Note: caution your assistant to keep his or her fingers away from the drive track
and steering mechanisms.
Move the left transmitter stick forward - the track should move from front to back.
Move the left stick backward - the track should move from back to front.
Move the right transmitter stick to the right - The skis should turn to the right.
Move the right transmitter stick to the left - The skis should turn to the left.
6) Range check your transmitter - walk about 50 feet from the model and test to
see if the motors respond to your stick movements. If they do not, ensure that the
9.6V onboard battery is fully charged or put fresh batteries into the transmitter.
1INS-41011USEU-60322
Safety
The Snowmobile is a sophisticated model and should be treated as such.
Improper use could cause damage to you, bystanders and/or property. Please
follow all safety precautions and assembly instructions listed within this manual
and use common sense when operating the model! Be careful not to hit anything
with the skis to prevent damage to them and to the steering mechanism. Do not
operate it near roads, bodies of water, vehicles, 'real' snowmobiles, pets and
bystanders.
Note that the Snowmobile model is electric powered and that electricity and
water do not 'mix' well. While the snowmobile is snow-resistant, it is not
waterproof. Keep it out of wet snow, rain and away from puddles. Otherwise you
may seriously damage your machine.
Learning to Operate your R/C snowmobile
We strongly recommend that you seek the help of an experienced R/C hobbyist
to help you to learn to operate your new model.
Basic Safety Precautions
1) Do not modify the snowmobile or radio; this will void your warranty.
2) Test your snowmobile before every use and clean any packed snow out of the
drivetrain area.
3) The Snowmobile is designed to be used on packed, flat snow only. Do not
attempt to use the sled in powder or on rough and broken snow as it may fall into
ruts and holes or hit snow-boulders. Damage to your sled may result.
4) Always use your snowmobile in large open areas only. Do not operate your
model near people, cars, buildings, trees or other obstructions.
5) Ensure that the transmitter has fresh batteries and that the onboard battery
pack is fully charged before operating your model.
6) Always range-check your transmitter prior to every session.
North American
charger shown above
Site Selection and Weather
Your snowmobiling site should be a large, empty and flat area with a smooth, hard-
packed, snow-covered surface. If you try to operate your snowmobile in damp,
“packing” snow, you will find that you frequently have to clear snow out of the
drivetrain to prevent it from clogging the moving parts.
Avoid places that have many trees, buildings, people or other obstructions. Avoid
areas where other R/C models are in operation since your radio transmitter may
cause a frequency conflict with them. If this happens, both models will go out of
control. Be very careful to keep your model away from people. Though the
POLARIS®is lightweight, nevertheless it can cause injury if it hits someone.
TIP:
Snow can pack the drivetrain of your snowmobile causing a loss of performance.
To minimize this, spray some silicone spray on the drivetrain, it will help prevent
the snow from becoming packed in the belt.
Indoor Use
The Snowmobile is designed to be used outdoors on snow however we have
included a second set of skis (with built-in wheels) so you can also use your
Snowmobile indoors on carpet. Do not use the indoor skis outside, and do not use
the outdoor skis inside. Each is designed for a specific surface.
Installation of Indoor-Skis
Each ski is held to the shock strut of your snowmobile by a small Phillips-head
screw located on the ski 'swivel' mount. To change skis, simply remove this screw,
swap skis and reinstall the screw.
Operation
Move the (left) throttle stick on the transmitter forward, the Snowmobile will
move forward. To cause it to come to a stop simply release the left control stick.
To reverse, first allow the snowmobile to come to a complete stop then move the
control stick backward (toward yourself). The model will start to move in reverse.
To steer, get the sled moving, then move the right-hand stick either left or right:
the snowmobile will respond by moving either left or right (respectively). Note
that all remotely piloted vehicles exhibit control reversal, a phenomenon that takes
some getting used to and is very disorienting for beginners. See below for an
explanation.
Control Reversal
As mentioned above, all remotely controlled vehicles exhibit control reversal
when approaching the ground-based pilot. When the model is moving away from
you and you push the steering stick to the left (for instance) the model turns left.
However when the model is coming towards you and you push the steering stick
to the left, the model appears to turn to the right - this is very confusing for
students! Though the model is responding correctly, it appears to be turning in the
"wrong" direction. If you look at this from the model's perspective though
(imagine yourself in the pilot's seat), the model is in fact still turning left. You must
get used to this apparent reversal of controls so that your reactions are instinctive
regardless of the model's direction. In the beginning, it might help to turn your
back to the approaching model and look over your shoulder. Another approach to
help you to deal with this phenomenon, is to use a PC simulator-style game and
select a remote view of the model. Your virtual model will exhibit control reversal
when approaching you. Learning to control a crashable model 'onscreen' will help
to prepare you for the 'real' thing.
After Use
Switch off your sled, and then switch off your transmitter. Open the battery
compartment and remove the battery pack. Allow it to cool to room temperature.
This is very important. The battery will be quite warm after it's rapid discharge
during the snowmobiling session and if you charge it immediately, before allowing
it to cool, you will damage the battery. Check the snowmobile thoroughly for any
damage and be sure to repair anything that might need to be repaired prior to using
it again.
Replacement Parts
If you need to, you can order replacement parts directly from us. Please call
(416) 444-6873 or send email to info@interactivetoy.com
Warranty
Interactive Toy Concepts guarantees your snowmobile to be free from
manufacturing defects for a period of 90 days from date of purchase. This warranty
does not cover any modifications or parts damaged by the owner. In no case will
Interactive Toy Concepts' liability exceed the original cost of the kit. Interactive
Toy Concepts reserves the right to change this warranty without notice. Interactive
Toy Concepts assumes no liability over final assembly or for any damage resulting
from the use of this product. If the buyer is not prepared to accept liability
associated with use of the snowmobile, he/she should return it in unused condition
to the place of purchase
Battery Recycling & Disposal
It may be illegal to dispose of the rechargeable NiCd battery in your municipal
waste. Please check with local authorities. Do not try to open the battery pack!
Field Strength and measurement distance:
27MHz - 45.7 dB uV/m at 3 meter.
49MHz - 47.3 dB uV/m at 3 meter.
2INS-41011USEU-60322
FCC Note: USA only
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment. Note: This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice: Canada only
This radiocommunication device complies with all the requirements of
Industry Canada Standard RSS-310. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference
2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
INS-41011USEU-60322
3

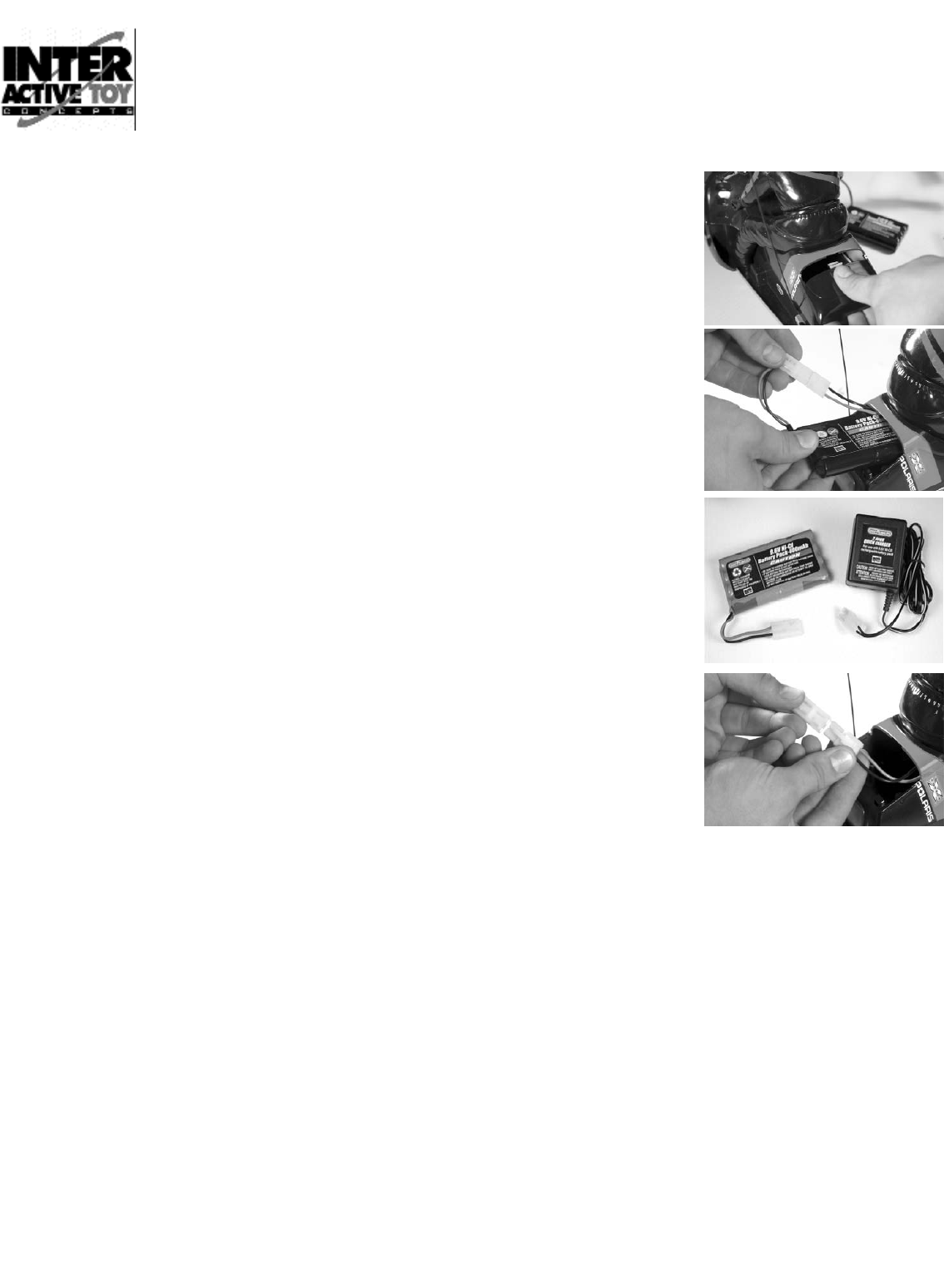

Open the Battery Compartment & Remove the Battery
1) Open the battery compartment located at the rear of the snowmobile, by gently pushing down
while pulling backwards on it.
2) Gently pull out the battery connector and the battery.
3) Unplug the battery from the snowmobile by depressing the catch located on one side of the
connector, and pulling the plug halves apart.
Charge the Battery Pack
1) After each snowmobiling session, remove the battery pack from the snowmobile and allow it to
cool before recharging. Failure to do so will significantly shorten its lifespan.
2) Connect the output plug of the charger to the input plug of the battery pack. Notice that the plugs
can only be connected in one orientation - do not force them.
Install the Battery
Installation is simply the reverse of removal.
! IMPORTANT
1) Never allow the battery pack to become hot during charging - this will cause permanent
damage. Warm is okay - hot is not!
2) Never leave a battery unattended while it is being charged.
3) Never recharge a hot battery. Always allow it to cool
4) If you use an after-market charger, never charge the battery at a rate greater than 1000 mA.
5) If the battery is not completely discharged before recharging, the charging time may be
reduced. Again, do not allow the battery to get hot!
6) The AC adapter should be examined periodically to ensure that it is undamaged. Failure to do
this may result in the risk of fire, electric shock, or injury to people. In the event that the adapter
shows signs of abuse, it should not be used until repaired by a certified technician.
Specifications
Some versions of the Snowmobile include a battery pack and charger. Specifications (subject to
change without notice) are listed below.
R/C snowmobile battery information
USA & Canada version
Charger
Input: 120 V AC, 60 Hz, 13 W
Output: 12 V DC, 300 mA
Charge Time: 4 hours
Battery
Output Voltage: 9.6 V
Capacity: 600 mAh
(North American charger shown above)
Euro version
Charger
Input: 230 V AC, 50 Hz, 14 W
Output: 12 V DC, 300 mA
Charge Time: 4 hours
Battery
Output Voltage: 9.6 V
Capacity: 600 mAh
