Congratulations on the purchase of the iFLY VAMP
iFLY VAMP is the world’s smallest radio controlled flying insect in the form of
ornithopter (flapping wings). iFLY VAMP also has patented state of the art technology
that allows it to fully resembles the true flying behavior of an insect or bird whereby
the halteres rotates to achieve stable flight and directional controls.
The iFLY VAMP offers digital proportional speed and directional control just like a
radio controlled micro airplane except that it propels itself via flapping its wings. The
body of the iFLY VAMP is made out of an ultra-light weight and flexible foam which
provides structural strength..
The iFLY VAMP measures only 12 inch wing span and 10 inch body (head to tail) and
need only one set of wings to propel itself.
Opening package and check content

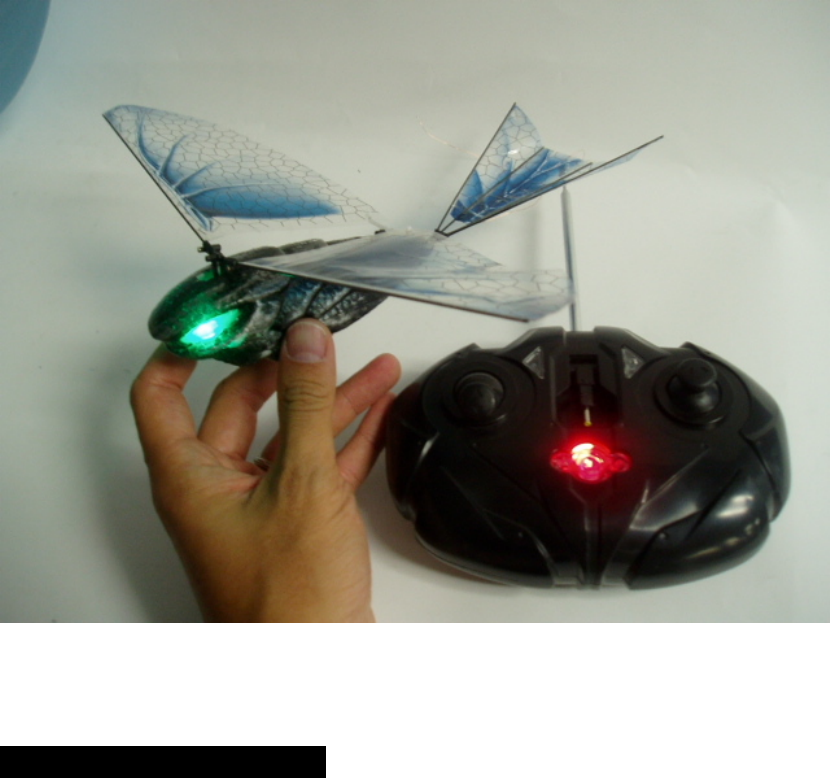

1x iFLY VAMP Flying Insect
1x Transmitter
2x Pair of Spare Wings
1x Detachable Antenna(it has a unique connector)
Batteries
The iFLY VAMP flying insect itself has a built-in rechargeable battery and the
transmitter requires 6x AA alkaline batteries (sold separately). Install the batteries as
follows.
Attention: Important battery information.
Do not mix old and new batteries, different types of batteries, standard carbon zinc, alkaline or
rechargeable of different capacities.
Rechargeable batteries are only to be charged under adult supervision
Please respect the correct polarity (-) or (+)
Do not try to recharge non-rechargeable batteries
Do no throw batteries into the fire
Replace all batteries of the same type/brand at the same time
The supply terminals are not the be short-circuited
Remove exhausted batteries from the toy
Batteries should be replaced by adults
Remove batteries if the toy is not going to be played with for some time
The packaging should be kep since it contains important information
Rechargeable batteries are to be removed from the transmitter before being charged
1. The antenna for the transmitter will need to be attached to the the transmitter.
(Note: always operate the transmitter with an antenna extended)

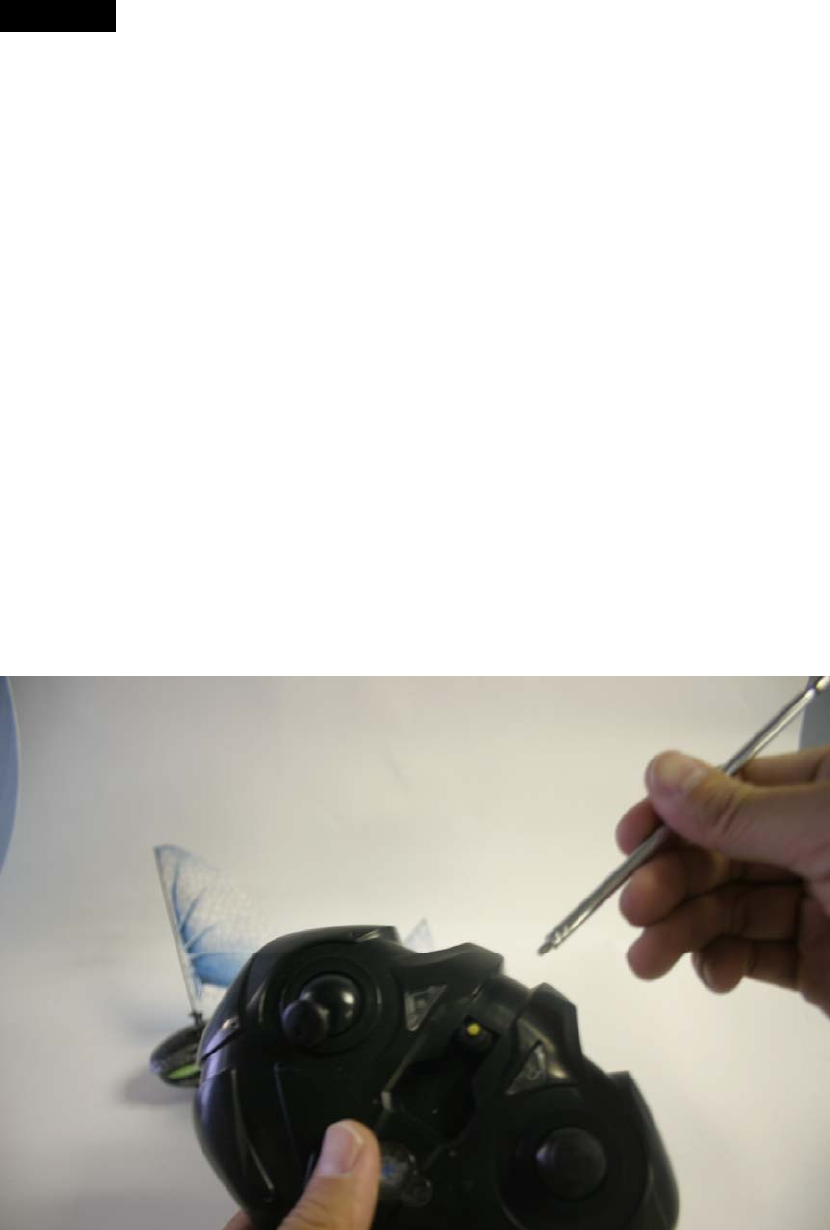

2. Open the battery compartment on the transmitter using a Phillips screwdriver (not
included) to remove the screw on the battery compartment door.

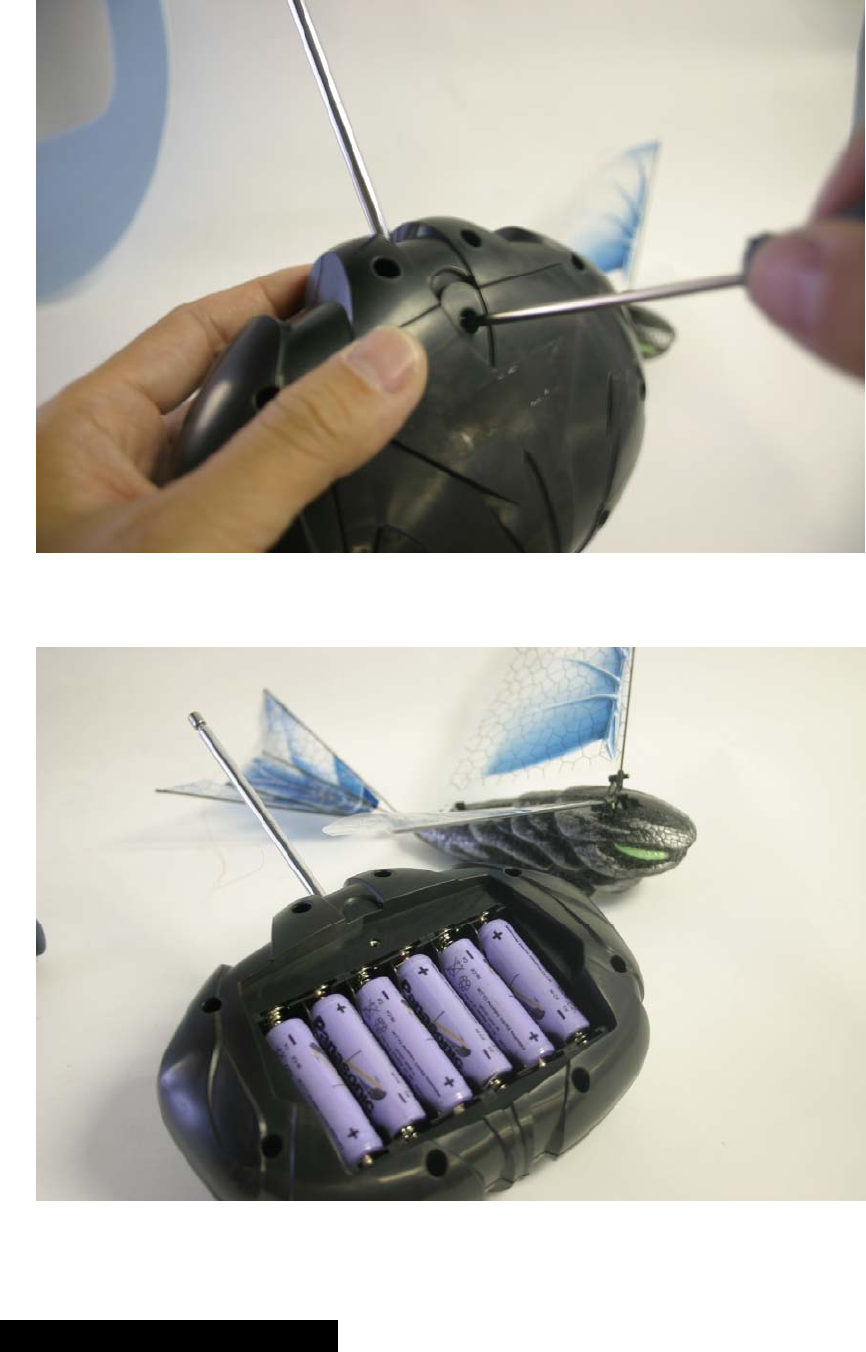

3. Insert the batteries according to the picture (as shown). Ensure that the positive
and negative polarities match the illustrations inside the battery compartment.
4. Replace the battery compartment door and replace the screw using the screwdriver.
Do not overtighten.
Charging the iFLY VAMP
Before flying the iFLY VAMP for the first time (or if you have depleted a charge on
the iFLY VAMP) you will need to recharge it. A typical charge takes about 20 minutes
and allows around 7 minutes of flying time.
Note: if the charge time begins to exceed 25 minutes, you should replace all the
batteries in the controller with fresh batteries.
To charge the iFLY VAMP

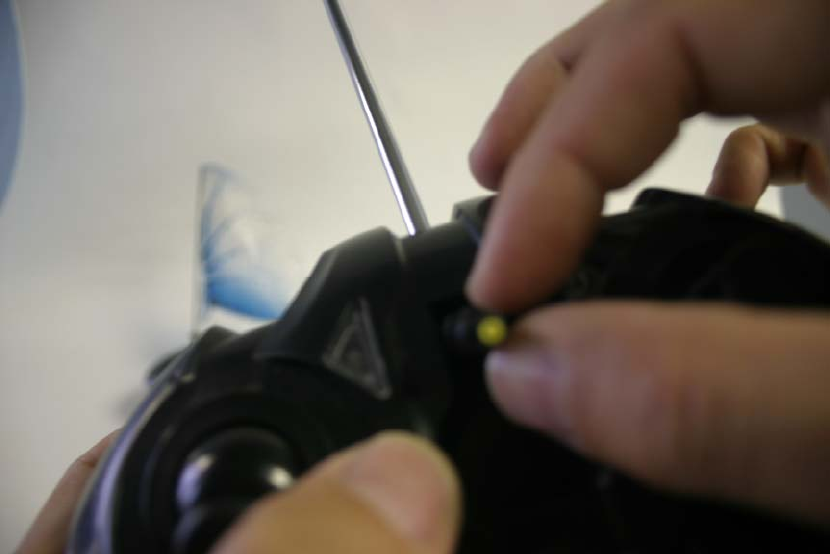

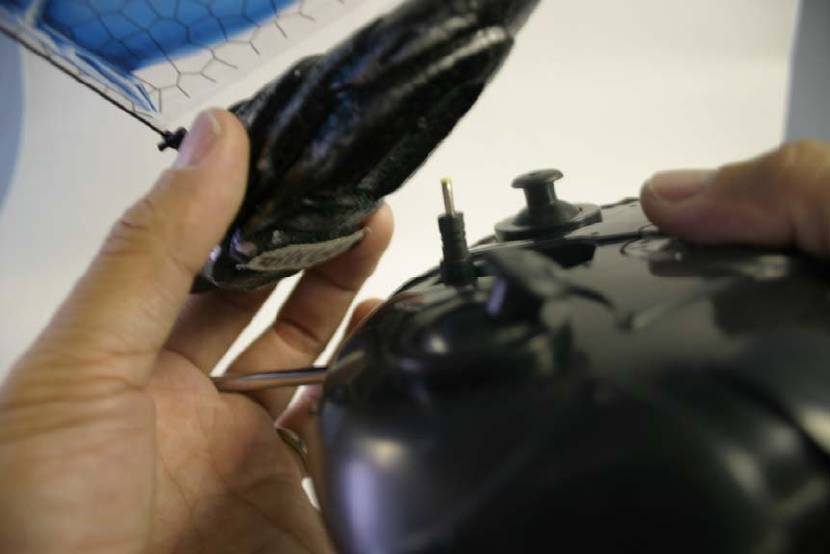

1. On the transmitter, please lift up the charging adapter on your transmitter (as
shown)
2. Ensure the charging adapter is standing upright. fom the compartment (as shown)
3. Hold the iFLY VAMP firmly by its body, and then insert the cord
into the socket at the bottom of the VAMP (as shown). Pay close attention to
where the adapter should be inserted into the socket of the VAMP
4. Once inserted, you can enabling charging mode by switching on the TX. When
charging the VAMP, the LED indicator light (green) should be ON and when the
VAMP has been charged, this LED indicator light will be switched
off.
.
Note: Make sure the iFLY VAMP is turned off before you recharge it.
Choosing your flying location
You can operate the iFLY VAMP on a calm day outdoor and indoor with a 50x50 feet
area with a ceiling height of about 20 ft.. For optimal indoor flying performance, we
recommend a minimum area of 16 feet x 16 feet (5 meters x 5 meters). For outdoor
flying, try to avoid windy areas and keep the VAMP away from rain or other harsh
conditions.
To operate the iFLY VAMP:
1. Turn the transmitter on by pressing the POWER button.
2. Extend the antenna on the transmitter to ensure there is
3. Turn the VAMP on by setting the switch on the VAMP to ON. Note: if the
controller is off, the iFLY VAMP’s eyes will blink
4. On the transmitter, push the left stick upwards to increase the speed or frequency
of the wing-flapping. The left stick(throttle) controls how high and fast the VAMP
will fly.
5. Launch the VAMP from your hand with a gentle horizontal toss while pushing the
left stick forward slowly. As the VAMP starts to flap its wing, it will have generate
some motion to thrust and to lift.
6. On the transmitter, push the right stick (directional) to the left, or push the stick to
the right to turn right. The patented technology on VAMP allows the body (alteres)
of the insect to roll (left and right) on inputs received from the right control stick.
Apply the stick control liberally and turning left and right whilst flying also means
it will need space and time to correct its flight path.
Tips and Tricks
1. The most stable flight one can obtain is to be easy on the throttle input. Sometimes
flying the VAMP requires the user to be only applying small input on the throttle
(left stick) and let go of it sometimes.
2. To gain altitude in a confined area, it is easier to start climbing in a circle then in
straight line. By pushing the throttle (left stick) and applying right stick to either
left or right in order for the VAMP to gain altitude in a small confined area
3. The VAMP can also perform gliding once it is in motion and it is good to
sometime let go of the throttle (left stick) in order for it to regain its natural
flight composure. Even real birds and insects need stops flapping sometimes
and keep gliding and save their energy.
4. Always fly the VAMP in a near calm condition if you want to fly outdoor to avoid
any wind that may overpower the VAMP itself.
Replacing Wings
You can replace the original wings on your VAMP if they become damaged. Two
spare set of wings is included in the VAMP package. To replace the wings, do the
following:
1. Make sure the transmitter and the iFLY VAMP are turned off
2. You can remove the wings by removing the rubber stoppers placed on the tethers
of the VAMP body (as shown)
3. Insert new wings on to the tethers and replaced the stoppers.
.
Replacement Parts
Item# 44009 iFly VAMP Replacement Kit
FCC NOTE:
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
i-fly Series and Vamp are registered trademarks of
Interactive Toy Concepts © 2007
All rights reserved. Manufactured by and distributed
by Interactive Toy Concepts Ltd. Conforms to Safety
Standards ASTM F963-03 Regulatory Requirements.
Products and colors may vary. MADE IN CHINA.
Web site: www.interactivetoy.com
PLEASE! DO NOT RETURN THIS
PLEASE! DO NOT RETURN THIS
PRODUCT TO ANY RETAIL STORE!
PRODUCT TO ANY RETAIL STORE!
PLEASE! DO NOT RETURN THIS
PRODUCT TO ANY RETAIL STORE!
For any questions or problems with this product please contact us at:
Email: info@interactivetoy.com
Phone: Outside North America: +1 416 444 6873
Inside North America: 1 866 214 2220
Address: Interactive Toy Concepts
1192 Martin Grove Road
Toronto, Ontario, Canada
M9W 5M9
IMPORTANT SAFETY INFORMATION
Do not modify your i-fly! Do not point the antenna directly at the plane! Do not use in strong winds, use only in
VERY mild conditions! Do not use in rain, snow or around heavy debris! Do not use near electrical lines! Do not use around
smoke or flames! Do not use around water! Do not use around electricity! Do not use in crowded areas! Do not use around
air conditioning! Do not use around air vents! Do not use around ceiling fans! Do not use around large obstacles! Do not use
in very small spaces! Do be conscious of changes in your area! Any changes or modifications to this product are strictly
prohibited and will void product warranty. Keep moving propellers away from eyes, hands, hair and loose clothing. Always turn
off your MicroFighters and transmitter when not in use. Always remove batteries from transmitter during storage. Always place
transmitter with NEW alkaline batteries for optimal performance. Keep your Pilot’s manual in a safe place for future use. Only
use the provided charger included with the MicroFighters to charge the lithium polymer battery installed in the MicroFighters.
IMPORTANT BATTERY INFORMATION
Use only batteries recommended in this instruction manual. Do not mix old and new batteries.
Battery installation should be performed by an adult. Be careful to install the batteries with the correct polarity, as indicated.
Do not use rechargeable batteries. Do not mix alkaline, standard, lithium, rechargeable, or different types of batteries.
The supply terminals are not to be short-circuited. Exhausted batteries are to be removed as they will hinder performance.
Never leave a battery unattended while it is being charged. Never leave a battery unattended in the presence of children.
i-fly charging time will increase with usage as the condition of the AA cells diminish. Battery performance may
greatly influence flight characteristics. i-fly Li-Po rechargeable battery is not replaceable.
i-fly takes 6 AA battery (not included).
FCC NOTE: U.S. ONLY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may
not cause harmful interference. 2) This device must accept any interference received including interference that may cause
undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are designed to provide
reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try and correct the interference by one or more of the following measures: - Reorient or relocate the
receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment to an outlet on a
circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help.
Limited 30-day warranty
This product is warranted by Interactive Toy Ltd. against manufacturing defects in material and workmanship
under normal use for thirty (30) days from the date of purchase. Please retain proof of purchase.
This radiocommunication device complies with all the requirements of Industry Canada Standard RSS-310.
Operation is subject to the following two conditions: 1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Field Strength and measurement distance: 27.145MHz –
54.95 dBμV/m
at 3 meters. 49.860MHz - 63.86 dB
μ
V/m at 3 meters.
Industry Canada Notice: Canada only.
Lithium Polymer
Rechargeable Batteries
must be recycled or
disposed of properly.
IM-44005-70125-US
