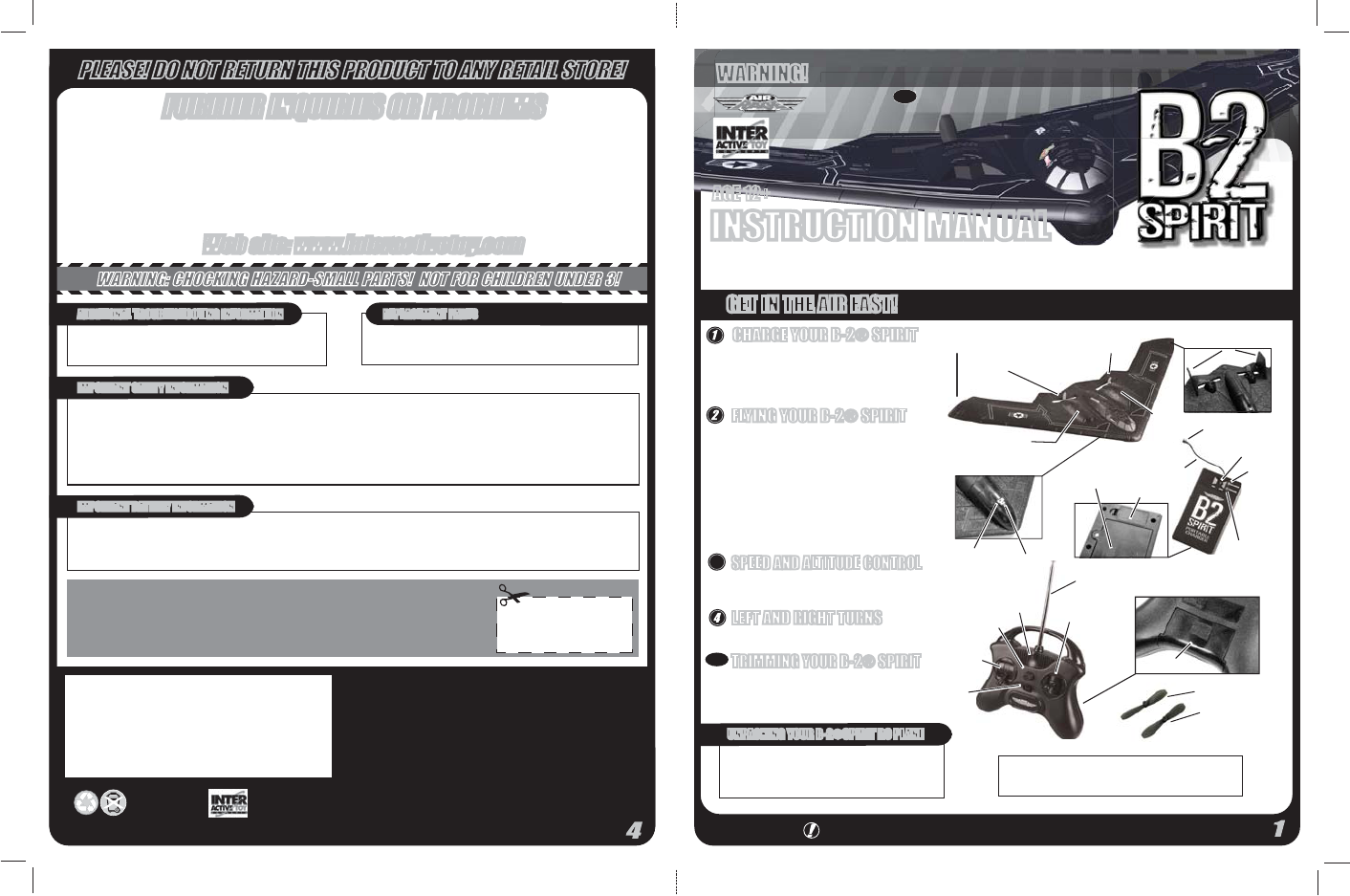

Interactive Toy Concepts 44070TX27 RC PLANE User Manual INS 44070 101215 US cover back
Interactive Toy Concepts Limited RC PLANE INS 44070 101215 US cover back
Users Manual
Congratulations on the purchase of your new B-2® Spirit Bomber RC Plane from Interactive Toy Concepts! The B-2® Spirit is the world’s premier bomber.
It is the only
bomber capable of carrying large air-to-surface standoff weapons while under stealth configuration. Your RC version of the B-2® Spirit is designed for easy flight
with a short learning curve! The B-2® Spirit RC plane is available in two frequencies, 27MHz and 49MHz. Before taking to the
air with your new B-2® Spirit RC
plane from Interactive Toy Concepts, please read through the instructions outlined in this manual.
Before flying, you will need to charge your plane.
Turn off your plane and the charger. Plug in the
charger (with 4 C-size batteries) into the bottom
of your plane and turn it on. Charging will start
immediately. Let your plane charge until the green
light on the charger goes out. It will take 30 to 60 minutes.
To increase speed and altitude as desired, add more
throttle with the left stick. To slow down and land,
gently reduce the throttle input with the left stick.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE!
INSTRUCTION MANUAL
INSTRUCTION MANUAL
AGE 12+
AGE 12+
The B-2® Spirit RC plane is a delicate machine. Before removing it from the packaging please read the instructions.
Even experienced pilots should read the full contents of this manual carefully to get the most out of the flying experience.
WARNING!
WARNING!
CHARGE YOUR B-2® SPIRIT
CHARGE YOUR B-2® SPIRIT
Once fully charged your plane will be ready to fly
outdoors in a safe grassy area with very moderate
conditions or a gentle breeze. Make sure your
controller has the antenna screwed in and fully
extended, and the 9-Volt battery correctly installed.
Turn on your plane and the controller. Hold the plane
firmly in one hand, and move the left stick all the way
up and down to initialize the throttle control. Move
the left stick (throttle) up and down again to make
sure that both propellers are working. Once you
are sure that the plane is working correctly, move
the left stick up to the maximum position and gently
toss the plane into the wind. Way to go! You are now flying!
FLYING YOUR B-2® SPIRIT
FLYING YOUR B-2® SPIRIT
SPEED AND ALTITUDE CONTROL
SPEED AND ALTITUDE CONTROL
To turn left and right, move the right stick from
sideways left or right.
LEFT AND RIGHT TURNS
LEFT AND RIGHT TURNS
If you find that your plane is veering to the left or to the
right without any steering inputs, you can compensate
for this by rotating the trim knob to the left or right
as needed.
TRIMMING YOUR B-2® SPIRIT
TRIMMING YOUR B-2® SPIRIT
INS-44070-101215-US
®
TM
S
p
irit is the world’s
p
remier bombe
r.
I
t
i
s t
h
e on
ly
o
s
t
ou
t
o
f
th
e
fl
y
i
ng exper
i
ence
.
®
COMPLETE PACKAGE CONTENTS AND COMPONENT BREAKDOWN:
1) 1 x B-2® Spirit plane
2) 1 x Portable Charger
3) 1 x Controller with detachable antenna
4) 1 x Instruction Manual
5) 1 pair x Extra Propellers
To prevent damage during shipping the B-2® Spirit is securely fastened
in the package. Please ensure that all of the fastening locations are
released before attempting to remove the B-2® Spirit. Be very careful
when removing the B-2® Spirit to prevent damaging it. While it is a state
of the art precision instrument, it is also a delicate device.
UNPACKING YOUR B-2®SPIRIT RC PLANE
UNPACKING YOUR B-2®SPIRIT RC PLANE
ADDITIONAL TROUBLESHOOTING INFORMATION
ADDITIONAL TROUBLESHOOTING INFORMATION
If your particular issue is not covered by any of the preceding
troubleshooting tips, you will find the most up-to-date solutions
at
www.interactivetoy.com.
REPLACEMENT PARTS
REPLACEMENT PARTS
To order replacement parts directly from Interactive Toy Concepts, Ltd.,
visit www.interactivetoy.com; click on the Customer Support Tab;
click on Order Parts on-line.
Do not modify your B-2® Spirit RC plane! Any changes or modifications to this product are strictly prohibited and will void product warranty. Do not attempt to charge the B-2® Spirit RC plane from any other source other than the charger
provided to charge the lithium polymer battery or you will void the warranty! Any attempts at charging other products with the charger are strictly prohibited and will void the warranty! The lithium polymer battery is permanently built-in to the
B-2® Spirit RC plane. Any attempts to tamper with or remove the lithium polymer battery inside the B-2® Spirit RC plane is strictly prohibited and will void the warranty. Do not point the controller’s antenna directly at the plane! Use the
B-2® Spirit RC plane outdoors only. Do not use in strong winds, use only in VERY mild conditions! Do not use in rain, snow or around heavy debris! Do not use near electrical lines or high voltage wires or other sources of electricity!
Do not use around smoke or flames! Do not use around water and other liquids! Do not use in crowded areas! Do not use around air conditioning or air vents! Do not use around large obstacles! Do not use in very small outdoor spaces!
Do be conscious of changes in your area! Keep spinning propellers away from eyes, hands, hair and loose clothing. Always turn off your B-2® Spirit RC plane, controller, and charger when not in use. Always remove the batteries from the
controller and charger during storage. Always use new and fresh Alkaline Batteries in the controller and charger for optimal performance. Battery performance will greatly influence flight characteristics. Keep your B-2® Spirit RC plane
instruction manual in a safe place for future reference. We reserve the right to make improvements to the design of the plane. Thus, your aircraft and charger may vary slightly from that depicted in the photographs in this manual or the
packaging. Parental supervision required.
IMPORTANT SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
Limited 30-day Warranty
Product is warranted by Interactive toy Concepts, Ltd. against manufacturing defects in
material and workmanship under normal use for thirty (30) days from the date of purchase.
Warranty is validated upon receipt of proof of purchase
and confirmation of UPC code.
Manufactured under license from Northrop Grumman Systems Corporation. B-2® is a registered trademark of Northrop Grumman Corporation. Manufactured by and distributed by
Interactive Toy Concepts Ltd. Conforms to Safety Standards ASTM F963 Regulatory Requirements. Products and colors may vary. MADE IN CHINA.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference. 2) This device must accept any
interference received including interference that may cause undesired operation. Warning: Changes
or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment. The manufacturer is not responsible for any radio
or TV interference caused by unauthorized modifications to this equipment. Such modifications could
void the user’s authority to operate the equipment. Note: This equipment has been tested and found
to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
Limits are designed to provide reasonable protection against harmful interference in a residential
installation. This generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try and correct the interference by one
or more of the following measures: - Reorient or relocate the receiving antenna - Increase the
separation between the equipment and receiver - Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV
technician for help.
(Bottom View)
Charge Cable Door
D
oo
r
Power On
LED
Charge
Status
Indicator
On / Off
Switch
Charge
Cable
Charge
Nozzle
Battery Door
Right Propeller
Right Motor
Left Propeller
(Top View)
Power On
LED
Trim Knob
Left Stick
(Throttle)
Right Stick
(Left or Right Turn)
Antenna
5) One pair of Extra Propellers
2) Portable Charger
3) Controller with
detachable antenna
1) B-2® Spirit plane
(Bottom View)
(Bottom View)
Left Propeller
On / Off
Switch Charge Jack
Right Propeller
On / Off
Switch
5
)
O
ne
(Bottom View)
Battery Door
Main Wings
and Fuselage
Left Motor
Vertical Stablizer x 2
FURTHER INQUIRIES OR PROBLEMS
FURTHER INQUIRIES OR PROBLEMS
Web site: www.interactivetoy.com
Web site: www.interactivetoy.com
For further inquires please contact us
via email at info@interactivetoy.com
or via telephone, toll-free inside North America 1-866-214-2220
or outside North America (416)-444-6873 ext 220
Our mailing address is
Interactive Toy Concepts, Ltd., 17 Vulcan Street, Toronto, Ontario, Canada, M9W 1L3
Proof of Purchase
FCC NOTE: U.S. ONLY
INDUSTRY CANADA NOTICE: CANADA ONLY
This radiocommunication device complies with all the requirements of Industry Canada
Standard RSS-310. Operation is subject to the following two conditions:
1) This device may not cause harmful interference. 2) This device must accept any
interference received, including interference that may cause undesired operation.
Field Strength and measurement distance: 27.145MHz – 61.35 dBμV/m at 3 meter.
49.860MHz - 59.00 dBμV/m at 3 meter.
IMPORTANT BATTERY INFORMATION
IMPORTANT BATTERY INFORMATION
Use only batteries recommended in this instruction manual. Do not mix old and new batteries. Do not mix alkaline, standard, lithium, rechargeable, or different types of batteries. Do not use rechargeable batteries. Be careful to install the
batteries with the correct polarity, as indicated. Battery should be replaced by adults. Rechargeable batteries are only to be charged under adult supervision. Never leave a battery unattended while it is being charged. Never leave a battery
unattended in the presence of children. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Do not throw batteries into the fire. Exhausted batteries are to be
removed from the toy. The supply terminals are not to be short-circuited. B-2® Spirit RC Plane charging time will increase with usage as the condition of the C cells diminish. The B-2® Spirit RC Plane set takes one 9V battery and 4 “C-size”
batteries (not included).
PLEASE! DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE!
PLEASE! DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE!
Tip!
3
Tip!
Look for these symbols for extra help!
To fly your new B-2® Spirit RC plane just follow these basic quick start instructions. A more in-
depth explanation of your B-2® Spirit’s operation is included elsewhere in this manual.
GET IN THE AIR FAST!
GET IN THE AIR FAST!
WARNING: CHOCKING HAZARD-SMALL PARTS! NOT FOR CHILDREN UNDER 3!
WARNING: CHOCKING HAZARD-SMALL PARTS! NOT FOR CHILDREN UNDER 3!
Lithium Polymer
Rechargeable Batteries
must be recycled or
disposed of properly.
