Instruction Manual
Congratulations on the purchase of your RC Sportsman 800 All Terrain
Vehicle (ATV) manufactured by Interactive Toy Concepts Inc under license
with POLARIS INDUSTRIES . This Polaris Sportsman 800 runs on grass, dirt,
snow, gravel, sand, pavement and carpet. It’s a durable go anywhere ATV
just like the real thing! It also has a switchable gearbox offering high torque or
high speed. It features realistic rubber tires, offroad tracks and working
lights and driving figure. It’s ready to run out of the box, includes one 7.2V
battery and charger. This package requires one 9V battery (not included) for
the transmitter.
<We need a picture here showing everything in the box and notations to
describe what is what
Unpacking and contents
To prevent damage during shipping, the ATV is securely fastened in the
package. Please ensure that all the tie down and fastening locations are
unfastened before attempting to remove the snowmobile.
The Sportsman ATV --Æ
Radio Transmitter and Antenna -Æ
Battery and Charger -Æ
Windshield -Æ
Tracks -Æ
Cargo Box -Æ
Instruction Manuals Æ
Wheel Wrench -Æ
Operating Instruction
Battery Pack Care and Cautions:
Use only a fresh battery and battery pack of the required size and type.
If you do not plan to use the vehicle for several days, remove the battery from
the transmitter and the battery pack from the vehicle.
Do not mix old and new batteries. Do not mix the different type of batteries -
alkaline, standard (carbon zinc), or rechargeable (Nickel Cadium) or Ni-Mh
(Nickel Metal Hydride)
Never leave dead or weak batteries in the vehicle
Dispose of old batteries promptly and properly; do not bury or burn them.
Do not charge non-rechargeable batteries
Insert batteries with the correct polarity
Do not short the supply terminals
Remove rechargeable batteries from the toy before being charged
Keep the package and this instruction manual since it contains important
information
Never allow the battery pack to become hot during charging - this will cause
permanent damage. Warm is okay - hot is not!
-Never leave a battery unattended while it is being charged.
-Never recharge a hot battery. Always allow it to cool before recharge.
-If the battery is not completely discharged before recharging, the charging
time may be reduced. Again, do not allow the battery to get hot!
-The AC adapter should be examined periodically to ensure that it is
undamaged. Failure to do this may result in the risk of fire, electric shock, or
injury to people. In the event that the adapter shows signs of abuse, it should
not be used until repaired by a certified technician.
-Install or replace the batteries by adult only.
- Do not overcharge the battery pack by letting it charge for too long.
-Rechargeable batteries are to be charged only under adult supervision.
Battery Installation for the Transmitter:

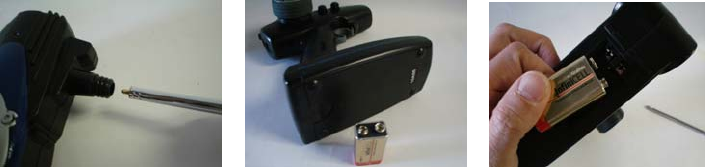

The transmitter comes with a telescopic antenna, please insert the antenna to
the top portion of the transmitter. The Transmitter requires one 9-Volt battery
(available separately). For the best performance and longest life, we
recommend an alkaline battery. Follow these steps to install the battery in the
transmitter.
1. Remove battery compartment cover by sliding it in the direction of the
arrow shown on the compartment cover.
2. Place the battery in the compartment according to the polarity symbols (+
and -) marked inside.
3. Replace the cover and snap it shut. When the transmitter range decreases,
replace battery
Battery for SPORTSMAN 800 ATV

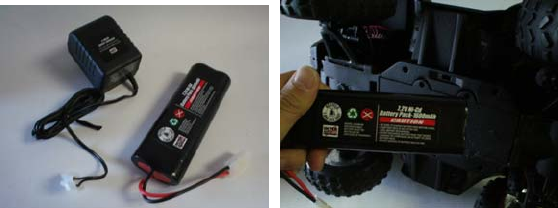

Your SPORTSMAN 800 ATV requires a 7.2 volt rechargeable batter pack
(included). You must charge the battery pack with a battery charger before
you can use it to power your SPORTSMAN 800 ATV. To charge it, connect the
charger and battery first, then connect the charger to the nearest wall socket
giving AC 110-120V. The first charge cycle of this battery should be at least 4
hours. Once it is charged, the battery should feel luke warm. Then follow
these steps to put the battery pack in the SPORTSMAN 800 ATV.
Battery Charger Instructions:
CHARGER MUST BE OPERATED BY ADULTS ONLY.
Note: To remove, grasp the battery pack’s and the vehicle’s connectors,
press and hold down the latch on the vehicle’s power connector, then pull the
power connectors apart to disconnect them.
Plug charger into a standard household outlet (110/120Volt)
Join together the plug from the battery to the receptacle plug attached to the
charger wires. Be sure to get a firm fit by having the ridge snap into place
with the clip.
Allow the battery to charge for 4 hours for a complete and full charge.
Additional charging will not improve your battery’s output,and could
eventually damage the battery. Do not charge a battery if you notice it leaking
or see corrosion n any party of the battery.
A characteristic of Ni-Cd batteries is a loss of power quickly. A spare battery
is therefore recommended for longer play, and happier operators.
If the battery is hot after operation please wait until it is cool before
recharging. Attempting to recharge a battery in this condition can reduce the
life of the battery and may cause damage later.
The rechargeable battery must be charged with the provided battery charger.
The battery charger is not a toy. Dispose of old batteries properly. The battery
charger is to be regularly examined for damage to the cord, plug enclosure
and other parts, in the event of such damage. the rechargeable batteries must
not be used with this battery charger until the damage has been repaired.

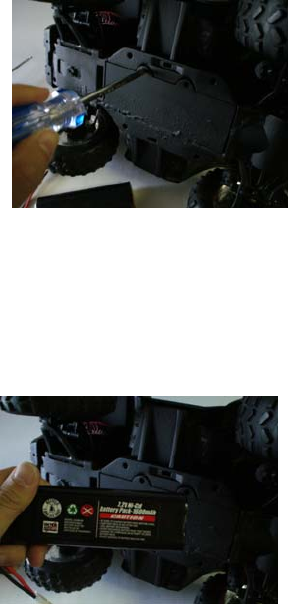

2. Unscrew with a Philips head screwdriver & Lift the cover and place the
battery pack in the compartment.
3. Attach the battery pack’s white plastic connector to the vehicle’s matching
connector. Do not force them together, they fit only one way. Close the cover
and and tighten the screws on the battery holder to avoid losing the battery
and cover during use.
Controlling the SPORTSMAN 800 ATV
Once you have installed the 7.2V battery to the SPORTSMAN 800 ATV, please
find the ON/OFF switch at the bottom of the SPORTSMAN 800 ATV. Switch
in to ON position only when you have switch on the radio transmitter. (Note:
Turn on the Radio Transmitter now)
The SPORTSMAN 800 ATV have digital proportional steering which is
analogous to hobby level radio control vehicles and offers steering trims. The
controller has a throttle trigger that allows users to control the speed of the
SPORTSMAN 800 ATV while driving. The steering wheel allows users to
steer just like a real steering wheel.
Once you have mastered the basic functionality of the SPORTSMAN 800 ATV,
drive the SPORTSMAN 800 ATV slowly and adjust the trims so that the
SPORTSMAN 800 ATV can track straight.
Thread the antenna into the transmitter’s antenna connector. Make sure the
connection is tight. Place the rider on the SPORTSMAN 800 ATV. Slide his
hands onto the handles and his feet onto the footrests
Changing the Speed and Torque of the SPORTSMAN 800 ATV
The SPORTSMAN 800 ATV comes with a switchable gearbox where by you
can use the Torque setting for steep climb and maneuver and when using
the ATV Tracks. You can use the Speed setting for the SPORTSMAN 800 ATV
to achieve maximum efficiency when speeding. This switch for Torque or
Speed can be found at the back of the SPORTSMAN 800 ATV
Hints
When a vehicle is traveling away from you, when you are steering left, the
vehicle will go left and vice versa. However, when a vehicle is traveling
towards you, the steering will be opposite. This do
When the SPORTSMAN 800 ATV slows down, it means the battery in the
SPORTSMAN 800 ATV is close to its empty capacity. Then it should be left to
cool down before recharging.
If the SPORTSMAN 800 ATV for whatever reason veer to the left and right
without any steering input, you can correct it easily by adjusting the digital
radio trims by pressing the left and right buttons. Always test this on a flat
surface.

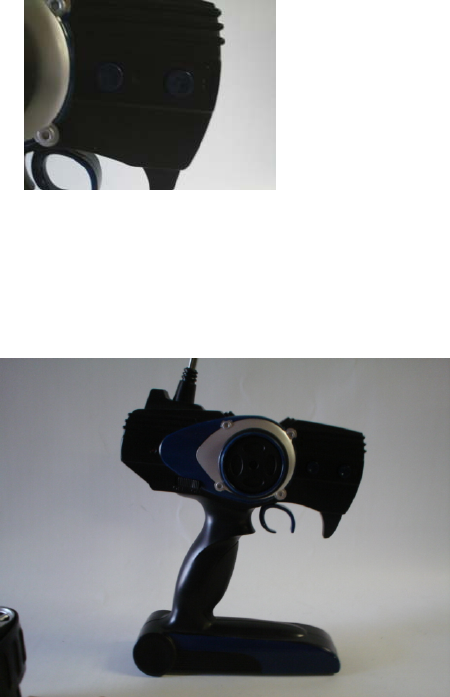

Digital trim on transmitter

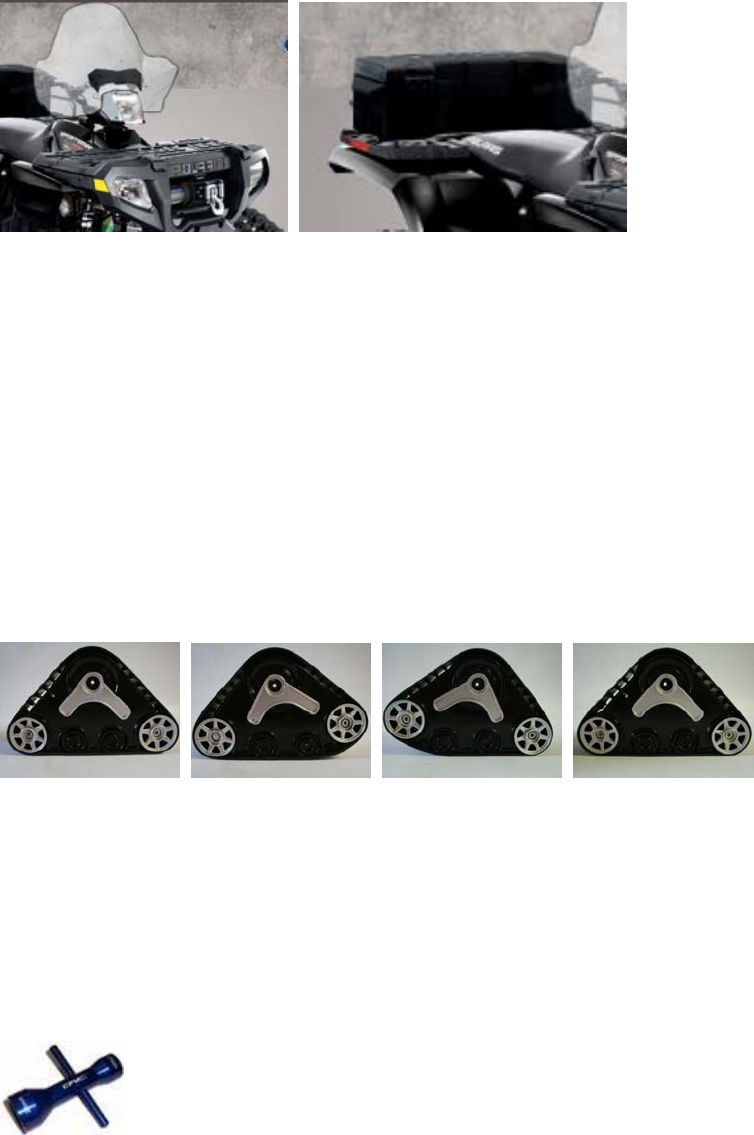

ATV Tracks and Accessories from Polaris
Our SPORTSMAN 800 ATV comes with tracks, windshields and cargo box as
accessories.
While the cargo box and windshield provides for a very authentic look for the
SPORTSMAN 800 ATV, the ATV Tracks is functional and provide an
alternative drive system to the wheels.
This SPORTSMAN 800 ATV replica provides power from the REAR wheels
and therefore only the rear set of ATV Tracks should be placed on the rear.
(Note: please note that the rear tracks are flat)
Be careful to check the orientation of the tracks.
Right Rear Right Front Left Front Left Rear
Warning: The ATV Tracks will only work if the corners are not matched and
installed to their intended positions. The wheels and tires of the
SPORTSMAN 800 ATV can be removed and replaced by the ATV Tracks by
unscrewing with the included wheel wrench.

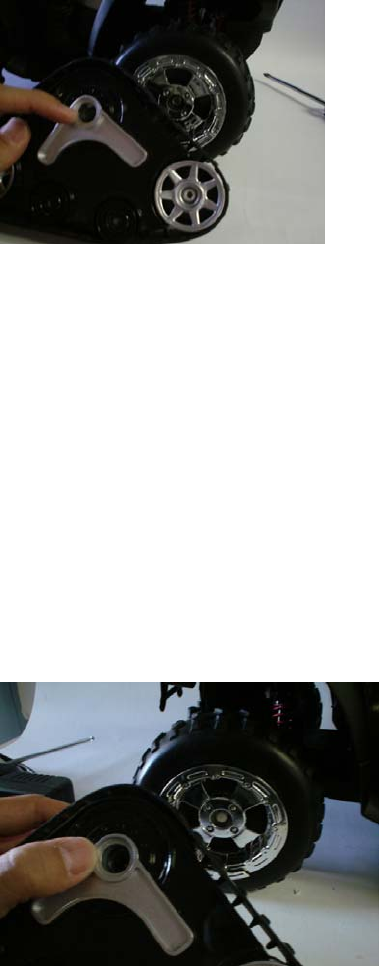

To install the ATV Tracks, align the
Maintenance of Vehicle
The SPORTSMAN 800 ATV is a motorized R/C vehicle and as such, it
requires some general maintenance to keep it in an optimum running
condition. Dust away excessive dirt or mud to avoid and do not submerge
your SPORTSMAN 800 ATV into water, it is after all an electronic toy replica
of the real SPORTSMAN 800 ATV. Running on wet or shallow water for a
short period of time is acceptable and ensure that you put the SPORTSMAN
800 ATV in a dry place after use.
-----------------------
LAST PAGE
Customer Service page similar to ARTIC CAT. Need to edit the
name/change.
This section should be the same as our regular contact
1-800 Blah Blah here
Warranty Information
30 Day warranty
WARNING: Although the vehicle is designed just like the original ATV, it is
manufactured with delicate radio control electronics and should avoid
running in water or wet condition. Doing so will risk damaging the ATV
electronic system.
