Video Surveillance
interlogix.com/truvision
IP Stainless Steel
PTZ Camera
2MPx Resolution with 23X Optical Zoom
Video
• 2MPx resolution
• 960H Analog BNC output
• H.264 compression technology
• Triple streaming
• ONVIF® Profile (S) (G) / PSIA / GCGI
Video Enhancement
• Wide Dynamic Range (WDR)
• True day/night functionality
• Enhanced Super Low Light Performance
PTZ
• 23X optical (16X digital)
• 360° endless rotation
• -20° to 90° tilt range
• Pan preset speed of 540°/s and tilt preset speed of 400°/s
• Auto flip image
Intelligence
• Motion detection, intelligent tracking, privacy mask (24 zones),
face detection, intrusion detection, cross line detection, region
entrance/exit detection, audio exception detection
• 7 alarm inputs and 2 relay outputs
Environmental and Warranty
• Stainless steel weather resistant construction for marine and
industrial type environments
• IP67 environmental rating and IK10 vandal rating
• Stainless steel junction box included with the PTZ
• 3 year warranty
STANDARD FEATURES
The TruVision® IP Stainless Steel 23X PTZ camera from
Interlogix delivers the benefits of a PTZ solution while offering
high definition image capture. Due to its corrosion resistant
stainless steel housing, junction box and mounts, IP67 rating
and advanced technology, this PTZ camera can be installed in
a wide range of applications and environmental conditions.
With advanced features, such as True Day/Night surveillance
and Wide Dynamic Range (WDR) imaging, these cameras
provide optimal image quality in a variety of indoor or outdoor
environments.
The IP Stainless Steel PTZ camera is available in a wall/pendant
mount form factor. This camera is fully programmable, with up to
300 presets along with 8 patrol tours (32 presets per tour).
A 24-zone privacy mask feature allows these cameras to block
out sensitive areas or restricted areas. In addition, the variety
of intelligence features adds substantial value and enhanced
performance to any video system.
OVERVIEW

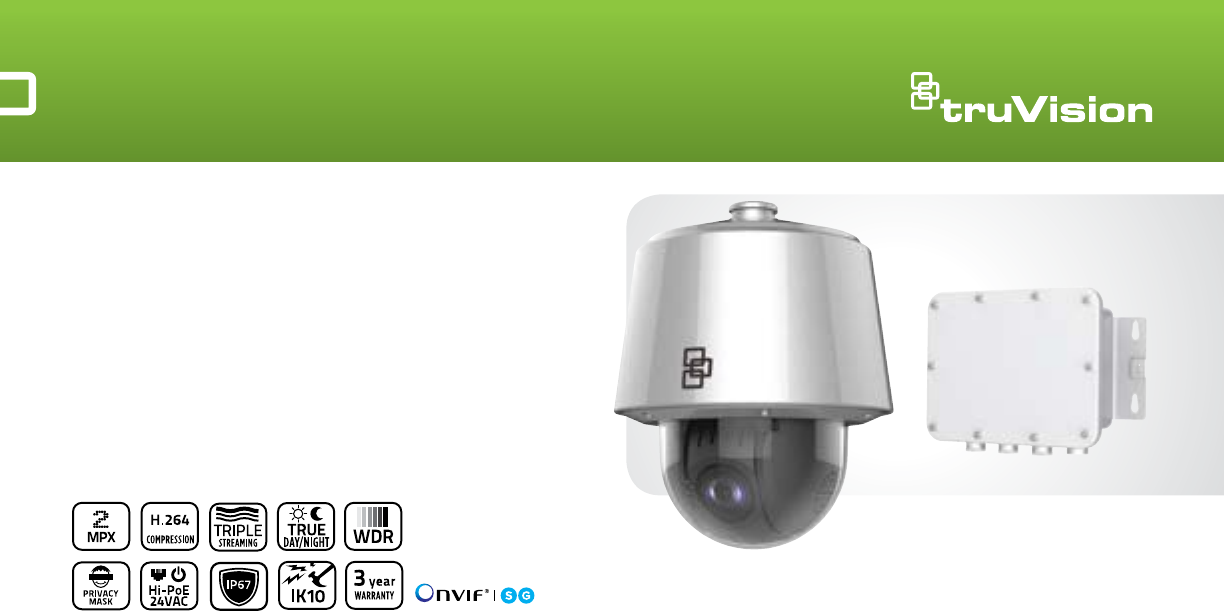

IP Stainless Steel
PTZ Camera
2MPx Resolution with 23X Optical Zoom
Ordering Information
TVP-5201
TruVision® 2MPx, Stainless Steel PTZ, 23X Optical
Zoom, Pendant/Wall Mount, Super Low Light,
True D/N, WDR, H.264, Alarm, Audio, Micro SD/
SDHC/SDXC Slot, Hi-PoE (Max. 60W)/24VAC,
IP67, IK10, Junction Box
Stainless Steel PTZ Junction Box is included with the PTZ.
Accessories
TVP-WBS TruVision PTZ Wall Mount, Stainless Steel
TVP-PAS TruVision PTZ Pendant Mount, Stainless Steel
interlogix.com
Specifications subject to change without notice.
© 2018 United Technologies Corporation.
All rights reserved.
All trademarks are the property of their respective owners.
Interlogix is part of UTC Climate, Controls & Security,
a unit of United Technologies Corporation.
2018/06 (GSP-2697)
Specifications
PART NO. TVP-5201
Camera
Sensor 1/1.9" Progressive Scan CMOS
Resolution 2MPx
Effective Pixels 1920 x 1080
Maximum Resolution (@ FPS) 1920 x 1080 @ 60fps; 1920 x 1080 @ 50fps
Maximum Real-Time Resolution 1920 x 1080
Multiple Streaming Triple Stream
Main Stream
30Hz: 60fps (1920 x 1080, 1280 x 960, 1208 x 720)
25Hz: 50fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
60Hz: 30fps (704 x 480, 352 x 240, 176 x 120)
50Hz: 25fps (704 x 576, 352 x 288, 176 x 144)
3rd Stream
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 352 x 240, 176 x 120)
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 352 x 288, 176 x 144)
Day/Night
True D/N IR cut filter
Wide Dynamic Range WDR (120 dB)
Digital Noise Reduction 3D-NR
Digital S/N Ratio >55 dB (AGC Off)
Compression/Standard
Main stream: H.264
Sub stream: H.264 / MJPEG
Third stream: H.264
Electronic Shutter 1 s to 1/30,000 s
Minimum Illumination Color: 0.002 lux @ (f1.5, AGC On)
B&W: 0.0002 lux @ (f1.5, AGC On)
IR Range NA
IR Wavelength NA
Lens 5.9 to 135.7mm @ f1.5 to f3.4
Zoom Range 23X (Optical), 16X (Digital)
Pan Range and Speed Range: 360° endless; Manual Speed: 0.1° to 300°/sec;
Preset Speed: 540°/sec
Tilt Range and Speed Range: -20° to 90°; Manual Speed: 0.1° to 240°/sec;
Preset Speed: 400°/sec
Image Flip Auto Flip
Video Output 960H Analog
Presets 300
Patrol 8 patrols, up to 32 presets per patrol
Privacy Mask 24 zones
Network
Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,
PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Ethernet/IP 802.1x, Qos, IPv4 / IPv6
Local
Storage
Media Micro SD/SDHC/SDXC slot (card not included)
Capacity Up to 128GB
Alarms & Audio
Intelligence
Face detection, Intrusion detection, Cross line detection, Audio exception
detection, Region entrance detection, Region exiting detection,
Intelligent tracking, Defog, EIS (Electronic Image Stabilization)
I/O 7 inputs / 2 outputs
Audio 1 Mic in / Line in interface, 1 Audio output interface
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722/PCM
Interoper-
ability
Standard ONVIF® (Profile S, Profile G), PSIA, CGI, ISAPI
Electrical &
Mechanical
Voltage Input 24VAC
PoE Hi-PoE
Current Max. 3.7A
Power Consumption 60W
Dimensions 10.3 x 13 in. (262 × 330mm)
Weight 22 lbs. (10kg)
Environ-
mental
Operating Temperature -40°F to 149°F (-40° to 65°C), Humidity 95% or less (non-condensing)
Environmental Rating IP67
Vandal Rating IK10
Regulatory
Certification FCC, CE, UL, WEEE, RoHS, REACH

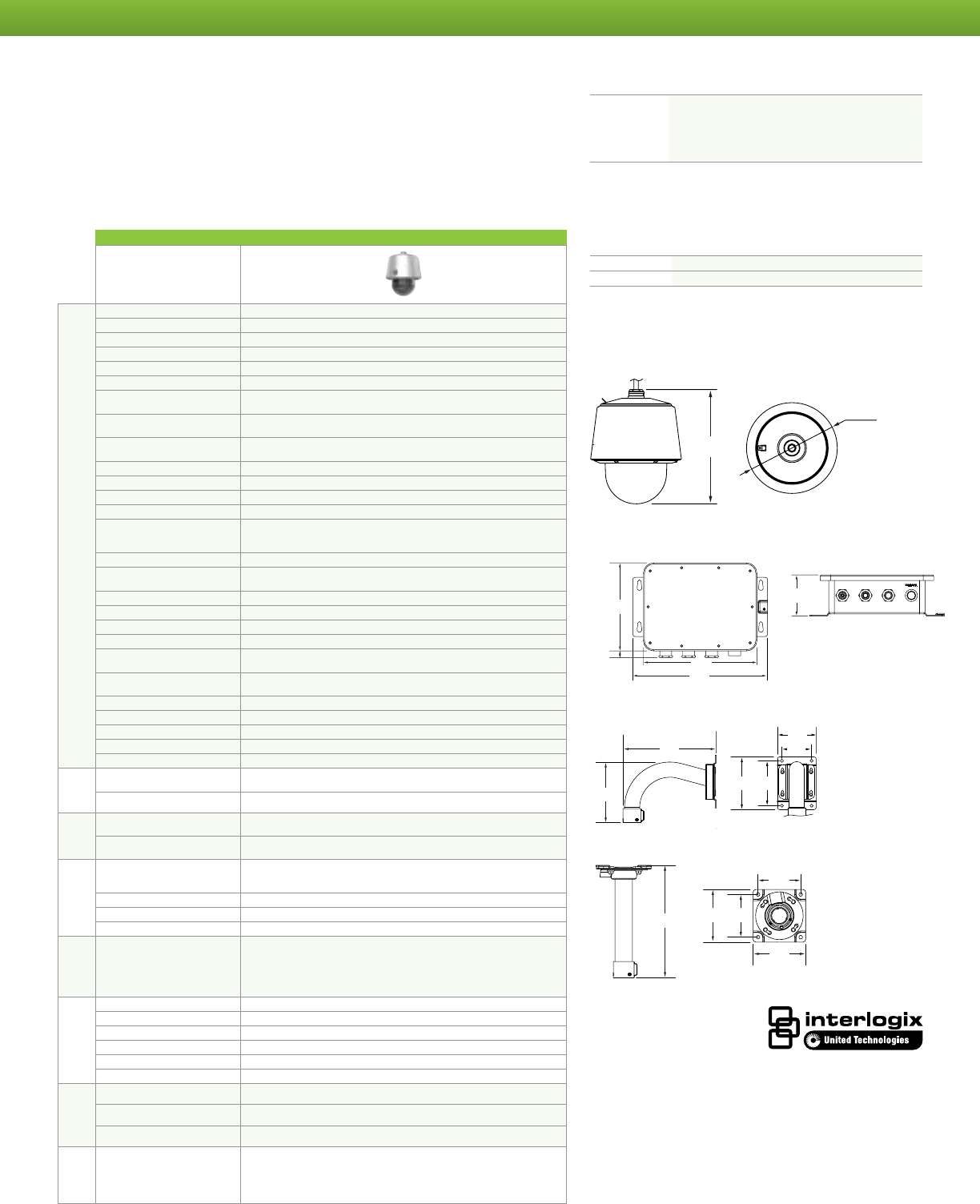

Dimensional Diagrams
13.0 in.
(330mm)
10.3 in.
(262mm)
Stainless Steel PTZ Junction Box (included with PTZ camera)
9.37 in.
(238mm)
0.71 in.
(18mm)
12.1 in.
(307mm)
14.3 in.
(364mm)
4.39 in.
(111.5mm)
9.37 in.
(238mm)
0.71 in.
(18mm) 12.1 in.
(307mm)
14.3 in.
(364mm)
4.39 in.
(111.5mm)
Stainless Steel PTZ Wall Mount (TVP-WBS)
8.35 in.
(212mm)
12.83 in.
(326mm)
4.09 in.
(104mm)
5.35 in.
(136mm)
6.18 in.
(157mm)
7.28 in.
(185mm)
Stainless Steel PTZ Pendant Mount (TVP-PAS)
13.46 in.
(342mm)
6.30 in.
(160mm)
5.12 in.
(130mm)
5.12 in.
(130mm)
6.30 in.
(160mm)
