Intermec Technologies 1000CP01CX2 1000CP01C, 1000CP02C, 1001CP01C User Manual
Intermec Technologies Corporation 1000CP01C, 1000CP02C, 1001CP01C
Contents
User Manual - final 3-1-11
70 Series
Mobile Computer
CK70, CK71, CN70, CN70e
User’s Manual
ii 70 Series Mobile Computer User’s Manual
Intermec Technologies Corporation
Worldwide Headquarters
6001 36th Ave.W.
Everett, WA 98203
U.S.A.
www.intermec.com
The information contained herein is provided solely for the purpose of allowing customers to
operate and service Intermec-manufactured equipment and is not to be released, reproduced, or
used for any other purpose without written permission of Intermec Technologies Corporation.
Information and specifications contained in this document are subject to change without prior
notice and do not represent a commitment on the part of Intermec Technologies Corporation.
© 2011 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar,
dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license),
Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work, RoutePower,
Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, TE 2000, Trakker Antares,
and Vista Powered are either trademarks or registered trademarks of Intermec Technologies
Corporation.
There are U.S. and foreign patents as well as U.S. and foreign patents pending.
Wi-Fi is a registered certification mark of the Wi-Fi Alliance.
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation
in the United States and/or other countries.
Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.
Contents
70 Series Mobile Computer User’s Manual iii
Contents
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Global Services and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Service Location Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Who Should Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii
1Using the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About the 70 Series Mobile Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

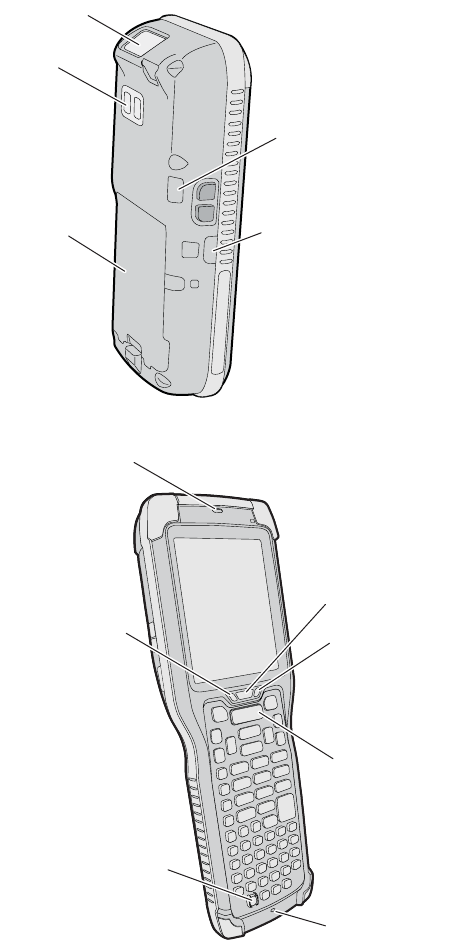

Overview of 70 Series Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

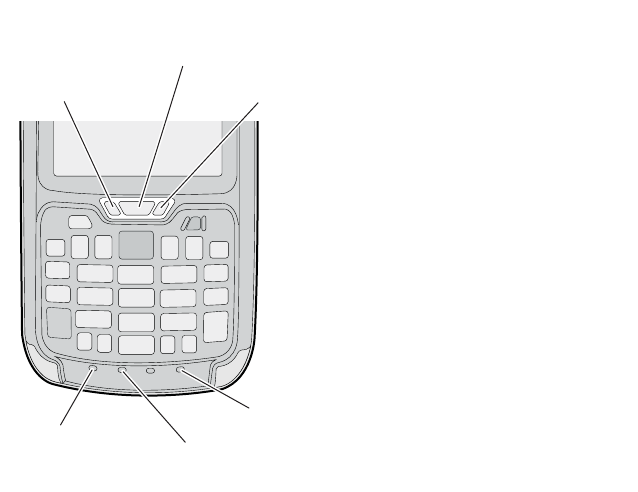

About the Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
70 Series Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
About the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

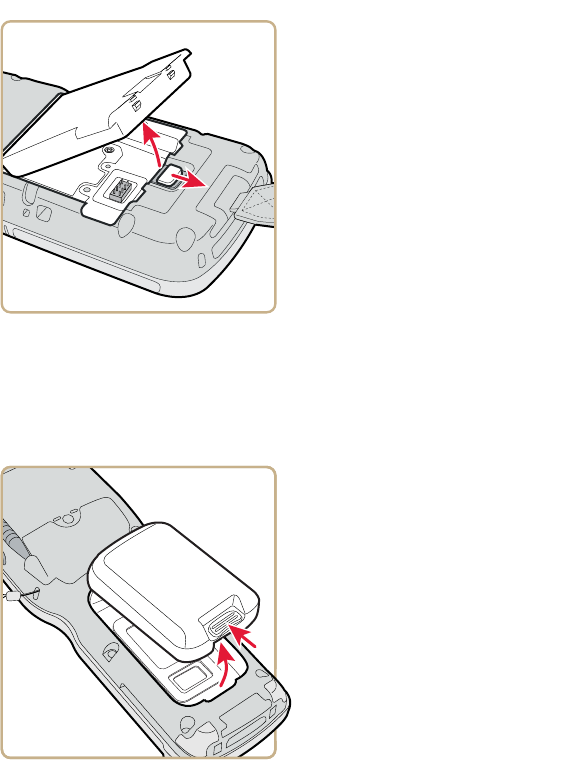

Changing the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

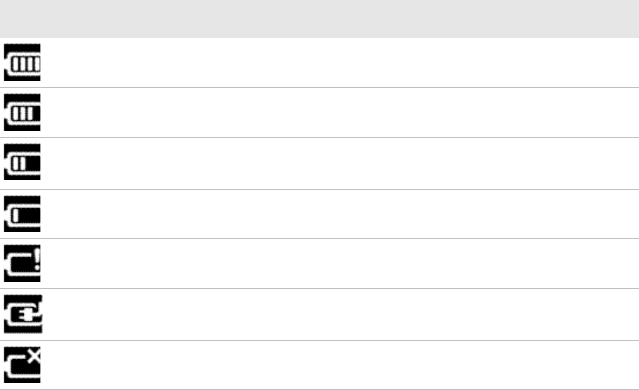

About Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
About Battery Life and Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

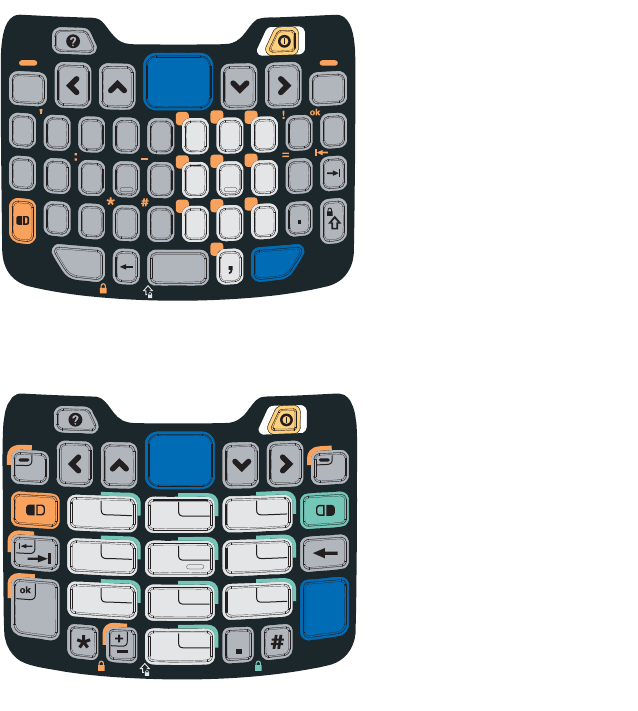

About the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Entering Characters on the QWERTY Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Entering Characters on the Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

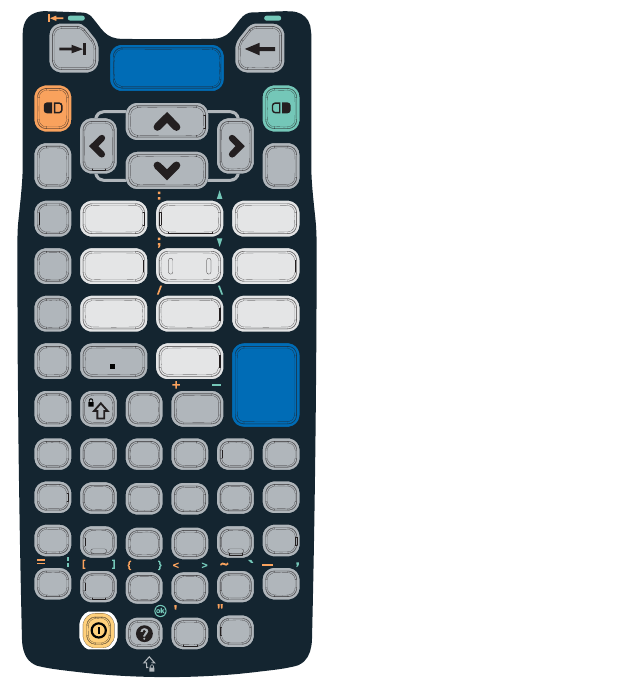

Entering Characters on the CK70 and CK71 Keypads . . . . . . . . . . . . . . . . . . . . . . . 22
About the Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
About the Intermec Dashboard Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Configuring the Screen Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

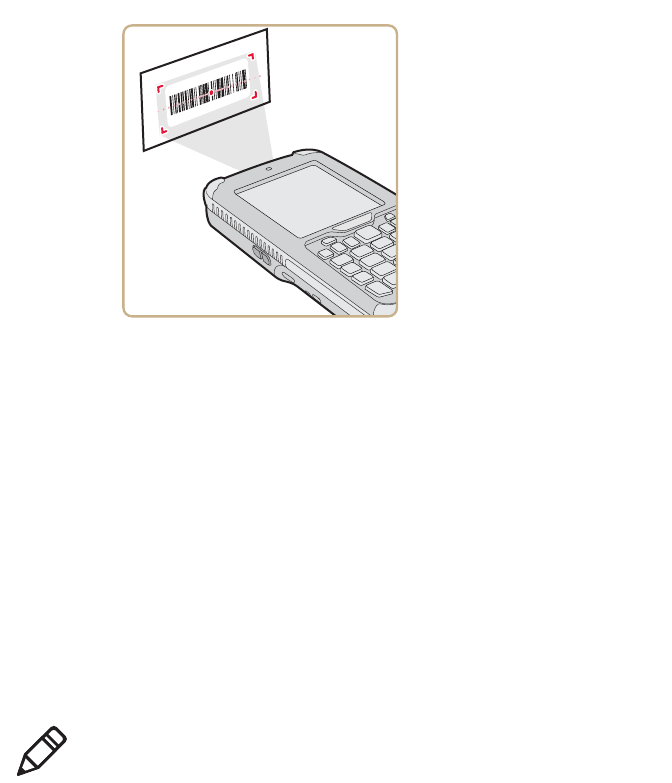

Reading Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Contents
iv 70 Series Mobile Computer User’s Manual

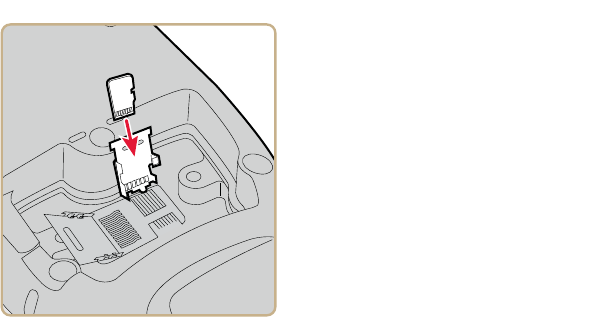

Inserting a microSD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

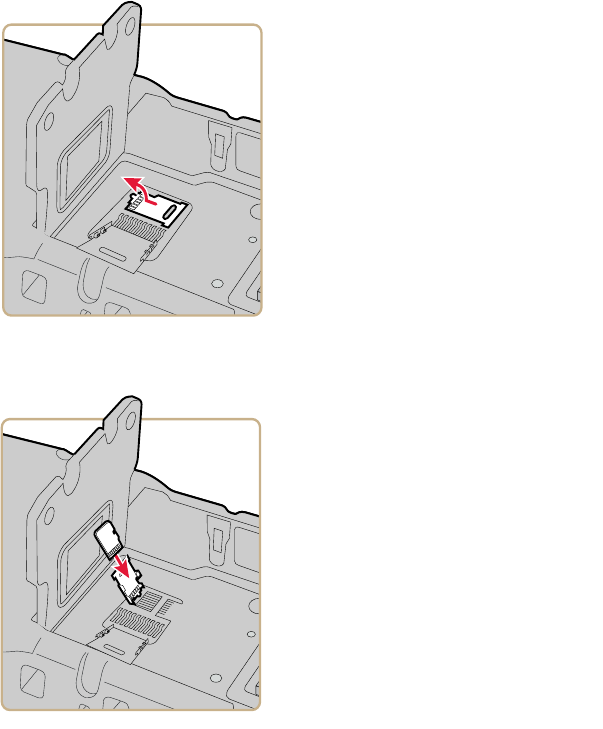

Installing a microSD Card in a CN70 or CN70e . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

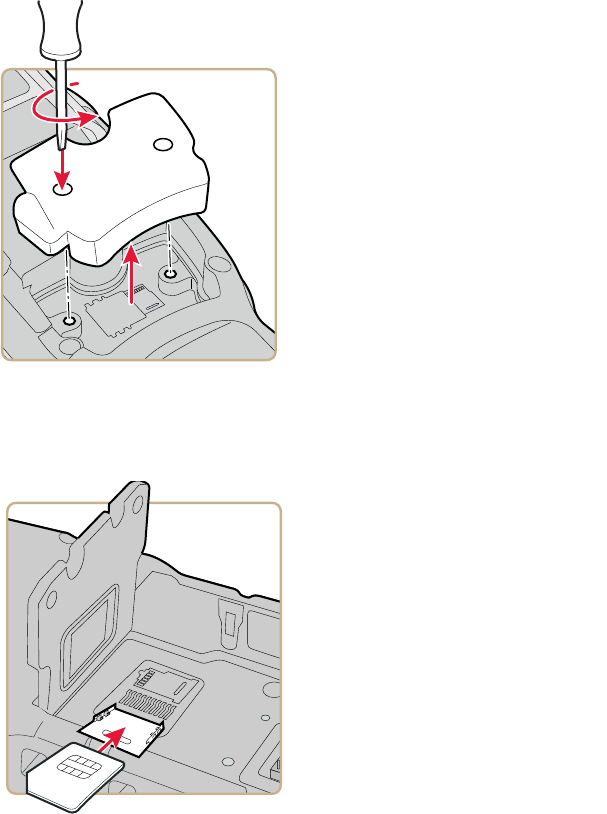

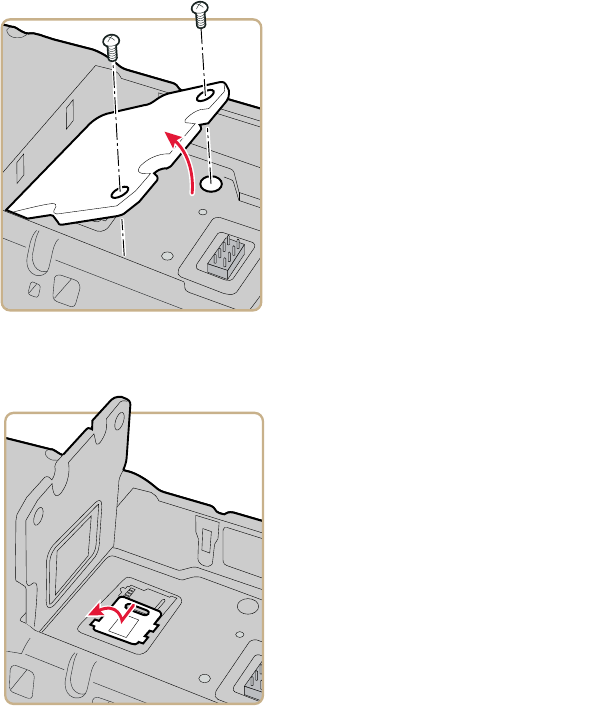

Installing a microSD Card in a CK70 or CK71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

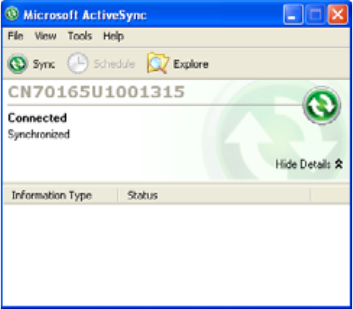

Transferring Files To and From Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2Understanding the User Interface and Intermec Applications. . . . . 35
About the User Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

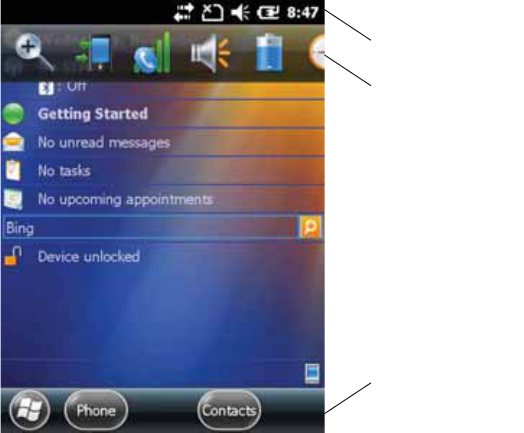

About the Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Interacting With the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

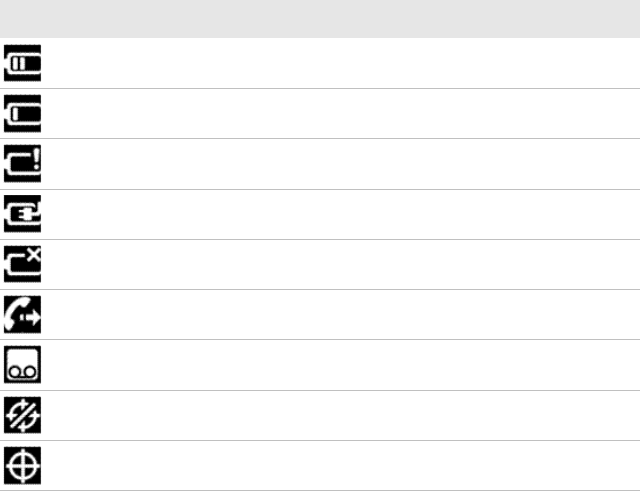

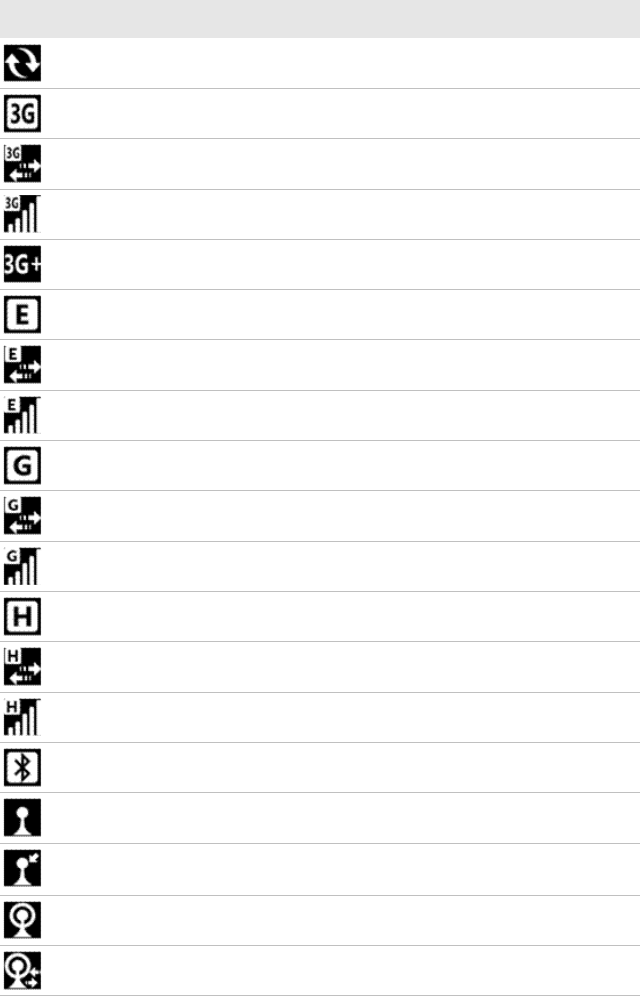

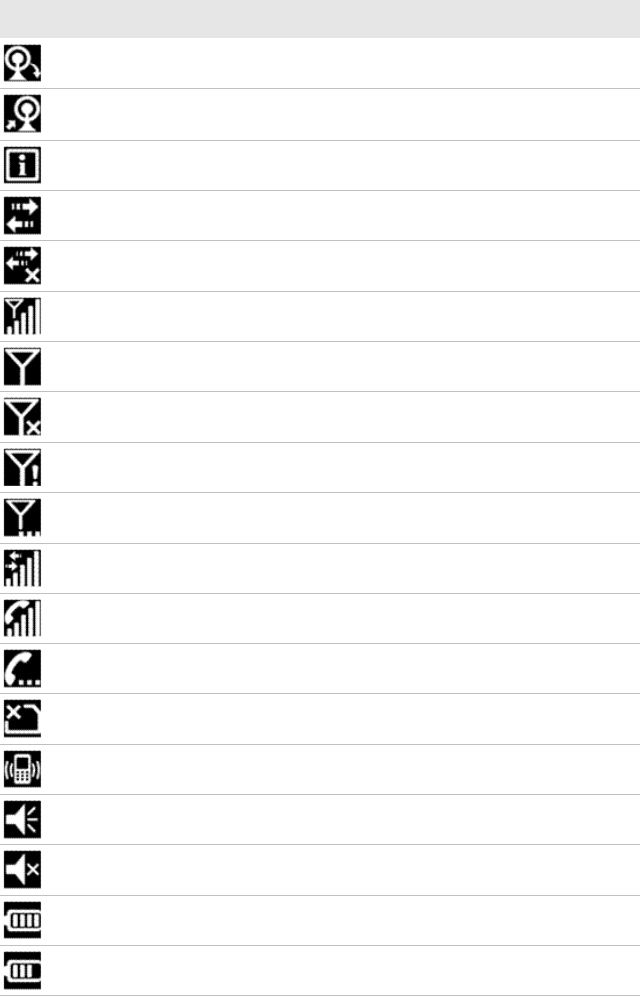

Title Bar Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Aligning the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
About Intermec Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Applications Available on the Mobile Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Applications You Can Download to the Mobile Computer. . . . . . . . . . . . . . . . . . . 43
3Using the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
About the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Activating the UMTS Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Activating the CDMA Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Turning the Phone On and Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Making a Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Making an Emergency Phone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
4Using the Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
About the Color Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Recording a Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Saving Pictures and Videos to an SD Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Contents
70 Series Mobile Computer User’s Manual v
5Using GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
About the Integrated GPS on Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

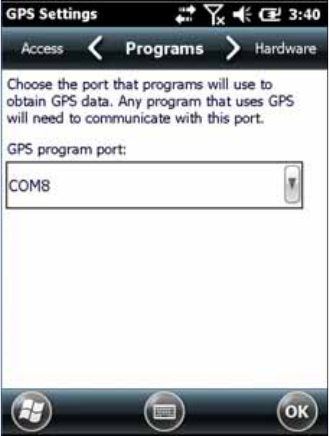

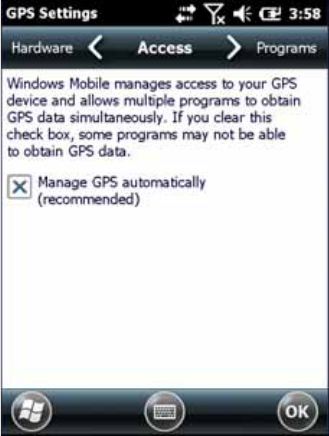

Using the GPSID Installed on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Improving GPS Performance on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
6Configuring the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
How to Configure the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Using Intermec Settings on the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

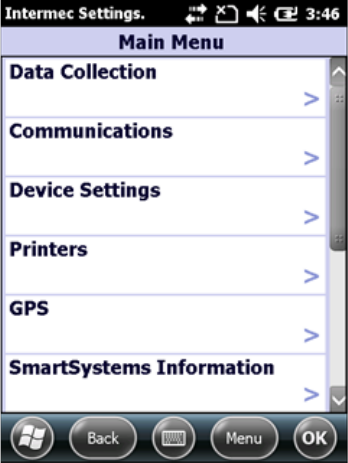

Starting Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
About the Structure of Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Navigating in Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Configuring Profile Settings With Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . 68
Restoring Default Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Hiding Menu Items in Intermec Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
Using Intermec Settings Remotely With SmartSystems Foundation . . . . . . . . . . . . . . . . . .70
About Network Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Configuring 802.11a/b/g/n (Wi-Fi) Radio Communications . . . . . . . . . . . . . . . . . 70
Configuring Ethernet Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

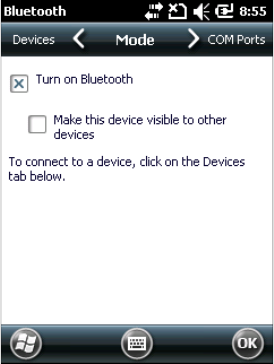

Configuring Bluetooth Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
About Serial and USB Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Creating an ISP Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Creating a VPN Server Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
About Wireless Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Choosing Between Microsoft and Funk Security . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

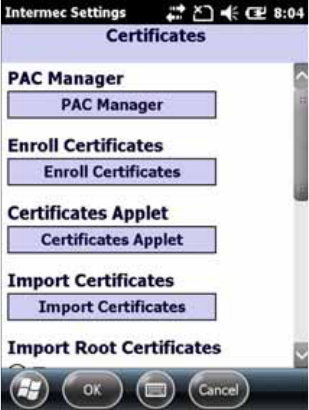

Loading a Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
7Managing the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Managing the Computer in Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Managing the Computer Using SmartSystems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Managing the Computer Using Third-Party Software . . . . . . . . . . . . . . . . . . . . . . . 93
Developing and Installing Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Packaging Your Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Choosing a Target Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Installing Applications Using SmartSystems Foundation Console. . . . . . . . . . . .94
Contents
vi 70 Series Mobile Computer User’s Manual
Installing Applications Using Microsoft ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . 95
Installing Applications Using a Storage Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Launching Applications Automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Updating the System Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Updating Multiple Computers Using SmartSystems Console . . . . . . . . . . . . . . . . 97
Updating Individual Mobile Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99
8Troubleshooting and Maintaining the Computer . . . . . . . . . . . . . . . . . . 101
About the Intermec Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Troubleshooting Your Mobile Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Troubleshooting the Wi-Fi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Troubleshooting 802.1x Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104
Checking 802.11 Network Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Troubleshooting Reading Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107
Troubleshooting Operating the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108
Calling Product Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Finding Your Configuration Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Finding Your Operating System Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Resetting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Rebooting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Cold Booting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Clean Booting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Cleaning the Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
ASpecifications and Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Physical and Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
CN70 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
CN70e Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
CK70 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
CK71 Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Power and Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Back Accessory Interface Pin-outs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Touch Screen Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Contents
70 Series Mobile Computer User’s Manual vii
Standard Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Bar Code Symbologies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119

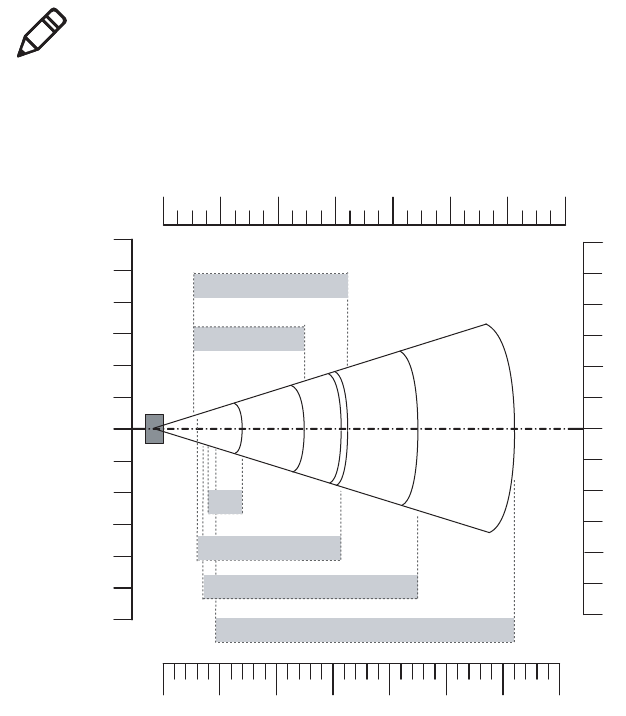

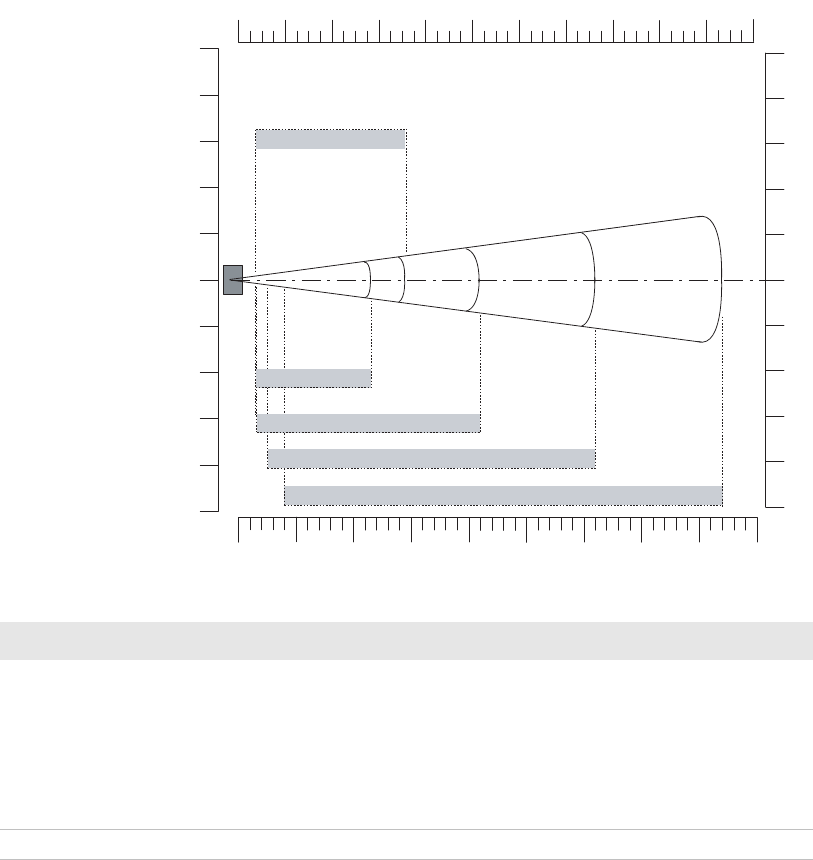

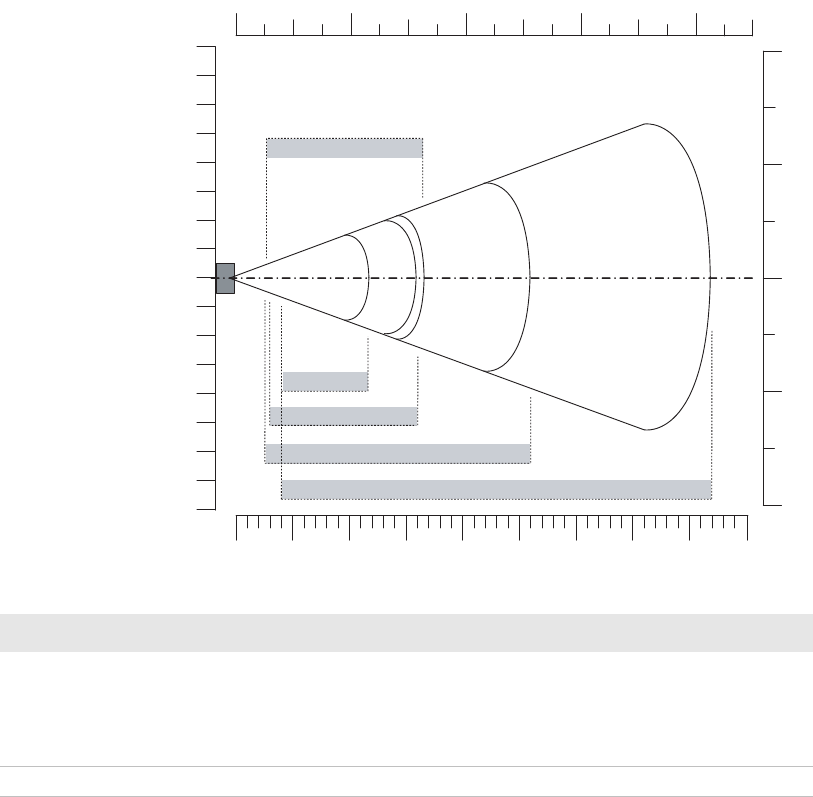

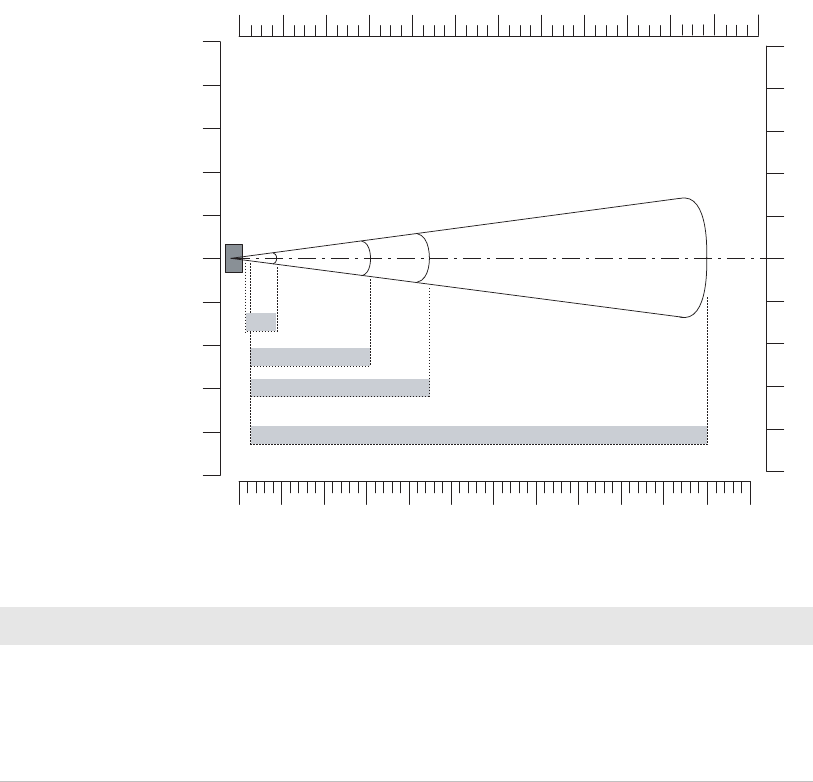

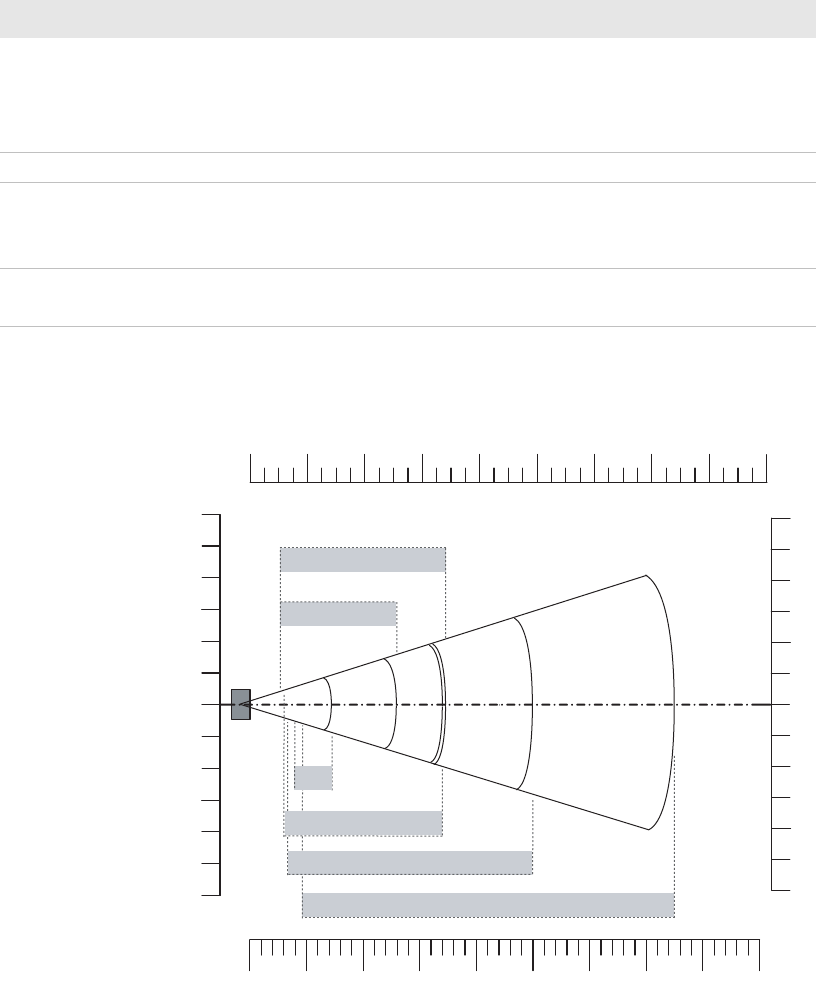

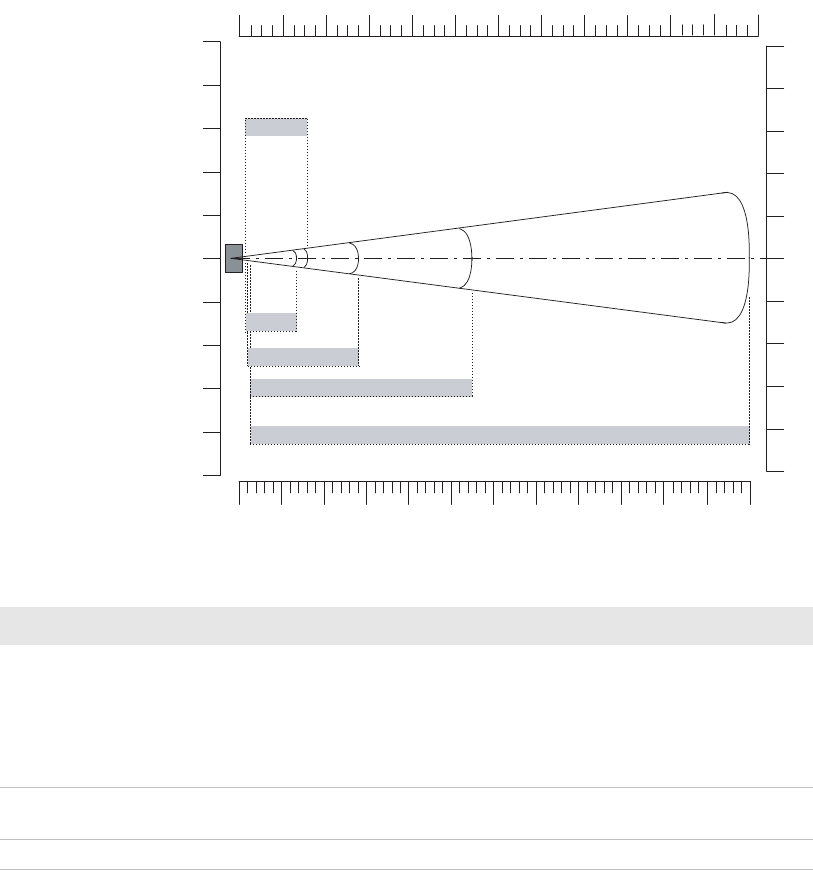

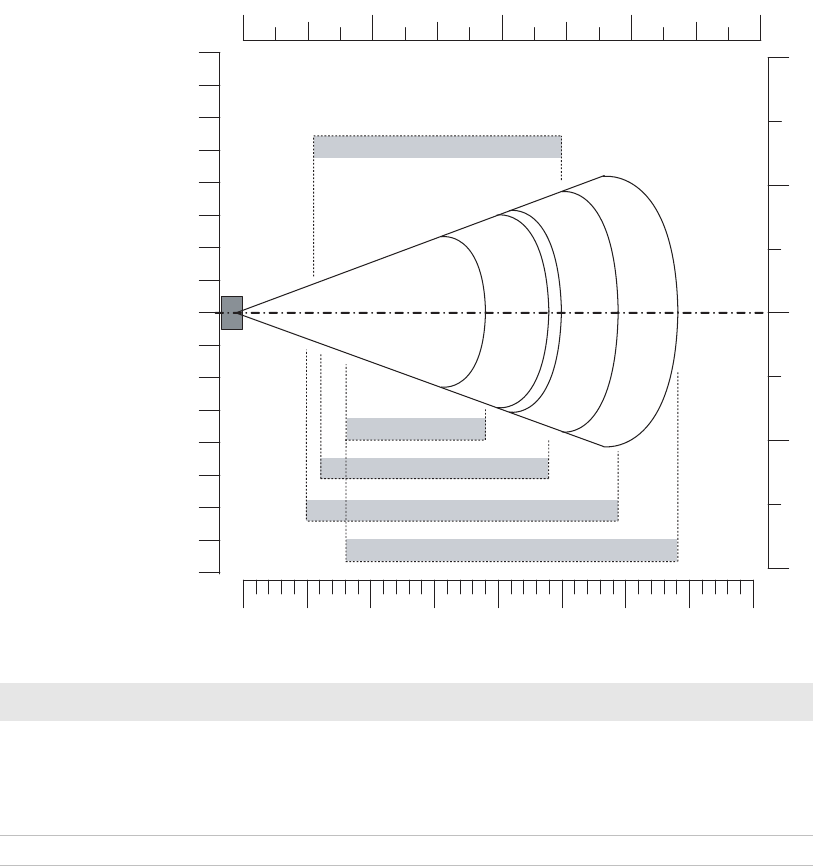

Imager Reading Distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Default Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .128
BKeypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Standard Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138

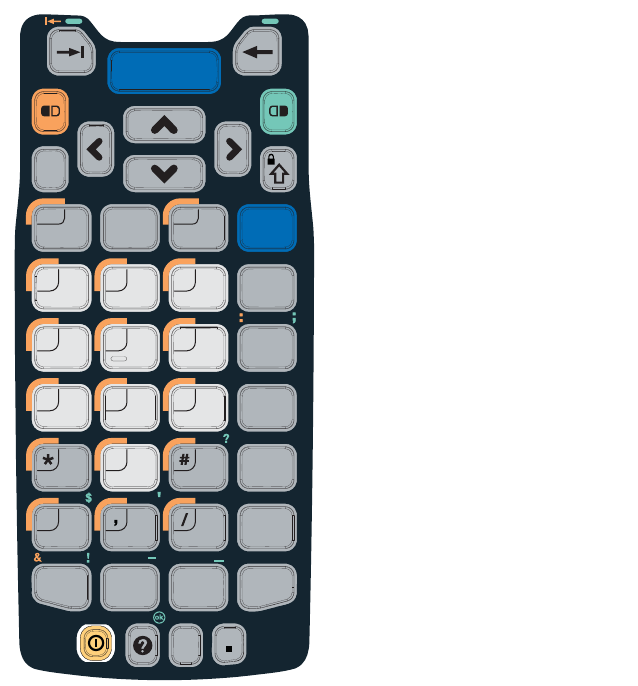

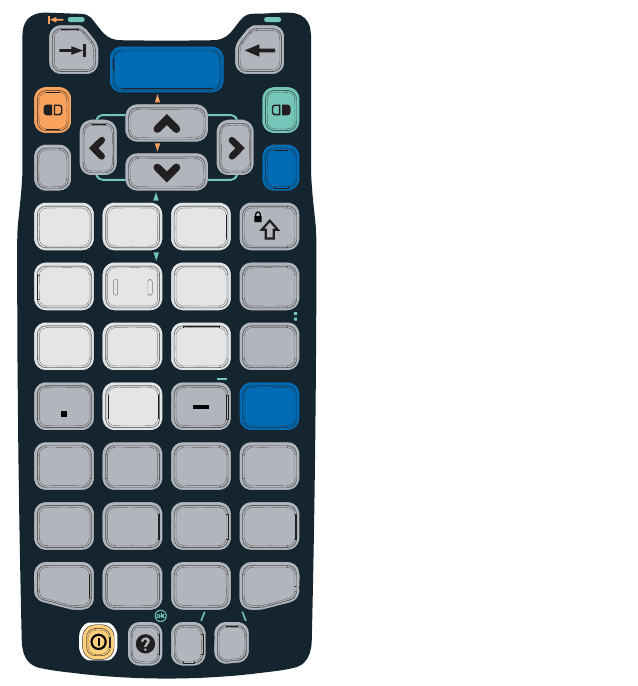

CN70 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
CN70e Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
CK70 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
CK71 Keypads and Keystrokes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
CScanNGo Wi-Fi Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Radio Configuration Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164
2D Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .164
1D Configuration Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .165
I Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Contents
viii 70 Series Mobile Computer User’s Manual
Before You Begin
70 Series Mobile Computer User’s Manual ix
Before You Begin
This section provides you with safety information, technical support
information, and sources for additional product information.
Safety Information
Your safety is extremely important. Read and follow cautions in this
document before handling and operating Intermec equipment. You
can be seriously injured, and equipment and data can be damaged if
you do not follow the safety cautions.
This section explains how to identify and understand cautions and
notes that are in this document.
Global Services and Support
Warranty Information
To understand the warranty for your Intermec product, visit the
Intermec web site at www.intermec.com and click Support >
Returns and Repairs > Warranty.
Disclaimer of warranties: The sample code included in this document
is presented for reference only. The code does not necessarily
represent complete, tested programs. The code is provided “as is with
all faults.” All warranties are expressly disclaimed, including the
implied warranties of merchantability and fitness for a particular
purpose.
Web Support
Visit the Intermec web site at www.intermec.com to download our
current manuals (in PDF).
A caution alerts you to an operating procedure, practice,
condition, or statement that must be strictly observed to prevent
equipment damage or destruction, or corruption or loss of data.
Note: Notes either provide extra information about a topic or contain
special instructions for handling a particular condition or set of
circumstances.
Before You Begin
x 70 Series Mobile Computer User’s Manual
Visit the Intermec technical knowledge base (Knowledge Central) at
www.intermec.com and click Support > Knowledge Central to
review technical information or to request technical support for your
Intermec product.
Telephone Support
In the U.S.A. and Canada, call 1-800-755-5505.
Outside the U.S.A. and Canada, contact your local Intermec
representative. To search for your local representative, from the
Intermec web site, click About Us > Contact Us.
Service Location Support
For the most current listing of service locations, click Support >
Returns and Repairs > Repair Locations.
For technical support in South Korea, use the after service locations
listed below:
AWOO Systems
102-1304 SK Ventium
522 Dangjung-dong
Gunpo-si, Gyeonggi-do Korea, South 435-776
Contact: Mr. Sinbum Kang
Telephone: +82-31-436-1191
Email: mjyun@awoo.co.kr
IN Information System PTD LTD
6th Floor
Daegu Venture Center Bldg 95
Shinchun 3 Dong
Donggu, Daegu City, Korea
E-mail: jmyou@idif.co.kr or korlim@gw.idif.co.kr
Who Should Read This Manual
This manual is written for the person who is responsible for
installing, configuring, and maintaining the 70 Series Mobile
Computer.
This manual provides you with information about the features of the
70 Series mobile computer, and how to install, configure, operate,
maintain, and troubleshoot it.
Before You Begin
70 Series Mobile Computer User’s Manual xi
Before you work with the 70 Series mobile computer, you should be
familiar with your network and general networking terms, such as IP
address.
Related Documents
This is a list of related Intermec documents.
•Intermec Settings Command Reference Manual
•Intermec Developer Library (IDL) Resource Kit Developer’s Guide
The Intermec web site at www.intermec.com contains our
documents (as PDF files) that you can download for free.
To download documents
1Visit the Intermec web site at www.intermec.com.
2Click the Products tab.
3Using the Products menu, navigate to your product page. For
example, to find the CN70 computer product page, click
Computers > Handheld Computers > CN70.
4Click the Manuals tab.
If your product does not have its own product page, click Support >
Manuals. Use the Product Category field, the Product Family field,
and the Product field to help you locate the documentation for your
product.
Before You Begin
xii 70 Series Mobile Computer User’s Manual
Patent Information
Product is covered by one or more of the following patents:
4882476; 4894523; 4953113; 4961043; 4970379; 4988852; 5019699;
5021642; 5038024; 5081343; 5095197; 5144119; 5144121; 5182441;
5187355; 5187356; 5195183; 5216233; 5216550; 5195183; 5195183;
5218191; 5227614; 5233172; 5241488; 5243602; 5258606; 5278487;
5288985; 5308966; 5322991; 5331136; 5331580; 5342210; 5349678;
5359185; 5371858; 5373478; 5389770; 5397885; 5410141; 5414251;
5416463; 5442167; 5464972; 5468947; 5468950; 5477044; 5486689;
5488575; 5500516; 5502297; 5504367; 5508599; 5514858; 5530619;
5534684; 5536924; 5539191; 5541419; 5548108; 5550362; 5550364;
5565669; 5567925; 5568645; 5572007; 5576529; 5592512; 5594230;
5598007; 5608578; 5616909; 5619027; 5627360; 5640001; 5657317;
5659431; 5671436; 5672860; 5684290; 5719678; 5729003; 5742041;
5761219; 5764798; 5777308; 5777309; 5777310; 5786583; 5793604;
5798509; 5798513; 5804805; 5805807; 5811776; 5811777; 5818027;
5821523; 5828052; 5831819; 5834753; 5834749; 5837987; 5841121;
5842070; 5844222; 5854478; 5862267; 5869840; 5873070; 5877486;
5878395; 5883492; 5883493; 5886338; 5889386; 5892971; 5895906;
5898162; 5902987; 5902988; 5912452; 5923022; 5936224; 5949056;
5969321; 5969326; 5969328; 5979768; 5986435; 5987192; 5987499;
5992750; 6003775; 6012640; 6016960; 6018597; 6024289; 6034379;
6036093; 6039252; 6064763; 6075340; 6095422; 6097839; 6102289;
6102295; 6109528; 6119941; 6128414; 6138915; 6149061; 6149063;
6152370; 6155490; 6158661; 6164542; 6164545; 6173893; 6195053;
6234393; 6234395; 6244512; 6249008; 6328214; 6330975; 6345765;
6356949; 6367699; 6375075; 6375076; 6375344; 6431451; 6435411;
6484944; 6488209; 6497368; 6532152; 6538413; 6539422; 6621942;
6641046; 6681994; 6687403; 6688523; 6732930
There may be other U.S. and foreign patents pending.
1
1
Using the Computer
This chapter introduces the 70 Series Mobile Computers with
Windows® Embedded Handheld operating system. Use this
chapter to learn about the basic features and functions of each
computer, as well as the available accessories for it.
Chapter 1 — Using the Computer
2 70 Series Mobile Computer User’s Manual
About the 70 Series Mobile Computers
The ergonomically designed Intermec 70 Series Mobile Computers are
built on the Microsoft® Windows Embedded Handheld operating
system. They are lightweight, easy-to-use, and run most software
developed for the Windows Embedded platform, including
standalone, client-server, and browser-based applications.
The 70 Series family of computers consists of four different models:
the CN70, CN70e, CK70 and CK71. The CN70 and CN70e have the
same features except that the CN70e offers a larger keypad for
data-input intensive applications. The CK70 and CK71 have most of
the same features, but the CK71 offers a choice of imager options and
does not offer a WWAN radio option (phone). Throughout this
manual, all versions of the mobile computer are referred to as 70 Series
unless information is specific to a particular model of computer.
In most of the user’s manual, pictures of the CN70 and CK70 represent
the four models of the 70 Series computers.
CN70 Front View
Scan button
On/o button
Microphone
Cell phone speaker
Notification LED
Good read LED
Battery status LED
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 3
CN70 Back View
CK70 Front View
IrDa port
Speaker port
Imager
Camera
Battery
Scan button
Microphone
On/o button
Cell phone speaker
Notification LED
Good read LED
Battery status LED
Chapter 1 — Using the Computer
4 70 Series Mobile Computer User’s Manual

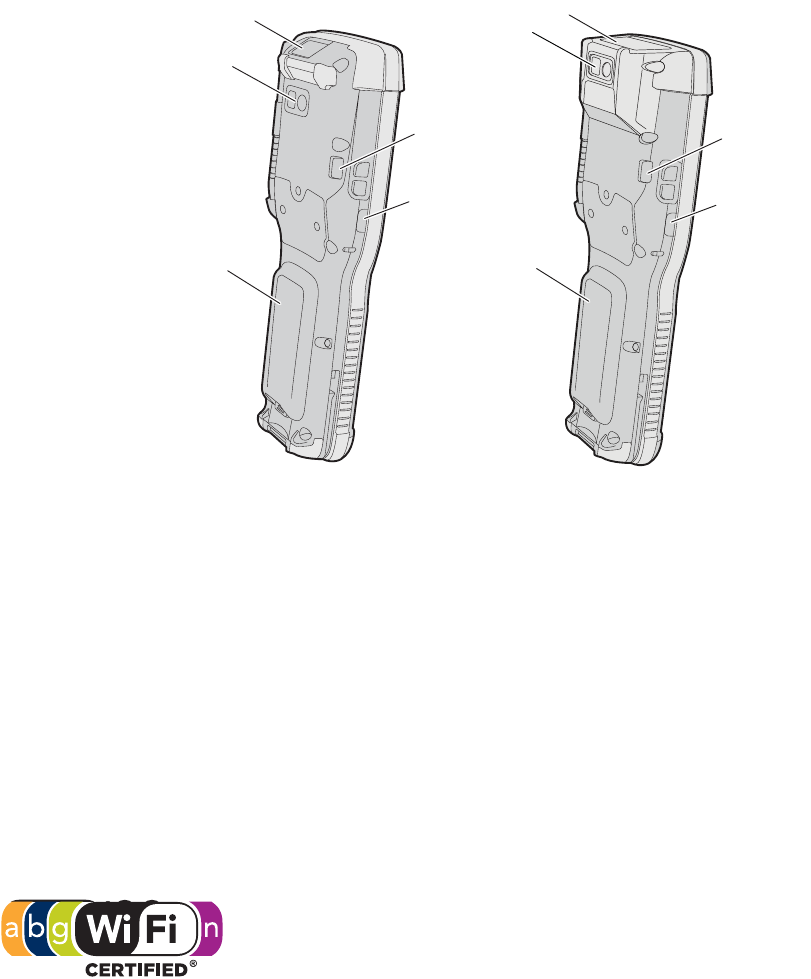

CK70 and CK71 Back View
Overview of 70 Series Features
The 70 Series includes these standard features:
•EA30 area imager that can read bar codes and capture images
•(CK71 only) Choice of EA30, EX25, or EV12 imagers
•Multi-processor architecture with 512 MB DRAM and 1G Flash
•CDMA or UMTS capability (not available on CK71)
•802.11a/b/g/n and Bluetooth® radios
•GPS radio on CDMA or UMTS computers (not available on CK71)
•5-megapixel auto-focus color camera
•Customer-accessible microSD slot for memory cards up to 32 GB
•Customer-accessible SIM card slot
•IrDA port with speeds up to 4 Mbps
Imager
Camera
IrDA port
Battery
IrDA port
Imager
Camera
Battery
Left speaker
port Left speaker
port
The 70 Series Mobile Computer with an IEEE 802.11a/b/g/n
radio installed is Wi-Fi® certified for interoperability with
other 802.11a/b/g/n wireless LAN devices.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 5
About the Status LEDs
Use the following illustrations and table to understand the status
LEDs on your computer. Not every 70 Series computer has all six
status LEDs. For example, the QWERTY versions of the CN70 and
CN70e do not have a Green key status LED.

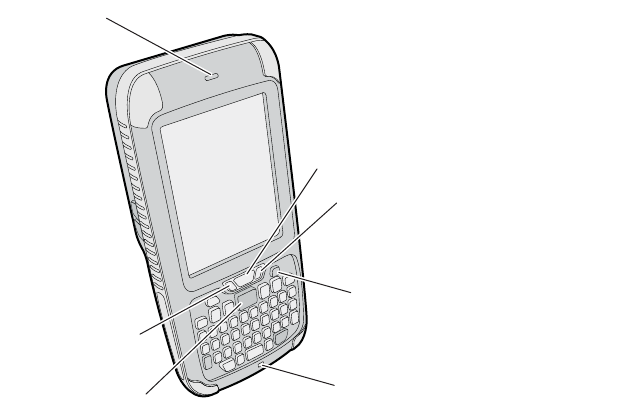

Location of the CN70 Status LEDs
Green key
status LED
Shift key
status LED
Orange key
status LED
Battery status LED
Good Read and Ready-to-Work
Status LED
Notification LED
Chapter 1 — Using the Computer
6 70 Series Mobile Computer User’s Manual

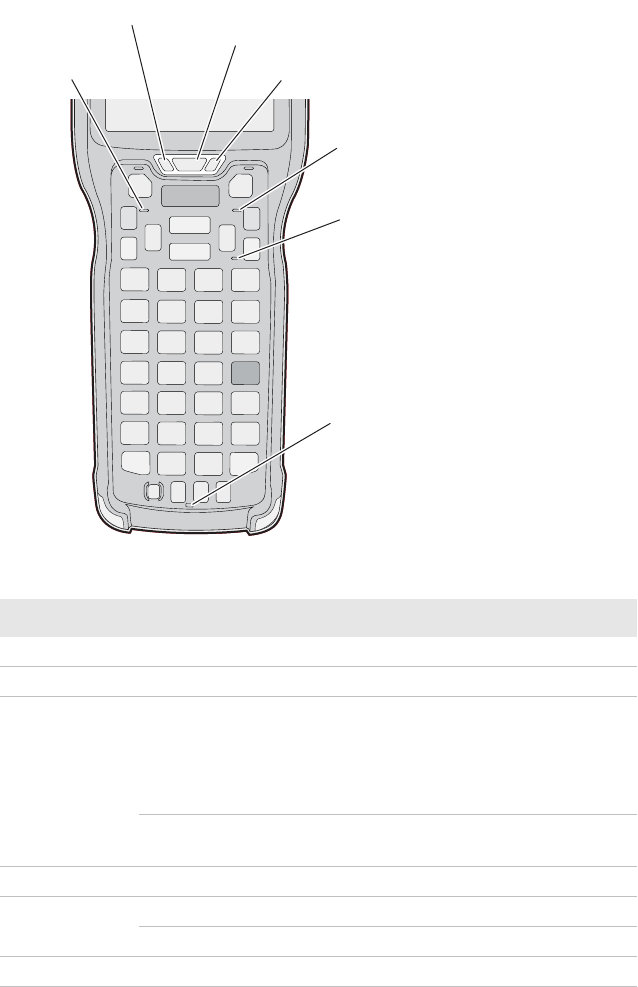

Location of the CK70 Status LEDs
Status LED Descriptions
LED Color Description
Notification Amber This LED is user-programmable.
Good Read Green The computer successfully decoded a bar code.
Ready-to-Work Blue If you have Intermec Terminal Emulator (ITE),
the application is running and connected to the
host. If you do not have ITE, you can configure
the Ready-to-Work indicator to turn on or off to
indicate a healthy state.
Blinking
blue
ITE is running but not connected to the host.
Battery See “About Battery Status” on page 12.
Key Status Green The Green function key is enabled.
Orange The Orange function key is enabled.
Shift Red The Shift key is enabled.
Green key
status LED
Shift key status LED
(CK70 alphanumeric
and CK71 function numeric)
Shift key status LED
(CK70 numeric and
CK71 alphanumeric)
Orange key
status LED
Notification LED Good Read and Ready-to-Work
status LED
Battery status LED
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 7
70 Series Accessories
The 70 Series computer ships with a battery. All other accessories are
sold and ordered separately. For help, contact your local Intermec sales
representative.
70 Series Accessories
Accessory Description
Audio Snap-On Adapter Use the audio adapter to connect the
computer to a headset.
CK70/CK71 Battery This battery provides main power to the
CK70 and CK71.
CK70/CK71 Magstripe Reader
Adapter
Use the magnetic stripe reader to be able
to read magnetic cards with the CK70 and
CK71 computer.
CN70/CN70e Battery This battery provides main power to the
CN70 and CN70e.
CN70/CN70e Magstripe Reader
Snap-On Adapter
Use the magnetic stripe reader to be able
to read magnetic cards with the CN70
and CN70e computer.
Desktop Stand Use the desktop stand hold the 70 Series
computer on your desk or a stable
surface.
DEX/UCS Snap-On Adapter Use this adapter to receive and send serial
communications through a DEX/UCS
connection.
DX1 Desktop Dock with USB
connectivity
Use the desktop dock with the:
•Computer cup to charge the battery
while it is installed in the computer.
•Battery cup to charge the battery.
DX2 Dual Dock and DX4 Quad
Dock. The DX2 and DX4 are
available in charge-only and
Ethernet configurations.
Use these charger bases with the:
•Computer cup to charge batteries
while they are installed in the
computer.
•Battery cup to charge two batteries.
Ethernet Snap-On Adapter Use the Ethernet adapter to be able to
connect the computer to an Ethernet
network.
Chapter 1 — Using the Computer
8 70 Series Mobile Computer User’s Manual
About the Battery
The computers use these rechargeable Lithium-ion battery pack as the
main power source:
•3.7 V, 4000 mAH (14.8 Wh) battery for the CN70 and CN70e
•3.7 V, 5200 mAH (19.2 Wh) battery for the CK70 and CK71
Handstrap Replacement Kit You can order and install a replacement
handstrap for the CN70, CN70e, and
CK70/CK71. Each kit contains 5
handstraps.
Holster Use the holster to store the computer
when you need your hands free.
RS-232 Snap-On Adapter Use the RS-232 adapter to convert the
connector on the bottom of the computer
to a serial connector.
Scan Handle Use the scan handle to provide better
ergonomics to the computer for
high-volume scanning applications.
Tethered Stylus Replacement Kit You can order and install a replacement
stylus.
USB Snap-On Adapter Use this adapter to convert the bottom
connector of the computer to a USB
connector.
Vehicle Dock Use the vehicle dock to provide power and
hold your computer while you are using it
in a vehicle.
Vehicle Holder Use the vehicle holder to hold your
computer while you are using it in a
vehicle.
Vehicle Power Adapter Use the vehicle power adapter to provide
power to the computer from your vehicle.
Vocollect Snap-On Adapter Use this adapter to be able to use the
Vocollect voice solution in your
warehouse.
Accessory Description
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 9
Charging the Battery
You need to fully charge the battery before using your computer for the
first time. Use one of the charging accessories listed in the next table to
charge the battery.
70 Series Charging Accessories
Changing the Battery
If your battery power is low, you need to either charge the battery in the
computer, or replace it with a charged battery.
To change the battery:
1Save your files and close any open applications.

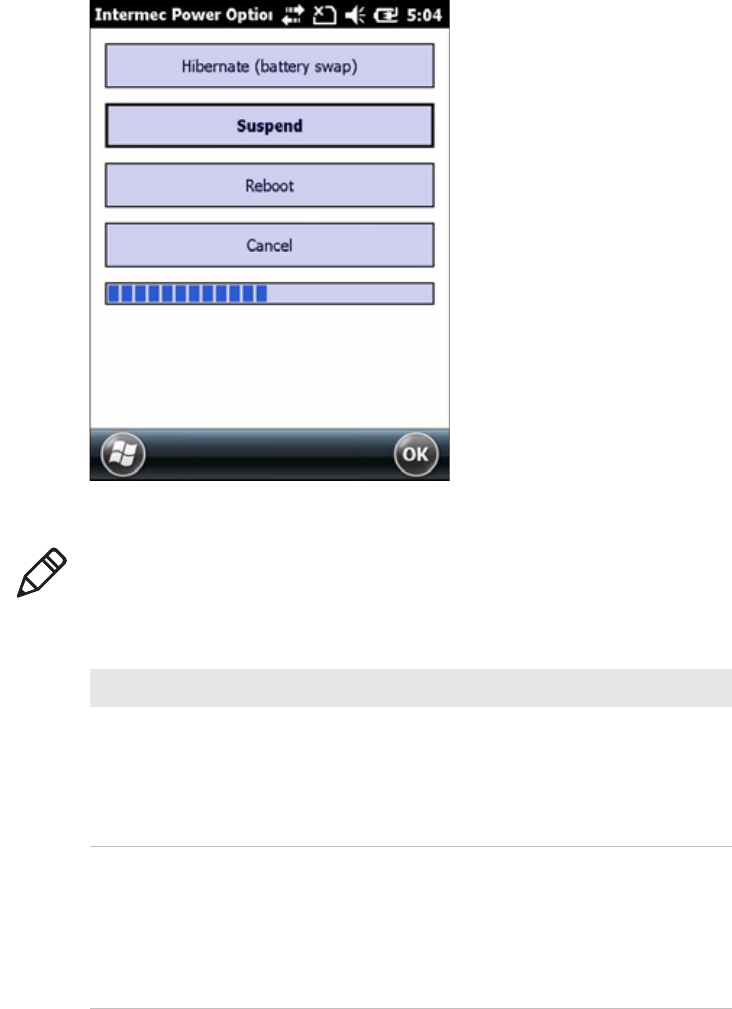

2Press the Power button and choose Hibernate from the menu to
suspend the computer.
3Detach the handstrap from the computer.
The battery used in this device may present a fire or chemical burn
hazard if it is mistreated. Do not disassemble it, heat it above
100°C (212°F) or incinerate it. Dispose of used batteries
promptly. Keep away from children.
Charging Accessory Charging Time
Snap-on adapters Up to 6 hours
DX1, DX2, or DX4 dock Up to 6 hours
CN70, CN70e, CK70, and CK71 Vehicle Power Adapter Up to 6 hours
Chapter 1 — Using the Computer
10 70 Series Mobile Computer User’s Manual

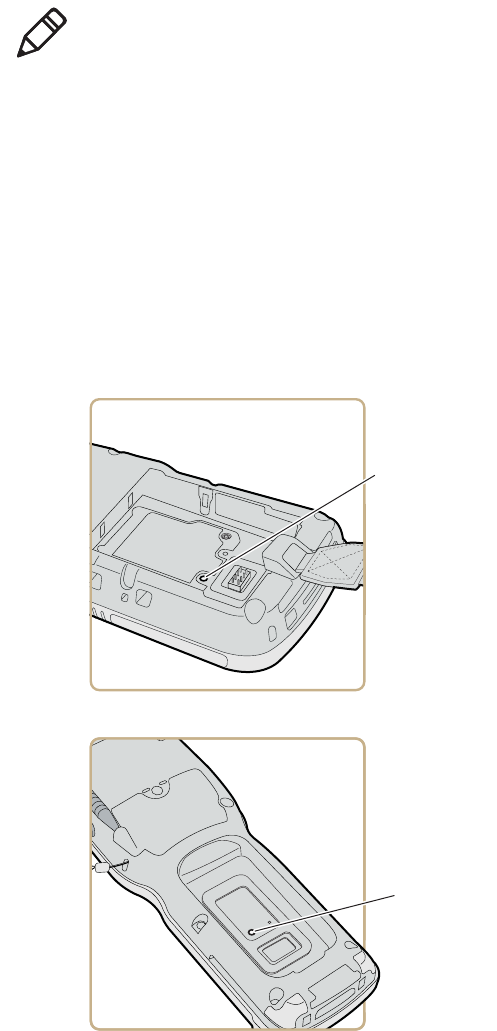

Detaching the Handstrap From a CN70 or CN70e
Detaching the Handstrap From a CK70 or CK71
4Make sure the computer is hibernate mode and that the screen has
turned off.
5Remove the battery.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 11
•On the CN70 or CN70e, push the battery release toward the
bottom of the computer until the battery releases and then lift
it away from the computer.
•On the CK70 or CK71, push the battery release toward the top
of the computer until the battery releases and then lift it away
from the computer.
6Insert the top end of a fully charged battery into the computer, and
press down firmly on the bottom of the battery. Make sure that the
battery release is fully engaged.
Chapter 1 — Using the Computer
12 70 Series Mobile Computer User’s Manual
About Battery Status
Use the battery icon on the Title bar to see the power status of your
battery. If you want more detailed information on your battery such as
usage time or voltage, use the Intermec Dashboard. For more
information on the Dashboard, see “About the Intermec
Dashboard” on page 102.
Understanding the Battery Icon Status
Battery Icon Status
Battery is fully charged.
Battery has a high charge.
Battery has a medium charge. You should be able to work for
several more hours before changing batteries.
Battery is low. You need to charge or replace the battery soon.
Battery is critically low. You need to replace the battery now.
Battery is charging.
The battery is not installed.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 13

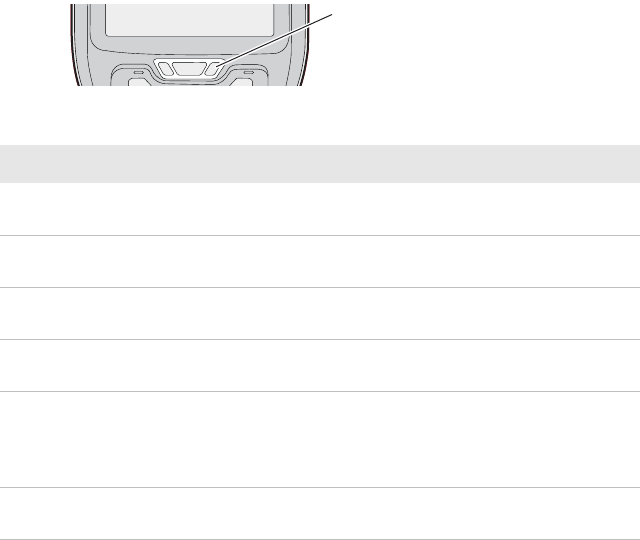

You can also use the battery status LED to see the charging status of
your battery.
Understanding the Battery Status LED
LED State Description
Steady green The computer is connected to a charger and the
battery is more than 95% charged.
Blinking red The battery is very low. The computer will soon go
into Suspend mode. Charge or replace the battery.
Steady red The computer is connected to a charger and the
battery is charging.
Blinking red-amber The battery charging system has encountered an
error. The battery is not charging.
Steady amber The battery is outside of the allowable charging
temperature range. Charging will resume when the
battery temperature is back in the acceptable range of
0° to 45°C (32° to 113°F).
Off The computer is not on external power and the
battery is operating normally.
Battery status LED
Chapter 1 — Using the Computer
14 70 Series Mobile Computer User’s Manual
About Battery Life and Conservation
Batteries that are stored outside the computer for long periods of time
slowly discharge. Intermec recommends storing the battery in a
charger to maintain battery performance.
Battery Conservation Tips
When You Want To: Do This to Save Battery Power:
Use the computer and the Low
Battery status icon appears or the
Battery light comes on.
•Connect the computer to an external
power source.
•Or, save your data and press the Power
button and select Hibernate. After the
computer turns off, remove the battery
and insert a fully charged battery.
Stop using the computer for 5
minutes or longer.
Make sure that the low battery icon is not
on the screen and the Battery LED is not
on. Press the Power button and choose
Suspend to suspend the computer.
Store the computer for more than
a day.
If you are storing the computer for a few
days, like over the weekend, install a
charged battery or connect the computer
to a power source.
If you are storing the computer for longer,
remove and charge the battery, and then
store both the battery and computer in a
cool location. If you store the battery for
several months, recharge the battery to
keep it at peak performance.
Store the battery outside the
computer.
Store the batteries in a charger.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 15
About the Keypad
The CN70 comes with either a QWERTY keypad or a numeric keypad.
The CN70e comes with either a QWERTY numeric keypad or numeric
keypad. The computer has an ambient light sensor that detects low
light and turns on the keypad backlight. By default, the keypad
backlight is enabled in low light conditions. You can disable the
keypad backlight to conserve power. Use Intermec Settings to
configure the backlight. For help, see “Using Intermec Settings on
the Computer” on page 62.

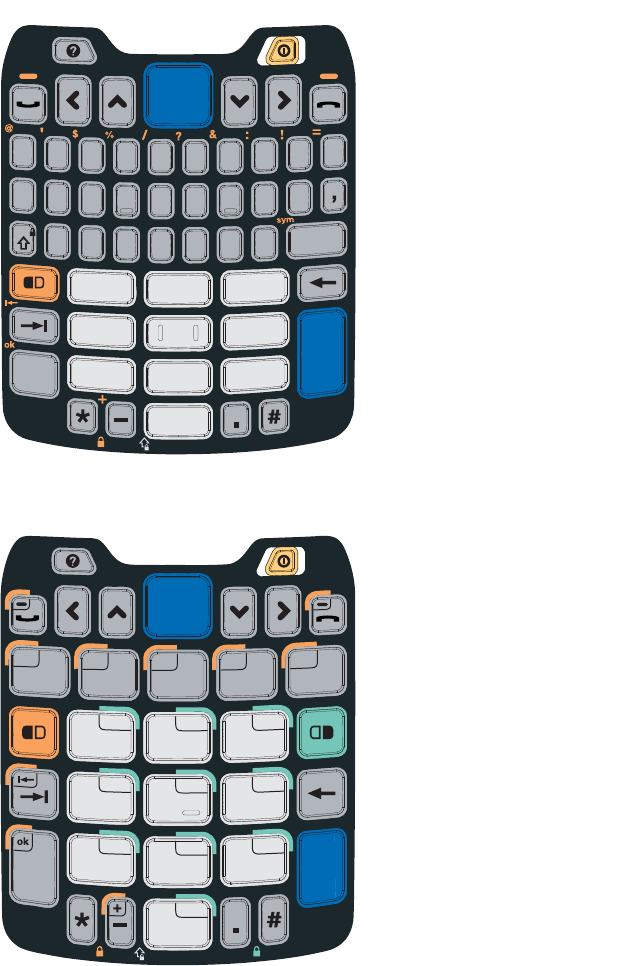

CN70 QWERTY Keypad
CN70 Numeric Keypad
Space
F
D
S
A
GHJKL
C
X
ZVBN
M
Esc
Enter
R
E
Q
W
TYIOP
U
%
&
?
@$
sym
123
456
78
0
9
+
/
123
456
78
0
9
Caps
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
Space
WXYZ
Esc Enter
Chapter 1 — Using the Computer
16 70 Series Mobile Computer User’s Manual
CN70e QWERTY Numeric Keypad
CN70e Numeric Keypad
E
N
T
E
R
123
456
78
0
9
Esc
Space
F
D
S
A
GHJKL
R
E
QTY IOP
U
C
X
ZVBN
M
W
1
4
7
3
6
9
Caps
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
Space
WXYZ
F1 F2 F3 F4 F5
Esc
E
N
T
E
R
2
5
8
0
F6 F7 F8 F9 F10
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 17
The CK70 comes with either a large alpha or an alphanumeric keypad.
The CK71 comes with either a numeric function keypad or an
alphanumeric keypad. The computer has an ambient light sensor that
detects low light and turns on the keypad backlight. By default, the
keypad backlight is enabled in low light conditions. You can disable
the keypad backlight to conserve power. Use Intermec Settings to
configure the backlight. For help, see “Using Intermec Settings on
the Computer” on page 62.
CK70 Large Alpha Keypad
Esc
Ctrl
YZ
Enter
Space
AB C
D
H
L
PR
STUV
WX
EF
GI
KM
OQ
0
123
456
789
J
N
@
Send End
Delete
Insert
\
[]
+=
F1 F2 F3
F4
F8
F5 F6
F7 F9
F10
><
%()
sym
Chapter 1 — Using the Computer
18 70 Series Mobile Computer User’s Manual
CK70 Alphanumeric Keypad
0
564
897
312
F1
F2
F3
F4
F5 Ctrl Space
Enter
Esc
Alt
AEF
GHIJ
KL
MNOPQR
STUV
WX
YZ
BCD
EndSend
F13 F14F11 F12 F15 F16
F19 F20
F17 F18
F23 F24
F21 F22
F6
F7
F8
F9
F10
DeleteInsert
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 19
CK71 Numeric Function Keypad
Ctrl
0
564
897
312
Enter
Enter
F1 F2 F3 F4
F5 F6 F7 F8
F9 F10 F11 F12
Esc
Fld
Exit
Space
Alt
Delete
F13 F14 F15 F16
F17 F18 F19 F20
F21 F22
Return
Return
NxtScrPrvScr Roll
SysRq
Fld+Fld-
Home
Roll Reset
Clear
Attn
Insert
AB C
DEF
GHI
MN O
PQRS
TU
Y
VW
X
JK
L
Z
View
View
F24F23
PA3PA2PA1
Pa
g
e
Chapter 1 — Using the Computer
20 70 Series Mobile Computer User’s Manual
CK71 Alphanumeric Keypad
Entering Characters on the QWERTY Keypad
You need to use the orange modifier key b and the Shift key y to
access all characters and functions on the QWERTY keypad.
To type a character:
•Press the key for that character.
To type a character or access a function on the overlay:
•Press b and then press the key for the character or function.
Fld
Exit
0
564
897
312
F1
F2
F3
F4
F5 Ctrl Space
Enter
Esc
AEF
GHIJ
KL
MNOPQR
STUV
WX
YZ
BCD
F13 F14F11 F12 F15 F16
F19 F20
F17 F18
F23 F24
F21 F22
Return
NxtScr
Alt
PrvScr Roll
Fld+Fld-
Roll Clear
Reset
Erase FindDupAttn
EEOF
Autolog
Keypd
Hex
Home
FldMk
Remove
Print
Select
Mode
NewLn
Menu
?
SysRq
PA1
PA2
PA3
F6
F7
F8
F9
F10
Delete
Hel
p
Insert
View Pa
g
e
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 21
To only type characters or access functions on the overlay:
•Press b twice to lock the orange modifier key to stay on, and then
press the keys for the characters or functions.
To type a single uppercase letter:
•Press y and then the letter key.
To type all uppercase letters:
Press yy to turn on Caps Lock, and then press the letter keys.
You can still type orange modifier characters by pressing b and then
the key for that character.
To turn off Caps Lock, press y.
Entering Characters on the Numeric Keypad
You need to use the orange modifier key b and the green modifier key
c to access all characters and functions on the Numeric keypad.
To type a character or access a function printed in orange on the
overlay:
•Press b and then press the key for the character or function.
To type a character or access a function printed in green on the overlay:
•Press c and then press the key for the character or function.
To type letters in the upper right corner of a key:
•Press c and then press the key one to three times depending on the
position of the letter.
For example, in the upper right corner of the 2 key there are the
letters “ABC”:
•To type “c”, press c 2 2 2.
•To type “C,” press c 1 and then press c 2 2 2.
To only type letters:
•Press c c to lock the green modifier key, and then press the key
one to four times depending on the position of the letter.
While the green modifier key is locked, press 1 to toggle between only
uppercase and lowercase letters.
To unlock the green modifier key, press c.
Chapter 1 — Using the Computer
22 70 Series Mobile Computer User’s Manual
Entering Characters on the CK70 and CK71 Keypads
You need to use the orange modifier key b, the green modifier key c,
and the Shift or Caps Lock key y to access all characters and functions
on the Alpha, Alphanumeric, and Numeric Function keypads.
To type a character or access a function printed in orange on the
overlay or in the upper left corner of a key:
•Press b and then press the key for the character or function.
To type a character or access a function printed in green on the overlay:
•Press c and then press the key for the character or function.
To type a single uppercase letter:
•Press y and then the letter key.
To type all uppercase letters:
Press yy to turn on Caps Lock, and then press the letter keys.
You can still type orange or green modifier characters by pressing b or
c and then the key for that character.
To turn off Caps Lock, press y.
About the Power Button
When you press the Power button, a dialog appears with a list of power
options. If you do not select a power options setting, the currently
selected action (the button outlined in bold) occurs after the timeout.
Note: If uppercase letters are enabled and you unlock the green
modifier key, you may need to press c 1 to type lowercase letters.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 23
The Intermec Power Options Default Screen
Use the following table to understand the Intermec Power Options.
Intermec Power Options
Note: The Real Time Clock (RTC) will persist through all of the power
options as long as it receives power from the Real Time Clock battery.
Option Description
Hibernate
(battery swap)
High power saving mode. Use this setting only for
swapping the battery. The computer saves the current
system state, registry, and file system and then powers off
all radios and internal devices. You can wake the computer
by pressing the Power button or connecting the computer
to external power.
Suspend Medium power saving mode. The computer powers off all
radios and internal devices not involved in saving the
system state, but the phone stays on to receive calls. This
option is the default setting. You can wake the computer
by pressing the Power button, pulling the scanner trigger,
receiving a call, scheduling an event such as an alarm, or by
connecting external power.
Chapter 1 — Using the Computer
24 70 Series Mobile Computer User’s Manual
The Intermec Power Options screen is customizable. You can use
Intermec Settings to determine which options are available to end
users, the timeout until the default choice is selected, the default
action if no option is selected, or to disable the Power Options screen.
For more information on customizing the screen using Intermec
Settings, see “Using Intermec Settings on the Computer” on page
62 or see the Intermec Settings Command Reference Manual.
About the Intermec Dashboard Button
If the Ready-to-Work light blinks, your computer may be experiencing
a problem. Press the Intermec Dashboard button (m) to launch the
Intermec Dashboard application and view troubleshooting and status
information.
You can press the m button at any time to bring up the Intermec
Dashboard. If the computer is not healthy, the current issues are
displayed at the top of the screen. If the device is healthy, you can use
the Dashboard to view device information. For more information, see
“About the Intermec Dashboard” on page 102.
Configuring the Screen Backlight
The display has an ambient light sensor that automatically adjusts the
backlight intensity to conserve power and ensure the display is
readable.
By default, the screen turns off when there is no activity with the
computer. Press a key or tap the screen to resume activity.
Reboot The computer does not save the current system state, but
the registry and file systems are saved. The computer shuts
down all running processes and restarts.
Cancel The Power Options menu is cancelled.
Screen Off Lowest power saving mode. The screen turns off, but the
phone, all radios, and internal devices stay on. Tap the
screen to turn the screen back on.
Shutdown Very high power saving mode. The computer turns off
everything. You must press Power or apply external power
to restart the computer.
Option Description
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 25
To configure the screen backlight to turn off:
1Tap Start > Settings > Power.
2Tap Advanced on the horizontal scroll bar.
3Select the screen power off settings for when the computer is on
battery power or external power.
To configure the screen brightness:
1Tap Start > Settings > System > Backlight.
2Adjust the slider to the desired brightness level.
3Tap OK.
Adjusting the Volume
You can adjust the computer volume for your needs and your
environment. The volume includes sounds you hear when you tap the
screen or read bar codes with the imager. You can set the volume to off,
very low, low, medium, high, very high (default), or vibrate.
You can also use the buttons on the right side of the computer to
adjust the volume:
•The upper button increases the volume.
•The lower button decreases the volume.
To adjust the volume:
1Tap the Volume icon at the top of the screen, and then tap the
volume icon on the horizontal scroll menu.
2Use your stylus or the u and d keys to adjust the volume slider to
the volume you want, select Vibrate, or select Off.
Chapter 1 — Using the Computer
26 70 Series Mobile Computer User’s Manual
Reading Bar Codes
The computer ships with an internal imager. Depending on the imager
model in your computer, you can read 1D and 2D bar code
symbologies, composite symbologies, and postal codes.
You can also connect the computer to:
•cordless scanners, such as the SF51 and SR61 through Bluetooth

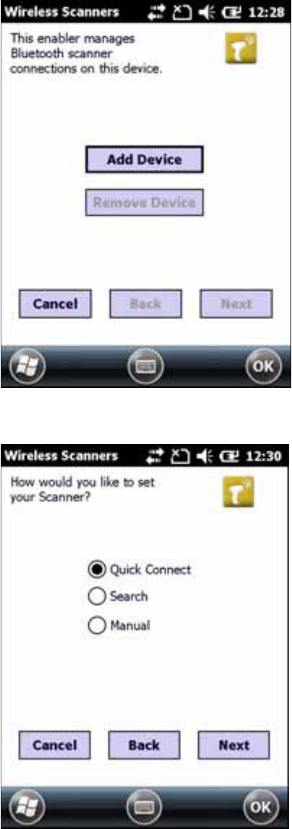

communications. For help, see “Connecting to a Bluetooth
Scanner” on page 72.
•tethered scanners, such as the SR30, and SR61T through the
RS-232 adapter (Model 1000AA03). For help, see “Connecting to
a Tethered Scanner” on page 76.
To read a bar code:
1Enable only the bar code symbologies that you need.
2Use Intermec Settings to choose the predefined imager mode that
best suits your environment:
3Point the imager window at the bar code label, and hold the
computer steady a few inches from the label.
4Press the Scan button. The laser pointer and illumination beam or
frame appear.
Note: When the Pictures & Videos application is running, you cannot
use the imager.
Predefined Mode For Scanning
1D Only 1D labels.
1D and 2D Standard (Default) All types of bar code labels.
1D and 2D Bright Environment In high ambient light, such as outdoors in
the sunshine.
1D and 2D Reflective Surface Glossy labels.
Note: You can also select the imager predefined mode in Profile
Settings by tapping Start > Profile Settings > Scanning.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 27
Scanning With the EA30 Imager
5Use the laser pointer as a guide and aim toward the middle of the
bar code. Make sure that the illumination beam or frame covers the
bar code you are trying to decode.
When the computer successfully reads a bar code label, you hear a
high beep, and the Good Read LED turns on briefly.
6Release the Scan button.
Inserting a microSD Card
You can use a microSD™ card to increase file storage and install
software. The computers support an optional 32 GB maximum
capacity microSD card.
Installing a microSD Card in a CN70 or CN70e
To install a microSD card on a CN70 or CN70e:
1Press the Power button to turn off the computer.
2Remove the battery.
Note: The computer resets when you open the card access door to
insert the microSD card. Make sure you completely close the card
access door before you use your computer.
Chapter 1 — Using the Computer
28 70 Series Mobile Computer User’s Manual

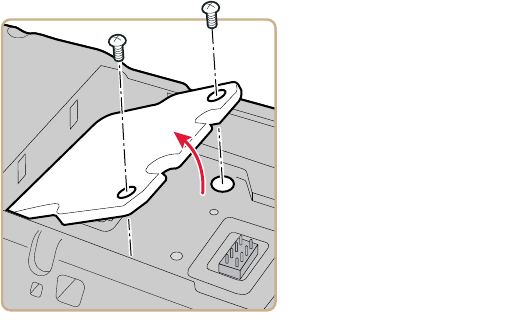

3Remove the two Phillips screws and open the card access door.
4Slide the SIM card door to the left to unlock it and open the door.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 29
5Slide the microSD card door towards the top of the computer to
unlock it and open the door.
6Slide the microSD card into place.
7Close the microSD card door and slide it towards the bottom of the
computer to lock it in place.
8Close the SIM card door and slide it to the right to lock it in place.
9Close the card access door and replace the two screws.
Chapter 1 — Using the Computer
30 70 Series Mobile Computer User’s Manual
10 Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
11 Press the Power button. The computer cold boots.
Installing a microSD Card in a CK70 or CK71
To install a microSD card on a CK70 or CK71:
1Press the Power button to turn off the computer.
2Remove the handstrap.
3Remove the two screws that attach the interface adapter cover to
the back of the computer.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 31
4Slide the SIM card door to the left to unlock it and open the door.
5Slide the microSD card door towards the top of the computer to
unlock it and open the door.
Chapter 1 — Using the Computer
32 70 Series Mobile Computer User’s Manual
6Slide the microSD card into place.
7Close the microSD card door and slide it towards the bottom of the
computer to lock it in place.
8Close the SIM card door and slide it to the right to lock it in place.
9Replace the interface adapter cover and attach with the two screws
removed in Step 2.
10 Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
11 Press the Power button. The computer cold boots.
Transferring Files To and From Your PC
You can use Microsoft ActiveSync (Windows XP or earlier) or Windows
Mobile Device Center (Windows Vista or Windows 7) to establish a
connection between your computer and a PC. After you connect to
your PC, you can transfer files, synchronize files, remotely debug, and
perform other device management activities. ActiveSync and Windows
Mobile Device Center are a free applications available from the
Microsoft web site at www.windowsmobile.com/getstarted.
Chapter 1 — Using the Computer
70 Series Mobile Computer User’s Manual 33
To establish an ActiveSync partnership between your computer and a
PC, you need to physically connect your computer to your PC using
these accessories:
•USB snap-on adapter (Model 1000AA07)
•USB cable
To transfer files to and from your PC:
1Download ActiveSync from the Microsoft web site and install
ActiveSync on your PC.
2Follow the onscreen instructions to establish a partnership. When
the partnership is established, the Microsoft ActiveSync screen
appears on your PC.
Chapter 1 — Using the Computer
34 70 Series Mobile Computer User’s Manual
35
2
Understanding the User Interface and
Intermec Applications
Use this chapter to learn about the Windows® Embedded
Handheld user interface and how to interact with the screen.
You can also use this chapter to learn about the Intermec
applications on your computer, as well as additional Intermec
applications you can download.
Chapter 2 — Understanding the User Interface and Intermec Applications
36 70 Series Mobile Computer User’s Manual
About the User Interface
The user interface for the Windows® Embedded Handheld 6.5
operating system is different from previous versions of Windows
Mobile. The interface is touch-friendly and easy to navigate. Use the
following sections to understand how to interact with Windows
Embedded Handheld 6.5.
About the Home Screen
When you turn on your mobile computer, the Home screen is the first
screen that appears. The Home screen contains three navigation bars:
the Title bar, the horizontal scroll bar, and the Tile bar.
The Windows Embedded Handheld 6.5 Home Screen
Use the Title bar icons to view the current status of information such
as signal strength and battery power remaining. For more information
on the Title bar icons, see “Title Bar Status Icons” on page 38 .
Horizontal scroll bar
Title bar
Tile bar
Chapter 2 — Understanding the User Interface and Intermec Applications
70 Series Mobile Computer User’s Manual 37
A horizontal scroll bar appears when you tap an icon in the Title bar.
This horizontal scroll bar makes it easy to access the applications
associated with the Tile bar icons. The horizontal scroll bar also
contains a magnifier which improves the touch experience by making
parts of the screen large enough to tap with your finger.
The horizontal scroll bar also replaces tabs within Windows screens
and allows for easier navigation.

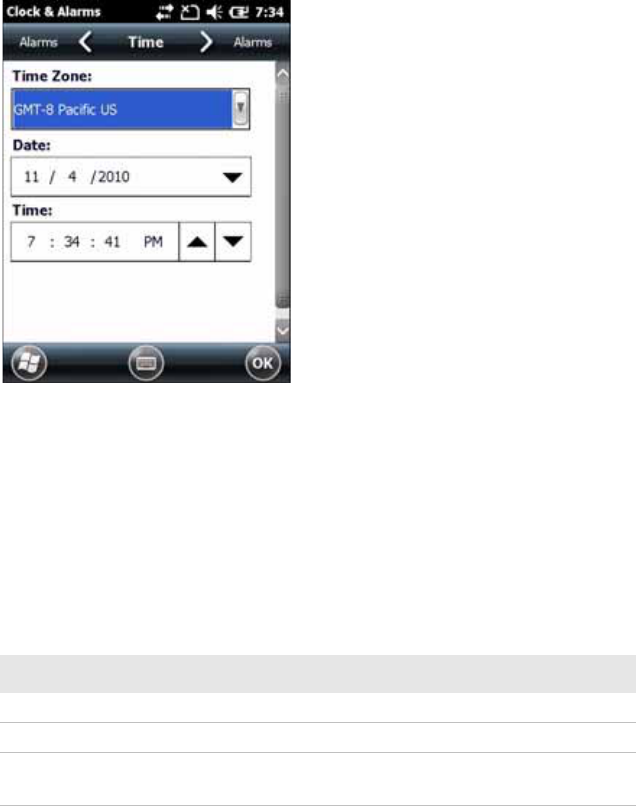

Clock & Alarms Screen With Horizontal Scroll Bar
Use the Tile bar to navigate between screens and within applications.
The icons available on the Tile bar change depending on the
application you are using.
Interacting With the Screen
The Windows Embedded Handheld 6.5 interface supports the use of
gestures with the finger or stylus to move around the screen. The table
below explains the supported gestures.
Gesture Description
Tap Represents the left click of a mouse.
Double-tap Represents the left double-click of a mouse.
Hold Represents the right click of a mouse when you press and hold
on the screen and a context menu appears.
Chapter 2 — Understanding the User Interface and Intermec Applications
38 70 Series Mobile Computer User’s Manual
Title Bar Status Icons
Tappable icons in the Title bar immediately show you the status of
your network, your phone, the volume, the battery, and the time. Use
the following table to understand what the icons mean.
Title Bar Status Icon Descriptions
Flick Initiates scrolling in the direction (horizontal or vertical) the
finger or stylus moves across the screen.
Pan Press and hold on the screen and then drag in any direction.
Gesture Description
Icon Description
You have a new notification.
You have a new text message.
You have a new e-mail message.
You have a new instant message.
You missed a call.
The speakerphone is on.
The phone is roaming.
An alarm is set.
The microphone is on.
An internet call is in progress.
A Bluetooth headset is detected.
An ActiveSync connection has been established.
There was a problem with the ActiveSync synchronization.
Chapter 2 — Understanding the User Interface and Intermec Applications
70 Series Mobile Computer User’s Manual 39
An ActiveSync synchronization is in progress over USB.
A UMTS network is available.
Connecting to a UMTS network.
A UMTS connection is active.
A 3G+ network is available.
An EDGE network is available.
Connecting to an EDGE network.
An EDGE connection is active.
A GPRS network is available.
Connecting to a GPRS network.
A GPRS connection is active.
An HSDPA network is available.
Connecting to an HSDPA network.
An HSDPA connection is active.
Bluetooth is on.
Wi-Fi is on but not connected, and no networks are detected.
Wi-Fi is not connected to a network, and other networks are
detected.
Other wireless networks are detected.
Connected to a wireless network.
Icon Description
Chapter 2 — Understanding the User Interface and Intermec Applications
40 70 Series Mobile Computer User’s Manual
Synchronizing through a Wi-Fi connection.
Connected to a wireless network, and other networks are
detected.
Information about a new wireless network is available.
A network connection is active.
A network connection is inactive.
The phone has maximum signal strength.
The phone has no signal.
The phone capability is off.
The phone has no service.
The phone is searching for service.
Data is being transferred.
A voice call is in progress.
A voice call in on hold.
There is no SIM card present in the computer.
The volume is off and the phone is set to vibrate.
The volume is on.
The volume is off.
The battery has a full charge.
The battery has a high charge.
Icon Description
Chapter 2 — Understanding the User Interface and Intermec Applications
70 Series Mobile Computer User’s Manual 41
Aligning the Screen
You may need to align your screen if you tap on one area and it
registers in a different part of the screen. Make sure you only use the
stylus to complete the alignment process.
To align the screen:
1Tap Start (t) > Settings > System > Screen
2Follow the prompts on the screen to complete the alignment
process.
About Intermec Applications
Intermec provides many useful applications to help you configure,
troubleshoot, and connect your computer to other devices and
networks. You can also download additional applications from the
Intermec web site to help you use all of the features of your computer.
The battery has a medium charge.
The battery has a low charge.
The battery has a very low charge.
The battery is attached to external power and is charging.
No battery is installed in the computer.
Call forwarding is on.
Voice mail is off.
GPS locator is off.
GPS locator is on.
Icon Description
Chapter 2 — Understanding the User Interface and Intermec Applications
42 70 Series Mobile Computer User’s Manual
Applications Available on the Mobile Computer
Use this table to understand some of the Intermec applications
available on your computer.
Intermec Applications Available on the Mobile Computer
Icon Application Description

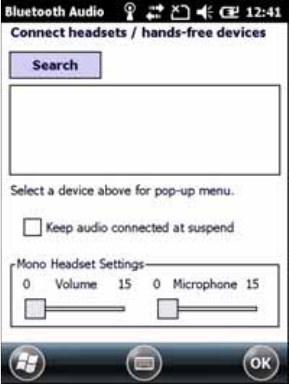

Bluetooth
Audio
Use the Bluetooth Audio application to connect to a
Bluetooth headset or hands-free device. For more
information, see “Connecting to a Bluetooth
Audio Device” on page 75.
iGPS You can use the iGPS application to improve the
performance of GPS on your computer. For more
information, see “Improving GPS Performance
on the Computer” on page 59. iGPS is only
available on computers with phone capability.
Intermec
Settings
Use Intermec Settings to configure your computer.
You can use Intermec Settings to individually
configure a computer or you can use it through

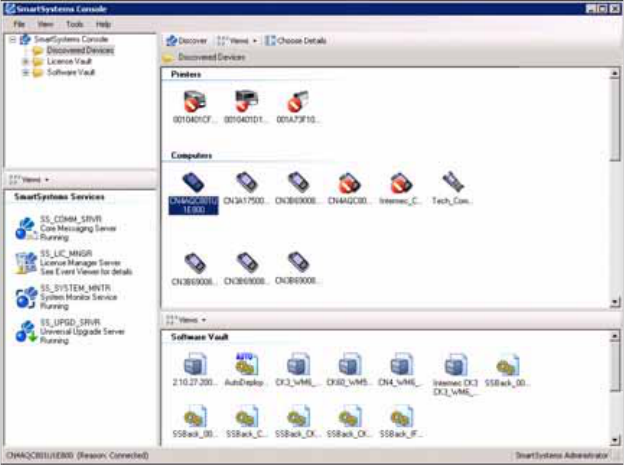

SmartSystems to configure all of your computers.
For more information, see “Using Intermec
Settings on the Computer” on page 62.
ISpyWiFi Use ISpyWiFi to check your 802.11 status and
diagnose what is wrong with the connection. For
more information, see “Checking 802.11 Network
Status” on page 105.
Profile Settings Use Profile Settings to easily configure the
computer for a specific use. You can choose
predefined values for the Camera, Power, and
Scanning.
To apply a profile setting:
•Tap the Profile Setting you want to use.
You will see a message that changes are saved and a
check mark appears next to your choice.
For more information on modifying Profile Settings
options, see “Configuring Profile Settings With
Intermec Settings” on page 68.
Wireless
Center
Use the Wireless Center to turn radios (Wi-Fi,
Bluetooth, phone) on and off and configure settings
for each radio.
Chapter 2 — Understanding the User Interface and Intermec Applications
70 Series Mobile Computer User’s Manual 43
Applications You Can Download to the Mobile Computer
You can download several Intermec applications from the web site that
extend the capabilities of your 70 Series computer. All of the
applications listed below are available from the Intermec web site.
Some of the applications require the purchase of a license to run. To
find the application you want, go to www.intermec.com > Support >
Downloads and then enter the information to find your 70 Series
computer.
About eMDI
Intermec Enhanced Mobile Document Imaging Application (eMDI) is
a professional document capture application that enables you to
capture images of full page documents (8.5 x 11 or A4 paper sizes) with
the camera. You can transfer the images from your mobile computer
to a PC or server. For more information, see the Intermec Enhanced
Mobile Document Imaging User’s Guide. You can download and use
eMDI for a 30-day evaluation period. After the evaluation period
expires, you will need to purchase a license.
About Features Demo
Intermec Features Demo provides a simple way to explore the key
features of your mobile computer. You will find applications that
demonstrate scanning, document imaging, image capture, printing,
GPS functionality, and the digital compass. Many of the applications
that are part of Features Demo also have separate full-featured
versions that you can download and license for your computer.
Wireless
Printing

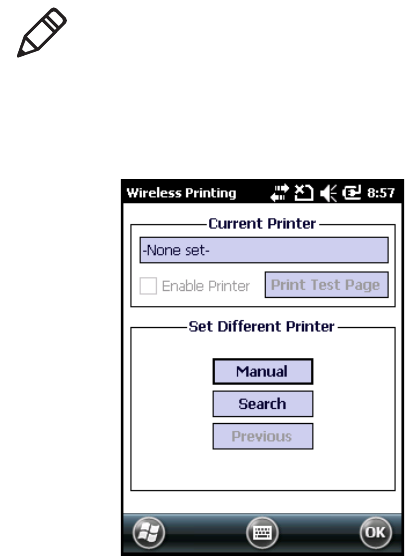

Use the Wireless Printing application to connect to
a Bluetooth printer. For more information, see
“Connecting to a Bluetooth Printer” on page 74.
Wireless
Scanning
Use the Wireless Scanning application to connect to
a Bluetooth scanner. For more information, see
“Connecting to a Bluetooth Scanner” on page 72.
Icon Application Description
Chapter 2 — Understanding the User Interface and Intermec Applications
44 70 Series Mobile Computer User’s Manual
About Image Capture
The Intermec Image Capture application is provided for use on the 70
Series computers with an EA30 imager. Image capture provides a way
for users to capture a high quality grayscale image with a mobile
computer. Image Capture also allows you to change settings to provide
the best image possible for the conditions present. You do not need to
license Image Capture.
About Intermec Browser
Intermec Browser is a locked-down web application for your computer
that is compatible with Microsoft™ Internet Explorer. You can
configure Intermec Browser for your specific application requirements
and design your own web pages. You can download and use Intermec
Browser for a 60-day evaluation period. After the evaluation period
expires, you will need to purchase a license.
About Intermec Connection Manager
Intermec Connection Manager is a software application and API
interface that provides seamless network roaming for Intermec mobile
computers configured with one or more wired or wireless technologies
(Ethernet, 802.11, GPRS, CDMA). Intermec Connection Manager
works in the background to automatically establish and maintain
connections. You can download and use Intermec Connection
Manager for a 60-day evaluation period. the evaluation period expires,
you will need to purchase a license.
About Intermec Launcher
Intermec Launcher 1.01 is a Microsoft® Windows® application,
designed for Intermec mobile computers, that provides a platform
from which other applications may be launched while attempting to
provide a locked-down environment. You can configure Intermec
Launcher for your specific application requirements. You can
download and use Intermec Launcher for a 60-day evaluation period.
After the evaluation period expires, you will need to purchase a license.
Chapter 2 — Understanding the User Interface and Intermec Applications
70 Series Mobile Computer User’s Manual 45
About Intermec Terminal Emulator (ITE)
Intermec Terminal Emulator (ITE), part of Intermec Client Pack (ICP),
is the next generation of Intermec’s popular terminal emulation client
designed for enterprise-level data collection. It provides a consistent
user interface and a common menu structure to simplify the use and
management of applications running on Intermec mobile and wireless
computers.
ITE is packed with enhancements that improve productivity, reduce
errors, and deliver fast return on investment. It supports multiple
emulation protocols in a single client and has new features such as
session persistence, remote management and configuration, and offers
a maintenance plan to keep you up-to-date with the latest releases and
upgrades. You can download and useITE for a 60-day evaluation
period. After the evaluation period expires, you will need to purchase a
license and maintenance plan.
About SmartSystems Foundation
SmartSystems™ Foundation is an easy-to-use software platform that
provides IT Administrators and Integrators a single, integrated portal
for hands-free provisioning, deployment, and management of
Intermec devices minimizing the effort spent on software upgrades,
equipment monitoring, maintenance and troubleshooting.
SmartSystems Foundation provides a consistent way to manage
Intermec devices including mobile computers, RFID readers, printers
and bar code scanners, located on-site or remote, to make the most of
limited IT resources, and lower the total cost of ownership for
Intermec data collection equipment. SmartSystems Foundation can
be downloaded at no charge from the Intermec web site. For more
information, visit www.intermec.com\SmartSystems.
Chapter 2 — Understanding the User Interface and Intermec Applications
46 70 Series Mobile Computer User’s Manual
47
3
Using the Phone
You can use the phone feature to make and receive telephone
calls, as well as transmit data through cellular wide-area
networks (WANs).
Chapter 3 — Using the Phone
48 70 Series Mobile Computer User’s Manual
About the Phone
The 70 Series mobile computer supports two types of cellular
technology:
•CDMA
•UMTS
Phone features on the computer include a speaker and a microphone.
You can also use a Bluetooth headset or hands-free kit. The phone
feature is enabled by default on WWAN-equipped mobile computers.
After you turn on the phone and activate service with your wireless
carrier, you can customize the phone features and network settings.
For more information, see the online help on your mobile computer.
Activating the UMTS Phone
You use a SIM card to activate the UMTS phone on your computer.
You can purchase the SIM card from your network provider.
To install the SIM card and activate the UMTS radio:
1Press the Power button to turn off the computer.
2On the CN70 or CN70e:
aPush the battery release tab forward until the battery releases,
and lift the battery away from the computer.
bRemove the two Phillips screws and open the card access door.
Chapter 3 — Using the Phone
70 Series Mobile Computer User’s Manual 49
3On the CK70, remove the two screws and lift the card access door
away from the computer.
4Slide the SIM card door to the left to unlock it and open the door.
5Slide the SIM card into the slot in the card access door.
6Close the SIM card door and slide it to the right to lock it in place.
7Close the card access door and replace the two screws.
Chapter 3 — Using the Phone
50 70 Series Mobile Computer User’s Manual
8Install the battery. Press down firmly on the bottom of the battery,
and make sure that the battery release tab is fully engaged.
9Press the Power button. The computer cold boots.
Activating the CDMA Phone
To activate the CDMA radio module in your mobile computer, you
need to contact your wireless carrier and set up an account for each
mobile computer. The following table lists the carriers that Intermec
currently supports. If your carrier is not listed in the table, please
contact Intermec product support to see if it is now supported.
Currently Supported Carriers
The carrier will require the Electronic Serial Number (ESN) to start the
activation process. You can find the ESN:
•on a label located in the upper right corner of the battery
compartment.
•on the outside of the computer shipping box.
The activation process is slightly different for each CDMA carrier.
Your carrier sales contact and an Intermec representative can guide
you through the process.
After you supply the ESN to your carrier, they will respond with values
that you must enter using the Windows Mobile Activation Wizard (if
required). Some of the supported carriers do not require you to enter
any values. The following table shows the carriers, the correct
activation method to use, and the values that you need to activate your
phone.
Country Carriers
United States Sprint, Verizon
Chapter 3 — Using the Phone
70 Series Mobile Computer User’s Manual 51
Values Required for CDMA Phone
After activation, the settings are permanently stored in the CDMA
module. Changing the OS or SSPB loads will not affect any of the
settings or activation parameters stored in the WAN modem.
Starting the Activation Wizard
Depending on your wireless carrier, you may need to use the Windows
Mobile Activation Wizard to activate your phone.
To start the activation wizard:
1Tap Start > Phone, or tap the Phone button on the Tile bar.
The phone application starts.
2Tap Menu > Activation Wizard.
Turning the Phone On and Off
Before you can start using your phone, you need to enable it. You can
use Wireless Center to enable and disable your phone, as well
Bluetooth and Wi-Fi communications.
To turn on the phone using Wireless Center:
1Tap Start > Settings > Connections > Wireless Center.
2Tap Phone to turn on the Phone
3(Optional) To configure the phone, tap Menu in the tile bar at the
bottom of the screen.
4Tap OK when you are done configuring the options.
5Tap OK to close Wireless Center.
Carrier Activation Method Activation Values You Need
Sprint Activation Wizard •Master Subsidy Lock (MSL) or activation code
•MDN
•Mobile Station Identifier (MSID)
Verizon •Dial *22899
•Activation Wizard
None. All parameters are automatically
transferred wirelessly.
Chapter 3 — Using the Phone
52 70 Series Mobile Computer User’s Manual
Making a Phone Call
After you activate your phone, you are ready to start making phone
calls.
To make a phone call:
1Press Phone.
2Tap the keys to enter the telephone number you want to call, and
tap Talk.
Making an Emergency Phone Call
You can use the UMTS phone to make an emergency phone call even
if the SIM card is missing. When the SIM card is not installed, the
phone will show that you have no service. However, if you dial certain
emergency numbers (such as 112, 911, 000, 08, 118, 119, and 999) the
call will go through.
53
4
Using the Camera
You can use the color camera to take pictures and record
videos.
Chapter 4 — Using the Camera
54 70 Series Mobile Computer User’s Manual
About the Color Camera
The camera and flash are located on the back of the computer. You run
the Pictures & Videos application to access the camera features. In this
application, you can:
•take, view, and edit pictures.
•record and launch video clips stored on the computer or a microSD
card.
•configure camera options.
You can also send pictures and video clips to others or save an image
as the background on the Home screen. If you download the eMDI
application, it uses the camera to capture images.
Taking a Picture
You can take photos in high, normal, or low quality, with image sizes
up to 2048 x 1536 pixels. When you take a picture, the image is saved
as a .jpg file and stored in the /My Documents/My Pictures folder.
To take a picture:
1Tap Start > Pictures & Videos.
2Tap the Camera icon in the grid or the Camera button on the Tile
bar, or press Enter.
3Using the screen as a viewfinder, move the camera until you have
the image you want to take a picture of.
4Press Enter to take and save the picture. If you choose to save your
pictures to Main memory, they are saved to permanent storage on
your mobile computer.
Note: While the Pictures & Videos application is running, you cannot
use the imager.
Chapter 4 — Using the Camera
70 Series Mobile Computer User’s Manual 55
Recording a Video
You need to switch to video mode to record video. When you record
video, the video is saved as an .mp4 file and stored in the /My
Documents/My Pictures folder.
To switch to Video mode and record video:
1Tap Start > Pictures & Videos.
2Tap the Camera icon in the grid or the Camera button on the Tile
bar, or press Enter.
3Tap Menu > Video.
In the lower right, the camera icon turns into a video camera. On
the Tile bar, the Record button replaces the Take Pic button.
4Using the screen as a viewfinder, move the video camera until you
see the scene you want to video record.
5Press Enter to start recording.
6When you are done, tap Stop or press Enter to stop recording and
save the video.
If you choose to save your videos to Main memory, they are saved to
permanent storage on the computer.
Saving Pictures and Videos to an SD Card
Pictures and videos are automatically saved to the main memory on
your computer. You can save your pictures and video to an SD card to
easily transport them to another device.
To save picture and video files to an SD card:
1Install a microSD card. For help, see “Inserting a microSD Card”
on page 27.
2Tap Start > Pictures & Videos.
3Tap the camera icon.
4Tap Menu > Options.
5From the Save files to list, select SD card, and tap OK.
Chapter 4 — Using the Camera
56 70 Series Mobile Computer User’s Manual
57
5
Using GPS
The 70 Series computer comes equipped with an integrated
Global Positioning System (GPS) receiver if your computer has
phone capability (WWAN radio). The GPS receiver can deliver
standards-based National Marine Electronics Association
(NMEA) data strings to GPS applications.
Chapter 5 — Using GPS
58 70 Series Mobile Computer User’s Manual
About the Integrated GPS on Your Computer
Intermec recommends that you use the GPS Intermediate Driver
(GPSID) instead of directly accessing the GPS hardware. The GPSID is
a Microsoft software component that interacts between applications
and the GPS hardware.
As a Microsoft software component, the GPSID:
•allows multiple applications to simultaneously access the GPS data
stream.
•provides access to GPS data without requiring applications to
recognize and parse NMEA syntax.
Using the GPSID Installed on the Computer
To use the GPSID installed on your mobile computer, you need to
configure the GPSID settings.
To configure your GPSID settings:
1Tap Start > Settings > System > External GPS. The GPS Settings
screen appears with Programs selected.
Chapter 5 — Using GPS
70 Series Mobile Computer User’s Manual 59
2Select the COM port that you want your programs to use to get
GPS data from your computer.
3Tap Access in the horizontal scroll bar and select the Manage GPS
automatically check box.
4Tap OK.
Improving GPS Performance on the Computer
Use the iGPS application to improve the performance of the GPS on
your CN70, CN70e, or CK70 computer. The integrated GPS module
has three operating modes:
•Standalone
•MS Assisted
•gpsOneXTRA™
In Standalone mode, the GPS module relies solely on GPS satellites to
determine position.
Chapter 5 — Using GPS
60 70 Series Mobile Computer User’s Manual
In MS Assisted mode, the computer can determine position without
receiving GPS signals directly from satellites; instead, the computer
receives GPS signals and information provided by the cellular network.
Even when the computer can receive a satellite signal, MS Assisted can
improve position accuracy and reduce the time to determine initial
position (Time-To-First-Fix). Check with your cell phone carrier for
availability and pricing for MS Assisted service.
Qualcomm’s gpsOneXTRA Assistance technology provides enhanced
operation for Standalone GPS. This option enables the UMTS-enabled
computer to automatically download a small assistance data file from
the XTRA servers through a brief internet access session.
Another option you can configure with iGPS is the fix interval. The fix
interval defines how often the GPS should provide new information.
Larger intervals use less power, but many applications require small
intervals to work correctly. The default for fix interval is 4.
To improve GPS performance:
1Go to Start > Settings > System > iGPS.
2In the Fix Interval tab, enter a value for the fix interval. The default
setting is 4 and should be optimized for most applications.
3Tap the Fix Type tab and select one of these options: Standalone
(1), MS assisted (2), or Enable gpsOneXTRA (check box).
4Tap OK.
Note: Anytime you change the GPS settings, the phone module will
reset automatically. It will not affect the functionality of the computer.
61
6
Configuring the Computer
Use this chapter to learn about the available methods for
configuring your mobile computer and how to use Intermec
Settings. You can also use this chapter to learn how to
configure network communications and wireless security.
Chapter 6 — Configuring the Computer
62 70 Series Mobile Computer User’s Manual
How to Configure the Computer
You can configure many parameters on the computer such as the bar
code symbologies it decodes or the network settings. The values you
set for these parameters determine how the computer operates.
There are several ways to configure the computer:
•Directly on the computer. You can use Intermec Settings directly
on the computer to change only the settings on that computer. For
more information, see “Using Intermec Settings on the
Computer” on page 62.
•Remotely using Intermec SmartSystems Foundation. When you
use SmartSystems, you can remotely configure all of your 70 Series
mobile computers as well as other SmartSystems-enabled Intermec
computers and peripherals. For more information, see “Using
Intermec Settings Remotely With SmartSystems Foundation”
on page 70.
•You can use a third-party device management product that
supports the computer and Intermec Settings, such as Soti
MobiControl or Wavelink Avalanche. For more information, visit
the Device Management page on the Intermec web site.
You can also configure the computer with configuration bundles that
you create using SmartSystems Foundation. For more information,
see the SmartSystems Foundation online Help.
Using Intermec Settings on the Computer
Use Intermec Settings to configure parameters for Intermec
applications on the computer as well as some device-specific
parameters like volume. You can configure parameters for important
functions like data collection and communications.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 63
Starting Intermec Settings
Intermec Settings is located on the System screen.
To start Intermec Settings:
•Tap Start > Settings > System > Intermec Settings.
The Intermec Settings Main Menu appears.
About the Structure of Intermec Settings
Use the tables below to help find the parameters in Intermec Settings
that you want to configure. Each table contains the parameters for one
of the Intermec Settings Main Menu options.
If you see > next to a menu option, there are more screens available in
the next level. If you see ... next to a menu option, there is only one
more screen available.
Most parameters are saved as soon as you tap OK. Some settings such
as the Serial Port Switch require you to reboot the computer for the
changes to take effect.
Chapter 6 — Configuring the Computer
64 70 Series Mobile Computer User’s Manual
Data Collection Menu
Communications Menu
Data Collection Options Parameters You Can Configure
Internal Scanner •Symbologies
•Scanner settings
•Imager settings
•Decode security
Bluetooth Scanner •Symbologies
•Scanner settings
•Imager settings
•Decode security
Dock Tethered Scanner •Symbologies
•Scanner settings
•Scanner port settings
•Imager settings
•Decode security
Camera •Symbologies
•Scanner settings
•Camera settings
•Decode security
BT-Configure on Connect Bluetooth-configure on connect
Magstripe Reader •Enable magstripe reader
•Reader model (read-only)
Communications Options Parameters You Can Configure
Device Name Device name
802.11 Radio •Security choice (supplicant)
•Security settings (includes Wi-Fi
settings such as enable/disable radio)
•IP settings
•Certificates
Ethernet Adapter IP settings
Bluetooth Bluetooth settings (power, discoverable,
connectable, and so on)
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 65
Device Settings Menu
WWAN Radio •Add WWAN connection
•Edit WWAN connections
•Manage WWAN radio
•WWAN information
Serial Port Switch Serial port switch settings (IrDA, docking
connector, and back interface)
Device Settings Options Parameters You Can Configure
Date and Time Date and time settings
Good Read •Internal scanner
•Dock tethered scanner
•Bluetooth scanner
Volume Volume settings (beeper and voice,
headset beeper, and vibrate mode)
Backlight Backlight settings (display backlight,
keypad backlight, and light level)
Screen Screen rotation
Keypad Scan button remapping
Power Management •Power button
•Battery power
•External power
Compass Settings Compass settings (magnetic declination
and magnetic inclination)
Sensors •Data streaming
•Screen rotation
•Device off
USB Connections USB connections
System Component Versions System component versions (read-only)
IDL Runtime Versions ITC50 (read-only)
Profile Settings Application Whether these parameter options appear
in Profile Settings:
•Camera
•Power
•Scanning
Communications Options Parameters You Can Configure
Chapter 6 — Configuring the Computer
66 70 Series Mobile Computer User’s Manual
Printer Menu
GPS Menu
SmartSystems Information Menu
Virtual Wedge Menu
Features Disabled by Policy None (read-only)
Printer Options Parameters You Can Configure
Printer (if connected through
Bluetooth)
Printer settings (Auto detect printer,
memory, display, and so on)
Device Settings Options Parameters You Can Configure
Note: The Printer menu displays settings for Bluetooth connected
printers. The settings that appear in the menu are dependent on the
printer that is paired with the device.
GPS Options
GPS Bread crumbing settings
SmartSystems Information Options Parameters You Can Configure
Identity Identity information (hardware
version, firmware version, OS version,
and so on) (read-only)
Administrator Administrator settings (name, phone,
and email)
Location Location settings (country, state, city,
campus, and detail)
Information Device Notes (read-only)
Virtual Wedge Options Parameters You Can Configure
Enable Virtual Wedge Enable virtual wedge
Bar Code Scanner Wedge Bar code scanner wedge settings (bar code
scanner grid and label encoding)
Magstripe Reader Wedge Magstripe Reader Grid
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 67
Core Messaging Service Menu
Device Monitor Menu
License Manager Menu
Location Services Menu
For more information on all parameters in Intermec Settings, see the
Intermec Settings Command Reference Manual.
Core Messaging Service Options Parameters You Can Configure
Server IP Server IP (read-only)
Associated Server IP Associated server IP
Broadcast Name Broadcast name
Port Port (read-only)
Keep Alive Ping Interval Keep alive ping interval
Device Monitor Options Parameters You Can Configure
Device Health Controls •Enable health data collection
•Enable Blue light
•Set rule file location
•Set data refresh periods
Device Health Screen Captures Device health screen capture settings
(directory and screen capture allowed)
Disabled Executables None (read-only)
Device Wipe Device wipe settings (enable wipe and
interval)
License Manager Options Parameters You Can Configure
About About settings (read-only)
License Vault None (displays applications that are
licensed)
Location Services Options Parameters You Can Configure
Server Server settings (port and enable server)
Virtual GPS Virtual GPS settings
Chapter 6 — Configuring the Computer
68 70 Series Mobile Computer User’s Manual
Navigating in Intermec Settings
You can easily navigate through the screens in Intermec Settings to
find the parameter you need to configure.
To move down a level in Intermec Settings:
•Tap the menu item in the list.
To move back a level in Intermec Settings:
•Tap Back or Cancel on the Tile bar.
To save a parameter setting:
• Tap OK.
To exit Intermec Settings:
•Tap Menu > Exit or OK.
Configuring Profile Settings With Intermec Settings
A profile is a set of predefined values that you can easily apply to the
computer to ensure optimal performance in a specific scenario. The
end user does not need to figure out the “right” settings because we
have already done that work for you. Profile Settings is available from
the Start menu so you can make it available to the end user for easy
configuration.
Use Intermec Settings to determine the profiles you want the end user
to see in the Profile Settings application.
To configure the profile information an end user can access:
1Go to Device Settings > Profile Settings Application.
2Select Camera, Power, or Scanning.
3From the Camera, Power, or Scanning submenu, check or clear the
Display check box for the settings you want to have available to the
end user.
4Click OK to save your selection.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 69
Restoring Default Settings
You can easily restore a menu to its default settings or all of the
Intermec Settings parameters to their default settings if necessary.
To restore menu defaults:
1Navigate to the menu that you want to restore to defaults.
2Tap Menu > Restore Menu Defaults.
3When prompted, tap Yes to restore the menu default settings.
4If prompted to refresh the computer, tap Yes.
To restore all defaults:
1Tap Menu > Restore All Defaults. The applications asks if you are
sure you want to restore all defaults.
2Tap Yes.
After several minutes, all of the default settings are restored.
Hiding Menu Items in Intermec Settings
You can hide items in the Intermec Settings menus if you do not want
to have them available for other users to access. Hidden items are not
saved when you back up your settings in the SmartSystems console.
On the mobile computer, you can:
•hide menu items by tapping and holding the item, and then
choosing Hide Menu Item from the popup list. When asked if you
want to hide the menu, tap Yes.
•restore hidden items in a single menu, by tapping and holding the
menu bar where the item was hidden, and then choose Restore
Item Default from the popup list.
•restore all hidden items in all menus, by tapping Menu > Unhide
All Items.
Note: When you restore default settings in Intermec Settings, only the
settings for visible items are restored to defaults. The settings for
hidden menu items are not affected.
Chapter 6 — Configuring the Computer
70 70 Series Mobile Computer User’s Manual
Using Intermec Settings Remotely With
SmartSystems Foundation
Your mobile computer is SmartSystems-enabled, which lets you open
Intermec Settings from the SmartSystems console to remotely
configure all of your mobile computers. For more information on
SmartSystems, see “Managing the Computer Using SmartSystems”
on page 92.
To open Intermec Settings from the SmartSystems console:
1In the SmartSystems console, select a mobile computer and
right-click.
2From the menu, select Intermec Settings.
3Configure the settings you need to change. As you choose
parameters from the tree structure, help for each parameter
appears in the upper right pane of Intermec Settings.
4When you are done making changes, choose File > Save Settings.
For help using Intermec Settings, click Help > Contents. For
information on all of the parameters in Intermec Settings, see the
Intermec Settings Command Reference Manual.
About Network Communications
You can easily add the mobile comptuer to your wireless or wired data
collection network. You can connect your computer using:
•802.11a/b/g/n radio communications.
•Ethernet communications.
•Bluetooth communications.
•USB and serial communications.
Configuring 802.11a/b/g/n (Wi-Fi) Radio Communications
Make sure all components with antennas are at least 30 cm (1 ft)
apart when power is applied. Failure to comply could result in
equipment damage.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 71
The mobile computer contains an 802.11 radio to transfer data using
wireless communications and to support the TCP/IP network
protocols. This section of the manual assumes that your wireless
network is set up, including your access points.
By default, the 802.11 radio is disabled. Use the following procedure to
enable the Wi-Fi radio using Intermec Settings. If you would like to use
ScanNGo bar codes to easily enable the radio and set the default
security settings, see Appendix C “ScanNGo Wi-Fi Configuration
Bar Codes” on page 163.
To enable the Wi-Fi radio on your computer and configure
communications:
1Tap Start > Settings > System > Intermec Settings.
2From the Intermec Settings main menu, tap Communications >
802.11 Radio > Radio Enabled.
3Select the Radio Enabled check box and tap OK. By default, the
computer uses Funk security and enables DHCP.
4Use Intermec Settings to configure any other parameters you need
to use for communication with your network.
5Configure 802.11 security. For help, see “About Wireless
Security” on page 79.
Configuring Ethernet Communications
To configure Ethernet communications, connect your mobile
computer to your Ethernet network using the Ethernet Snap-On
Adapter (Model 1000AA01) or an Ethernet dock.
To configure Ethernet communications:
1Connect the Ethernet snap-on adapter to your mobile computer.
2Connect the Ethernet cable from your network to the snap-on
adapter or dock.
Ethernet communications are automatically enabled on your
mobile computer.
3Make sure that your computer is communicating with the network.
The network connection icon ( ) should appear on the title bar.
Chapter 6 — Configuring the Computer
72 70 Series Mobile Computer User’s Manual
Configuring Bluetooth Communications
Your mobile computer is Bluetooth™-enabled, which lets you connect
to other Bluetooth devices, such as scanners, printers, or audio devices.
You need to turn on the Bluetooth radio before you can discover and
connect to other Bluetooth devices. By default, the radio is turned off.
To turn on the Bluetooth radio and configure Bluetooth settings:
1Tap Start > Settings > Bluetooth > Mode.
2Select the Turn on Bluetooth check box.
3(Optional) If you want your computer to be visible to other
Bluetooth devices, choose Make this device visible to other
devices.
4Tap OK.
The Bluetooth radio maintains its state through a reboot or cold
boot and maintains virtual COM ports. But, if you clean boot your
computer you need to recreate pairings to devices.
Connecting to a Bluetooth Scanner
You can connect the computer to an Intermec Bluetooth scanner, such
as the SF51 or SR61.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 73
To connect to an Intermec Bluetooth scanner:
1Tap Start > Settings > System > Wireless Scanning.
2Tap Add Device.
3Select Quick Connect, Search, or Manual. Follow the onscreen
instruction to add a wireless scanner.
Chapter 6 — Configuring the Computer
74 70 Series Mobile Computer User’s Manual
Connecting to a Bluetooth Printer
To configure your computer for Bluetooth wireless printing, you need
to:
•create an application that opens the wireless printing COM port on
your computer. For help, see the Bluetooth Resource Kit, which is
part of the Intermec Developer Library (IDL), available from the
Intermec web site at www.intermec.com/idl.
•select the current wireless printer on your computer. For help, see
the next procedure.
To select the current wireless printer:
1Tap Start > Settings > System > Wireless Printing.
2Tap Search to find a printer, or tap Manual to enter a device
address. Follow the onscreen instructions to select the current
wireless printer.
3(Optional) Tap Print Test Page. The printer prints out a test page.
Note: You can also print wirelessly using Microsoft APIs with
Bluetooth extensions for Winsock and Bluetooth virtual COM ports.
For help, see the Bluetooth Resource Kit documentation.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 75
Connecting to a Bluetooth Audio Device
Use the Bluetooth Audio enabler to discover, activate, and connect to
Bluetooth audio devices such as a headset. This enables system sounds
to be monitored through the headset.
To connect to a Bluetooth audio device:
1Tap Start > Settings > System > Bluetooth Audio.
2Tap Search to find your Bluetooth headset or hands-free device.
3Select your device from the list and configure any settings.
4Click OK when you are done.
About Serial and USB Communications
You can use these 70 Series accessories to transmit data to and receive
data from another device through serial or USB communications:
•RS-232 Snap-On Adapter (Model 1000AA03)
•USB Snap-On Adapter (Model 1000AA07)
For more information about these accessories and how to order them,
see “70 Series Accessories” on page 7.
Chapter 6 — Configuring the Computer
76 70 Series Mobile Computer User’s Manual
Connecting to a Tethered Scanner
Use this procedure to connect your mobile computer to an SR30,
SR61T, or ASCII tethered scanner and enable RS-232
communications.
To connect the computer to a tethered scanner:
1Tap Start > Settings > System > Intermec Settings >
Communication s > Serial Port Switch.
2Select Standard docking and IrDA and tap OK.
3Tap Back to return to the Main Menu.
4Tap Data Collection > Dock Tethered Scanner > Enable
scanner auto-detect.
5Select the Enable scanner auto-detect check box and tap OK.
6Perform one of these items based on the type of scanner you are
connecting:
•For an SR30 or SR61T scanner, tap Scanner Settings, select SR
Intermec Scanner, and then tap OK.
•For an ASCII scanner, tap Scanner Settings, select ASCII, and
then tap OK. Set up the appropriate COM port settings by
selecting Scanner Port Settings.
7Connect the RS-232 snap-on adapter with the attached scanner to
the bottom of the mobile computer.
Creating an ISP Connection
You can create an Internet Service Provider (ISP) connection to send
and receive e-mail messages using Messaging (Outlook E-mail) and
view web pages using Internet Explorer Mobile. You need to get your
ISP dial-up access telephone number, a user name, and a password
from your ISP.
To create an ISP Connection:
1Tap Start > Settings > Connections > Connections.
2Under My ISP, tap Add a new modem connection.
3Enter a name for the connection, such as “ISP Connection.”
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 77
4If you are using an external modem connected to your mobile
computer with a cable, select Hayes Compatible on COM1 from
the Select a modem list.
5Tap Next.
6Enter the access phone number and then tap Next.
7Enter the User name, Password, and Domain (if provided by an
ISP or your network administrator).
8Tap Finish.

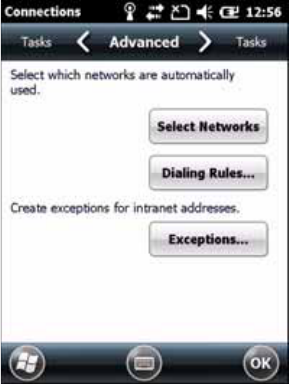

9On the Connections screen, tap Advanced on the horizontal scroll.
10 Tap Dialing Rules.
11 When the Enable Dialing Rules box appears, tap OK.
12 Tap Edit.
13 In the Name field, enter your phone type (Home, Mobile, or
Work).
14 Tap OK until you exit the Connections screen.
Chapter 6 — Configuring the Computer
78 70 Series Mobile Computer User’s Manual
Creating a VPN Server Connection
You can create a Virtual Private Network (VPN) connection to securely
connect to servers, such as a corporate network, through the Internet.
Before you can create a VPN connection, you need this information
from your network administrator:
•User name
•Password
•Domain name
•TCP/IP settings
•Host name or IP address of the VPN server

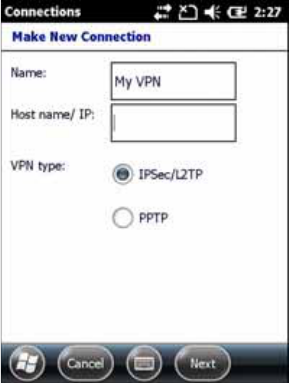

To create a VPN server connection:
1Tap Start > Settings > Connections > Connections.
2Under My Work Network, tap Add a new VPN server
connection.
3Step through the screens to set up your VPN connection.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 79
About Wireless Security
The computer provides four types of security for your wireless
network:
•Wi-Fi Protected Access 2 (WPA2™)
•Wi-Fi Protected Access (WPA)
•802.1x
•WEP
This section explains how to configure wireless security on your
mobile computer. Intermec recommends that you implement WPA2
security using PSK (Personal) or 802.1X (Enterprise) key management
as appropriate.
You must use either Funk or Microsoft security to implement your
security solution. For details, see the next section, “Choosing
Between Microsoft and Funk Security.”
If you are using WPA-802.1x, WPA2-802.1x, or 802.1x security, this
section also assumes that your authentication server and
authenticators are properly configured.
Choosing Between Microsoft and Funk Security
The computer supports both Funk and Microsoft security, which
dynamically select wireless networks based on your preferences. The
option you choose depends on your network security needs.
•If you are using the computer in a static environment that requires
a high level of security, you should use Funk security, which offers
CCX v4.0 compliance, support for LEAP and TTLS, and
configuration for up to four profiles.
To use Funk security, you need to select a profile. For help, see the
next section, “Selecting a Funk Security Profile.”
Note: Your security choice does not depend on your authentication
server. For example, you can choose Funk security if you use Microsoft
Active Directory® to issue certificates.
Chapter 6 — Configuring the Computer
80 70 Series Mobile Computer User’s Manual
•If you are primarily using the computer to connect to Wi-Fi
hotspots, you may want to use Microsoft security.
To use Microsoft security, you need to select it as your security
choice. For help, see “Selecting Microsoft as Your Security
Choice” on page 84.
Selecting a Funk Security Profile
You can define up to four profiles for Funk security. Different profiles
let your computer communicate in different networks without having
to change all of your security settings. For example, you may want to
set up one profile for the manufacturing floor and one for the
warehouse. By default, the active profile is Profile 1.
Selecting a Funk Security Profile
Use the following procedure to select a Funk security profile.
1Start Intermec Settings.
2Choose Communications > 802.11 Radio > Funk Security.
3Choose a profile. A list of configurable settings appears.
4(Optional) In the Profile Label text box, enter a meaningful name
for your profile.
5Configure your security settings. For help, see the next sections.
6Repeat Steps 3 through 5 for each profile you want to define.
7Set an active profile by choosing it in the Active Profile list.
8Save your settings.
Configuring WPA or WPA2 Enterprise (802.1x) Security With
Funk
Use these procedures to set WPA-802.1x or WPA2-802.1x security on
your comptuer with Funk security.
1Make sure the communications and radio parameters on your 70
Series are configured.
2Make sure Funk is selected as your security choice.
3Start Intermec Settings.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 81
4Choose Communications > 802.11 Radio > Funk Security.
5Select the profile you want to configure.
6For Association, choose WPA or WPA2. Encryption
automatically defaults to TKIP or AES, respectively.
7For 8021x, choose TTLS, PEAP, EAP-FAST, or TLS.
8If you choose TTLS, EAP-FAST, or PEAP:
aFor Prompt for Credentials, choose Enter credentials now.
bEnter a User Name and User Password.
cFor Validate Server Certificate, choose Yes.
9If you choose TLS:
aLoad a user and root certificate on your computer. For help, see
“Loading a Certificate” on page 88.
bEnter a User Name and Subject Name.
cFor Validate Server Certificate, choose Yes.
Configuring WPA or WPA2 Personal (PSK) Security With Funk
Use the following procedure to configure WPA-PSK or WPA2-PSK
with Funk security.
1Make sure the communications and radio parameters on your
computer are configured.
2Make sure Funk is selected as your security choice.
3Start Intermec Settings.
4Choose Communications > 802.11 Radio > Funk Security.
5Select the profile you want to configure.
6For Association, choose WPA or WPA2.
7For 8021x, choose None.
Note: The correct date must be set on your computer when you enable
Validate Server Certificate.
Chapter 6 — Configuring the Computer
82 70 Series Mobile Computer User’s Manual
8For Pre-Shared Key, enter the pre-shared key or passphrase.
The pre-shared key must be a value of 32 hex pairs preceded by 0x
for a total of 66 characters. The value must match the key value on
the access point. The passphrase must be from 8 to 63 characters.
After you enter a passphrase, the 70 Series internally converts it to
a pre-shared key. This value must match the passphrase on the
authenticator.
9Save your settings.
Configuring 802.1x Security With Funk Security
Use the following procedure to configure 802.1x-WEP security with
Funk security. Intermec recommends that you use WPA2-802.1x
instead of 802.1x-WEP if possible.
1Make sure the communications and radio parameters on your
computer are configured.
2Make sure Funk is selected as your security choice.
3Start Intermec Settings.
4Choose Communications > 802.11 Radio > Funk Security.
5Select the profile you want to configure.
6For Association, choose Open.
7For Encryption, choose WEP.
8For 8021x, choose TTLS, PEAP, or TLS.
9If you chose TTLS or PEAP:
aEnter a User Name.
bFor Prompt for Credentials, choose Enter credentials now.
cEnter a User Password.
dFor Validate Server Certificate, choose Yes.
10 If you choose TLS:
aLoad a user and root certificate on your computer. For help, see
“Loading a Certificate” on page 88.
bFor Validate Server Certificate, choose Yes.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 83
cEnter a User Name and Subject Name.
11 Save your settings.
Configuring Static WEP Security With Funk Security
Use the following procedure to configure static WEP security with
Funk. Intermec recommends that you use WPA2-PSK instead of WEP
if possible.
1Make sure the communications and radio parameters on your
computer are configured.
2Make sure Funk is selected as your security choice.
3Start Intermec Settings.
4Choose Communications > 802.11 Radio > Funk Security.
5Select the profile you want to configure.
6For Association, choose Open.
7For Encryption, choose WEP.
8For 8021x choose None.
9Define a value for the keys you want to use. You can define up to
four keys (Key 1 through Key 4).
Enter an ASCII key or a hex key that is either 5 bytes or 13 bytes
long depending on the capability of the radio. Set a 5- byte value for
64-bit WEP or a 13-byte value for 128-bit WEP. Hex keys must be
preceded by 0x and contain 5 or 13 hex pairs.
10 For Transmit key, choose the key you want to use for transmitting
data.
11 Save your settings.
Using Open (No Security) Associations with Funk
Use the following procedure to configure your mobile computer for
open security using Funk.
1Start Intermec Settings.
2Choose Communications > 802.11 Radio > Funk Security.
3Select the active profile you are using.
Chapter 6 — Configuring the Computer
84 70 Series Mobile Computer User’s Manual
4For Association, choose Open.
5For Encryption, choose None.
6Tap OK. Your settings are saved.
Selecting Microsoft as Your Security Choice
The default security setting is Funk. If you want to use Microsoft
Wireless Zero Configuration (WZC) security, you need to select it as
your security choice. After you select Microsoft as your security choice,
you will be prompted to save your settings and reset the computer for
your change to take effect.
With Microsoft as your security choice, you can configure:
•WPA
•802.1x
•Static WEP
Selecting Microsoft Security
Use the following procedure to select Microsoft security.
1Start Intermec Settings. For help, see “Configuring the
Computer” on page 61.
2Choose Communications > 802.11 Radio > Security Choice.
3From the Security Choice list, select Microsoft Security. An alert
box appears telling you that you must save your settings and reboot
the computer for the new security choice to take effect.
4Choose Yes. The computer resets and starts with Microsoft
Security as the Security Choice.
Configuring WPA or WPA2 Enterprise (802.1x) Security With
Microsoft
Use these procedures to set WPA-802.1x security on your computer
with Microsoft security.
1Make sure the communications and radio parameters on your
computer are configured.
2Start Intermec Settings.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 85
3Choose Communications > 802.11 Radio > Microsoft Security.
4For Infrastructure Mode, choose Infrastructure.
5For Network Authentication, choose WPA or WPA2. Data
Encryption automatically defaults to TKIP.
6For 802.1x Authentication, choose either TLS, or PEAP.
7If you choose TLS:
aChoose Properties > Run App. The Auth. Settings dialog box
appears.
bChoose Select.
cSelect your certificate from the list and press Enter. The User
Logon dialog box appears.
dEnter a User Name and Domain and press Enter.
8If you choose PEAP:
aChoose Properties > Run App. The Auth. Settings box appears.
bChoose Validate Server and press Enter. When the radio starts
to authenticate, the Network Password dialog box appears.
cEnter a User Name and Password and select Save Password.
d(Optional) In the Domain field, enter the Active Directory
domain associated with the user account.
9Save your settings.
Enabling WPA or WPA2 Personal (PSK) Security With Microsoft
Use the following procedure to enable WPA-PSK With Microsoft
Security.
1Make sure the communications and radio parameters on your
computer are configured.
2Start Intermec Settings.
3Choose Communications > 802.11 Radio > Microsoft Security.
4For Infrastructure Mode, choose Infrastructure.
5For Network Authentication, choose WPA-PSK. Data
Encryption automatically defaults to TKIP.
Chapter 6 — Configuring the Computer
86 70 Series Mobile Computer User’s Manual
6For Pre-Shared Key, enter the pre-shared key or the passphrase.
The pre-shared key must be a value of 32 hex pairs preceded by 0x
for a total of 66 characters. The value must match the key value on
the authenticator. The passphrase must be from 8 to 63 characters.
After you enter a passphrase, the computer internally converts it to
a pre-shared key.
7Save your settings.
Configuring 802.1x Security with Microsoft
Use the following procedure to configure 802.1x security with
Microsoft security. Intermec recommends that you use WPA2-802.1x
instead of 802.1x-WEP if possible.
1Make sure the communications and radio parameters on your
computer are configured.
2Start Intermec Settings.
3Choose Communications > 802.11 Radio > Microsoft Security.
4For Infrastructure Mode, choose Infrastructure.
5For Network Authentication, choose Open.
6For Data Encryption, choose WEP.
7For 802.1X Authentication, choose TLS or PEAP.
8If you choose TLS:
aChoose Properties > Run App. The Auth. Settings box appears.
bChoose Select.
cSelect your certificate from the list and press Enter. The User
Logon dialog box appears.
dEnter a User Name and a Domain.
9If you choose PEAP:
aChoose Properties > Run App. The Auth. Settings box appears.
bSelect Validate Server and press Enter. When the radio starts
to authenticate, the Network Password dialog box appears.
cEnter a User Name and Password and select Save Password.
d(Optional) In the Domain field, enter the domain.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 87
ePress Enter.
10 For Network Key Setting, choose Automatic.
11 Save your settings.
Configuring Static WEP Security With Microsoft
Use the following procedure to configure static WEP security with
Microsoft security. Intermec recommends that you use WPA2-PSK
instead of WEP if possible.
1Make sure the communications and radio parameters on your
computer are configured.
2Start Intermec Settings.
3Choose Communications > 802.11 Radio > Microsoft Security.
4For Network Authentication, choose Open.
5For Data Encryption, choose WEP.
6For Network Key Setting, choose Enter Key and Index.
7For Network Key Value, enter an ASCII key or a hex key that is
either 5 bytes or 13 bytes long depending on the capability of the
radio.
Set a 5-byte value for 64-bit WEP or a 13-byte value for 128-bit
WEP. Hex keys must be preceded by 0x and contain 5 or 13 hex
pairs.
8For Network Key Index, select the key you want to use for data
transmission.
9Save your settings.
Using Open (No Security) Associations With Microsoft
Use the following procedure to configure your mobile computer for
open security using Microsoft WZC.
1Start Intermec Settings.
2Choose Communications > 802.11 Radio > Microsoft Security.
3For Network Authentication, choose Open.
Chapter 6 — Configuring the Computer
88 70 Series Mobile Computer User’s Manual
4For Data Encryption, choose Disabled.
5Tap OK. Your settings are saved.
Loading a Certificate
To use transport layer security (TLS) with WPA or 802.1x security, you
need a unique client certificate on the computer and a trusted root
certificate authority (CA) certificate. Certificates are pieces of
cryptographic data that guarantee a public key is associated with a
private key. They contain a public key and the entity name that owns
the key. Each certificate is issued by a certificate authority.
To import a certificate chain:
1Start Intermec Settings.
2Go to Start > Settings > System > Intermec Settings.
3Tap Communications > 802.11 Radio > Certificates. The
Certificates screen appears.
4To import a certificate chain:
aTap Import Certificates to install the selected certificate.
bIn the CertImportUI screen, tap the <<< button next to the
Select pfx to import text field.
Chapter 6 — Configuring the Computer
70 Series Mobile Computer User’s Manual 89
cSelect the root certificate from the list.
dTap Import Certificate.
5To import user and root certificates from a Microsoft IAS server:
aTap Import Certificates.
bTap Web Enrollment.
cEnter the User, Password, and Server (IP address) to log into
the server.
dTap OK. A dialog box appears asking if you want to load the
root certificate.
eTap OK. The Enrollment Tool message box appears telling you
that the certificate has been added.
fTap OK to close the message box.
Chapter 6 — Configuring the Computer
90 70 Series Mobile Computer User’s Manual
91
7
Managing the Computer
Use this chapter to learn how to remotely update, configure,
and monitor your Intermec mobile computers. You will also
find information on installing and developing software
applications as well as how to upgrade the system software.
Chapter 7 — Managing the Computer
92 70 Series Mobile Computer User’s Manual
Managing the Computer in Your Network
When you have multiple mobile computers and peripherals in your
network, it is essential to have an easy way to manage updates,
configure all of the devices, and remotely troubleshoot problems.
Intermec provides a free device management software platform called
SmartSystems™ Foundation to help you manage your devices. You
can also purchase third-party device management software through a
vendor.
Managing the Computer Using SmartSystems
Intermec's SmartSystems Foundation is a software platform that lets
you manage all of your SmartSystems-enabled devices simultaneously
from a central server. The SmartSystems Foundation console displays
all SmartSystems-enabled computers and peripherals in your network.
Intermec SmartSystems Foundation Console
Through the Console, you can:
•drag-and-drop configuration bundles, operating system updates,
and firmware upgrades to multiple computers.
Chapter 7 — Managing the Computer
70 Series Mobile Computer User’s Manual 93
•save configuration settings from a single device and deploy those
settings to many devices simultaneously.
•remotely change settings on SmartSystems-enabled computers and
peripherals.
The SmartSystems Foundation console can report on asset locations
and battery status, making it easier to manage your mobile devices.
With a Provisioning license, SmartSystems Foundation can
automatically push software, configuration settings, and other files to
connected mobile computers. The license also enables ScanNGo,
which makes connecting additional mobile computers to your wireless
network as easy as reading bar codes. You can download SmartSystems
Foundation from the Intermec web site at no charge. For more
information, visit www.intermec.com\SmartSystems. To purchase a
Provisioning license, contact your local Intermec sales representative.
Managing the Computer Using Third-Party Software
You can use third-party software such as Wavelink Avalanche to
centrally manage your Intermec devices. Device management software
enables you to update software, increase security, track your assets,
and troubleshoot devices remotely. You can download the Wavelink
Enabler for the mobile computer from the Wavelink web site. For more
information, visit the Intermec web site and search for Wavelink
Avalanche or visit www.wavelink.com to download the enabler.
Developing and Installing Applications
Use the Intermec Resource Kits to develop applications to run on the
mobile computer. The Resource Kits are a library of C++, .NET, Java,
and web components grouped by functionality that you can use to
create applications for the computer. The Resource Kits are part of the
Intermec Developer Library (IDL), and can be downloaded from the
Intermec web site at www.intermec.com/idl.
For more information, see the Intermec Developer Library Resource Kit
Developer’s Guide.
Chapter 7 — Managing the Computer
94 70 Series Mobile Computer User’s Manual
Packaging Your Application
For very simple applications, the executable file may be the only file
you need to deploy. More typically, you will have a set of files to install.
Intermec recommends using .cab files to install your applications. The
computer uses standard Windows Mobile .cab files and will install
third-party .cab files.
Choosing a Target Location
You can have your .cab file place your application in any of these
memory locations on the mobile computer:
•The ObjectStore.
•The optional microSD card. Depending on available disk space,
you may want to consider installing your application files on the
microSD card. Using a card creates the Storage Card folder on the
computer.
•The non-volatile Flash File Store. Applications and data in the
Flash File Store will persist through a clean boot.
Files copied to any of these locations are safe when you cold boot the
computer as long as the AutoRun system is installed in the appropriate
location. When AutoRun is installed on the computer, all .cab files in
the CabFiles folder are automatically extracted after a cold boot. For
more information about AutoRun, see the Intermec Developer
Library Resource Kit Developer’s Guide.
Installing Applications Using SmartSystems Foundation
Console
You can use the SmartSystems console to drag-and-drop Intermec
applications onto your mobile computer. The console is part of
SmartSystems Foundation.
To install applications using SmartSystems Foundation Console:
1Download your application file from the Intermec web site and
unzip it on your desktop PC.
Note: The Flash File Store is erased if you reflash the operating system
image.
Chapter 7 — Managing the Computer
70 Series Mobile Computer User’s Manual 95
2Double-click the application file to install it. The application file
should appear in the Software Vault.
3From the SmartSystems console in the Software Vault,
drag-and-drop the application onto each mobile computer in your
network, or drop the application on a group of computers
contained in a folder.
Installing Applications Using Microsoft ActiveSync
When you only have a few computers to update with applications, you
can copy files using Microsoft ActiveSync. This procedure assumes
that Microsoft ActiveSync is installed on your PC and is up and
running.
1Connect to the mobile computer via ActiveSync.
2Copy the .cab files from your development PC to the computer.
3Reboot or cold boot the computer.
4After the boot process is finished, browse to the .cab files and tap
the files to install them.
Installing Applications Using a Storage Card
Use a storage card to install applications on one computer at a time or
if you have no network connection.
To install applications using a storage card:
1Copy your application file to the storage card.
2Install the storage card in the mobile computer.
3On the mobile computer, browse to the Storage Card folder and
run your application.
Launching Applications Automatically
There are two ways to launch an application automatically on a cold
boot:
•Set up your .cab file to place a shortcut to the application in the
\Windows\StartUp directory at install time.
Chapter 7 — Managing the Computer
96 70 Series Mobile Computer User’s Manual
•Use AutoRun.exe to start your application at boot time. AutoRun
ships on the computer and automates other operations.
At boot time, AutoRun executes any commands found in its data file,
AutoRun.dat. Follow the next procedure to create this data file for
your mobile computer.
For more information on AutoRun, see the Intermec Developer
Library Resource Kit Developer’s Guide.
To configure AutoRun:
1In Notepad, create a file called AutoUser.dat.
2Write this command in the file:
RUN “Path\AppName.exe” arg1, arg2, arg3
where:
Path is the path to the directory where the application resides.
AppName.exe is the application name.
arg1, arg2, and arg3 are optional command line arguments.
For example, to launch MyProgram.exe located in the Flash File
Store, the command is:
EXEC “Flash File Store\Apps\MyProgram.exe”
Because AutoRun handles quoted file names for the first
parameter, you can specify path names or file names containing
white spaces. AutoRun only supports one set of quotes per
command.
3Copy AutoUser.dat to the \Windows\Startup directory on the
mobile computer.
Updating the System Software
The mobile computer uses Image Update to update the operating
system (OS) and the system software. Image Update uses incremental
packages to allow for smaller and faster updates because the contents
are stored in flash ROM.
Chapter 7 — Managing the Computer
70 Series Mobile Computer User’s Manual 97
Update packages persist through a cold or clean boot and cannot be
removed by the end user. The Image Update process also provides
strengthened security because all packages are signed. Image Update
packages (.pkg or .pks files) may contain elements such as .dll,
executable (.exe), and .cab files.
You can use either of these methods to update your mobile computer:
•You can update multiple computers at the same time using the
SmartSystems Console. For help, see the next section, “Updating
Multiple Computers Using SmartSystems Console”.
•You can update individual computers by transferring the packages
to the mobile computer and then installing them from the mobile
computer.
If you are using SmartSystems Foundation to update the computer,
you can purchase a Provisioning License to send the Image Update
silently. For more information, see “Sending the Image Updates
Silently” on page 98.
Updating Multiple Computers Using SmartSystems Console
You can use the SmartSystems console to update the operating system
or system software on your mobile computer. The console is part of
SmartSystems Foundation and is available from the Intermec web site
through the Intermec Developer Library (IDL). Before you can update
your mobile computer, you need:
•SmartSystems Foundation. To download SmartSystems
Foundation, go to www.intermec.com/idl and open the Device
Management page.
•the SmartSystems bundles you want to install. The SmartSystems
bundle contains the Image Update package file. These
SmartSystems bundles are available from the Intermec web site at
www.intermec.com. Go to Support > Downloads.
•a Provisioning license.
To update the mobile computer using SmartSystems Foundation:
1Open the SmartSystems console.
2Make sure the SmartSystems console and the mobile computer are
on the same subnet and they are connected wirelessly or through
Ethernet.
Chapter 7 — Managing the Computer
98 70 Series Mobile Computer User’s Manual
3Make sure the mobile computer is in a powered dock or that power
management is disabled.
4Download the SmartSystems bundle to your PC.
5Double-click the SmartSystems bundle on your PC to extract the
update files to the software vault.
6From the SmartSystems console, locate the bundles to install and
drag them to each mobile computer (or group in a folder) you want
to update. The SmartSystems console installs the update on your
mobile computers.
After the download is complete, your mobile computer begins the
update process and automatically performs a cold boot. The
computer then boots into a special Update Loader mode where the
computer has no network connections and is completely unusable.
This process can take anywhere from 30 seconds to 15 minutes
depending on the update.
After the update is complete, the computer boots again.
7When a confirmation dialog box appears requesting user input,
dismiss it.
Sending the Image Updates Silently
If you want to automatically download and send update packages to
your mobile computers, you can purchase a Provisioning license. The
silent updates do not require any user intervention and begin when
you choose to have the update process start. SmartSystem Foundation
users are notified when update packages are released so that they can
download them and update their Intermec computers. For more
information, see the SmartSystems Foundation Help.
Note: The SmartSystems console indicates that your mobile
computer is offline, by displaying a red stop symbol, until the
computer reboots and reconnects to the system.
Chapter 7 — Managing the Computer
70 Series Mobile Computer User’s Manual 99
Updating Individual Mobile Computers
You can download update packages from your PC to the mobile
computer using Microsoft ActiveSync or any other file transfer
method you choose. If you need to download ActiveSync or the
Windows Mobile Device Center, go to
www.windowsmobile.com/getstarted.
To update an individual mobile computer:
1Download the Image Update packages you want to install from the
Intermec web site at www.intermec.com. Go to Support >
Downloads.
2Transfer the Image Update package from your PC to the mobile
computer.
3On your mobile computer, tap Start > Programs > File Explorer
and navigate to the location of the Image Update package.
4Double-tap the package to start the installation. Your mobile
computer begins the update process and automatically performs a
cold boot.
The computer then boots into a special Update Loader mode where
the computer has no network connections and is completely
unusable. This process can take anywhere from 30 seconds to 15
minutes depending on the update. After the update is complete,
the mobile computer boots again.
5When a confirmation dialog box appears requesting user input,
dismiss it.
Chapter 7 — Managing the Computer
100 70 Series Mobile Computer User’s Manual
101
8
Troubleshooting and Maintaining the
Computer
If you encounter any problems while using the 70 Series
computer, look in this chapter to find a possible solution. You
will also find information on routine maintenance.
Chapter 8 — Troubleshooting and Maintaining the Computer
102 70 Series Mobile Computer User’s Manual
About the Intermec Dashboard
The Intermec Dashboard is designed to provide proactive monitoring
of your mobile computers to prevent downtime. You can easily see the
health of the device and can help pinpoint the source of a problem to
determine if it is hardware or software related.
Intermec Dashboard displays information such as the status of
network connections, battery usage, storage space, and internal
devices. It also provides system information such as the operating
system, firmware, and hardware configuration.
To launch the Intermec Dashboard:
•Press the Intermec Dashboard button (m) on the computer keypad.
Intermec Dashboard Main Screen
Intermec Dashboard is highly integrated with SmartSystems
Foundation. You can use SmartSystems Foundation to remotely
monitor the health of your computers. For more information, refer to
the SmartSystems online help.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 103
Troubleshooting Your Mobile Computer
Use the troubleshooting tables in this section to fix problems with the
Wi-Fi connection, 802.1x security, the imager, or general problems
with operating the mobile computer.
If you send the computer in for service, it is your responsibility to save
the computer data and configuration. Intermec is responsible only for
ensuring that the hardware matches the original configuration when
repairing or replacing the computer.
Troubleshooting the Wi-Fi Connection
Use this troubleshooting table to help solve problems with your
802.11 radio connection.
Problems With the Wi-Fi Connection
Problem Solution
When you turn on the computer after it
was suspended for a while (10 to 15
minutes or longer), it can no longer send
or receive messages over the network.
Host may have deactivated or lost current terminal
emulation session. In a TCP/IP direct connect network,
turn off the “Keep Alive” message from host to
maintain the TCP session while the computer is
suspended.
The computer is connected to the network
and you move to a new site to collect data.
Your computer now shows you are not
connected to the network.
Move closer to an access point or to a different location
to reestablish communications until you reconnect
with the network.
The computer appears to be connected to
the network, but you cannot establish a
terminal emulation session with the host
computer.
There may be a problem with the host computer, or
with the connection between the access point and the
host computer. Check with the network administrator
to make sure the host is running and allowing users to
log in to the system.
The computer appears to be connected to
the network, but the host computer is not
receiving any information from the 70
Series computer.
There may be a problem with the connection between
the access point and the host computer. Check with the
network administrator or use your access point user’s
manual.
Chapter 8 — Troubleshooting and Maintaining the Computer
104 70 Series Mobile Computer User’s Manual
Troubleshooting 802.1x Security
Use the following table to troubleshoot problems with your 802.1x
security that will prevent you from connecting to your network, such
as a missing WEP key value or an incorrect password.
Problems With 802.1x Security
A network connection icon appears in the
toolbar, but then disappears.
The computer may not be communicating with the
intended access point. Make sure the network name
matches the access point network name. Default
network name is “INTERMEC.”
The access point may not be communicating with the
server. Ensure the access point is turned on, properly
configured, and has 802.1x security enabled.
Problem Solution
Problem Solution
The computer indicates it is not
authenticated.
Make sure that:
•the User Name and Password parameters on the computer
must match the user name and password on authentication
server. You may need to reenter the password on both the
computer and authentication server.
•on your authentication server, the user and group are
allowed and the group policy is allowed to log into the
server. For help, see the documentation that shipped with
your authentication server software.
•the IP address and secret key for access point must match the
IP address and secret key on the authentication server. You
may need to reenter the IP address and secret key on both
your access point and authentication server.
•the authentication server software is running on the server
PC.
You receive a message saying “The
server certificate has expired or
your system date is incorrect”
after you perform a clean boot on
the computer.
Date and time are not saved when you perform a clean boot.
Reenter the date and time, and then save your changes.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 105
Checking 802.11 Network Status
If you have trouble connecting to your 802.11 wireless network:
•Make sure you have correctly set network parameters on the
computer.
•Check your wireless security settings.
Follow the next procedure to verify available access points and
networks, check signal strength, and view other diagnostics. If you
need to contact Intermec Product Support, this information can be
helpful in troubleshooting wireless network connection issues.
To verify the network status:
1Tap Start > iSpyWiFi. The ISpyWiFi application launches.
The ISpyWiFi tab shows:
•MAC address and IP address of the 802.11 radio.
•network association status, including the SSID and MAC
address of the access point.
•security configuration.
•radio transmit power and signal strength information.
2Tap the Scan tab to view a list of available 802.11 networks. The list
includes the signal strength, channel, and MAC address for each
network.
•Tap Scan to refresh the screen.
3Tap the Supp tab to view radio supplicant information, including
a list of supplicant events and authentication status.
•To verify the settings for the currently active security profile, tap
Configure Profile. Intermec Settings launches for you to
configure 802.11 Radio settings.
•To try reconnecting to the network, tap Reconnect.
•To delete the events in the list, tap Clear Events.
Chapter 8 — Troubleshooting and Maintaining the Computer
106 70 Series Mobile Computer User’s Manual
4Tap the Ping tab to run a ping test to the host.
To run a ping test:
aIn the Host field, enter the IP address of the host.
bFrom the Repetitions list, choose the number of times the
computer will ping the host.
cTap Ping. The graph shows the amount of time it takes for the
host to return the ping. Tap List to see this information in a list
format.
5Tap the RSSI tab to view the received signal strength of the host
signal.
The information box includes the current signal strength, host
SSID name, MAC address, data rate, and transmit power.
•Tap Mark to place an arrow marker above the graph.
6Tap the Conf tab to set up a log file that lists RSSI history.
This screen includes the 802.11 radio driver version and available
radio modes.
To create a log file:
aCheck the Log to File check box.
b(Optional) Change the sample period and number of samples
displayed.
cTap Log File. The Save As screen appears.
d(Optional) Change the name of the saved log file, the folder to
which the file will be saved, the content type (log or text), and
the location.
eTap OK.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 107
Troubleshooting Reading Bar Codes
Use this section to troubleshoot problems that may prevent you from
being able to read a bar code such as the symbology not be enabled.
Problems Reading Bar Codes
Problem Solution
You cannot see the illumination
beam or frame from the imager
when you press the Scan button
and aim the imager at a bar code
label.
•You may be too far away from the bar code label. Try moving
closer to the bar code label and scan it again.
•You may be reading the bar code label “straight on.” Change
the reading angle and try again.
•The imager hardware trigger might be disabled in Intermec
Settings. To check the setting go to Start > Settings >
Systems > Data Collection > Scanner Settings. Hardware
trigger should be checked.
When you release a Scan button
or handle trigger, the Good Read
light does not turn off.
The Good Read light will remain on if you configure the
computer to use continuous/edge triggering. If you configure
the computer for level triggering and the Good Read light
remains on, there may be a problem. Press one of the Scan
buttons or pull the trigger again without scanning a bar code
label. If the light is still on, contact your local Intermec
representative.
The scanner will not read the bar
code label.
•Aim the scanner beam to cross entire bar code label in one
pass. Vary the scanning angle.
•Check the quality of the bar code label, Scan a bar code label
that you know will scan. Compare the two bar code labels to
see if the bar code quality is too low. You may need to replace
the label that you cannot scan.
•Make sure the bar code symbology is enabled and
configured correctly. Use Intermec Settings to check the
symbologies. Expand Data Collection > Symbologies
beneath devices listed (scanner, virtual wedge) to check and
enable symbologies, then scan the bar code label again.
•Make sure the computer application is expecting input from
a bar code. You may need to type this information instead.
The scanner does not read the bar
code labels quickly, or the
scanning beam seems to be faint
or obscured.
The scanner window may be dirty. Clean the window with a
solution of ammonia and water. Wipe dry. Do not allow
abrasive material to touch the window.
Chapter 8 — Troubleshooting and Maintaining the Computer
108 70 Series Mobile Computer User’s Manual
Troubleshooting Operating the Computer
Use this section to troubleshoot problems that may prevent you from
being able to operate the computer.
Problems Operating the Computer
You scan a valid bar code label to
enter data for your application.
The data decoded by the scan
module does not match the data
encoded in the bar code label.
The computer may have decoded the bar code label in a
symbology other than the label’s actual symbology. Try
scanning the bar code label again. Make sure you scan the
entire label.
The input device attached to the
computer does not work well or
read bar code labels very quickly.
Set the Scanner Model command to the specific attached input
device. Check enabled bar code symbologies and enable only
the symbologies being used.
Problem Solution
Problem Solution
You press the Power button and
nothing happens.
Try the following solutions:
•Replace or charge the battery. The battery may be completely
drained.
•Remove the battery and press the Reset button to perform a
cold boot. For help, see“Cold Booting the Computer” on
page 110.
The computer appears to be
locked up and you cannot enter
data.
•Press the Power button and select Suspend from the Power
Options menu. Press the Power button to turn the screen
back on.
•Press the Power button and select Reboot from the Power
Options menu.
•Remove the battery and press the Reset button to perform a
cold boot. For help, see“Cold Booting the Computer” on
page 110.
•Try reloading the firmware. For help, see “Updating the
System Software” on page 96.
•If the computer does not boot or reset, contact your
Intermec representative for help.
You tap the screen and nothing
happens.
Align your screen. For help, see “Aligning the Screen” on page
41.
You cannot type a character on
the keypad or you can only type
uppercase or lowercase letters.
You may have locked a modifier key on the keypad. Press the
necessary key sequence to unlock the key. For help, see “About
the Keypad” on page 15.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 109
Calling Product Support
If you cannot find the answer to your problem in the
“Troubleshooting the Computer” section, you can visit the Intermec
technical knowledge base (Knowledge Central) at
intermec.custhelp.com to review technical information or to request
technical support. If you still need help after visiting Knowledge
Central, you may need to call Product Support.
To talk to an Intermec Product Support representative, call:
1-800-755-5505
Before you can call Intermec Product Support, make sure you have the
following information ready:
•Configuration number
•Serial number
•Operating system version
•SmartSystems Platform Bundle (SSPB) version
•If you are using security, know the type (Funk or Microsoft) and the
full set of parameters
•Power management settings
•If you are using Intermec terminal emulation (ITE), know the
version and protocol. If you are not using ITE, know the language
your custom application was written in and the tools you used to
create it.
You can find most of the information listed above in Intermec
Settings. Consult your application developer for information on your
custom application.
Finding Your Configuration Number
Use the following procedure to help you find the configuration
number of your computer.
•Look at the label on the back of the computer.
Chapter 8 — Troubleshooting and Maintaining the Computer
110 70 Series Mobile Computer User’s Manual
Finding Your Operating System Version
Use the following procedure to find the OS version of your mobile
computer.
1Press the Intermec Dashboard (m) button to launch the
Dashboard.
2Tap the Information bar. The Information Details page appears
and displays information such as the firmware version and the OS
version.
Resetting the Computer
If the computer does not resume after pressing the Power button, or if
the computer or an application locks up, you may need to reset the
computer. The computer uses the configuration currently saved in
flash memory during the boot process. There are three ways to reset the
computer:
•Reboot
•Cold boot
•Clean boot
Rebooting the Computer
You may need to reboot the computer to correct conditions where an
application stops responding to the system.
To reboot the computer:
•Press the Power button and select Reboot from the menu.
The computer systematically shuts down, restarts, and goes
through the initialization process.
Cold Booting the Computer
In some cases where the computer completely stops responding, it may
be necessary to perform a cold boot or hard reset. Because cold booting
may result in data loss, use this method only if all other recovery
methods have failed.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 111
To cold boot the mobile computer:
1Press the Power button to suspend the computer.
2Remove the handstrap and the battery pack.
3Press the Reset button in the battery compartment on the back of
the computer.
4Replace the battery and the handstrap. The mobile computer
boots. When the cold boot is complete, the Home screen appears.
Location of CN70/CN70e Reset Button
Location of CK70/CK71 Reset Button
Note: Cold booting the computer does not guarantee that cached disk
data will be saved, so transactional data may be lost during the reset.
All other data, such as configuration and network settings, is
preserved.
Reset button
Reset button
Chapter 8 — Troubleshooting and Maintaining the Computer
112 70 Series Mobile Computer User’s Manual
Clean Booting the Computer
If the computer seems to be locked up, try cold booting it. If this
process does not work, use a clean boot to get the computer up and
running for further troubleshooting. You can clean boot using the
mobile computer, or you can clean boot using the SmartSystems
Console:
•To clean boot the mobile computer:
1Remove the battery pack from the back of the computer.
2With a stylus, press the Reset button in the battery cavity.
3Insert the battery back into the computer, and immediately
press and hold the Power button and Volume Down button
(the lower button on the right side).
4Continue to hold the Power button and the Volume Down
button down until you are prompted to release them.
5Press the Volume Up button on the right side to start the clean
boot.
6Wait for the computer to load files from its ROM.
•To clean boot the computer using the SmartSystems Console, right
click on the 70 Series computer and select Intermec Power Tools
> Clean Boot Device.
Cleaning the Computer
To keep the computer in good working order, you may need to clean
the imager window, color camera window, and the touch screen. Clean
the windows and the touch screen as often as needed for the
environment in which you are using the computer. To clean the
computer, use a solution of ammonia and water.
A clean boot erases the memory in the mobile computer,
including all applications and data files , with the exception of
those found in the Flash File Store, or any removeable storage.
Chapter 8 — Troubleshooting and Maintaining the Computer
70 Series Mobile Computer User’s Manual 113
To clean the image window, camera window, and touch screen:
1Press the Power button and choose to suspend the computer.
2Dip a clean cloth towel in the ammonia solution and wring out the
excess.
3Wipe off the imager window, camera lens, and flash area. Do not
allow any abrasive material to touch these surfaces.
4Wipe dry.
There are no user-serviceable parts inside the 70 Series computer.
Opening the computer will void the warranty and may cause
damage to the internal components.
Chapter 8 — Troubleshooting and Maintaining the Computer
114 70 Series Mobile Computer User’s Manual
115
A
Specifications and Default Settings
Appendix A — Specifications and Default Settings
116 70 Series Mobile Computer User’s Manual
Physical and Environmental Specifications
CN70 Physical Dimensions
CN70e Physical Dimensions
CK70 Physical Dimensions
CK71 Physical Dimensions
Environmental Specifications
Power and Electrical Specifications
Dimensions 16.9 x 8.0 x 3.4 cm (6.66 x 3.14 x 1.35 in)
Weight 450 g (15.2 oz) with battery
Dimensions 19.5 x 8.0 x 3.4 cm (7.66 x 3.14 x 1.35 in)
Weight 491 g (16.6 oz) with battery
Dimensions 23.7 x 8.0 x 4.3 cm (9.33 x 3.16 x 1.69 in)
Weight 562 g (19 oz) with battery
Dimensions 23.7 x 8.0 x 5.0 cm (9.33 x 3.16 x 1.98 in)
Weight 584 g (19.75 oz) with battery
Operating temperature -20°C to 60°C (-4°F to 140°F)
Storage temperature -30°C to 70°C (-22°F to 158°F)
Charging temperature 0°C to 45°C (32°F to 113°F)
Relative humidity (operating) 5% to 95% non-condensing
Environmental rating IP67 compliant
Drop Specifications All corners and sides from 1.8 m (6 ft) per
MIL-STD 810F
Battery type Rechargeable Lithium-ion (Li-ion) battery
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 117
Operating System
Microsoft Windows Embedded Handheld.
Hardware
Back Accessory Interface Pin-outs
The back accessory interface provides power for peripheral devices out
the back of the CK70 and CK71 computers.
Battery capacity
CN70/CN70e: 3.7 V, 4000 mAh (14.8 Wh)
CK70/CK71: 3.7 V, 5200 mAh (19.2 Wh)
Electrical rating x 4.37/4.8 V; 2/1,5 A
Main processor TI OMAP3, 600 MHz
Memory 512 MB RAM
Persistent storage 1 GB Flash
Removable storage up to 32 GB user-accessible microSD card slot
Keypad CN70: QWERTY, Numeric
CN70e: QWERTY Numeric, Numeric
CK70: Large Alpha, Alphanumeric
CK71: Numeric Function, Alphanumeric
Imaging options 5 megapixel color camera and EA30 area imager
(all), EV12 (CK71 only), or EX25 (CK71 only)
Pin Pin Name I/O Description
1 OTB_PWR Output Power supply for peripheral
2GND
3 OTB_RX Input DTE Data Receive
4 OTB_TX Output DTE Data Transmit
5 OTB_I/O_Voltage Input I/O Voltage Level
6 OTB_ID BiDir One Wire Bus for ID
7 OTB_RTS Output DTE Ready do Send
8 OTB_CTS Input DTE Clear to Send
Appendix A — Specifications and Default Settings
118 70 Series Mobile Computer User’s Manual
Touch Screen Specifications
Transmissive VGA display with high-durability touch screen; 480 x
640 pixels; 8.9 cm (3.5 in) diagonal active area; LED backlight and
ambient light sensor.
Standard Communications
•UMTS (not available on CK71)
•CDMA (not available on CK71)
•GPS (not available on CK71)
•802.11a/b/g/n
•Bluetooth
•USB high speed 2.0 OTG©
Wireless LAN
Regulatory Approvals
FCC, CE, cULus Listed, DEMKO
Standards compliant IEEE 802.11a/b/g/n (2.4 GHz and 5 GHz), Single
Stream
Data rates up to 72Mbps
Security 802.11i, WPA, 802.1a/b/g/n, WEP
(EAP-TLS, TTLS, LEAP, PEAP, EAP-FAST
Certifications WPA2™ (Enterprise, Personal), WPA™ (Enterprise,
Personal), Wi-Fi, WMM®, WMM Power Save, Cisco
Compatible Extensions (CCX 4.0)
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 119
Bar Code Symbologies
The imagers support all of the bar code symbologies listed in the next table.
Supported Bar Code Symbologies
* These symbologies are not supported with the EV12 imager in the
CK71.
Imager Reading Distances
Typical reading distances are done in an office environment using
office lights (4 lux). Minimum distances are measured in the dark (0
lux). Both reading distances are provided in respective scan engine
integration guides. Contact your local Intermec representative for
more information.
AustraliaPost* GS1 DataBar Omni-Directional
Aztec* Infomail
BPO* Interleaved 2 of 5
Canada Post Japan Post*
China Post KoreanPost
Codabar Matrix 2 of 5
Codablock A Maxicode*
Codablock F Micro PDF417*
Code 11 MSI
Code 39 PDF417*
Code 93 Planet*
Code 128/GS1-128 Plessey
DataMatrix* Postnet*
Dutch Post* QR Code*
EAN/UPC Standard 2 of 5
GS1 Composite* SwedenPost
GS1 DataBar Expanded Telepen
GS1 DataBar Limited TLC 39
Appendix A — Specifications and Default Settings
120 70 Series Mobile Computer User’s Manual
Below are the typical and minimum standard reading distances for the
70 Series computer built with an EA30 imager. Also included are
typical and minimum standard reading distances for the CK71 with an
EV12 or EX25 imager.
EA30 Area Imager Minimum Reading Distances
Minimum distances are measured in the dark (0 lux).
Note: Minimum distances depend on the length of the bar code.
cm
PDF417 10 mils
0.5 mm / 20 mils
1 mm / 40 mils
Data Matrix 10 mils
in
0" 28"24"20"16"12"8"4"
070605040302010
EAN/UPC
0.125mm/5 mils
4"
8"
0"
4"
8"
12"
12"
10
0
10
20
20
30
30
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 121
EA30 Minimum Reading Distances
EA30 Area Imager Typical Reading Distances
Typical distances are measured in an office environment (250 lux).
Symbology Density Minimum Distance Maximum Distance
Code 39 0.1 mm (4 mils)
0.1250 mm (5 mils)
0.5 mm (20 mils)
1 mm (40 mils)
9.5 cm (3.74 in)
8 cm (3.15 in)
7 cm (2.76 in)
9.5 cm (3.74 in)
10.5 cm (4.13 in)
14 cm (5.51 in)
45 cm (17.72 in)
62 cm (24.41 in)
UPC/EAN 100% 0.33 mm (13.0 mils) 6 cm (2.36 in) 31.5 cm (12.4 in)
Data Matrix 0.18 mm (7 mils)
0.25 mm (10 mils)
0.38 mm (15 mils)
8 cm (3.15 in)
6.5 cm (2.56 in)
5.5 cm (2.17 in)
15.5 cm (6.1 in)
21.5 cm (8.46 in)
31.5 cm (12.4 in)
PDF417 0.25 mm (10 mils)
038 mm (15 mils)
5.5 cm (2.17 in)
7 cm (2.76 in)
25 cm (9.84 in)
34 cm (13.39 in)
4"
8"
0"
4"
8"
12"
12"
cm
PDF417 10 mils
0.5 mm / 20 mils
1 mm / 40 mils
Data Matrix 10 mils
in
0" 36"32"28"24"20"16"12"8"4"
0908070605040302010
EAN/UPC
0.125mm/5 mils
10
0
10
20
20
30
30
Appendix A — Specifications and Default Settings
122 70 Series Mobile Computer User’s Manual
EA30 Typical Reading Distances
Symbology Density Minimum Distance Maximum Distance
Code 39 0.1 mm (4 mils)
0.125 mm (5 mils)
0.5 mm (20 mils)
1 mm (40 mils)
9.5 cm (3.74 in)
8 cm (3.15 in)
6.5 cm (2.56 in)
9.5 cm (3.74 in)
11.5 cm (4.53 in)
14.5 cm (5.71 in)
50 cm (19.69 in)
75 cm (29.53 in)
UPC/EAN 100% 0.33 mm (13.0 mils) 6 cm (2.36 in) 34 cm (13.39 in)
Data Matrix 0.18 mm (7 mils)
0.25 mm (10 mils)
0.38 mm (15 mils)
7.5 cm (2.95 in)
6 cm (2.36 in)
5.5 cm (2.17 in)
16.5 cm (6.5 in)
23 cm (9.06 in)
34.5 cm (13.58 in)
PDF417 0.25 mm (10 mils)
0.38 mm (15 mils)
5.5 cm (2.17 in)
6.5 cm (2.56 in)
26 cm (10.24 in)
37 cm (14.57 in)
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 123
EV12 Linear Imager Minimum Reading Distances
The illustration below does not include the 0.12 cm (0.05 in) setback
for the CK71. Minimum reading distances are measured in the dark (0
lux).
EV12 Miniumum Reading Distances With 0.12 cm (0.05 in) Setback
0"
2"
8"
in
cm
0
10
20
0" 16" 12" 8" 4"
0 40 30 20 10
0.125 mm / 5 mils
0.25 mm / 10 mils
0.5 mm / 20 mils
1 mm / 40 mils
EAN/UPC 100%
5
15
10
20
5
15
6"
4"
5 15 25 35
2" 6" 10" 14"
1"
3"
5"
7"
2"
8"
6"
4"
1"
3"
5"
7"
Symbology Density Minimum Distance Maximum Distance
Code 39 0.15 mm (6 mils)
0.25 mm (10 ils)
0.5 mm (20 mils)
1 mm (40 mils)
9.6 cm (3.8 in)
7.1 cm (2.9 in)
6.1 cm (2.5 in)
8.1 cm (3.2 in)
17.9 cm (7.1 in)
20.9 cm (8.3 in)
26.9 cm (10.6 in)
33.9 cm (13.4 in)
EAN/UPC 0.33 mm (13 mils) 6.1 cm (2.5 in) 22.9 cm (9.1 in)
Appendix A — Specifications and Default Settings
124 70 Series Mobile Computer User’s Manual
EV12 LInear Imager Typical Reading Distances
The illustration below does not include the 0.12 cm (0.05 in) setback
for the CK71. Typical reading distances are measured in an office
environment (200 lux).
EV12 Typical Reading Distances With 0.12 cm (0.05 in) Setback
** Minimum distance depends on bar code width and scan angle.
0"
4"
16"
in
cm
0
20
40
0" 32" 24" 16" 8"
0 80 60 40 20
0.125 mm / 5 mils
0.25 mm / 10 mils
0.5 mm / 20 mils
1 mm / 40 mils
EAN/UPC 100%
10
30
20
40
10
30
12"
8"
10 30 50 70
4" 12" 20" 28"
2"
6"
10"
14"
4"
16"
12"
8"
2"
6"
10"
14"
90
36"
Symbology Density Minimum Distance Maximum Distance
Code 39 0.15 mm (6 mils)
0.25 mm (10 ils)
0.5 mm (20 mils)
1 mm (40 mils)
9.6 cm (3.8 in)
6.1 cm (2.5 in)
5.1 cm (2.1 in)
7.1 cm (2.9 in)**
19.9 cm (7.9 in)
24.9 cm (9.8 in)
34.9 cm (13.8 in)
50.9 cm (20.1 in)
EAN/UPC 0.33 mm (13 mils) 5.1 cm (2.1 in) 27.9 cm (11.0 in)
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 125
EX25 Near-Far Range Imager Minimum Reading
Distance
Minimum reading distances are measured in the dark (0 lux). The
following graphic does not include the 0.24 cm (0.09 in) setback for
the CK71.
EX25 Minimum Reading Distances With 0.24 cm (0.09 in) Setback
in
050
cm
0” 32” 64” 80”16”
100% EAN contrast UPC
0.5 mm/20 mils
1 mm/40 mils
100 150 200 250 300 350 400 450
48” 96” 112” 128” 144” 160” 176”
1.4 mm/55 mils
32”
16”
48”
64”
16”
0”
80”
32”
48”
64”
80”
80
40
0
40
80
120
160
160
120
200
200
0.25 mm/10 mils
Symbology Density Minimum Distance Maximum Distance
Code 39 0.08 mm (3 mils)
0.1 mm (2.8 mils)
0.25 mm (10 mils)
0.5 mm (20 mils)
1 mm (40 mils)
1.3 mm (51 mils)
15 cm (5.91 in)
15 cm (5.91 in)
15 cm (5.91 in)
16 cm (6.30 in)
25 cm (9.84 in)
40 cm (15.75 in)
35 cm (13.78 in)
45 cm (17.72 in)
115 cm (45.28 in)
210 cm (82.68 in)
310 cm (122.05 in)
310 cm (122.05 in)
EAN 100% 0.33 mm (13 mils) 15 cm (5.91 in) 145 cm (57.09 in)
Appendix A — Specifications and Default Settings
126 70 Series Mobile Computer User’s Manual
EX25 Near-Far Range Imager Typical Reading Distance
Typical reading distances are measured in an office environment (200
lux). The following graphics do not include the 0.24 cm (0.09 in)
setback for the CK71.
EX25 Near-Far Range Imager 1D Typical Reading Distances
EX25 1D Symbologies Typical Reading Distances With 0.24 cm (0.09
in) Setback
32”
in
0 100
cm
160
80
0
80
160
240
320
320
240
400
400
0” 40” 80”
0.25 mm
10 mils
0.5 mm/20 mils
1 mm/40 mils
200 300 600400 700500 1100
120” 160” 200”
64”
0”
32”
64”
800 900 1000
240” 280” 320” 360” 400” 440”
96”
128”
160”
96”
128”
160”
100% EAN
contrast UPC
480”
1200
2.5 mm/100 mils
Symbology Density Minimum Distance Maximum Distance
Code 39 0.25 mm (10 mils)
0.5 mm (20 mils)
1 mm (40 mils)
1.4 mm (55 mils)
2.5 mm (100 mils)
15 cm (5.91 in)
16 cm (6.30 in)
25 cm (9.84 in)
40 cm (15.75 in)
**
135 cm (53.15 in)
280 cm (110.24 in)
550 cm (216.54 in)
720 cm (283.46 in)
1200 cm (472.44 in)
Code 128
retro-reflective
2.5 mm (100 mils) ** 1300 cm (511.81 in)
EAN 100% 0.33 mm (13 mils) 15 cm (5.91 in) 160 cm (62.99 in)
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 127
** Minimum distance depends on bar code width and scan angle.
EX25 Near-Far Range Imager 2D Typical Reading Distances
EX25 2D Symbologies Typical Reading Distances With 0.24 cm (0.09
in) Setback
** Minimum distance depends on bar code width and scan angle.
32”
in
0 100
cm
160
80
0
80
160
240
320
320
240
400
400
0” 40” 80”
0.25 mm
10 mils
0.76 mm/30 mils
1.4 mm/55 mils
200 300 600400 700500 1100
120” 160” 200”
64”
0”
32”
64”
800 900 1000
240” 280” 320” 360” 400” 440”
96”
128”
160”
96”
128”
160”
480”
1200
2.5 mm/100 mils
Symbology Density Minimum Distance Maximum Distance
DataMatrix 0.25 mm (10 mils)
0.76 mm (30 mils)
1.4 mm (55 mils)
2.5 mm (100 mils)
7.5 mm (300 mils)
15 cm (5.91 in)
25 cm (9.84 in)
**
**
20 cm (7.87 in)
90 cm (35.43 in)
310 cm (122.05 in)
450 cm (177.17 in)
1100 cm (433.07 in)
1524 cm (600 in)
Appendix A — Specifications and Default Settings
128 70 Series Mobile Computer User’s Manual
Default Configuration
The following tables list the default values of the configuration
settings supported on the mobile computer. If you restore the mobile
computer to factory default settings, the mobile computer uses these
values.
The settings are grouped by function and reflect the organization of
Intermec Settings. Not all of the configuration settings are listed in
this appendix. For detailed information on most of the settings, see the
Intermec Settings Command Reference Manual.
Data Collection Settings
Use data collection settings to configure the imager and to configure
the bar codes that you want the imager to be able to read.
Data Collection Settings
Symbology Settings
Data Collection Setting Default Value
Enable Scanner/Camera Port On
BT-Configure On Connect Overwrite with computer
settings
Enable Magstripe Reader Disable
Symbology Default Value
AustraliaPost Disable
Aztec Disable
BPO Disable
CanadaPost Disable
Codabar Disable
Codablock A Disable
Codablock F Disable
Code 11 Disable
Code 39 Enable
Code 93 Disable
Code 128/GS1-128 Enable
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 129
Symbology Option Settings
DataMatrix Enable
DutchPost Disable
EAN/UPC Enable UPC A, UPC E, EAN
8, EAN 13
GS1 Composite Disable
GS1 DataBar Expanded Disable
GS1 DataBar Limited Disable
GS1 DataBar Omni-Directional Disable
Infomail Disable
Intelligent Mail Disable
Interleaved 2 of 5 Disable
JapanPost Disable
Matrix 2 of 5 Disable
Maxicode Disable
Micro PDF417 Disable
MSI Disable
PDF417 Enable
Planet Disable
Plessey Disable
Postnet Disable
QR Code Disable
Standard 2 of 5 Disable
SwedenPost Disable
Telepen Disable
TLC 39 Disable
Symbology Option Settings Default Value
Preamble None (Disabled)
Postamble None (Disabled)
Symbology Identifier Disable
Multicode Disable
Symbology Default Value
Appendix A — Specifications and Default Settings
130 70 Series Mobile Computer User’s Manual
Scanner Settings
Imager Settings
Decode Security Settings
Scanner Settings Default Value
Trigger Predefined Modes Level
Trigger Mode Level
Aimer Mode Typical aimer
Hardware Trigger Enable
Trigger Timeout (sec) 2
Aiming Duration (msec) 500
Turn Off After Good Read Enable/One-shot
Imager Settings Default Value
Predefined Modes 1D and 2D Standard
Image File Location \My Documents\MDI
Signature Image Capture Disable
Document Imaging Disable
Image Capture
Output Compression
Output Compression Quality
Edge Enhancement
Noise Reduction
Subsampling
Image Rotation
Image Lighting Correction
JPEG
60
None
0
None
None
Disable
Decode Security Settings Default Value
Consecutive Data Validation 0
Identical Consecutive Timeout 300 ms
Different Consecutive Timeout 0
Center Decoding Disable
Center Decoding Tolerance 0
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 131
Communications
Use communications settings to configure how the mobile computer
communicates with the network.
Communications Settings
802.11 Radio Settings
Ethernet Adapter Settings
Bluetooth Settings
WWAN Radio Settings
Communications Setting Default Value
Device Name IntermecCXXX (where XXX
indicates the model of
mobile compuer)
802.11 Radio Setting Default Value
Security Choice Funk
Allow Security Changes Enabled
Active Profile Profile 1
DHCP Enabled
Import Root Certificates False
Import User Certificates False
Import Pac Files False
Radio Bands a/b/g (2.4 and 5.0 GHz)
Radio Enabled Off
Ethernet Adapter Setting Default Value
DHCP Enabled
Bluetooth Setting Default Value
Bluetooth Power Off
WWAN Radio Setting Default Value
WWAN Radio Enabled Disable
Appendix A — Specifications and Default Settings
132 70 Series Mobile Computer User’s Manual
Serial Port Switch
Device Settings
Use device settings to configure settings on the mobile computer.
Device Settings
Good Read Settings
Backlight Settings
Screen Settings
Serial Port Switch Setting Default Value
Serial Port Switch Standard Docking and IrDA
Device Setting Default Value
Date Null
Time Null
Beeper and Voice Medium
Headset Beeper Very Low
Vibrate Mode Intensity 1 Strong Pulse
Good Read Setting Default Value
Internal Scanner Good Read Beep One Beep
Dock Tethered Scanner One Beep
Bluetooth Scanner Good Read Beep One Beep
Backlight Setting Default Value
Display Backlight Adjustment Normal
Keypad Backlight On Based on Light Level
Light Level Low
Screen Setting Default Value
Screen Rotations Portrait 0 Degrees
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 133
Keypad Settings
Power Management Settings
Compass Settings
Sensors Settings
Profiles Settings Application
Keypad Setting Default Value
Scan Button Remapping Scanner
Power Management Setting Default Value
Enable Power Button Screen On
Screen Options Displayed Hibernate, Suspend, Reboot
Screen Timeout (Seconds) 5
Power Button Behavior Suspend
Device Turns Off After (Battery Power) 5 minutes
Screen Turns Off After (Battery Power) Disabled
Device Turns Off After (External Power) Disabled
Screen Turns Off After (External Power) Disabled
Compass Setting Default Value
Magnetic Declination Use defaults
Magnetic Inclination Use defaults
Sensors Setting Default Value
Screen Rotation Disabled
Device Off Disabled
Profiles Settings Default Value
Camera
Disable Camera Scan
Enable Camera Scan
Show Option in Profile Settings
Show Option in Profile Settings
Power
Always On
Maximize Battery Life
Normal
Show Option in Profile Settings
Show Option in Profile Settings
Show Option in Profile Settings
Appendix A — Specifications and Default Settings
134 70 Series Mobile Computer User’s Manual
GPS Settings
Use GPS settings to configure how the mobile computer
communicates with the GPS network.
GPS
Core Messaging Service Settings
Use core messaging service settings to configure the .
Core Messaging Service
Device Monitor Settings
Use device monitor settings to configure how the mobile computer
monitors the network.
Device Health Controls
Scanning
1D Bar Codes Optimized
Bright Sunlight
Reflective Labels
Standard
Show Option in Profile Settings
Show Option in Profile Settings
Show Option in Profile Settings
Show Option in Profile Settings
GPS Setting Default Value
Enable Bread Crumbing Disable
Core Messaging Service Setting Default Value
Associated Server IP Null
Broadcast Name INTERMEC
Port 62241
Keep Alive Ping Interval 30 Seconds
Device Health Setting Default Value
Enable Health Data Collection On
Enable Device Health Application On
Enable Blue Light Off for Ready-to-Work
Set Rule File Location \SmartSystems\HealthRules.txt
Profiles Settings Default Value
Appendix A — Specifications and Default Settings
70 Series Mobile Computer User’s Manual 135
Device Health Screen Captures
Device Wipe
Virtual Wedge Settings
Use virtual wedge settings to configure the virtual wedge.
Virtual Wedge Setting
System Device Health Refresh (seconds) 90
Network Device Health Refresh (seconds) 45
Device Health Screen Captures Setting Default Value
Directory \SmartSystems\ScreenCapture
Screen Captures Allowed 3
Device Wipe Setting Default Value
Enable Wipe Disabled
Interval (in days) Null
Setting Default Value
Virtual Wedge Enable
Bar Code Scanner Grid Null
Label Encoding (Code Page) 1252
Magstripe Reader Grid Null
Device Health Setting Default Value
Appendix A — Specifications and Default Settings
136 70 Series Mobile Computer User’s Manual
137
B
Keypads and Keystrokes
Appendix B — Keypads and Keystrokes
138 70 Series Mobile Computer User’s Manual
Standard Characters
Use the following tables to learn how to enter standard and other
available characters and functions with the keypad. If there is no
sequence of keystrokes for a particular character or function, it is only
available through the soft input panel (SIP), which you can access by
tapping the keyboard icon on the touch screen.
CN70 Keypads and Keystrokes
CN70 Alphanumeric Characters
Character Numeric Keypad QWERTY Keypad
ac 2 A
bc 2 2 B
cc 2 2 2 C
dc 3 D
ec 3 3 E
fc 3 3 3 F
gc 4 G
hc 4 4 H
ic 4 4 4 I
jc 5 J
kc 5 5 K
lc 5 5 5 L
mc 6 M
nc 6 6 N
oc 6 6 6 O
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 139
pc 7 P
qc 7 7 Q
rc 7 7 7 R
sc 7 7 7 7 S
tc 8 T
uc 8 8 U
vc 8 8 8 V
wc 9 W
xc 9 9 X
yc 9 9 9 Y
zc 9 9 9 9 Z
Ac 1 2 y A
Bc 1 2 2 y B
Cc 1 2 2 2 y C
Dc 1 3 y D
Ec 1 3 3 y E
Fc 1 3 3 3 y F
Gc 1 4 y G
Hc 1 4 4 y H
Ic 1 4 4 4 y I
Jc 1 5 y J
Character Numeric Keypad QWERTY Keypad
Appendix B — Keypads and Keystrokes
140 70 Series Mobile Computer User’s Manual
Kc 1 5 5 y K
Lc 1 5 5 5 y L
Mc 1 6 y M
Nc 1 6 6 y N
Oc 1 6 6 6 y O
Pc 1 7 y P
Qc 1 7 7 y Q
Rc 1 7 7 7 y R
Sc 1 7 7 7 7 y S
Tc 1 8 y T
Uc 1 8 8 y U
Vc 1 8 8 8 y V
Wc 1 9 y W
Xc 1 9 9 y X
Yc 1 9 9 9 y Y
Zc 1 9 9 9 9 y Z
00b ,
11b Y
22b U
33b I
44b H
Character Numeric Keypad QWERTY Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 141
CN70 Characters and Functions
55b J
66b K
77b B
88b N
99b M
To Enter Numeric Keypad QWERTY Keypad
@ (at symbol) N/A b Q
& (ampersand) N/A b S
* (asterisk) *b C
: (colon) N/A b D
, (comma) N/A b X
$ (dollar) N/A b E
! (exclamation) N/A b O
- (hyphen) -b G
% (percent) N/A b R
. (period) ..
+ (plus) b - b T
# (pound) #b V
? (question mark) N/A b A
‘ (apostrophe) N/A b Z
Character Numeric Keypad QWERTY Keypad
Appendix B — Keypads and Keystrokes
142 70 Series Mobile Computer User’s Manual
Forward Tab jj
Backspace { {
Up Arrow uu
Down Arrow dd
Left Arrow ll
Right Arrow rr
CapsLock c 1 y y
Enter ee
ok b | b P
Shift b or cb or y
Space c 0 s
Start (Windows) b m or c m b m
Esc ||
Talk pp
End Call ww
Intermec Dashboard mm
To Enter Numeric Keypad QWERTY Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 143
CN70e Keypads and Keystrokes
CN70e Alphanumeric Characters
Character Numeric Keypad QWERTY Numeric Keypad
ac 2 A
bc 2 2 B
cc 2 2 2 C
dc 3 D
ec 3 3 E
fc 3 3 3 F
gc 4 G
hc 4 4 H
ic 4 4 4 I
jc 5 J
kc 5 5 K
lc 5 5 5 L
mc 6 M
nc 6 6 N
oc 6 6 6 O
pc 7 P
qc 7 7 Q
rc 7 7 7 R
sc 7 7 7 7 S
Appendix B — Keypads and Keystrokes
144 70 Series Mobile Computer User’s Manual
tc 8 T
uc 8 8 U
vc 8 8 8 V
wc 9 W
xc 9 9 X
yc 9 9 9 Y
zc 9 9 9 9 Z
Ac 1 2 y A
Bc 1 2 2 y B
Cc 1 2 2 2 y C
Dc 1 3 y D
Ec 1 3 3 y E
Fc 1 3 3 3 y F
Gc 1 4 y G
Hc 1 4 4 y H
Ic 1 4 4 4 y I
Jc 1 5 y J
Kc 1 5 5 y K
Lc 1 5 5 5 y L
Mc 1 6 y M
Nc 1 6 6 y N
Character Numeric Keypad QWERTY Numeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 145
Oc 1 6 6 6 y O
Pc 1 7 y P
Qc 1 7 7 y Q
Rc 1 7 7 7 y R
Sc 1 7 7 7 7 y S
Tc 1 8 y T
Uc 1 8 8 y U
Vc 1 8 8 8 y V
Wc 1 9 y W
Xc 1 9 9 y X
Yc 1 9 9 9 y Y
Zc 1 9 9 9 9 y Z
000
111
222
333
444
555
666
777
888
Character Numeric Keypad QWERTY Numeric Keypad
Appendix B — Keypads and Keystrokes
146 70 Series Mobile Computer User’s Manual
CN70e Characters and Functions
999
To Enter Numeric Keypad QWERTY Numeric Keypad
@ (at symbol) N/A b Q
& (ampersand) N/A b U
* (asterisk) **
: (colon) N/A b I
, (comma) N/A ,
$ (dollar) N/A b E
! (exclamation) N/A b O
- (hyphen) --
% (percent) N/A b R
. (period) ..
+ (plus) b - b -
# (pound) ##
? (question mark) N/A b Y
‘ (apostrophe) N/A b W
Forward Tab jj
Backspace { {
Up Arrow uu
Down Arrow dd
Character Numeric Keypad QWERTY Numeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 147
CK70 Keypads and Keystrokes
CK70 Alphanumeric Characters
Left Arrow ll
Right Arrow rr
CapsLock c 1 y y
Enter ee
ok b | b |
Shift b or cb or y
Space c 0 s
Start (Windows) b m or c m b m
Esc ||
Talk pp
End Call ww
Intermec Dashboard mm
Character Large Alpha Keypad Alphanumeric Keypad
aAA
bBB
cCC
dDD
eEE
fFF
To Enter Numeric Keypad QWERTY Numeric Keypad
Appendix B — Keypads and Keystrokes
148 70 Series Mobile Computer User’s Manual
gGG
hHH
iII
jJJ
kKK
lLL
mMM
nNN
oOO
pPP
qQQ
rRR
sSS
tTT
uUU
vVV
wWW
xXX
yYY
zZZ
Ay A y A
Character Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 149
By B y B
Cy C y C
Dy D y D
Ey E y E
Fy F y F
Gy G y G
Hy H y H
Iy I y I
Jy J y J
Ky K y K
Ly L y L
My M y M
Ny N y N
Oy O y O
Py P y P
Qy Q y Q
Ry R y R
Sy S y S
Ty T y T
Uy U y U
Vy V y V
Character Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
150 70 Series Mobile Computer User’s Manual
CK70 Characters and Functions
Wy W y W
Xy X y X
Yy Y y Y
Zy Z y Z
0bP 0
1bD 1
2bE 2
3bF 3
4bG 4
5bH 5
6bI 6
7bK 7
8bL 8
9bM 9
To Enter Large Alpha Keypad Alphanumeric Keypad
@ (at symbol) bS N/A
& (ampersand) b W b U
* (asterisk) b O b 0
: (colon) b J b 2
; (semicolon) c J b 5
Character Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 151
, (comma) b T c X
$ (dollar) c S N/A
! (exclamation) c W N/A
- (hyphen or minus) c X c s
% (percent) c O N/A
. (period) ..
+ (plus) b X b s
# (pound) b Q c 0
? (question mark) c Q c Y
‘ (apostrophe) c T b Y
= (equals) b Y b S
_ (underscore) c Y c X
> (greater than) c N c V
< (less than) b N b V
[ (left square bracket) b V b T
] (right square bracket) c V c T
{ (left curly brace) N/A b U
} (right curly brace) N/A c U
~ (tilde) N/A b W
\ (backslash) c U c 8
/ (forward slash) b U b 8
To Enter Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
152 70 Series Mobile Computer User’s Manual
“ (quotes) N/A b Z
( (left parenthesis) b R N/A
) (right parenthesis) c R N/A
Insert b Z b 4
Delete c Z b 6
Sym b s N/A
¦ (broken vertical bar) N/A c S
̀ (grave) N/A c W
Forward Tab jj
Backspace { {
Up Arrow uu
Down Arrow dd
Left Arrow ll
Right Arrow rr
CapsLock y y y y
Enter ee
ok c m c m
Shift yy
Space ss
Start (Windows) b m or c m b m or c m
Esc ||
To Enter Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 153
CK70 Function Keys
Alt N/A Alt
Ctrl Ctrl Ctrl
Send Call b A c 1
End Call b C c 3
Intermec Dashboard mm
To Enter Large Alpha Keypad Alphanumeric Keypad
F1 c D ¡
F2 c E ¢
F3 c F £
F4 c G ¤
F5 c H ¥
F6 c I b ¡
F7 c K b ¢
F8 c L b £
F9 c M b ¤
F10 c P b ¥
F11 N/A b A
F12 N/A b B
F13 N/A b C
F14 N/A b D
F15 N/A b E
To Enter Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
154 70 Series Mobile Computer User’s Manual
CK71 Keypads and Keystrokes
CK71 Alphanumeric Characters
F16 N/A b F
F17 N/A b G
F18 N/A b H
F19 N/A b I
F20 N/A b J
F21 N/A b K
F22 N/A b L
F23 N/A b M
F24 N/A b N
Character Numeric With Function Keys Keypad Alphanumeric Keypad
ab 7 A
bb 8 B
cb 9 C
db 4 D
eb 5 E
fb 6 F
gb 1 G
hb 2 H
ib 3 I
To Enter Large Alpha Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 155
jb 0 J
kb - K
lb ¡ L
mb ¢ M
nb £ N
ob ¤ O
pb ¥ P
qb ¦ Q
rb § R
sb ¨ S
tb © T
ub ª U
vb « V
wb ¬ W
xb m X
yb Ctrl Y
zb Alt Z
Ab y 7 y A
Bb y 8 y B
Cb y 9 y C
Db y 4 y D
Character Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
156 70 Series Mobile Computer User’s Manual
Eb y 5 y E
Fb y 6 y F
Gb y 1 y G
Hb y 2 y H
Ib y 3 y I
Jb y 0 y J
Kb y - y K
Lb y ¡ y L
Mb y ¢ y M
Nb y £ y N
Ob y ¤ y O
Pb y ¥ y P
Qb y ¦ y Q
Rb y § y R
Sb y ¨ y S
Tb y © y T
Ub y ª y U
Vb y « y V
Wb y ¬ y W
Xby m y X
Yb y Ctrl y Y
Character Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 157
CK71 Characters and Functions
Zb y Alt y Z
000
111
222
333
444
555
666
777
888
999
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
: (colon) c s b 8
; (semicolon) N/A b 5
, (comma) N/A c X
$ (dollar) c S N/A
! (exclamation) c W N/A
- (hyphen or minus) -c s
. (period) ..
+ (plus) N/A b s
Character Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
158 70 Series Mobile Computer User’s Manual
‘ (apostrophe) N/A b Y
= (equals) N/A b S
_ (underscore) c - c X
> (greater than) N/A c V
< (less than) N/A b V
[ (left square bracket) N/A b T
] (right square bracket) N/A c T
{ (left curly brace) N/A b U
} (right curly brace) N/A c U
~ (tilde) N/A b W
\ (backslash) c Alt c 2
/ (forward slash) c Ctrl b 2
“ (quotes) N/A b Z
Insert b l b 4
Delete c 4 b 6
¦ (broken vertical bar) N/A c S
̀ (grave) N/A c W
Forward Tab jj
Backspace { {
Up Arrow uu
Down Arrow dd
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 159
CK71 Function Keys
Left Arrow ll
Right Arrow rr
CapsLock y y y y
Enter ee
ok c m c m
Shift yy
Space ss
Start (Windows) b m or c m b m or c m
Esc ||
Alt Alt b |
Ctrl Ctrl Ctrl
Intermec Dashboard mm
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
F1 ¡¡
F2 ¢¢
F3 ££
F4 ¤¤
F5 ¥¥
F6 ¦b ¡
F7 §b ¢
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
160 70 Series Mobile Computer User’s Manual
F8 ¨b £
F9 ©b ¤
F10 ªb ¥
F11 «b A
F12 ¬b B
F13 c ¡ b C
F14 c ¢ b D
F15 c £ b E
F16 c ¤ b F
F17 c ¥ b G
F18 c ¦ b H
F19 c § b I
F20 c ¨ b J
F21 c © b K
F22 c ª b L
F23 c « b M
F24 c ¬ b N
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
Appendix B — Keypads and Keystrokes
70 Series Mobile Computer User’s Manual 161
CK71 Intermec Terminal Emulation (ITE) Keys
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
Attention c 0 c A
Autolog N/A c ¤
Clear b 6 c 6
Duplicate N/A c D
EEOF N/A c ¥
Erase N/A c E
Find N/A c F
Field + c x c 1
Field - b x c 1
Fieldmark N/A c G
Help N/A b 3
Hex N/A c I
Home c . c H
Keypad N/A c K
Menu N/A c M
Mode N/A c O
New Line N/A c N
Next Screen c 9 b 9
PA1 c 1 c ¡
PA2 c 2 c ¢
Appendix B — Keypads and Keystrokes
162 70 Series Mobile Computer User’s Manual
PA3 c 3 c £
Page c d c d
Print N/A c P
Previous Screen c 7 c 7
Remove N/A c R
Reset c | c |
Return c e c e
Roll Down c 5 c 5
Roll Up c 8 c 8
System Request b r c Q
View N/A b d
View Down b d N/A
View Up b u N/A
To Enter Numeric With Function Keys Keypad Alphanumeric Keypad
163
C
ScanNGo Wi-Fi Configuration Bar Codes
You can use the ScanNGo Wi-Fi configuration bar codes to
quickly configure the 802.11 radio in your computer.
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
164 70 Series Mobile Computer User’s Manual
Radio Configuration Bar Codes
Use the following ScanNGo bar codes to enable the 802.11 radio and
set the defaults for either Funk or Microsoft Wireless Zero
Configuration security. After you scan the bar codes, you will still need
to use Intermec Settings or another configuration program to set
network-specific settings on your computer and to configure the
wireless security.
The CN70, CN70e, and CK70 are available with the EA30 imager only.
The CK71 has three imager options: the EA30, EX25, or EV12 imager.
If your CK71 has an EA30 or EX25 imager, use the 2D configuration
bar codes to configure the radio. If your CK71 has an EV12 imager, use
the 1D configuration bar codes to configure the radio. You can find
out what imager is in your CK71 by opening Intermec Settings and
tapping Data Collection > Internal Scanner > Scanner Settings.
The following ScanNGo bar codes were created using SmartSystems
Foundation. For more information on SmartSystems Foundation, see
“Managing the Computer Using SmartSystems” on page 92.
2D Configuration Bar Codes
Follow these directions to configure the computer with a 2D imager
(EA30 or EX25):
1Scan the appropriate bar code from the table and wait for the
program to start.
2Follow any instructions on the device.
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
70 Series Mobile Computer User’s Manual 165
2D Imager Radio Configuration Bar Codes
1D Configuration Bar Codes
Follow these directions to configure the computer with a 1D imager
(EV12):
1) Scan the START HERE bar code from the table and wait for the
program to start.
2) Scan the bar code labeled 1/13 or 1/20 depending of the wireless
security you want to use.
3) Scan the rest of the bar codes in any order.
4) Follow any instructions on the device.
To Configure These Settings: Scan This Bar Code
Enable Wi-Fi - set Funk defaults
Enable Wi-Fi radio - set Microsoft WZC defaults
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
166 70 Series Mobile Computer User’s Manual
1D Imager Radio Configuration Bar Codes
To Configure These Settings: Scan This Bar Code
Enable Wi-Fi - set Funk defaults
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
70 Series Mobile Computer User’s Manual 167
Enable Wi-Fi - set Funk defaults
(continued)
To Configure These Settings: Scan This Bar Code
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
168 70 Series Mobile Computer User’s Manual
Enable Wi-Fi - set Funk defaults
(continued)
Enable Wi-Fi radio - set Microsoft
WZC defaults
To Configure These Settings: Scan This Bar Code
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
70 Series Mobile Computer User’s Manual 169
Enable Wi-Fi radio - set Microsoft
WZC defaults (continued)
To Configure These Settings: Scan This Bar Code
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
170 70 Series Mobile Computer User’s Manual
Enable Wi-Fi radio - set Microsoft
WZC defaults (continued)
To Configure These Settings: Scan This Bar Code
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
70 Series Mobile Computer User’s Manual 171
Enable Wi-Fi radio - set Microsoft
WZC defaults (continued)
To Configure These Settings: Scan This Bar Code
Appendix C — ScanNGo Wi-Fi Configuration Bar Codes
172 70 Series Mobile Computer User’s Manual
173
I
Index
Index
174 70 Series Mobile Computer User’s Manual
Symbols
.cab files, using to install
applications 94
Numerics
70 Series
computer models 2
features 4
802.11 communications,
configuring 71
802.11 network status
troubleshooting 105
802.11 radio, default settings 131
802.1x security
configuring with Funk 82
configuring with Microsoft 86
troubleshooting 104
with Funk 82
A
accessories, described 7
activation wizard, starting 51
ActiveSync
downloading 99
establishing a partnership 33
using to install applications 95
aligning the screen 41
alpha with numeric keypad
illustrated 17
keypresses, listed 147–154
alphanumeric keypad
illustrated 17
keypresses, listed 147–162
applications
developing with Intermec
Resource Kits 93
installing with a storage card 95
installing with ActiveSync 95
installing with Console 94
Intermec 42
Intermec, available for download
43
Intermec, available on computer
42
launching automatically 95
packaging 94
troubleshooting 110
ASCII scanner, connecting 76
audio device, connecting with
Bluetooth 75
audio snap-on adapter, described 7
AutoRun, description 94
AutoRun.exe, using to start
application 95
B
back accessory interface pin-outs
117
backlight
configuring screen 24
keypad behavior 17
bar code
default symbology settings 128
reading 26
reading, troubleshooting 107
symbologies 119
bar codes, radio configuration 164
battery
about 8
battery icons, described 12
charging 9
charging accessories 9
checking the status 12
conserving battery life 14
descriptions 7
status LED 13
Bluetooth
audio device, connecting to 75
printer, connecting to 74
scanner, connecting to 72
Bluetooth Audio application
description 42
Bluetooth communications,
configuring 72–75
C
calling product support 109
camera
description 54
CDMA phone
activating 50
carriers 50
certificate, loading 88
changing the battery 9
Index
70 Series Mobile Computer User’s Manual 175
characters
entering on CK70/CK71 keypad
22
entering on numeric keypad 21
entering on QWERTY keypad 20
entering with keystrokes 138
charging accessories, battery 9
charging the battery 9
CK70
keypads, illustrated 17
status LEDs 5, 6
CK70/CK71
battery, described 7
entering characters on keypad
22
magstripe reader adapter,
described 7
CK71
keypads, illustrated 17
status LEDs 6
clean boot, performing 112
cleaning computer 112
CN70
keypads, illustrated 15
status LEDs 5
CN70/CN70e
vehicle dock, described 8
vehicle holder, described 8
CN70/CN70e battery, described 7
cold boot, performing 110
communications
802.11, configuring 71
Bluetooth, configuring 72–75
default settings 131
Ethernet, configuring 71
serial 75
USB 75
configuration number, finding 109
configuring parameters 62
conserving battery life 14
Console
using to install applications 94
Console, using to install
applications 94
contact information, Intermec ii
D
Dashboard
about the button 24
button, using 102
description 102
illustration 102
launching 24
default settings
bar code symbologies 128
communications 131
imager 130
listed 128–135
restoring Intermec Settings 69
scanner 130
desktop stand, described 7
DX1 desktop dock, described 7
DX2 dual dock, described 7
DX4 quad dock, described 7
E
EA30 area imager, reading
distances 120
electrial specifications 116
eMDI, description 43
emergency phone call, making with
computer 52
Enhanced Mobile Document
Imaging (eMDI) application,
description 43
environmental specifications 116
Ethernet
communications, configuring
71
snap-on adapter, described 7
EV12 linear imager, reading
distances 123
EX25 imager, reading distances 125
F
Features Demo, description 43
features of 70 Series 4
files, transferring to and from PC
32
fix interval, configuring with iGPS
60
flick, screen gesture described 38
Funk security
802.1x 82
configuring 802.1x 82
configuring static WEP 83
configuring WPA Enterprise
(802.1x) 80
configuring WPA Personal (PSK)
81
configuring WPA2 Enterprise
(802.1x) 80
Index
176 70 Series Mobile Computer User’s Manual
Funk security (continued)
configuring WPA2 Personal
(PSK) 81
profile, choosing 80
using open (no security)
associations 83
G
gestures, supported 37
Good Read LED
description 6
troubleshooting 107
GPS
configuring 58
GPSID, overview 58
improving performance 59
GPSID (GPS Intermediate Driver)
overview 58
gpsOneXTRA, description 59
H
handstrap replacement kit,
described 8
hard reset, performing 110
health, monitoring computer 102
Hibernate (battery swap),
description 23
holster, described 8
Home screen, understanding 36
horizontal scroll bar
description 36
illustration 36
I
IDL (Intermec Developer Library)
93
iGPS
application description 42
using to improve performance
59
Image Capture, description 44
Image Update
silently updating system
software 98
using to update system software
97
imager
default settings 130
reading distances 119–127
Intermec Browser, description 44
Intermec Connection Manager,
description 44
Intermec Dashboard, about 102
Intermec Developer Library (IDL)
93
Intermec Launcher, description 44
Intermec Resource Kits
described 93
downloading 93
Intermec Settings
application, description 42
command reference manual link
67
described 62
hiding menu items 69
main menu illustration 63
menu options 63–67
navigating in 68
restoring default settings 69
restoring menu items 69
starting 63
understanding structure 63
using remotely with
SmartSystems 70
using to configure Profile
Settings 68
Intermec, contact information ii
Internet Service Provider (ISP)
connection, creating 76
ISpyWiFi
application description 42
diagnosing Wi-Fi status 105
K
Key status LED, description 6
keypad
backlight behavior 15, 17
keystrokes for entering
characters 138
keypads
illustrated 15
troubleshooting keys 108
Knowledge Central web site 109
L
launching applications
automatically 95
LEDs
battery status, described 13
status descriptions 6
locked computer, troubleshooting
108
Index
70 Series Mobile Computer User’s Manual 177
M
magstripe reader adapter, described
7
magstripe reader snap-on adapter,
description 7
memory, computer 117
microSD card
about 27
installing in a CK70/CK71 30
installing in a CN70/CN70e 27
Microsoft security
choosing 84
configuring 802.1x 86
configuring static WEP 87
configuring WPA Enterprise
(802.1x) 84
configuring WPA Personal (PSK)
85
configuring WPA2 Enterprise
(802.1x) 84
configuring WPA2 Personal
(PSK) 85
using open (no security)
associations 87
models of 70 Series computers 2
MS Assisted mode, description 59
N
network connection,
troubleshooting 103
Notification LED, description 6
numeric function keypad,
illustrated 17
numeric keypad
entering characters on 21
illustrated 15
keypresses, listed 138–147
numeric with function keys keypad
keypresses, listed 154–162
O
open associations, configuring with
Funk 83
open associations, configuring with
Microsoft WZC 87
operating system
finding version 110
version 2
P
pan, screen gesture described 38
phone
CDMA, activating 50
features 48
making a call 52
making an emergency call 52
turning on and off 51
UMTS, activating 48
physical specifications 116
saving to an SD card 55
storage location 54
taking with camera 54
pin-outs, back accessory interface
117
Power button, description of
behavior 22
power options
customizing 24
setting 22
power specifications 116
predefined imager mode, choosing
26
printer, connecting with Bluetooth
74
problems, troubleshooting 108
processor, computer 117
product support
calling 109
Knowledge Central web site 109
product support, calling 109
Profile Settings
application description 42
configuring with Intermec
Settings 68
profile, choosing Funk security 80
Q
QWERTY keypad
entering characters on 20
illustrated 15
keypresses, listed 138–147
R
reading bar codes 26
reading distances
EA30 area imager 120
EV12 linear imager 123
EX25 imager 125
Index
178 70 Series Mobile Computer User’s Manual
Ready-to-Work LED, description 6
reboot
performing 110
power option description 24
recording a video 55
regulatory approvals 118
Reset button, location 111
reset, performing 110
RS-232 snap-on adapter, described
8
S
scan handle, described 8
scanner
Bluetooth, connecting to 72
default settings 130
supported tethered and cordless
26
tethered scanner, connecting 76
troubleshooting 108
ScanNGo radio configuration bar
codes 164
screen
aligning 41
backlight, configuring 24
brightness, configuring 25
gestures 37
no response, troubleshooting
108
specifications 118
Screen Off, power option
description 24
SD card, using to save pictures and
videos 55
security, wireless
802.1x with Funk 82
choosing Funk or WZC 79
serial communications, about 75
settings, default, listed 128–135
Shift status LED, description 6
Shutdown, power option
description 24
silently updating system software
98
SIM card, installing 48
SmartSystems Foundation
console, illustration 92
Console, using to install
applications 94
description 45
downloading 45, 93
monitoring computer health
102
ScanNGo description 93
updating system software 97
using the Console to install
applications 94
using to manage computer 92
using with remote Intermec
Settings 70
specifications, physical and
environmental 116
status icons, Title bar 38
status LEDs
CK70 5
CN70 5
descriptions 6
storage card, using to install
applications 95
storage, computer 117
Suspend, power option description
23
symbologies, supported 119
system software
updating with SmartSystems
Foundation 97
updating 97
T
terminal emulation,
troubleshooting 103
tethered scanner, connecting 76
tethered stylus replacement kit,
described 8
Tile bar
description 36
illustration 36
Title bar
description 36
illustration 36
status icon descriptions 38
transferring files, to and from PC
32
troubleshooting 103–108
802.11 network status 105
802.1x security 104
operation 108
reading bar codes 107
Wi-Fi connection 103
turning on or off phone 51, 52
Index
70 Series Mobile Computer User’s Manual 179
U
UMTS phone, activating 48
update packages, installing
individual 99
USB communictions, about 75
USB snap-on adapter, described 8
V
vehicle dock accessories, described
8
vehicle holder, described 8
video
recording 55
saving to an SD card 55
Virtual Private Network (VPN)
connection, creating 78
volume, adjusting 25
W
Wavelink Avalanche, downloading
the enabler 93
WEP
static, configuring with Funk 83
static, configuring with
Microsoft 87
WiFi communications
supported 4
Wi-Fi radio, enabling 71
Wi-Fi, troubleshooting 103
Windows Embedded Handheld,
user interface 36
Windows Mobile Device Center
downloading 99
wireless connectivity,
troubleshooting 103
Wireless Center application
description 42
Wireless Printing application
description 43
Wireless Scanning application
description 43
wireless security 79–89
802.1x with Funk 82
certificate, loading 88
choosing Funk or WZC 79
configuration bar codes 164
Wireless Zero Configuration
(WZC), selecting security
choice 84
WPA
Enterprise (802.1x) security,
configuring with Funk 80
Enterprise (802.1x) security,
configuring with
Microsoft 84
Personal (PSK) security,
configuring with Funk 81
Personal (PSK) security,
configuring with
Microsoft 85
WPA2
Enterprise (802.1x) security,
configuring with Funk 80
Enterprise (802.1x) security,
configuring with
Microsoft 84
Personal (PSK) security,
configuring with Funk 81
Personal (PSK) security,
configuring with
Microsoft 85
www.intermec.com
Knowledge Central 109
manuals, downloading ix, xi
Product Support 109
warranty information ix
Index
180 70 Series Mobile Computer User’s Manual
Worldwide Headquarters
6001 36th Avenue West
Everett, Washington 98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
© 2011 Intermec Technologies
Corporation. All rights reserved.
70 Series Mobile Computer User’s Manual
*935-038-001*
P/N 935-038-001
