Sabre 1555 Laser Scanner
& RFID Reader/Programmer
Getting Started Guide
Anleitung für Einsteiger
Guia de IniciaçãoGuide de Démarrage
Guida IntroduttivaGuía de Iniciación
2
Introduction
Use this Getting Started Guide to set up the Sabre 1555 laser scanner and RFID reader/
programmer for most terminal connections and symbologies. If necessary, use the
EasySet setup software or Installation Manual for additional configuration possibilities
and terminal connections.
Basic setup
Configuración básica
Configuration de base
Grundkonfiguration
Configurazione di base
Getting Started Guide
EasySet
Full setup
Configuración completa
Configuration complète
Vollständige Konfiguration
Configurazione completa
Configuração completa
EasySet setup software
(on the CD-ROM or to order)
Installation Manual
Operating
Uso
Utilisation
Betrieb
Utilizzazione
Operator’s Guide
Interactive Programming
(need translations to other
languages)
Interactive Programming
Guide
3

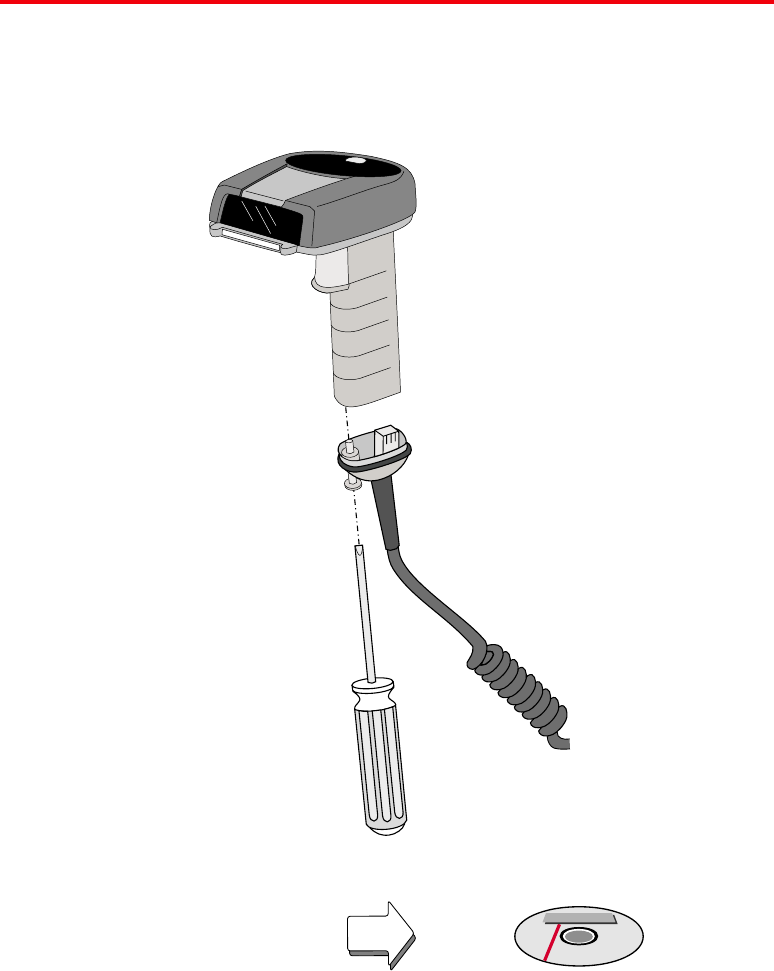

Connect scanner cable (standard version shown)
Scanner cable depends
on your terminal
Cables
Accessories
4

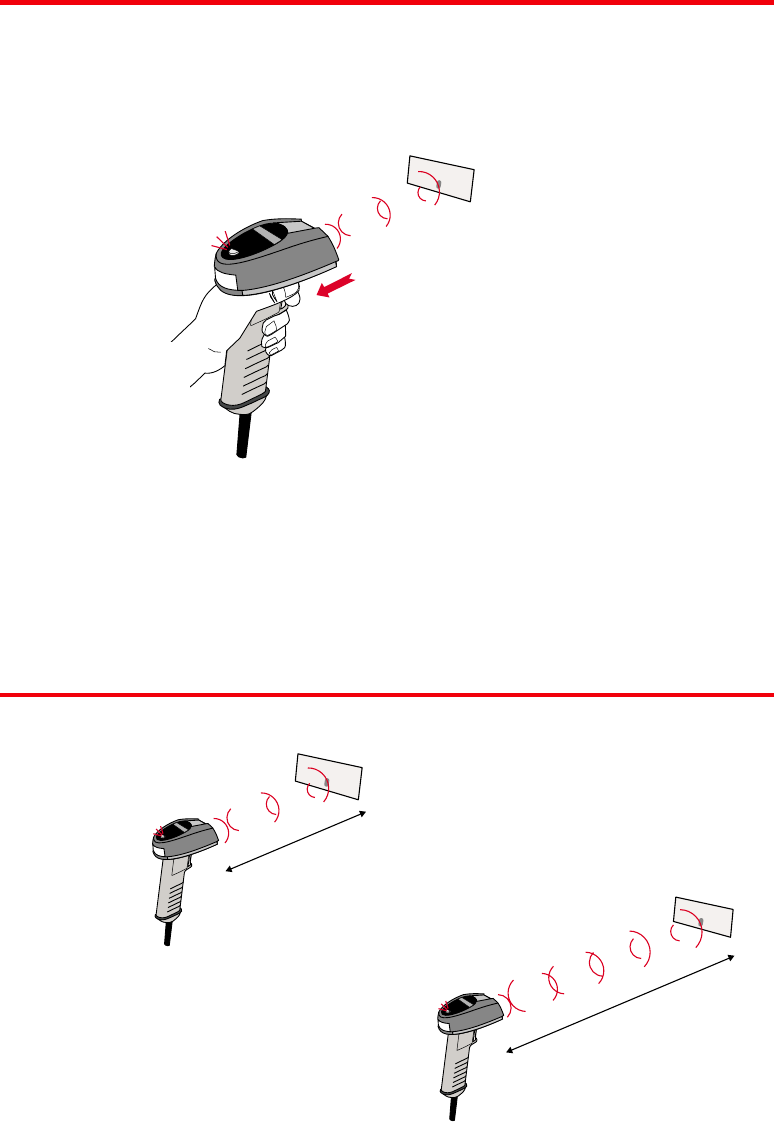

RFID reader/programmer reading distance
RFID reader/programmer operation
Sabre 1555
2450 MHz
Sabre 1555
915 MHz
2.5 cm - 200 cm
(1" - 80")
1 cm - 60 cm
(0.4" - 24")
"beep"
5

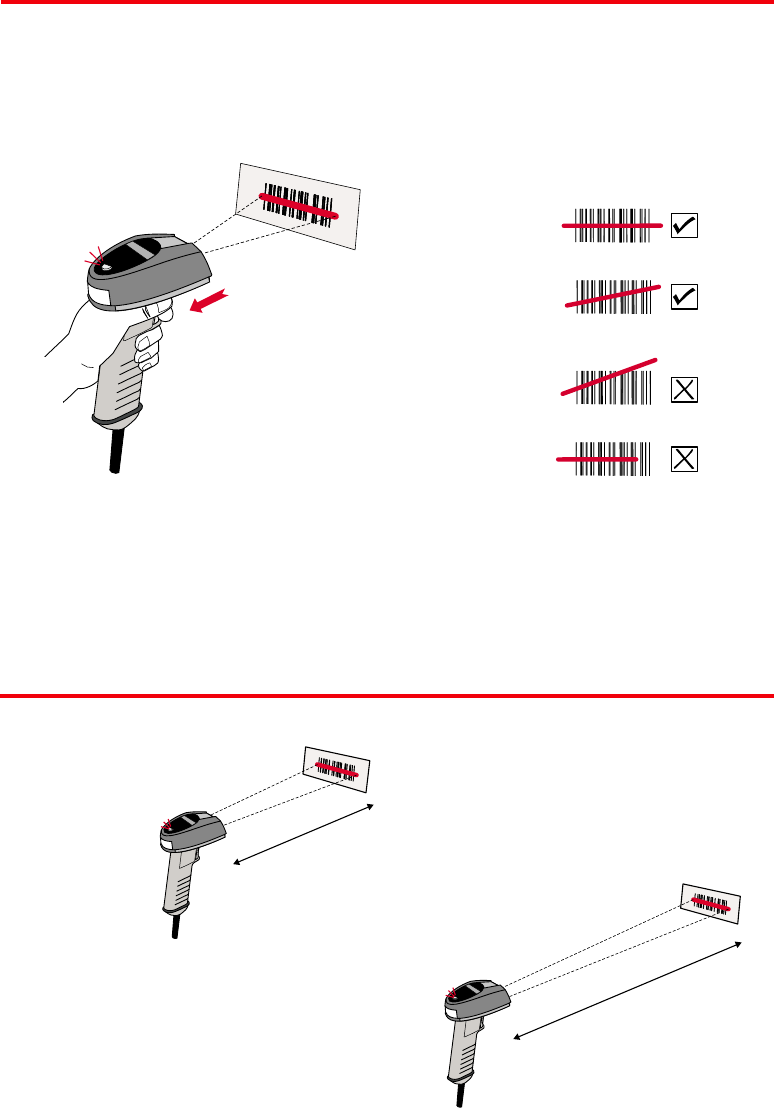

Scanner reading distance
Scanner operation
"beep"
Sabre 1555
Standard Range
Sabre 1555
Long Range
6 cm - 34 cm
(2.5" - 13.5")
28 cm - 100 cm
(11" - 39")
6
Ê
Ë
Ì
Í
Î

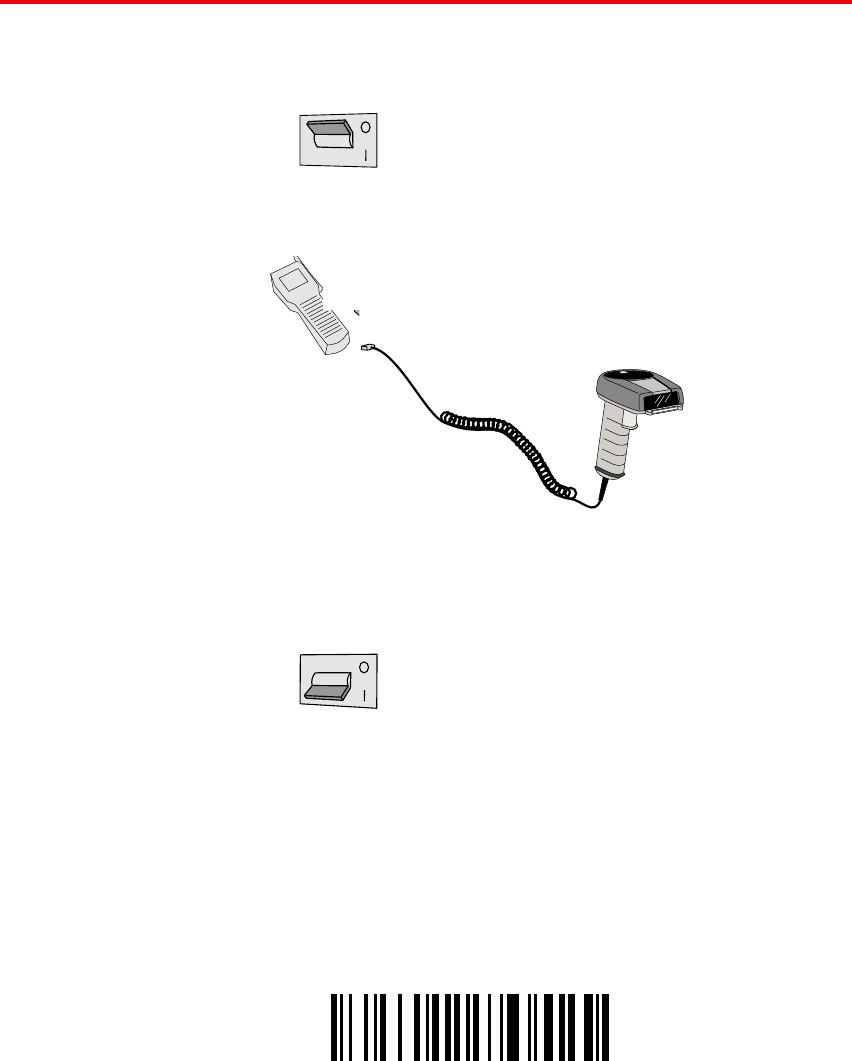

RS-232 C
Connect cable
Scanner power ON
Direct RS-232 C cable
P/N 3-604032-00
System power OFF
System power ON
Select standard RS-232 C
(PC serial port compatible)
9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed
Ê
Ë
Ì
Í
Î
7
Customize parameters (optional)
(*) = default value
Ï
9600 baud (*)
19200 baud
7 data bits (*)
8 data bits
No parity
Postamble = Carriage Return
Postamble = none
Even parity (*)
Odd parity
Postamble = Carriage Return + Line Feed (*)
8
Ê
Ë
Ì
Í
Î
RS-232 TTL
Connect cable
Scanner power ON
System power OFF
System power ON
Select RS-232 TTL
9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed
Ê
Ë
Ì
Í
Î
Direct RS-232 TTL cable
P/N x-xxxxxx-xx
9
Customize parameters (optional)
(*) = default value
Ï
9600 baud (*)
19200 baud
7 data bits (*)
8 data bits
No parity
Postamble = Carriage Return
Postamble = none
Even parity (*)
Odd parity
Postamble = Carriage Return + Line Feed (*)
10
Ê
Ë
Ì
Í
Î
Universal Serial Bus (USB)
Connect cable
Scanner power ON
Direct USB cable
P/N x-xxxxxx-xx
System power OFF
System power ON
Select standard USB
(PC serial port compatible)
9600 baud, 7 data bits, even parity, 2 stop bits
postamble = carriage return + line feed
Ê
Ë
Ì
Í
Î
11
Customize parameters (optional)
(*) = default value
Ï
Intermec representative needs to supply USB symbologies when
the symbols are available.
12
EAN 13
1234567890128
Code 128
CODE-128
Code 39
CODE-39
UPC-A, UPC-E, EAN-8, EAN-13
(UPC-A -> EAN-13)
UPC-A, UPC-E, EAN-8, EAN-13
(UPC-A -> UPC-A)
Code 39
Code 128 / EAN 128
Symbology
Disable all symbologies
Ê
Select symbology
Ë
Test
Ì
UPC-A
13
EasySet
Online setup
Reset

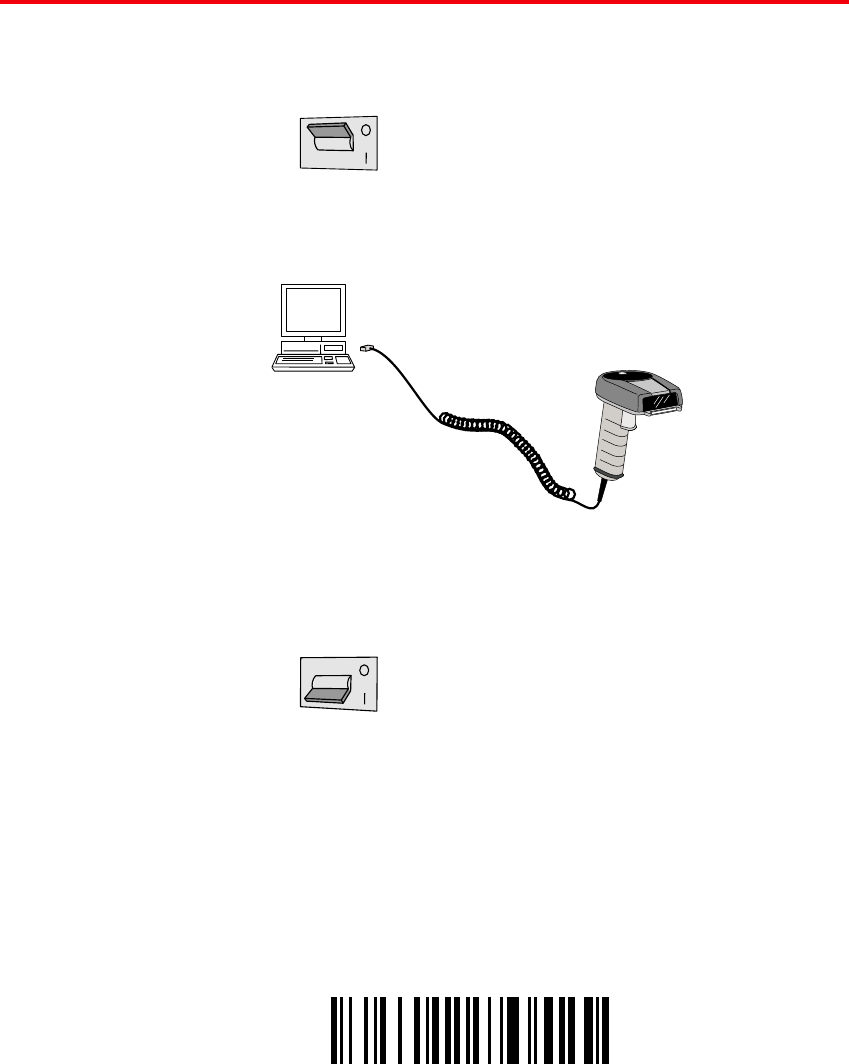

Connect RS-232 C cable
(P/N 3-604032-00)
Scanner power ON
System power OFF
System power ON
Start EasySet software
Scan EasySet setup code
Ê
Ë
Ì
Í
Î
Ï
14
CAUTION – Use of controls or adjustments or performance of procedures other than those specified herein result in
hazardous laser light.
VORSICHT – Bei einer anders als hier beschriebenen Verwendung der Bedienelemente oder Veränderungen oder
einer anderen Ausführung der Arbeitsabläufe entsteht gefährliches Laserlicht.
ATTENTION – L’utilisation de contrôles/commandes ou de réglages ou l’exécution de procédures autres que ceux
précisés par le présent document provoquent une lumière laser dangereuse.
Laser warnings
Fix these warning labels onto the product if they are not already present.
The Sabre 1555 has a maximum laser output of 1mW at 630-680 nm and complies with the following safety
standards:
USA: CDRH - Class II Laser Product (CFR 21 Subpart J)
IEC 825-1 EN 60825-1 - Class 2 Laser Product
Cole as etiquetas de precaução no equipamento.
Un’etichetta di avviso per il laser è da applicare sul prodotto.
Collez les étiquettes d’avertissement sur votre produit.
Bringen Sie Warnetiketten auf dem Produkt an.
Fije la etiqueta de advertencia en el producto.
15
N309
Regulatory statements
© 09/00 Intermec Technologies Corporation. 1.0EditionEditionAll rights reserved.
USA & Canada: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
This device requires a radio license, unless it is used totally inside of a building. (The user must obtain this license.)
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Cet appareil exige une
license radio à moins d’être entièrement installé dans un bâtiment. (L’utilisateur doit obtenir cette license.)
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant
to Part 15 of the FCC Rules, and it must not be used in a residential environment. It generates, uses, and can radiate radio frequency energy. If
not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes
interference, the user will be required to correct the interference at the user’s own expense.
To maintain compliance with the FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral (such as a
reader) must be as specified by Intermec.
Operator Warning: FCC regulations limit exposure to radio frequency (RF) radiation. To comply with these regulations, the operator of this
device must maintain a distance of at least 4 cm (2 inches) from the front part of the device to any bystanders under normal operating conditions.
While the device is on, the operator’s body and parts of the body, such as eyes, hands, or head, must be 4 cm (2 inches) or farther
from the front of the device.
This device is UL listed (UL 1950/C22.2 No. 950) for safety when powered by a host system or by one of the following external Intermec power
supplies: Catalog No. and P/N 043230 ~100V, 50/60 Hz or Catalog No. and P/N 047793 ~120V, 60 Hz. The device is CSA certified.
Intermec hereby declares that the Sabre 1555 has been tested and found compliant with the below listed standards as required by the
EMC Directive 89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC:
EN55022, EN50082-2, EN60950
This device is TÜV GS licensed (EN 60950 and EN 60825-1) for safety when powered by a host system or by the following external Intermec power
supply: Catalog No. and P/N 047795 ~230V, 50 Hz. For 240V applications use the power supply: Catalog No. 047794 (P/N 5014UK) ~240V, 50
Hz.
Australia-New Zealand: This equipment has been tested and found to conform to the Australian EMC framework concerning
Class B digital devices, prescribed by the Australian and New Zealand
standard AS/NZS 3548.
Mexico: Este equipo cumple con la certificatión NOM.
The information contained in this document is for informational purposes only and is subject to change without notice. No part of this document
may be copied or reproduced in any manner without the prior written permission of Intermec Technologies Corporation.
Sabre products are covered by patents issued or pending in the USA and other countries.
The word Intermec, the Intermec logo, Sabre and EasySet are either trademarks or registered trademarks of Intermec.
Throughout this document, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in every occurrence of a trademarked
name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement.
Caution
Changes or modifications not expressly approved by Intermec could void the user's authority to operate this equipment.
