P R O D U C T P R O F I L E
Amtech Systems DivisionAmtech Systems Division
Features
•Fixed reader/programmer
board set designed for
integration into OEM
controller or as option to
Intermec 2100 UAP
•Provides RFID data collection
integrated into local area
network when configured as
option to Intermec 2100 UAP
•Spread-spectrum frequency-
hopping RFID reader/
programmer board set
coexists with RF data
collection network
•Wired or wireless connection
through 2100 UAP
•Rugged industrial environment
design
•Unlicensed RFID readers and
tags using Intellitag 500 series
microwave OEM products can
be integrated for use in
applications that require read
ranges up to 2.5 meters (8.2
ft)

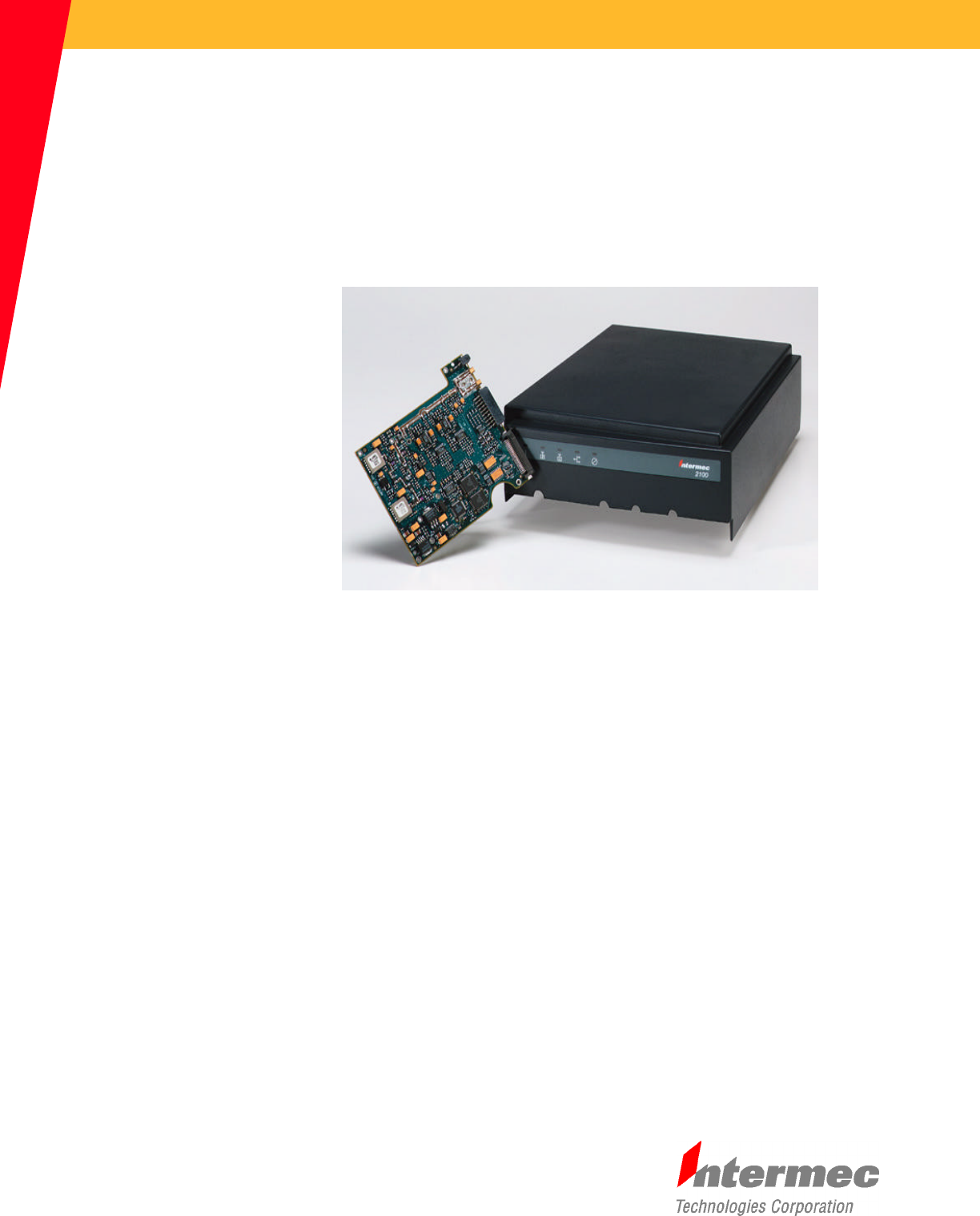

Intellitag 500 reader/programmer
board sets are offered for integration
into radio frequency identification
(RFID) solutions requiring read range,
multitag sort, read/write, and memory
capacity not provided by older, less
flexible proximity technology. The
fixed reader/programmer board set is
designed as an option for the Intermec
2100 Universal Access Point (UAP),
but it may be integrated into other
microcontroller-based systems.
Readers can be programmed for
read only or read/write operation. A
powerful anticollision algorithm allows
tags up to 50 tags per second to be
scanned, regardless of the number of
tags in the read zone.
Intermec's Amtech Systems
Division, with over a decade of success
designing, producing, installing, and
supporting RFID solutions worldwide,
is developing a range of Intellitag 500
RFID inserts, tags, scanners, and
programmer subsystems for
availability beginning in 1999.
These products are available to
Intermec systems integration partners
in established transportation and
security-access RFID applications, as
well as growing applications in supply-
chain management, retail operations,
manufacturing, logistics, health care,
and many more.
READER PRODUCTS
Intellitag
500
Series
Microwave OEM Reader Products
®
S P E C I F I C A T I O N S
North America • 6001 36th Avenue West • P.O. Box 4280 • Everett, Washington 98203-9280 • 1 (800) 347-2636 tel • 1 (319) 369-3324 fax • Norand Mobile
Systems Division • 550 2nd Street S.E. • Cedar Rapids, Iowa 52401 • 1 (800) 452-2757 tel • 1 (319) 369-3453 fax • Amtech Systems Division • 19111 Dallas Parkway,
Suite 300 • Dallas, Texas 75287-3106 • 1 (800) 923-4824 toll-free • 1 (972) 733-6600 tel • 1 (972) 733-6699 fax
Europe/Middle East/Africa • Sovereign House • Vastern Road • Reading, Berkshire,RG1 8BT • United Kingdom • +44 118 987 9400 tel • +44 118 987 9401 fax
Asia/Pacific/Latin America • 6001 36th Avenue West • P.O. Box 4280 • Everett, Washington 98203-9280 • 1 (800) 347-2636 tel • 1 (319) 369-3324 fax •
AmtechSystems Division • 19111 Dallas Parkway, Suite 300 • Dallas, Texas 75287-3106 • 1 (800) 923-4824 toll-free • 1 (214) 360-9436 tel • 1 (972) 733-6699 fax
Label Products and Supplies - North America • 1 (513) 874-5882 tel • 1 (513) 874-8487 fax • or 1 (800) 227-9947 tel • 1 (800) 227-1707 fax • Latin America/Asia
Pacific • 1 (513) 870-7930 Int’l phone • 1 (513) 874-3613 Int’l fax • Europe/Middle East/Africa +31 24 372 3100 tel • +31 24 378 0070 fax
Worldwide Fax Document Retrieval Service • 1 (650) 556-8447 tel • 1 (800) 755-5505 (North America Only)
Internet • www.intermec.com E-mail • info@intermec.com
© 1999 Amtech Systems Corporation. (Amtech Systems Corporation is a wholly owned subsidiary of Intermec Technologies Corporation.) All rights reserved. Amtech is a registered
trademark of Amtech Systems Corporation. All other trademarks listed are the property of their respective owners. Contents subject to change. Printed in the U.S.A.
Where
Information
Gets Down To
Business
™
Intellitag
500
Series Microwave OEM Reader Products
®
COMMUNICATIONS
Frequency
Fixed reader/programmer board
set only: 2.45 GHz unlicensed FCC
spread-spectrum frequency-hopping
Intermec 2100 UAP with fixed
reader/programmer module: 2.45
GHz unlicensed FCC spread-
spectrum frequency-hopping
Interfaces
Fixed reader/programmer board
set: serial interface
2100 UAP:
10BaseT
10Base2
(Optional)900MHz, 2.45 GHz
OpenAir™, IEEE 802.11 Direct
Sequence, or IEEE 802.11 Frequency
Hopping RFLAN
SOFTWARE FEATURES
Protocols
Fixed reader/programmer board
set: Intermec ASD interface
specification
Intermec 2100 UAP with fixed
reader/programmer module:
available software fully supports the
ANS NCITS 256 -1999 for item
management
Data Rate
Read 8 bytes of data from a tag in less
than 12 ms
Write a single byte of data to a tag in
less than 25 ms
Multitag Access
User-specified groups within a
population of tags can be selected,
read from, and/or written to using
multitag access commands.
POWER REQUIREMENTS
Fixed Reader/Programmer
Board Set Only
8 VDC
2100 UAP
100-240 VAC auto-ranging
ENVIRONMENTAL
Operating Temperature
0ºC to +50ºC (+32ºF to +122ºF)
Storage Temperature
-20ºC to +70ºC (+4ºF to +158ºF)
OPTIONS
General-Purpose Input/Output
Circuits (reader/programmer)
Interfaces for input and output
circuits to monitor sensors and
control other devices
READ/WRITE PERFORMANCE
Read/write performance varies with
RFID inserts, tags, and antenna
configurations.

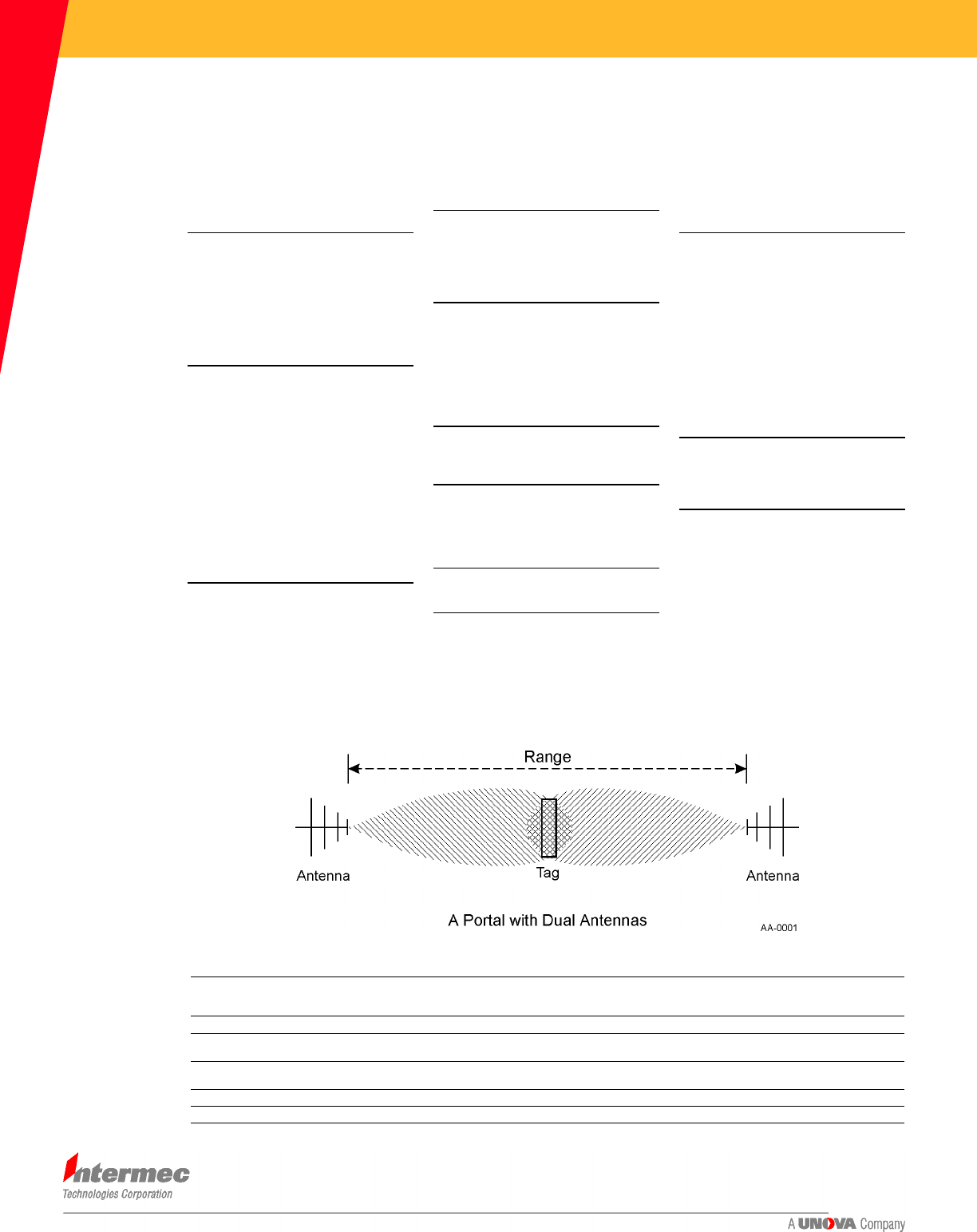

Sample dual antenna configuration is
illustrated below.
Read/Write Ranges
Write ranges are approximately 70%
of the effective read ranges of the
RFID inserts.
Read Range Examples
Ranges are listed below for RFID
inserts using frequency-hopping FCC
unlicensed operation reader and dual
antennas.
1.8 Meters (5.9 ft): 2.45 GHz 6 x 30
x.5 mm (.24 x 1.18 x .02 in) RFID
insert
2.5 Meters (8.2 ft): 2.45 GHz 10 x 60
x .5 mm (.39 x 2.36 x .02 in) RFID
insert
411461-003 8/99
