PB50 Portable Label
Printer
User’s Guide
ii PB50 Portable Label Printer User’s Guide
Intermec Technologies Corporation
Worldwide Headquarters
6001 36th Ave.W.
Everett, WA 98203
U.S.A.
www.intermec.com
The information contained herein is provided solely for the purpose of allowing customers to
operate and service Intermec-manufactured equipment and is not to be released, reproduced, or
used for any other purpose without written permission of Intermec Technologies Corporation.
Information and specifications contained in this document are subject to change without prior
noticed and do not represent a commitment on the part of Intermec Technologies Corporation.
© 2007 by Intermec Technologies Corporation. All rights reserved.
The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar,
dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under
license), Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-Work,
RoutePower, Sabre, ScanPlus, ShopScan, Smart Mobile Computing, SmartSystems, TE 2000,
Trakker Antares, and Vista Powered are either trademarks or registered trademarks of Intermec
Technologies Corporation.
There are U.S. and foreign patents as well as U.S. and foreign patents pending.
Wi-Fi is a registered certification mark of the Wi-Fi Alliance.
Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A.
Contents
PB50 Portable Label Printer User’s Guide iii
Contents
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Global Services and Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Web Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Telephone Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Service Location Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Who Should Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
1 Using the PB50 Portable Label Printer . . . . . . . . . . . . . . . . . . . . . . 1
Learning About the PB50 Portable Label Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Identifying the Parts of the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Understanding the Printer Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Understanding the Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Understanding the Printer Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Understanding the Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Charging the Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Understanding the Battery Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Extending Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Loading Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Printing a Test Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Configuring the PB50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Configuring the PB50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding the Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding Ready Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding Information Mode. . . . . . . . . . . . . . . . . . . . . . . . 16
Understanding Pause Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Understanding Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Understanding Error Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Understanding Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Changing the Configuration Settings From the Display. . . . . . . . 21
Changing the Configuration Settings from PrintSet. . . . . . . . . . . 23
Contents
iv PB50 Portable Label Printer User’s Guide
Changing the Configuration Settings Using the Command
Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Changing Configuration Settings from the Printer Home
Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Changing Configuration Settings from SmartSystems Console. . 24
Establishing Communications With a Host. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting Up Bluetooth Communications . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Setting Up 802.11 Radio Communications. . . . . . . . . . . . . . . . . . . . . . . . 26
Configuring Wireless Printing Using IPL . . . . . . . . . . . . . . . . . . 29
Configuring Wireless Printing Using Fingerprint . . . . . . . . . . . . 31
Setting Up Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Upgrading the Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Downloading Fonts and Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3 Troubleshooting and Maintaining the PB50 . . . . . . . . . . . . . 37
Troubleshooting the PB50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Contacting Product Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Understanding Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Troubleshooting Printer Problems and Finding Solutions . . . . . . . . . . . . . 40
Troubleshooting Communication Problems . . . . . . . . . . . . . . . . . . . . . . . 42
Using the Line Analyzer in Fingerprint . . . . . . . . . . . . . . . . . . . . 42
Using Dump Mode in IPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cold Booting the PB50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cleaning the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
A Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Accessories for the PB50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
B IPL and Fingerprint Setup Menus . . . . . . . . . . . . . . . . . . . . . . . . . . 53
IPL Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Fingerprint Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Contents
PB50 Portable Label Printer User’s Guide v
Before You Begin
This section provides you with safety information, technical
support information, and sources for additional product
information.
Safety Information
Your safety is extremely important. Read and follow all warnings
and cautions in this document before handling and operating
Intermec equipment. You can be seriously injured, and
equipment and data can be damaged if you do not follow the
safety warnings and cautions.
This section explains how to identify and understand dangers,
warnings, cautions, and notes that are in this document. You may
also see icons that tell you when to follow ESD procedures and
when to take special precautions for handling optical parts.
Global Services and Support
Warranty Information
To understand the warranty for your Intermec product, visit the
Intermec web site at www.intermec.com and click Support >
Returns and Repairs > Warranty.
A warning alerts you of an operating procedure, practice,
condition, or statement that must be strictly observed to avoid
death or serious injury to the persons working on the
equipment.
A caution alerts you to an operating procedure, practice,
condition, or statement that must be strictly observed to
prevent equipment damage or destruction, or corruption or
loss of data.
Note: Notes either provide extra information about a topic or
contain special instructions for handling a particular condition or
set of circumstances.
Before You Begin
vi PB50 Portable Label Printer User’s Guide
Web Support
Visit the Intermec web site at www.intermec.com to download
our current manuals (in PDF). To order printed versions of the
Intermec manuals, contact your local Intermec representative or
distributor.
Visit the Intermec technical knowledge base (Knowledge
Central) at intermec.custhelp.com to review technical
information or to request technical support for your Intermec
product.
Telephone Support
These services are available from Intermec.
Services Description
In the USA and
Canada call 1-800-
755-5505 and
choose this option
Order Intermec
products
• Place an order.
• Ask about an existing
order.
1 and then choose 2
Order Intermec
media
Order printer labels and
ribbons.
1 and then choose 1
Order spare
parts
Order spare parts. 1 or 2 and then
choose 4
Te c hn i ca l
Support
Talk to technical support
about your Intermec
product.
2 and then choose 2
Service • Get a return authorization
number for authorized
service center repair.
• Request an on-site repair
technician.
2 and then choose 1
Service contracts • Ask about an existing
contract.
•Renew a contract.
• Inquire about repair
billing or other service
invoicing questions.
1 or 2 and then
choose 3
Before You Begin
PB50 Portable Label Printer User’s Guide vii
Outside the U.S.A. and Canada, contact your local Intermec
representative. To search for your local representative, from the
Intermec web site, click Contact.
Service Location Support
For technical support in South Korea, use the after service
locations listed below:
AWOO Systems
102-1304 SK Ventium
522 Dangjung-dong
Gunpo-si, Gyeonggi-do Korea, South 435-776
Contact: Mr. Sinbum Kang
Telephone: +82-31-436-1191
Email: sbkang@awoo.co.kr
Sammi Information Systems Co Ltd
7-9FL, Seo Jo Building
103-15, Galwor-Dong
Seoul, Yong San-ku Korea, South 140-807
Contact: Kyung-Hee Koo
Telephone: +82-2-790-5508
Email: jlovekoo@sammicomputer.co.kr
Who Should Read This Manual
This user’s guide is for the person who is responsible for
installing, configuring, and maintaining the PB50 printer.
This guide provides you with information about the features of
the PB50, and how to install, configure, operate, maintain, and
troubleshoot it.
Before you work with the PB50, you should be familiar with your
network and general networking terms, such as IP address.
Related Documents
This table contains a list of related Intermec documents and their
part numbers.
Document Title Part Number
Intermec Fingerprint Programmer’s Reference
Manual 937-005-xxx
Intermec Printer Language (IPL) Command
Reference Manual 066396
Before You Begin
viii PB50 Portable Label Printer User’s Guide
The Intermec web site at www.intermec.com contains our
documents (as PDF files) that you can download for free.
To download documents
1Visit the Intermec web site at www.intermec.com.
2Click Support > Manuals.
3In the Select a Product field, choose the product whose
documentation you want to download.
To order printed versions of the Intermec manuals, contact your
local Intermec representative or distributor.
PB50 Portable Label Printer User’s Guide 1
1Using the PB50 Portable
Label Printer
Chapter 1 — Using the PB50 Portable Label Printer
2 PB50 Portable Label Printer User’s Guide
Learning About the PB50 Portable Label Printer
The PB50 is a rugged direct thermal label and receipt printer that
is designed for use with the CK31, 700 series, CK61, CN2B, and
CN3 handheld computers as well as the SF51 and SR61.
scanners. The PB50 provides:
• print resolution of 203 dpi.
• print speeds of up to 75 mm per second (3 ips)
• 802.11 or Bluetooth radio options.
Identifying the Parts of the Printer
Use this illustrations to familiarize yourself with some of the
features of the PB50.
PB50 Printer: This illustration shows the important features of the PB50
printer. A weather-resistant flap protects the communications port.
Understanding the Printer Firmware
Your PB50 printer comes with either Intermec Printer Language
(IPL) or Fingerprint firmware. The choice of firmware affects the
functionality of the printer and how you interact with it. This
manual contains information for using both types of printer
firmware.
Self-strip
door
Media cover
release button
Communications port
Ready-to-Work
indicator
Control panel
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 3
The current firmware type and version display on the PB50
screen when the printer is in Ready mode.
The screen of a PB50 running IPL firmware
Understanding the Control Panel
The PB50 control panel contains four buttons, a liquid crystal
display (LCD), and one LED indicator. Use the four buttons to
navigate the menu system and perform functions on the PB50
printer. See the following tables to understand the buttons, the
menu system, and what the LED means.
PB50 Control Panel: Use this illustration to familiarize yourself with the
buttons and lights on the PB50.
SETUP:
SER-COM
IPL 8.70
Understanding How to Use the PB50 Buttons
Button
Name Button Function
Feed Press to advance label or receipt paper by 5 mm
(0.19 inch).
If the printer is printing, pressing this button
causes the printer to pause. Press the button
again to resume printing.
Setup Press to display the Setup menu.
SETUP:
SER-COM
Setup button
Feed button
Standby button Info button
Ready-to-work
indicator
Chapter 1 — Using the PB50 Portable Label Printer
4 PB50 Portable Label Printer User’s Guide
All of the buttons can act as “soft keys,” which means that the
function of each button depends on the state of the printer. A
small icon appears in the screen next to the button to indicate the
function it performs.
Standby
(Power)
Press to put the printer in Standby mode. In
Standby mode, power to the radio, the display,
and the backlight are turned off.
Press to turn the printer back on and put in
Ready mode.
Info Press to display a summary of network
connection information. Each setting in the
summary information displays on the screen for
five seconds.
Understanding How to Use the PB50 Buttons (continued)
Button
Name Button Function

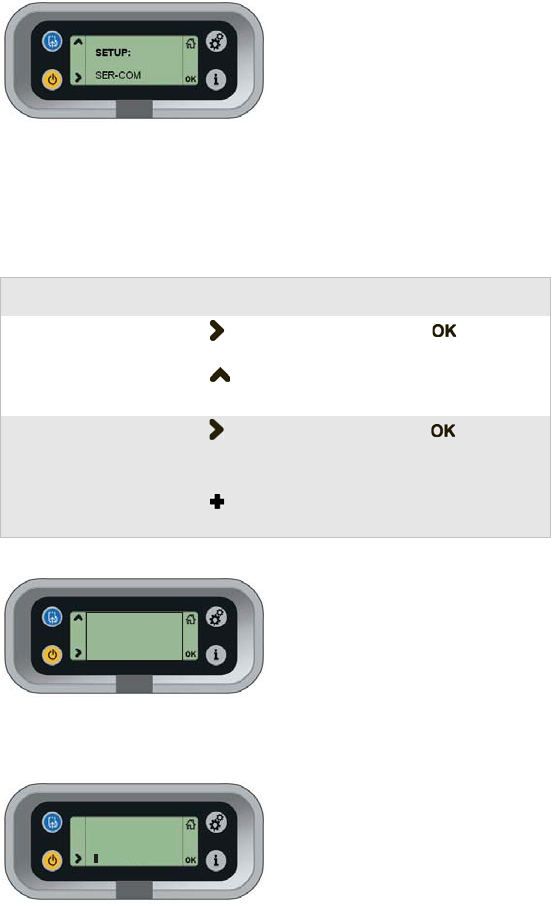

Understanding the Soft Keys
Button Soft Key(s) Description
• Moves up one level in the menu
system. This soft key appears in
Setup mode.
• Increases the value of a number
when editing settings such as an IP
address. This soft key appears in
Setup mode.
• Pauses the printing job.
Exit Setup mode and return to Ready
mode.
Moves through the settings at the
same level in the menu system.
• Moves down one level in the menu
system and saves changes to a
setting.
• Exits a printing job or exits
Information mode.
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 5
There is only one LED on the PB50 printer: the Ready-to-
Work™ indicator.
Understanding the Printer Sounds
The PB50 plays sounds in response to several actions that you
can take with the printer. Use the following table to understand
when the sounds occur and what they mean.
Understanding the Ready-to-Work Indicator
Indicator State Description
Off The PB50 is not connected to a host through the
radio or serial cable.
On The PB50 is connected to a radio or the serial port
is enabled.
Blinking A blinking light can mean one of several
conditions:
• The printer is out of paper.
• The media cover is open.
• There is a printer hardware error. For a list of
possible problems, see “Troubleshooting the
PB50” on page 38.
Understanding the Printer Sounds
Sound Occurs when:
Power • You insert a battery in the printer.
• The PB50 starts charging the battery.
• You plug in the AC adaptor.
Hardware You open or close the media door.
Button You press any of the PB50 buttons.
Error • The paper is not feeding out of the printer
because the media door is open or the printer is
out of paper.
• A print job failed because the media door is
open or the printer is out of paper.
Chapter 1 — Using the PB50 Portable Label Printer
6 PB50 Portable Label Printer User’s Guide
Understanding the Backlight
The screen backlight on the PB50 behaves the same way as a
screensaver on your PC. After a set amount of time elapses
without any user interaction, the backlight goes off. The screen
backlight turns on when:
• the printer begins printing.
• you press a button.
• you connect the printer to external power.
You can change the amount of time to have elapse before the
backlight turns off using the Setup menu. Options for backlight
are always off, always on, 5 seconds, 10 seconds, 20 seconds, 30
seconds, or 60 seconds.
Using the Batteries
The PB50 uses a rechargeable 2200 mAh lithium-ion battery
(Model AB13) for power. You must fully charge the battery
before you can use the PB50. A fully charged battery can last up
to one week without needing to be recharged.
Dispose of used batteries promptly. Keep away from children.
Installing the Battery
Make sure you fully charge the battery before you use your PB50.
You can charge the battery before or after you install them into
the PB50.
To install the battery
1Lay the PB50 upside down on a flat surface.
Use Intermec Model AB13 battery only. Use of another
battery may present a risk of fire or explosion.
The Model AB13 battery may present a fire or chemical burn
hazard if mistreated. Do not disassemble, heat above 100°C
(212°F), or incinerate.
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 7
2Insert the battery with the tab facing away from the front
control panel.
3Insert the edge of the battery under the lip of the PB50 and
then push down until you hear the battery latch click.
Charging the Batteries
There are two ways to charge the PB50 battery:
• connect AC power to the printer and charge the battery while
it is in the PB50.
• Charge the battery in the AC18 4-bay battery charger.
For information on charging your battery in the 4-bay battery
charger, see the AC18 4-Bay Battery Charger Instructions
(P/N 943-128-001).
It takes approximately 4 hours to charge the battery while it is
installed in the PB50 printer. To charge the battery inside the
PB50, you need:
• an Intermec 12 VDC power supply (Model AE19).
Chapter 1 — Using the PB50 Portable Label Printer
8 PB50 Portable Label Printer User’s Guide
•an AC power cord.
To charge the battery inside the PB50
1Install the battery in the PB50. For help, see the previous
section, “Installing the Battery.”
2Connect the power supply to the DC power connector on the
printer.
3Connect one end of the power cord to the power supply and
then plug the other end into an AC outlet.
Understanding the Battery Icons
The easiest way to tell the status of your battery is to look at the
battery icons on the control panel of the PB50.
Extending Battery Life
Here are some tips for extending the overall life of your battery:
• Never expose the battery to direct sunlight or temperatures
over 40°C (104°F).
• Only charge the battery inside the PB50 using a power supply
or in the 4-bay battery charger (Model AC18).
Battery Icon Status
Icon Status
Battery is fully charged.
Battery has a medium charge. You should be able to work
for several more hours before charging or replacing the
battery.
Battery is low. You need to replace the battery soon.
Battery is critically low. You need to replace the battery
now.
Battery charging error. You may need to replace the
battery.
External power connected and there is no battery in the
printer.
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 9
Here are some tips for extending the life of your battery between
charges:
• Press the Standby button to put the printer in Standby mode.
• Remove the battery from the printer if you will not be using it
for three days or more.
• Do not operate the PB50 in extremely cold temperatures.
Using the PB50 in temperatures below freezing reduces the
overall battery life.
Remember that any rechargeable battery loses its ability to
maintain a charge over time. You can only recharge it a finite
number of times before you must replace it.
Loading Media
You can use roll or fanfold receipt media with the PB50 printer.
The PB50 ships with a small amount of media loaded and a test
page printed to verify that the printer works. The PB50 supports
self-strip printing applications. See the second procedure for
information on how to correctly load media for self-strip
printing.
For information on media specifications, see Appendix A.
To load media
1Press down on the blue media cover release button until the
cover releases.
Chapter 1 — Using the PB50 Portable Label Printer
10 PB50 Portable Label Printer User’s Guide
2Press down on the media adjust guide and slide the two media
supports apart.
3Insert a roll of media and press the media adjust guide until
the roll is held firmly in place. Make sure you load the media
clockwise so that it pulls off the core from the bottom of the
printer.
4Pull out a few inches of the media.
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 11
5Close the media cover until it latches. The printer emits the
hardware sound to tell you that the media door closed
correctly.
6Press down on the self-strip door to make sure the media
cover is completely latched.
7Press the Feed button several times to advance the media.
Chapter 1 — Using the PB50 Portable Label Printer
12 PB50 Portable Label Printer User’s Guide

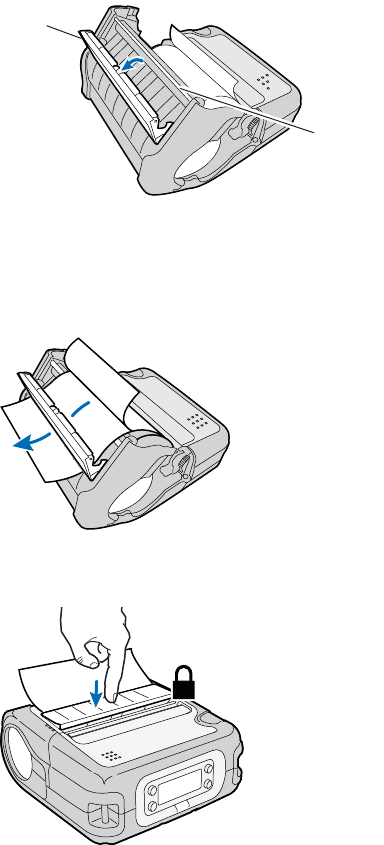

To load media for self-strip printing
1Complete Steps 1 through 4 in the previous procedure.
2Open the self-strip door in the media cover.
3Remove a label from the roll of media so that you are left with
several inches of label liner.
4Feed the label liner over the self-strip bar and out the back of
the self-strip door.
5Close the media cover until it latches and press down on the
self-strip door to make sure it locks.
Self-strip
door
Self-strip
bar
Chapter 1 — Using the PB50 Portable Label Printer
PB50 Portable Label Printer User’s Guide 13
Printing a Test Page
After you have loaded media in the printer, you are ready to print
a testprint. You can choose from several different testprints
including: setup info, hardware info, Bluetooth info, network
info, diamonds, chess, bar codes #1, and bar codes #2. If you
cannot get the testprint information to print, see
“Troubleshooting the PB50” in Chapter 3.
To print a test print with a PB50 loaded with IPL firmware
1Press the Setup button.
2Press until you reach Te s t / S e r v i c e .
3Press to enter the Test/Service menu system.
4Press to enter the Testprint Config menu.
5Press to enter the Config menu.
6Press to choose a testprint.
7Press to print the Config testprint of your choice.
To print a testprint with a PB50 loaded with Fingerprint firmware
1Press the Setup button.
2Press until you reach Print Defs.
3Press to enter the Print Defs menu system.
4Press until you reach Te s t p r i n t .
5Press to enter the Testprint menu.
6Press to choose a testprint.
7Press to print the testprint of your choice.
Chapter 1 — Using the PB50 Portable Label Printer
14 PB50 Portable Label Printer User’s Guide
Sample Network Test Print Page
Hardware
USB Device
USB Host
USB Host
CRC failed
Bluetooth
Model PB50
TPH Resolution 8.00 dots/mm (203 dpi)
TPH Temperature 53
Battery Voltage 1.7V
Hardware version 20.0
Ram 16384 (k)
Flash 65636 (k)
c: 16547328 bytes free
d: 33312256 bytes free
tmp: 8188416 bytes free
Odometer: 2 (m)
PB50 Portable Label Printer User’s Guide 15
2Configuring the PB50
In this chapter you will find these sections:
•Configuring the PB50
• Establishing Communications With a Host
• Upgrading the Firmware
• Downloading Fonts and Graphics
Chapter 2 — Configuring the PB50
16 PB50 Portable Label Printer User’s Guide
Configuring the PB50
There are several different ways you can change the configuration
settings of the printer. You can change them directly from the
display, or remotely from the SmartSystems console.
For more information on the IPL menu system, see Appendix B,
“IPL and Fingerprint Setup Menus.”
Understanding the Display Modes
The PB50 has six display modes to help you effectively interact
with the printer: Ready, Information, Paused, Setup, Error, and
Test. Use the following sections to understand the different
printer modes
Understanding Ready Mode
The printer is in Ready mode when the printer is on and ready to
print. The main screen displays the power status, the radio status,
and the printer language and version.
The PB50 in Ready Mode
Understanding Information Mode
When the printer is in Information mode, it displays a subset of
pertinent information about the printer. If the printer
experienced an error, the error message displays first followed by
the printer information. Each message displays on the screen for
five seconds. After five seconds on the last information screen, the
printer exits Information mode.
To enter Information mode
•Press the Information button on the control panel.
SETUP:
SER-COM
IPL 8.70
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 17
The PB50 in Information Mode
Understanding Pause Mode
Use Pause mode to momentarily stop printing or to cancel a
current print job. Once you pause the printer, the Pause mode
screen appears. Use the Feed button to both pause and resume
printing.
To enter Pause mode
•Press the Feed button while the printer is printing.
To resume printing
•Press the Feed button (or soft key).
To cancel a print job
1Press the Feed button to pause printing.
2Press the Information button (or soft key) to cancel the
print job.
The PB50 in Pause Mode
Understanding Setup Mode
Use Setup mode to change the settings on the printer.
To enter or exit Setup mode
•Press the Setup button.
LOW BATTERY:
12.7 V
PAUSE
X
Chapter 2 — Configuring the PB50
18 PB50 Portable Label Printer User’s Guide
Sample Setup Mode Screen
Once you enter Setup mode, there are two editing modes: normal
and enhanced.
Normal Editing Mode: In normal editing mode, you see an up arrow and a
right arrow for making selections.
[
Enhanced Editing Mode: In enhanced editing mode you have a plus sign and
a right arrow to change the value of numeric fields.
Editing Settings in Setup Mode
Editing Mode To Navigate To Accept Value
Normal • Press to move among
choices.
• Press to go up a level in
menu system.
Press .
Enhanced • Press to move within the
editable fields. When the
field blinks, you can edit it.
• Press to increase the
value of the field.
Press .
BAUDRATE:
9600
+IP ADDRESS:
130.42.240.102
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 19
Understanding Error Mode
The printer enters Error mode when it detects an error condition
such as a low battery or a paper fault. Some error messages appear
on the screen immediately when they occur, such as DOOR
OPEN. Other error messages do not appear until you press the
Information button. If there is more than one error at a given
time, the highest priority error message displays first.
Sample Error Mode Screen
If you encounter an error message, see “Understanding Error
Messages” on page 38 for information on how to fix the
problem.
Understanding Test Mode
Use Test mode when you want to verify printer settings, print test
labels, restore factory default settings, or enter Dump mode for
troubleshooting purposes. Two test modes are available: Test
mode and Extended Test mode.
Using Test Mode
Test mode is a simple sequence of events which requires little user
interaction. Extended Test mode requires more user interaction
and lets you choose which actions you want the printer to
perform.
To enter Test mode
1Make sure the printer is in Ready mode and is loaded with
media.
2Press the Feed and Standby buttons at the same time and
hold until Select Media appears on the screen and it displays
the time of media you are using (gap, mark, or continuous).
3Release both buttons. The printer performs a test feed (sensor
calibration), prints a series of test labels, and then enters
Dump mode.
The printer is now in Dump mode and it scans the
communication ports. Any characters received on the
ERROR:
PAPER FAULT
Chapter 2 — Configuring the PB50
20 PB50 Portable Label Printer User’s Guide
communication ports are printed on a label when you exit
Dump mode.
4Press Feed to exit Dump mode.
After you exit Dump mode, the printer returns to Ready mode.
For more information on Dump mode, see “Troubleshooting
Communication Problems” on page 42.
Using Extended Test Mode
You can use Extended Test mode to run additional diagnostic
tests. Additional options include printing specific test labels,
entering Dump mode, and resetting to factory defaults.
To enter Extended Test mode
1Make sure that the printer is loaded with media.
2Press the media cover release button to open the media cover.
3Press the Standby button to turn the printer off.
4Press Feed and Standby buttons at the same time until
CLOSE PRINTER DOOR appears on the screen.
5Close the media cover. You are now in Extended Test mode.
• Press to cycle through the options.
• Press to select a test option.
•Press to exit Extended Test mode.
Sample Extended Test Mode Screen
TEST LABELS
CHESS
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 21
Changing Configuration Settings
There are several ways you can change the configuration settings
of the printer. You can change the configuration settings:
•from the display.
• from the host PC using PrintSet.
• from the host PC using the command line.
• from the printer home page.
• from the SmartSystems Console.
Changing the Configuration Settings From the Display
You need to enter Setup mode before you can change
configuration settings. For more information on entering Setup
mode and navigating through the settings, see “Understanding
Setup Mode” on page 17.
Options in Extended Test Mode
Function Description
Select Media This option is almost the same as the process
in Test mode, except that the printer performs
a slow test feed in Extended Test mode. The
slow test feed enables the printer to perform a
slow sensor calibration which can help resolve
gap or mark detection problems.
Test L abe ls This option allows you to print test labels one
at a time. Press to print the next label.
Dump Mode This options enters Dump mode. For more
information on Dump mode, see
“Troubleshooting Communication
Problems” on page 42.
Factory Default This option restores the factory default
settings. Press to select this option and
then follow the instructions on the screen.
Setup and Exit This option exits Extended Test mode and
puts the printer in Setup mode.
Exit This option exits Extended Test mode.
Chapter 2 — Configuring the PB50
22 PB50 Portable Label Printer User’s Guide
The top levels of the Setup menu are organized in a one-way
loop. Each level has several sub-levels. When the printer starts up,
the firmware determines the options available on the printer and
adds this information to the Setup menu.
The Main Levels of the Setup Menu in Fingerprint
The Main Levels of the Setup Menu in IPL
SETUP:
NET-COM. NET1
SETUP:
NETWORK
SETUP:
FEEDADJ
SETUP:
SER-COM,UART1
Starting point
SETUP:
MEDIA
SETUP:
PRINT DEFS
SETUP:
BATTERY
SETUP:
DISPLAY
SETUP:
NETWORK
SETUP:
TEST/SERVICE
SETUP:
MEDIA
SETUP:
SER-COM
Starting point
SETUP:
CONFIGURATION
SETUP:
BATTERY
SETUP:
DISPLAY
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 23
Changing the Configuration Settings from PrintSet
PrintSet Version 4.2 is a printer configuration tool that you can
download from the Intermec web site. PrintSet can communicate
with your printer through a serial cable or a network connection.
It works on all PCs running Windows 98 (or later). PrintSet
allows you to easily change all of the setup parameters. It also
includes setup wizards to guide you through some common
configuration tasks.
Changing the Configuration Settings Using the Command Line
You can change configuration parameters by sending commands
directly to the printer using your terminal program
(Hyperterminal) and a serial or network connection.
If your printer uses the Fingerprint language, you use the SETUP
command, followed by the node, subnode, and parameters
setting. Here is a Fingerprint example that sets your media setting
to labels with gaps:
SETUP “MEDIA,MEDIA TYPE,LABEL (w GAPS)”
If your printer uses the IPL language, you would send this
command:
<STX><SI>T1<ETX>
Fingerprint automatically sends feedback to Hyperterminal as
you type. If you want to see what you are typing with IPL, you
need to complete the following procedure.
To see IPL commands as you type
1From the Hyperterminal menu, select File > Properties> the
Settings tab.
2Click the ASCII Setup button.
3Select Echo typed characters locally.
4Click OK twice.
For more information on how to change configuration settings,
see either the Fingerprint Programmer’s Reference Manual (P/N
937-005-xxx) or the IPL Programmer’s Reference Manual (P/N
066396). You can download both documents from the Intermec
web site at www.intermec.com.
Chapter 2 — Configuring the PB50
24 PB50 Portable Label Printer User’s Guide
Changing Configuration Settings from the Printer Home Page
If you have an 802.11 radio in your PB50 printer and it is
connected to the network, you can use your web browser to open
the printer home page and make any desired configuration
changes. To connect to a wireless network, follow the procedure
in “Setting Up 802.11 Radio Communications” on page 26.
The PB50 Printer Home Page
From the home page, click Configuration to make your changes.
Changing Configuration Settings from SmartSystems Console
You can use the SmartSystems Console to change configuration
settings on your printer. The PB50 ships with the SmartSystems
client loaded on it. The console is part of SmartSystems
Foundation and is available from the Intermec web site. To
download SmartSystems Foundation, go to www.intermec.com/
products/smrtsysfoundation/index.aspx.
Establishing Communications With a Host
The PB50 must establish communications with a host that will
send the data for the printer to print. The PB50 provides three
ways to communicate with a host:
• Bluetooth radio communications
• 802.11 b/g radio communications
• Serial communications
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 25
Setting Up Bluetooth Communications
The PB50 can contain a Bluetooth radio that allows wireless
communications with a remote device from distances up to 100
meters (approximately 328 feet) depending on the Bluetooth
range capabilities of the remote device, environmental
conditions, and obstructions. For the Bluetooth-enabled devices
to exchange data, both devices must establish a connection.
Bluetooth software is always running in the background.
The PB50 cannot initiate a Bluetooth connection. One of the
devices, such as a CK31, CK61, 700 series, CN2B, or CN3
mobile computer, must request a connection with the printer.
The PB50 then accepts or rejects the connection. Use Intermec
Settings on the mobile computer to enable the Bluetooth settings
on the PB50.
The PB50 can also connect to Bluetooth scanners such as the
SF51 and the SR61. You can create the bar code labels you need
to connect the printer to a Bluetooth scanner using EasySet
software. If you are going to create the bar code labels using
EasySet, you will need to know the Bluetooth Device Address
and the PIN of the PB50. You can download a free version of
EasySet from the Intermec web site at www.intermec.com.
Each PB50 equipped with a Bluetooth radio has a unique
Bluetooth Device Address (BDA) loaded into its module when
manufactured. You can find the BDA on the certification label
located on the bottom of the printer.
To set up Bluetooth communications with a mobile computer
• Follow the procedure to discover and connect to Bluetooth
devices in your mobile computer user’s manual.
To set up Bluetooth communications with a scanner
1Download and install EasySet.
2Create the following bar code labels using EasySet:
• Administrator reset factory defaults
• Bluetooth parameters - security - not active
Note: For maximum security, you need to configure a
Bluetooth passcode for the PB50. The default passcode for the
PB50 is “1234.”
Chapter 2 — Configuring the PB50
26 PB50 Portable Label Printer User’s Guide
• Bluetooth parameters - connect/disconnect - compose BT
address
• Bluetooth parameters - security - compose PIN:
3Scan the bar code labels with the Bluetooth scanner.
4Will the printer blink in response??
Setting Up 802.11 Radio Communications
The PB50 can have an internal 802.11 b/g radio to transfer and
receive data using wireless communications. This manual
assumes that you have already set up your wireless
communications network including your access points. The
following procedures include information on setting up wireless
security for both IPL and Fingerprint versions of the PB50.
The PB50 supports these authentication modes: none, WEP,
WPA Personal and Enterprise mode, WPA2 Personal and
Enterprise mode (802.1x authentication).
Understanding Bluetooth Radio Icons
Icon Description
The Bluetooth radio is on and the printer is not connected to
a serial cable.
The Bluetooth radio is turned off. The Bluetooth radio turns
off when you connect a serial cable.
WPA and WPA2 Enterprise mode currently support PEAP,
TTLS, and LEAP. For LEAP authentication, EAP is not
supported.
Understanding 802.11 Radio Icons
Icon Description
Excellent signal
Strong signal
Good signal
Poor signal
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 27
To set up the PB50 to work in your wireless network, you will
need:
• Serial cable (P/N 075497-001)
• Host PC running Windows or Linux
• Serial port software such as Hyperterminal
To set up the PB50 for wireless communications

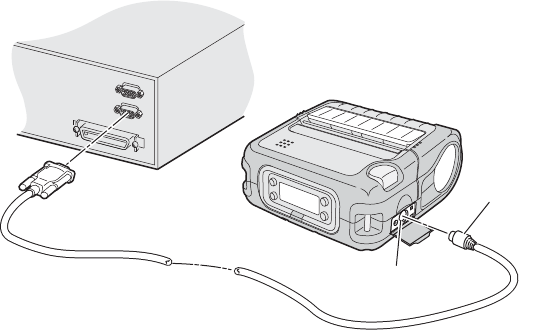

1Connect the 8-pin circular DIN connector to the serial port
on the PB50.
2Connect the other end of the serial cable to a serial port on
the back of your PC or to a serial adapter on your mobile
computer.
3Open Hyperterminal on your PC and configure the following
parameters for the serial port:
4From the host PC, check the wireless settings.
Very poor signal
No Signal
Radio is off
Understanding 802.11 Radio Icons (continued)
Icon Description
Note: If you are using IPL commands with Hyperterminal, you
may want to be able to see the commands as you type them on
your screen. For help, see “Changing the Configuration Settings
Using the Command Line” on page 23.
Parameter Default Setting
Baud rate 115200
Data bits 8
Parity None
Stop bits 1
Chapter 2 — Configuring the PB50
28 PB50 Portable Label Printer User’s Guide
If you have an IPL version of the printer, send these
commands to the PB50:
<STX><SI>wt,SSID<ETX>
<STX><SI>wt,WEP1<ETX>
<STX><SI>wt,WEP2<ETX>
<STX><SI>wt,WEP3<ETX>
<STX><SI>wt,WEP4<ETX>
<STX><SI>wt,AUTH<ETX>
<STX><SI>wt,WPA<ETX>
<STX><SI>wt,WPA2<ETX>
<STX><SI>wt,WPA_PSK<ETX>
<STX><SI>wt,ROAM<ETX>
<STX><SI>wt,PWR_MODE<ETX>
<STX><SI>wt,CHANNEL<ETX>
<STX><SI>wt,AP_MAC<ETX>
<STX><SI>wt,SIGNAL<ETX>
<STX><SI>wt,SPEED<ETX>
<STX><SI>wt,ACTIVE<ETX>
If you have a Fingerprint version of the printer, send this
command to the PB50:
setup write “wlan”,”uart1:”
5Set up the PB50 to use the correct SSID and authentication
modes. See one of the following procedures to configure
wireless printing on your IPL or Fingerprint printer.
6If you are going to use certificates for validation, transfer the
certificate to the printer. The printer can accept .pfx, .pem,
and .der certificates.
7Verify that the PB50 is connected to the access point and
make sure it has an IP address allocated to it.
Use the following sections to set most of your wireless
communication settings. For help with additional commands
and information, see either the Fingerprint Programmer’s Reference
Manual (P/N 937-005-xxx) or the IPL Programmer’s Reference
Manual (P/N 066396). You can download both documents from
the Intermec web site at www.intermec.com.
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 29
Configuring Wireless Printing Using IPL
Use the following procedures to configure your PB50 with IPL
for wireless printing.
To configure the printer to use WEP authentication
1Send the following commands to login as an admin and set
the SSID:
<STX><ESC>.s,su -p pass admin<ETX>
<STX><SI>ws,SSID, xxxxx<ETX>
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to configure the WEP keys.
The following example sets WEP key 1 to 1234 and enables
WEP key 1.
<STX><SI>ws,WEP1, 0x0001020304<ETX>
<STX><SI>ws,.WEP_KEY,1<ETX>
3Send the following command to activate the settings.
<STX><SI>ws,ACTIVE,1<ETX>
To configure the printer to use WPA-PSK or WPA2-PSK mode
1Send the following commands to login as an admin and set
the SSID:
<STX><ESC>.s,su -p pass admin<ETX>
<STX><SI>ws,SSID, xxxxx<ETX>
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to set up WPA-PSK or WPA2-
PSK authentication:
<STX><SI>ws,WPA,ON<ETX>
<STX><SI>ws,WPA2,ON<ETX>
<STX><SI>ws,WPA_PSK, xxxxxxxxxx<ETX>
Where xxxxxxxxxx is a value between 8 and 64 characters.
3Send the following command to activate the settings:
<STX><SI>ws,ACTIVE,1<ETX>
To configure the PB50 to use WPA or WPA2 Enterprise mode
1Send the following commands to login as an admin and set
the SSID:
<STX><ESC>.s,su -p pass admin<ETX>
<STX><SI>ws,SSID, xxxxx<ETX>
Chapter 2 — Configuring the PB50
30 PB50 Portable Label Printer User’s Guide
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to enable WPA-802.1x or
WPA2-802.1x authentication:
<STX><SI>ws,WPA,ON<ETX>
<STX><SI>ws,WPA2,ON<ETX>
<STX><SI>ws,WPA_PSK, <ETX>
3Send these commands to configure the EAP_TYPE:
<STX><SI>ws,EAP_TYPE,xxxx<ETX>
Where xxxx can be OFF, LEAP, PEAP, or TTLS.
<STX><SI>ws,.EAP_USER,xxxx<ETX>
<STX><SI>ws,.EAP_PASS,xxxx<ETX>
Where xxxx can be an alphanumeric value up to ??? characters.
4If you are using TTLS, you may need to send this command
to set the TTLS outer name:
<STX><SI>ws,TTLS_USER, xxxx <ETX>
Where xxxx can be an alphanumeric value up to ??? characters.
5If you are using certificates for validation, here are some
commands you may need to use.
• Send the following commands to set a certificate and
enable validation:
<STX><SI>ws,CA_CERT,c:/testCA.pfx@export<ETX>
<STX><SI>ws,VALIDATE,ON<ETX>
Where c:/testCA.pfx is the location and name of the
certificate and export is the passphrase.
• Send the following commands to set a common name for
server 1 and server 2:
<STX><SI>ws, .SERVER_CN1,xxxxxxxxxx <ETX>
<STX><SI>ws, .SERVER_CN2,xxxxxxxxxx <ETX>
Where xxxxxxxxxx can be a value from 0 to 64 characters.
• Send the following command to make sure your values
match those used by the access point:
<STX><SI>wt,[variable name]<ETX>
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 31
All variables are returned with the exception of EAP_PASS
which always returns “****” if configured and CA_CERT
which transmits the name of the last certificate authority
successfully installed. An additional read-only variable for
the supplicant state, called STATE, is also returned.
• You may need to send the following command several
times for the wireless station to connect:
<STX><SI>ws,ACTIVE,1<ETX>
Configuring Wireless Printing Using Fingerprint
Use the following procedures to configure your PB50 with
Fingerprint for wireless printing.
To configure the printer to use WEP authentication
1Send the following commands to login as an admin and set
the SSID:
run”su-p pass admin”
setup write “wlan”,”uart1:”
setup “wlan”,”SSID”,”xxxxx”
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to configure the WEP keys.
The following example sets WEP key 1 to 1234 and enables
WEP key 1.
setup “wlan”,”WEP1”,”0x0001020304”
setup “wlan”,”.WEP_KEY”,”1”
setup “wlan”,”ACTIVE”,”1”
setup write “wlan”,”uart1:”
To configure the printer to use WPA-PSK or WPA2-PSK mode
1Send the following commands to login as an admin and set
the SSID:
run”su-p pass admin”
setup write “wlan”,”uart1:”
setup “wlan”,”SSID”,”xxxxx”
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to set up WPA-PSK or WPA2-
PSK authentication:
setup “wlan”,”WPA”,”ON”
setup “wlan”,”WPA2”,”ON”
setup “wlan”,”WPA_PSK”,”xxxxxxxxxx”
Chapter 2 — Configuring the PB50
32 PB50 Portable Label Printer User’s Guide
setup “wlan”,”ACTIVE”,”1”
setup write “wlan”,”uart1:”
Where xxxxxxxxxx is a value between 8 and 64 characters.
To configure the PB50 to use WPA or WPA2 Enterprise mode
1Send the following commands to login as an admin and set
the SSID:
run”su-p pass admin”
setup write “wlan”,”uart1:”
setup “wlan”,”SSID”,”xxxxx”
Where xxxxx can be from 0 to 32 alphanumeric characters.
2Send the following commands to set up WPA-802.1x or
WPA2-802.1x authentication:
setup “wlan”,”WPA”,”ON”
setup “wlan”,”WPA2”,”ON”
setup “wlan”,”WPA_PSK”,””
setup write “wlan”,”uart1:”
• To view the 802.1x values, send this command:
setup write “8021x”,”uart1:”
3Send these commands to configure the EAP_TYPE:
setup “8021x”,”EAP_TYPE”,”xxxx”
Where xxxx can be OFF, LEAP, PEAP, or TTLS.
setup “8021x”,”.EAP_USER”,”xxxx”
setup “8021x”,”EAP_PASS”,”xxxx”
Where xxxx can be an alphanumeric value up to ?? characters.
4If you are using TTLS, you may need to send this command
to set the TTLS outer name:
setup “8021x”,”TTLS_USER”,”xxxx”
Where xxxx can be an alphanumeric value up to ??? characters.
5If you are using certificates for validation, here are some
commands you may need to use.
• Send the following commands to set a certificate and
enable validation:
setup “8021x”,”CA_CERT”,”c:/test.pfx@export”
setup “8021x”,”VALIDATE”,”ON”
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 33
Where c:/test.pfx is the location and name of the certificate
and export is the passphrase.
• Send the following commands to set a common name for
server 1 and server 2:
setup “8021x”,”.SERVER_CN1”,xxxxxxxxxx <ETX>
setup “8021x”,”.SERVER_CN2,xxxxxxxxxx <ETX>
Where xxxxxxxxxx can be a value from 0 to 64 characters.
• Send the following command to make sure your values
match those used by the access point:
setup write “8021x”,”uart1:”
• You may need to send the following command several
times for the wireless station to connect:
setup “wlan”,”ACTIVE”,”1”<ETX>
Setting Up Serial Communications
You can use a serial cable (P/N 075497-001) to connect the
PB50 to a PC or a mobile computer. For the mobile computer,
you may need to purchase a serial adapter. For more information,
contact your local Intermec sales representative.
Before you can establish a serial connection, you need to make
sure that the settings on the PC or mobile computer match those
of the PB50.
To connect the PB50 to a PC or mobile computer
1Connect the 8-pin circular DIN connector to the serial port
on the PB50.
Serial Port Settings on the PB50
Parameter Default Setting
Baud rate 115200
Data bits 8
Parity None
Stop bits 1
Flow control XON_XOFF
Chapter 2 — Configuring the PB50
34 PB50 Portable Label Printer User’s Guide
2Connect the other end of the serial cable to a serial port on
the back of your PC or to a serial adapter on your mobile
computer.
Connecting the PB50 to the Serial Port of a PC
Upgrading the Firmware
The latest firmware and software is always available for download
from the Intermec web site at www.intermec.com.
To download firmware updates
1Go to the Intermec web site at www.intermec.com.
2Click Support > Downloads.
3In the Select a Product field, choose PB50 portable printer.
The latest available software displays on the page.
4Download the latest firmware version to your computer.
Make sure you choose the correct firmware upgrade for your
IPL or Fingerprint printer.
5Extract the .zip file to a folder on your computer.
You have options for upgrading the firmware based on whether
your PB50 has a Bluetooth radio or an 802.11 b/g radio. Use one
of the following procedures to upgrade your printer firmware.
Your printer should reboot after you finish upgrading the
firmware. If it does not reboot, you will need to cold boot the
printer. For help, see “Cold Booting the PB50” on page 43.
Serial
cable
Serial
port
Chapter 2 — Configuring the PB50
PB50 Portable Label Printer User’s Guide 35
To upgrade your printer using PrintSet
1Download the latest version of PrintSet from the Intermec
web site at www.intermec.com.
2Select File > Add Printer to start the Add Printer Wizard
which guides you through the process of adding your printer.
3Select your printer under My Printers and then go to Printer
> Firmware Wizard.
The Firmware Wizard guides you through the necessary steps to
update your firmware.
To upgrade your printer using an 802.11 network connection
1Browse to the home page of the printer. For help, see
“Changing Configuration Settings from the Printer Home
Page” on page 24.
2From the home page, click Maintenance.
3From the Firmware upgrade page, browse to the upgrade
firmware file.
4Click Upgrade.
To upgrade your printer using a serial connection
1Add Rod’s procedure here...????
Downloading Fonts and Graphics
The easiest way to download fonts and graphics is to use the free
Intermec printer application called PrintSet. You can download
PrintSet from the downloads page for the PB50 printer on the
Intermec web site at www.intermec.com.
Follow the procedures in the PrintSet online help to download
fonts and graphics.
Chapter 2 — Configuring the PB50
36 PB50 Portable Label Printer User’s Guide
PB50 Portable Label Printer User’s Guide 37
3Troubleshooting and
Maintaining the PB50
Chapter 3 — Troubleshooting and Maintaining the PB50
38 PB50 Portable Label Printer User’s Guide
Troubleshooting the PB50
You may have printer operation, print quality, or printer
communication problems at some time during the life of the
PB50 printer. It is easy to fix most of the problems and you will
find solutions in the “Printer Problems and Solutions” section of
this chapter. If you cannot find the answer to your problem, you
may need to contact Product Support.
Contacting Product Support
Before you call Intermec Product Support, you may want to visit
the Intermec technical knowledge base (Knowledge Central) at
intermec.custhelp.com to review technical information or to
request technical support. If you still need help after visiting
Knowledge Central, you may need to call Product Support.
To talk to an Intermec Product Support representative in the
U.S.A. or Canada, call:
1-800-755-5505
Outside the U.S.A. and Canada, go to www.intermec.com and
click Contact to find your local Intermec representative.
Before you call Intermec Product Support, make sure you have
the following information ready:
• Printer serial number
• Firmware type and version
• Bluetooth, wireless, or serial port settings
You can find all of the information listed above in the printer
menu system or on a test print page.
Understanding Error Messages
Use the following tables to troubleshoot some common error
message you may see display on PB50 screen. Some of the error
messages are specific to the type of firmware you have loaded on
your PB50.
Chapter 3 — Troubleshooting and Maintaining the PB50
PB50 Portable Label Printer User’s Guide 39
Possible PB50 Error Icons and Messages
Error Icon Error Message Description
Pause The printer is paused.
Paper out The printer is out of paper. Load a
new roll of media. For help, see
“Loading Media” on page 9.
Test feed not
done
The printer did not perform a test
feed before it printed out test labels.
It is important to perform a test feed
because it calibrates the sensor. Press
the Feed button to perform a test
feed.
‘
Printhead hot The printhead is overheated and
needs to cool down. Wait for printing
to resume automatically.
Upgrading The printer is loading new firmware.
LSS too high,
LSS too low
These errors can occur when you run
a test feed without any media
installed, or if you have incorrect
media settings.
Load the printer with media (see
“Loading Media” on page 9), run
Test mode (see “Using Test Mode”
on page 19), and select the
appropriate media type.
IP configuration
error
The printer is trying to acquire an IP
address from the network. Wait for
the printer to complete the task
before taking any action.
IP link error ????
Field out of label You are attempting to print in an area
that extends beyond the print
window. See the programmer’s
reference manual for your type of
firmware (IPL or Fingerprint) for
information on how to set the media
parameters.
Chapter 3 — Troubleshooting and Maintaining the PB50
40 PB50 Portable Label Printer User’s Guide
Troubleshooting Printer Problems and Finding Solutions
Use the following tables to troubleshoot some common problems
you may encounter with the PB50 printer.
Printer Problems and Solutions
Problem Possible Solution
The printer does not turn
on when you press
Standby.
• Replace the battery with a charged
battery.
• Connect external power to make sure
the printer works correctly and to charge
the battery.
The blue light is blinking. • Make sure media is loaded and the
media cover is closed. For help, see
“Loading Media” on page 9.
• There is a printing error. The screen
displays an error message containing
information on the error.
• The printer is paused. The printer is
cancelling a print job.
• The printer is in Setup mode. Press
Setup to exit Setup mode.
The printer is not
printing with a Bluetooth
connection.
• Re-establish a Bluetooth connection
with the mobile computer or scanner.
For help, see your mobile computer
user’s manual or “Setting Up Bluetooth
Communications” on page 25.
• Make sure the mobile computer can
print to a known good printer.
• Print a Bluetooth test print page to
make sure that the mobile printer
discovered your printer. For help, see
“Printing a Test Page” on page 13.
• Make sure the printer is in Ready mode.
The printer is not
printing with an 802.11
wireless connection.
• Check your wireless settings??
•
Chapter 3 — Troubleshooting and Maintaining the PB50
PB50 Portable Label Printer User’s Guide 41
When printing, the
printer is skipping labels.
• Go into Test mode and run a test feed.
For help, see “Using Test Mode” on
page 19.
• Make sure the label gap sensor is clean.
For help, see “Cleaning the Printer” on
page 44.
Printer keeps printing or
feeding when it should
stop.
• Check media settings.
• Make sure the label gap sensor is clean.
For help, see “Cleaning the Printer” on
page 44.
Printout is faded or weak. • Fingerprint users: adjust the media
constant, factor, and contrast.
• IPL users: adjust the media sensitivity
setting.
• Check to see if the printhead needs
cleaning. For help, see “Cleaning the
Printer” on page 44.
The battery charge is not
lasting as long as it
should.
• Check the battery date. If the battery is a
few years old, the shortened life may be
due to normal aging.
• Replace the battery.
The test pages do not
print.
• Make sure that the blue light is not
blinking. If it is, make sure your printer
has media and that the media cover is
closed.
• Make sure that you can advance media
by pressing the Feed button.
Print quality it poor. • Clean the printhead. For help, see
“Cleaning the Printer” on page 44.
• Check the battery and recharge or
replace as necessary. For help, see
“Charging the Batteries” on page 7.
• Check the quality of the media. Use
only Intermec media to ensure superior
print quality and product performance.
The printout is not in the
desired position.
• Check for errors in the software
application.
• Make sure the label gap sensor and
platen roller are clean.
Printer Problems and Solutions (continued)
Problem Possible Solution
Chapter 3 — Troubleshooting and Maintaining the PB50
42 PB50 Portable Label Printer User’s Guide
Troubleshooting Communication Problems
Use Dump mode to verify that the printer is receiving data from
the host correctly.
Using the Line Analyzer in Fingerprint
In Dump mode, the printer runs a Fingerprint program called
Line Analyzer. The Line Analyzer captures incoming characters
on the communication ports and prints them on one or more
labels.
The easiest way to enter Dump mode is through Test mode or
Extended Test mode. For help, see “Understanding Test Mode”
on page 19.
After the printer enters Dump mode, it tells you it has entered
Dump mode by printing it on a label. The display shows the
Dump mode icon and printer is ready to receive data.
While the printer is receiving data, the Ready-to-Work indicator
blinks (true??) After a half of a second, if no more characters have
been received, the printer times out. The program considers the
transmission terminated and prints out a label.
Printable characters are printed in black-on-white. Control
characters and space characters (ASCII 000 to 032 dec) are
printed in white-on-black.
As long as a continuous string of characters is being received, the
program wraps the lines until the label is full and then starts to
print another label. After each character transmission, the
following information prints:
• Page number
• Number of characters printed on the label
• Total number of characters received so far
When you exit Dump mode, a final label prints to inform you
that it is exiting from Dump mode.
Using Dump Mode in IPL
When you enter Dump mode, the printer captures incoming
characters on the communication ports and prints them on one
or more labels.
If you have IPL firmware on your printer, you can access Dump
mode in two different ways with slightly different results:
Chapter 3 — Troubleshooting and Maintaining the PB50
PB50 Portable Label Printer User’s Guide 43
• You can access Dump mode through Test mode or Extended
Test mode and you will receive printouts that look exactly like
those produced with the Line Analyzer program in
Fingerprint. For more information, see the previous
procedure, “Using the Line Analyzer in Fingerprint” on
page 42.
• You can access Dump mode from the Setup menu. If you
access Dump mode this way, characters are printed on a
continuous line along with corresponding hexadecimal
numbers.
To enter Dump mode from the Setup menu
1Press the Setup button.
2Press until you reach Te s t / S e r v i c e .
3Press to enter the Test/Service menu.
4Press until you reach Data Dump and then press .
5Press to select Yes and then press .
6Cold boot the printer to exit Dump mode. For help, see the
next procedure, “Cold Booting the PB50.”
Cold Booting the PB50
You rarely need to cold boot the PB50 printer, unless you are
upgrading the firmware. If your printer occasionally locks up,
you will want to cold boot it.
To reset the PB50
1Disconnect the PB50 from power if externally powered.
2Remove the battery from the PB50 for at least one second.
3Insert the battery back into the PB50.
4Reconnect external power if your PB50 is externally powered.
A cold boot reinitializes the 802.11 radio and clears the working
memory.
Note: The Setup menu is not affected by a cold boot. Your
printer retains all of your configuration settings after the printer
powers back up.
Chapter 3 — Troubleshooting and Maintaining the PB50
44 PB50 Portable Label Printer User’s Guide
Cleaning the Printer
To properly maintain your PB50, you should clean it at the
recommended intervals.
PB50 Portable Label Printer: Identifying the parts of the PB50 to clean
regularly.
To avoid possible personal injury or damage to the printer,
never insert any pointed or sharp objects into the printer.
Use only the cleaning agents specified in this section. Intermec
is not responsible for damage caused by any other cleaning
materials used on this printer. Clean the printer with a cotton
swab saturated with alcohol.
Paper
sensor Label taken
sensor
Printhead
Tear bar
Platen
roller
Label gap
sensor
Chapter 3 — Troubleshooting and Maintaining the PB50
PB50 Portable Label Printer User’s Guide 45
Cleaning the PB50 Printer
Printer Part Cleaning Method Cleaning Interval
Printhead Use 70% isopropyl alcohol on a
cotton swab to clean the print
elements from end to end.
After every five rolls
of media or more
often if necessary.
Platen roller Rotate the platen roller and
clean it thoroughly with 70%
isopropyl alcohol on a cotton
swab.
After every five rolls
of media or more
often if necessary.
Paper sensors Clean thoroughly with 70%
isopropyl alcohol and a cotton
swab.
After every five rolls
of media or more
often if necessary.
Tear bar Clean thoroughly with 70%
isopropyl alcohol and a cotton
swab.
As needed.
Exterior Clean with a water-dampened
cloth.
As needed.
Interior Brush or air blow. Make sure
the paper sensor is free of dust.
After every five rolls
of media or more
often if necessary.
Chapter 3 — Troubleshooting and Maintaining the PB50
46 PB50 Portable Label Printer User’s Guide
PB50 Portable Label Printer User’s Guide 47
ASpecifications
Chapter A — Specifications
48 PB50 Portable Label Printer User’s Guide
Specifications
Physical Dimensions
Depth 78.7 mm (3.1 in)
Height 174.5 mm (6.9 in)
Width 159.5 mm (6.3 in)
Weight 1190 g (2 lb)
Power Specifications
AC power adapter voltage 100 to 240V
Printer voltage 100V to 240V and 50 Hz to 60 Hz
Operating power Rechargeable 16.8 V 2200 mAh lithium-
ion battery
Temperature and Humidity Specifications
Operating temperature -15°C to 50°C (5°F to 122°F)
Non-operating temperature 0°C to 45°C (32°F to 113°F)???
Relative humidity 0 to 95% non-condensing
Media Specifications
Core inside diameter, standard 19 mm (0.75in)
Core inside diameter, with adapter 10.2 mm (0.4 in)
Maximum roll outside diameter 67.3 mm (2.65 in)
Media width, label with liner/receipt 49mm (1.9 in) to 111.5 mm (4.4 in)
Media length, label 25.4 mm (1.0 in) to 609.6 mm (24 in)
Media length, receipt Continuous
Media caliper, label with liner/receipt 0.05 mm (0.002 in) to 0.165 mm (0.0065 in)
Media caliper, tag 0.15 mm (0.006 in)
Gap length (centered on perforation) 3.17 mm (0.125 in) to 12.7 mm (0.50 in)
Notch length (centered on perforation) 6.35 mm (0.25 in)
Notch width (centered on perforation) 12.7 mm (0.50 in)
Black mark length (centered on perforation) 3.17 mm (0.125 in) to 12.7 mm (0.50 in)
Black mark width (centered on media width) 12.7 mm (0.50 in) to full width of media
Chapter A — Specifications
PB50 Portable Label Printer User’s Guide 49
Receipt roll stock media is supplied as a continuous roll. Label,
tag, and fanfold media use repeat indicators for non-continuous
media. Gap, notch, and black marks are used as repeat indicators:
•Gap: Label and fanfold media
•Notch: Tag media
•Black mark: Label, tag, and fanfold media
Here are a few things to keep in mind when ordering media for
the PB50 printer:
• Black marks can be sensed on either side of the media.
• You can use higher caliper media in the printer, but print
quality will be reduced.
• Receipt roll stock media has an end of roll indicator. The end
of roll indicator is a red marking (on last 3 feet of roll) on the
thermally sensitive side of the paper.
Specialty media is required for unique customer environments,
including printer operating temperature extremes. Intermec
recommends that you test the media in your application.
Supported Media
The PB50 printer supports direct thermal label, tag, and receipt
media. Both North American and European label media are
supported in multiple label lengths. Receipt media is supported
in both a top coated and an uncoated paper in continuous roll
stock only.
The default media sensitivity number is: 180.
External Fanfold Media Specifications
Stack height 70 mm (2.75 in)
Page length 152 mm (6 in) to 305 mm (12 in)
Note: The stack height is for a 6-inch page length supplied in 12-
inch stacks (two 6-inch stacks of equal height with the bottom
page linked).
Chapter A — Specifications
50 PB50 Portable Label Printer User’s Guide
Use the following table as a guide when setting sensitivity
numbers.
Accessories for the PB50
You can use these accessories (sold and ordered separately) with
the PB50 printer. To order accessories, contact your local
Intermec sales representative.
AB13 Battery
Use the lithium-ion 2200 mAh battery to provide power to the
printer.
AC18 4-Bay Battery Charger
Use the AC18 to charge up to four batteries at a time. The
battery charger is designed to sense when a battery is fully
charged and not overcharge it, ensuring long and consistent
battery life.
AV8 Vehicle Dock
Use the vehicle dock to attach the PB50 to a truck.
Belt Clip (
Use the PB50 belt clip to attach the printer to your belt.
Sensitivity Media Description
180 Duratherm II Label
180 Duratherm III Label
101 Duratherm 2.3 mil Uncoated Receipt
401 Duratherm 3.3 mil Coated Receipt
720 Duratherm Lightning Plus
150 Duratherm II 5 mil Tag
180 Duratherm Near IR
430 Duratherm Synthetic
450 Duratherm Lightning IR
470 Duratherm Lightning
103 Linerless
102 Duratherm 2.3 mil Uncoated Receipt
440 Thermal Eco
140 Thermal Topcoated
Chapter A — Specifications
PB50 Portable Label Printer User’s Guide 51
Handstrap
Use the PB42 and PB50 handstrap to conveniently carry your
PB50 printer. With the handstrap attached, you can also attach
the shoulder strap.
Power Supply (Model AE19)
Provides power to the PB50 and the 4-bay battery charger
(Model AC18).
Serial Cable
The serial adapter is an 8-pin DIN to DB9 connector that
connects from the PB50 printer to your desktop PC.
Shoulder Strap
Use the shoulder strap in combination with the handstrap to
easily carry the PB50 printer. The wide padded strap makes it
comfortable to wear the printer for long periods of time.
Chapter A — Specifications
52 PB50 Portable Label Printer User’s Guide
PB50 Portable Label Printer User’s Guide 53
BIPL and Fingerprint Setup
Menus
Chapter B — IPL and Fingerprint Setup Menus
54 PB50 Portable Label Printer User’s Guide
IPL Setup Menu
CONTRAST
ORIENTATION
BACKLIGHT
SER-COM
SETUP
BAUDRATE DATA BITS PARITY STOPBITS PROTOCOL
MEDIA
TEST LABELS
CONFIG
FORMAT
UDC
PAGE
FONT
NETWORK
IP SELECTION IP ADDRESS NETMASK DEFAULT
ROUTER NAME SERVER MAC ADDRESS
TEST/SERVICE
TEST PRINT DATA DUMP MEMORY RESET LSS TEST
BATTERY
LOW BATTERY
DISPLAY
MEDIA TYPE PAPER TYPE TESTFEED
MODE
LBL LENGTH
DOTS SENSITIVITY DARKNESS LBL REST POINT FORM ADJ DOTS
X
FORM ADJ DOTS
Y
CONFIGURATION
PWRUP
EMULATION PRINT SPEED LT S
CALIBRATION
Chapter B — IPL and Fingerprint Setup Menus
PB50 Portable Label Printer User’s Guide 55
Fingerprint Setup Menu
CONTRAST
ORIENTATION
BACKLIGHT
SER-COM
SETUP
BAUDRATE CHAR LENGTH PARITY STOPBITS FLOWCONTROL NEW LINE REC BUF TRANS BUF
MEDIA
LESS AUTO
LSS MANUAL
PRINT DEFS
LTS ADJUST
HEAD RESIST TEST PRINT PRINT SPEED
LTS VALU E
LTS TEST
LSS TEST CLIP DEFAULT LTS
NETWORK
IP SELECTION IP ADDRESS NETMASK DEFAULT
ROUTER NAME SERVER MAC ADDRESS SSID
NET-COM NET 1
NEW LINE
BATTERY
LOW BATTERY
FEEDADJ
START ADJ STOP ADJ
DISPLAY
RTS/CTS
ENQ/ACK
XON/XOFF
DATA TO HOST
DATA FROM
HOST
DIRECT
THERMAL
LABEL
CONTRAST
LABEL
FACTOR
WIDTH
MEDIA SIZE MEDIA TYPE
LABELS
(w GAPS)
PAPE R T YPE
XSTART
LENGTH
CONTRAST TESTFEED TESTFEED
MODE
LEN (SLOW
MODE)
Chapter B — IPL and Fingerprint Setup Menus
56 PB50 Portable Label Printer User’s Guide
