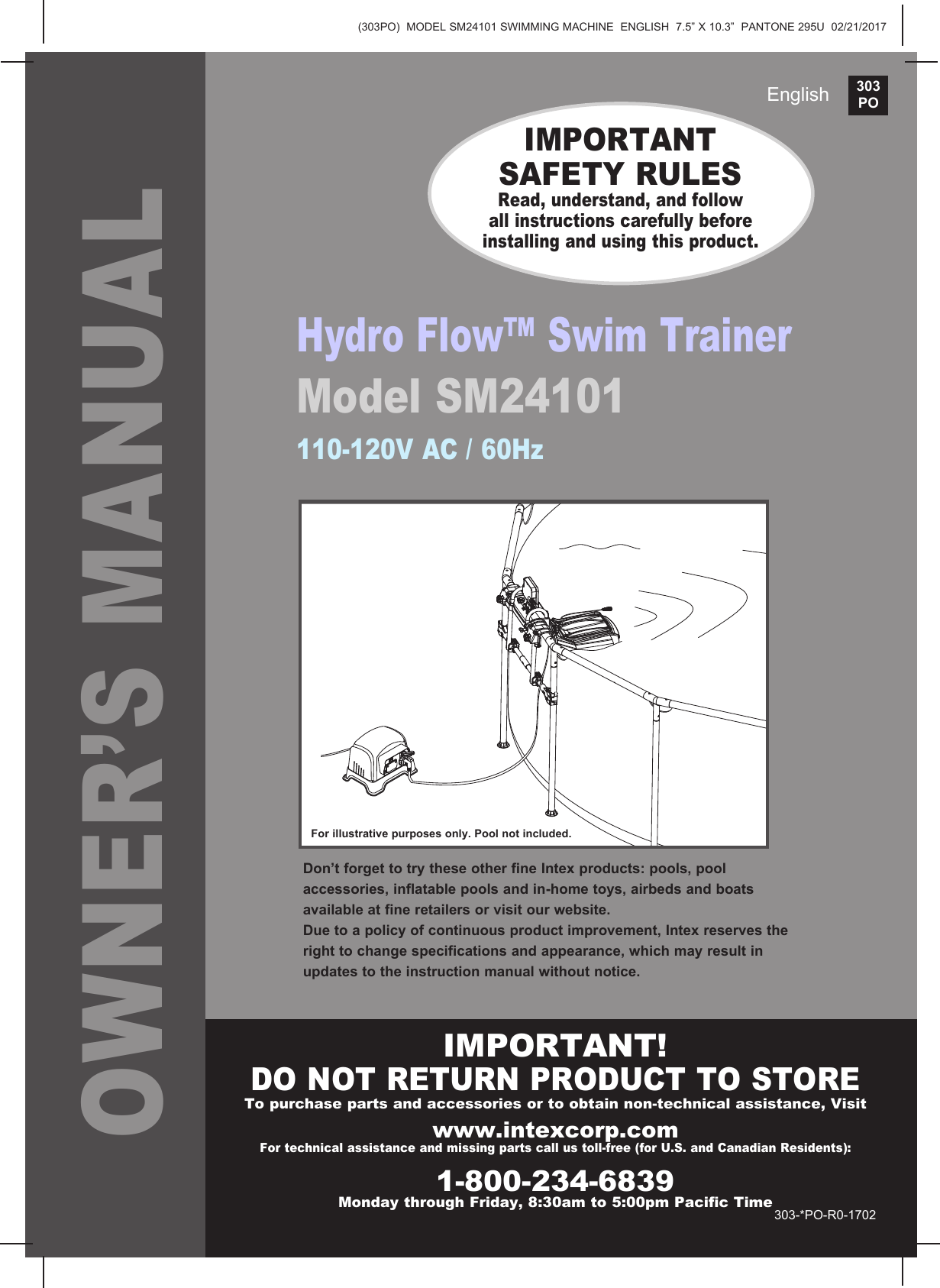

303PO(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017EnglishOWNER’S MANUALIMPORTANT SAFETY RULESRead, understand, and follow all instructions carefully before installing and using this product.For illustrative purposes only. Pool not included.Hydro Flow™ Swim TrainerModel SM24101 110-120V AC / 60HzIMPORTANT!DO NOT RETURN PRODUCT TO STORETo purchase parts and accessories or to obtain non-technical assistance, Visit www.intexcorp.comFor technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):1-800-234-6839Monday through Friday, 8:30am to 5:00pm Pacific Time303-*PO-R0-1702Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website.Due to a policy of continuous product improvement, Intex reserves the right to change specifications and appearance, which may result in updates to the instruction manual without notice.

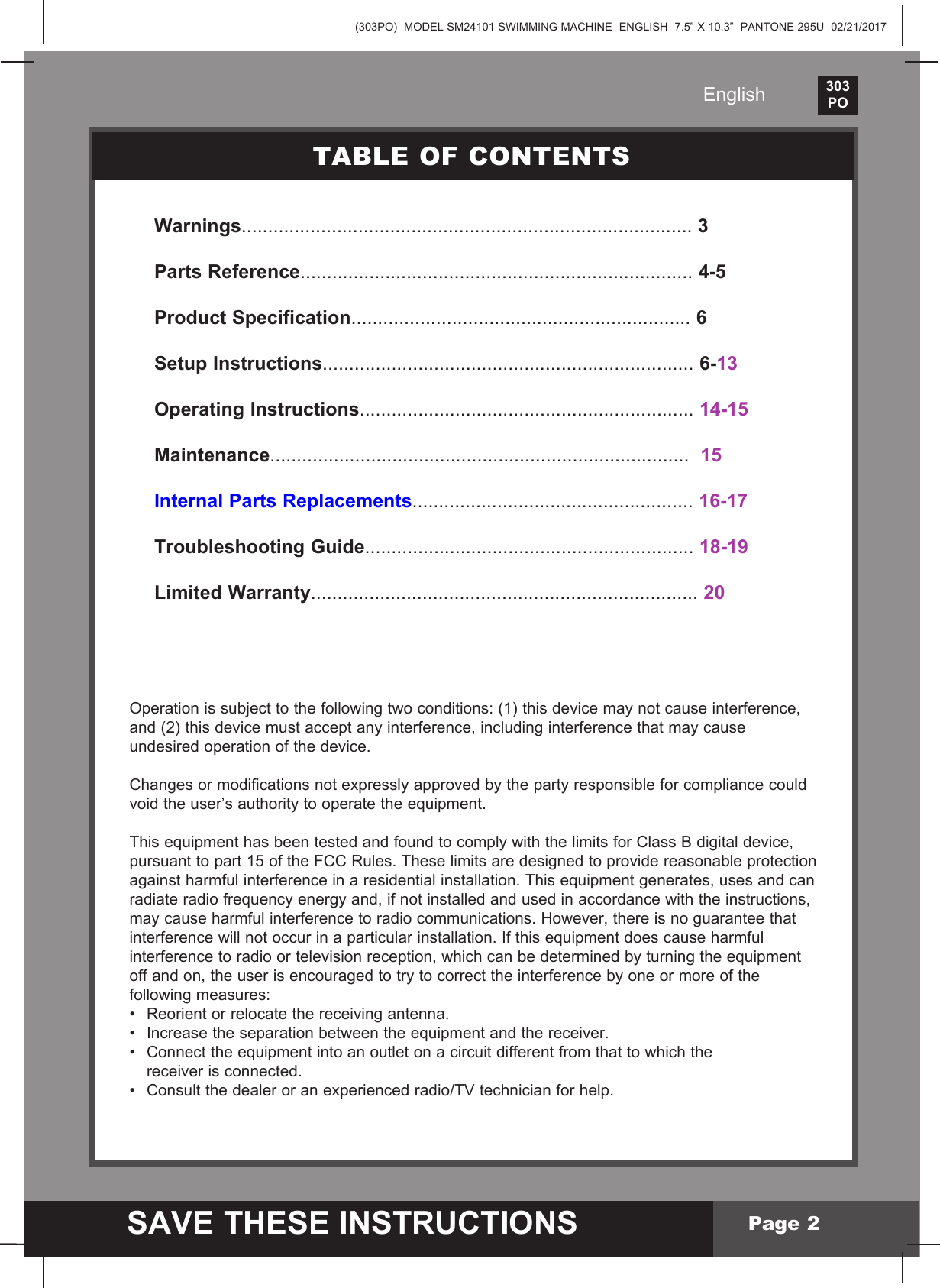

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 2Warnings..................................................................................... 3 Parts Reference.......................................................................... 4-5 Product Specification................................................................ 6Setup Instructions...................................................................... 6-13 Operating Instructions............................................................... 14-15 Maintenance............................................................................... 15Internal Parts Replacements..................................................... 16-17Troubleshooting Guide.............................................................. 18-19Limited Warranty......................................................................... 20TABLE OF CONTENTSOperation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorientorrelocatethereceivingantenna.• Increasetheseparationbetweentheequipmentandthereceiver.• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiver is connected.• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

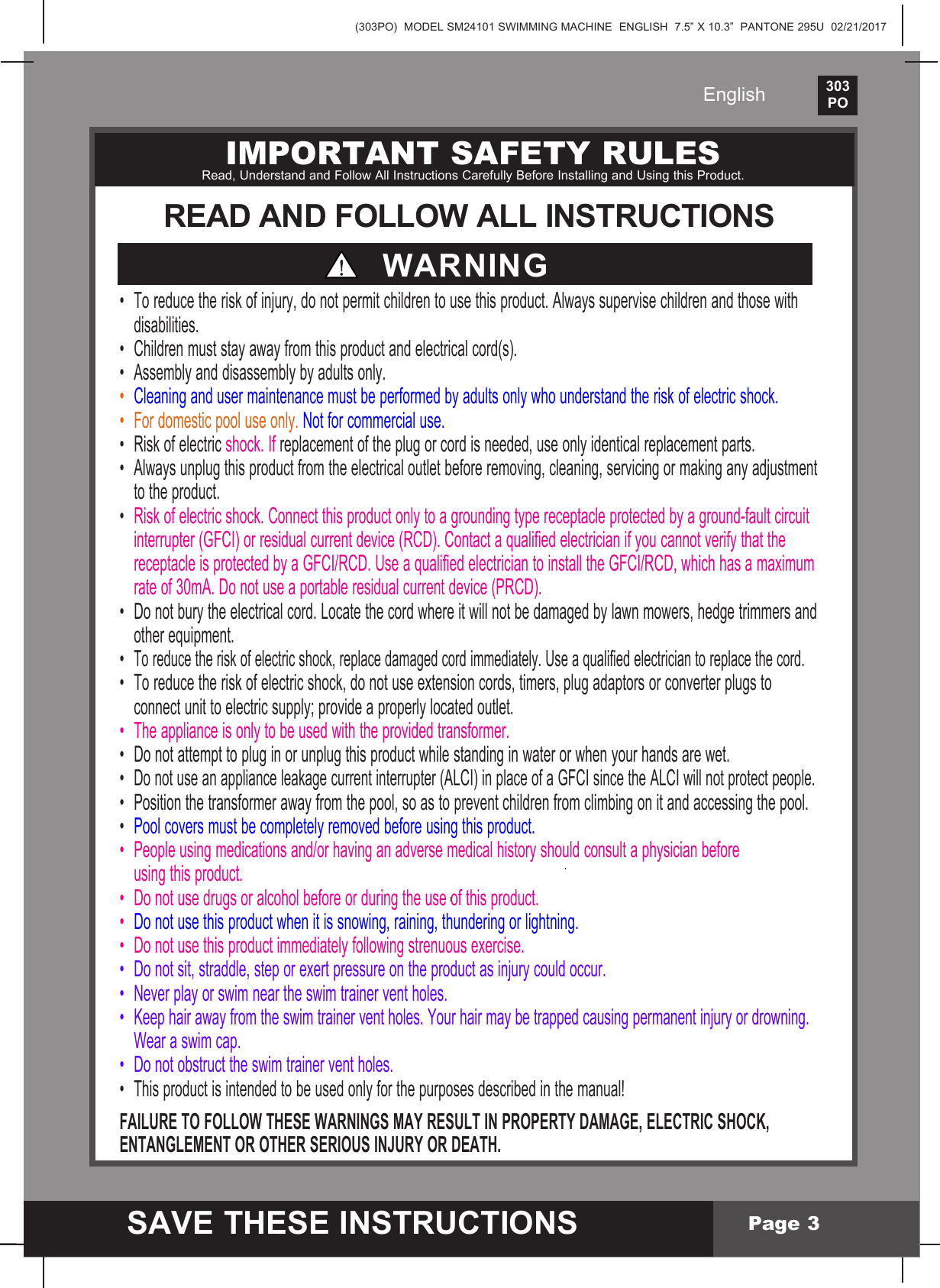

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 3IMPORTANT SAFETY RULESRead, Understand and Follow All Instructions Carefully Before Installing and Using this Product.READ AND FOLLOW ALL INSTRUCTIONSWARNING• Toreducetheriskofinjury,donotpermitchildrentousethisproduct.Alwayssupervisechildrenandthosewith disabilities.• Childrenmuststayawayfromthisproductandelectricalcord(s).• Assemblyanddisassemblybyadultsonly.• Cleaningandusermaintenancemustbeperformedbyadultsonlywhounderstandtheriskofelectricshock.• Fordomesticpooluseonly.Not for commercial use.• Riskofelectricshock.Ifreplacement of the plug or cord is needed, use only identical replacement parts.• Alwaysunplugthisproductfromtheelectricaloutletbeforeremoving,cleaning,servicingormakinganyadjustment to the product.• Riskofelectricshock.Connectthisproductonlytoagroundingtypereceptacleprotectedbyaground-faultcircuit interrupter (GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify that the  receptacleisprotectedbyaGFCI/RCD.UseaqualifiedelectriciantoinstalltheGFCI/RCD,whichhasamaximum rate of 30mA. Do not use a portable residual current device (PRCD).• Donotburytheelectricalcord.Locatethecordwhereitwillnotbedamagedbylawnmowers,hedgetrimmersand other equipment.•Toreducetheriskofelectricshock,replacedamagedcordimmediately.Useaqualifiedelectriciantoreplacethecord.• Toreducetheriskofelectricshock,donotuseextensioncords,timers,plugadaptorsorconverterplugsto connect unit to electric supply; provide a properly located outlet.• Theapplianceisonlytobeusedwiththeprovidedtransformer.• Donotattempttopluginorunplugthisproductwhilestandinginwaterorwhenyourhandsarewet.•Donotuseanapplianceleakagecurrentinterrupter(ALCI)inplaceofaGFCIsincetheALCIwillnotprotectpeople.• Positionthetransformerawayfromthepool,soastopreventchildrenfromclimbingonitandaccessingthepool.• Pool covers must be completely removed before using this product.• Peopleusingmedicationsand/orhavinganadversemedicalhistoryshouldconsultaphysicianbefore using this product.• Donotusedrugsoralcoholbeforeorduringtheuseofthisproduct.• Do not use this product when it is snowing, raining, thundering or lightning.• Donotusethisproductimmediatelyfollowingstrenuousexercise.• Donotsit,straddle,steporexertpressureontheproductasinjurycouldoccur.• Neverplayorswimneartheswimtrainerventholes.• Keephairawayfromtheswimtrainerventholes.Yourhairmaybetrappedcausingpermanentinjuryordrowning. Wear a swim cap.• Donotobstructtheswimtrainerventholes.• Thisproductisintendedtobeusedonlyforthepurposesdescribedinthemanual!FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.

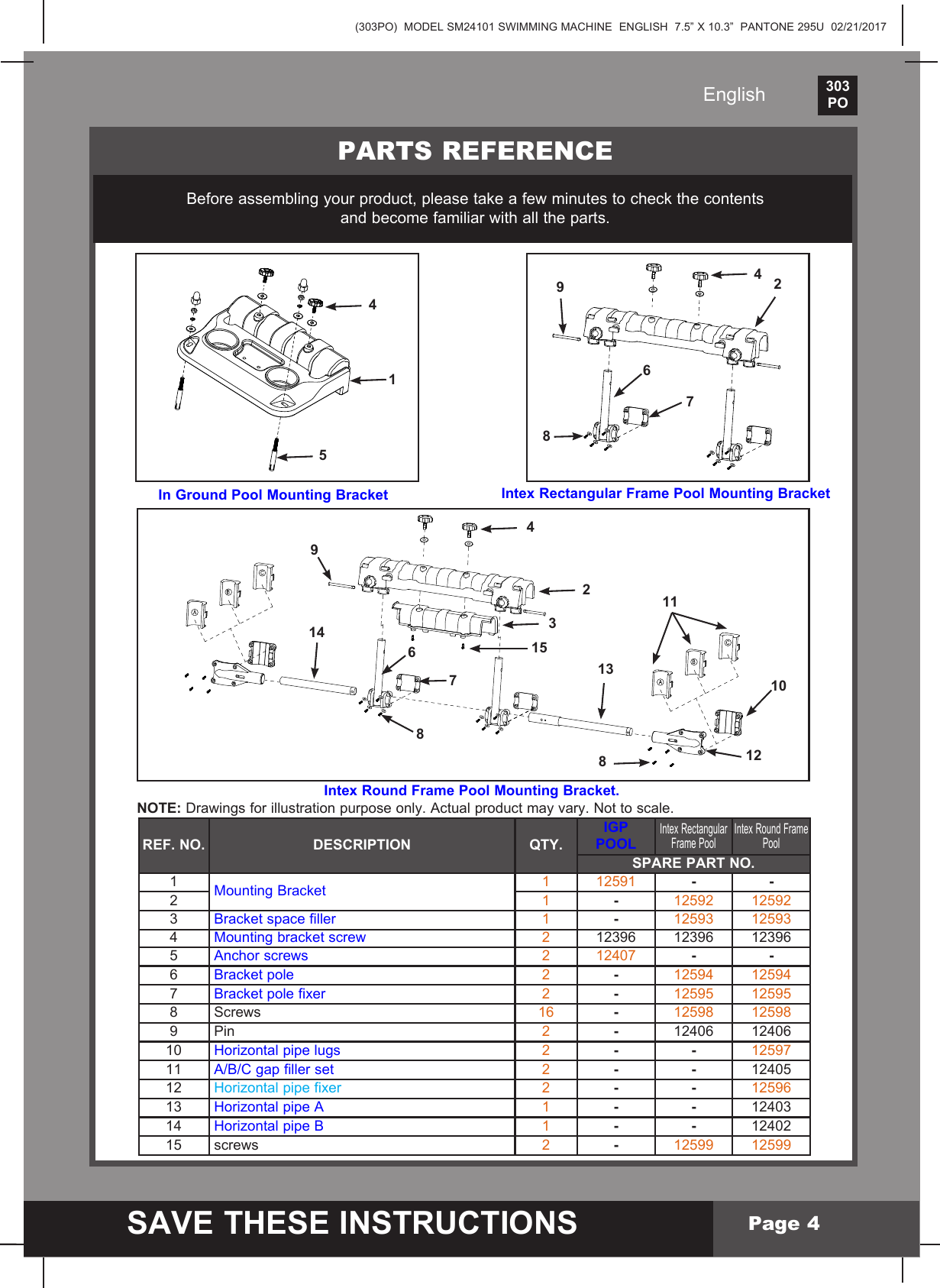

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 4Intex Rectangular Frame Pool Mounting Bracket In Ground Pool Mounting BracketPARTS REFERENCEBeforeassemblingyourproduct,pleasetakeafewminutestocheckthecontentsand become familiar with all the parts.5414 786924315988 6710121114132Intex Round Frame Pool Mounting Bracket.NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.REF. NO. DESCRIPTION QTY.IGP POOLIntex Rectangular Frame Pool Intex Round Frame PoolSPARE PART NO.1MountingBracket 1 12591 - -21-12592 125923 Bracketspacefiller 1-12593 125934Mountingbracketscrew 212396 12396 123965 Anchor screws 2 12407 - -6Bracketpole 2-12594 125947 Bracketpolefixer 2-12595 125958 Screws 16 -12598 125989 Pin 2-12406 1240610 Horizontal pipe lugs 2- - 1259711 A/B/Cgapfillerset 2- - 1240512 Horizontal pipe fixer 2- - 1259613 Horizontal pipe A 1- - 1240314 Horizontal pipe B 1- - 1240215 screws 2-12599 12599

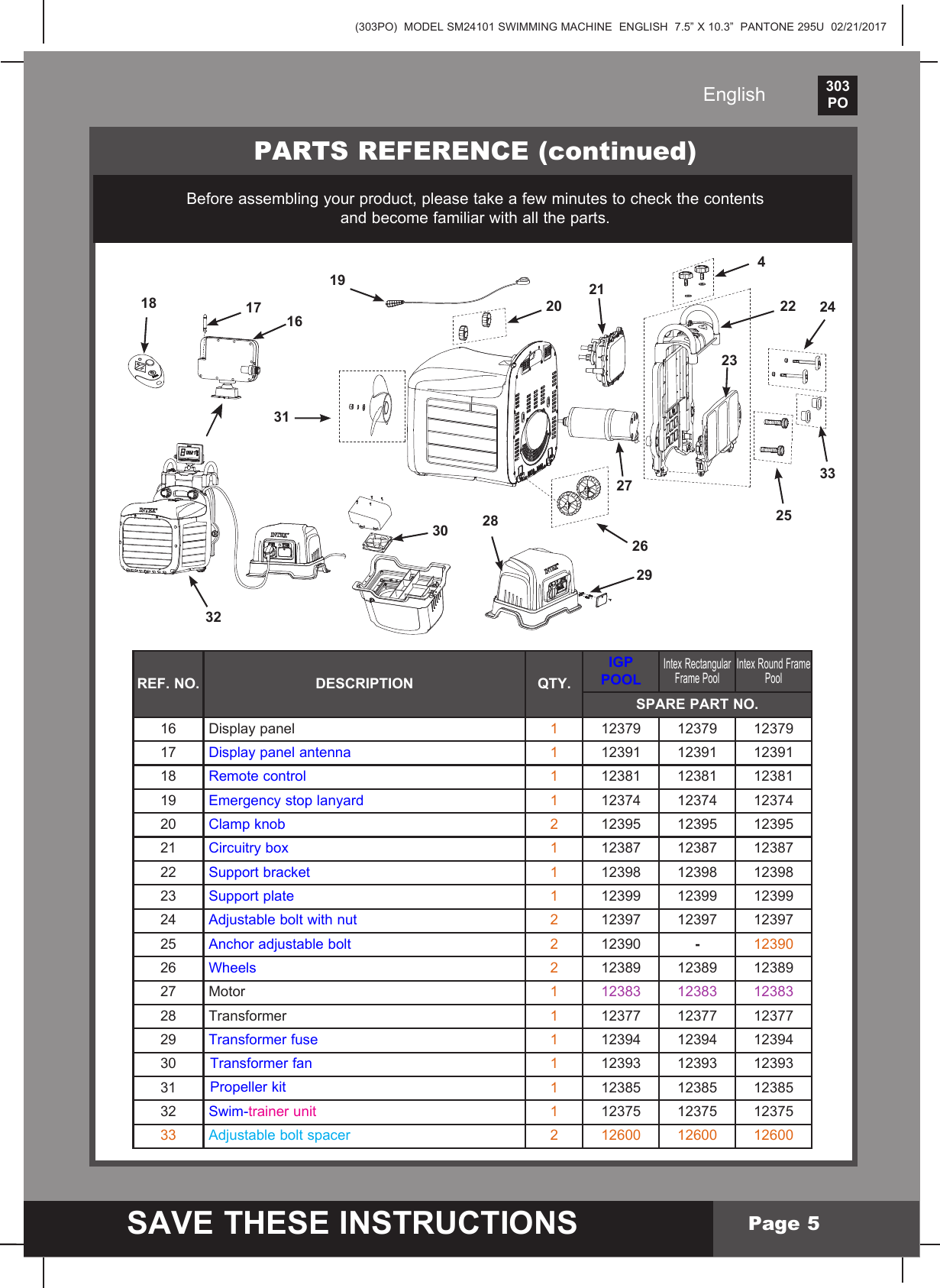

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 5PARTS REFERENCE (continued)Beforeassemblingyourproduct,pleasetakeafewminutestocheckthecontentsand become familiar with all the parts.REF. NO. DESCRIPTION QTY.IGP POOLIntex Rectangular Frame Pool Intex Round Frame PoolSPARE PART NO.16 Display panel 112379 12379 1237917 Display panel antenna 112391 12391 1239118 Remote control 112381 12381 1238119 Emergency stop lanyard 112374 12374 1237420 Clampknob 212395 12395 1239521 Circuitry box 112387 12387 1238722 Supportbracket 112398 12398 1239823 Support plate 112399 12399 1239924 Adjustable bolt with nut 212397 12397 1239725 Anchor adjustable bolt 212390 -1239026 Wheels 212389 12389 1238927 Motor 112383 12383 1238328 Transformer 112377 12377 1237729 Transformer fuse 112394 12394 1239430 Transformer fan 112393 12393 1239331 Propellerkit 112385 12385 1238532 Swim-trainer unit 112375 12375 1237533 Adjustable bolt spacer 2 12600 12600 126001618192031212223242533262928302741732

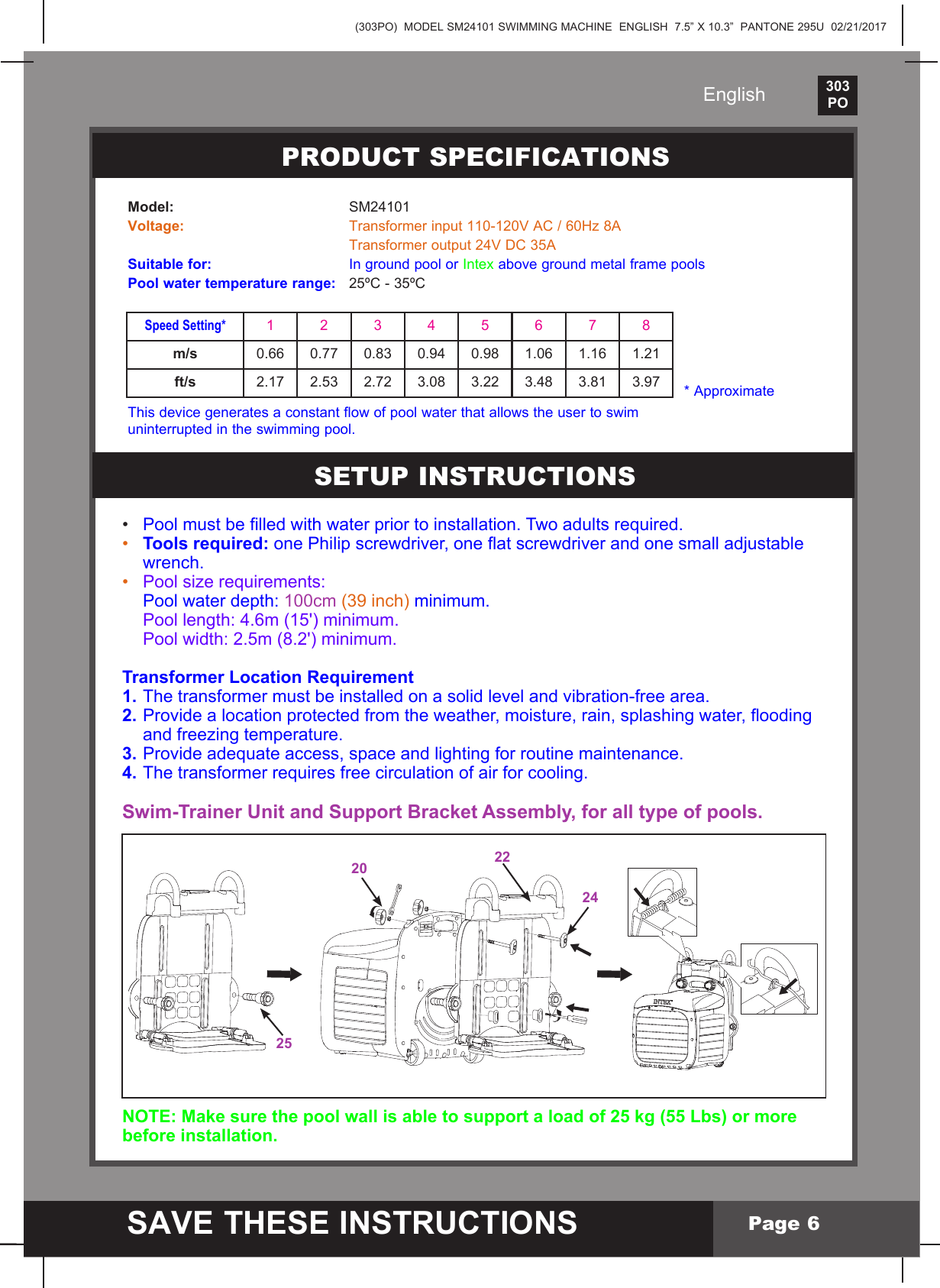

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 6• Poolmustbelledwithwaterpriortoinstallation.Twoadultsrequired.• Tools required:onePhilipscrewdriver,oneatscrewdriverandonesmalladjustable wrench.• Pool size requirements: Pool water depth: 100cm (39 inch) minimum. Pool length: 4.6m (15') minimum. Pool width: 2.5m (8.2') minimum.Transformer Location Requirement1. The transformer must be installed on a solid level and vibration-free area. 2.Providealocationprotectedfromtheweather,moisture,rain,splashingwater,ooding and freezing temperature.3. Provide adequate access, space and lighting for routine maintenance.4. The transformer requires free circulation of air for cooling.Swim-Trainer Unit and Support Bracket Assembly, for all type of pools.NOTE: Make sure the pool wall is able to support a load of 25 kg (55 Lbs) or more before installation.Model: SM24101Voltage: Transformerinput110-120VAC/60Hz8A  Transformeroutput24VDC35ASuitable for: In ground pool or Intex above ground metal frame poolsPool water temperature range: 25ºC - 35ºC* ApproximatePRODUCT SPECIFICATIONSSETUP INSTRUCTIONS Speed Setting*12345678m/s 0.66 0.77 0.83 0.94 0.98 1.06 1.16 1.21ft/s 2.17 2.53 2.72 3.08 3.22 3.48 3.81 3.97This device generates a constant flow of pool water that allows the user to swim uninterrupted in the swimming pool.25202422

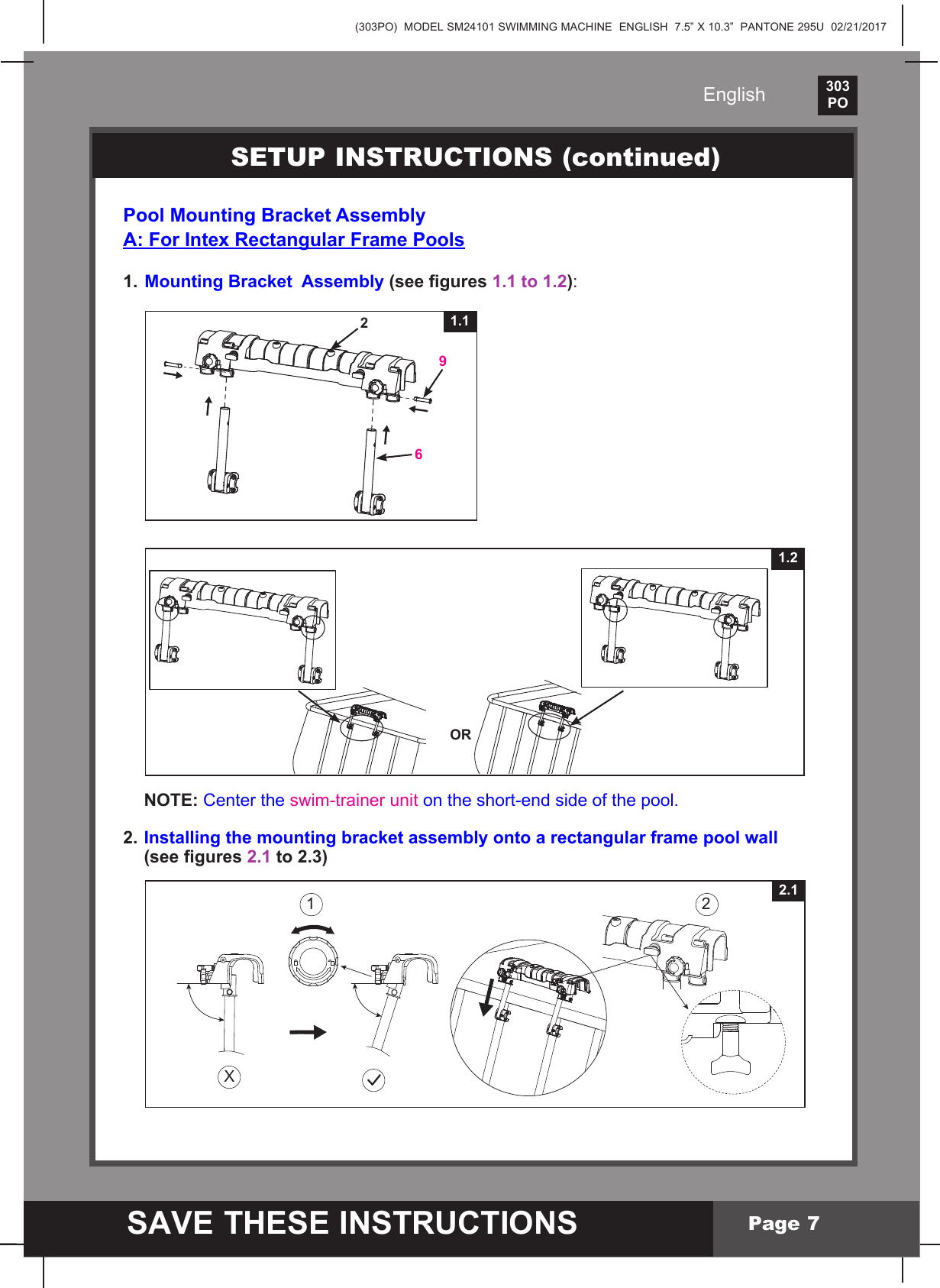

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 7Pool Mounting Bracket AssemblyA: For Intex Rectangular Frame Pools1. Mounting Bracket Assembly (see gures 1.1 to 1.2): NOTE: Center the swim-trainer unit on the short-end side of the pool.2. Installing the mounting bracket assembly onto a rectangular frame pool wall (see gures 2.1 to 2.3)SETUP INSTRUCTIONS (continued)X1 2 2.12691.1OR1.2

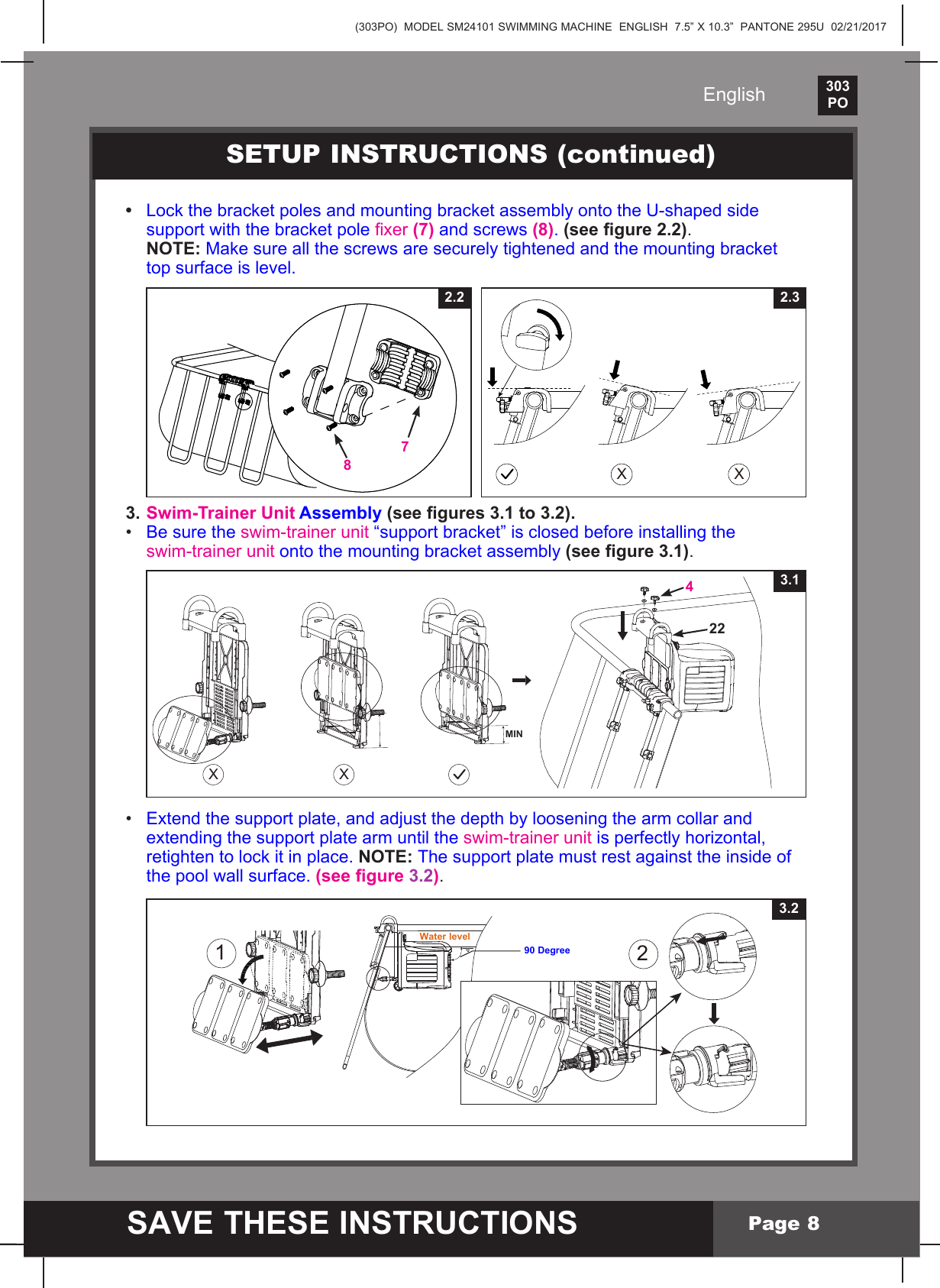

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 8123.2Water level90 Degree• LockthebracketpolesandmountingbracketassemblyontotheU-shapedside supportwiththebracketpolexer(7) and screws (8). (see gure 2.2). NOTE: Makesureallthescrewsaresecurelytightenedandthemountingbracket top surface is level. 3. Swim-Trainer Unit Assembly (see gures 3.1 to 3.2).• Be sure the swim-trainer unit“supportbracket”isclosedbeforeinstallingthe swim-trainer unitontothemountingbracketassembly (see figure 3.1).• Extend the support plate, and adjust the depth by loosening the arm collar and extending the support plate arm until the swim-trainer unit is perfectly horizontal,  retightentolockitinplace.NOTE: The support plate must rest against the inside of the pool wall surface. (see gure 3.2).SETUP INSTRUCTIONS (continued)X X2.32.278XX3.14 22 MIN

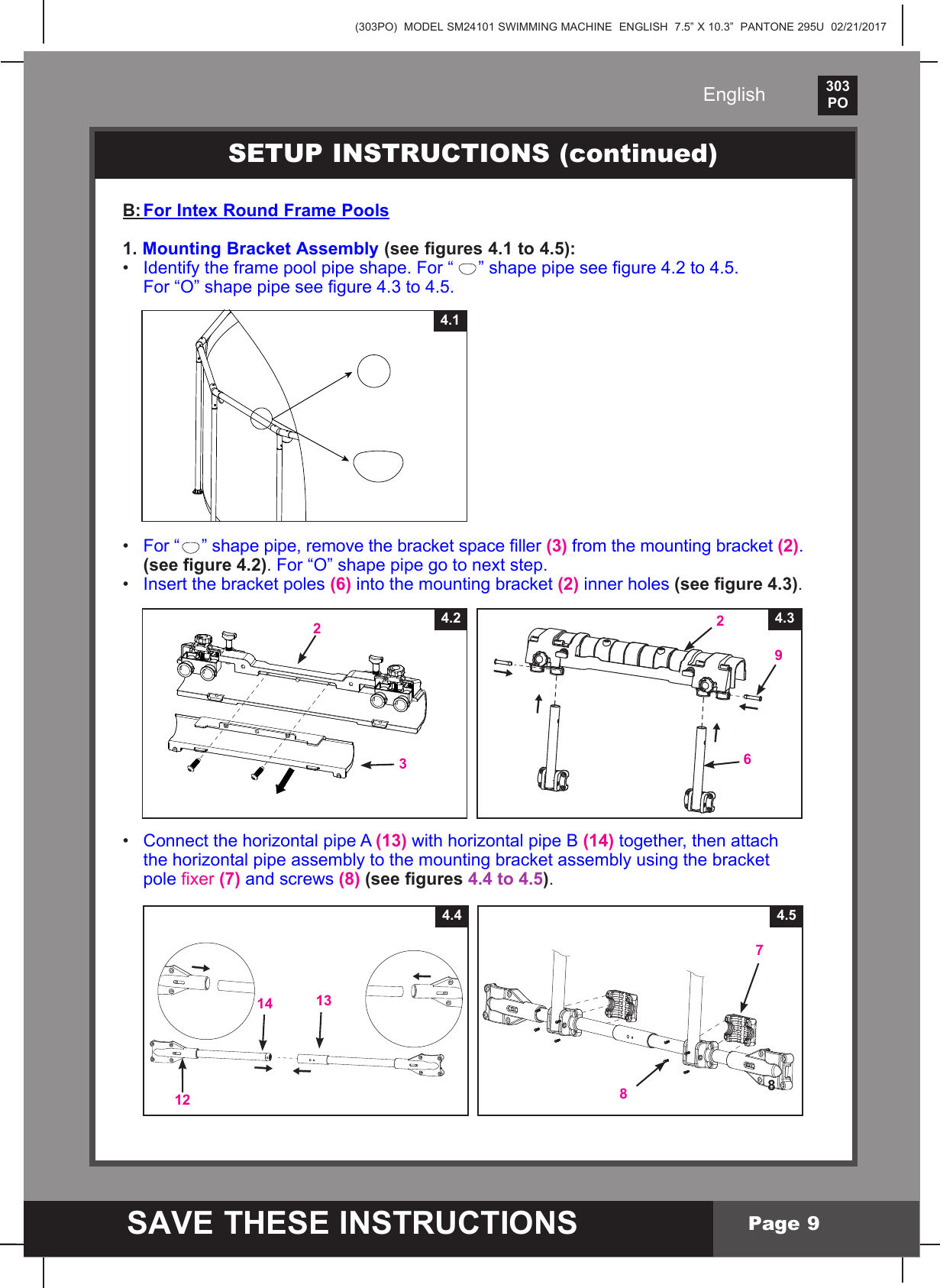

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 9B: For Intex Round Frame Pools1. Mounting Bracket Assembly (see figures 4.1 to 4.5):• Identify the frame pool pipe shape. For “ ”shapepipeseegure4.2to4.5. For“O”shapepipeseegure4.3to4.5.• For “ ”shapepipe,removethebracketspaceller(3)fromthemountingbracket(2). (see gure 4.2). For“O”shapepipegotonextstep.• Insertthebracketpoles(6)intothemountingbracket(2) inner holes (see gure 4.3).• Connect the horizontal pipe A (13) with horizontal pipe B (14) together, then attach  thehorizontalpipeassemblytothemountingbracketassemblyusingthebracket pole xer (7) and screws (8) (see gures 4.4 to 4.5).SETUP INSTRUCTIONS (continued)4.14.32694.2234.54.4121314887

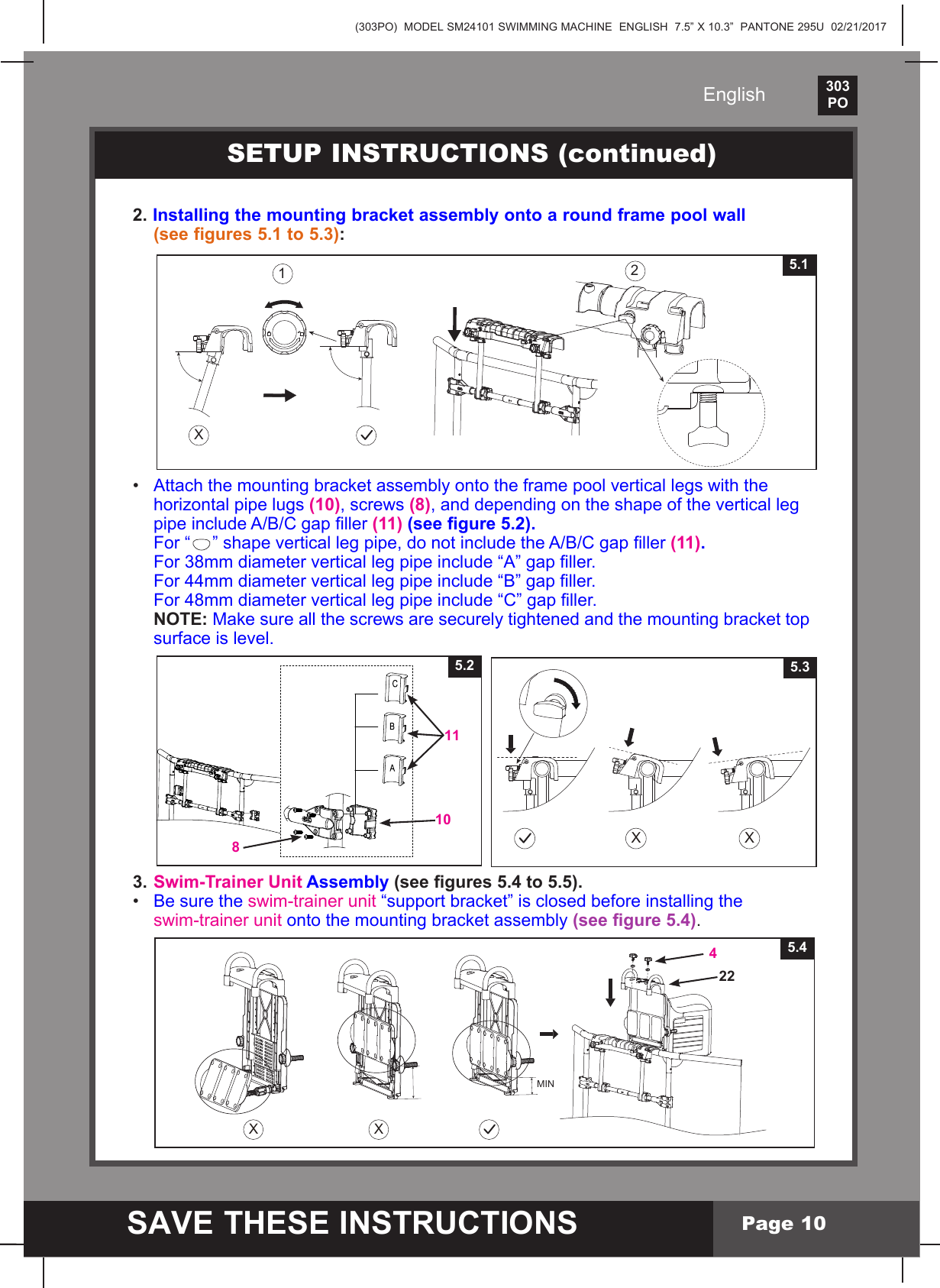

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 102. Installing the mounting bracket assembly onto a round frame pool wall (see figures 5.1 to 5.3):• Attachthemountingbracketassemblyontotheframepoolverticallegswiththe horizontal pipe lugs (10), screws (8), and depending on the shape of the vertical leg  pipeincludeA/B/Cgapller(11) (see gure 5.2). For “ ”shapeverticallegpipe,donotincludetheA/B/Cgapller(11). For38mmdiameterverticallegpipeinclude“A”gapller. For44mmdiameterverticallegpipeinclude“B”gapller. For48mmdiameterverticallegpipeinclude“C”gapller. NOTE: Makesureallthescrewsaresecurelytightenedandthemountingbrackettop surface is level.3. Swim-Trainer Unit Assembly (see gures 5.4 to 5.5).• Be sure the swim-trainer unit“supportbracket”isclosedbeforeinstallingthe swim-trainer unitontothemountingbracketassembly (see gure 5.4).5.210118SETUP INSTRUCTIONS (continued)X X5.3X125.1XX5.4 4 22MIN

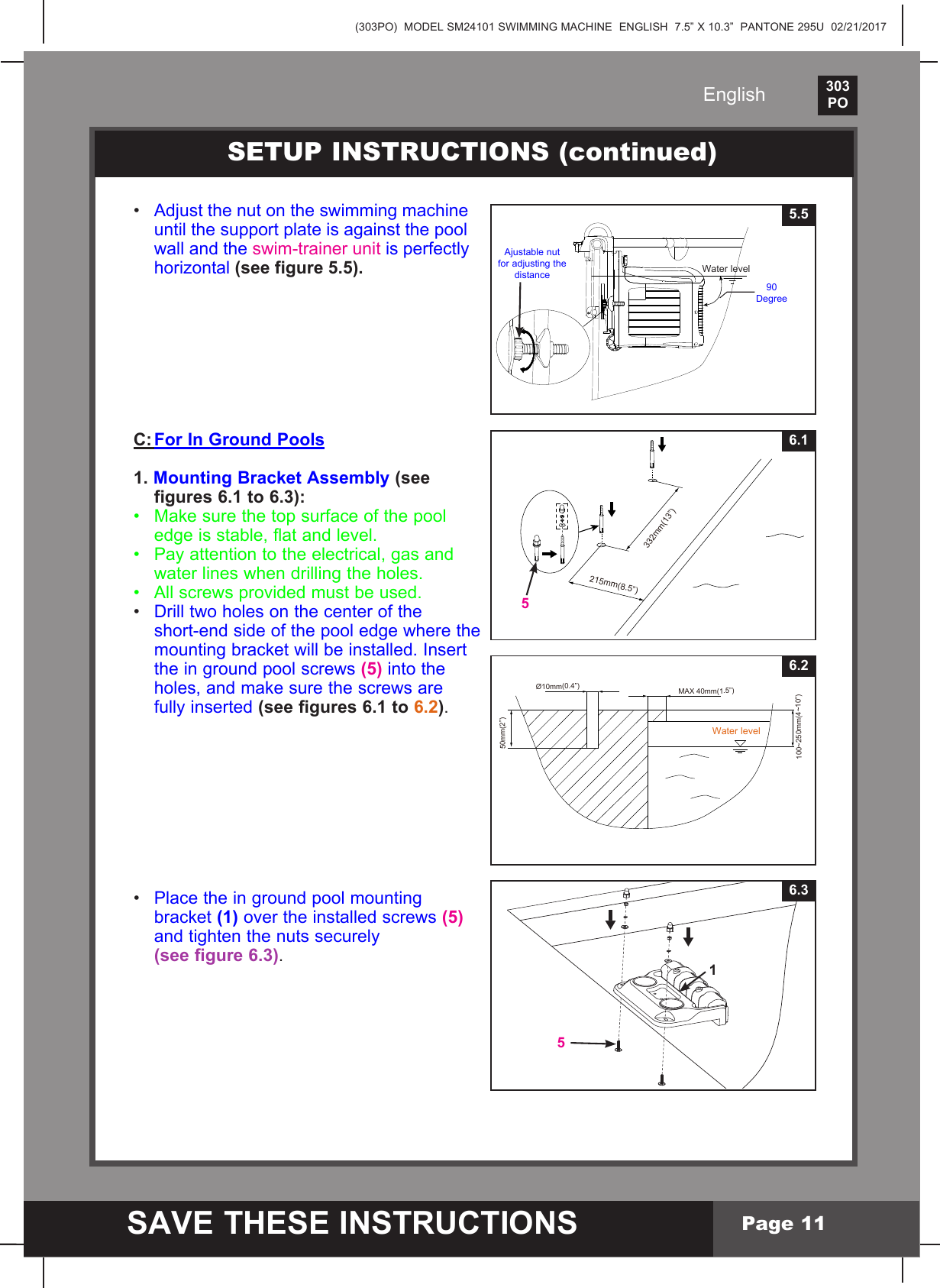

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 116.351• Adjust the nut on the swimming machine until the support plate is against the pool wall and the swim-trainer unit is perfectly horizontal (see figure 5.5).C: For In Ground Pools1. Mounting Bracket Assembly (see figures 6.1 to 6.3):• Makesurethetopsurfaceofthepool edge is stable, flat and level.• Payattentiontotheelectrical,gasand water lines when drilling the holes.• All screws provided must be used.• Drill two holes on the center of the short-end side of the pool edge where the  mountingbracketwillbeinstalled.Insert the in ground pool screws (5) into the  holes,andmakesurethescrewsare fully inserted (see figures 6.1 to 6.2).• Place the in ground pool mounting  bracket(1) over the installed screws (5) and tighten the nuts securely (see figure 6.3).SETUP INSTRUCTIONS (continued)5.5Water level90 DegreeAjustable nut for adjusting the distance215mm(8.5”)332mm(13”)6.15100~250mm(4~10”)50mm(2”)Ø10mm(0.4”)MAX 40mm(1.5”)6.2Water level

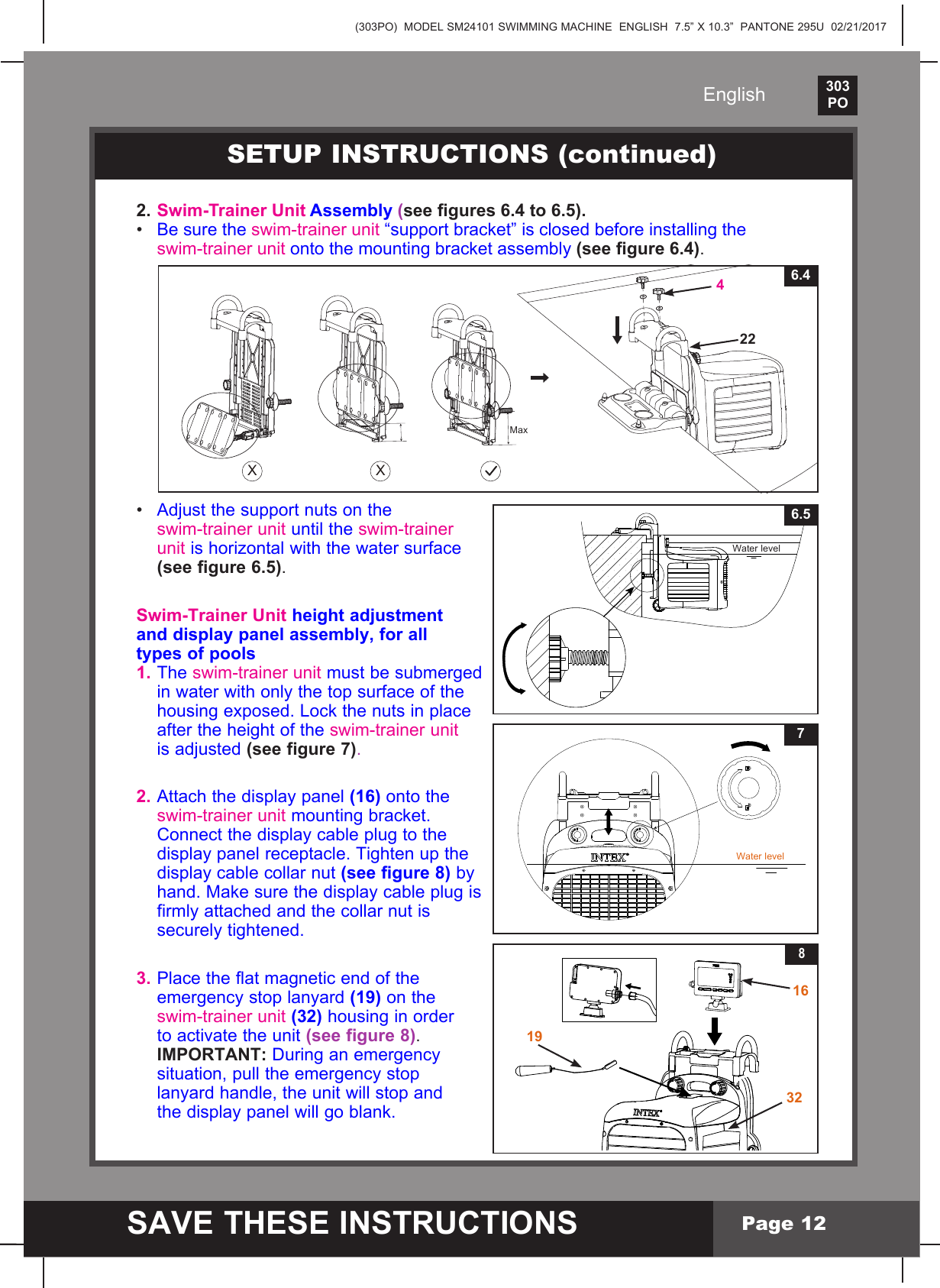

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 122. Swim-Trainer Unit Assembly (see gures 6.4 to 6.5).• Be sure the swim-trainer unit“supportbracket”isclosedbeforeinstallingthe swim-trainer unitontothemountingbracketassembly (see gure 6.4). • Adjust the support nuts on the swim-trainer unit until the swim-trainer unit is horizontal with the water surface (see figure 6.5).Swim-Trainer Unit height adjustment and display panel assembly, for all types of pools1. The swim-trainer unit must be submerged in water with only the top surface of the  housingexposed.Lockthenutsinplace after the height of the swim-trainer unit is adjusted (see figure 7).2. Attach the display panel (16) onto the swim-trainer unitmountingbracket. Connect the display cable plug to the display panel receptacle. Tighten up the display cable collar nut (see figure 8) by  hand.Makesurethedisplaycableplugis firmly attached and the collar nut is securely tightened.3. Place the flat magnetic end of the emergency stop lanyard (19) on the swim-trainer unit (32) housing in order to activate the unit (see figure 8). IMPORTANT: During an emergency situation, pull the emergency stop lanyard handle, the unit will stop and  thedisplaypanelwillgoblank.8163219SETUP INSTRUCTIONS (continued)6.5Water level7Water levelX X6.44 22Max

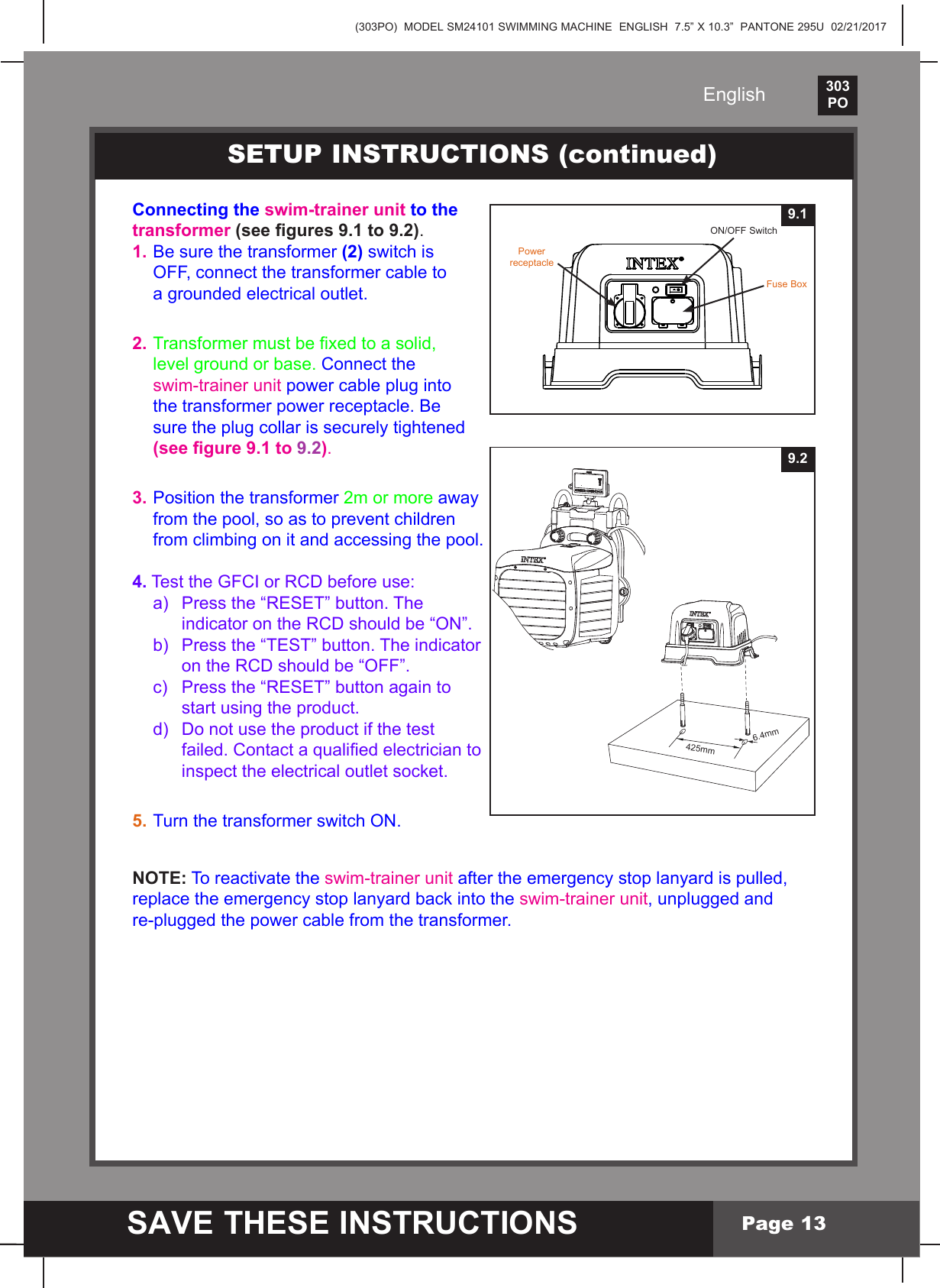

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 13Connecting the swim-trainer unit to the transformer (see gures 9.1 to 9.2).1. Be sure the transformer (2) switch is OFF, connect the transformer cable to a grounded electrical outlet.2. Transformermustbexedtoasolid, level ground or base. Connect the swim-trainer unit power cable plug into the transformer power receptacle. Be sure the plug collar is securely tightened (see gure 9.1 to 9.2).3. Position the transformer 2m or more away from the pool, so as to prevent children from climbing on it and accessing the pool.4. Test the GFCI or RCD before use: a) Pressthe“RESET”button.The  indicatorontheRCDshouldbe“ON”. b) Pressthe“TEST”button.Theindicator  ontheRCDshouldbe“OFF”. c) Pressthe“RESET”buttonagainto start using the product. d) Do not use the product if the test   failed.Contactaqualiedelectricianto  inspecttheelectricaloutletsocket.5. Turn the transformer switch ON.NOTE: To reactivate the swim-trainer unit after the emergency stop lanyard is pulled, replacetheemergencystoplanyardbackintotheswim-trainer unit, unplugged and re-plugged the power cable from the transformer.SETUP INSTRUCTIONS (continued)425mm6.4mm9.29.1ON/OFFSwitchFuse BoxPower receptacle

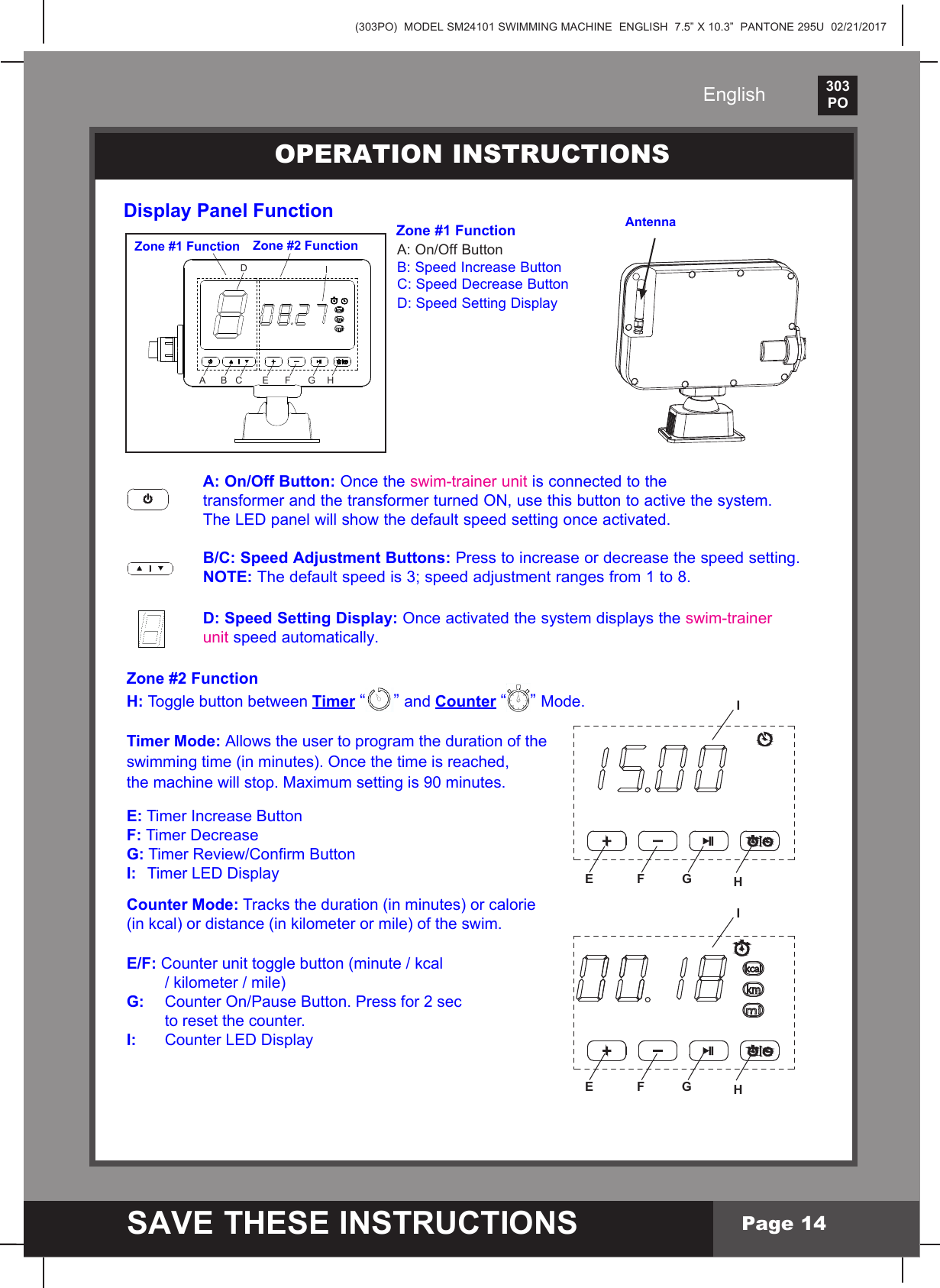

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 14Display Panel Function Zone #1 Function  A:On/OffButton   B: Speed Increase Button C: Speed Decrease Button D: Speed Setting DisplayOPERATION INSTRUCTIONS AntennaZone #1 Function Zone #2 FunctionA B CDIE F G H A: On/Off Button: Once the swim-trainer unit is connected to the transformer and the transformer turned ON, use this button to active the system.    TheLEDpanelwillshowthedefaultspeedsettingonceactivated. B/C: Speed Adjustment Buttons: Press to increase or decrease the speed setting. NOTE: The default speed is 3; speed adjustment ranges from 1 to 8. D: Speed Setting Display: Once activated the system displays the swim-trainer unit speed automatically.Zone #2 FunctionH: Toggle button between Timer “”and Counter “”Mode.Timer Mode: Allows the user to program the duration of the swimming time (in minutes). Once the time is reached, the machine will stop. Maximum setting is 90 minutes.E: Timer Increase Button F: Timer Decrease G:TimerReview/ConrmButtonI: TimerLEDDisplayCounter Mode:Trackstheduration(inminutes)orcalorie(inkcal)ordistance(inkilometerormile)oftheswim.E/F:Counterunittogglebutton(minute/kcal   /kilometer/mile)G: CounterOn/PauseButton.Pressfor2sec to reset the counter.I: CounterLEDDisplayE F GIHE F GIH

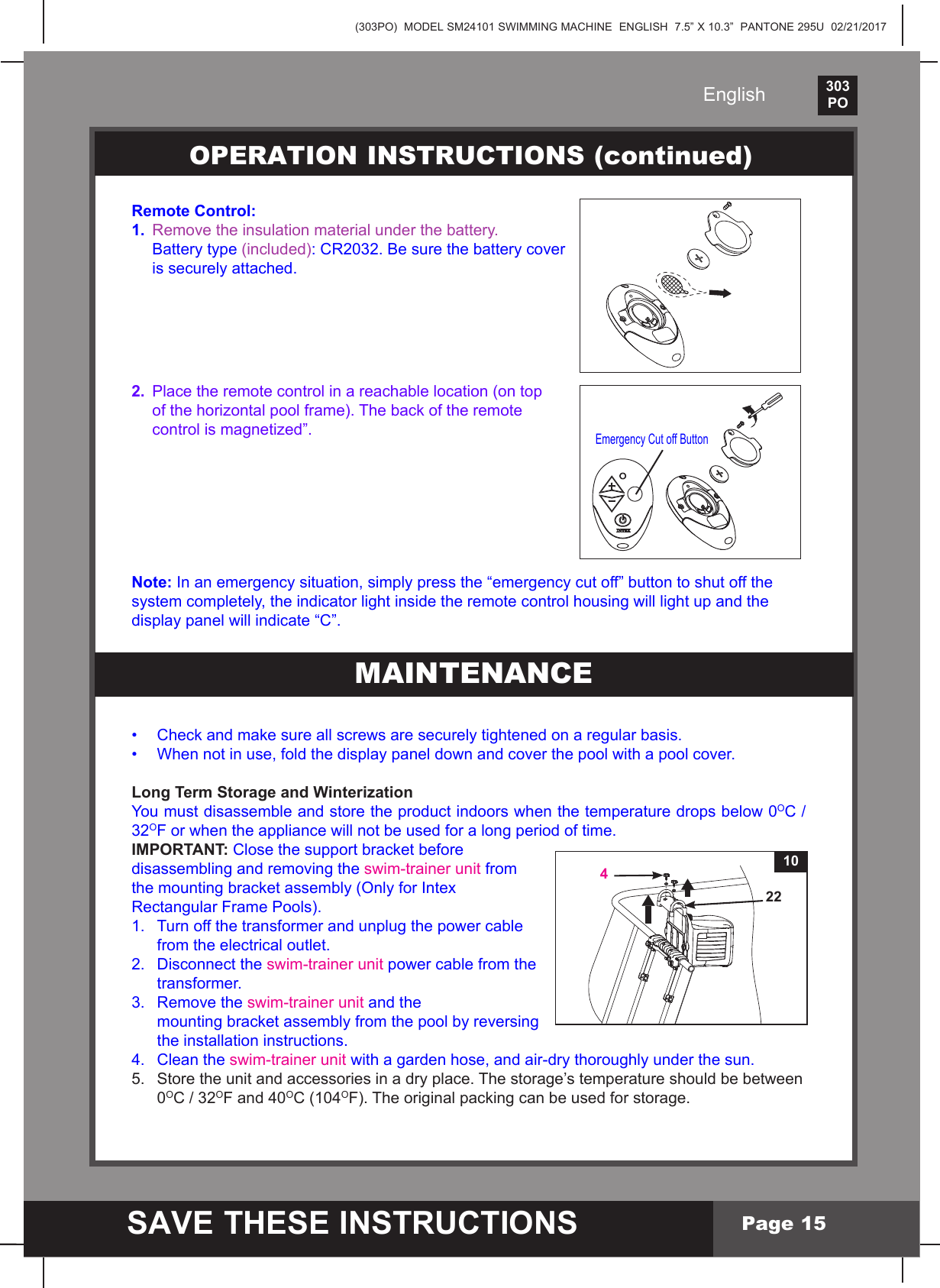

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 15Remote Control:1. Remove the insulation material under the battery. Battery type (included): CR2032. Be sure the battery cover is securely attached.2. Place the remote control in a reachable location (on top  ofthehorizontalpoolframe).Thebackoftheremote controlismagnetized”.Note:Inanemergencysituation,simplypressthe“emergencycutoff”buttontoshutoffthesystem completely, the indicator light inside the remote control housing will light up and the displaypanelwillindicate“C”.• Checkandmakesureallscrewsaresecurelytightenedonaregularbasis.• Whennotinuse,foldthedisplaypaneldownandcoverthepoolwithapoolcover.Long Term Storage and WinterizationYoumustdisassembleandstoretheproductindoorswhenthetemperaturedropsbelow0OC/32OF or when the appliance will not be used for a long period of time.IMPORTANT: Closethesupportbracketbeforedisassembling and removing the swim-trainer unit from themountingbracketassembly(OnlyforIntexRectangular Frame Pools).1. Turn off the transformer and unplug the power cable from the electrical outlet.2. Disconnect the swim-trainer unit power cable from the transformer.3. Remove the swim-trainer unit and the  mountingbracketassemblyfromthepoolbyreversing the installation instructions.4. Clean the swim-trainer unit with a garden hose, and air-dry thoroughly under the sun.5. Store the unit and accessories in a dry place. The storage’s temperature should be between 0OC/32OF and 40OC (104OF).Theoriginalpackingcanbeusedforstorage.OPERATION INSTRUCTIONS (continued)Emergency Cut off ButtonMAINTENANCE 4 2210

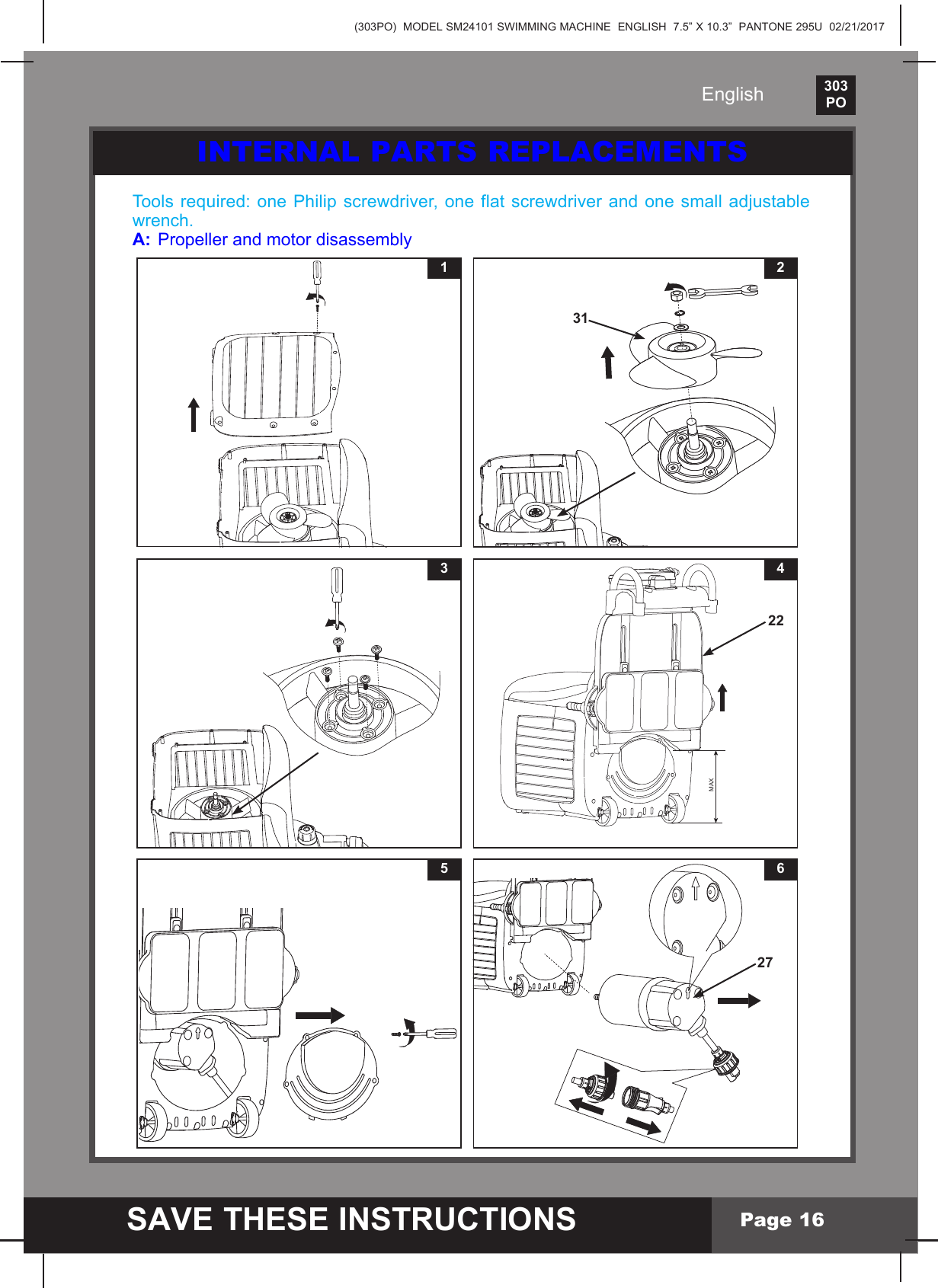

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 16INTERNAL PARTS REPLACEMENTSTools required: one Philip screwdriver, one flat screwdriver and one small adjustable wrench.A: Propeller and motor disassembly132315 627MAX422

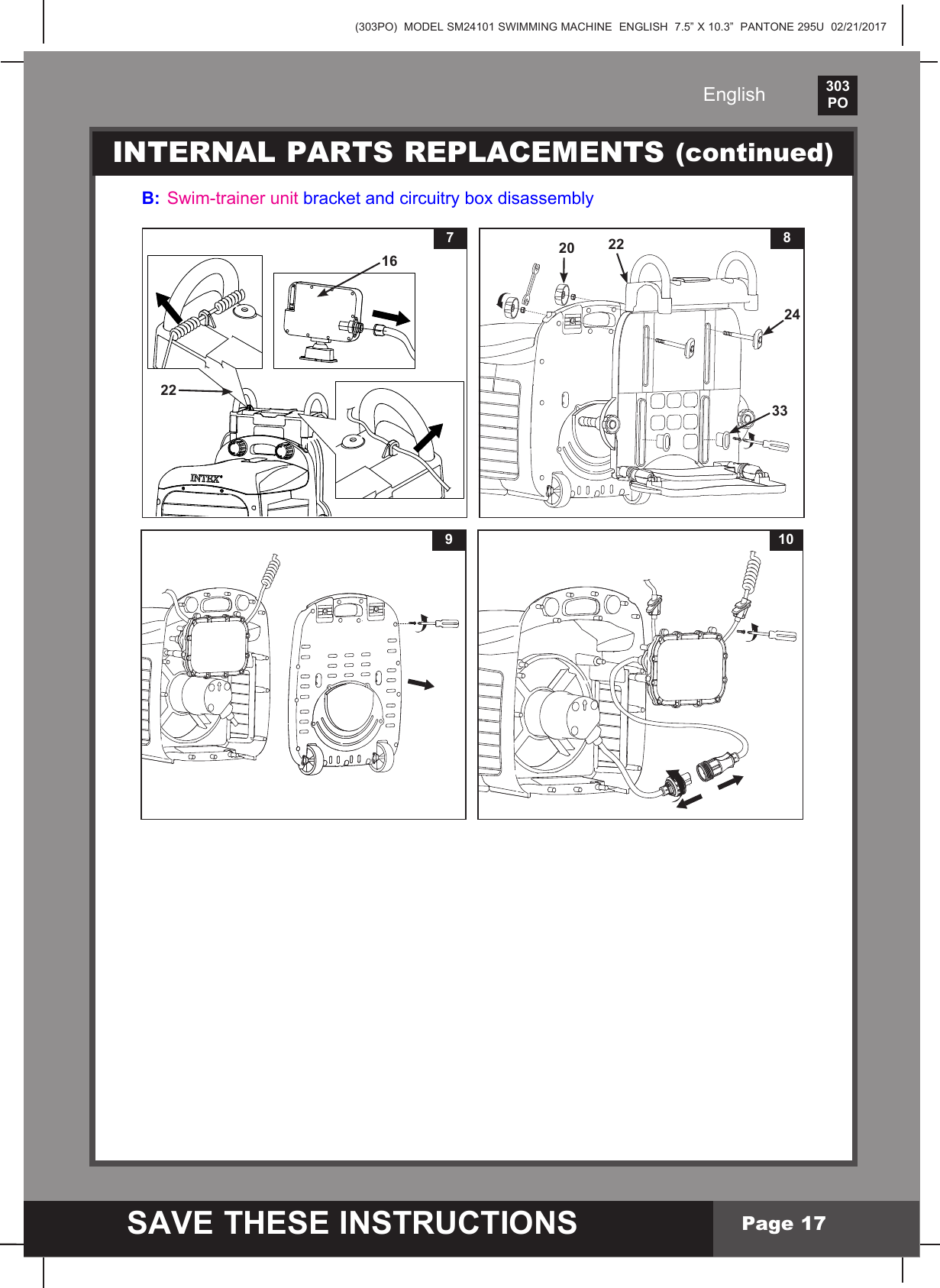

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 17INTERNAL PARTS REPLACEMENTS (continued)B: Swim-trainer unitbracketandcircuitryboxdisassembly227168202433229 10

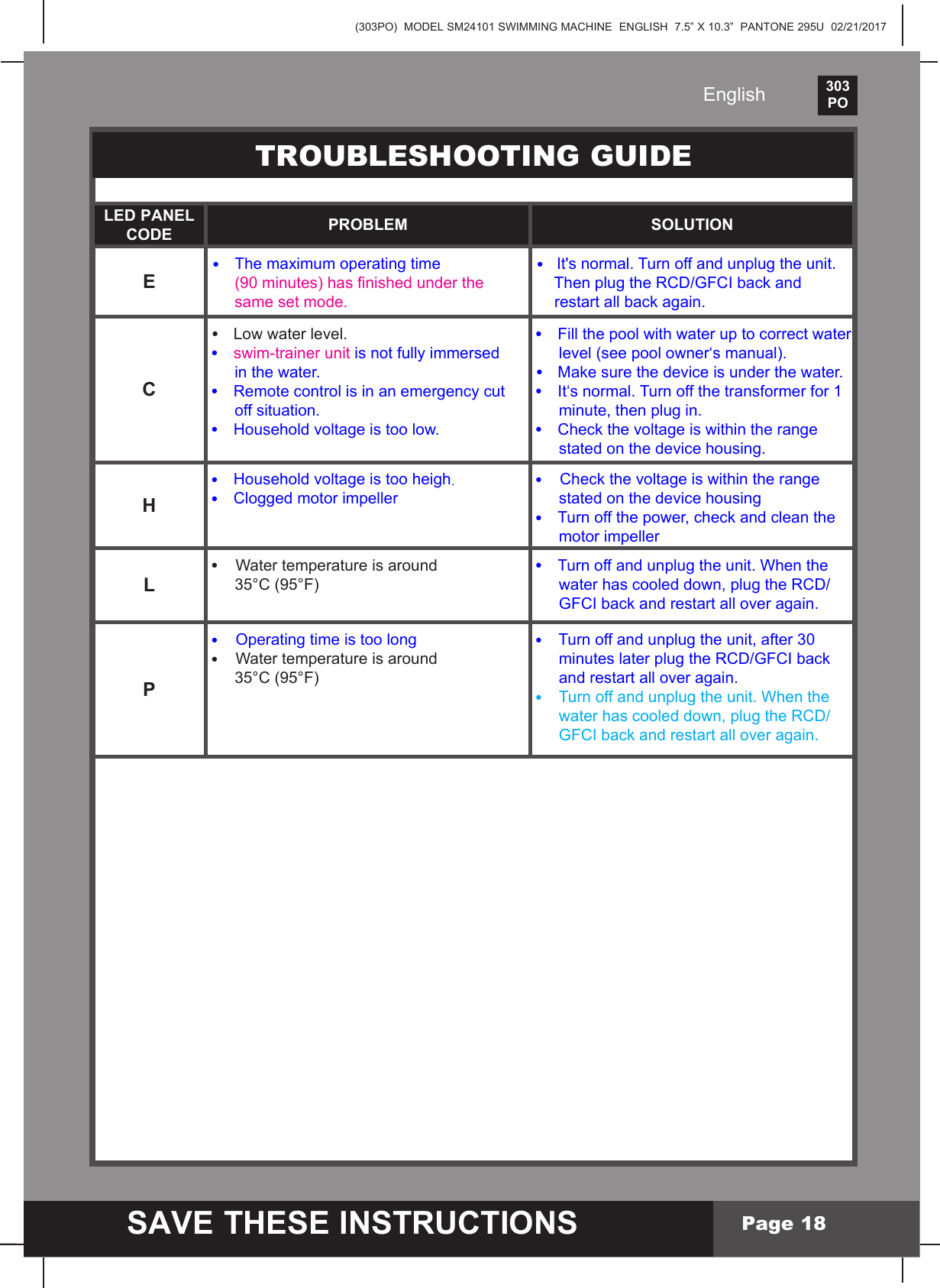

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 18TROUBLESHOOTING GUIDELED PANEL CODE PROBLEM SOLUTIONE ●The maximum operating time (90minutes)hasnishedunderthe same set mode. ● It's normal. Turn off and unplug the unit. ThenplugtheRCD/GFCIbackandrestartallbackagain.C ● Lowwaterlevel. ● swim-trainer unit is not fully immersed in the water.● Remote control is in an emergency cut off situation.● Household voltage is too low.● Fill the pool with water up to correct water level (see pool owner‘s manual). ● Makesurethedeviceisunderthewater.● It‘s normal. Turn off the transformer for 1 minute, then plug in.● Checkthevoltageiswithintherange stated on the device housing.H● Household voltage is too heigh. ● Clogged motor impeller●Checkthevoltageiswithintherange stated on the device housing● Turnoffthepower,checkandcleanthe motor impellerL● Water temperature is around 35°C (95°F) ● Turn off and unplug the unit. When thewaterhascooleddown,plugtheRCD/GFCIbackandrestartalloveragain.P● Operating time is too long● Water temperature is around 35°C (95°F)● Turn off and unplug the unit, after 30 minuteslaterplugtheRCD/GFCIback and restart all over again. ● Turn off and unplug the unit. When the waterhascooleddown,plugtheRCD/GFCIbackandrestartalloveragain.

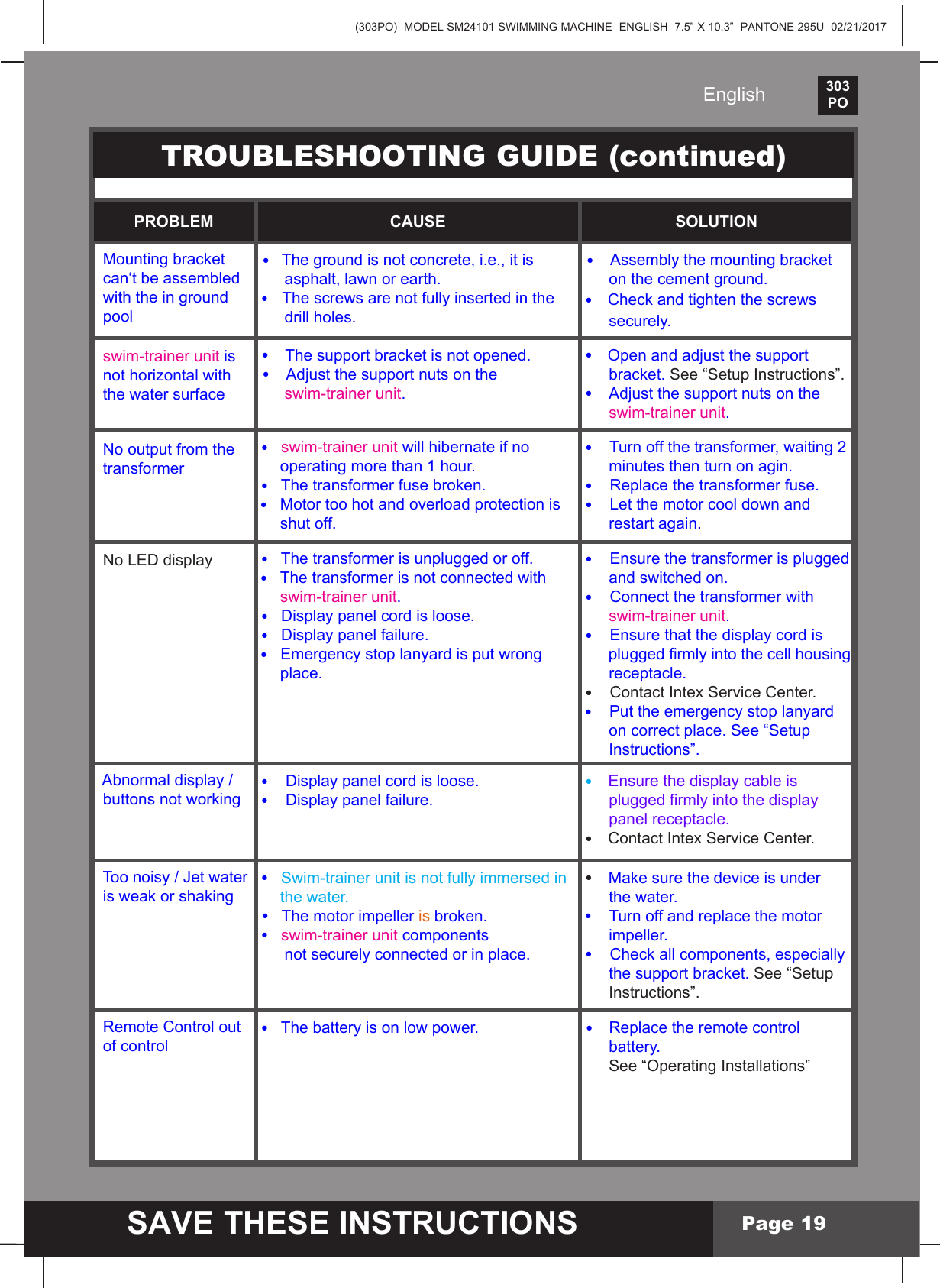

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 19TROUBLESHOOTING GUIDE (continued)PROBLEM CAUSE SOLUTION Mountingbracket can‘t be assembled with the in ground pool ●The ground is not concrete, i.e., it is asphalt, lawn or earth. ● The screws are not fully inserted in the drill holes. ●Assemblythemountingbracket on the cement ground.● Checkandtightenthescrews securely. swim-trainer unit is not horizontal with the water surface ● Thesupportbracketisnotopened. ● Adjust the support nuts on the swim-trainer unit.● Open and adjust the supportbracket.See“SetupInstructions”.● Adjust the support nuts on the swim-trainer unit. No output from the transformer● swim-trainer unit will hibernate if no operating more than 1 hour.●Thetransformerfusebroken. ● Motor too hot and overload protection is shut off.● Turn off the transformer, waiting 2 minutes then turn on agin. ● Replace the transformer fuse. ●Letthemotorcooldownand restart again.NoLEDdisplay ● The transformer is unplugged or off. ● The transformer is not connected with swim-trainer unit.● Display panel cord is loose.● Display panel failure. ● Emergency stop lanyard is put wrong place.● Ensure the transformer is plugged and switched on.● Connect the transformer with swim-trainer unit. ● Ensure that the display cord ispluggedrmlyintothecellhousing receptacle.● Contact Intex Service Center. ● Put the emergency stop lanyard on correct place. See “SetupInstructions”. Abnormaldisplay/buttonsnotworking ● Display panel cord is loose.● Display panel failure.● Ensure the display cable ispluggedrmlyintothedisplay panel receptacle.● Contact Intex Service Center. Toonoisy/Jetwaterisweakorshaking● Swim-trainer unit is not fully immersed in the water. ● The motor impeller isbroken.● swim-trainer unit components not securely connected or in place.● Makesurethedeviceisunder the water. ● Turn off and replace the motor impeller.●Checkallcomponents,especiallythesupportbracket.See “SetupInstructions”. Remote Control out of control● The battery is on low power. ● Replace the remote control battery. See“OperatingInstallations”

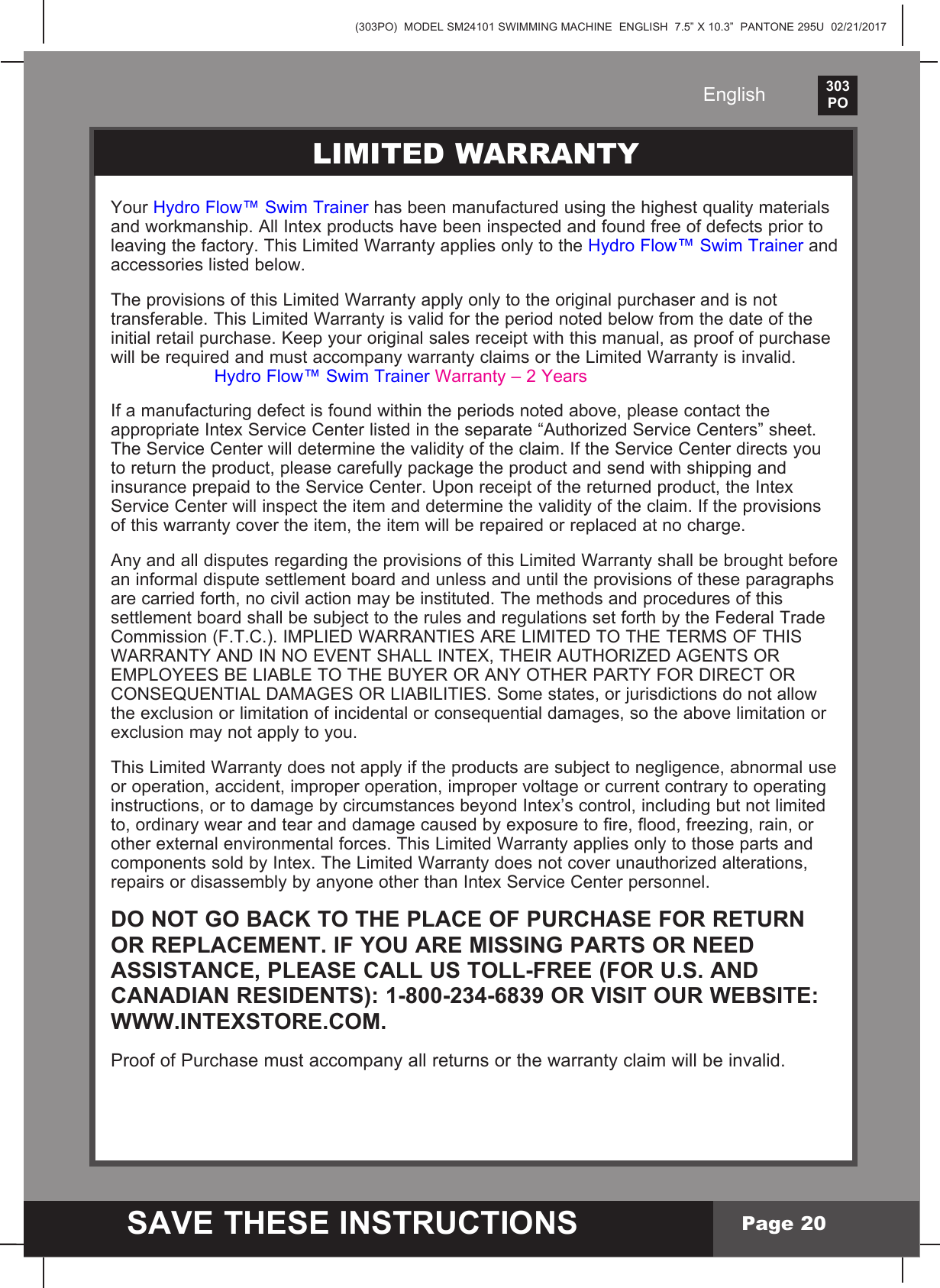

(303PO) MODEL SM24101 SWIMMING MACHINE ENGLISH 7.5” X 10.3” PANTONE 295U 02/21/2017303PO SAVE THESE INSTRUCTIONSEnglishPage 20PARTS LISTLIMITED WARRANTYYourHydro Flow™ Swim Trainer has been manufactured using the highest quality materials andworkmanship.AllIntexproductshavebeeninspectedandfoundfreeofdefectspriortoleavingthefactory.ThisLimitedWarrantyappliesonlytotheHydro Flow™ Swim Trainer and accessories listed below. TheprovisionsofthisLimitedWarrantyapplyonlytotheoriginalpurchaserandisnottransferable.ThisLimitedWarrantyisvalidfortheperiodnotedbelowfromthedateoftheinitialretailpurchase.Keepyouroriginalsalesreceiptwiththismanual,asproofofpurchasewillberequiredandmustaccompanywarrantyclaimsortheLimitedWarrantyisinvalid. Hydro Flow™ Swim Trainer Warranty–2Years If a manufacturing defect is found within the periods noted above, please contact the appropriateIntexServiceCenterlistedintheseparate“AuthorizedServiceCenters”sheet. The Service Center will determine the validity of the claim. If the Service Center directs you toreturntheproduct,pleasecarefullypackagetheproductandsendwithshippingandinsurance prepaid to the Service Center. Upon receipt of the returned product, the Intex Service Center will inspect the item and determine the validity of the claim. If the provisions of this warranty cover the item, the item will be repaired or replaced at no charge. AnyandalldisputesregardingtheprovisionsofthisLimitedWarrantyshallbebroughtbeforean informal dispute settlement board and unless and until the provisions of these paragraphs are carried forth, no civil action may be instituted. The methods and procedures of this settlement board shall be subject to the rules and regulations set forth by the Federal Trade Commission(F.T.C.).IMPLIEDWARRANTIESARELIMITEDTOTHETERMSOFTHISWARRANTYANDINNOEVENTSHALLINTEX,THEIRAUTHORIZEDAGENTSOREMPLOYEESBELIABLETOTHEBUYERORANYOTHERPARTYFORDIRECTORCONSEQUENTIALDAMAGESORLIABILITIES.Somestates,orjurisdictionsdonotallowthe exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. ThisLimitedWarrantydoesnotapplyiftheproductsaresubjecttonegligence,abnormaluseor operation, accident, improper operation, improper voltage or current contrary to operating instructions, or to damage by circumstances beyond Intex’s control, including but not limited to, ordinary wear and tear and damage caused by exposure to fire, flood, freezing, rain, or otherexternalenvironmentalforces.ThisLimitedWarrantyappliesonlytothosepartsandcomponentssoldbyIntex.TheLimitedWarrantydoesnotcoverunauthorizedalterations,repairs or disassembly by anyone other than Intex Service Center personnel.DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN OR REPLACEMENT. IF YOU ARE MISSING PARTS OR NEED ASSISTANCE, PLEASE CALL US TOLL-FREE (FOR U.S. AND CANADIAN RESIDENTS): 1-800-234-6839 OR VISIT OUR WEBSITE: WWW.INTEXSTORE.COM. Proof of Purchase must accompany all returns or the warranty claim will be invalid.
