Yes, you can. ™
Storm Series®
3G
(Elevating Seat included ESS6-STM)
Arrow®
Ranger X™
Torque™ SP/SE/3
Powered Wheelchairs
Parts Catalog Issued: Jun 27, 2008
The information contained in this document is subject to change without notice. This catalog contains
service parts for Form No. 00-191. If you have any questions regarding this catalog, please contact one
of our Customer Service Representatives.
For Customer Service Support Call:
1-800-333-6900
For Faxed In Orders Call:
1-800-678-4682 or
1-440-366-0709
For Technical Service Call:
1-800-832-4707
Literature Can Be Found at:
www.invacare.com or
1-800-828-6272
SYMBOL DEFINITION
Throughout this catalog you will notice letters to draw your attention to specific footnotes which are located at the
bottom of the page or below specified charts.
HARDWARE MEASUREMENTS
Examples:
= Special Comments
= General information pertaining to that specific page
= No Longer Available
NOTE:
NLA
The measurements for the hardware will be listed as follows:
Screws, Bolts
Washers
Spacers
For your convenience, we have supplied an area for you to list your Invacare Representatives.
A,B,C etc.
Diameter X Thread Count/Pitch X Length
Inside Diameter X Outside Diameter X Thickness
Inside Diameter X Outside Diameter X Length
Name Phone Numbers
©2008 Invacare Corporation. Elyria, Ohio. Invacare, Yes, you can., the Blue Medallion Design, Storm Series, Arrow, Tarsys are registered trademarks and
MKIV, MK6i, Ranger X, Torque, and GB are trademarks of Invacare Corporation. Otto Bock is a registered trademark of Otto Bock Orthopaedische Industrie
GMBH & Co., Tash is a registered trademark of Tash International Inc., Therafin is a registered trademark of W/R/ Medical Electronics Co., Bussman is a
registered trademark of Cooper Industries., MIDI is a registered trademark of Littelfuse Inc., Dynamic is a registered trademark of Dynamic Controls Limited.
Parts Catalog Usage Guide
1
Form No. 00-191
To order call toll free 1-800-333-6900, or www.invacare.com
A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!) ...................................................... 7
Accessories, Miscellaneous ..................................................................................................... 218

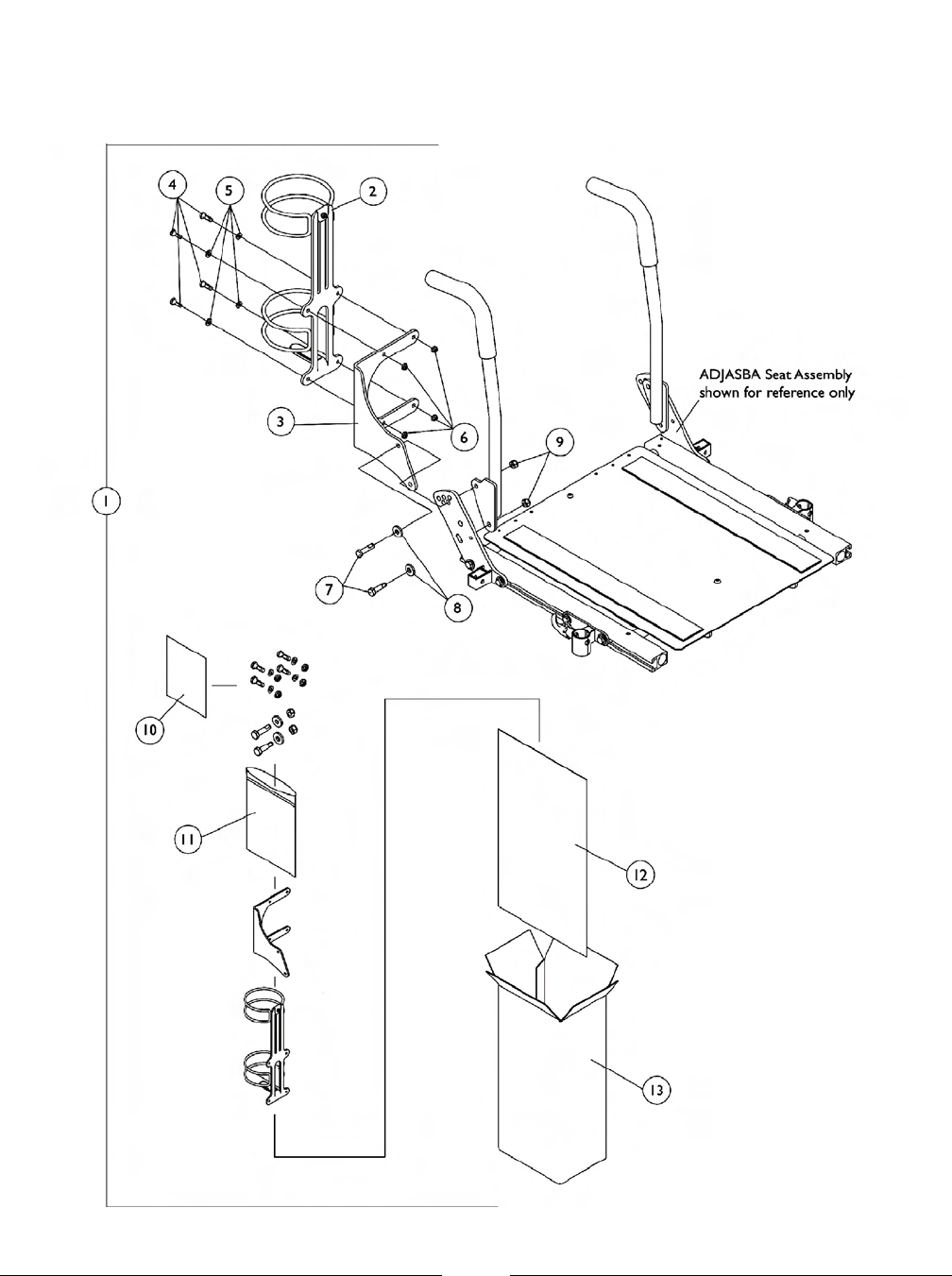

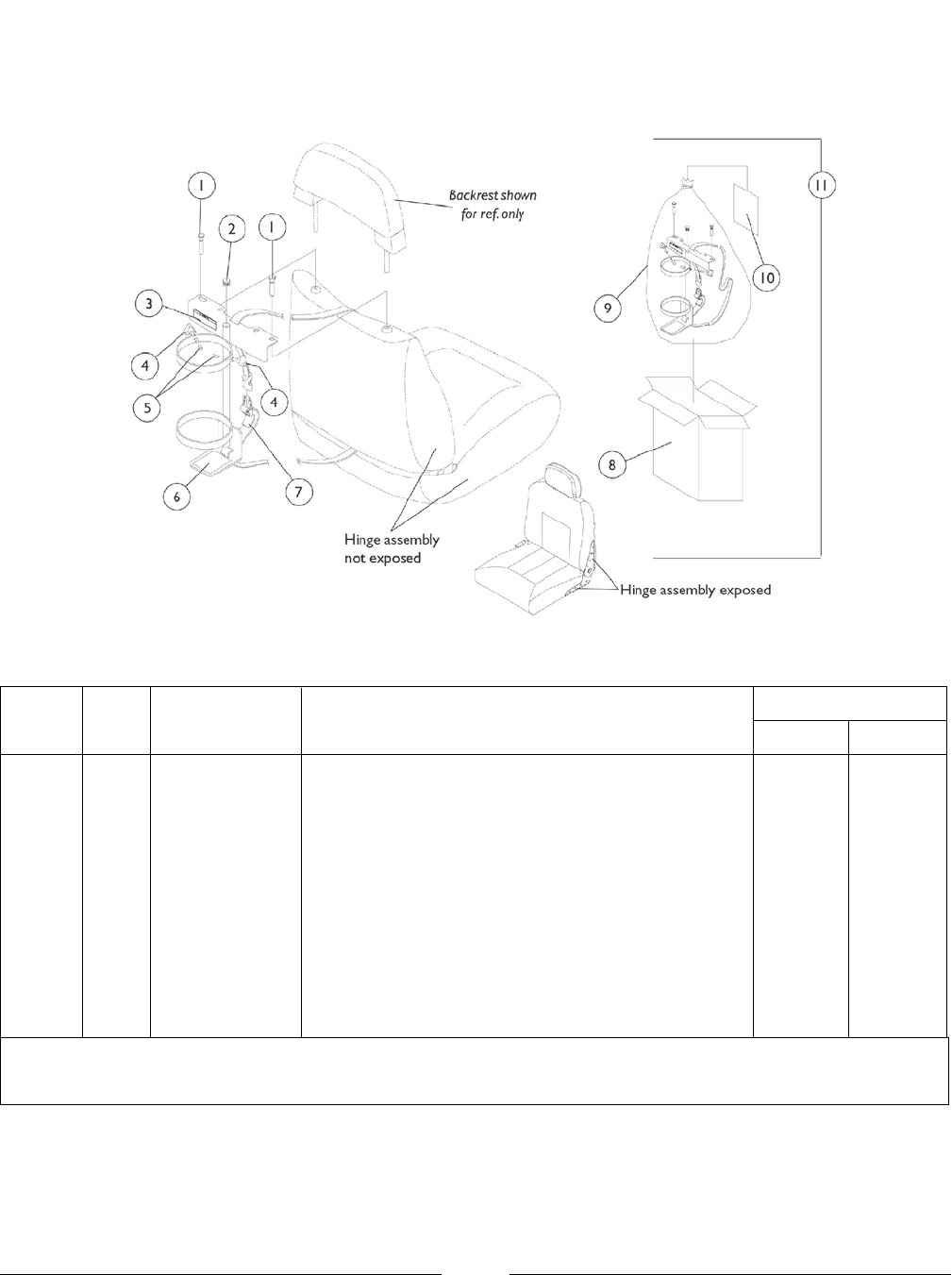

Accessories, Oxygen Holder Assembly Kit - ADJASBA Seats (After 7/4/05) .......................... 214
Accessories, Oxygen Holder Assembly Kit - ASBA Seats (Before 7/5/05) .............................. 213
Accessories, Oxygen Holder Assembly Kit After 4/14/03 - Captain Seat ................................. 211
Accessories, Oxygen Holder Assembly Kit Before 4/15/03 - Captain Seat .............................. 210
Accessories, Power Wheelchair Tool Kit .................................................................................. 216
Anti-Tip, 3" Wheel Assembly ................................................................................................... 129

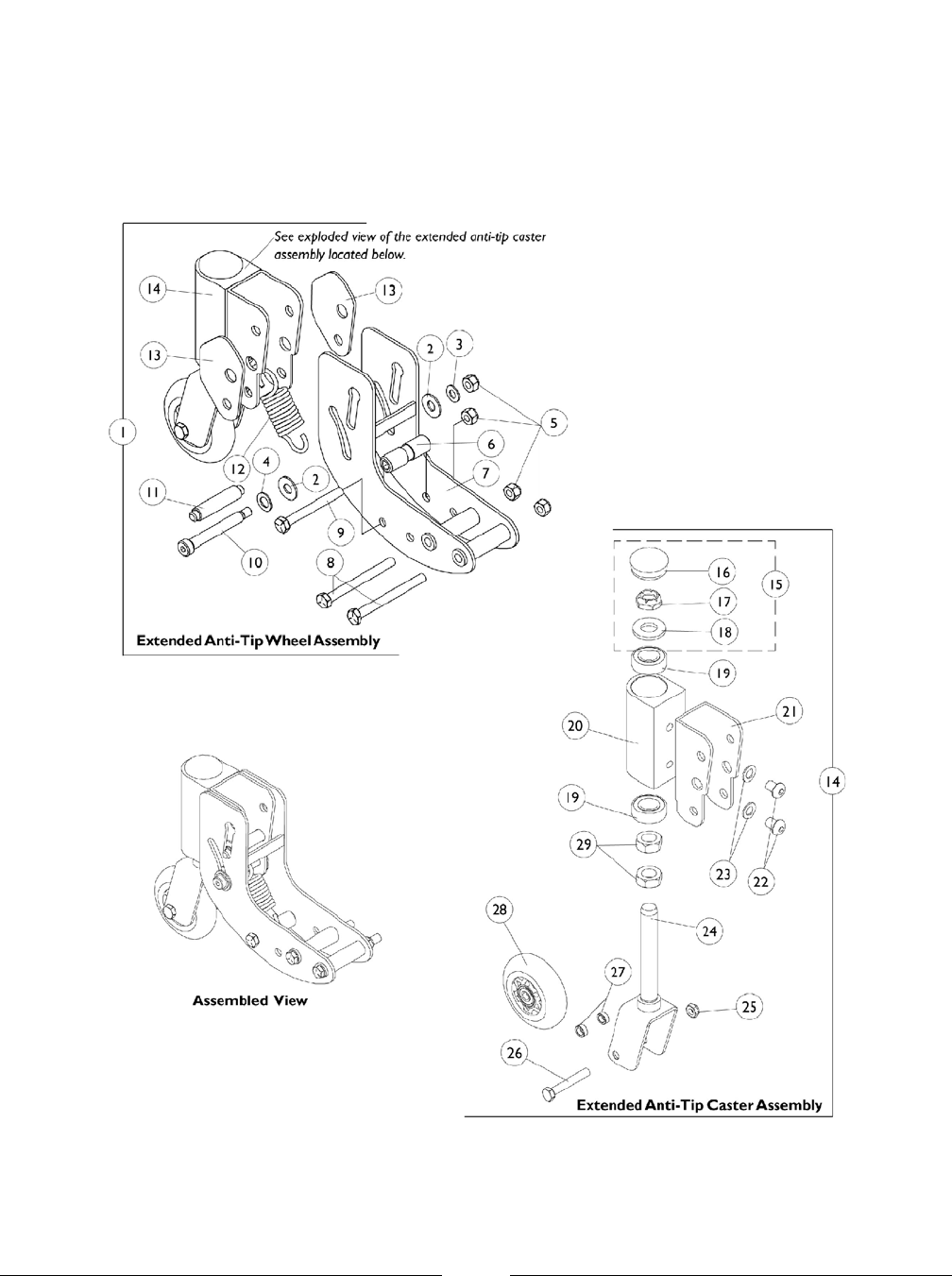

Anti-Tip, Extended Wheel Assembly ........................................................................................ 131
Arms, Adj. Height - (12-13" W x 12-15" D)/(14-15" W x 12-22" D) ASBA Seats & (12-16" W x
12-18" D) ADJASBA Seats
100
Arms, Adj. Height - (16"-24" Wide) x (16"- 22" Deep) Seat Frames ......................................... 106

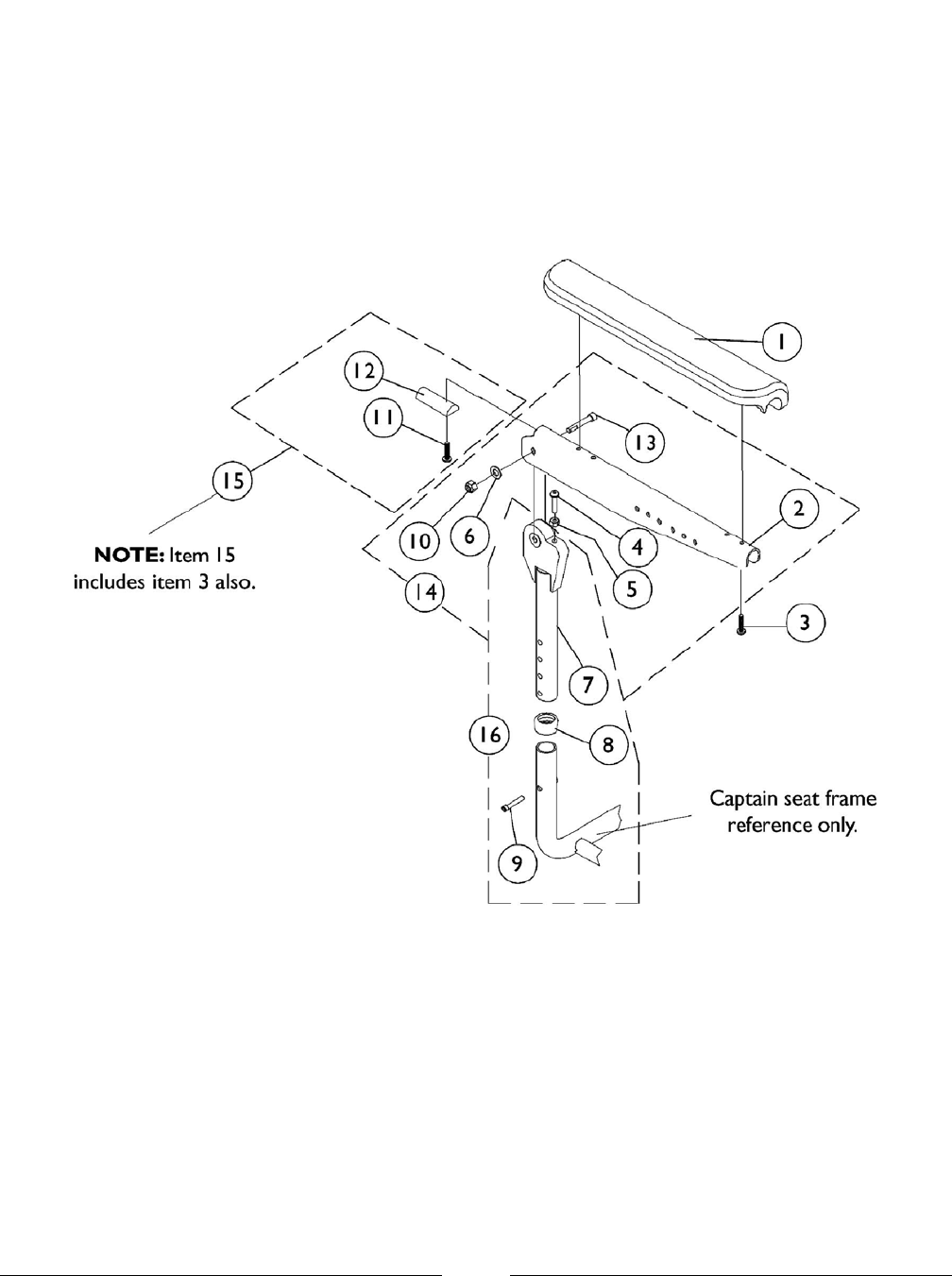

Arms, Captain Seat and Hardware - 18" Wide Models ............................................................ 96
Arms, Captain Seat and Hardware - 20" and 22" Wide Models ............................................... 98
Arms, Fixed Height - (16"-24" Wide) x (16"-22" Deep) Seat Frames ....................................... 102
Arms, Mtg. Front/Rear Arm Socket Asbly. & Hdwr. For ADJASBA Seat (12"-16" Wide) (After
7/4/05)
111
Arms, Mtg. Front/Rear Arm Socket Asbly. & Hdwr. For ADJASBA Seats (16"-24" Wide) TRRO
Option
115

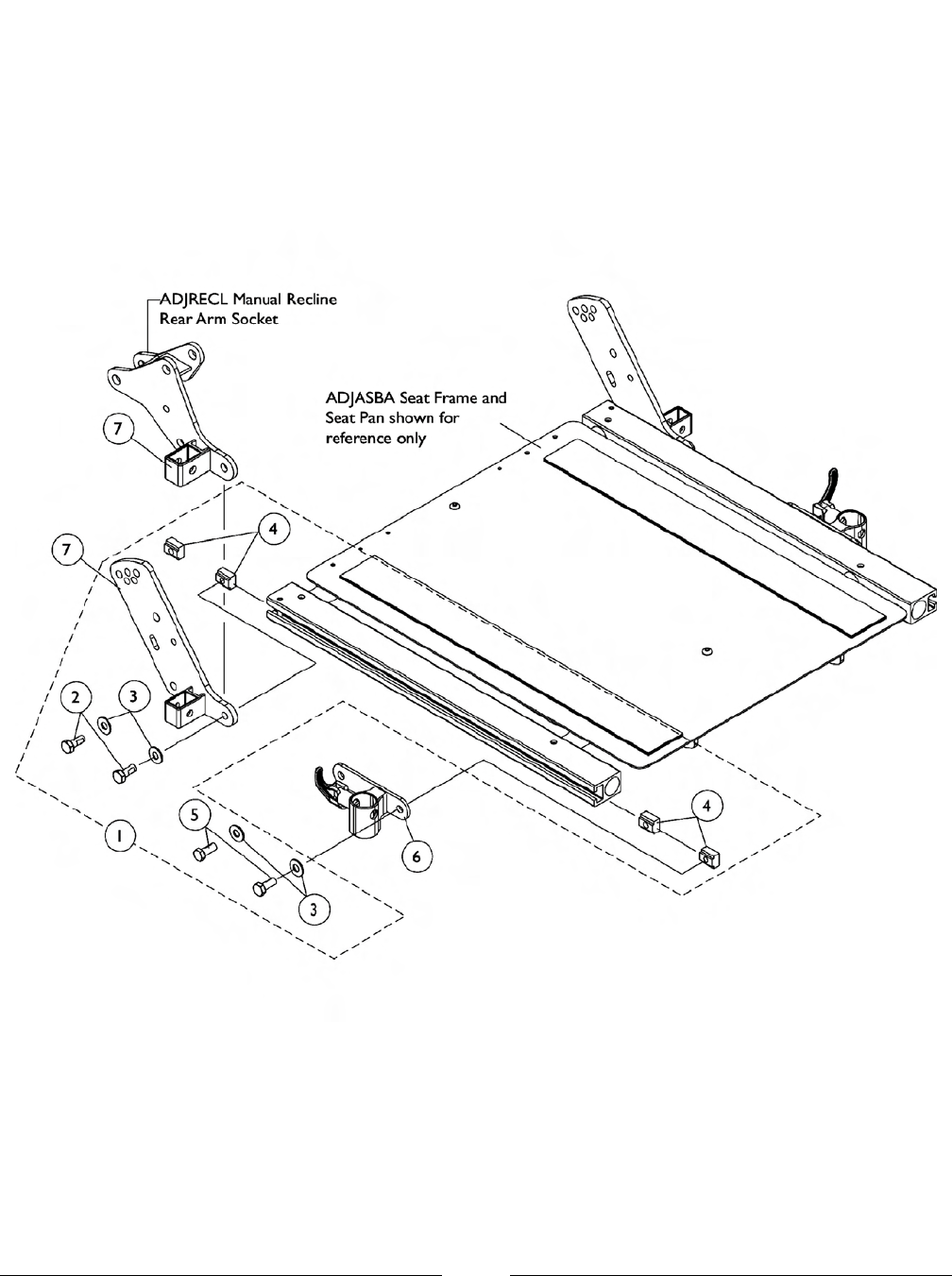

Arms, Mtg. Front/Rear Arm Socket Asbly. & Hdwr. For ADJASBA/ADJRECL Seats (16"-24"
Wide) (After 7/4/05)
113
Arms, Mtg. Swingaway Hdwr. For ASBA and ADJASBA/ADJRECL Seats ............................. 109

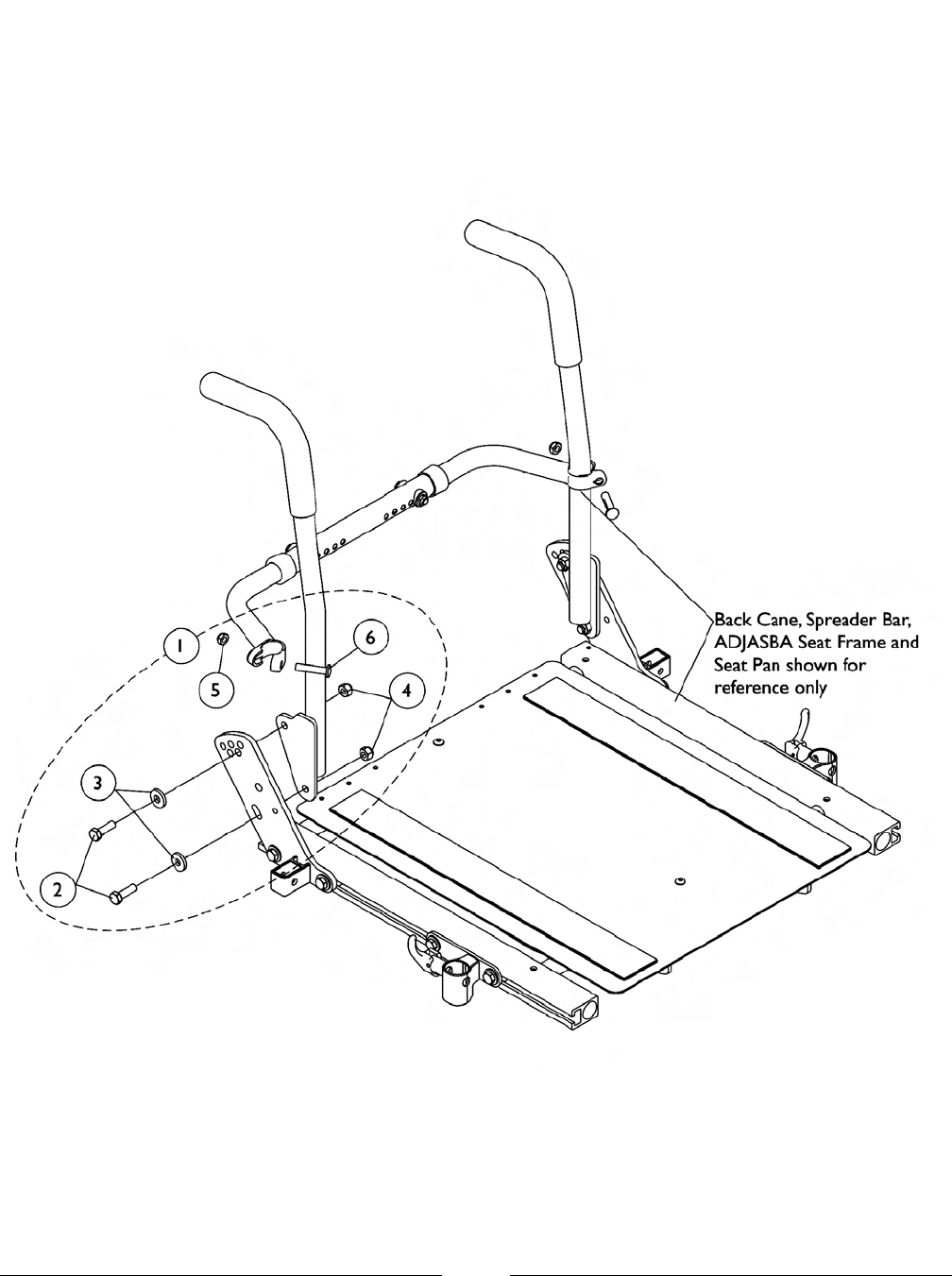

Back Cane Attaching Hardware For ADJASBA Seat (12"-16" Wide) (After 7/4/05) ................. 64
Back Cane Attaching Hardware For ADJASBA Seat (16"-24" Wide) (After 7/4/05) ................. 73
Back Cane Attaching Hardware For ADJASBA Seats (12"-16" W x 12"-15" D) TRRO Option
66
TABLE of CONTENTS
Description
Page
Number
2
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware For ADJASBA Seats (12"-16" W x 16"-18" D) TRRO Option
68
Back Cane Attaching Hardware For ADJASBA Seats (16"-24" Wide) TRRO Option .............. 75
Back Canes and Spreader Bars For ADJASBA Seat (12"-16" Wide) (After 7/4/05) ................ 62
Back Canes and Spreader Bars For ADJASBA Seat (16"-24" Wide) (After 7/4/05) ................ 70
Back Canes, Spreader Bars and Attaching Hardware For ASBA Seats (12"-24" Wide) (Before
7/5/05)
57

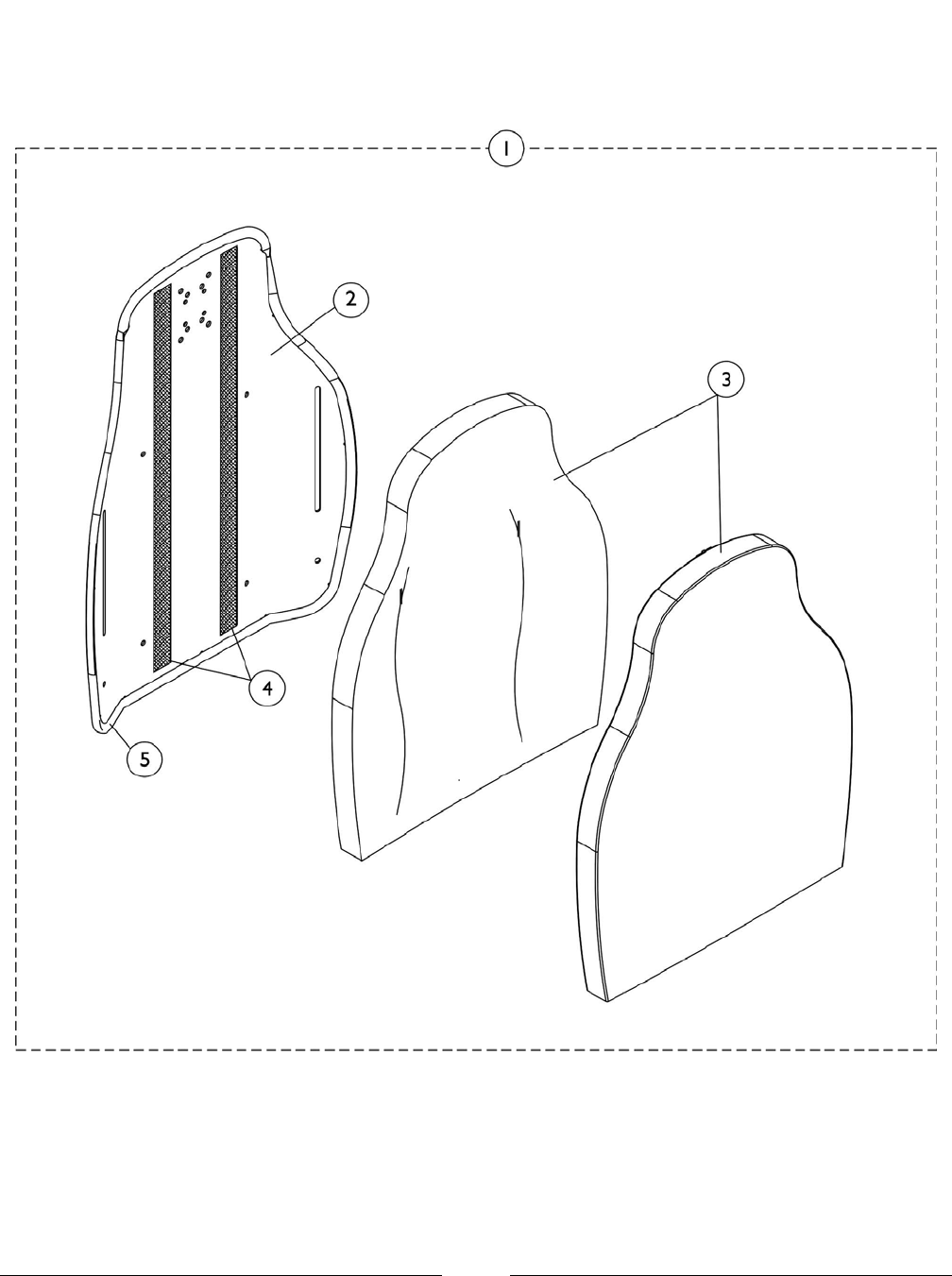

Back, Contoura without Mounting Hardware ............................................................................ 53
Back, Mounting Hardware, Contoura - ADJASBA Only ........................................................... 55

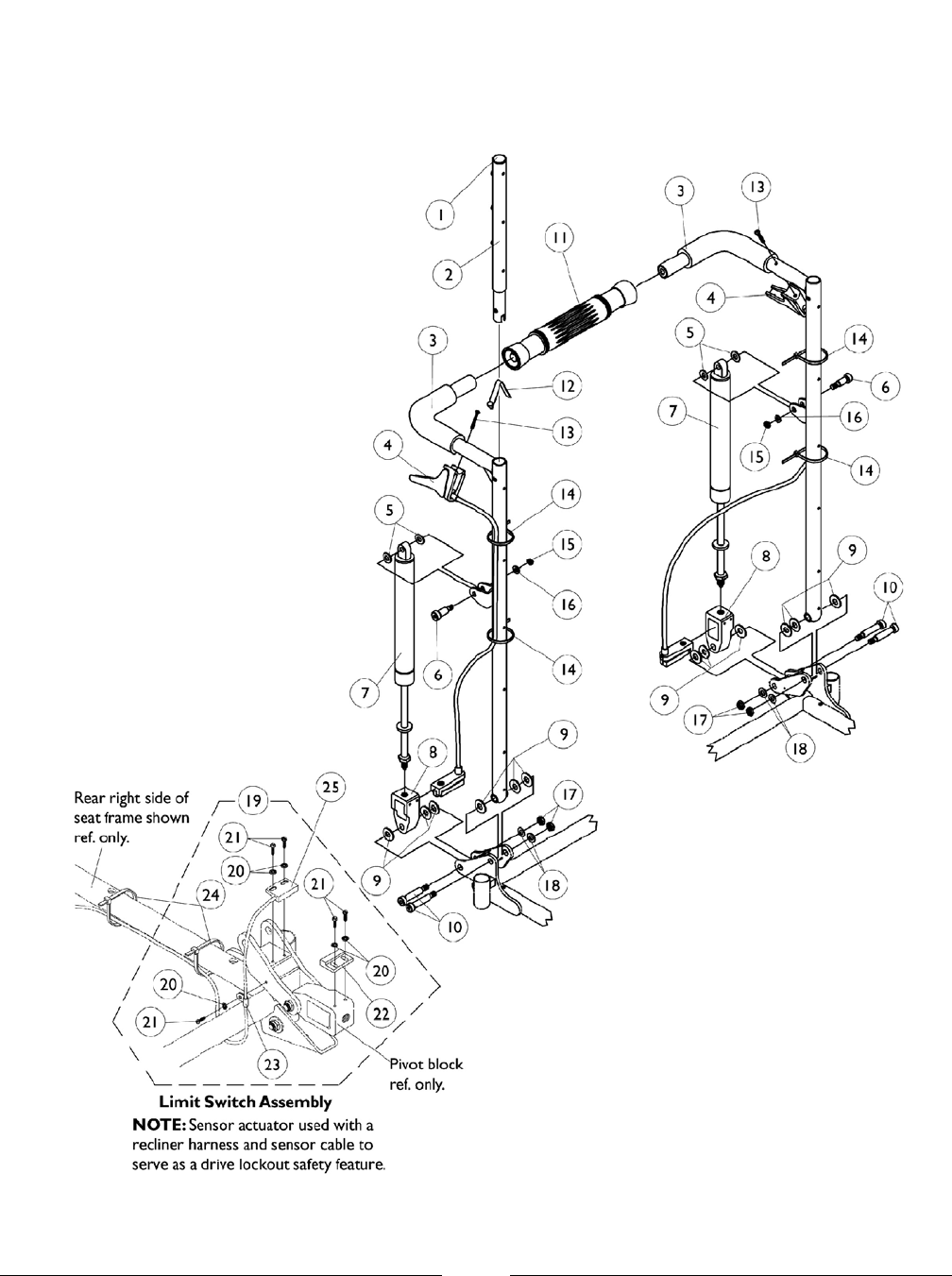

Back, Recliner Assembly For ADJRECL Seat Frames (After 7/4/05) ...................................... 86
Back, Recliner Assembly For ASBA Seat Frames (Before 7/5/05) .......................................... 83

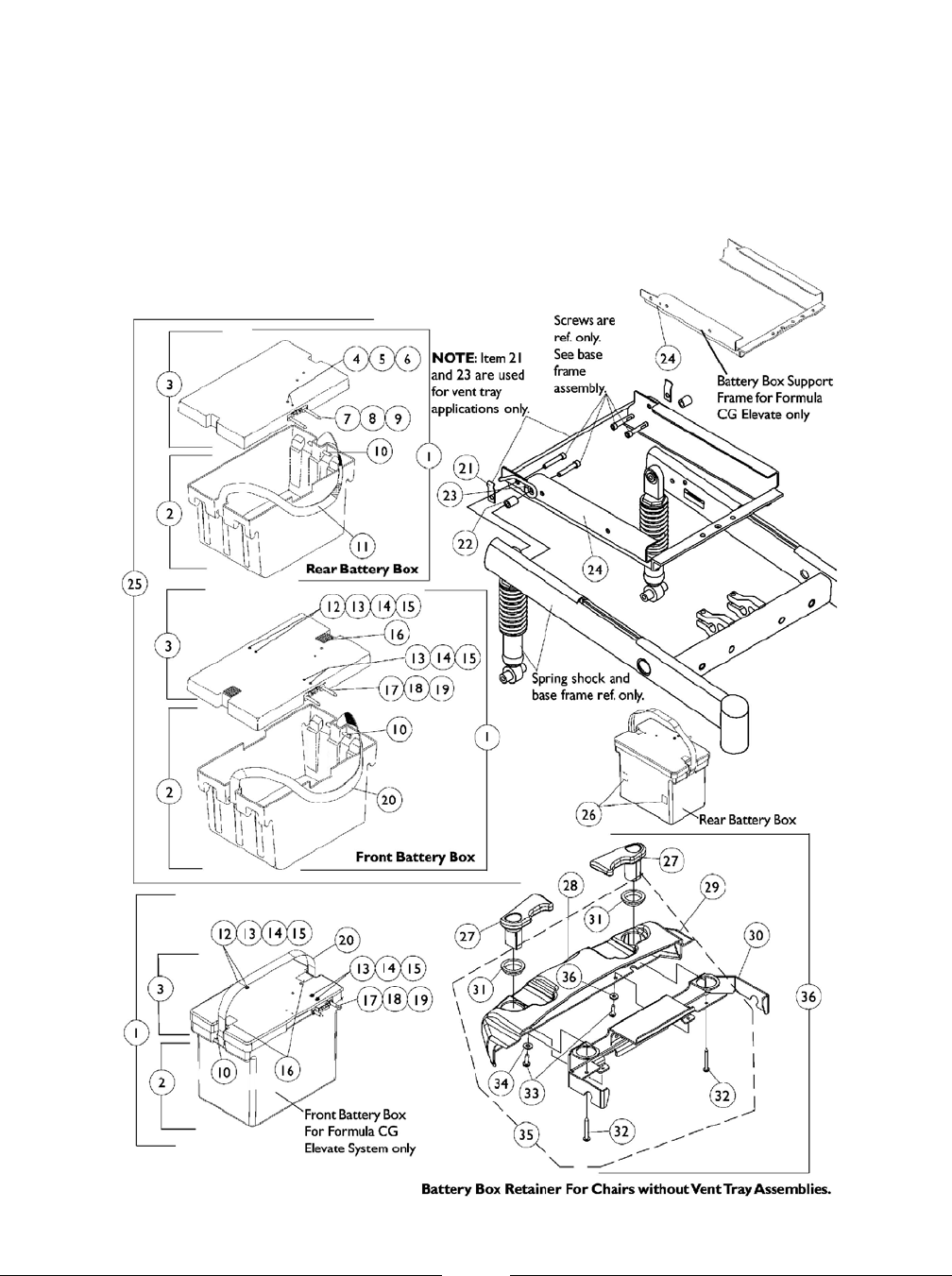

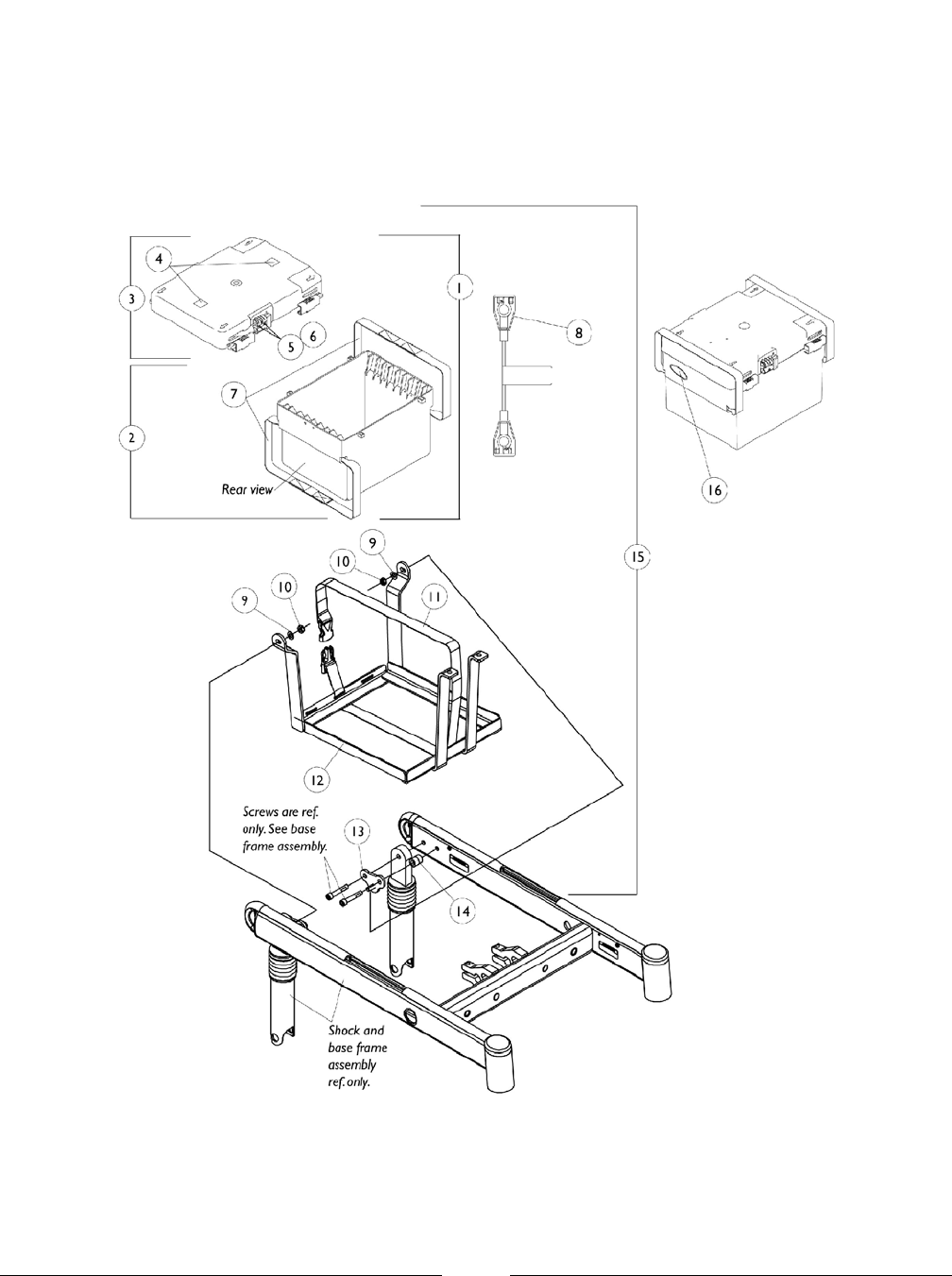

Battery Box and Tray Assembly - 22NF Batteries .................................................................... 204
Battery Boxes and Support Frame - Group 24 Batteries .......................................................... 200

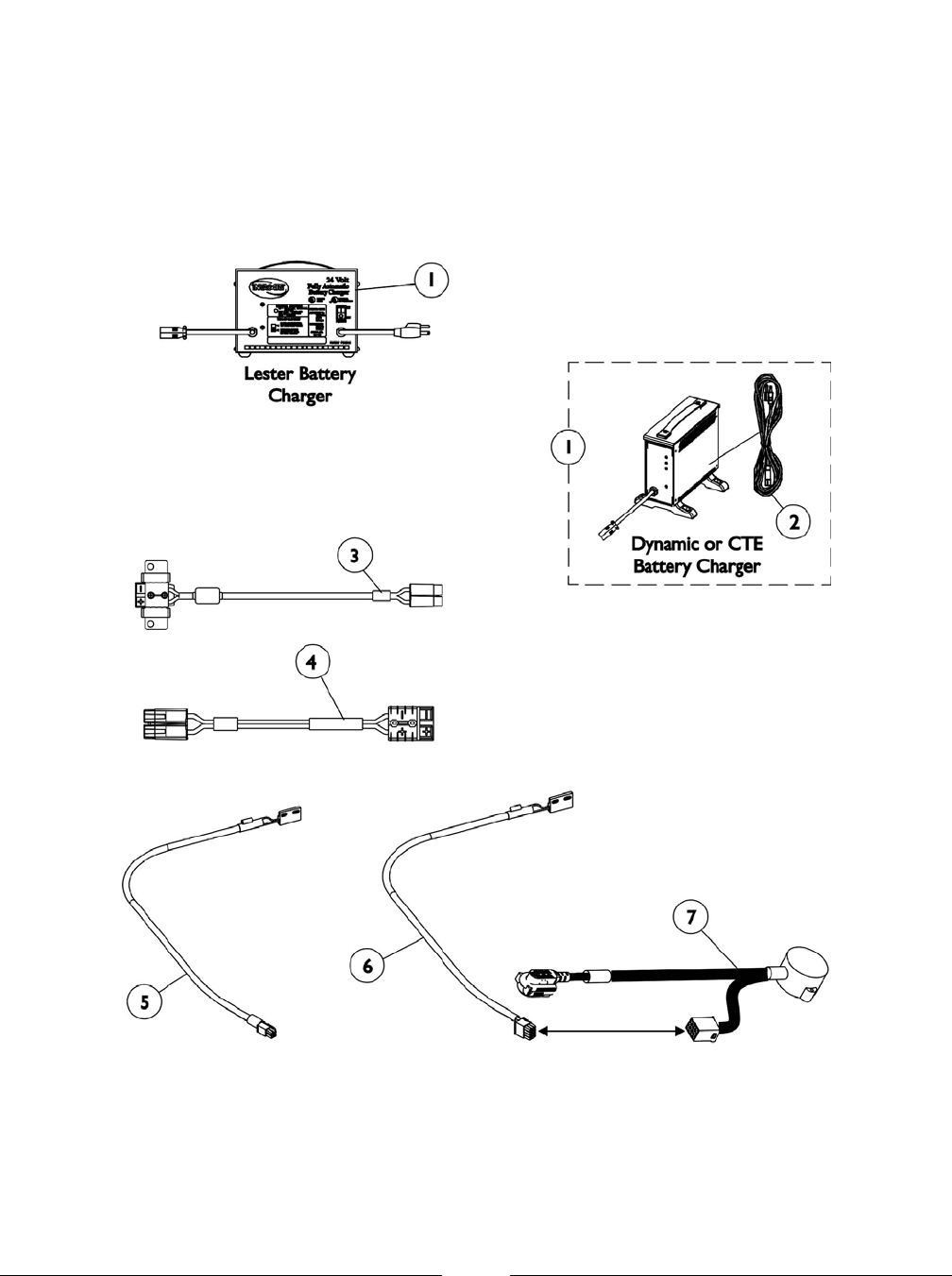

Battery Chargers and MKIV Harnesses ................................................................................... 195
Battery Chargers, MK6i Battery Cables and Sensor Cables .................................................... 198

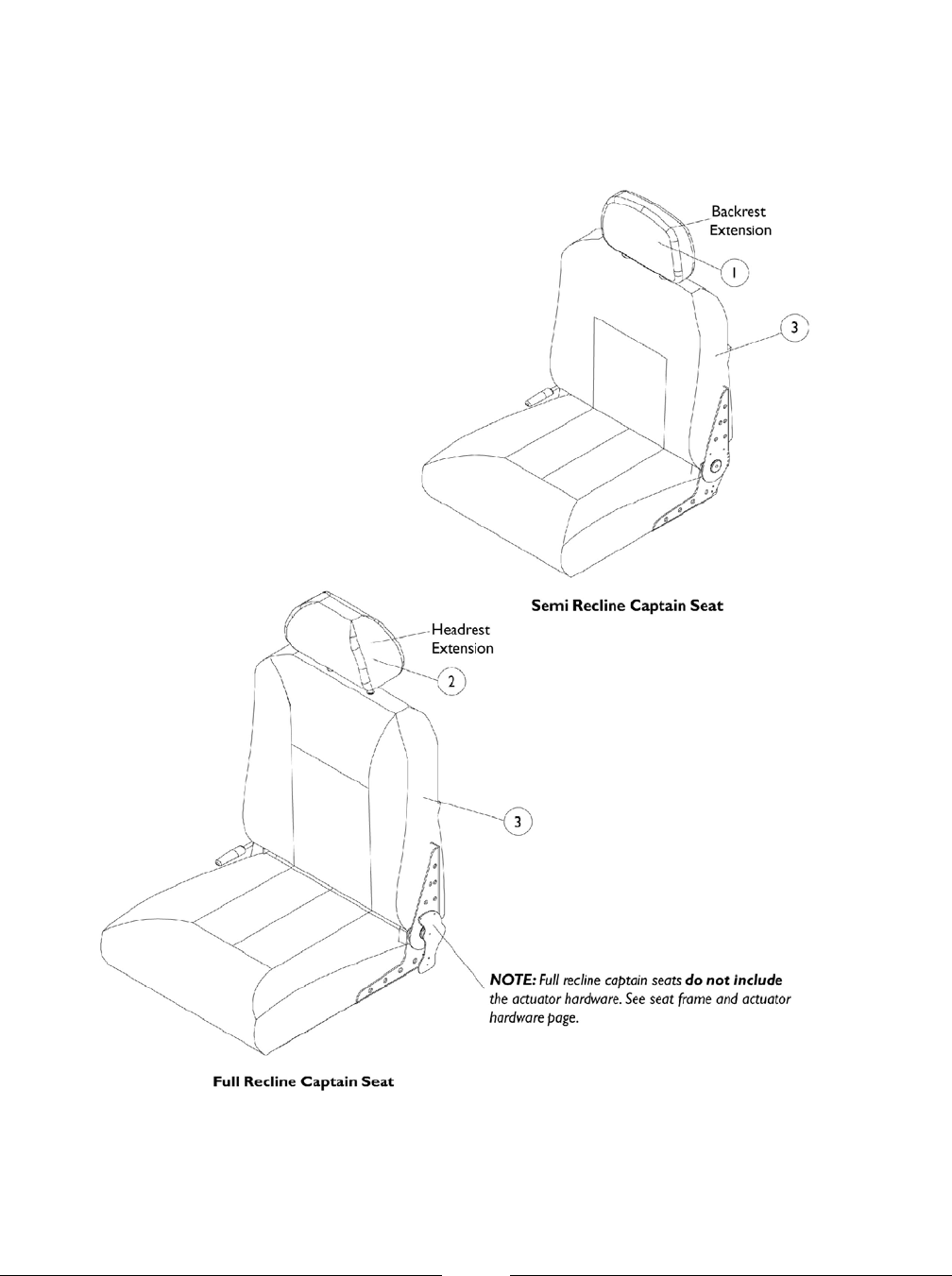

Captain Seat Assembly (After 10/31/01) .................................................................................. 32
Captain Seat Assembly (Before 11/1/01) ................................................................................. 30
Caster and Forks, 6" Assembly ................................................................................................ 177

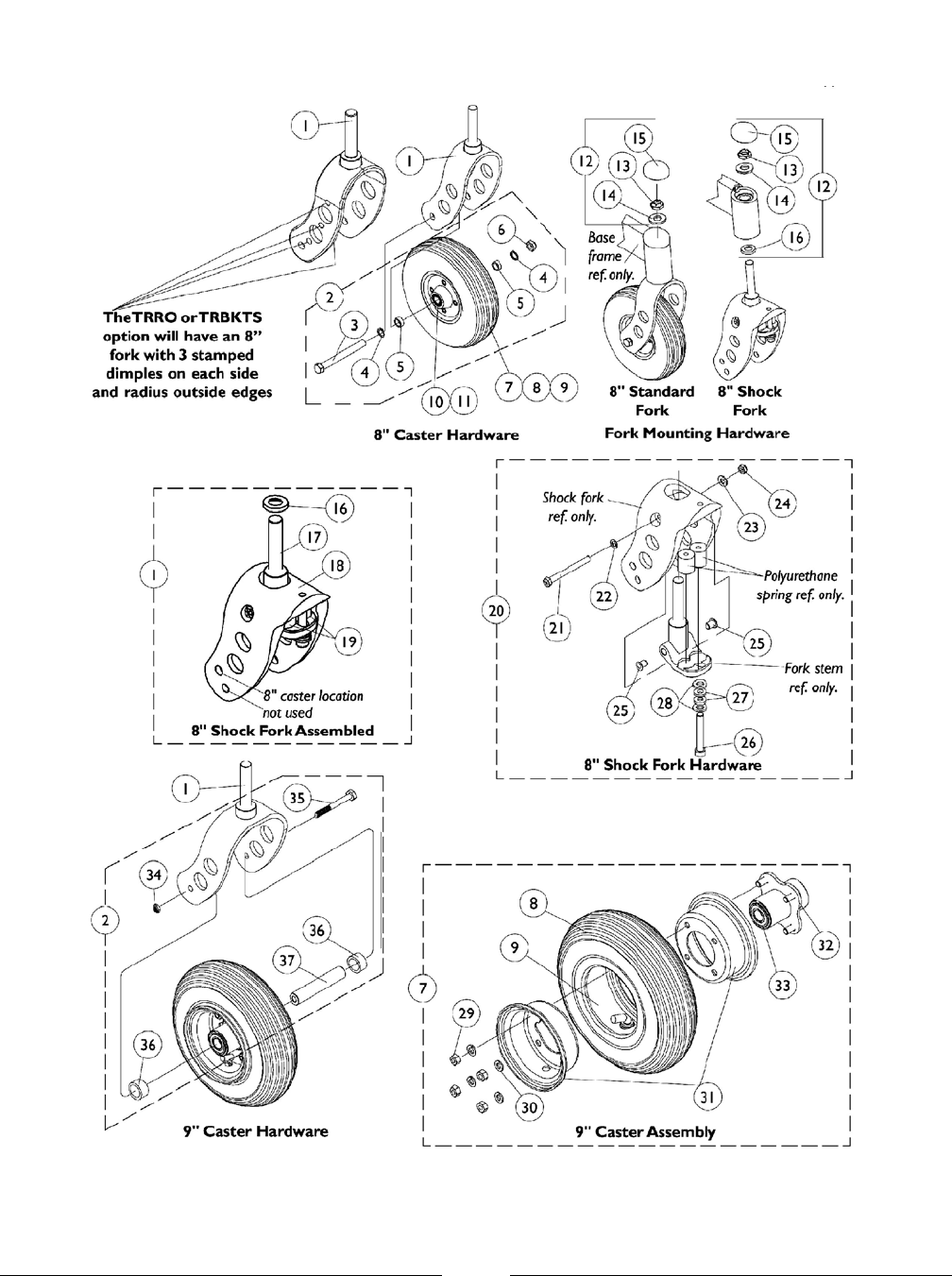

Caster and Forks, 8" and 9" Assemblies .................................................................................. 174
Electronics - MK6i ~PLEASE READ THIS SECTION~ ............................................................ 194
Electronics - MKIV ~PLEASE READ THIS SECTION~ ........................................................... 193

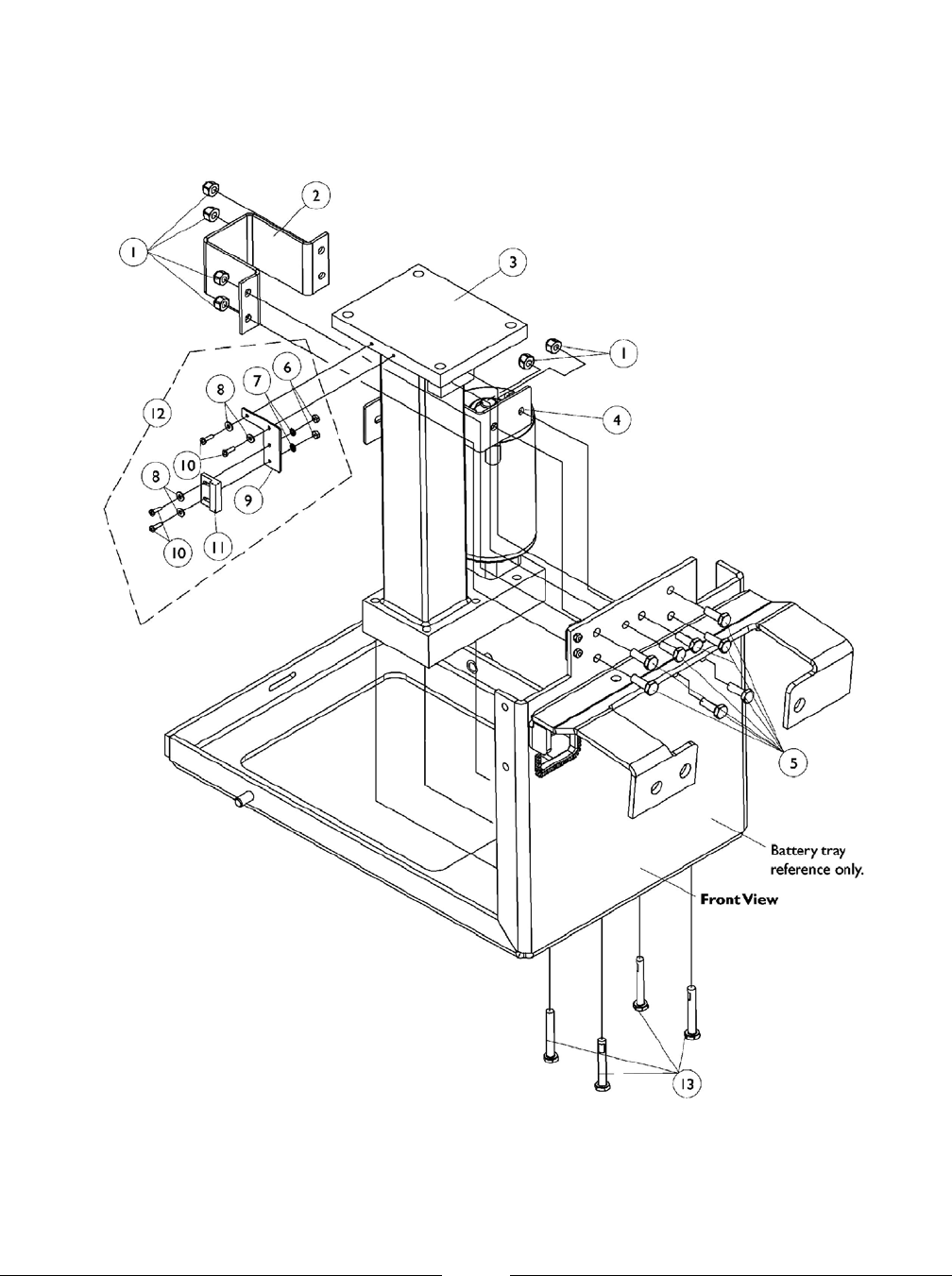

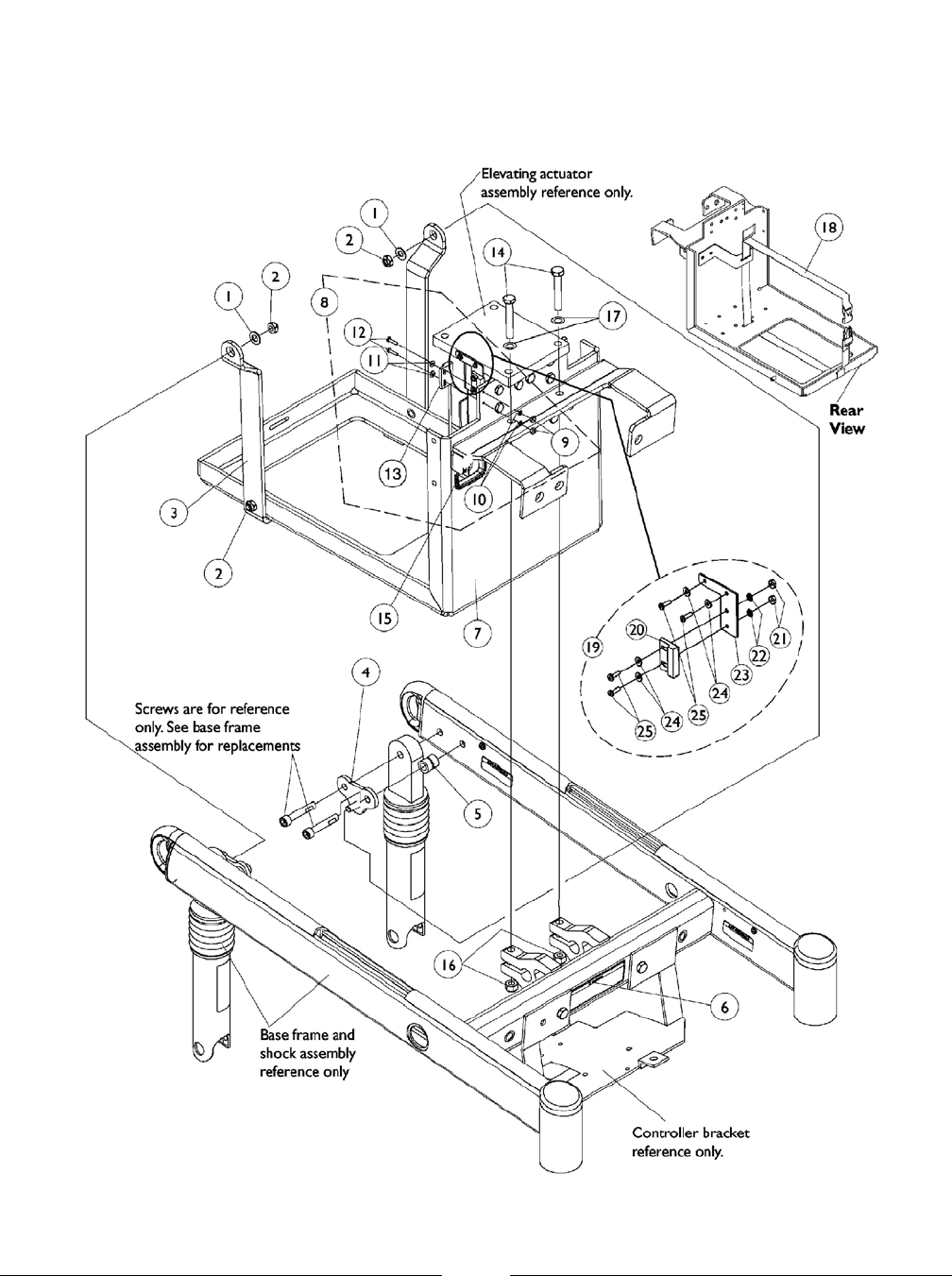

Elevating Seat Option - Battery Tray, Proximity Sensor and Hardware ................................... 206
Elevating Seat Option - Elevating Actuator, Switch Sensor and Hardware .............................. 208
TABLE of CONTENTS
Description
Page
Number
3
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Elevating Seat Option - Frame, Seat Mtg. Hdwr. (ASBA 16"-22" Wide Before 7/5/05) & Captain
Seat
26
Elevating Seat Option - Frame, Seat Mtg. Hdwr. ADJASBA (16"-22" Wide) (After 7/4/05) ..... 28
Fender Assembly ..................................................................................................................... 192
Frame Finishes, Touch-Up Paints and Upholstery Options ..................................................... 8

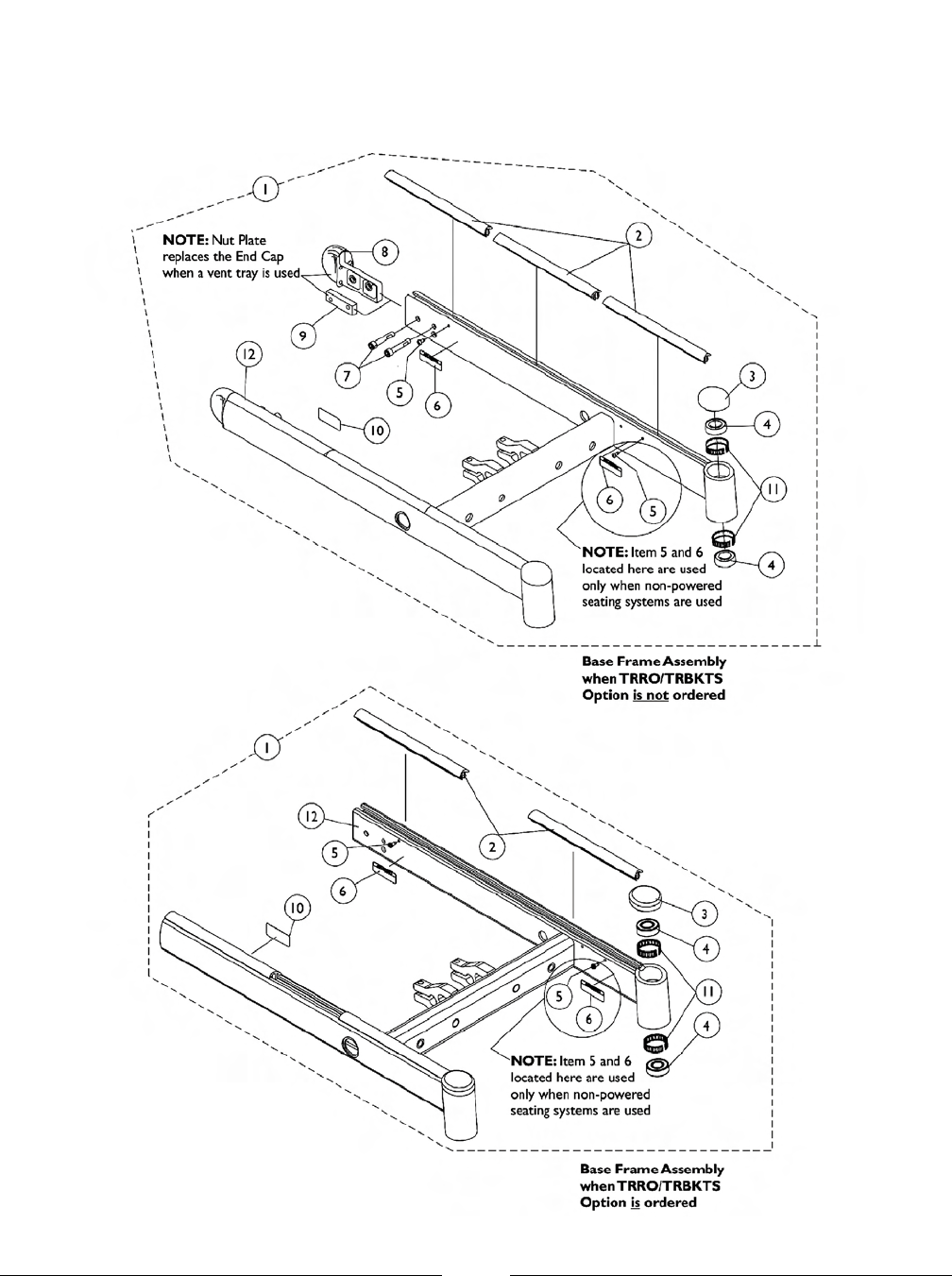

Frame, Base ............................................................................................................................. 117
Frame, Base Interface Hdwr. - Formula CG Powered Seating w/ TRBKTS Option ................ 121
Frame, Base Interface Hdwr. - ADJASBA Seat w/ TRRO/TRBKTS Option ............................. 119
Frame, Captain Seat and Actuator Hardware (After 10/31/01) ................................................ 36
Frame, Captain Seat and Actuator Hardware (Before 11/1/01) ............................................... 34
Frame, Seat ADJASBA, Seat Pan & Hdwr. (12"-16" Wide) (After 7/4/05) ............................... 17
Frame, Seat ADJASBA/ADJRECL, Seat Pan & Hdwr. (16"-20" W x 16"-22" D) (After 7/4/05)
22
Frame, Seat ADJASBA/ADJRECL, Seat Pan & Hdwr. (20"-24" W x 16"-22" D) (After 7/4/05)
24
Frame, Seat ASBA and Hardware (12"-15" Wide) (Before 7/5/05) .......................................... 15
Frame, Seat ASBA and Hardware (16"-24" Wide) (Before 7/5/05) .......................................... 19
Frame, Seat Mtg. Hdwr. (12"-15" Wide ASBA), (12"-16" Wide ADJASBA Seats & TRBKTS
Option)
38

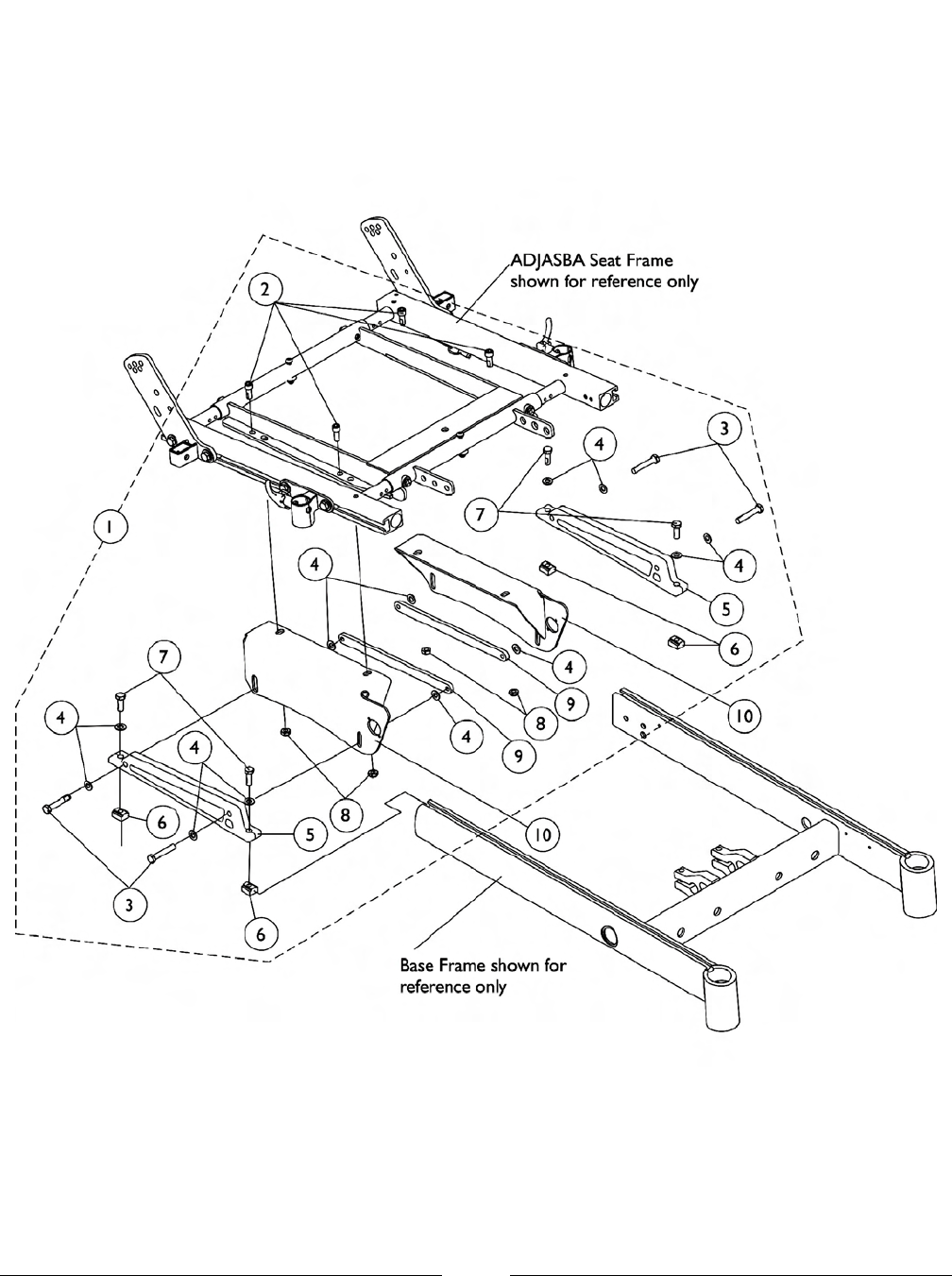

Frame, Seat Mtg. Hdwr. (12"-16" Wide) ADJASBA Seats with TRRO Option ......................... 40
Frame, Seat Mtg. Hdwr. (16"-24" Wide) ADJASBA Seats with TRRO Option ......................... 46

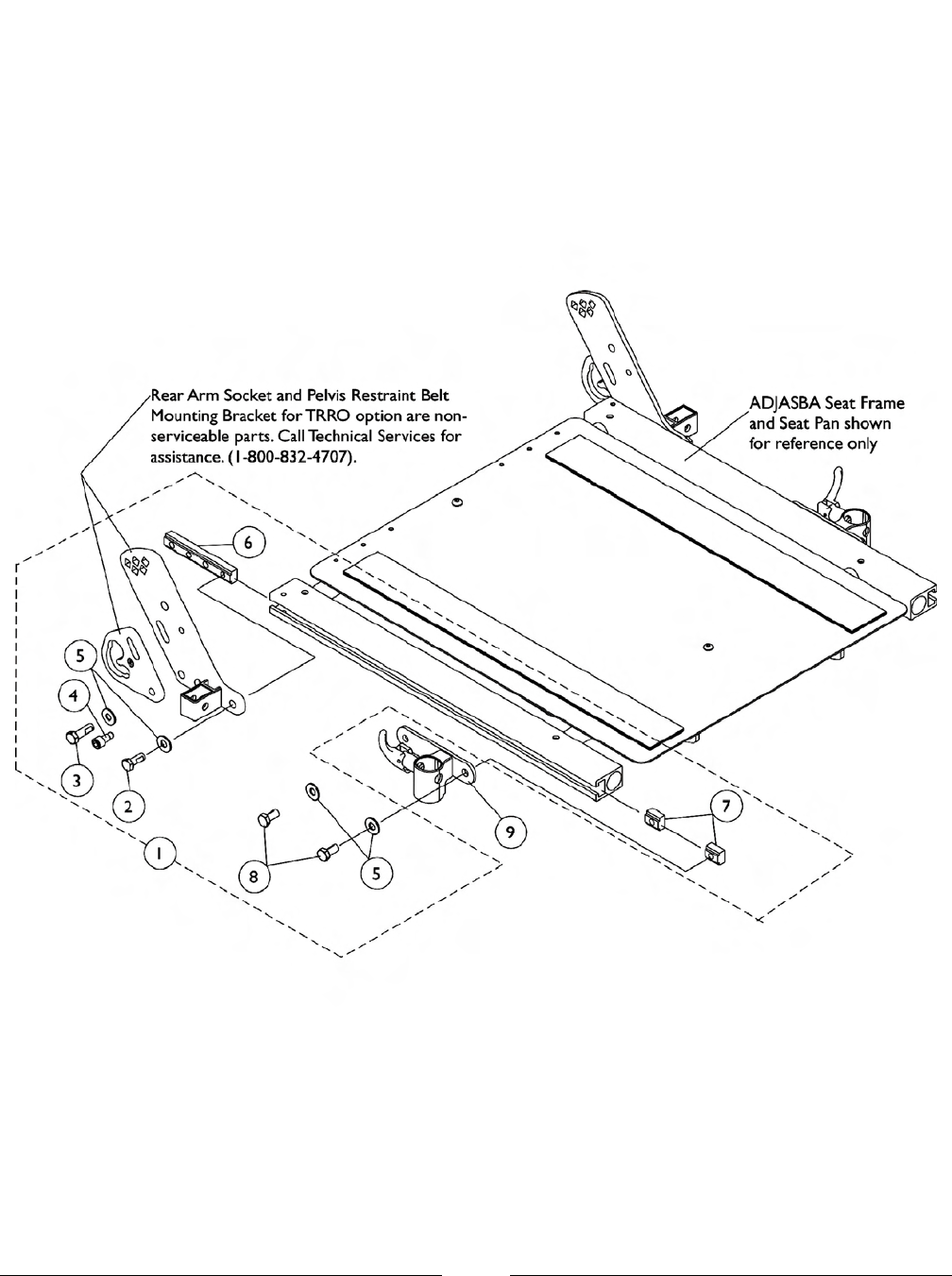

Frame, Seat Mtg. Hdwr. (16"-24" Wide) ADJASBA/ADJRECL (After 7/4/05) & TRBKTS Option 44
Frame, Seat Mtg. Hdwr. (16"-24" Wide) ASBA (Before 7/5/05) ............................................... 42

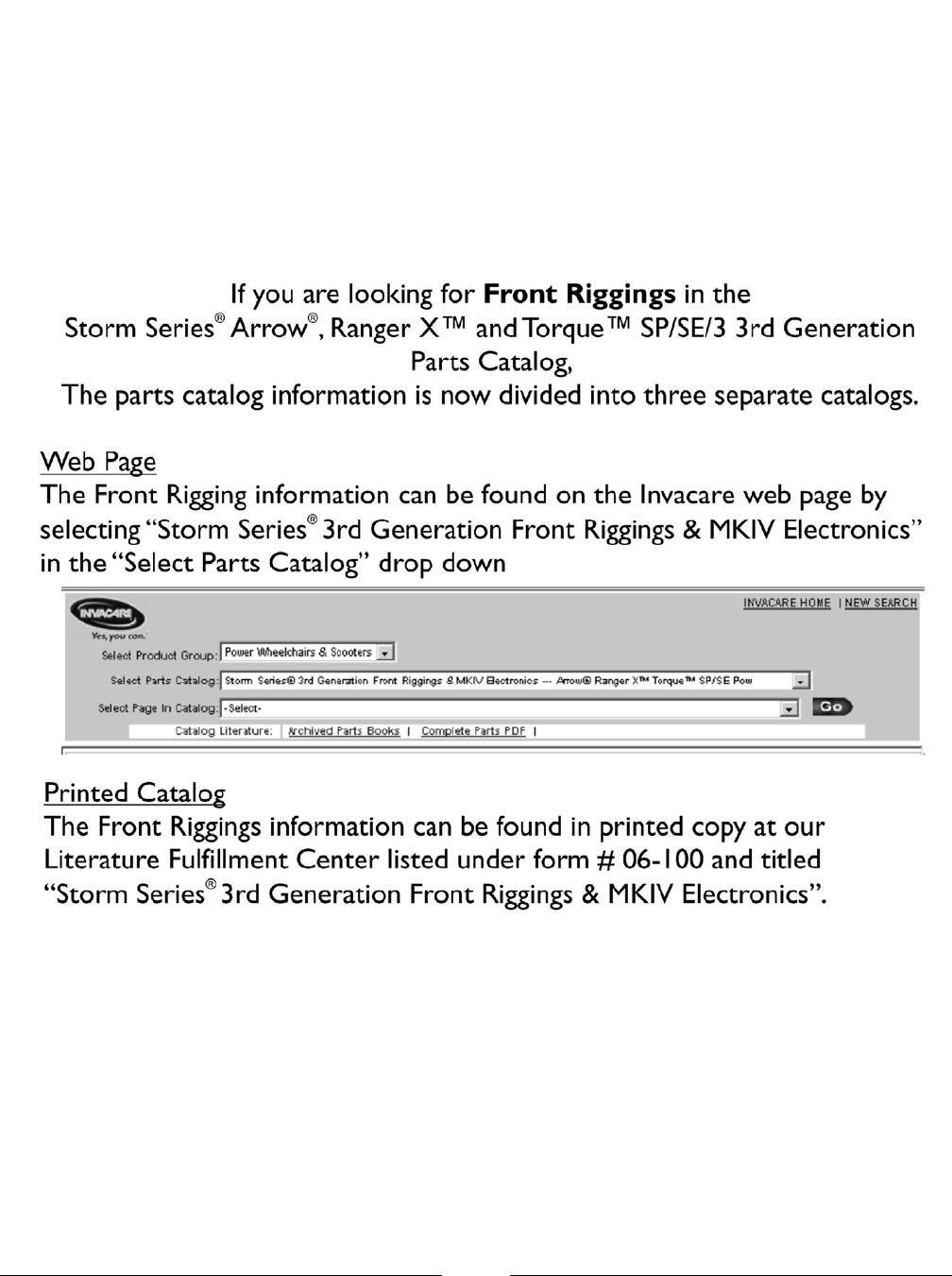

Front Rigging ~PLEASE READ THIS SECTION~ ................................................................... 133

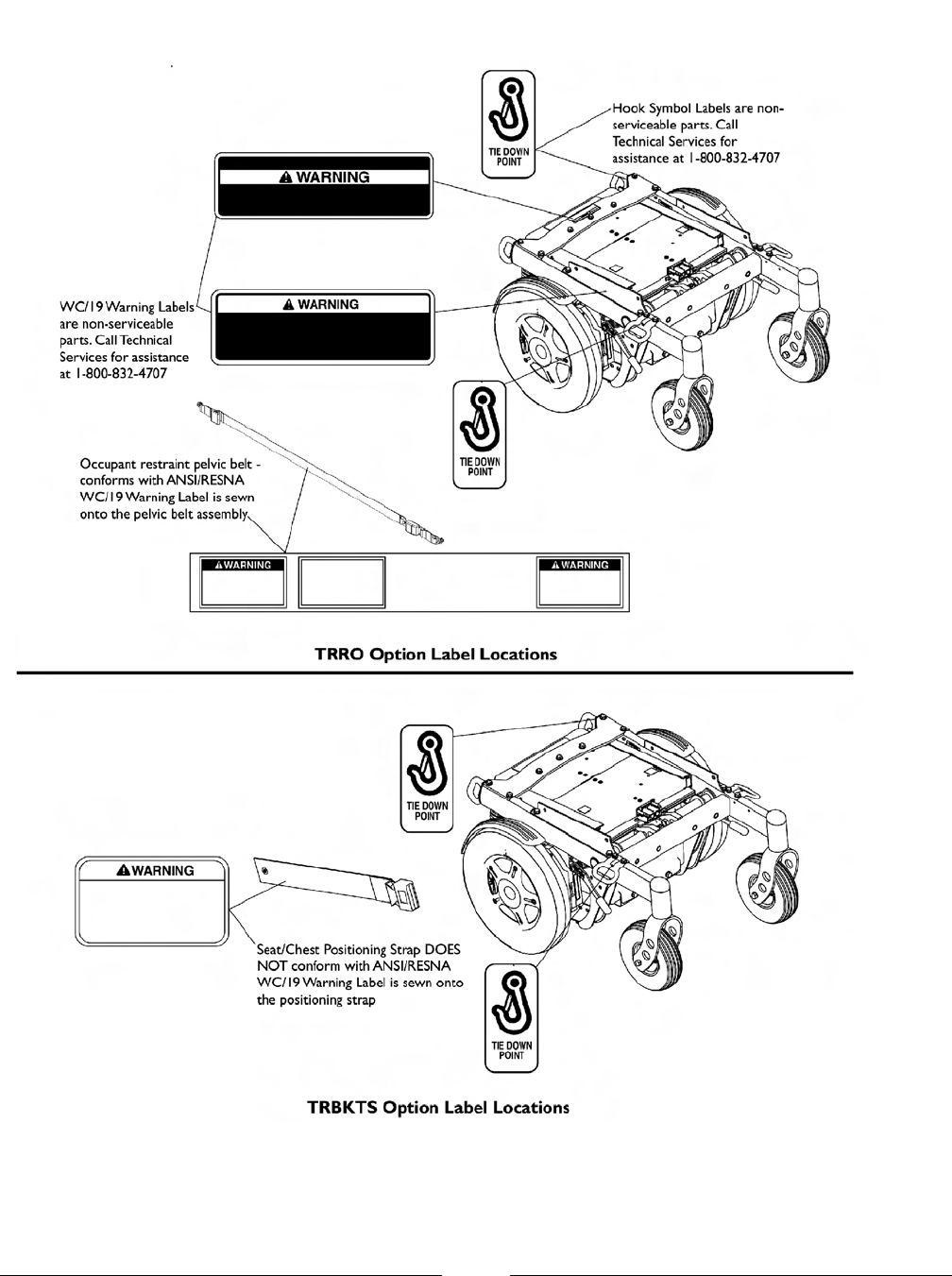

Label Locations For TRRO and TRBKTS Options ................................................................... 13
TABLE of CONTENTS
Description
Page
Number
4
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Asbly. Ref. Chart - MK6i Electronics (4-Pole After 10/8/06) & (GB After 5/21/07) 140
Motor/Gearbox Asbly. Ref. Chart - MKIV Electronics (4-Pole Before 10/9/06) & (GB Before
5/22/07)
134

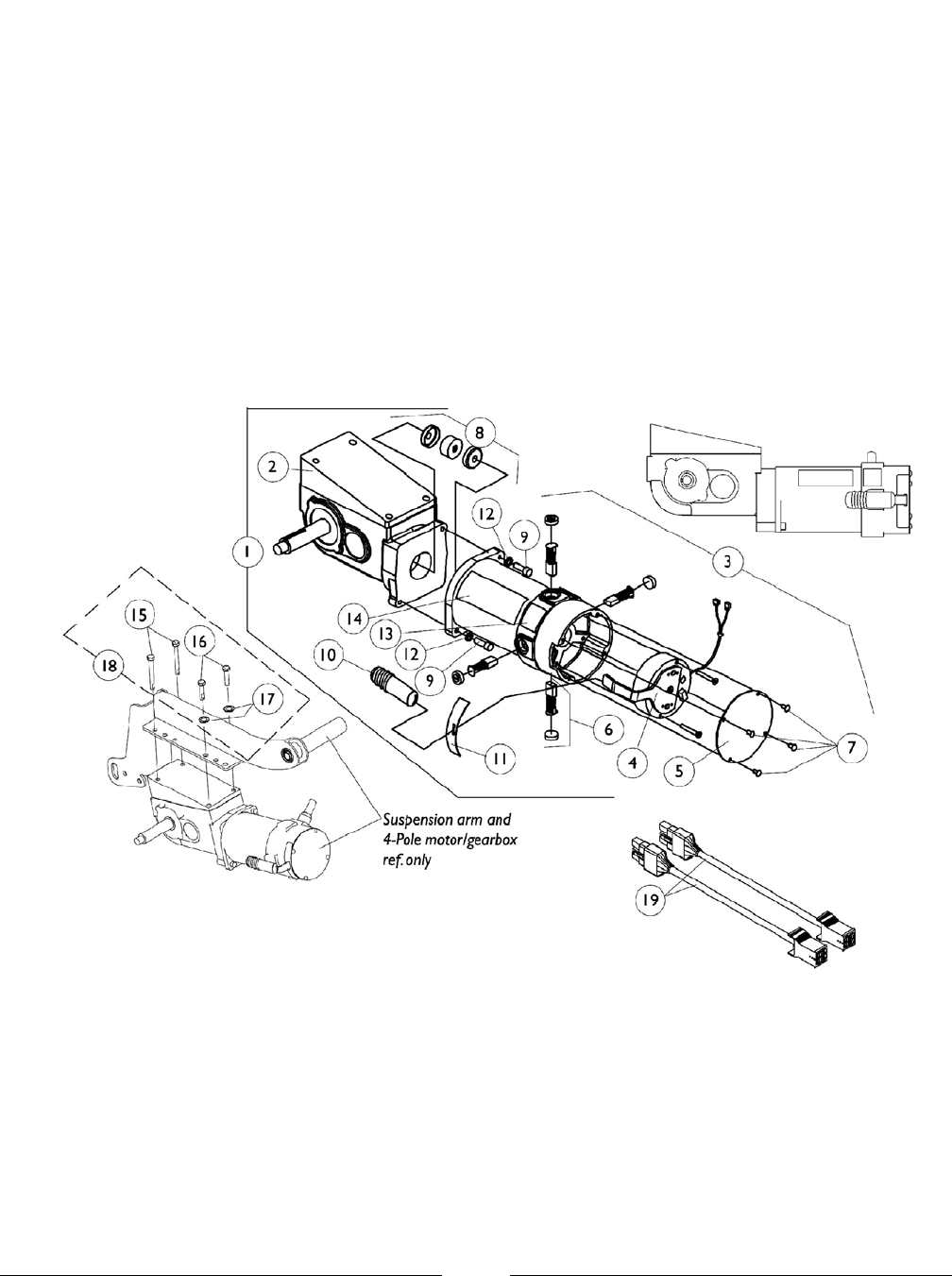

Motors, 4-Pole and Gearboxes For MK6i Electronics (After 10/8/06) ...................................... 149
Motors, 4-Pole and Gearboxes For MKIV Electronics (Before 10/9/06) ................................... 144
Motors, GB (TrueTrack) Non-Heavy Duty Motors & Hdwr. For MKIV Electronics Only ........... 156
Motors, GB HD (TrueTrack) Motors & Hdwr. For Both MKIV Elec.'s Before 5/22/07 & MK6i
After 5/21/07
162
Packaging, Literature and Decals ............................................................................................ 10
Seat Cushion Assembly, Contoura - ADJASBA Only .............................................................. 52
Seat Pan and Attaching Hardware, For ASBA Seat (Before 7/5/05) ........................................ 48

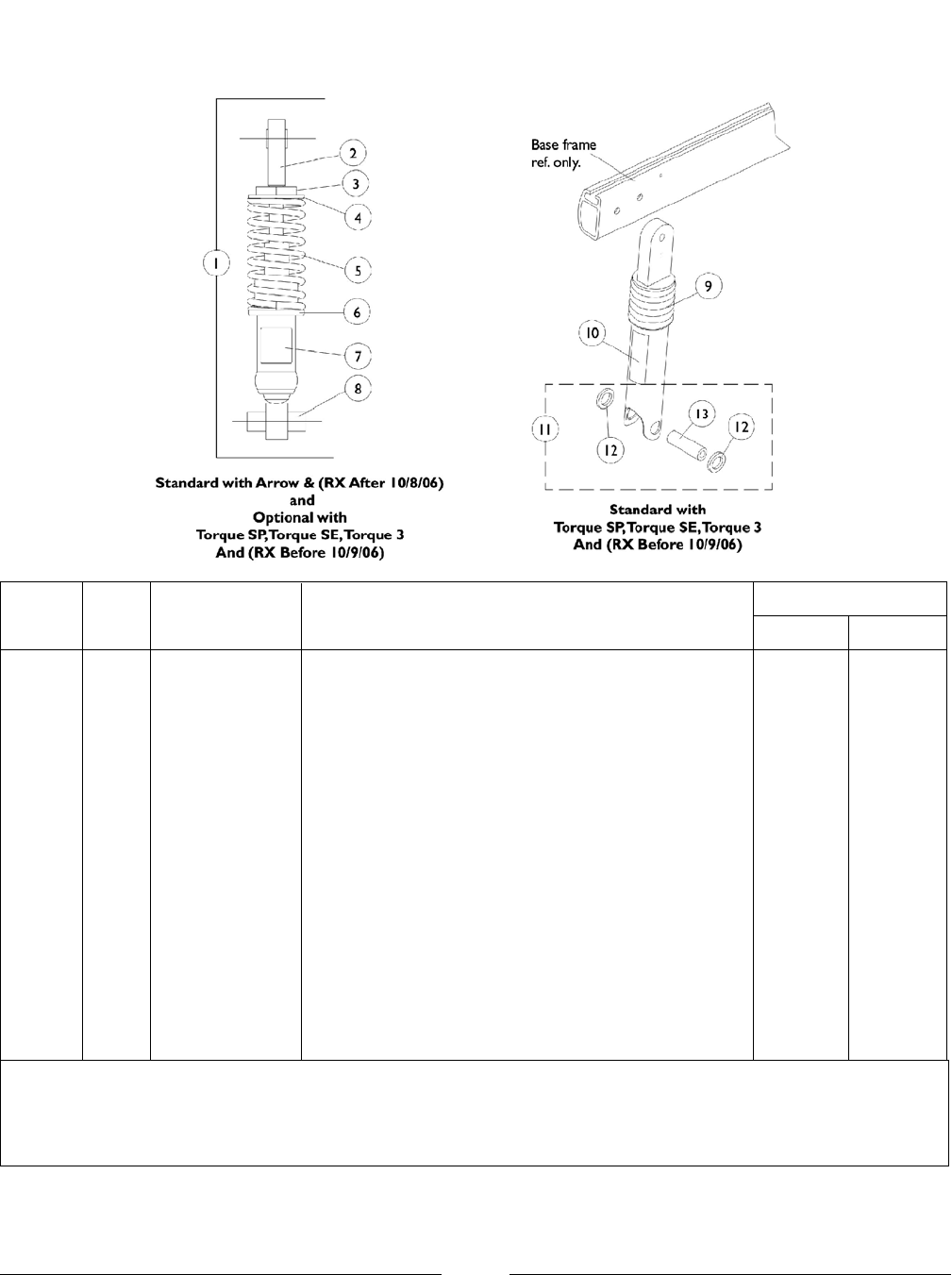

Shock Absorbers ...................................................................................................................... 123

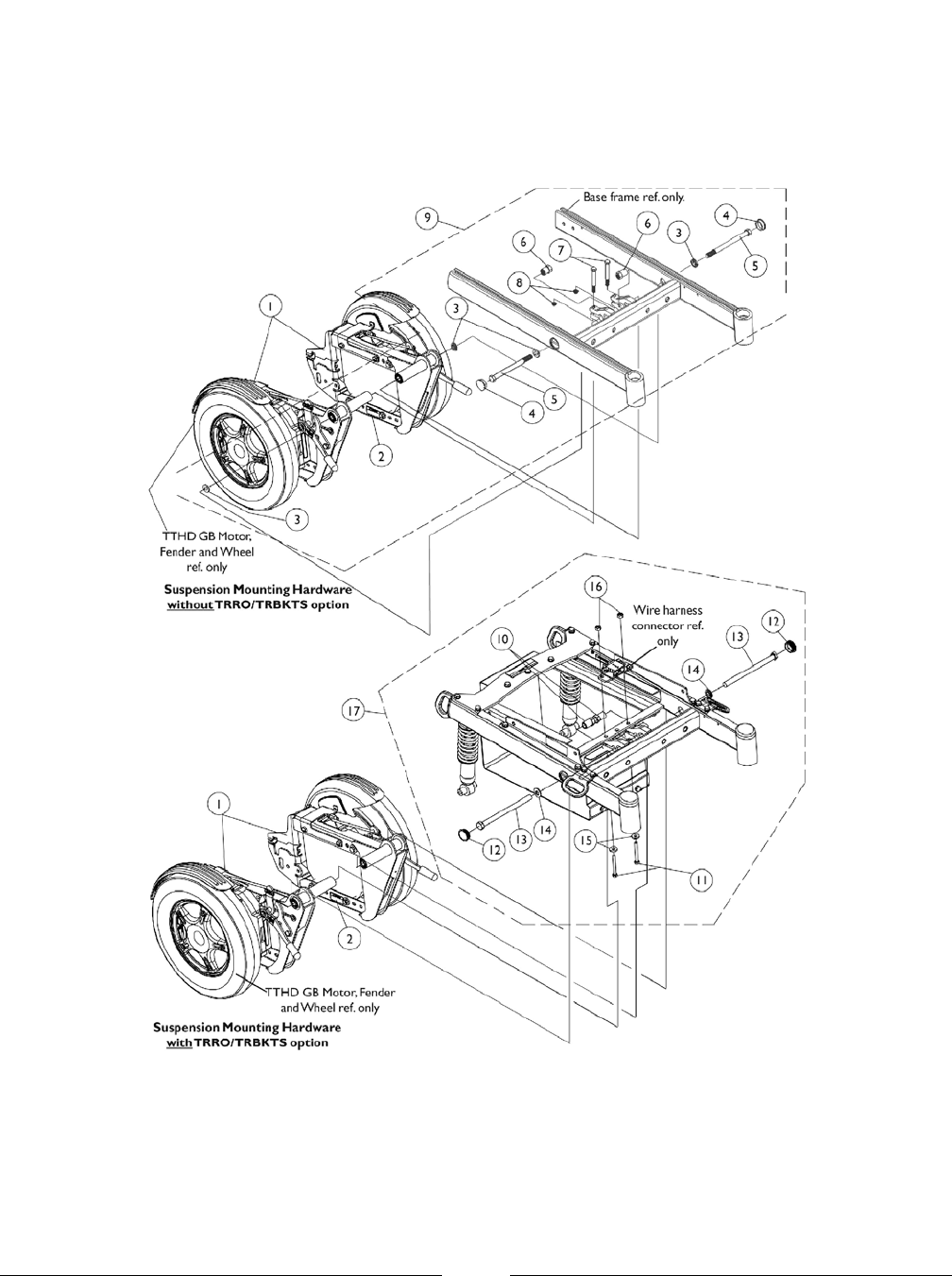

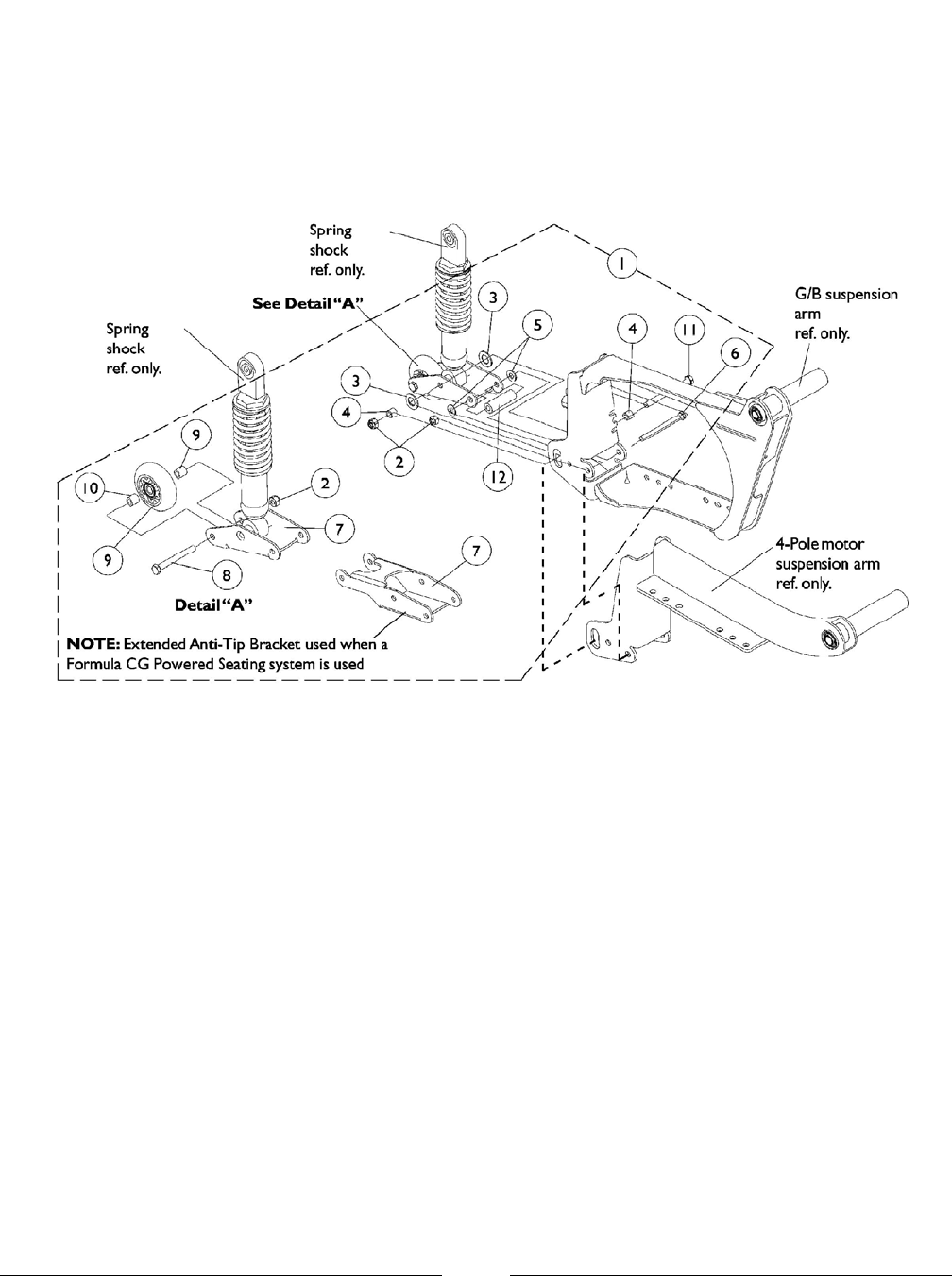

Shock Suspension Mounting Hardware ................................................................................... 124
Suspension Arm and Mounting Hardware - 4-Pole Motors ...................................................... 125
Suspension Arm and Mounting Hardware - Gearless/ Brushless ............................................ 127

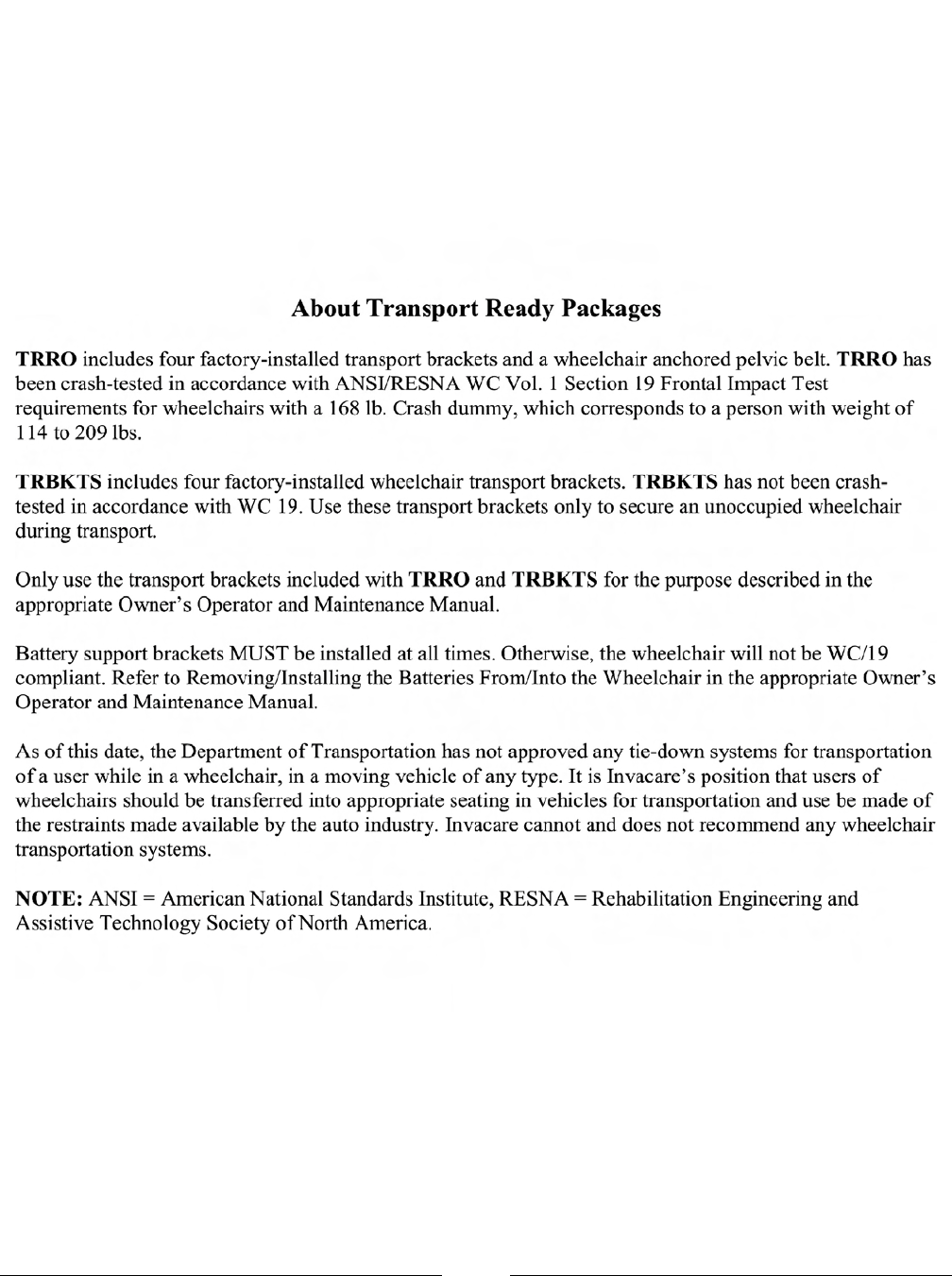

TRRO and TRBKTS Option Clarification Reference ................................................................ 14
Upholstery, Back - Nylon (Non-Recliner) ................................................................................. 77
Upholstery, Back - Recliner - Nylon ......................................................................................... 90
Upholstery, Back - Recliner - Vinyl ........................................................................................... 92
Upholstery, Back - Vinyl (Non- Recliner) ................................................................................. 80
Upholstery, Headrest and Pillows ............................................................................................ 94

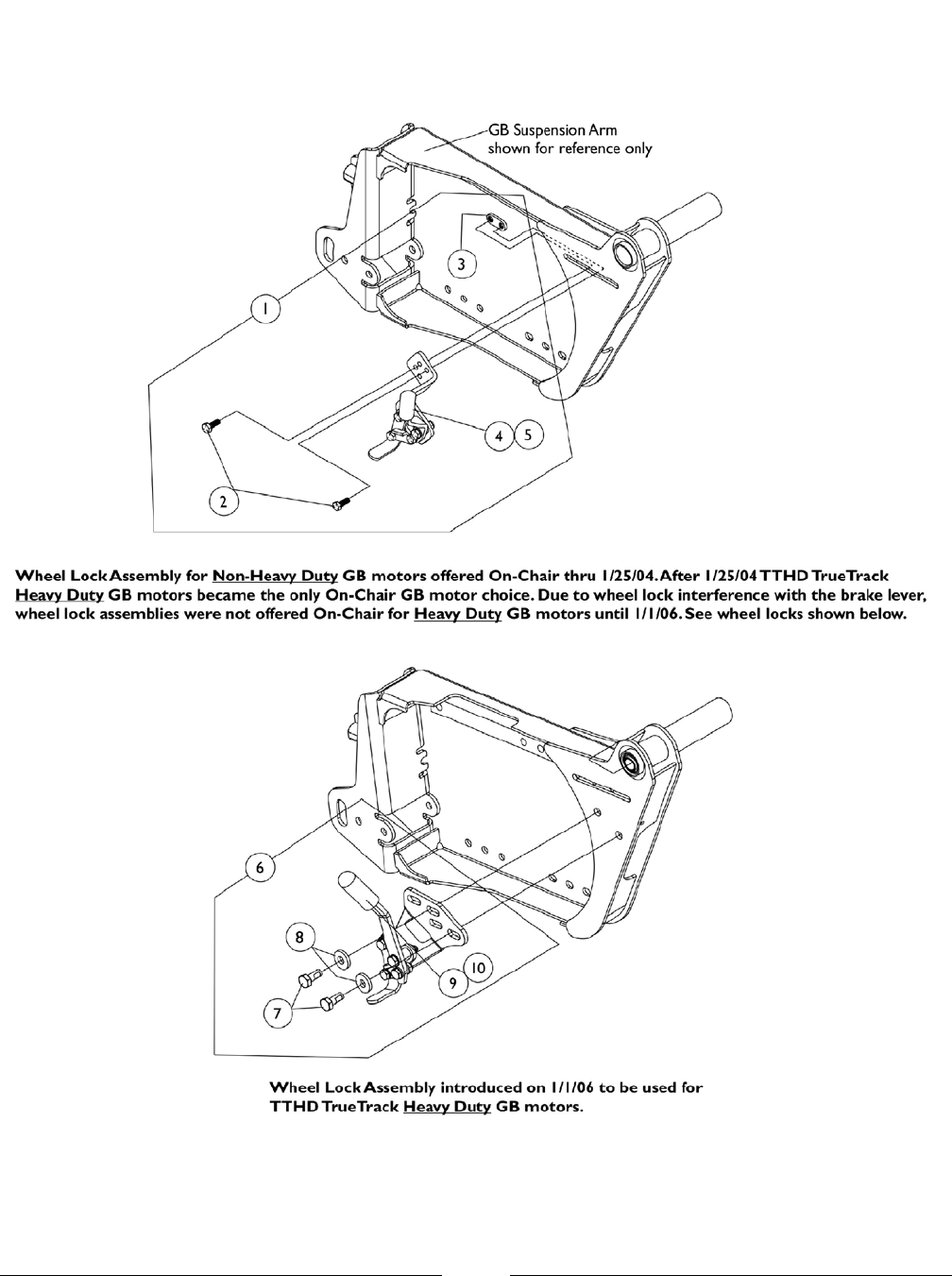

Wheel Lock Assembly - 4-Pole Motors .................................................................................... 189

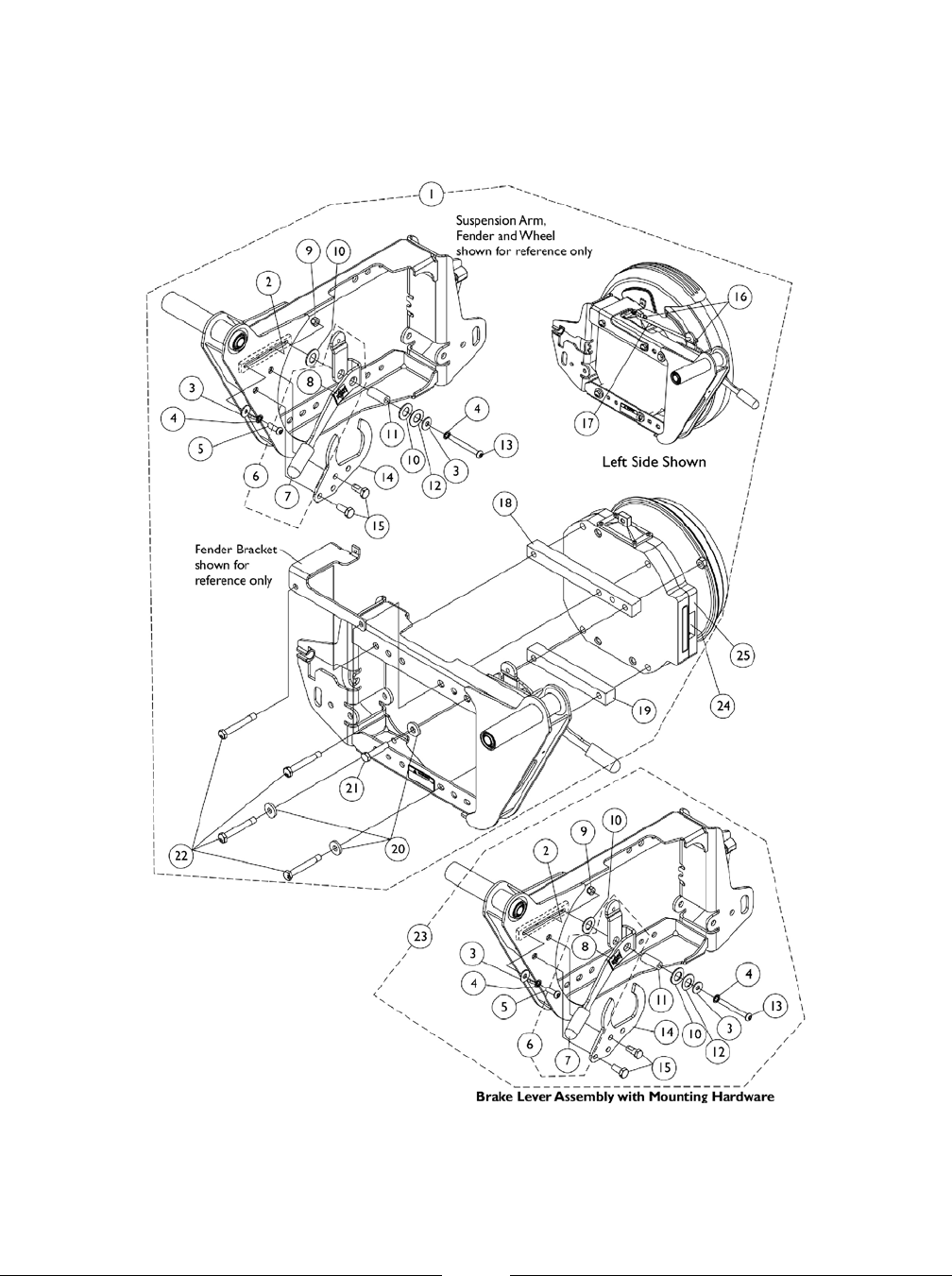

Wheel Lock Assembly - Gearless/Brushless ............................................................................ 190
TABLE of CONTENTS
Description
Page
Number
5
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

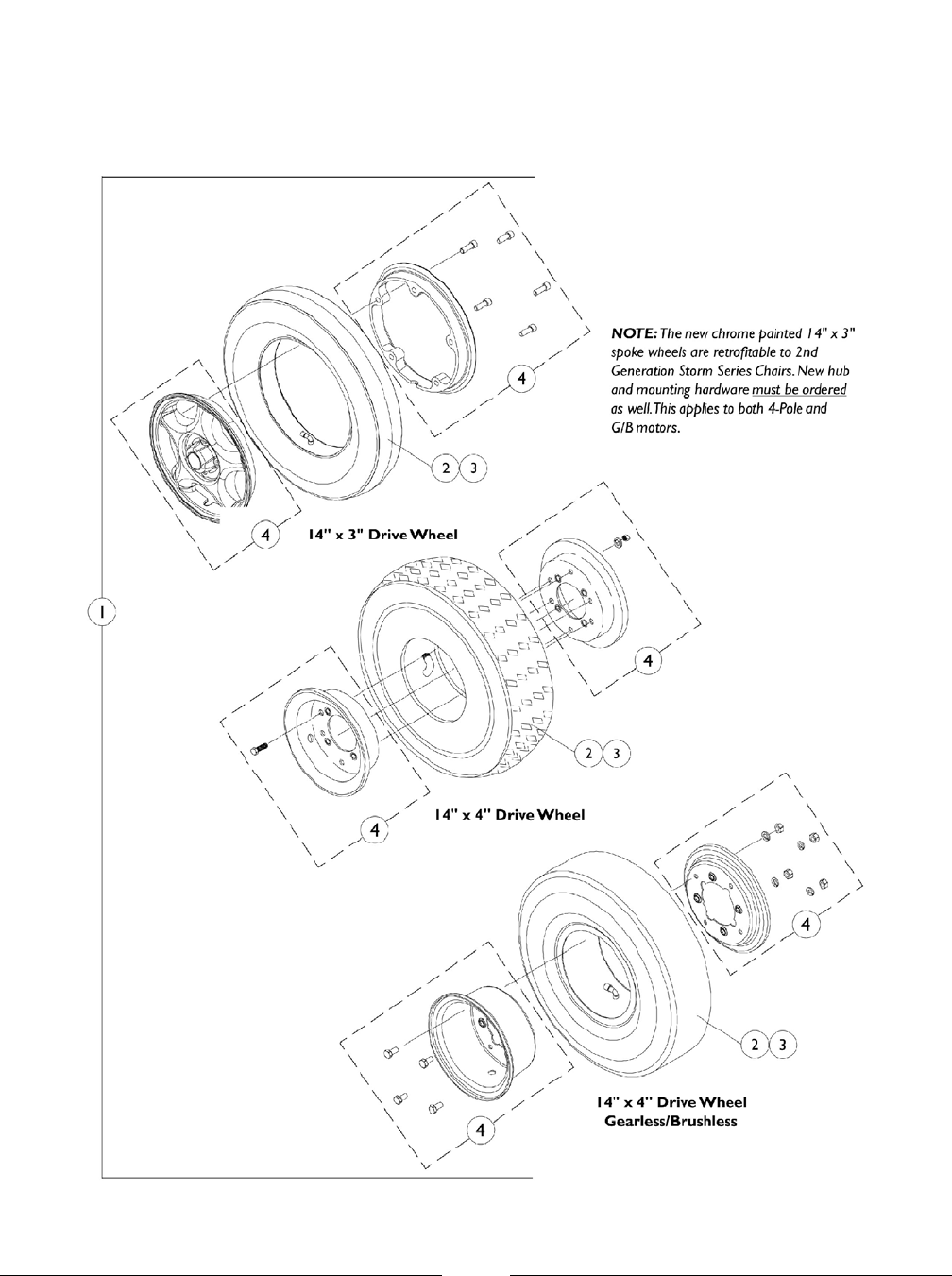

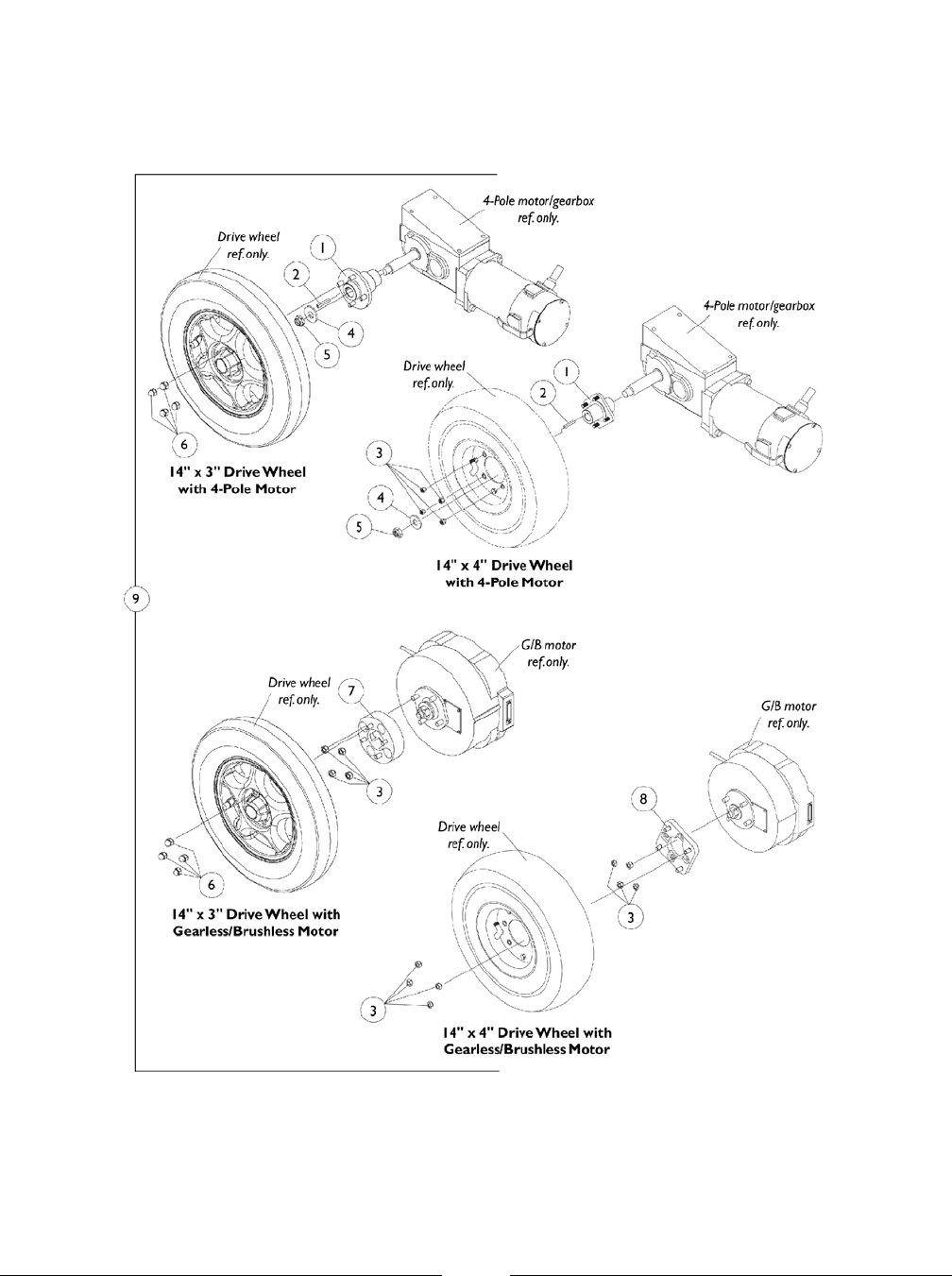

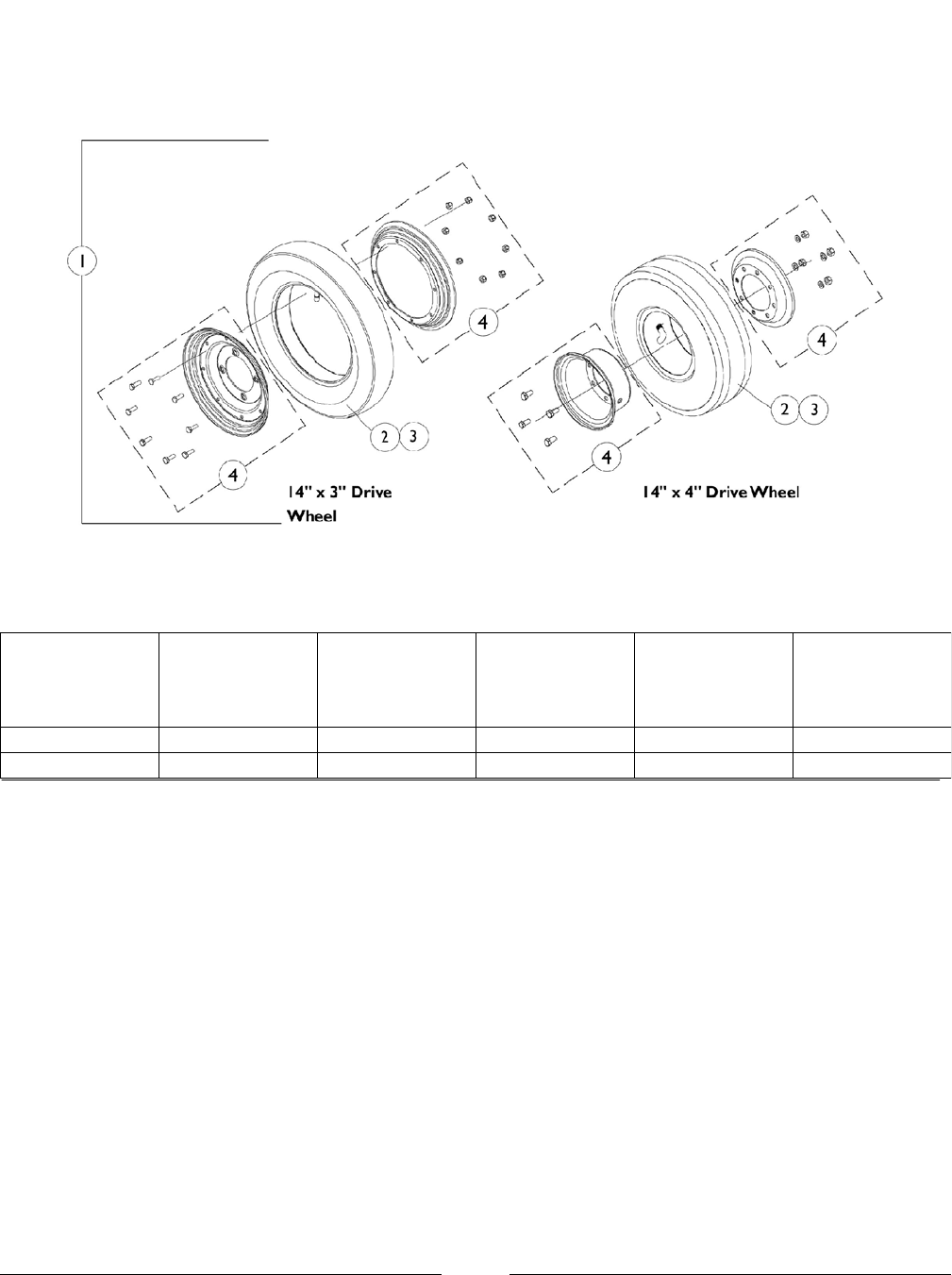

Wheels, Drive Wheel for Free Wheel Hubs (4-Pole Motors Only) ........................................... 180
Wheels, Drive Wheel for GB TrueTrack Heavy Duty (TTHD) Motors ...................................... 182
Wheels, Drive Wheel for Non-Free Wheel Hubs (4-Pole & GB Non-Heavy Duty Motors) ....... 178

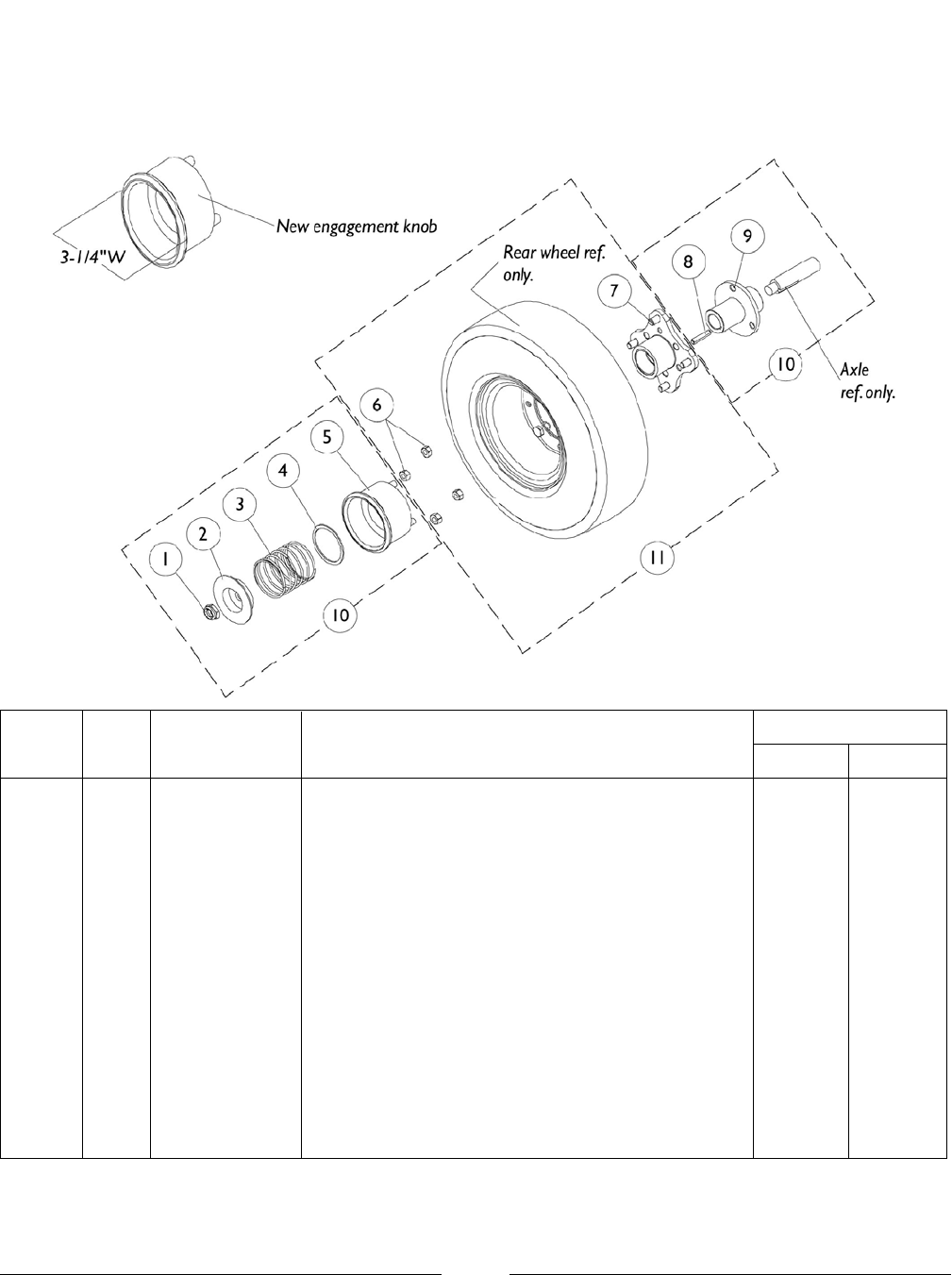

Wheels, Free Wheel Hub Kits (4-Pole Motors Only) ................................................................ 187
Wheels, Free Wheel Hub Mount and Hardware (4-Pole Motors Only) .................................... 186
Wheels, Non-Free Wheel Hub Mount and Hardware (4-Pole & GB Non-Heavy Duty Motors)
184
TABLE of CONTENTS
Description
Page
Number
6
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

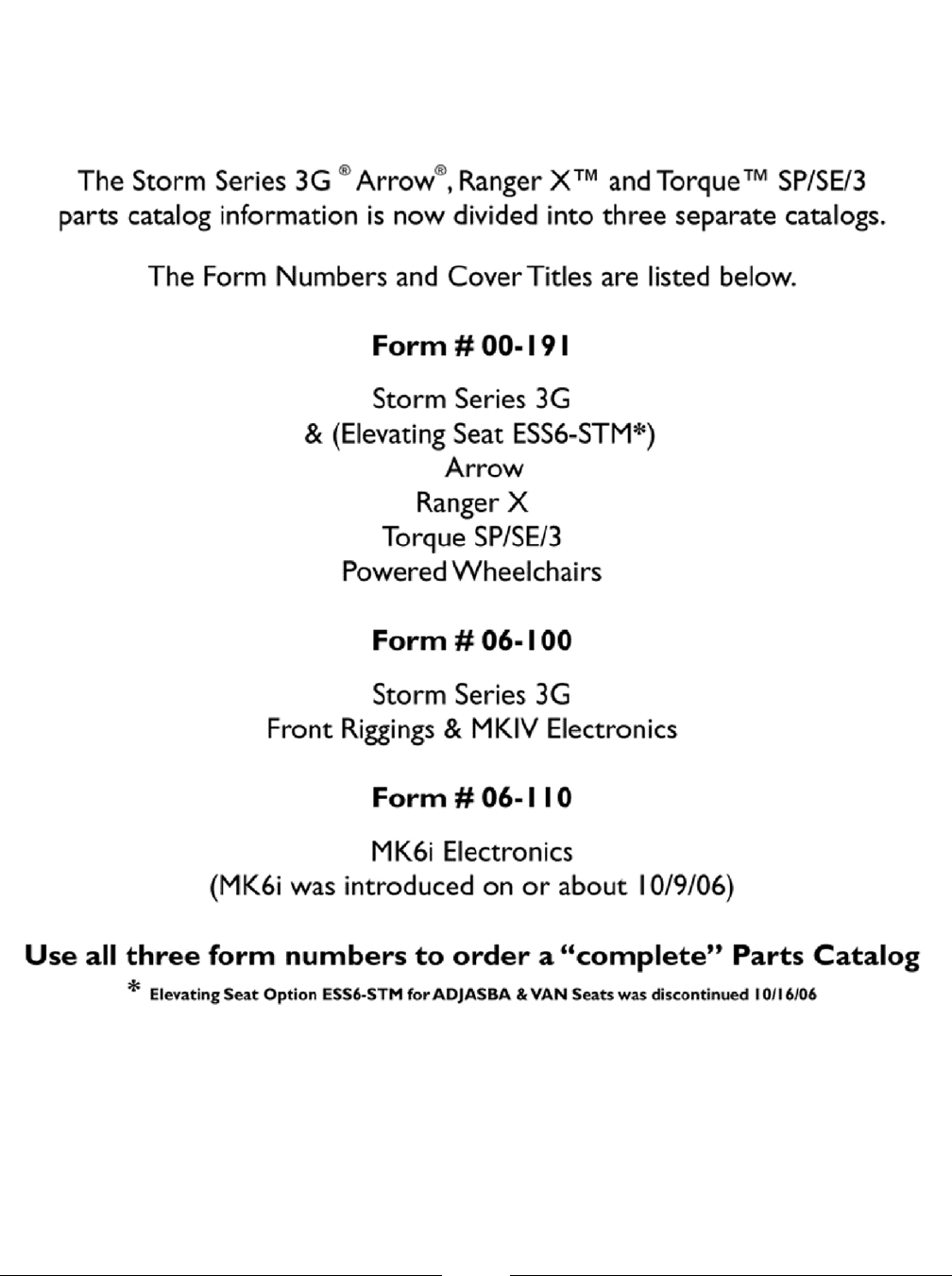

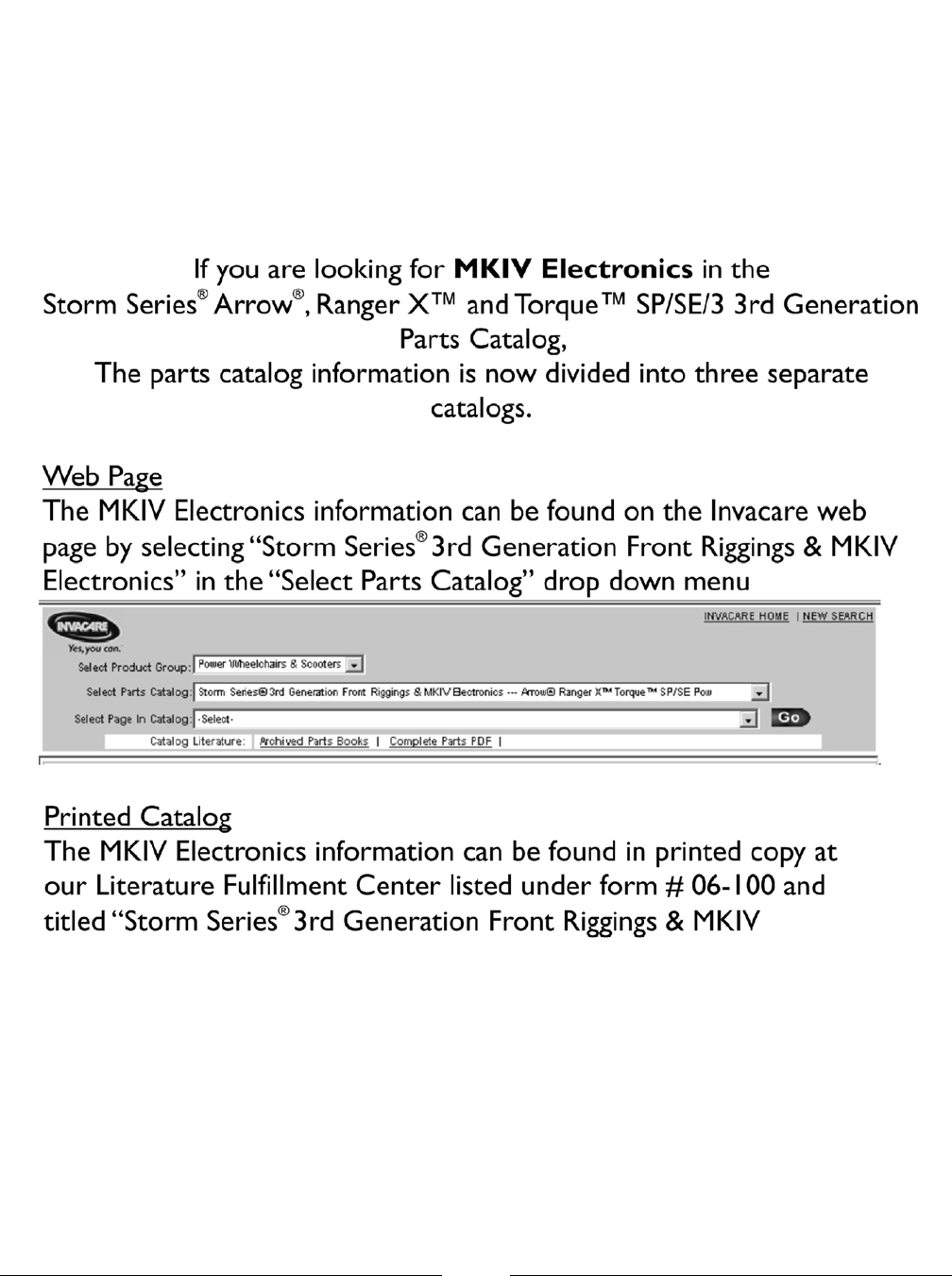

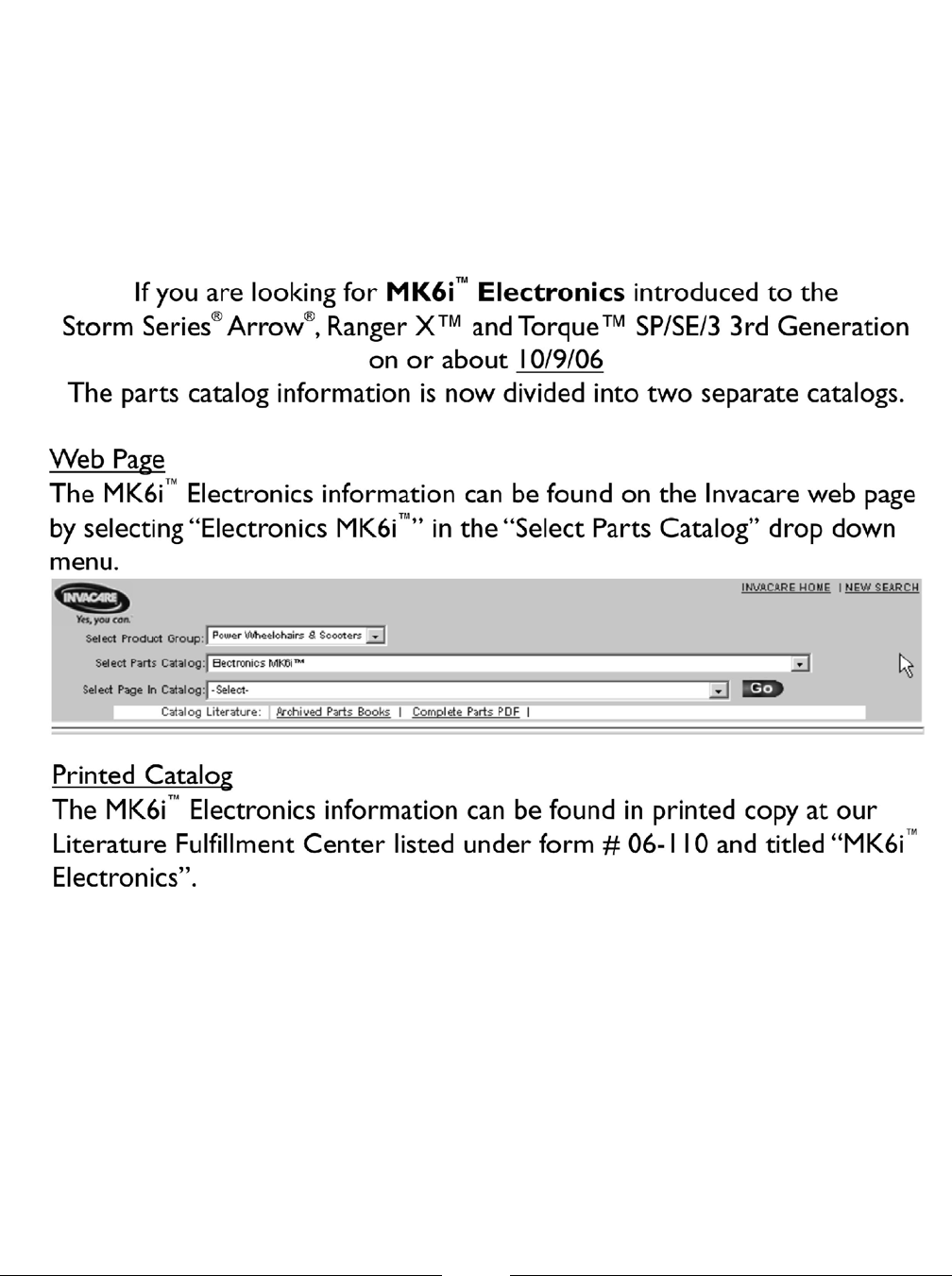

A: READ THIS FIRST (THIS CATALOG IS DIFFERENT!)
7
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Frame Finishes and Touch-Up Paint
Color Number Part Number Bottle Size Frame Finish
Deep Purple.6 oz.103145608P
Cobalt Blue.6 oz.104631917P
Anthracite.6 oz.103337622P
Wet Black.6 oz.103145024P
White.6 oz.103144729P
Sunny YellowN/AN/A30P
Red.6 oz.103145533P
Flat Black.6 oz.104632734P
Silver MetallicN/AN/A60P
Electric Red.6 oz.104632161P
Electric Blue.6 oz.104632062P
Electric Purple.6 oz.104632266P
Teflon Black.6 oz.1101320-NLA69P
Silver VeinN/AN/A71P
Evergreen with Navy.6 oz.107389280P
Royal Blue with Grape.6 oz.107389583P
Lavender.6 oz.107389684P
Jeweled Green.6 oz.1101325101P
Denim Blue.6 oz.1101327102P
Mocha Frost.6 oz.1101324103P
Electric Teal.6 oz.1101316104P
MIdnight Blue.6 oz.1101326105P
Black Prism.6 oz.1133371115P
Sunkissed Orange.6 oz.1133372116P
Tangerine Red.6 oz.1133373117P
Fruit Fusion.6 oz.1133374118P
Bubblegum Pink.6 oz.1133375119P
Grape Madness.6 oz.1133376120P
Lolly Pop Blue.6 oz.1133377121P
Cosmic Blue.6 oz.1133378122P
Celestial Purple.6 oz.1133379123P
Vivid Violet.6 oz.1133380124P
Emerald Green.6 oz.1133381125P
Shamrock Green.6 oz.1133382126P
Grasshopper Green.6 oz.1133383127P
Frame Finishes, Touch-Up Paints and Upholstery Options
8
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Frame Finishes, Touch-Up Paints and Upholstery Options
Sparkle Frame Finishes
Color Number Frame Finish
Wet Black with Twilight Sparkle88P
Upholstery Options
Vinyl Color Nylon Color
U240 BlackU67 Black
9
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Packaging, Literature and Decals
10
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

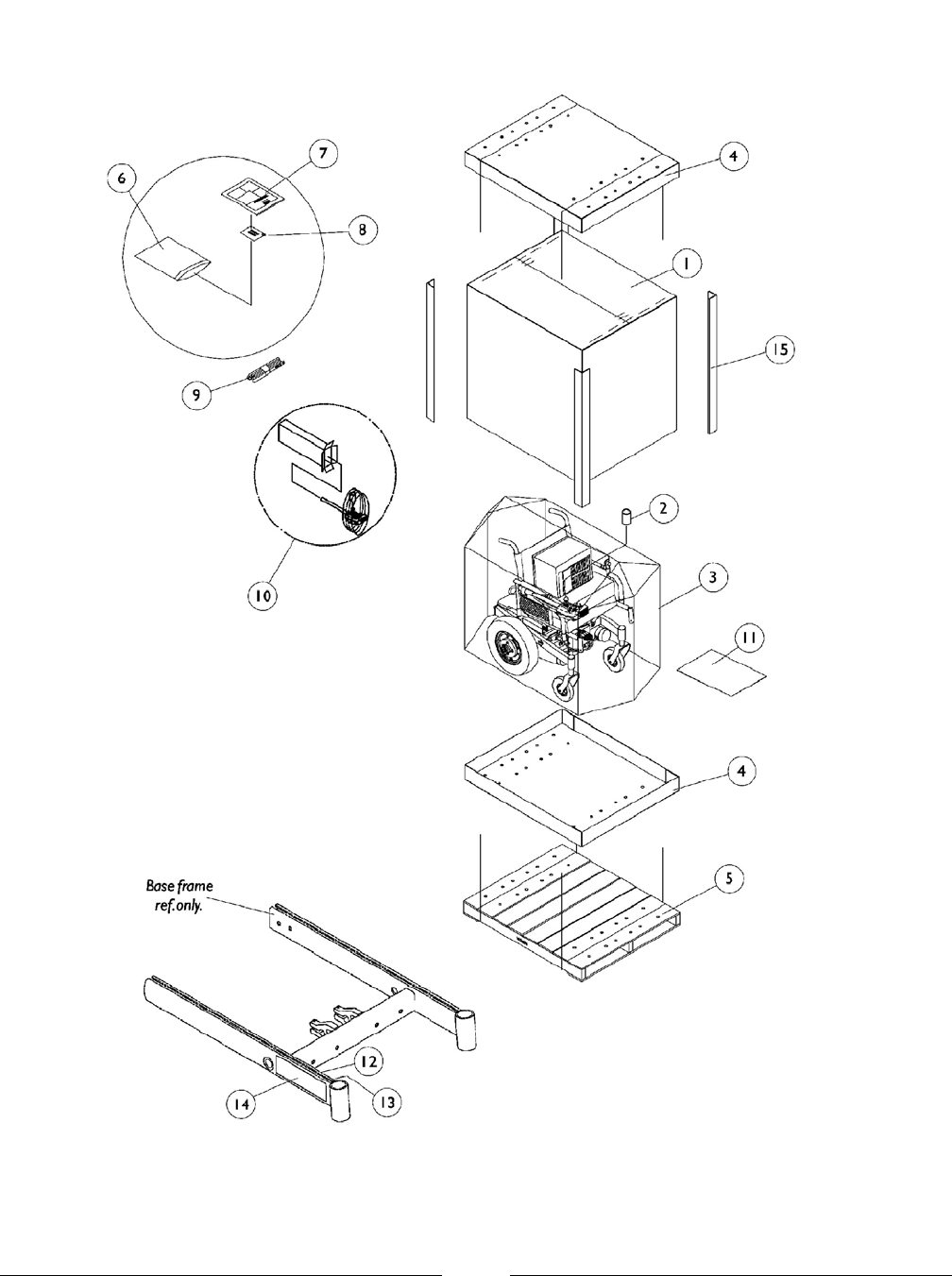

Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030364 Carton, Cover 1 11 A
1031682 Carton, Cover 1 11 B
1036028 Carton, Cover 1 11 C
1030365 Carton, Cover 1 11 D
1043198-NLA Tube, Paper 1 12
1015609-NLA Bag, Poly (28" W x 44" D x 80" H) 1 13
1030362 Carton, Tray 1 24 H
1036027 Carton, Tray 1 24 I
See Note See Footnote 1 15 K
1021149 Bag, Poly Zip-Lip (13" Long x 9" Wide) 1 16
1134791 Manual, Owner's 3G Storm w/ MKIV Electronics 1 17
1143151 Manual, Owner's 3G Storm Base w/ MK6i
Electronics 1 17
1143192 Manual, Owner's ADJASBA Seat w/ MK6i
Electronics 1 17
1143195 Manual, Owner's Van Seat's w/ MK6i Electronics 1 17
00077X031 Warranty Card 1 18
50000X121 Strap, Battery Lift 1 19
1012001 Carton, Joystick 1 110
40131X161 Insert, Plain Pad 1 111
1035900 Decal, Transportation 1 112
1119281 Name Plate, Patent Numbers 1 113
1133255 Decal, Torque SP Yellow 1 214
1144627 Decal, Torque SP Black 1 214 L
1146486-NLA Decal, Torque SE Yellow 1 214
1146487-NLA Decal, Torque SE Black 1 214 L
1151551 Decal, Torque 3 Yellow 1 214
1151552 Decal, Torque 3 Black 1 214 L
1133253 Decal, Arrow Yellow 1 214
1144625 Decal, Arrow Black 1 214 L
1133254 Decal, Ranger X Yellow 1 214
1144626 Decal, Ranger X Black 1 214 L
1115174 Carton, Corner Reinforcement 1 215 A
1129589 Carton, Corner Reinforcement 1 215 B
1129590 Carton, Corner Reinforcement 1 215 C
1104820 Decal Package, Torque SP Yellow 1 1F,G
1144630 Decal Package, Torque SP Black 1 1F,G,L
1146488-NLA Decal Package, Torque SE Yellow 1 1F,G
1146489-NLA Decal Package, Torque SE Black 1 1F,G,L
1151553 Decal Package, Torque 3 Yellow 1 1F,G
1151554 Decal Package, Torque 3 Black 1 1F,G,L
1104818 Decal Package, Arrow Yellow 1 1F,G
1144628 Decal Package, Arrow Black 1 1F,G,L
1104819 Decal Package, Ranger X Yellow 1 1F,G
11
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Packaging, Literature and Decals
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1144629 Decal Package, Ranger X Black 1 1F,G,L
1079515 Kit, T-Nut with Instruction Sheet 1 1E,G
1104863 Cover Package, Frame Rail (Right/Left) 6 1G,J
A - 12" W - 20" W Non-Recliner, Extended and H.B. Captain Seats 18" W
B - 16" W - 20" W Recliner and 16" W - 20" W Non-Recliner w/Medium/Tall Seat-to-Floor
C - 21" W - 24" W Non-Recliner and Recliner, H.B. Captain Seat 22" W
D - Base only and all A.S.B.A. seat only models
E - Used with Storm base only
F - Decal package includes 2 ea. model, 1 ea. transportation and 1 ea patent numbers decals.
G - Not Shown
H - 12" W - 20" W Chairs and Base Only
I - 21" W - 24" W Chairs
J - 3 each Right and Left
K - Skid not supplied
L - Black Decal is used whenever frame color 30P, Sunny Yellow is ordered.
NOTE: When adj
usting or replacing parts, please refer to your Owner's Manual for assistance.
NOTE:
12
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

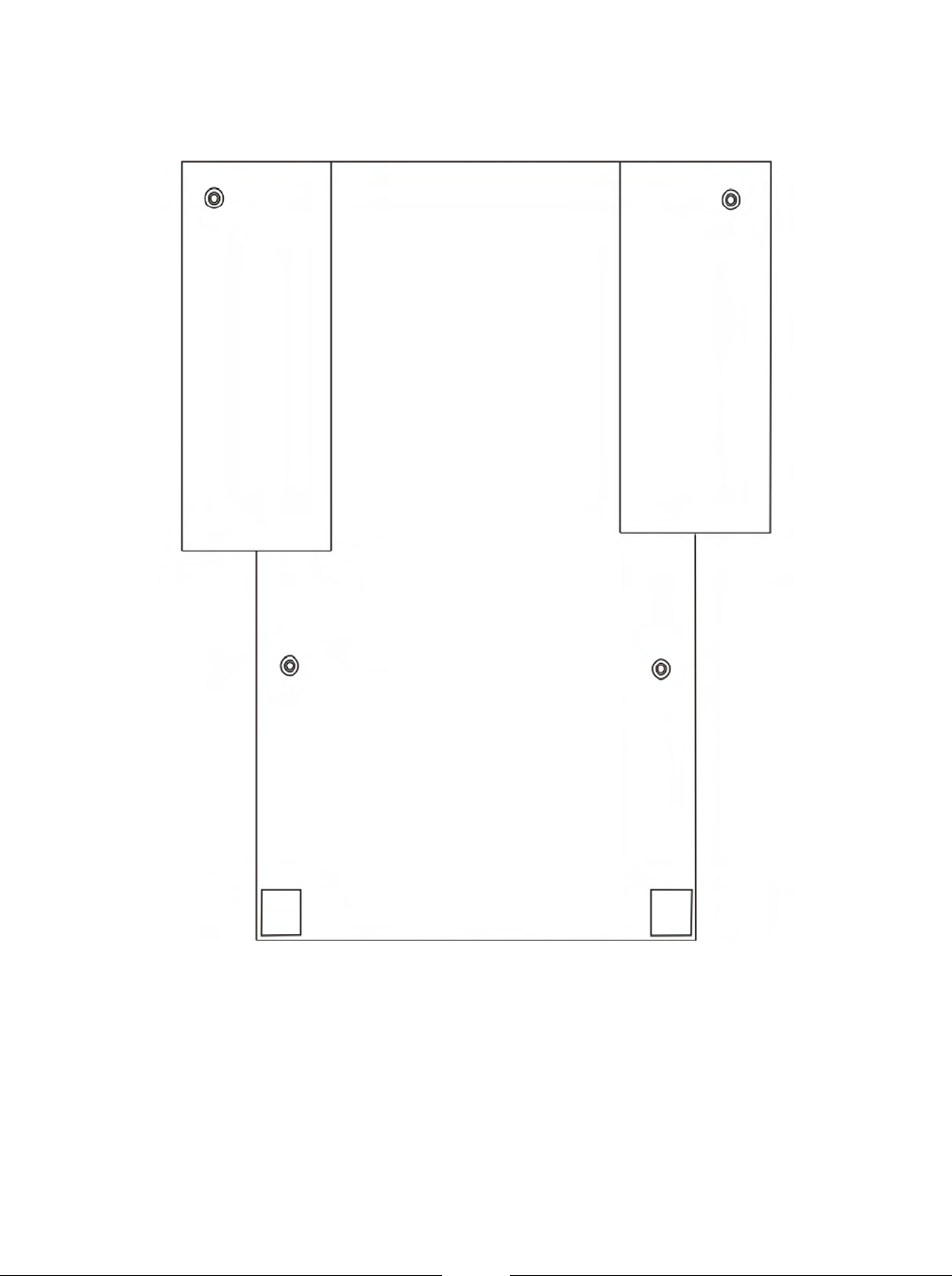

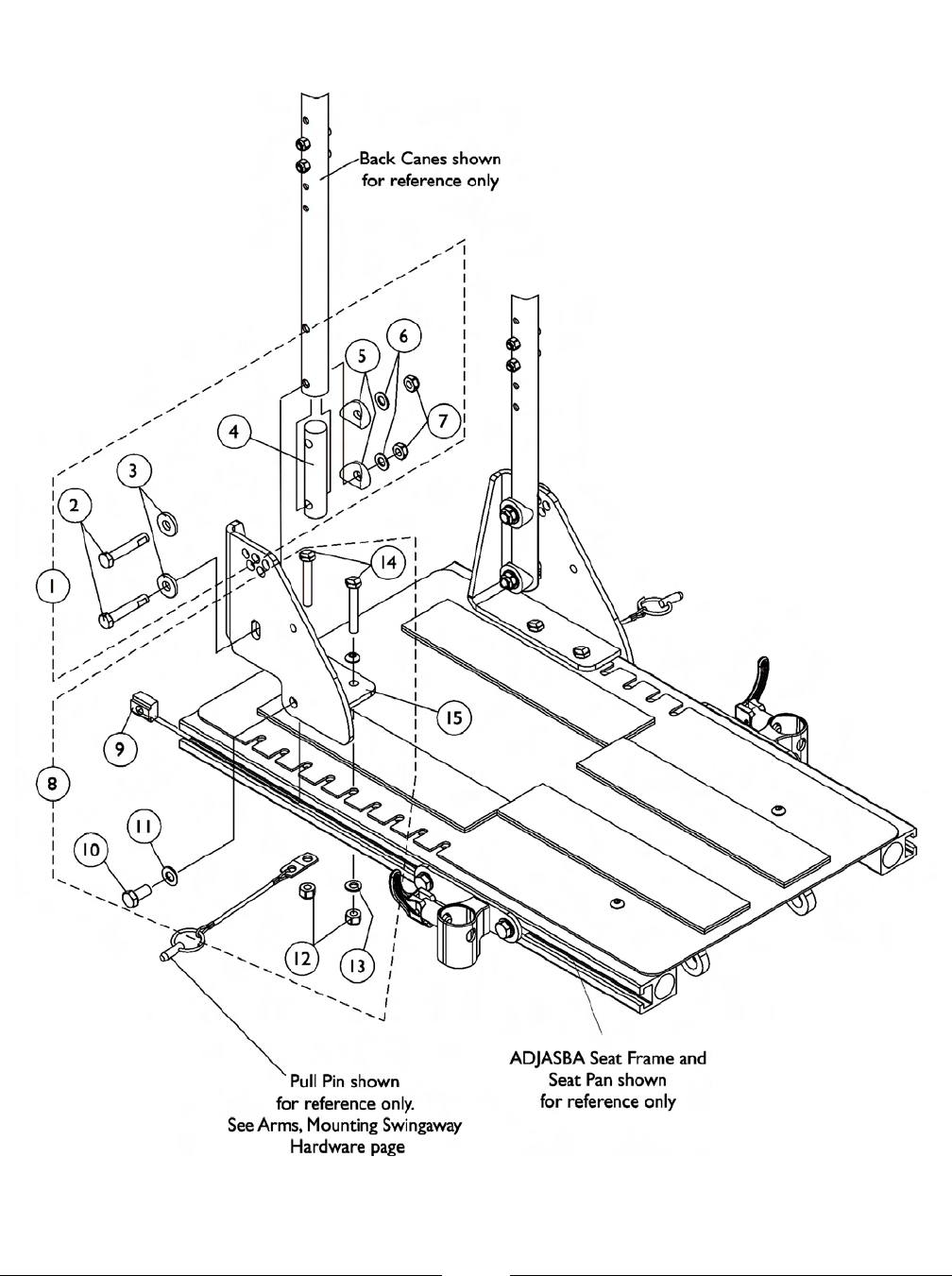

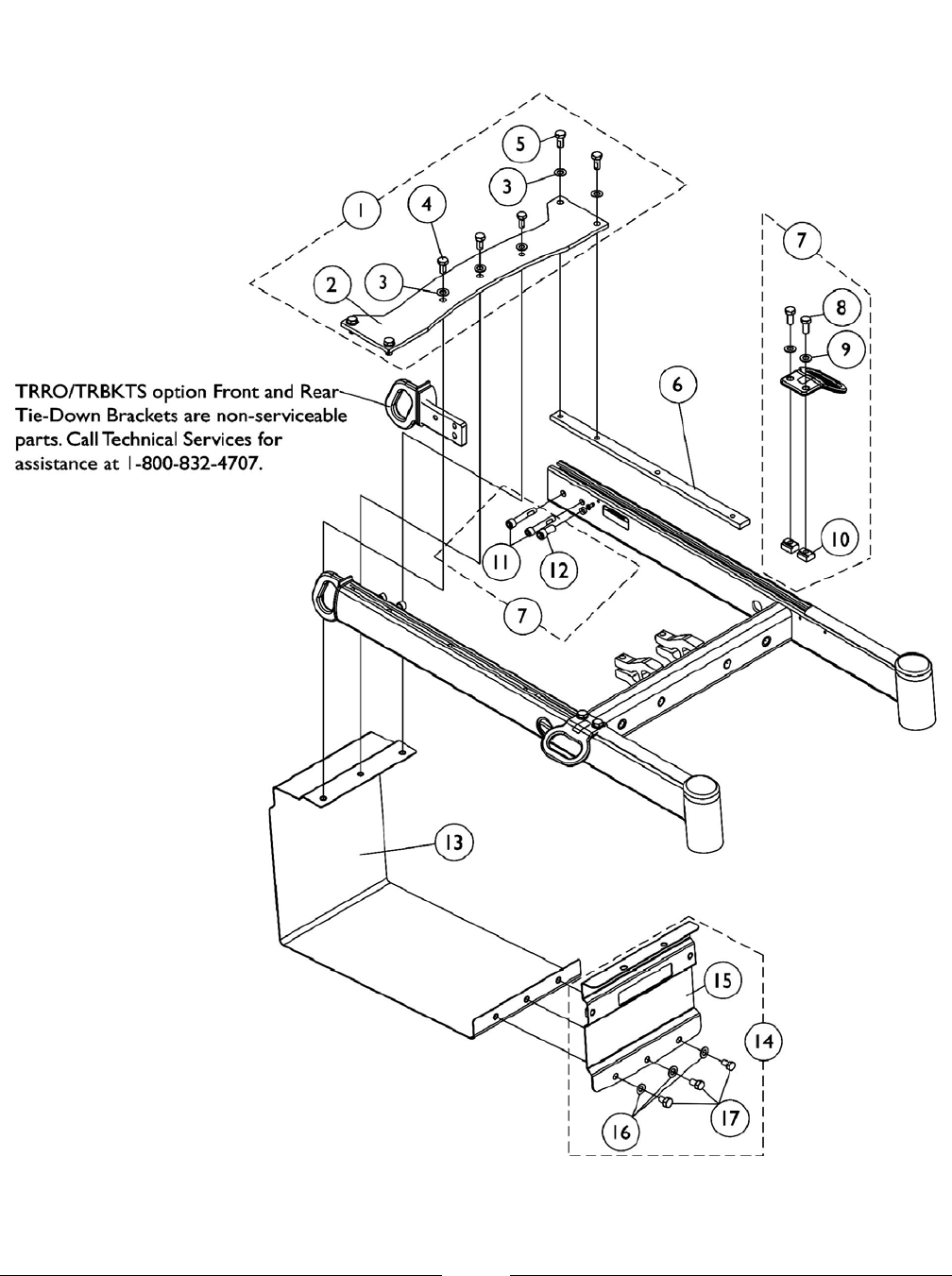

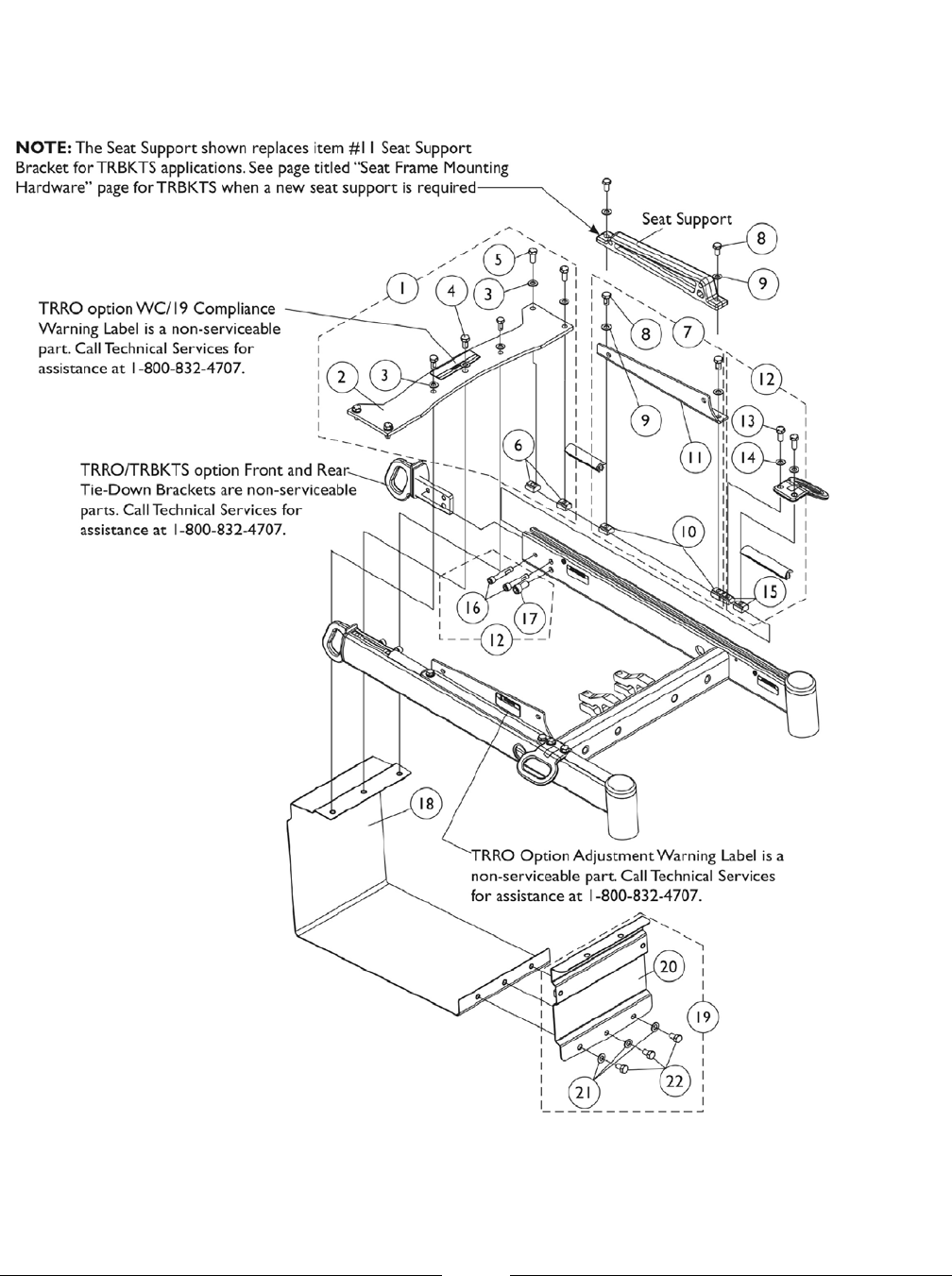

Label Locations For TRRO and TRBKTS Options
13
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

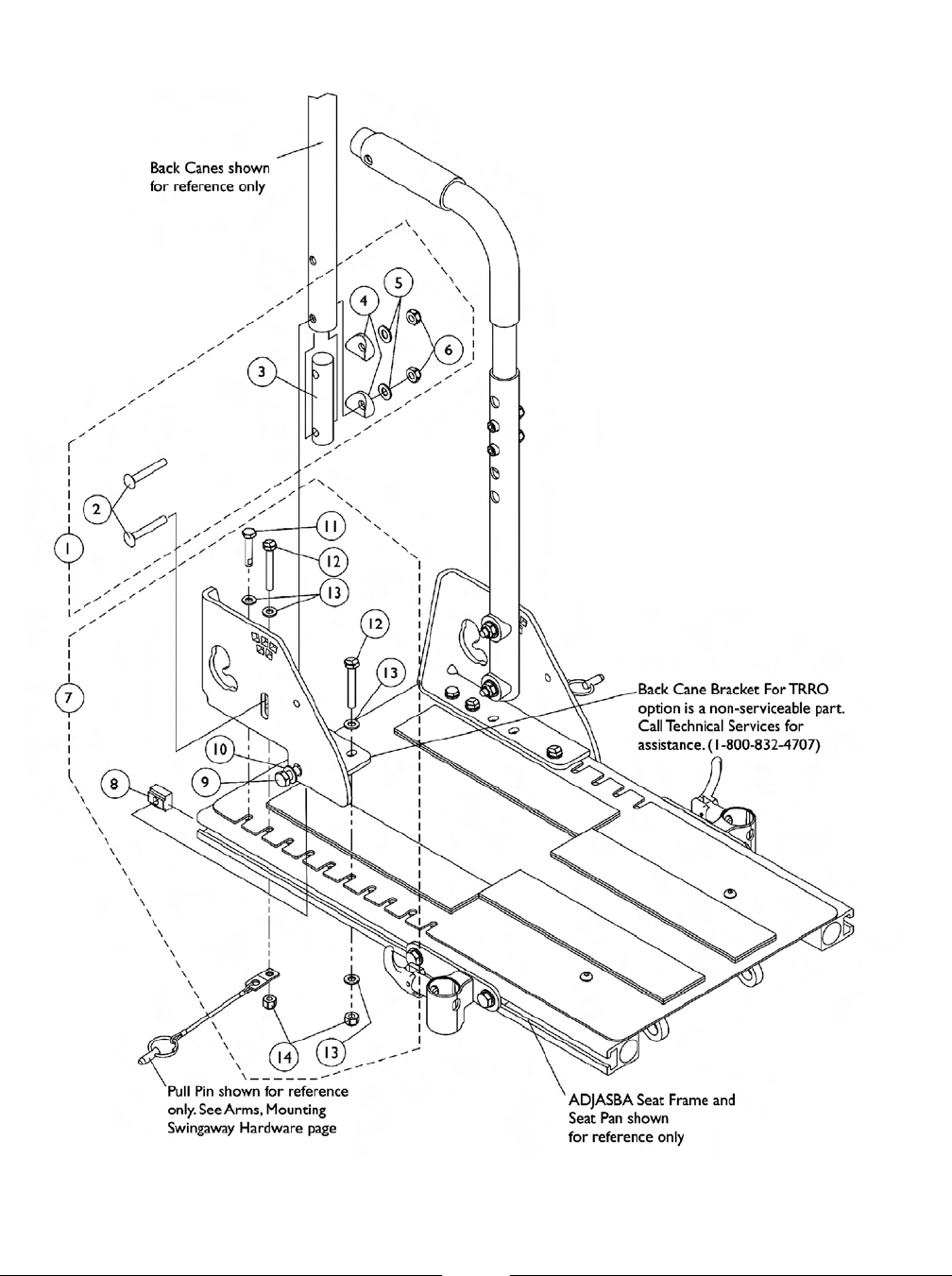

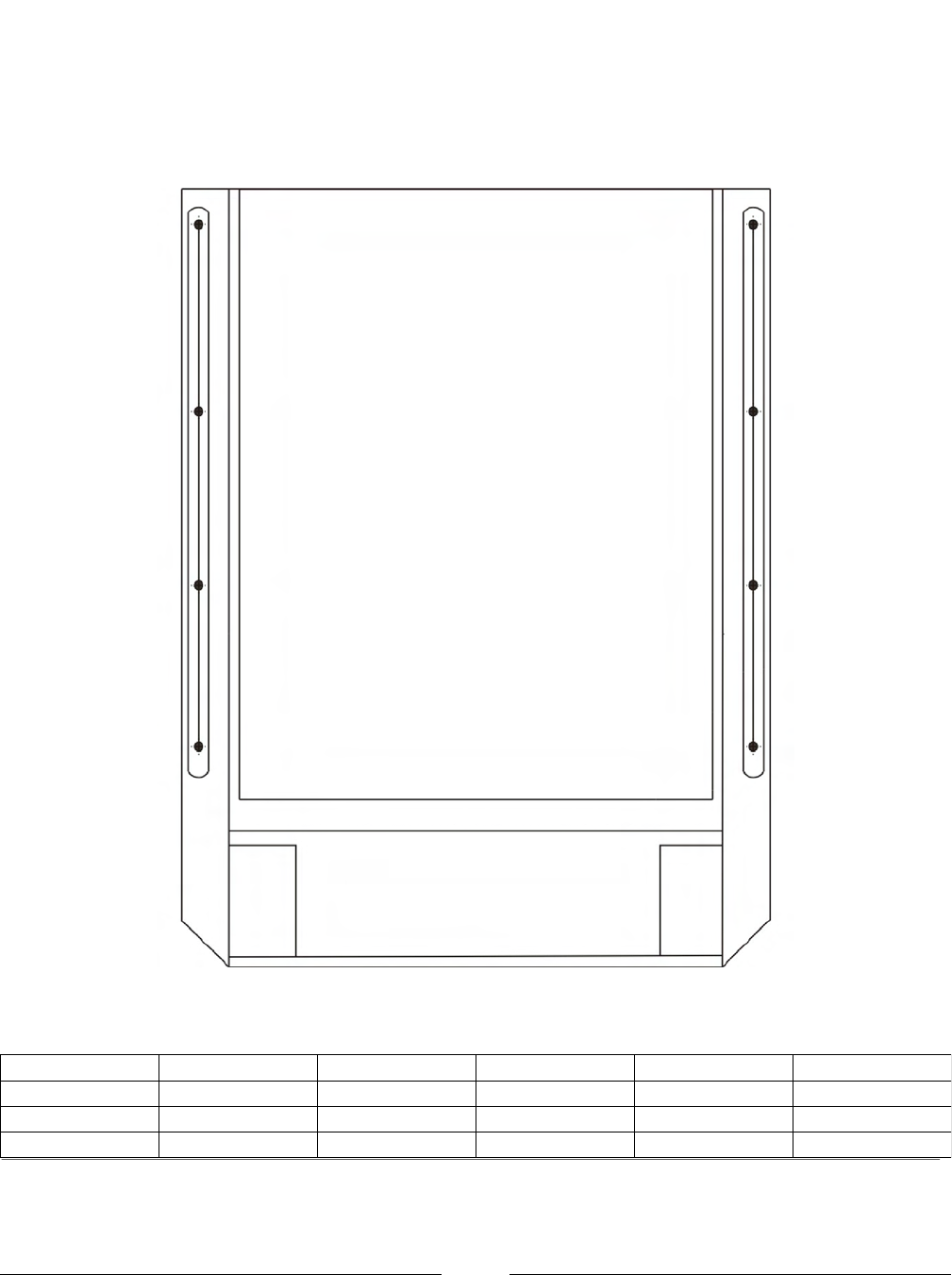

TRRO and TRBKTS Option Clarification Reference
TRRO and TRBKTS Option was introduced 12/19/05 as an On-Chair option only.
14
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

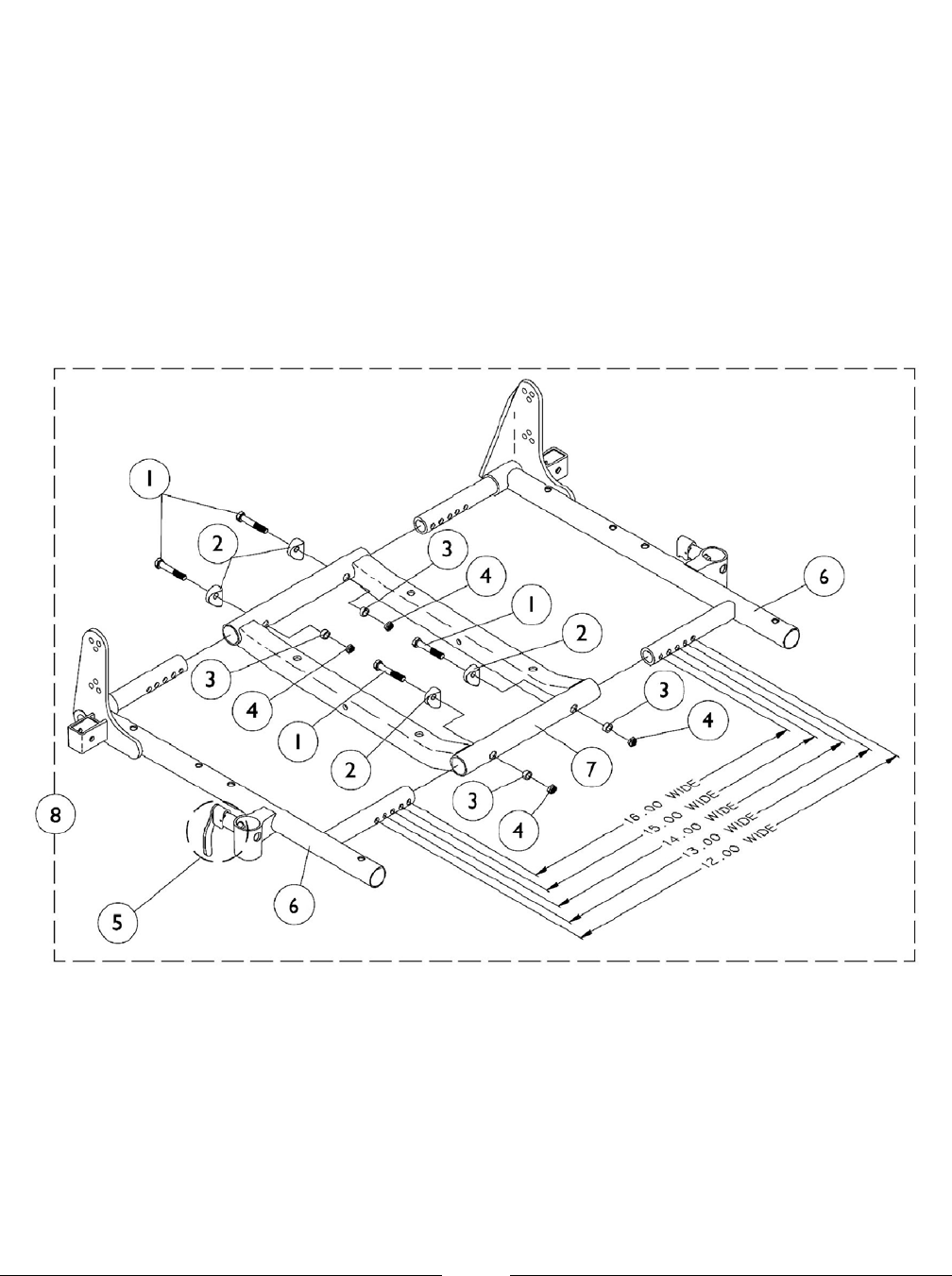

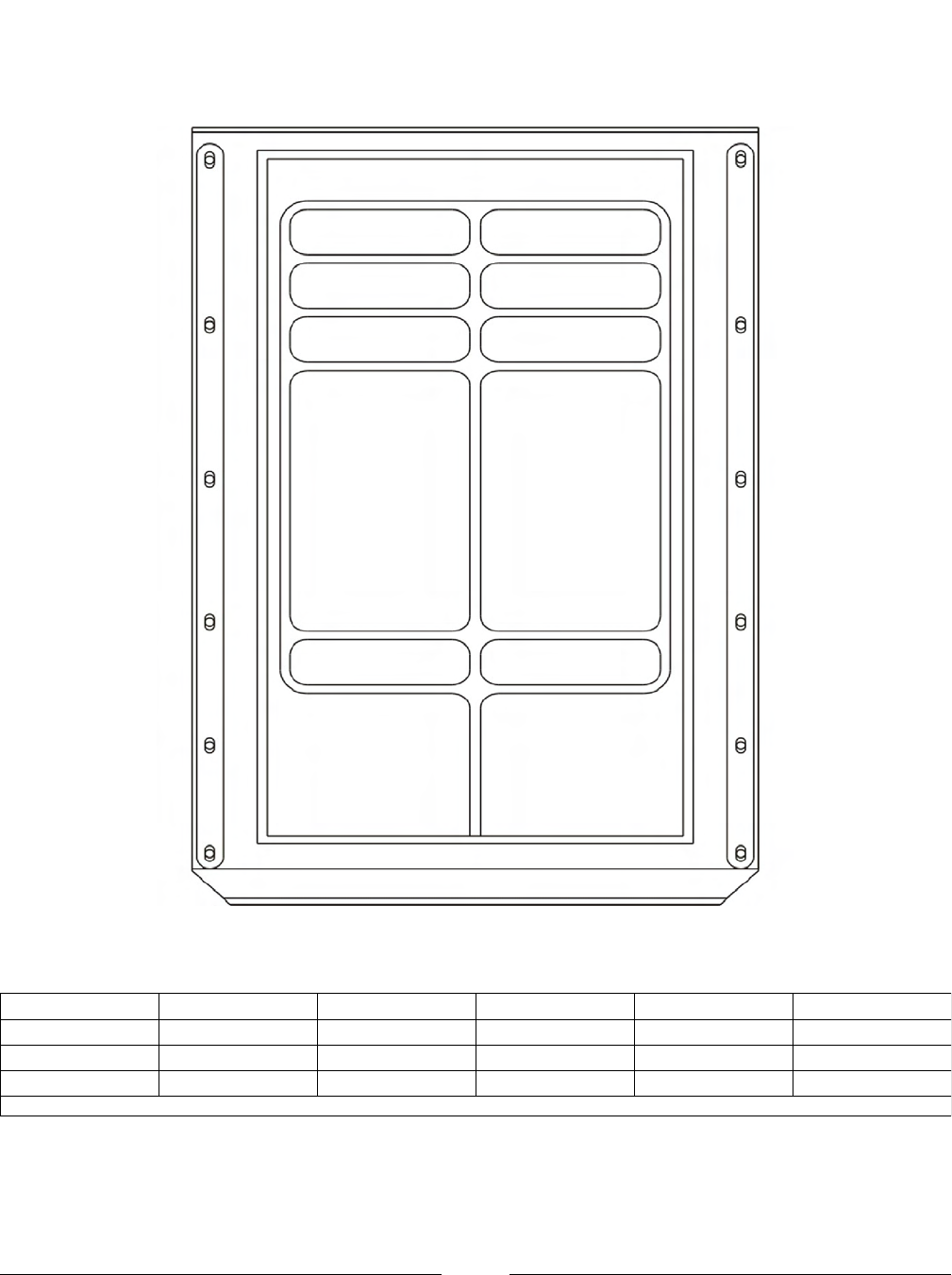

ASBA Seat Frame and Hardware
(12"-15" Wide) (Before 7/5/05)
The 16" wide setting is not used for 3G Storm Series models
15
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ASBA Seat Frame and Hardware
(12"-15" Wide) (Before 7/5/05)
The 16" wide setting is not used for 3G Storm Series models
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 41
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 42
1047449 Spacer (1/4 x 3/8 x 3/16") 1 43
1025736 Locknut (1/4-20) 1 44
47471X074 Spring, Arm Lock 1 15
1028594 Pin, Arm Lock 1 15
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 15
See Chart #'s 6-8 ASBA Seat Frame and Hardware 1 16-8
#'s 6-8 Seat Frames
Item
Number 14"-15" W
20"-21" D 14"-15" W
22" D
Description 12"-13" W
12"-15" D 14"-15" W
12"-15" D 14"-15" W
16"-17" D 14"-15" W
18"-19" D
107053010705281070526107047310704731070473
Seat Frame
Right
6
See Note(s) A
107053110705291070527107047410704741070474
Seat Frame
Left
6
See Note(s) A
107053310705331070476107047610704761070476
Seat Frame
Center
7
107053610705351070534107046910704691070469
Seat Frame
Assembly
8
See Note(s) B
A - Seat frame includes item 5 arm lock assembly.
B - Includes items 1-7
NOTE:
16
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

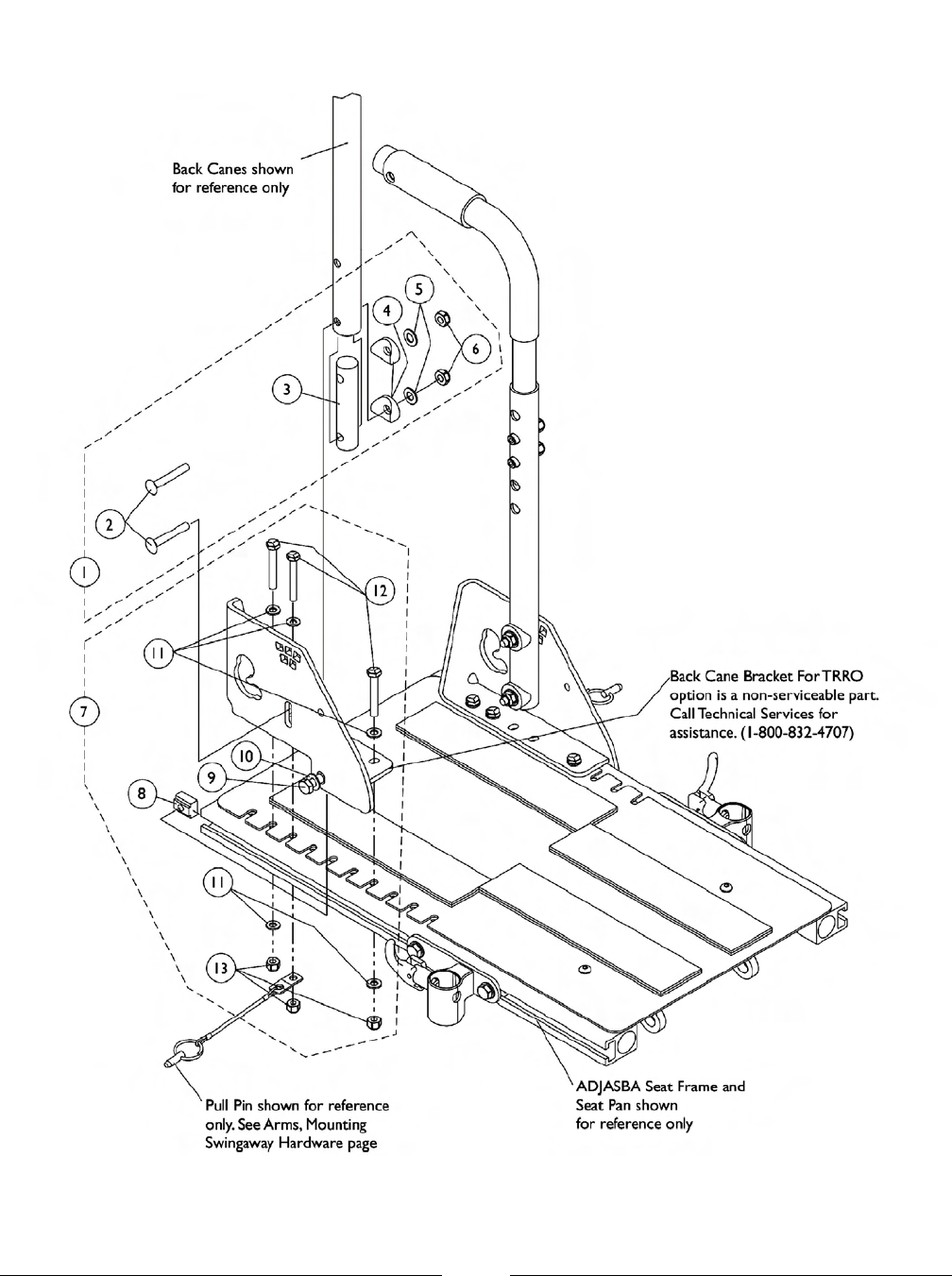

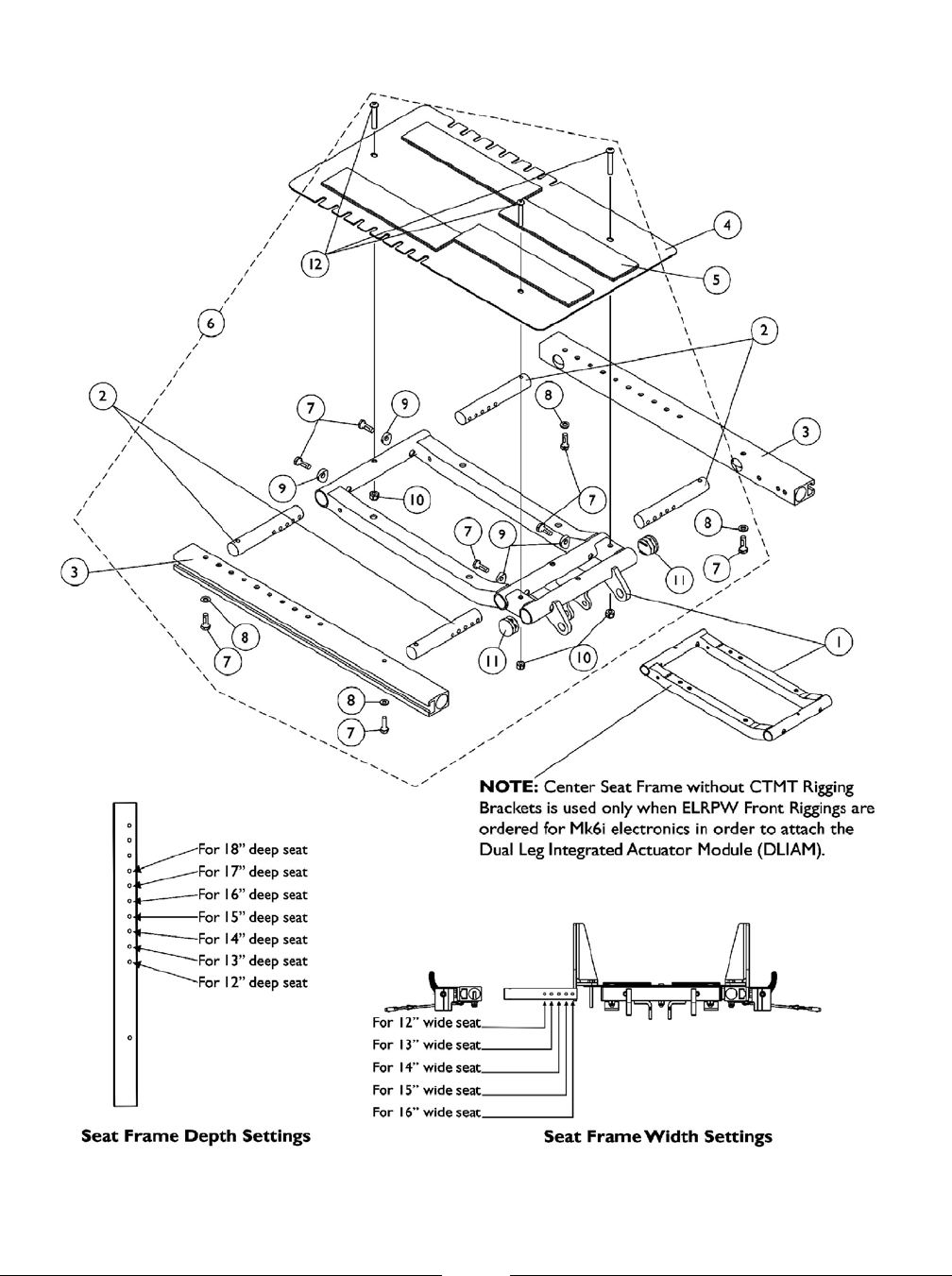

ADJASBA Seat Frame, Seat Pan and Hardware
(12"-16" Wide) (After 7/4/05)
17
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ADJASBA Seat Frame, Seat Pan and Hardware
(12"-16" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1121982 Frame, Center Seat 1 11
1070475 Frame w/o CTMT Brackets, Center Seat 1 11 C
1126126 Crossbar, Seat Frame (12-16" Wide) 1 42
1126127 Rail, Side (12-18" Deep) 1 23
1126144 Seat Pan w/ Hook and Loop Fasteners (12-16" W x
12-18" D) 1 14 A
1039949 Fastener, Hook Adhesive Back (2" x 16") 1 45
1044578 Fastener, Loop Adhesive Back (2" x 16") 1 45
1135500 Kit, Seat Frame Assembly Hardware 12"-16" Wide 1 16 D,B
Screw, Hex Head (1/4-20 x 3/4") 1 87
Washer (1/4 x 1/2 x 1/16") 1 48
Spacer, Coved (1/4 x 11/16 x 1/2") 1 49
Locknut (1/4-20) 1 310
Plug Button, Black (1") 1 211
Screw, Socket Button Head (1/4-20 x 1-1/2") 1 312
1134425 Package, Plug Buttons, Black (1") 10 111
A - Includes item 5
B - Includes items 7-12
C - Center Seat Frame without CTMT Rigging Brackets is used only when ELRPW Front Riggings are ordered for Mk6i
electronics in order to attach the Dual Leg Integrated Actuator Module (DLIAM).
D - item 11 Plug Buttons are not used and only a quantity of 2 for item #12 is required for the Center Seat Frame w/o CTMT
Rigging Brackets
NOTE:
18
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

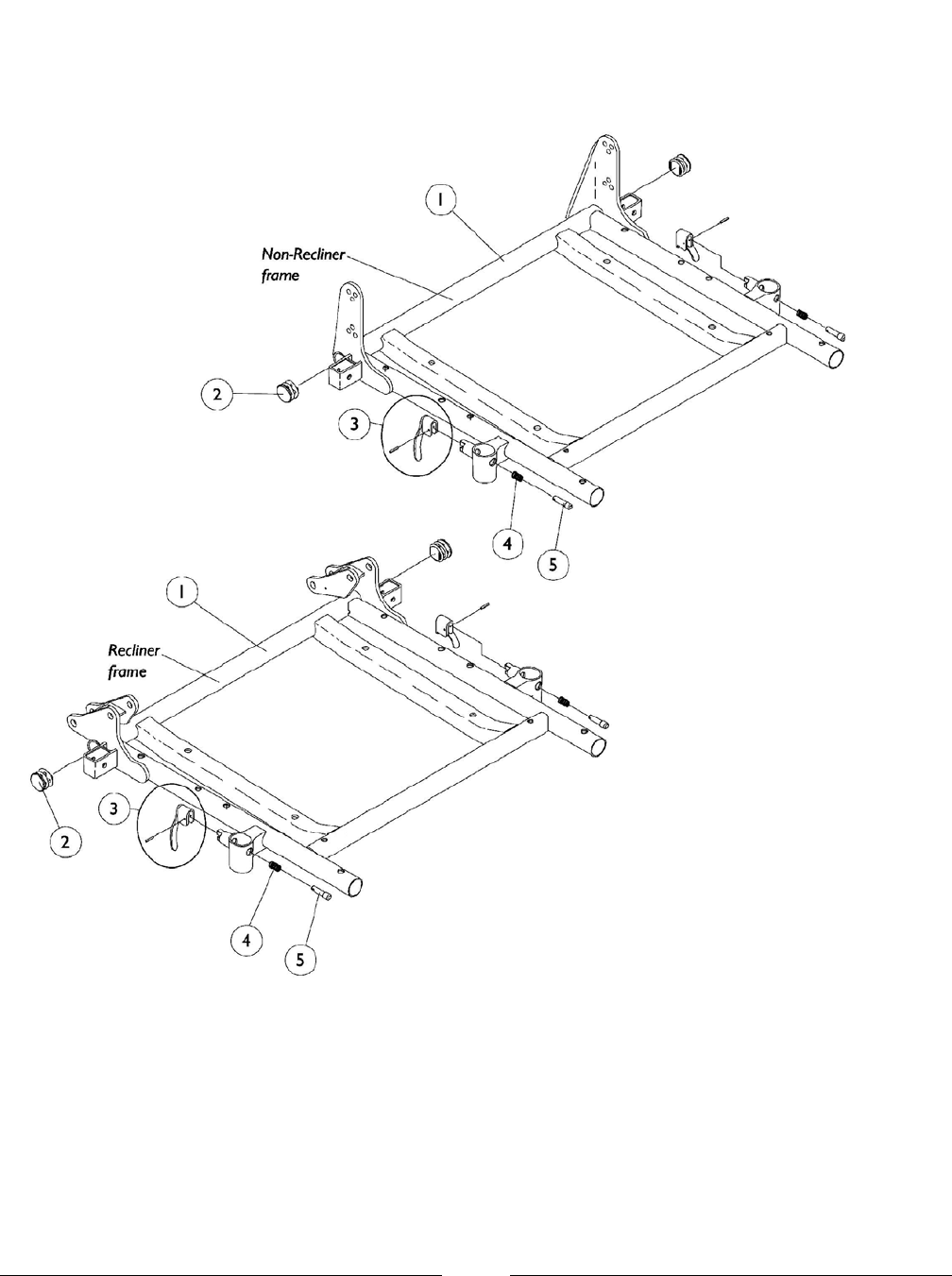

ASBA Seat Frame and Hardware
(16"-24" Wide) (Before 7/5/05)
19
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ASBA Seat Frame and Hardware
(16"-24" Wide) (Before 7/5/05)
#1 Seat Frame with Hardware
Non-Recliner
Chair Width 16"-17" Depth 18" - 19" Depth 20" - 21" Depth 22" Depth
107069910706901070681107067216" Width
107070010706911070682107067317" Width
107070110706921070683107067418" Width
107070210706931070684107067519" Width
107070310706941070685107067620" Width
107070410706951070686107067721" Width
107070510706961070687107067822" Width
107070610706971070688107067923" Width
107070710706981070689107068024" Width
#1 Seat Frame with Hardware
Recliner
Chair Width 16"-17" Depth 18" - 19" Depth 20" - 21" Depth 22" Depth
107073510707261070717107070816" Width
107073610707271070718107070917" Width
107073710707281070719107071018" Width
107073810707291070720107071119" Width
107073910707301070721107071220" Width
107074010707311070722107071321" Width
107074110707321070723107071422" Width
107074210707331070724107071523" Width
107074310707341070725107071624" Width
20
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ASBA Seat Frame and Hardware
(16"-24" Wide) (Before 7/5/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Seat Frame with Hardware - Recliner 1 11 A
See Chart #1 Seat Frame with Hardware - Non-Recliner 1 11 A
1029501 Plug Button, Black (1") 1 22
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 13
47471X074 Spring, Arm Lock 1 24
1028594 Pin, Arm Lock 1 25
A - Includes seat frame and items 2-5
NOTE:
21
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

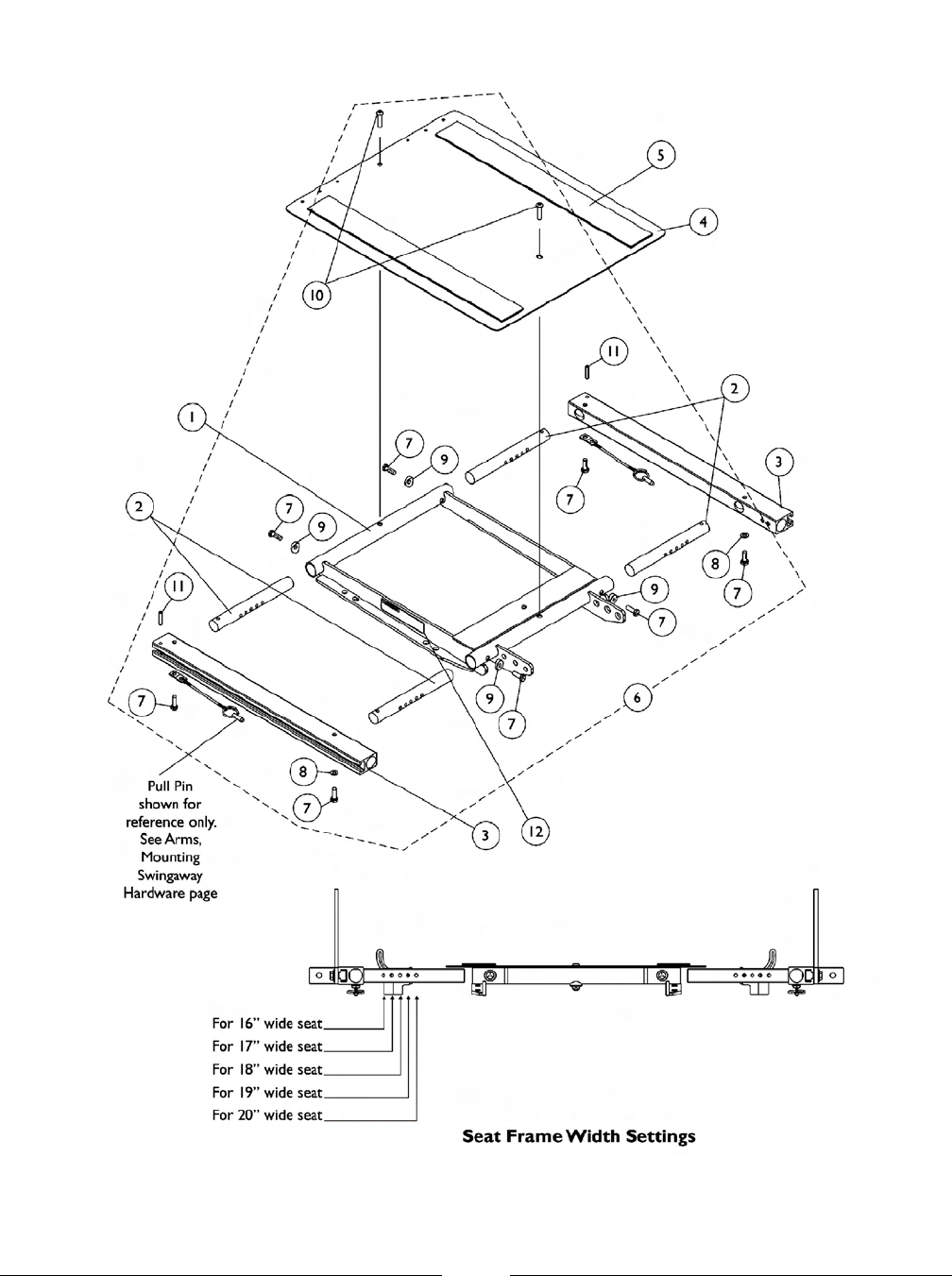

ADJASBA/ADJRECL Seat Frame, Seat Pan and Hardware
(16"-20" Wide) x (16"-22" Deep) (After 7/4/05)
22
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ADJASBA/ADJRECL Seat Frame, Seat Pan and Hardware
(16"-20" Wide) x (16"-22" Deep) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1120288 Frame, Center Seat 1 11 D
1122475 Crossbar, Seat Frame (16"-20" Wide) 1 42
1122647 Rail, Seat Frame (16-20" Deep For Formula TRE &
16-19" Deep For ADJASBA) 1 23
1122677 Rail, Seat Frame (20-22" Deep For Formula TRE &
19-22" Deep For ADJASBA) 1 23
1124386 Seat Pan w/ Hook and Loop Fasteners
16-20" Wide x (16-20" Deep For Formula TRE &
16-19" Deep For ADJASBA)
1 14
1124666 Seat Pan w/ Hook and Loop Fasteners
16-20" Wide x (20-22" Deep For Formula TRE &
19-22" Deep For ADJASBA)
1 14
1043082 Hook Fastener, Adhesive (2" x 18") 1 25 A
1044580 Loop Fastener, Adhesive (2" x 18") 1 25 A
1043084 Hook Fastener, Adhesive (2" x 22") 1 25 B
1044584 Loop Fastener, Adhesive (2" x 22") 1 25 B
1135501 Kit, Seat Frame Assembly Hardware 1 16 C
Screw, Hex Head (1/4-20 x 3/4") 1 87
Washer (1/4 x 1/2 x 1/16") 1 28
Spacer, Coved (1/4 x 11/16 x 1/2") 1 49
Screw, Socket Head (1/4-20 x 3/4") 1 210
Pin, Roll (3/16 x 1") 1 211
1114823 Decal, Seat Adjustment Warning 1 212
A - For 16"-19" deep seats
B - For 19"-22" deep seats
C - Includes items 7-11
D - When ordering Center Seat Frame (item 1), also order 2 ea. Seat Adjustment Warning Decal (item 12).
NOTE:
23
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

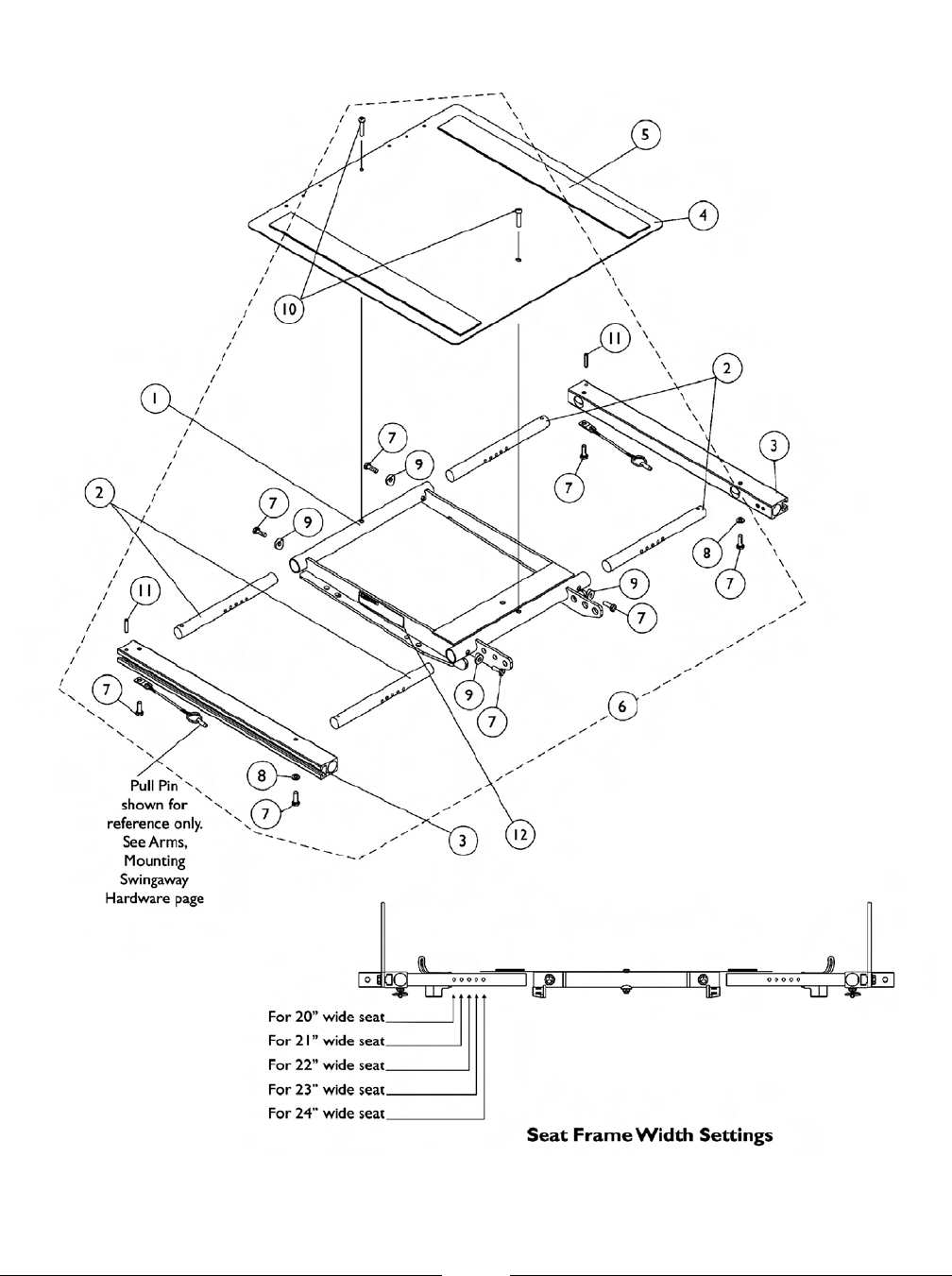

ADJASBA/ADJRECL Seat Frame, Seat Pan and Hardware
(20"-24" Wide) x (16"-22" Deep) (After 7/4/05)
24
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ADJASBA/ADJRECL Seat Frame, Seat Pan and Hardware
(20"-24" Wide) x (16"-22" Deep) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1120288 Frame, Center Seat 1 11 D
1120283 Crossbar, Seat Frame (20"-24" Wide) 1 42
1122647 Rail, Seat Frame (16-20" Deep For Formula TRE &
16-19" Deep For ADJASBA) 1 23
1122677 Rail, Seat Frame (20-22" Deep For Formula TRE &
19-22" Deep For ADJASBA) 1 23
1124388 Seat Pan w/ Hook and Loop Fasteners
20-24" Wide x (16-20" Deep For Formula TRE &
16-19" Deep For ADJASBA)
1 14
1124667 Seat Pan w/ Hook and Loop Fasteners
20-24" Wide x (20-22" Deep For Formula TRE &
19-22" Deep For ADJASBA)
1 14
1043082 Hook Fastener, Adhesive (2" x 18") 1 25 A
1044580 Loop Fastener, Adhesive (2" x 18") 1 25 A
1043084 Hook Fastener, Adhesive (2" x 22") 1 25 B
1044584 Loop Fastener, Adhesive (2" x 22") 1 25 B
1135501 Kit, Seat Frame Assembly Hardware 1 16 C
Screw, Hex Head (1/4-20 x 3/4") 1 87
Washer (1/4 x 1/2 x 1/16") 1 28
Spacer, Coved (1/4 x 11/16 x 1/2") 1 49
Screw, Socket Head (1/4-20 x 3/4") 1 210
Pin, Roll (3/16 x 1") 1 211
1114823 Decal, Seat Adjustment Warning 1 212
A - For 16"-19" deep seats
B - For 19"-22" deep seats
C - Includes items 7-11
D - When ordering Center Seat Frame (item 1), also order 2 ea. Seat Adjustment Warning Decal (item 12).
NOTE:
25
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

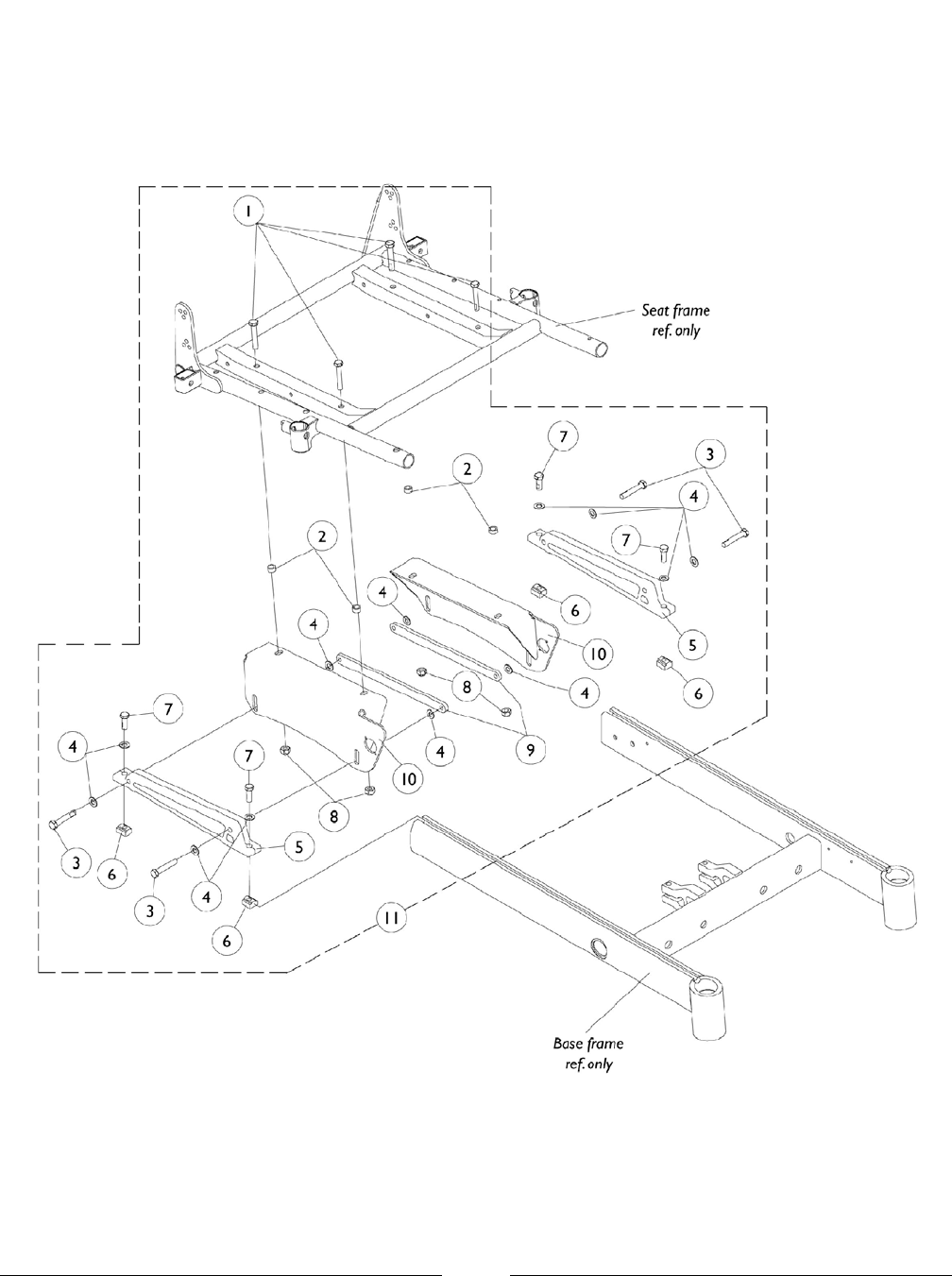

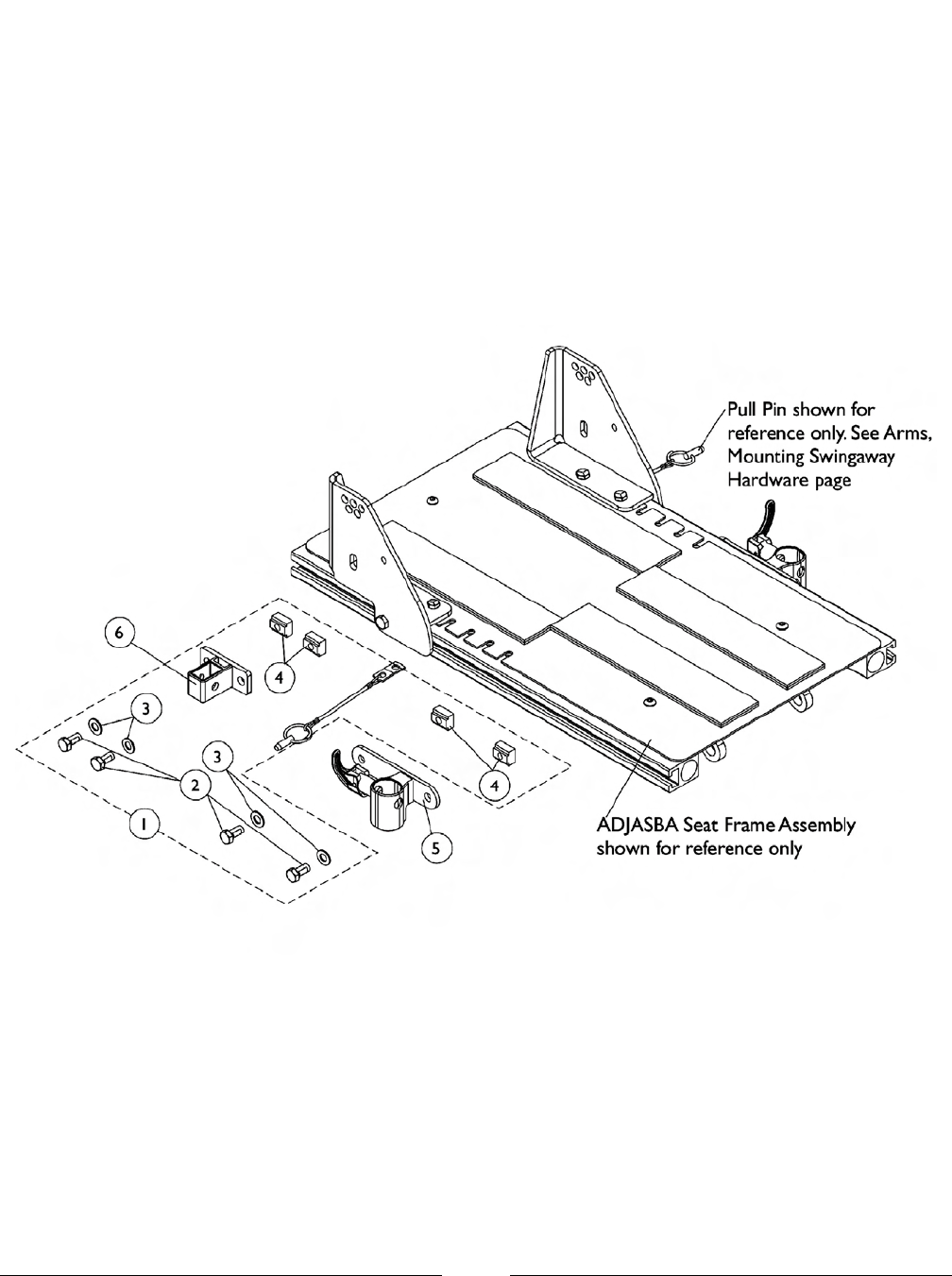

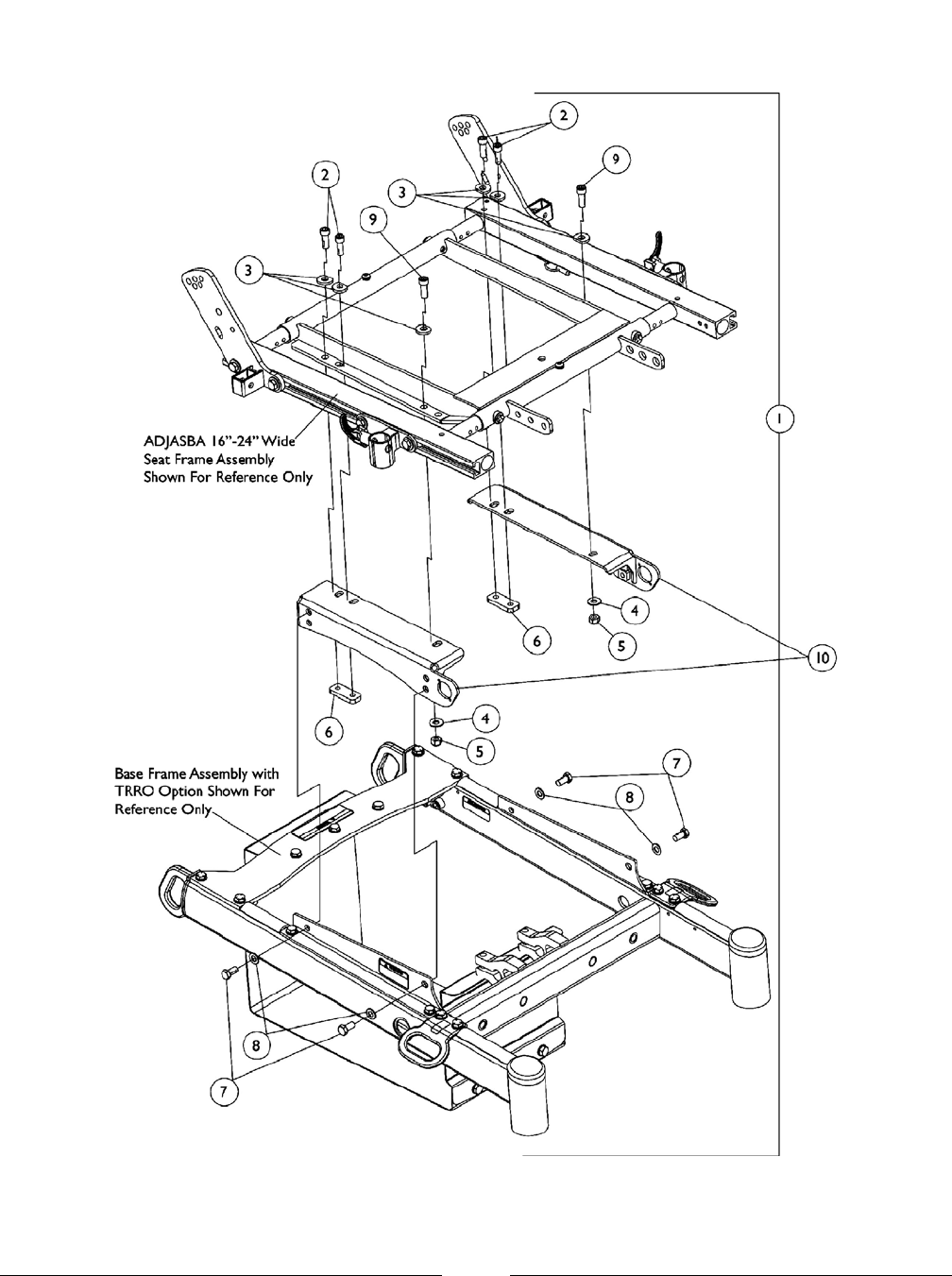

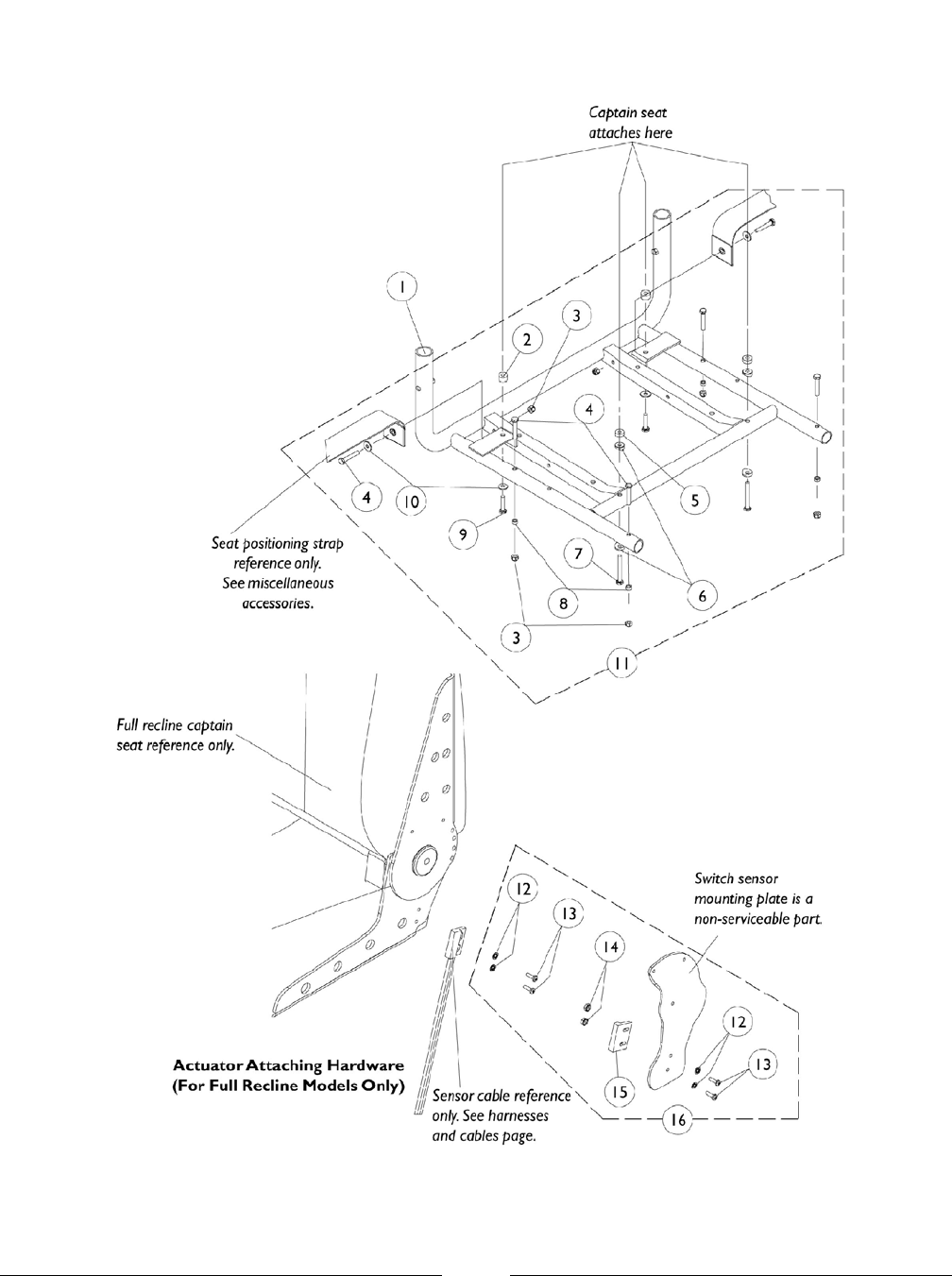

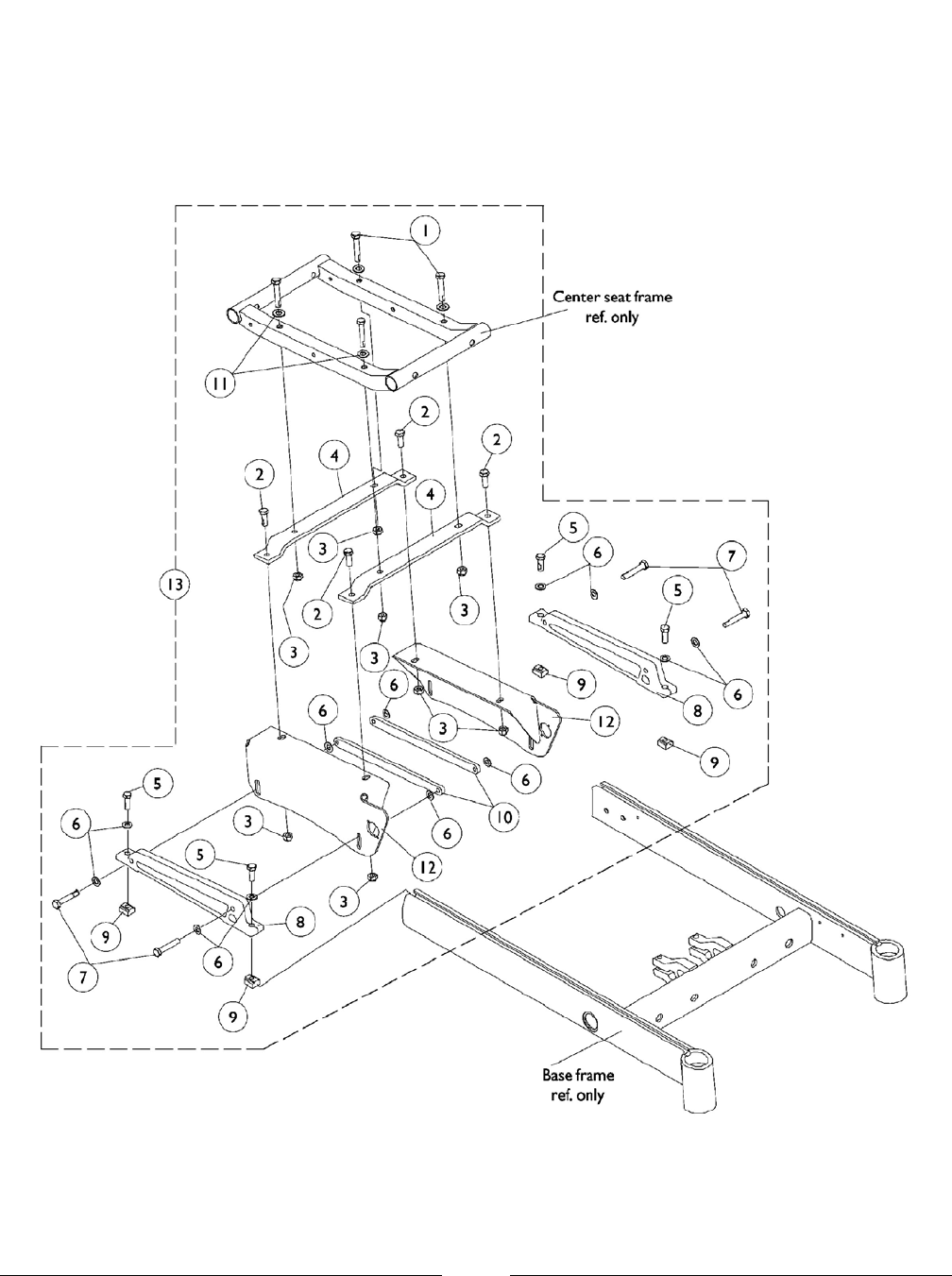

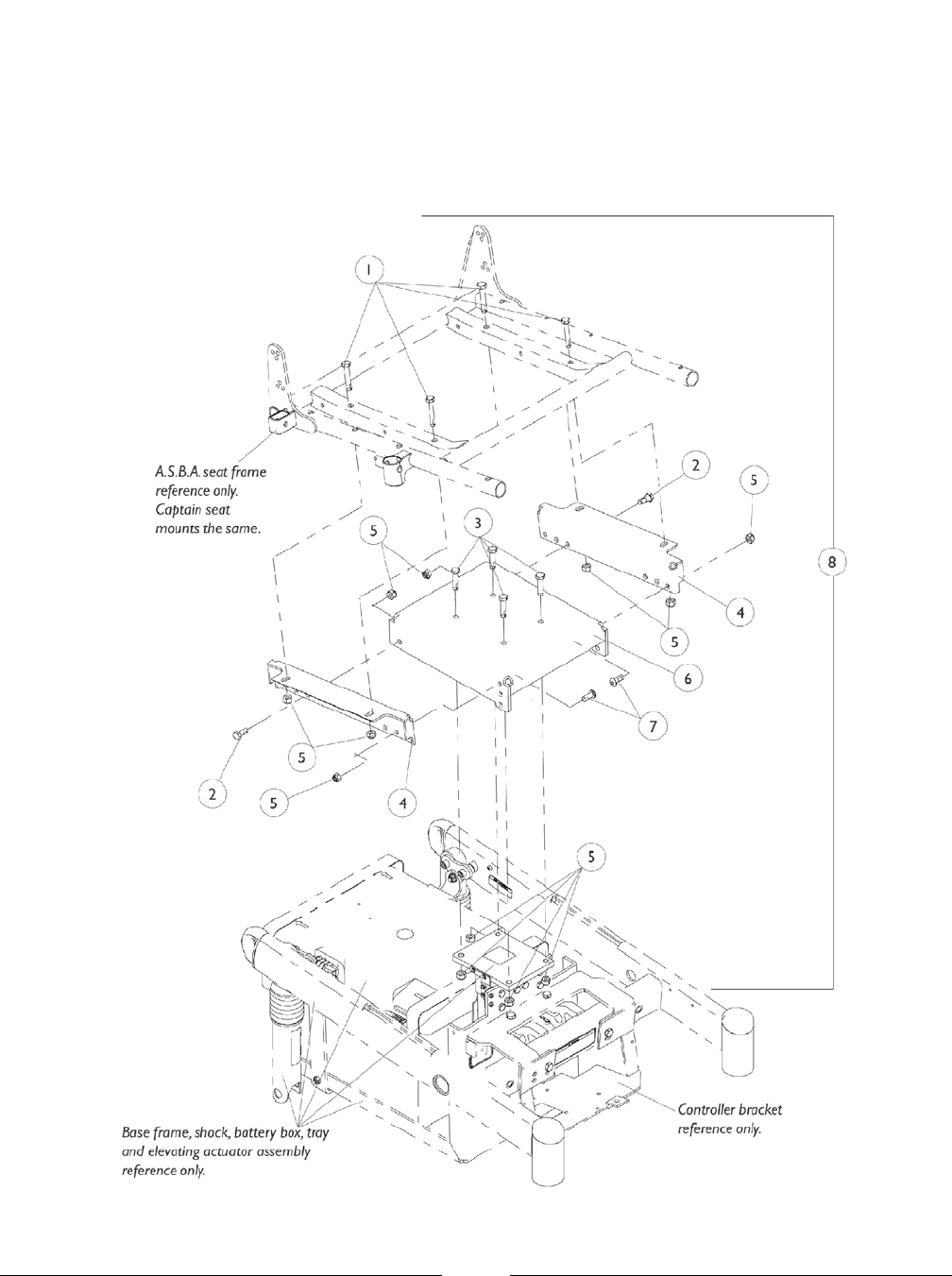

(ASBA Seat Before 7/5/05) and Captain Seat Frame
Mounting Hardware
For Elevating Seat
Discontinued 10/16/06. No longer offered on Van Seats for 3G Storm Series
26
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
(ASBA Seat Before 7/5/05) and Captain Seat Frame
Mounting Hardware
For Elevating Seat
Discontinued 10/16/06. No longer offered on Van Seats for 3G Storm Series
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1043627 Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 41
1039860 Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 22
7930337 Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 25 43
1106521 Bracket, Seat Frame Support 1 24
1026158 Locknut (5/16-18) 1 125
1106522 Bracket, Seat Frame Mounting 1 16
1065215 Screw, Socket Button Head w/ Patch (5/16-18 x
3/4") 1 27
1108224 Hardware, Seat Frame Mounting 1 18 A
A - Includes items 1-7
NOTE:
27
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

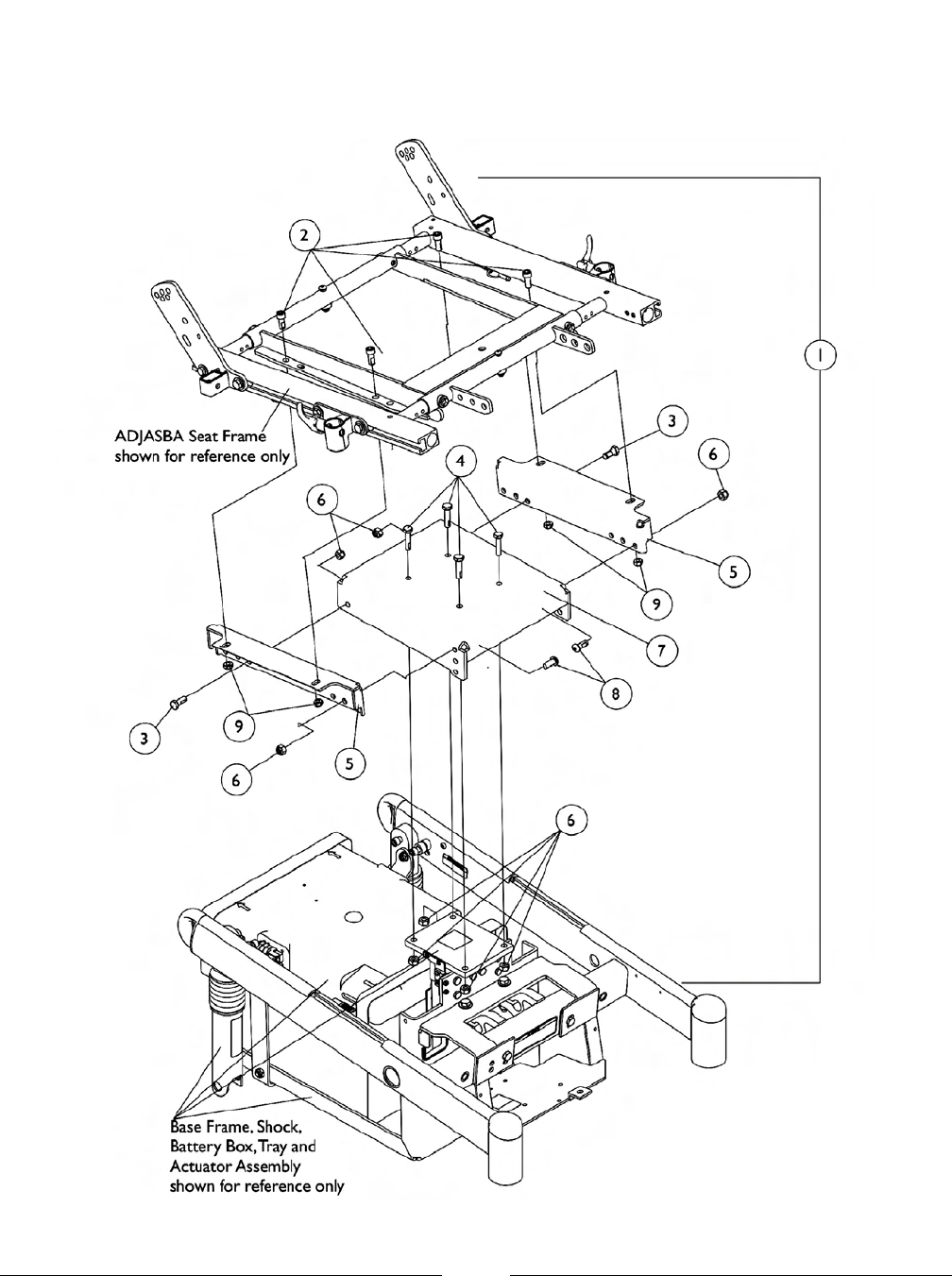

ADJASBA Seat Frame Mounting Hardware
For Elevating Seat (16"-22" Wide) (After 7/4/05)
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
28
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
ADJASBA Seat Frame Mounting Hardware
For Elevating Seat (16"-22" Wide) (After 7/4/05)
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1134496 Kit, Seat Frame Mounting Hardware - Elevate 1 11 A
Screw, Socket Head Cap (5/16-18 x 3/4") 1 42
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 23
Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 44
Bracket, Seat Frame Support 1 25
Locknut (5/16-18) 1 86
Bracket, Seat Frame Mounting 1 17
Screw, Socket Button Head w/ Patch (5/16-18 x
3/4") 1 28
Locknut (5/16-18) 1 49
A - Includes items 2-9
NOTE:
29
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

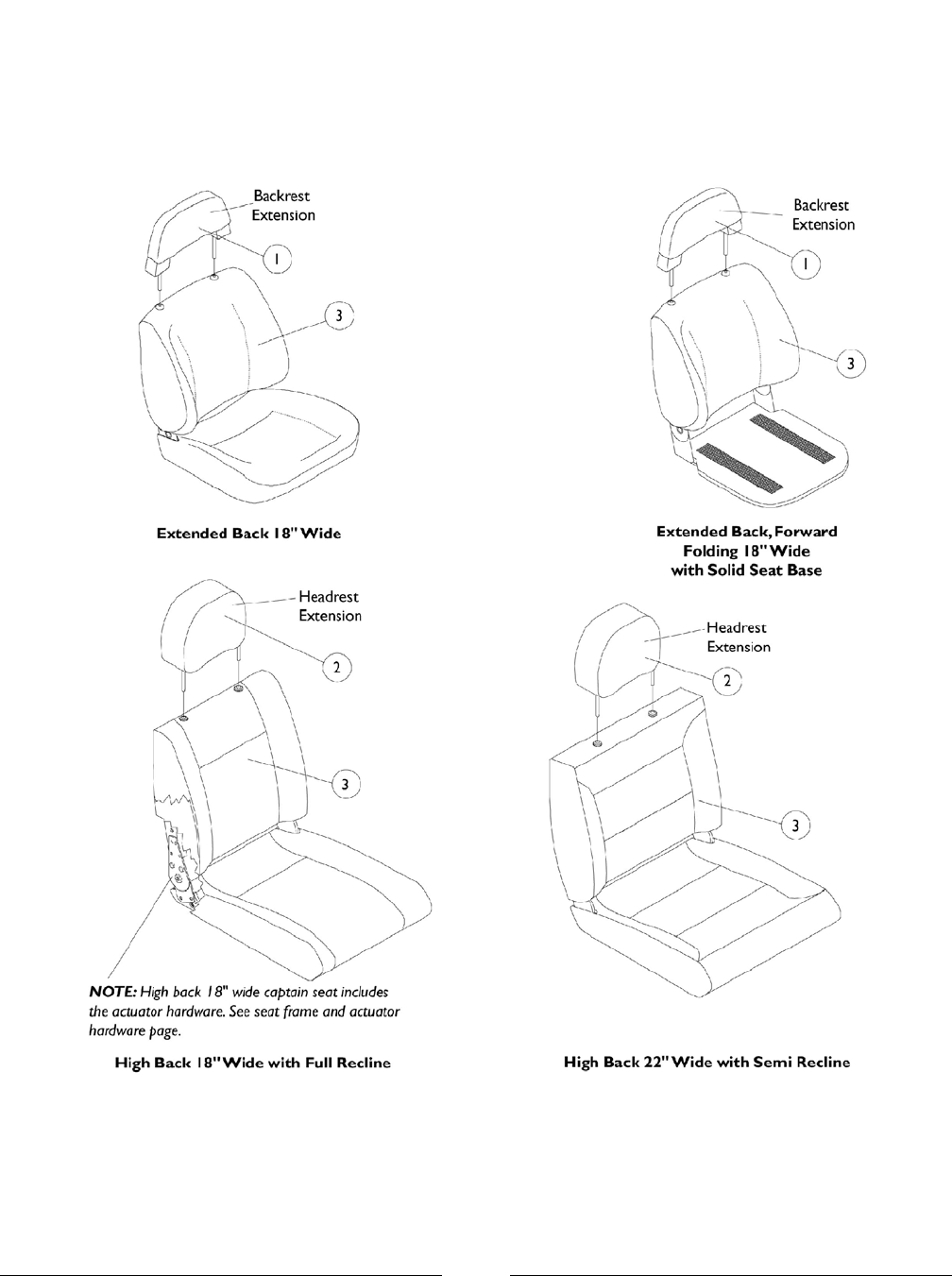

Captain Seat Assembly
(Before 11/1/01)
NOTE: Captain Seats incorporate an assisted recline of approximately 90 -114 degrees for extended
backs and high back 22" wide models. High back 18" models are 90-170 degrees.
30
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Assembly
(Before 11/1/01)
NOTE: Captain Seats incorporate an assisted recline of approximately 90 -114 degrees for extended
backs and high back 22" wide models. High back 18" models are 90-170 degrees.
Item
Number
Backrest/Headrest
Extensions and
Captain
Seat Assemblies
Grey Fabric
Vinyl All Grey
Vinyl Brunswick Buff
All Tan Vinyl
1090376-NLA
1090375-NLA
1090374-NLA
Backrest,
Extended Back
1. See Note(s) A See Note(s) A
N/AN/A
1090374-NLA
Backrest,
Extended Back
Forward Folding
1.
See Note(s) A
N/A
1090380-NLA
1090379-NLA
Headrest,
High Back
(18 and 22" W)
2.
See Note(s) A See Note(s) A 1090373-NLA
1090372-NLA
1090371-NLA
18" W
Extended Back
3. See Note(s) C See Note(s) C See Note(s) C
N/AN/A
1090370-NLA
18" W
Extended Back
Forward Folding
3.
See Note(s) C
N/A
1091069-NLA
1091068-NLA
18" W
High Back
w/ Full Recline
3.
See Note(s) C, B See Note(s) C
N/AN/A1098287-NLA
22" W
High Back
w/ Semi Recline
3.
A - 4-3/4" Backrest/Headrest Post Spacing
B - High back 18" wide captain seat includes all actuator attaching hardware
C - For captain seats marked NLA, use captain seats dated after 10/31/01
NOTE:
NOTE: When converting from an extended back captain seat to an 18" wide high back captain seat, the recliner wiring harness with sensor
cable must be ordered as well.
31
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Assembly
(After 10/31/01)
NOTE: Captain Seats recline approximately 90-114 degrees for semi recline backs and 90-170 degree for
full recline back models. Adjustable depths are (16, 17, 18" deep for 18" wide seats) and (18, 19, 20" deep
for 20 and 22" wide seats.) Recline release levers are standard on the right side. Left side release levers
can be ordered as a special with a new captain seat.
32
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Assembly
(After 10/31/01)
NOTE: Captain Seats recline approximately 90-114 degrees for semi recline backs and 90-170 degree for
full recline back models. Adjustable depths are (16, 17, 18" deep for 18" wide seats) and (18, 19, 20" deep
for 20 and 22" wide seats.) Recline release levers are standard on the right side. Left side release levers
can be ordered as a special with a new captain seat.
Item
Number
Backrest/Headrest
Extensions and
Captain Seat
Assemblies
All Grey Fabric All Grey Vinyl All Tan Vinyl
110696811084081106969
Backrest
(Semi Recline)
1.
110696611084091106967
Headrest
(For Full Recline)
2.
110924811092421109254
18" Wide
Semi Recline
with Backrest
3.
110925111092451109257
18" Wide
Full Recline
with Headrest
3.
110924911092431109255
20" Wide
Semi Recline
with Backrest
3.
110925211092461109258
20" Wide
Full Recline
with Headrest
3.
110925011092441109256
22" Wide
Semi Recline
with Backrest
3.
110925311092471109247
22" Wide
Full Recline
with Headrest
3.
NOTE: When coverting from a semi recline to a full recline captain seat, a sensor cable must be ordered as well.
NOTE: Actuator mounting hardware is not included with a full recline captain seat. See Actuator mounting hardware.
NOTE: New seat mounting hardware is required when converting a captain seat made before 11/01/01 to a captain seat made after 10/31/01.
33
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

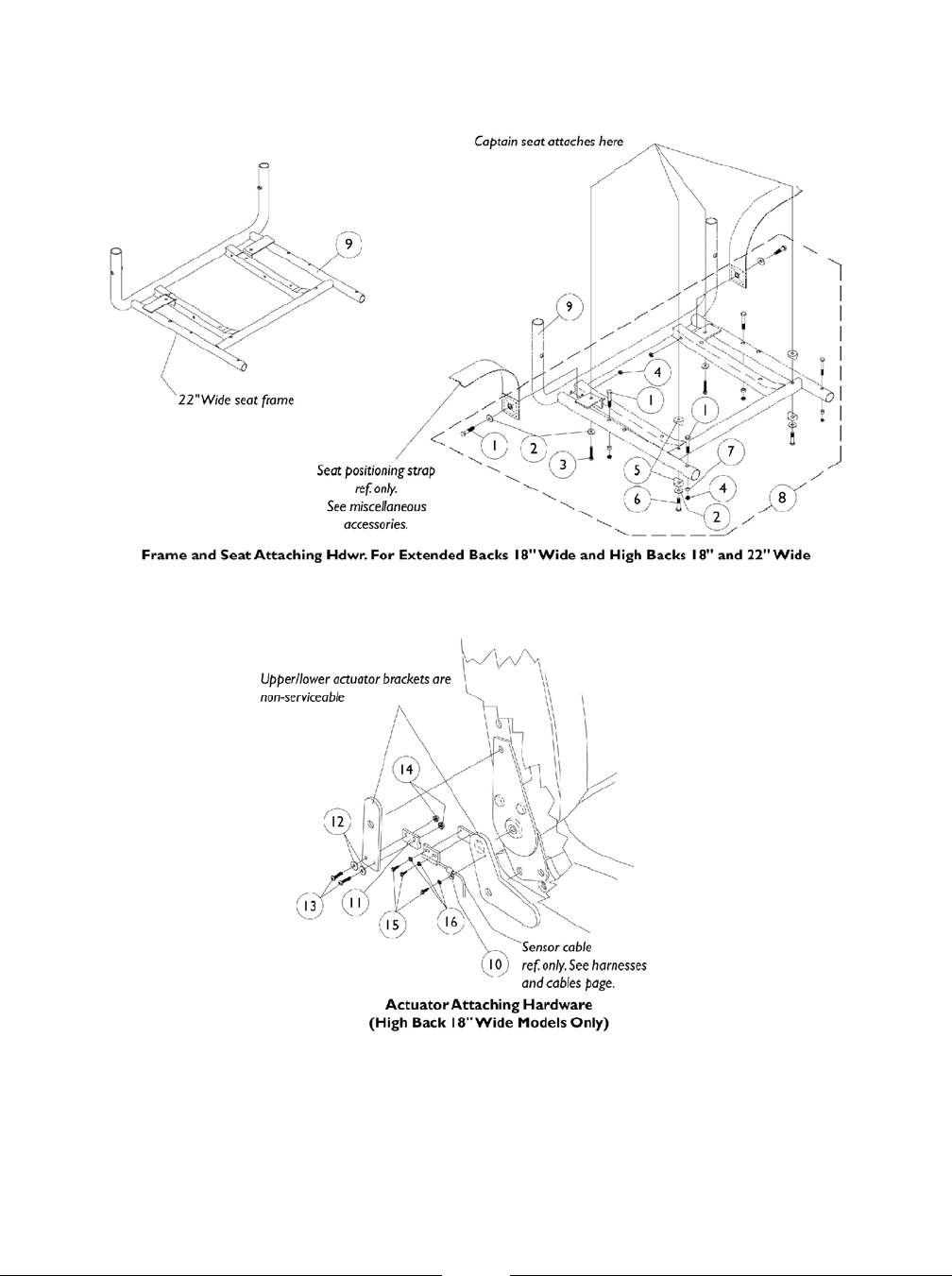

Captain Seat Frame and Actuator Hardware
(Before 11/01/01)
34
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Frame and Actuator Hardware
(Before 11/01/01)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 61
1026900 Washer (1/4 x 23/32 x 1/16") 1 62
1071603 Screw, Hex Head (M6 x 1" x 20MM) 1 43 B
1045267 Screw, Hex Head (1/4-20 x 3/4") 1 43 C
7930333 Locknut (1/4-20) 25 64
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 45
1070434 Screw, Hex Head (M6 x 1 x 50) 1 26 B
1088898 Screw, Hex Head Cap w/ Patch (1/4-20 x 1-3/4") 1 26 C
1047449 Spacer (1/4 x 3/8 x 3/16") 1 47
1070450 Hardware, Seat Attaching 1 18 A,B
1079208 Hardware, Captain Seat Mounting 1 18 A,C
1070455 Frame, Seat-18" Wide 1 19 D
1101913 Frame, Seat-22" Wide 1 19 E
1098624-NLA Clamp, Cable 1 110
1024001 Sensor, Actuator Switch 1 111
16348X007 Rivet Washer (1/8 x 3/8 x 1/16") 1 212
1074128 Screw, Phillips Pan Head (#4-40 x 7/16") 1 213
P0870X000 Nut, Hex Keps (#4-40) 1 214
1025116 Screw, Slotted Hex Head (#4-3/8") 1 315
1008525 Washer, Internal Tooth Lock (#4-40) 1 316
A - Consists of items 1-7
B - All high backs 18" wide
C - Extended backs, forward folding and high backs 22" wide
D - Extended backs, forward folding and high backs 18" wide
E - High backs 22" wide
NOTE:
35
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Frame and Actuator Hardware
(After 10/31/01)
36
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Frame and Actuator Hardware
(After 10/31/01)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1070455 Frame, Seat-18" Wide 1 11
1108099 Frame, Seat-20" Wide 1 11
1101913 Frame, Seat-22" Wide 1 11
1108411 Spacer (1/4 x 5/8 x 3/8") 1 22
7930333 Locknut (1/4-20) 25 63
1030949 Screw, Hex Head (1/4-20 x 1-1/2") 1 64
1108410 Spacer (1/4 x 5/8 x 1/4") 1 25
1026099 Spacer, Coved (1/4 x 11/16 x 1/2") 1 46
1026154 Screw, Hex Head (1/4-20 x 2-1/4") 1 27
1047449 Spacer (1/4 x 3/8 x 3/16") 1 48
1021406 Screw, Hex Head (1/4-20 x 1-1/4") 1 29
1026900 Washer (1/4 x 23/32 x 1/16") 1 410
1079208 Hardware, Captain Seat Mounting 1 111 B
1008525 Washer, Internal Tooth Lock (#4-40) 1 412
7930339 Screw, Phillips Pan Head (#4-40 x 3/8") 25 413
P0870X000 Nut, Hex Keps (#4-40) 1 214
1024001 Sensor, Actuator Switch 1 115
1107242 Hardware, Actuator Switch Sensor Mounting 1 116 A
A - Includes items 12-15
B - Includes items 2-10
NOTE:
37
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(12"-15" Wide ASBA), (12"-16" Wide ADJASBA Seats & TRBKTS Option)
NOTE: The ASBA and ADJASBA seat frame assemblies use the same mounting hardware.
38
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(12"-15" Wide ASBA), (12"-16" Wide ADJASBA Seats & TRBKTS Option)
NOTE: The ASBA and ADJASBA seat frame assemblies use the same mounting hardware.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1042484 Screw, Hex Head (5/16-18 x 2") 1 41
1070462 Screw, Hex Head Cap w/ Patch (5/16-18 x 7/8") 1 42
1026158 Locknut (5/16-18) 1 83
1070465 Bracket, Mounting, Black - Junior 1 24
1070462 Screw, Hex Head Cap w/ Patch (5/16-18 x 7/8") 1 45
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 126
1043627 Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 47
1070388 Support, Seat (Black) 1 28
1069724 T-Nut (5/16-18) 1 49
1070396 Strap, Bolt (Black) 1 210
1079247 Washer, Flat (21/64 x 53/64 x 7/64") 1 411
1104428 Mounting Plate, Seat Low, Right 1 112 B
1104429 Mounting Plate, Seat Low, Left 1 112 B
1104430 Mounting Plate, Seat Med, Right 1 112 C
1104431 Mounting Plate, Seat Med, Left 1 112 C
1104432 Mounting Plate, Seat Tall, Right 1 112 D
1104433 Mounting Plate, Seat Tall, Left 1 112 D
1104765 Hardware, Seat Frame Mounting 1 113 A,E
A - Item number 12 not included
B - Low 17-1/2" Seat to Floor
C - Medium 19-3/4" Seat to Floor
D - Tall 21-1/2" Seat to Floor
E - Includes items 1-11
NOTE:
39
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

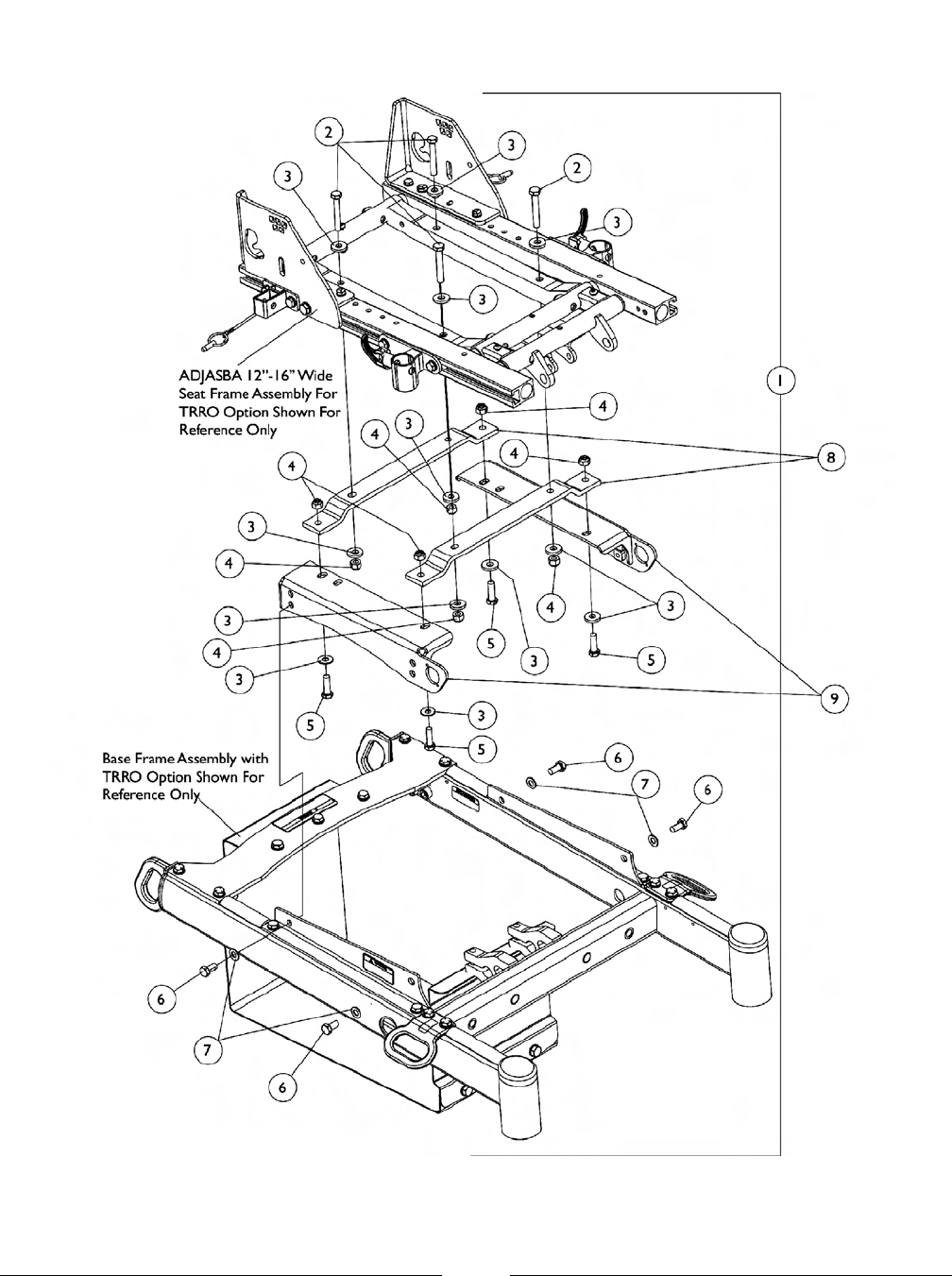

Seat Frame Mounting Hardware
(12"-16" Wide) ADJASBA Seats with TRRO Option
40
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(12"-16" Wide) ADJASBA Seats with TRRO Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140261 Kit, Seat Frame Mounting Hardware 12"-16" Wide
For TRRO Option 1 11 A
Screw, Hex Head (5/16-18 x 2") 1 42
Washer, Flat (21/64 x 53/64 x 7/64") 1 123
Locknut (5/16-18) 1 84
Screw, Hex Head Cap (5/16-18 x 1") 1 45
Screw, Hex Head (5/16-18 x 5/8") 1 46
Washer, Flat (5/16 x 5/8 x 1/16") 1 47
1070465 Bracket, Mounting, Black - Junior 1 28
1135964 Bracket, Seat Mounting Low - Right 1 19
1135965 Bracket, Seat Mounting Low - Left 1 19
A - Includes items 2-7
NOTE:
41
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"- 24" Wide) ASBA (Before 7/5/05)
42
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"- 24" Wide) ASBA (Before 7/5/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1043627 Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 41 A
1070398 Screw, Hex Head (5/16-18 x 1-1/2") 1 41 B
1070413 Spacer (21/64 x 1/2 x 17/64") 1 42 A
1043627 Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 43
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 124
1070388 Support, Seat (Black) 1 25
1069724 T-Nut (5/16-18) 1 46
1070462 Screw, Hex Head Cap w/ Patch (5/16-18 x 7/8") 1 47
1026158 Locknut (5/16-18) 1 48
1070396 Strap, Bolt (Black) 1 29
1104428 Mounting Plate, Seat Low, Right 1 110 D
1104429 Mounting Plate, Seat Low, Left 1 110 D
1104430 Mounting Plate, Seat Med, Right 1 110 E
1104431 Mounting Plate, Seat Med, Left 1 110 E
1104432 Mounting Plate, Seat Tall, Right 1 110 F
1104433 Mounting Plate, Seat Tall, Left 1 110 F
1104764 Hardware, Seat Frame Mounting, 16" Wide 1 111 C,G
1104763 Hardware, Seat Frame Mounting, 17" Wide and
Wider 1 111 C,G
A - Part number 1043627 and 1071413 are used on the 16" wide chairs only
B - Part number 1070398 is used on 17" and wider chairs only
C - Item number 10 not included
D - Low 17-1/2" Seat to Floor
E - Medium 19-3/4" Seat to Floor
F - Tall 21-1/2" Seat to Floor
G - Includes items 1-9
NOTE:
43
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"- 24" Wide) ADJASBA/ADJRECL (After 7/4/05) & TRBKTS Option
44
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"- 24" Wide) ADJASBA/ADJRECL (After 7/4/05) & TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1134493 Kit, Seat Frame Mounting Hardware 1 11 A
Screw, Socket Head Cap (5/16-18 x 3/4") 1 42
Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 43
Washer, Flat (5/16 x 5/8 x 1/16") 1 124
Support, Seat (Black) 1 25
T-Nut (5/16-18) 1 46
Screw, Hex Head Cap w/ Patch (5/16-18 x 7/8") 1 47
Locknut (5/16-18) 1 48
Strap, Bolt (Black) 1 29
1104428 Mounting Plate, Seat Low, Right 1 110 B
1104429 Mounting Plate, Seat Low, Left 1 110 B
1104430 Mounting Plate, Seat Med, Right 1 110 C
1104431 Mounting Plate, Seat Med, Left 1 110 C
1104432 Mounting Plate, Seat Tall, Right 1 110 D
1104433 Mounting Plate, Seat Tall, Left 1 110 D
A - Includes items 2-9 and used for ADJASBA and ADJRECL Seat Frames
B - Low = 17-1/2" Seat-To-Floor
C - Med = 19-3/4" Seat-To-Floor
D - Tall = 21-1/2" Seat-To-Floor
NOTE:
45
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"-24" Wide) ADJASBA Seats with TRRO Option
46
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Frame Mounting Hardware
(16"-24" Wide) ADJASBA Seats with TRRO Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1135970 Kit, Seat Frame Mounting Hardware 16"-24" Wide
For TRRO Option 1 11 A
Screw, Socket Head Cap with Patch (5/16-18 x 1") 1 42
Washer, Ground (11/32 x 13/16 x 1/8") 1 63
Washer, Flat (21/64 x 53/64 x 7/64") 1 24
Locknut (5/16-18) 1 25
Plate, Nut (5/16-18) 1 26
Screw, Hex Head (5/16-18 x 5/8") 1 47
Washer, Flat (5/16 x 5/8 x 1/16") 1 48
Screw, Socket Head Cap (5/16-18 x 1-1/4") 1 29
1135964 Bracket, Seat Mounting Low - Right 1 110
1135965 Bracket, Seat Mounting Low - Left 1 110
A - Includes items 2-9
NOTE:
47
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

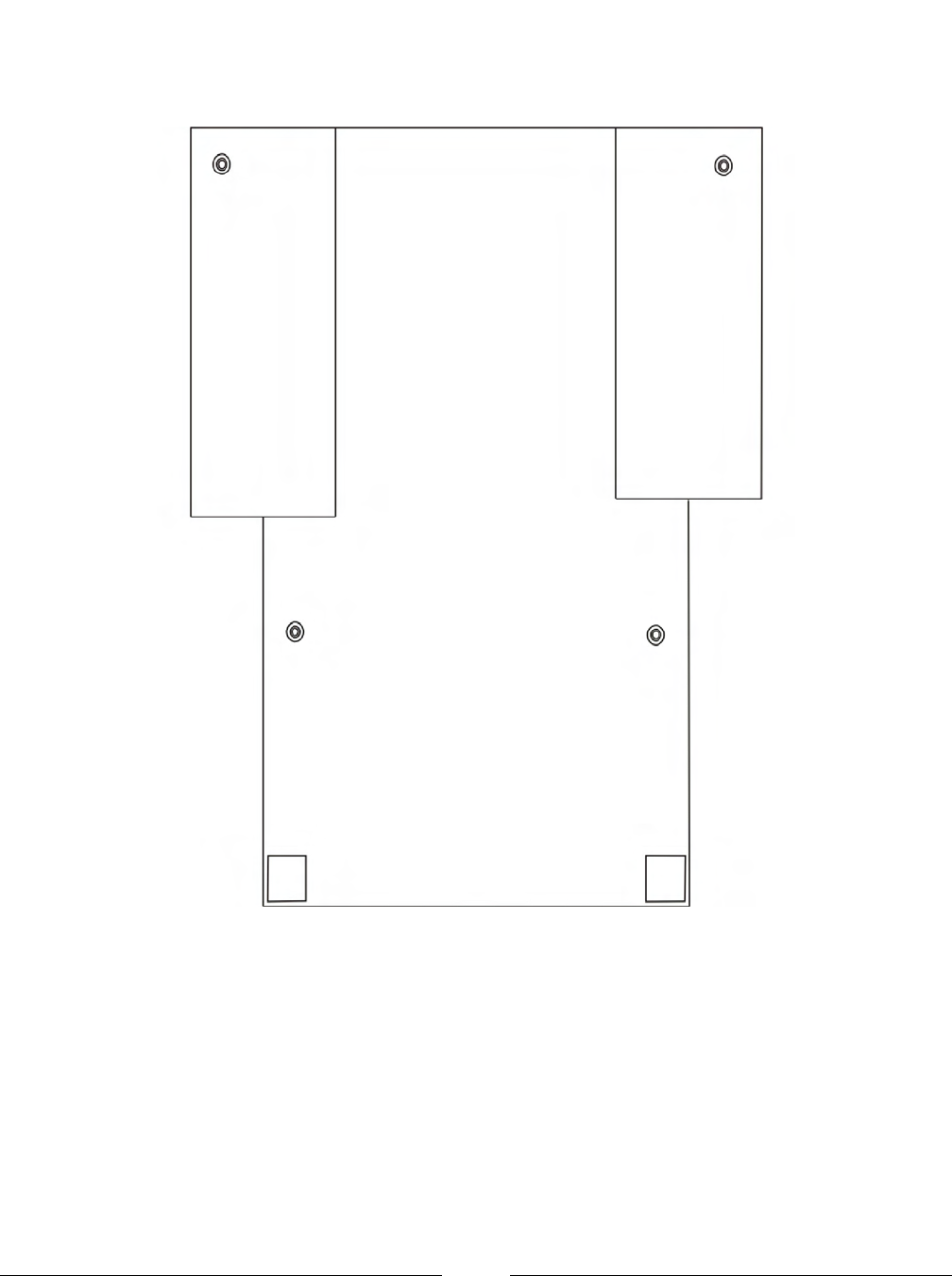

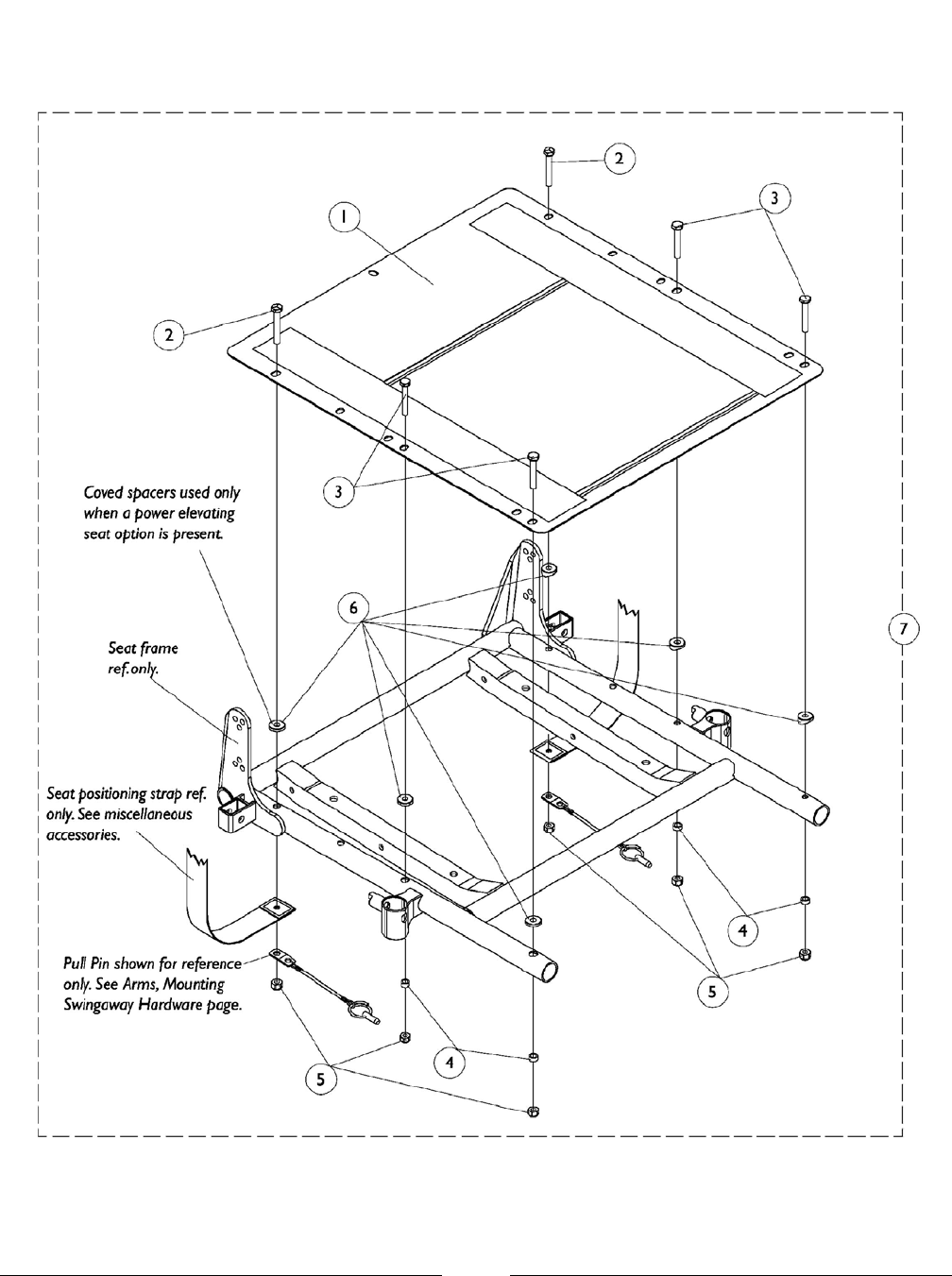

Seat Pan and Attaching Hardware
For ASBA Seat (Before 7/5/05)
48
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Pan and Attaching Hardware
For ASBA Seat (Before 7/5/05)
#1 Seat Pan
12"-18" Depth
Chair Width 12"-15" Deep 16" Deep 17" Deep 18" Deep
N/AN/A1070513106600912" W
N/AN/A1070514106601013" W
106603310660221066011106602214" W
106603410660231066012106602315" W
106603510660241066013106602416" W
106603610660251066014N/A17" W
106603710660261066015N/A18" W
106603810660271066016N/A19" W
106603910660281066017N/A20" W
106604010660291066018N/A21" W
106604110660301066019N/A22" W
106604210660311066020N/A23" W
106604310660321066021N/A24" W
12-15" seat depths are achieved by using CJ back cane mounting hardware.
49
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Pan and Attaching Hardware
For ASBA Seat (Before 7/5/05)
#1 Seat Pan
19"-22" Depth
Chair Width 19" Deep 20" Deep 21" Deep 22" Deep
106607710660661066055106604414" W
106607810660671066056106604515" W
106607910660681066057106604616" W
106608010660691066058106604717" W
106608110660701066059106604818" W
106608210660711066060106604919" W
106608310660721066061106605020" W
106608410660731066062106605121" W
106608510660741066063106605222" W
106608610660751066064106605323" W
106608710660761066065106605424" W
50
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Seat Pan and Attaching Hardware
For ASBA Seat (Before 7/5/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Seat Pan - 12"-18" Depth 1 11
See Chart #1 Seat Pan - 19"-22" Depth 1 11
1070459 Kit, Seat Pan Mounting Hardware 1 17 B
Screw, Hex Head (1/4-20 x 1-5/8") 1 22
Screw, Hex Head (1/4-20 x 1-1/2") 1 43
Spacer (1/4 x 3/8 x 3/16") 1 44
Locknut (1/4-20) 1 65
1109336 Kit, Seat Pan Mounting Hardware 1 17 A,C
Screw, Hex Head (1/4-20 x 1-3/4") 1 22
Screw, Hex Head (1/4-20 x 1-5/8") 1 43
Spacer (1/4 x 3/8 x 3/16") 1 44
Locknut (1/4-20) 1 65
Spacer, Coved (1/4 x 11/16 x 1/2") 1 66
A - Hardware used when a power elevating seat option is present.
B - Includes items 2-5
C - Includes items 2-6
NOTE:
51
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
#1 Contoura Seat Cushion Assembly
Chair Width 21" Deep 22" Deep16" Deep 17" Deep 18" Deep 19" Deep 20" Deep
N/AN/A
1132986
1132985
1132984
1132983
1132982
16" W See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
N/AN/A
1132991
1132990
1132989
1132988
1132987
18" W See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A 1132998
1132997
1132996
1132995
1132994
1132993
1132992
20" W See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1133003
1133002
1133001
1133000
1132999
N/AN/A22" W See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
1133008
1133007
1133006
1133005
1133004
N/AN/A24" W See Note(s) A See Note(s) A See Note(s) A See Note(s) A See Note(s) A
A - Cushion Foam is not available separately. NOTE:
#2 Contoura Seat Cushion Cover
Chair Width 21" Deep 22" Deep16" Deep 17" Deep 18" Deep 19" Deep 20" Deep
N/AN/A1132957113295611329551132954113295316" W
N/AN/A1132962113296111329601132959113295818" W
113296911329681132967113296611329651132964113296320" W
11329741132973113297211329711132970N/AN/A22" W
11329791132978113297711329761132975N/AN/A24" W
Seat Cushion Assembly
ADJASBA Only
52
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Contoura Back without Mounting Hardware
53
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Contoura Back without Mounting Hardware
#1 Back Assembly without Hardware 16", 18", 20", 22", 24" Wide
Overall
Back
Height 24" Wide
Material
Back
Height 16" Wide 18" Wide 20" Wide 22" Wide
1132832113283111328301132829113282820"25"
1132827113282611247341124733113282524"29"
#2 Back Pan with Vinyl Edge Trim 16", 18", 20", 22", 24" Wide
Overall
Back
Height 24" Wide
Material
Back
Height 16" Wide 18" Wide 20" Wide 22" Wide
1131409113140811314071131406113140520"25"
1131412113141111224531122454113141024"29"
#3 Back Cushion Assembly 16", 18", 20", 22", 24" Wide
Overall
Back
Height 24" Wide
Material
Back
Height 16" Wide 18" Wide 20" Wide 22" Wide
1132824113282311328221132821113282020"25"
1132819113281811256421125641113281724"29"
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Assembly without Hardware 16", 18", 20",
22", 24" Wide 1 11
See Chart #2 Back Pan with Vinyl Edge Trim 16", 18", 20", 22",
24" Wide 1 12
See Chart #3 Back Cushion Assembly 16", 18", 20", 22", 24"
Wide 1 13
1125725 Hook Fastener w/ Adhesive Back (1" Wide x 48"
Long) 1 14
1125724 Edge Trim, Vinyl Black (96" Long) Cut-To-Length 1 15
54
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

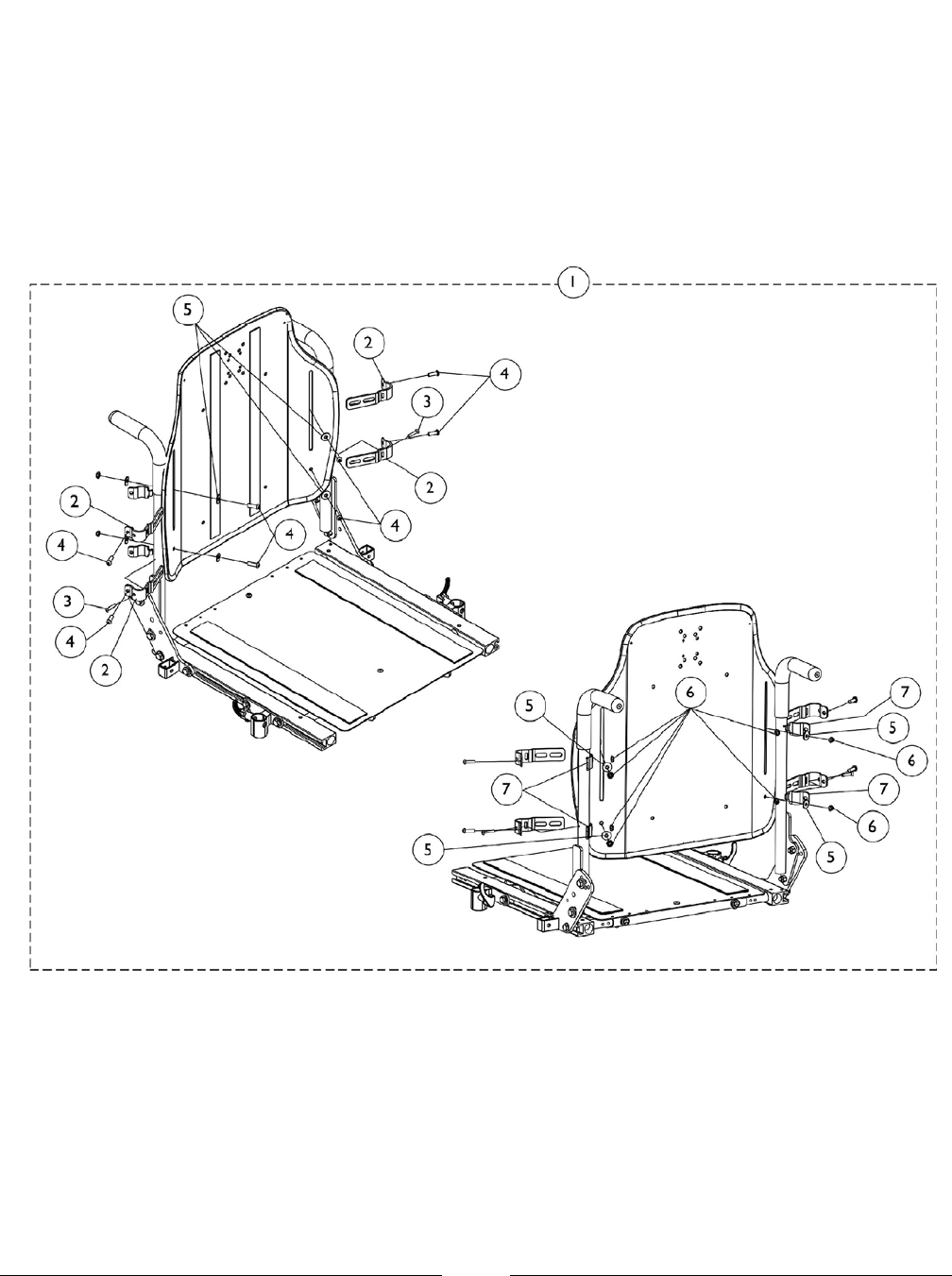

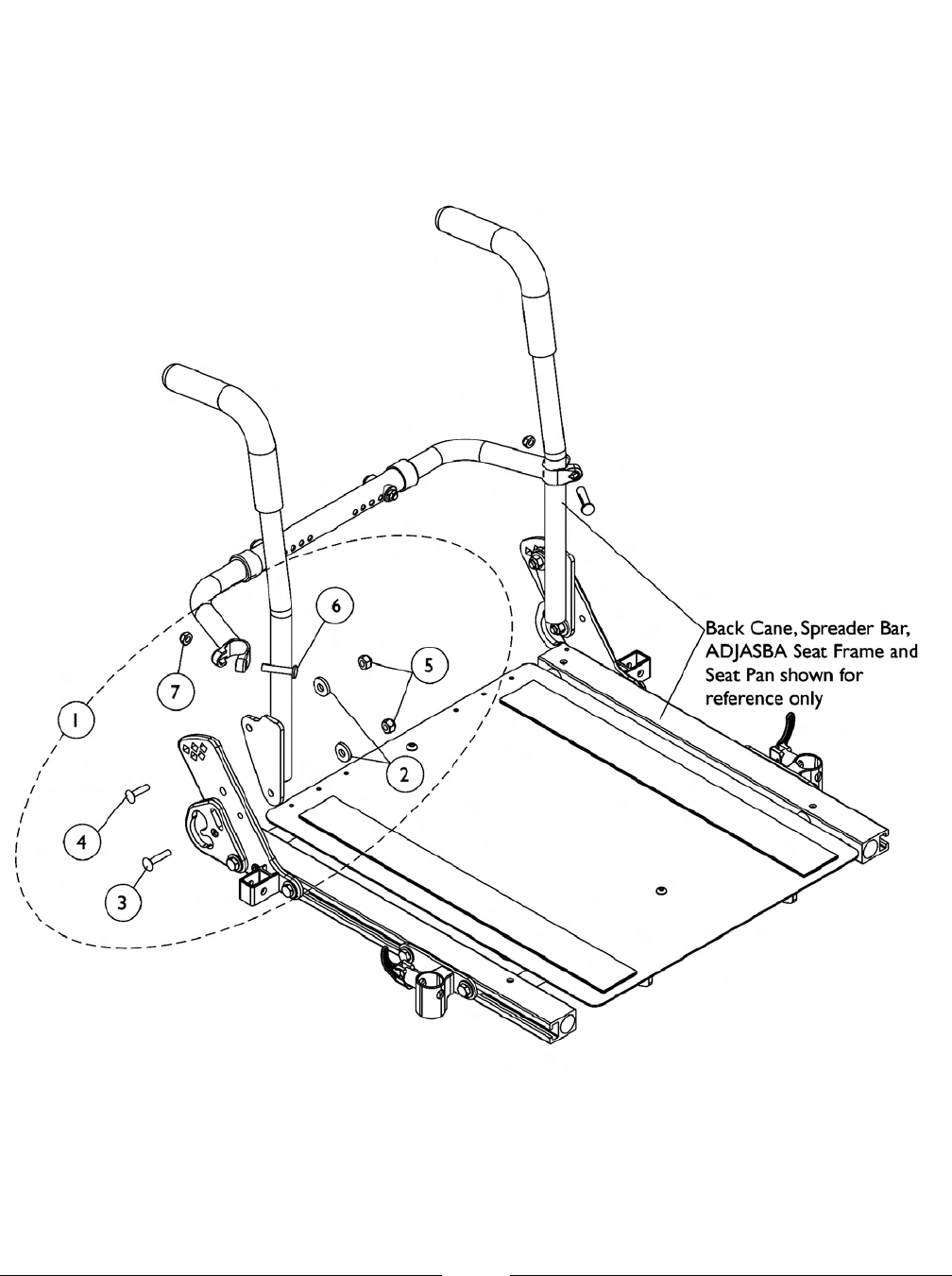

Contoura Back Mounting Hardware
ADJASBA Only
55
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Contoura Back Mounting Hardware
ADJASBA Only
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140945 Kit, Contoura Back Mounting Hdwr. - Round Canes 1 11 A
Bracket, Back Mounting, Front, Black 1 42
Screw, Phillips Oval Head Countersunk (#10-16 x
7/8") 1 23
Screw, Socket Head (1/4-20 x 3/4") 1 84
Washer (1/4 x 23/32 x 1/16") 1 85
Locknut (1/4-20) 1 86
Bracket, Back Mounting, Rear, Black 1 47
A - Includes items 2-7
NOTE:
56
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

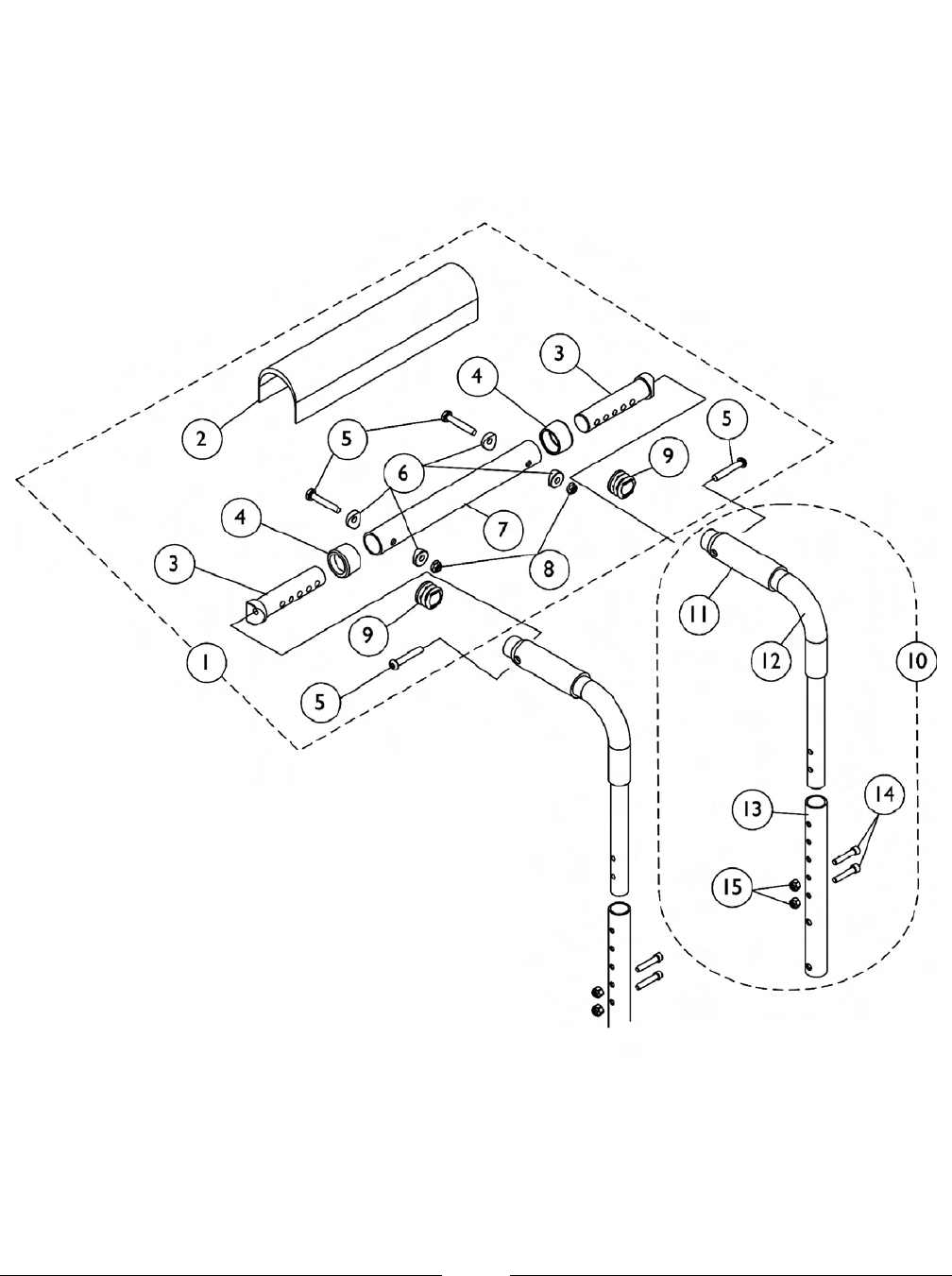

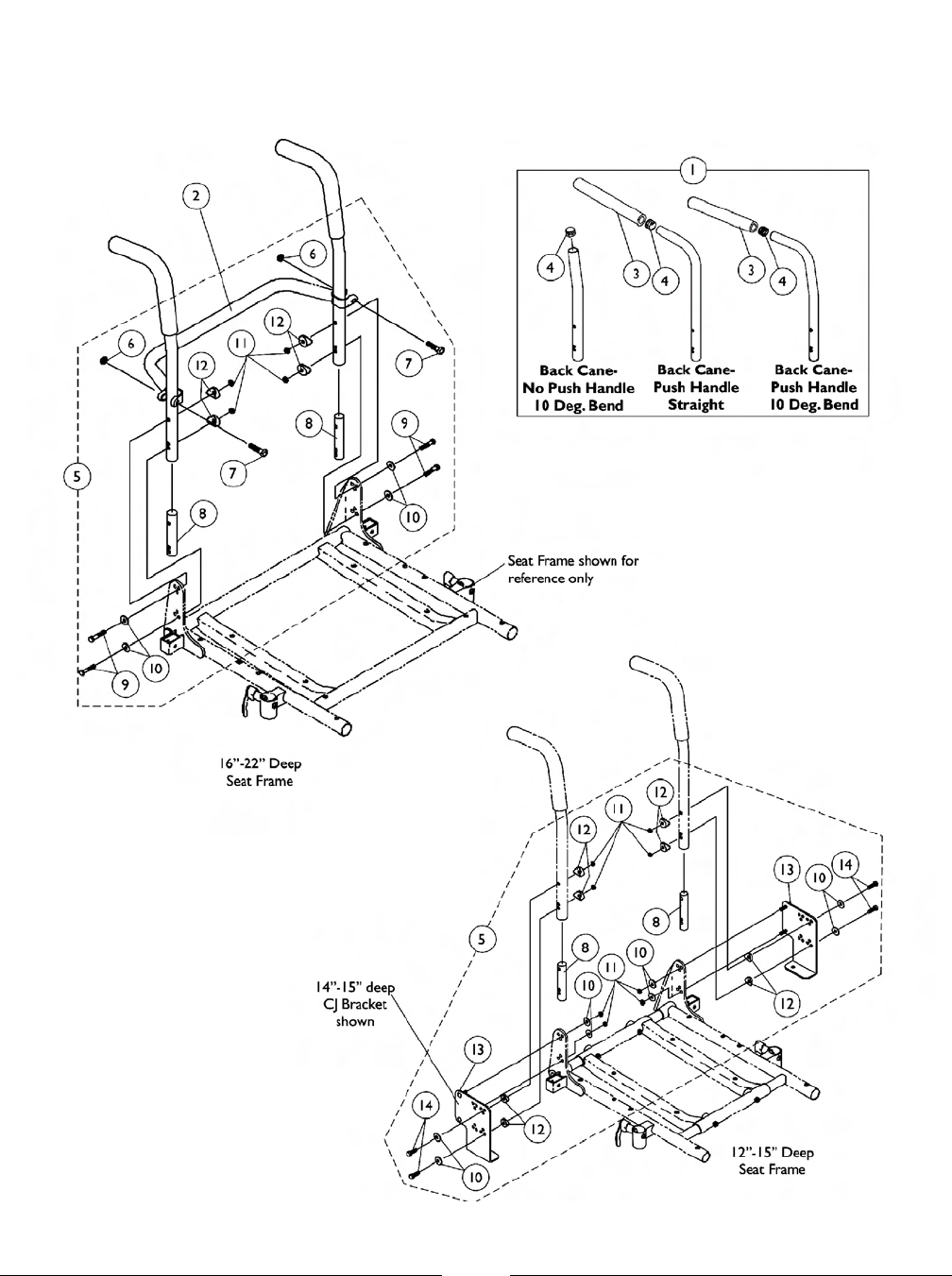

Back Canes, Spreader Bars and Attaching Hardware
For ASBA Seats (12"-24" Wide) (Before 7/5/05)
NOTE: Chairs manufactured with a seat width, seat depth or back height of 20" and greater including all
heavy duty packages will be equipped with a spreader bar standard.
57
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes, Spreader Bars and Attaching Hardware
For ASBA Seats (12"-24" Wide) (Before 7/5/05)
NOTE: Chairs manufactured with a seat width, seat depth or back height of 20" and greater including all
heavy duty packages will be equipped with a spreader bar standard.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Cane Assemblies 1 21
See Chart #2 Spreader Bar 1 12
1135506 Package, Foam Hand Grips (9" Long) 10 13
1134426 Package, Plug Buttons, Black (3/4") 10 14
1070499 Kit, Back Cane Attaching Hardware, For CJ Bracket
12-13" Deep Seat 2 15 A,E
Insert, Non-Threaded Back Cane
(For Back Heights 20" and Lower) 1 28
Washer (1/4 x 23/32 x 1/16") 1 810
Locknut (1/4-20) 1 811
Spacer, Coved (1/4 x 11/16 x 1/2") 1 812
Bracket, Back Mounting, Black - Right 1 113
Bracket, Back Mounting, Black - Left 1 113
Screw, Hex Head (1/4-20 x 1-5/8") 1 414
1070500 Kit, Back Cane Attaching Hardware, For CJ Bracket
14-15" Deep Seat 2 15 A,E
Insert, Non-Threaded Back Cane
(For Back Heights 20" and Lower) 1 28
Washer (1/4 x 23/32 x 1/16") 1 810
Locknut (1/4-20) 1 811
Spacer, Coved (1/4 x 11/16 x 1/2") 1 812
Bracket, Back Mounting, Black - Right 1 113
Bracket, Back Mounting, Black - Left 1 113
Screw, Hex Head (1/4-20 x 1-5/8") 1 414
1070457 Kit, Back Cane Attaching Hardware 2 15 B,C
Locknut (5/16-24) 1 26
Screw w/ Lug (5/16-24 x 1-3/8") 1 27
Insert, Non-Threaded Back Cane
(For Back Heights 20" and Lower) 1 28
Screw, Hex Head (1/4-20 x 1-5/8") 1 49
Washer (1/4 x 23/32 x 1/16") 1 410
Locknut (1/4-20) 1 411
Spacer, Coved (1/4 x 11/16 x 1/2") 1 412
1070458 Kit, Back Cane Attaching Hardware 2 15 B,D
Locknut (5/16-24) 1 26
Screw w/ Lug (5/16-24 x 1-3/8") 1 27
Insert, Non-Threaded Back Cane
(For Back Heights 21" and Higher) 1 28
Screw, Hex Head (1/4-20 x 1-5/8") 1 49
Washer (1/4 x 23/32 x 1/16") 1 410
Locknut (1/4-20) 1 411
Spacer, Coved (1/4 x 11/16 x 1/2") 1 412
58
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes, Spreader Bars and Attaching Hardware
For ASBA Seats (12"-24" Wide) (Before 7/5/05)
NOTE: Chairs manufactured with a seat width, seat depth or back height of 20" and greater including all
heavy duty packages will be equipped with a spreader bar standard.
A - Includes items 8 and 10-14
B - Includes items 6-12
C - Used for 12"-20" high back canes
D - Used for 21"-24" high back canes
E - Prior to 7/9/04 new back cane attaching hardware must be ordered for 12"-15" deep seats that use CJ brackets. The
threaded insert was replaced with a non-threaded insert for 12"-20" high back canes.
NOTE:
59
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes, Spreader Bars and Attaching Hardware
For ASBA Seats (12"-24" Wide) (Before 7/5/05)
NOTE: Chairs manufactured with a seat width, seat depth or back height of 20" and greater including all
heavy duty packages will be equipped with a spreader bar standard.
#1 Back Cane Assemblies
Back
Height
Back Cane-
No Push Handle
10 Deg. Bend
Back Cane-
Push Handle
Straight
Back Cane-
Push Handle
10 Deg. Bend
10499551045253104524112"
10499561045254104524213"
10499571045255104524314"
10499581045256104524415"
10455751048558104899216"
10455761048559104899317"
10455771048560104899418"
10455781048561104899519"
10455791048562104899620"
1052227N/AN/A21"
1052230N/AN/A22"
1054521N/AN/A23"
1054524N/AN/A24"
NOTE: Back Cane Assemblies include Foam Grips and Plug Buttons where shown
60
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes, Spreader Bars and Attaching Hardware
For ASBA Seats (12"-24" Wide) (Before 7/5/05)
NOTE: Chairs manufactured with a seat width, seat depth or back height of 20" and greater including all
heavy duty packages will be equipped with a spreader bar standard.
#2 Spreader Bar
Chair Width Part Number
104387114"
104387215"
104387316"
104387417"
104387518"
104387619"
104387720"
104387821"
104387922"
104388023"
104388124"
61
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes and Spreader Bars
For ADJASBA Seat (12"-16" Wide) (After 7/4/05)
62
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes and Spreader Bars
For ADJASBA Seat (12"-16" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126147 Kit, Spreader Bar Assembly (12"-16" Wide) 1 11 A
Cover, Spreader Bar 1 12
Insert, Spreader Bar Connector 1 23
Anti-Rattle (1") 1 24
Screw, Socket Button Head (1/4-20 x 1-1/2") 1 45
Spacer, Coved (1/4 x 11/16 x 1/2") 1 46
Tube, Spreader Bar 1 17
Locknut (1/4-20) 1 28
Plug Button, Black (1") 1 29
1127154 Kit, Back Cane Assembly with Hardware (12"-15"
Back Height) 1 110 B
Grip, Foam (4") 1 111
Handle, Push 1 112
Cane, Lower - 12"-15" Back Height 1 113
Screw, Socket Head (1/4-20 x 1-1/4") 1 214
Locknut (1/4-20) 1 215
1127155 Kit, Back Cane Assembly with Hardware (16"-19"
Back Height) 1 110 B
Grip, Foam (4") 1 111
Handle, Push 1 112
Cane, Lower - 16"-19" Back Height 1 113
Screw, Socket Head (1/4-20 x 1-1/4") 1 214
Locknut (1/4-20) 1 215
1127156 Kit, Back Cane Assembly with Hardware (20"-22"
Back Height) 1 110 B
Grip, Foam (4") 1 111
Handle, Push 1 112
Cane, Lower - 20"-22" Back Height 1 113
Screw, Socket Head (1/4-20 x 1-1/4") 1 214
Locknut (1/4-20) 1 215
1135505 Package, Foam Hand Grips (4" Long) 10 111
A - Includes items 2-9
B - Includes items 11-15
NOTE:
63
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seat (12"-16" Wide) (After 7/4/05)
64
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seat (12"-16" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1126146 Kit, Back Cane Attaching Hardware 2 11 A
Screw, Hex Head Cap with Patch (5/16-18 x 1-3/4") 1 42
Washer, Flat (21/64 x 53/64 x 7/64") 1 43
Insert, Back Cane 1 24
Spacer, Coved (3/4 x 1 x 1/2") 1 45
Washer, Flat (5/16 x 5/8 x 1/16") 1 46
Locknut (5/16-18) 1 47
1135499 Kit, Back Cane Bracket Mounting Hardware 2 18 B
T-Nut (5/16-18) 1 29
Screw, Hex Head (5/16-18 x 5/8") 1 210
Washer, Flat (5/16 x 5/8 x 1/16") 1 211
Locknut (1/4-20) 1 412
Washer (1/4 x 1/2 x 1/16") 1 213
Screw, Hex Head (1/4-20 x 1-3/4") 1 414
1133597 Bracket, Back Cane Mounting, Black - Right 1 115
1133598 Bracket, Back Cane Mounting, Black - Left 1 115
A - Includes items 2-7
B - Includes items 9-14
NOTE:
65
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (12"-16" W x 12"-15" D) TRRO Option
66
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (12"-16" W x 12"-15" D) TRRO Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1139553 Kit, Back Cane Attaching Hardware For TRRO
Option 2 11 A
Bolt, Round Head Square Neck (5/16-18 x 1-3/4") 1 42
Insert, Back Cane 1 23
Spacer, Coved (3/4 x 1 x 1/2") 1 44
Washer, Flat (5/16 x 5/8 x 1/16") 1 45
Locknut (5/16-18) 1 46
1136026 Kit, Back Cane Bracket Mounting Hardware For
TRRO Option (12"-15" Deep) 2 17 B
T-Nut (5/16-18) 1 28
Screw, Hex Head (5/16-18 x 5/8") 1 29
Washer, Flat (5/16 x 5/8 x 1/16") 1 210
Washer (1/4 x 1/2 x 1/16") 1 1011
Screw, Hex Head (1/4-20 x 1-3/4") 1 612
Locknut (1/4-20) 1 613
A - Includes items 2-6
B - Includes items 8-13
NOTE:
67
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (12"-16" W x 16"-18" D) TRRO Option
68
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (12"-16" W x 16"-18" D) TRRO Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1139553 Kit, Back Cane Attaching Hardware For TRRO
Option 2 11 A
Bolt, Round Head Square Neck (5/16-18 x 1-3/4") 1 42
Insert, Back Cane 1 23
Spacer, Coved (3/4 x 1 x 1/2") 1 44
Washer, Flat (5/16 x 5/8 x 1/16") 1 45
Locknut (5/16-18) 1 46
1136027 Kit, Back Cane Bracket Mounting Hardware For
TRRO Option (16"-18" Deep) 2 17 B
T-Nut (5/16-18) 1 28
Screw, Hex Head (5/16-18 x 5/8") 1 29
Washer, Flat (5/16 x 5/8 x 1/16") 1 210
Screw, Hex Head (1/4-20 x 1-1/4") 1 211
Screw, Hex Head (1/4-20 x 1-3/4") 1 412
Washer (1/4 x 1/2 x 1/16") 1 813
Locknut (1/4-20) 1 414
A - Includes items 2-6
B - Includes items 8-14
NOTE:
69
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

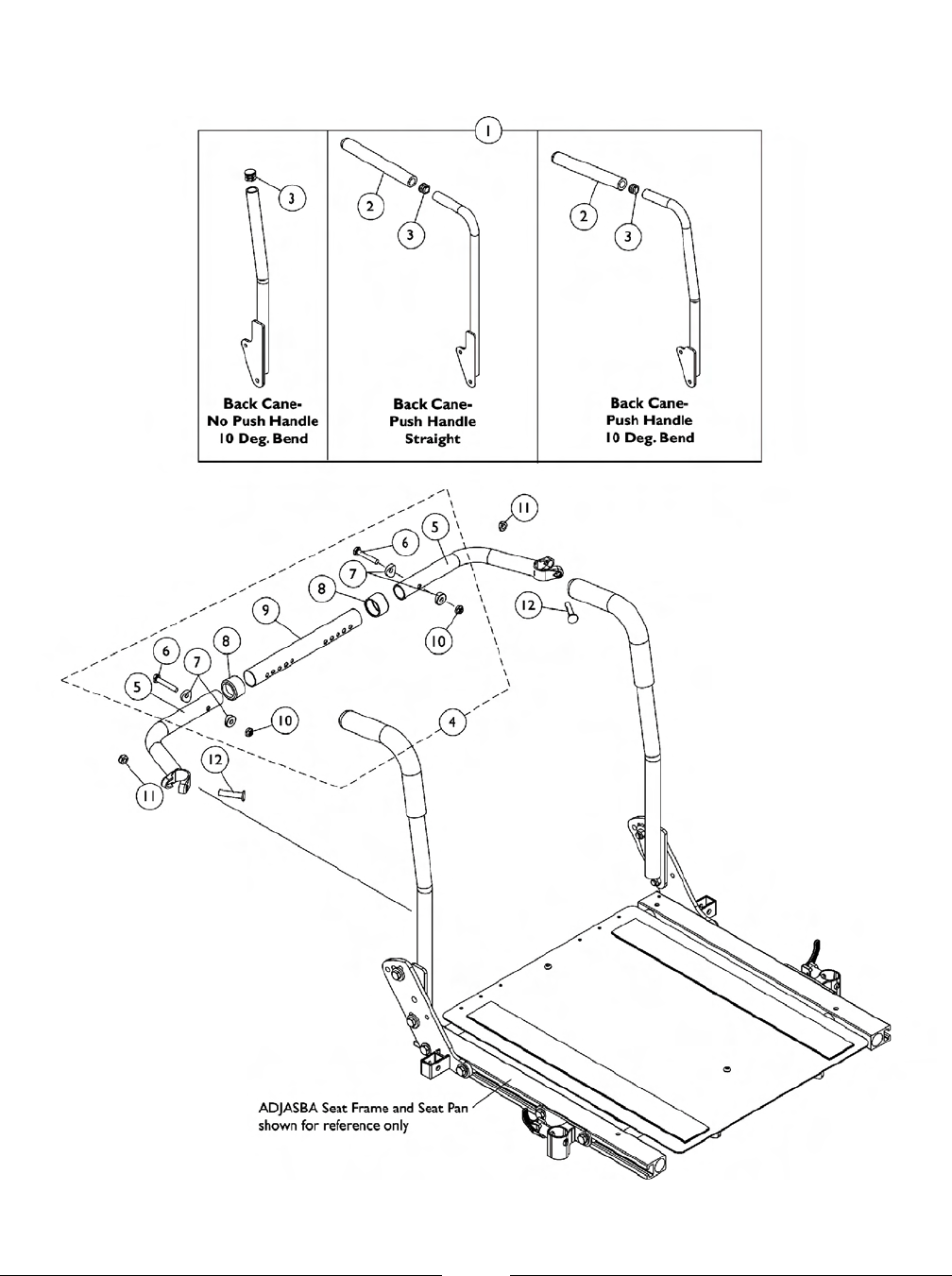

Back Canes and Spreader Bars
For ADJASBA Seat (16"-24" Wide) (After 7/4/05)
Contoura Backs for ADJASBA Seating do not utilize a Spreader Bar Assembly.
70
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes and Spreader Bars
For ADJASBA Seat (16"-24" Wide) (After 7/4/05)
Contoura Backs for ADJASBA Seating do not utilize a Spreader Bar Assembly.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Back Cane Assemblies 1 11
1135506 Package, Foam Hand Grips (9" Long) 10 12
1134426 Package, Plug Buttons, Black (3/4") 10 13
1125709 Kit, Spreader Bar Assembly (16"-20" Wide) 1 14 A
Handle, Spreader Bar 1 25
Screw, Hex Head (1/4-20 x 1-1/2") 1 26
Spacer, Coved (1/4 x 11/16 x 1/2") 1 47
Anti-Rattle (1") 1 28
Tube, Spreader Bar Adjustable (16"-20" Wide) 1 19
Locknut (1/4-20) 1 210
1125710 Kit, Spreader Bar Assembly 20"-24" Wide 1 14 A
Handle, Spreader Bar 1 25
Screw, Hex Head (1/4-20 x 1-1/2") 1 26
Spacer, Coved (1/4 x 11/16 x 1/2") 1 47
Anti-Rattle (1") 1 28
Tube, Spreader Bar Adjustable (20"-24" Wide) 1 19
Locknut (1/4-20) 1 210
1025730 Locknut (5/16-24) 1 211
1031026 Screw w/ Lug (5/16-24 x 1-3/8") 1 212
A - Includes items 5-10
NOTE:
#1 Back Cane Assemblies
Back
Height
Back Cane-
Push Handle
10 Deg. Bend
Left
Back Cane-
No Push
Handle
10 Deg. Bend
Right
Back Cane-
No Push
Handle
10 Deg. Bend
Left
Back Cane-
Push Handle
Straight
Right
Back Cane-
Push Handle
Straight
Left
Back Cane-
Push Handle
10 Deg. Bend
Right
11338151133814113378611337851134059113405812"
11338171133816113378811337871134061113406013"
11338191133818113379011337891134063113406214"
11338211133820113379211337911134065113406415"
11338231133822113379411337931134067113406616"
11338251133824113379611337951134069113406817"
11338271133826
1143335
1143334
1134071113407018" See Note(s) C See Note(s) B
11338291133828113380011337991134073113407219"
11338311133830113380211338011134075113407420"
11338331133832
1136012
1136011
1134077113407621" See Note(s) B See Note(s) B
11338351133834
1136014
1136013
1134079113407822" See Note(s) B See Note(s) B
71
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Canes and Spreader Bars
For ADJASBA Seat (16"-24" Wide) (After 7/4/05)
Contoura Backs for ADJASBA Seating do not utilize a Spreader Bar Assembly.
#1 Back Cane Assemblies
Back
Height
Back Cane-
Push Handle
10 Deg. Bend
Left
Back Cane-
No Push
Handle
10 Deg. Bend
Right
Back Cane-
No Push
Handle
10 Deg. Bend
Left
Back Cane-
Push Handle
Straight
Right
Back Cane-
Push Handle
Straight
Left
Back Cane-
Push Handle
10 Deg. Bend
Right
11338381133837
1136016
1136015
1134081113408023" See Note(s) B See Note(s) B
11338401133839
1136018
1136017
1134083113408224" See Note(s) B See Note(s) B
B - 21"-24" High Straight Back Canes with Push Handles are only offered On-Chair when the Back Upholstery is omitted
C - Chairs with Contoura Backs use 18" high back canes only
NOTE:
NOTE: Back Cane Assemblies include Foam Grips and Plug Buttons where shown
72
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seat (16"-24" Wide) (After 7/4/05)
73
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seat (16"-24" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1133755 Kit, Back Cane Mounting Hardware (Pair) 2 11 A
Screw, Hex Head Cap (5/16-18 x 1") 1 42
Washer, Flat (21/64 x 53/64 x 7/64") 1 43
Locknut (5/16-18) 1 44
Locknut (5/16-24) 1 25
Screw w/ Lug (5/16-24 x 1-3/8") 1 26
A - Includes items 2-6
NOTE:
74
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (16"-24" Wide) with TRRO Option
75
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Cane Attaching Hardware
For ADJASBA Seats (16"-24" Wide) with TRRO Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1137234 Kit, Back Cane Mounting Hardware For TRRO
Option (Pair) 2 11
Washer, Flat (21/64 x 53/64 x 7/64") 1 42
Bolt, Round Head Square Neck (5/16-18 x 1-1/4") 1 23
Bolt, Round Head Square Neck (5/16-18 x 1") 1 24
Locknut (5/16-18) 1 45
Screw w/ Lug (5/16-24 x 1-3/8") 1 26
Locknut (5/16-24) 1 27
76
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Nylon
Non-Recliner
77
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Nylon
Non-Recliner
Single Liners
Width 21"-22"
High 23"-24"
High
12"-13"
High 14"-15"
High 16"-17"
High 18"-19"
High 20"
High
N/AN/AN/A104525810452571045222104522112" W
N/AN/AN/A104526010452591045224104522313" W
105452710451571068945104520510451731049942104993914" W
105452810451581068946104520610451741049943104994015" W
105452910451591068947104520710451751045175104994116" W
105453010451601068948104520810451761049945N/A17" W
105453110451611068949104520910451771049946N/A18" W
Dual Liners
Width 16"-17"
High 18" - 19"
High 20"
High 21" - 22"
High 23" - 24"
High
1054532104516210689501045210104517814" W
1054533104516310689511045211104517915" W
1054534104516410689521045212104518016" W
1054535104516510689531045213104518117" W
1054536104516610689541045214104518218" W
1054537104516710689551045215104518319" W
1054538104516810689561045216104518420" W
1054539104516910689571045217104518521" W
1054540104517010689581045218104518622" W
1054541104517110689591045219104518723" W
1054542104517210689601045220104518824" W
NOTE: Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18".
78
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Nylon
Non-Recliner
Back Upholstery Hardware 1026298
Consists of:
Screw with Washer (10 x 7/8")2 each
Cable Ties2 each
79
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Vinyl
Non-Recliner
80
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Vinyl
Non-Recliner
Single Liners
Width 21"-22"
High 23"-24"
High
12"-13"
High 14"-15"
High 16"-17"
High 18"-19"
High 20"
High
N/AN/AN/A888104526288810452618881045226888104522512" W
N/AN/AN/A888104526488810452638881045228888104522713" W
888105454388810451258881068961888104506088810450768881049950888104994714" W
888105454488810451268881068962888104506188810450778881049951888104994815" W
888105454588810451278881068963888104506288810450788881049952888104994916" W
888105454688810451288881068964888104506388810450798881049953N/A17" W
888105454788810451298881068965888104506488810450808881049954N/A18" W
NOTE: Specify upholstery color. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options page.
Dual Liners
Width 16"-17"
High 18"-19"
High 20"
High 21"-22"
High 23"-24"
High
8881054548888104513088810689668881045065888104508114" W
8881054549888104513188810689678881045066888104508215" W
8881054550888104513288810689688881045067888104508316" W
8881054551888104513388810689698881045068888104508417" W
8881054552888104513488810689708881045069888104508518" W
8881054553888104513588810689718881045070888104508619" W
8881054554888104513688810689728881045071888104508720" W
8881054555888104513788810689738881045072888104508821" W
8881054556888104513888810689748881045073888104508922" W
8881054557888104513988810689758881045074888104509023" W
8881054558888104514088810689768881045075888104509124" W
NOTE: Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18".
NOTE: Specify upholstery color. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options page.
81
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Vinyl
Non-Recliner
Hardware
Back Upholstery Hardware 1026298
Consists of:
Screw with Washer (10 x 7/8")2 each
Cable Ties2 each
82
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ASBA Seat Frames (Before 7/5/05)
83
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ASBA Seat Frames (Before 7/5/05)
#3 Back Cane with Grip
Back Height 16"-17" Wide Rt. 16"-17" Wide Lt. 18"-24" Wide Rt. 18"-24" Wide Lt.
105209010520891052080105207918" H
105209210520911052082105208120" H
105209410520931052084105208322" H
105209610520951052086105208524" H
105209810520971052088105208726" H
NOTE: When converting a non-recliner to a manual recline, a recline wire harness must be ordered as well. See Battery Charger and
Harness page.
84
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ASBA Seat Frames (Before 7/5/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1027095 Plug Button, Black (7/8") 1 21
1052997 Tube, Headrest with Plug Button,
without Snap Buttons - Right 1 12
1052998 Tube, Headrest with Plug Button,
without Snap Buttons - Left 1 12
See Chart #3 Back Cane with Grip 1 13
1050214 Cable with Trigger 1 24 B
1050215 Cable with Trigger 1 24 C
1050216 Cable with Trigger 1 24 D
1026032 Washer, Nylon (11/32 x 11/16 x 1/16") 1 45
1050153 Screw, Socket Head Shoulder (5/16 x 7/8") 1 26
1050154 Lock Cylinder, Recline 1 27 E
1050306 Lock Cylinder 1 27 F
1050136 Pivot Block 1 28
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 129
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 410
1050293 Bar, Spreader, Black (14-20") 1 111 G
1050294 Bar, Spreader, Black (21-24") 1 111 H
1024713 Spring, Torsion w/ Button 1 212
1091417 Screw, Phillips Pan Head (#10-24 x 1-1/4") 1 213
1095503 Package, Cable Ties (5-5/8" Long) 10 114
1025736 Locknut (1/4-20) 1 215
1026907 Washer (1/4 x 1/2 x 1/16") 1 216
1026158 Locknut (5/16-18) 1 417
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 418
1053178 Switch Assembly, Limit 1 119 A
1008525 Washer, Internal Tooth Lock (#4-40) 1 520
1025116 Screw, Slotted Hex Head (#4-3/8") 1 521
1024001 Sensor, Actuator Switch 1 122
1050310 Clamp, Cable 1 123
1095503 Package, Cable Ties (5-5/8" Long) 10 124
1092913 Cable, Drive Lockout Sensor 1 125
A - Includes items 20-24. Sensor cable is not included, see item 25
B - 26" high back canes
C - 22-24" high back canes
D - 18-20" high back canes
E - 250 lb. weight limit
F - 251-400 lb. weight limit
G - 16-17" wide
H - 18-24" wide
NOTE:
85
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

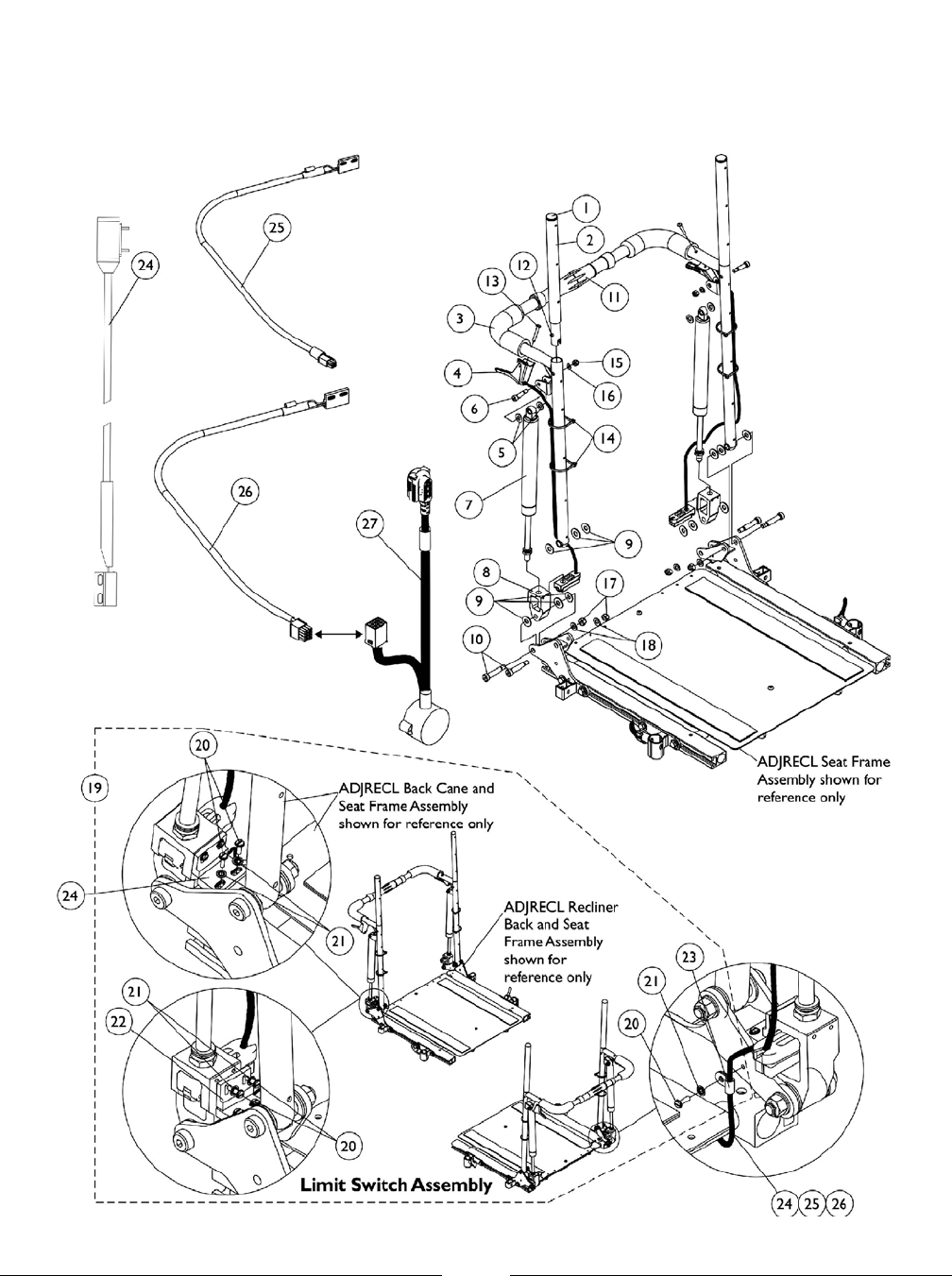

Recliner Back Assembly
For ADJRECL Seat Frames (After 7/4/05)
86
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ADJRECL Seat Frames (After 7/4/05)
#3 Back Cane with Grip
Back Height 16"-17" Wide Rt. 16"-17" Wide Lt. 18"-24" Wide Rt. 18"-24" Wide Lt.
105209010520891052080105207918" H
105209210520911052082105208120" H
105209410520931052084105208322" H
105209610520951052086105208524" H
105209810520971052088105208726" H
87
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ADJRECL Seat Frames (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1027095 Plug Button, Black (7/8") 1 21
1052997 Tube, Headrest with Plug Button,
without Snap Buttons - Right 1 12
1052998 Tube, Headrest with Plug Button,
without Snap Buttons - Left 1 12
See Chart #3 Back Cane with Grip 1 13
1050214 Cable with Trigger 1 24 B
1050215 Cable with Trigger 1 24 C
1050216 Cable with Trigger 1 24 D
1026032 Washer, Nylon (11/32 x 11/16 x 1/16") 1 45
1050153 Screw, Socket Head Shoulder (5/16 x 7/8") 1 26
1050154 Lock Cylinder, Recline 1 27 E
1050306 Lock Cylinder 1 27 F
1050136 Pivot Block 1 28
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 129
1031665 Screw, Socket Head Shoulder (3/8 x 1-1/2") 1 410
1050293 Bar, Spreader, Black (14-20") 1 111 G
1050294 Bar, Spreader, Black (21-24") 1 111 H
1024713 Spring, Torsion w/ Button 1 212
1091417 Screw, Phillips Pan Head (#10-24 x 1-1/4") 1 213
1095503 Package, Cable Ties (5-5/8" Long) 10 114
1025736 Locknut (1/4-20) 1 215
1026907 Washer (1/4 x 1/2 x 1/16") 1 216
1026158 Locknut (5/16-18) 1 417
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 418
1134498 Kit, Limit Switch Assembly 1 119 A
Screw, Slotted Hex Head (#4-3/8") 1 520
Washer, Internal Tooth Lock (#4-40) 1 521
Sensor, Actuator Switch 1 122
Clamp, Cable 1 123
1092913 Cable, Drive Lockout Sensor 1 124
1146573 Cable, Drive Lockout Sensor (MK6i) 1 125 I
1144926 Cable, Drive Lockout Sensor (MK6i) 1 126 J
1142231 Cable, GB TT Interface 1 127 K
88
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Recliner Back Assembly
For ADJRECL Seat Frames (After 7/4/05)
A - Includes items 20-23. Cable sensor is not included, see item 24, 25 or 26
B - 26" high back canes
C - 22-24" high back canes
D - 18-20" high back canes
E - 250 lb. weight limit
F - 251-400 lb. weight limit
G - 16-17" wide
H - 18-24" wide
I - Sensor Cable used for chairs manufactured with MK6i electronics and 4-Pole Motors only.
J - Sensor Cable used with item 27 GB TT Interface Cable for chairs manufactured with MK6i Electronics and GB TT Motors
K - Interface Cable used with item 26 Sensor Cable for chairs manufactured with MK6i Electronics and GB TT Motors
NOTE:
89
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Single Liners
Width 18" High 20" High 22" High 24" High 26" High
1050334105032910503241050319105031416" W
1050335105033010503251050320105031517" W
1050336105033110503261050321105031618" W
Back Upholstery - Nylon
Recliner
90
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Nylon
Recliner
Dual Liners
Width 18" High 20" High 22" High 24" High 26" High
1050383105037210503611050350105033916" W
1050384105037310503621050351105034017" W
1050385105037410503631050352105034118" W
1050386105037510503641050353105034219" W
1050387105037610503651050354105034320" W
1050388105037710503661050355105034421" W
1050389105037810503671050356105034522" W
1050390105037910503681050357105034623" W
1050391105038010503691050358105034724" W
NOTE: Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18".
Hardware
Back Upholstery Hardware 1027059
Consists of:
Screw with Washer (10 x 7/8")10 each
91
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Single Liners
Width 18" High 20" High 22" High 24" High 26" High
8881050583888105057888810505738881050568888105056316" W
8881050584888105057988810505748881050569888105056417" W
8881050585888105058088810505758881050570888105056518" W
NOTE: Specify upholstery color. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options page.
Back Upholstery - Vinyl
Recliner
92
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Back Upholstery - Vinyl
Recliner
Dual Liners
Width 18" High 20" High 22" High 24" High 26" High
8881050632888105062188810506108881050599888105058816" W
8881050633888105062288810506118881050600888105058917" W
8881050634888105062388810506128881050601888105059018" W
8881050635888105062488810506138881050602888105059119" W
8881050636888105062588810506148881050603888105059220" W
8881050637888105062688810506158881050604888105059321" W
8881050638888105062788810506168881050605888105059422" W
8881050639888105062888810506178881050606888105059523" W
8881050640888105062988810506188881050607888105059624" W
NOTE: Dual liner back upholstery is used with chairs that have a seat deeper than 17" or back wider than 18".
NOTE: Specify upholstery color. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options page.
Back Upholstery Hardware 1027059
Consists of:
Screw with Washer (10 x 7/8")10 each
93
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Nylon Headrest
Chair Width Part Number
105462816" W
105528117" W
105462918" W
105528219" W
105528320" W
105528421" W
105528522" W
105528623" W
105528724" W
Vinyl Headrest
Chair Width Part Number
888105463116" W
888105528917" W
888105463218" W
888105529019" W
888105529120" W
888105529221" W
888105529322" W
888105529423" W
888105529524" W
NOTE: Specify upholstery color when ordering. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options
Headrest Upholstery and Pillows
Recliner
94
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Headrest Upholstery and Pillows
Recliner
Back Upholstery Hardware 1030441
Consists of:
Screw with Washer (10 x 7/8")6 each
Headrest Pillows - Nylon
Chair Width 16"-18" W 19"-22" W 23"-24" W
105527410545981054896Part Number
Headrest Pillows - Vinyl
Chair Width 16"-18" W 19"-22" W 23"-24" W
888105527788810546238881054619Part Number
NOTE: Specify upholstery color when ordering. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options
95
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

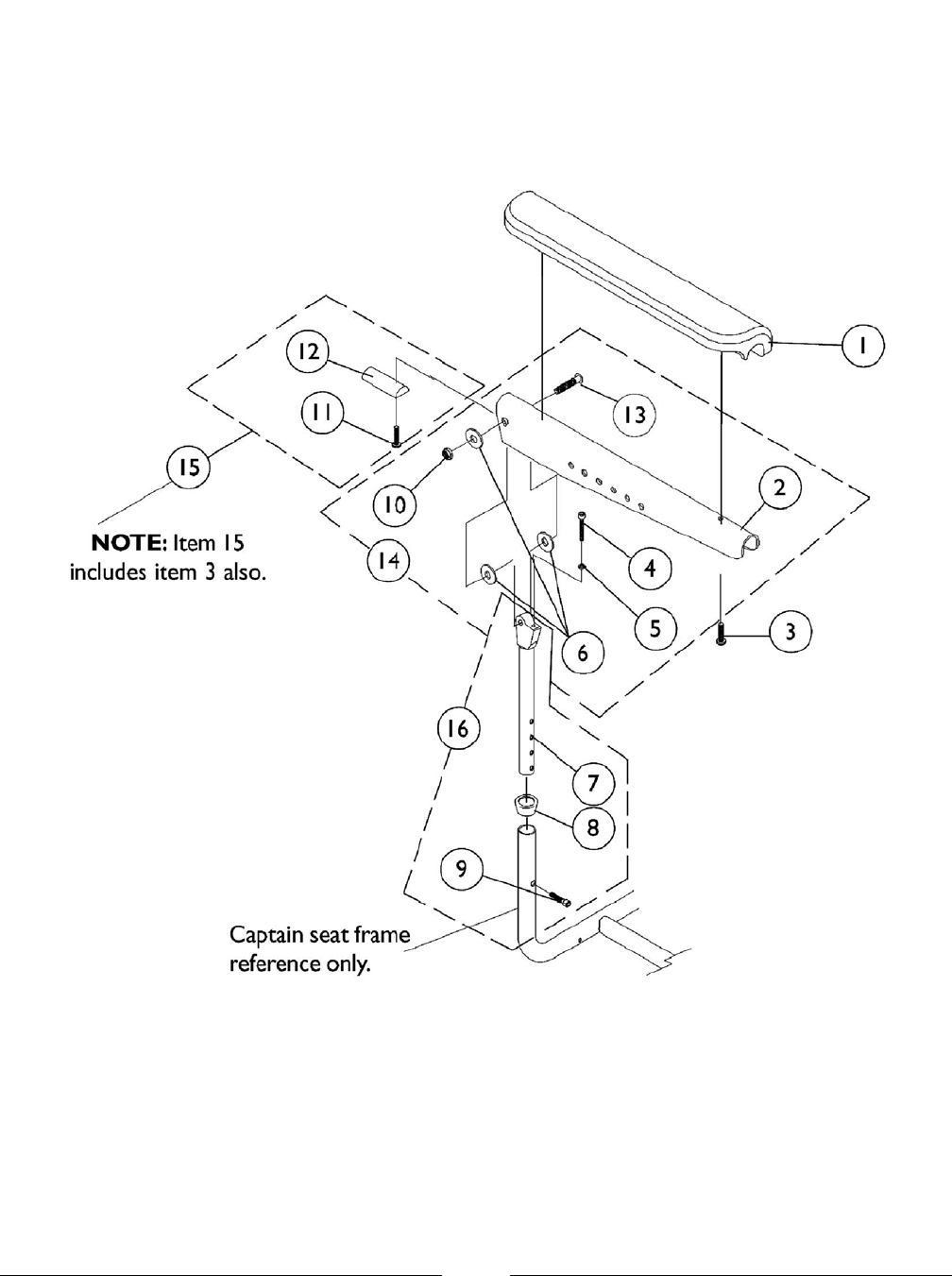

Captain Seat Arms and Hardware
18" Wide Models
96
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Arms and Hardware
18" Wide Models
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117328 Arm Pad, Full Length, Urethane Waterfall with
Screws, Black
(13" L x 2-5/8" W)
1 21 A,E
1071359 Plate, Armrest (Black) 1 22
1028755 Screw, Phillips Pan Head (#10-32 x 5/8") 1 43
1009837 Screw, Socket Button Head (1/4-20 x 1") 1 24
1025711 Nut, Hex (1/4-20) 1 25
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 66
1070928 Arm Tube, Upper Height and Width Adjustable
(Black) 1 27
15680X013 Anti-Rattle (1") 1 28
7930304 Screw, Socket Head (1/4-20 x 1-1/4") 25 29
1026906 Locknut (5/16-24) 1 210
1102546 Screw, Phillips Pan Head (#10-32 x 7/8") 1 211
1070106 Insert, Armrest 1 212
1031026 Screw w/ Lug (5/16-24 x 1-3/8") 1 213
1074120 Kit, Armrest Attaching Hardware (Pair) 2 114 B
1073378 Kit, Arm Pad Attaching Hardware 2 115 C
1070756 Arm Tube Assembly, Upper Adjustable (Pair) 2 116 D
A - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs for chairs
manufactured before 1/3/02.
B - Includes items 2, 4, 5, 6, 10, 13
C - Includes items 3, 11, 12
D - Includes items 7-9
E - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair
NOTE:
97
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Arms and Hardware
20" and 22" Wide Models
98
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Captain Seat Arms and Hardware
20" and 22" Wide Models
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117328 Arm Pad, Full Length, Urethane Waterfall with
Screws, Black
(13" L x 2-5/8" W)
1 21 A,E
1101912 Plate, Armrest 1 22
1028755 Screw, Phillips Pan Head (#10-32 x 5/8") 1 23
1009837 Screw, Socket Button Head (1/4-20 x 1") 1 24
1025711 Nut, Hex (1/4-20) 1 25
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 26
1101914 Arm Tube, Upper Adjustable 1 27
1101110 Anti-Rattle 1 28
1038379 Screw, Socket Head Cap w/ Patch (1/4-20 x 1-1/2") 1 29
1026906 Locknut (5/16-24) 1 210
1102546 Screw, Phillips Pan Head (#10-32 x 7/8") 1 211
1101634 Insert, Armrest 1 212
1031026 Screw w/ Lug (5/16-24 x 1-3/8") 1 213
1101917 Hardware, Armrest Attaching (Pair) 2 114 B
1101916 Hardware, Arm Pad Attaching (Pair) 2 115 C
1101915 Arm Tube Assembly, Upper Adjustable (Pair) 2 116 D
A - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs for chairs
manufactured before 1/3/02.
B - Includes items 2, 4, 5, 6, 10, 13
C - Includes items 3, 11, 12
D - Includes items 7-9
E - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair
NOTE:
99
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

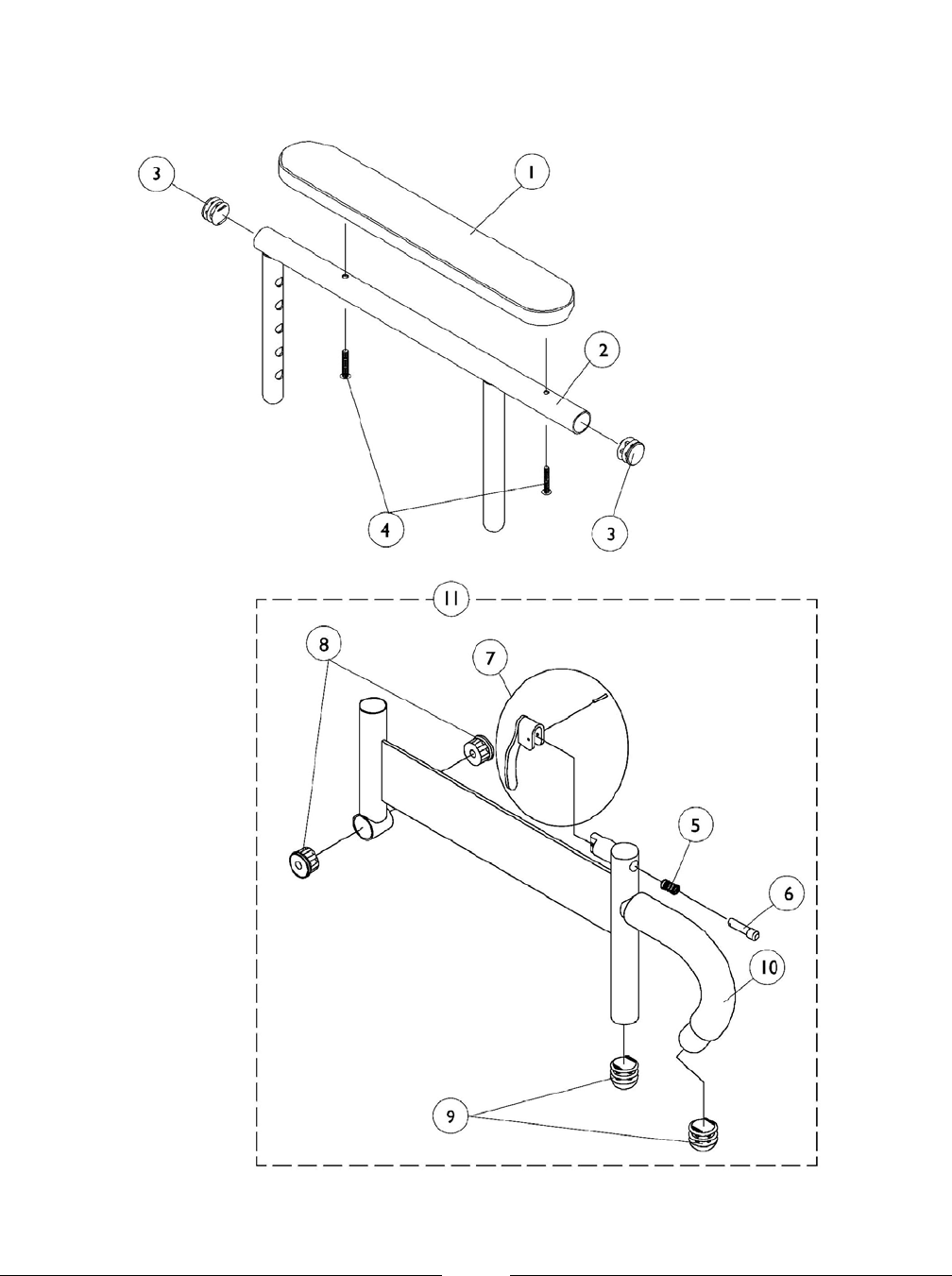

Arms, Adjustable Height
(12-13" W x 12-15" D)/(14-15" W x 12-22" D) ASBA Seats & (12-16" W x
12-18" D) ADJASBA Seats
100
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Adjustable Height
(12-13" W x 12-15" D)/(14-15" W x 12-22" D) ASBA Seats & (12-16" W x
12-18" D) ADJASBA Seats
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
8881015932 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Right 1 11 A
8881015933 Arm Pad, Vinyl, Full Length (14" L x 2" W) - Left 1 11 A
8881053577 Arm Pads, Vinyl, Full Length with Screws (14" L x 2"
W) 2 11 A
8881011811 Arm Pad, Vinyl, Desk Length (9" L x 2" W) 1 11 A
8881053578 Arm Pads, Vinyl, Desk Length with Screws (9" L x
2" W) 2 11 A
1071263 Upper Arm Assembly, Adjustable Height with Plug
Buttons - Full Length 1 12
1071259 Upper Arm Assembly, Adjustable Height with Plug
Buttons - Desk Length 1 12
1027095 Plug Button, Black (7/8") 1 23
1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 14
47471X074 Spring, Arm Lock 1 15
1028594 Pin, Arm Lock 1 16
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 17
1065936 Plug, Pivot 1 28
1067734 Plug Button, Black (5/8") 1 29
1016298 Grip, Push Handle 1 110
1068585 Arm Base Assembly, Adjustable Height - Right
(Black) 1 111
1068586 Arm Base Assembly, Adjustable Height - Left
(Black) 1 111
A - Specify upholstery color when ordering. See page titled Frame Finishes, Touch-Up Paints and Upholstery Options
NOTE:
101
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

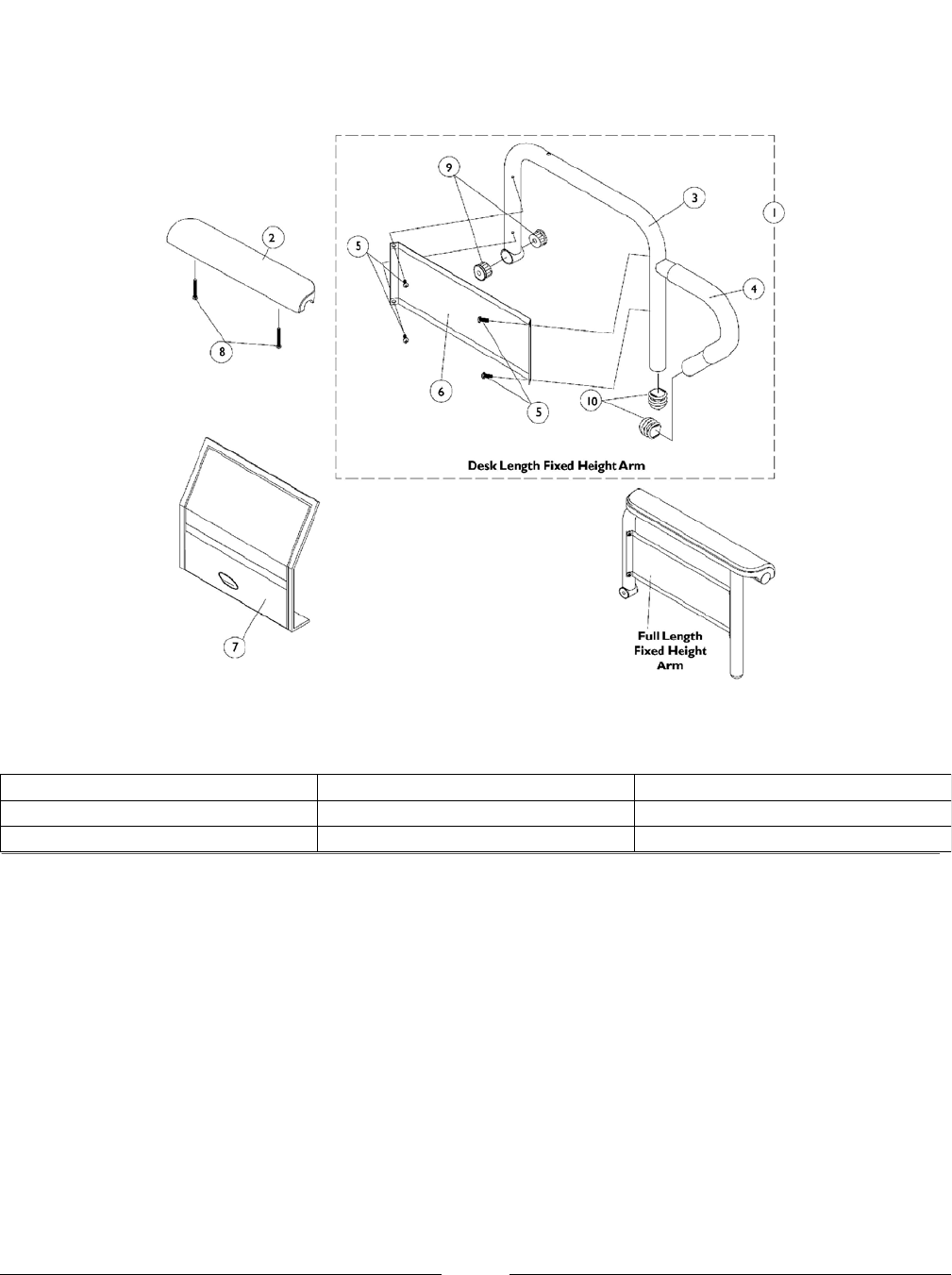

#1 Arms Less Pad
16"-19" Deep Seat Frames
Arm Style Right Left
10685671068566Desk Length
10685601068559Full Length
Arms, Fixed Height
(16"-24" Wide) x (16"-22" Deep) Seat Frames
102
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Fixed Height
(16"-24" Wide) x (16"-22" Deep) Seat Frames
#1 Arms Less Pad
20" and Deeper Seat Frames
Arm Style Right Left
1068541
1068540
Desk Length
See Note(s) A See Note(s) A
1068529
1068528
Full Length See Note(s) A See Note(s) A
A - The ADJASBA seat frame for 19-22" depths must use the 16-19" deep arms only. NOTE:
103
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Fixed Height
(16"-24" Wide) x (16"-22" Deep) Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Arms Less Pad - 16"-19" Deep Seat Frames 1 11
See Chart #1 Arms Less Pad - 20" and Deeper Seat Frames 1 11 C
1117328 Arm Pad, Full Length, Urethane Waterfall with
Screws, Black
(13" L x 2-5/8" W)
1 12 A,D
1110818 Arm Pads, Full Length, Urethane Waterfall
with Screws, Black (13" L x 2-5/8" W) (Pair) 2 12
1117327 Arm Pad, Desk Length, Urethane Waterfall with
Screws, Black
(9" L x 2-5/8" W)
1 12 A,D
1110817 Arm Pads, Desk Length, Urethane Waterfall with
Screws, Black (9" L x 2-5/8" W) (Pair) 2 12
1068564 Arm Tube, Desk Length
16-19" Deep - Right (Black) 1 13
1068565 Arm Tube, Desk Length
16-19" Deep - Left (Black) 1 13
1068414 Arm Tube, Desk Length Long
20" and Deeper - Right (Black) 1 13 C
1068415 Arm Tube, Desk Length Long
20" and Deeper - Left (Black) 1 13 C
1068490 Arm Tube, Full Length Standard
16-19" Deep - Right (Black) 1 13
1068491 Arm Tube, Full Length Standard
16-19" Deep - Left (Black) 1 13
1068473 Arm Tube, Full Length Long
20" and Deeper - Right (Black) 1 13 C
1068474 Arm Tube, Full Length Long
20" and Deeper - Left (Black) 1 13 C
1032244 Grip, Foam Hand (9" Long) 1 14
1135508 Package, Foam Hand Grips (9" Long) 10 14
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 45
1035472 Clothing Guard, Desk Length 1 16
1044572 Clothing Guard, Full Length 16-19" Deep 1 16
1044005 Clothing Guard, Full Length 20" and Deeper 1 16 C
1035065 Cover, Clothing Guard with Pocket - For Fixed
Height Desk Length & Adjustable Height Full/Desk
Length
1 17
1044588 Cover, Clothing Guard with Pocket
For Fixed Height Full Length - 20" and Deeper 1 17
1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 18
1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 18 B
1065936 Plug, Pivot 1 29
1067734 Plug Button, Black (5/8") 1 210
104
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Fixed Height
(16"-24" Wide) x (16"-22" Deep) Seat Frames
A - As of 1/3/02 upholstered waterfall arm pads were replaced with black urethane waterfall arm pads. Order in pairs with
screws for chairs manufactured before 1/3/02.
B - For Black Urethane Waterfall Arm pads only.
C - The ADJASBA seat frame for 19-22" depths must use the 16-19" deep arms only.
D - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair
NOTE:
105
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

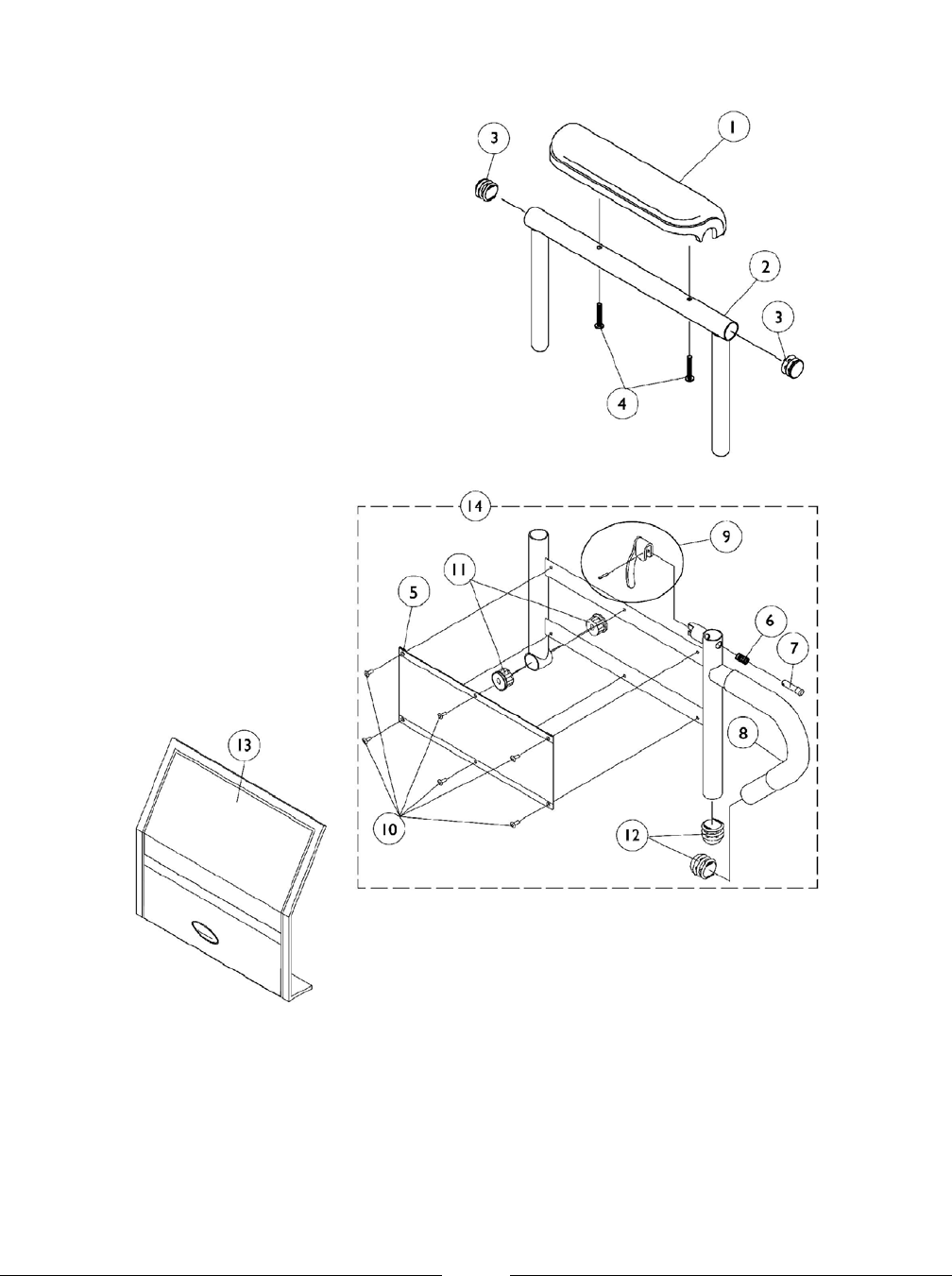

Arms, Adjustable Height
(16"-24" Wide) x (16"- 22" Deep) Seat Frames
106
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Adjustable Height
(16"-24" Wide) x (16"- 22" Deep) Seat Frames
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1117328 Arm Pad, Full Length, Urethane Waterfall with
Screws, Black
(13" L x 2-5/8" W)
1 11 A,D
1110818 Arm Pads, Full Length, Urethane Waterfall
with Screws, Black (13" L x 2-5/8" W) (Pair) 2 11
1117327 Arm Pad, Desk Length, Urethane Waterfall with
Screws, Black
(9" L x 2-5/8" W)
1 11 A,D
1110817 Arm Pads, Desk Length, Urethane Waterfall with
Screws, Black (9" L x 2-5/8" W) (Pair) 2 11
1071253 Arm Top, Adjustable Height with Plug Buttons - Full
Length (Black) 1 12
1070859 Arm Tube, Upper with Plug Buttons (Black) - Desk
Length 1 12
1027095 Plug Button, Black (7/8") 1 23
1055949 Screws, Phillips Pan Head (#10-32 x 1-1/8") 2 14
1094270 Screw, Phillips Pan Head (#10-32 x 1-1/4") (Pair) 2 14 B
1064130 Clothing Guard 1 15
47471X074 Spring, Arm Lock 1 16
1028594 Pin, Arm Lock 1 17
1032244 Grip, Foam Hand (9" Long) 1 18
1135508 Package, Foam Hand Grips (9" Long) 10 18
1090768 Kit, Lock Handle w/Rivets (both LT & RT side) 2 19
1028645 Rivet 1 610
1065936 Plug, Pivot 1 211
1067734 Plug Button, Black (5/8") 1 212
1035065 Cover, Clothing Guard with Pocket - For Fixed
Height Desk Length & Adjustable Height Full/Desk
Length
1 113
1068416 Arm Base, Adjustable Height
16-19" Deep - Right (Black) 1 114
1068417 Arm Base, Adjustable Height
16-19" Deep - Left (Black) 1 114
1068418 Arm Base, Adjustable Height
20" and Deeper - Right (Black) 1 114 C
1068419 Arm Base, Adjustable Height
20" and Deeper - Left (Black) 1 114 C
1067761 Arm Base, 1" Lower, Adjustable Height
16-19" Deep - Right (Black) 1 114
1067762 Arm Base, 1" Lower, Adjustable Height
16-19" Deep - Left (Black) 1 114
1067755 Arm Base, 1" Lower, Adjustable Height
20" and Deeper - Right (Black) 1 114 C
1067756 Arm Base, 1" Lower, Adjustable Height
20" and Deeper - Left (Black) 1 114 C
107
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arms, Adjustable Height
(16"-24" Wide) x (16"- 22" Deep) Seat Frames
A - As of 1/3/02 upholstered waterfall armpads were replaced with black urethane waterfall armpads. Order in pairs with
screws for chairs manufactured before 1/3/02.
B - For Black Urethane Waterfall Armpads only
C - The ADJASBA seat frame for 19-22" depths must use the 16-19" deep arms only.
D - After 7/9/07 Invacare recommends ordering armpads in pairs to assure uniform appearance on chair
NOTE:
108
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

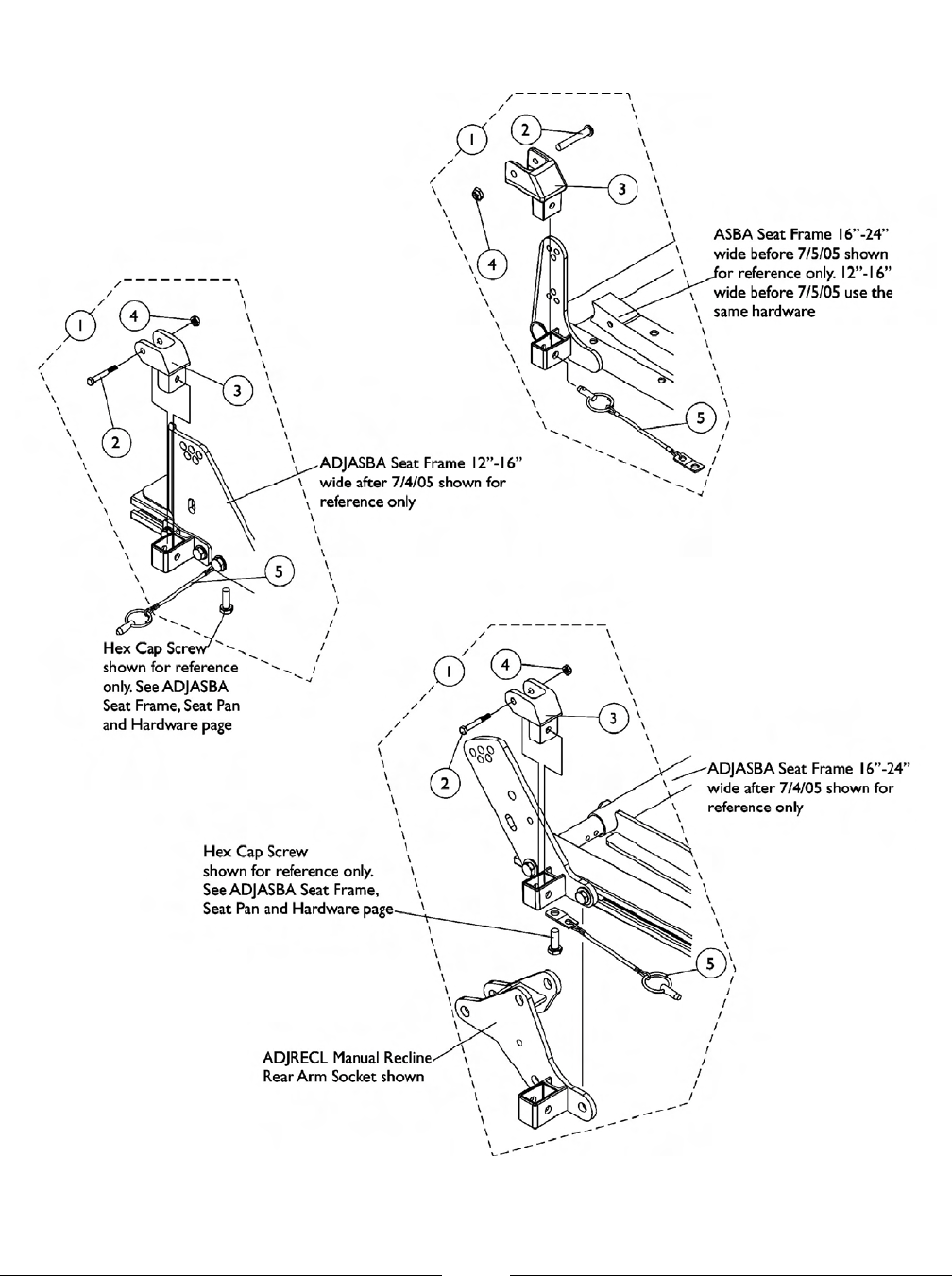

Arm Mounting Swingaway Hardware
ASBA and ADJASBA/ADJRECL Seats
109
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Arm Mounting Swingaway Hardware
ASBA and ADJASBA/ADJRECL Seats
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1068488 Kit, Swingaway Armrest Mounting Hardware 1 11 A
1019590 Screw, Socket Button Head (1/4-20 x 1-5/8") 1 12
1068025 Clevis, Pivot 1 13
1025195 Locknut (1/4-20) 1 14
1068039 Pin, Pull 1 15
A - Includes items 2-5
NOTE:
110
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA Seat (12"-16" Wide) (After 7/4/05)
111
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA Seat (12"-16" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1135502 Kit, Front/Rear Arm Socket Assembly Mounting
Hardware 1 11 A
Screw, Hex Head (5/16-18 x 5/8") 1 42
Washer, Flat (5/16 x 5/8 x 1/16") 1 43
T-Nut (5/16-18) 1 44
1122619 Socket, Front Arm - Right 1 15
1122620 Socket, Front Arm - Left 1 15
1126142 Socket, Rear Arm 1 16
A - Includes items 2-4
NOTE:
112
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA/ADJRECL Seats (16"-24" Wide) (After 7/4/05)
113
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA/ADJRECL Seats (16"-24" Wide) (After 7/4/05)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1125734 Kit, Front/Rear Arm Socket Assembly Mounting
Hardware 1 11 A
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 22
Washer (5/16 x 3/4 x 1/16") 1 43
T-Nut (5/16-18) 1 44
Screw, Hex Head (5/16-18 x 5/8") 1 25
1122619 Socket, Front Arm - Right 1 16
1122620 Socket, Front Arm - Left 1 16
1125478 Socket, Rear Arm - Right 1 17
1125479 Socket, Rear Arm - Left 1 17
1134481 Socket, ADJRECL Rear Arm - Right 1 17
1134482 Socket, ADJRECL Rear Arm - Left 1 17
A - Includes items 2-5
NOTE:
114
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA Seats with TRRO Option (16"-24" Wide)
115
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front/Rear Arm Socket Assembly and Hardware
ADJASBA Seats with TRRO Option (16"-24" Wide)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1136025 Kit, Front/Rear Arm Socket Assembly Mounting
Hardware For TRRO Option 1 11
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 12
Screw, Hex Head Cap with Patch (5/16-18 x 1") 1 13
Screw, Socket Head Cap (5/16-18 x 3/4") 1 14
Washer (5/16 x 3/4 x 1/16") 1 45
T-Nut (5/16-18) 1 16
T-Nut (5/16-18) 1 27
Screw, Hex Head (5/16-18 x 5/8") 1 28
1122619 Socket, Front Arm - Right 1 19
1122620 Socket, Front Arm - Left 1 19
116
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Assembly
NOTE: "Base Frames are not available as a service part."
Wheelchair must be returned to Invacare when Base Frame needs replacement. Contact Invacare
Customer Service for more information.
117
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Assembly
NOTE: "Base Frames are not available as a service part."
Wheelchair must be returned to Invacare when Base Frame needs replacement. Contact Invacare
Customer Service for more information.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104863 Cover Package, Frame Rail (Right/Left) 1 12 A
1101737 Cap 1 23
40117X006 Bearing (5/8") 1 44
1025729 Screw, Self Tapping Pan Head (#8-32 x 3/8") 1 15
1070497 Label, Caution 1 16
1104845 Screw, Socket Head Cap with Patch (5/16-18 x
1-3/4") 1 47
1101719 Cap, Tube End - Right 1 18
1101720 Cap, Tube End - Left 1 18
1104762 Plate, Nut 1 29
1053056 Decal, Warning 1 110
1110717 Ring, Tolerance 1 411
A - Frame Rail Cover Package includes (3) Right and (3) Left Rail Covers. Short bases use only 2 per side.
NOTE:
118
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Interface Hardware
For ADJASBA Seat with TRRO/TRBKTS Option
119
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Interface Hardware
For ADJASBA Seat with TRRO/TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140263 Kit, Top Battery Support Bracket and Mounting
Hardware 1 11 A
Bracket, Top Battery Support 1 12
Washer, Flat (5/16 x 5/8 x 1/16") 1 73
Screw, Hex Head (5/16-18 x 5/8") 1 34
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 45
T-Nut (5/16-18) 1 46
1140257 Kit, Seat Support Bracket w/ Mounting Hardware -
Right 1 17 B
Screw, Hex Head (5/16-18 x 5/8") 1 28
Washer, Flat (5/16 x 5/8 x 1/16") 1 29
T-Nut (5/16-18) 1 210
Bracket, Seat Support - Right 1 111
1140258 Kit, Seat Support Bracket w/ Mounting Hardware -
Left 1 17 B
Screw, Hex Head (5/16-18 x 5/8") 1 28
Washer, Flat (5/16 x 5/8 x 1/16") 1 29
T-Nut (5/16-18) 1 210
Bracket, Seat Support - Left 1 111
1140259 Kit, Front/Rear Tie-Down Brackets Mounting
Hardware 2 112 C
Screw, Hex Head (5/16-18 x 3/4") 1 413
Washer, Flat (5/16 x 5/8 x 1/16") 1 414
T-Nut (5/16-18) 1 415
Screw, Socket Head Cap with Patch (5/16-18 x
1-3/4") 1 416
Screw, Socket Head Cap (3/8-16 x 3/4") 1 217
1135963 Bracket, Battery Support, Black 1 118
1140260 Kit, Front Battery Support Bracket with Mounting
Hardware 1 119 D
Bracket, Battery Support, Front, Black 1 120
Washer, Flat (5/16 x 5/8 x 1/16") 1 321
Screw, Hex Head Cap w/ Patch (5/16-18 x 1/2") 1 322
A - Includes items 2-6. This kit used when TRBKTS option is ordered. TRRO option uses the same retainer bracket with the
addition of the WC/19 Compliance Warning Label attached
B - Includes items 8-11
C - Includes items 13-17
D - Includes items 20-22
NOTE:
120
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Interface Hardware
Formula CG Powered Seating w/ TRBKTS Option
121
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Base Frame Interface Hardware
Formula CG Powered Seating w/ TRBKTS Option
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1140263 Kit, Top Battery Support Bracket and Mounting
Hardware 1 11 D,A
Bracket, Top Battery Support 1 12
Washer, Flat (5/16 x 5/8 x 1/16") 1 73
Screw, Hex Head (5/16-18 x 5/8") 1 34
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 45
T-Nut (5/16-18) 1 4
1144766 Bar, Clamping 1 26
1140259 Kit, Front/Rear Tie-Down Brackets Mounting
Hardware 2 17 B
Screw, Hex Head (5/16-18 x 3/4") 1 48
Washer, Flat (5/16 x 5/8 x 1/16") 1 49
T-Nut (5/16-18) 1 410
Screw, Socket Head Cap with Patch (5/16-18 x
1-3/4") 1 411
Screw, Socket Head Cap (3/8-16 x 3/4") 1 212
1135963 Bracket, Battery Support, Black 1 113
1140260 Kit, Front Battery Support Bracket with Mounting
Hardware 1 114 C
Bracket, Battery Support, Front, Black 1 115
Washer, Flat (5/16 x 5/8 x 1/16") 1 316
Screw, Hex Head Cap w/ Patch (5/16-18 x 1/2") 1 317
A - Includes items 2-5. This kit is used for TRBKTS option for ADJASBA Non-Powered Seating and Formula CG Powered
Seating Systems. Disregard the T-nuts contained in the kit when using for the Formula CG Systems.
B - Includes items 8-12
C - Includes items 15-17
D - T-Nut not shown for a Formula CG System application.
NOTE:
122
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104420 Shock Assembly, Non-Heavy Duty 1 11 A,C
1104421 Shock Assembly, Heavy Duty 1 11 A,D
1041431 Shock Eyelet Assembly 1 12
1054481 Retainer, Shock, Spring (Upper) 1 13
1104415 Retainer, Shock Spring (Upper) 1 14
1104413 Spring, Yellow Non-Heavy Duty 1 15
1104414 Spring, Yellow Heavy Duty 1 15
1104416 Retainer, Shock Spring (Lower) 1 16
1104800 Decal, SD 300 Non-Heavy Duty 1 17
1104801 Decal, HD 400 Heavy Duty 1 17
1039659 Shock Absorber 1 18
1104817 Shock Assembly, Rubber Element 1 19
1104812 Decal, SD 300 Large 1 110
1104827 Rubber Element Shock Hardware 2 111 B
1104445 Washer, Nylon (5/8 x 1 x 1/8") 1 412
1104847 Spacer (5/16 x 5/8 x 2") 1 213
A - Includes items 2-8
B - Includes items 12-13 (Pair)
C - (300 Lb. Limit For Arrow), (300 Lb. Limit For RX and Torque SP Before 10/9/06) (300 Lb. Limit For Torque SE & Torque 3)
D - (400 Lb. Limit For Arrow), (400 Lb. Limit For RX After 10/8/06) and (300 Lb. Limit For Torque SP After 10/8/06)
NOTE:
See shock suspension mounting hardware page to find shock absorber attaching hardware.
NOTE:
Shock Absorbers
123
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

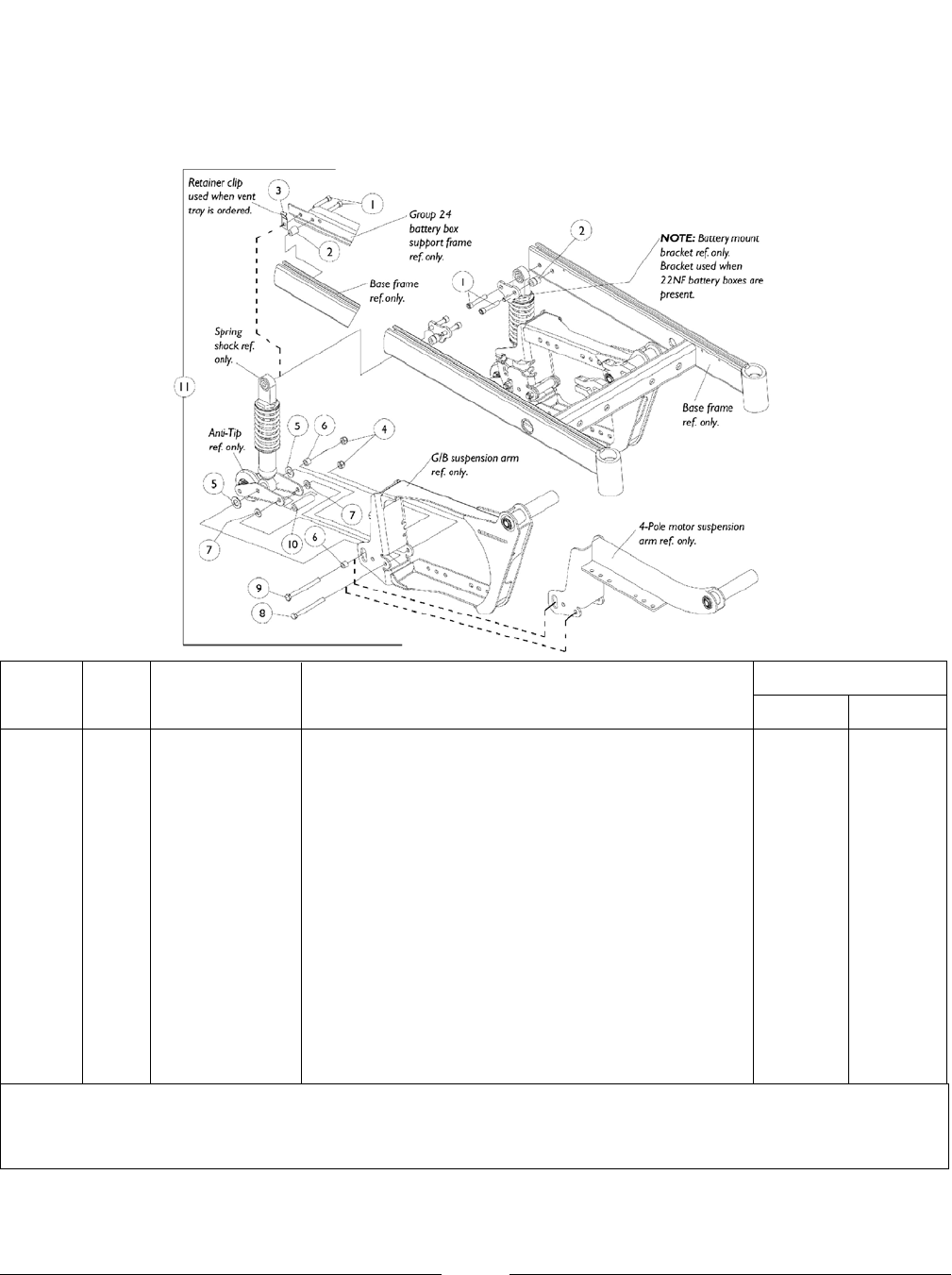

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104845 Screw, Socket Head Cap with Patch (5/16-18 x
1-3/4") 1 41
1104881 Spacer (3/8 x 5/8 x 3/4") 1 22 C
1039649 Spacer (3/8 x 5/8 x 25/32") 1 22 D
1049550 Retainer Clip 1 23
1026158 Locknut (5/16-18) 1 44
1031673 Washer, Nylon (35/64 x 1 x 1/16") 1 45
1104856 Spacer (5/16 x 1/2 x 3/8") 1 46
1026032 Washer, Nylon (11/32 x 11/16 x 1/16") 1 47
1070397 Screw, Hex Head (5/16-18 x 3-1/4") 1 28
1105474 Screw, Hex Head (5/16-18 x 3-1/2) 1 29
1104847 Spacer (5/16 x 5/8 x 2") 1 210
1104868 Hardware, Shock Mounting 2 111 A,C
1105546 Hardware, Shock Mounting 2 111 B,D
A - Includes items 1, 2 and 4-10 (Pair)
B - Includes items 1-10 (Pair)
C - For 22NF batteries and (Group 24 batteries without a vent tray)
D - Group 24 batteries with a vent tray that is ordered with a Tarsys 2G Powered Seating System. Does not apply to Formula
CG Powered Seating System
NOTE:
Shock Suspension Mounting Hardware
All Shock Absorbers
NOTE: Gearless/Brushless and 4-pole motor suspension arms use the same shock suspension mounting
hardware.
124
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

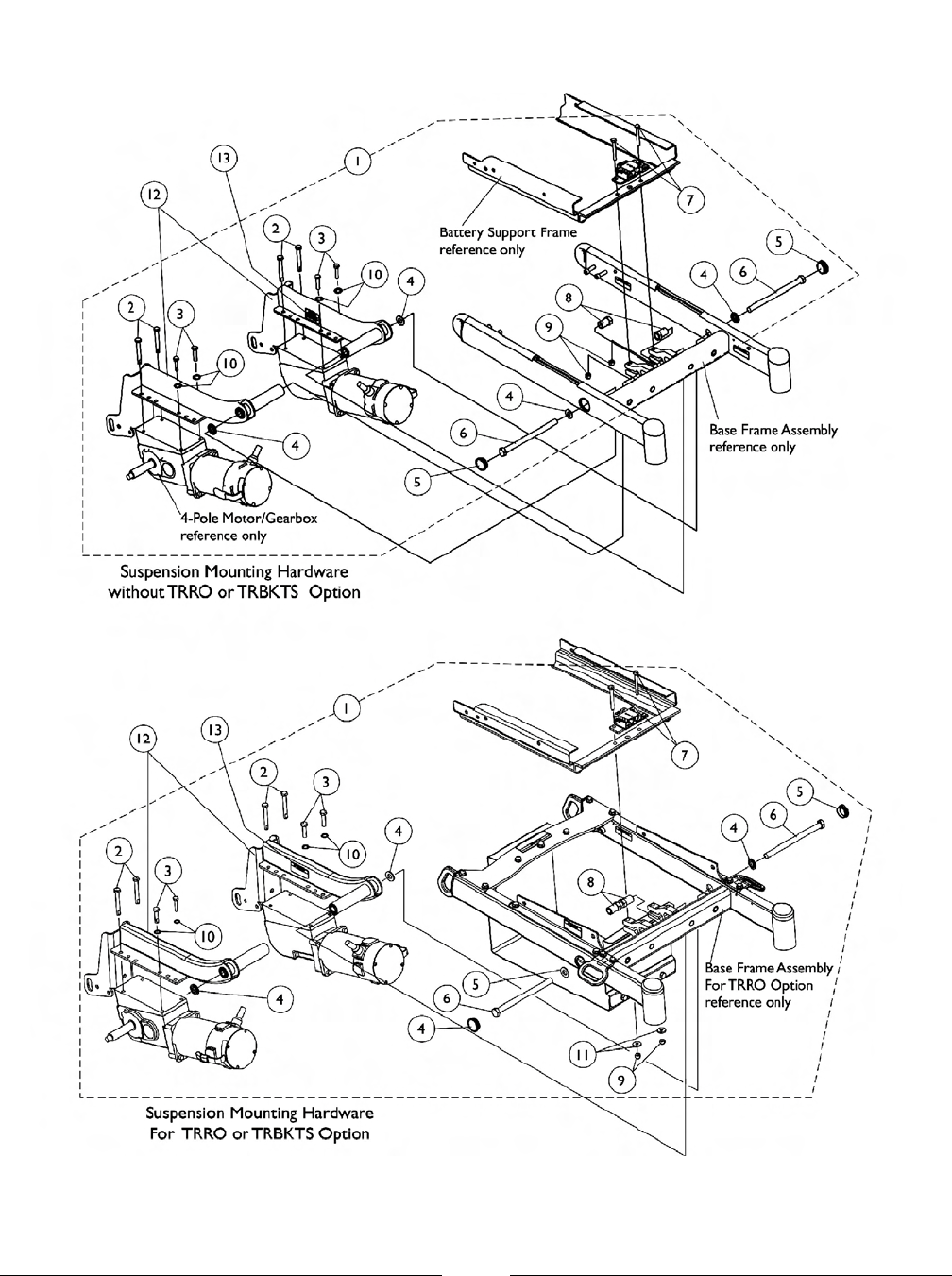

Suspension Arm and Mounting Hardware
4-Pole Motors
125
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Suspension Arm and Mounting Hardware
4-Pole Motors
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104828 Kit, Suspension Arm Mounting Hardware 2 11 A
Screw, Hex Head (5/16-18 x 2-1/2") 1 42
Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 43
Washer (1/2" I.D. x 7/8" O.D.) 1 44
Cap, Caster Headtube 1 25
Screw, Hex Head (1/2-20 x 7") 1 26
Screw, Hex Head (5/16-18 x 2") 1 27
Nut, Shoulder (1/2-20) 1 28
Locknut (5/16-18) 1 29
Washer, Internal Tooth (M8) 1 410
1139435 Kit, Suspension Arm Mounting Hardware For
TRRO/TRBKTS Option 2 11 B
Screw, Hex Head (5/16-18 x 2-1/2") 1 42
Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 43
Washer (1/2" I.D. x 7/8" O.D.) 1 44
Cap, Caster Headtube 1 25
Screw, Hex Head (1/2-20 x 7") 1 26
Screw, Hex Head (5/16-18 x 2-1/4") 1 27
Nut, Shoulder (1/2-20) 1 28
Locknut (5/16-18) 1 29
Washer, Internal Tooth (M8) 1 410
Washer (11/32 x 13/16 x 1/8") 1 211
1104887 Suspension Arm w/ Warning Decal, Right 1 112
1104888 Suspension Arm w/ Warning Decal, Left 1 112
1053056 Decal, Warning 1 213
1142012 Nut, Hex Head Cap Shoulder (1/2-20) 1 28 C
A - Includes items 2-10
B - Includes items 2-11 and used for TRRO/TRBKTS options
C - Hex Head Cap Shoulder Nut part number 1142012 is used only when a Formula CG Elevate is ordered
NOTE:
126
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Suspension Arm and Mounting Hardware
Gearless/ Brushless
NOTE: TrueTrack Heavy Duty (TTHD) Gearless/Brushless motors were introduced ON-chair to Storm
Arrow models 2/6/03.
127
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Suspension Arm and Mounting Hardware
Gearless/ Brushless
NOTE: TrueTrack Heavy Duty (TTHD) Gearless/Brushless motors were introduced ON-chair to Storm
Arrow models 2/6/03.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1115486 Suspension Arm with Warning Decal, Right 1 11
1115487 Suspension Arm with Warning Decal, Left 1 11
1053056 Decal, Warning 1 12
1078243 Kit, Suspension Arm Mounting Hardware 2 19 A
Washer (1/2" I.D. x 7/8" O.D.) 1 43
Cap, Caster Headtube 1 24
Screw, Hex Head (1/2-20 x 7") 1 25
Nut, Shoulder (1/2-20) 1 26
Screw, Hex Head (5/16-18 x 2") 1 27
Locknut (5/16-18) 1 28
1135971 Kit, Suspension Mounting Hardware For
TRRO/TRBKTS Option 2 117 B
Nut, Shoulder (1/2-20) 1 210
Screw, Hex Head (5/16-18 x 2-1/4") 1 211
Cap, Caster Headtube 1 212
Screw, Hex Head (1/2-20 x 7") 1 213
Washer (1/2" I.D. x 7/8" O.D.) 1 214
Washer (11/32 x 13/16 x 1/8") 1 215
Locknut (5/16-18) 1 216
A - Includes items 3-8
B - Includes items 10-16
NOTE:
128
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
3" Anti-Tip Wheel Assembly
All Models
129
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
3" Anti-Tip Wheel Assembly
All Models
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104811 Anti-Tip Wheel Assembly (Pair) 2 11 A
Locknut (5/16-18) 1 62
Washer, Nylon (35/64 x 1 x 1/16") 1 43
Spacer (5/16 x 1/2 x 3/8") 1 44
Washer, Nylon (11/32 x 11/16 x 1/16") 1 45
Screw, Hex Head (5/16-18 x 3-1/4") 1 26
Bracket, Anti-Tipper, Black 1 27
Screw, Hex Head (5/16-18 x 2-3/4") 1 28
Wheel, 3" 1 29
Spacer (5/16 x 9/16 x 1/2") 1 410
Screw, Hex Head (5/16-18 x 3-1/2) 1 211
Spacer (5/16 x 5/8 x 2") 1 212
1143792 Kit, Anti-Tip Wheel Assembly (Pair) (For Formula
CG Powered Seating Only) 2 11 A
Locknut (5/16-18) 1 62
Washer, Nylon (35/64 x 1 x 1/16") 1 43
Spacer (5/16 x 1/2 x 3/8") 1 44
Washer, Nylon (11/32 x 11/16 x 1/16") 1 45
Screw, Hex Head (5/16-18 x 3-1/4") 1 26
Bracket, Anti-Tipper Extension, Black 1 27
Screw, Hex Head (5/16-18 x 2-3/4") 1 28
Wheel, 3" 1 29
Spacer (5/16 x 9/16 x 1/2") 1 410
Screw, Hex Head (5/16-18 x 3-1/2) 1 211
Spacer (5/16 x 5/8 x 2") 1 212
1101757 Wheel, 3" 1 29
A - Includes items 2-12 (Pair)
NOTE:
130
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Extended Anti-Tip Wheel Assembly
NOTE: Extended anti-tip wheels are standard on all 2nd Generation Powered Seating Systems ordered
with a vent tray and optional for all other configurations. Extended Anti-Tippers are optional for all
Formula CG Powered Seating including when a vent tray is ordered. Field retrofitable to spring shock
suspension systems only.
NOTE: Extended anti-tip wheel assembly components made for 3G storm bases ordered with vent trays
and Gearless/Brushless motors between 3/01/01 - 04/14/02 are NLA, see item 1 for an extended anti-tip
wheel assembly kit.
131
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Extended Anti-Tip Wheel Assembly
NOTE: Extended anti-tip wheels are standard on all 2nd Generation Powered Seating Systems ordered
with a vent tray and optional for all other configurations. Extended Anti-Tippers are optional for all
Formula CG Powered Seating including when a vent tray is ordered. Field retrofitable to spring shock
suspension systems only.
NOTE: Extended anti-tip wheel assembly components made for 3G storm bases ordered with vent trays
and Gearless/Brushless motors between 3/01/01 - 04/14/02 are NLA, see item 1 for an extended anti-tip
wheel assembly kit.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1110930 Extended Anti-Tip Assembly Kit w/ Instruction Sheet
(Pair) 2 11 A
1012371 Washer, Nylon (3/8 x 7/8 x 1/16") 1 22
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 13
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 14
1026158 Locknut (5/16-18) 1 45
1109184 Spacer, Grooved (5/16 x 5/8 x 2") 1 16
1108575 Bracket, 3G Anti-Tip, Black 1 17
1070397 Screw, Hex Head (5/16-18 x 3-1/4") 1 28
1042486 Screw, Hex Head (5/16-18 x 2-3/4") 1 19
1070411 Bolt, Shoulder (3/8 x 2-1/2") 1 110
1111713 Pin, Idle 1 111
1108574 Spring, Extension 1 112
1111866 Spacer, Anti-Tip 1 213
1108578 Extended Anti-Tip Caster Assembly 1 114 B
1057949 Fork Stem Hardware 1 115
1056739 Cap, Head Tube 1 116
1028550 Locknut (5/8-18) 1 117
1041444 Washer (5/8 x 1-5/16 x 1/8") 1 118
40117X006 Bearing (5/8") 1 219
1108583 Headtube, Anti-tip 1 120
1109185 Bracket, Headtube Mounting 1 121
1104748 Screw, Socket Button Head (3/8-16 x 1/2") 1 222
1065214 Washer, Flat (3/8 x 11/16 x 1/16") 1 223
1109186 Fork, 3" Caster 1 124
1025730 Locknut (5/16-24) 1 125
1031891 Screw, Hex Head (5/16-24 x 2") 1 126
47183X047 Spacer (5/16 x 1/2 x 3/16") 1 227
1101757 Wheel, 3" 1 128
1109558 Nut, Hex Jam (5/8-18) 1 229
1110515 Instruction Sheet, Extended Anti-Tip Assembly Kit 1 1C
A - Includes items 2-14
B - Includes items 16-29 (Per Side)
C - Not Shown
NOTE:
132
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Front Rigging
133
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

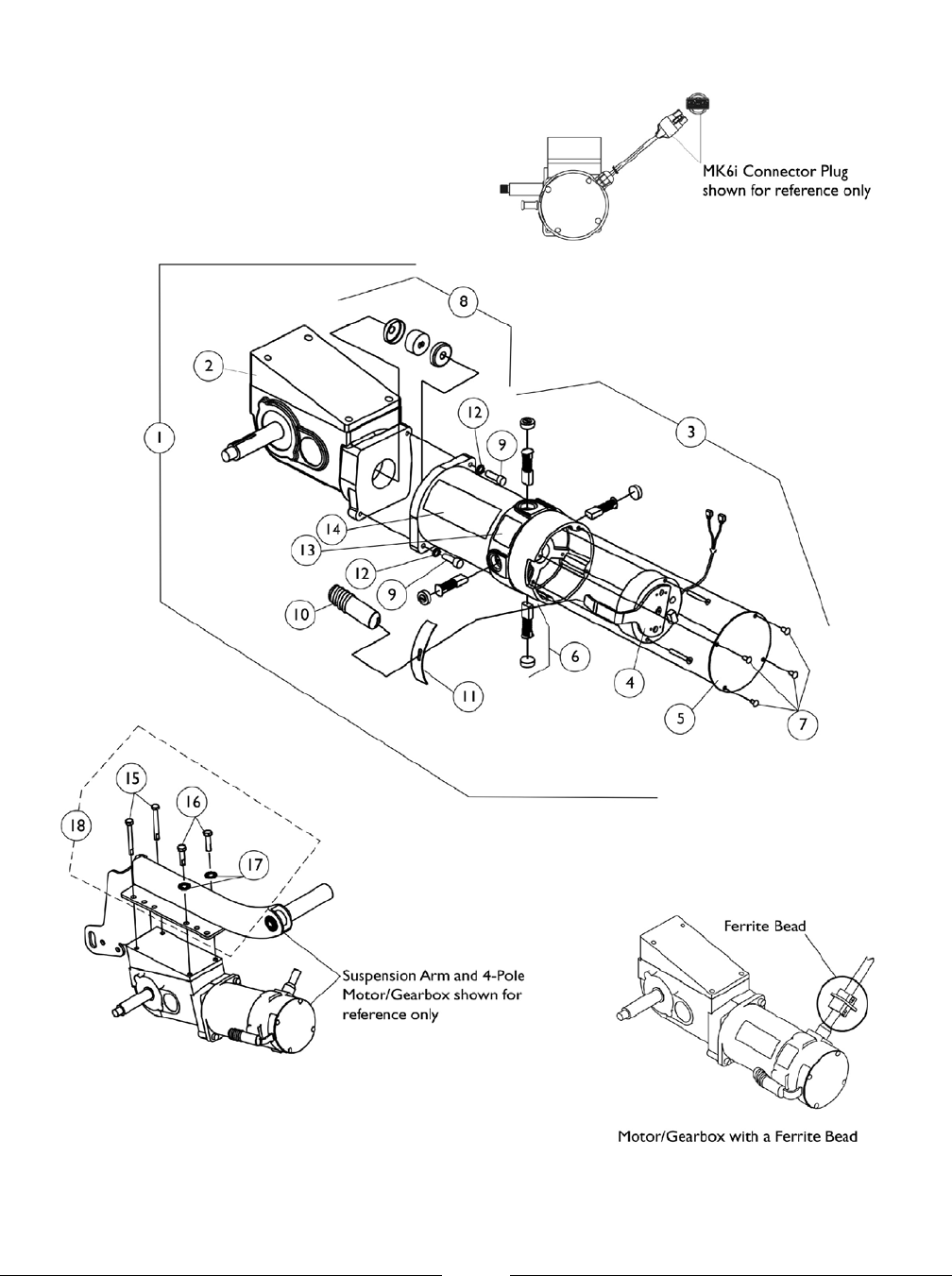

4-Pole Motor and Gearbox Assemblies
Model and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-10/8/06 and
(3/15/04-10/8/06 For VA
Gov't Orders)
N/AOptionalOptional
Storm Arrow (HD)
(4-Pole Motor/Gearbox)
N/A
1104825
1104825
-Right See Note(s) E, A See Note(s) E, A
N/A
1104826
1104826
-Left See Note(s) E, A See Note(s) E, A
StandardStandardStandard
Storm RX
(4-Pole Motor/Gearbox)
1104823
1104823
1104823
-Right See Note(s) E, C See Note(s) E, C See Note(s) E, C
1104824
1104824
1104824
-Left See Note(s) E, C See Note(s) E, C See Note(s) E, C
StandardStandardStandard
"ALL" Torque SP's
without (PERF)
(4-Pole Motor/Gearbox)
1104825
1104825
1104825
-Right See Note(s) E, C See Note(s) E, C See Note(s) E, C
1104826
1104826
1104826
-Left See Note(s) E, C See Note(s) E, C See Note(s) E, C
OptionalOptionalOptional
Torque SP
with (PERF)
(4-Pole Motor/Gearbox)
1104823
1104823
1104823
-Right See Note(s) E, B See Note(s) E, B See Note(s) E, B
1104824
1104824
1104824
-Left See Note(s) E, B See Note(s) E, B See Note(s) E, B
A - Used for (301-400HD) weight limits
B - Performance package (PERF) offered on a Torque SP provides a 6.5 MPH rating and 300 lb. weight limit
C - Used for (U300) weight limit models
E - As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form,
fit, function or aesthetics.
NOTE:
Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
134
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

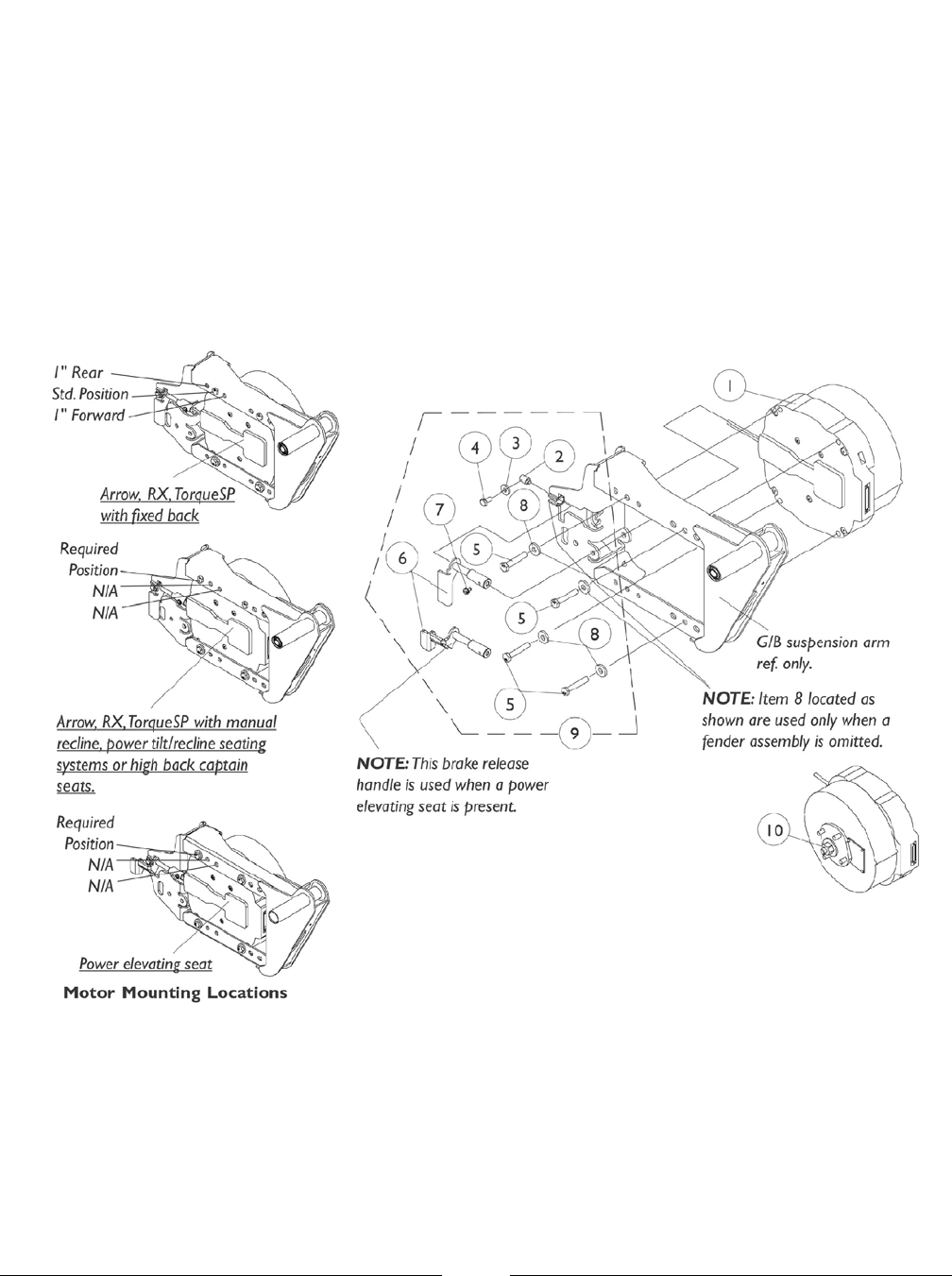

Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
New - GB Non-Heavy Duty & Heavy Duty (HD) TrueTrack Motors
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1153335
11155081115508-Right See Note(s) C, A1, A
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B, B1
1153336
11155081115508-Left See Note(s) D, A, A1
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B, B1
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
N/A
1153335
N/A-Right See Note(s) C, A, A1
N/A
1153648
N/A-Right w/ Wheel Lock See Note(s) B, B1
N/A
1153336
N/A-Left See Note(s) D, A1, A
N/A
1153649
N/A-Left w/ Wheel Lock See Note(s) B, B1 TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1153335
11155081115508-Right See Note(s) C, A, A1
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B, B1
1153336
11155081115508-Left See Note(s) D, A, A1
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
1153335
11155081115508-Right See Note(s) C, A, A1
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B, B1
1153336
11155081115508-Left See Note(s) D, A, A1
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B, B1
135
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
136
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
Warranty/Refurbished - GB Non-Heavy Duty & Heavy Duty (HD) TrueTrack Motors
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509
-Right (Refurbished)
See Note(s) E See Note(s) E, A2, A1, A, C
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, A1, A, A2, D
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, A2, B
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
N/A1123235EN/A-Right (Refurbished)
N/A
1153335E
N/A-Right (Refurbished) See Note(s) E, C, A2, A1, A
N/A
1153648E
N/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, A2, B, B1
N/A1123234EN/A-Left (Refurbished)
N/A
1153336E
N/A-Left (Refurbished) See Note(s) E, D, A2, A, A1
N/A
1153649E
N/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, A2, B1, B TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, A2, A, A1, C
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, A2, B, B1
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, A, A2, A1, D
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, A2, B1, B
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, A2, A, A1, C
137
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
Warranty/Refurbished - GB Non-Heavy Duty & Heavy Duty (HD) TrueTrack Motors
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, A2, B, B1
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, D, A2, A, A1
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, A2, B
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
A2 - A Refurbished Motor is used for a warranty replacement
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
E - Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s 1123235E Right or 1123234E
Left as replacements. Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
138
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
MKIV Electronics (4-Pole Before 10/9/06) & (GB Before 5/22/07)
Suspension Arm and Hardware Kits
Suspension Arm Kits are ordered in "addition" to Motor Kit part numbers 1153335, 1153335E, 1153336 or
1153336E for chairs manufactured before 1/1/06
Side Part Number
1153679
-Right See Note(s) A
1153680
-Left See Note(s) A
A - Suspension Arm Kits will include the suspension arm, instruction sheet and mounting hardware for the motor, wheel, brake lever
and fender. The new suspension arm will have the holes necessary to accept the brake lever stop plate
NOTE:
139
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motor and Gearbox Assemblies
Model and
Side Part Number
Storm RX (Std.) (400 Lb. Wgt. Limit) & Torque SE (Std.
Thru 4/8/07, see PERF After 4/8/07) (300 Lb. Wgt. Limit)
Storm RX & Torque SE
(4-Pole Motor/Gearbox)
1144777-Right
1153667
-Right See Note(s) B
1144778-Left
1153668
-Left See Note(s) B
Standard (300 Lb. Weight Limit)
Storm Torque 3
(4-Pole Motor/Gearbox)
1152617-Right
1153669
-Right See Note(s) B
1152618-Left
1153670
-Left See Note(s) B
Standard (300 Lb. Weight Limit)
Torque SP
with (PERF)
(4-Pole Motor/Gearbox)
1144775
-Right See Note(s) A
1153665
-Right See Note(s) B
1144776
-Left See Note(s) A
1153666
-Left See Note(s) B
(Optional Thru 4/8/07 & Std. After 4/8/07) (300 Lb.
Weight Limit)
Torque SE with (PERF)
(4-Pole Motor/Gearbox)
1144775
-Right See Note(s) A
1144776
-Left See Note(s) A
A - Performance package (PERF) provides a 6.5 MPH rating with (300 Lb. weight Limit)
B - Motors with a ferrite bead attached are used when a Formula CG Powered Seating System is ordered with smart actuators
(SMTACTS). Torque SE models do not use smart actuators (SMTACTS)
NOTE:
Torque SE introduced 11/15/06, Torque 3 introduced 12/19/07
Motor/Gearbox Assembly Reference Chart
For MK6i Electronics (4-Pole After 10/8/06) & (GB After 5/21/07)
140
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
For MK6i Electronics (4-Pole After 10/8/06) & (GB After 5/21/07)
New - GB Heavy Duty (HD) TrueTrack Motors
Model and
Side Part Number
Storm Arrow (Std.) (300 Lb. & 400 Lb. Weight Limits)Storm Arrow
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
Storm RX (Optional) (400 Lb. Weight Limit)Storm RX
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
(Optional) (300 Lb. Weight Limit)Torque SP/SE
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
(Optional) (300 Lb. Weight Limit)Torque 3
1153335
-Right See Note(s) A1, A
1153336
-Left See Note(s) A1, A
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket
Connector kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
NOTE:
141
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
For MK6i Electronics (4-Pole After 10/8/06) & (GB After 5/21/07)
Warranty/Refurbished - GB Heavy Duty (HD) TrueTrack Motors
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model and
Side Part Number
Storm Arrow (Std.) (300 Lb. & 400 Lb. Weight Limits)Storm Arrow
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A1, A, A2
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, A2, B1, B
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A1, A, A2
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, A2, B1, B
Storm RX (Optional) (400 Lb. Weight Limit)Storm RX
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A, A2, A1
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, A2, B, B1
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A, A1, A2
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, A2, B1, B
(Optional) (300 Lb. Weight Limit)Torque SP/SE
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A2, A1, A
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, A2, B, B1
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A2, A, A1
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, B1, A2, B
(Optional) (300 Lb. Weight Limit)Torque 3
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A2, A, A1
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A2, A1, A
142
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Motor/Gearbox Assembly Reference Chart
For MK6i Electronics (4-Pole After 10/8/06) & (GB After 5/21/07)
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
A2 - A Refurbished Motor is used for a warranty replacement
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket
Connector kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s 1123235E Right or 1123234E
Left as replacements. Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
NOTE:
143
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes
For MKIV Electronics Before 10/9/06
NOTE: 4-Pole motors are standard on Ranger X, all Torque SP weight limits and available on Arrow
(301-400HD) models.
144
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes
For MKIV Electronics Before 10/9/06
NOTE: 4-Pole motors are standard on Ranger X, all Torque SP weight limits and available on Arrow
(301-400HD) models.
Ranger X and Torque SP w/ (PERF)
Item Number Description
Ranger X and
Torque SP w/ (PERF)
Right Side
See Note(s) B
Ranger X and
Torque SP w/ (PERF)
Left Side
See Note(s) B
1104824
1104823
Motor/ Gearbox1. See Note(s) G See Note(s) G
1086224
1086223
Gear Box2. See Note(s) E See Note(s) E
11048701104869
Motor Assembly
with Decals
3.
See Note(s) A
10702951070294Brake Repair Kit4.
1104402-NLA1104402-NLA
Brake Cover
with Screws
5.
10702961070296
Brushes w/ Caps
(Set of 4)
6.
See Item 5See Item 5
Screw, SHC
(8-32 x 1/4")
7.
5165204-NLA
5165204-NLA
Coupling w/ Cup (1"
Diameter)
8. See Note(s) C See Note(s) C
50000X007
50000X007
Coupling w/ Cup (1-5/16"
Diameter)
8. See Note(s) D See Note(s) D
1043594
1043594
Screw, SHC
(1/4-20 x 1-1/8")
9.
See Note(s) C See Note(s) E See Note(s) E
1108978
1108978
Screw, SHC
(M6 x 1 x 20MM)
9. See Note(s) E See Note(s) E
11017251101725Cap, Brake10.
10829851082985Slotted Plate11.
10502X00110502X001
Lockwasher
(1/4 x 1/2 x 1/16")
12.
11047971104797Decal, Drive/Push13.
11047981104798Decal, 3200 RPM14.
10436281043628
Screw, HHC w/ Patch
(5/16-18 x 2-1/2")
15.
11042571104257
Screw, HHC w/ Patch
(5/16-18 x 1-1/4")
16.
10232631023263
Washer, Lock
Internal Tooth (M8)
17.
11048941104894
Motor Mounting
Hardware (Per Side)
18.
1143143
1143143
Harness, Motor Cable
Extension
19. See Note(s) F See Note(s) F
11049131104913
Instruction Sheet,
Decal Application
Not Shown
145
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes
For MKIV Electronics Before 10/9/06
NOTE: 4-Pole motors are standard on Ranger X, all Torque SP weight limits and available on Arrow
(301-400HD) models.
A - Decal application instruction sheet is included.
B - Performance package (PERF) offered on a TorqueSP provides a 6.5 MPH rating.
C - Coupling with Cup for chairs manufactured before 11/12/01 - use part # 50000X007 as this part's replacement.
D - After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct
replacement for part number 5165204
E - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered.
Invacare Corp. utilizes alternate suppliers for this part number.
F - Motor Extension Cables are used only when a Retrofit Seating System Kit is ordered with MK6i upgraded electronics
G - As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form,
fit, function or aesthetics.
NOTE:
146
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes
For MKIV Electronics Before 10/9/06
NOTE: 4-Pole motors are standard on Ranger X, all Torque SP weight limits and available on Arrow
(301-400HD) models.
Arrow HD and ALL Torque SP's Except Torque SP w/ (PERF)
Item Number Description
Arrow HD and
All Torque SP's
Except Torque SP
w/ (PERF)
Right Side
See Note(s) B
Arrow HD and
All Torque SP's
Except Torque SP
w/ (PERF)
Left Side
See Note(s) B
1104826
1104825
Motor/ Gearbox1. See Note(s) G See Note(s) G
1086226
1086225
Gear Box2. See Note(s) E See Note(s) E
11048701104869
Motor Assembly
with Decals
3.
See Note(s) A
10702951070294Brake Repair Kit4.
1104402-NLA1104402-NLA
Brake Cover
with Screws
5.
10702961070296
Brushes w/ Caps
(Set of 4)
6.
See Item 5See Item 5
Screw, SHC
(8-32 x 1/4")
7.
5165204-NLA
5165204-NLA
Coupling w/ Cup (1"
Diameter)
8. See Note(s) C See Note(s) C
50000X007
50000X007
Coupling w/ Cup (1-5/16"
Diameter)
8. See Note(s) D See Note(s) D
1043594
1043594
Screw, SHC
(1/4-20 x 1-1/8")
9. See Note(s) E See Note(s) E
1108978
1108978
Screw, SHC
(M6 x 1 x 20MM)
9. See Note(s) E See Note(s) E
11017251101725Cap, Brake10.
10829851082985Slotted Plate11.
10502X00110502X001
Lockwasher
(1/4 x 1/2 x 1/16")
12.
11047971104797Decal, Drive/Push13.
11047981104798Decal, 3200 RPM14.
10436281043628
Screw, HHC w/ Patch
(5/16-18 x 2-1/2")
15.
11042571104257
Screw, HHC w/ Patch
(5/16-18 x 1-1/4")
16.
10232631023263
Washer, Lock
Internal Tooth (M8)
17.
11048941104894
Motor Mounting
Hardware (Per Side)
18.
1143143
1143143
Harness, Motor Cable
Extension
19. See Note(s) F See Note(s) F
147
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes
For MKIV Electronics Before 10/9/06
NOTE: 4-Pole motors are standard on Ranger X, all Torque SP weight limits and available on Arrow
(301-400HD) models.
Arrow HD and ALL Torque SP's Except Torque SP w/ (PERF)
Item Number Description
Arrow HD and
All Torque SP's
Except Torque SP
w/ (PERF)
Right Side
See Note(s) B
Arrow HD and
All Torque SP's
Except Torque SP
w/ (PERF)
Left Side
See Note(s) B
11049131104913
Instruction Sheet,
Decal Application
Not Shown
A - Decal application instruction sheet is included.
B - Performance package (PERF) offered on a TorqueSP provides a 6.5 MPH rating.
C - Coupling with Cup for chairs manufactured before 11/12/01 - Use part # 50000X007 as this part's replacement.
D - After 11/11/01 Coupling with Cup was resized from approximately 1" to 1-5/16" diameter and can be used as a direct
replacement for part number 5165204
E - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered.
Invacare Corp. utilizes alternate suppliers for this part number.
F - Motor Extension Cables are used only when a Retrofit Seating System Kit is ordered with MK6i upgraded electronics
G - As of May 2008, the Metal Motor End Cap will be replaced with a Composite Motor End Cap. The change does not affect form,
fit, function or aesthetics.
NOTE:
148
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
149
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
Torque SP w/ (PERF) (Std.) & Torque SE (Optional Thru 4/8/07, Std. After 4/8/07)
Item Number Description
(PERF) Torque SP
(Standard) & Torque SE
(Optional Thru 4/8/07, Std.
After 4/8/07)
Right Side
See Note(s) B
(PERF) Torque SP
(Standard) & Torque SE
(Optional Thru 4/8/07, Std.
After 4/8/07)
Left Side
See Note(s) B
11447761144775Motor/ Gearbox1.
1153666
1153665
Motor/ Gearbox with Ferrite
Bead
1. See Note(s) D See Note(s) D
1086224
1086223
Gear Box2. See Note(s) C See Note(s) C
11454831145482
Motor Assembly
with Decals
3.
See Note(s) A 1153672
1153671
Motor Assembly with Decals
and Ferrite Bead
3. See Note(s) D See Note(s) D
10702951070294Brake Repair Kit4.
1104402-NLA1104402-NLA
Brake Cover
with Screws
5.
10702961070296
Brushes w/ Caps
(Set of 4)
6.
See Item 5See Item 5
Screw, SHC
(8-32 x 1/4")
7.
50000X00750000X007
Coupling w/ Cup (1-5/16"
Diameter)
8.
1043594
1043594
Screw, SHC
(1/4-20 x 1-1/8")
9. See Note(s) C See Note(s) C
1108978
1108978
Screw, SHC
(M6 x 1 x 20MM)
9. See Note(s) C See Note(s) C
11017251101725Cap, Brake10.
10829851082985Slotted Plate11.
10502X00110502X001
Lockwasher
(1/4 x 1/2 x 1/16")
12.
11047971104797Decal, Drive/Push13.
11047981104798Decal, 3200 RPM14.
10436281043628
Screw, HHC w/ Patch
(5/16-18 x 2-1/2")
15.
11042571104257
Screw, HHC w/ Patch
(5/16-18 x 1-1/4")
16.
10232631023263
Washer, Lock
Internal Tooth (M8)
17.
11048941104894
Motor Mounting
Hardware (Per Side)
18.
11049131104913
Instruction Sheet,
Decal Application
Not Shown
150
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
A - Decal application instruction sheet is included.
B - Performance package (PERF) offered on a TorqueSP & Torque SE provides a 6.5 MPH rating.
C - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered.
Invacare Corp. utilizes alternate suppliers for this part number.
D - Motors with a ferrite bead attached are used when a Formula CG Powered Seating System is ordered with smart actuators
(SMTACTS).The ferrite bead is a non-serviceable item.
NOTE:
151
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
Ranger X (Std.) (400 Lb. Limit) & Torque SE (Std. Thru 4/8/07, see PERF After 4/8/07)
(300 Lb. Limit)
Item Number Description
Ranger X (Std.) (400 Lb.
Limit) & Torque SE (Std.
Thru 4/8/07, see PERF
After 4/8/07) (300 Lb. Limit)
Right Side
Ranger X (Std.) (400 Lb.
Limit) & Torque SE (Std.
Thru 4/8/07, see PERF
After 4/8/07) (300 Lb. Limit)
Left Side
11447781144777Motor/ Gearbox1.
1153668
1153667
Motor/ Gearbox with Ferrite
Bead
1.
See Note(s) C See Note(s) C See Note(s) C
1086226
1086225Gear Box
2.
See Note(s) B See Note(s) B
11454831145482
Motor Assembly
with Decals
3.
See Note(s) A
1153672
1153671
Motor Assembly
with Decals and Ferrite
Bead
3.
See Note(s) A See Note(s) C See Note(s) C
10702951070294Brake Repair Kit4.
1104402-NLA1104402-NLA
Brake Cover
with Screws
5.
10702961070296
Brushes w/ Caps
(Set of 4)
6.
See Item 5See Item 5
Screw, SHC
(8-32 x 1/4")
7.
50000X00750000X007
Coupling w/ Cup (1-5/16"
Diameter)
8.
1043594
1043594
Screw, SHC
(1/4-20 x 1-1/8")
9. See Note(s) B See Note(s) B
1108978
1108978
Screw, SHC
(M6 x 1 x 20MM)
9. See Note(s) B See Note(s) B
11017251101725Cap, Brake10.
10829851082985Slotted Plate11.
10502X00110502X001
Lockwasher
(1/4 x 1/2 x 1/16")
12.
11047971104797Decal, Drive/Push13.
11047981104798Decal, 3200 RPM14.
10436281043628
Screw, HHC w/ Patch
(5/16-18 x 2-1/2")
15.
11042571104257
Screw, HHC w/ Patch
(5/16-18 x 1-1/4")
16.
10232631023263
Washer, Lock
Internal Tooth (M8)
17.
11048941104894
Motor Mounting
Hardware (Per Side)
18.
152
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
Ranger X (Std.) (400 Lb. Limit) & Torque SE (Std. Thru 4/8/07, see PERF After 4/8/07)
(300 Lb. Limit)
Item Number Description
Ranger X (Std.) (400 Lb.
Limit) & Torque SE (Std.
Thru 4/8/07, see PERF
After 4/8/07) (300 Lb. Limit)
Right Side
Ranger X (Std.) (400 Lb.
Limit) & Torque SE (Std.
Thru 4/8/07, see PERF
After 4/8/07) (300 Lb. Limit)
Left Side
11049131104913
Instruction Sheet,
Decal Application
Not Shown
A - Decal application instruction sheet is included.
B - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered.
Invacare Corp. utilizes alternate suppliers for this part number.
C - Motors with a ferrite bead attached are used when a Formula CG Powered Seating System is ordered with smart actuators
(SMTACTS). Torque SE models do not use smart actuators. The ferrite bead is a non-serviceable item.
NOTE:
Torque SE introduced 11/15/06
153
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
Torque 3 (Std.)
Item Number Description
Torque 3 (Std.) (300 Lb.
Limit)
Right Side
Torque 3 (Std.) (300 Lb.
Limit)
Left Side
11526181152617Motor/ Gearbox1.
1153670
1153669
Motor/ Gearbox with Ferrite
Bead
1. See Note(s) C See Note(s) C
1152614
1152613Gear Box
2.
See Note(s) B See Note(s) B
11454831145482
Motor Assembly
with Decals
3.
See Note(s) A
1153672
1153671
Motor Assembly
with Decals and Ferrite
Bead
3.
See Note(s) A See Note(s) C See Note(s) C
10702951070294Brake Repair Kit4.
1104402-NLA1104402-NLA
Brake Cover
with Screws
5.
10702961070296
Brushes w/ Caps
(Set of 4)
6.
See Item 5See Item 5
Screw, SHC
(8-32 x 1/4")
7.
50000X00750000X007
Coupling w/ Cup (1-5/16"
Diameter)
8.
1043594
1043594
Screw, SHC
(1/4-20 x 1-1/8")
9. See Note(s) B See Note(s) B
1108978
1108978
Screw, SHC
(M6 x 1 x 20MM)
9. See Note(s) B See Note(s) B
11017251101725Cap, Brake10.
10829851082985Slotted Plate11.
10502X00110502X001
Lockwasher
(1/4 x 1/2 x 1/16")
12.
11047971104797Decal, Drive/Push13.
11047981104798Decal, 3200 RPM14.
10436281043628
Screw, HHC w/ Patch
(5/16-18 x 2-1/2")
15.
11042571104257
Screw, HHC w/ Patch
(5/16-18 x 1-1/4")
16.
10232631023263
Washer, Lock
Internal Tooth (M8)
17.
11048941104894
Motor Mounting
Hardware (Per Side)
18.
11049131104913
Instruction Sheet,
Decal Application
Not Shown
154
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
4-Pole Motors and Gearboxes For MK6i Electronics
For MK6i Electronics (After 10/8/06)
A - Decal application instruction sheet is included.
B - When a new gearbox or mounting screws are ordered, (2 ea.) metric and (2 ea.) non-metric screws (item 9) must be ordered.
Invacare Corp. utilizes alternate suppliers for this part number.
C - Motors with a ferrite bead attached are used when a Formula CG Powered Seating System is ordered with smart actuators
(SMTACTS). The ferrite bead is a non-serviceable item.
NOTE:
Torque 3 introduced 12/19/07
155
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
156
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1115509 Kit, Motor, GB Non-Heavy Duty (Refurbished) with
Instruction Sheet 1 11 E
See Chart Item #1a New Motor - Date Application Reference
Chart 1 11a D
See Chart Item #1b Warranty/Refurbished Motor - Date
Application Reference Chart 1 11b D
1078213 Pin, Alignment 1 12
1018739 Washer (1/4 x 5/8 x 3/32") 1 13
1078214 Screw, Hex Head Cap w/ Patch (1/4-20 x 1/2") 1 14
1085633 Screw, Hex Head Cap (M8 x 1-1/4 x 45) 1 45
1105600 Handle, Brake Release, Right 1 16
1105601 Handle, Brake Release, Left 1 16
1106532 Handle, Brake Release (Power Elevating Seat
Only), Right 1 16
1106533 Handle, Brake Release (Power Elevating Seat
Only), Left 1 16
1078228 Screw, Hex Head Slot with Patch (#10-32 x 5/16") 1 17
1079247 Washer, Flat (21/64 x 53/64 x 7/64") 1 48
1104872 Hardware, Motor Mounting, Right 1 19
1104873 Hardware, Motor Mounting, Left 1 19
1108769 Hardware, Motor Mounting (Power Elevating Seat
Only), Right 1 19
1108770 Hardware, Motor Mounting (Power Elevating Seat
Only), Left 1 19
1112955 Repair Kit, GB Motor, Anti-Rattle with Instruction
Sheet 2 110 B
1112828 Instruction Sheet, GB Motor Anti-Rattle Repair Kit 1 1C
B - Service Kit for two motors include 2 each hex head nuts, washers, hub keys and O-rings. Individual components are not
available.
C - not shown
D - Refer to the "Motor Date Application Reference Chart" for selecting motor
E - Item 1 part number 1115509 is a refurbished replacement motor for part number 1115508 only.
NOTE:
Item #1a New Motor - Date Application Reference Chart
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1153335
11155081115508
-Right
See Note(s) C See Note(s) C, A1, A
157
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #1a New Motor - Date Application Reference Chart
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) D, A1, A
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
N/A
1153335
N/A-Right See Note(s) C, A, A1
N/A
1153648
N/A-Right w/ Wheel Lock See Note(s) B1, B
N/A
1153336
N/A-Left See Note(s) D, A1, A
N/A
1153649
N/A-Left w/ Wheel Lock See Note(s) B1, B TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1153335
11155081115508-Right See Note(s) C, A1, A
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) D, A1, A
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
1153335
11155081115508-Right See Note(s) C, A1, A
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) D, A1, A
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
158
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket
Connector kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
159
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #1b Warranty/Refurbished Motor - Date Application Reference Chart
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, C, A2, A, A1
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) B1, B, A2, E
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, D, A2, A, A1
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
N/A1123235EN/A-Right (Refurbished)
N/A
1153335E
N/A-Right (Refurbished) See Note(s) E, C, A2, A1, A
N/A
1153648E
N/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
N/A1123234EN/A-Left (Refurbished)
N/A
1153336E
N/A-Left (Refurbished) See Note(s) E, A, D, A2, A1
N/A
1153649E
N/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2 TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, C, A2, A, A1
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, A, D, A1, A2
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
160
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Non-Heavy Duty Motors and Hardware
For MKIV Electronics Only
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #1b Warranty/Refurbished Motor - Date Application Reference Chart
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, C, A2, A, A1
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, A2, B, B1
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, A, A1, A2, D
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, A2, B
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Motor Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Motor Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
A2 - A Refurbished Motor is used for a warranty replacement
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Motor Gasket
Connector kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
E - Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s 1123235E Right or 1123234E
Left as replacements. Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
161
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
162
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1116697 Kit, GB Heavy Duty Motor Mounting Hardware -
Right 1 11 A,B,B1
Plate, Lever 1 12
Washer (1/4 x 23/32 x 1/16") 1 23
Lockwasher (1/4 x 15/32 x 1/64") 1 24
Screw, Socket Head (1/4-20 x 3/4") 1 15
Brake Lever Asembly, Right 1 16
Locknut (1/4-20) 1 19
Washer, Nylon (35/64 x 1 x 1/16") 1 210
Insert, Lever 1 111
Washer, Belleville (1/2 x 1 x 1/32") 1 112
Screw, Socket Button Head (1/4-20X2-1/4") 1 113
Plate, Stop 1 114
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
Cotter, Locking Bow-Tie 1/4" Shaft 1 216
Linkage, Rod 1 117
Spacer, Top GB Motor 1 118
Spacer, Bottom GB Motor 1 119
Washer, Flat (21/64 x 53/64 x 7/64") 1 320
Screw, Hex Head (5/16-18 x 1-1/2") 1 121
Screw, Hex Head Cap (M8 x 1.25 x 60MM) 1 422
Kit, GB HD Controller Gasket Connector 1 1
1116698 Kit, GB Heavy Duty Motor Mounting Hardware - Left 1 11 A,B,B1
Plate, Lever 1 12
Washer (1/4 x 23/32 x 1/16") 1 23
Lockwasher (1/4 x 15/32 x 1/64") 1 24
Screw, Socket Head (1/4-20 x 3/4") 1 15
Brake Lever Asembly, Left 1 16
Locknut (1/4-20) 1 19
Washer, Nylon (35/64 x 1 x 1/16") 1 210
Insert, Lever 1 111
Washer, Belleville (1/2 x 1 x 1/32") 1 112
Screw, Socket Button Head (1/4-20X2-1/4") 1 113
Plate, Stop 1 114
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
Cotter, Locking Bow-Tie 1/4" Shaft 1 216
Linkage, Rod 1 117
Spacer, Top GB Motor 1 118
Spacer, Bottom GB Motor 1 119
Washer, Flat (21/64 x 53/64 x 7/64") 1 320
163
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
Screw, Hex Head (5/16-18 x 1-1/2") 1 121
Screw, Hex Head Cap (M8 x 1.25 x 60MM) 1 422
Kit, GB HD Controller Gasket Connector 1 1
1153519 Kit, Brake Lever Assembly with Mounting Hardware
- Right 1 123 B,B1,I
Plate, Lever 1 12
Washer (1/4 x 23/32 x 1/16") 1 23
Lockwasher (1/4 x 15/32 x 1/64") 1 24
Screw, Socket Head (1/4-20 x 3/4") 1 15
Brake Lever Asembly, Right 1 16
Locknut (1/4-20) 1 19
Washer, Nylon (35/64 x 1 x 1/16") 1 210
Insert, Lever 1 111
Washer, Belleville (1/2 x 1 x 1/32") 1 112
Screw, Socket Button Head (1/4-20X2-1/4") 1 113
Plate, Stop 1 114
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
1153520 Kit, Brake Lever Assembly with Mounting Hardware
- Left 1 123 B,B1,I
Plate, Lever 1 12
Washer (1/4 x 23/32 x 1/16") 1 23
Lockwasher (1/4 x 15/32 x 1/64") 1 24
Screw, Socket Head (1/4-20 x 3/4") 1 15
Brake Lever Asembly, Left 1 16
Locknut (1/4-20) 1 19
Washer, Nylon (35/64 x 1 x 1/16") 1 210
Insert, Lever 1 111
Washer, Belleville (1/2 x 1 x 1/32") 1 112
Screw, Socket Button Head (1/4-20X2-1/4") 1 113
Plate, Stop 1 114
Screw, Hex Head Cap with Patch (5/16-18 x 3/4") 1 215
1136024 Package, Rubber Tips, Wheel Lock Handle, Black 10 17
1114835 Decal, GB Drive/Push 1 18
1133188 Gasket, Motor Connector 1 124 C
See Chart Item #25 New Motor - Date Application Reference
Chart MKIV (Before 5/22/07) 1 125 D
See Chart Item #25a Warranty/Refurbished Motor - Date
Application Reference Chart MKIV (Before 5/22/07) 1 125a D
See Chart Item #25b New Motor - Date Application Reference
Chart MK6i (After 5/21/07) 1 125b D
164
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Item #25c Warranty/Refurbished Motor - Date
Application Reference Chart MK6i (After 5/21/07) 1 125c D
See Chart Suspension Arm Kits (Used for Chairs
Manufactured Before 1/1/06 Only) 1 1F
1144925 Kit, Stand-Off Screw with Lockwasher 1 2E
1110531 Instruction Sheet, GB Motor Replacement For 3G
Storm 1 1F
1134214 Kit, GB HD Controller Gasket Connector 1 1F,G,G1
1115476 Spring, Torsion Right 1 1F,H
1115477 Spring, Torsion Left 1 1F,H
A - Includes items 2-6, 9-22. Item #7 Rubber Tip and item #8 GB drive/Push Decal is included with item #6 Brake Lever
Assembly. A Controller Gasket Connector Kit part #1134214 created 10/26/07 (not shown) will also be included.
B - The brake release mechanism was revised 10/29/07 eliminating the Torsion Spring, adding a bellville washer and a stop
plate to limit travel of the Brake Release Lever. If a customer requests just the Torsion Spring for chairs before 10/29/07,
B1 - order part #1115476 RT or 1115477 LT otherwise order the Brake Lever and Mounting Hardware Kit item #23 that
retrofits to all GB HD Motors in the field.
C - Connector Gasket added to all GB HD Motors 5/16/06 and comes standard when a new motor is ordered. Gasket can be
attached to all GB HD Motors in the field before 5/16/06 as well
D - Refer to the "Motor Date Application Reference Charts" for selecting a motor
E - Stand-Off Screw with Lockwasher kit used to secure the controller cable on the GB motors
F - Not Shown
G - Kit was created 10/26/07 and attaches to the controller motor cables. Includes 2 ea. GB HD Controller Gasket
Connectors, 2 ea. Silicon Lubricant Packets, 1 ea. Instruction Sheet. Individual components are non-saleable.
G1 - The kit can retrofit to existing GB HD controllers in the field
H - Used for brake release mechanisms manufactured for chairs before 10/29/07. Torsion Spring no longer used after
10/28/07
I - Includes items 2-6 and 9-15
NOTE:
Item #25 New Motor - Date Application Reference Chart MKIV (Before 5/22/07)
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1153335
11155081115508-Right See Note(s) A1, C, A
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) A, A1, D
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
165
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25 New Motor - Date Application Reference Chart MKIV (Before 5/22/07)
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
N/A
1153335
N/A-Right See Note(s) A, A1, C
N/A
1153648
N/A-Right w/ Wheel Lock See Note(s) B1, B
N/A
1153336
N/A-Left See Note(s) A, D, A1
N/A
1153649
N/A-Left w/ Wheel Lock See Note(s) B1, B TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1153335
11155081115508-Right See Note(s) A, A1, C
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) A, D, A1
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
1153335
11155081115508-Right See Note(s) A, A1, C
1153648
N/AN/A-Right w/ Wheel Lock See Note(s) B1, B
1153336
11155081115508-Left See Note(s) A, D, A1
1153649
N/AN/A-Left w/ Wheel Lock See Note(s) B1, B
166
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
167
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25a Warranty/Refurbished Motor - Date Application Reference Chart MKIV (Before
5/22/07)
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
TTHD (Heavy Duty)
Stamdard
TRUTK (Non-Heavy Duty)
Standard
TRUTK (Non-Heavy Duty)
Standard
Storm Arrow
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, A1, A, A2, C
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B, A2, B1
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, D, A, A1, A2
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
N/A
TTHD (Heavy Duty)
Optional
N/AStorm Arrow
N/A1123235EN/A-Right (Refurbished)
N/A
1153335E
N/A-Right (Refurbished) See Note(s) E, A1, A, A2, C
N/A
1153648E
N/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
N/A1123234EN/A-Left (Refurbished)
N/A
1153336E
N/A-Left (Refurbished) See Note(s) A1, A, E, A2, D
N/A
1153649E
N/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, A2, B TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Storm RX
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, A1, A, A2, C
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, A2, B1, B
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) E, D, A2, A1, A
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) A2, E, B1, B
TRUTK (Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
TRUTK (Non-Heavy Duty)
Optional
Torque SP
168
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25a Warranty/Refurbished Motor - Date Application Reference Chart MKIV (Before
5/22/07)
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model Number and
Side Before 2/6/03 2/6/03-1/25/04 and
(2/6/03-3/14/04 For VA
Gov't Orders)
1/26/04-5/21/07 and
(3/15/04-5/21/07 For VA
Gov't Orders)
1123235EN/AN/A-Right (Refurbished)
1153335E
11155091115509-Right (Refurbished) See Note(s) E, A, A1, A2, C
1153648E
N/AN/A
-Right (Refurbished) w/
Wheel Lock See Note(s) E, B1, B, A2
1123234EN/AN/A-Left (Refurbished)
1153336E
11155091115509-Left (Refurbished) See Note(s) A1, A, E, A2, D
1153649E
N/AN/A
-Left (Refurbished) w/
Wheel Lock See Note(s) E, B1, A2, B
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
A2 - A Refurbished Motor is used for a warranty replacement
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - For chairs manufactured before 1/1/06 a RT. Suspension Arm Kit part #1153679 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
D - For chairs manufactured before 1/1/06 a LT. Suspension Arm Kit part #1153680 is required in addition to a motor assembly.
Refer to the Suspension Arm Kits chart
E - Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s 1123235E Right or 1123234E
Left as replacements. Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
NOTE:
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when the TTHD GB motors covered all
Arrow user weight limits STANDARD. NOTE: GB motors were not available with the Torque SP (301-351 TQHD) user weight selection until
1/26/04 when the user weight limit was raised to 400 Lbs.
169
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25b New Motor - Date Application Reference Chart MK6i (After 5/21/07)
Model and
Side Part Number
Storm Arrow (Std.) (300 Lb. & 400 Lb. Weight Limits)Storm Arrow
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
Storm RX (Optional) (400 Lb. Weight Limit)Storm RX
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
(Optional) (300 Lb. Weight Limit)Torque SP/SE
1153335
-Right See Note(s) A1, A
1153648
-Right w/ Wheel Lock See Note(s) B1, B
1153336
-Left See Note(s) A1, A
1153649
-Left w/ Wheel Lock See Note(s) B1, B
(Optional) (300 Lb. Weight Limit)Torque 3
1153335
-Right See Note(s) A1, A
1153336
-Left See Note(s) A1, A
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
NOTE:
170
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25c Warranty/Refurbished Motor - Date Application Reference Chart MK6i (After
5/21/07)
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model and
Side Part Number
Storm Arrow (Std.) (300 Lb. & 400 Lb. Weight Limits)Storm Arrow
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A2, A, A1
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, A2, B, B1
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A1, A, A2
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, A2, B1, B
Storm RX (Optional) (400 Lb. Weight Limit)Storm RX
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A, A1, A2
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, B, A2, B1
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A1, A, A2
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, B1, A2, B
(Optional) (300 Lb. Weight Limit)Torque SP/SE
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A1, A, A2
1153648E
-Right (Refurbished) w/ Wheel Lock See Note(s) C, B1, B, A2
1123234E-Left (Refurbished)
1153336E
-Left (Refurbished) See Note(s) C, A, A1, A2
1153649E
-Left (Refurbished) w/ Wheel Lock See Note(s) C, B, B1, A2
(Optional) (300 Lb. Weight Limit)Torque 3
1123235E-Right (Refurbished)
1153335E
-Right (Refurbished) See Note(s) C, A, A1, A2
1123234E-Left (Refurbished)
171
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Item #25c Warranty/Refurbished Motor - Date Application Reference Chart MK6i (After
5/21/07)
NOTE: Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s
1123235E Right or 1123234E Left as replacements. Additional hardware is not required. Motors include a
Controller Gasket Connector Kit and instruction sheets.
Model and
Side Part Number
1153336E
-Left (Refurbished) See Note(s) C, A1, A2, A
A - Part #'s 1153335/6 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware and (Controller Gasket
Connector kit). The brake release mechanism was revised 10/29/07 eliminating the torsion spring, adding a bellville washer and
A1 - stop plate to limit travel of the brake lever to prevent permanent damage to the motor. The Controller Gasket Connector was
introduced 10/26/07 and attaches to the controller motor cables. Instruction sheets included also.
A2 - A Refurbished Motor is used for a warranty replacement
B - Part #'s 1153648/9 and refurbished #'s are Kits including a GB HD Motor, Brake Lever Hardware, (Controller Gasket Connector
kit) and
B1 - a revised Wheel Lock with longer mounting screws. Revised Wheel Lock used for chairs made before 10/29/07 equipped with
Wheel Locks. The new Stop Plate and revised Wheel Lock now share the same mounting holes on the Suspension Arm
C - Part #'s 1153335E, 1153336E, 1153648E, 1153649E are currently not available. Refer to part #'s 1123235E Right or 1123234E
Left as replacements. Additional hardware is not required. Motors include a Controller Gasket Connector Kit and instruction sheets.
NOTE:
172
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
GB (TrueTrack) Heavy Duty Motors and Hardware
For Both MKIV Elec.'s Before 5/22/07 & MK6i After 5/21/07
NOTE: GB motors were not available with the Arrow (301-401HD) user weight selection until 1/26/04 when
the TTHD GB motors covered all Arrow user weight limits STANDARD. NOTE: GB motors were not
available with the Torque SP (301-351 TQHD) user weight selection until 1/26/04 when the user weight
limit was raised to 400 Lbs.
Suspension Arm and Hardware Kits
Suspension Arm Kits are ordered in "addition" to Motor Kit part numbers 1153335, 1153335E, 1153336 or
1153336E for chairs manufactured before 1/1/06
Side Part Number
1153679
-Right See Note(s) A
1153680
-Left See Note(s) A
A - Suspension Arm Kits will include the suspension arm, instruction sheet and mounting hardware for the motor, wheel, brake lever
and fender. The new suspension arm will have the holes necessary to accept the brake lever stop plate
NOTE:
173
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
8" and 9" Caster Assemblies
174
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
8" and 9" Caster Assemblies
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104409 Fork Assembly, Standard 8" Caster 1 11 H
1134471 Fork Assembly, Standard 8" Caster For
TRRO/TRBKTS Option 1 11 H
1104410 Fork Assembly, Standard 9" Caster 1 11 H
1106423 Fork Assembly, Shock 8" Caster 1 11
1104419 Hardware, 8" Caster Standard/ Shock Fork (Per
Side) 1 12 A
1039757 Hardware, Caster Standard Fork 9" (Per Side) 1 12 A
1070400 Screw, Hex Head (7/16-20 x 4") 1 13
7930329 Washer, Steel (15/32 x 5/8 x 3/64") 25 24
1101756 Spacer (7/16 x 5/8 x 1/4") 1 25
7930331 Locknut (7/16-20") 25 16
1101108 Wheel with Bearings, Semi-Pneumatic (8" x 2-1/4") 1 17
1002002 Wheel with Bearings - Pneumatic (8 x 2") 1 17
1101157 Wheel with Bearings, Pneumatic (9" x 2-3/4") 1 17 B
1101158 Wheel, Flat Free with Bearings (9 x 2-3/4") 1 17 C
40176X034 Tire, Pneumatic (8" x 2") 1 18
1101155 Tire, Pneumatic (9" x 2-3/4") 1 18
1101106 Tire, Semi-Pneumatic (8" x 2-1/4") 1 18
1101156 Tire with Foam Filled Insert (9" x 2-3/4") 1 18 G
1034942 Tube, Pneumatic Inner (8" x 2") 1 19
1027417 Tube, Pneumatic Inner (9" x 2-3/4") 1 19
1006049 Bearing (7/16") 1 210
1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 111
1104451 Hardware, Caster Fork Mounting 1 112 D
1106227 Hardware, Caster/ Shock Fork Mounting 1 112 E
1028550 Locknut (5/8-18) 1 113
1041444 Washer (5/8 x 1-5/16 x 1/8") 1 114
1101737 Cap 1 115
1106068 Spacer, Stem (5/8 x 1-1/8 x 3/16") 1 116
1104853 Stem, Shock Fork (6" and 8") 1 117
1104851 Fork, Shock (6" and 8") 1 118
1104879 Spring, Polyurethane Yellow 1 219
1104855 Hardware, Shock Fork (6" and 8") 1 120
1025705 Screw, Hex Head (5/16-24 x 3-1/4") 1 121
1016652 Washer (5/16 x 9/16 x 1/32") 1 222
1026032 Washer, Nylon (11/32 x 11/16 x 1/16") 1 123
1026906 Locknut (5/16-24) 1 124
1093978 Flange (5/16" I.D.) 1 225
1106223 Screw, Socket Head (3/8-16 x 2-1/2") 1 126
1106225 Washer (5/16 x 11/16 x 1/8") 1 227
1069548 Washer (7/16 x 13/16 x 1/8") 1 228
1024426 Nut, Hex (5/16-24) 1 429
1024442 Washer, Lock (5/16 x 9/16 x 1/16") 1 430
175
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
8" and 9" Caster Assemblies
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1013460 Rim, Outer/Inner Half with Hardware-10" 1 131 F
1025399 Rim, Outer/Inner half with Hardware-9" 1 131 F
1013466 Hub with Bearings 1 132
1015610 Bearing with Grip Ring (5/8") 1 233
7930330 Locknut (5/16-24) 25 134
1027730 Screw, Hex Head (5/16-24 x 5") 1 135
1028832 Spacer (5/8 x 7/8 x 1/2") 1 236
1028833 Reducer, Axle 1 137
A - Includes items 3-6
B - Includes items 8-9 and 29-33
C - Includes items 8, 31, and 32
D - Includes items 13-15
E - Includes items 13-16
F - Includes items 29 and 30
G - Insert molded to tire
H - 400 Lb. weight limit and under
NOTE:
176
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

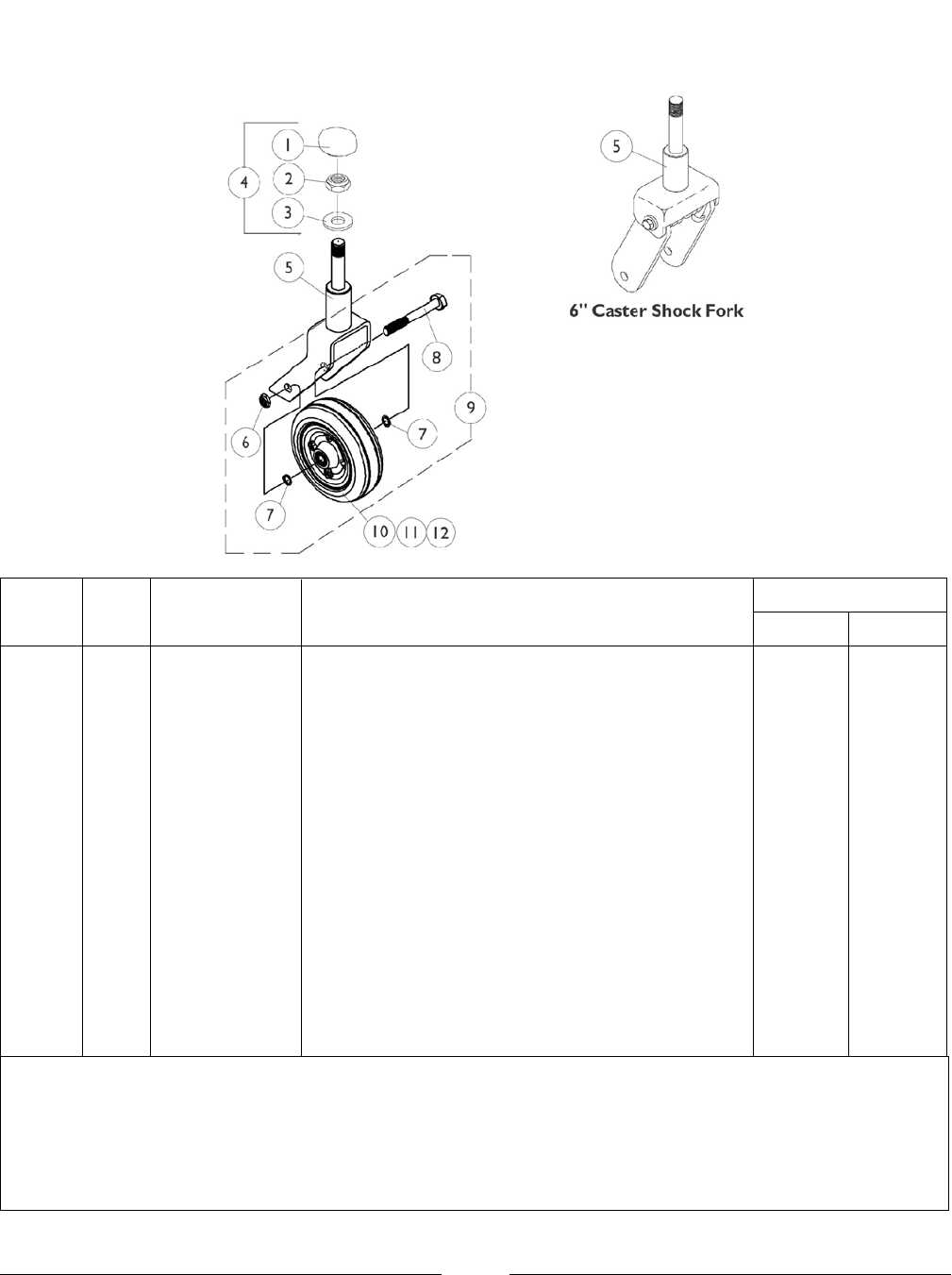

Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1101737 Cap 1 11
1028550 Locknut (5/8-18) 1 12
1041444 Washer (5/8 x 1-5/16 x 1/8") 1 13
1104451 Hardware, Caster Fork Mounting 1 14 A
8881041458 Fork & Stem Assembly, 6" Caster 1 15 C,D
8881056379 Fork, Shock, 6" (Color) 1 15 C,D
7930331 Locknut (7/16-20") 25 16
7930329 Washer, Steel (15/32 x 5/8 x 3/64") 25 27
1025726 Screw, Hex Head (7/16-20 x 3-1/4") 1 18
1042489 Caster Axle Hardware (1 Pair) 2 19 B
1058890 Hardware, Caster, Shock Fork (Pair) 2 19 B
1072014-NLA Wheel with Bearings - Semi Pneumatic (6" x 2") 1 110 E
1115179 Wheel with Bearings, 6 x 2" Urethane Deep Profile 1 110 F
1122066 Wheels with Bearings, 6 x 2" Urethane Deep Profile 2 110 F,G
1006049 Bearing (7/16") 1 211
1020592 Spacer, Bearing (7/16 x 5/8 x 1-3/4") 1 112
A - Includes items 1-3
B - Includes items 6-8
C - Specify frame color when ordering. See page titled "Frame Finishes and Touch-Up Paints".
D - 300 Lb. weight limit and under
E - Service part No Longer Available 8/15/03. Due to product improvement, order (pair) part number 1122066 dated after
8/14/03 so each side matches. The deep profile caster has 2 tread grooves w/ round corners instead of 4 tread grooves w/
square corners.
F - Service part after 8/14/03.
G - Part number 1122066 is a pair number that can be used to replace part number 1072014 that was discontinued 8/15/03
NOTE:
6" Caster Assembly
NOTE: 6" caster assemblies available On-Chair as of 11/19/01
177
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Drive Wheels for Non-Free Wheel Hubs
(4-Pole & GB Non-Heavy Duty Motors)
NOTE: New drive wheel mounting hardware is required when converting from (14" x 3") to (14" x 4") drive
wheels.
178
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Drive Wheels for Non-Free Wheel Hubs
(4-Pole & GB Non-Heavy Duty Motors)
NOTE: New drive wheel mounting hardware is required when converting from (14" x 3") to (14" x 4") drive
wheels.
Item #'s 1, 2 and 3 Wheel Components
Wheel
Size
Item #1
Wheel
Complete
Pneumatic
Item #1
Wheel
Complete
w/ Flat Free
Item #2
Tire
Item #2
Tire
w/ Flat Free
Item #3
Tube
10396511101754103965211044371104438
14" x 3"
For 4-Pole
& GB Motors
10424751042478104247410424771042476
14" x 4"
For 4-Pole
Motors
10424751042478104247410793041079305
14" x 4"
For GB Motors
See Note(s) A1, A
A - The GB 14" x 4" wheel is used on Non-Heavy Duty GB motors only. The GB 14" x 4" wheel is no longer offered on-chair after
1/25/04 (3/14/04 for VA Government orders) and the GB Heavy Duty motors became the only GB motor choice -
A1 - ON-Chair after 1/25/04 (3/14/04 for VA Government orders). See page titled "Drive Wheels For TrueTrack GB Heavy Duty
TTHD Motors" for chairs manufactured after 1/25/04 (3/14/04 for VA Government orders).
NOTE:
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #'s 1, 2 and 3 Drive Wheels for Non-Free Wheel
Hubs 1 11-3
1104882 Kit, 8" Rim with Hardware (14 x 3" Wheel) 1 14 F
1042453 Rim, 6" with Hardware (14 x 4" Wheel) 1 14 E
1078246 Rim, 6" with Hardware (14 x 4" Wheel) 1 14 B
1101094 Screw, Socket Head Cap w/ Patch (5/16-18 x 7/8") 1 5C,D
1024443 Screw, Hex Head (5/16-24 x 5/8") 1 6A,C
1024442 Washer, Lock (5/16 x 9/16 x 1/16") 1 6A,C
1024426 Nut, Hex (5/16-24) 1 6A,C
A - included in rim hardware part number 1042453 and (rim hardware part number 1078246 quantity 4 each)
B - For GB motors only
C - Not Shown
D - included in rim hardware part number 1104882
E - For 4-Pole Motors
F - For 4-Pole and GB motors
NOTE:
179
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item #'s 1, 2 and 3 Wheel Components
Wheel
Size
Item #1
Wheel
Complete
Pneumatic
Item #1
Wheel
Complete
w/ Flat Free
Item #2
Tire
Item #2
Tire
w/ Flat Free
Item #3
Tube
1039651110175410396521079301107929814" x 3"
1042475104247810424741079304107930514" x 4"
Drive Wheels for Free Wheel Hubs
(4-Pole Motors Only)
180
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Drive Wheels for Free Wheel Hubs
(4-Pole Motors Only)
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart Item #'s 1, 2 and 3 Drive Wheels for Free Wheel
Hubs 1 11-3
1104889 Rim, 8" with Hardware (14 x 3" Wheel) 1 14
1078246 Rim, 6" with Hardware (14 x 4" Wheel) 1 14
7930326 Screw, Hex Head (1/4-20 x 3/4") 25 8B,C
7930333 Locknut (1/4-20) 25 8B,C
1024443 Screw, Hex Head (5/16-24 x 5/8") 1 4A,B
1024442 Washer, Lock (5/16 x 9/16 x 1/16") 1 4A,B
1024426 Nut, Hex (5/16-24) 1 4A,B
A - Included in rim with hardware part number 1078246
B - Not Shown
C - Included in rim with hardware part number 1104889
NOTE:
181
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

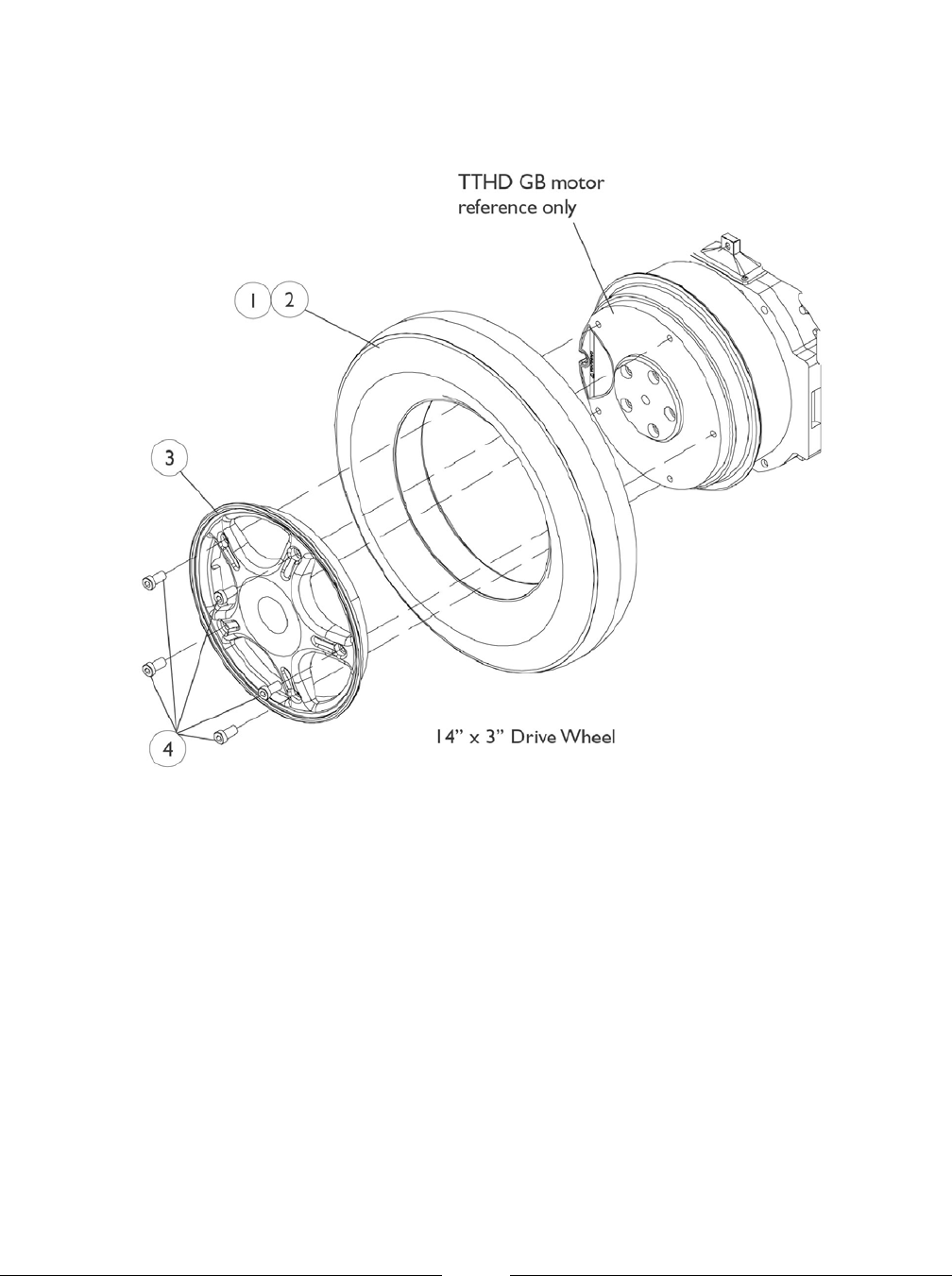

Drive Wheels for GB TrueTrack Heavy Duty (TTHD) Motors
NOTE: Gearless/Brushless TrueTrack Heavy Duty (TTHD) motors were introduced and offered as an
ON-chair option to Storm Arrow models from 2/6/03 thru 1/25/04 (3/14/04 for VA Government orders). On
1/26/04 (3/15/04 for VA Government orders) Gearless/Brushless TrueTrack Heavy Duty (TTHD) motors
became standard on Storm Arrow and optional on Ranger X and Torque SP/SE & Torque 3 models.
182
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Drive Wheels for GB TrueTrack Heavy Duty (TTHD) Motors
NOTE: Gearless/Brushless TrueTrack Heavy Duty (TTHD) motors were introduced and offered as an
ON-chair option to Storm Arrow models from 2/6/03 thru 1/25/04 (3/14/04 for VA Government orders). On
1/26/04 (3/15/04 for VA Government orders) Gearless/Brushless TrueTrack Heavy Duty (TTHD) motors
became standard on Storm Arrow and optional on Ranger X and Torque SP/SE & Torque 3 models.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1118273 Tire with Instruction Sheet, 14" x 3" 1 11
1118274 Tire with Flat Free and Instruction Sheet, 14" x 3" 1 11 B,B1
1118275 Tube with Instruction Sheet, 14" x 3" 1 12
1116701 Rim 8" with Instruction Sheet (For 14" x 3" Tire) 1 13 B,B1
1113320 Screw, Socket Head Cap (M8 x 1-1/4 x 16MM) 1 54 B,B1
1153683 Screw, Socket Head Cap (M8 x 1-1/4 x 25MM) 1 3A
1114830 Instruction Sheet, Rim and Tire Replacement 1 1A
A - Not Shown
B - When ordering a new flat free tire, rim or 16MM wheel mounting screws item #4, it is recommended to order 3 ea. of part
#1153683 25MM screws as well.
B1 - The 25MM screws are inserted a 1/4" in every other mounting hole on the motor to compress the flat free and make it
easier to install the 5 shorter 16MM screws.
NOTE:
183
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Non-Free Wheel Hub Mount and Hardware
(4-Pole & GB Non-Heavy Duty Motors)
NOTE: New drive wheel mounting hardware must be ordered when converting from (14" x 3") to (14" x 4")
drive wheels.
184
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Non-Free Wheel Hub Mount and Hardware
(4-Pole & GB Non-Heavy Duty Motors)
NOTE: New drive wheel mounting hardware must be ordered when converting from (14" x 3") to (14" x 4")
drive wheels.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1100574 Wheel Hub, 4-Pole Motor/ Gearbox (14" x 3" Wheel) 1 11
1063339 Wheel Hub (14 x 4" Wheel) 1 11
1000180 Key (3/16 x 1-1/4") 1 12
1024444 Locknut (5/16-24) 1 13 E
1036933 Washer (1/2 x 1-9/32 x 1/8") 1 14
1001979 Locknut (1/2-20) 1 15
1100580 Nut, Beveled Hex (5/16-24) 1 16
1100579 Spacer, G/ B Motor 1 17
1078242 Adapter Plate with Studs 1 18
1104844 Hardware, Drive Wheel Mounting 1 19 A,F
1064355 Hardware, Wheel Hub and Drive Wheel Mounting 1 19 B,G
1104843 Hardware, Drive Wheel Mounting 1 19 C,H
1079258 Hardware, Wheel Hub and Drive Wheel Mounting
(4" Tire) 1 19 D,I
A - Includes items 1-2 and 4-6
B - Includes items 1-5
C - Includes items 3, 6 and 7
D - Includes items 3 and 8
E - Gearless/Brushless 14" x 4" drive wheels use a quantity of 8 beveled hex nuts.
F - For 4-pole motor/gearbox with 14" x 3" wheel
G - For 4-pole motor/gearbox with 14" x 4" wheel
H - For G/B motor with 14" x 3" wheel
I - For G/B motor with 14" x 4" wheel
NOTE:
185
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
7930302 Locknut (1/2-20) 25 11
1078090 Cup, Washer 1 12
1079002 Spring, Compression 1 13
1079001 Washer, Flat (1-13/16 x 2-1/8 x 1/16") 1 14
1077022 Knob, Engagement 1 15
1024426 Nut, Hex (5/16-24) 1 46
1077023 Hub Assembly 1 17
1000180 Key (3/16 x 1-1/4") 1 18
1077021 Sleeve, Axle 1 19
1079004 Free Wheel Hub Assembly 1 110
1081358 Drive Wheel Assembly, Pneumatic w/ Hub (14 x 3") 1 111
1081359 Drive Wheel Assembly, Flat Free w/ Hub (14 x 3") 1 111
1081362 Drive Wheel Assembly, Pneumatic with Hub (14 x
4") 1 111
1081363 Drive Wheel Assembly, Flat Free with Hub (14 x 4") 1 111
Free Wheel Hub Mount and Hardware
(4-Pole Motors Only)
NOTE: To change a Non-Free Wheel Hub to a Free Wheeling Hub, see Free Wheel Hub Kits page.
186
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Free Wheel Hub Kit For (14" x 3" Wheel, Pneumatic)
Item Number Part Number Description Quantity
1
Free Wheel Hub Kit
14" x 3" Wheel,
Pneumatic
10796401.
2Free Wheel Hub Assembly10790042.
1Instruction Sheet10792953.
2
Wheel Assembly w/ Hub,
14" x 3" Pneumatic
10813584.
Free Wheel Hub Kit For (14" x 3" Wheel w/ Flat Free)
Item Number Part Number Description Quantity
1
Free Wheel Hub Kit
14" x 3" Wheel
w/ Flat Free
10796411.
2Free Wheel Hub Assembly10790042.
1Instruction Sheet10792953.
2
Wheel Assembly w/ Hub,
14" x 3" w/ Flat Free
10813594.
Free Wheel Hub Kits
(4-Pole Motors Only)
NOTE: Use kit numbers below to change Non-Free Wheel Hubs to Free Wheeling Hubs.
NOTE: All free wheel hub kits include items 2-4.
187
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Free Wheel Hub Kits
(4-Pole Motors Only)
NOTE: Use kit numbers below to change Non-Free Wheel Hubs to Free Wheeling Hubs.
NOTE: All free wheel hub kits include items 2-4.
Free Wheel Hub Kit For (14" x 4" Wheel, Pneumatic)
Item Number Part Number Description Quantity
1
Free Wheel Hub Kit
14" x 4" Wheel,
Pneumatic
10796441.
2Free Wheel Hub Assembly10790042.
1Instruction Sheet10792953.
2
Wheel Assembly w/ Hub,
14" x 4" Pneumatic
10813624.
Free Wheel Hub Kit For (14" x 4" Wheel w/ Flat Free)
Item Number Part Number Description Quantity
1
Free Wheel Hub Kit
14" x 4" Wheel,
w/ Flat Free
10796451.
2Free Wheel Hub Assembly10790042.
1Instruction Sheet10792953.
2
Wheel Assembly w/ Hub,
14" x 4" w/ Flat Free
10813634.
188
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1054510 Bracket, Wheel Lock Mount, Right 1 11
1054512 Bracket, Wheel Lock Mount, Left 1 11
1054508 Link, Inside 1 12
7930334 Locknut (1/4-28) 25 23
1031833 Shoe, Wheel Lock 1 14
7930323 Package, Locknut (1/4-20) 25 25
7930326 Screw, Hex Head (1/4-20 x 3/4") 25 26
1026033 Washer, Nylon (1/4 x 1/2 x 1/16") 1 97
1018733 Link 1 18
1028687 Screw, Hex Head (1/4-28 x 3/4") 1 29
1021408 Handle, Wheel Lock -Right 1 110
1021409 Handle, Wheel Lock -Left 1 110
47376X024 Tip, Rubber Wheel Lock Handle, Black 1 111
1026105 Spacer, Nylon (1/4 x 7/16 x 1/8") 1 112
1054513 Plate, Wheel Lock Base, Right 1 113
1054514 Plate, Wheel Lock Base, Left 1 113
1026907 Washer (1/4 x 1/2 x 1/16") 1 114
1054515 Wheel Lock Assembly, Right 1 115
1054516 Wheel Lock Assembly, Left 1 115

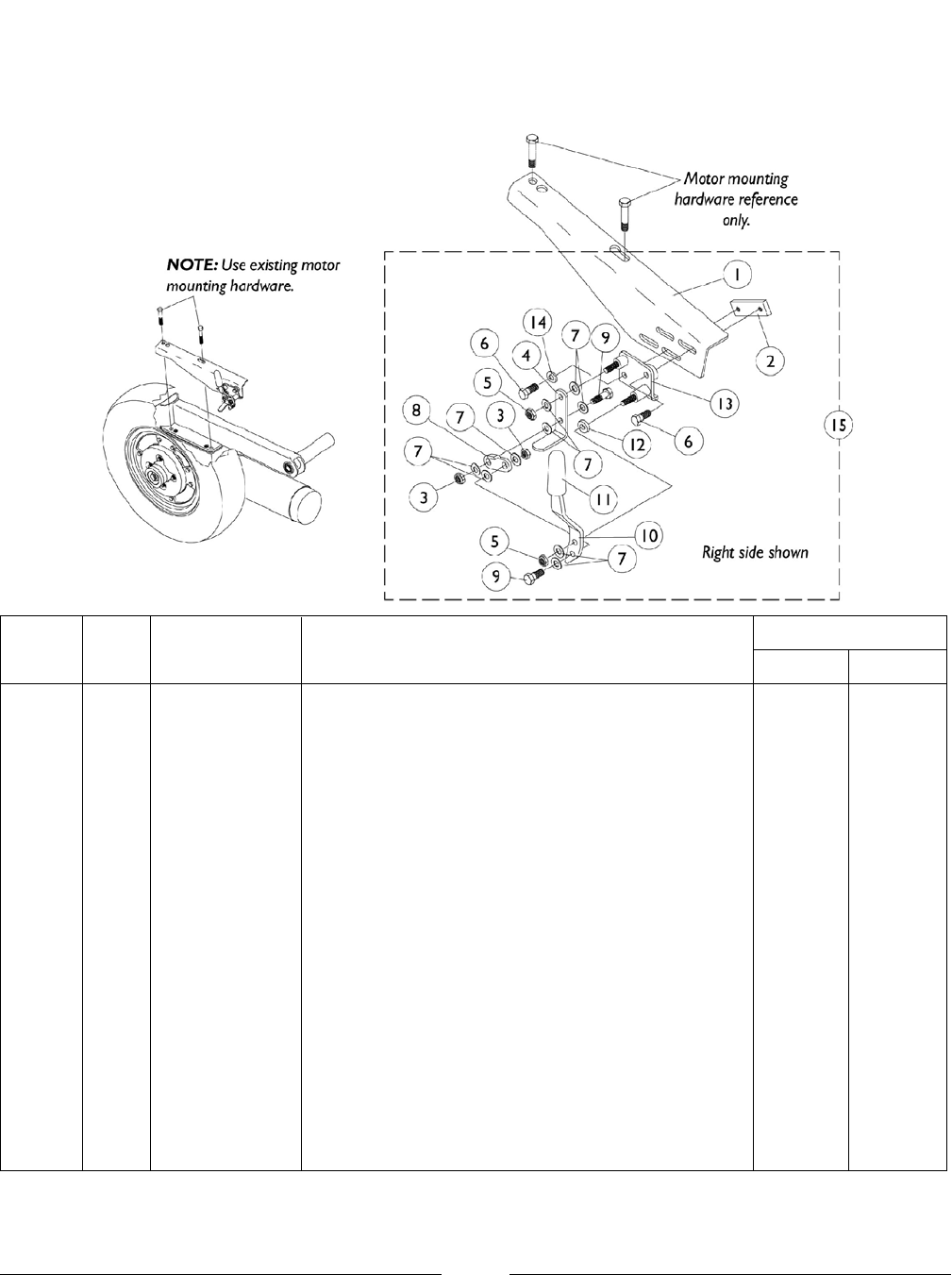

Wheel Lock Assembly
4-Pole Motors
189
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Wheel Lock Assembly
Gearless/Brushless
190
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Wheel Lock Assembly
Gearless/Brushless
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1079252 Wheel Lock Assembly with Mounting Hardware -
Right 1 11 A
1079253 Wheel Lock Assembly with Mounting Hardware -
Left 1 11 A
1045267 Screw, Hex Head (1/4-20 x 3/4") 1 22
1078199 Nut 1 23
1079266 Wheel Lock Assembly, (GB) - Right 1 14
1079267 Wheel Lock Assembly, (GB) - Left 1 14
1136024 Package, Rubber Tips, Wheel Lock Handle, Black 10 15
1136022R Kit, Wheel Lock Assembly with Mounting Hardware
- Right 1 16 B,C
Wheel Lock Assembly, (GB HD) - Right 1 17
Washer, Flat (21/64 x 53/64 x 7/64") 1 28
Screw, Hex Head Cap with Patch (5/16-18 x 1") 1 29
1136023L Kit, Wheel Lock Assembly with Mounting Hardware
- Left 1 16 B,C
Wheel Lock Assembly, (GB HD) - Left 1 17
Washer, Flat (21/64 x 53/64 x 7/64") 1 28
Screw, Hex Head Cap with Patch (5/16-18 x 1") 1 29
1136024 Package, Rubber Tips, Wheel Lock Handle, Black 10 110
A - Includes items 2-4 and 1 ea.of item 5 Wheel Lock Rubber Tip
B - Includes items 7-9 and 1 ea.of item 10 Wheel Lock Rubber Tip
C - Wheel Lock was revised and mounting screw was lengthened 10/29/07 to accommodate the new Stop Plate added for the
GB HD Motor braking mechanism. The Wheel Lock Assembly Kit can retrofit to all GB HD Motor equipped models in the
field
NOTE:
191
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1104860 Fender Assembly Kit w/ Instruction Sheet for 4-Pole
Motor Suspension Arm 2 11 A
1104861 Fender Assembly Kit w/ Instruction Sheet for G/ B
Motor Suspension Arm 2 11 A
1101718 Fender (Black) 1 22
1104411 Bracket, Fender Mounting, Black - Right (4-Pole
Motor) 1 13
1104412 Bracket, Fender Mounting, Black - Left (4-Pole
Motor) 1 13
1115914 Bracket, Fender Mounting, Black - Right (GB Motor) 1 13
1115915 Bracket, Fender Mounting, Black - Left (GB Motor) 1 13
1105556 Spacer, Fender 1 24
1022597 Screw, Phillips Pan Head Tap (#10-32 x 3/8") 1 45
1104806 Hardware, Fender Mounting for 4-Pole Motor
Suspension Arm 2 16 B
1104807 Hardware, Fender Mounting for G/ B Motor
Suspension Arm 2 16 B
1104908 Instruction Sheet, Fender Assembly 1 1C
A - Includes items 2-5
B - Includes items 3-5
C - Not Shown
NOTE:

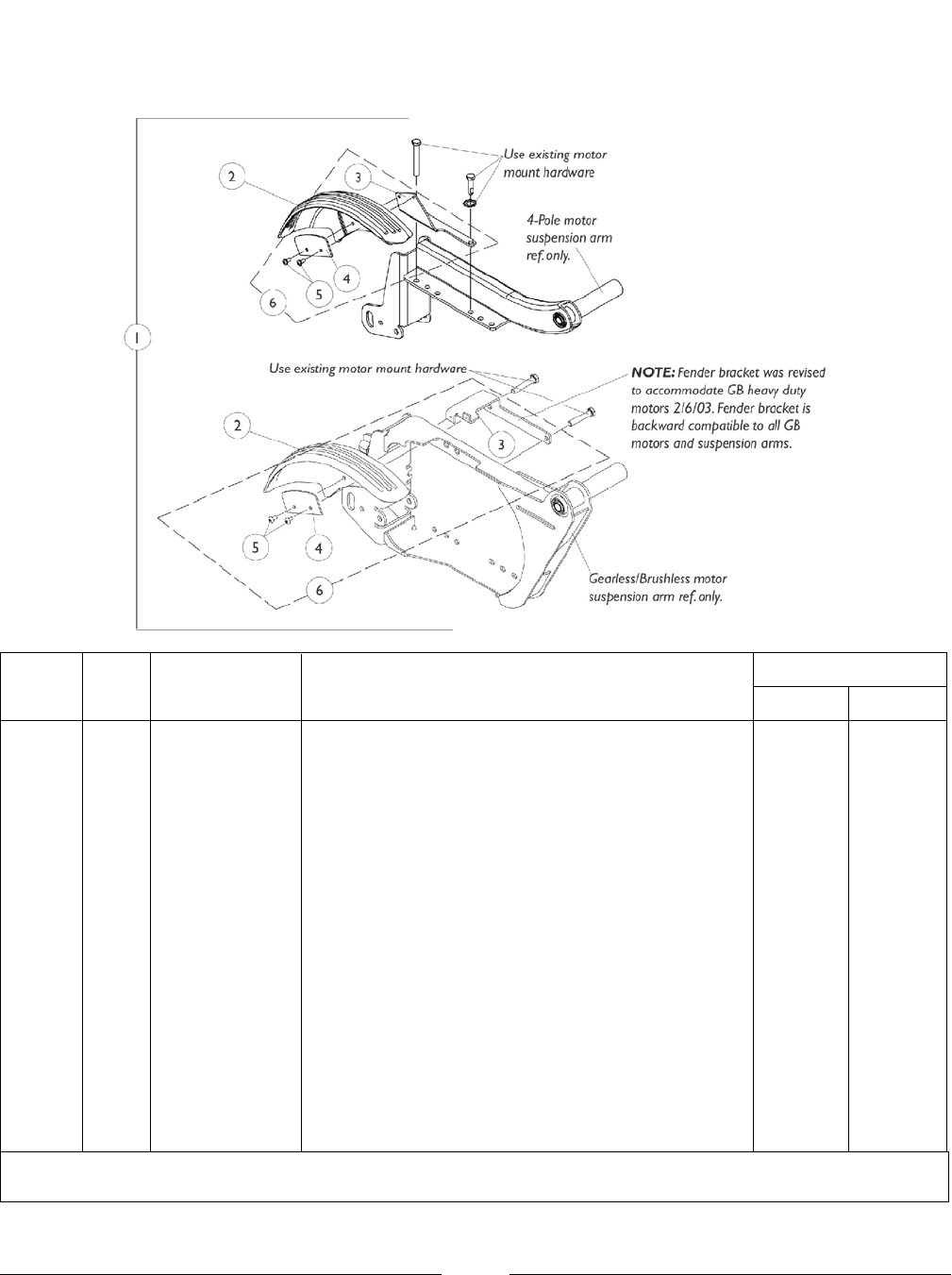

Fender Assembly
192
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
MKIV Electronics
193
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
MK6i Electronics
194
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

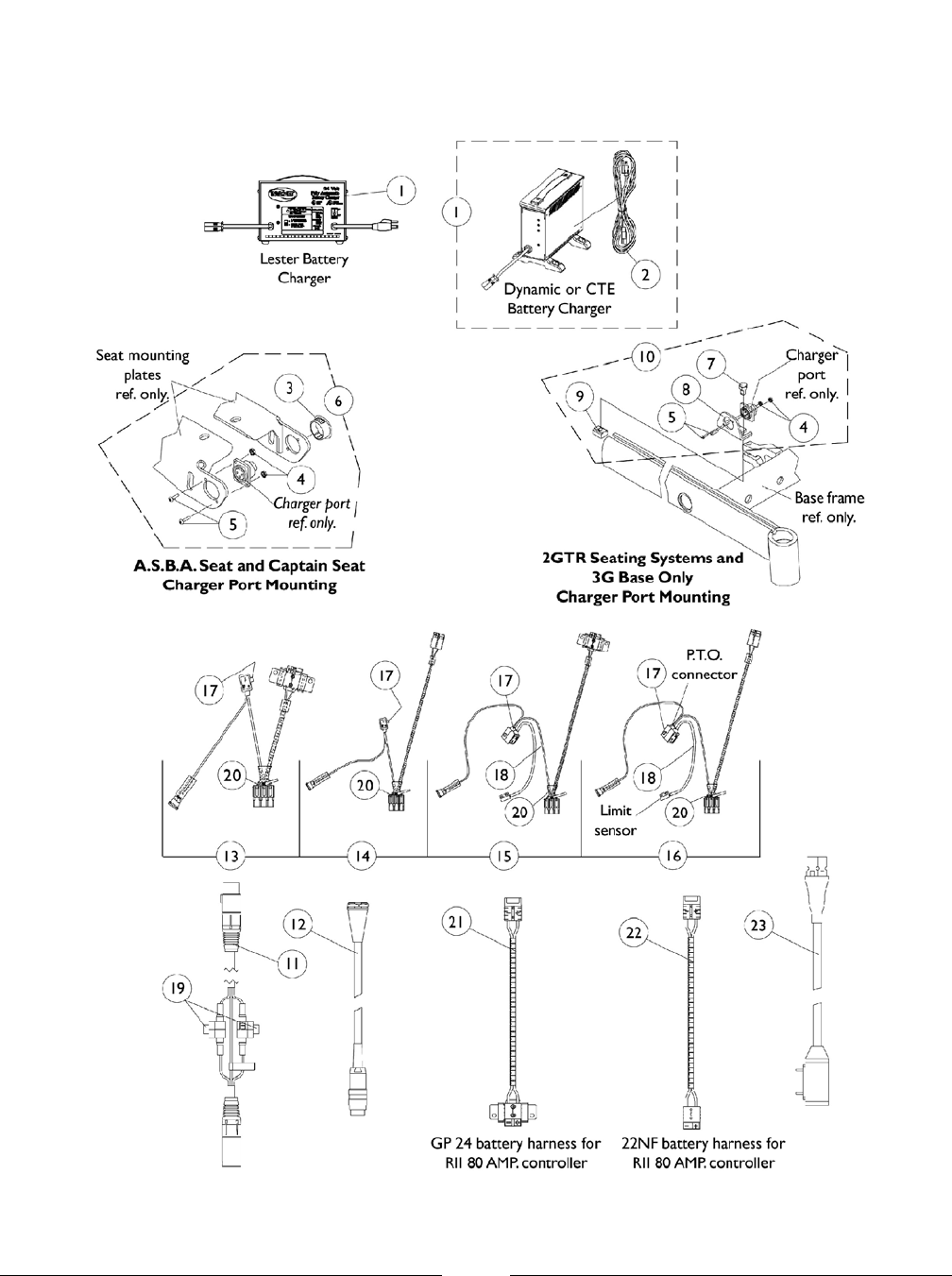

Battery Chargers and MKIV Harnesses
195
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Chargers and MKIV Harnesses
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1053161 Battery Charger, 8 Amp. 115vac (Off Board)
Dual Mode Round Plug, Lester 1 11 A
1085678-NLA Battery Charger, 8 Amp. 115vac (Off Board)
Dual Mode Round Plug w/ AC Power Line Cord,
Dynamic
1 11
1123249 Battery Charger, 8 Amp. 115vac (Off Board)
Single Mode Round Plug w/ AC Power Line Cord,
CTE Corp.
1 11 O,O1
1089627 Cord, AC Power Line 115vac, 2-prong - Off Board
(11'6"L) 1 12
1104803 Plug Button, Black (1") 1 13
P0870X000 Nut, Hex Keps (#4-40) 1 24
7930318 Screw, Phillips Pan Head (#4-40 x 1/2") 25 25
1104864 Hardware, Charger Port Mounting 1 16 D
1061922 Screw, Hex Head Cap w/ Patch (5/16-18 x 1/2") 1 17
1070430 Bracket, Charger Connector, Black 1 18
1069724 T-Nut (5/16-18) 1 19
1104865 Hardware, Charger Port Mounting 1 110 E
1083929 Cable, Charger Extension (24" Long Round Plug) 1 111
1092912 Programmer Extension Cable Assembly (18" Long) 1 112 B
1092314 Wiring Harness w/ Black Battery Connector, Round
Plug, GP24 Dual Battery Boxes 1 113 G,K
1124821 Wiring Harness w/ Red Battery Connector, Round
Plug, GP24 Dual Battery Boxes 1 113 L,M
1092306 Wiring Harness, Round Plug, 22NF Single Battery
Box 1 114 G
1095265 Wiring Harness, Round Plug, GP24 Dual Battery
Boxes 1 115 H,N
1095266 Wiring Harness, Round Plug, 22NF Single Battery
Box 1 116 H
1090117 Fuse, 15 Amp. (Buss Mini ATM-15) 1 117
1092913 Cable, Drive Lockout Sensor 1 118 C
1098892 Fuse, 15 Amp. (Buss ATC-15) 1 119 I
1090117 Fuse, 15 Amp. (Buss Mini ATM-15) 1 219 J
1101099 Fuse, 20 Amp. (Buss ATC-20) 1 120 I
1119230 Fuse, 20 Amp. (Buss Mini ATM-20) 1 120 J
1109509 Harness, Battery (GP24) 1 121
1107296 Harness, Battery (22NF) 1 122
1098905 Cable Assembly, 24 Volt, Anderson/P.T.O. 1 123
1095502 Package, Cable Ties (11-1/2") 1 1F
1108970 Cable Ties (3-7/8" Long) 1 1F
1090357 Wrap, Slit Wire Harness (1/2" O.D.) (36" Long Cut
To Length) 1 1F
196
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Chargers and MKIV Harnesses
A - On 7/18/01 the Lester 8 amp. battery charger was introduced to 3G Storm Series chairs.
B - Used only when a 2GTR powered seating systems are ordered.
C - For manual recliners and high back captain seats.
D - Includes items 3-5
E - Includes items 4, 5, 7-9
F - Not Shown
G - For A.S.B.A. non-recliner, all powered seating systems and high back semi recline captain seats
H - For A.S.B.A. manual recliner and high back full recline captain seats
I - Before 4/1/03
J - After 3/31/03
K - For all 4-pole motors and all GB non-heavy duty and (GB heavy duty TTHD motors before 1/26/04)
L - For GB Heavy Duty TTHD motors after 1/25/04 only. GB Non-Heavy Duty motors no longer offered after 1/25/04.
M - For A.S.B.A. manual recliner and high back full recline captain seats, item 18 sensor cable must be ordered as well.
N - For models equipped with GB heavy duty motors after 1/25/04, order item 13 wire harness part number 1124821 and item
18 sensor cable part number 1092913.
O - CTE charger introduced and standard on-chair 4/1/04. Used on Gel Cell or AGM (Absorbed Glass Mat) batteries. For wet
cell batteries refer to the Lester charger.
O1 - CTE charger looks exactly the same as Dynamic's charger except for the company name that is silk screened on the
narrow side panel, where the charger plug is (hard wired) attached. Serial number starts with 04A00000001.
NOTE:
197
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Chargers, MK6i Battery Cables and Sensor Cables
198
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Chargers, MK6i Battery Cables and Sensor Cables
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1053161 Battery Charger, 8 Amp. 115vac (Off Board)
Dual Mode Round Plug, Lester 1 11
1123249 Battery Charger, 8 Amp. 115vac (Off Board)
Single Mode Round Plug w/ AC Power Line Cord,
CTE Corp.
1 11
1089627 Cord, AC Power Line 115vac, 2-prong - Off Board
(11'6"L) 1 12
1136055 Cable and Bracket w/ Black Connector (For GP24
Batteries & 4-Pole Motors) 1 13 A
1147019 Cable and Bracket w/ Red Connector (For GP24
Batteries & GB TT Motors) 1 13 B
1140112 Cable, Battery Extension 1 14 C
1146573 Cable, Drive Lockout Sensor (MK6i) 1 15 D
1144926 Cable, Drive Lockout Sensor (MK6i) 1 16 E
1142231 Cable, GB TT Interface 1 17 F
A - Used for GP24 Batteries only with 4-Pole Motors
B - Used for GP24 Batteries only with GB TT Motors
C - Used for 22NF Batteries with 4-Pole Motors only
D - Used for chairs manufactured with ADJRECL Manual Recline or Full Recline Van Seats with 4-Pole Motors only.
E - Sensor Cable used with item 7 Interface Cable for chairs manufactured with ADJRECL Manual Recline Seat Frame or Full
Reline Van Seats with MK6i Electronics and GB TT Motors
F - Interface Cable used with item 6 Sensor Cable for chairs manufactured with ADJRECL Manual Recline Seat Frame or Full
Reline Van Seats with MK6i Electronics and GB TT Motors
NOTE:
199
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Boxes and Support Frame
Group 24 Batteries
NOTE: [Before 10/9/06: Group 24 battery boxes were standard on Arrow, Ranger X (U300) and Torque SP
(301-350TQHD) models. Group 24 battery boxes are optional on Torque SP (250TQ) and (251-300TQ)
models.]
[NOTE: After 10/8/06: Group 24 battery boxes are standard on Arrow and Ranger X and optional on
Torque SP & (Torque SE introduced 11/15/06) & (Torque 3 introduced 12/19/07)]
200
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Boxes and Support Frame
Group 24 Batteries
NOTE: [Before 10/9/06: Group 24 battery boxes were standard on Arrow, Ranger X (U300) and Torque SP
(301-350TQHD) models. Group 24 battery boxes are optional on Torque SP (250TQ) and (251-300TQ)
models.]
[NOTE: After 10/8/06: Group 24 battery boxes are standard on Arrow and Ranger X and optional on
Torque SP & (Torque SE introduced 11/15/06) & (Torque 3 introduced 12/19/07)]
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1039705 Battery Box Assembly w/ Black Battery Connector,
Front 1 11 A
1123974 Battery Box Assembly w/ Red Battery Connector,
Front 1 11 J
1146296 Battery Box Assembly w/ Black Battery Connector,
Front (For Formula CG Elevate System Only) 1 11 N
1151803 Battery Box Assembly w/ Red Battery Connector,
Front (For Formula CG Elevate System Only) 1 11 P
1041440 Battery Box Assembly w/ Black Battery Connector,
Rear 1 11 A
1123975 Battery Box Assembly w/ Red Battery Connector,
Rear 1 11 J
1041439 Battery Box Bottom Assembly, Front 1 12 B
1146293 Battery Box Bottom Assembly, Front (For Formula
CG Elevate System Only) 1 12 B
1041438 Battery Box Bottom Assembly, Rear 1 12 C
1041432 Battery Box Lid Assembly w/ Black Battery
Connector, Front 1 13 I
1123962 Battery Box Lid Assembly w/ Red Battery
Connector, Front 1 13 J
1146294 Battery Box Lid Assembly w/ Black Battery
Connector, Front (For Formula CG Elevate System
Only)
1 13 N
1151801 Battery Box Lid Assembly w/ Red Battery
Connector, Front (For Formula CG Elevate System
Only)
1 13 P
1085414 Battery Box Lid Assembly w/ Black Battery
Connector, Rear 1 23 I
1123963 Battery Box Lid Assembly w/ Red Battery
Connector, Rear 1 13 J
1039773 Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 24
1043599 Washer, Flat (5/32 x 3/8 x 1/32") 1 25
P0870X050 Nut, Keps (#6-32) 1 26
1041421 Pin, Connector Guide 1 47
1041422 Ring, Retaining 1 18
1041420 Bracket, Connector Guide Mounting 1 29
1041433 Pin, Handle 1 110
1041434 Handle Strap, Rear Battery Box 1 211
1041420 Bracket, Connector Guide Mounting 1 212
1043599 Washer, Flat (5/32 x 3/8 x 1/32") 1 413
1039773 Screw, Phillips Pan Head (#6-32 x 1-1/8") 1 414
201
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Boxes and Support Frame
Group 24 Batteries
NOTE: [Before 10/9/06: Group 24 battery boxes were standard on Arrow, Ranger X (U300) and Torque SP
(301-350TQHD) models. Group 24 battery boxes are optional on Torque SP (250TQ) and (251-300TQ)
models.]
[NOTE: After 10/8/06: Group 24 battery boxes are standard on Arrow and Ranger X and optional on
Torque SP & (Torque SE introduced 11/15/06) & (Torque 3 introduced 12/19/07)]
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
P0870X050 Nut, Keps (#6-32) 1 415
1070504 Fastener, Hook with Adhesive Back (1" x 1") 1 216
1041421 Pin, Connector Guide 1 217
1041422 Ring, Retaining 1 418
1041420 Bracket, Connector Guide Mounting 1 219
1041435 Handle Strap, Front Battery Box 1 220
1049550 Retainer Clip 1 221
1039649 Spacer (3/8 x 5/8 x 25/32") 1 222
1104881 Spacer (3/8 x 5/8 x 3/4") 1 122
1049549 Retainer, Battery Box 1 123
1086974 Frame, Battery Box Support 1 124
1144774 Frame, Battery Box Support (Formula CG Elevate
Only) 1 124
1104859 Battery Box Assemblies, Support Frame and
Hardware
(with Vent Present)
1 125 G
1124559 Battery Box Assemblies, Support Frame and
Hardware
(with Vent Present)
1 125 L
1104821 Battery Box Assemblies, Support Frame and
Hardware
(without Vent Present)
1 125 H
1123976 Battery Box Assemblies, Support Frame and
Hardware
(without Vent Present)
1 125 M
1104802 Decal, Push/Drive 1 226 O
1104693 Cam, Right 1 127
1104694 Cam, Left 1 127
1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 128
1104692 Cover, Battery Retainer 1 129
1105557 Bracket, Battery Support, Black 1 130
1104696 Bushing, Top 1 231
1075176 Screw, Slotted Hex Washer Head Tap (#10-16 x
1-1/2") 1 232
1028755 Screw, Phillips Pan Head (#10-32 x 5/8") 1 233
1023631 Washer, Plain (3/16 x 1/2 x 1/16") 1 234
1104871 Retainer Hardware 1 135 D
1104701 Retainer Assembly 1 136 E
1089385 Fuse, 80 Amp, MIDI (Non-G/B & G/B) 1 2K,F
1104849 Service Manual, Storm 1 1F
202
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Boxes and Support Frame
Group 24 Batteries
NOTE: [Before 10/9/06: Group 24 battery boxes were standard on Arrow, Ranger X (U300) and Torque SP
(301-350TQHD) models. Group 24 battery boxes are optional on Torque SP (250TQ) and (251-300TQ)
models.]
[NOTE: After 10/8/06: Group 24 battery boxes are standard on Arrow and Ranger X and optional on
Torque SP & (Torque SE introduced 11/15/06) & (Torque 3 introduced 12/19/07)]
A - Includes items 2 and 3. Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04
(3/15/04 for VA Government orders)]
B - Includes items 10 and 20
C - Includes items 10 and 11
D - Includes items 31-34
E - Includes items 27-34
F - Not Shown
G - Includes items 1 and 21-24 and used before 1/26/04
H - Includes items 1, 22 and 24 and used before 1/26/04
I - Used with all 4-pole motors, GB non-heavy duty and [GB heavy duty TTHD motors before 1/26/04 (3/15/04 for VA
Government orders)]
J - Used with GB heavy duty TTHD motors after 1/25/04 only (3/14/04 for VA Government orders)
K - Battery box lids made after 1/25/04 (3/14/04 for VA Government orders) use a non-replaceable 125 Amp. fuse. A new
battery box lid must be ordered when the 125 Amp. fuse is required.
L - Includes items 1 and 21-24 and used after 1/25/04 (3/14/04 for VA Government orders). The battery box lids contain the
125 Amp. non-replaceable fuse
M - Includes items 1, 22 and 24 and used after 1/25/04 (3/14/04 for VA Government orders). The battery box lids contain the
125 Amp. non-replaceable fuse
N - Used with 4-Pole motors only with Formula CG Elevate System
O - Decal not used when GB Heavy Duty Motors are used
P - Used with GB Heavy Duty TTHD motors with Formula CG Elevate System
NOTE: Items 25, 36, service manual part number 1104849 and new wire harness for Group 24 batteries must be ordered when
upgrading from 22NF batteries to Group 24 Batteries.
NOTE:
203
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Box and Tray Assembly
22NF Batteries
NOTE: [Before 10/9/06: 22NF battery boxes were standard on Torque SP (250TQ) and (251-300TQ)
models.]
NOTE: [After 10/8/06: 22NF battery boxes are standard on Torque SP (300 Lb. Limit) models.]. [Standard
on Torque SE introduced 11/15/06 & Torque 3 introduced 12/19/07]
204
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Box and Tray Assembly
22NF Batteries
NOTE: [Before 10/9/06: 22NF battery boxes were standard on Torque SP (250TQ) and (251-300TQ)
models.]
NOTE: [After 10/8/06: 22NF battery boxes are standard on Torque SP (300 Lb. Limit) models.]. [Standard
on Torque SE introduced 11/15/06 & Torque 3 introduced 12/19/07]
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1050175 Battery Box Assembly 1 11 A
1049365 Battery Box Bottom with Straps 1 12
1049366 Battery Box Lid Assembly 1 13 B
1070504 Fastener, Hook with Adhesive Back (1" x 1") 1 24
1037901 Screw, Phillips Pan Head (#6-32 x 7/8") 1 25
P0870X050 Nut, Keps (#6-32) 1 26
50000X121 Strap, Battery Lift 1 27
50000X123 Cable, Battery Jumper 1 18
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 29
1028769 Locknut (5/16-18) 1 210
1049846 Strap Assembly, Battery 1 111
1092190 Battery Tray with Strap Assembly 1 112
1049354 Bracket, Hanger, Black 1 213
1104881 Spacer (3/8 x 5/8 x 3/4") 1 214
1104837 Battery Box/ Tray Assembly 1 115 C
1095489 Decal, Invacare 3-D Logo (2-1/2" L) 1 116
1089385 Fuse, 80 Amp, MIDI (Non-G/B & G/B) 1 1D
A - Includes items 2 and 3
B - Includes items 4-6
C - Includes items 1, 8-10 and 12-14
D - Not Shown
NOTE:
205
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Tray, Proximity Sensor and Hardware
For Elevating Seat
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
206
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Battery Tray, Proximity Sensor and Hardware
For Elevating Seat
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025704 Washer, Flat (5/16 x 5/8 x 1/16") 1 21
1028769 Locknut (5/16-18) 1 42
1106529 Bracket, Battery Tray Support, Black 1 23
1049354 Bracket, Hanger, Black 1 24
1104881 Spacer (3/8 x 5/8 x 3/4") 1 25
1106662 Label, Warning, Elevating Seat 1 16
1106517 Tray, Battery 1 17
1108774 Hardware, Proximity Switch Sensor and Mounting 1 18 A
1005889 Locknut (#4-40) 1 29
1008525 Washer, Internal Tooth Lock (#4-40) 1 210
1011011 Washer, Plain (1/8 x 5/16 x 1/32) 1 211
1021742 Screw, Phillips Pan Head (#4-40 x 1/2") 1 212
1105715 Sensor, Proximity Switch 1 113
1042484 Screw, Hex Head (5/16-18 x 2") 1 214
1109563 Strip, Grommet 1 115
1026158 Locknut (5/16-18) 1 216
1074133 Washer (5/16 x 3/4 x 1/16") 1 217
1049846 Strap Assembly, Battery 1 118
1108773 Hardware, Actuator Switch Sensor and Mounting 1 119 D
1024001 Sensor, Actuator Switch 1 120
1005889 Locknut (#4-40) 1 221
1008525 Washer, Internal Tooth Lock (#4-40) 1 222
1106518 Bracket, Actuator Switch Sensor, Black 1 123
1011011 Washer, Plain (1/8 x 5/16 x 1/32) 1 424
1027704 Screw, Phillips Pan Head (#4-40 x 3/8") 1 425
1108775 Hardware, Battery Tray Mounting 1 1B,C
A - Includes items 9-13
B - Includes items 1-5
C - Not Shown
D - Includes items 20-25
NOTE:
207
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Elevating Actuator, Switch Sensor and Hardware
For Elevating Seat
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
208
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Elevating Actuator, Switch Sensor and Hardware
For Elevating Seat
Discontinued 10/16/06. After 10/15/06, Refer to Formula CG Powered Seating System Parts Catalog Form
#06-106 for the Elevate Option components for 3G Storm Series.
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1025736 Locknut (1/4-20) 1 61
1108436 Bracket, Actuator Support, Black 1 12
1109334 Actuator Assembly, Elevating 1 13
1108435 Bracket, Battery Strap, Black 1 14
1025708 Bolt, Hex Head Cap (1/4-20 x 3/4") 1 85
1005889 Locknut (#4-40) 1 26
1008525 Washer, Internal Tooth Lock (#4-40) 1 27
1011011 Washer, Plain (1/8 x 5/16 x 1/32) 1 48
1106518 Bracket, Actuator Switch Sensor, Black 1 19
1027704 Screw, Phillips Pan Head (#4-40 x 3/8") 1 410
1024001 Sensor, Actuator Switch 1 111 B
1108773 Hardware, Actuator Switch Sensor and Mounting 1 112 A
1088898 Screw, Hex Head Cap w/ Patch (1/4-20 x 1-3/4") 1 413
A - Includes items 6-11
B - The Proximity Sensor that mates up with item 11 can be found under the page titled "Battery Tray, Proximity Sensor and
Hardware For Power Elevating Seat".
NOTE:
209
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1080865 Pin, Oxygen Holder 1 21 A
1035614 Plug Button, Black (5/8") 1 12
1080866 Decal, Oxygen Warning - English 1 13
1027684 Knob, Clamping (Black) 1 24
1086780 Package, Protective Caps 10 25
1073159 Pad, Non-Skid 1 16
1080872 Strap with Buckle 1 17
1083052 Carton, Shipper 1 18
2000454 Bag, Poly (33" W x 39" L) 1 19
1080869 Instruction Sheet, Oxygen Holder 1 110
1080870-NLA Oxygen Holder Assembly with Instruction Sheet 1 111 B,C
A - Oxygen holder pins are to be used when backrest is absent.
B - Includes items 1-10
C - Due to product improvement, see oxygen holder assemblies dated after 4/14/03 that will accommodate both (exposed and
non-exposed) captain seat hinge assemblies. Special orders are no longer needed for exposed hinge assembly models.
NOTE:
Oxygen Holder Assembly Kit Before 4/15/03
Captain Seat, Low Back Models Only
210
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

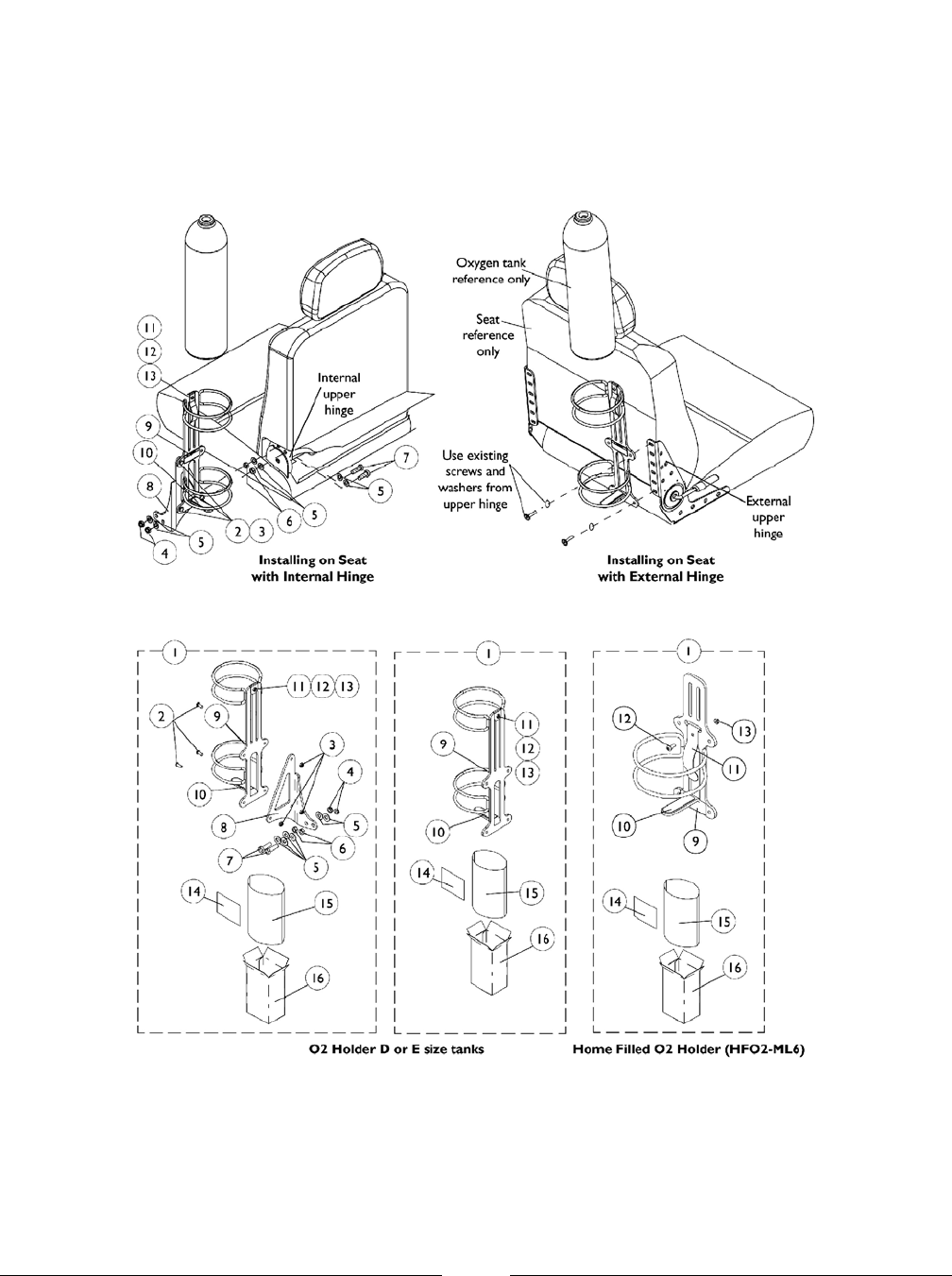

Oxygen Holder Assembly Kit After 4/14/03
All Captain Seat Models
211
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Oxygen Holder Assembly Kit After 4/14/03
All Captain Seat Models
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1116952 Oxygen Holder Assembly Kit 1 11 A
1116956 Assembly, Oxygen Holder (D or E Tanks) 1 11 B
HFO2-ML6 Assembly, Oxygen Holder (Home Filled Tank) 1 11
1055304 Screw, Socket Button Head (1/4-28 x 5/8") 1 32
1025765 Locknut (1/4-28) 1 33
1028486 Locknut, Low Profile (3/8-16) 1 24
1118889 Washer, Steel (3/8 x 7/8 x 1/16") 1 65
1116954 Nut, Hex (3/8-16) 1 26
1118888 Screw, Hex Head (3/8-16 x 1-1/4") 1 27
1116953 Bracket, Oxygen Holder 1 18
1080866 Decal, Oxygen Warning - English 1 19
1116950 Pad, Non-Skid 1 110
1116945 Spring, Oxygen Holder 1 111
1072319 Screw, Socket Button Head (#10-32 x 1/2") 1 112
1025735 Locknut (#10-32) 1 113
1116957 Instruction Sheet, Oxygen Holder 1 114
1021866 Bag, Poly (15" Wide x 26" Long) 1 115
1063960 Carton 1 116
A - For seats with an INTERNAL (Non-Visible) hinge assembly. Includes O2 Holder and items 2-16
B - For seats with an EXTERNAL (Visible) hinge assembly. Includes O2 Holder and includes items 9-16
NOTE:
212
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1098857 Oxygen Holder, Assembly Kit 1 11 A
1098333 Instruction Sheet, Oxygen Holder 1 12
1021148 Bag, Poly Zip-Lip (6" Wide x 8-3/4" Long) 1 13
1021866 Bag, Poly (15" Wide x 26" Long) 1 14
1097276 Carton, Shipper 1 15
1096839 Screw, Hex Head (1/4-20 x 2-1/4") 1 16
1096838 Screw, Hex Head (1/4-20 x 2") 1 17
1018739 Washer (1/4 x 5/8 x 3/32") 1 28
7930333 Locknut (1/4-20) 25 29
1026900 Washer (1/4 x 23/32 x 1/16") 1 210
1027684 Knob, Clamping (Black) 1 411
1080866 Decal, Oxygen Warning - English 1 112
1072002 Pad, Non Skid 1 113
A - Includes items 2-13
NOTE:

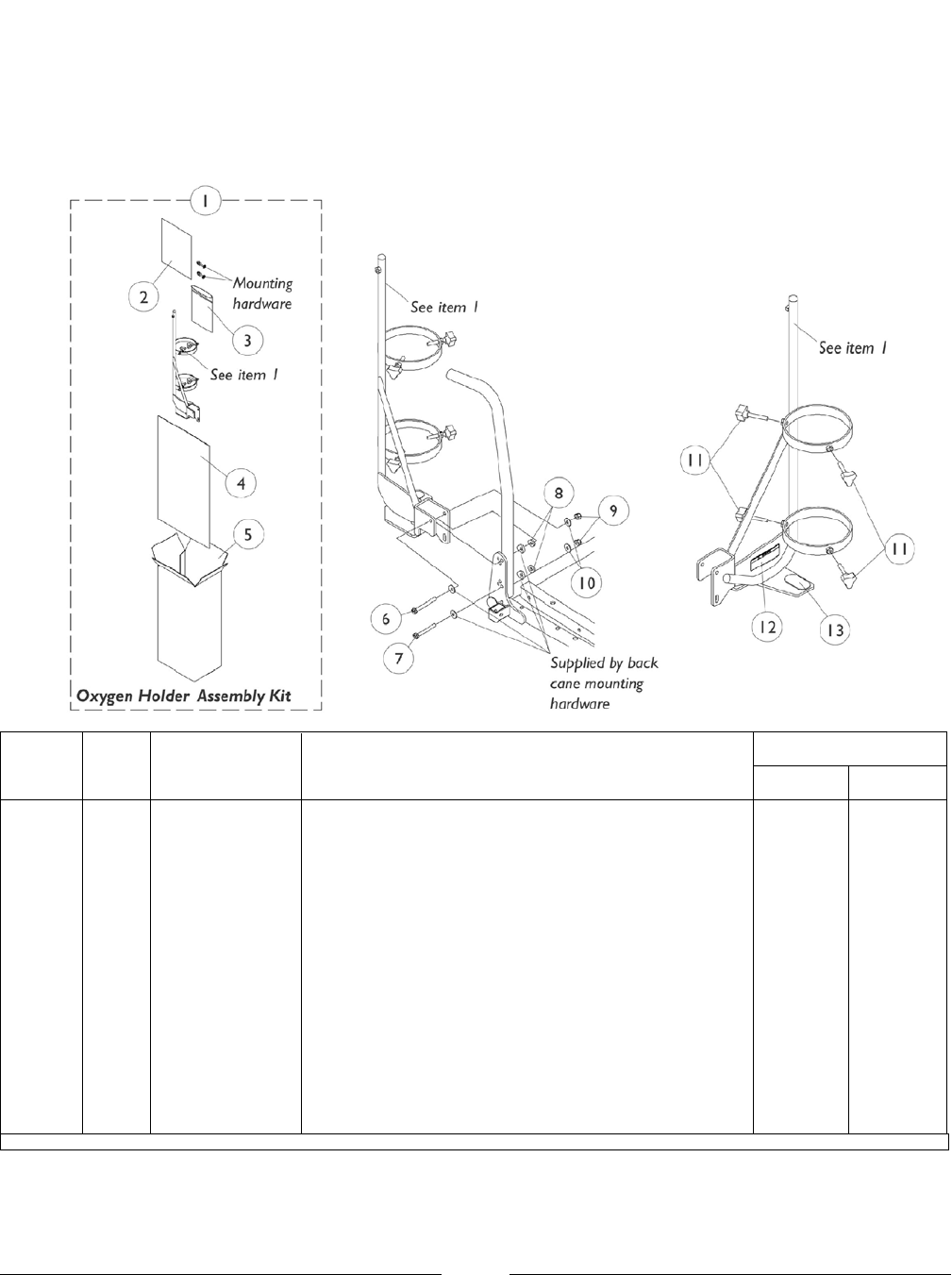

Oxygen Holder Assembly Kit
ASBA Seats (Before 7/5/05)
NOTE: Oxygen holder is not available on recliner options and seat depths of 15" or less because of the
CJ bracket interference.
213
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Oxygen Holder Assembly Kit
ADJASBA Seats (After 7/4/05)
NOTE: Oxygen holder is not available on recliner options and the 12"-16" wide ADJASBA Seat Frame
214
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Oxygen Holder Assembly Kit
ADJASBA Seats (After 7/4/05)
NOTE: Oxygen holder is not available on recliner options and the 12"-16" wide ADJASBA Seat Frame
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1135504 Kit, Oxygen Holder Assembly For ADJASBA Seats 1 11 A
Oxygen Holder 1 12
Bracket, Oxygen Holder (ASBA and ADJASBA
Seats) 1 13
Screw, Hex Head (1/4-20 x 3/4") 1 44
Washer (1/4 x 1/2 x 1/16") 1 45
Locknut (1/4-20) 1 46
Screw, Hex Head Cap with Patch (5/16-18 x 1-1/4") 1 27
Washer, Flat (21/64 x 53/64 x 7/64") 1 28
Locknut (5/16-18) 1 29
Instruction Sheet, Oxygen Holder For ADJASBA
Seats 1 110
Bag, Poly Zip-Lip (6" Wide x 8-3/4" Long) 1 111
Bag, Poly (15" Wide x 26" Long) 1 112
Carton, Shipper 1 113
A - Includes items 2-13
NOTE:
215
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

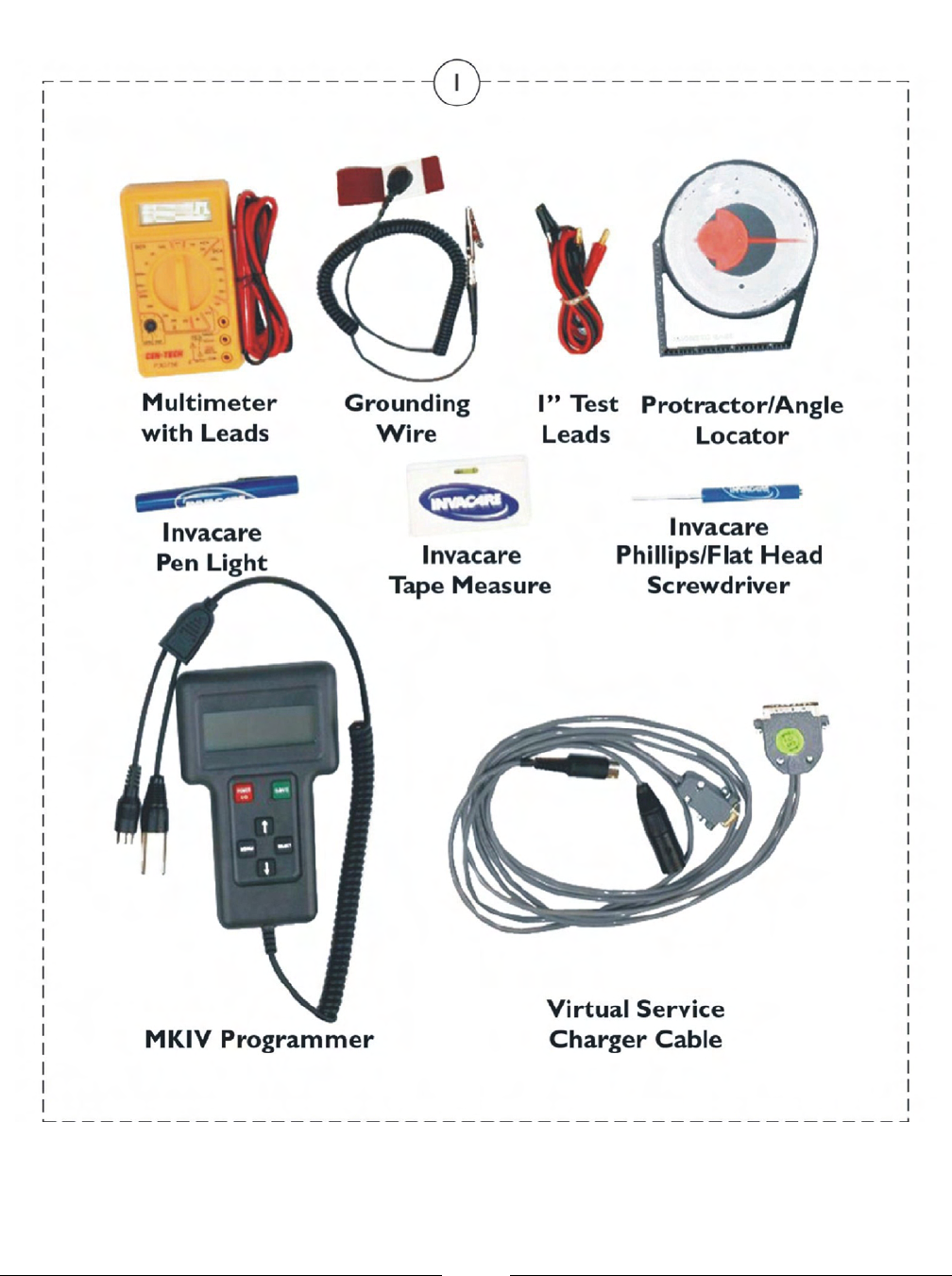

Power Wheelchair Tool Kit
216
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Power Wheelchair Tool Kit
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
1125222 Kit, Power Wheelchair Tool
Includes:
1 ea. Multimeter with Leads
1 ea. Locator, Protractor/Angle Magnetic Base
1 ea. Instructions, MKIV Programmer
1 ea. Wire, Grounding with Hand Strap and Clip
1 ea. Leads, 1" Test
1 ea. Light, Pen with Invacare Logo
1 ea. Tape Measure, Compact with Invacare Logo
1 ea. Screwdriver, Pen-Size Phillips/Flat Head
1 ea. Cable, Virtual Service Charger/Modem
1 11
217
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191

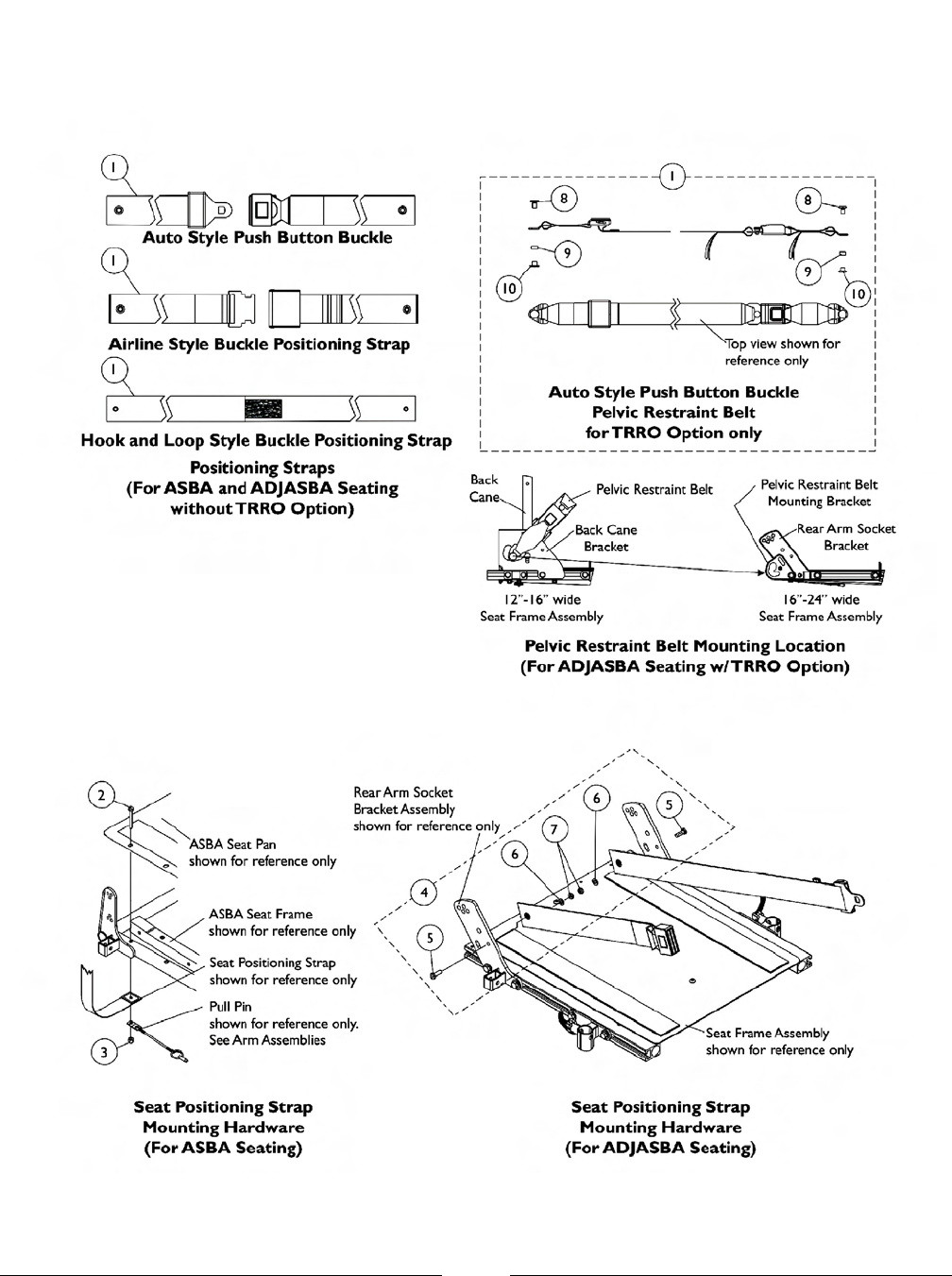

Miscellaneous Accessories
NOTE: Chest Positioning Straps share the same hardware that attaches a Back Upholstery
218
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Miscellaneous Accessories
NOTE: Chest Positioning Straps share the same hardware that attaches a Back Upholstery
Item
Number Part Number DescriptionNote
Quantity Per
Package Assembly
See Chart #1 Positioning Straps 1 11
See Chart #1 Pelvic Restraint Belt For TRRO Option Only 1 11 C
1037610 Screw, Hex Head (1/4-20 x 1-5/8") 1 22
1025736 Locknut (1/4-20) 1 23
1124385 Kit, Seat Positioning Strap Mounting Hardware (both
LT & RT sides) 1 14 A
Screw, Hex Head (1/4-20 x 3/4") 1 25
Washer (1/4 x 1/2 x 1/16") 1 26
Locknut (1/4-20) 1 27
1134055 Screw, Hex Head (3/8-24 x 5/8") 1 28
1134054 Bushing, Nylon (1/2 x 9/16 x 9/32") 1 29
1134056 Nut, Barrel (3/8-24) 1 210
40176X010 Tire Pump 1 1B
A - Includes items 5-7
B - Not Shown
C - Before ordering a replacement Pelvic Restraint Belt for TRRO Option, Please read the information provided on page titled
"TRRO and TRBKTS Option Clarification Reference" page
NOTE:
219
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Miscellaneous Accessories
NOTE: Chest Positioning Straps share the same hardware that attaches a Back Upholstery
#1 Positioning Straps
Description 12"-15" Wide 16"-19" Wide 20"-22" Wide 23"-24" Wide
1034622
Positioning Strap,
Seat/Chest w/ Auto
Style Push Button
Buckle
(Eyelet to Eyelet
Length 69")
1034625
Positioning Strap,
Seat/Chest w/ Auto
Style Push Button
Buckle
(Eyelet to Eyelet
Length 61")
1004310
Positioning Strap,
Seat/Chest w/ Auto
Style Push Button
Buckle
(Eyelet to Eyelet
Length 48")
1036527
Positioning Strap,
Seat/Chest w/ Auto
Style Buckle
(Eyelet to Eyelet
Length 33")
Auto Style
Push Button
See Note(s) A 1034753
Positioning Strap,
Seat/Chest w/Airline
Style Buckle
(Eyelet to Eyelet
Length 70")
1034752
Positioning Strap,
Seat/Chest w/ Airline
Style Buckle
(Eyelet to Eyelet
Length 61")
1034625.
0
N/AAirline Style
1034746
Positioning Strap
Hook and Loop Style
Buckle
(Eyelet to Eyelet
Length 69")
1034745
Positioning Strap,
Seat/Chest w/ Hook
and Loop Style Buckle
(Eyelet to Eyelet
Length 61")
1034744
Positioning Strap,
Seat/Chest w/ Hook
and Loop Style Buckle
(Eyelet to Eyelet
Length 45")
N/A
Hook and Loop
See Note(s) B See Note(s) B See Note(s) B See Note(s) B
A - 12"-15" wide positioning straps come in rainbow color.
B - Hook and Loop style positioning strap for power chairs is used for chest positioning only
NOTE:
#1 Pelvic Restraint Belt For TRRO Option Only
Description 12"-16" Wide 16"-24" Wide
1134476
Belt, Pelvic Restraint w/ Auto Style
Push Button Buckle (Bushing Hole to
Bushing Hole Length 55")
1134475
Belt, Pelvic Restraint w/ Auto Style
Push Button Buckle (Bushing Hole to
Bushing Hole Length 37")
Auto Style
Push Button
See Note(s) A See Note(s) A
A - Includes the Pelvic Restraint Belt and items 8-10 NOTE:
220
To order call toll free 1-800-333-6900, or www.invacare.com
Form No. 00-191
Yes, you can. ™
Invacare Corporation www.invacare.com
One Invacare Way
Elyria, Oh USA
44036-2125
800-333-6900
Technical Support
800-832-4707
Florida Technical Support
407-321-5630
Customer Service
800-333-6900
Form No.
00-191
©2008 Invacare Corporation. Elyria, Ohio.
All rights reserved. Trademarks are
identified by the symbols ™ and ®. All
trademarks are owned by or licensed to
Invacare Corporation unless otherwise
noted. Otto Bock is a registered trademark
of Otto Bock Orthopaedische Industrie
GMBH & Co., Tash is a registered
trademark of Tash International Inc.,
Therafin is a registered trademark of W/R/
Medical Electronics Co., Bussman is a
registered trademark of Cooper Industries.,
MIDI is a registered trademark of Littelfuse
Inc., Dynamic is a registered trademark of
Dynamic Controls Limited. (Revised 6/27/08)
