INVACARE®

TDX®

Power Wheelchair Series

Invacare® TDX® SP Wheelchair

Invacare® TDX® SR Wheelchair

Invacare® TDX® SC Wheelchair

Invacare® TDX® SPREE Wheelchair

Powered Seating

Enhancements

Tradition. Innovation. Vision.

For the last two and a half decades, Invacare has been

the industry leader in power chair electronics and

bases. Every year, Invacare's engineers design chairs,

electronics, components and features that consistently

raise the bar for power wheelchair performance.

Invacare’s rich power chair history started with

the original Power Rolls IV Wheelchair in 1981, and

continued with innovations such as the original MKI

electronics in 1989, and the Invacare® Storm Series®

power chairs in 1995.

Invacare revolutionized the power chair industry once

again in 2003 with the introduction of the Invacare®

TDX® (Total Driving eXperience) power chair. With

innovative features such as True Center-Wheel Drive,

Invacare® SureStep® Suspension, Stability Lock,

Invacare® Traction Control Design TCD™ Relative

Movement and the latest MK series electronics, this

chair set the standard for high end rehab power chairs.

2

INVACARE®

TDX®Family

02 History

03 Invacare® TDX® Family

04 Invacare® TDX® SP Wheelchair Led The Way

05 Traction Control Design/Invacare® SureStep®

Suspension

06 Invacare® MK6i™ Electronics

07 Invacare® Stability Lock/True Center-Wheel Drive

08 Invacare® TDX® SP Wheelchair

09 Invacare® TDX® SP Elegant Design

10 Invacare® TDX® SP Seating Options

11 Invacare® TDX® SP Specifications

12 Invacare® TDX® SR Wheelchair

13 Invacare® Gearless Brushless GB™/TrueTrack Motors

14 Invacare® TDX® SR Seating Options

15 Invacare® TDX® SR Specifications

16 Invacare® TDX® SC Wheelchair

17 Invacare® TDX® SC Specifications

18 Invacare® TDX® SPREE Wheelchair

19 Invacare® TDX® SPREE Features/Options

20 Invacare® TDX® SPREE Seating Options

21 Invacare® TDX® SPREE Specifications

22 Powered Seating Enhancements

26 Transport Ready Option

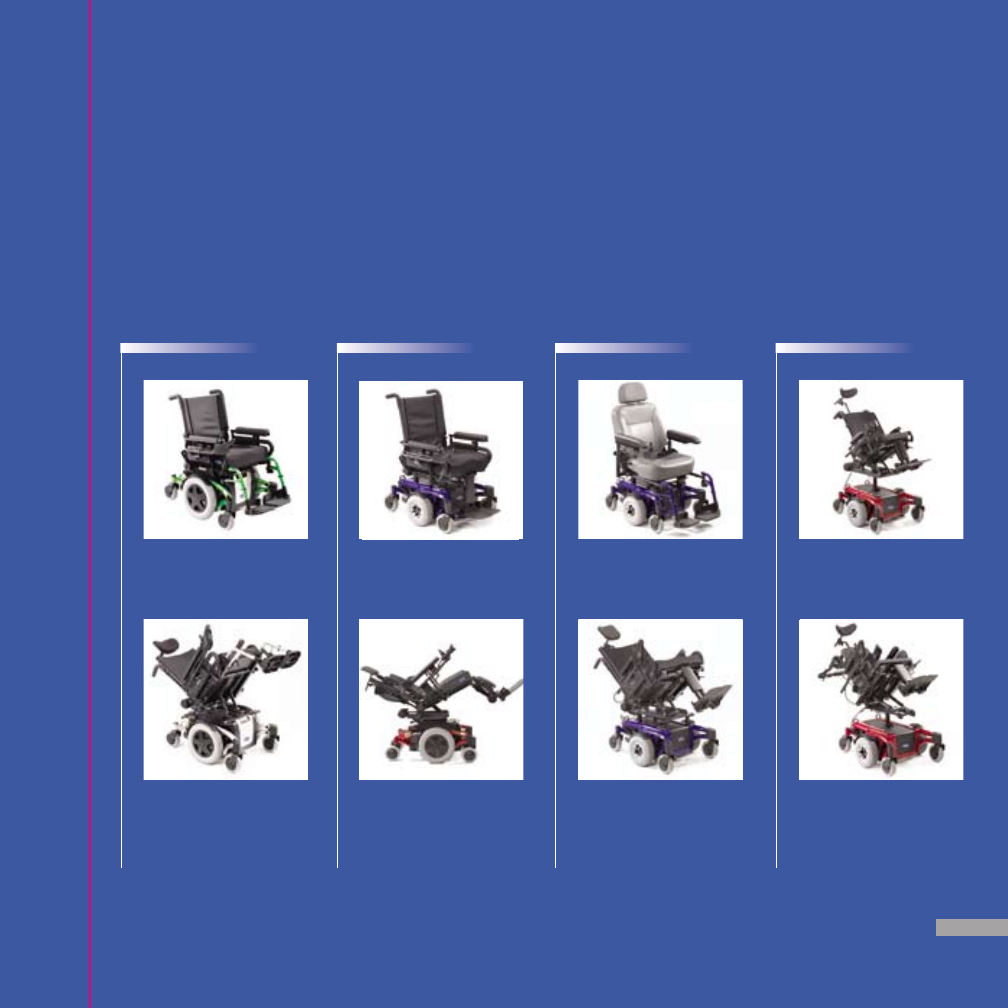

27 Invacare® TDX® Family

28 ANSI/RESNA Information

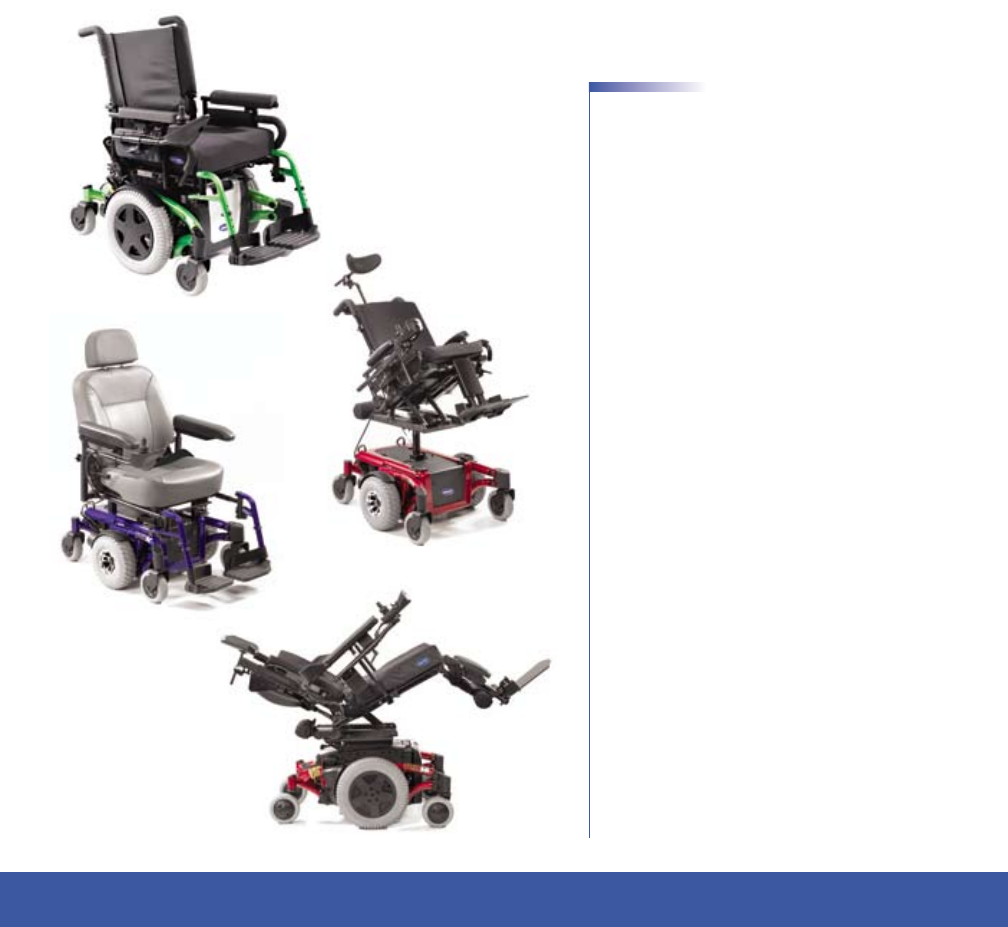

INVACARE®

TDX®SP

Wheelchair

INVACARE®

TDX®SPREE

Wheelchair

INVACARE®

TDX®SC

Wheelchair

INVACARE®

TDX®SR

Wheelchair

Things Just Keep Getting Better…

The Invacare® TDX® SP wheelchair led the way.

Now Invacare has done it again. Invacare built upon a legacy of power chair knowledge

and design to develop the Invacare® TDX® SP wheelchair. The TDX SP wheelchair

improves upon all the features of the TDX Series with enhanced performance, superior

ride quality, overall quieter chassis and an elegantly simple design that is sure to turn

heads. Invacare is the only choice for a complete package of Custom Rehab Solutions.

4

Traction Control Design.

Enhanced Invacare®

SureStep® Suspension.

The Invacare® TDX® Family uses an

enhanced version of Invacare’s patented

Invacare® SureStep® technology that was

made famous on the first generation TDX

line and the Invacare ® Pronto® series of

wheelchairs.

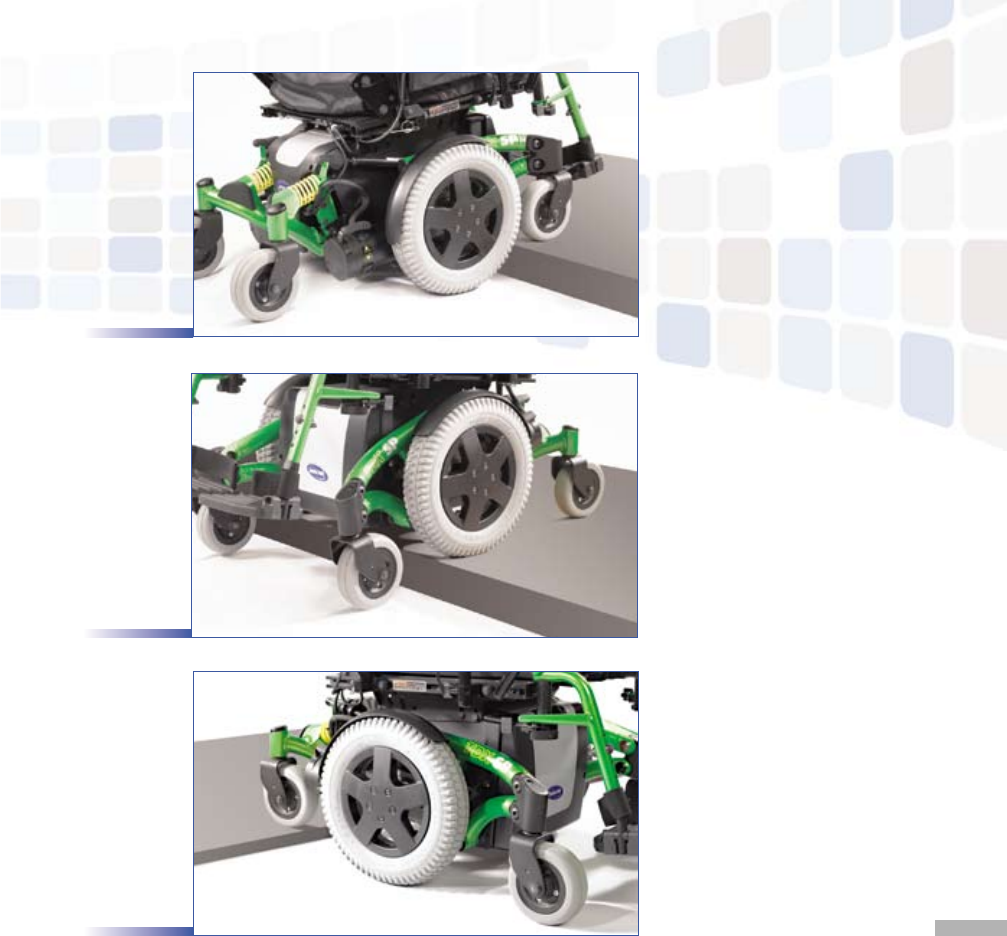

With Enhanced Invacare® SureStep®

Suspension, the TDX SP and TDX SR

wheelchairs climb up to a 3" obstacle

going forward; the TDX SC and the TDX

SPREE wheelchairs climb up to a 2.5"

obstacle. As a new design feature, the

front casters also will drop a full 3", which

makes transitioning down an obstacle very

gentle and nearly silent. The integrated

Invacare® Traction Control Design TCD™

Relative Movement also makes climbing

over obstacles up to 1" high in reverse

nearly effortless.

SureStep

Suspension

transition up

an obstacle.

SureStep

Suspension

transition

down an

obstacle.

5

Traction

Control Design

TCD reverse

transition.

6

Electronics. Designed

with Benefits for All.

MK Series electronics are the

benchmark in power wheelchair

drive systems. This is the result of

years of experience in the design

and manufacture of electronics

specifically for the needs of

wheelchair consumers.

Invacare® MK6i™ electronics take

the MK Series to the next level by

offering features that are easier to

use than any other MK Series system.

Advantages of MK6i electronics

include:

• Invacare® MK5™ programming

logic, so operators do not need to

learn a new system

• Reduced set-up and programming

time with the memory card feature

• Improved simplicity with

universal connectors

• Better information for

programmers and technicians

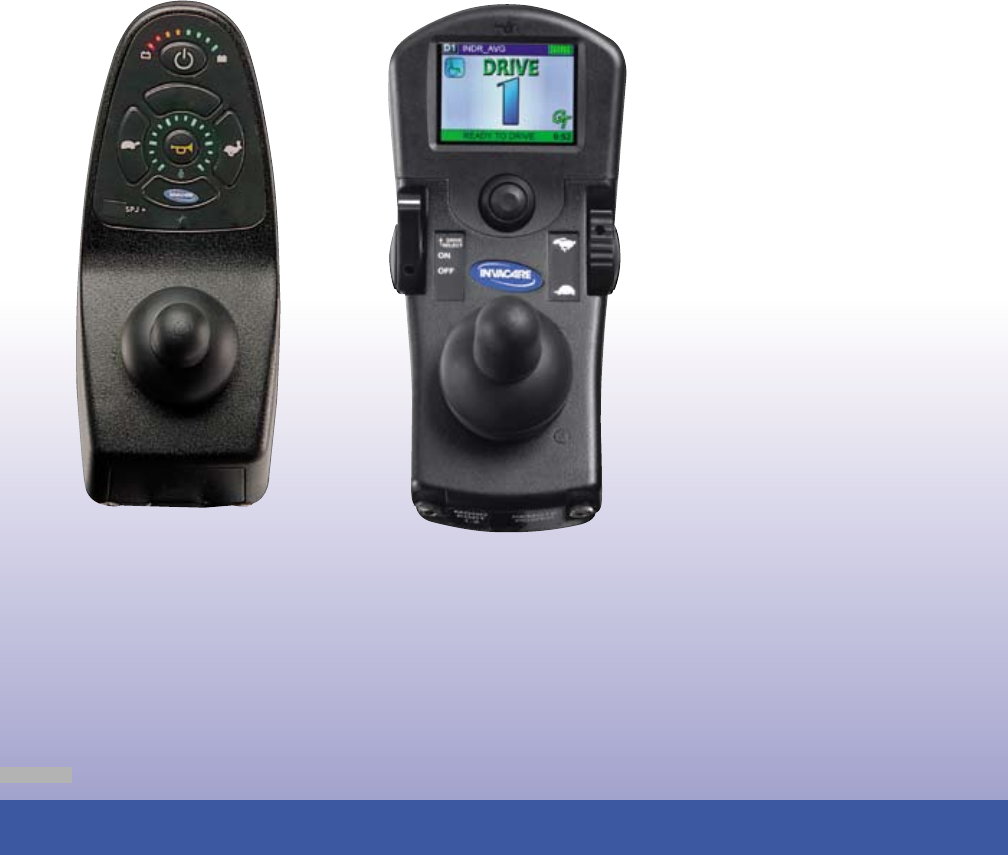

INVACARE® SPJ™+ BASIC

JOYSTICK

INVACARE® MPJ™+ REHAB

JOYSTICK

True Center-Wheel Drive.

The tightest possible turning radius

comes from the True Center- Wheel Drive

chassis. The Invacare® TDX® Family

uses this type of wheelbase to provide

excellent maneuverability and an

intuitive driving experience. This

technology combined with Enhanced

Invacare® SureStep® Suspension,

Traction Control Design and Quiet

Stability Lock makes the TDX wheelchair

a great indoor and outdoor chair.

7

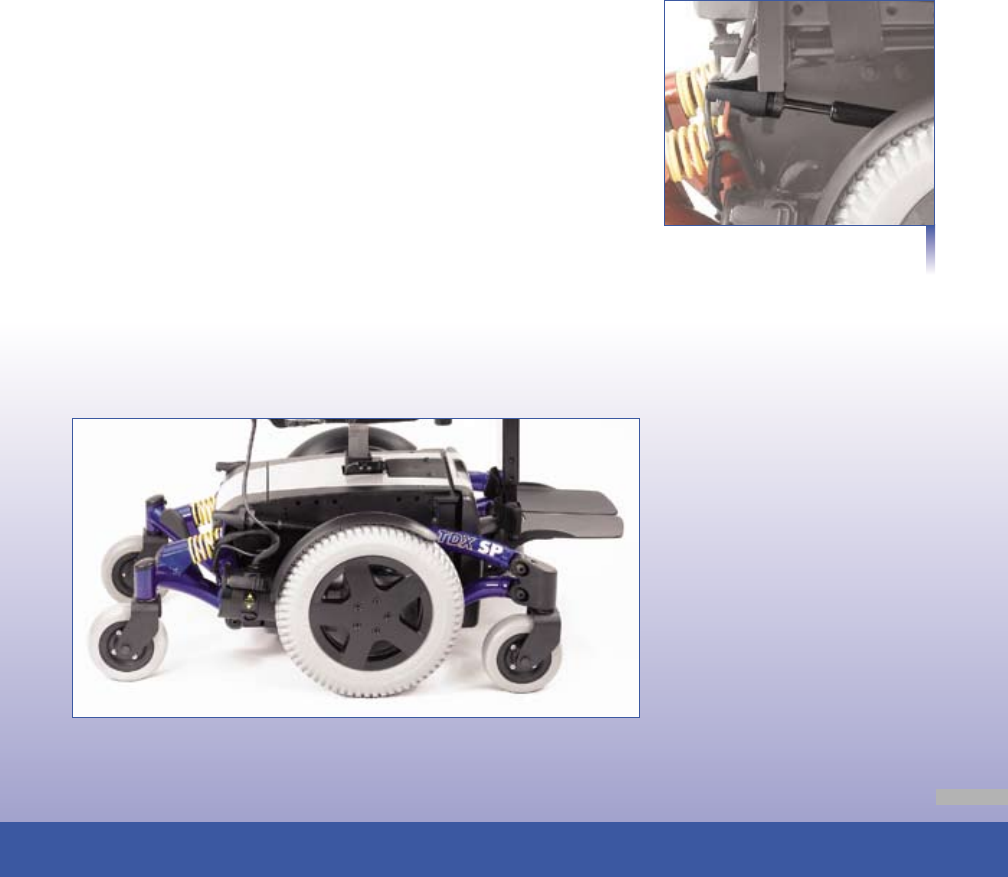

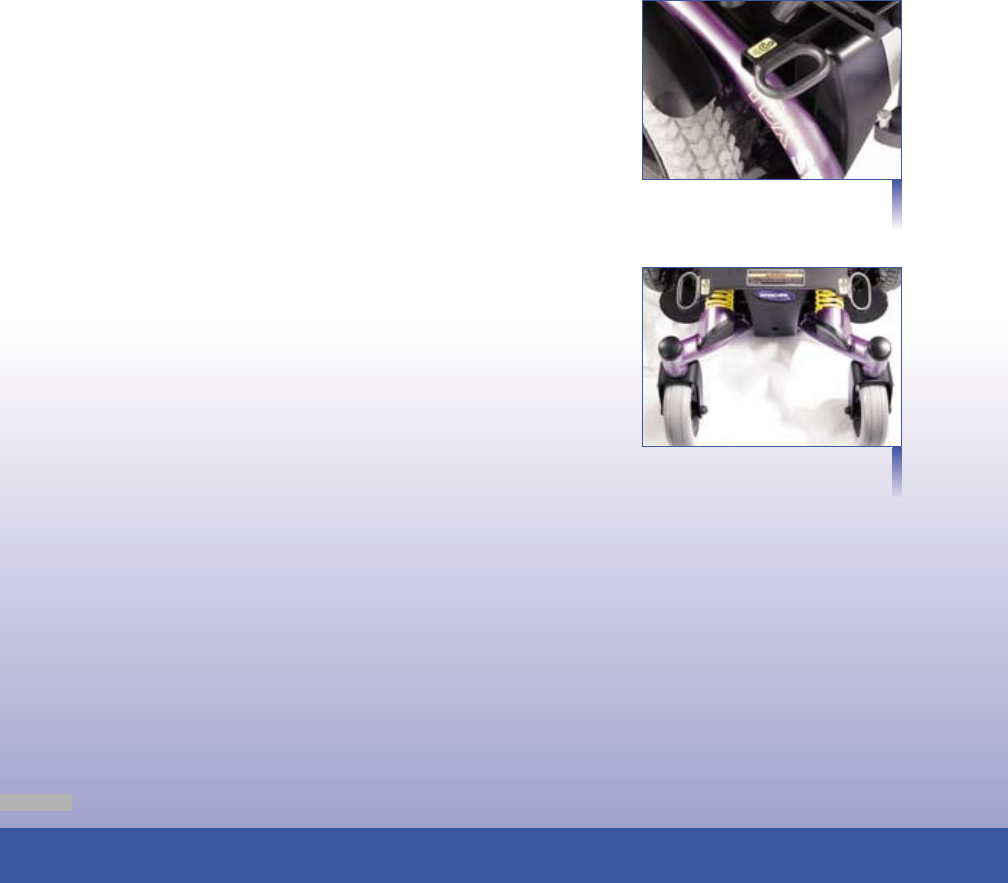

Quiet Stability Lock.

Quiet Stability Lock.

The Difference Maker in Rehab.

The original Invacare® TDX®

wheechair introduced quiet Stability

Lock, a feature that kept the power

chair stable whenever it felt that the

driver's weight was rocking forward.

The TDX Family takes that same

feature to the next level. The Stability

Lock feature is designed to operate

and keep the power chair stable

while it is in motion. It is not intended

to operate while the power chair is

at rest. This second generation

Stability Lock replaces the metal

gear set used on the first generation

TDX wheelchair with a gas locking

cylinder, making the feature whisper

quiet. It also provides a shock-

absorbing effect.

8

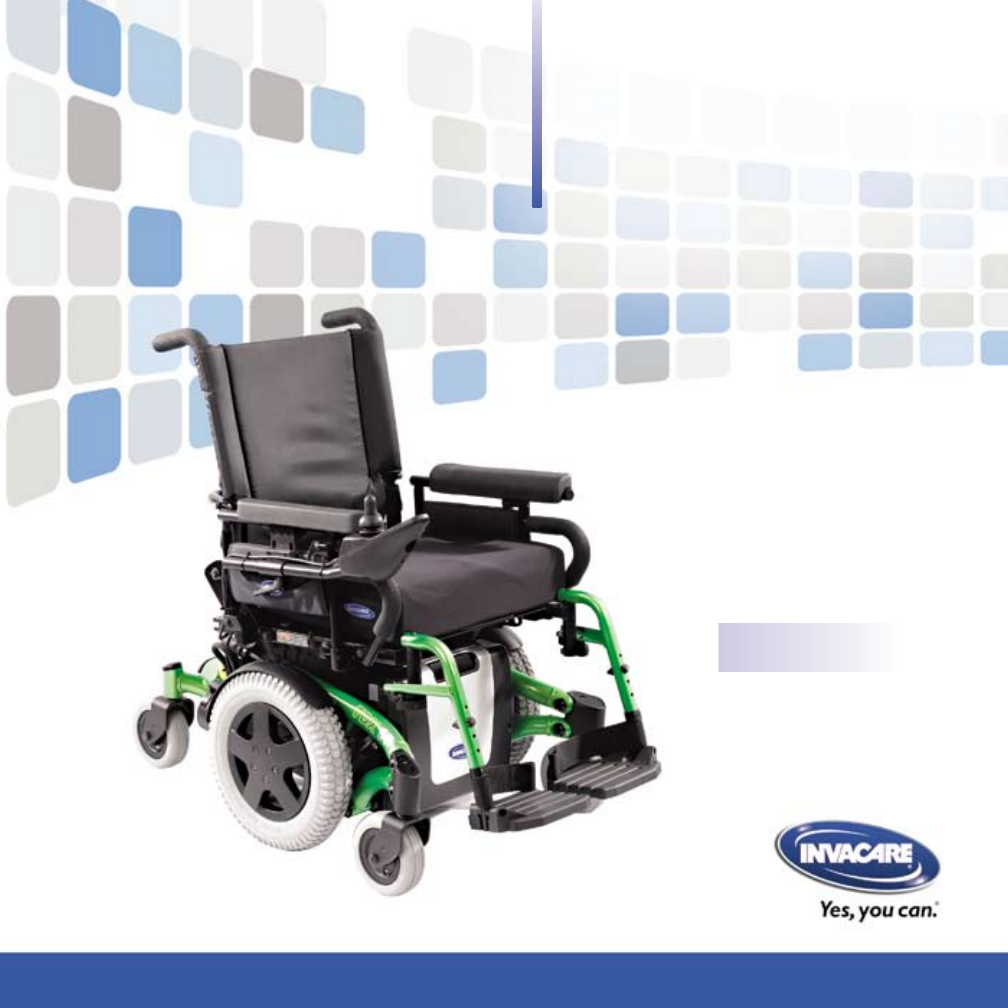

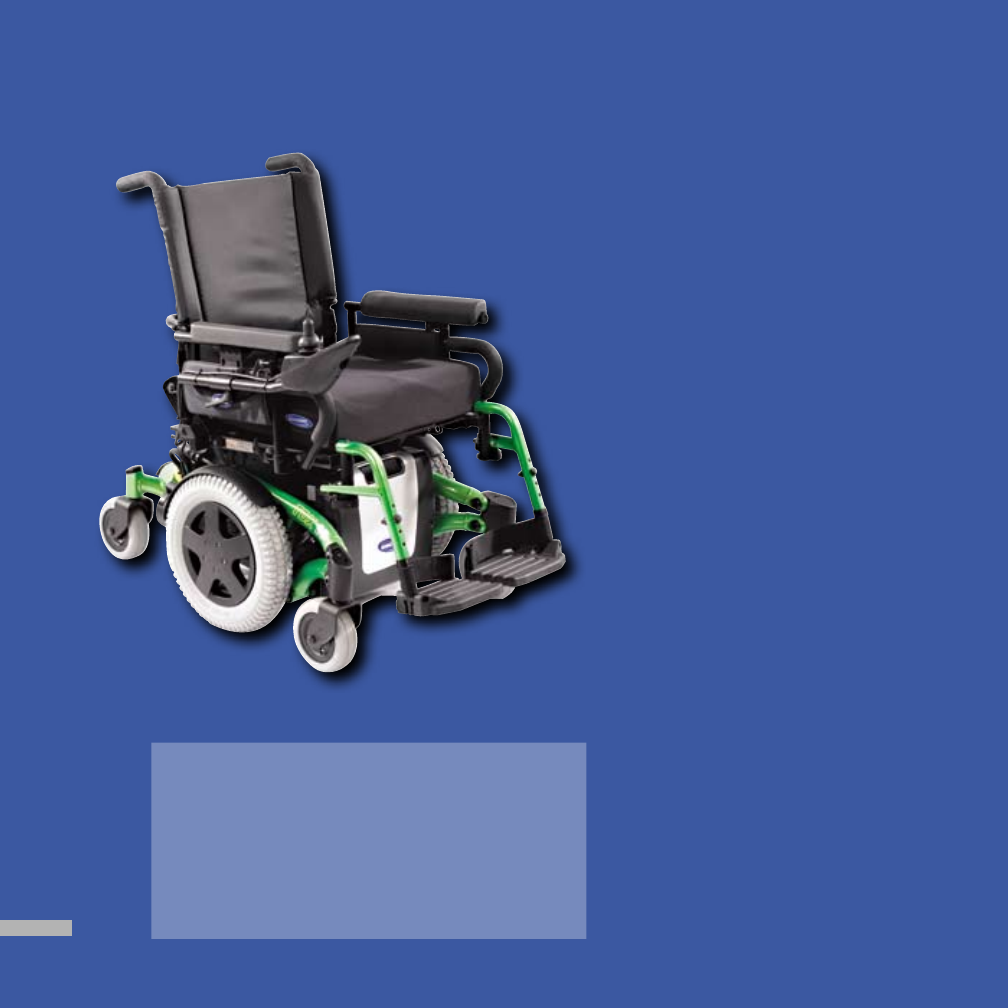

The Invacare® TDX® SP wheelchair is

the first model in the next generation

of TDX (Total Driving eXperience)

power wheelchairs. The TDX SP

wheelchair takes all the best features

of the TDX series and improves upon

them with enhanced performance,

superior ride quality, quieter chassis

and an elegantly simple design.

TDXSP (Group 3 Rehab Seat) K0848

TDXSP (Group 3 Captain’s Seat) K0849

TDXSP HD (Group 3 Rehab Seat Heavy-Duty) K0850

TDXSP HD (Group 3 Captain’s Seat Heavy-Duty) K0851

TDXSP-CG (Group 3 Single Power) K0856

TDXSP-CG HD (Group 3 Single Power Heavy-Duty) K0858

TDXSP-MCG (Group 3 Multiple Power) K0861

TDXSP-MCG HD (Group 3 Multiple Power Heavy-Duty) K0862

INVACARE®

TDX®SP

Wheelchair

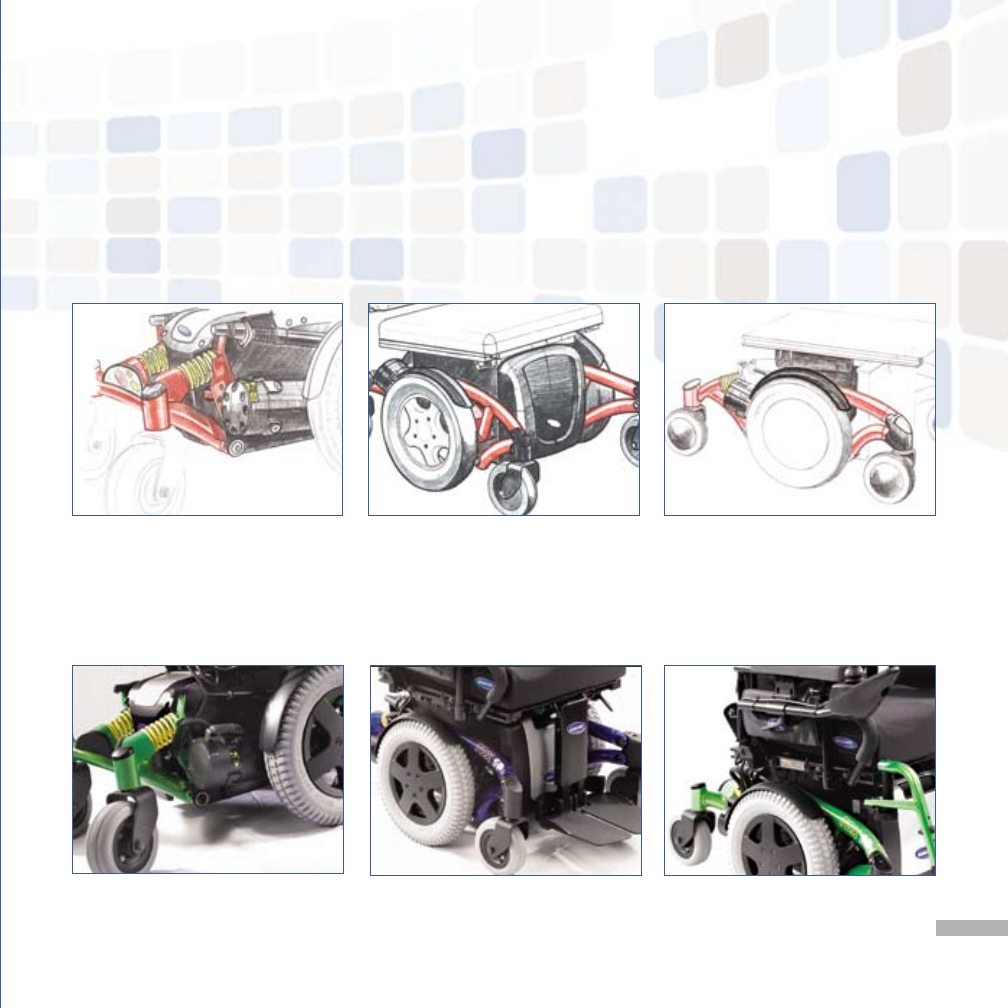

Elegant Simplicity. Inspiring Design.

Invacare's designers started with sketches and drove the design so that aesthetics were never sacrificed for functionality.

The end result is an elegant design with a focus on simplicity and detail.

9

10

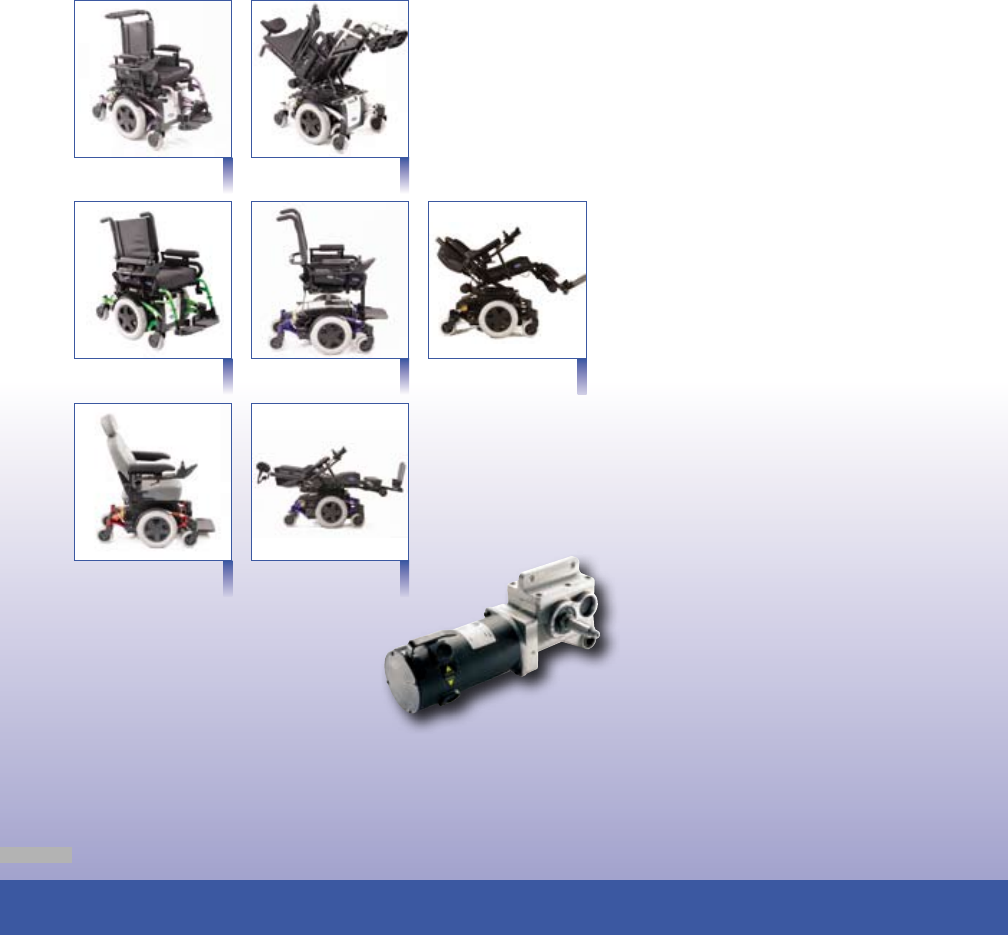

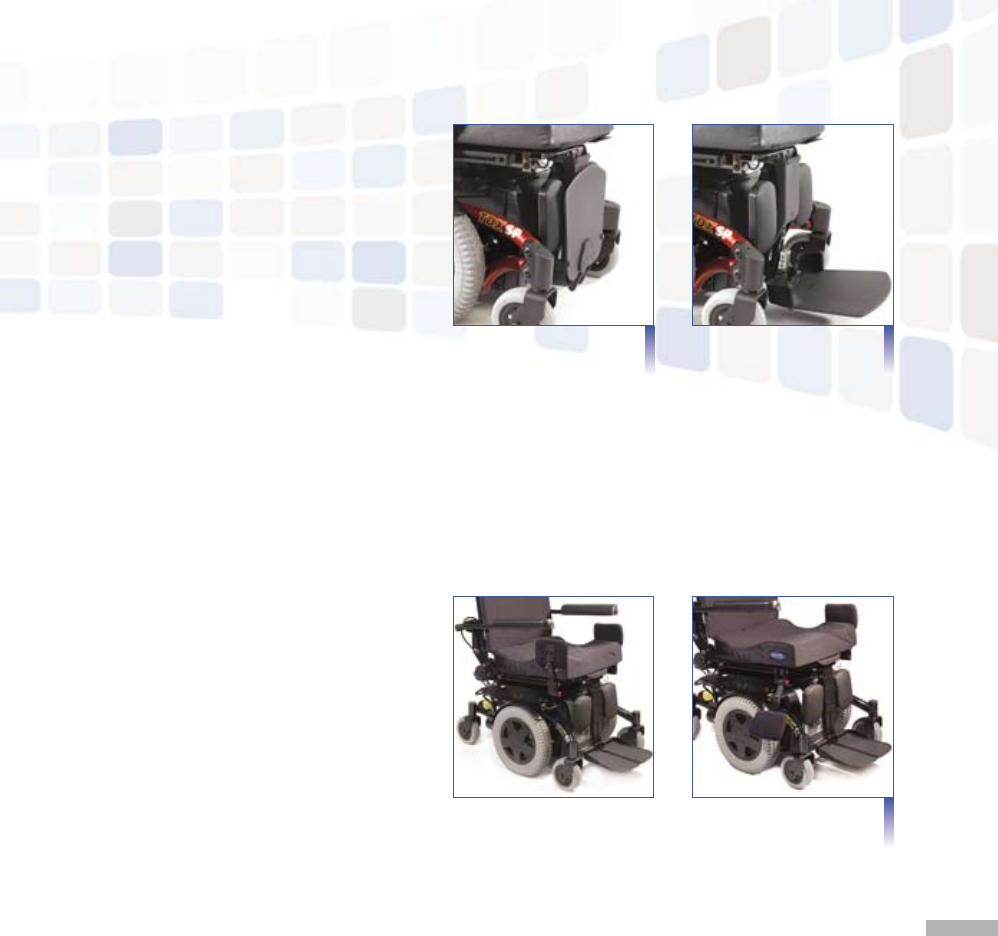

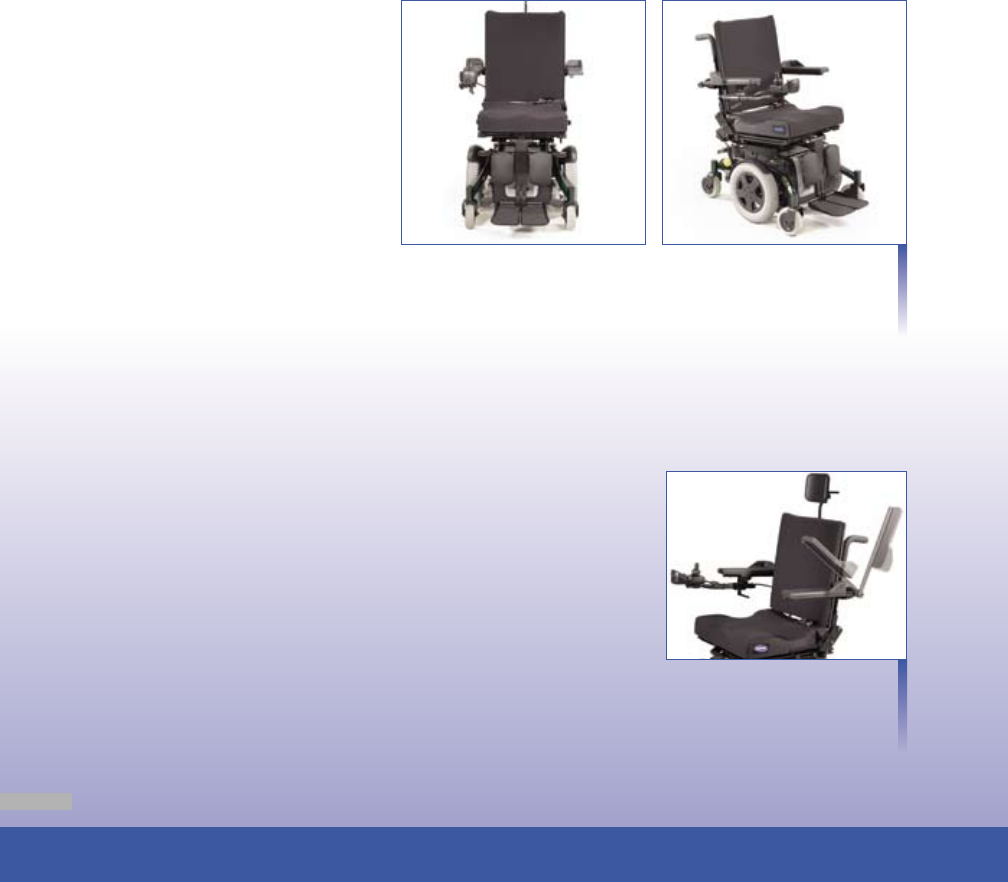

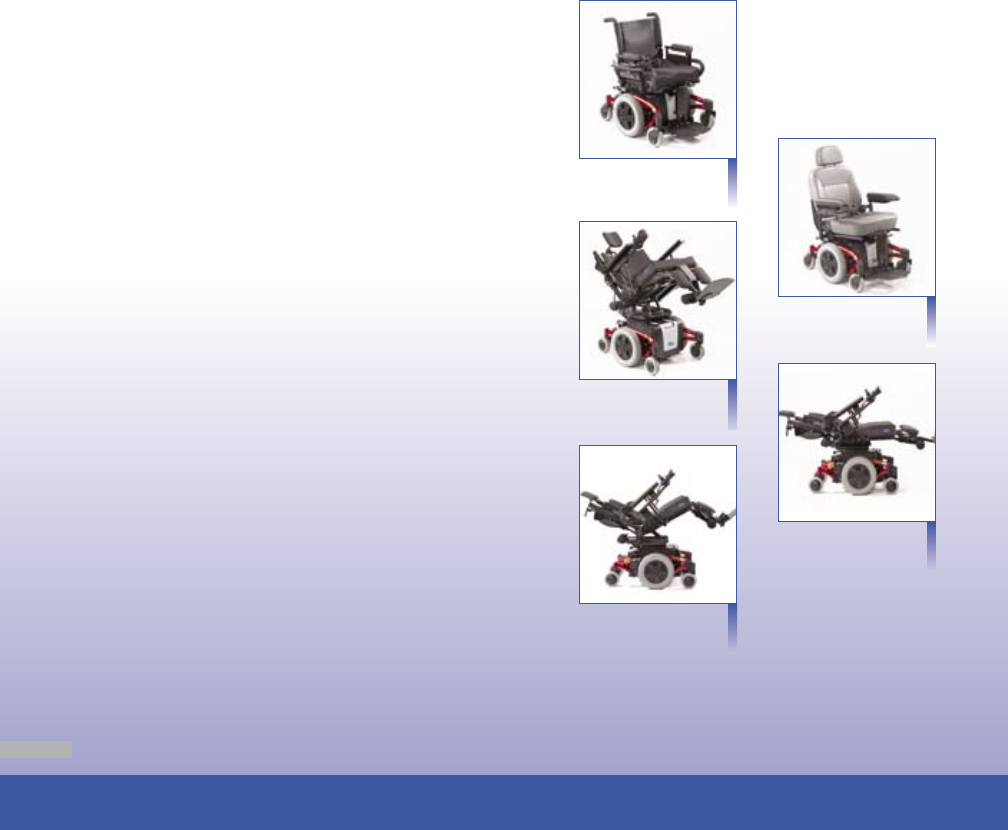

Invacare® TDX® SP Seating Options.

Versatility.

Invacare® Formula™CG Tilt

The Invacare® TDX® SP wheelchair offers a wide variety of

seating options that make it an extremely versatile power chair. The

standard TDX SP wheelchair offers a choice of an adjustable Rehab

(ASBA) seat that is growable in width and depth.

The ASBA seat starts in widths as low

as 12" wide for smaller applications, and

can grow as wide as 24" and as deep as

22". Another seating option on the TDX SP

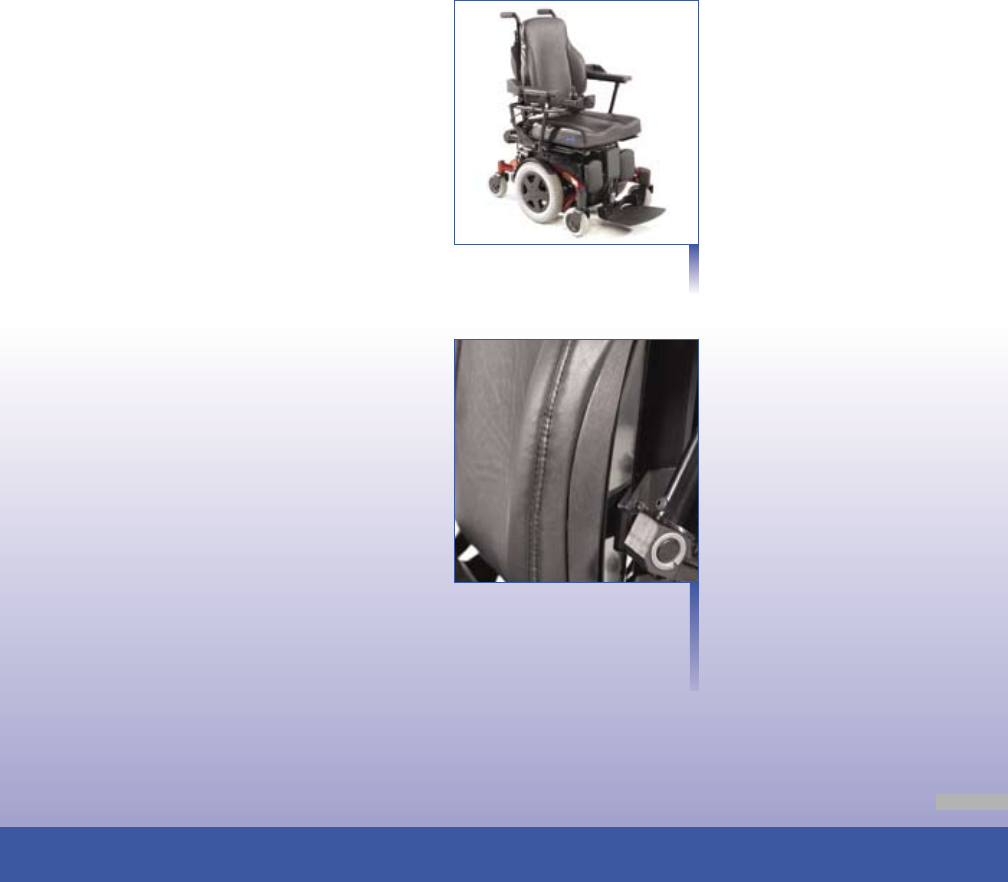

wheelchair is a semi-recline captain’s seat.

Available in 16", 18", 20" and 22" widths, the

seat offers plush padding, generous contours

and a reclining back providing maximum comfort.

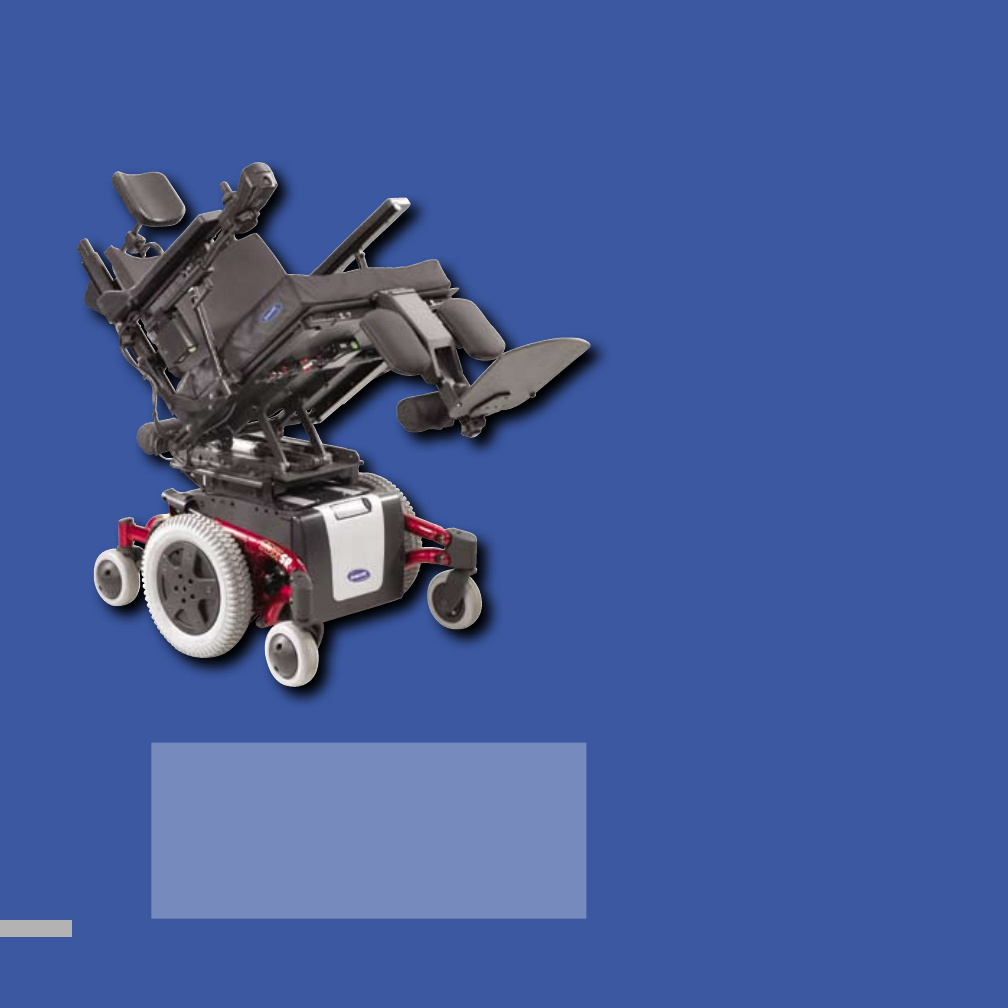

The TDX SP wheelchair also offers the Invacare® Formula™CG

Powered Seating System which features up to 7" of weight shift tilt.

The Invacare® Formula™CG System:

• Starting seat-to-floor height is as

low as 17.5"

• Up to 55˚ of tilt

• Up to 170˚ of recline

• Up to 7" of elevation

• All powered seating functions can be

operated either through or separate

from the driver control.

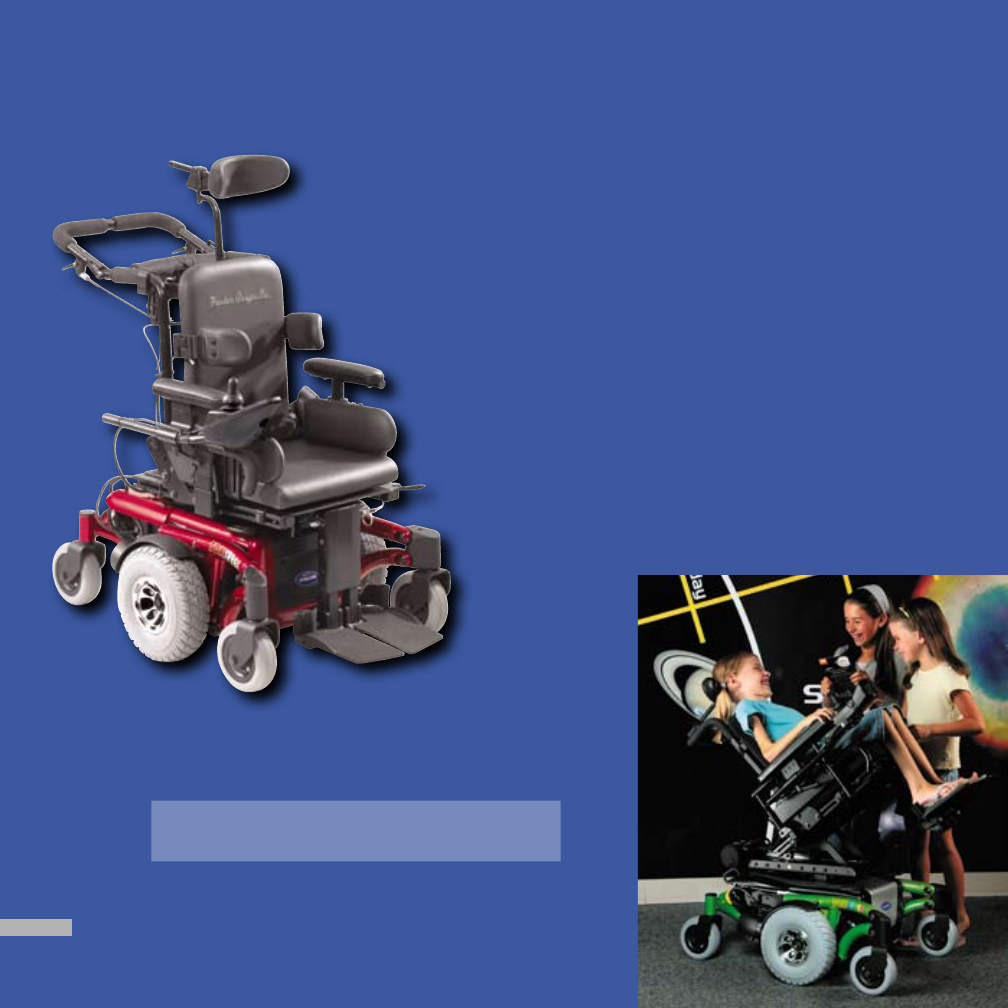

Pediatric Seat

By optimizing the Torque speed curve, the

motor/electronics combination provides a

5.8 mph top speed with ample torque. The

chair gets consumers where they need to

go quickly, while also providing the power

required to handle those tough obstacles.

Elevating Rehab SeatAdjustable Rehab Seat

Van Seat Invacare® Formula™CG

Recline

Invacare® Formula™CG

Tilt/Recline

Faster. More Powerful.

11

Invacare® TDX® SP Specifications.

Adj. ASBA Rehab Seat FormulaCG Tilt, Recline, FormulaCG Elevate, Tilt/Elevate Van Seat

Overall dimensions Tilt/Recline Tilt/Recline/Elevate

Base length (w/o front riggings) 35.25" 35.25" 35.25" 35.25"

Base width 24"/25.5" 24"/25.5" 24" 24"/25.5"

Height 35.5" - 39.5" 36.5" - 40.5" 35.5" - 41.5" 38" w/o headrest

45" w/headrest

Seat Dimensions

Width 12" - 24" 12" - 24" 16 - 22" 16" - 22"

Depth 12" - 22" 12" - 22" 16" - 22" 16" - 20"

Back height 12" - 24" 16" - 26" 20" - 26" 18"

with headrest - - - 25"

Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚

Seat-to-floor height

Low 16.5" @ 0˚ 17.5" @ 0˚ 18.5" @ 0˚ 21"

Medium 18.5" @ 0˚ 18.5" @ 0˚ - -

Tall 20.5" @ 0˚ 19.5" @ 0˚ - -

Seat-to-floor height at 5˚ add 0.5" to each add 1" to each - -

Weight

with batteries 264 lb. 315 lb. 285 lb. 277 lb.

without batteries 166 lb. 217 lb. 187 lb. 179 lb.

Battery options 22NF/Group 24 22NF/Group 24/(3)22NF 22NF 22NF/Group 24

Wheel and caster size

Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"

Drive wheels 14" x 3" 14" x 3" 14" x 3" 14" x 3"

Maximum speed

5.8 mph / 5 mph (heavy duty) 5.8 mph / 5 mph (heavy duty) 5.8 mph 5.8 mph / 5 mph (heavy duty)

Incline capability 9˚ 9˚ 9˚ 9˚

Weight capacity 300 lb. / 400 lb. (option) 300 lb. / 400 lb. (option) 300 lb. 300 lb. / 400 lb. (option)

Turning radius

(including Center Mount Footboard) 22" 22" 22" 22"

Ground clearance 3" 3" 3" 3"

Standard Invacare® MK6i™ Electronics MK690/SPJ+ MK690/ACC/SPJ+ or MPJ+ MK690/ACC/SPJ+ w/PSS MK690/SPJ+

Limited warranties

Base frame 60 months 60 months 60 months 60 months

Seat frame 36 months 36 months 36 months 36 months

Electronics 12 months 12 months 12 months 12 months

Motor/gearbox 12 months 12 months 12 months 12 months

n3

n4

n1

n2

n2

n5 n6

n1 24" width with (2) 22 NF batteries. Elevate systems require 22 NF batteries.

25.5" width with (2) Group 24 batteries or (3) 22 NF batteries.

n2 12" - 16" width available with Tilt only system, Recline and Tilt/Recline sizes range from

16" - 24" wide.

n3 Elevate 16" - 24" backheight, curved ABS or Adjustable ASBA.

n4 Elevate only is 16.8" or Tilt/Recline/Elevate 18.5".

n5 315 lb. for Tilt only system. 325 lb. Recline only and 370 lb. for Tilt/Recline.

n6 Elevate Seat only.

12

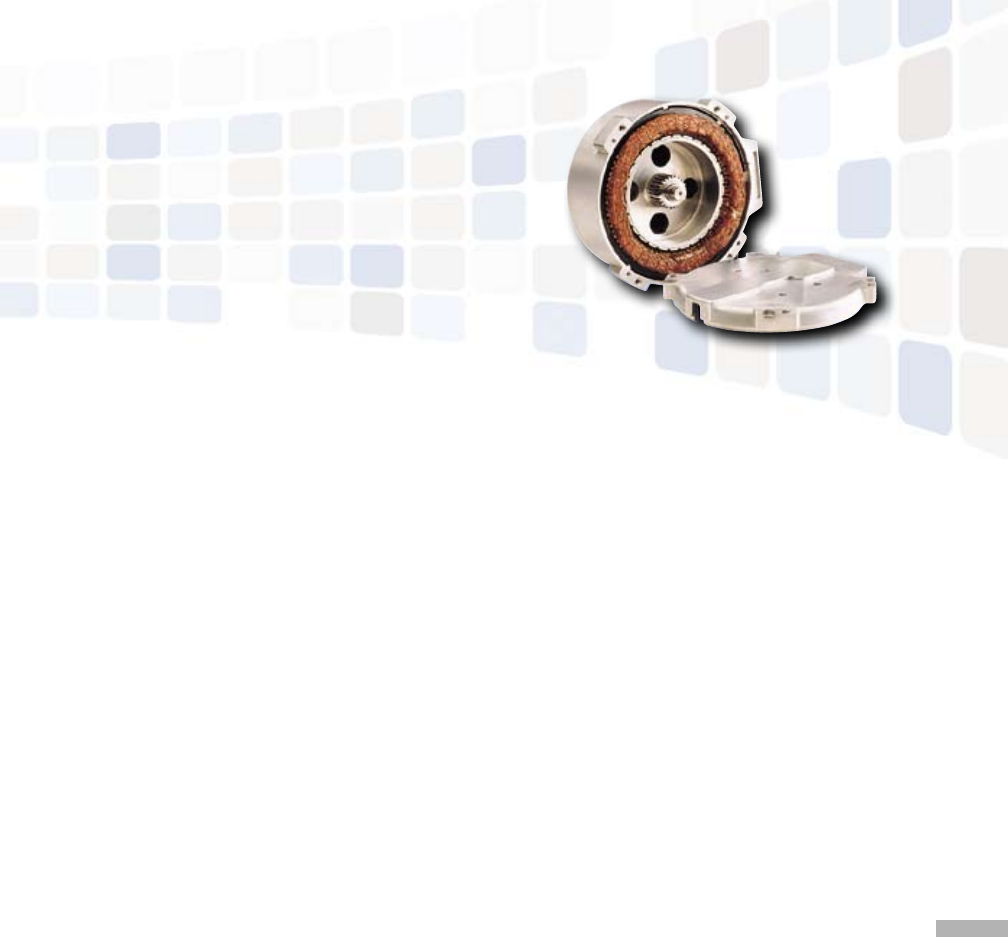

The Invacare® TDX® SR wheelchair

builds off of the proven Invacare® TDX®

SP platform and offers the benefits of

Invacare® Gearless Brushless GM™

TrueTrack motors. TrueTrack allows

the chair to maintain a more consistent

forward path with fewer veer corrections.

TrueTrack motors ultimately result in less

fatigue for those using alternative driver

controls, and those with impaired hand

function.

The TDX SR wheelchair offers the

same performance features of the

TDX SP wheelchair including:

• Enhanced Invacare® SureStep®

Suspension

• Quiet Stability Lock

• Contemporary Aesthetics

• Wider Rear Caster Spacing

TDXSR (Group 4 Rehab Seat) K0868

TDXSRV (Group 4 Captain’s Seat) K0869

TDXSR-HD (Group 4 Rehab Seat Heavy-Duty) K0870

TDXSR-CG (Group 4 Single Power) K0877

TDXSR-CG-HD (Group 4 Single Power Heavy-Duty) K0879

TDXSR-MCG (Group 4 Multiple Power) K0884

TDXSR-MCG HD (Group 4 Multiple Power Heavy-Duty) K0886

INVACARE®

TDX®SR

Wheelchair

13

Invacare® Gearless Brushless GB™ Motor.

Invacare® Gearless Brushless GB™ motors are not only

a key component of TrueTrack technology, , but the design

is also 75% efficient, resulting in 17% more battery

range than Invacare’s 4-pole motors. Battery range is

an important feature for active users and users requiring

powered seating systems.

TrueTrack Technology.

The patented TrueTrack technology features GB motors

and motor controller. This feature helps keep the power

wheelchair on a truer forward path – even on many

slopes, thresholds and uneven terrains. TrueTrack

minimizes the need for veer correction, diminishing

fatigue for joystick and switch drivers.

TrueTrack Technology is beneficial for the client for

the following reasons:

• As the power wheelchair holds a truer course, the

driver needs to make fewer course corrections.

This makes driving more efficient by reducing the

necessary amount of movement. Reducing the required

movement can increase overall speed (i.e. the client

may be able to move down a hallway faster, as less

compensatory movements are required), decrease

fatigue, and promote independence while driving,

because the chair is not pulled off course. This is

true for drivers using a proportional control as well

as a digital or non-proportional system.

• This feature is critical for clients who fatigue easily,

as less compensatory movements are required.

• This feature also is critical for clients who use a

non-proportional or digital access method (i.e. a

head array with proximity switches or pneumatic

sip-n-puff controls). Driving with switches can be

very tedious and inefficient. Making frequent course

corrections significantly increases the effort, time and

energy required. Fewer course corrections translates

to a more efficient driver.

14

The TDX SR wheelchair is available with the

adjustable rehab seat, captain’s seating and the full

range of powered seating options. The Invacare®

Formula™CG Powered Seating system offers up to

7" of weight shift tilt, a low starting seat to floor

height of 17.5", numerous back type options and six

combinations of tilt, recline and elevate including:

• Tilt only

• Recline only

• Elevating seat

• Tilt/Recline combination

• Tilt/Elevate combination

• Tilt/Recline/Elevate combination

The TDX SR wheelchair offers Smart Actuators

standard at no additional upcharge. Smart Actuators

allow the client to achieve a pre-set tilt, recline and

power leg extension through use of the Power

Center-Mount front rigging. An audible alarm

sounds to let the client know that it is time to

weight shift.

Invacare® TDX® SR Seating Options.

TDX SR wheelchair

with Van Seating

TDX SR wheelchair

with Rehab Seating

TDX SR wheelchair with

Invacare® Formula™CG Recline

TDX SR wheelchair with

Invacare® Formula™CG Tilt

TDX SR wheelchair with Invacare®

Formula™CG Tilt/Recline

15

Invacare® TDX® SR Specifications.

Adj. ASBA Rehab Seat FormulaCG Tilt, Recline, FormulaCG Elevate, Tilt/Elevate Van Seat

Overall dimensions Tilt/Recline Tilt/Recline/Elevate

Base length (w/o front riggings) 35.25" 35.25" 35.25" 35.25"

Base length (w/front riggings) 43" 43" 43" 43"

Base width 25.5" (w/o joystick) 25.5" (w/o joystick) 25.5" (w/o joystick) 25.5" (w/o joystick)

Height 35.5" - 39.5" 36.5" - 40.5" 35.5" - 41.5" 38" w/o headrest

- - - 45" w/headrest

Motor package TrueTrack GB TrueTrack GB TrueTrack GB TrueTrack GB

Seat dimensions

Width 12" - 24" 12" - 24" 16" - 22" 16", 18", 20", 22"

Depth 12" - 22" 12" - 22" 16" - 22"

Back height 12" - 24" 16" - 26" 20" - 26" 18"

with headrest - - - 25"

Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚

Seat-to-Floor Height

Low 16.5" @ 0˚ 17.5" @ 0˚ 18.5" 21"

Medium 18.5" @ 0˚ 18.5" @ 0˚ - -

Tall 20.5" @ 0˚ 19.5" @ 0˚ - -

Seat-to-floor height at 5˚ add 0.5" to each add 1" to each - -

Weight

with batteries 350 lb. 425 lb. 425 lb. 340 lb.

without batteries 252 lb. 327 lb. 327 lb. 242 lb.

Battery options 22NF/Group 24 22NF/Group 24 22NF 22NF/Group 24

Wheel and caster size

Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"

Drive wheels 14" x 3" 14" x 3" 14" x 3" 14" x 3"

Maximum speed

7 mph 7 mph 7 mph 7 mph

Incline capability 9˚ 9˚ 9˚ 9˚

Weight capacity 300/400 lb. (option) 300/400 lb. (option) 300 lb. 300/400 lb. (option)

Turning radius 22" 22" 22" 22"

Ground clearance 3" 3" 3" 3"

Standard Invacare® MK6i™ Electronics MKTT/MPJ+ MKTT/MPJ+ MKTT/MPJ+ MKTT/MPJ+

Limited warranties

Base frame 60 months 60 months 60 months 60 months

Seat frame 36 months 36 months 36 months 36 months

Electronics 12 months 12 months 12 months 12 months

Motor/gearbox 60 months 60 months 60 months 60 months

n1 90˚ front rigging.

n2 12"-16" width only available with tilt systems. All other powered seating systems start out at 16".

n3 16" and 18" wide set to 16", 17" or 18" depth. 20 " and 22"wide set to 18", 19" or 20" depth.

n4. Elevate 16" - 24" backheight, curved ABS or Adjustable ASBA.

n5. Elevate only is 16.8" or Tilt/Recline Elevate is 18.5".

n6. 6.8 mph top speed with maximum weight capacity of 400 lb., 7.1 mph top speed with

typical user weight of 200 lb.

n3

n4

n1

n2

n5

n6

16

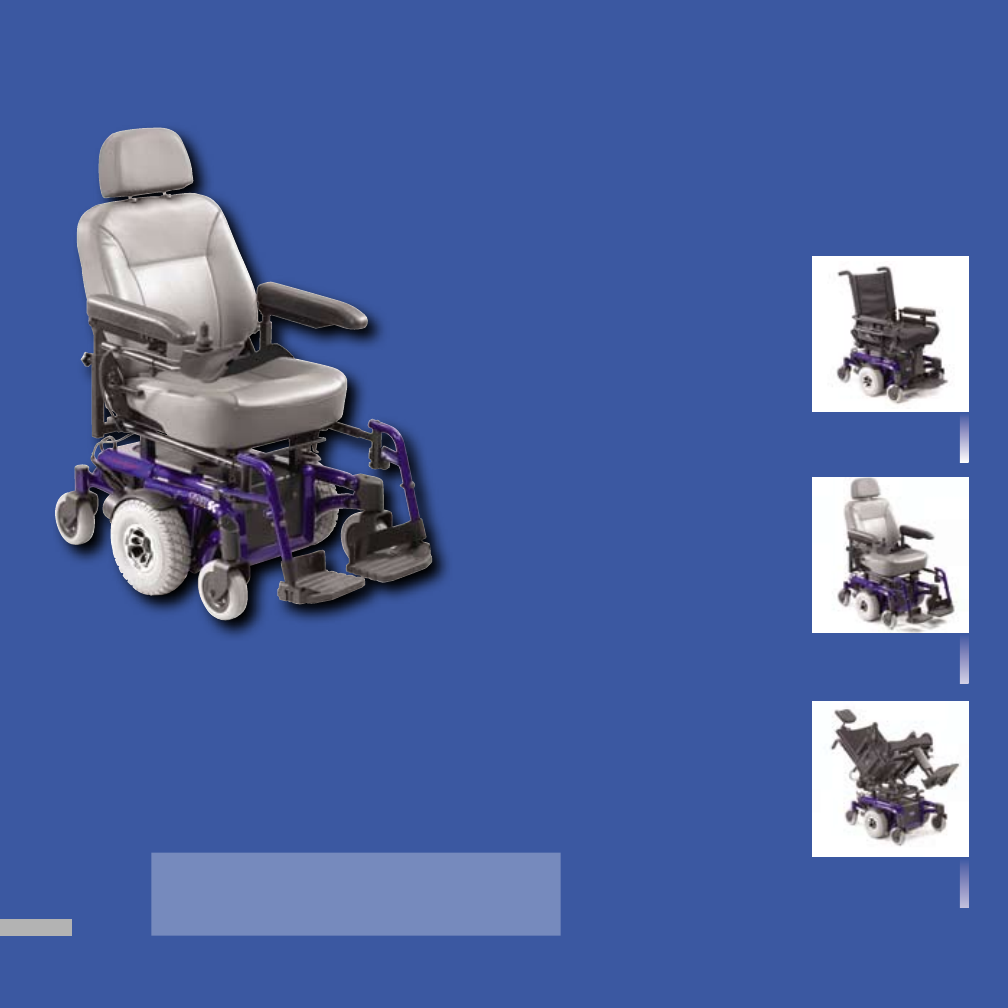

The Invacare® TDX® SC wheelchair,

also built off of the successful

Invacare® TDX® SP platform, features

10" drive tires, U1 batteries and 2 pole

motors. The TDX SC wheelchair is an

extension of the TDX SP family and

continues to offer the distinguishing

features of Enhanced Invacare®

SureStep® Suspension, Quiet Stability

Lock, contemporary aesthetics and

wider rear caster spacing for easy

interfacing with aftermarket docking

devices. The TDX SC wheelchair offers

a variety of seating options including

an adjustable rehab seat, a van seat,

Invacare® Formula™CG Powered Tilt and

Powered Elevating Seat.

TDX SC wheelchair

with Rehab Seating

TDX SC wheelchair

with Van Seating

TDX SC wheelchair with

Invacare® Formula™CG Tilt

TDXSC (Group 3 Rehab Seat) K0848

TDXSCV (Group 2 Captain’s Seat) K0823

TDXSC2-CG (Group 2 Single Power) K0835

INVACARE®

TDX®SC

Wheelchair

17

Invacare® TDX® SC Specifications.

Adj. ASBA Rehab Seat FormulaCG Tilt FormulaCG Elevating Seat Van Seat

Overall dimensions

Base length (w/o front riggings) 34" 34" 34" 34"

Base length (w/front riggings*) 39" 39" 39" 39"

Base width (w/o joystick) 24" 24" 24" 24"

Height** 36.5" - 38.5" 37.75" - 39.25" 36.75" - 41.75" 38 " w/o headrest

- - - 45 " w/headrest

Motor package 2-pole 2-pole 2-pole 2-pole

Seat dimensions

Width 16" - 20" 16" - 20" 16" - 20" 16" - 22"

Depth 16" - 20" 16" - 20" 16" - 20" 16" - 20"

Back height 16" - 24" 16" - 24" 16" - 24" 18"

with headrest - - - 25"

Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚ 85˚ - 115˚

Seat-to-floor height

Low 16.5" @ 0˚ 17.75" @ 0˚ 16.75" @ 0˚ 21"

Medium 17.5" @ 0˚ 18.5" @ 0˚ - -

Tall 18.5" @ 0˚ 19.25" @ 0˚ - -

Seat-to-floor height at 5˚ 18" Med., 19" Tall 19.5" Med., 20.5" Tall - -

Weight

with batteries 225 lb. 275 lb. 230 lb. 230 lb.

without batteries 178 lb. 228 lb. 183 lb. 183 lb.

Battery options U1 U1 U1 U1

Wheel and caster size

Front/rear casters 6" x 2" 6" x 2" 6" x 2" 6" x 2"

Drive wheels 10.5" x 3.5" 10.5" x 3.5" 10.5" x 3.5" 10.5" x 3.5"

Maximum speed

4.8 mph 4.8 mph 4.8 mph 4.8 mph

Incline capability 9˚ 9˚ 9˚ 9˚

Weight capacity 250 lb. 250 lb. 250 lb. 250 lb.

Turning radius 19" 19" 19" 19"

Standard Invacare® MK6i™ MK660ACC/SPJ+ MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+

Electronics

Limited warranties

Base frame 60 months 60 months 60 months 60 months

Seat frame 36 months 36 months 36 months 36 months

Electronics 12 months 12 months 12 months 12 months

Motor/gearbox 12 months 12 months 12 months 12 months

* Manual center-mount. ** With 20" back height and zero degree seat angle.

The Invacare® TDX® SPREE wheelchair is a distinctive

and fun power wheelchair designed for smaller clients.

• Gain access to areas not previously reachable

• Experience a smooth ride in everyday terrain

• Feel the intuitive maneuverability of center wheel

drive technology

• Admire the compact frame

Fall in love with the TDX SPREE wheelchair!

18

TDXSPREE (Group 3 Rehab Seat) K0848

TDXSPREE-CG (Group 3 Single Power) K0856

INVACARE®

TDX®SPREE

Wheelchair

19

Transport ready option.

The Invacare® TDX SPREE wheelchair offers a transport package

standard. Please refer to page 26 for more information on Invacare’s

Transport Ready Options.

Standard features of the TDX SPREE wheelchair:

• Adjustable rehab seat featuring 1" adjustment

within a width range of 12"-16" and a depth

range of 12"-18"

• 165 lb. maximum weight capacity

• Powered height adjustment of 5"

• Starting seat-to-floor height of 14.5", Medium

and Tall of 16.5" and 18.5" respectively

• 2 pole motors

• 4.8 mph top speed

• U1 battery tray

• Transport tie-down options

• Enhanced Invacare® SureStep® Suspension curb

climbing capability of 2.5"

• Quiet Stability Lock

• 3" ground clearance

• Wider rear caster spacing for interfacing

with aftermarket docking devices

• Invacare® MK6i™ Single Drive Joystick

• Swingaway front riggings

• 8 fun color selections

Optional features for the TDX SPREE wheelchair:

• 45˚ manual tilt

• 45˚ Invacare® Formula™CG power tilt

• Invacare® MK6i™ Multiple Purpose Joystick

• Alternative driver controls

• Center-Mount front rigging

• One-sided fork package

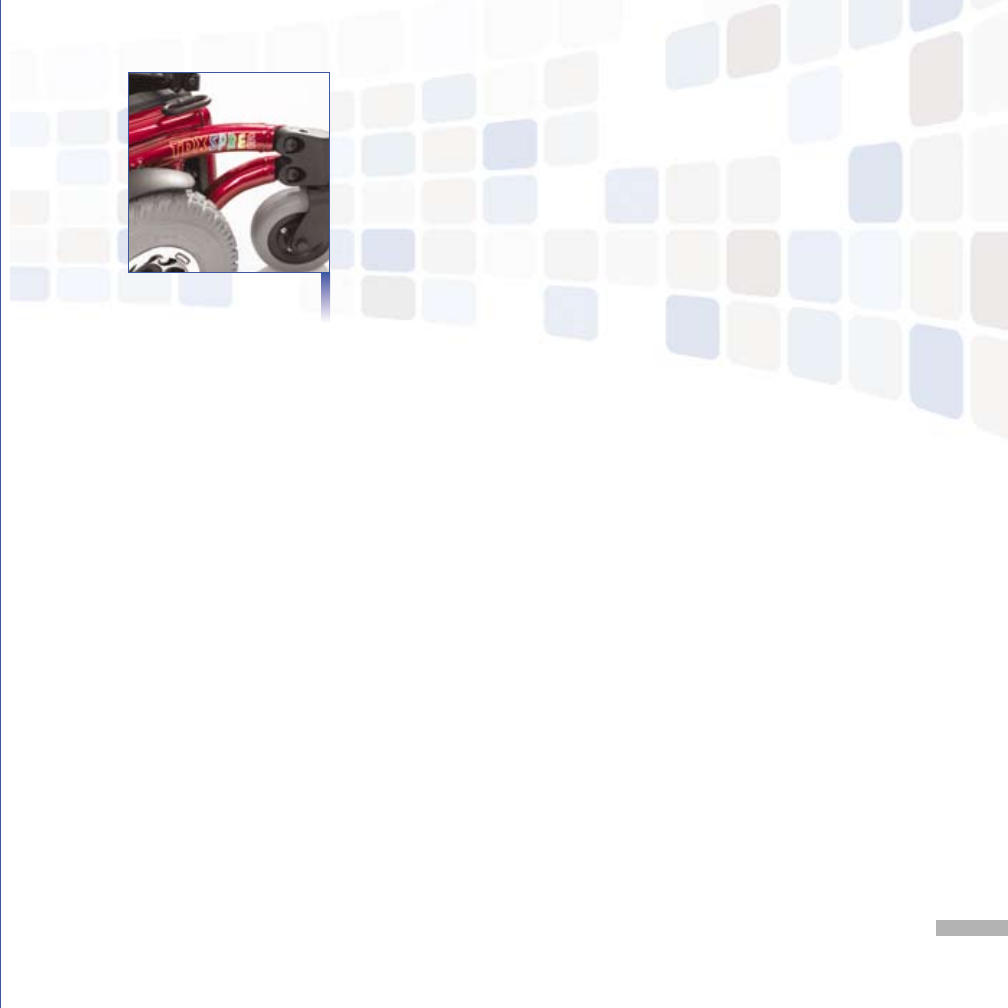

Transport Ready Option.

20

The TDX SPREE wheelchair is designed to

meet a wide variety of rehab needs for smaller

clients. The powered seat height adjuster

allows the client to reach peer level and the

low seat-to-floor height allows for easy access

to the ground. The optional tilt feature can be

operated manually by a caregiver or powered

for the client to accomplish their own weight

shift positioning. The TDX SPREE wheelchair

allows the consumer to get to levels that may

not have been reachable before.

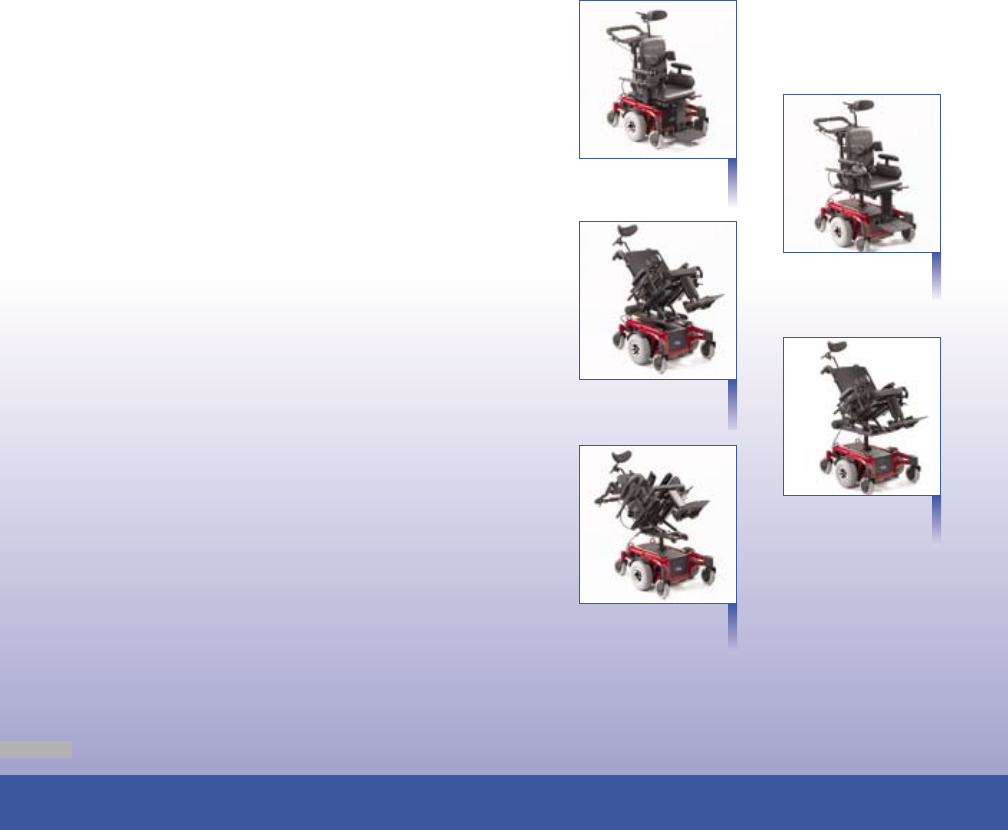

TDX Spree wheelchair

TDX Spree wheelchair

with Power Tilt

TDX Spree wheelchair

with Powered Seat

Height Adjustment

Manual Tilt

TDX Spree wheelchair

with Powered Seat

Height Adjustment

TDX Spree wheelchair

with Powered Seat

Height Adjustment

Power Tilt

Invacare® TDX® SPREE Seating Options.

21

Invacare® TDX® SPREE Specifications.

Adj. ASBA Rehab Seat Adj. ASBA Rehab Seat FormulaCG Powered Tilt

Overall dimensions (Manual Tilt)

Base length (w/o front riggings) 34" 34" 34"

Base length (w/ front riggings*) 39" 39" 39"

Base width (w/o joystick) 24" 24" 24"

Height** 34.5" - 38.5" 34.5" - 38.5" 36.75" - 38.75"

Motor package 2-pole 2-pole 2-pole

Seat dimensions

Width 12" - 16" 12" - 16" 12" - 16"

Depth 12" - 18" 12" - 18" 12" - 18"

Back angle 85˚ - 105˚ 85˚ - 105˚ 85˚ - 105˚

Seat-to-floor height

Low 14.5" @ 0˚ 14.5" @ 0˚ 16.75" @ 0˚

Medium 16.5" @ 0˚ 16.5" @ 0˚ 17.75" @ 0˚

Tall 18.5" @ 0˚ 18.5" @ 0˚ 18.75" @ 0˚

Weight

with batteries 230 lb. 230 lb. 280 lb.

without batteries 183 lb. 183 lb. 233 lb.

Battery options U1 U1 U1

Wheel and caster size

Front/rear casters 6" x 2" 6" x 2" 6" x 2"

Drive wheels 10.5" x 3.5" 10.5" x 3.5" 10.5" x 3.5"

Maximum speed

4.8 mph 4.8 mph 4.8 mph

Incline capability 9˚ 9˚ 9˚

Weight capacity 165 lb. 165 lb. 165 lb.

Turning radius 19" 19" 19"

Ground clearance 3" 3" 3"

Standard Invacare®MK6i™ MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+ w/PSS MK660ACC/SPJ+ w/PSS

Electronics

Limited warranties

Base frame 60 months 60 months 60 months

Seat frame 36 months 36 months 36 months

Electronics 12 months 12 months 12 months

Motor/gearbox 12 months 12 months 12 months

* Manual center-mount. ** With 20" back height and zero degree seat angle.

Invacare has streamlined its five rehab powered

seating platforms down to one – Invacare®

Formula™CG Powered Seating. The successful

FormulaCG system features up to 7" of weight-

shifting tilt upon center- and rear-wheel drive

platforms. To further leverage the features

and benefits of this seating system, we have

enhanced some key features of the product to

bring even more clinical benefits to our clients.

MPCTMT (Power Center Mount Foot Platform) K0108

MPCTMT-L (Power Center Mount Foot Platform long) K0108

22

Invacare streamlines powered

seating platform.

23

Footboard shown in

up position.

Redesigned Power Center Mount.

1. Mounting pulled back approximately 3" from

current design. At 90˚ the footboard folds up

flush to the front edge of the seat pan.

2. 6" articulation.

3. 75˚ elevation.

4. New Power Center Mount will be ideal for

all diagnoses, especially ALS clients who

conduct standing pivot transfers.

5. Updated mounting enhances safety

during transfers.

Optional Adductors

1. Stealth™ adductors now available.

2. Available with either a 4"x4" or 4"x6" pad.

3. Features the Stealth link system for side rail

mounting and maximum pad positioning

options. Adductors flip down easily to

facilitate ease of transfers.

Footboard shown in

down position.

Suggested HCPCS code for the Power Center Mount is K0108.

Suggested HCPCS code for the new adductors is

E0956 for the pads and E1028 for the hardware*.

*This information is not billing advice. Health care providers

are responsible for determining appropriate billing codes when

submitting claims. Please consult professional billing advisors

as needed to discuss specific care situations.

24

CTMT-F Center Mount Adjustable Knee Angle.

CTMT-FJ Junior Center Mount Adjustable Knee Angle.

CALF Calf Pads for Center Mount.

Redesigned Manual Center Mount

1. To increase foot depth, upholstered

heel loops are replaced with

raised lips.

2. Center profile minimized providing

sleeker appearance.

3. Widened footplates with 3

fooplate size options. All with

non-slip footplate surface.

4. Optional calf pads with depth,

height and width adjustment.

5. Retrofitable.

Cantilever Arms

1. Armrest attached to the back

cane only and not attached to

the seat rail.

2. Provides the ability to easily flip

the armrest back for transferring.

3. Clears the back canes.

4. Option on Rehab Seat and

Power Tilt Seating Systems.

5. Weight rated for 300 lb.

6. Great for sliding board transfer.

7. Easy to use - provides great

stability for weight shifts.

CLVF Cantilever Full Length Arm.

CLVD Cantilever Desk Length Arm.

Also available in mixed lengths

25

3" of contoured depth.

Redesigned Invacare® Contoura™ Back.

1. 3" of contoured depth.

2. Increased lateral positioning from

today’s current design. This gives

providers the ability to build up

lateral support with wedges.

3. Redundant tissue cut-outs at base.

4. Ability to add lumbar foam insert

for additional support. Invacare

continues to be the total custom

rehab solution for power bases,

powered seating and electronics.

Side bolster for lateral support.

CTB Contoura Back currently

pending PDAC approval for

HCPCS code E2620/E2621.

26

Transport Ready Options.*

Rear transport bracket.

The Invacare® TDX® Family offers a transport ready option

(TRRO) that includes four tie-down locations, a battery

securement system and a wheelchair-anchored pelvic belt.

The chairs with TRRO configuration have been crash-tested

in accordance with the ANSI/RESNA Vol. 1 Section 19.5.3

Frontal Impact Test (W/C 19).**

Invacare also offers the TRBKTS option. Unlike the TRRO

configuration, a chair with TRBKTS option does not have a

pelvic belt and it has not been crash-tested in accordance

with W/C 19 or any other standard. TRBKTS is intended to

secure an unoccupied wheelchair only.

These options reinforce Invacare’s market leadership in

transport-ready wheelchairs for consumers.

* As of this date, the U.S. Department of Transportation has not approved any

tie-down system for transportation of a user while in a wheelchair in a moving

vehicle of any type. Accordingly, Invacare recommends that wheelchair users

not be transported in vehicles of any kind while in wheelchairs and should be

transferred for transportation into appropriate seating in vehicles and use the

restraints made available by the auto industry.

** Please refer to the the following page of this literature for the required ANSI/RESNA

W/C19 sec. 6.2 Presale Literature Notication.

Front transport bracket.

ANSI/RESNA W/C 19 sec 6.2 Presale Literature

Notification – Invacare® TDX® SP Wheelchair

ANSI/RESNA W/C 19 sec 6.2 Presale Literature

Notification – Invacare® TDX SR Wheelchair

A. Minimum turning radius 22.5" with (2) Group 24 batteries.

Minimum turn-around width 29" with (2) Group 24 batteries.

B. The TDX SR wheelchair with (2) Group 24 batteries has a maximum

length of 44" (1118 mm) and the maximum length requirements of

lifts on public vehicles.

C. Total wheelchair mass for TDX SR wheelchair with (2) Group 24

batteries = 347 lb. (158 kg) Adult.

D. Average lateral dummy displacement for TDX SR wheelchair

with (2) Group 24 batteries = approximately .53" (13.4 mm) Adult.

E. Overall Score for TDX SR wheelchair Adult with (2) Group 24

batteries = 18, Overall Rating = A

F. i. The TDX SR wheelchair tested was sized to accommodate a

168 lb. test dummy (17" x 17" x 22" high and 14" Center-Wheel

Drive tires).

ii. The TDX SR wheelchair was tied down using four tie-down

brackets – 2 brackets located on the front of the base frame and

2 brackets located on the rear of the base frame.

iii. The TDX SR wheelchair was tested with a 168 lb. test dummy.

iv. The TDX SR wheelchair tested used a wheelchair-anchored

pelvic belt and vehicle-anchored shoulder belt.

v. The TDX SR wheelchair tested complies with the performance

requirements of ANSI/RESNA W/C 19 sec. 5.3.

G. For all types of vehicles, the TDX SR wheelchair requires four

SAE J2249-compliant tie-down strap assemblies for effective

securement.

H. The TDX SR wheelchair provides a location for anchoring of an

Invacare-provided pelvic belt. This belt has been tested in

accordance with ANSI/RESNA W/C 19.

I. The wheelchair-anchored pelvic belt is supplied by Invacare.

A. Minimum turning radius 23.6" with (2) 22NF batteries.

Minimum turning radius 24.4" with (2) Group 24 batteries.

Minimum turn-around width 43.7" with (2) 22NF batteries.

Minimum turn-around width 44.9" with (2) Group 24 batteries.

B. The TDX SP wheelchair with (2) 22NF batteries has a maximum

length of 35.25" (895 mm) and the TDX SP wheelchair with (2) Group

24 batteries has a maximum length of 35.63" (905 mm), meeting the

ADA definition of a common wheelchair and the maximum length

requirements of lifts on public vehicles.

C. Total wheelchair mass for TDX SP wheelchair with (2) 22NF

batteries = 280 lb. (127.3 kg) Adult and 286 lb. (130 kg) Junior

including front riggings, wheel locks, TRO brackets, wheelchair-

anchored pelvic belt and seating. Total wheelchair mass for TDX SP

Wheelchair with (2) Group 24 batteries = 315 lb. (142.9 kg) Adult and

317 lb. (143.8 kg) Junior including front riggings, wheel locks, TRO

brackets, wheelchair-anchored pelvic belt and seating.

D. Average lateral dummy displacement for TDX SP wheelchair with

(2) 22NF batteries = approximately .53" (13.4 mm) Adult and .57"

(14.4 mm) Junior.

Average lateral dummy displacement for TDX SP wheelchair with

(2) Group 24 batteries = approximately .54" (13.7 mm) Adult and .51"

(12.9 mm) Junior.

E. Overall Score for TDX SP wheelchair Adult with (2) 22NF

batteries = 18, Overall Rating = A

Overall Score for TDX SP wheelchair Junior with (2) 22NF

batteries = 14, Overall Rating = B

Overall Score for TDX SP wheelchair Adult with (2) Group 24

batteries = 17, Overall Rating = A

Overall Score for TDX SP wheelchair Junior with (2) Group 24

batteries = 14, Overall Rating = B

F. i. The TDX SP wheelchair tested was sized to accommodate a 168 lb.

test dummy (17" x 17" x 18" high and 14" Center-Wheel Drive tires.)

ii. The TDX SP wheelchair was tied down using four tie-down

brackets – 2 brackets located on the front of the base frame and

2 brackets located on the rear of the base frame.

iii. The TDX SP wheelchair was tested with a 168 lb. test dummy.

iv. The TDX SP wheelchair tested used a wheelchair-anchored pel-

vic belt and vehicle-anchored shoulder belt.

v. The TDX SP wheelchair tested complies with the performance

requirements of ANSI/RESNA W/C 19 sec. 5.3.

G. For all types of vehicles, the TDX SP wheelchair requires four

SAE J2249-compliant tie-down strap assemblies for effective

securement.

H. The TDX SP wheelchair provides a location for anchoring of an

Invacare-provided pelvic belt. This belt has been tested in

accordance with ANSI/RESNA W/C 19.

I. The wheelchair-anchored pelvic belt is supplied by Invacare.

ANSI/RESNA W/C 19 sec 6.2 Presale Literature

Notification – Invacare® TDX SPREE Wheelchair

A. Minimum turning radius 18.9" with (2) U1 batteries.

Minimum turn-around width 29" with (2) U1 batteries.

B. The TDX SPREE wheelchair with (2) U1 batteries has a maximum

length of 39" (991 mm) and the maximum length requirements of lifts

on public vehicles.

C. Total wheelchair mass for TDX SPREE wheelchair with (2) U1

batteries = 237 lb. (108 kg).

D. Average lateral dummy displacement for TDX SPREE wheelchair

with (2) U1 batteries = approximately .53" (13.4 mm).

E. Overall Score for TDX SPREE wheelchair with (2) U1 batteries =

19, Overall Rating = A Overall

F. i. The TDX SPREE wheelchair tested was sized to accommodate

a 130 lb. test dummy (16" x 16" x 22" high and 10" Center-Wheel

Drive tires.)

ii. The TDX SPREE wheelchair was tied down using four tie-down

brackets – 2 brackets located on the front of the base frame and

2 brackets located on the rear of the base frame.

iii. The TDX SPREE wheelchair was tested with a 130 lb. test dummy.

iv. The TDX SPREE wheelchair tested used a wheelchair-anchored

pelvic belt and vehicle-anchored shoulder belt.

v. The TDX SPREE wheelchair tested complies with the perfor-

mance requirements of ANSI/RESNA W/C 19 sec. 5.3.

G. For all types of vehicles, the TDX SPREE wheelchair requires four

SAE J2249-compliant tie-down strap assemblies for effective

securement.

H. The TDX SPREE wheelchair provides a location for anchoring of

an Invacare-provided pelvic belt. This belt has been tested in

accordance with ANSI/RESNA W/C 19.

I. The wheelchair-anchored pelvic belt is supplied by Invacare.

ANSI/RESNA W/C 19 sec 6.2 Presale Literature

Notification – Invacare® TDX SC Wheelchair

A. Minimum turning radius 20.1" with (2) U1 batteries.

Minimum turn-around width 31" with (2) U1 batteries.

B. The TDX SC wheelchair with (2) 22NF batteries has a maximum

length of 35.25" (895 mm) and the TDX SP wheelchair with (2) Group

24 batteries has a maximum length of 35.63" (905 mm), meeting the

ADA definition of a common wheelchair and the maximum length

requirements of lifts on public vehicles.

C. Total wheelchair mass for TDX SC wheelchair with (2) U1 batteries

= 235 lb. (106.8.3 kg) Adult.

D. Average lateral dummy displacement for TDX SC wheelchair with

(2) U1 batteries = approximately .47" (11.9 mm) Adult.

E. Overall Score for TDX SC wheelchair Adult with (2) U1 batteries =

18, Overall Rating = A

F. i. The TDX SC wheelchair tested was sized to accommodate a

168 lb. test dummy (17" x 17" x 22" high and 10" Center-Wheel

Drive tires.)

ii. The TDX SC wheelchair was tied down using four tie-down

brackets – 2 brackets located on the front of the base frame and

2 brackets located on the rear of the base frame.

iii. The TDX SC wheelchair was tested with a 168 lb. test dummy.

iv. The TDX SC wheelchair tested used a wheelchair-anchored

pelvic belt and vehicle-anchored shoulder belt.

v. The TDX SC wheelchair tested complies with the performance

requirements of ANSI/RESNA W/C 19 sec. 5.3.

G. For all types of vehicles, the TDX SC wheelchair requires four

SAE J2249- compliant tie-down strap assemblies for effective

securement.

H. The TDX SC wheelchair provides a location for anchoring of an

Invacare-provided pelvic belt. This belt has been tested in

accordance with ANSI/RESNA W/C 19.

I. The wheelchair-anchored pelvic belt is supplied by Invacare.

29

27

Adjustable Rehab Seat

Invacare® Formula™CG Tilt

The Invacare® TDX® Family…

The Right Rehab Solution From One Source.

Rehab Seating

Invacare® Formula™CG

Tilt/Recline

Van Seating

Invacare® Formula™CG Tilt

Powered Seat Height

Adjustment Power Tilt

Powered Seat Height

Adjustment Manual Tilt

TDX®SP

Power Wheelchair

INVACARE®

TDX®SR

Power Wheelchair

INVACARE®

TDX®SC

Power Wheelchair

INVACARE®

TDX®SPREE

Power Wheelchair

INVACARE®

Invacare Corporation

www.invacare.com

USA

One Invacare Way

Elyria, Ohio

44035-4190

(800) 333-6900

Canada

570 Matheson Blvd. E.,

Unit 8

Mississauga, Ontario

L4Z 4G4 Canada

(800) 668-5324

© 2011

Invacare Corporation.

All rights reserved.

Trademarks are identified

by the symbols ™, SM and

®. Stealth is a trademark

of Stealth Products, Inc. All

trademarks are owned

by or licensed to Invacare

Corporation unless

otherwise noted.

Form No. 06-055

Rev. 07/11

110655
