INVACARE®
Standard Manual
Wheelchairs
![](asset-2.png)
2Invacare Customer Service (800) 333-6900 www.invacare.com
For over 30 years, Invacare has set the standard for manual
wheelchairs by empowering people with disabilities to
achieve their goals. Invacare’s programs and services have
helped providers operate more successfully and efficiently
while meeting their clients’ needs. The “can-do” attitude
and commitment to quality from Invacare is represented in
the full product line of standard manual wheelchairs. Today
Invacare continues to work on design improvements while
maintaining the characteristics that have become tradition:
durability, interchangeability and value.
INVACARE®
Standard Manual Wheelchairs
![](asset-3.png)
People with disabilities want more than wheelchair mobility.
What they really want is access, integration, and jobs - they want to do all the same
things able-bodied people want to do.
Invacare Customer Service (800) 333-6900 www.invacare.com
Transport Chair 4
Lightweight Aluminum Transport 5
Heavy-Duty Transport 6
Invacare® Veranda™ Wheelchair 7
Invacare® Tracer® EX2 Wheelchair 8
Invacare® Tracer® SX5 Wheelchair 9
Invacare® Tracer® SX5 Recliner 10
Invacare® 9000 SL Wheelchair 11
Invacare® 9000 XT Wheelchair 12
Invacare® 9000 XT Recliner 14
Invacare® Insignia® Wheelchair 15
Invacare® Patriot™ Wheelchair 16
Invacare® Tracer® IV Wheelchair 17
Invacare® 9000 XDT Wheelchair 18
Invacare® 9000 Topaz™ Wheelchair 19
Invacare® 9000 Jymni™ Wheelchair 20
Invacare® 9000 Jymni™ Recliner 21
Invacare® Backs & Cushions 22-23
Accessories 24-25
Ramps, CLD & Color Guide 26
Table of Contents
Bariatric/Heavy-Duty Designation
Invacare products with the Bariatric/Heavy-Duty icon are designed for your bariatric patients whose height and weight
require the use of a heavy-duty model. These products provide the same quality that all Invacare products possess. They
also demonstrate Invacare's commitment to this product category.
Seating Options
Invacare general use seat cushions and backs are available without a qualifying diagnosis.* Invacare products with the
cushion logo are available to be purchased with a seat cushion or back to provide maximum comfort.
*Providers are responsible for determining the appropriate billing codes when submitting to the Medicare Program and should consult an attorney or
other advisor to discuss specific situations in further detail. This information is subject to change without notice.
Builder Chair
Invacare products with the configurable logo are available as stock models and are also able to be custom configured.
Select from many options to personalize a chair to a user's specific wants and needs.
Why Invacare® Standard Manual Wheelchairs?
LOGO LOOK-OUT!
As the premier brand in the home health care industry, Invacare continues to be committed to meeting both the needs of customers
and consumers worldwide with standard wheelchair products.
• Low-maintenance designs that meet RESNA standards for manual wheelchair performance.
• Many models available as ready to ship for quick delivery.
• Consumer custom configurability available.
• Full assortment of bariatric manual wheelchair solutions.
Invacare Customer Service (800) 333-6900 www.invacare.com 3
![](asset-4.png)
4Invacare Customer Service (800) 333-6900 www.invacare.com
• Stylish, Silver Vein, powder-coated carbon steel frame
• Footrests are included with the chair and match frame finish
• Black nylon upholstery is flame retardant and bacteria resistant
• Full-length arms are padded for comfort
• Carry straps on seat allow for ease of folding and lifting
• Fold-down back makes transport and storage easy
FEATURES
E1038
SPECIFICATIONS
Model Numbers TRAN17FR TRAN19FR
HCPCS E1038 E1038
Chair Dimensions
Seat width 17" 19"
Seat depth 16" 16"
Back height 19" fold-down 19" fold-down
Seat-to-floor height 19" 19"
Overall Dimensions
Overall width 19" 21"
Folded width 7.25" 7.75"
Overall depth w/o Riggings 27" 27"
Overall height 39" 39"
Weight w/o riggings 24.5 lb. 25 lb.
Weight capacity 250 lb. 250 lb.
Limited warranty (mo.) 12 months 12 months
Casters and Wheels
Caster height 8" 8"
Wheel height 8" 8"
Shipping
Box weight 34" 34"
Box dimensions (LxWxH) 23"x12"x31" 25"x12"x32"
Note: All specifications are approximate

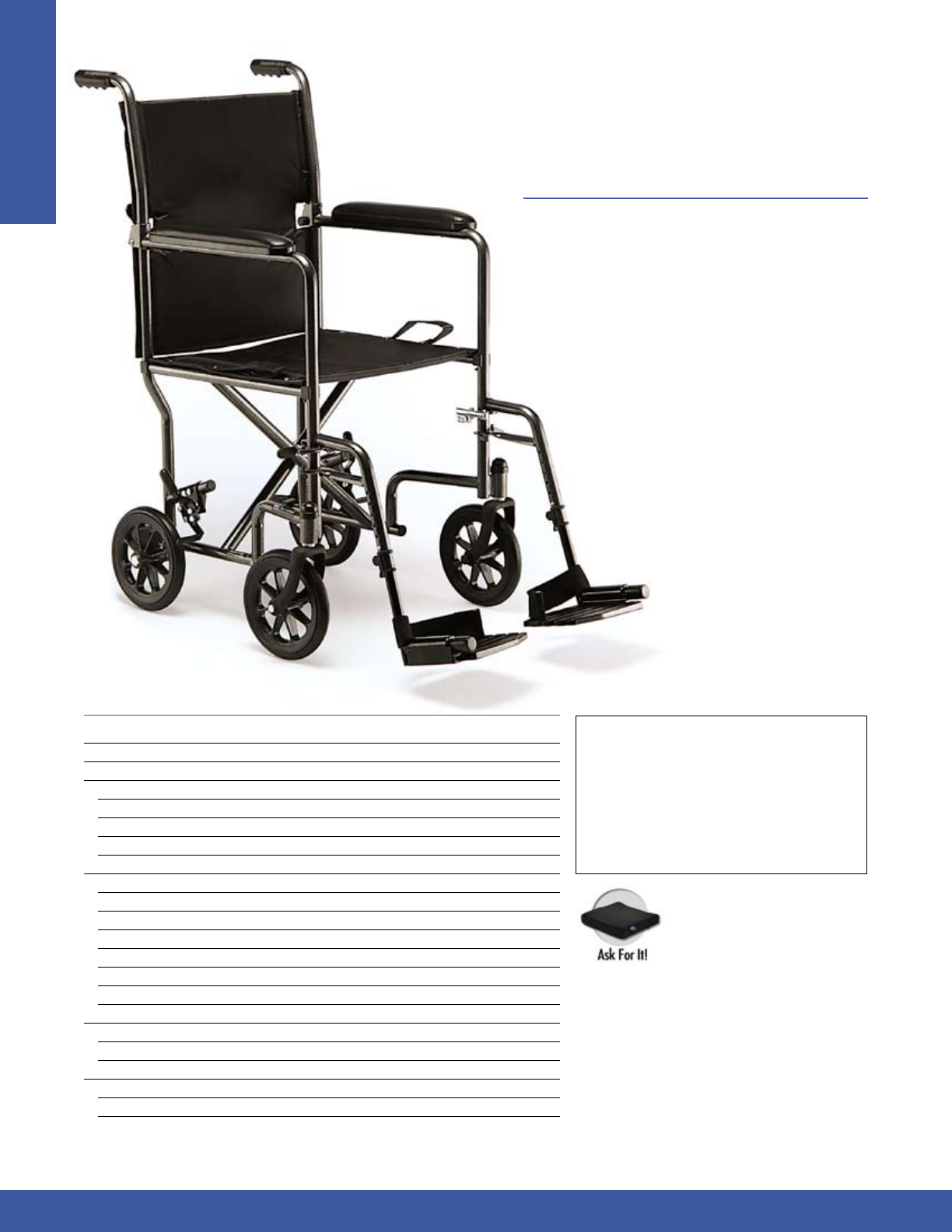

Invacare® Transport chair is designed
for safe and efficient patient transport. The
Transport chair has the added advantage of
sharing interchangeable parts with the other
chairs in the transport series. The Transport
chair is compact and lightweight.
Invacare® Transport Chair
![](asset-5.png)
SPECIFICATIONS
ALR19HBFR LTTR19FR
Model numbers ALB19HBFR LTTB19FR LTTB17FR
HCPCS E1038 E1038 E1038
Chair Dimensions
Seat width 17", 19" 19" 17"
Seat depth 15.5", 16" 15.5" 15.5"
Back height 17.5" 17.5" 17.5"
Seat-to-floor height 19.25" 19.25" 19.25"
Overall Dimensions
Overall width 23.5" 21.5" 23.5"
Folded width 8.5" 8.5" 7.75"
Overall depth w/o riggings 24.25" 24.25" 24.25"
Overall height 37.5" 36.5" 36.5"
Weight w/o riggings 19 lb. 19 lb. 19 lb.
Weight capacity 250 lb. 250 lb. 250 lb.
Limited warranty (mo.) 13 months 13 months 13 months
Casters and Wheels
Caster height 8" 8" 8"
Wheel height 12" 8" 8"
Shipping
Box weight 30 lb. 27 lb. 27 lb.
Box dimensions (LxWxH) 27"x10"x 31" 26" x10" x 32" 26"x 10"x 31"
Note: All specifications are approximate
Invacare Customer Service (800) 333-6900 www.invacare.com 5
• Black nylon upholstery is flame retardant and bacteria resistant
• Full-length arms are padded for comfort
• Carry straps on seat allow for ease of folding and lifting
• Footrest painted to match frame finish
• Fold-down back makes transport and storage easy
• Weighs 19 lb. (w/o riggings)
FEATURES
E1038
Invacare® Lightweight Aluminum
Transport chairs are designed for safety,
ease and comfortable patient transport. The
lightweight frames weigh only 19 lb. and
incorporate a fold-down back, making these
chairs easy to transport and store.

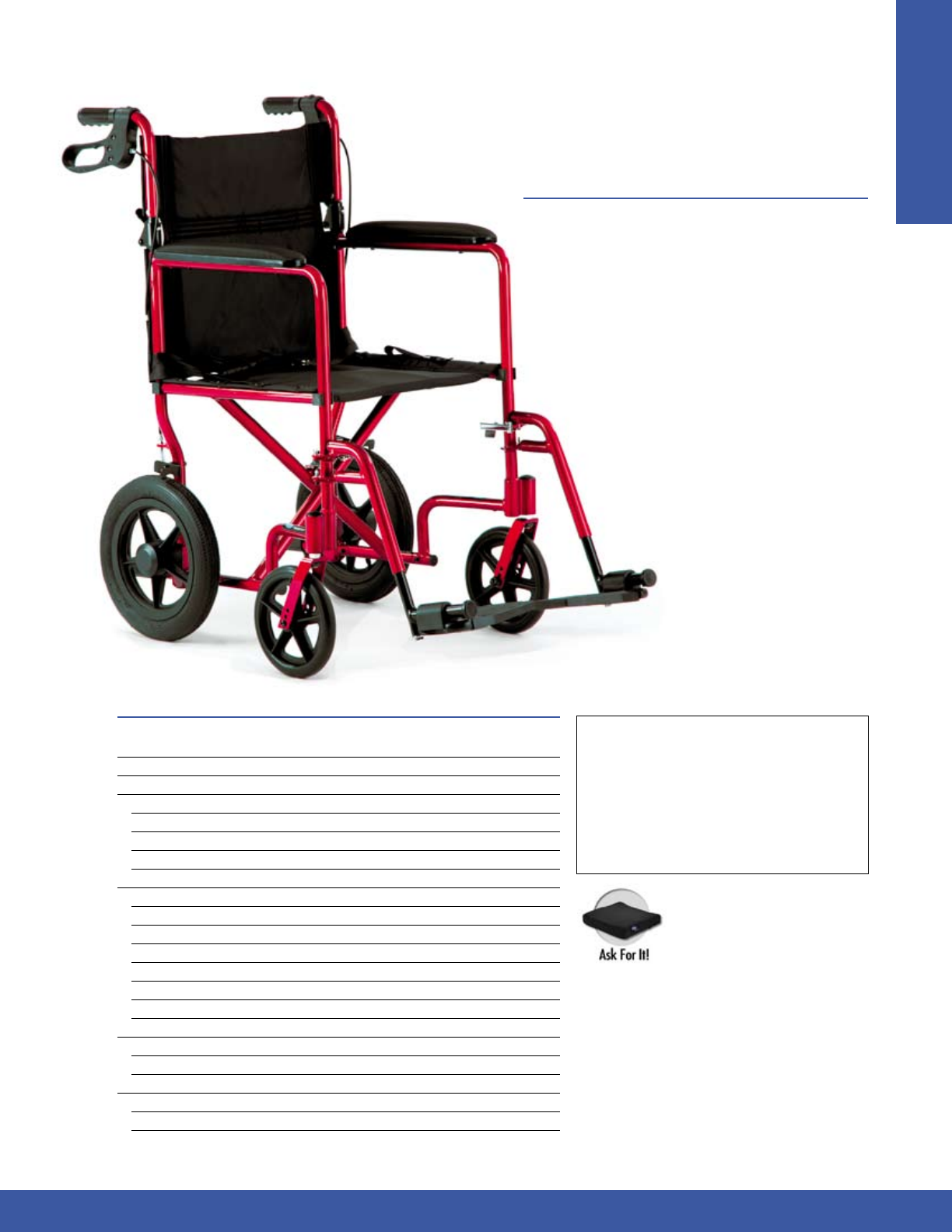

ALR19HBFR Lightweight Aluminum
Transport Chair in red.
Invacare® Lightweight
Aluminum Transport Chair
![](asset-6.png)
SPECIFICATIONS
Model Numbers TRHD22FR
HCPCS E1039
Chair Dimensions
Seat width 22"
Seat depth 18"
Back height 20"
Seat-to-floor height 19.5"
Overall Dimensions
Overall width 28"
Folded width —
Overall depth w/o riggings 36.5"
Overall height —
Weight w/o riggings —
Weight capacity 400 lb.
Limited warranty (mo.) 13 months
Casters and Wheels
Caster height 8"
Wheel height 12"
Shipping
Box weight 51lb.
Box dimensions (LxWxH) 29" x 11" x 33"
Note: All specifications are approximate

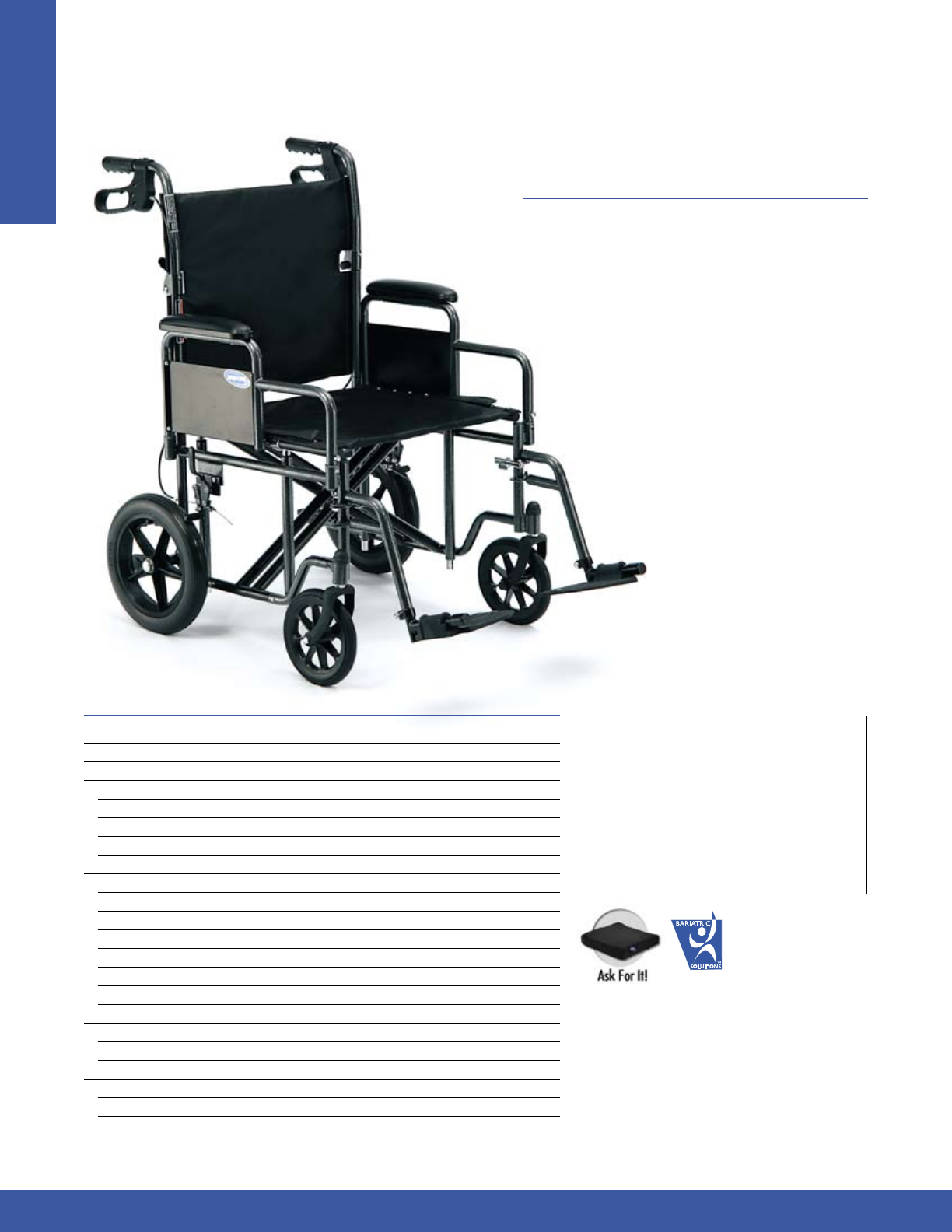

Invacare® Heavy-Duty Transport chair
is designed for safe and efficient patient
transport. The Transport chair has the added
advantage of sharing interchangeable
parts with the other chairs in the transport
series. The Transport chair is compact and
lightweight.
• Removable padded desk arms
• Carbon steel frame with dual crossbraces
• Swingaway footrest with aluminum footplates
FEATURES
Invacare® Heavy-Duty
Transport Chair
6Invacare Customer Service (800) 333-6900 www.invacare.com
E1039
![](asset-7.png)
K0001/K0002

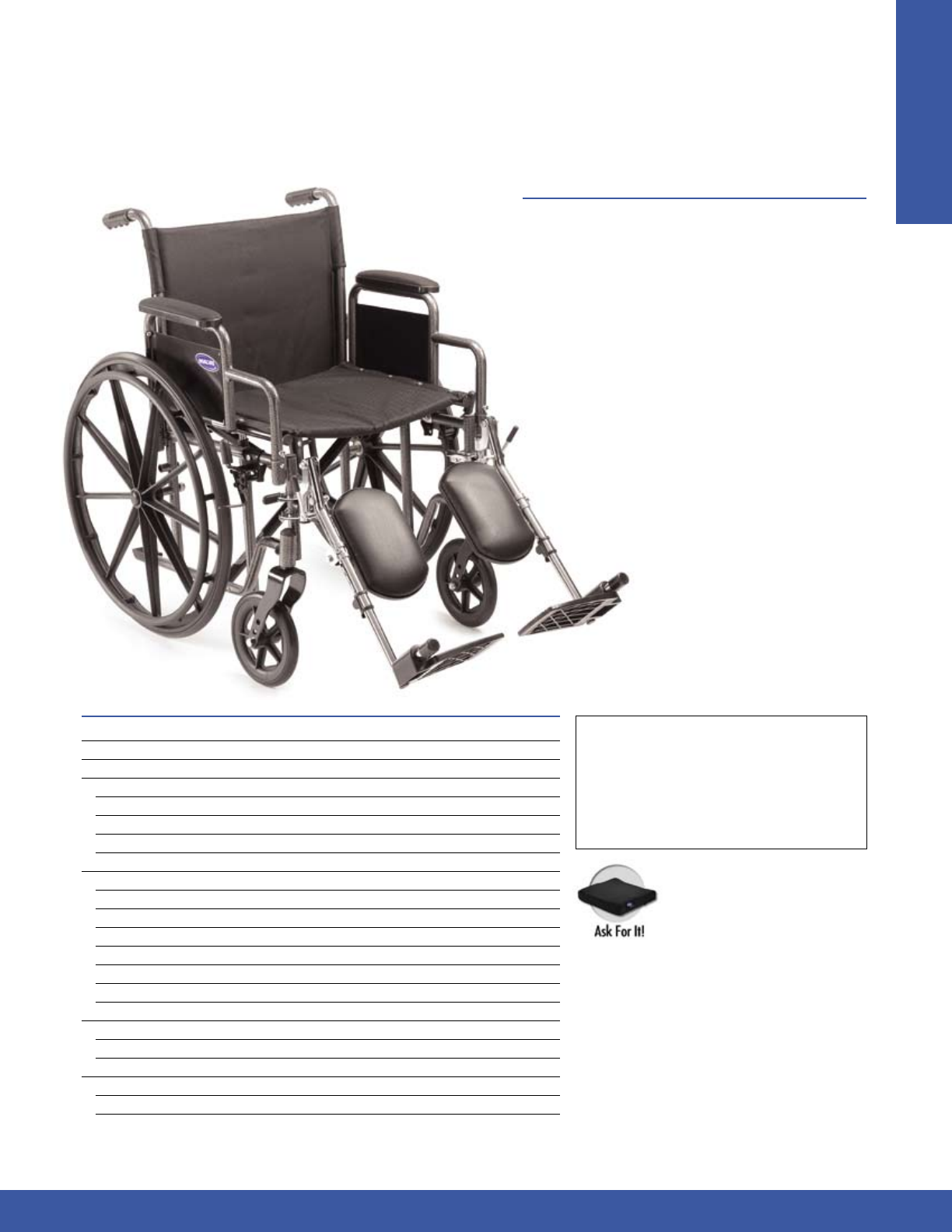

Invacare® Veranda™ wheelchair provides
comfort and mobility in an economical package.
Complete with front riggings packaged with the
chair, the Invacare Veranda wheelchair combines
style and durability at an affordable price.
• Stylish powder-coated frame includes front riggings
- Footrests match chair
- Legrests are chrome
• Carry pocket on back
• Large step-tube end cap
• Padded nylon upholstery
• Comfortable padded arms
FEATURES
Invacare® Veranda™ Wheelchair
SPECIFICATIONS
Model numbers V16, V18, V20
HCPCS K0001/K0002
Chair Dimensions
Seat width 16", 18", 20"
Seat depth 16", 18"
Back height 18"
Seat-to-floor height 19.25"
Overall Dimensions
Overall width 23", 25", 27"
Folded width 14"
Overall depth w/o riggings 30"
Overall height 36"
Weight w/o riggings —
Weight capacity 250 lb.
Limited warranty (mo.) 12 months
Casters and Wheels
Caster height 8"
Wheel height 24"
Shipping
Box weight 54 lb.
Box dimensions (LxWxH) 33" x 12" x 36"
Note: All specifications are approximate
Invacare Customer Service (800) 333-6900 www.invacare.com 7
![](asset-8.png)
K0001/K0002
SPECIFICATIONS
Model Numbers TREX20, TREX26, TREX28
HCPCS K0001/K0002
Chair Dimensions
Seat width 16",18", 20"
Seat depth 16"
Back height 16"
Seat-to-floor height 17.5", 19.5"
Overall Dimensions
Overall width 23.25", 24.25", 25.25", 26.25", 27.25", 28.25"
Folded width 13"
Overall depth w/o riggings 31.88"
Overall height 34"
Weight w/o riggings 36 lb.
Weight capacity 250 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 8"
Wheel height 24"
Shipping
Box weight 43 lb.
Box dimensions (LxWxH) 32" x 13" x 38"
Note: All specifications are approximate

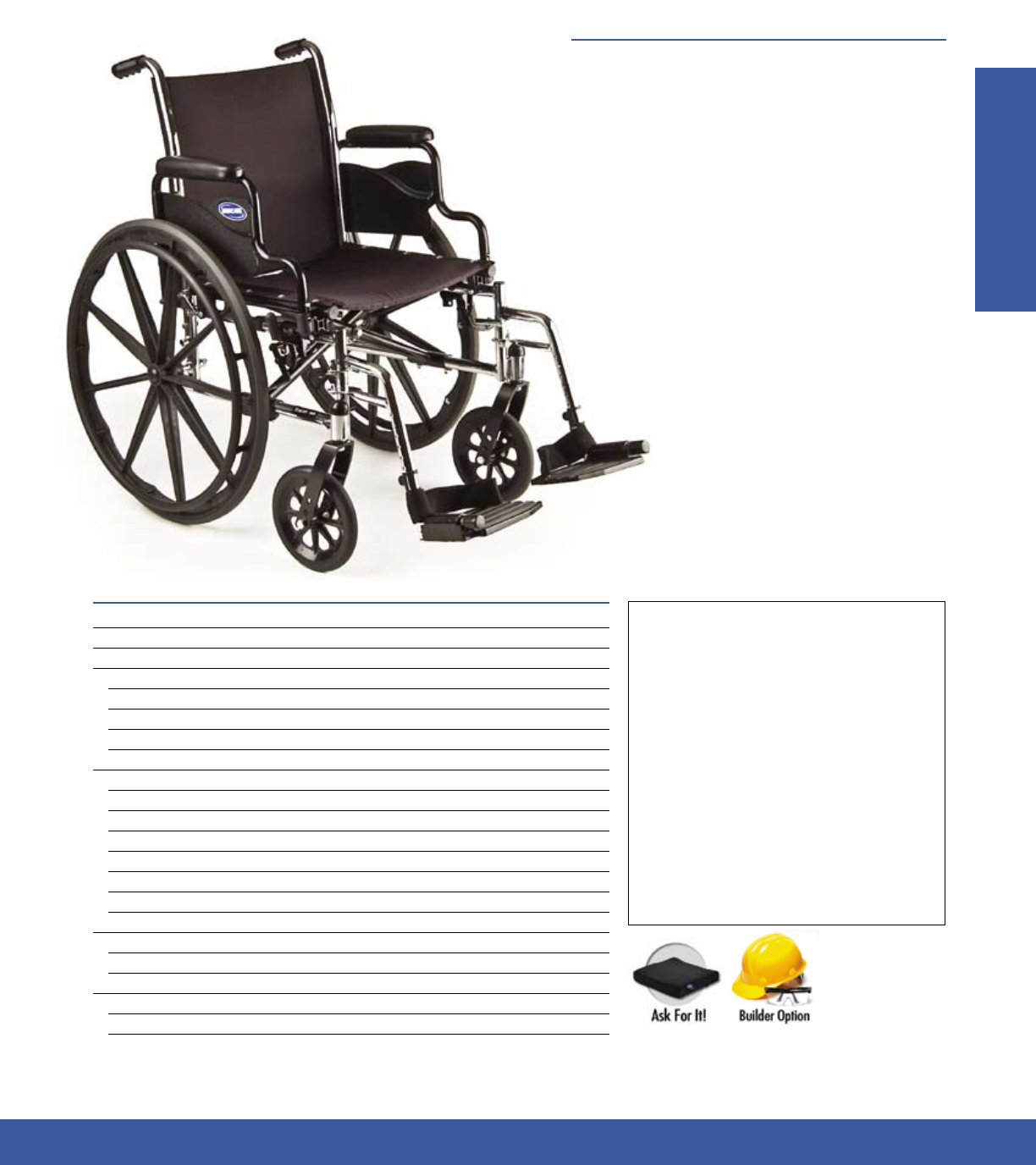

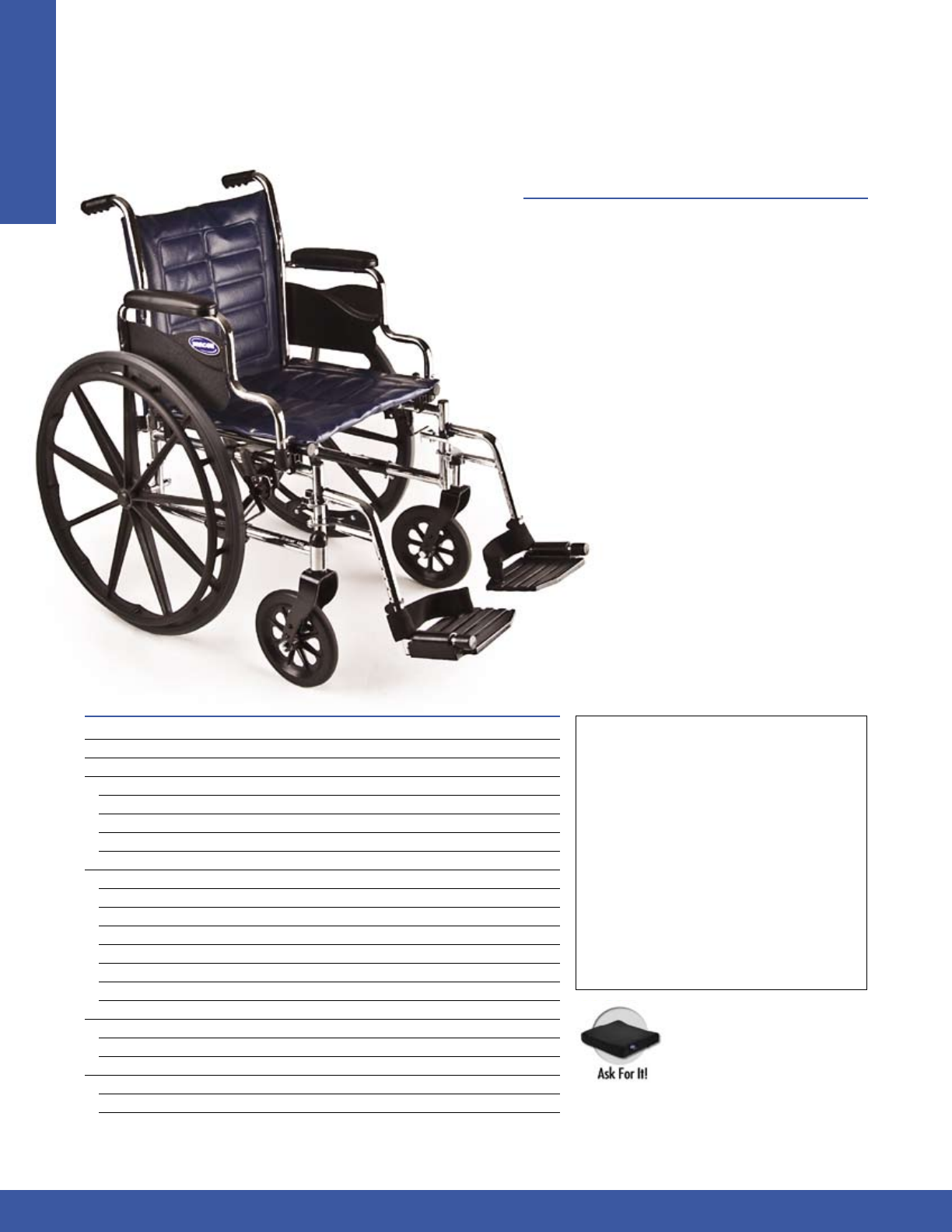

Invacare® Tracer® EX2 wheelchair sets
the benchmark in manual wheelchairs. A true
dual axle position allows for repositioning the
24" rear wheels and 8" casters for adult and
hemi seat-to-floor heights. Offset permanent
arms offer full seat width up to 20" with a
permanent arm, hemi-spaced footrest and full
range of accessories. Incorporating the design
and technology of the Invacare 9000 series,
the Tracer EX2 wheelchair has interchangeable
components with the 9000 series chairs.
• Durable, low-maintenance, triple chrome-plated carbon steel
frame is long-lasting
• Dual axle positions allow variation of seat-to-floor heights
• Offset permanent arms available in 16", 18" and 20" widths
• 14-gauge crossbraces add strength and durability
• Urethane rear tires mounted on “no flex“ wheels offer superior
performance
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Upholstery is dual-embossed
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® Tracer® EX2 Wheelchair
8Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-9.png)
SPECIFICATIONS
Model Numbers TRSX50, TRSX52, TRSX56, TRSX58
HCPCS K0003/K0006
Chair Dimensions
Seat width 14", 16", 18", 20", 22"
Seat depth 16"
Back height 16", 18"
Seat-to-floor height 17.5", 19.5"
Overall Dimensions
Overall width 22.5", 24.5", 26.5", 28.5", 30.5"
Folded width
Overall depth w/o riggings 34"
Overall height
Weight w/o riggings 36 lb.
Weight capacity 250 lb., 300 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 6", 8"
Wheel height 20", 22", 24"
Shipping
Box weight 43 lb.
Box dimensions (LxWxH) 32" x 13" x 37"
Note: All specifications are approximate
Invacare® Tracer® SX5 wheelchair's
lightweight frame, weighing less than 36 lb.,
makes this chair perfect for rental and long- or
short-term use. This wheelchair offers multiple
seat widths, arm styles, sectional back and seat-
to-floor heights by utilizing the dual axle position
frame base. The 20" and 22" widths include
a semi-pneumatic caster to accommodate a
weight capacity of 300 lb. Combining the design
and technology of the Invacare® 9000 series
wheelchairs makes it possible to interchange
components with the Tracer SX5 wheelchair.
• Durable, low-maintenance, triple chrome-plated carbon steel
frame is long-lasting
• Dual axle positions allow variation of seat-to-floor heights
• 14-gauge crossbraces add strength and durability
• Urethane rear tires mounted on “no flex” wheels offer superior
performance
• Sectional back available in 16" and 18" back heights
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® Tracer® SX5 Wheelchair
Invacare Customer Service (800) 333-6900 www.invacare.com 9
K0003/K0006
![](asset-a.png)
K0003 & E1226/K0006 & E1226
SPECIFICATIONS
Model Numbers TRSX5RC6, TRSX5RC8
HCPCS K0003 & E1226/K0006 & E1226
Chair Dimensions
Seat width 14", 16", 18", 20", 23"
Seat depth 16"
Back height 34" (24" Back, 10" Removeable Headrest)
Seat-to-floor height 17.5", 19.5"
Overall Dimensions
Overall width —
Folded width —
Overall depth w/o riggings 30.25"
Overall height —
Weight w/o riggings —
Weight capacity 250 lb., 300 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 8"
Wheel height 20", 22", 24"
Shipping
Box weight 62 lb.
Box dimensions (LxWxH) 36" x 13"x 44"
Note: All specifications are approximate

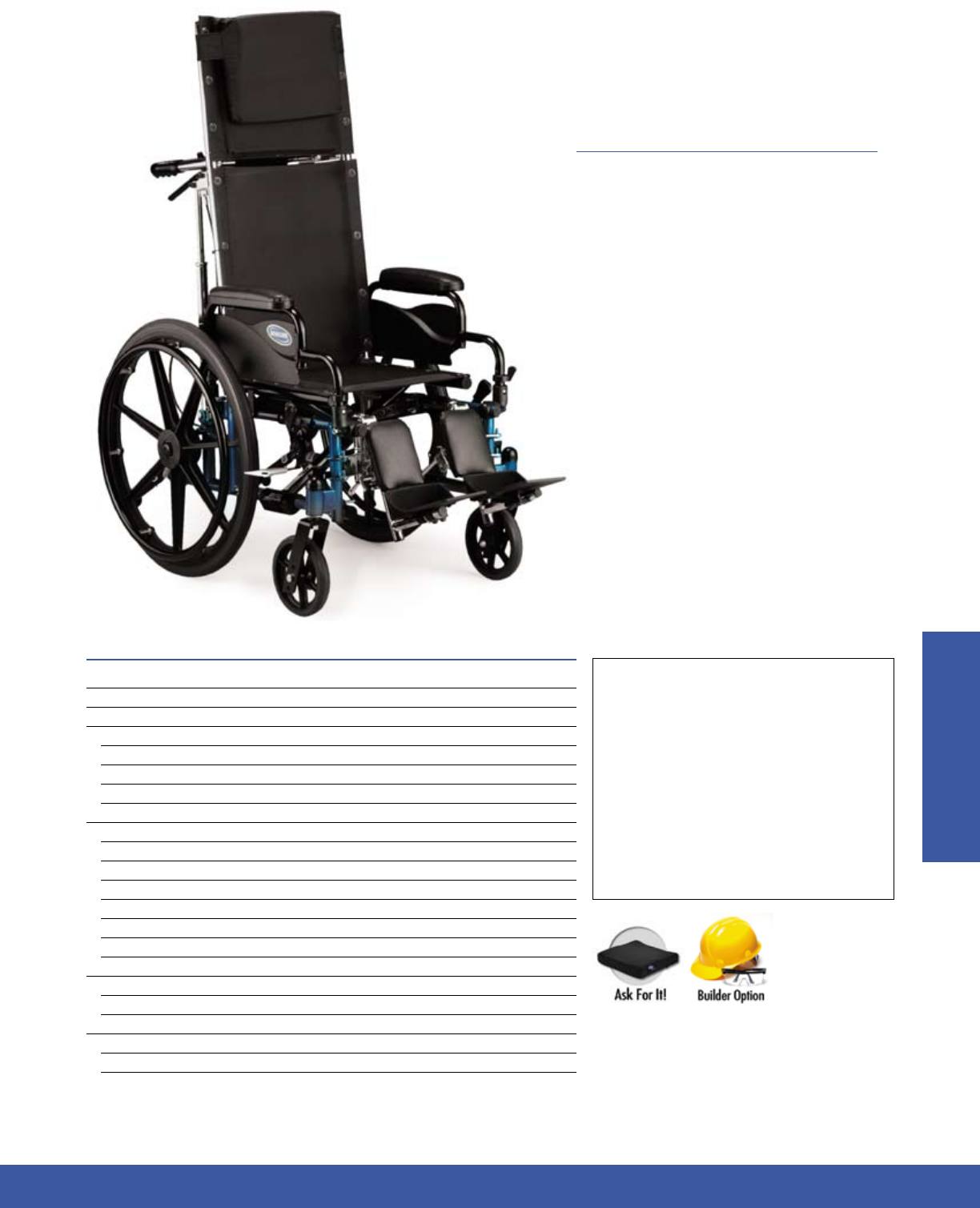

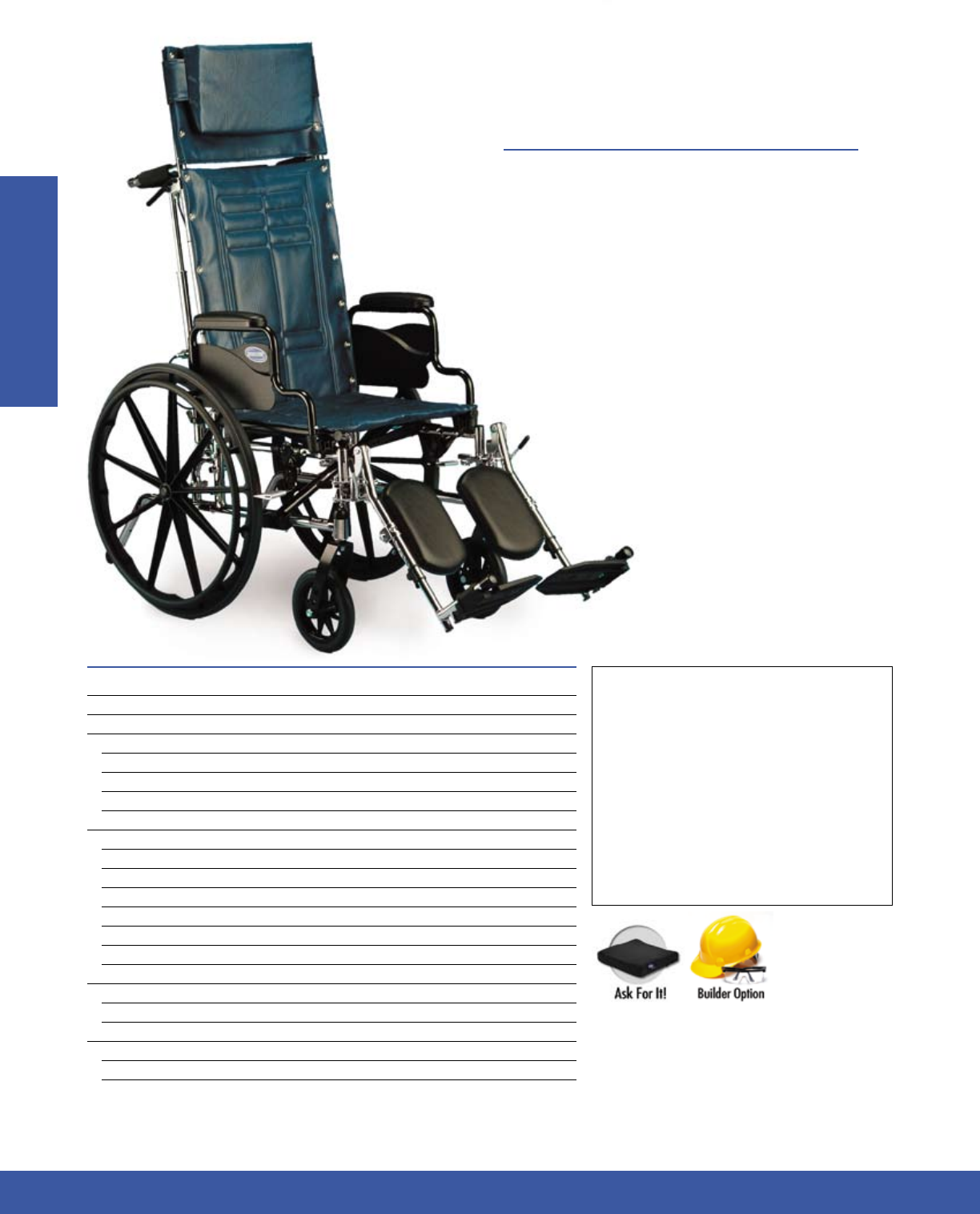

Invacare® Tracer® SX5 Recliner wheelchair
offers the durability of a lightweight manual
wheelchair frame with the added versatility and
comfort of a full reclining back. The Tracer SX5
Recliner wheelchair offers dynamic recline range
from 90˚ to 180˚. This chair is available with
multiple seat widths, arm styles, front riggings,
a full range of accessories and a 300 lb. weight
capacity on 20" and 22" widths.
• Dynamic range of recline from 90˚ to 180˚
• Durable, low-maintenance, triple chrome-plated carbon steel frame
• Urethane rear tires, mounted on “no flex“ wheels, offer superior
performance
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Upholstery is dual-embossed
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® Tracer® SX5 Recliner
Wheelchair
10 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-b.png)
K0004
SPECIFICATIONS
Model Numbers 9SL
HCPCS K0004
Chair Dimensions
Seat width 16", 18", 20"
Seat depth 16", 18"
Back height 15"-17", 17"-19"
Seat-to-floor height 15.5", 16.5", 17.5", 18.5", 19.5"
Overall Dimensions
Overall width 23", 25"
Folded width 15"
Overall depth w/o riggings 30"
Overall height 36"
Weight w/o riggings 33 lb.
Weight capacity 250 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 6", 8"
Wheel height 20", 22", 24"
Shipping
Box weight 43 lb.
Box dimensions (LxWxH) 32" x 13" x 37"
Note: All specifications are approximate

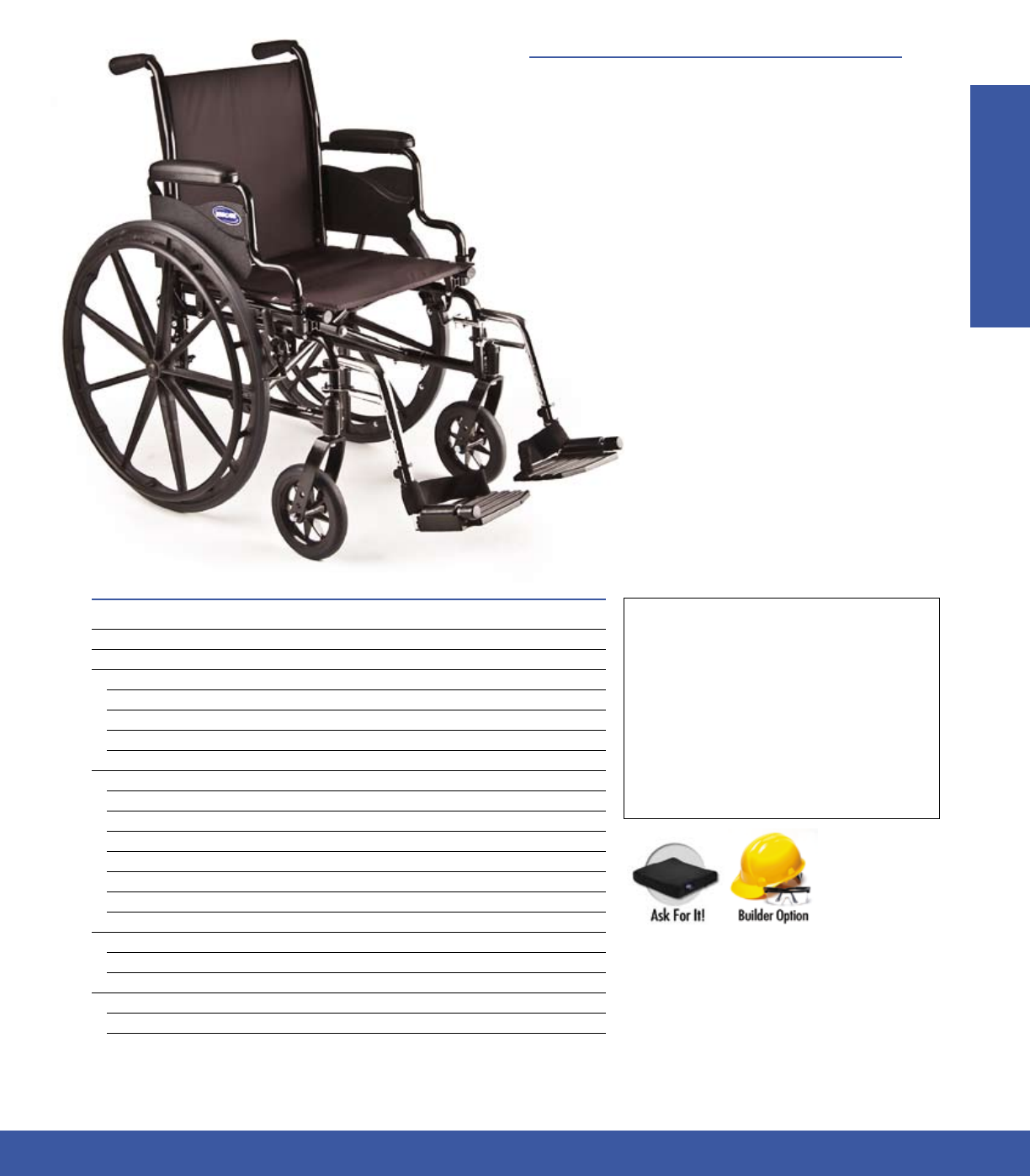

Invacare® 9000 SL wheelchair is the perfect
high-strength lightweight rental product
for those who want quality and durability
at a moderate price. This low-maintenance
wheelchair also has a full complement of options
and accessories. Its contemporary design and
high-performance frame make the 9000 SL
wheelchair a superior value.
• Stylish, contemporary carbon steel frame is long-lasting
• Multiple frame color variations for customizing
• Dual axle positions allow variations of seat-to-floor heights
• Urethane rear tires mounted on “no flex“ wheels offer superior
performance
• Urethane casters for better ride and lighter weight
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Space-saver arms reduce overall frame width without limiting
seat width
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® 9000 SL Wheelchair
Invacare Customer Service (800) 333-6900 www.invacare.com 11
![](asset-c.png)
SPECIFICATIONS
Model Numbers 9XT
HCPCS K0004
Chair Dimensions
Seat width 14", 15", 16", 17", 18", 19", 20", 22"
Seat depth 16", 17", 18"
Back height 15", 16", 17", 18", 19"
Seat-to-floor height 13.5", 14.5", 15.5", 16.5", 17.5", 18.5", 19.5"
Overall Dimensions
Overall width 21", 22", 23", 25", 27", 29"
Folded width 12"
Overall depth w/o riggings 28"
Overall height 36"
Weight w/o riggings 31 lb.
Weight capacity 250 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 6", 8"
Wheel height 20", 22", 24"
Shipping
Box weight 39 lb.
Box dimensions (LxWxH) 32" x 13" x 37"
Note: All specifications are approximate

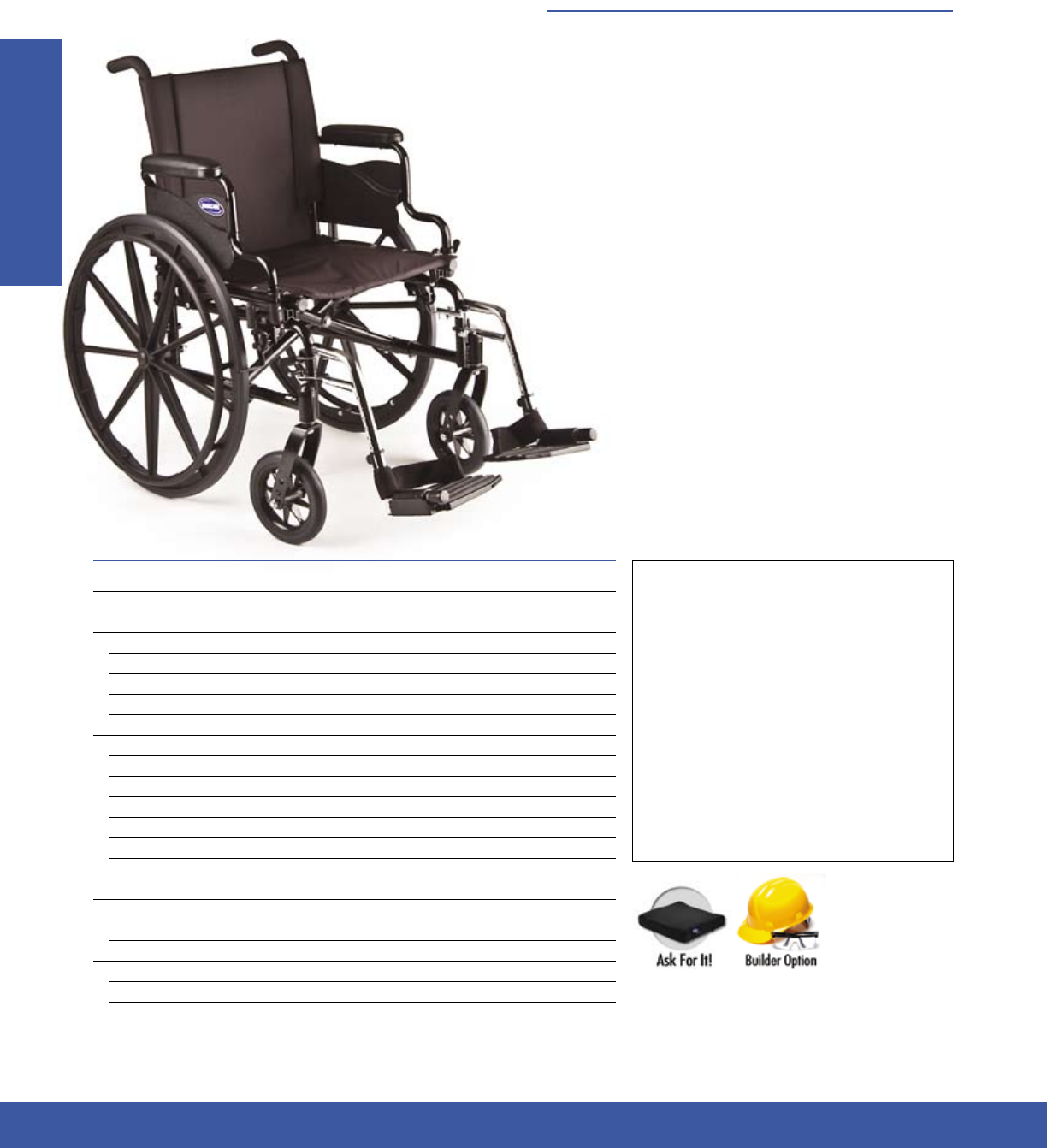

Invacare® 9000 XT wheelchair is a high
performance, low maintenance and low total
lifetime cost product. The 9000 XT wheelchair is
simply the most versatile lightweight wheelchair
available from Invacare, boasting an extensive
offering of frame styles, seat-to-floor heights,
back styles, widths, depths, frame colors and a
wide range of options and accessories. The 9000
XT wheelchair components are interchangeable
with all other 9000 series and Invacare® Tracer®
series chairs.
• Stylish, contemporary carbon steel frame with aluminum crossbraces
• Multiple frame color variations for customizing
• Dual axle positions allow variation of seat-to-floor heights
• Offset axle position allows adjustment of center-of-gravity to increase
maneuverability or stability to meet each user’s skill level
• Urethane rear tires mounted on “no flex“ wheels offer superior
performance
• Urethane casters for better ride and lighter weight
• Adjustable caster journal can be used with or without offset axle
option (Refer to service manual for a complete list of seat-to-floor
heights and angles that are reconfigurable only by the provider)
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® 9000 XT Wheelchair
K0004
12 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-d.png)
Invacare Customer Service (800) 333-6900 www.invacare.com 13
![](asset-e.png)
SPECIFICATIONS
Model Numbers 9RC
HCPCS K0004 & E1226
Chair Dimensions
Seat width 14", 16", 18", 20", 22"
Seat depth 16", 17", 18"
Back deight 34" (24" Back, 10" Removeable Headrest)
Seat-to-floor Height 17.5", 18.5", 19.5"
Overall Dimensions
Overall width 23", 25", 27", 28", 29", 31"
Folded width 17"
Overall depth w/o riggings 32"
Overall height 52"
Weight w/o riggings 50 lb.
Weight capacity 250 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 8"
Wheel height 20", 22", 24"
Shipping
Box weight 42 lb.
Box dimensions (LxWxH) 32" x 13" x 37"
Note: All specifications are approximate

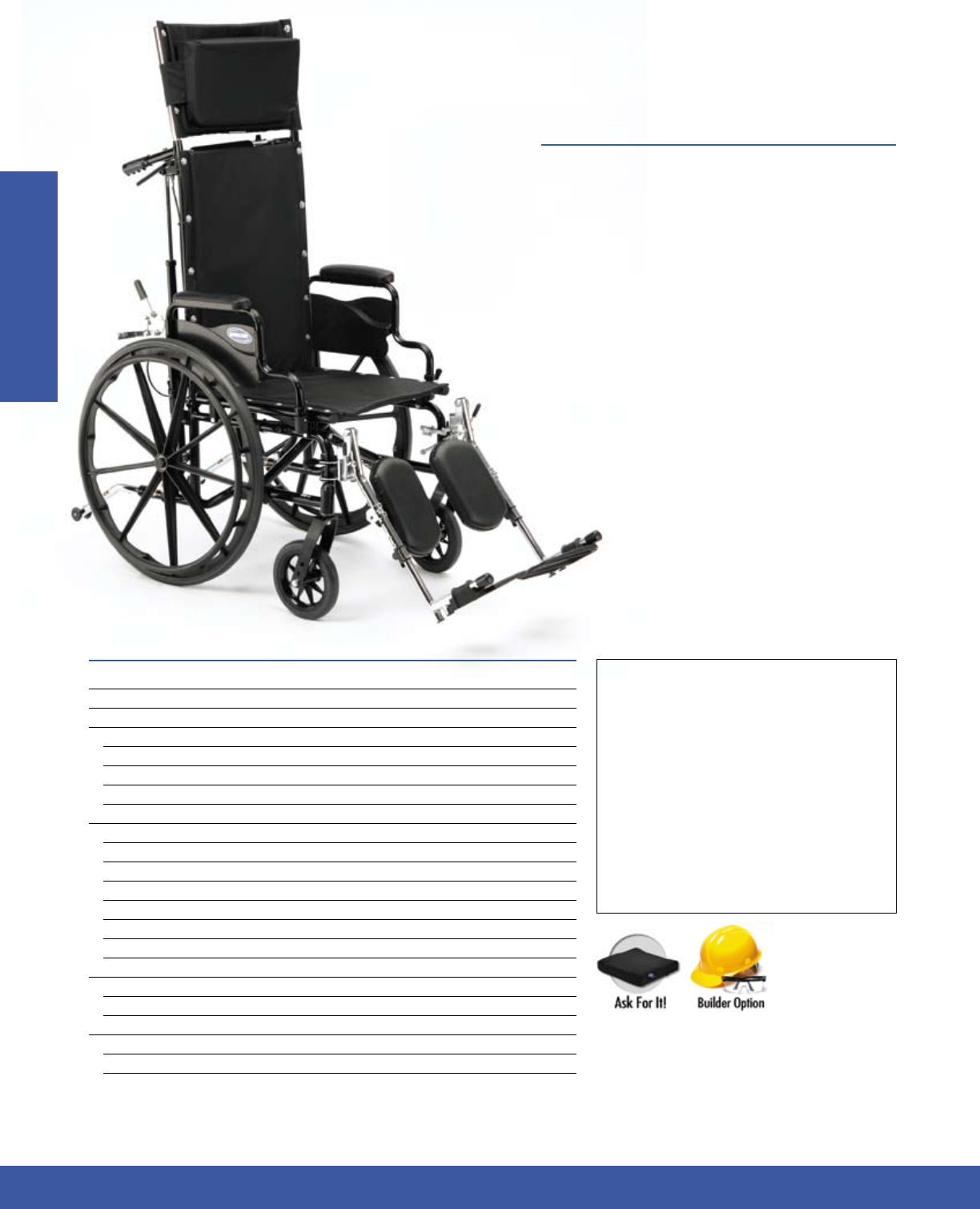

Invacare® 9000 XT Recliner wheelchair
is the number one choice for individuals who
demand a truly versatile, yet moderately
priced, lightweight wheel chair. The 9000 XT
Recliner wheelchair can be configured into an
endless number of seat widths, depths and
heights, and has multiple frame and upholstery
options. Components and accessories are
interchangeable with the other 9000 series
chairs.
• Stylish, contemporary carbon steel frame is long lasting
• Dynamic recline range from 95˚ to 175˚, +/- 5˚
• Rear axle base moves, providing stable center-of-gravity in recline
position
• Multiple frame color variations for customizing
• Multiple wheel offerings allow variation of seat-to-floor heights
• Urethane rear tires mounted on“no flex“ wheels offer superior
performance
• Urethane casters for better ride and lighter weight
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Stocked with attendant (standard) or patient-operated wheel locks
• Meets RESNA standards for manual wheelchairs in product
performance
FEATURES
Invacare® 9000 XT Recliner
Wheelchair
K0004 & E1226
14 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-f.png)
K0004
SPECIFICATIONS
Model Numbers IN66AHAN, IN86AHAN, IN88AHAN, IN08AHAN
HCPCS K0004
Chair Dimensions
Seat width 16", 18", 20"
Seat depth 16", 18"
Back height 15", 16", 17", 18", 19"
Seat-to-floor height 16.5", 17.5", 18.5", 19.5"
Overall Dimensions
Overall width 23.5", 25.5", 27.5"
Folded width 12"
Overall depth w/o riggings 31"
Overall height —
Weight w/o riggings 33 lb.
Weight capacity 250 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 6", 8"
Wheel height 22", 24"
Shipping
Box weight 52 lb.
Box dimensions (LxWxH) 33" x 12.5"x 35"
Note: All specifications are approximate

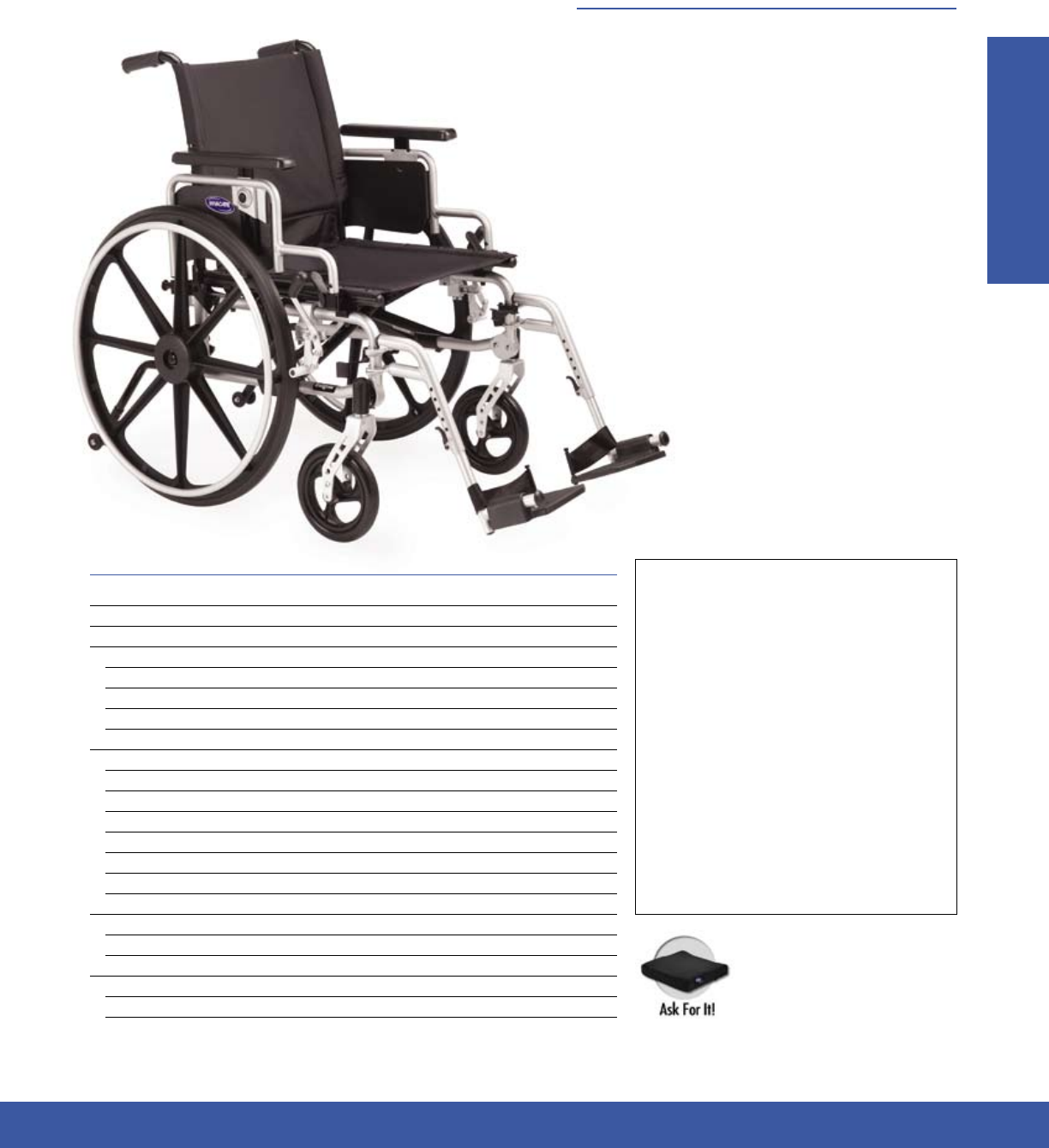

Invacare® Insignia™ wheelchair is soon to
become the high-strength lightweight chair
of choice for providers and patients alike. The
simplicity of the arm design allows them to be
converted from desk to full length with ease.
Providers can now stock one chair that functions
as two. Other standard features include a
robust wheel lock, intuitive adjustable head
tube design, sleek caster fork and adjustable
angle back. Patients will enjoy having a stylish,
lightweight chair that is easy to use and adjusts
to their specific needs. The Insignia wheelchair
has it all in one package.
• Lightweight, aluminum frame
• Quick release axles
• Swingaway footrests
• Push-button, height adjustable arms that offer desk-to-full
length convertibility
• Height and angle adjustable back includes spring-loaded, flip-up
anti-tippers
• Adjustable angle caster journal
• Stock models for quick ship convenience
FEATURES
Invacare® Insignia™ Wheelchair
Invacare Customer Service (800) 333-6900 www.invacare.com 15
![](asset-10.png)
K0004
16 Invacare Customer Service (800) 333-6900 www.invacare.com
SPECIFICATIONS
Model Numbers PATRIOT
HCPCS K0004
Chair Dimensions
Seat width 14", 16", 17", 18", 20"
Seat depth 16", 18"
Back height 15" - 20"
Seat-to-floor height 15.5", 16.5", 17.5", 18.5", 19.5"
Overall Dimensions
Overall width —
Folded width 21.5", 23.5", 24.5", 25.5", 27.5"
Overall depth w/o riggings 11.75"
Overall height —
Weight w/o riggings 29 lb.
Weight capacity 250 lb.
Limited warranty (mo.) LIFETIME
Casters and Wheels
Caster height 6", 8"
Wheel height 20", 22", 24"
Shipping
Box weight 29 lb.
Box Dimensions (LxWxH) 40" x 13" x 26"
Note: All specifications are approximate

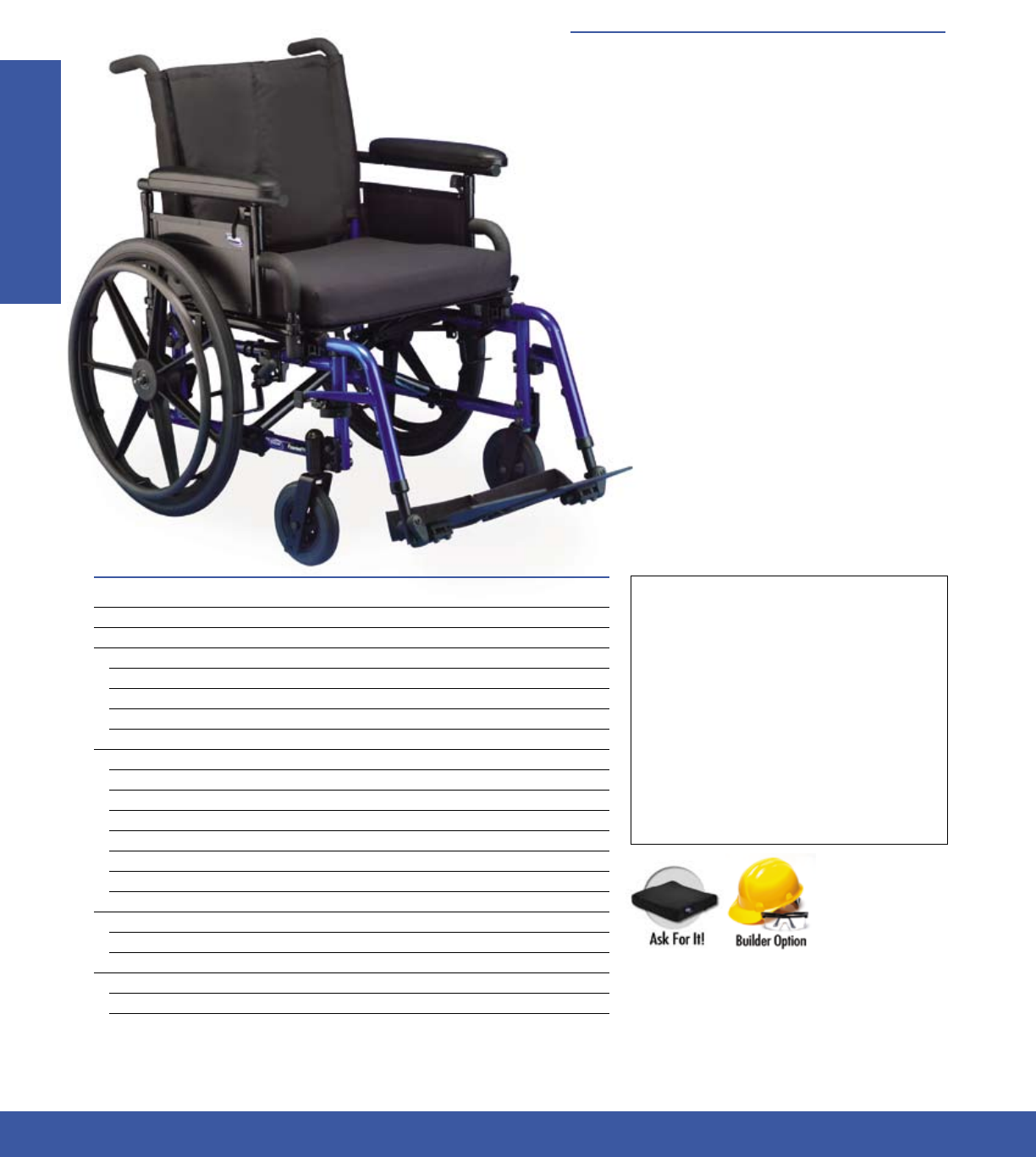

Need a lightweight folding chair with
adjustability and reliable performance at an
economical price? The Invacare® Patriot™
wheelchair is the model of choice. The classic
manual rehab wheelchair offers valuable
features including a lightweight, aluminum
frame; adjustable seat-to-floor heights; durable
center mount front riggings; and adjustable
angle head tubes all in compact folding design.
• Lightweight, aluminum frame
• Adjustable seat-to-floor height and rear axle positions
• Adjustable angle head tubes
• Durable center mount riggings
• Extra smooth precision head tube bearings
• Compact for transport (11.75" wide folded with wheels)
• Adjustable-height back available in 1" increments, 15"-19"
• Multiple arm, footplate and tire options
• 21 color options
• Quick-release axle option
FEATURES
Invacare® Patriot™ Wheelchair
![](asset-11.png)
K0007
SPECIFICATIONS
Model Numbers T420, T422, T424, T4X22, T4X24
HCPCS K0007
Chair Dimensions
Seat width 18", 20", 22", 24"
Seat depth 18", 20"
Back height 16"
Seat-to-floor height 17.5", 19.5"
Overall Dimensions
Overall width 29"
Folded width 13"
Overall depth w/o riggings 30"
Overall height 36"
Weight w/o riggings 42 lb.
Weight capacity 350 lb., 450 lb.
Limited warranty (mo.) 60 months
Casters and Wheels
Caster height 8"
Wheel height 24"
Shipping
Box weight 53 lb.
Box dimensions (LxWxH) 32" x 13" x 37"
Note: All specifications are approximate

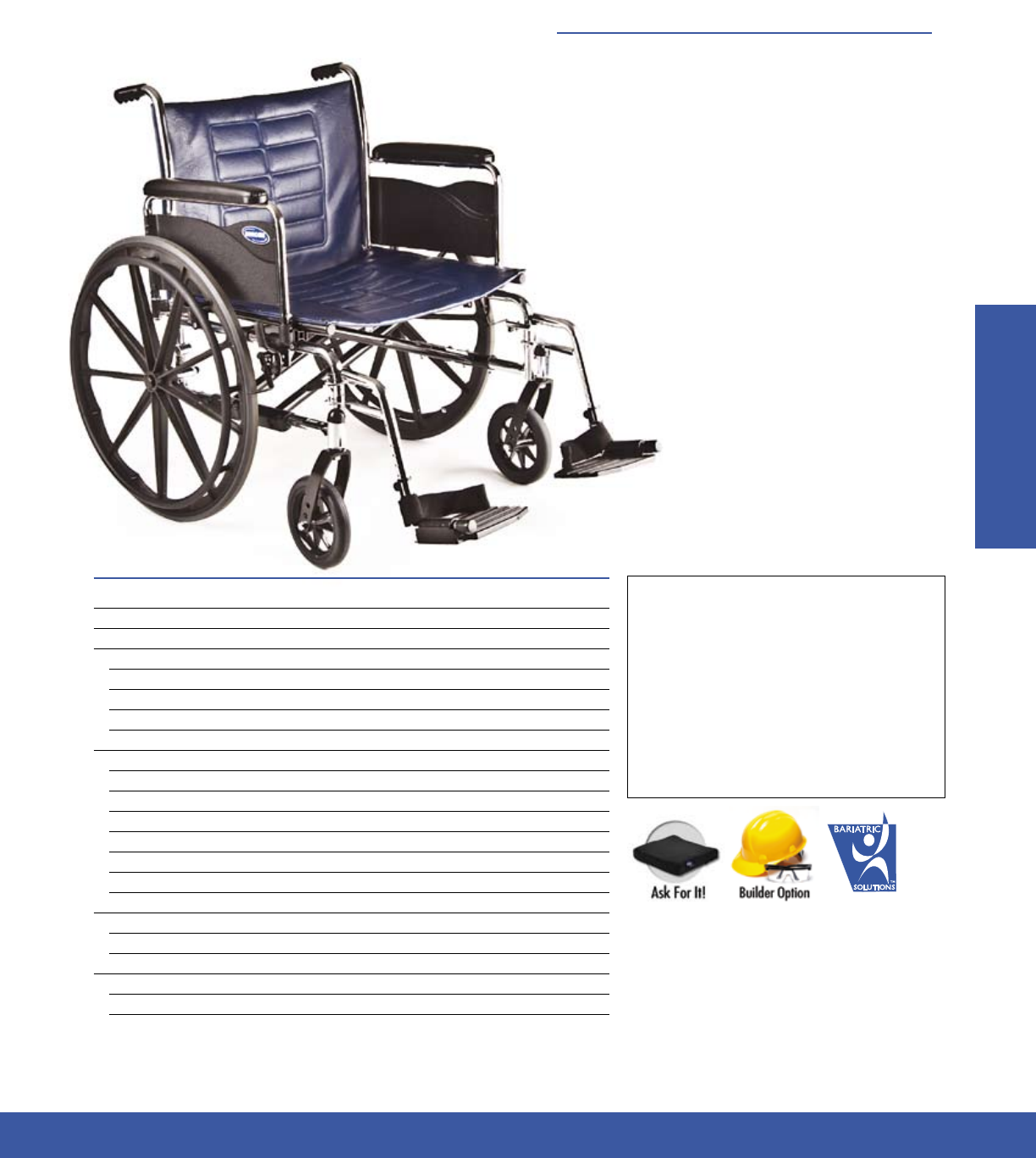

Invacare® Tracer® IV wheelchair features
superior durability, rollability and streamlined
looks. It is designed for the active individual
who needs the strength of a reinforced
heavy-duty frame. Its many options include
components interchangeable within the Tracer
series. The Tracer IV wheelchair is long-
lasting and low-maintenance.
• Dual axle position allows variation of seat-to-floor heights
• Durable, low-maintenance, triple chrome-plated carbon steel frame
is long-lasting
• Reinforced frame includes gussetted sides, caster journals and dual
crossbraces
• Corded urethane rear tires (350 lb.) and pneumatic flat free tires
(450 lb.) mounted on “no flex“ wheels offer superior performance
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
• Upholstery is dual-embossed
FEATURES
Invacare® Tracer® IV Wheelchair
Invacare Customer Service (800) 333-6900 www.invacare.com 17
![](asset-12.png)
SPECIFICATIONS
Model Numbers 9XDT
HCPCS K0007
Chair Dimensions
Seat width 16", 17", 18", 19", 20", 22"
Seat depth 16", 17", 18", 19", 20"
Back height 15"-19", 14"-18"
Seat-to-floor height 17.5", 19.5", 21.5"
Overall Dimensions
Overall width 23", 25", 27", 29"
Folded width 13"
Overall depth w/o riggings 29"
Overall height 36"
Weight w/o riggings 37 lb.
Weight capacity 350 lb.
Limited warranty 60 months
Casters and Wheels
Caster height 8"
Wheel height 24"
Shipping
Box weight 55 lb.
Box dimensions (LxWxH) 34" x 13" x 39"
Note: All specifications are approximate
• Durable, low-maintenance carbon steel frame is long-lasting
• Tall frames are designed to accommodate taller individuals and
provide a more comfortable ride
• Multiple frame color variations for customizing
• Triple-axle positions allow wide variation of seat-to-floor heights
• Urethane rear tires mounted on “no flex“ wheels offer superior
performance
• Urethane casters for better ride and lighter weight
• Low-maintenance, dual-sealed precision bearings
• Heavy-duty inner liners keep seat and back from stretching
FEATURES

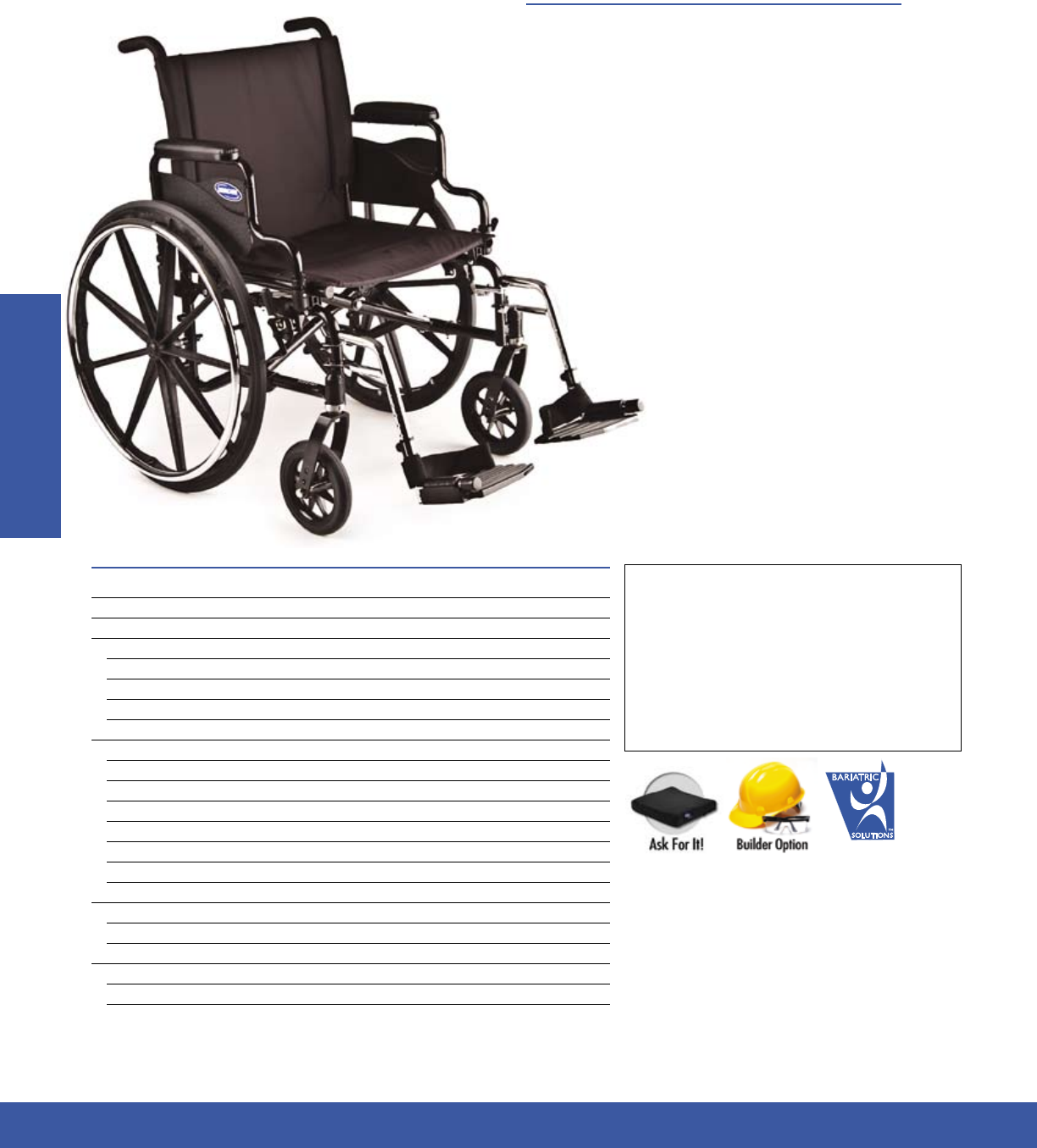

Invacare® 9000 XDT Wheelchair
Invacare® 9000 XDT wheelchair is designed
for individuals who demand an extra wide, heavy-
duty or tall chair with seat-to-floor heights ranging
from hemi through tall. The high-performance 9000
XDT wheelchair provides a 350 lb. weight capacity
and the components are interchangeable with the
other 9000 series wheelchairs.
K0007
18 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-13.png)
SPECIFICATIONS
Model Numbers 9TPZ
HCPCS K0007
Chair Dimensions
Seat width 20", 22", 24", 26", 28", 30"
Seat depth 18", 20"
Back height 16"-18"
Seat-to-floor height 15.5", 17.5", 19.5"
Overall Dimensions
Overall width 39"
Folded width 16"
Overall depth w/o riggings 30"
Overall height 32"
Weight w/o riggings 85 lb.
Weight capacity 700 lb., 1000 lb.
Limited warranty 36 months
Casters and Wheels
Caster height 6", 8"
Wheel height 20", 24"
Shipping
Box weight 97 lb.
Box dimensions (LxWxH) 35" x 15" x 46.5"
Note: All specifications are approximate

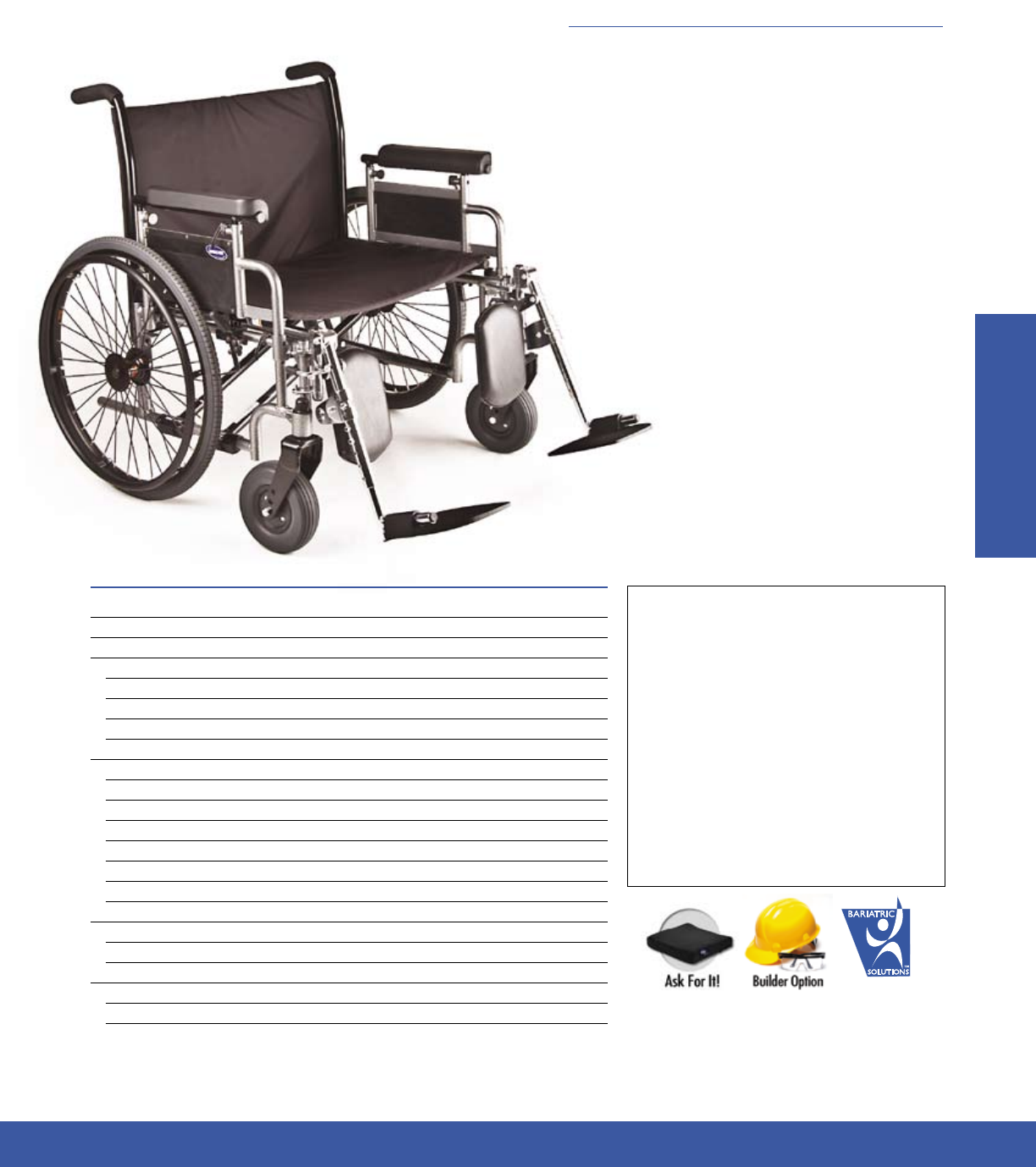

Invacare® 9000 Topaz™ wheelchair is
designed specifically to suit the unique needs
of bariatric patients. The Topaz wheelchair
combines the strength and durability of a carbon
steel frame with the comfort of heavy-duty
front riggings and arms for proper positioning.
With a variety of seat widths and depths,
frame reinforcements that include gussetted
sides, caster journals and dual heavy-duty
crossbraces, this chair provides not only ease in
maneuverability but proven stability.
• Available in vinyl or nylon upholstery
• Durable low-maintenance, carbon steel frame is long-lasting
• Reinforced frame includes gussetted sides, caster journals and dual
heavy-duty crossbraces
• Multiple frame color variations available for customizing
• Heavy-duty front riggings provide proper positioning for feet with
footrest and elevating legrest
• Heavy-duty arms designed to accommodate weight capacity and
provide proper positioning
• Dual axle positions allow for quick and simple seat-to-floor height
variations, 17.5" and 19.5"
• HDPG option for 1,000 lb. weight capacity
• Heavy-duty triple inner liners keep seat and back from stretching
FEATURES
Invacare® 9000 Topaz™ Wheelchair
Invacare Customer Service (800) 333-6900 www.invacare.com 19
K0007
![](asset-14.png)
E1236
SPECIFICATIONS
Model Numbers 9JYLT
HCPCS E1236
Chair Dimensions
Seat width 10", 12", 14", 16"
Seat depth 10", 12", 14"
Back height 14"-15"
Seat-to-floor height 15", 16", 17"
Overall Dimensions
Overall width 21"
Folded width 14"
Overall depth w/o riggings 30"
Overall height 32"
Weight w/o riggings 31 lb.
Weight capacity 125 lb.
Limited warranty 60 months
Casters and Wheels
Caster height 6"
Wheel height 20", 22"
Shipping
Box weight 54 lb.
Box dimensions (LxWxH) 32" x 14" x 38"
Note: All specifications are approximate
• Durable, carbon steel frame is long-lasting
• Stroller handles provide ergonomic positioning for caregiver
and remove for ease in transporting
• Adjustable front riggings provide ideal positioning for
pediatric clients
• Urethane rear tires mounted on “no flex" wheels offer
superior performance
• Virtually no-maintenance, dual-sealed precision bearings
• Dual-axle positions allow for quick and simple seat-to-
floor height adjustments of 15" and 16"
• Seat width and depth options provide proper positioning
• Adjustable angle back easily changes from -5˚to 20˚ in 5˚
increments
• Meets RESNA standards for manual wheelchairs in
product performance
FEATURES

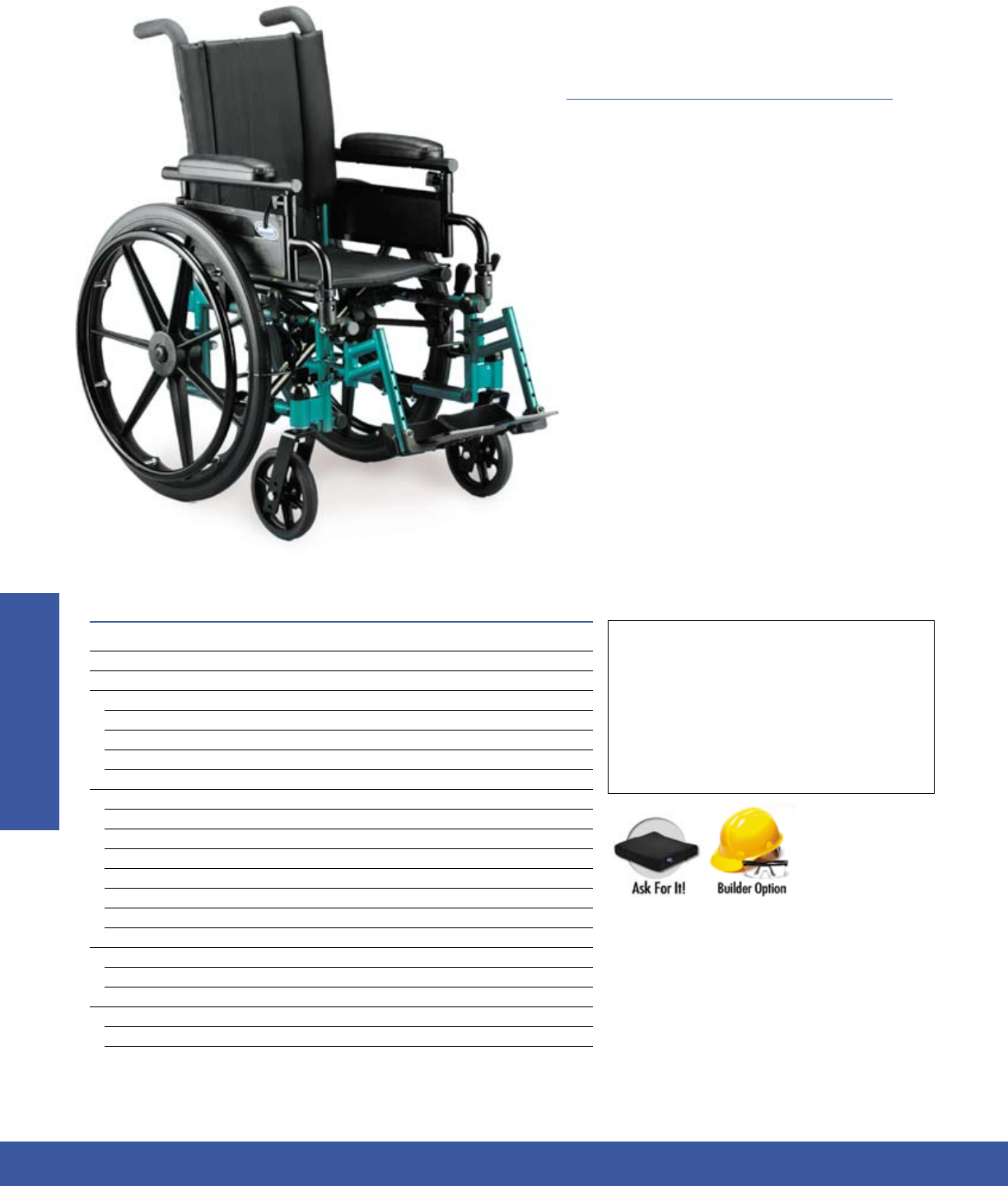

Invacare® 9000 Jymni™ Wheelchair
Invacare® 9000 Jymni™ wheelchair offers
your growing list of pediatric clients versatility,
functionality and maneuverability. This chair is
specifically designed to suit the needs of your
smaller clients and offers features like a durable
carbon-steel frame and easy adjustability.
20 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-15.png)
E1236/E1226
SPECIFICATIONS
Model Numbers 9JYLTR
HCPCS E1236/E1226
Chair Dimensions
Seat width 10", 12", 14", 16"
Seat depth 10", 12", 14"
Back height 27" (16" Back, 11" Removeable Headrest)
Seat-to-floor height 15", 16", 17"
Overall Dimensions
Overall width —
Folded width —
Overall depth w/o riggings —
Overall height —
Weight w/o riggings 40 lb.
Weight capacity 125 lb.
Limited warranty 60 months
Casters and Wheels
Caster height 8"
Wheel height 24"
Shipping
Box weight 54 lb.
Box dimensions (LxWxH) 32" x 14" x 38"
Note: All specifications are approximate
• Durable, carbon steel frame is long-lasting
• Dynamic recline from 95˚ to 160˚
• Stroller handles provide ergonomic positioning for
caregiver and remove for ease in transporting
• Adjustable front riggings provide ideal positioning for
pediatric clients
• Seat width and depth options provide proper
positioning
• Meets RESNA standards for manual wheelchairs in
product performance
FEATURES
Invacare® 9000 Jymni™ Recliner
Invacare® 9000 Jymni™ Recliner
wheelchair offers your growing list of
pediatric clients versatility, functionality and
maneuverability, with the added comfort of
a reclining back. This chair is specifically
designed to suit the needs of your smaller
clients and provides features like a variety of
width and depth options, a recline range of 95˚
to 160˚ and multiple frame color options.
Invacare Customer Service (800) 333-6900 www.invacare.com 21
![](asset-16.png)
Invacare Customer Service (800) 333-6900 www.invacare.com

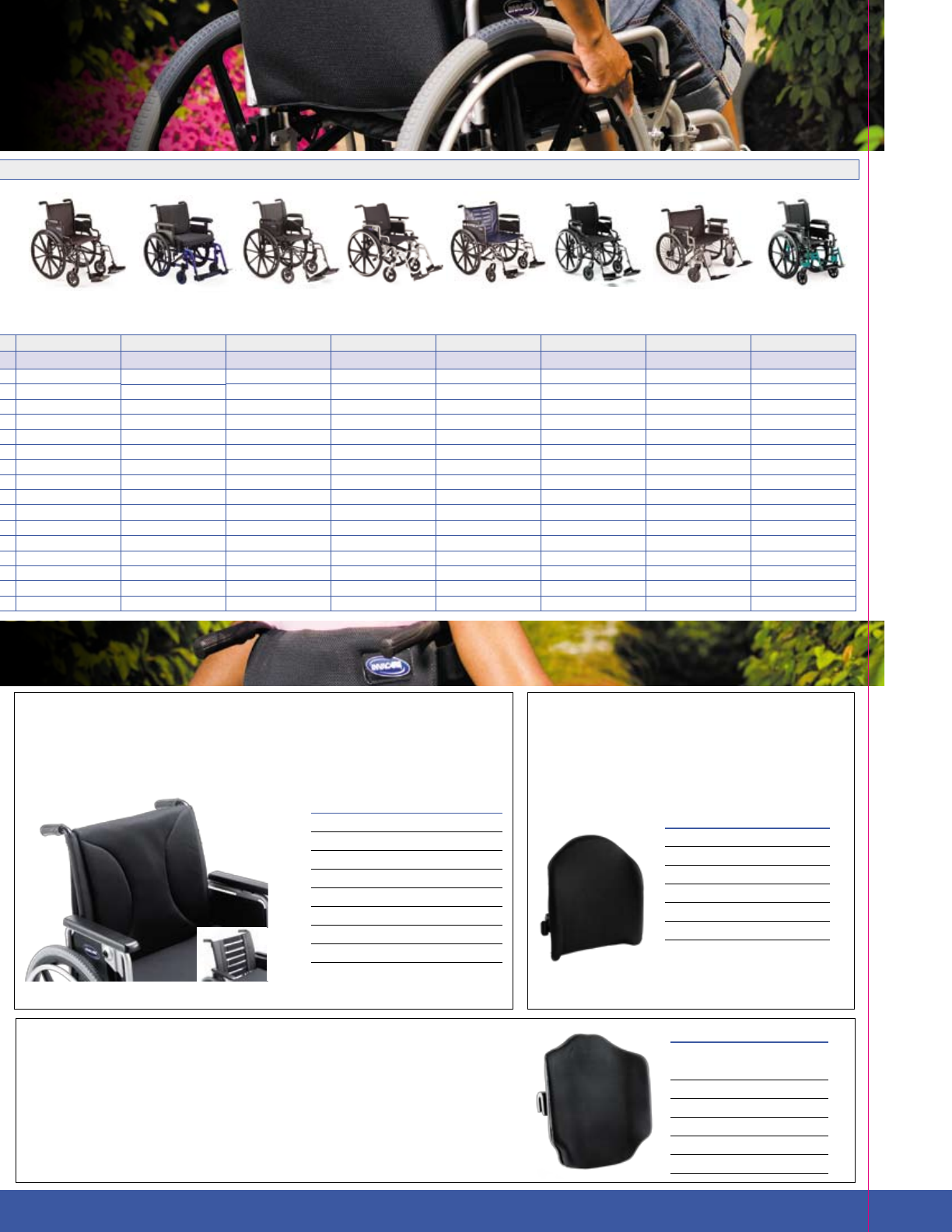

The new adjustable tension Invacare® Versair™ Back is
designed for positioning and comfort, offering versatile
and clinically beneficial solutions when standard sling
upholstery does not meet an individual’s need. Wide
tension straps are easily adjustable to accommodate
positioning requirements with maximum support. They
can be adjusted taut in the lower back for optimal sacral
support or relaxed in the upper back to accommodate a
thoracic kyphosis. The padded back upholstery uses mesh
fabric for added comfort and improved airflow between
the user and the back.
INVACARE®
Backs & Cushion Options
22 Invacare Customer Service (800) 333-6900 www.invacare.com
![](asset-17.png)
Specifications
Width 16" 18" 20"
Height
16" 16"- 20"
20" 16"- 20"
Weight capacity 300 lb.
Limited warranty 1 year
HCPCS Code
E2611

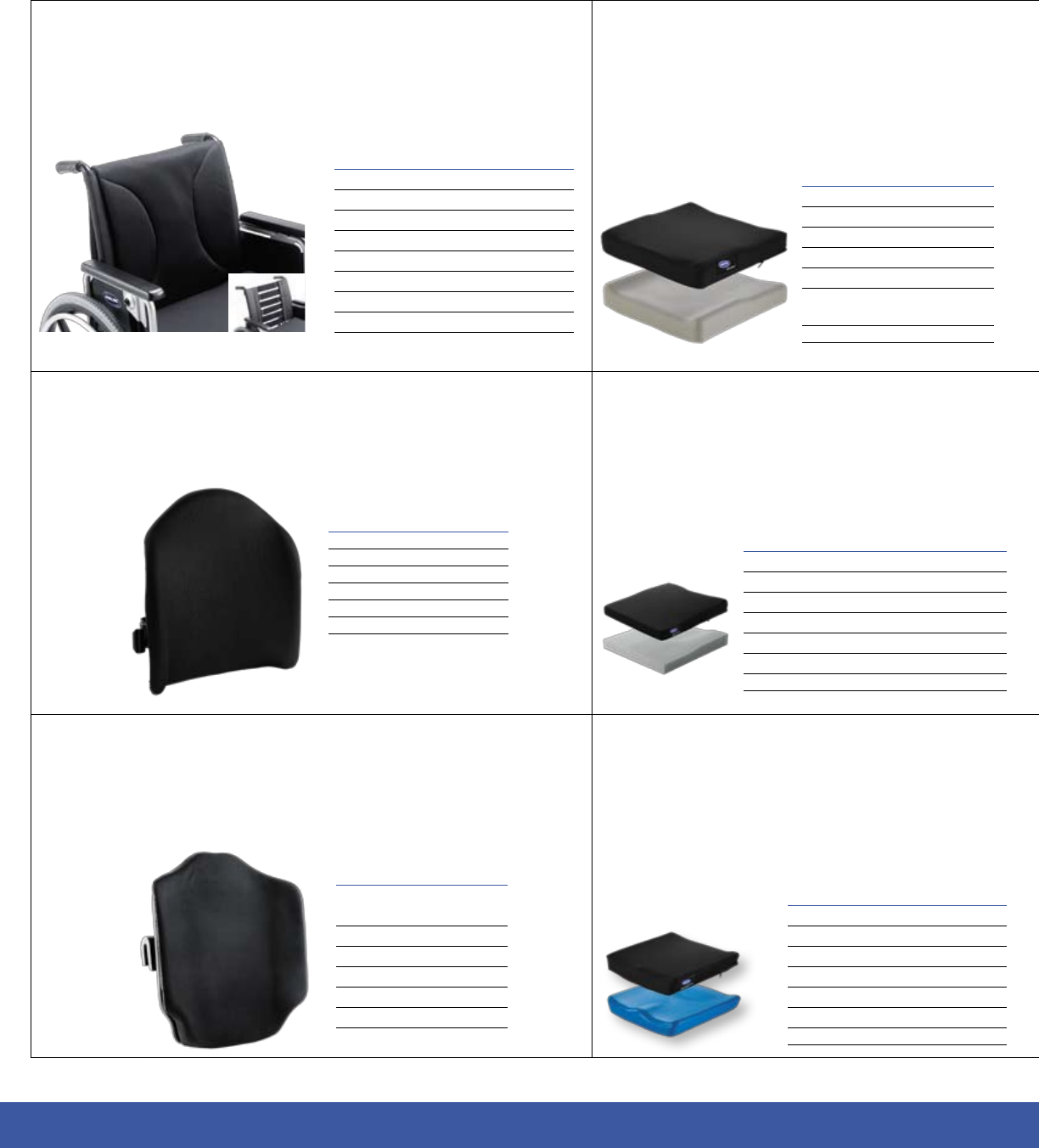

The Invacare® Matrx® Genera™ Back provides support and comfort at
a price so affordable that no wheelchair user needs to make do with sling
upholstery.
The Invacare® Versair™ Back is designed for positioning and comfort,
offering versatile and clinically beneficial solutions when standard sling
upholstery does not meet an individual’s need.
The Invacare® Propel™ Back is so lightweight and comfortable
consumers will forget it’s there. Hardware installation is no longer a hassle:
just grab it, set it and go. The Invacare Propel Back provides a stable
surface for propulsion and completion of daily living activities.
Specifications
Width 16"- 21"
(in 1" increments)
Height 16.5"
Depth adjustment 1.75"
Angle adjustment up to 27°
Weight limit 300 lb.
Limited warranty 2 years
HCPCS Code
E2611
Specifications
Width 16"- 26"
Height
Regular 15"- 17"
Tall 17"- 19"
Weight limit
16"-21" 300 lb.
21"-26" 500 lb.
Limited warranty 2 years
For individuals with mild to moderate seating needs, the
Invacare® Absolute™ Cushion offers simple, but highly
functional solutions. This cushion is designed to provide basic
comfort using highly resilient foam and is intended for individuals
who are able to do their own weight shift for pressure relief.
HCPCS Code
E2601
Specifications
Width: 16"-20"
Depth: 16"-18"
A. Height at adductor 3.25"
B. Height at abductor 2.25"
C. Height at rear 2"
Cushion weight 2 lb.
approximately
Limited warranty 1 year
Specifications
Width 10"-24"
Depth 7"-20"
A. Height at rear 2"
B. Height at rear (center) 1.5"
C. Height at front 2.5"
Cushion weight approximately 2 lb.
Limited warranty 1 year
For individuals with mild to moderate seating needs, the
Invacare® Single Density Cushion offers simple, but highly
functional solutions. This cushion is designed to provide basic
comfort using highly resilient foam for pediatrics to geriatrics
who are able to do their own weight shift for pressure relief.
HCPCS Code
E2601/E2602
HCPCS Code
E2603/E2604
For individuals with mild to moderate seating needs, the
Invacare® Comfort-Mate Extra Cushion goes one step further
with a comfortable, molded design and a durable moisture-resistant
coating. Ideal for individuals who are able to do their own weight
shifts for pressure relief, who need comfort, stability, gentle
positioning and some protection.
Specifications
Width 14" – 22"
Depth 14" – 20"
A. Height at adductor 2.625"
B. Height at abductor 3.0"
C. Height at leg trough 2.25"
Cushion weight approximately 2.3 lb.
Limited warranty 1 year
Mesh fabric effectively dissipates heat and moisture.
HCPCS Code
E2611/E2612
Why Invacare® General Use Backs and Cushions?
As the premier brand in the home health care industry, Invacare continues to be committed to meeting both the needs of customers
and consumers worldwide with Invacare's standard wheelchair products. Invacare general use seat cushions and backs are available
without a qualifying diagnosis.
Invacare Customer Service (800) 333-6900 www.invacare.com 23
![](asset-18.png)
INVACARE®

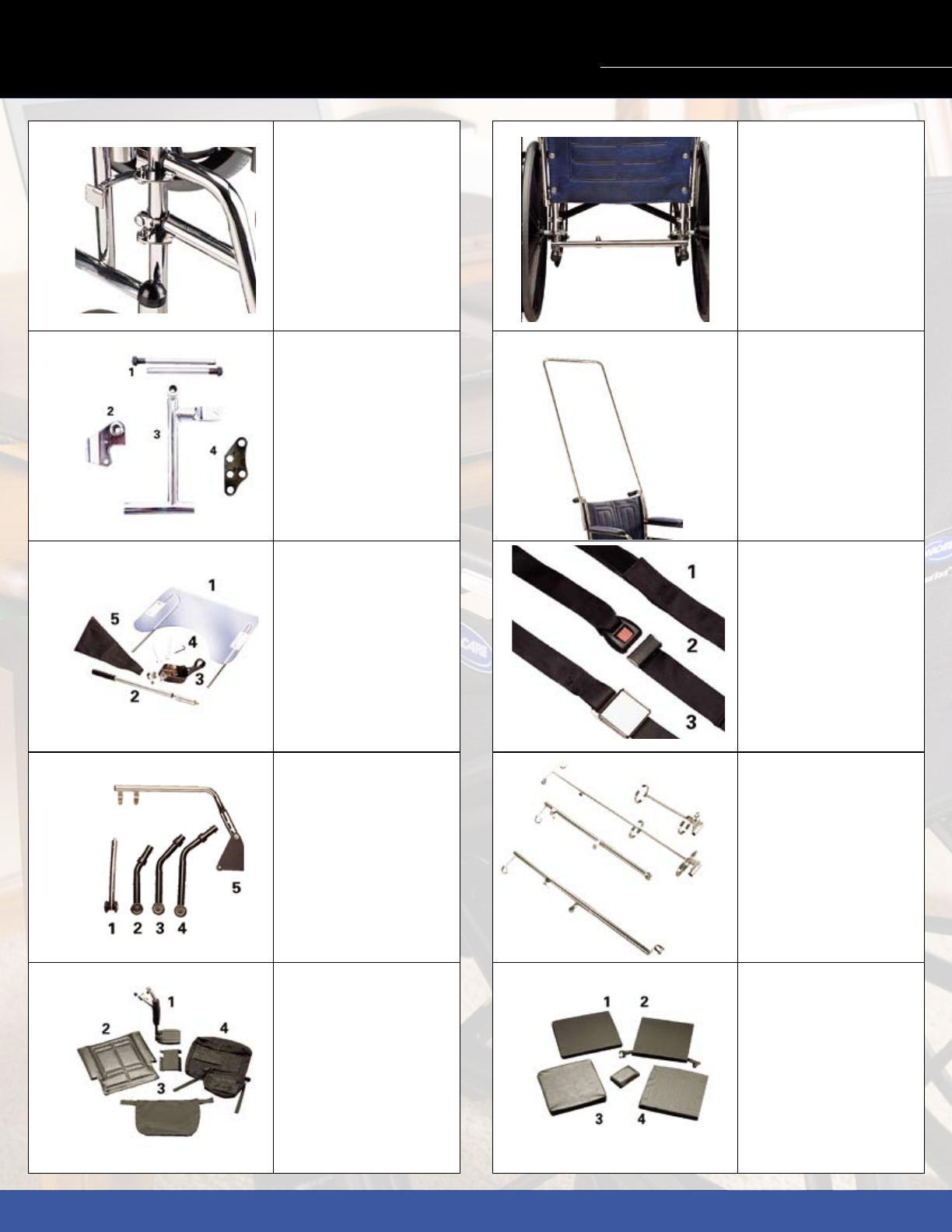

Standard Manual Wheelchair Accessories
24 Invacare Customer Service (800) 333-6900 www.invacare.com
Accessories
1. 1300: Utility Tray
2. 1209: Tire Pump
3. 1305L: Crutch & Cane Carrier
4. 1100: Tool Kit
5. 1571: Fabric Clothing Protectors
Front Riggings
1820: Front Rigging Non-removable
Device
Axles
1. 1577QR: Quick Release
2. 9357SH: Super Low Amputee
Attachment
3. 9357L: Amputee Attachment
4. OFFAXL: Off Axle
Non-folding Device
• 1335: (14"-22" w)
• 1335XL: (24"-30" w)
Overhead Anti-Theft Device
1514
Seat/Chest Positioning Straps
1. 1321BK/7321BK: Hook and Loop
2. 1515: Auto Style Buckle
3. 1311BK/7311BK: Airline Buckle
IV/O2 Holders
1. 1497: O2 Holder Package Assembly
2. 1496: IV/O2 Holder Package Assembly
3. 2218: IV Rod, Telescopic
4. 2219: IV Rod, Telescopic
1322SXR: IV Rod and Bracket
Upholstery
1. 9130: Solid Back Insert
2. 9662L: Solid Seat Insert
3. 9120: Solid Seat Insert
4.1608: Solid Back Insert
Anti-Tippers
1. 9758: Rear Anti-Tippers
2. 1360SH: Super Low Adjustable
3. 1360A: Adjustable Rear Anti-Tippers
4. 1360: Adjustable Rear Anti-Tippers
5. 2226: Front Anti-Tippers
Upholstery
1. ImpactG: Impact Guards
2. STC: Stencil Back Upholstery
3. 1160: Seat Pouch
4. BP-02: Backpack
(shown in Large 16" and Small 14"-16")
1
2
3
4
![](asset-19.png)
Invacare Customer Service (800) 333-6900 www.invacare.com 25

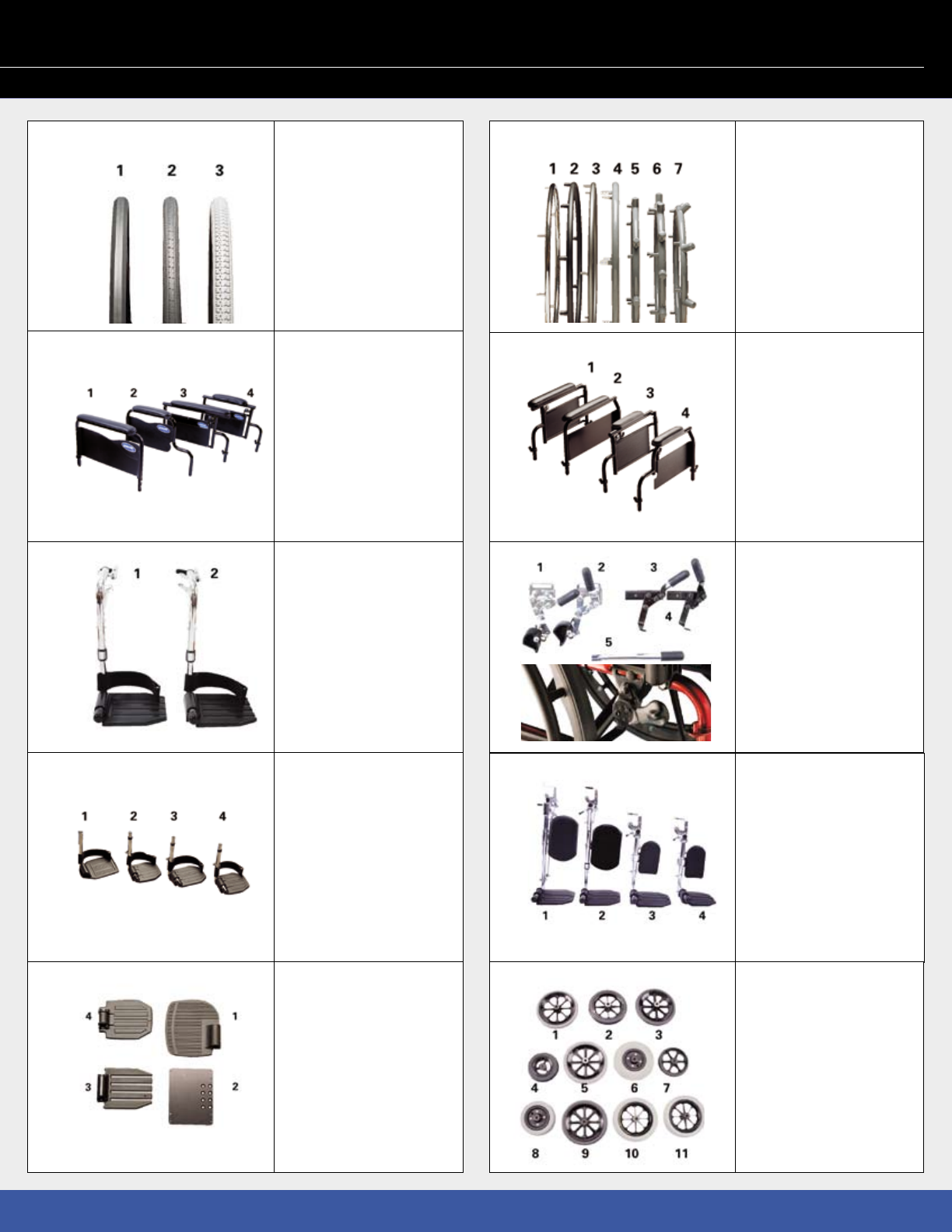

Tires
1. Urethane
2. Urethane - High Profile
3. Pneumatic - Flat-Free
All tires available in 20", 22" and 24" sizes.
Available on all chairs.
Conventional Arms
1. 18: Full-Length Fixed Height
2. 28: Desk-Length Fixed Height
3. 19: Full-Length Adjustable Height
4. 29: Desk-Length Adjustable Height
9000 Topaz Arms (Not Shown)
T18: Full-Length Fixed Height
T19: Full-Length Adjustable Height
T28: Desk-Length Fixed Height
T29: Desk-Length Adjustable Height
Available on 9000 Topaz.
Footrests
1. SH93F: Superlow Extension
Swingaway, Aluminum
2. H93M: Hemi Minimum
Swingaway, Aluminum
3. H93E: Hemi Extension Swingaway,
Aluminum
4. SH93ES: Super Low Extension
Swingaway, Aluminum
Handrims
1. CHDRM: Chrome-Plated
2. COM: Composite
3. AHDRM: Aluminum
4. 1512: Plastic Coated
5. 1225-8: 8 Aluminum Vertical
Projection Handrim Plastic
Coated
6. 1225-12: 12 Aluminum
Vertical Projection Handrim
Plastic Coated
7. 1224-8: 8 Aluminum Oblique
Projection Handrim Plastic
Coated
Lightweight Space Saver Arms
1. 79: Full-Length Adjustable Height
2. 78: Full-Length Fixed Height
3. 89: Desk-Length Adjustable Height
4. 88: Desk-Length Fixed Height
Wheel Locks
1. 9697R: Pull to Lock Hill Holder
2. 9695: Hill Holder
3. A1567: Pull to Lock Clamp-on
4. 1721: High Push to Lock Clamp
5. 1329BK: Toggle Wheel Lock Extension
Not Shown
9690: Pull to Lock – 9000 XDT
9691: Push to Lock (Hemi)
Footrests
1. T963A/C: 60˚ Elevating Footrest
Aluminum/Composite
2. T93HA/C/S: Aluminum/Composite
9000 Topaz Front Riggings (Not Shown)
TZ33A: Swingaway Footrest
TZ34A: Swingaway Elevating Legrest
Legrests
1. AHS4A: Hemi Smartleg®
Articulating Legrest, Aluminum
2. T94HA/C: Hemi Elevating Legrest
Aluminum/Composite
3. SH904MS: Superlow Elevating
Legrest, Aluminum
4. AHL4A/C: Hemi Articulating
Legrest, Aluminum/Composite
Footplates
1. 1350: Extra Large Aluminum
2. AT5543: Adjustable Angle
3. C: Composite
4. A: Aluminum
Straps (Not Shown)
1346: Heel Loops
1345: Toe Loops
1600 BK: Heel Loops with
Ankle Straps (Not Shown)
9342: H Strap
1337: Calf Strap
1348: Legrest Panel
Casters
1. 1292: 8"x1.25" Pneumatic
2. AT903: 8"x1.25" Composite Urethane
3. 1255: 8"x1" Solid Rubber
4. AT902: 6" Composite Urethane, 3 Spoke
5. 1252: 8"x1.25" Pneumatic
6. 1228: 8"x2" Semi-Pneumatic
7. 1687: 6"x1" Dark grey comp. Urethane
8. 1259: 6"x2" Semi-Pneumatic
9. 1290: 8"x1" Solid Rubber, Charcoal
10. 4252: 8"x1.25" Pneumatic with
flat-fee inserts
11. 1492: 8"x1.25" Pneumatic with
flat-fee inserts
![](asset-1a.png)

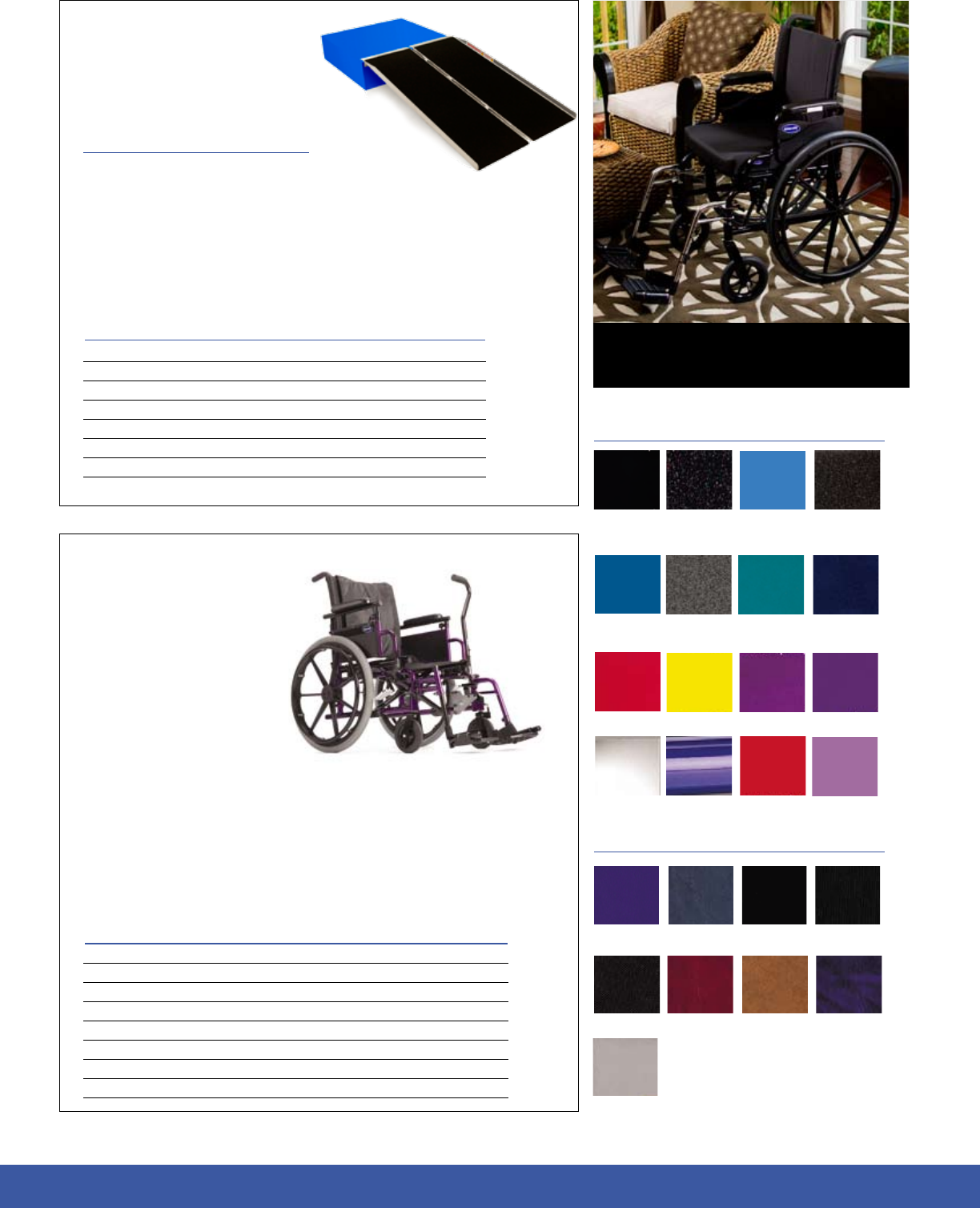

26 Invacare Customer Service (800) 333-6900 www.invacare.com
• Sturdy and dependable 600 lb. weight capacity
• Ideal for manual or power wheelchairs and 3- or 4-wheel scooters
• Convenient carrying handle is standard on all ramps
• Stocked in Invacare’s warehouse
• Heavy-duty industrial Velcro® strap ensures ramp security during transportation
• Transports and stores like a suitcase
• High-traction tape on the surface is long-lasting and maintenance-free
Features
Specifications
Model Numbers ICR630 ICR330
Size 6' L x 30" W 3' L x 30" W
Style Multifold Single fold
Folded size 40.625" L x 16" W x 8.5" D 36" L x 16" W x 4" D
Product weight 28 lb. 14 lb.
Weight capacity 600 lb. 600 lb.
Limited warranty 1 year 1 year
Ramps are manufactured by Prairie View Industries and distributed by Invacare Corporation.
INVACARE®
Folding Ramps
Invacare® CLD (Cyclical Lever
Drive) provides users with the
ability to self-propel themselves
with one arm, enabling an active,
mobile and independent lifestyle.
With its front caster steering mechanism, simple rowing motion
design and adjustability in height and stroke length, the Invacare CLD
is an easy to use one-arm drive.
There are no service requirements for the CLD mechanism, although service requirements for the wheelchair apply. Kits
available for provider installation. Right- or left-handed configuration. Provider installed kits for Invacare 9000 XT, 9000
SL and Patriot wheelchairs. See 9000 XT price list (95-66) for availability. These are not compatible with U2222 rear
wheel and the 9000 SL wheelchair also requires space saver arms.
Specifications
Mechanism weight 9.1 lb.
Added width to chair 1.5"
Stroke length 15"-16"
Grip height adjustment 15"-18"
Mechanism color Black/Chrome
Installation Right- or Left-hand
Weight capacity 250 lb.
Limited warranty 2 years
INVACARE®
Cyclical
Lever Drive
Folding ramps offer an an ideal solution for
manual and power wheelchairs as well as scooters.
Upholstery
U240 - Black nylon U86 - Ruby vinyl U88 - Camel vinyl U550 - Midnight
blue vinyl
U60 - Marina
blue vinyl
U67 - Black vinyl
U75 - Dove
gray vinyl
U85 - Dark
blue vinyl
U245 - Black
sailcloth
Frame
61P - Electric red 30P - Sunny yellow
62P - Electric blue
15P - Chrome
08P - Deep purple
66P - Electric purple
84P - Lavender
17P - Cobalt blue 22P - Anthracite
33P - Red
71P - Silver vein 104P - Electric teal 105P - Midnight
blue
24P - Wet black 88P - Black w/
twilight sparkle
83P - Royal blue
w/grape
For upholstery and frame color availability, please refer to
the corresponding wheelchair price list.
Add personality
to your Standard Wheelchair.
Available Color Swatches
![](asset-1b.png)
INVACARE®
Standard Manual
Wheelchairs
![](asset-1c.png)
INVACARE®

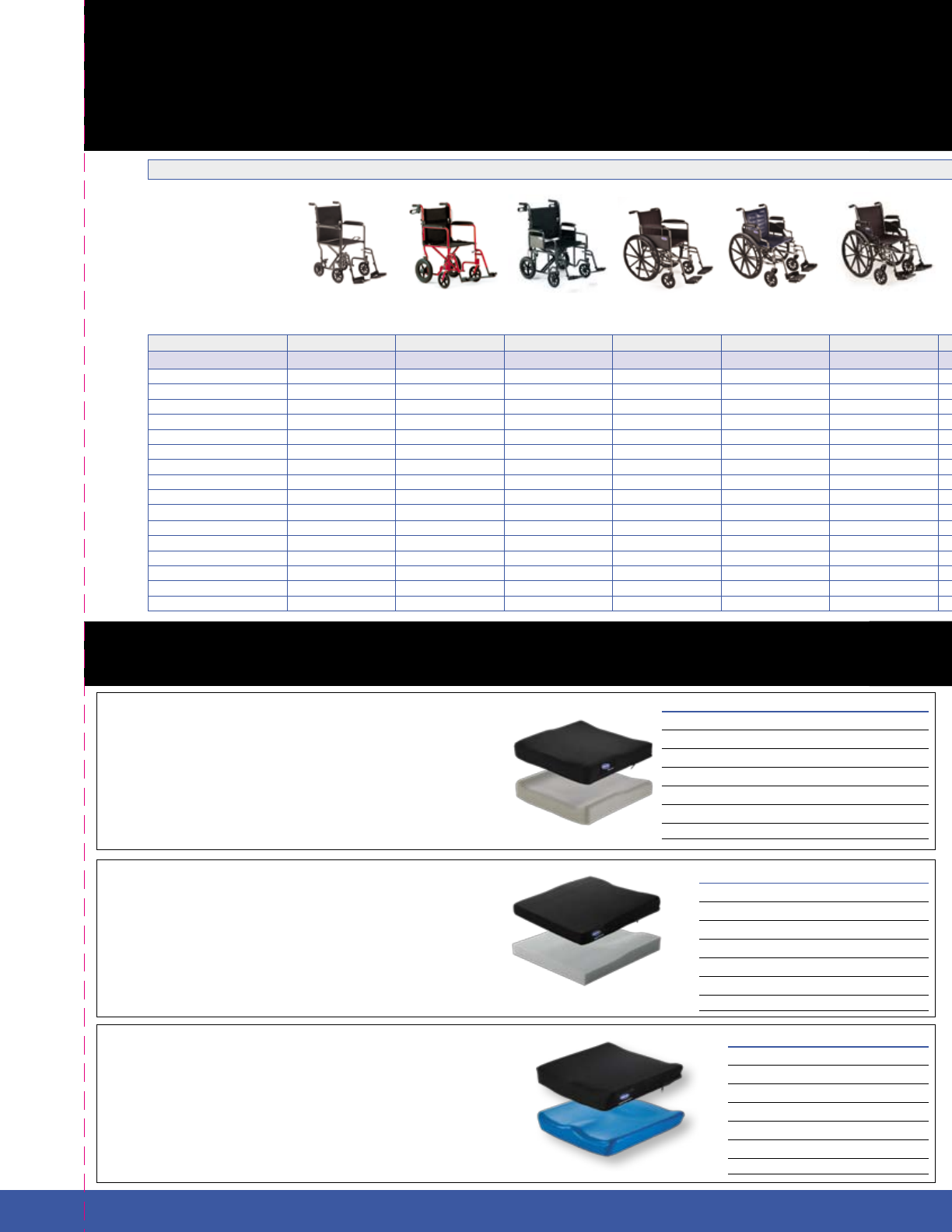

Standard Manual Wheelchair Chart
INVACARE®
General Use Cushions and Backs
TRANSPORT STANDARD
Invacare® Transport
Wheelchair
Invacare® Aluminum
Transport Wheelchair
Invacare® Heavy-Duty
Transport Wheelchair
Invacare® Veranda™
Wheelchair
Invacare® Tracer® EX2
Wheelchair
Invacare® Tracer® SX5
Wheelchair
Invacare® 9000 SL
Wheelchair
Invacare® Patriot™
Wheelchair
Invacare® 9000 XT
Wheelchair
Invacare® Insignia™
Wheelchair
Invacare® Tracer® IV
Wheelchair
Invacare® 9000 XDT
Wheelchair
Invacare® 9000 Topaz™
Wheelchair
Invacare® Jymni™
Wheelchair
HCPCS Codes E1038 E0138 E1039 K0001/K0002 K0001/K0002 K0003/K0006 K0004 K0004 K0004 K0004 K0007 K0007 K0007 E1236
SPECIFICATIONS
SEAT WIDTH 17", 19" 17", 19" 22" 16", 18", 20" 16", 18", 20"14", 16", 18", 20", 22" 16", 18", 20" 14", 16", 17", 18", 20" 14"-20", 22’ 16", 18", 20" 18", 20", 22", 24" 16"-20", 22" 20"-30" (2" increments) 10", 12", 14", 16"
SEAT DEPTH 16" 15.5", 16" 18" 16" 16" 16" 16", 18" 16", 18" 16", 17", 18" 16", 18" 18", 20" 16"-20" 18", 20" 10", 12", 14"
BACK HEIGHT 19" 17.5" 20" 18" 16" 16", 18" 15"-19" 15"-20" 15"-18" 15"-19" 16" 14"-19" 16"-18" 14"-15"
SEAT-TO-FLOOR HEIGHT 19" 19.25" 19.5" 19.5" 17.5", 19.5" 17.5", 19.5" 17.5", 19.5", 15.5", 16.5", 18.5" 15.5", 16.5", 17.5", 18.5", 19.5" 17.5", 18.5", 19.5", 15.5", 16.5" 17.5", 18.5", 19.5", 16.5" 17.5", 19.5" 17.5", 19.5", 21.5" 17.5", 19.5", 15.5" 15", 16", 17"
OVERALL WIDTH 19", 21" 23.5" 28" 23", 25", 27" 23.5,-28.5 22.5-30.5 23", 25" 21.5"-27.5" (2) 21"-29" (2) 23.5"-27.5" — 23-29 34" 21"
FOLDED WIDTH 7.25", 7.75" 8.5" — 14" 13" 11.5 15" 11.75" 12" 12" — 13 16" 14"
OVERALL DEPTH W/O RIGGINGS 27" 24.25" 36.5" 30" 32" 34 30" 43", 45" 28" 31" — 29 30" 30"
OVERALL HEIGHT 39" 37.5" — 36" 34" 35 36" — 36" 33" — 36 32" 32"
WEIGHT W/O RIGGINGS 24.5 lb., 25 lb. 19 lb. — — 36 lb. — 33 lb. 29 lb. 31 lb. 33 lb. 42 lb. 37 lb. 85 lb. 31 lb.
WEIGHT CAPACITY 250 lb. 250 lb. 400 lb. 250 lb. 250 lb. 250 lb., 300 lb. available 250 lb. 250 lb. 250 lb. 250 lb. 350lb., 450lb. available 350 lb. 700 lb., 1000 lb. 125 lb.
LIMITED WARRANTY 12 months 13 months 13 months 12 months 60 months 60 months 60 months LIFETIME 60 months 60 months 60 months 60 months 36 months 60 months
CASTER HEIGHT 8" 8" 8" 8" 8" 6, 8 6", 8" 6", 8" — 6", 8" 8" 8 6", 8" 6"
WHEEL HEIGHT 8" 12" 12" 24" 24" 20, 22, 24 20", 22", 24" 20", 22", 24" 6", 8" 22", 24" 24" 24 20", 24" 20", 22"
BOX WEIGHT 34 lb. 30 lb. 51 lb. 54 lb. 43 lb. 43 lb. 43 lb. 29 lb. 42 lb. 52 lb. 53 lb. 55 lb. 97 lb. 54 lb.
BOX DIMENSIONS (LxWxH) 23" x 12" x 31" 27" x 10" x 21" 29" x 11" x 33" 33" x 12" x 36" 32" x 13" x 38" 32x13x37 32" x 13" x 37" 40" x 13" x 26" 32" x 13" x 27" 33" x 12.5" x 35" 32" x 13" x 27" 34x13x39 35" x 15" x 46.5" 32" x 14" x 38"
RECLINER AVAILABLE x x x
Specifications
Width: 16"-20"
Depth: 16"-18"
A. Height at adductor 3.25"
B. Height at abductor 2.25"
C. Height at rear 2"
Cushion weight approximately 2 lb.
Limited warranty 1 year
Specifications
Width 10"-24"
Depth 7"-20"
A. Height at rear 2"
B. Height at rear (center) 1.5"
C. Height at front 2.5"
Cushion weight approximately 2 lb.
Limited warranty 1 year
HCPCS Code
E2603/E2604
HCPCS Code
E2601/E2602
HCPCS Code
E2601
For individuals with mild to moderate seating needs, the Invacare® Comfort-Mate
Extra Cushion goes one step further with a comfortable, molded design and a durable
moisture-resistant coating. Ideal for individuals who are able to do their own weight shifts
for pressure relief, who need comfort, stability, gentle positioning and some protection.
For individuals with mild to moderate seating needs, the Invacare® Single
Density Cushion offers simple, but highly functional solutions. This cushion
is designed to provide basic comfort using highly resilient foam for pediatrics
to geriatrics who are able to do their own weight shift for pressure relief.
For individuals with mild to moderate seating needs, the Invacare® Absolute™
Cushion offers simple, but highly functional solutions. This cushion is designed
to provide basic comfort using highly resilient foam and is intended for individuals
who are able to do their own weight shift for pressure relief.
Specifications
Width 14"-22"
Depth 14"-20"
A. Height at adductor 2.625"
B. Height at abductor 3.0"
C. Height at leg trough 2.25"
Cushion weight approximately 2.3 lb.
Limited warranty 1 year
![](asset-1d.png)
LIGHTWEIGHT HEAVY-DUTY PEDIATRIC
Invacare® Transport
Wheelchair
Invacare® Aluminum
Transport Wheelchair
Invacare® Heavy-Duty
Transport Wheelchair
Invacare® Veranda™
Wheelchair
Invacare® Tracer® EX2
Wheelchair
Invacare® Tracer® SX5
Wheelchair
Invacare® 9000 SL
Wheelchair
Invacare® Patriot™
Wheelchair
Invacare® 9000 XT
Wheelchair
Invacare® Insignia™
Wheelchair
Invacare® Tracer® IV
Wheelchair
Invacare® 9000 XDT
Wheelchair
Invacare® 9000 Topaz™
Wheelchair
Invacare® Jymni™
Wheelchair
HCPCS Codes E1038 E0138 E1039 K0001/K0002 K0001/K0002 K0003/K0006 K0004 K0004 K0004 K0004 K0007 K0007 K0007 E1236
SPECIFICATIONS
SEAT WIDTH 17", 19" 17", 19" 22" 16", 18", 20" 16", 18", 20"14", 16", 18", 20", 22" 16", 18", 20" 14", 16", 17", 18", 20" 14"-20", 22’ 16", 18", 20" 18", 20", 22", 24" 16"-20", 22" 20"-30" (2" increments) 10", 12", 14", 16"
SEAT DEPTH 16" 15.5", 16" 18" 16" 16" 16" 16", 18" 16", 18" 16", 17", 18" 16", 18" 18", 20" 16"-20" 18", 20" 10", 12", 14"
BACK HEIGHT 19" 17.5" 20" 18" 16" 16", 18" 15"-19" 15"-20" 15"-18" 15"-19" 16" 14"-19" 16"-18" 14"-15"
SEAT-TO-FLOOR HEIGHT 19" 19.25" 19.5" 19.5" 17.5", 19.5" 17.5", 19.5" 17.5", 19.5", 15.5", 16.5", 18.5" 15.5", 16.5", 17.5", 18.5", 19.5" 17.5", 18.5", 19.5", 15.5", 16.5" 17.5", 18.5", 19.5", 16.5" 17.5", 19.5" 17.5", 19.5", 21.5" 17.5", 19.5", 15.5" 15", 16", 17"
OVERALL WIDTH 19", 21" 23.5" 28" 23", 25", 27" 23.5,-28.5 22.5-30.5 23", 25" 21.5"-27.5" (2) 21"-29" (2) 23.5"-27.5" — 23-29 34" 21"
FOLDED WIDTH 7.25", 7.75" 8.5" — 14" 13" 11.5 15" 11.75" 12" 12" — 13 16" 14"
OVERALL DEPTH W/O RIGGINGS 27" 24.25" 36.5" 30" 32" 34 30" 43", 45" 28" 31" — 29 30" 30"
OVERALL HEIGHT 39" 37.5" — 36" 34" 35 36" — 36" 33" — 36 32" 32"
WEIGHT W/O RIGGINGS 24.5 lb., 25 lb. 19 lb. — — 36 lb. — 33 lb. 29 lb. 31 lb. 33 lb. 42 lb. 37 lb. 85 lb. 31 lb.
WEIGHT CAPACITY 250 lb. 250 lb. 400 lb. 250 lb. 250 lb. 250 lb., 300 lb. available 250 lb. 250 lb. 250 lb. 250 lb. 350lb., 450lb. available 350 lb. 700 lb., 1000 lb. 125 lb.
LIMITED WARRANTY 12 months 13 months 13 months 12 months 60 months 60 months 60 months LIFETIME 60 months 60 months 60 months 60 months 36 months 60 months
CASTER HEIGHT 8" 8" 8" 8" 8" 6, 8 6", 8" 6", 8" — 6", 8" 8" 8 6", 8" 6"
WHEEL HEIGHT 8" 12" 12" 24" 24" 20, 22, 24 20", 22", 24" 20", 22", 24" 6", 8" 22", 24" 24" 24 20", 24" 20", 22"
BOX WEIGHT 34 lb. 30 lb. 51 lb. 54 lb. 43 lb. 43 lb. 43 lb. 29 lb. 42 lb. 52 lb. 53 lb. 55 lb. 97 lb. 54 lb.
BOX DIMENSIONS (LxWxH) 23" x 12" x 31" 27" x 10" x 21" 29" x 11" x 33" 33" x 12" x 36" 32" x 13" x 38" 32x13x37 32" x 13" x 37" 40" x 13" x 26" 32" x 13" x 27" 33" x 12.5" x 35" 32" x 13" x 27" 34x13x39 35" x 15" x 46.5" 32" x 14" x 38"
RECLINER AVAILABLE x x x
Specifications
Width 16" 18" 20"
Height
16" 16"-20"
20" 16"-20"
Weight capacity 300 lb.
Limited warranty 1 year
HCPCS Code
E2611
The Invacare® Genera™ Back provides support and
comfort at a price so affordable that no wheelchair user
needs to make do with sling upholstery.
The Invacare® Propel™ Back is so lightweight and comfortable consumers will forget it’s
there. Hardware installation is no longer a hassle: just grab it, set it and go. The Invacare
Propel Back provides a stable surface for propulsion and completion of daily living activities.
Specifications
Width 16"-21"
(in 1" increments)
Height 16.5"
Depth adjustment 1.75"
Angle adjustment up to 27°
Weight capacity 300 lb.
Limited warranty 2 years
HCPCS Code
E2611
The Invacare® Versair™ Back is designed for positioning and comfort, offering versatile
and clinically beneficial solutions when standard sling upholstery does not meet an
individual’s need.
Specifications
Width 16"-26"
Height
Regular 15"-17"
Tall 17"-19"
Weight capacity
16"–21" 300 lb.
21"–26" 500 lb.
Limited warranty 2 years
Mesh fabric effectively dissipates heat and moisture.
HCPCS Code
E2611/E2612
![](asset-1e.png)
