Inventec Appliances Corp. Pandigital Novel Mule-Rader

User Manual

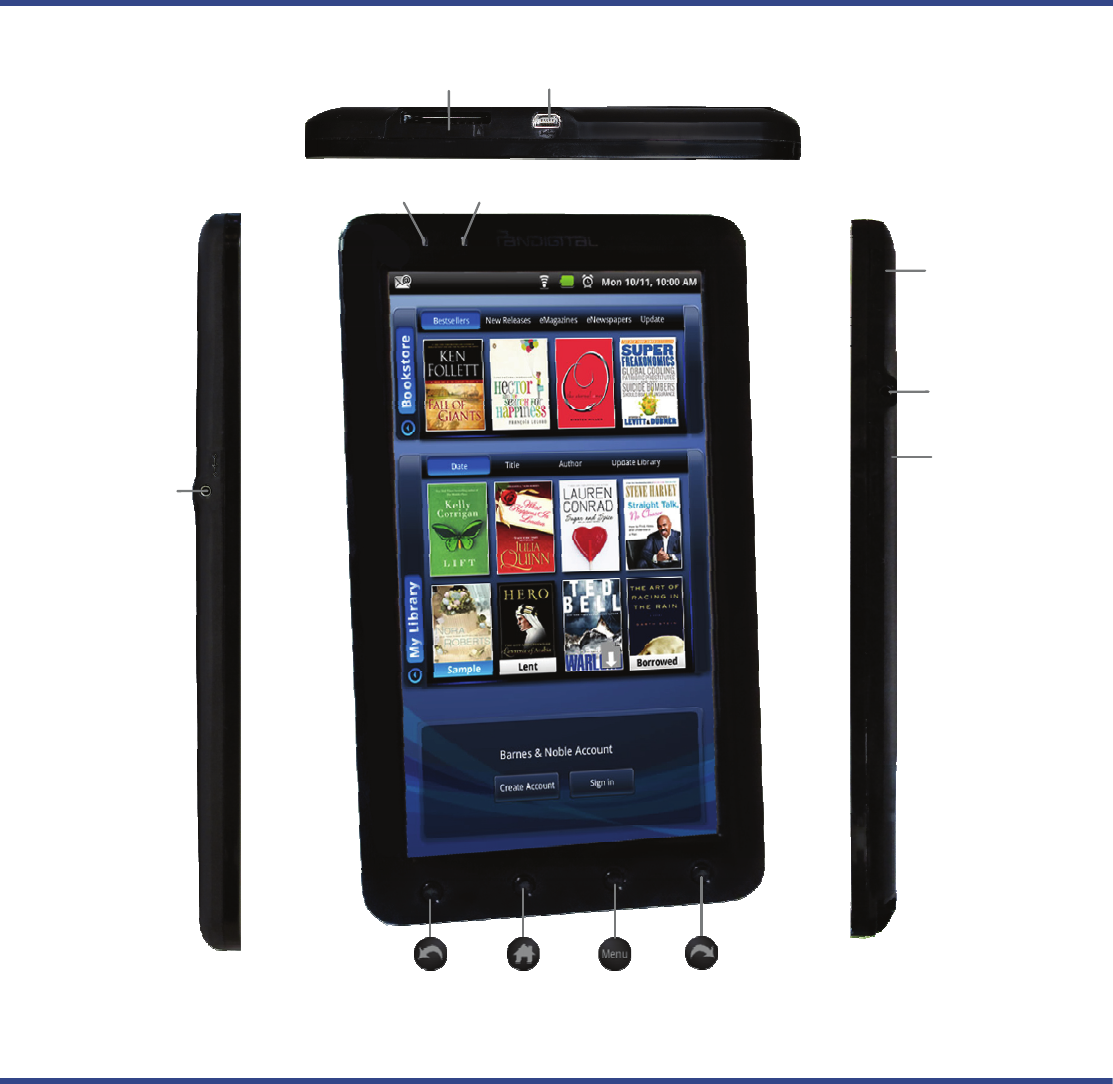

Device Overview
Package Contents
pandigital novel
Power Adapter
Tabletop Stand
USB Cable
Stylus
Quick Start Guide
User Guide (pre-loaded in device)
SD card slot Mini USB
DC jac
k
Earphone jack
Volume button
Power button
Return to previous screen Home Menu Display Next screen
Power indicator Light sensor
Getting Started
1Charge your Device
Plug the power adapter into an electrical wall outlet, and then connect to your device
to fully charge the battery before use (approx. 4 hours).
You cannot charge the battery using the USB cable.
While charging, the battery icon displays as: . When fully charged, the battery
icon displays as: .
You can use the device while the battery is charging.
2Turn Device On
Press the power button approximately 3 seconds until you see the boot up
message. Wait until the Home screen is displayed.
3Set Date & Time
IMPORTANT - In order to connect with your Barnes & Noble online account,
the Date and Time must be set correctly according to your location.
1. Tap , and then tap the Settings application icon.
2. Tap
Date & time.
3. Tap Set date, and then use the + or to set the current date; tap Set.
4. Tap Select time zone, and then select the correct time zone for your location.
(Finger slide vertically to scroll the list.)
5. Tap
Set time, and then use the + or to set the correct time according to your
location; tap Set.
6. Select your desired time format:
12 = 12:00am-12:00pm
24 = 12:00-24:00 (default)
7. Press to return to the Settings screen.
4Wi-Fi Network Setup
Since many features require a Wi-Fi connection, we recommend you set up
your Wi-Fi network now.
1. Tap the Wireless Settings application icon.
2. Make sure the Wi-Fi is selected .
3. Tap
Wi-Fi settings. The device automatically scans and lists all local Wi-Fi
networks found.
If your Wi-Fi broadcast is set as hidden, tap Add Network to enter the network
name and password, and then tap Connect.
4. Tap the desired network to which you want to connect.
5. If the network is secure, tap in the password entry field to enter the
Network Password.
6. Tap
Connect.
7. After connection is made, press to exit and return to the Home
screen.
Connecting to Public Wi-Fi Hotspot
If you are connecting via a public Wi-Fi hotspot, it may be necessary to
immediately launch the browser and provide the hotspot login information prior
to having an active internet connection.
1. Follow steps 1-7 above to select the hotspot Wi-Fi network.
2. Select the Browser application icon.
3. When prompted, enter the hotspot login information.
Home Screen
Notification icons
(i.e., Email, SD card, etc.)
Wi-Fi connection status
Battery charge level status
Active Alarm(s) are set
Current Time
Widgets and Shortcuts can be
added to the Home screen.
Touch & hold in an empty spot to
display the menu for adding
application shortcuts, widgets,
and so on.
Tap to shop the Barnes & Noble
Bookstore, and access My
Library to download and read
purchased B&N media.
Tap or finger slide up to open the
Launcher screen to access all
your applications.
Tap on any application icon to launch it.
Touch, hold and slide an application icon to reposition it on the screen.
Touch, hold and slide an application icon onto to remove it from the Home
screen. (The changes to when you touch & hold.)
To view extensions of the Home screen, finger slide the screen horizontally.
Press to display application function options (i.e., add Shortcuts & Widgets, set
Wallpaper).
To return to the Home screen at any time in any application, press .
Applications
Tap or finger slide up on to access all applications.
Adobe®
eBooks Read and manage eBooks copied from Adobe Digital Editions (ADE).
Alarm Use as alarm clock with scheduled alarms.
B&N Shop the Barnes & Noble website.
Browser Access the Internet and ‘surf the web’ whenever desired.
Calculator Use the calculator for basic math equations.
Calendar Display monthly calendar and schedule events.
Contacts Create a list of personal contacts.
Dictionary Quick access to the built-in dictionary.
Email Send/Receive email using your existing email addresses.
ES File
Explorer
Use ES File Explorer to view & manage apps, install Android™ apps,
and to backup files to your SD card.
Facebook Quick access to the Facebook website.
Import SD Import media files into the internal memory.
Media
Search Search device or bookstore for specific string of text.
Music Play and manage audio files (MP3, WAV, AAC)
Photos View and manage photo files (JPG, JPEG, BMP, PNG,
non-animated GIF)
Reader Open last read book.
Settings Multiple settings for personalizing and enhancing the device.
Stocks Check the status of specific company’s stock offerings.
User Guide View full pandigital novel User Guide.
Videos Play and manage video files (MPEG4)
Weather Check the weather forecasts of locations of your choice.
Wireless
Settings Quick access to set up & connect to a Wi-Fi network.
To move an icon to the Home screen, touch & hold on the icon, and then release it when it
appears on the Home screen. Touch, hold, and then slide the icon to reposition it on the
screen.
Overview of Buying & Downloading Media to Device
Create an account on Barnes & Noble’s website: www.bn.com
Tap the application icon on the Home screen.
To assign your Barnes & Noble account in the device, tap Sign in.
Enter your B&N account information, and then tap Login.
Tap Bookstore to display the
Barnes & Noble online eBookstore.
Tap Update to populate Bookstore row
with Bestsellers, New Releases,
eMagazines & eNewspapers.
Select BUY NOW or
Get Free Sample.
Shop and purchase eBooks,
eMagazines, eNewspapers,
or get Free Samples.
In pop-up message, select
Yes if you want to add the
media cover to My
Library now, allowing a
quicker download to the
device later. In your pandigital novel, in My Library,
tap Update. Wait for My Library to be updated.
In My Library or Bookstore screen, tap on a media cover and then confirm to
download the media file to your pandigital novel.
Media status labels: = purchased books not yet downloaded from B&N
= not yet downloaded = already downloaded
Media is added to your Barnes & Noble online
download Library.
Tap on a book cover in Bookstore row.
Confirm your purchase. If requested, enter your
existing Barnes & Noble account login information
(
email &
p
assword
)
or create a new account.
Barnes & Noble BOOKSTORE
The first time you access the Barnes & Noble application, the Bookstore and My
Library rows are empty. Sign into your Barnes & Noble account to populate the
Bookstore and My Library rows.
Although you can populate the Bookstore row without signing into your B&N
account, we recommend signing in first so you can shop and download media
right away.
You must be connected to a Wi-Fi network to connect to Barnes & Noble.
Sign into your B&N Account
1. Tap the application icon to display the Barnes & Noble screen.
If you have not yet registered an account with Barnes & Noble, tap Create
an Account. The browser opens to the B&N account registration page.
Follow all prompts to create your account.
2. If you have an existing Barnes & Noble account, tap Sign in.
3. Enter your B&N account information (email & password), and then tap Login.
Populate Bookstore row
In the Barnes & Noble screen, tap Update to sync with the Barnes & Noble
store and populate the row with their Bestsellers, New Releases, Magazines and
Newspapers.
After populating the Bookstore row, tap on any book cover to display its
descriptive information and buy buttons.
Populate My Library rows
After shopping, tap Update Library to update My Library with all the
downloadable media in your Barnes & Noble account.
To download a book to your pandigital novel, tap on the book cover
and then confirm to download.
After you purchase a book or get a sample, you are prompted to add the book cover
to My Library now, allowing a quicker download to your pandigital novel
later. Tap Skip if you want to continue shopping.
Tap eMagazines or eNewspapers to purchase monthly periodical subscriptions.
Purchase and download using same method as books.
MY LIBRARY
To access My Library, tap the application icon, tap My Library.
Function Menu
To access and open books on a
SD card or imported from a SD
card or computer, tap Date, Title
or Author, and then tap SD or
Local from the drop-down list.
Row 1: Quick launch area for
your last read media (non
scrollable).
Rows 2-4: Downloaded and
downloadable media in your
Barnes & Noble online account
(scrollable).
Tap on a media cover to
download and/or open it in the
Reader.
Quick jump to other bookshelves.
(Use Bookshelves function to
create new bookshelves.)
Tap Update to sync with your
Barnes & Noble account and
update rows 2-4.
To search for a downloaded book title, press
Media Search. Enter title text,
tap Search Novel.
When you have multiple issues of a periodical, only the most recent issue appears in
My Library without a date. Tap on the shown issue to display a list of all available
issues, and then select the desired issue to open.
Lent books are not available to read until they are returned from recipient.
Media status labels
= purchased books not yet downloaded from B&N
= not yet downloaded
= already downloaded
Dates indicate periodical issue date
Reader
The Reader application is used to display your downloaded eBooks.
eBook supported formats: EPUB and PDF
To highlight text, touch, hold & slide across the desired text, and then select
Highlight from the Reader Options window.
To add a Note or access the Dictionary, touch & hold on a word to display the
Reader Options window, and then select Dictionary or Add Notes.
While viewing eBook, you can turn the device 90 degrees to the right to rotate the
orientation of the screen from vertical to horizontal.
If unit goes into sleep mode (power saving feature), lightly press & release the
power button quickly to turn sleep mode off.
Tap in upper right
corner to bookmark a
page (when Reader
Function Menu is not
displayed).
Finger slide right-to-left
for next page.
Reader Function Menu
Tap on the
top of the screen
or press to
display the menu.
User Guide
To view the full pandigital novel User Guide, tap the User Guide
application icon. The User Guide opens in the Reader.
Once open, you can use the standard Reader functions to search and navigate
through the document in the same manner as your downloaded eBooks.
If you want to print the User Guide, copy it to your computer using the Connect to
Computer instructions in the User Guide.
The User Guide is also posted on our website: www.pandigital.net/downloads.
Customer Support
Before calling customer support, you may find the answers to your questions in the
Frequently Asked Questions section in the User Guide.
For Customer Support, call 1-800-715-5354.
Register your pandigital novel
Register your product warranty at www.pandigital.net.*
Qualify to win a FREE digital photo frame!** (valid in USA only)
If you must mail your registration rather than register online, please send your name,
address, phone number, model number, serial number, and when & where you
purchased the device to: Pandigital, P.O. Box 2969, Dublin, CA 94568-2969 USA
* The online registration is for the purpose of user and product registration. Failure to
register does not in any way diminish any of your standard warranty rights, as described
in the documentation included with your product.
** For details, go to our website www.pandigital.net.
pandigital novel License Agreement & Terms of Use
By activating and using the p a nd i g i t a l novel, you hereby consent and agree to our
License Agreement and Terms of Use as outlined in the User Guide. Please see the User
Guide for more information (tap UG application icon in device or download UG from
www.pandigital.net/downloads).
Limited Warranty
The limited warranty set forth below is given by Pandigital with respect to the Pandigital Novel™ line of
products (the “Device”) purchased and used in the United States of America. Pandigital warrants this
product as follows:
LABOR: For a period of one (1) year from the date of purchase, if this Device is found to be defective,
Pandigital will repair or replace the Device, at its sole option, at no charge. After this one (1) year
period, labor charges will be charged on a case by case basis. If your Device is repaired or replaced
during the Warranty Period, it will be covered by this Limited Warranty for the remainder of the
original Warranty Period or ninety (90) days from the date of shipment of the replaced Device,
whichever is longer
PARTS: For a period of one (1) year from the date of purchase, if this Device is found to be defective,
Pandigital will supply at no cost, new or rebuilt replacement parts, at its option, at no charge. After this
one (1) year period, parts will be charged for on a case by case basis. Modifications not approved by the
party responsible for compliance will void user’s authority to operate the equipment. If your Device is
repaired or replaced during the Warranty Period, it will be covered by this Limited Warranty for the
remainder of the original Warranty Period or ninety (90) days from the date of shipment of the
replaced Device, whichever is longer
This Limited Warranty does not cover damage or malfunctions caused by accident, disaster, misuse,
abuse, negligence or other external causes; third-party products; Internet or telecommunications
failures; commercial use; unauthorized opening, use, service, tampering, alteration, repair or
modification; or inadequate packing or shipping procedures. This Limited Warranty does not cover
damage caused by third party applications such as viruses, malware or other software. This Limited
Warranty also does not cover cosmetic damage or normal wear and tear. This Limited Warranty does
not apply to Devices sold as used, refurbished or reconditioned. This Limited Warranty will be void if
the Serial Number on your Device has been removed, tampered with or defaced or if your Device has
been opened or serviced without authorization, tampered with, altered or modified. This Limited
Warranty applies to your Device only (i.e., the hardware), and not to the software within your device.
Similarly, this Limited Warranty does not cover downloaded data or materials, or accessories and
peripherals, except as expressly provided above. This warranty is valid only in the United States.
The Device must be accompanied by a copy of the original retail purchase receipt for the warranty to
be valid. If no proof of purchase is attached, the warranty will not be honored and repair costs incurred
will be the responsibility of the end user. This warranty is only valid with written documentation
detailing the complaint attached to the outside or inside of the carton. This warranty does not provide
protection for the loss of data, regardless of format or cause. Pandigital reserves the right to modify
and change the design of this Device without prior notice, written or otherwise.
Limitations. TO THE EXTENT PERMITTED BY LAW, THE WARRANTY AND REMEDIES SET FORTH ABOVE
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES, AND WE SPECIFICALLY
DISCLAIM ALL STATUTORY OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND AGAINST HIDDEN OR LATENT
DEFECTS. IF WE CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES, THEN TO THE
EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE
Disclaimers
© 2010 Pandigital, Inc. or its affiliates. All rights reserved. Pandigital, the Pandigital logo, Pandigital
Novel, are trademarks of Pandigital Inc. Barnes & Noble and the “BN” logo are registered trademarks of
Barnesandnoble.com LLC. All rights reserved. Facebook and the “f” logo are registered trademarks of
Facebook Inc. All rights reserved. Java and all Java based trademarks and logos are trademarks or
registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.
Pandigital Novel contains Adobe® Reader® Mobile software under license from Adobe Systems
Incorporated, Copyright © 1995-2009 Adobe Systems Incorporated. All rights reserved. Adobe and
Reader are trademarks of Adobe Systems Incorporated.
CE Notice
Pandigital hereby declares that the essential requirements set out in the R&TTE Directive 99/5/EC have
been fully fulfilled on our product with indication below:
Product Name: Pandigital Novel Mule-Rader
Model Name: PRD09TW-R90L200
Brand Name: Pandigital
The following standards have been applied for the investigation of compliance:
EN 50332-2 2003
EN 300 328 V1.7.1:2006
EN 301 489-1 V1.8.1 2008-04
EN 301 489-17 V2.1.1 2009-05
EN 62311:2008
EN 60950: 2006+A11: 2009
EN 55022:2006+A1:2007/ EN 55024:1998+A1:2001+A2:2003
Battery Statement
CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
IC Notice
Product Name: Pandigital Novel Mule-Rader
Model Name: PRD09TW-R90L200
IC: 4773A-PRD09TW
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
“Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
QSG_R90L200_v1.5_10-2010

Navigation menu
