Inventec BRCM1079 Notebook Computer User Manual

Inventec Corporation Notebook Computer

User Manual

Satellite L3xW-B
Satellite Click L3xW-B
Series
User Information Guide
User Information Guide 3
Satellite L3xW-B / Satellite Click L3xW-B Series
Documentation
A comprehensive online user’s manual is preinstalled on your computer
equipping with a Windows® operating system. You can access it in one of
the following ways:
■Move the mouse pointer and then click the icon in the lower left
of the Start screen to get to the Apps view, and then click Help and
Support -> TOSHIBA Help.
■Click the Desktop tile from the Start screen and press the F1 key,
and then click TOSHIBA Help.
Refer to the online user’s manual for detailed information and instructions
concerning each item in this manual.
The online user’s manual installed on your computer is the latest available
at the production time. Please check
http://www.toshiba.co.jp/worldwide/ for the most up to date online user’s
manual.
4User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series
Safety Icons
Safety icons are used in this manual to bring important information to your
attention. Each type of message is identified as shown below.
Dual Operating Mode
Your computer is provided with a TOSHIBA Keyboard Dock and support
dual operating mode - your computer can be easily converted from a tablet
PC to a laptop PC. Throughout this manual, operating your computer as a
tablet PC and a laptop PC is called "tablet mode" and "laptop mode"
respectively.
Indicates a potentially hazardous situation, which could result in death or
serious injury, if you do not follow instructions.
A caution informs you that improper use of equipment or failure to follow
instructions may cause data loss, equipment damage, or may result in
minor or moderate injury.
Please read. A note is a hint or advice that helps you make best use of
your equipment.
User Information Guide 5
Satellite L3xW-B / Satellite Click L3xW-B Series
Quick Start
Unpack the box
1. Remove the components and computer from the box. Save the packing
materials in case you need them later.
2. Remove the documentation package for important information.
Check the components
Your computer comes with:
■AC adaptor and power cord (2-pin plug or 3-pin plug)
■TOSHIBA Keyboard Dock (docked with the computer)
■Cleaning cloth (provided with some models)
■Several documents, including the TOSHIBA Instruction Manual for
Safety and Comfort. It may also ship with documentation for other
software that may be pre-installed on your computer.
Some software may differ from its retail version (if available), and may
not include user manuals or all program functionality.
If any of the items are missing or damaged, contact your dealer
immediately.
The computer case can become hot! Avoid prolonged contact to prevent
heat injury to skin. Read the enclosed Instruction Manual for Safety and
Comfort.
■Certain computer cases are designed to accommodate all possible
configurations for an entire product series. Your selected model may
not have all the features and specifications corresponding to all of the
icons or switches shown on the computer case.
■All product specifications, configurations, prices, system/component/
options availability are all subject to change without notice.
6User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series
Using your computer for the first time
Connecting TOSHIBA Keyboard Dock
TOSHIBA Keyboard Dock can turn your computer into a laptop for
extensibility including a physical keyboard.
To use the computer in laptop mode, you need to connect TOSHIBA
Keyboard Dock to the computer by following the steps below:
1. Hold the computer with two hands on both the left and right sides.
2. Align the docking interface located on the computer with the docking
connector on the keyboard dock.
3. Press down the computer until it clicks into place.
The docking connector on the keyboard dock engages the docking
interface on the computer
When you are operating in laptop mode, the computer body can be opened
to a wide range of angles for optimal viewing.
While holding down the palm rest with one hand so that the body of the
keyboard dock is not raised, slowly lift the computer body - this will allow
the angle of the display screen to be adjusted to provide optimum clarity.
1. Computer body
1
Use reasonable care when opening and closing computer body. Opening it
vigorously or slamming it shut could damage the computer.
User Information Guide 7
Satellite L3xW-B / Satellite Click L3xW-B Series

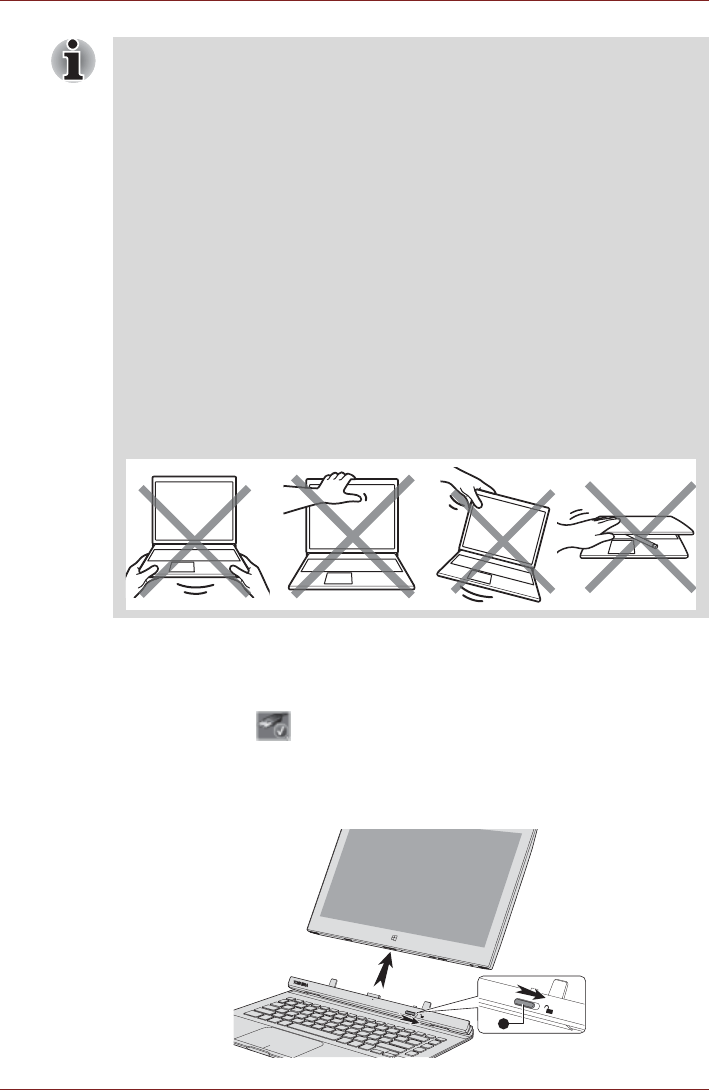

To disconnect and remove the computer from the keyboard dock, follow the
steps below:
1. Disconnect and remove all peripheral devices and cables connected to
the computer.
2. Click the icon( ) in the Windows Taskbar and then click Eject
Docking Station to safely disconnect the dock.
3. Slide the Release latch to the left (unlock position) and then slowly lift
the computer to release it from the computer holder and completely off
the keyboard dock(a, b)
■Be careful not to open the computer body too far as this could put
stress on the hinges and cause damage.
■Please close the computer body when you move or are carrying the
computer.
■Do not lift the computer by the palm rest on the keyboard dock. Fail to
follow this instruction may cause damage to the computer or result in
minor injury.
■Do not press or push with excess force on the display screen,
otherwise the computer body may become unsteady and possibly fall
over.
■Do not lift the computer by the display screen.
■Do not close the computer with pens or any other objects left in
between the computer and the keyboard dock.
■Please be careful not to hurt your fingers when you are docking the
computer to the keyboard dock.
■Never remove the computer without unlocking by the release latch,
otherwise it may cause damage to the computer.
■Never turn the computer holder without the computer docked,
otherwise it may cause damage or possibly result in mechanical
malfunction.
1
b
a
8User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series

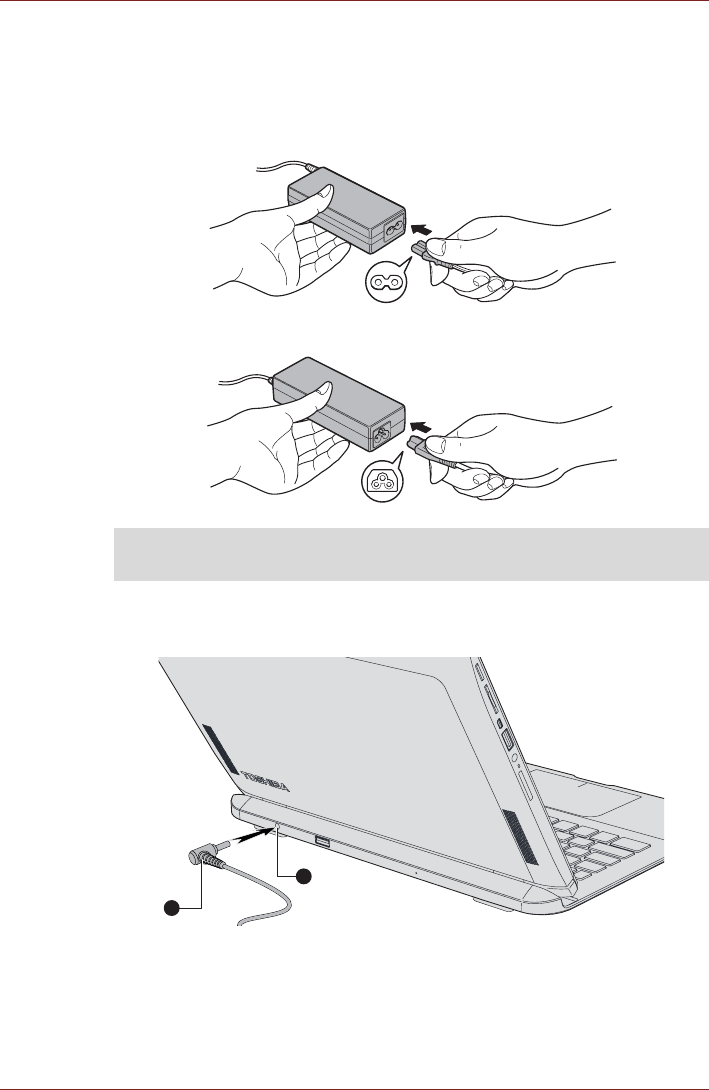

Connecting the AC adaptor
1. Connect the power cord to the AC adaptor.
The AC adaptor (2-pin plug)
The AC adaptor (3-pin plug)
2. Connect the AC adaptor's DC output plug to the DC IN 19V jack.
Connecting the DC output plug to the computer (laptop mode)
1. Release latch
Either a 2-pin or 3-pin adaptor/cord will be included with the computer
depending on the model.
1
2
User Information Guide 9
Satellite L3xW-B / Satellite Click L3xW-B Series

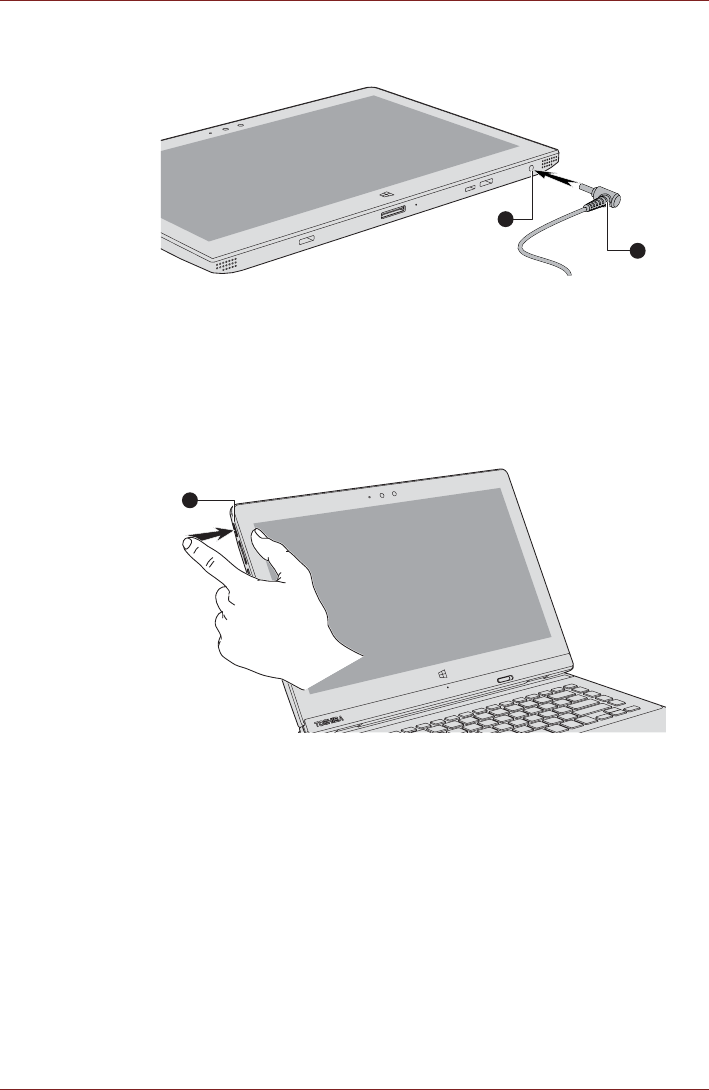

Connecting the DC output plug to the computer (tablet mode)
3. Plug the power cord into a live wall outlet - the DC IN/Battery indicator
should glow.
Turning on the power
Press the computer's power button to turn on the computer.
Turning on the power (laptop mode)
1. DC IN 19V jack 2. DC output plug
1
2
1
10 User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series

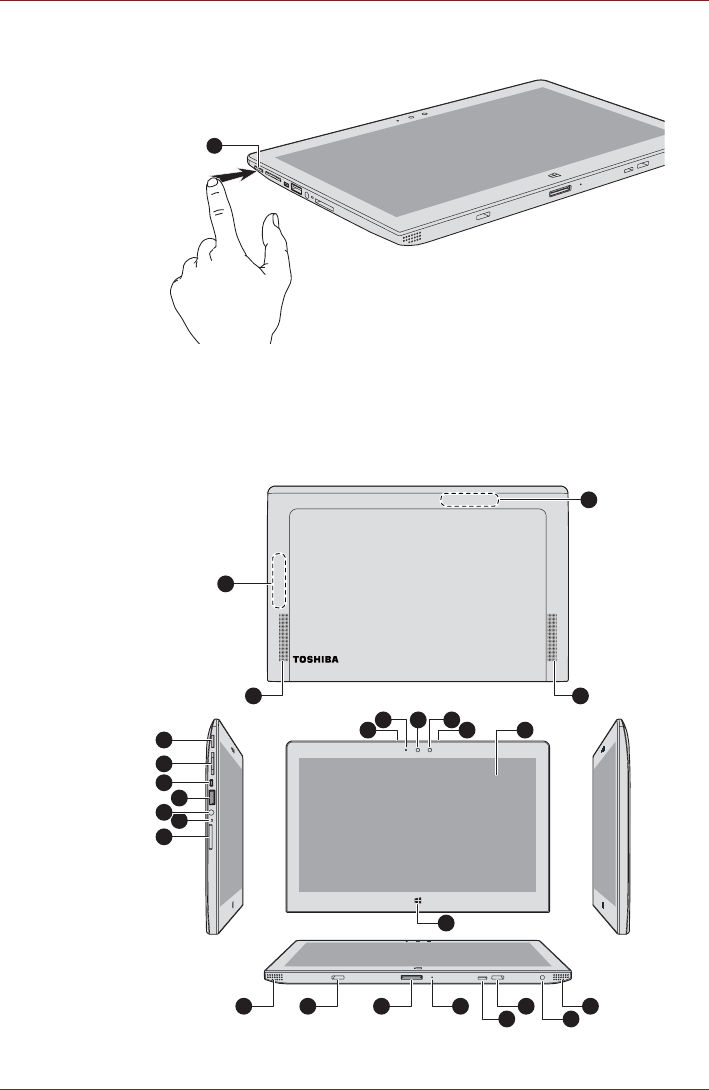

Turning on the power (tablet mode)
Quick Tour
The computer (tablet mode)
1. Power button
1
88
9
10
9
11
12
13
15
16
5 6 1
3 2 4
7
819
2019
188 19 17
14
User Information Guide 11
Satellite L3xW-B / Satellite Click L3xW-B Series
* Provided with some models.
Product appearance depends on the model you purchased.

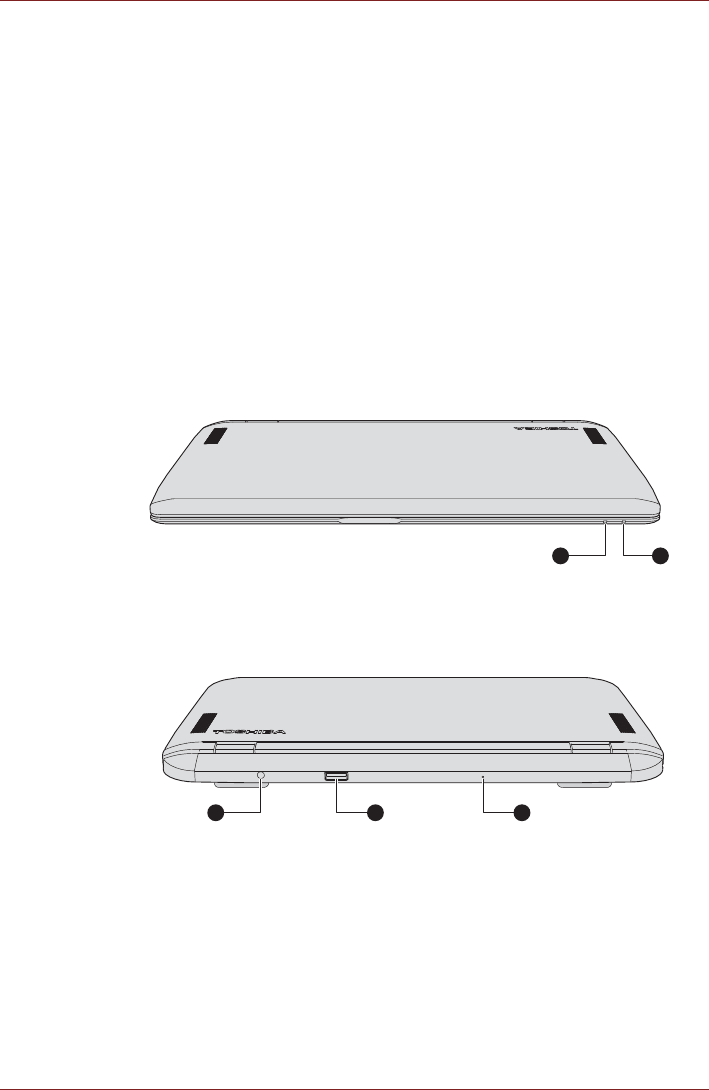

The computer (laptop mode)
Front view
Product appearance depends on the model you purchased.
Back view
Product appearance depends on the model you purchased.
1. Display screen 11. Volume up/down button
2. Web Camera 12. HDMI(micro) port
3. Web Camera LED 13. Universal Serial Bus (USB 2.0) port
4. Ambient light sensor 14. Headphone/Microphone combo jack
5. Microphone 15. DC IN/Battery indicator
6. Microphone* 16. Memory media slot
7. Windows button 17. Docking interface
8. Stereo speakers 18. Force shutdown hole
9. Wireless communication antennas (not
shown)
19. Hook holes
10. Power button 20. DC IN 19V jack
1. Power indicator 2. Wireless communication indicator
1. DC IN 19V jack 2. Universal Serial Bus (USB 3.0) port
3. Force shutdown hole
21
321
12 User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series

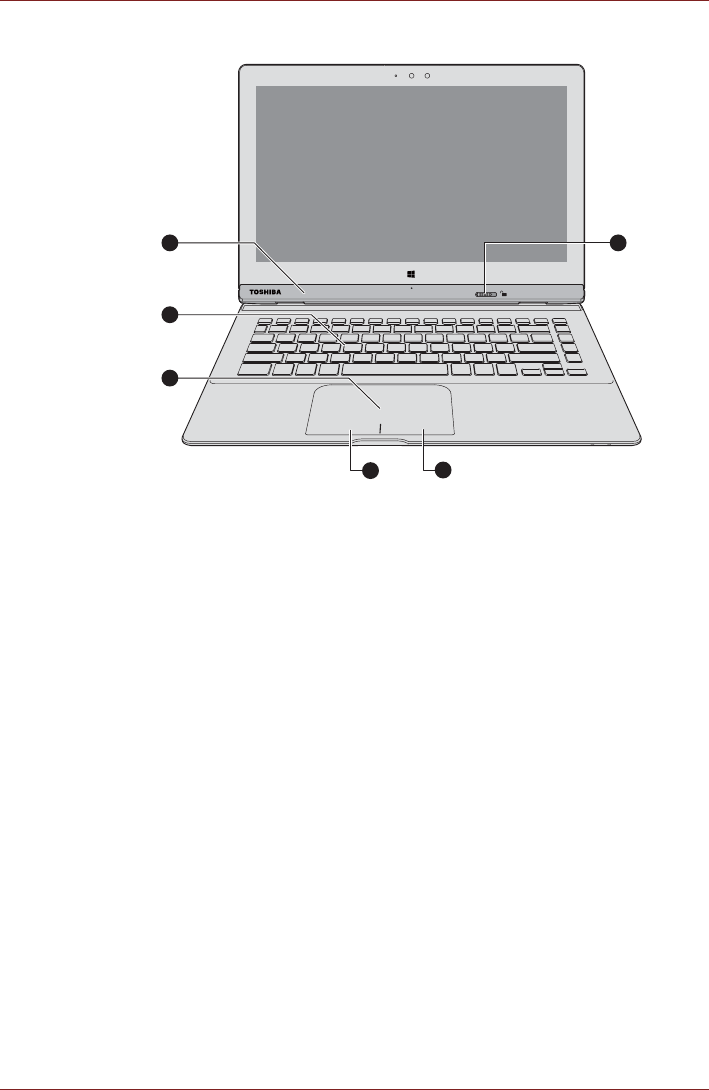

From view with display open
Product appearance depends on the model you purchased.
Copyright
© 2014 by TOSHIBA Corporation. All rights reserved. Under the copyright
laws, this manual cannot be reproduced in any form without the prior
written permission of TOSHIBA. No patent liability is assumed, with respect
to the use of the information contained herein.
First edition February 2014
Copyright authority for music, movies, computer programs, databases and
other intellectual property covered by copyright laws belongs to the author
or to the copyright owner. Copyrighted material can be reproduced only for
personal use or use within the home. Any other use beyond that stipulated
above (including conversion to digital format, alteration, transfer of copied
material and distribution on a network) without the permission of the
copyright owner is a violation of copyright or author's rights and is subject to
civil damages or criminal action. Please comply with copyright laws in
making any reproduction from this manual.
Disclaimer
This manual has been validated and reviewed for accuracy. The
instructions and descriptions it contains are accurate for your computer at
the time of this manual’s production. However, succeeding computers and
manuals are subject to change without notice. TOSHIBA assumes no
liability for damages incurred directly or indirectly from errors, omissions or
discrepancies between the computer and the manual.
1. Release latch 2. Computer holder
3. Keyboard 4. Touch Pad
5. Touch Pad control buttons
2
3
4
1
55
User Information Guide 13
Satellite L3xW-B / Satellite Click L3xW-B Series
Trademarks
Intel, Intel SpeedStep, Intel Core and Centrino are trademarks or registered
trademarks of Intel Corporation.
Windows, Microsoft and Windows logo are registered trademarks of
Microsoft Corporation.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Toshiba Corporation and
its affiliates is under license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
ATHEROS is a trademark of Qualcomm Atheros, Inc., registered in the
United States and other countries.
All other product names and service names in this manual may be
trademarks or registered trademarks of their respective companies.
EU Declaration of Conformity
This product is carrying the CE-Mark in accordance with the related
European Directives. Responsible for CE-Marking is TOSHIBA EUROPE
GMBH, Hammfelddamm 8, 41460 Neuss, Germany. The complete and
official EU Declaration of Conformity can be found on TOSHIBA’s web site
http://epps.toshiba-teg.com on the Internet.
Canadian regulatory information (Canada only)
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulation of the Canadian Department of Communications.
Note that Canadian Department of Communications (DOC) regulations
provide, that changes or modifications not expressly approved by
TOSHIBA Corporation could void your authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Cet appareil numérique de la class B respecte toutes les exgences du
Règlement sur le matériel brouileur du Canada.
Disposing of the computer and the computer's batteries
Contact an authorized TOSHIBA service provider for details regarding how
to dispose of the computer and the batteries.
14 User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series
ENERGY STAR® Program
Your Computer model may be ENERGY STAR®
compliant. If the model you purchased is compliant, it
is labeled with the ENERGY STAR logo on the
computer and the following information applies.
TOSHIBA is a partner in the ENERGY STAR Program
and has designed this computer to meet the latest
ENERGY STAR guidelines for energy efficiency. Your
computer ships with the power management options
preset to a configuration that will provide the most
stable operating environment and optimum system performance for both
AC power and battery modes.
To conserve energy, your computer is set to enter the low-power Sleep
Mode which shuts down the system and display within 15 minutes of
inactivity in AC power mode. TOSHIBA recommends that you leave this
and other energy saving features active, so that your computer will operate
at its maximum energy efficiency. You can wake the computer from Sleep
Mode by pressing the power button.
Products that earn the ENERGY STAR prevent greenhouse gas emissions
by meeting strict energy efficiency guidelines set by the US EPA and the
EU Commission. According to the EPA, a computer meeting the new
ENERGY STAR specifications will use between 20% and 50% less energy
depending on how it is used.
Visit http://www.eu-energystar.org or http://www.energystar.gov for more
information regarding the ENERGY STAR Program.
Information for Wireless Devices
Wireless Technology Interoperability
The Wireless LAN is compatible with other LAN systems Direct Sequence
Spread Spectrum (DSSS) /Orthogonal Frequency Division Multiplexing
(OFDM) radio technology, and is compliant to:
■The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n or b/g/n
or Revision a/b/g/n/ac), as defined and approved by the Institute of
Electrical and Electronics Engineers.
Bluetooth® Modules are designed to be interoperable with any product with
Bluetooth wireless technology that is based on Frequency Hopping Spread
Spectrum (FHSS) radio technology, and is compliant to:
■Bluetooth Specification (depending on the model you purchased), as
defined and approved by the Bluetooth Special Interest Group.
■Logo certification with Bluetooth wireless technology as defined by the
Bluetooth Special interest Group.
This Bluetooth product is not compatible with devices using Bluetooth
Version 1.0B specifications.
User Information Guide 15
Satellite L3xW-B / Satellite Click L3xW-B Series
Wireless Devices and your Health
Wireless products, like other radio devices, emit radio frequency
electromagnetic energy. The level of energy emitted by Wireless products
however is far much less than the electromagnetic energy emitted by
wireless devices like for example mobile phones.
Because Wireless products operate within the guidelines found in radio
frequency safety standards and recommendations, TOSHIBA believes
Wireless products is safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and
result from deliberations of panels and committees of scientists who
continually review and interpret the extensive research literature.
In some situations or environments, the use of Wireless products may be
restricted by the proprietor of the building or responsible representatives of
the organization. These situations may for example include:
■Using the Wireless products equipment on board of airplanes, or
■In any other environment where the risk of interference to other devices
or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices
in a specific organization or environment (e.g. airports), you are
encouraged to ask for authorization to use the Wireless device prior to
turning on the equipment.
Radio Regulatory Information for Wireless LAN
The Wireless device must be installed and used in strict accordance with
the manufacturer’s instructions as described in the user documentation that
comes with the product. This product complies with the following radio
frequency and safety standards.
The wireless devices have not completed verification of connection and
operation with all devices which are using the Wireless LAN or Bluetooth
radio technology.
Bluetooth and Wireless LAN devices operate within the same radio
frequency range and may interfere with one another. If you use Bluetooth
and Wireless LAN devices simultaneously, you may occasionally
experience a less than optimal network performance or even lose your
network connection.
If you should experience any such problem, immediately turn off either one
of your Bluetooth or Wireless LAN.
Please visit http://www.pc.support.global.toshiba.com, if you have any
questions about using Wireless LAN or Bluetooth Module.
In Europe visit http://www.toshiba-europe.com/computers/tnt/
bluetooth.htm
16 User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series
Europe
Restrictions for Use of 2400.0-2483.5MHz Frequencies in Europe
Restrictions for Use of 5150-5350MHz Frequencies in Europe
France: Outdoor use
limited to 10mW
e.i.r.p. within the
band 2454-
2483.5MHz
Military Radiolocation use.Refarming
of the 2.4GHz band has been
ongoing in recent years to allow
current relaxed regulation Full
implementation planned 2012.
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises. For public use, a general
authorization is required.
Luxembourg: Implemented General authorization required for
network and service supply.
Norway: Implemented This subsection does not apply for
the geographical area within a radius
of 20 km from the centre of Ny-
Alesund.
Russian
Federation:
- Only for indoor applications.
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply.
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use only
for indoor applications, closed
industrial and warehouse areas, and
on board aircraft.
1. Permitted to use for local
networks of aircraft crew service
communications on board aircraft
in area of the airport and at all
stages of flight.
2. Permitted to use for public
wireless access local networks
on board aircraft during a flight at
the altitude not less than 3000m.
User Information Guide 17
Satellite L3xW-B / Satellite Click L3xW-B Series
Restrictions for Use of 5470-5725MHz Frequencies in Europe
To remain in conformance with European spectrum usage laws for
Wireless LAN operation, the above 2.4GHz and 5GHz channel limitations
apply for outdoor usage. The user should use the wireless LAN utility to
check the current channel of operation. If operation is occurring outside of
the allowable frequencies for outdoor use, as listed above, the user must
contact the applicable national spectrum regulator to request a license for
outdoor operation.
Canada - Industry Canada (IC)
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada
applicable aux appareils radio exempts de licence. Son fonctionnement est
sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage
reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont réservés
uniquement pour une utilisation à l'intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les
mêmes canaux.
Les utilisateurs devraient aussi être avisés que les utilisateurs de radars de
haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la
priorité) pour les bandes 5.25-5.35GHz et 5.65-5.85GHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-
EL.
The term “IC” before the equipment certification number only signifies that
the Industry Canada technical specifications were met.
Italy: - For private use, a general
authorization is required if WAS/
RLAN’s are used outside own
premises.
Luxembourg: Implemented General authorization required for
network and service supply.
Russian
Federation:
Limited e.i.r.p 100mW. Permitted to use only
for indoor applications, closed
industrial and warehouse areas, and
on board aircraft.
1. Permitted to use for local
networks of aircraft crew service
communications on board aircraft
in area of the airport and at all
stages of flight.
2. Permitted to use for public
wireless access local networks on
board aircraft during a flight at the
altitude not less than 3000m.
18 User Information Guide
Satellite L3xW-B / Satellite Click L3xW-B Series
USA-Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
Device Authorization
This device obtains the Technical Regulation Conformity Certification and it
belongs to the device class of radio equipment of low-power data
communication system radio station stipulated in the Telecommunications
Business Law of Japan.
The following restrictions apply:
■Do not disassemble or modify the device.
■Do not install the embedded wireless module into other device.
General Precautions
TOSHIBA computers are designed to optimize safety, minimize strain and
withstand the rigors of portability. However, certain precautions should be
observed to further reduce the risk of personal injury or damage to the
computer.
Be certain to read the general precautions below and to note the cautions
included in the text of the manual.
Provide adequate ventilation
Always make sure your computer and AC adaptor have adequate
ventilation and are protected from overheating when the power is turned on
or when an AC adaptor is connected to a power outlet (even if your
computer is in Sleep Mode). In this condition, observe the following:
■Never cover your computer or AC adaptor with any object.
■Never place your computer or AC adaptor near a heat source, such
as an electric blanket or heater.
■Never cover or block the air vents including those located at the
base of the computer.
■Always operate your computer on a hard flat surface. Using your
computer on a carpet or other soft material can block the vents.
■Always provide sufficient space around the computer.
Overheating your computer or AC adaptor could cause system failure,
computer or AC adaptor damage or a fire, possibly resulting in serious
injury.
Heat injury
■Avoid prolonged physical contact with the computer. If the computer is
used for long periods, its surface can become very warm. While the
temperature will not feel hot to the touch, if you maintain physical
contact with the computer for a long time, for example if you rest the
computer on your lap or if you keep your hands on the palm rest, your
skin might suffer a low-heat injury.
User Information Guide 19
Satellite L3xW-B / Satellite Click L3xW-B Series
■If the computer has been used for a long time, avoid direct contact with
the metal plate supporting the various interface ports as this can
become hot.
■The surface of the AC adaptor can become hot when in use but this
condition does not indicate a malfunction. If you need to transport the
AC adaptor, you should disconnect it and let it cool before moving it.
■Do not lay the AC adaptor on a material that is sensitive to heat as the
material could become damaged.
Pressure or impact damage
Do not apply heavy pressure to the computer or subject it to any form of
strong impact as this can damage the computer’s components or otherwise
cause it to malfunction.
3.
Instruction Manual for Safety and Comfort
All important information on the safe and proper use of this computer is
described in the enclosed Instruction Manual for Safety and Comfort.
Be sure to read it before using the computer.
TOSHIBA Support
If you require any additional help using your computer or if you are having
problems operating the computer, you may need to contact TOSHIBA for
additional technical assistance.
Before you call
Some problems you experience may be related to software or the operating
system so it is important that you investigate other sources of assistance
first. Before contacting TOSHIBA, try the following:
■Review troubleshooting sections in the documentation supplied with
your software and/or peripheral devices.
■If a problem occurs when you are running software applications, consult
the software documentation for troubleshooting suggestions and
consider calling the software company's technical support department
for assistance.
■Consult the reseller or dealer from where you purchased your computer
and/or software - they are your best resource for current information
and support.
TOSHIBA technical support
If you are still unable to solve the problem and suspect that it is hardware
related, visit TOSHIBA technical support website http://www.toshiba.co.jp/
worldwide/.
User Information Guide 20
*GX1C0013F110*
GX1C0013F110
*GX1C0013F110*

Navigation menu
