The Minerva 3023 is a dual mode wireless PCI Express Mini Card module, with highly efficient
data speed which can provide all the wireless clients to freely connect through the network
easily. With the dual standard capability, the wireless mini card net work module offers
unbeatable performance of data rate up to 3.6Mbps on HSDPA, WCDMA in Band I,II,V and
EDGE / GPRS Quad-Band (850/900/1800/1900MHz), to support universal operation. It is also
provide a special application like, circuit switched data (CS) and packed switch (PS) data as
well.
Phonebook is a good tool for managing your contacts information and it could be automatically
complied with each format like outlook 2000, outlook express as per your requirements.
We also allow you to entertain enjoying MMS by sending multimedia such as graphic photo,
music, video to get fun together with.
Key Features:
z HSDPA PCI Express Mini Card which fits next generation's PC card standard adopted by
NB.
z Quad-band GSM/GPRS/EDGE and tri-band UMTS/HSDPA enables global roaming.
z Data connection over GPRS/EDGE/UMTS/HSDPA network.
z Support most laptop OS used nowadays.
Package Contents:
z Instruction guide
z Utility CD
System Requirements:
z Genuine Intel® Pentium® III or Celeron® 1 GHz or equivalent AMD® processor or faster.
z Microsoft® Windows® XP Service Pack 2 (SP2).
z Intel, AMD or 100% compatible motherboard chipset.
z DirectX 9.0 or better.
z 128 MB RAM.
z 600 MB of free hard disk space.
z Graphics Card: VGA with at least 8Mb Memory.
z Available USB slot.
z CD-ROM/CD-RW or DVD-ROM drive required for software installation.
z Sound Card.
User Manual
Minerva 3023
Version : 0.1
Date : 96/07/06
2
INVENTEC CORPORATION
英業達股份有限公司
Specification
Style PCI Express Mini Card
Dimension 30x51x4.75mm
Weight 8g
Antenna Built-in in laptop
SIM Slot SIM/USIM card slot built-in in laptop
Memory ROM/NAND Flash/64MB, RAM/DDR/23MB
Telecom Band GSM 850 / EGSM 900 / DCS 1800 / PCS 1900
UMTS Band I, II, V
Support Telecom Band GPRS / EDGE / UMTS / HSDPA
Support OS Windows 98/SE/2000/NT/ME/XP, Windows Vista
Installation Steps:
1. Turn on your computer. If you have Microsoft Windows XP, remember to log on as an
administrator before setting up the software. For more information, refer to your operating
system’s online Help.

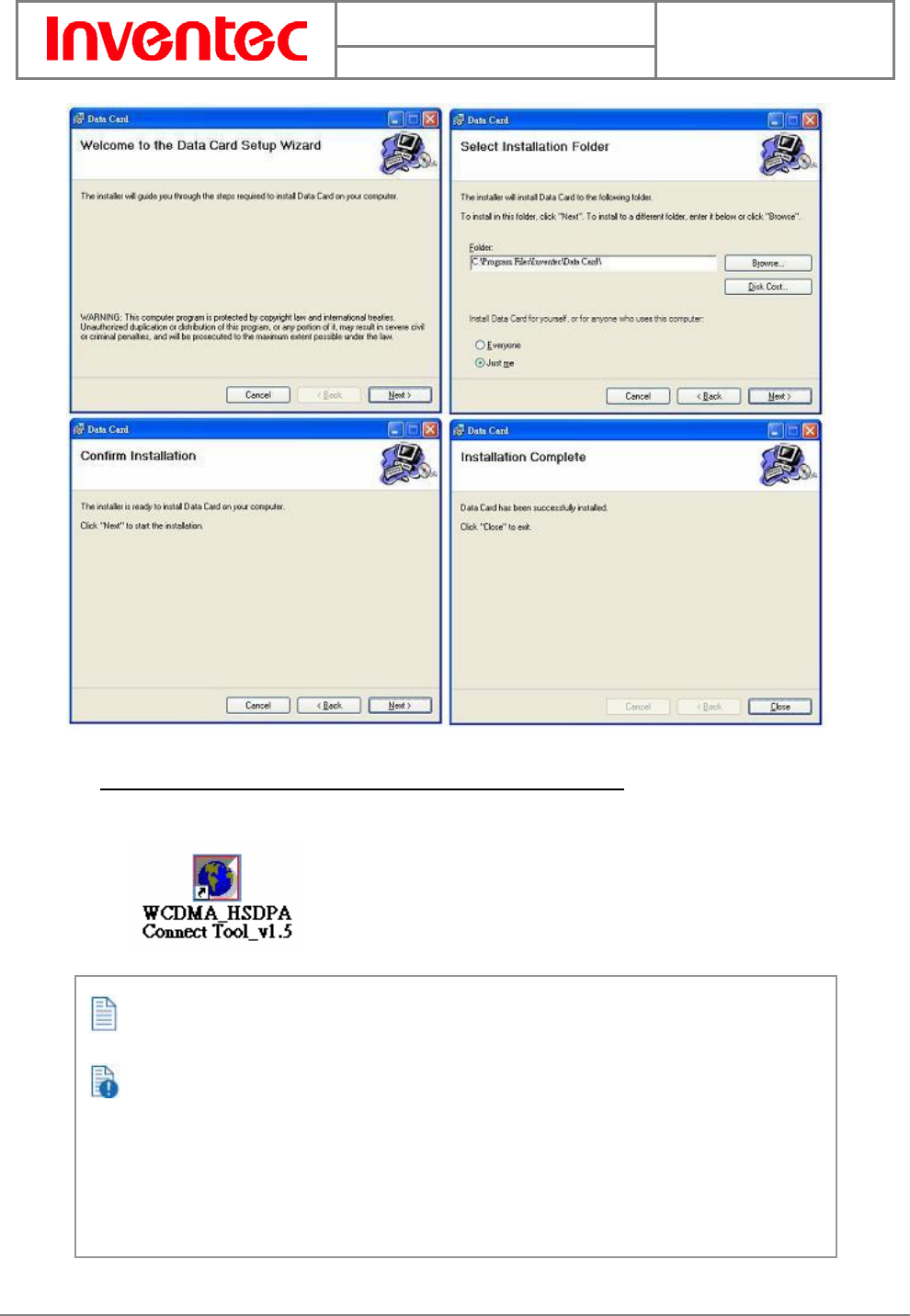

2. Insert the Utility CD into your CD-ROM/DVD-ROM drive, it will start installation
automatically. If it does not, follow the steps below:
a. Start Windows Explorer.
b. On the left pane, click the My Computer icon.
c. Right-click the CD-ROM/DVD-ROM drive icon, and then click Autorun.
3. Click the Install Driver.
4. Follow the instructions on the screen.
5. Click the Finish button to complete installation.
6. Then, install “Connecting Manager” by click the Data_Card_App_Installer.
7. Follow the instructions on the screen.
User Manual
Minerva 3023
Version : 0.1
Date : 96/07/06
3
INVENTEC CORPORATION
英業達股份有限公司
8. Click the Close button to complete installation and exit program.
9. Please insert SIM/USIM card to slot of laptop in advance.
10. Start using Connecting Manager by clicking below icon which shows on desk.
Please refer to more details at user manual of utility CD.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
User Manual
Minerva 3023
Version : 0.1
Date : 96/07/06
4
INVENTEC CORPORATION
英業達股份有限公司
zThis device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
zThis device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation.
