1.1 Introduction

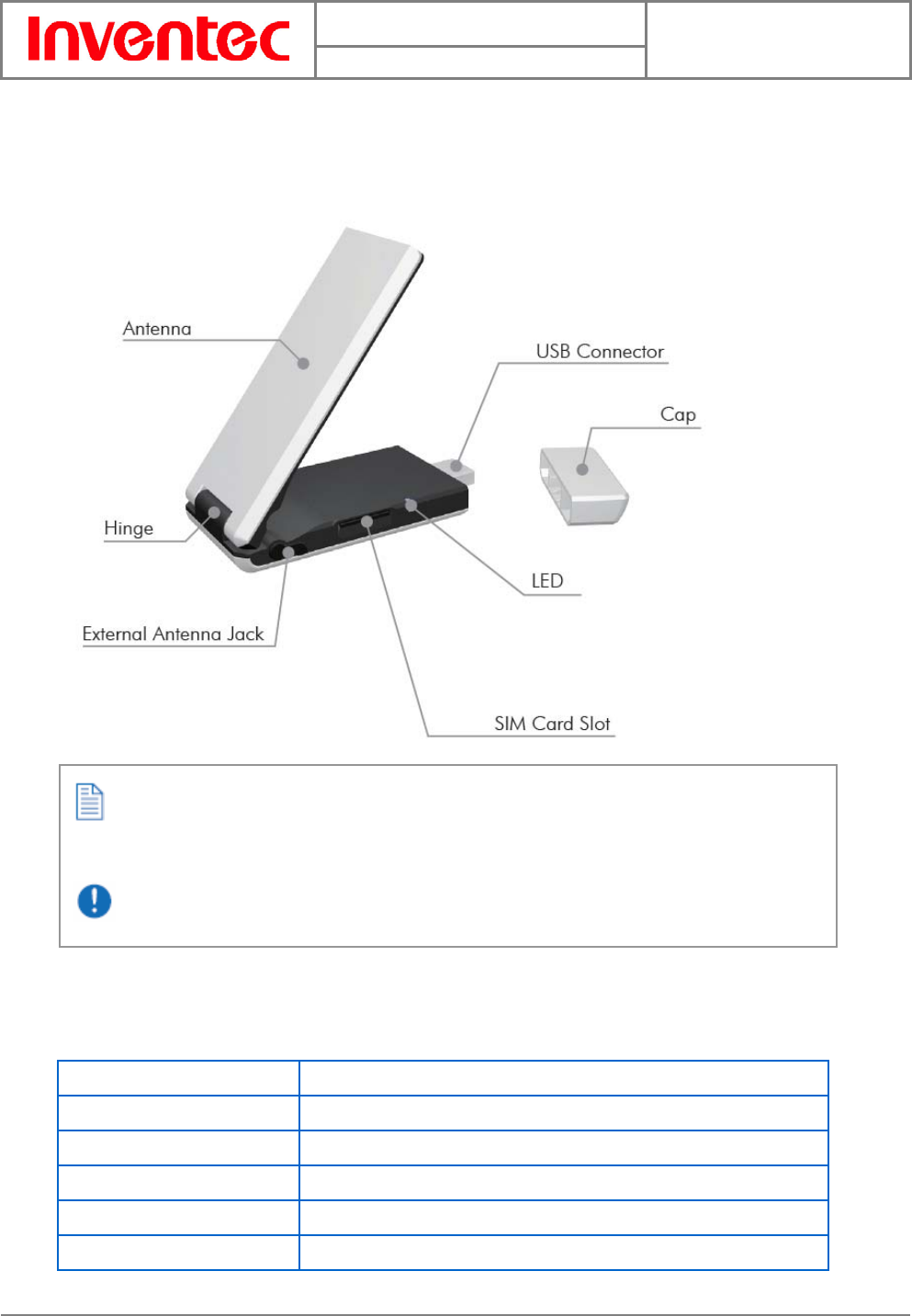

Views of the Device
Notification LED
The notification LED indicates the status of your device:
LED Color/Status Meaning
Blinking blue Communications in progress.
Blinking green In service.
Blinking orange Waiting for the PIN input.
Blinking multi-colored light Dialing.
Blinking red The device is out of service.
The maximum angle of the antenna is restricted to 110°.
It is strongly recommended to adjust the angle to 110° to reach the best signal reception
quality.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
8
INVENTEC CORPORATION
英業達股份有限公司
Blinking yellow Abnormal status including SIM card is not inserted and PIN is
locked…etc.
1.2 Installing SIM Card
Inserting a SIM Card

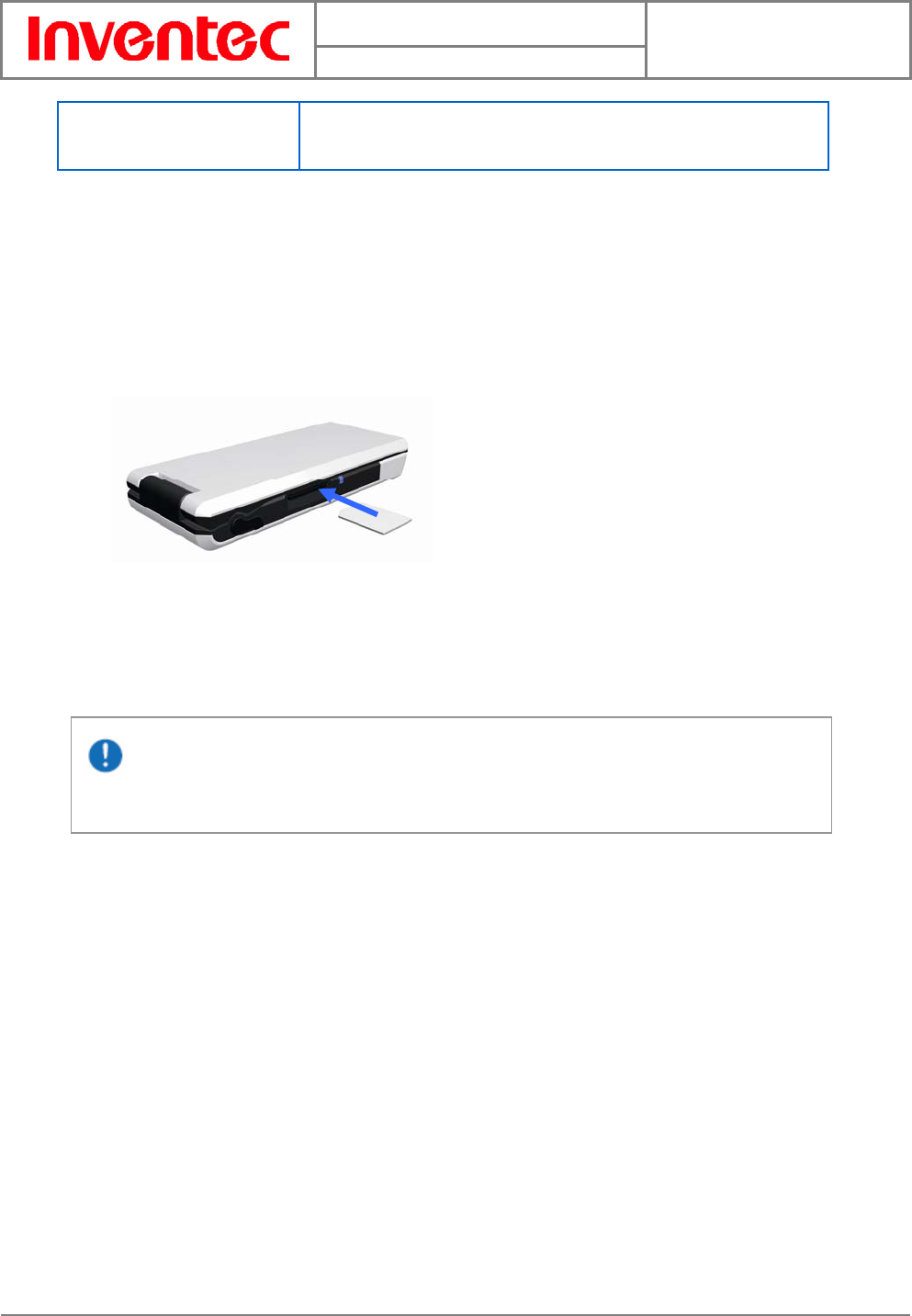

A valid SIM (Subscriber Identity Module) card is required to use your wireless device.
z Insert the SIM card with the logo side up and push into place until it clicks down and
is held in place.
Removing a SIM Card
1. Gently press the SIM card inward and the card will eject itself.
2. Take out the SIM card from the card slot by hand.
SIM cards can only be inserted in one direction. Inserting the card in the wrong
direction by force can cause damage to the card and the card slot.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
9
INVENTEC CORPORATION
英業達股份有限公司
Chapter 2. Getting Ready
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
10
INVENTEC CORPORATION
英業達股份有限公司
2.1 System and OS Requirements
To use your wireless device, the following are required for your computer:
• 10 MB free hard disk space or above
• 32MB RAM or above
• Screen resolution 800x600 pixels or above
• Color quality 16 bits or higher
• Free USB slot
• Microsoft Windows 2000
• Microsoft Windows XP
• Microsoft Windows Vista 32 bit / 64 bit
• Administrator rights on your PC to install and use a new software
2.2 Software Installation
Your wireless device comes with an application software named Mobile Connect which helps
you to manage your wireless device and monitor your connection. You have to install this
software before using your device at the first time.
Installing Mobile Connect

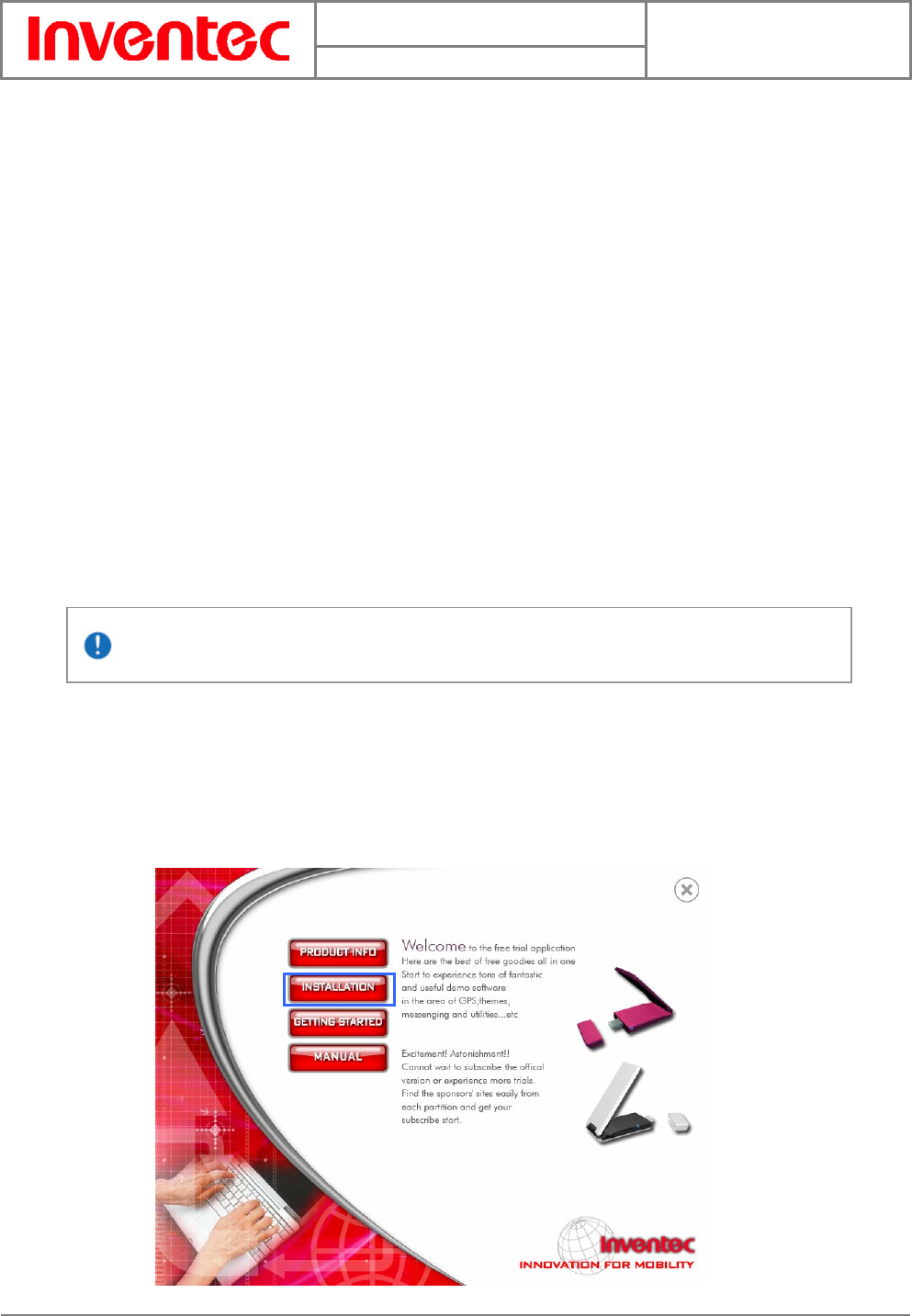

1. Put the companion CD into the CD-ROM drive of you PC.
2. An installation window shows up automatically. Select Installation, an install
Wizard will appear then. If the CD does not automatically run, go to the drive path,
find the Setup.exe file and double click on it.
Do not insert your wireless device into your PC before installing the Connection Manager.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
11
INVENTEC CORPORATION
英業達股份有限公司
3. Install Mobile Connect by following the on-screen install Wizard steps.
4. Once the installation is completed, a shortcut icon shows on the desktop.
2.3 Launching Mobile Connect
You can start to use Mobile Connect after the installation described above is completed.
Please turn off Bluetooth on your PC, or it may conflict with the Mobile Connect.
1. Plug in the wireless device containing a valid SIM card into one of the USB ports in
your PC.
2. Do one of the following to launch Mobile Connect.
z Select Start > Programs > Inventec Data Card > Mobile Connect.
z Double-click the shortcut icon on the desktop.
3. Once Mobile Connect is launched, an icon for Mobile Connect appears in your
computer’s taskbar.
If you have activated PIN (Personal Identity Number) security on your SIM card, the
system will prompt you to input a PIN code.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
12
INVENTEC CORPORATION
英業達股份有限公司
Charpter 3. Using Mobile Connect
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
13
INVENTEC CORPORATION
英業達股份有限公司
Mobile Connect allows you to use the following features:
z Sending/receiving text messages and E-mails
z Getting connected/disconnected
z Using phonebook
z Browsing the Internet
z Changing system settings
3.1 Main Screen

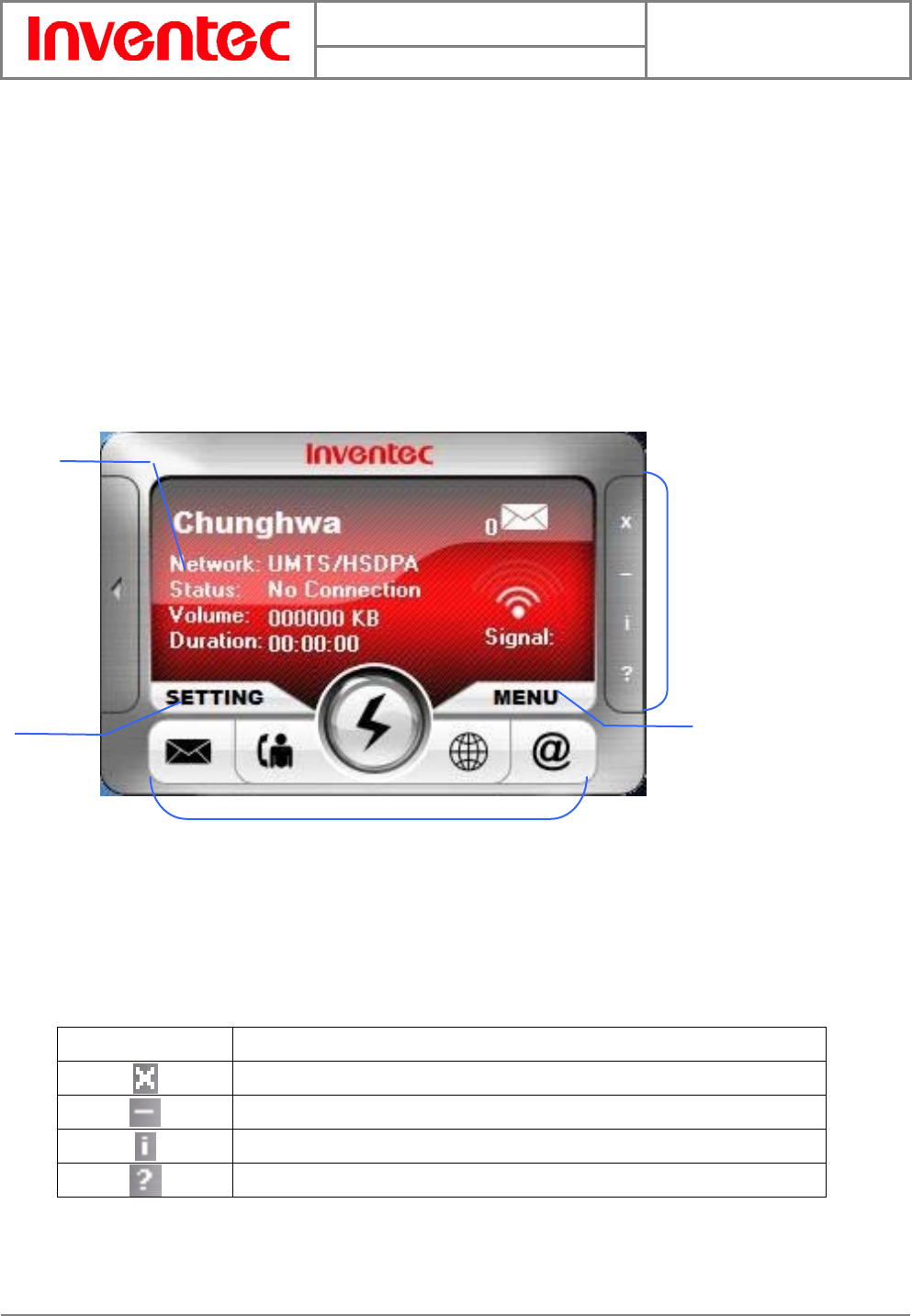

The initial screen of Mobile Connect is as follow:
Functional
display
System button bar
Menu
button
Setting
button
Main function bar
Main Function Bar
There are five items in the main function bar: SMS, Phonebook, Connect/Disconnect, Brower
and Email. Simply click one of them to active its function.
System Button Bar
Item Description
Close: click the item to close Mobile Connect.
Minimize: click the item to minimize Mobile Connect.
About: click the item to show software information.
Help: click the item to show the user manual.
Functional Display
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
14
INVENTEC CORPORATION
英業達股份有限公司
Item Description
Shows the information about the network operator.
Shows the network type that you are connecting to, e.g.
HSDPA, UMTS, WCDMA, GPRS, EDGE … etc.
Shows connected or disconnected status.
Shows the volume information for the current
connection.
Shows the duration of an active connection.
Shows the number of unread text messages in real time.
Shows the signal strength.
MENU Button
A drop-down menu shows up when you click on the Menu button. Apart from the functions
listed in the main function bar, you can quickly enable/disable PIN security, select languages,
read/create short messages and search/add contacts in this menu as well.
SETTING Button
To set APN information, PIN security status and maximum SMS length limitation, click this
button and make changes. Please refer to chapter 3.5 for more details.
3.2 Messaging

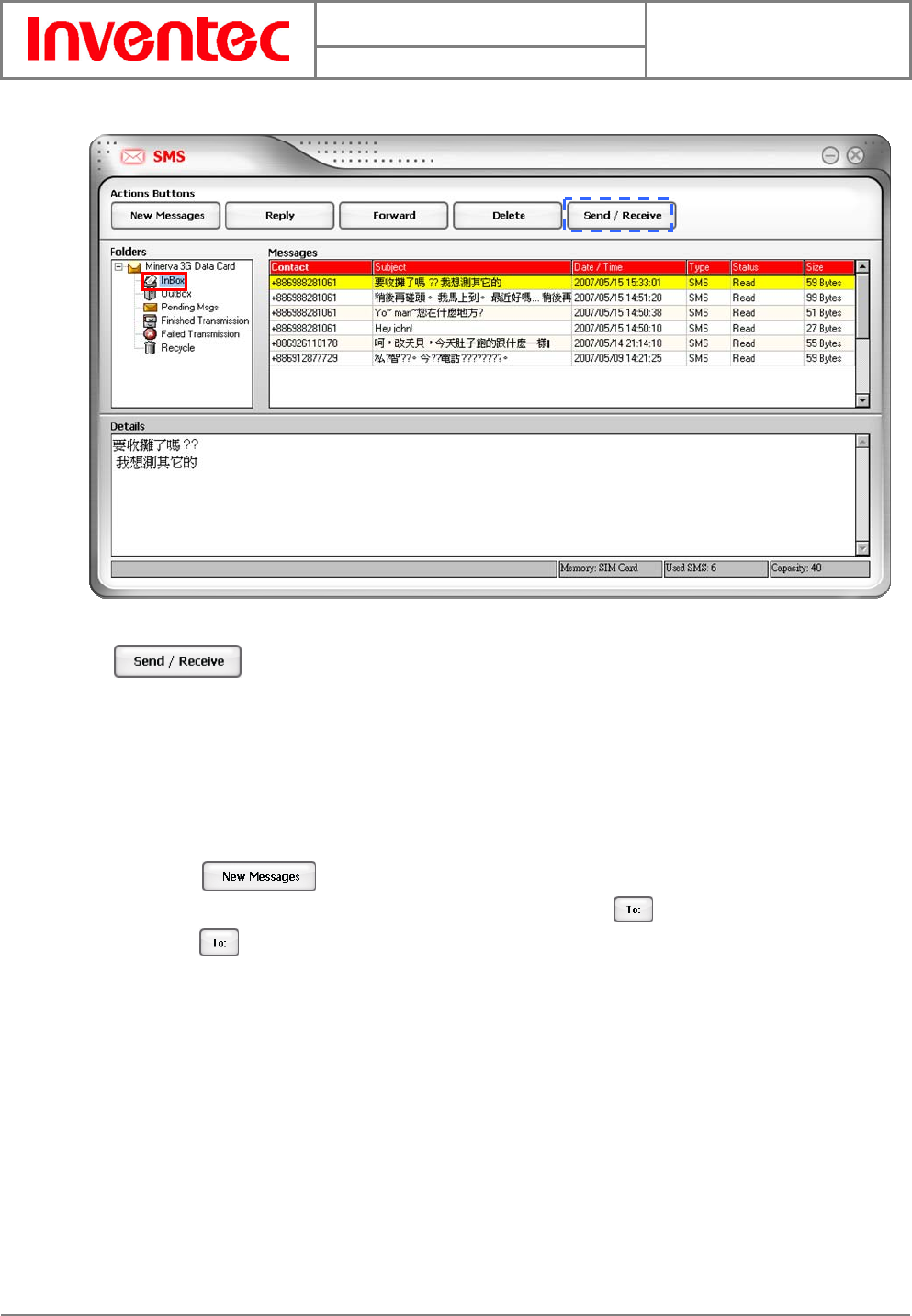

To start using various functions of SMS, launch Mobile Connect and click SMS ( ) in the
main screen of Mobile Connect. The SMS screen as below displays:
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
15
INVENTEC CORPORATION
英業達股份有限公司
Click to check if there are any new messages. You can see the abstracts of
received massages in the InBox folder. The detailed content of the massage you select is
shown on the lower-half of the SMS screen. You can double-click a massage to view its detailed
content as well.

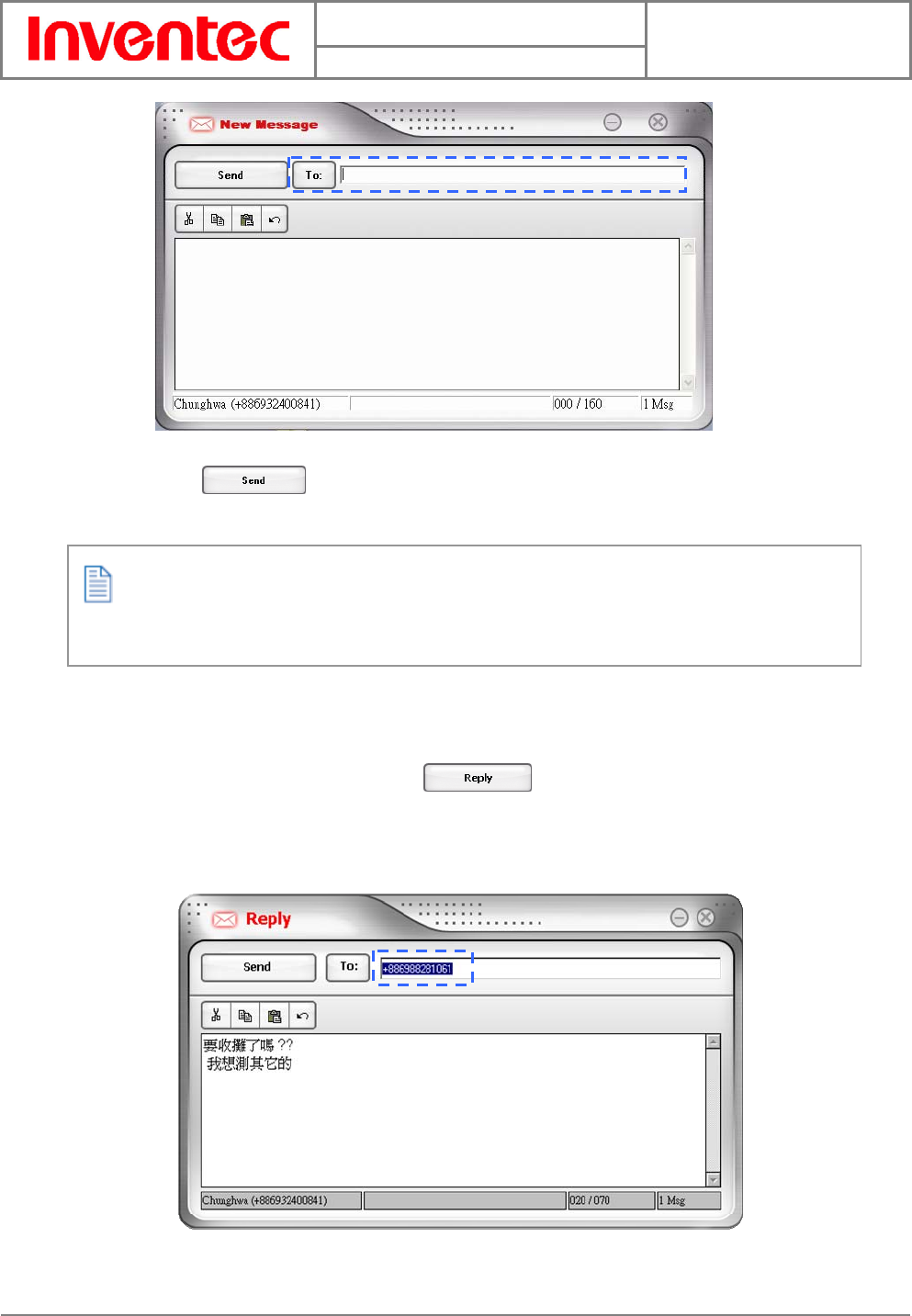

Writing New Text Messages
1. Click in the SMS screen, a New Message screen will be shown.
2. Enter a phone number directly in the blank field behind ; otherwise, you can
click to show the phonebook and then select a contact. Double-click on the
desired contact to select it or press Ctrl to make multi-selection.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
16
INVENTEC CORPORATION
英業達股份有限公司
3. Input the text message.
4. Click when you complete the text message. This message is saved
automatically to the Finished Transmission folder after it is sent out.
Replying Messages
To reply to a sender directly, do as the following:
1. Select a message and then click .
2. A Reply Message screen with the sender’s phone number automatically filled in will
be shown.
Your text message is sent as one message if it contains less than 160 characters. If this
number is exceeded, the message is divided into several messages and sent one by one.
3. Input the content for the massage you want to reply.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
17
INVENTEC CORPORATION
英業達股份有限公司
4. Click to reply.
Forwarding Messages
To forward massages, do as the following:
1. Select a massage and then click .
2. A Forward Message screen will be shown, enter the phone number you want to
forward to or click to select the phone number.
3. The content of the original message appears in the screen automatically, you can
edit it if needed.
4. Click to forward the message.
Deleting Messages
To delete the messages you have received, do as the following:
1. Select one or more massages and click .
2. The message(s) will be removed to the Recycle folder.
For deleting a message permanently, go to the Recycle folder, select the massage and
click Delete.
3.3 Accessing the Internet
Your wireless device allows you to access the Internet through an established 3G or GPRS
connection. Once the connection is established, you can connect to any website available on
the Internet, or access other Internet services such as sending/receiving E-mails. Do the
following to get connected and browse the Internet.
SMS and Phonebook are unavailable while the connection is established.
1. Click Connect () in the main screen of Mobile Connect. Your wireless device
will search for available connections automatically.
2. When the connection is established, corresponding information about the connected
network will be displayed on the right-hand side of the main screen.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
18
INVENTEC CORPORATION
英業達股份有限公司
3. Click Browser ( ) to start the Explorer on your PC, you can then access the
Internet.
4. Click Disconnect ( ) when you want to disconnect the connection.
Mobile Connect is capable of automatically configuring the wireless device; however, you
can manually change some settings by clicking the Setting button to enter the setting page.
Sending/Receiving E-mails
You can send/receive E-mails via MS outlook after establishing a connection. Click Connect in
the main screen to get connected, you can then click E-mail ( ) to open MS outlook and
send/receive E-mails.
3.4 Managing Your Phonebook
Connect Mobile can help you to manage the entries in your SIM card. You can add, edit and
delete entries in the Phonebook; moreover, you can send text massages directly from the
Phonebook.

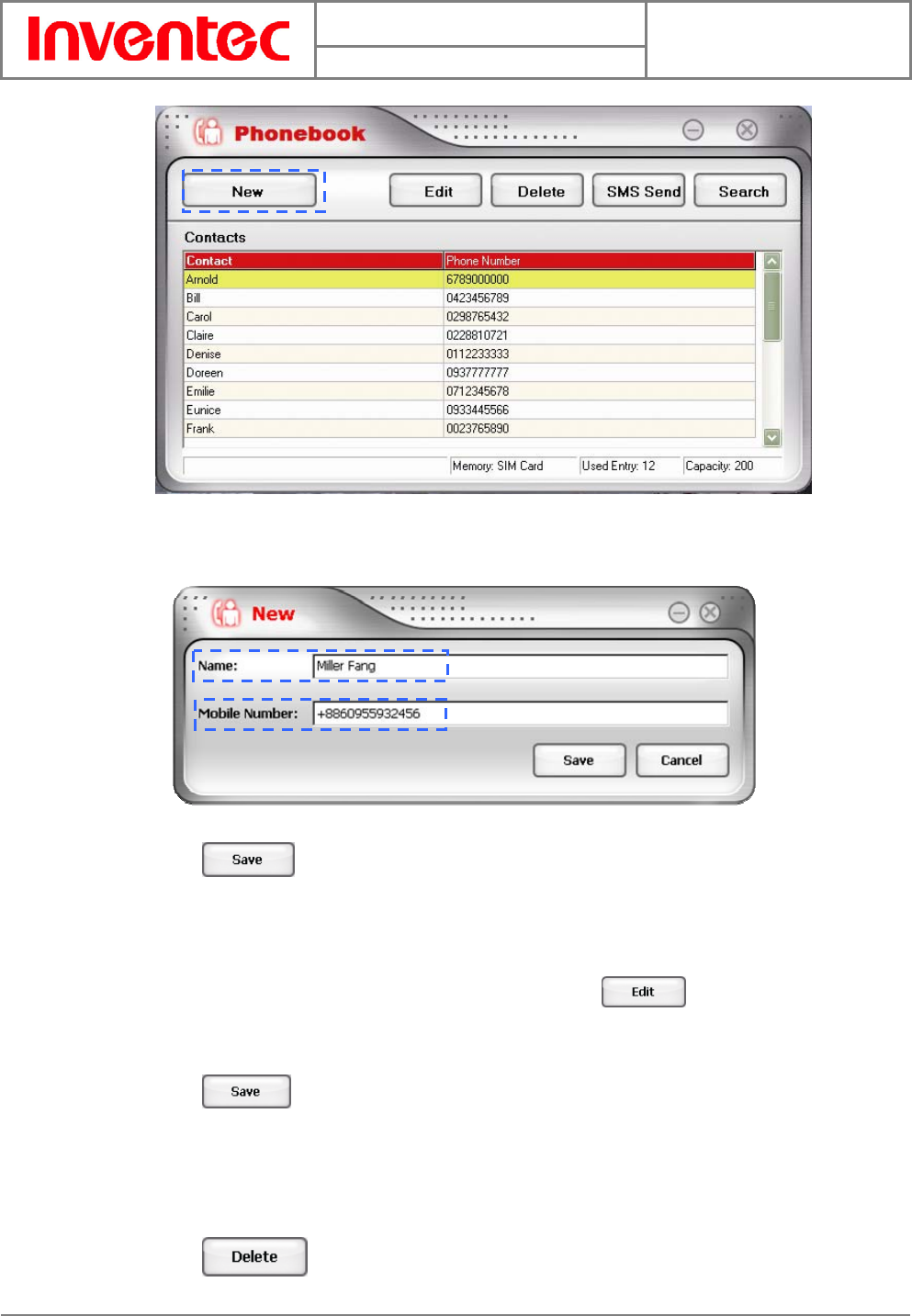

Adding Entries
1. Click Phonebook ( ) in the main screen.
2. Click to open the screen for creating a new entry.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
19
INVENTEC CORPORATION
英業達股份有限公司
3. Fill in the name and the mobile number.
4. Click to save the new entry to the Phonebook.
Editing Entries
1. In the Phonebook screen, select one contact and click .
2. Modify the name and the mobile number in the Edit screen.
3. Click to save the modified entry.
Deleting Entries
1. Select one or more entries to be removed from the Phonebook.
2. Click to permanently delete the entry/entries.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
20
INVENTEC CORPORATION
英業達股份有限公司

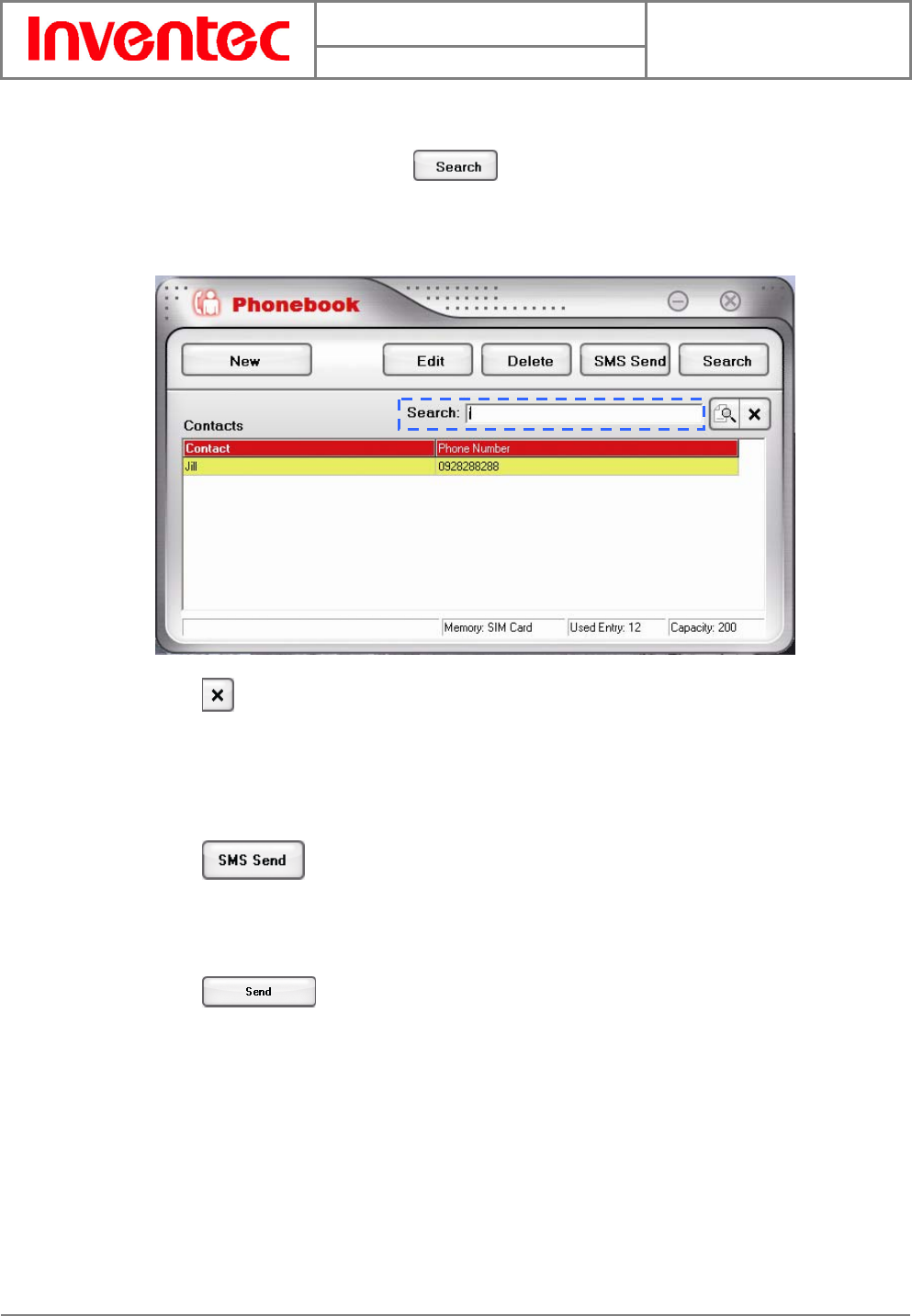

Searching Contacts
1. In the Phonebook screen, click .
2. Start entering a contact’s name in the blank field, matching items will be listed. You
can then double-click the desired contact to send him/her a message.
3. Click if you want to close the search box.
Sending Messages
1. Select the contact you want to send a text massage to.
2. Click to show a New Message screen with the contact’s phone number
automatically filled in. Alternatively, you can double-click on the contact.
3. Input the text message.
4. Click when you complete the text message.
3.5 Changing Settings

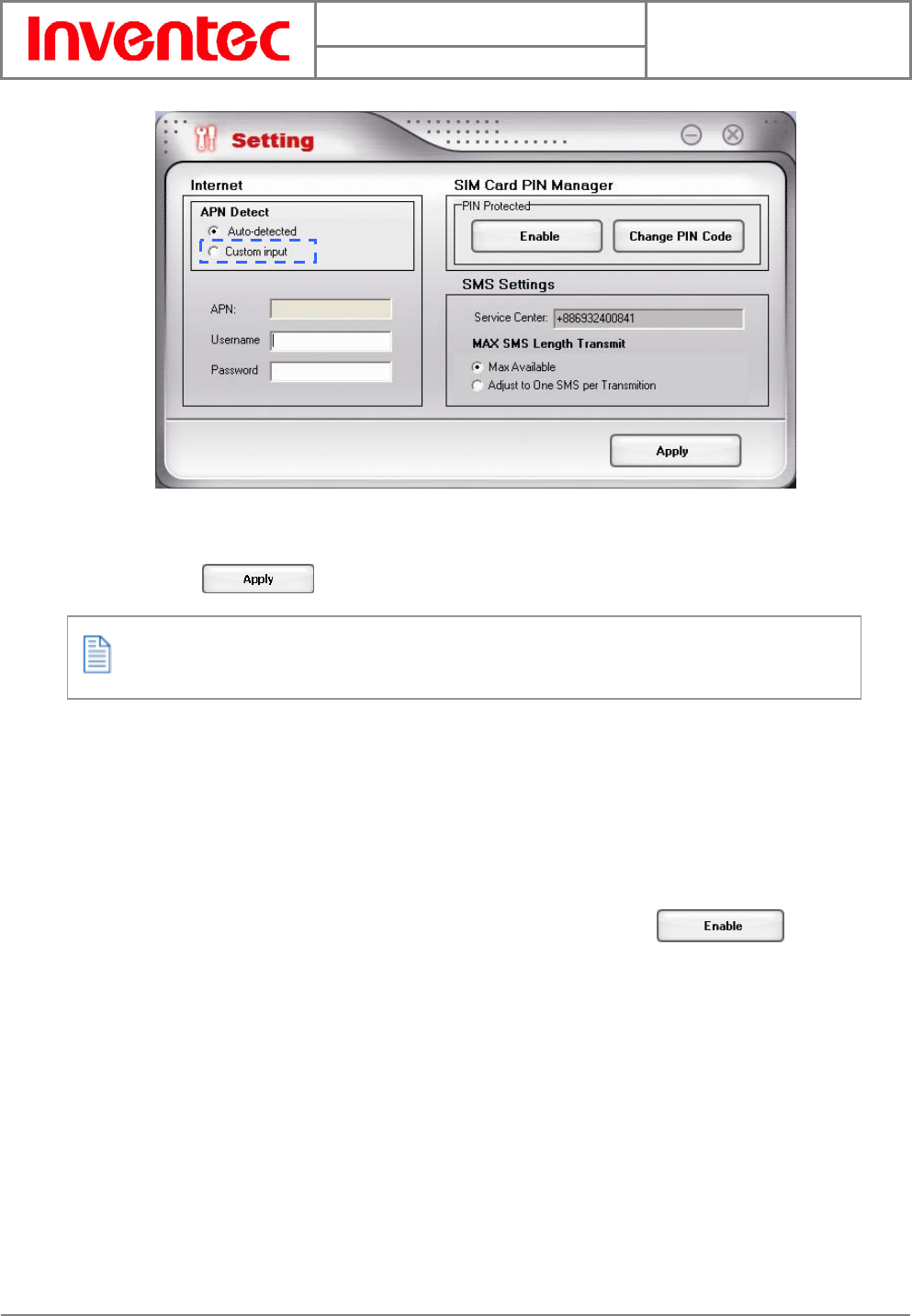

Internet settings
By default, your wireless device searches for a network automatically when you click on
Connect. However, you can make the search manually:
1. In the main screen of Mobile Connect, click the SETTING button.
2. A Setting screen will be shown. Select Custom Input.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
21
INVENTEC CORPORATION
英業達股份有限公司
3. Enter requirement information for the setting items of APN, username and
password.
4. Click to save your settings.
Please contact your network operator to obtain APN, Username and Password.

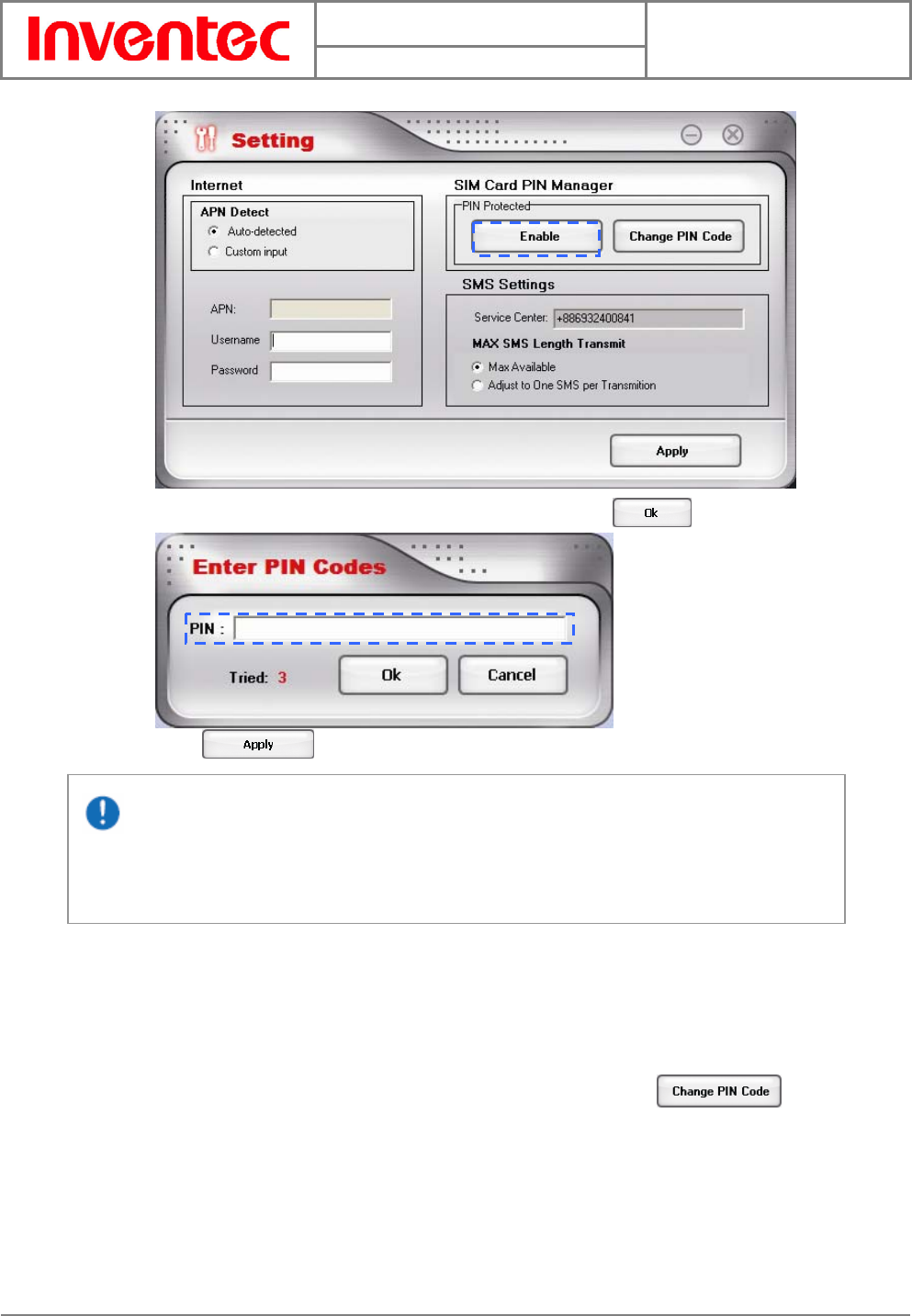

Setting PIN Security
For security purpose, SIM cards are preset with a personal identification number (PIN) that is
provided by your wireless service provider. When PIN security is activated, you need to enter a
PIN code when you launch Mobile Connect. To active the PIN feature, do the following:
1. In the main screen of Mobile Connect, click the SETTING button.
2. A Setting screen will be shown. In PIN Protected box, click .
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
22
INVENTEC CORPORATION
英業達股份有限公司
3. Enter the PIN code according to the prompt. Then click .
4. Click in the Setting screen to save this setting.
If your PIN is entered incorrectly three times, the SIM card will be blocked. If this
happens, you can unlock it with the PIN Unblocking Key (PUK) obtained from your wireless
service provider.
Changing PIN code
You have to activate PIN security before changing the PIN code.
1. In the main screen of Mobile Connect, click the SETTING button.
2. A Setting screen will be shown. In PIN Protected box, click .
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
23
INVENTEC CORPORATION
英業達股份有限公司
3. Enter the current PIN code and the new PIN code, and then enter the new code
again to confirm it.
4. Click to modify it.

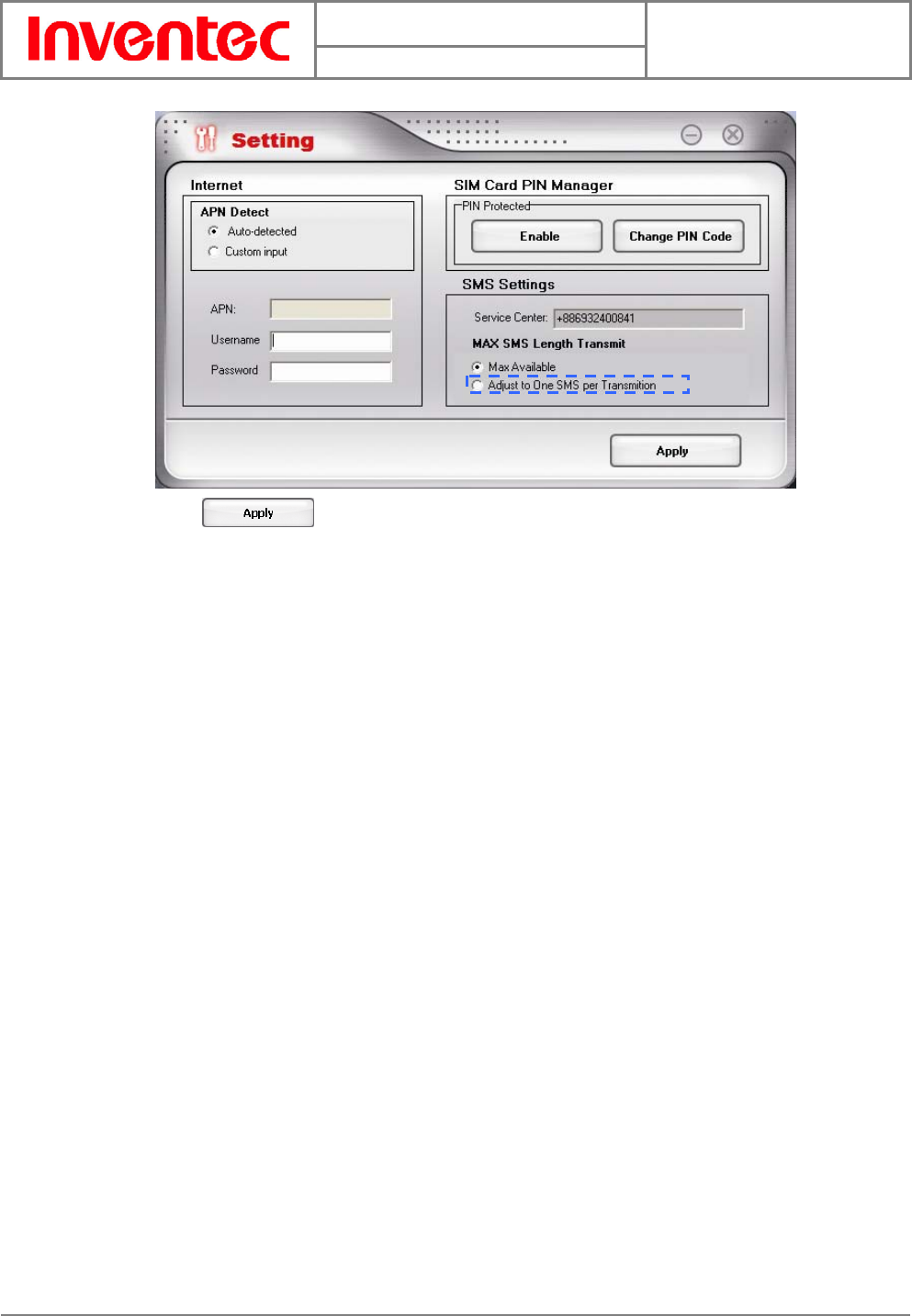

SMS Settings
If your text message contains more than 160 characters, it is divided into several messages and
sent one by one. You can set the maximum massage length to 160 characters to prevent this
kind of situation. Once you adopt this setting, the character amount of every text message you
send can not exceed 160.
1. In the main screen of Mobile Connect, click the SETTING button.
2. Select Adjust to One SMS per Transmission.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
24
INVENTEC CORPORATION
英業達股份有限公司
3. Click to save this setting.
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
25
INVENTEC CORPORATION
英業達股份有限公司
Chapter 4. Quitting and Uninstalling
User Manual
Minerva 3025
Version : 2.3
Date : 2007/10/01
26
INVENTEC CORPORATION
英業達股份有限公司
4.1 Quitting and Removing
Quitting Mobile Connect
If you wish to quit Mobile Connect, do either of the following:
1. Click the close button in the upper right of the main screen.
2. Right-click the Mobile Connect icon in your computer’s taskbar, and select Exit in the
pop-up screen.
Removing the Wireless Device from your PC
If you want to remove the wireless device from your PC, please do it through the hardware
removing function provided by Windows.

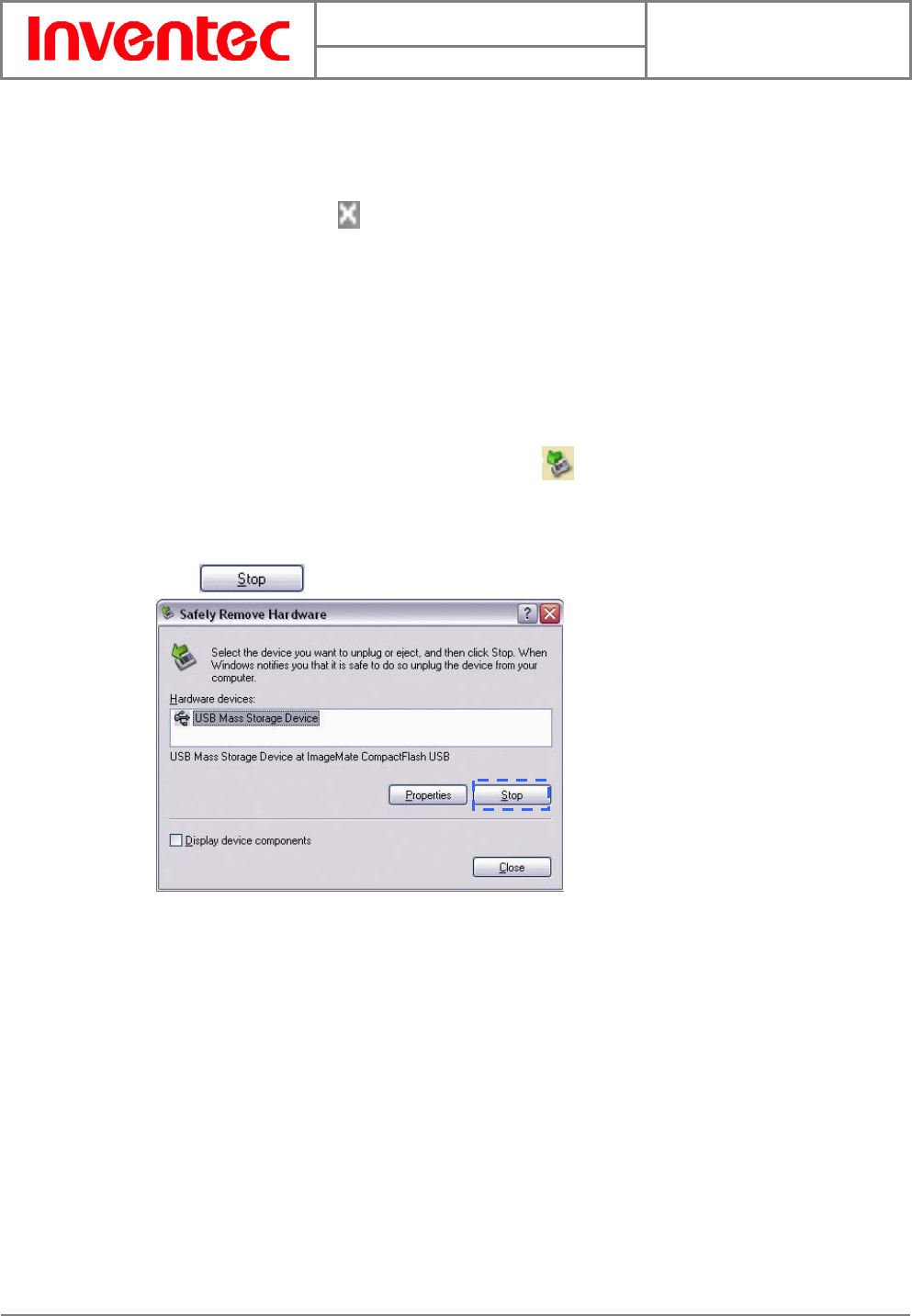

1. Double-click the Safely Remove Hardware icon in the notification area of
Windows taskbar.
2. You will be given a list of USB devices that are active. Select your wireless device and
click .
3. Windows will confirm that your wireless device can be safely removed, you can then
Unplug it from the USB port of your PC.
4.2 Uninstalling Mobile Connect
To remove Mobile Connect from your PC, select Start > Programs > Inventec Data Card >
Uninstall Mobile Connect. You can then uninstall Mobile Connect by following the on-screen
uninstall Wizard steps.
