Invixium Access TSPROX Biometric Fingerprint Reader User Manual

Invixium Access Inc. Biometric Fingerprint Reader

UserManual.wiki >

Invixium Access >

TSPROX User Manual HTML Version

User Manual

Installation

Guide

INVIXIUM

ACCESS

INVIXIUM

invixium

access

Table of Contents

Glossary and Denitions ..............................................................................................................................................................3

Earth Ground .............................................................................................................................................................................4

Device Handling and Cleaning ......................................................................................................................................................5

IXM INSTALL KIT Contents.........................................................................................................................................................6

IXM MYCRO ...........................................................................................................................................................................7

IXM SENSE .............................................................................................................................................................................9

IXM TOUCH ........................................................................................................................................................................... 11

I/O Cable: Top Connector Pin Out ............................................................................................................................................... 13

I/O Cable: Bottom Connector Pin Out .......................................................................................................................................... 14

Hardware Tools Required For Installation .................................................................................................................................... 15

Hardware Installation Steps ....................................................................................................................................................... 16

Connections for Power ............................................................................................................................................................... 20

Connections for Communication ................................................................................................................................................. 22

Connections for Operation ......................................................................................................................................................... 26

Electrical Specications ............................................................................................................................................................. 28

Software Installation System Requirements ................................................................................................................................. 29

Software Installation Steps ........................................................................................................................................................ 30

Notices ................................................................................................................................................................................... 32

Support ................................................................................................................................................................................... 36

INVIXIUM

invixium

access

Glossary

ACP Access Control Panel

COM Common

DAC Door Access Control

DOS Door Open Schedule

EGND Earth Ground

ESD Electrostatic Discharge

GND Ground

IXM INVIXIUM

LED Light Emitting Diode

NC Normally Closed

NO Normally Open

OTG On-the-Go

RLY Relay

RX Receive

SGND Signal Ground

SPI Specic Purpose Input

SPO Specic Purpose Output

TX Transmit

USB Universal Serial Bus

WDATA Wiegand Data

WGND Wiegand Ground

VDC Volts Direct Current

VIN+ Power Positive (12-24 VDC)

VIN- Power Return

Temporary Back

Cover

Wired Back

Cover

Metal Mounting

Plate

INVIXIUM

invixium

access

Earth Ground

For protection against ESD, which may cause damage or malfunction to the IXM device, Invixium recommends the use of the ground

connections between each IXM device and a high quality Earth Ground available at the install site. Please note that installation of any IXM

device should be performed by licensed electricians.

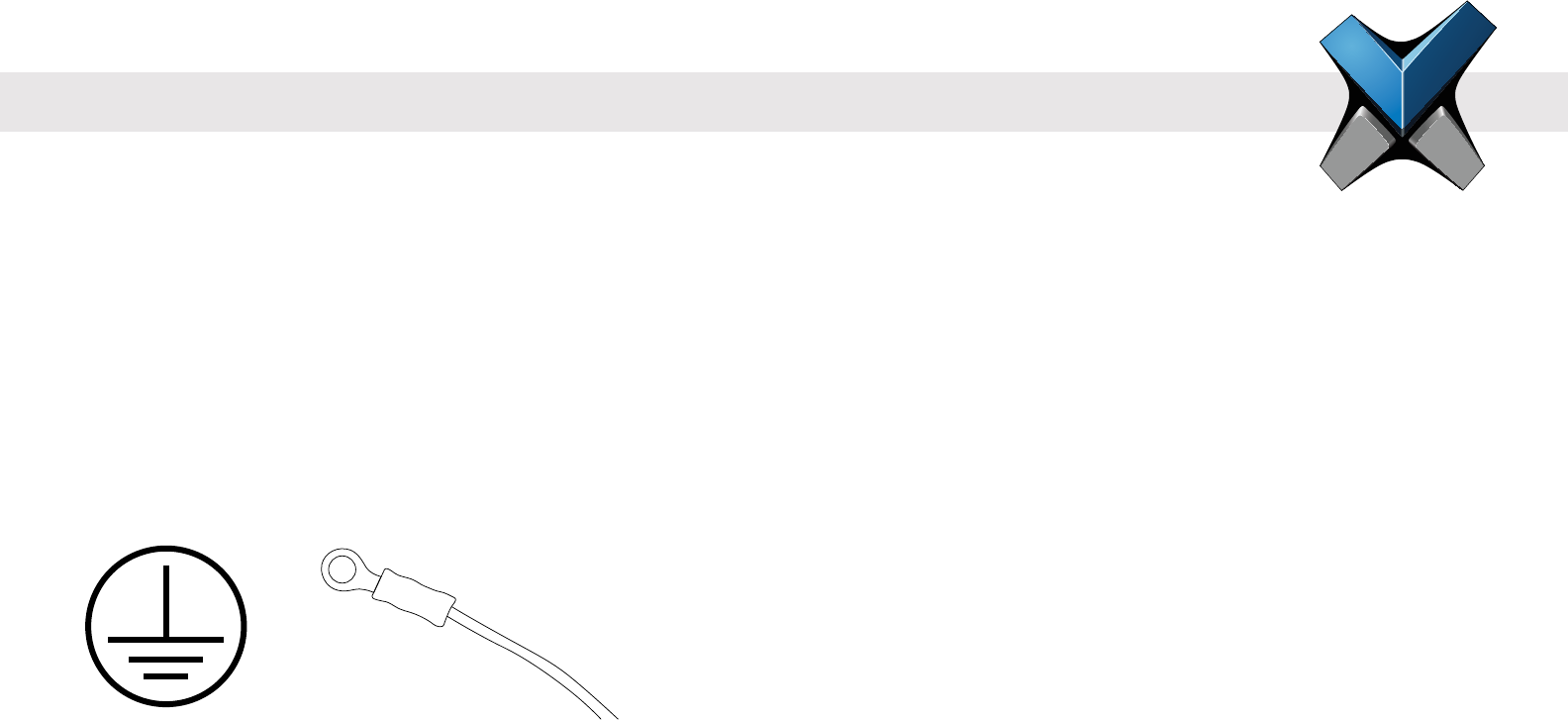

An Earth Ground wire with lug is provided in the IXM INSTALL KIT. The lug of the Earth Ground wire should be fastened with a screw to the

front of the mounting plate. The other end of the Earth Ground wire should be connected to the high quality Earth Ground connection on site.

When the IXM device is installed onto the mounting plate, this Earth Ground lug will make direct contact with the Metal Back plate of the IXM

device, thus allowing for proper grounding.

Please refer to page 15 for step-by-step instructions for mounting plate, device and Earth Ground wire installation.

Earth Ground WireEarth Ground

INVIXIUM

invixium

access

Device Handling Do's

• Handle with care, ensure not to drop or step on the device.

• Perform occassional cleaning to eliminate a build-up of dust, dirt, oil and residual grime.

Device Handling Don'ts

• Do not install in areas with direct sunlight, high levels of humidity, extreme dust or ammable vapours.

• Do not allow magnetic objects to come in close contact to any device.

• Do not install near any heating elements or equipment.

• Do not attempt to open or disassemble the device, as this will void the product warranty.

• Do not deploy for any use other than its intended purpose.

• Do not insert anything other than the correct tting USB plug into the USB port, located at the bottom of the device.

Device Cleaning

The component that will require most frequent cleaning is the sensor, as it experiences the most contact. The cleaning should be performed

with care and attention, as improper cleaning may damage the sensor or surrounding components.

Follow the steps below for proper sensor cleaning procedure:

1. Lightly moisten a new cotton swab or lint free polishing cloth with water or isopropyl alcohol.

2. Gently wipe the surface of the sensor with the moistened cotton swab or cloth.

3. Finish the wiping the sensor again with a dry cotton swab or cloth.

WARNING

Do not use harsh or abrasive chemicals to clean the surface of the sensor, as this may cause permanent damage to the device.

Do not use sandpaper, steel wool, scouring pads, chlorine, ammonia, bleach, or any inappropriate products for cleaning.

INVIXIUM

invixium

access

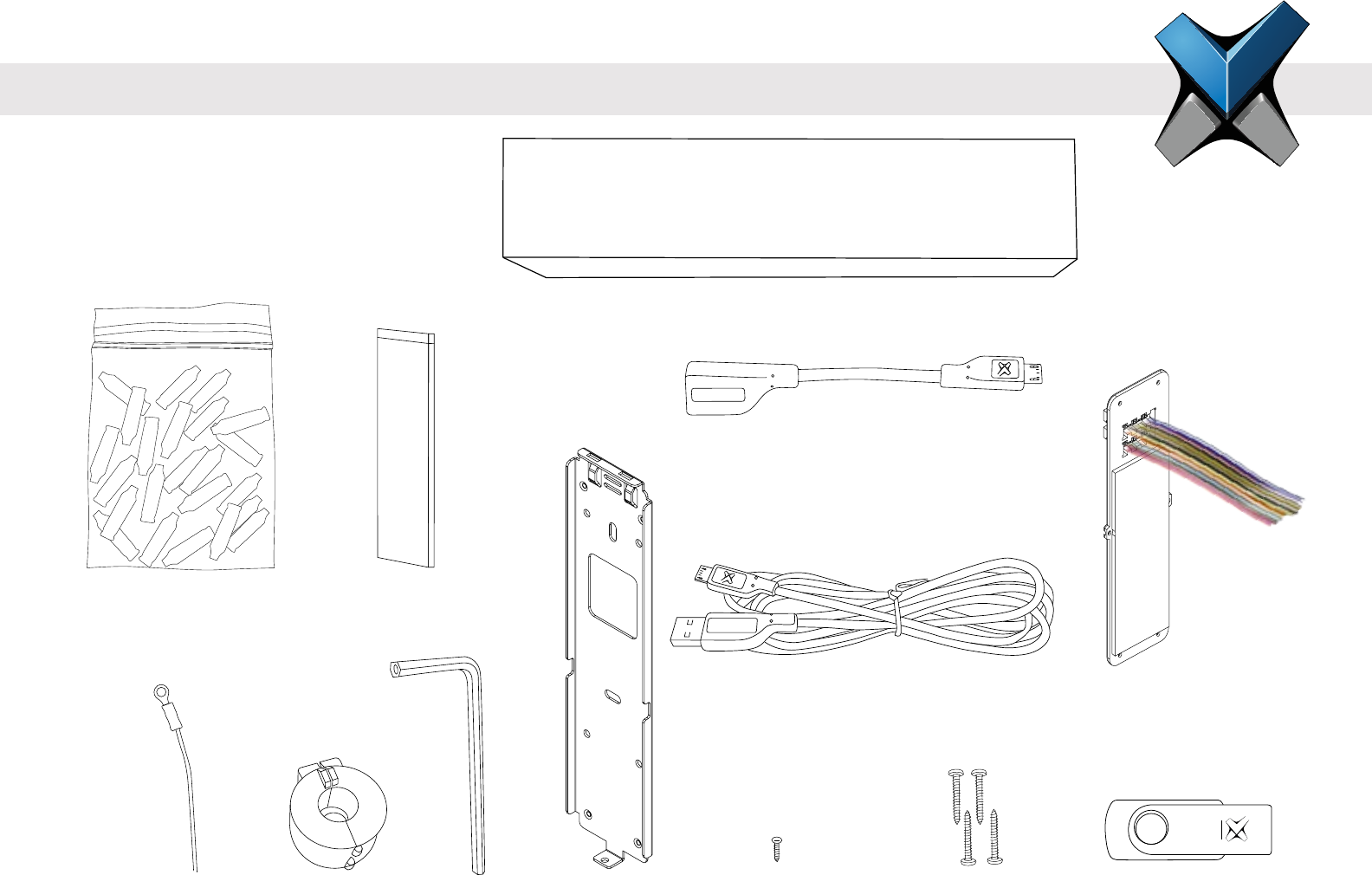

IXM INSTALL KIT

The IXM Install Kit includes:

INVIXIUM

ACCESS

DOLPHIN

INVIXIUM

Dolphin Crimps

(qty 24)

Lithium Battery

(IXM TOUCH only)

Metal Mounting

Plate

Earth Ground Wire Metal Mounting

Plate Screw

(qty 1)

Wall Mounting Screws

(qty 4)

Micro USB-On-the-Go Cable

Micro USB Extension

Cable (4 ft/1.2m) Wired Back Cover

USB Flash DriveFerrrite Core Hex Key

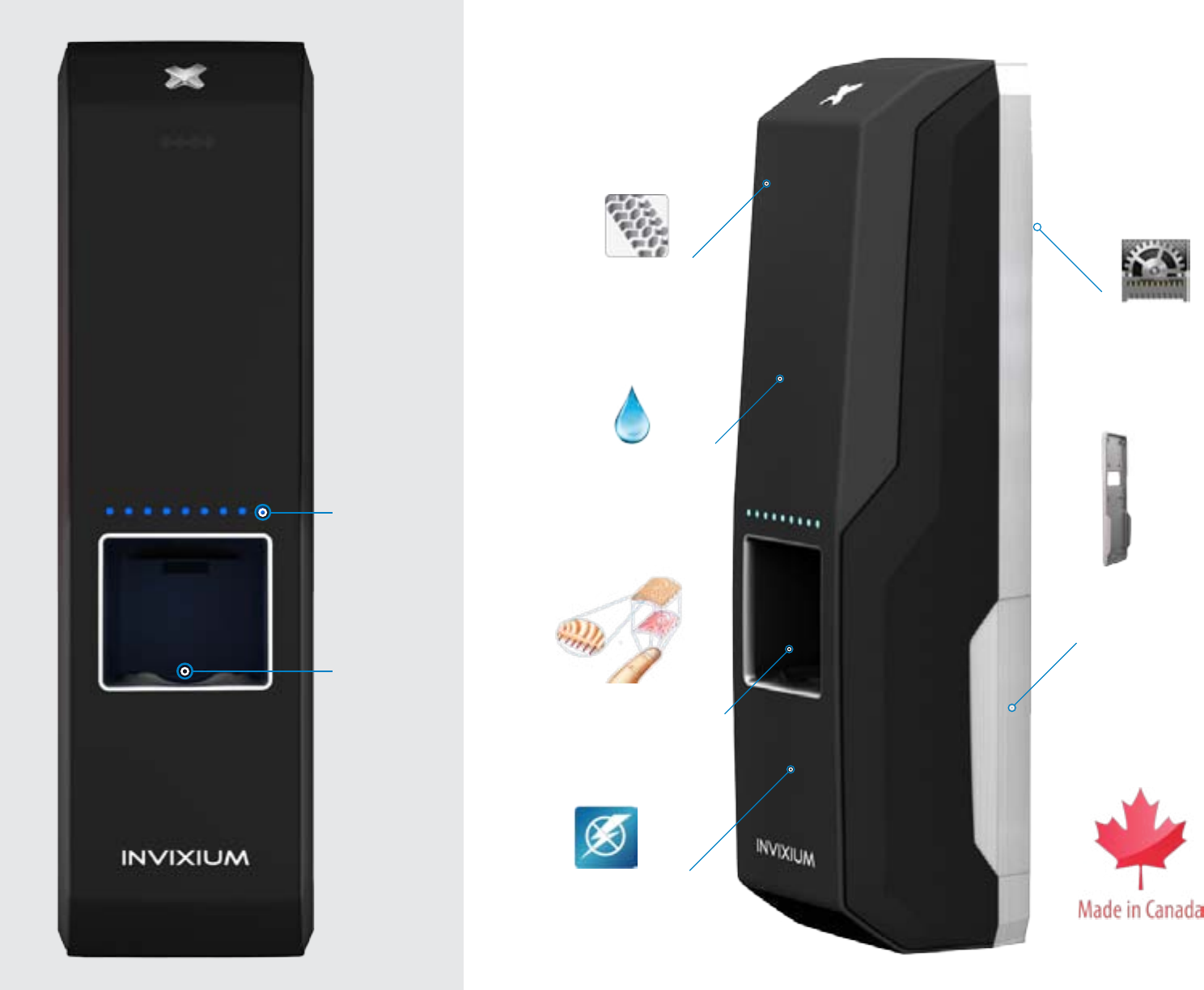

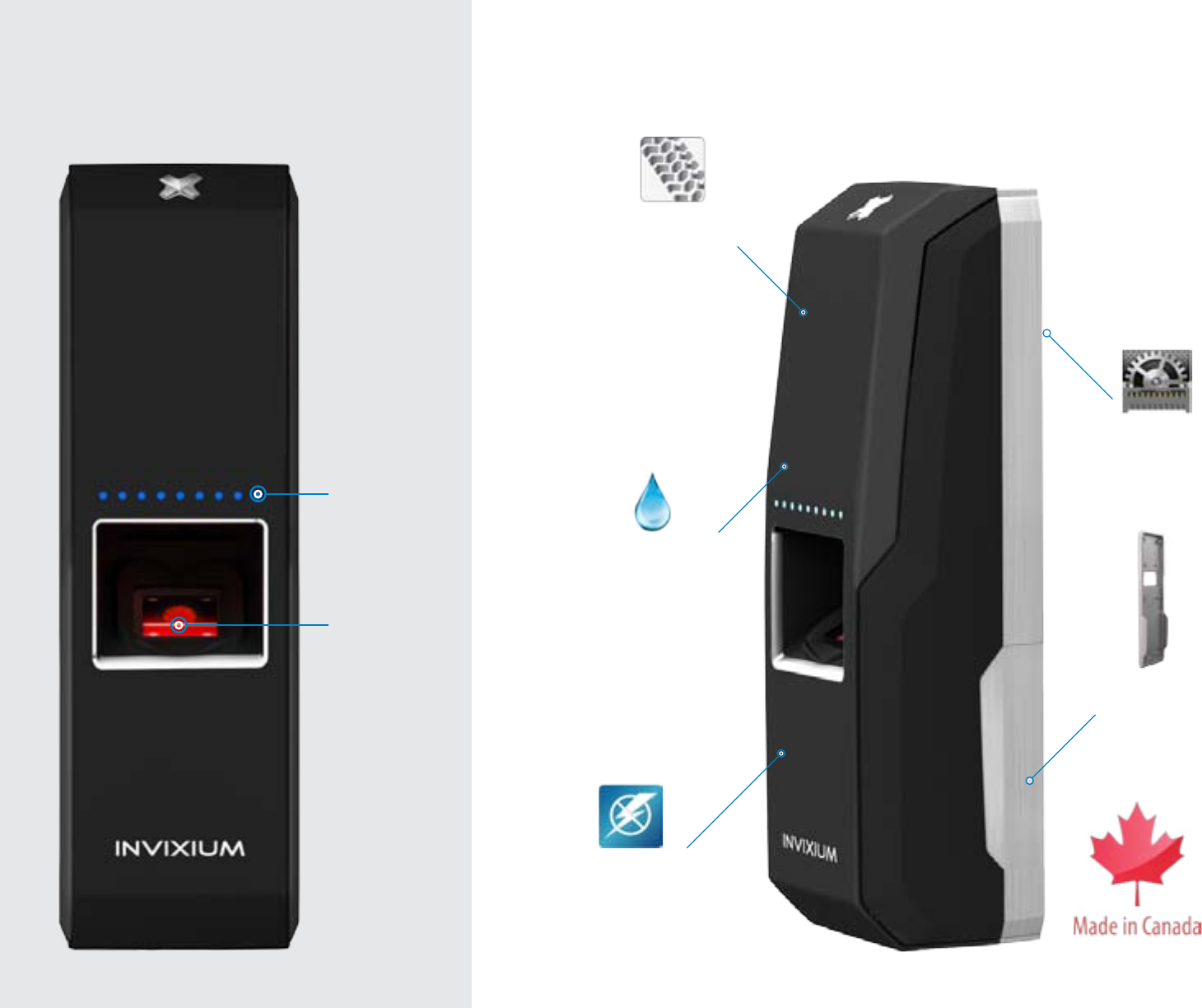

IXM MYCRO

Surge Protection as per

EN55024

More than IP65

Rugged Front Shell

Solid Metal Back

Plate

Industrial Grade

Connectors

Sensor

Multi-color

LEDs

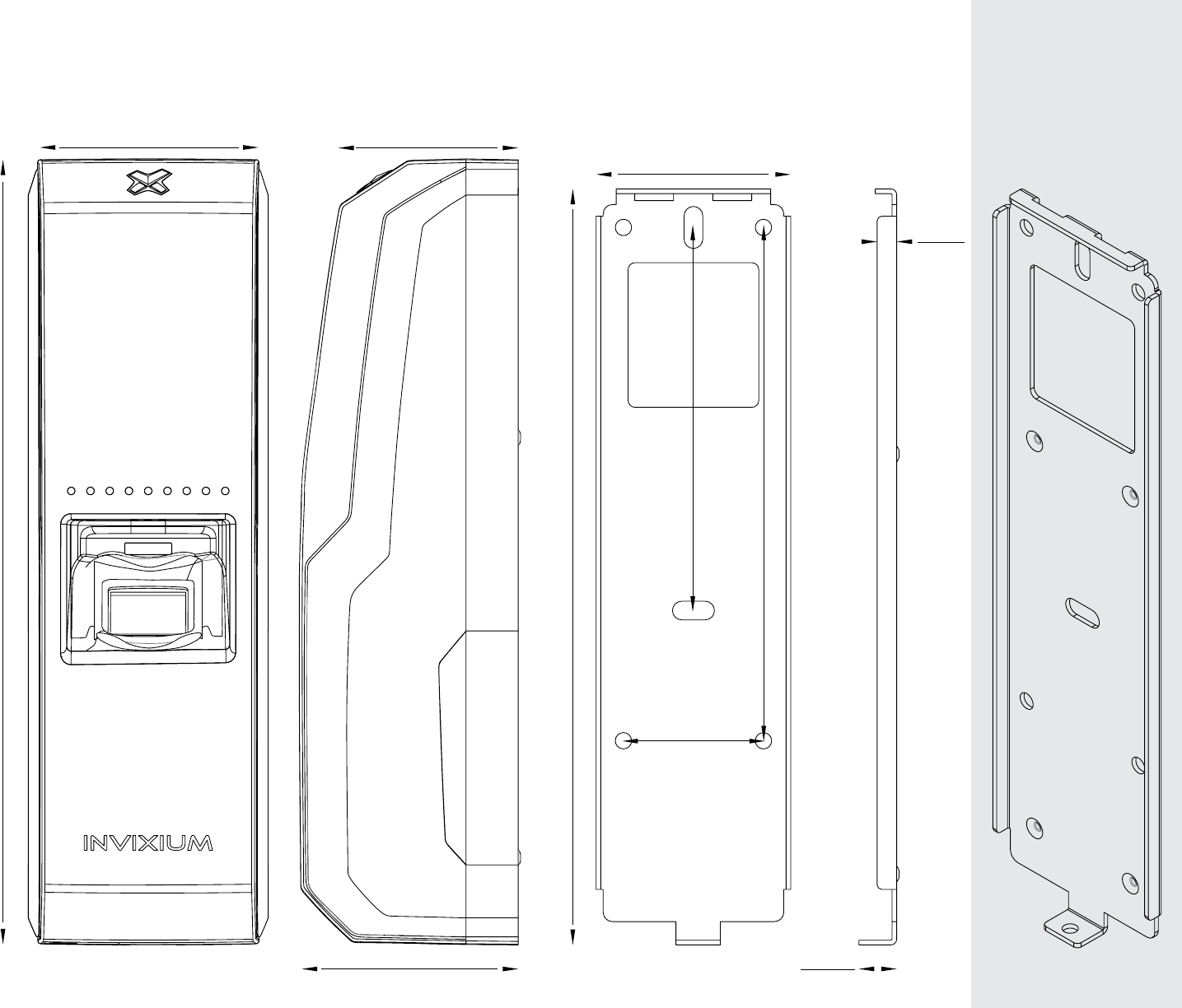

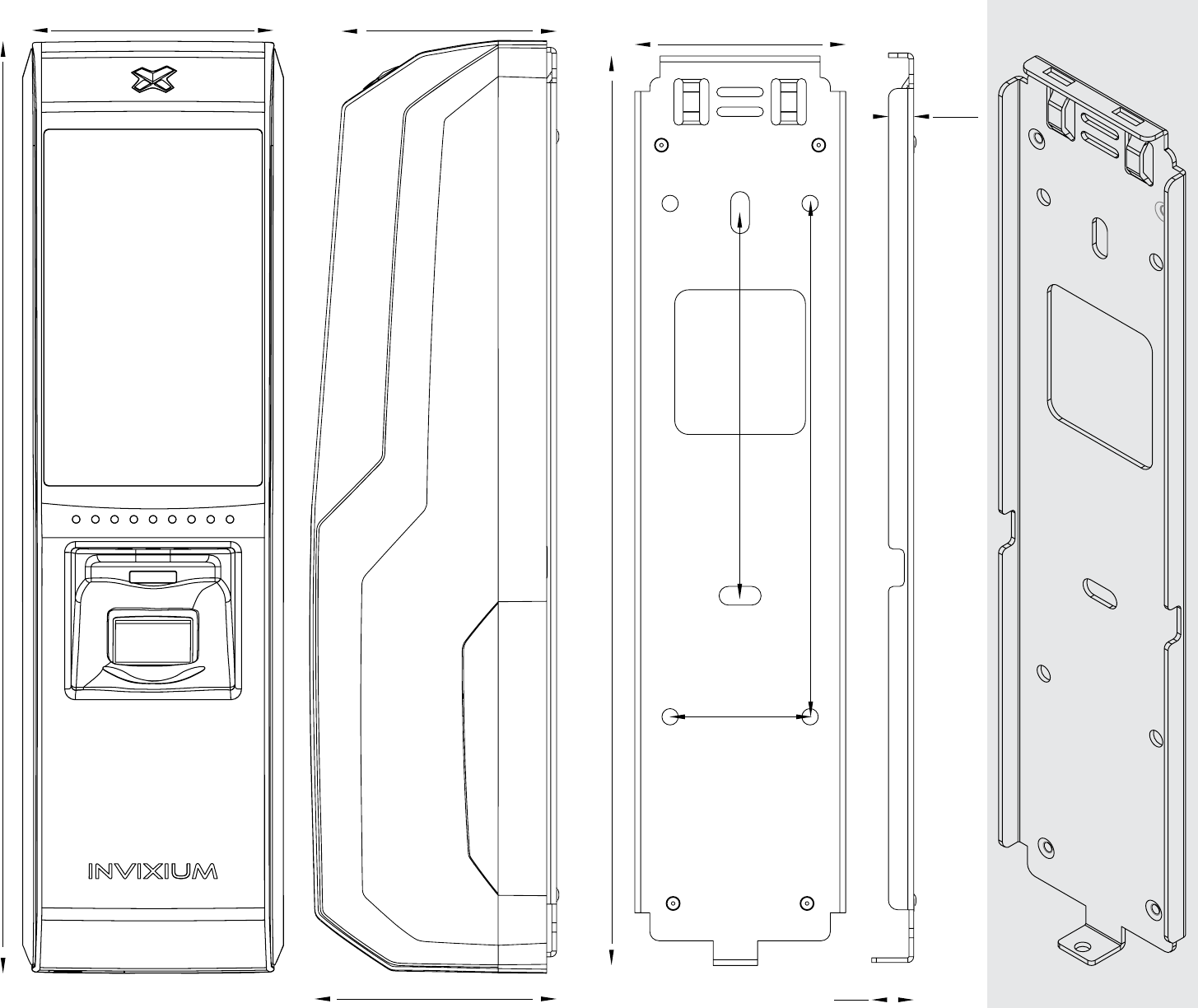

IXM MYCRO Product & Mounting Plate Actual Dimensions in mm

INVIXIUM recommends printing this page in Actual Size

162

41.70

82.1

110

168

Front View

38.5

46.3

Side View Front View

8.10

4.20

Side View

Angled

Front View

IXM SENSE

Surge Protection as per

EN55024

More than IP65

Rugged Front Shell

Multispectral

Fingerprint Imaging

Sensor

Solid Metal

Back Plate

Industrial Grade

Connectors

Lumidigm

Sensor

Multi-color

LEDs

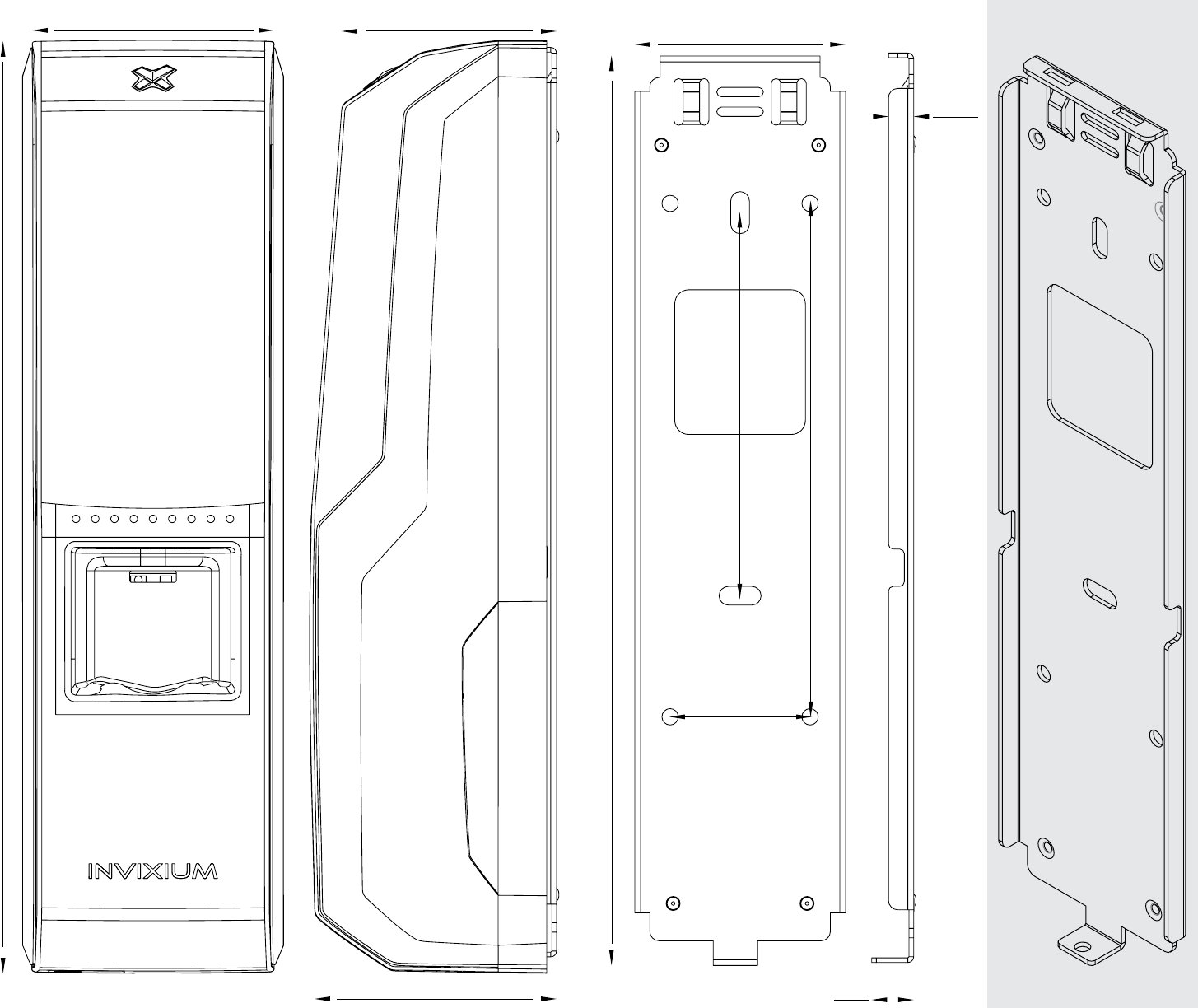

IXM SENSE Product & Mounting Plate Actual Dimensions in mm

NVIXIUM recommends printing this page in Actual Size

199.7

Front View

46.08

51.85

Side View

45.20

194.9

Front View

5.40

Side View

Angled

Front View

82.1

110

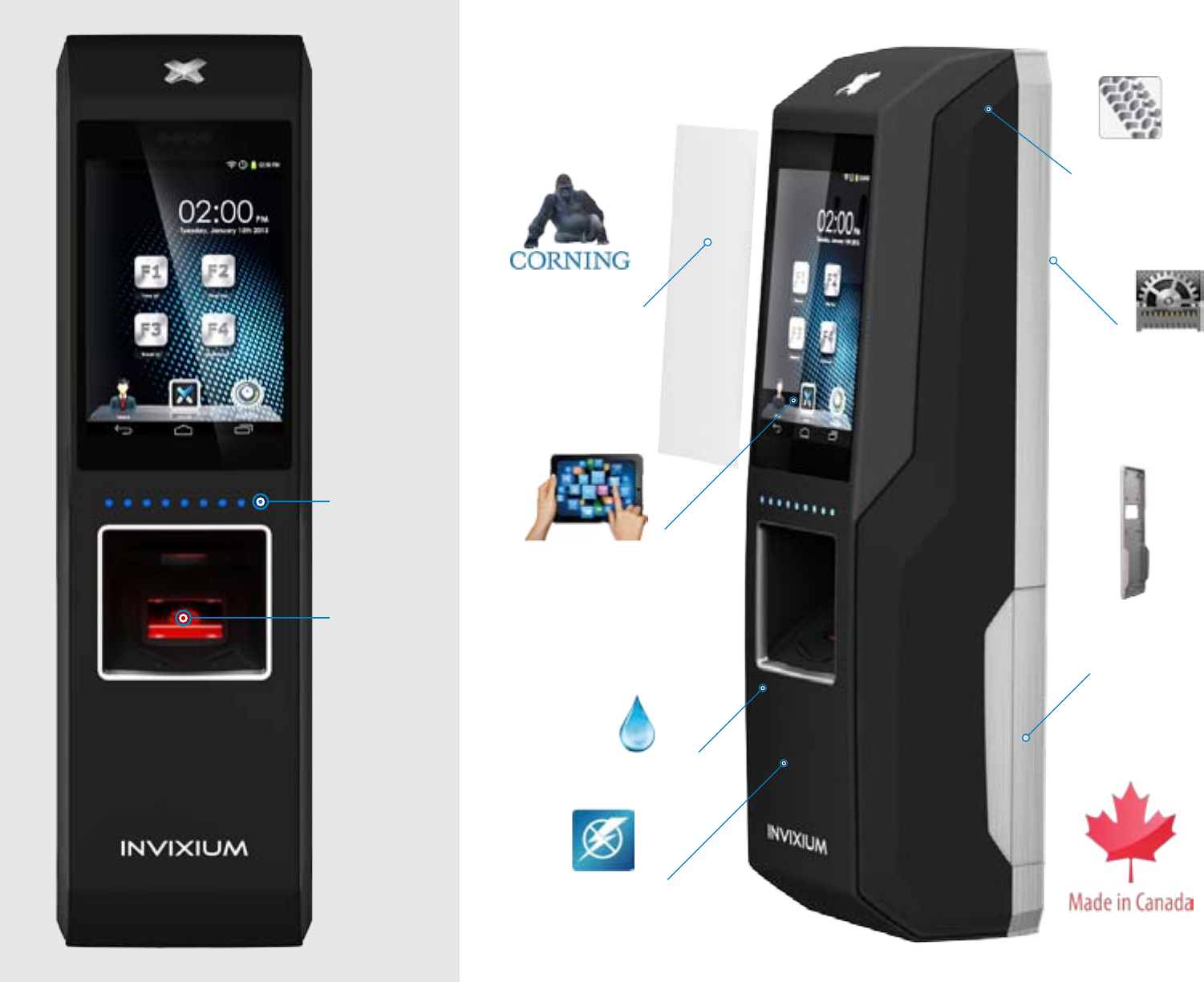

IXM TOUCH

Solid Metal

Back Plate

Industrial Grade

Connectors

Surge Protection as per

EN55024

More than IP65

Rugged

Front Shell

Super Strong

Protective Glass

Optically Bonded

Capacitive Touch Screen

Sensor

Multi-color

LEDs

IXM TOUCH Product & Mounting Plate Actual Dimensions in mm

NVIXIUM recommends printing this page in Actual Size

199.7

Front View

46.08

51.85

Side View

45.20

194.9

Front View

5.40

Side View

Angled

Front View

82.1

110

INVIXIUM

invixium

access

RLY_NC

RLY_NO

RLY_COM

ACP_LED2

ACP_LED_GND

ACP_LED1

DAC_IN1

DAC_IN3

DAC_IN2

DAC_GND

DAC_OUT

SPI_GND

SPI_2

SPI_1

SPI_3

SPO_GND

SPO_2

SPO_3

SPO_1

Application Label Pin

Specic Purpose Output Line 1 SPO_1 2

Specic Purpose Output Line 2 SPO_2 4

Specic Purpose Output Line 3 SPO_3 6

Ground for Specic Purpose Outputs SPO_GND 8

Specic Purpose Input Line 1 SPI_1 10

Specic Purpose Input Line 2 SPI_2 12

Specic Purpose Input Line 3 SPI_3 14

Ground for Specic Purpose Inputs SPI_GND 16

Door Access Control Output DAC_OUT 18

Reserved for Future (No Connect) N/C 20

Wire Color

Application Label Pin

Relay Normally Closed RLY_NC 1

Relay Common RLY_COM 3

Relay Normally Open RLY_NO 5

Access Control Panel LED 1 Feedback ACP_LED1 7

Access Control Panel LED 2 Feedback ACP_LED2 9

Ground for Access Control Panel LED Feedback ACP_LED_GND 11

Door Access Control Input 1 DAC_IN1 13

Door Access Control Input 2 DAC_IN2 15

Door Access Control Input 3 DAC_IN3 17

Ground for Door Access Control Inputs DAC_GND 19

Wire Color

I/O Cable: Top Connector Pin Out

Front View Back View

Wired Back Cover

INVIXIUM

invixium

access

Application Label Pin

RS-232 Data Receive RS-232_RX 2

RS-232 Data Transmit RS-232_TX 4

Signal Ground SGND 6

RS-485 Non-Inverting Line RS-485+ (B) 8

RS-485 Inverting Line RS-485- (A) 10

Wiegand Data Input Line 0 WDATA_IN0 12

Wiegand Data Input Line 1 WDATA_IN1 14

Wiegand Data Output Line 0 WDATA_OUT0 16

Wiegand Data Output Line 1 WDATA_OUT1 18

Ground for Wiegand WGND 20

Application Label Pin

Power (+12-24 VDC) VIN+ 1

Power Ground VIN- 3

Earth Ground EGND 5

RS-485 Terminated (Optional)* RS-485_T 7

Ethernet or PoE† TCP/IP 9,11,13,

15,17,19

*This pin is optional and should be used in place of the

RS-485+ terminal if 120Ω termination is required.

†PoE only available for IXM SENSE and IXM TOUCH

I/O Cable: Bottom Connector Pin Out

Wire ColorWire Color

RJ45 Receptacle

WGND

WDATA_OUT0

WDATA_IN0

WDATA_OUT1

WDATA_IN1

RS-485+ (B)

RS232_TX

RS-485- (A)

SGND

RS232_RX

VIN+

EGND

VIN-

TCP/IP

RS-485_T

Front View Back View

Wired Back Cover

NOTE

INVIXIUM

invixium

access

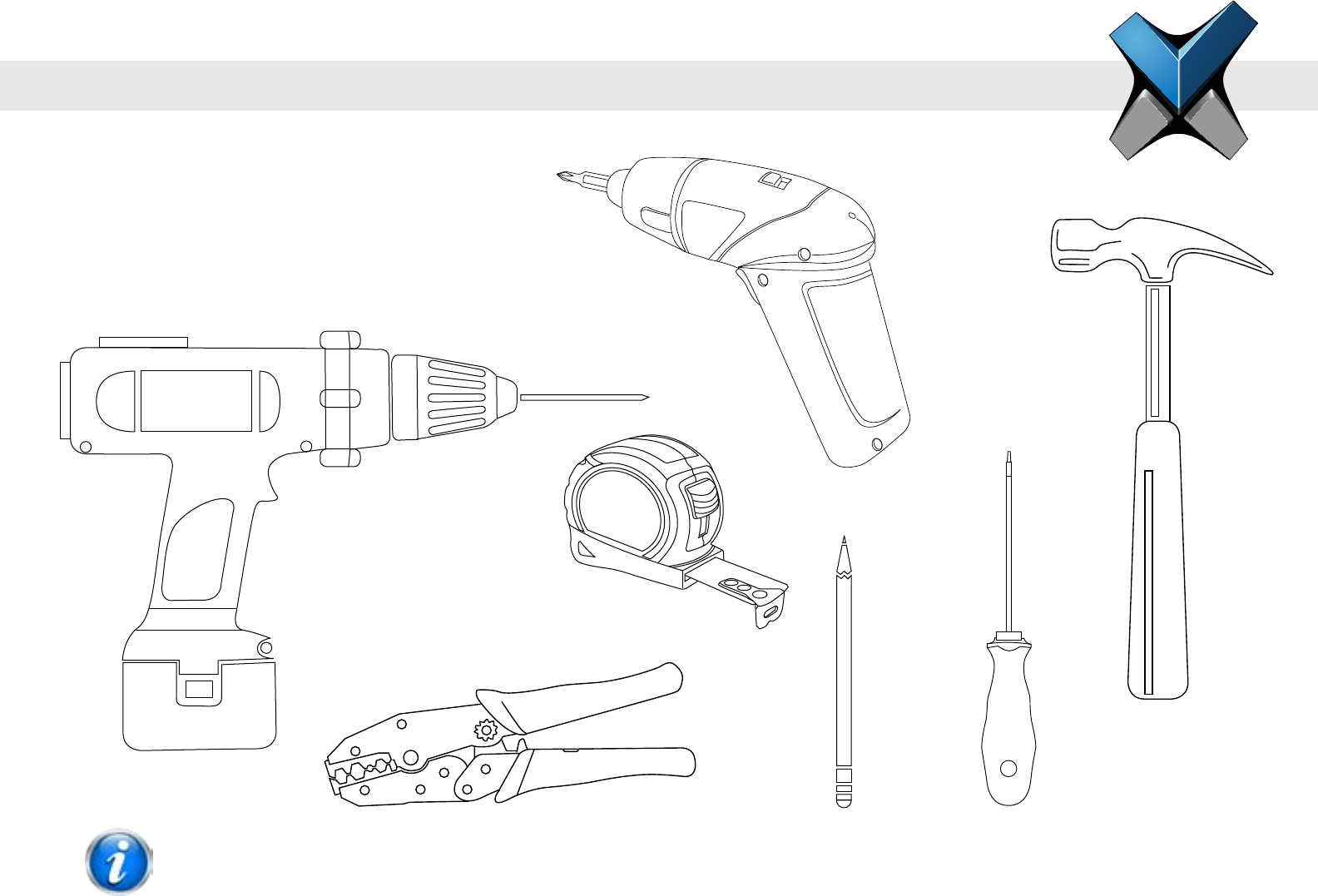

Hardware Tools Required For Installation

Pencil

Hammer*

Power Drill*

Ratchet-style Crimping tool

Installation of any IXM device should be performed by licensed electricians.

*Depending on the mounting surface, the Power Drill and Hammer may not be required.

NOTE

Measuring Tape

Battery powered

Screwdriver

Manual Screwdriver

INVIXIUM

invixium

access

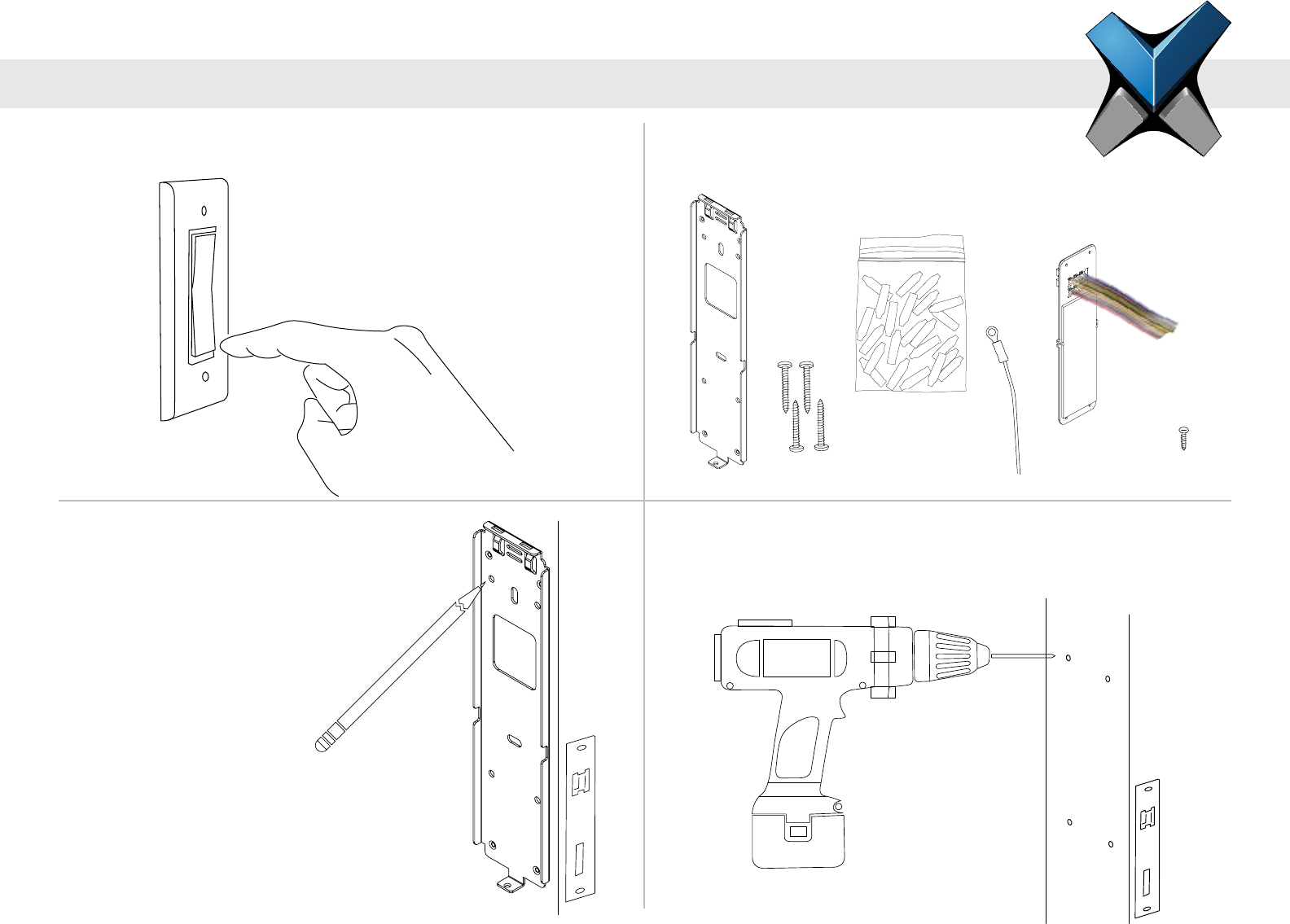

1 Ensure Power is Off

This protects the device being installed.

OFF

2 IXM Install Kit

Remove the following items from the kit:

4 Drill Holes

If required, drill holes where marked and install the appropriate wall

anchors (not included) using the hammer.

3 Mark the Screws Holes

INVIXIUM recommends the

use of the 4 circular holes for

mounting. Refer to diagrams on

page 8, 10 or 12 for actual

dimensions.

Ideal mounting height is 120 -

140 cm from the ground to

the top of the device. But

also be sure to align the

device in case of multiple

installations.

120-140 cms

DOLPHIN

INVIXIUM

invixium

access

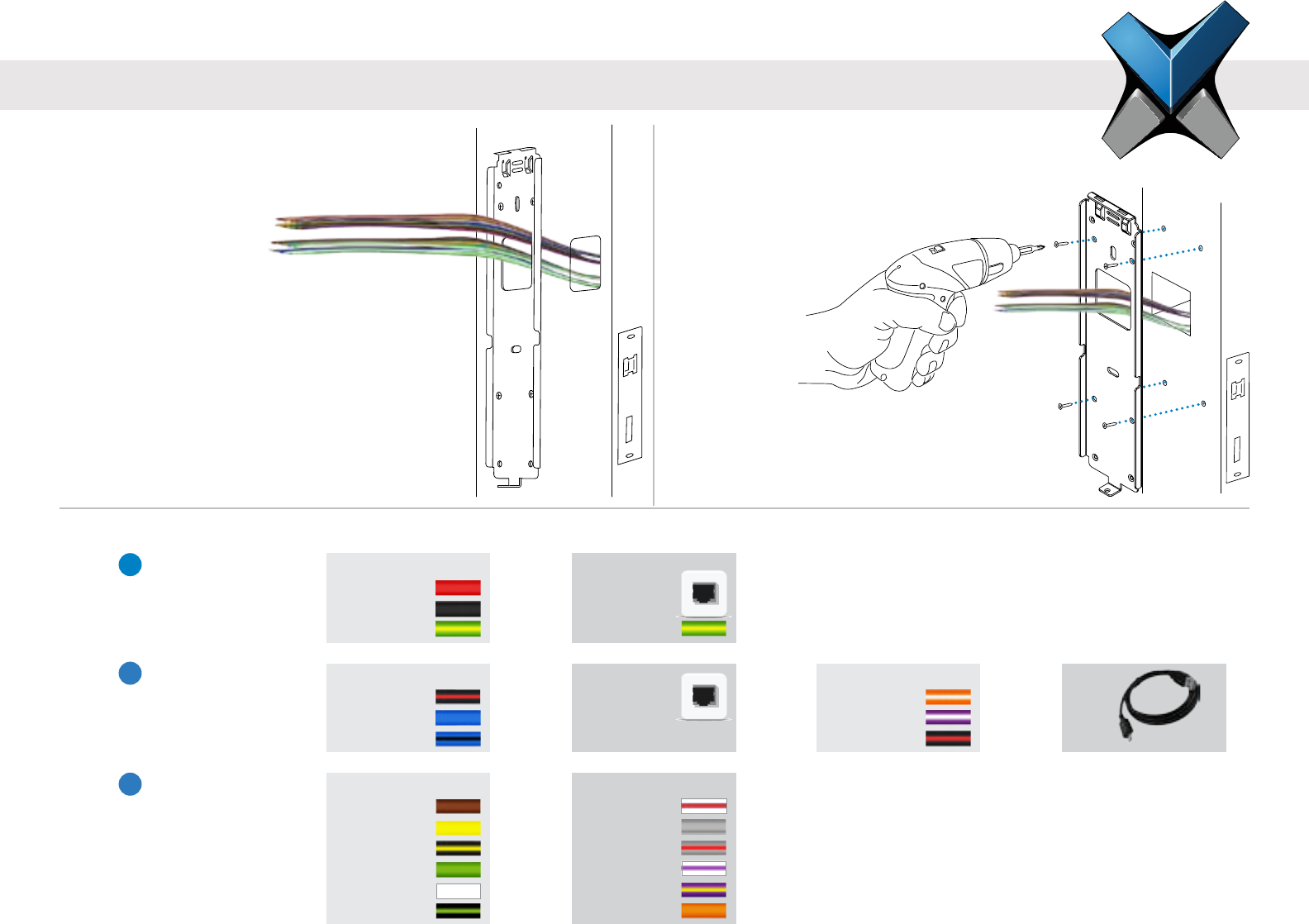

6 Insert Screws

Align the holes of the mounting plate with

the wall anchors and attach the mounting

plate with the screws provided in the IXM

Install Kit. Invixium

recommends the use of

an electric or

battery-powered

screwdriver

for this step.

5 Get Wires

Get access to the installation wires

either from behind the wall or from the

wiring conduit. Feed

wires through the

square hole of the

mounting plate.

7 Identify the Connections:

DC Power

VIN+

VIN-

EGND

PoE

RJ-45

Receptacle

EGND

Power & Grounding

Communications RS-485

SGND

RS-485+

RS-485-

Ethernet

RJ-45

Receptacle

USB RS-232

RS-232_RX

RS-232_TX

SGND

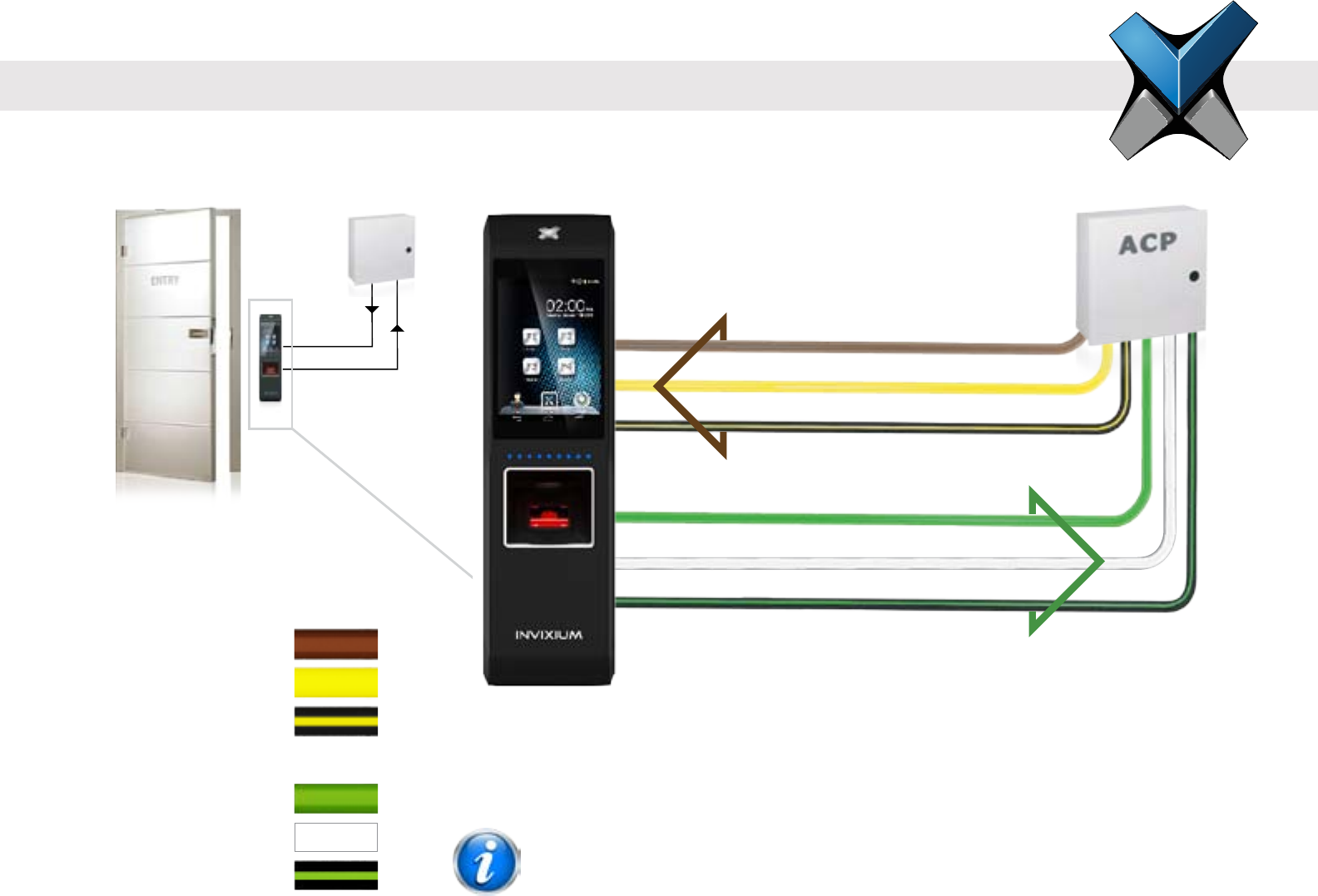

Operations ACP

ACP_LED1

ACP_LED2

ACP_LED_GND

WDATA_OUT0

WDATA_OUT1

WGND

DAC

RLY_NC

RLY_COM

RLY_NO

DAC_IN1

DAC_IN2

DAC_OUT

OR OR OR

Refer to pages 20 & 21 for Power connections,

pages 22-25 for Network or Serial Communication

connections and pages 26 & 27 for Operation

connections.

INVIXIUM

invixium

access

DOLPHIN

Earth Ground Wire

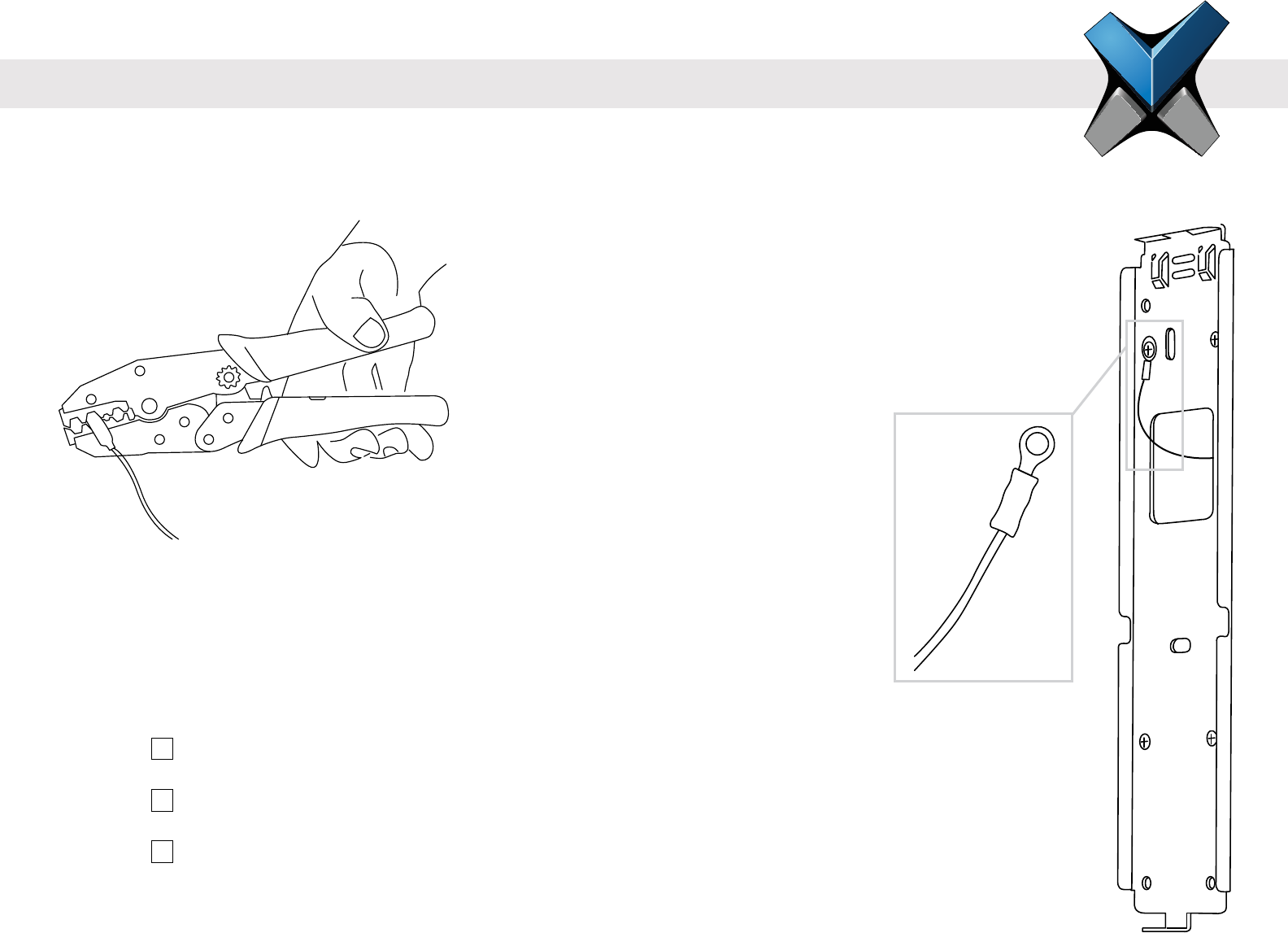

8A Make the Connections

Connect the required wires using the Dolphin® crimps provided in the IXM Install Kit (or any similar

crimps) and a ratchet style crimping tool. Insert the two wires (no stripping required) into the open end of

the crimp and then using the crimping tool, clamp down on the middle of the crimp.

8B Connect Earth Ground

Connect the lug of the Earth Ground wire directly to the front of the mounting plate using one of

the Wall mounting screws. Ensure that the lug is secured tightly as to make the necessary contact

between the device and the mounting plate. Connect the other end of the Earth Ground wire to

the Earth Ground connection of the install site with a crimp.

Ensure all required connections are made to each device in the setup prior to turning on the power.

Checklist: Connections for Power & Grounds (DC or PoE)

Connections for Communications (Ethernet, RS-485 or RS-232)

Connections for Operation (ACP or DAC)

Lug

INVIXIUM

invixium

access

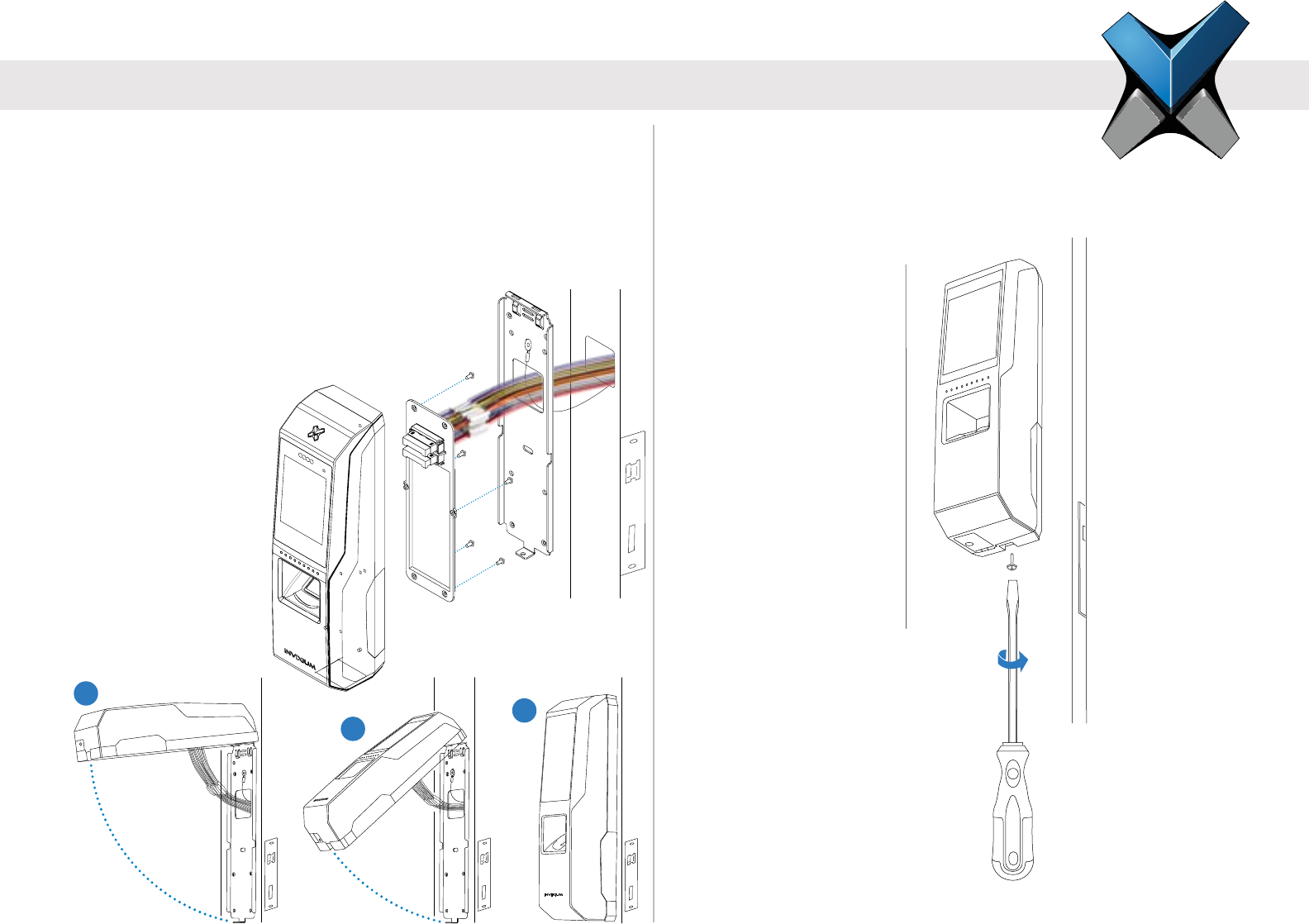

10 Secure the Device

Finally, secure the device on the bottom to

the mounting plate with the Metal Mounting

Plate screw provided in the IXM Install Kit.

9 Attach the Device

Take the IXM device and unscrew the Temporary Back Cover,

keeping the screws handy. Connect the Wired Back Cover to

the back of the device by lining up the connectors. Secure the

Wired Back Cover with the same screws. Next, hang the IXM

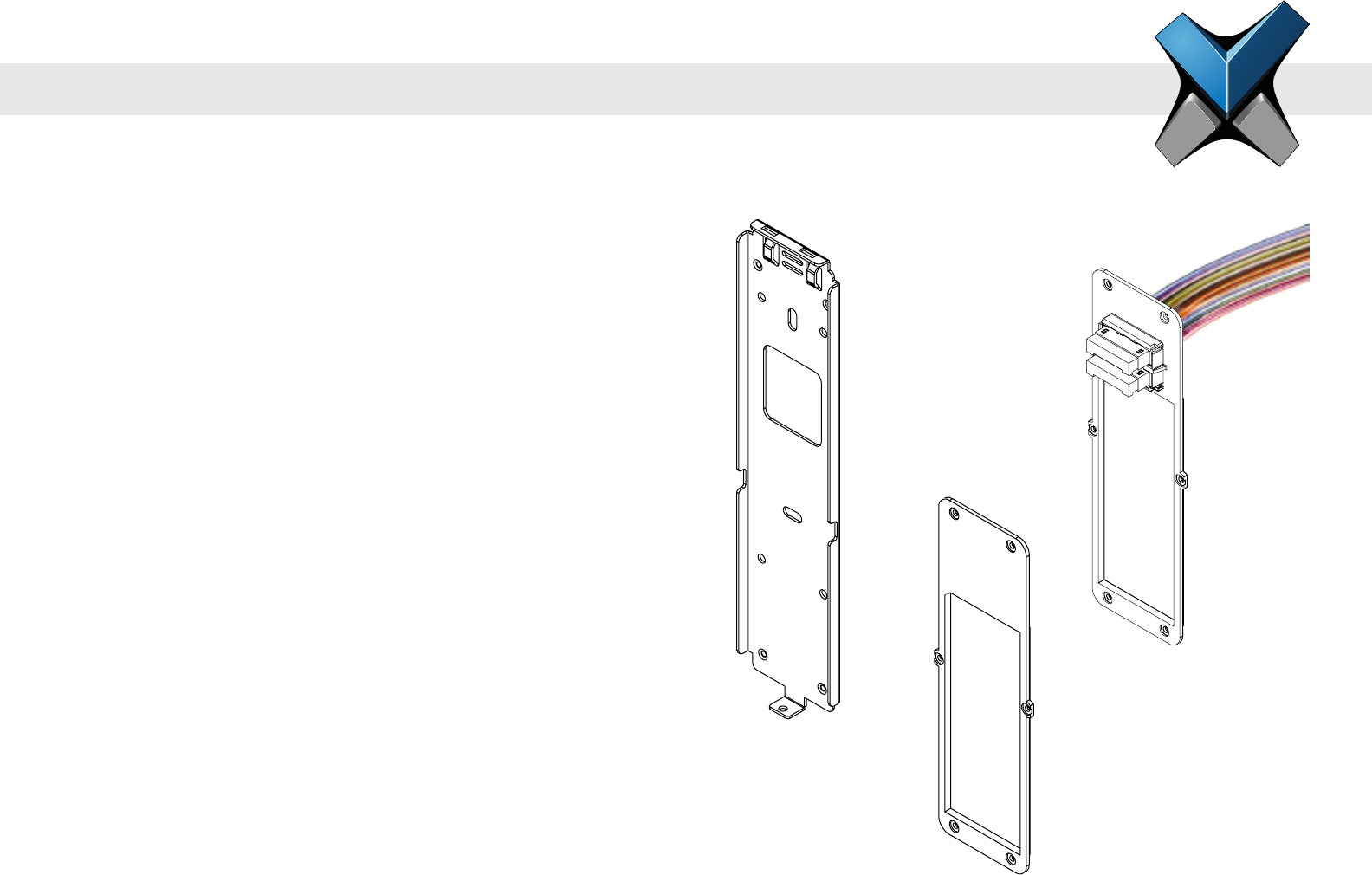

device onto the mounting plate as shown in the series of

diagrams below.

INVIXIUM

invixium

access

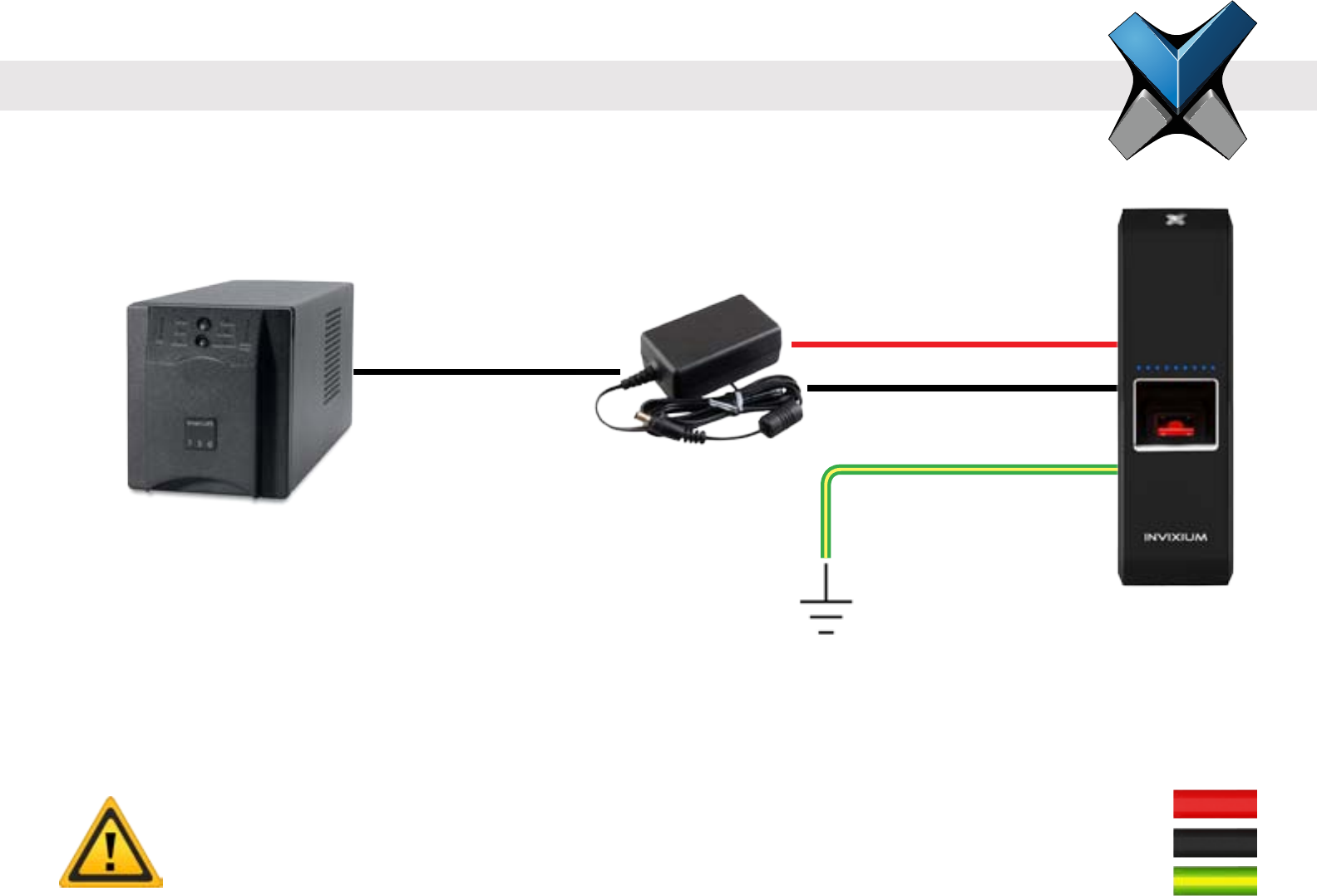

Connections for Power

INVIXIUM recommends:

• 12-24 VDC regulated power supply

• Dedicated Power Supply for each IXM device (minimum 1 A)

• Use of a battery back-up or UPS with built-in surge protection

• If sharing power supplies, ensure that each device is supplied with minimum 1 A per device

(ie. Powering two devices will require an supply with output current of 2 A)

Bottom Connector Power

VIN+ (1)

VIN- (3)

EGND (5)

Product Warranty is void if improper power (under or over) is supplied to the device.

WARNING

IXM MYCRO

DC Power Supply

UPS

EGND

VIN+

VIN-

INVIXIUM

invixium

access

INVIXIUM recommends:

• A centralized Power Sourcing Equipment (PSE) for full PoE deployments (not included)

• Use of a battery back-up or UPS with built-in surge protection

Only available on IXM SENSE and IXM TOUCH

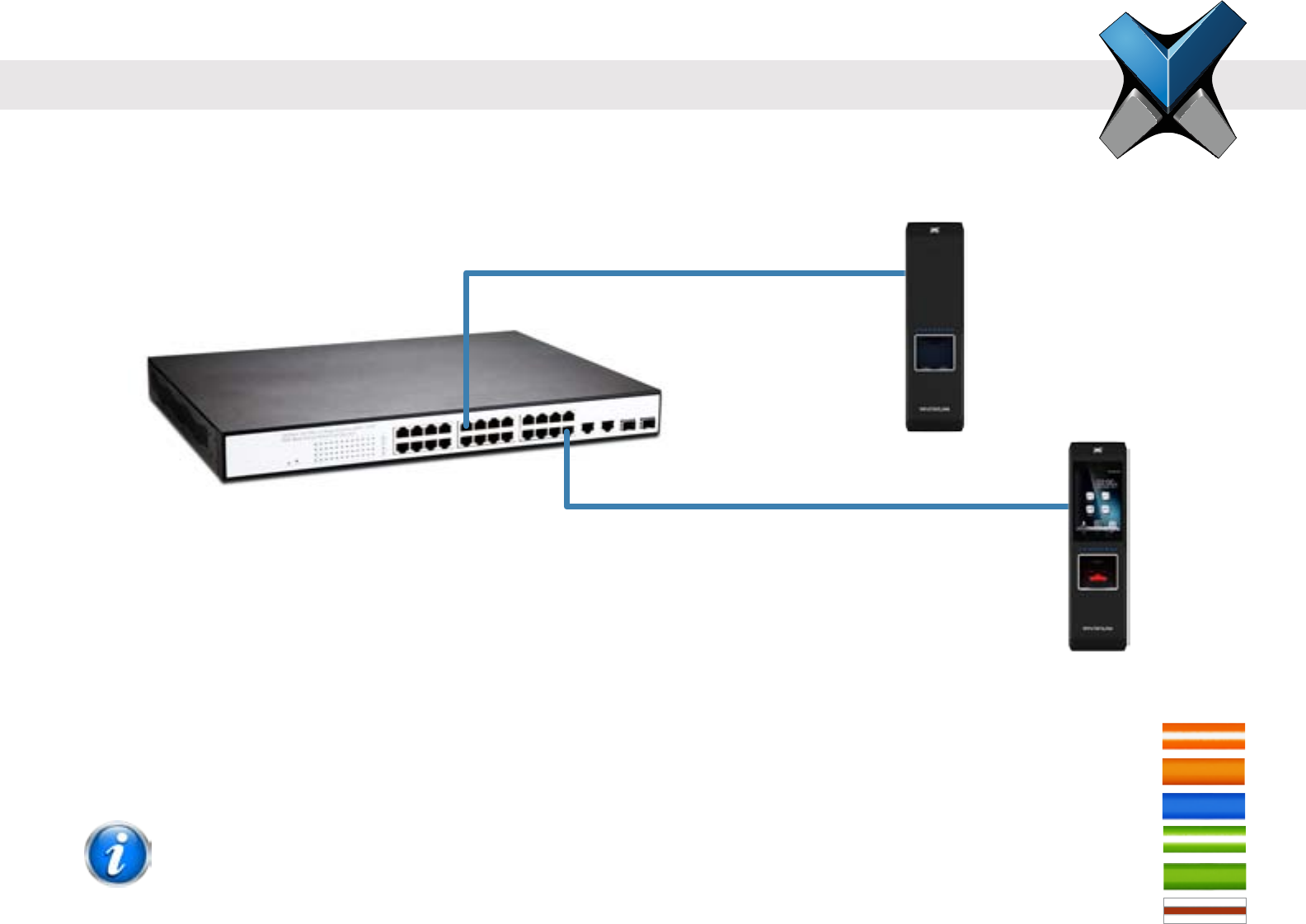

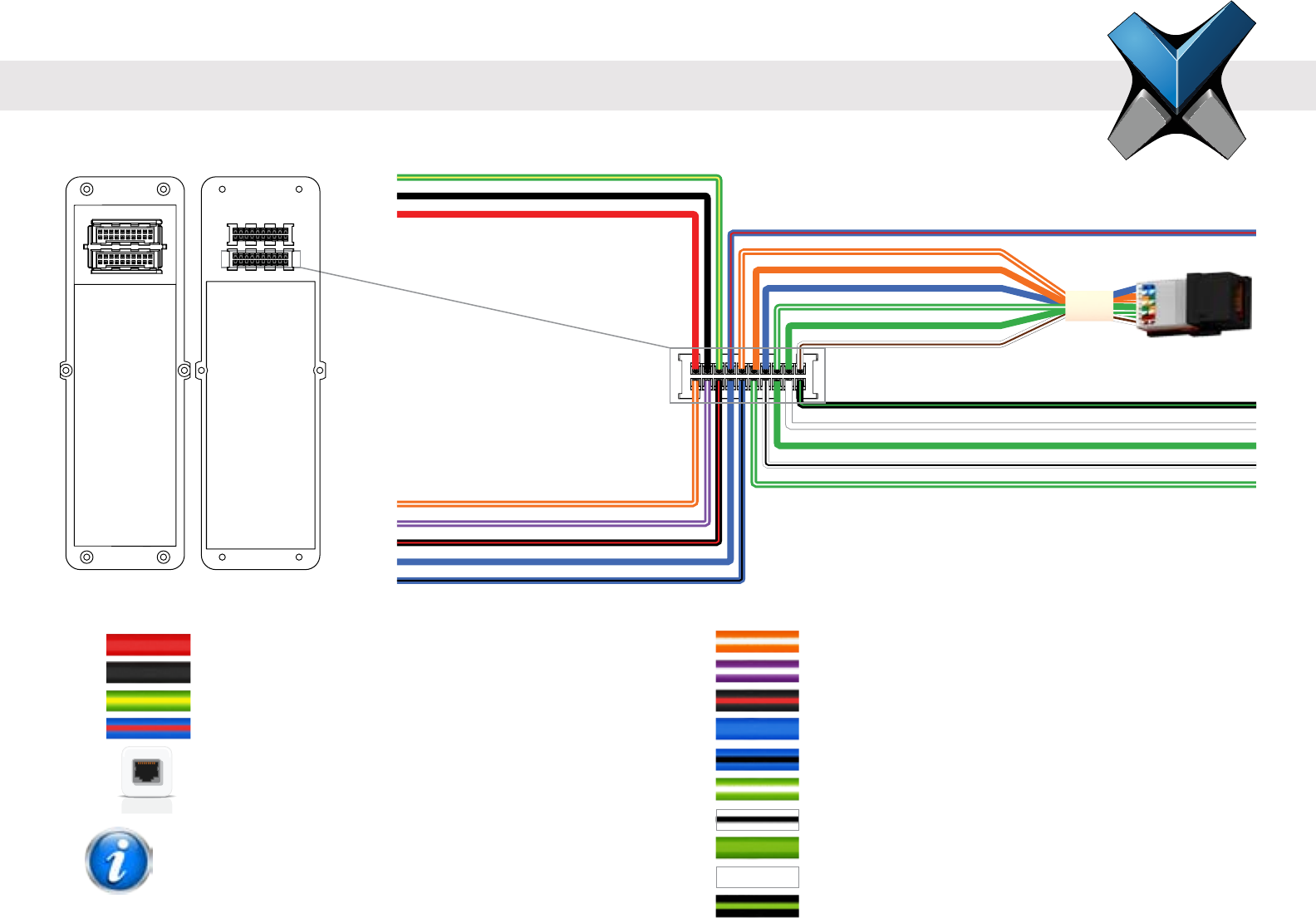

Connections for Power Over Ethernet (PoE)

Both IEEE 802.3af power transmission modes (A and B) are supported.

NOTE

IXM SENSE

IXM TOUCH

Bottom Connector PoE

TX+ (9)

TX- (11)

RJ45_PIN4 (13)

RX+ (15)

RX- (17)

RJ45_PIN7 (19)

INVIXIUM

invixium

access

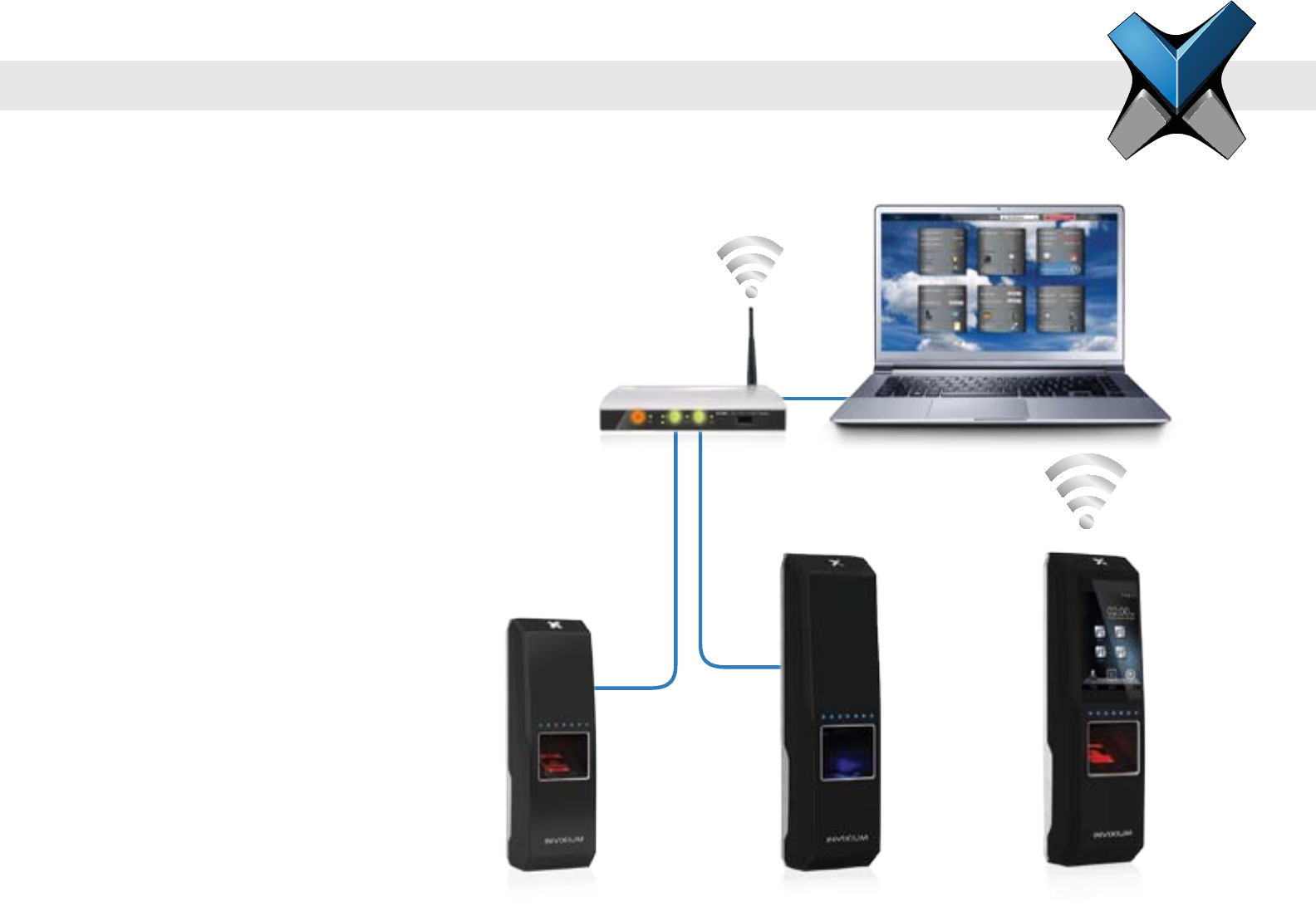

Ethernet and Wi-Fi Communication

Ethernet:

• Switch/Router required

• CAT 5 cabling or better

WiFi:

• Wireless router to LAN/WAN

• 802.11b/g/n protocol

• WEP, WPA and WPA2 encryptions supported

• DHCP enabled by default

IXM WEB

Router connected to

LAN/WAN

IXM TOUCHIXM SENSEIXM MYCRO

INVIXIUM

invixium

access

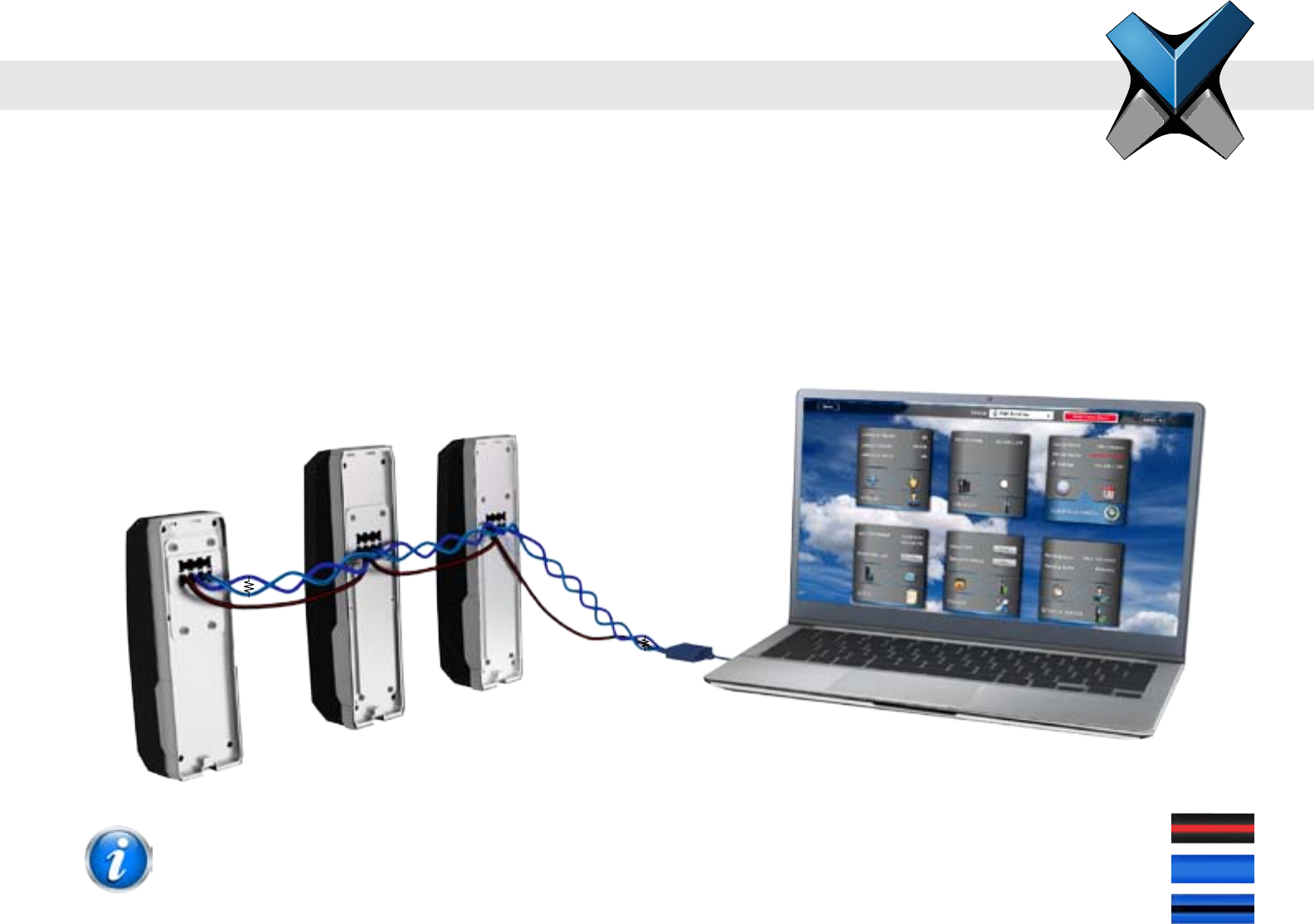

RS-485 Network Communication

INVIXIUM recommends:

• Daisy chain conguration

• Maximum 31 devices in the network

• Both RS-485 converter and the last device in the chain should be terminated (not included, refer to NOTE below for

correct Resistor values)

• Connect the IXM device to PC via RS-485-to-Serial (RS-232 or USB) Converter

• Maximum cable length of 1200 m (4000 ft.) at 9600 bps baud rate

Bottom Connector RS-485

SGND (6)

RS-485+ (8)

RS-485- (10)

RS-485 to USB

Converter

IXM TOUCH

IXM WEB

IXM SENSE

IXM MYCRO

R = 120 ohms for Standard RS-485 Cabling

R = 100 ohms for CAT5/6 Cabling

NOTE

INVIXIUM

invixium

access

Serial Communication

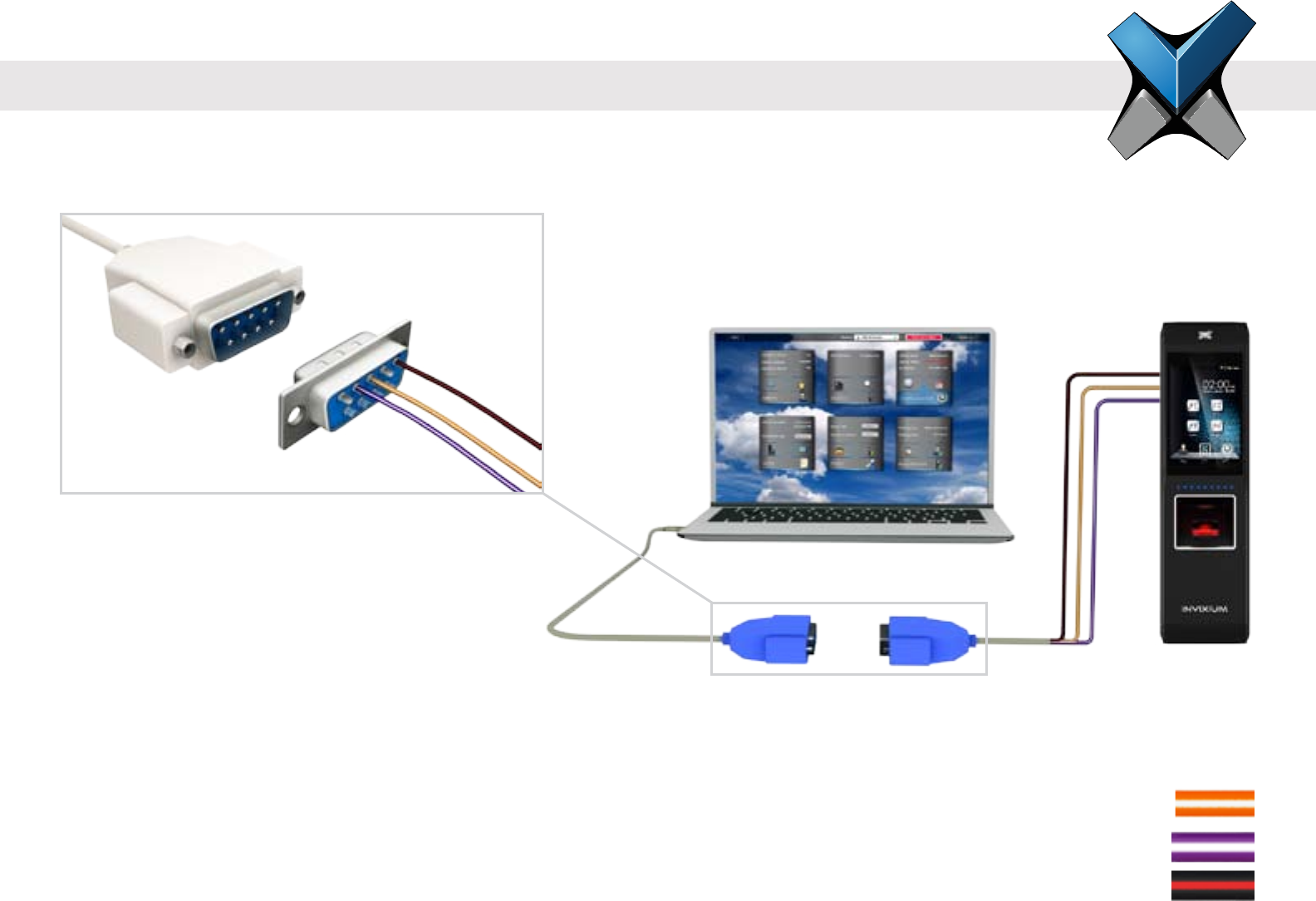

RS-232:

• Connect IXM device directly to the DB9 Serial port of the PC (if available)

• DB9 connectors and cables are not included

Bottom Connector RS-232

RS-232_RX (2)

RS-232_TX (4)

SGND (6)

USB-to-Serial Converter

IXM WEB

IXM TOUCH

RS232_RX

RS232_TX

SGND

1 2 3 4 5

INVIXIUM

invixium

access

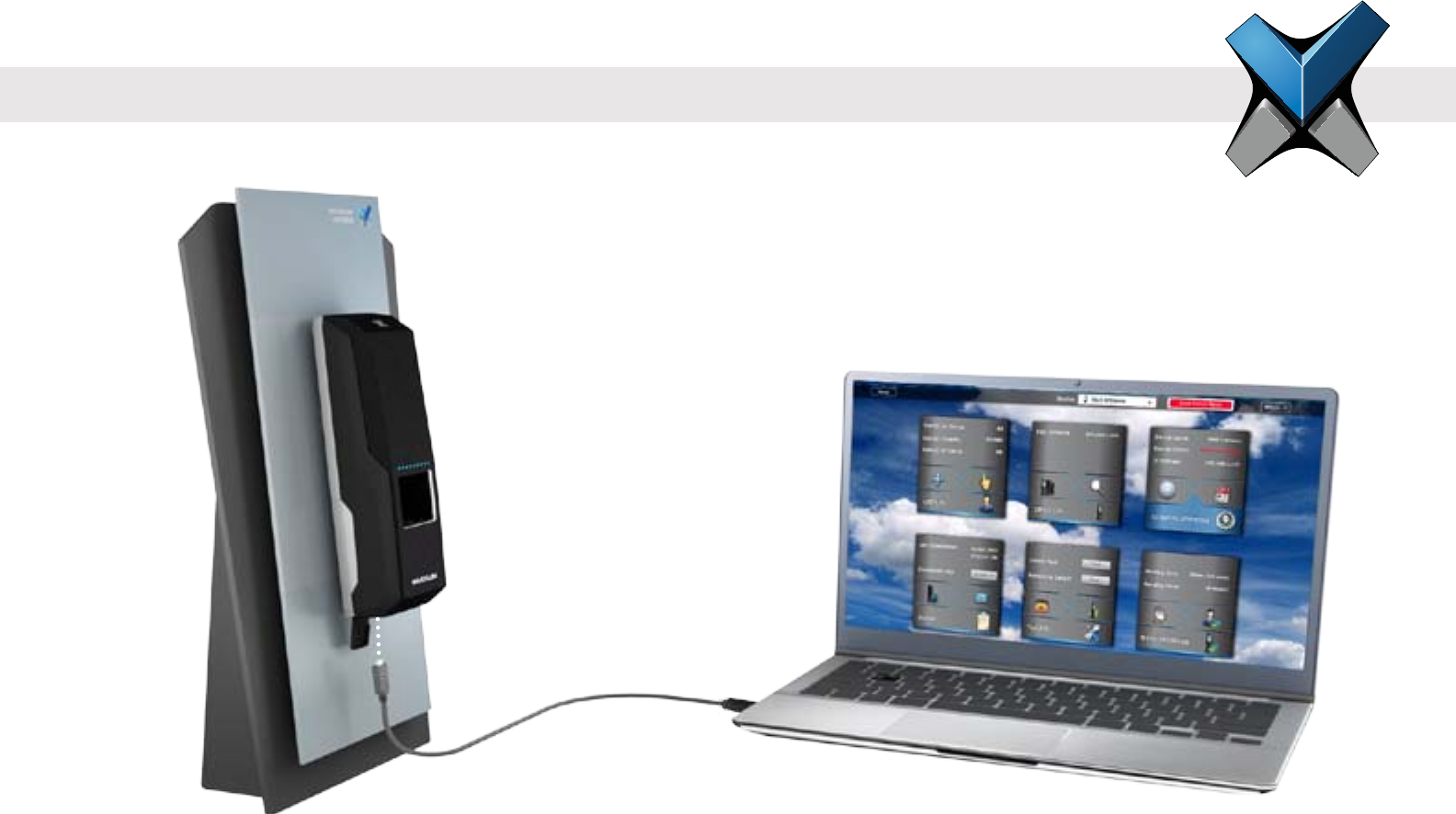

USB:

• Connect a Flash Drive via Micro USB OTG cable and perform functions like upgrading rmware and downloading transaction logs

• USB port can also be used to connect to a PC running IXM WEB via Micro USB cable

• Driver installation is required and will automatically initiate once the device is connected

Host PC

Micro USB cable

(Provided in IXM

Install Kit)

IXM SENSE

USB Communication

INVIXIUM

invixium

access

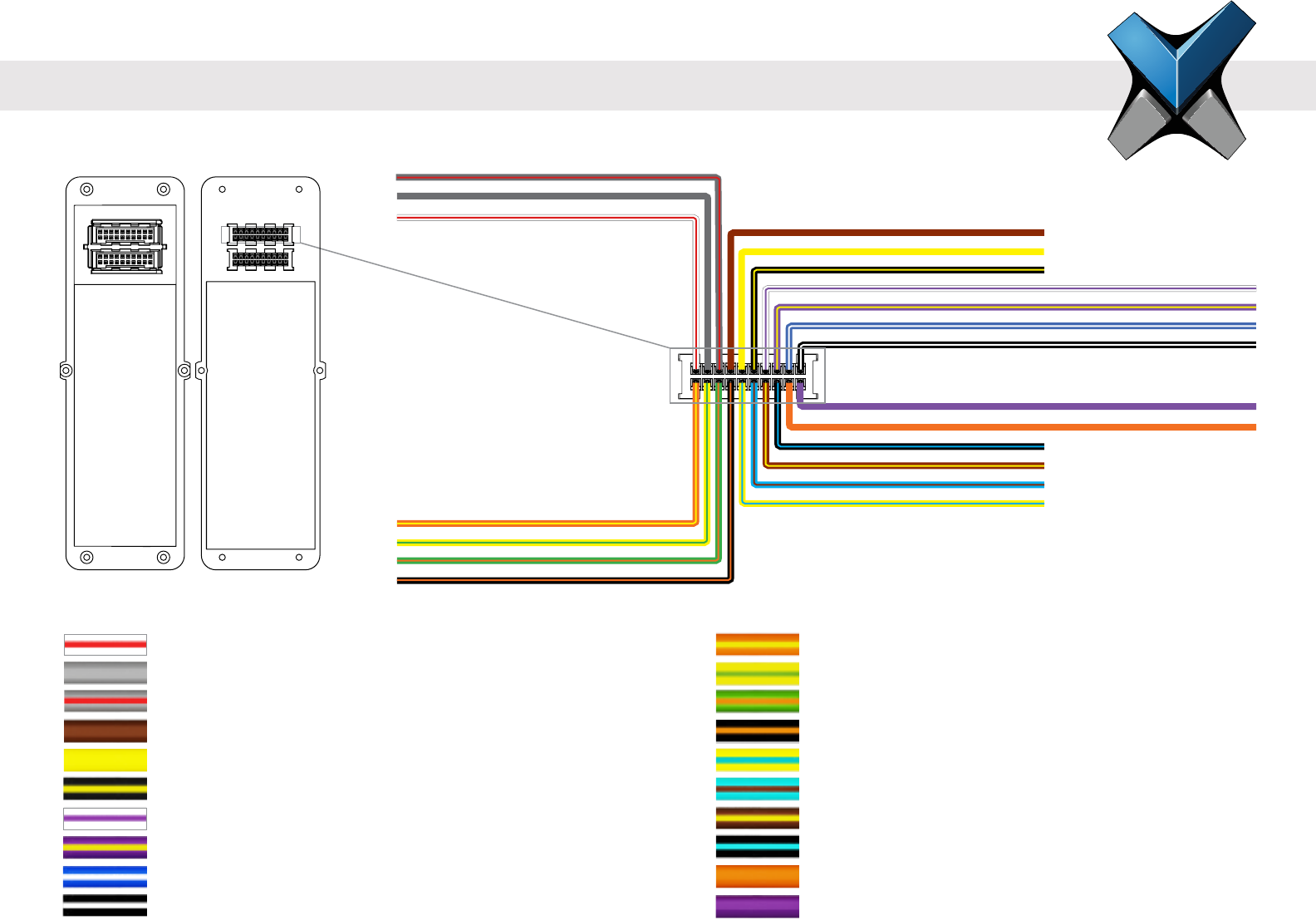

Access Control Panel Connections

ACP:

• LED and Wiegand connections available for ACP operation

• INVIXIUM recommends the use of Wiegand Output Data 0, 1 and GND connection

Top Connector LED

ACP_LED1 (7)

ACP_LED2 (9)

ACP_LED_GND (11)

Bottom Connector Wiegand

WDATA_OUT0 (16)

WDATA_OUT1 (18)

WGND (20)

WDATA_OUT0

WDATA_OUT1

WGND

ACP_LED1

ACP_LED2

ACP_LED_GND

IXM TOUCH

ACP

ACP_LED1

ACP_LED_GND

WDATA_OUT1

ACP_LED2

WDATA_OUT0

WGND

IXM TOUCH

ACP_LED signals can be used if available on the Access Control Panel.

IXM devices support up to 2 wires + GND for LED status.

NOTE

INVIXIUM

invixium

access

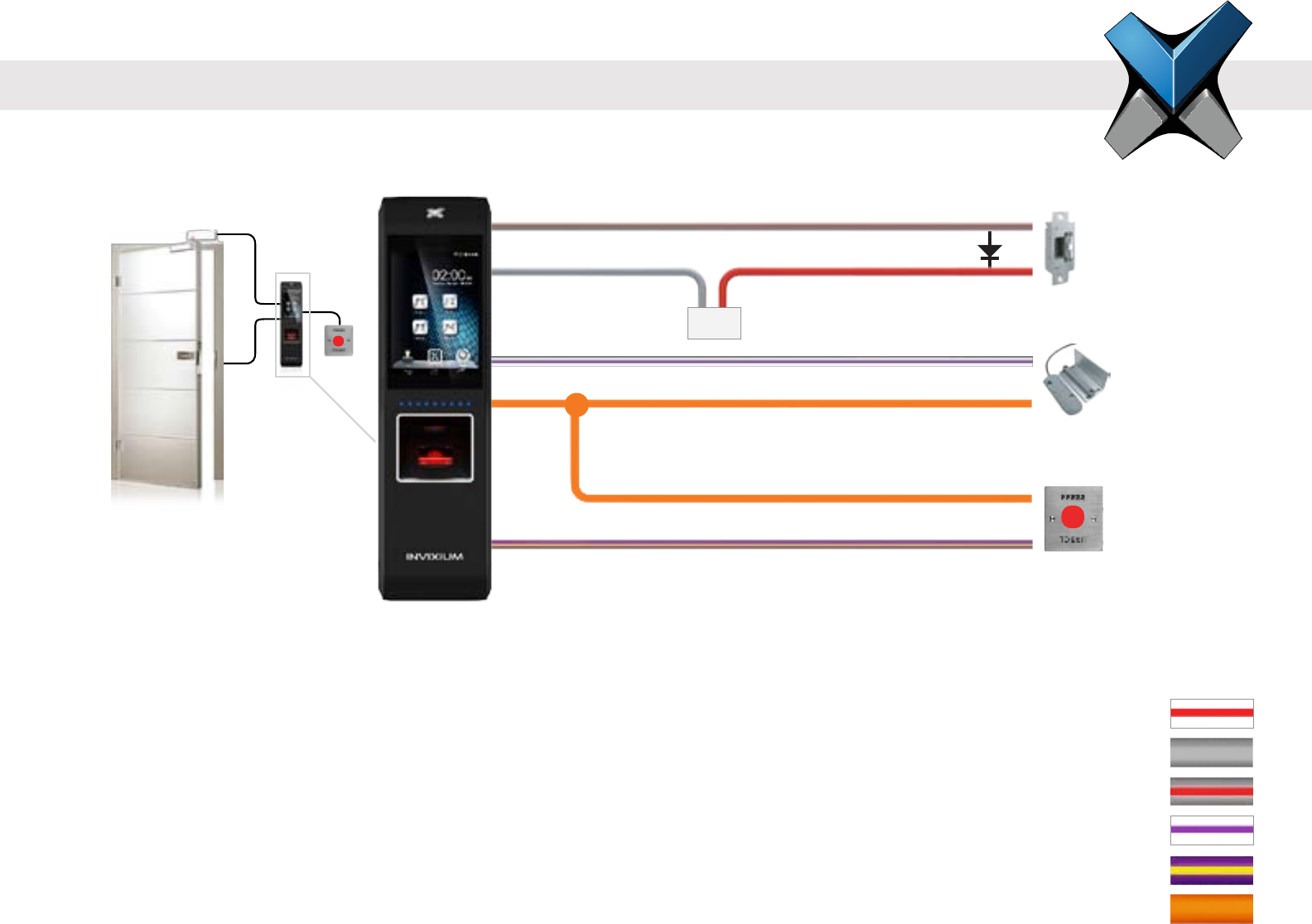

Door Access Control Connections

DAC:

• INVIXIUM recommends a separate power supply for Door Strike (not included)

• Snubber Diode required for Door Strike (not included)

• Example above shows use of RLY_NO, but RLY_NC may be used instead if required by the Door Strike

• Internal Relay rated upto max of 1 A @ 30 VDC, external relay required if Door Strike draws

more than 1A

• For motion detector instead of Request-to-Exit-button, connect the following signals:

(1) DAC_OUT to the COM and (2) DAC_IN2 to the Relay NO of the motion detector

*Max Relay rating=1 Amp @ 30 VDC

RLY_NO

DAC_IN1

RLY_COM

DAC_OUT

DAC_IN2

Snubber Diode

Door Strike Power Supply

Door Strike

Door Contact

Request to exit

Snubber Diode

Door

Contact

Request

to exit

DAC_IN2

DAC_GND

DAC_OUT

DAC_IN1

Electric

strike

RLY_NO

RLY_COM

IXM TOUCH

* Max Relay rating-1 Amp @ 30 VDC

Door Strike Power Supply

IXM TOUCH

Top Connector DAC

RLY_NC (1)

RLY_COM (3)

RLY_NO (5)

DAC_IN1 (13)

DAC_IN2 (15)

DAC_OUT (18)

INVIXIUM

invixium

access

Power

Min. Value Recommended

Voltage (V) 9.6

Current (A)

VIN_H (V)

Specic Purpose Inputs

VIN_L (V)

Pull-down Resistance (Ω)

Wiegand Inputs

Specic Purpose Outputs

Wiegand Outputs

Internal Relay

VIN_H (V)

VIN_L (V)

Pull-up Resistance (Ω)

VOUT_H (V)

VOUT_L (V)

Pull-down Resistance (Ω)

Current Rating (A)

Switching Power (R)

Switching Voltage (V)

Max. Value

10K

0.8

4.2

0.44

4.5

4.7K

0.8

0.3

110

125

30 Watt

30 VA

INVIXIUM recommends using a regulated DC power supply

Internal 10K Ω pull-down resistor is present on SPI1, SPI2

and SPI3 lines

Internal 10K Ω pull-up is present on Wiegand input lines

Wiegand Output is an open drain output.

Internal 4.7K Ω pull-up is present on these lines

@IOH = -24mA

@IOL = +24mA

@ 30 VDC

@ 125 VAC

Electrical Information

Additional Comments

VOUT_L (V)

INVIXIUM

invixium

access

PC Workstation:

• 1 GHz Intel® Pentium® 4 or equivalent

(INVIXIUM recommends 2.0 GHz or higher)

• 1 GB RAM (INVIXIUM recommends 2 GB RAM or higher)

• 50 MB Free Hard Disk Space for IXM WEB

• 850 MB Hard Disk for x86 systems or

2 GB Hard Disk for x64 systems for Microsoft®.NET Version 4.0

• 500 MB Hard Disk Space for Microsoft®.NET Version 2.0

(Windows® XP & Windows® 2003 R2)

• 1 GB Hard Disk (INVIXIUM recommends) for SQL Server™ 2008

Express Edition SP1

• Available COM or USB port

• Ethernet Card (10/100 Mb Ethernet connections)

• Monitor capable of displaying at least 1024 x 786 high colour

resolution

Software Installation System Requirements

To successfully install and run Invixium software, the system must meet the following minimum requirements:

One of the following Operating Systems†:

• Windows® 8 and 7 both 32-Bit and 64-Bit versions

• Windows® XP Service Pack 3 or higher

• Windows® Server 2012

• Windows® 2008 R2

• Windows® 2008

• Windows® 2003 R2

One of the following Web Browsers (Client):

• Internet Explorer® version 8.0 or higher

• Google Chrome™ version 26.0 or higher

• Mozilla Firefox® version 20.0 or higher

• Apple Safari® version 5.1.7 or higher

IXM WEB will install the following:

Microsoft®.NET Framework (version 4.0)

SQL Server™ 2008 Express Edition Service Pack 1

Microsoft® Internet Information Services (version 7.5)

Windows® Installer (version 4.5)

†Windows Professional or Enterprise versions only

NOTE

INVIXIUM

invixium

access

Software Installation Steps

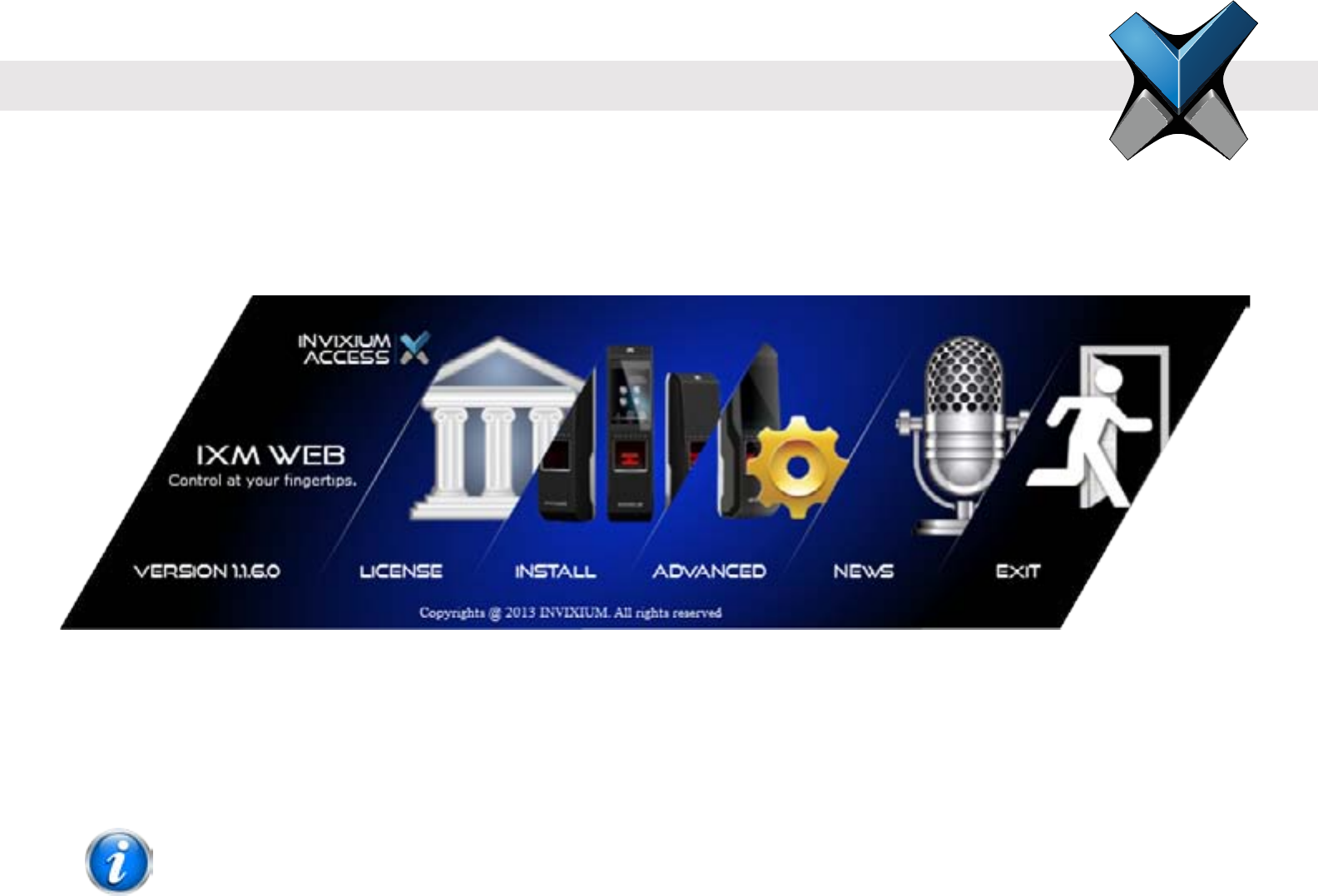

Step 1 Plug the USB drive (found in IXM INSTALL KIT) into an available port on PC.

Step 2 Open the USB drive folder. Run IXMWEB.exe le. The IXM WEB Install Menu will initiate.

Step 3 There are two installation options: INSTALL or ADVANCED. INVIXIUM recommends selecting INSTALL option for rapid

installation.

The ADVANCED process allows for:

• entering a different install path

• entering a specic Port number

NOTE

A Windows dialog may pop up to provide a warning about installing from an unreliable source.

Click “Yes” to proceed with the install.

• checkbox for installing SQL Server database

• checkbox for installing Certicates

INVIXIUM

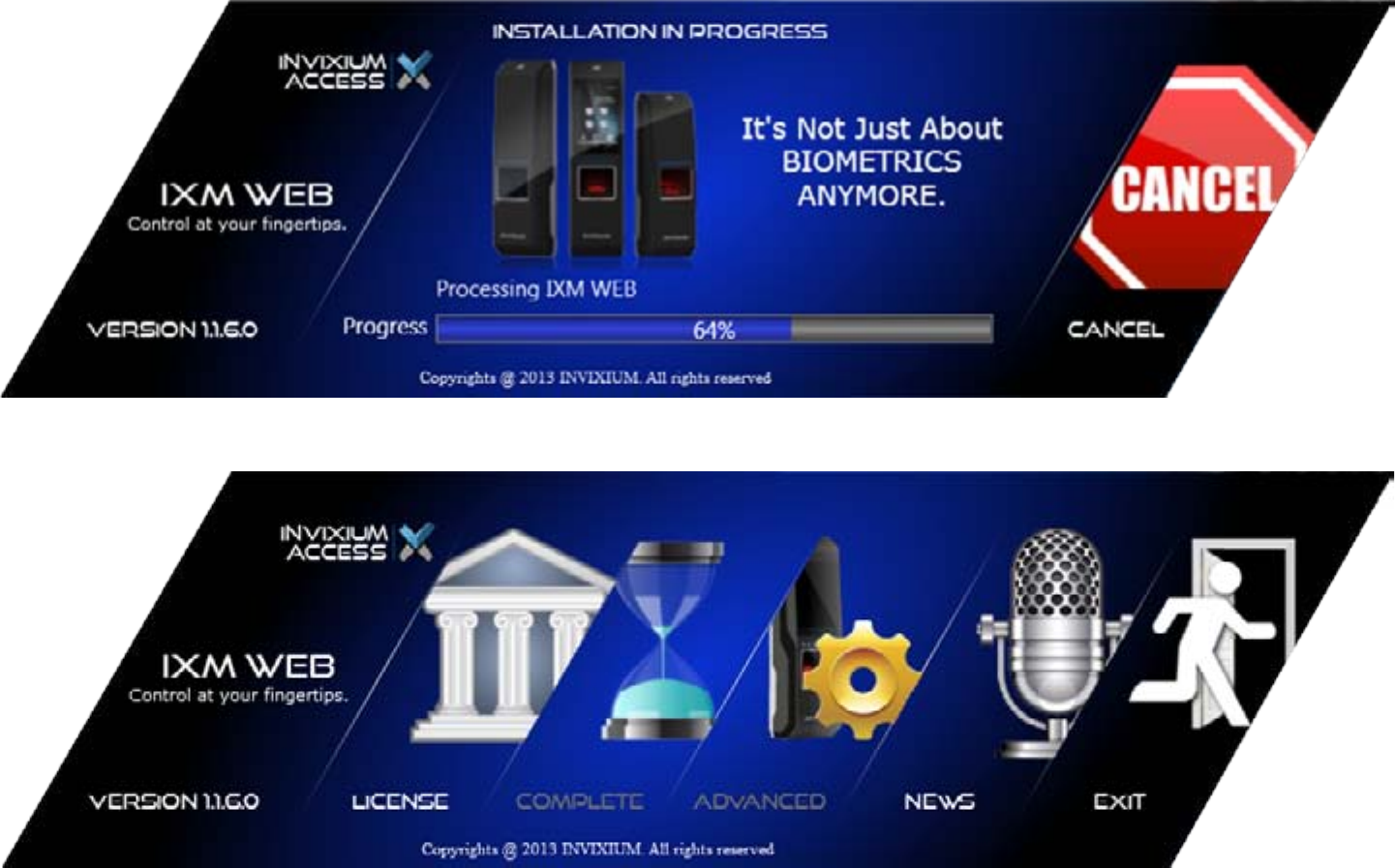

Step 4 During the installation process, the status of the install will be shown.

Step 5 When the installation is complete, click EXIT. IXM WEB icon is now on the desktop.

Step 6 Run IXM WEB to launch the application in the default web browser to setup the Database and Admin credentials.

INVIXIUM

invixium

access

FCC Information to Users (English)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Notice

Informations de la FCC aux Utilisateurs (en Français)

Cet appareil est conforme à la partie 15 des règles de la FCC. Son fonctionnement est soumis aux deux conditions suivantes:

1. Cet appareil ne doit pas provoquer d'interférences nuisibles

2. Cet appareil doit accepter toute interférence reçue, incluant toute interférence pouvant causer un fonctionnement indésirable

INVIXIUM

invixium

access

Notication

Cet équipement a été testé et s'est avéré conforme aux limites pour un appareil numérique de Classe B,

conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection

raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère,

utilise et peut émettre des fréquences radio et, s'il n'est pas installé et utilisé conformément aux instructions,

il peut causer des interférences nuisibles pour les communications radio. Cependant, il n'existe aucune

garantie que des interférences ne se produiront pas dans une installation particulière. Si cet équipement

provoque des interférences nuisibles à la réception radio ou de télévision, ce qui peut être déterminé en

l'éteignant et rallumant, l'utilisateur est encouragé à essayer de corriger l'interférence par une ou plusieurs

des mesures suivantes:

• Réorienter ou déplacer l'antenne de reception

• Augmentez la distance entre l'équipement et le récepteur

• Connecter l'équipement à une sortie sur un circuit différent de celui sur lequel le récepteur est branché

• Pour obtenir de l’aide, consulter le revendeur ou un technicien radio / TV expérimenté

FCC RF Radiation Exposure Statement (English)

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed an

operated with minimum distance of 20 cm between the radiator and your body.

Industry Canada RF Radiation Exposure (English)

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 20cm between the radiator and your body.

Industrie Canada exposition aux radiations RF (en Français)

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement

doit être installé et utilisé avec un minimum de 20cm de distance entre la source de rayonnement et votre corps.

INVIXIUM

invixium

access

CE Information to Users (English)

All INVIXIUM devices have the CE mark for conformance with EMC Directive 89/336/EEC, and Low Voltage Safety Directive 73/23/EEC.

Device with RFID components are compliant with R&TTE Directive 1999/5/EC, and are Class 1 Devices.

Informations de la CE aux Utilisateurs (en Français)

Tous les dispositifs de INVIXIUM ont le marquage CE de conformité à la directive CEM 89/336/CEE et basse tension de sécurité Directive

73/23/CEE. Les appareils avec composants RFID sont conformes aux Directive R & TTE 1999/5/CE. et sont des appareils de classe 1.

Industry Canada Information to Users (English)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference

2. This device must accept any interference, including interference that may cause undesired operation of the device

Industrie Canada Information pour les Utilisateurs (en Français)

Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions

suivantes:

1. Cet appareil ne doit pas provoquer d'interférences

2. Cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil

INVIXIUM

invixium

access

Warning to Users (English)

Avertissement aux Utilisateurs (en Français)

Warning

Changes or modications not expressly approved by INVIXIUM could void the user's authority to operate the

equipment.

Avertissement

Les changements ou modications non expressément approuvés par INVIXIUM pourraient annuler l'autorité

de l'utilisateur à utiliser l'équipement.

invixium.com

For Technical or Customer Support issues,

please contact your Local Authorized Reseller.

For all other inquiries, please contact us at

experience@invixium.com

For detailed information, please visit our website:

INSTALLATION GUIDE

INGUIDE

invixium

access

Enjoy the Experience.

Some features may vary based on device models.

P/N XAD-00E-026-03G

Firefox logo® is a registered trademark of the Mozilla Foundation.

Windows® and Internet Explorer® are trademarks of the Microsoft group of companies.

Safari® is a trademark of Apple Inc.

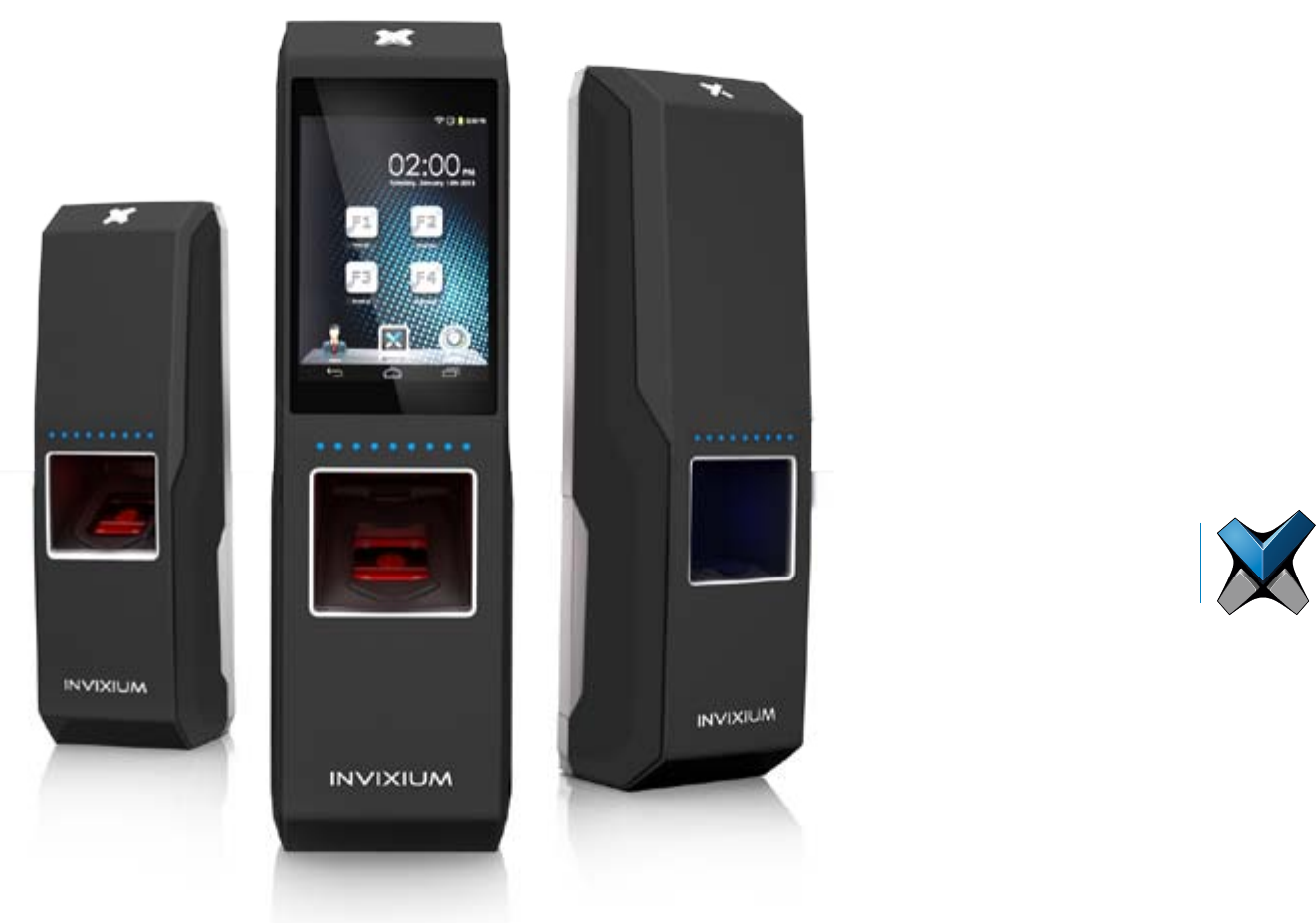

Invixium Access TSPROX Biometric Fingerprint Reader User Manual

Invixium Access Inc. Biometric Fingerprint Reader

User Manual

Navigation menu

Namespaces

Views

Navigation
