Invixium Access WIFIBT IXM WIFIBT User Manual Internal User Guide Rev 03x
Invixium Access Inc. IXM WIFIBT Internal User Guide Rev 03x
User Manual
IXM WIFIBT
Internal User Guide
Rev. 0.3
IXM WIFIBT Internal User Guide
2
Internal User Guide................................................................................................................................. 1
1.Introduction ....................................................................................................................................... 3
2.Basic Operation................................................................................................................................. 4
3.Pinout and Signal Description.................................................................................................... 5
4Regulatory Information ................................................................................................................ 6
4.1.FCC Interference Statement .............................................................................................................6
4.2.FCC Warning............................................................................................................................................6
4.3.FCC Caution.............................................................................................................................................7
4.4.FCC RF Radiation Exposure Statement.........................................................................................7
4.5Conditions for OEM Integrators........................................................................................................7
IMPORTANT NOTE:........................................................................................................................................7
4.6.End Product Labeling............................................................................................................................8
4.7.Manual Information to the End User..............................................................................................8
4.8.Industry Canada Radio Certification ..............................................................................................8
4.9.Industry Canada RF Radiation Exposure......................................................................................9
4.11.Industry Canada Detachable Antenna Statement................................................................9
5.Labeling Requirements.................................................................................................................10
IXM WIFIBT Internal User Guide
3
1. Introduction
IXM WIFIBT, Model Number IXM010 is WiFi Bluetooth module, providing IEEE
802.11 b/g/n and BT 4.0 functionality.
It is designed and manufactured by Invixium Access Inc., to provide additional
connectivity to Company’s biometric fingerprint readers (hosts) from IXM SENSE
and IXM TOUCH families. It is not available to the third parties, and it is assembled
during the production of IXM SENSE and IXM TOUCH family members.
Any other use of the IXM WIFIBT makes all certifications involved null and void, and
is strictly prohibited.
This User Guide is Internal, targeting crew in Production, QA, and Technical Support
of the Invixium Access Inc.
IXM WIFIBT is designed around JorJin IC WG7311.
..
IXM WIFIBT Internal User Guide
4
2. Basic Operation
Invixium Access Hosts are running application on the top of Android Jelly Bean OS.
Configuration of the IXM WIFIBT module is not different from the configuration of
the similar modules under Windows, Linux, or Android.
Configuration can be done three ways:
- Using Invixium Web-based application IXM WEB (for both, IXM TOUCH, and
IXM SENSE families of devices)
- Using Touchscreen menu on IXM TOUCH family of devices
- Using VNC Viewer on IXM SENSE family of devices, that emulates
touchscreen menu available on IXM TOUCH family of devices.
For the testing in Production, the IXM Tester tool, configures and tests WIFIBT
module automatically, regardless of the Host Type.
IXM WIFIBT Internal User Guide
5
3. Pinout and Signal Description
Pin
Number Signal Name Description
1 SDIO_D3 WLAN I/F
2 SDIO_D2 WLAN I/F
3 SDIO_D1 WLAN I/F
4 SDIO_D0 WLAN I/F
5 GND
6 SDIO_CLK WLAN I/F
7 GND
8 SDIO_CMD WLAN I/F
9 WLAN_IRQ WLAN I/F
10 WLAN_EN WLAN I/F ENABLE
11 BT_EN BLUETOOTH ENABLE
12 GND
13 UART_TXD BLUETOOTH INTERFACE
14 UART_RXD BLUETOOTH INTERFACE
15 UART_RTS BLUETOOTH INTERFACE
16 UART_CTS BLUETOOTH INTERFACE
17 GND
18 1.8V
19 GND
20 3.3V
Logical signal levels are LVTTL.
The temperature range for IXM WIFIBT:
-40C to +85C
IXM WIFIBT Internal User Guide
6
4 Regulatory Information
4.1. FCC Interference Statement
We, Invixium Access Inc. #5-205 Riviera Drive, Markham, ON Canada, declare
under our sole responsibility that the product IXM WIFIBT (Wireless LAN and
Bluetooth module) complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
1. The device may not cause harmful interference, and
2. The device must accept any interference received, including the interference
that may cause undesired operation.
4.2. FCC Warning
This equipment has been tested and found to comply with the limit for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. The equipment generate, use, and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
with can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
methods:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that which
the receiver is connected.
- Consult a dealer or an experienced radio/TV technician for help.
For product available in the USA/Canada market, only channel 1~11 can be
operated.
IXM WIFIBT Internal User Guide
7
Selection of other channels is not possible.
.
4.3. FCC Caution
Changes or modifications NOT EXPLICITLY APPROVED by Invixium Access Inc, could
void the user’s authority to operate the equipment.
This device and its antenna must not be co-located with any other transmitters
except in accordance with FCC multi-transmitter product certification procedures.
4.4. FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance of 20 cm between the radiator & your body.
4.5 Conditions for OEM Integrators
1) The antenna must be installed such that 20 cm distance is maintained
between the antenna and user
2) The transmitter module may not be co-located with any other antenna or
transmitter, except in accordance with FCC multi-transmitter product
certification procedures.
3) PCB antenna with the 2 dBi gain was verified in the conformity testing.
Radiated transmit power must be equal or lower than that specified in the
Equipment Authorization. A separate approval is required for all other
antenna types, or higher gain antenna.
As long as the 3 conditions are met, further transmitter tests will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance required with this module installed.
IMPORTANT NOTE:
In the event that those conditions cannot be met, then the FCC authorization is no
longer considered valid, and the FCC ID cannot be used on the final product. In this
circumstances the OEM integrator will be responsible for re-evaluation end-product
(including the transmitter) and obtaining a separate FCC authorization.
IXM WIFIBT Internal User Guide
8
4.6. End Product Labeling
This transmitter module is authorized only in device where antenna may be
installed such that 20 cm distance may be maintained between the antenna and
users. The final end-product must be labeled in visible area with the following:
“Contains FCC ID: S38-WIFIBT”.
The grantee’s FCC ID can be used only when all FCC compliance requirements are
met.
4.7. Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module.
The end user manual shall include all required regulatory information/warning as
shown in this manual.
4.8. Industry Canada Radio Certification
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
For products available in the USA/Canada market, only channel 1~11 can be
operated.
Selection of other channels is not possible.
Pour les produits disponibles aux États-Unis / Canada du marché, seul le canal 1 à
11 peuvent être exploités. Sélection d'autres canaux n'est pas possible.
This device and its antenna must not be co-located with any other transmitters
except in accordance with IC multi-transmitter product procedures.
IXM WIFIBT Internal User Guide
9
Refering to the multi-transmitter policy, multiple-transmitter(s) and module(s) can
be operated simultaneously without reassessment permissive change.
Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en
association avec une autre antenne ou transmetteur.
4.9. Industry Canada RF Radiation Exposure
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé
avec un minimum de 20cm de distance entre la source de rayonnement et votre
corps.
4.10. Industry Canada Detachable Antenna Statement
This radio transmitter IC: 10891A-WIFIBT, has been approved by Industry Canada
to operate with antenna type listed below, with maximum permissible gain
indicated.
Antenna types not included in the list, having a gain greater than maximum gain
indicated for that type of antenna, are strictly prohibited for use with this device.
Manufacturer Model # Part # Impedance Gain
Centurion NanoBlue-IP04
MAF94045 50 Ohm 2 dBi
IXM WIFIBT Internal User Guide
10
5. Labeling Requirements

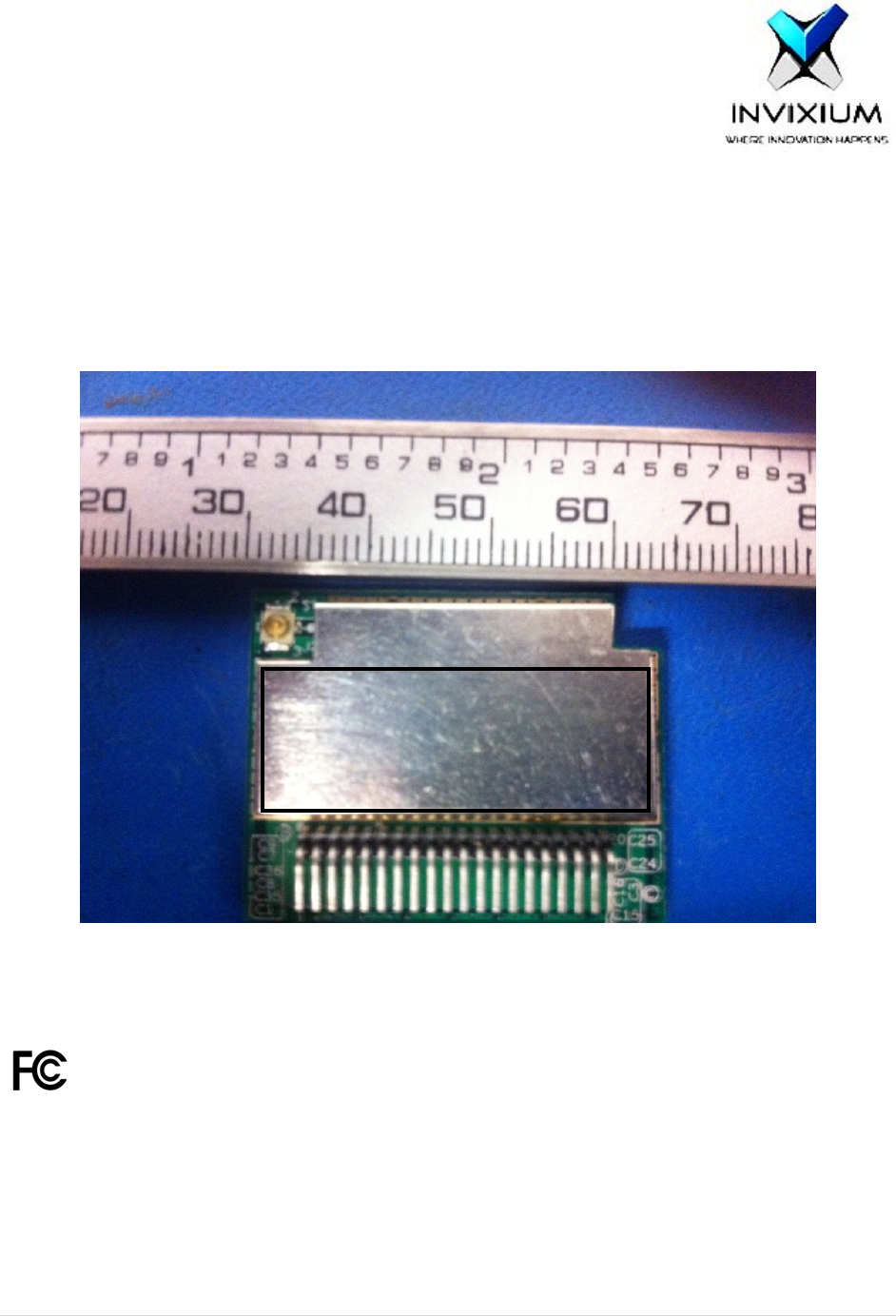

The device label will be affixed on the shield.
The label content:
IXM WIFIBT
IXM010
FCC ID: S38-WIFIBT
IC: 10981A-WIFIBT
Host device has to include following statements into the device label:
“Contains FCC ID: S38-WIFIBT”
“Contains IC: 10891A-WIFIBT”
LabelPosition
