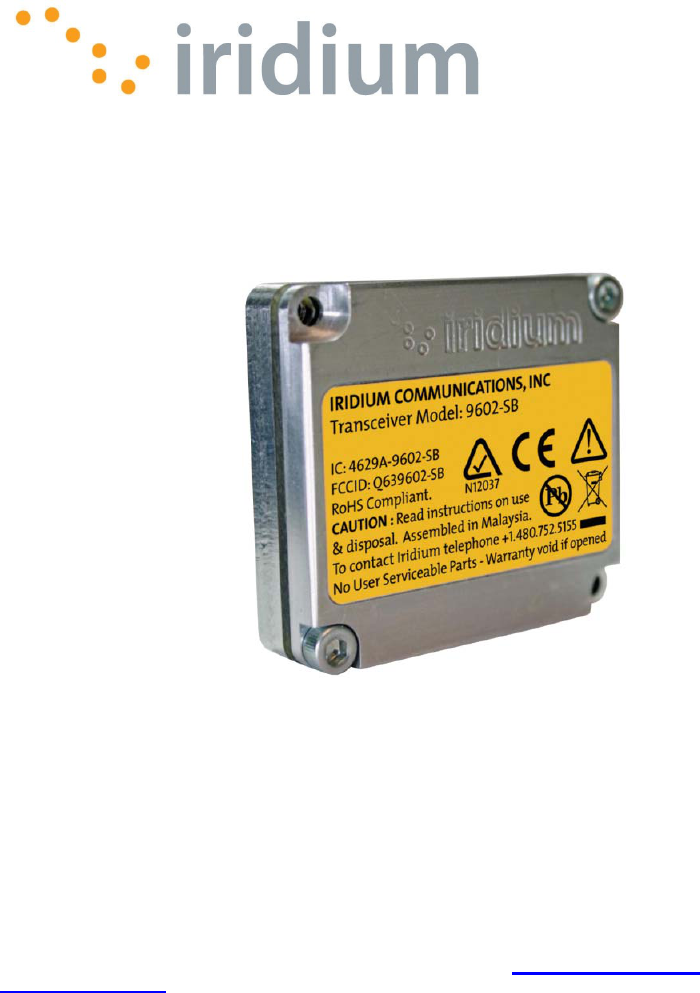

Iridium 9602-SB SBD Transceiver
S u p p l e m e n t Developer’s Guide
Iridium Communications Inc.
1750 Tysons Boulevard, Suite 1400
McLean, VA 22102
www.iridium.com
Toll Free: +1.866.947.4348 [US Only]
International +1.480.752.5155
email: info@iridium.com
2
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
LEGAL DISCLAIMER AND CONDITIONS OF USE
This document contains information for the Iridium 9602-SB Short Burst Data
Transceiver and accompanying accessories (“Product”) is provided “as is.” The purpose
of providing such information is to enable SkyBitz (“Product Developer”) to understand
the Product and how to integrate it into a wireless data solution. Reasonable effort has
been made to make the information in this document reliable and consistent with
specifications, test measurements and other information. However, Iridium
Communications Inc. and its affiliated companies, directors, officers, employees, agents,
trustees or consultants (“Iridium”) assume no responsibility for any typographical,
technical, content or other inaccuracies in this document. Iridium reserves the right in its
sole discretion and without notice to you to change Product specifications and materials
and/or revise this document or withdraw it at any time. The Product Developer assumes
the full risk of using the Product specifications and any other information provided.
IRIDIUM MAKES NO REPRESENTATIONS, GUARANTEES, CONDITIONS
OR WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT,
SATISFACTORY QUALITY, NON-INTERFERENCE, ACCURACY OF
INFORMATIONAL CONTENT, OR ARISING FROM A COURSE OF
DEALING, LAW, USAGE, OR TRADE PRACTICE, USE, OR RELATED TO
THE PERFORMANCE OR NONPERFORMANCE OF ANY PRODUCTS,
ACCESSORIES, FACILITIES OR SERVICES OR INFORMATION, EXCEPT AS
EXPRESSLY STATED IN THIS GUIDE AND/OR THE PRODUCT AND/OR
SATELLITE SERVICE DOCUMENTATION. ANY OTHER STANDARDS OF
PERFORMANCE AND WARRANTIES ARE HEREBY EXPRESSLY
EXCLUDED AND DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY
LAW. THIS DISCLAIMER AND EXCLUSION SHALL APPLY EVEN IF THE
EXPRESS LIMITED WARRANTY CONTAINED IN THIS GUIDE OR SUCH
DOCUMENTATION FAILS OF ITS ESSENTIAL PURPOSE.
IN NO EVENT SHALL IRIDIUM BE LIABLE, WHETHER IN CONTRACT OR
TORT OR ANY OTHER LEGAL THEORY, INCLUDING WITHOUT
LIMITATION STRICT LIABILITY, GROSS NEGLIGENCE OR NEGLIGENCE,
FOR ANY DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, NOR SHALL IRIDIUM BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR FOR DAMAGES DUE TO
LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF PRIVACY,
LOSS OF USE, LOSS OF TIME OR INCONVENIENCE, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS CAUSED BY THE PRODUCT (INCLUDING HARDWARE,
SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE
3
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
SERVICES, OR ARISING OUT OF OR IN CONNECTION WITH THE ABILITY
OR INABILITY TO USE THE PRODUCT (INCLUDING HARDWARE,
SOFTWARE AND/OR FIRMWARE) AND/OR THE IRIDIUM SATELLITE
SERVICES TO THE FULLEST EXTENT THESE DAMAGES MAY BE
DISCLAIMED BY LAW AND REGARDLESS OF WHETHER IRIDIUM WAS
ADVISED OF THE POSSIBILITIES OF SUCH DAMAGES. IRIDIUM IS NOT
LIABLE FOR ANY CLAIM MADE BY A THIRD PARTY OR MADE BY YOU
FOR A THIRD PARTY.
Your use of the information contained in this Guide is restricted to the development
activity authorized under the agreement(s) between you and Iridium, and is
otherwise subject to all applicable terms and conditions of such agreement(s),
including without limitation software license, warranty, conditions of use and
confidentiality provisions.
Export Compliance Information
This Product is controlled by the export laws and regulations of the United States of
America. The U.S. Government may restrict the export or re-export of this Product to
certain individuals and/or destinations. For further information, contact the U.S.
Department of Commerce, Bureau of Industry and Security or visit www.bis.doc.gov.
Revision History
Revision Date Comment
1.0 9-Nov-10
Initial Product Release
4
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
Contents
Revision History ................................................................................................................. 3
1.Product Overview ........................................................................................................ 5
2.Packaging and Regulatory Certification ...................................................................... 5
3.AT Command Set Description .................................................................................... 6
5
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
1. ProductOverview
In 2010 SkyBitz and Iridium partnered to develop a unique, two-way remote asset
tracking and monitoring solution, the Iridium 9602-SB Transceiver. This solution is built
around the Iridium 9602 SBD Transceiver. SkyBitz is the leading remote asset tracking
and information management service provider, specializing in real‐time decision-
making tools for companies with unpowered assets such as trailers, containers, rail cars,
power generators, heavy equipment and other assets. SkyBitz´s asset tracking solutions
are delivered to commercial, transportation, military and public safety customers,
including sensitive shipment haulers of Arms, Ammunition and Explosives (AA&E)
cargos.
The Iridium 9602-SB is different from the Iridium 9602 in that it supports GPS-based
position finding services. Internal to the Iridium 9602-SB is additional hardware for
receiving GPS signals, additional DPS software for extracting GPS codephase
information and additional CP software for managing the feature and sending time-
stamped codephase information via an SBD message to a remote server. To save battery
power and manage resources more effectively, the SkyBitz solution provides the position
of an asset through the computing power of the SkyBitz Data Center, rather than in the
device itself.
Similar to the Iridium 9602, the Iridium 9602-SB only supports Iridium’s Short Burst
Data (SBD) capability. It does not support voice, circuit switched data, or short message
service (SMS).
SkyBitz offer their tracking service using the Iridium satellite network via a SkyBitz
device which integrates the Iridium 9602-SB. This supplemental documentation provides
only details about the additional functionality of the Iridium 9602-SB. The physical
specifications, electrical interfaces and RF interfaces for the Product are described in
detail in the Iridium 9602 SBD Transceiver Developer Guide.
2. PackagingandRegulatoryCertification
The Iridium 9602-SB is a regulatory approved daughter module transceiver that can be
fitted within an enclosed host system. With appropriate external connections, the host
system can be designed to meet full transceiver regulatory tests and sold as a Regulatory
Certified product that meets CE, FCC and IC requirements.
6
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
The 9602-SB is tested to the regulatory and technical certifications shown in Table 1 (See
Note below).
Table 1: Regulatory and Technical Certifications.
Regulatory
Approvals Radio Tests EMC Tests
Electrical /
Mechanical /
Operational
Safety Tests
CE
ETSI EN 301 441
V1.1.1 (2000-05)
ETSI EN301 489-1 V1.8.1(2008-
04)
ETSI EN 301 489-20
V1.2.1(2002-11)
EN60950-
1:2006 Part 1
FCC FCC CFR47 parts
2, 15, and 25
EN61000-4-2 : 1995/A2 : 2001
Part 4.2
EN61000-4-3 : 2002 Part 4.3
EN61000-4-4 : 2004
EN61000-4-6 : 1996/A1 : 2001
Part 4.6
EN55022:2006
EN55022A1 :2007
Industry
Canada Industry Canada
RSS170 Issue 1,
Rev 1, November
6, 1999
3. ATCommandSetDescription
This document specifies the AT Commands supported by the Iridium 9602-SB
Transceiver. The 9602-SB is configured and operated through the use of AT
commands. Only AT Commands that are relevant to the 9602-SB are included. This
document will be periodically updated to reflect the addition, deletion or modification of
7
Iridium Communications Inc. Distribution of Guide Restricted
Proprietary & Confidential Information Information Contained in this Guide is
Subject to Change without Notice.
AT Commands. The Product Developer should also consult the software release notes for
the version of software that is physically loaded on the 9602-SB used in applications
under development. Such release notes are made available to SkyBitz directly. It is the
responsibility of Product Developer to check compatibility of applications software with
the AT Commands on all 9602-SBs used for both development and commercial
deployments.
Product Developers should also consult the “Iridium Short Burst Data Service Developers Guide”
in addition to the Commands stated herein. That guide provides significant additional information
that will aide in Product Developers understanding of the Iridium system.
Use the codephase specific AT commands to instruct the 9602-SB to make and store codephase
measurements and the standard SBD commands to send this stored information to the SkyBitz
Data Center.
Table 2: AT Command unique to 9602-SB.
AT Command Description
+SBDCP PRN list for GPS Codephase reception
+SBDCC GPS Codephase reception and calculation
+SBDCR Read GPS Codephase results
+SBDCW Clear or Write GPS Codephase results
+SBDIX Initiate Short Burst Data Session (extended) to send data
+MSGEO Request Geolocation
+CRISX Ring Indication Status (extended) to read L-band frame number
+SBDST Short Burst Data: Session Timeout
+GEMON Energy Monitor
