Owner’s Manual

Customer Service

(800) 750-4766

Manufactured By:

Ironman Fitness

4009 Distribution Drive

Suite 250

Garland, TX 75041

Read all precautions and instructions in

this manual before using this equipment.

CAUTION

Odyssey Recumbent Bike

Model Name : ODYSSEY

Serial Number :

Serial Number can be found at

the above specified location.

www.ironmanfitness.com

2 Table of Contents

Table of Contents 2

Important Safety Information 3

Assembly 4

Parts Identifier 5

Assembly Steps 6

Console Information 17

Workout Information 24

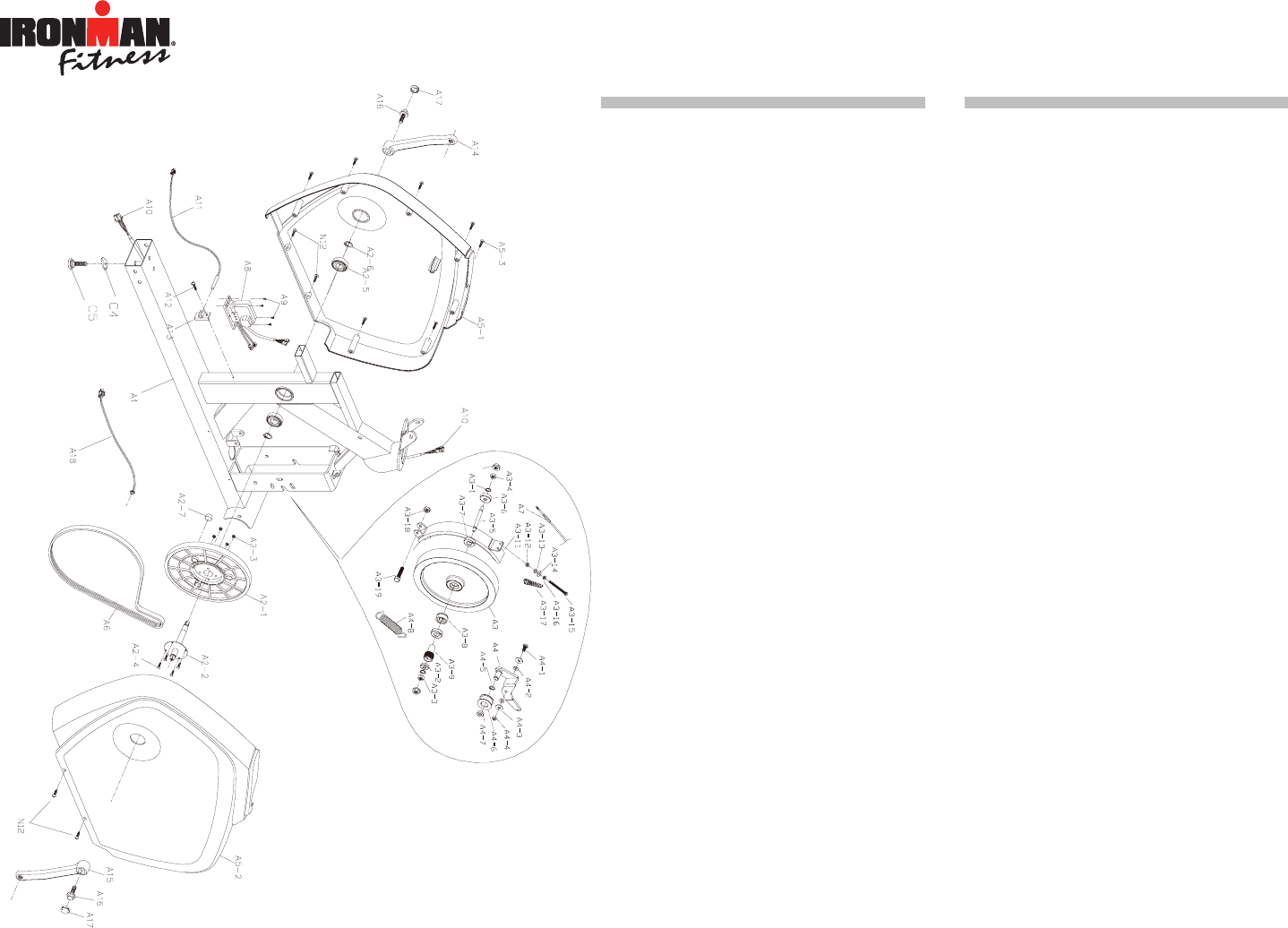

Exploded List 28

Parts View 30

Warranty 31

TABLE OF CONTENTS THANK YOU for making this unit a part of your exercise program. Ironman

Fitness assures the very best in value, appearance, durability and biomechanics.

This manual will guide you through the assembly process. If at any time you are

having trouble with the assembly or use of this product, then please contact us at

our Ironman Fitness Help line. We have trained service technicians on site to take

care of you, our valued customer.

THANK YOU

REGISTRATION CARD

To avoid unnecessary delays in warranty parts and to insure that a perma-

nent record of your purchase is on file with our company, be sure to send in

the warranty registration card or register on-line at www.ironmanfitness.com

within 10 days of purchase.

Ironman series

MODEL: ODYSSEY

QUESTIONS?

CALL

(800) 750-4766

Monday-Friday

8:30 am-5:30 pm Central Time

www.ironmanfitness.com

Important Safety Information

WARNING! Before using this unit or starting any exercise program, consult your physician.

This is especially important for persons over the age of 35 and/or persons with pre-existing

health problems. The manufacturer or distributor assumes no responsibility for personal injury or

property damage sustained by or through the use of this product. To reduce the risk of electrical shock, burns, re, or other possible injuries to the

user, it is important to review this manual and the following precautions before operation.

SAFETY PRECAUTIONS AND TIPS

1. It is the owner’s responsibility to ensure that all users of this unit have read the Owner’s Manual and are familiar with warnings and

safety precautions.

2. This unit has a user maximum capacity of 300 pounds.

3. The unit should only be used on a level surface and is intended for indoor use only. The unit should not

be placed in a garage, patio, or near water and should never be used while you are wet. Ironman Fitness recommends a

mat be placed under the unit to protect oor or carpet and for easier cleaning.

4. Follow safety information in regards to plugging in your unit. Do not run the power cord underneath your unit. Do not operate the

unit with a damaged or frayed power cord.

5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not use the unit with bare feet, sandals,

socks or stockings.

6. Always examine your unit before using to ensure all parts are in working order.

7. Allow the unit to fully stop before dismounting.

8. Pets should never be allowed near the unit.

9. Do not leave children unsupervised near or on the unit.

10. Never operate the unit where oxygen is being administered, or where aerosol products are being used.

11. Never insert any object or body parts into any opening.

12. For safety and to prevent damage to your unit, no more than one person should use the unit at a time.

13. Always unplug the unit before cleaning and/or servicing. Service to your unit should only be performed by an authorized service

representative, unless authorized and/or instructed by the manufacturer.

14. Failure to follow these instructions will void the unit warranty.

Thank you for purchasing the Ironman Fitness Odyssey! The quality product you have chosen was designed to meet your needs for cardiovascu-

lar exercise. Before you start, please read the Owner’s Manual and become familiar with the operation of your new unit. Remember to take time to

perform stretching exercises, provided in this manual, to help avoid injury. If you are taking medication, consult your physician to see what effect

the medication will have on your exercise heart rate. If you have heart problems, you are not active, and/or are over the age of 35 years, do not

use the pre-set programs or start an exercise program without rst contacting and receiving approval from your physician. To avoid the risk of

electrical shock, always keep the console dry. Do not spill liquids on the console. Ironman Fitness recommends a sealed water bottle for

beverages consumed while using the unit.

www.ironmanfitness.com

Assembly

www.ironmanfitness.com

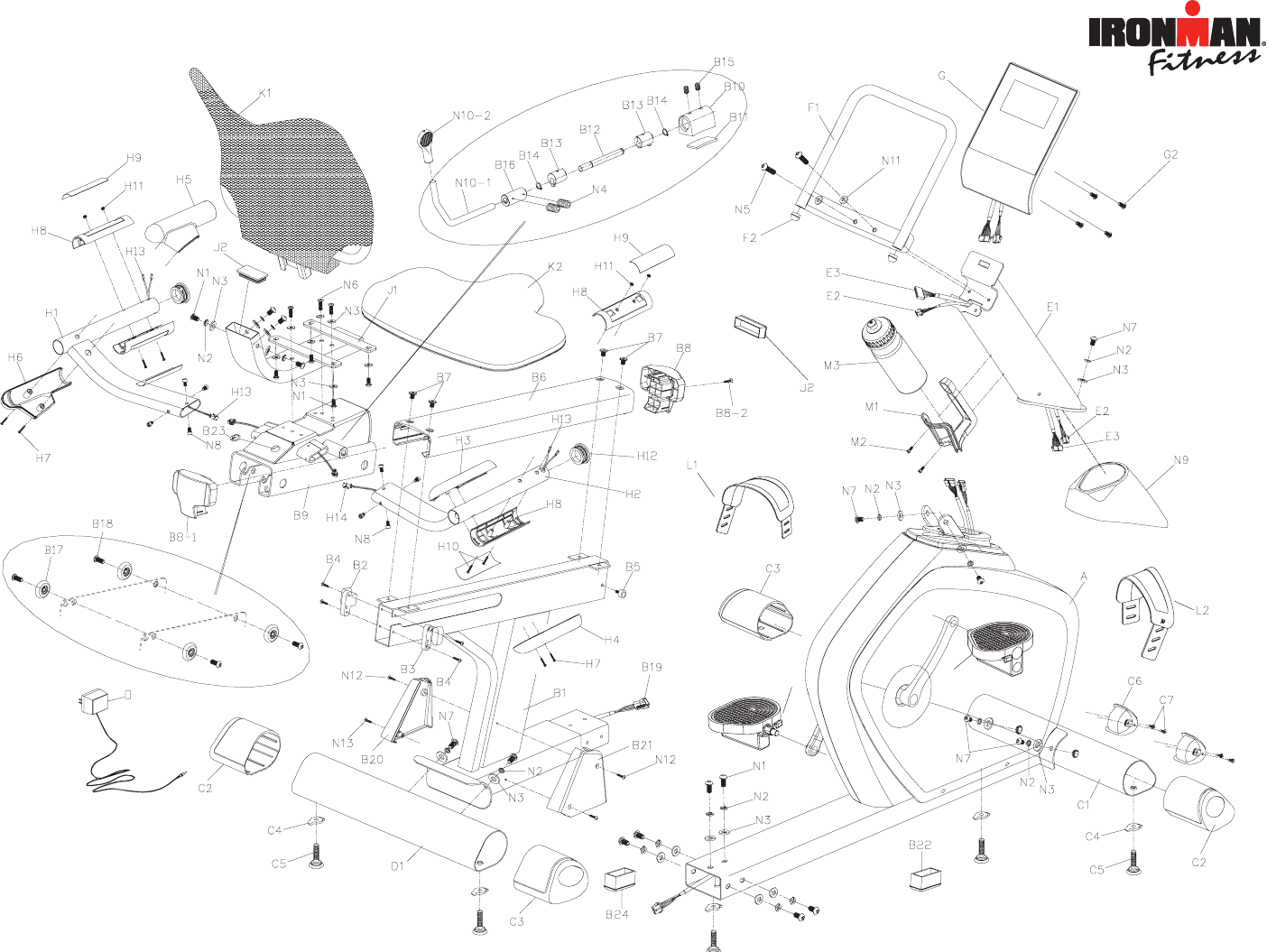

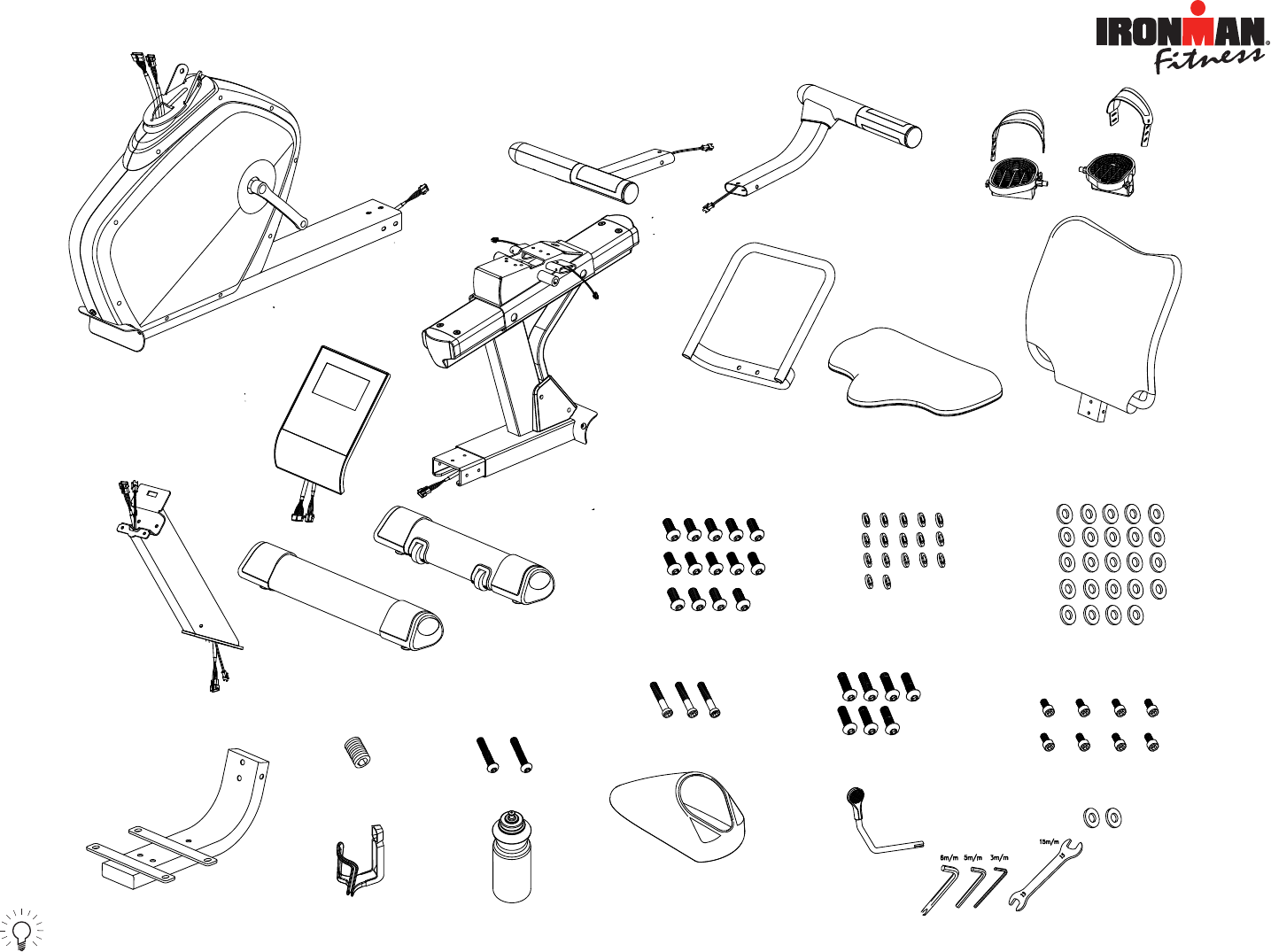

5Parts Identifier

Front Frame

Rear Frame

L-L

EUpright Post

Console

Upright Handlebar

Right Handlebar

Left Pedal Right Pedal

CFront

Stabilizer

DRear

Stabilizer

JSeat Sup-

port Frame

K1Back Rest

Tools

N1 Allen Screws

M8x15

Spring

Washer M8

Flat Washer

M8x16x1.2T

Set Screw

M6x8

Flat Washer

M8x1.6x1.2T

N2 N3

N4 N5

N6 N7 N8

N11

Allen Screws

M8x35

Allen Screws

M8x35

Allen Screws

M8x20 Allen Screws

M6x10

L-R

Seat

M1 M3

N9 N10

Upright Tube

Cover Seat Slide

Adjustment

Water Bottle

Holder Water Bottle

H1 Left Handlebar

Prior to assembly, remove components from the box and verify

that all the listed parts were supplied.

Important Information

www.ironmanfitness.com

Assembly

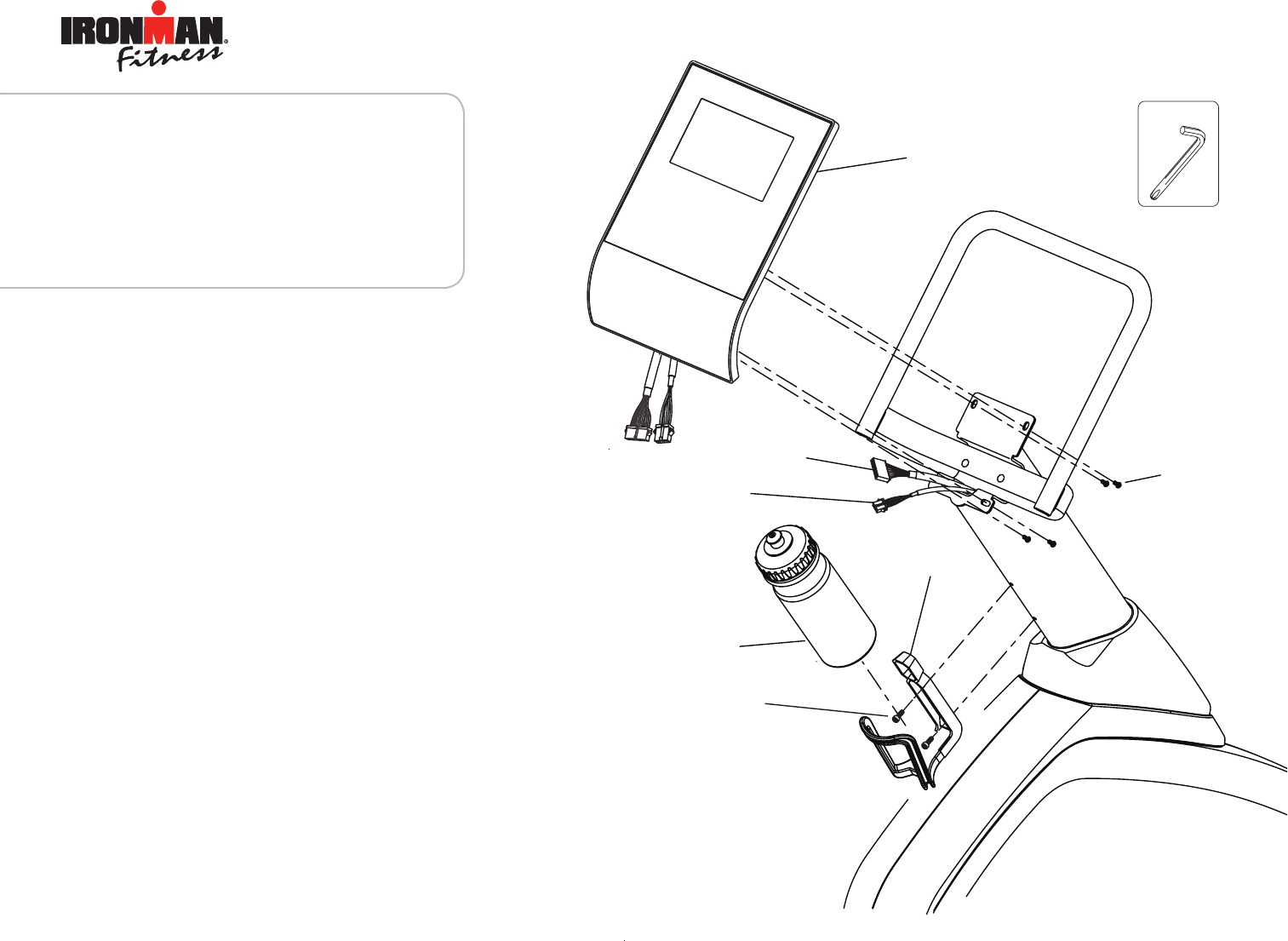

Use Tool

6mm

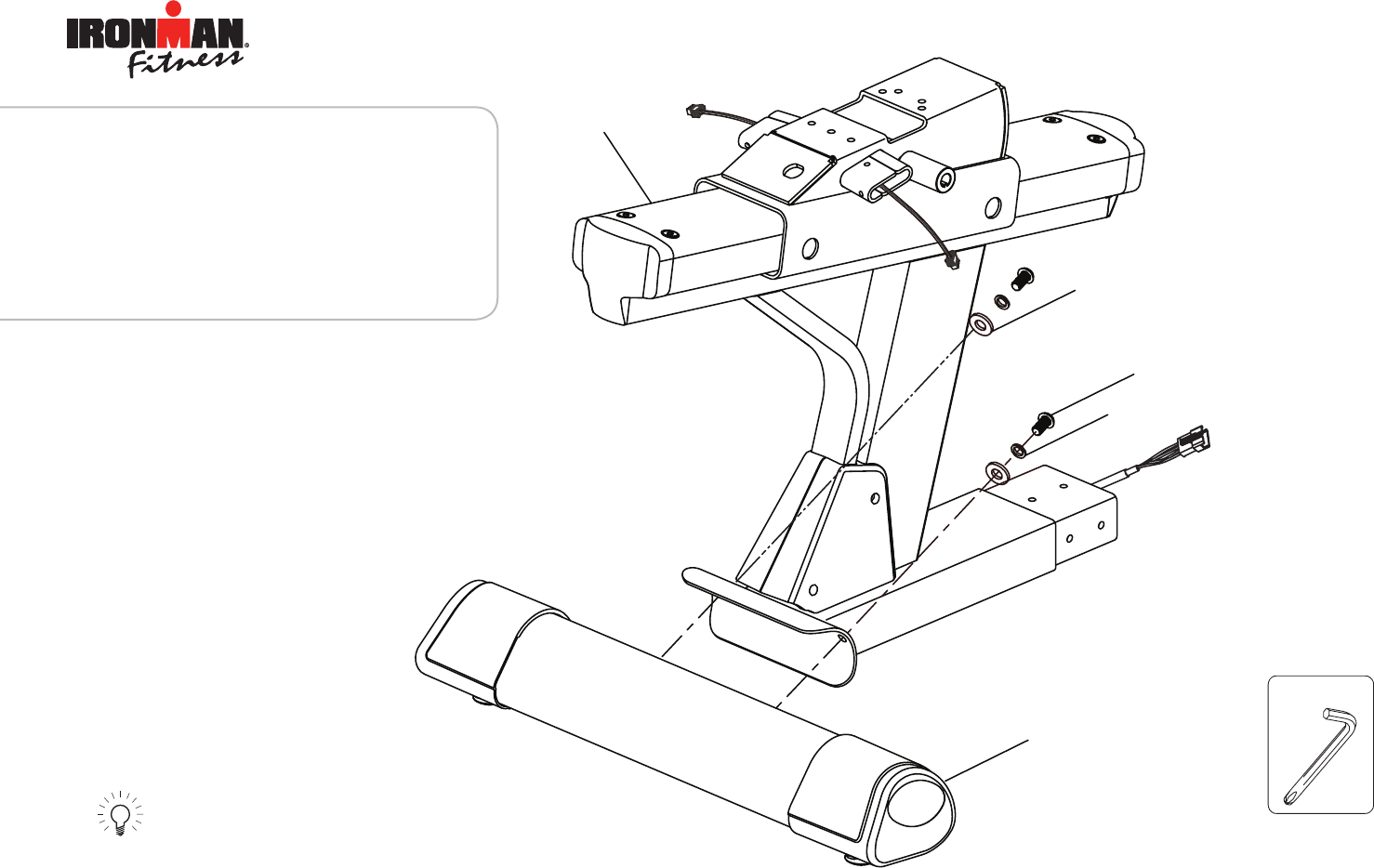

ASSEMBLY FOR REAR STABILIZER

Secure the rear stabilizer (D) to the rear main

frame (B) using 2 allen screws (N7), 2 spring

washers (N2) and 2 flat washers (N3).

Note: Front stabilizer (C) is very similar to rear

stabilizer (D) but contains transport wheels.

Make sure not to get them mixed up.

7Assembly

www.ironmanfitness.com

B20

A10

ASSEMBLY FOR FRONT & REAR

MAIN FRAME

Step 1:

Connect the front (A10) and rear (B20)

pulse wires together.

Step 2:

Attach front (A) and rear (B) main frames

together, making sure all wires are lined up

correctly so that they are not pinched when

assembling the two frames together. Then,

secure the frame connection at the top

and the 2 sides using 4 allen screws (N1),

4 spring washers (N2) and 4 flat washers

(N3).

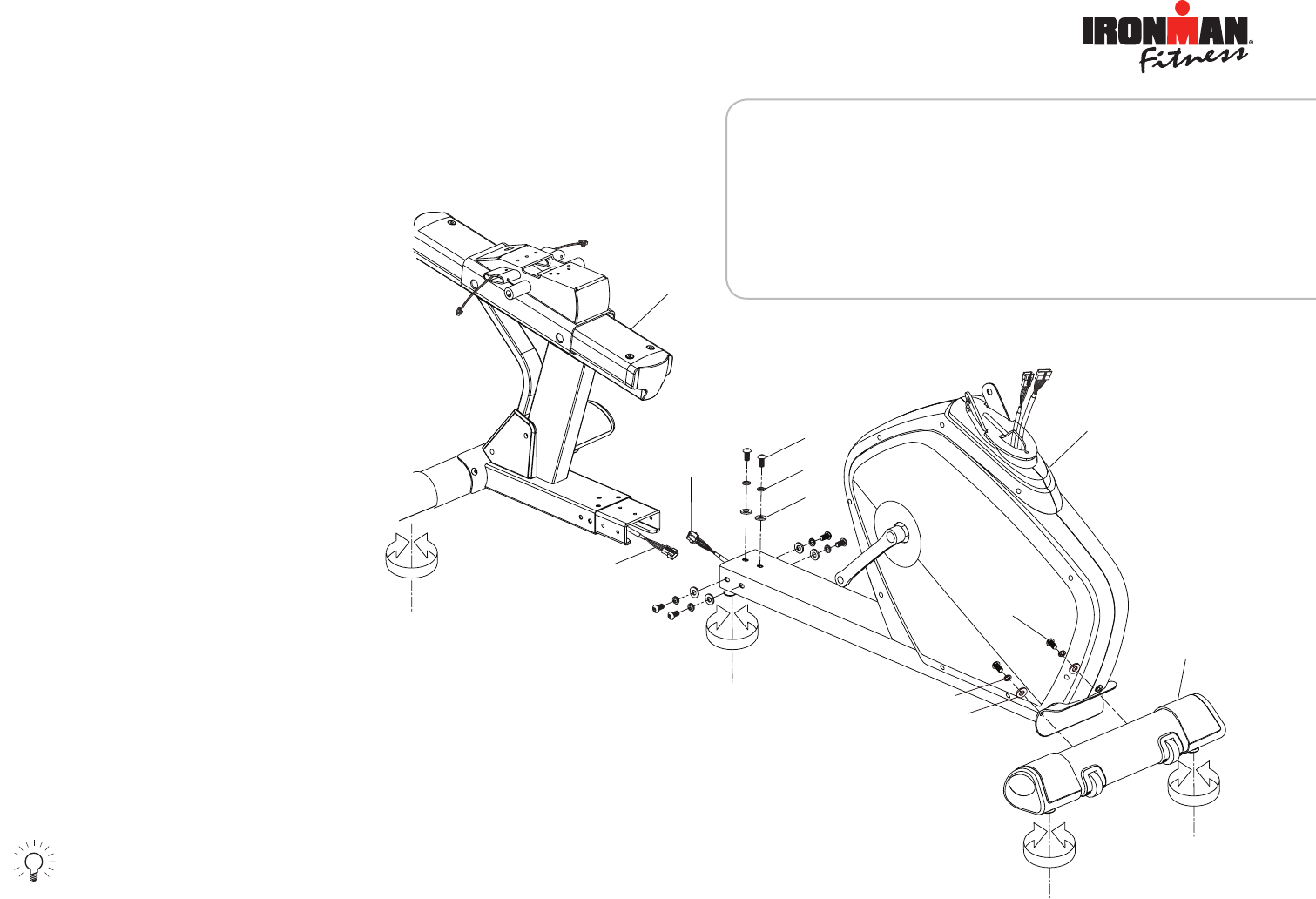

ASSEMBLY FOR FRONT STABILIZER

Secure the front stabilizer (C) to the main

frame (A) using 2 allen screws (N7), 2

spring washers (N2) and 2 flat washers (N3)

Note:

After you finish the assembly for front and rear stabilizer bars in order to add stability to

the unit, you may need to adjust the levelers that are located on the bottom of the unit.

www.ironmanfitness.com

Assembly

A10

Use Tool

6mm

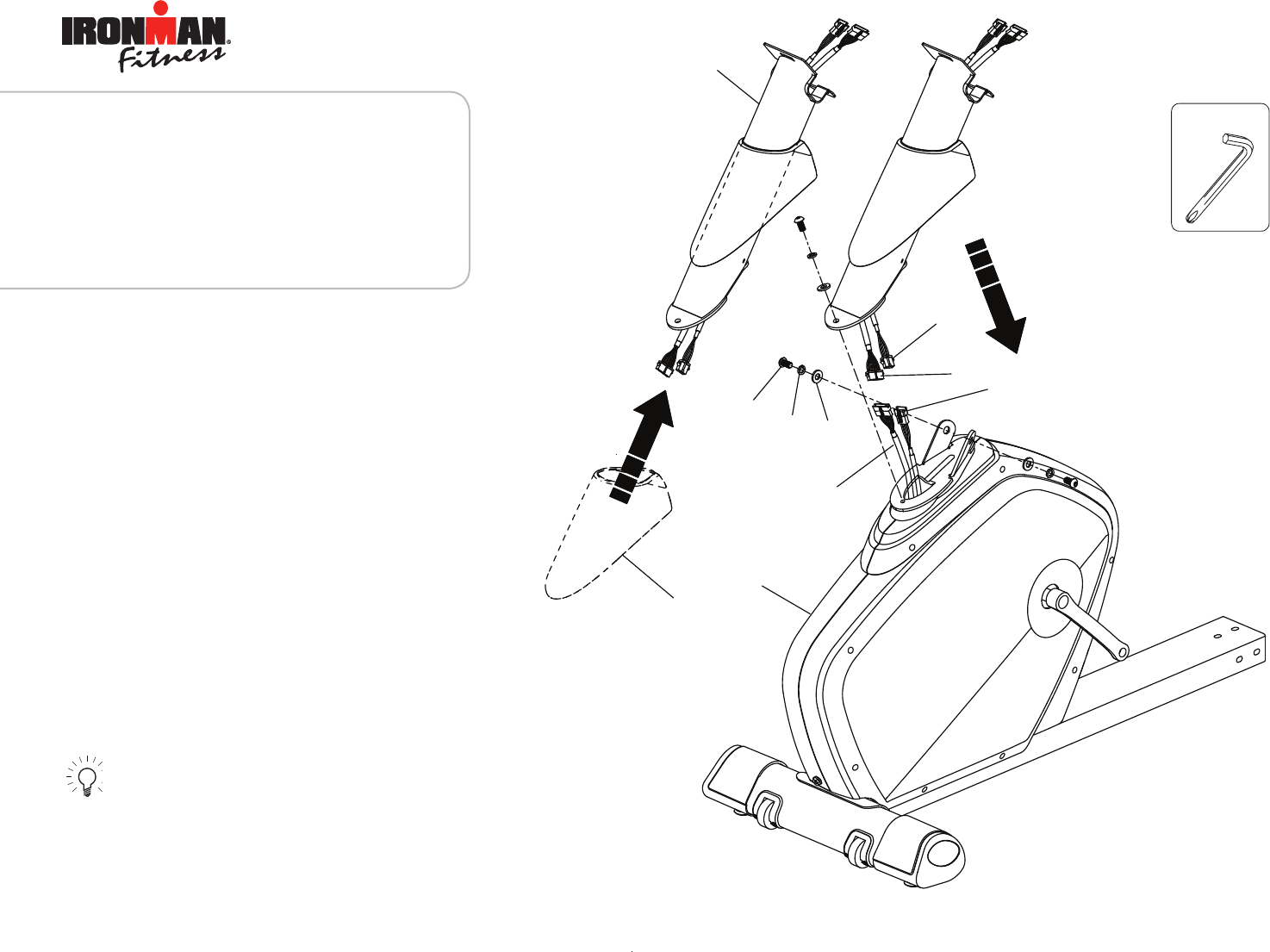

ASSEMBLY FOR UPRIGHT POST

Step 1:

Insert the upright post cover (N9) to the upright post (E)

from the bottom side.

Step 2:

Connect the lower pulse wire (A10) with the upper pulse

wire (E2). Also, connect the lower sensor wire (A8) with

the upper sensor wire (E3).

Step 3:

Attach upright tube (E) to the front main frame (A).

Then, secure them with 3 allen screws (N7), 3 spring

washers (N2) and 3 flat washers (N3).

Step 4:

Slide the upright tube cover (N9) down to conceal tube

connection.

Note:

Be careful not to pinch the sensor wire connection

during assembly.

www.ironmanfitness.com

9Important InformationAssembly

N11

L-Left

L-Right

L-(R)

L-(L)

CLOCKWISE

COUNTER-

CLOCKWISE

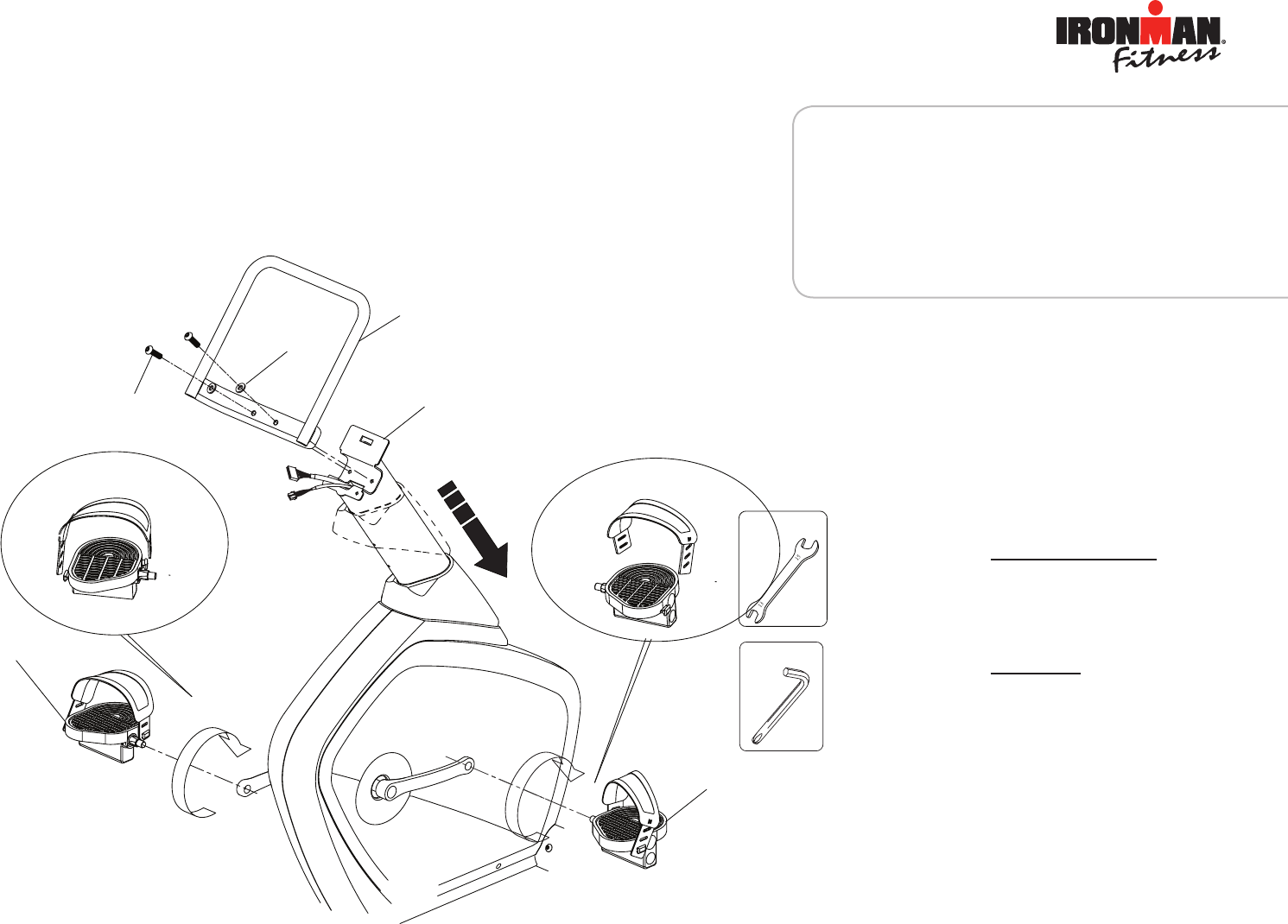

ASSEMBLY FOR UPRIGHT HANDLEBAR

Attach the handlebar (F) to the upright post (E) and secure it with

2 allen screws (N5) and 2 flat washers (N11).

Use Tool

6mm

Use Tool

15mm

13mm

ASSEMBLY FOR PEDALS

Step 1:

Attach left pedal strap (L1) to left pedal (L-

L) and right pedal strap (L2) to right (L-R)

pedals.

Step 2:

Thread the left pedal (L-L) into the pedal

crankshaft in the counter-clockwise

direction.

Step 3:

Thread the right pedal (L-R) into the pedal

crankshaft in the clockwise direction.

www.ironmanfitness.com

10 Assembly

Step 1:

Connect the sensor wire (E3) and the pulse wire (E2)

with the corresponding wires on the console (G).

Step 2:

Remove 2 screws (G2) from the back of the console (G).

Step 3:

Gently push all wires into the upright post and attach the

console to the console mounting plate at the top of the

upright tube (E). Secure with 2 screws (G2) to keep the

console in place.

Use Tool

6mm

ASSEMBLY FOR WATER BOTTLE

Step 1:

Remove 2 screws (M2) from the upright post (E).

Step 2:

Install water bottle holder (M1) on the upright post and

secure it using 2 screws (M2). Place the water bottle (M3)

into the water bottle holder (M1).

www.ironmanfitness.com

11Assembly

N10

B20

H14

Use Tool

3mm

Use Tool

5mm

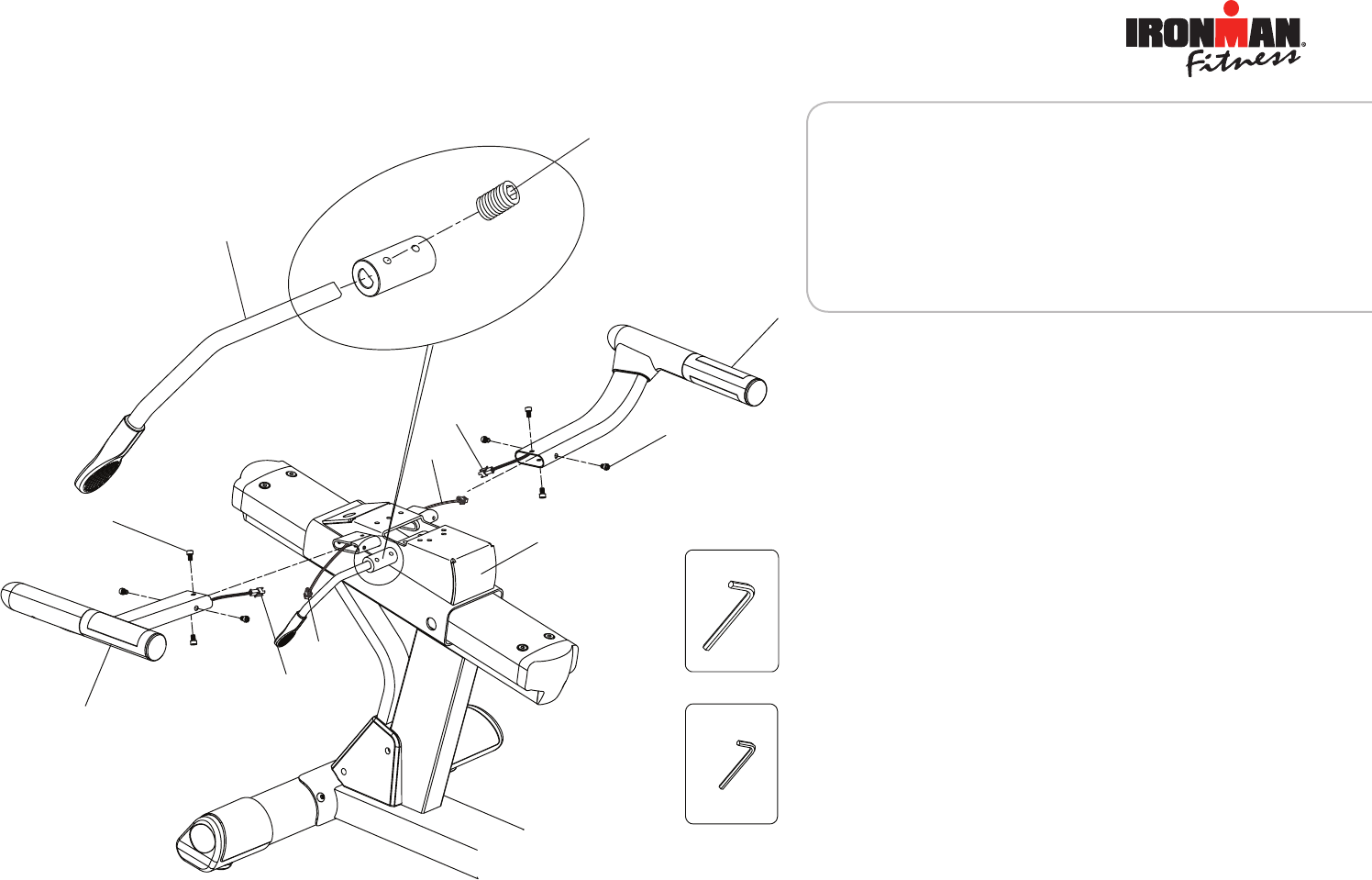

ASSEMBLY FOR SEAT SLIDE ADJUSTMENT

Insert the seat slide adjustment handle (N10) into the

seat slide adjustment collar on the seat slide assembly

(B9). Secure it with M6x8 set screw (N4).

ASSEMBLY FOR SIDE HANDLEBARS

Step 1:

Starting with left handlebar (H1), Connect

pulse wire (H14) and pulse wire (B20).

Step 2:

Mount the left handlebar (H1), to the seat

slide assembly (B9) and secure with 4

screws (N8).

Step 3:

Repeat steps 1 and 2 with right handlebar

(H2).

www.ironmanfitness.com

12 Assembly

Use Tool

6mm

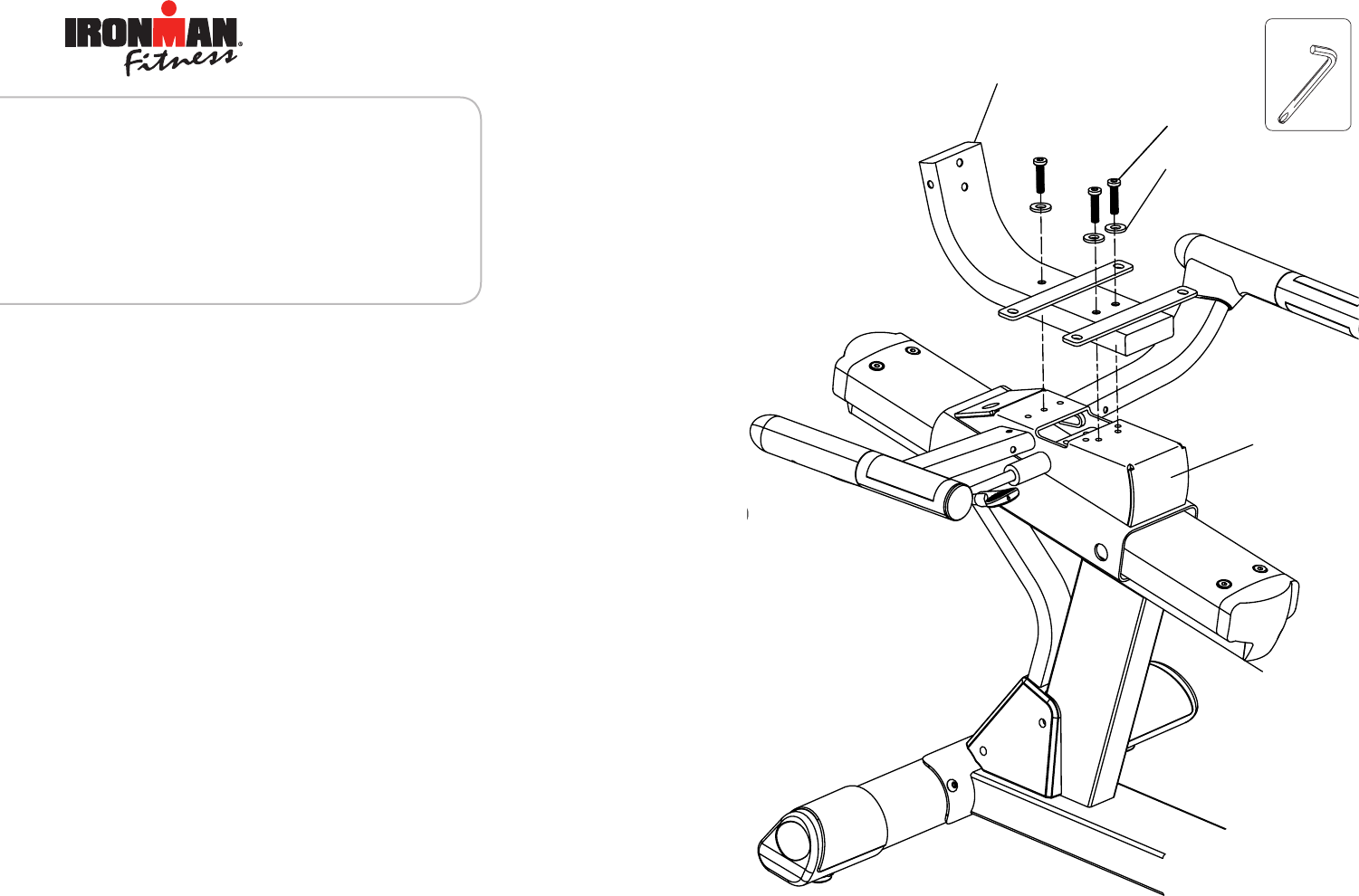

ASSEMBLY FOR SEAT SUPPORT FRAME

Attach the seat support frame (J) to the seat slide

assembly (B9) and secure it using 3 screws (N6)

and 3 flat washers (N3).

www.ironmanfitness.com

Important Information 13

Use Tool

6mm

Assembly

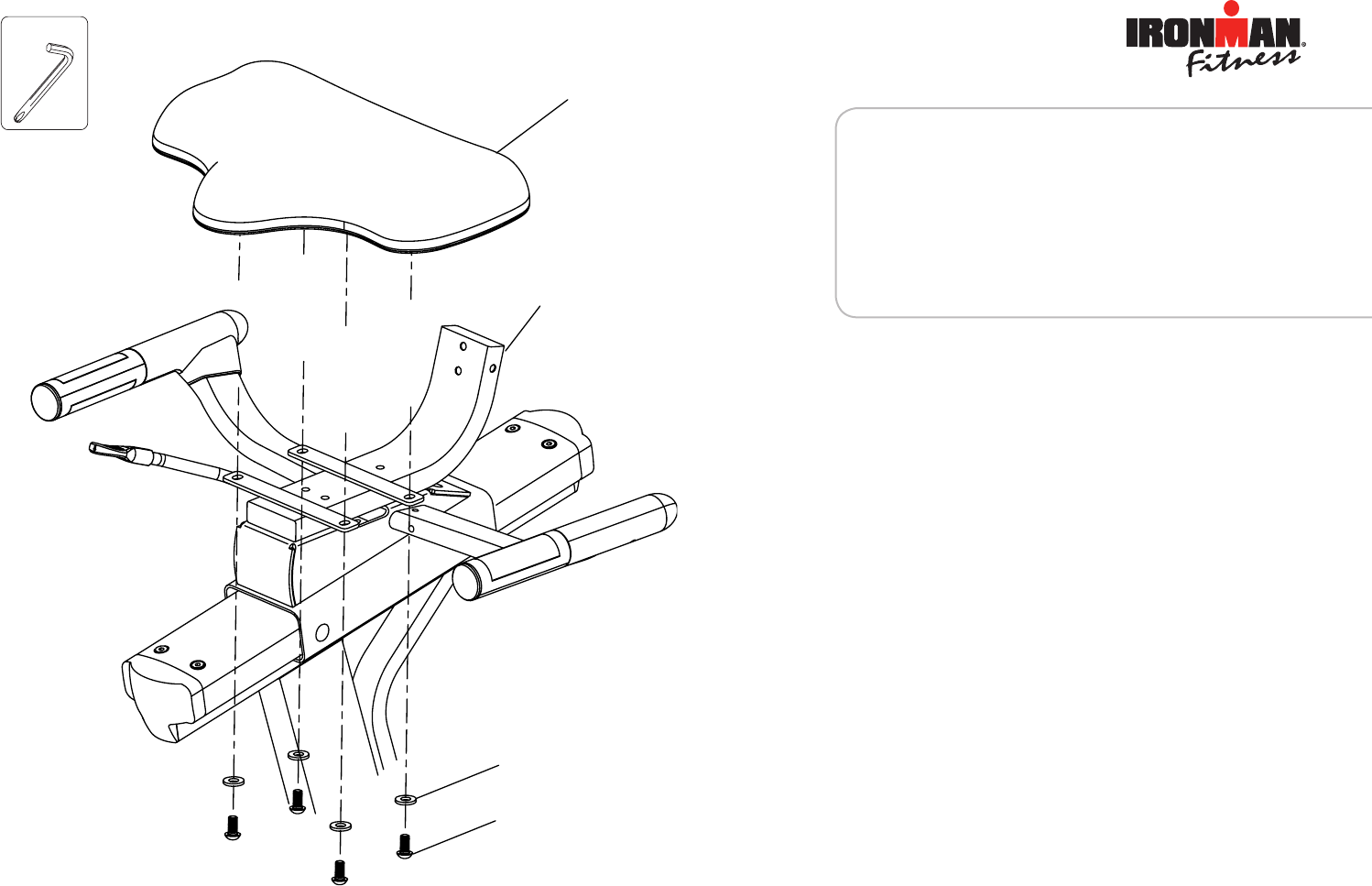

ASSEMBLY FOR SEAT CUSHION

Attach seat (K2) to the seat support frame (J) using 4 allen

screws (N1) and 4 flat washers (N3).

Important Information

www.ironmanfitness.com

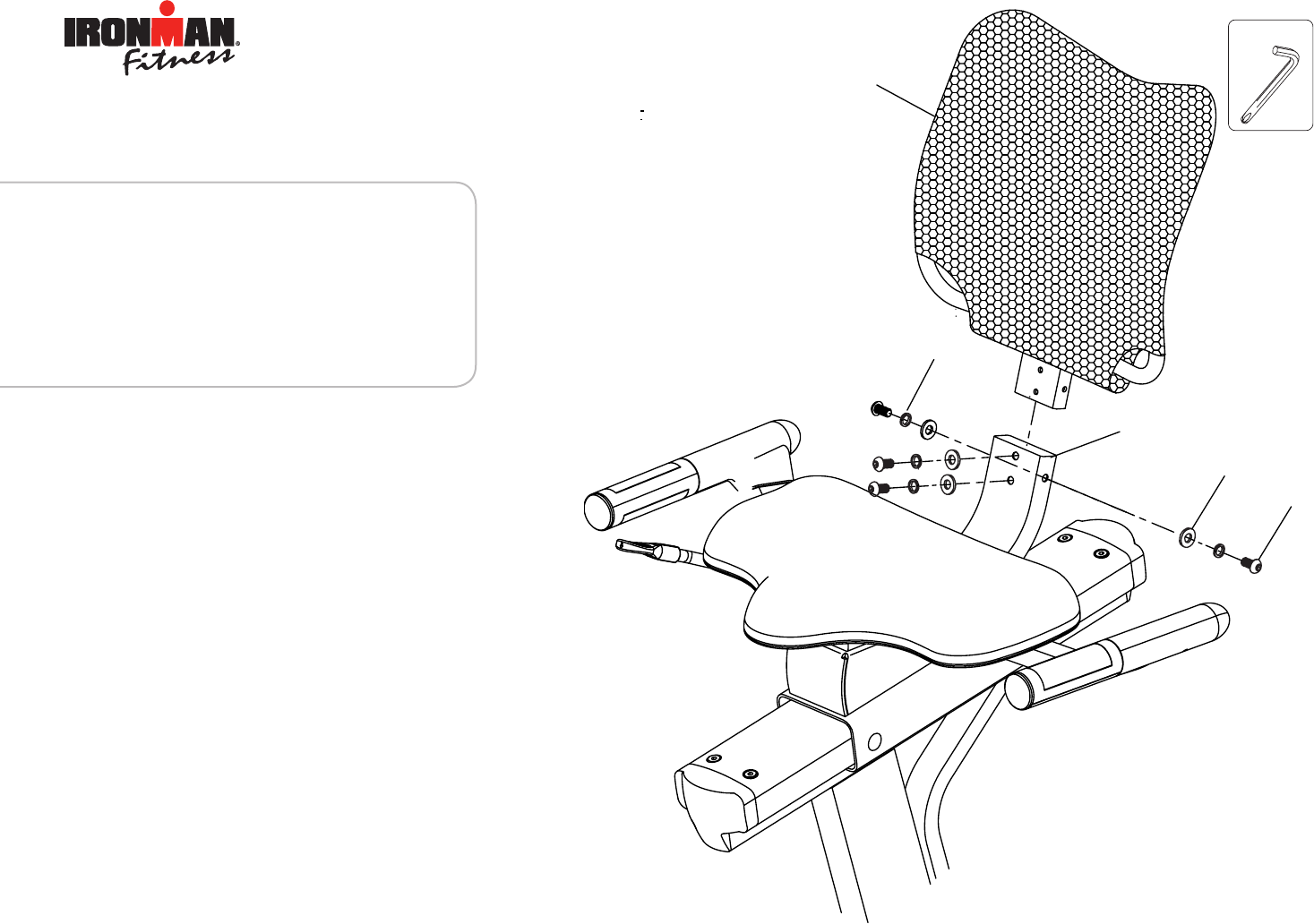

ASSEMBLY FOR BACK REST

Attach the back rest (K1) to the seat support frame (J)

and secure it using 4 allen screws (N1), 4 spring washers

(N2) and 4 flat washers (N3).

Assembly

Use Tool

6mm

www.ironmanfitness.com

15Assembly

Congratulations!

You have completed the assembly of your new

Ironman Odyssey Recumbent Bike!

Important Information

www.ironmanfitness.com

Assembly

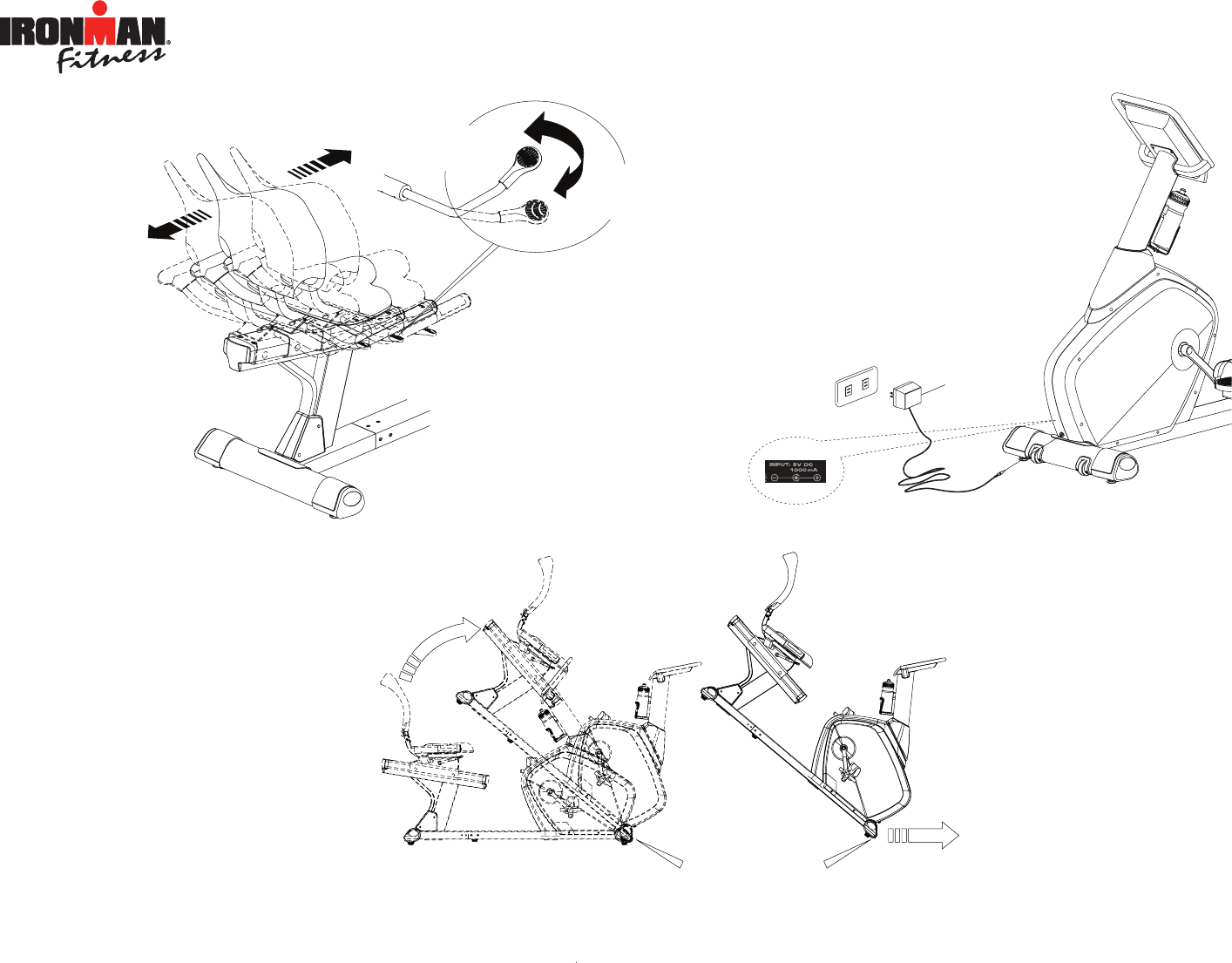

AC ADAPTER PLUG-IN LOCATION

TRANSPORTING

YOUR UNIT

TRANSPORT WHEELS

PULL UP

(LOCK)

PULL DOWN

(RELEASE)

ADJUSTING YOUR SEAT

www.ironmanfitness.com

Important Information 17

www.ironmanfitness.com

Console Information

www.ironmanfitness.com

18 Console Information

CONSOLE BUTTONS:

UP/DOWN:

These buttons are used to change programs and set-

tings.

ENTER:

This button is used as an entry key, which will allow

user to confirm settings such as time, distance and

calories.

RECOVERY:

This button is used to begin the Recovery feature of

the console (refer to Console Function section for more

information).

CLEAR:

This button will revert the console back to the program

selection menu.

RESET:

This button is used to return to main menu screen at

any time. It is also used to reset all values to zero.

START/STOP:

This button is used to start or stop training

NOTE: Only buttons pertinent to current selection will

light up (buttons only light up when they can be used).

www.ironmanfitness.com

Important Information 19

CONSOLE FUNCTIONS:

TIME:

If a target time was not selected, time will count up from 00:00 to maximum 99:59. When working out with a target time, time will count down from

target to 00:00. When selecting target time, use the ▲ / ▼ buttons, the time will change in 1 minute increments and can range from 1:00 min to

99:00 mins. When preset value has been reached console will beep continuously and pause. Next, press the START / STOP button twice to con-

tinue workout.

SPEED:

Displays current training speed from 0.0 to maximum 99.9 KM or MPH.

RPM:

Displays current training revolutions per minute.

DISTANCE:

If a target distance was not selected, distance will count up from 0.00 to maximum 99.90. When working out with a target distance, distance will

count down from target to 0.0. When selecting target time, use the ▲ / ▼ buttons, the distance will change in 0.1 mile increments and can range

from 0.00 miles to 99.90 miles. When preset value has been reached console will beep continuously and pause. Next, press the START / STOP

button twice to continue workout.

CALORIES:

If target calories were not selected, calories will count up from 0 to maximum 990. When working out with target calories, calories will count down

from target to 0. When selecting target calories, use the ▲ / ▼ buttons, the calories will change in 10 calorie increments and can range from 0

calories to 990 calories. When preset value has been reached console will beep continuously and pause. Next, press the START / STOP button

twice to continue workout.

PULSE:

Displays your current heart rate as soon as both hands are holding the pulse sensor. The monitor will detect your heart rate through hand grip

sensors that are located on the handlebar. The pulse value can be set during program setup. During workout, if your actual pulse rate exceeds the

preset value the console will make a double beep sound. Note: It may take several seconds for the electronics to detect and display a heart rate

reading.

WATT:

Displays current training watt figures. A watt is a measurement of the amount of power generated by the user based on the resistance and speed.

Console Information

Important Information

www.ironmanfitness.com

RECOVERY:

After your workout, press “RECOVERY” button and quickly grab pulse plates. All func-

tion display will stop except “TIME” starts counting down from 00:60 to 00:00. Screen

will display your heart rate recovery status rating between F1-F6. F1 is the best, F6 is the

worst. User may keep exercising to improve the heart rate recovery status. (Press the

RECOVERY button again to return the main display.)

CALENDAR:

Screen will display year/month/day in sleep mode. When the unit is plugged in the console will prompt user to input correct information. Use the

UP and DOWN button until correct year is found. Press ENTER to confirm selection. Repeat steps to input correct month followed by the correct

date.

Note: All information will be saved until unit is unplugged.

CLOCK:

Screen will display time in sleep mode. Once the calendar is set, you will be able to input the correct time. Use the UP and DOWN buttons until

the correct hour is found. Press ENTER to confirm selection. Repeat steps to input correct minutes. Note: All information will be saved until unit is

unplugged. Note: Clock will only display 24 hour time.

TEMPERATURE:

Screen will display room temperature in sleep mode.

GENERAL INFORMATION:

1. Start Pedaling or press any button to start Console.

2. The Console will shut down after 4 minutes of no activity, and will display room temperature.

3. To Reset Console press Reset button.

PROGRAM INSTRUCTIONS:

MANUAL PROGRAM:

Allows the User to manually adjust tension settings throughout their workout. Use the UP/DOWN buttons to scroll to this program. Press ENTER

to select this program. The resistance level L01 will flash. Use the Up (▲) or Down (▼) button to select your desired resistance. Then press

ENTER to select. TIME will flash in the display. Use the UP/DOWN keys to set desired TIME. Press ENTER to confirm value. Repeat steps for

DISTANCE, CALORIES, and PULSE. Press START/STOP to begin exercising. Grasp Pulse Grips loosely with both hands to activate PULSE

function. You can change the tension level at any time during your workout session by pressing the UP/DOWN buttons.

Console Information

Score Condition Heart Rate

( from test HR minus end HR)

F1 Excellent Above 50

F2 Good 40 ~ 49

F3 Average 30 ~ 39

F4 Fair 20 ~ 29

F5 Poor 10 ~ 19

F6 Very PoorUnder 10

Note: The values calculated

or measured by the console

are for exercise purposes

only, not for medical purposes.

www.ironmanfitness.com

Important Information 21

PRESET PROGRAMS:

Each Program is divided into twenty segments.

Use the UP/DOWN buttons to scroll to this

program. Use the UP/DOWN buttons to select

desired preset (P01-P12). Press ENTER to

confirm. Press MODE/ENTER to select this

program. The resistance level L01 will flash.

Use the Up (▲) or Down (▼) button to select

your desired resistance. Then press ENTER to

select. TIME will flash in the display. Use the

UP/DOWN keys to set desired TIME. Press

ENTER to confirm value. Repeat steps for

DISTANCE, CALORIES, and PULSE. Press

START/STOP to begin exercising. Grasp

Pulse Grips loosely with both hands to activate

PULSE function. You can change the tension

level at any time during your workout session

by pressing the UP/DOWN buttons.

WATT PROGRAM:

In this program, the WATT function will keep a

constant value. This means that if you pedal

quickly, the tension will decrease, if you pedal

slowly the tension will increase to maintain the Watt value entered. Use the UP/DOWN buttons to scroll to this program. Press MODE/ENTER

to select this program. WATT will flash in the display. Use the UP/DOWN keys to set desired WATT. Press MODE/ENTER to confirm value.

Repeat steps for DISTANCE, CALORIES and PULSE. Press START/STOP to begin exercising. Grasp Pulse Grips loosely with both hands to

activate PULSE function.

CHANGING BETWEEN US STANDARD AND INTERNATIONAL:

To switch the console from Miles to Kilometers you first press RESET on the console. Next, LIGHTLY press and hold the ENTER button followed

by pressing and holding the CLEAR button. ((M) should be flashing) Use the Up (▲) and Down (▼) buttons to change the console from (M) to (K).

Then, press the ENTER button. ((F) should be flashing) Use the Up (▲) and Down (▼) areas to change F to C. Then, press the ENTER button. The

console will reset. Note: Time and calender will be reset to factory defaults.

Console Information

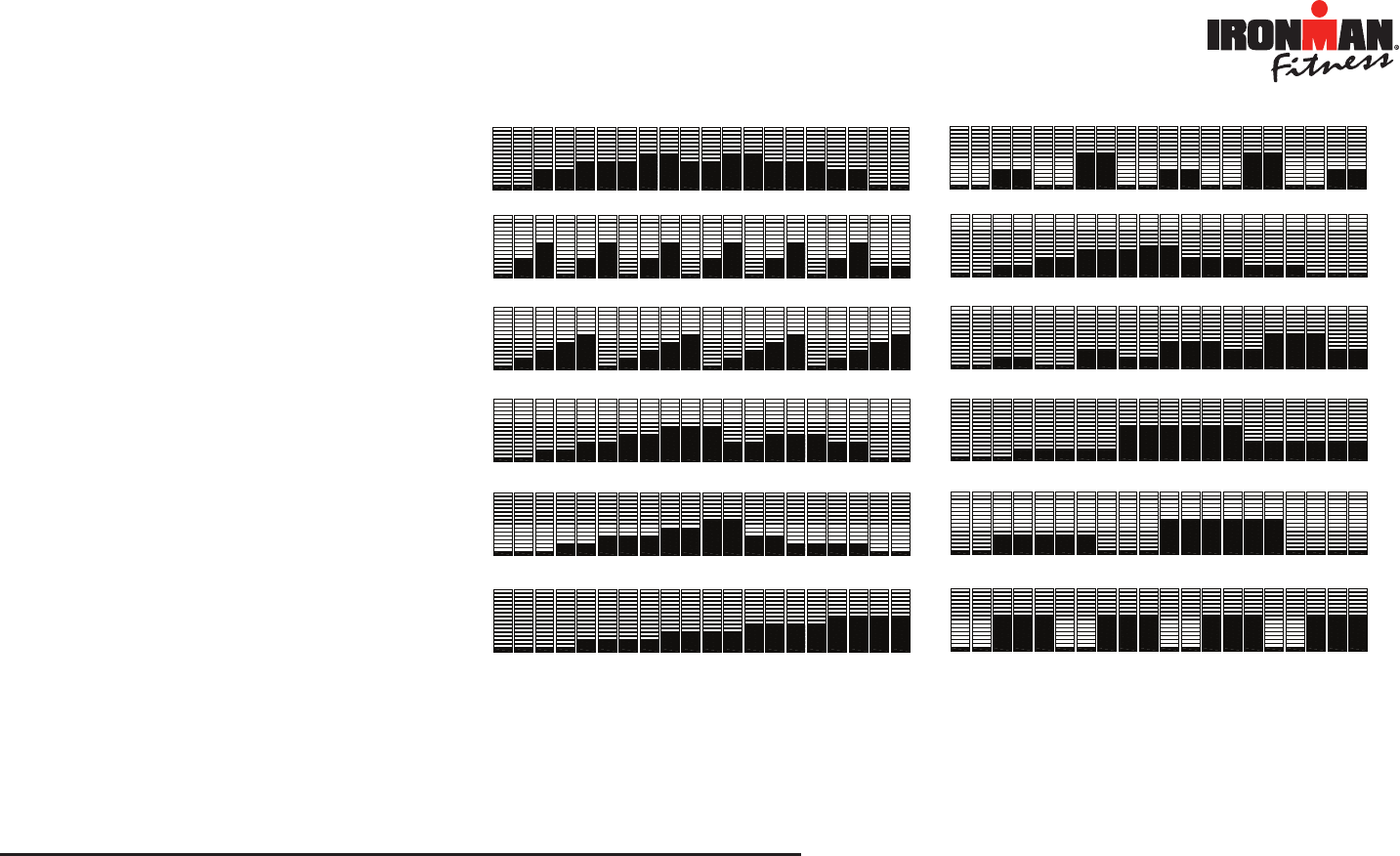

P01

P02

P03

P04

P05

P06

P07

P08

P09

P10

P11

P12

Important Information

www.ironmanfitness.com

MONITORING YOUR HEART RATE:

To obtain the greatest cardiovascular benefits from your exercise workout, it is important to work within your target heart rate zone. The American

Heart Association (AHA) defines this target as 60%-75% percent of your maximum heart rate. Your maximum heart rate may be roughly calculated

by subtracting your age from 220. Your maximum heart rate and aerobic capacity naturally decreases as you age. This may vary from one person to

another, but use this number to find your approximate effective target zone. For example, the maximum heart rate for an average 40 year-old is 180

bpm. The target heart rate zone is 60%-75% of 180 or 108-135 bpm. See Fitness Safety on next page.

Before beginning your workout, check your normal resting heart rate. Place your fingers lightly against your neck, or against your wrist over the

main artery. After finding your pulse, count the number of beats in 10 seconds. Multiply the number of beats by six to determine your pulse rate per

minute. We recommend taking your heart rate at these times; at rest,

after warming up, during your workout and two minutes into your cool

down, to accurately track your progress as it relates to better fitness.

During your first several months of exercising, the AHA recommends

aiming for the lower part of the target heart rate zone-60%, then

gradually progressing up to 75%.

According to the AHA, exercising above 75% of your maximum heart

rate may be too strenuous unless you are in top physical condition.

Exercising below 60% of your maximum will result in minimal cardio-

vascular conditioning. Check your pulse recovery rate – If your pulse

is over 100 bpm five minutes after you stop exercising, or if it’s higher

than normal the morning after exercising, your exertion may have

been too strenuous for your current fitness level. Rest and reduce the

intensity next time.

(MHR)=Maximum Heart Rate

(THR)=Target Heart Rate

220-age=maximum heart rate (MHR)

MHR x .60 = 60% of your maximum heart rate.

MHR x .75 = 75% of your maximum heart rate.

For example, if you are 30 years old, your calculations will be as

follows:

220-30=190

190 x .60=114 (low end or 60% of MHR)

190x.75=142 (high end or 75% of MHR)

30 year-old (THR) Target Heart Rate would be 114-142

Console Information

www.ironmanfitness.com

Important Information 23

Fitness Safety - The Heart Rate chart indicates aver-

age rate for you. Your physician or health care profes-

sional can help you determine the exercise intensity that

is appropriate for your age and condition.

100%

85%

75%

60%

Serious

athletic

training range

Cardiovascular

conditioning

range

Fat burning

range

20 25 30 35 40 45 50 55 60 65

AGE

200

195

190 185 180 175

170

165 160 155

170 166 162 157

153 149

145

140

136 132

150 146 143

139 135 131 128 124 120 116

120

117 114 111108 105 102 99 96

TARGET HEART RATE ZONE

Console Information

Important Information

www.ironmanfitness.com

Workout Information

www.ironmanfitness.com

Important Information 25

Workout information

Cat and Camel

Rest on your hands and knees. Round your back

by contracting your abdominal muscles and

tucking in your pelvis; hold for five seconds. Then

allow your back to sag toward the floor as you lift

your chect and head; hold for five seconds.

Repeat the combination 10 times.

Tilt your head gently toward one shoulder,

keeping your shoulders level and your face

pointed straight ahead. Hold for ﬁve seconds,

then tilt your head toward the other shoulder. and

hold for ﬁve seconds. Re peat ﬁve times on each

side.

In a smooth, continuous motion, make a circle

with your shoulders: Raise them up

towards your ears, pull them together behind you,

lower them to a resting position, then roll them

forward. Repeat then roll them forward. Repeat

10 times.

Prone on Elbows Supline Lumbar Rotation Knees to Chest

Lie on your stomach with your feet together. Rest

on your forearms with your elbows directly under

your sholdres. Relax lower back and abdomen

into the floor. Hold for 30-60 seconds or until

muscles feel looser

Lie on your back with your knees bent. Keeping your

knees together against the floor, roll your knees to one

side until you feel a stretch in your back or hip. Hold for

30-60 seconds or until muscles feel looser. Repeat on

opposte side.

Lie on your back. Bend your knees, and lift your

feet off the ﬂoor. Grasp your knees with your

arms and pull your knees toward your chest.

Hold for 20 Repeat three to ﬁve times..

EXERCISE GUIDELINES

Cervical Side Bends Shoulder Circles

WARNING!

Before beginning this or any exercise program, you should consult your physician.This is

especially important for individuals over the age of 35 or individuals with pre-existinghealth

problems. Flexibility is a key to fitness. Stretch all major muscle groups at least two to three

times per week after a 5 to 10 minute warmup. Stretch just to the point of a gentle tug. If you

have back, joint, or other health problems, talk to your doctor first

www.ironmanfitness.com

26 Workout Information

Wrist Extensor Triceps Stretch

Piriformis Stretch Groin (Adductors) Stretch

One-Arm Pectoralis Stretch

Wrist Flexor

Extend your right arm in front of you with your

palm up and your elbow straight. Point your

fingertips toward the floor by bending at the wrist.

Using your left hand, pull the back of your right

hand toward you gently. Hold for 20 seconds;

repeat three to five times with each arm.

Stand against an immobile structure like a wall or

a tree. While facing the wall, raise your right

hand out to your side at chest height, palm

against the wall. Turn your body toward the left,

away from the wall and your extended arm, until

you feel a stretch. Hold for 20 seconds; repeat

three to five times with each arm.

Extend your right arm in front of you, palm down,

elbow straight. Point your fingertips toward the

floor by bending at the wrist. Using your left

hand, pull your right palm toward you gently.

Hold for 20 seconds; repeat three to five times

with each arm.

Lie on your back. Bend your right knee and lift it

halfway to your chest. Grasp your knee with your

left hand and pull it toward your left shoulder,

keeping both buttocks against the floor. Hold for

20 seconds; repeat three to five times with each

leg.

Place your right hand behind your head, palm

facing your head. With your left hand, grasp your

right elbow and pull downward until you feel a

stretch in the back of your right arm. Hold for 20

seconds; repeat three to five times with each

arm.

Sitting with your back straight, bring the soles of

your feet together. Let your knees lower toward

the floor. Hold for 30-60 seconds or until muscles

feel looser.

www.ironmanfitness.com

Workout Information

Standing Quadriceps Stretch Achilles Stretch

Calf Stretch

Face a solid structure such as a wall with your left

foot ahead of your right, toes straight ahead. Bend

your left knee, press your hips forward, and lean into

the wall. Keep both heels down, your right leg

straight, and you left knee over your ankle. Hold for

20 seconds; repeat three to five times with each leg.

Steady yourself with one hand. With the other, grab

outside leg at ankle, keeping body straight from knee

to hip. Gently pull foot up and towards the buttocks

until you feel a stretch along the front of the thigh.

Thigh should be pulled straight back and not drift to

outside. Hold 20-30 seconds. For variation, grab

opposite ankle (i.e., grab right ankle with left hand).

Do two to three repetitions per leg.

Face the wall with your left foot ahead of your

right, toes straight ahead. Bend both knees,

press your hips forward, and lean into the wall.

Keep both heels down and both knees in line

with your feet. Hold for 20 seconds; repeat three

to five times with each leg.

Important Information28

www.ironmanfitness.com

Parts Information

www.ironmanfitness.com

Important Information 29

L-R

L-L

- 9 -

Exploded View

Important Information

www.ironmanfitness.com

A4-8

A3-5

A3-7 A3-8

A3-9

A3-1

A3-2A3-3

A3-4 A3-6

A3-11

A3-13

A3-12

A3-14

A3-15

A3-17

A3-16

A4-1

A4-2

A4-3

A4-4

A4-5

A4-6

A4-7

A3-19

A3-18

- 10 -

Ref # Descri

tion

Ref # Descri

tion

A1 MAIN FRAME 1 B15

APPING SCREW 2

A2-1 DRIVING WHEEL 1 B16 SLEEVE 1

A2-2 AXLE 1 B17 SLEEVE NUT 4

A2-3 NUT 4 B18 WHEEL 4

A2-4 SCREW 4 B19 BOLT 4

A2-5 BEARING 2 B20 SENSOR CABLE 1

A2-6 C CLIP 2 B21 DECORATION COVER 1

A2-7 MAGNET 1 B22 DECORATION COVER 1

A3 FLYWHEEL 1 B23 END CAP 1

A3-1 C-CLIP, C10 2 B24 END CAP 1

A3-2 BEARING 6203ZZ 2 C1 FRONT STABILIZER 75.6X99X1.8X440 1

A3-4 NUT, 3/8"X0.5 1 C2 END CAP(RIGHT), 82X106X121 2

A3-5 AXLE 1 C3 END CAP(LEFT), 82X106X121 2

A3-6 BEARING, 6003ZZ 1 C4 ADJUST NUT, M3 5

A3-7 BEARING, 6300ZZ 1 C5 ADJUST BOLT, M8X29X42.5 5

A3-8 PULLEY 1 C6 MOVING WHEEL 2

A3-9 BEARING, ONE WA

1 C7 SCREW, #8X32X5/8 4

A3-10 NUT, 3/8"X26X7 2 D1 FRONT STABILIZER 1

A3-11 HOUSING, MAGNE

1 E1 CENTRAL SUPPORT TUBE 1

A3-12 NUT, M6 1 E2 650LSENSOR CABLE 1

A3-13 WASHER, M6X19X1.5 1 E3 650LSENSOR CABLE 1

A3-14 WASHER, M6X22X1.0 1 F1 FRONT HANDLE BAR 1

A3-15 SCREW, M6X60 1 F2 END CAP 4

A3-16 NUT, M6 1 G MONITOR 1

A3-17 SPRING, 1 G2 SCREW, M4X16 4

A3-18 NUT, M8 1 H1 SIDE HANDLE BAR(LEFT) 1

A3-19 SCREW, M8X52 1 H2 SIDE HANDLE BAR(RIGHT) 1

A4 PRESSING PIPE 1 H3 DECORATION COVER 176.5X76.1X21 1

A4-1 SCREW, M8X52 1 H4 DECORATION COVER 176.5X76.1X21 1

A4-2 WASHER, M8X22X1.5 2 H5 DECORATION COVER 176.5X76.1X21 1

A4-3 WASHER M10X24X0.3 2 H6 DECORATION COVER 176.5X7 6.1X21 1

A4-4 NUT, M8 1 H7 SCREW, M4X12 4

A4-5 C-CLIP, C12 1 H8 SENSOR BOX(BELOW) 4

A4-6 WHEE

1 H9 SENSOR BOX(ABOVE) 4

A4-7 BEARING, 6001Z 1 H10 SCREW, M3X35 4

A4-8 SPRING, 1 H11 NUT, M3 4

A5-1 CHAIN COVER-L 1 H12 END CAP, 42X21END CAP 2

A5-2 CHAIN COVER-R 1 H13 SENSOR WIRE 2

A5-3 SCREW, M4X20 7 J1 SADDLE SUPPORT TUBE 1

A6 DRIVING BELT, 6PJ46 1 J2 END CAP, 25X50 2

A7 TENSION CABLE 1 K1 BACK REST 1

A8 MOTOR CONTROL 1 K2 SADDLE CUSHION 1

A9 SCREW, M6X10 4 L1 STRAP(L) 1

A10 SENSOR CABLE 1 L2 STRAP(R) 1

A11 SENSOR WIRE 1 L-L PEDAL(LEFT) 9/16 1

A12 SCREW, #6-21X12 1 L-R PEDAL(RIGHT)9/16 1

A13 SENSOR CLIP 1 M1 BOTTLE HOLDER 1

A14 CRANK(LEFT) 1 M2 SCREW, M5X15 2

A15 CRANK(RIGHT) 1 M3 WATER BOTTLE 1

A16 BOLT 2 N1 BOLT, M8X15 14

A17 BOLT COVER 2 N2 SPRING WASHER, M8 17

A18 DC LINE 1 N3 WASHER, M8X16X1.2 24

B1 REAR FRAME 1 N4

P SCREW, M6X8 2

B2 STOPPER 1 N5 SCREW, M8X35 2

B3 STOPPER 1 N6 SCREW, M8X12 3

B4 SCREW 4 N7 SCREW, M8X20 7

B5 STOPPER BOLT 2 N8 SCREW, M6X10 8

B6 ALUMINUM TRACK 1 N9 DECORATION COVER 1

B7 BOLT 4 N10 BRAKING HANDLE BAR 1

B8 END CAP 1 N10-1 SEAT ADJUSTMENT HANDLE 1

B8-1 END CAP 1 N10-2 PLASTIC WRAP 1

B9 MOVING BASEMENT 1 N11 WASHER, M8X16X1.2 2

B10 BRAKE 1 N12 SCREW, M5X20 6

B11 BRAKE CUSHION 1 N13 SCREW, M4X15 1

B12 AXLE 1 O ADAPTOR 1

B13 ECCENTRIC WHEEL 2 # BOLT PACK 1

B14 CLIP 4

Odyssey Parts List Rev A

Parts List

www.ironmanfitness.com

Warranty Information

Residential and Personal Use Limited Warranty

PLEASE READ THESE WARRANTY TERMS AND CONDITIONS FULLY AND CAREFULLY BEFORE USING

YOUR IRONMAN FITNESS EQUIPMENT. BY USING THE EQUIPMENT, YOU ARE CONSENTING TO

BE BOUND BY THE FOLLOWING TERMS AND CONDITIONS.

Frame: Lifetime Parts: 1 Year

Missing/Cosmetic Parts: 30 Days

Limited Warranty

This Limited Warranty applies in the United States and Canada to Products manufactured or distributed by IRONMAN Fitness

under the IRONMAN Fitness (“IRONMAN”) brand name (as used herein, the “Product” or “Products”). The warranty period to

the original purchaser is listed above, and commences on the date of original purchase of the product, unless otherwise autho-

rized by IRONMAN. IRONMAN warrants that the Product purchased from IRONMAN or from an authorized IRONMAN Fitness

reseller “dealer” (for residential or personal use only, unless otherwise authorized by IRONMAN in writing), is free from defects

in Materials and Workmanship relevant to the functionality of the Product at initial startup, under normal use, and during the

applicable warranty period, unless otherwise determined by IRONMAN.

This warranty excludes expendable parts if primary cause for warranty claim is wear. Expendable parts pertain to compo-

nents on the Product that are prone to normal wear and tear. These items vary by Product, and can include (but not limited to)

hand grips, skid pads, pedals, pedal straps, poly-v belts, console overlays, toggle switch/button overlays, (luster free or dull)

ekg plates, decals, and any other items that are not essential to the operation of the Product, unless otherwise determined by

IRONMAN. This warranty extends only to you, the original purchaser. It is not transferable to anyone who subsequently pur-

chases (or receives as a gift) the Product from you. Your sales receipt, showing the date/place of purchase and serial number (if

applicable) of the Product, is your proof of purchase, and may be required by IRONMAN any time a warranty parts (or service)

claim is made or if no warranty record exists for the product.

Exclusive Remedies

During the warranty period listed above, IRONMAN will repair a Product by correcting any minor issues (either by phone or

online support) that might be causing the Product failure. Should a technical service and support representative be unable to cor-

rect the issue, IRONMAN may replace the parts (with new parts or at the option of IRONMAN, withm serviceable used parts,

that are equivalent to new parts in performance) that become defective, malfunction, or otherwise fail to conform to this Limited

Warranty under normal use.

Replacement parts shall be warranted for 30 days from the shipment reception date or through the end of the ‘replaced’ part

warranty period, whichever is longer. Any replacement parts, required past the warranty period listed above, shall be subject to

purchase a retail price, plus any added shipping and handling charges associated to the delivery of the part. Note that replace-

ment parts may be available only through the lifetime (as defined) of the Product. In conforming to this warranty, IRONMAN (as

the manufacturer) reserves the right to change manufacturers or vendors of any part to cover the existing warranty.

IRONMAN may also provide service (if deemed necessary and if applicable) at no charge to you during (and not to exceed) the

service warranty period listed above, in an attempt to repair the Product. Should the Product require service at your request or

out of the limited warranty period, IRONMAN can furnish contact information for local (to your area) IRONMAN authorized ser-

vice providers. Service quotes, costs, and scheduling will be strictly dependent on service provider rates and mutual (consumer/

provider) service agreements. IRONMAN is not responsible for any service repair costs accrued through the use of authorized

IRONMAN service providers at your request or out of the limited warranty period (without written consent from IRONMAN),

beyond the limitations outlined on this warranty.

Replacements and Returns

If after a reasonable number of attempts, a defect has not been repaired (or the Product is deemed non-repairable by

IRONMAN technical service and support staff), IRONMAN, based on a case by case review, may opt to replace the Product,

or recommend an alternate resolution, such as a warranty buy-out (Product cost, subject to deduction of a reasonable charge

for usage) or a credit. IRONMAN, as a manufacturer, reserves the right to replace the Product with a Factory-Reconditioned

Product that meets or exceed standards comparable to those of the replaced Product. The warranty covering the replacement

Product shall expire on the date the original warranty for the replaced Product would have expired, unless otherwise determined

by IRONMAN.

Conditions and Restrictions

This warranty DOES NOT (A) cover shipping and handling charges, export taxes, custom duties and taxes, or any other

charges associated with transportation of the parts or Product, beyond the initial courtesy period of 60 days from original date

of purchase of the Product; (B) extend to Products not purchased from IRONMAN or from an authorized IRONMAN reseller;

(C) extend to Products purchased from online auction sites; (D) cover any extended, additional, or third party warranties if not

offered exclusively by IRONMAN in writing; (E) cover Products installed at fee based facilities/commercial environments (gyms,

homes used as wellness centers, etc.); (F) cover Products installed in light institutional environments (non fee-based facilities

include for example, and not be way of limitation, fire houses, police departments, rehab centers, hospitals, clinics, apartment

complexes, club houses, etc.); (G) cover service calls to correct installation, perform maintenance, or instruct owners on how

to use the equipment; or (H) cover a Product on which the serial number has been purposefully or accidentally defaced or

removed and there is no proof of purchase available (if serial number is applicable), unless authorized by IRONMAN in writ-

ing or otherwise stated on this warranty.

This Limited Warranty becomes void for Products that have been damaged or rendered defective as a result of (a) accident,

misuse, or abuse (including but not limited to exceeding the IRONMAN listed, maximum weight limit); (b) use of parts not

manufactured or sold by IRONMAN; (c) modification of the Product; (d) normal wear and tear; (e) operation on incorrect

power supplies; (f) ***failure to perform (or performing improper) maintenance; (g) service by anyone other than IRONMAN,

or an authorized IRONMAN warranty service provider; (h) floods, fires, earthquakes, lightning strikes, power surges, and

other unavoidable acts of nature; (j) residential mis-wires; or (k) incorrect setup, installation, or assembly. Should any Product

(submitted for warranty parts replacement) be found ineligible under the terms outlined on this warranty, an estimate for parts

purchase (if available) can be furnished at your request.

* Parts is herein defined exclusively, for all intents and purposes, and pertaining to this Limited Manufacturer Warranty, as components

or Materials essential to the functionality of the Product.

**Lifetime of a Product, is herein defined exclusively, for all intents and purposes, and pertaining to this Limited Manufacturer Warranty,

as the time period 7 years beyond the end of production cycle of a Product in question.

Disclaimer and Release

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, IRONMAN MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED,

INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IRONMAN EXPRESSLY

DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED

BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. NEITHER IRONMAN NOR ANY OF ITS AFFILIATES SHALL BE

RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON IMPLIED

WARRANTIES OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS

OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO

HAVE OTHER RIGHTS THAT MAY VARY FROM ST ATE TO STATE. THIS IS THE ONLY EXPRESS WARRANTY APPLICABLE TO IRONMAN-

BRANDED PRODUCTS. IRONMAN NEITHER ASSUMES NOR AUTHORIZES ANYONE TO ASSUME FOR IT ANY OTHER EXPRESS

WARRANTY.

Important Information

Ironman Fitness

4009 Distribution Drive, Suite 250

Garland, Texas 75041

Customer Service: 1-800-750-4766

www.ironmanfitness.com

IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation. This product is licensed by the IRONMAN TRIATHLON.

Ironman Fitness Recumbent Bike Odyssey Users Manual

ODYSSEY to the manual 1037e02e-9b50-4777-8308-ef2efed5f7d4

Navigation menu

Versions of this User Manual:

Views

Navigation
