User Manual









IrriGreen,Inc.

2015

GeniusTMIrrigationSystem

TrainingManual

IrriGreen®manufacturesandsellslandscapeirrigationsystemsthat

savewaterandsimplifyinstallation.Weusedigitaltechnologytowater

theexactlandscapeshapecuttinginstallationtimeinhalfandreducing

wastedwaterby50%.IrriGreencontractorsgeneratemoreprofitper

installationandgreaterownershipvaluetoendusers.

IrriGreen,Inc.

5250W.73rdSt.,SuiteI,Edina,MN55439

Phone:612‐238‐7575

www.irrigreen.com



IrriGreenGeniusIrrigationSystem–TrainingManual  Page1



Changing the way we water the world®



TABLEOFCONTENTS



Introduction2

ComparisonoftheGeniusIrrigationSystemtoConventionalSystems3

KeyFeaturesandBenefitsoftheGeniusIrrigationSystem4

SellingtheGeniusIrrigationSystem5

Designing&EstimatingtheGeniusIrrigationSystem6

InstallingtheGeniusIrrigationSystem8

ProgrammingtheGeniusIrrigationSystem12

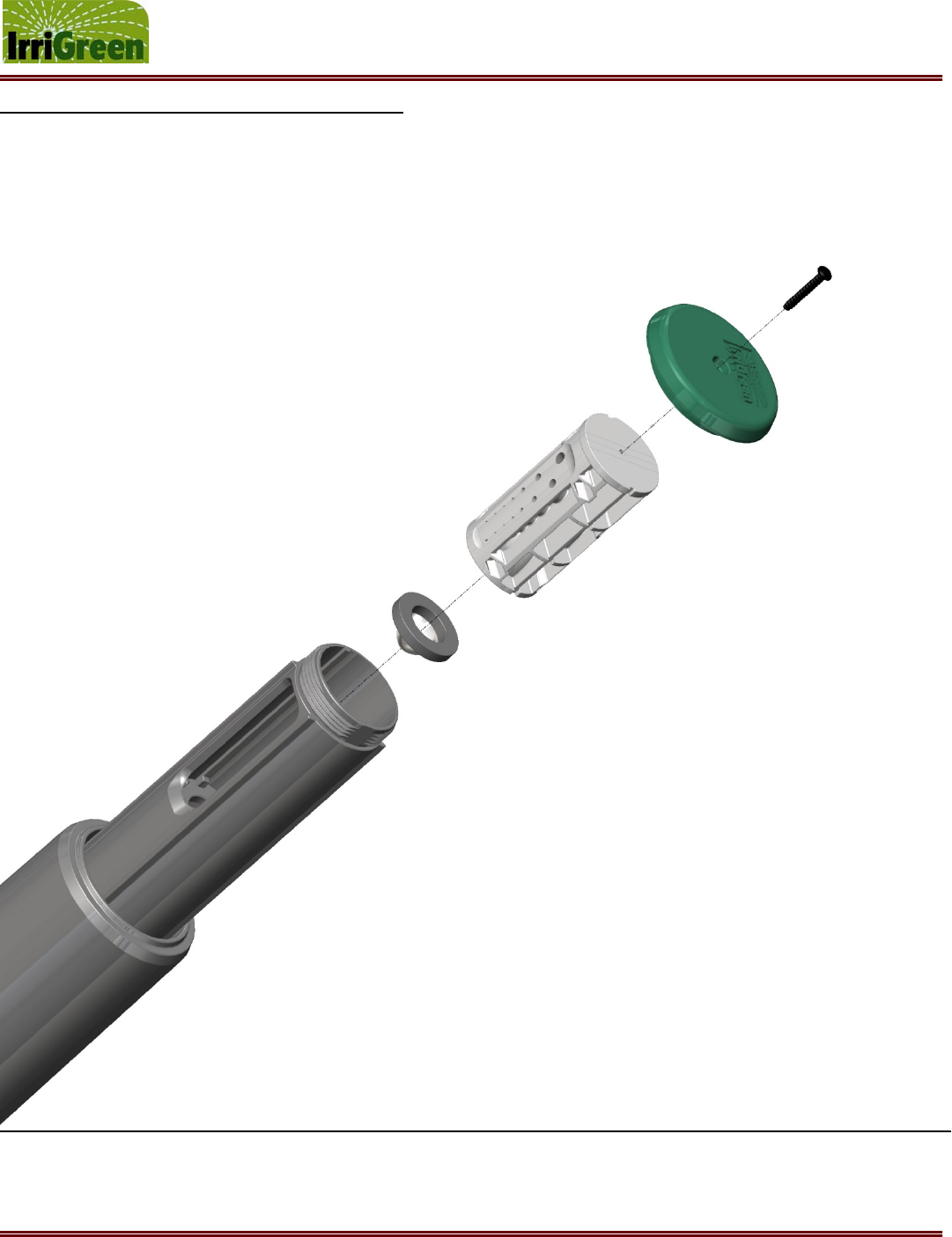

ReplacingtheGeniusNozzleandFilterSystem19

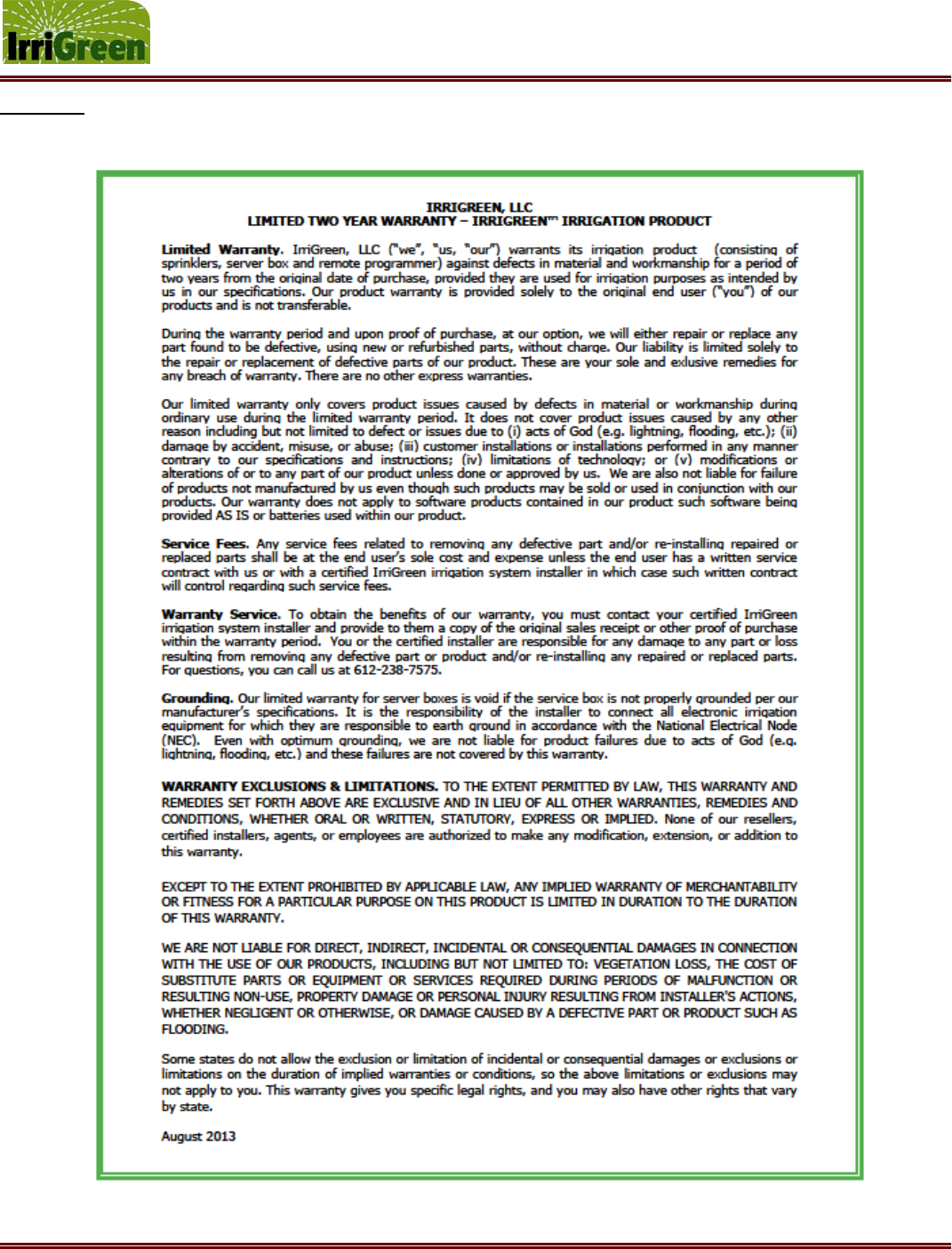

Warranty20



Per FCC 15.19 (a) (3) and (a) (4): This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Per FCC 15.21: The user and installer of the IrriGreen Genius Irrigation System shall not make

any modifications to the system not expressly approved by IrriGreen. Unauthorized

modifications will void the warranty and void the user's authority to operate the equipment per

FCC rules.





IrriGreenGeniusIrrigationSystem–TrainingManual  Page2



Changing the way we water the world®

IrriGreen®Genius™IrrigationSystemTrainingManual



Introduction



TheGeniusirrigationsystemcombinesdigitaltechnologywithapatentpendingnozzledesigntoproduceanirrigation

systemcapableofdistributingwaterinpatternsthatfittheshapeofthelandscape.TheGeniusirrigationsystemdoes

thiswhilebothreducingthewaterrequiredtoirrigatethelandscapeandsavingsignificantinstallationtimeand

materials.



TheGeniusirrigationsystemisdesignedtosignificantlyreducethelaborrequiredtoinstallin‐groundirrigationsystems

whileatthesametimereducingwaterrequiredtosufficientlywaterthelawn.ThecenterofthesystemistheGenius

sprinklerthatcanbeprogramedtowaterawidevarietyofshapesandsizes.Thissprinklerreducestheneedfor

distributionpipebyupto85%,significantlycutsthenumberofsprinklerheadsrequiredandreducestheamountof

watertypicallywastedtoirrigatethelawnbyupto50%.Whilethecostofthewaterisbornbythepropertyowner,itis

stillabarrierthatcanbeturnedintoanopportunitywhensellingthebenefitsofGeniusirrigationsystemstoconsumers.



Reducinginstallationlaborforcontractorsandreducingenduserwaterbillsarecompellingreasonsforirrigation

contractorstoselltheGeniusirrigationsystem.Youwillbeabletoaddressbusinessinmorepricesensitiveareasby

offeringservicesatareducedpricewhilemaintainingprofitabilityoneveryinstallation.Yourcustomerswillbehappier

withgreen,hasslefreelawnsandlowerwaterbillsthanthosecustomerswithconventionalirrigationsystems.



Thistrainingmanualisacomponentofatrainingprogramdevelopedtotrainexperiencedirrigationcontractorsonthe

techniquesuniquetoinstallingtheGeniusirrigationsystem.Thisprogramisintendedforlicensed(ifrequiredbylocal

and/orstatecode),experiencedirrigationcontractorsforresidentialandcommercialin‐groundirrigationsystems.Itis

notintendedasacompleteorcomprehensivetrainingprogramforinstallingin‐groundirrigationsystems.





THISTRAININGPROGRAMISINTENDEDFORIRRIGATIONCONTRACTORSTHATAREALREADYLICENSEDAND/OR

EXPERIENCEDIRRIGATIONPROFESSIONALS.(NOTE:PROFESSIONALIRRIGATIONTRAININGRECOMMENDED.)



 Thefollowingpointswillbecoveredbythistrainingprogramandmanual:

 ComparisonoftheGeniusirrigationsystemtoconventionalsprinklersystems.

 KeyfeaturesandbenefitsoftheGeniusirrigationsystem.

 SellingtheGeniusirrigationsystem.

 InstallationtechniquesuniquetotheGeniusirrigationsystem.

 ProgrammingtheGeniussprinklers.

 Systemwarrantyinformation.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page3



Changing the way we water the world®

ComparisonoftheGeniusIrrigationSystemtoConventionalSystems

1. Systemsimilarities,theGeniusirrigationsystem:

 Designedtobepermanentlyinstalledintothelandscapesofresidentialandcommercialproperties.

 Designedforusewithconventionalirrigationcontrollers,rainsensors,etc.–ahybridsystem.

 Requiresthesame24VAClowvoltagepowersourceforGeniusServerasconventionalcontrollers.

 Usessimilardistributionpipeandfittingscurrentlybeingusedtoinstallconventionalin‐ground

irrigationsystems,butsignificantlylesspipelengthandfewerfittings.

 Requiresthesamemaintenanceforspringstart‐upandfallblow‐outsasconventionalirrigationsystems,

andiscompatiblewithregularsequencingfortypicalblow‐outprocedures.

 Irrigatesinwateringzones–1sprinklerfor1zone.

 Worksinconjunctionwithstandardindustrycontrollers/schedulers.

 Usesthesamewatersourceasconventionalsystems.



2. Systemdifferences,theGeniusirrigationsystem:

 Connectsoffthemainline,noneedforlateralsandvalveboxes.

 Usessoftwareinsprinklers,serversandprogrammerssothewaterpatternforeachindividualGenius

sprinklercanbeprogrammedtofittheexactlandscapeitiswatering.

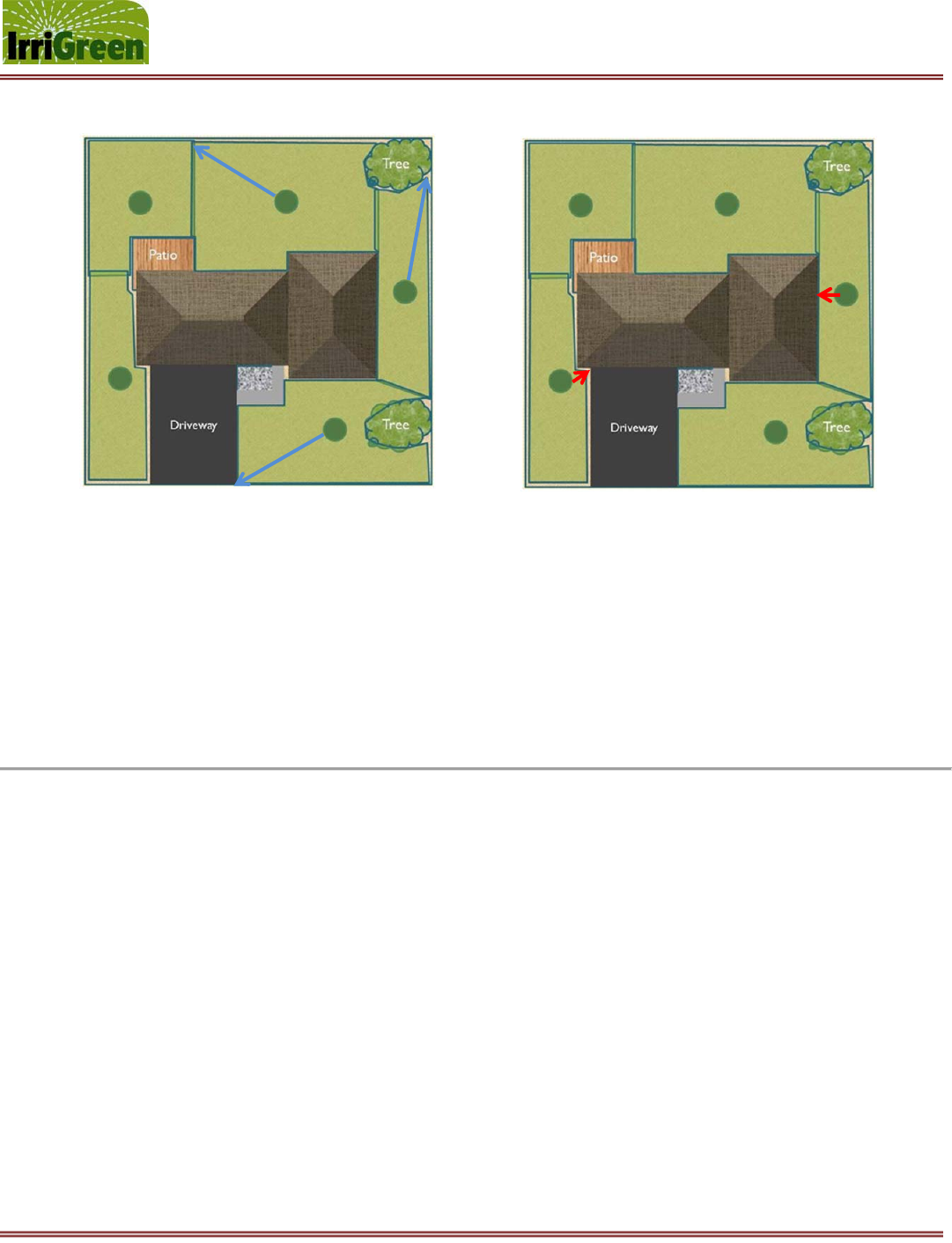

 Eliminatestheneedforhead‐to‐headwateringoverlap(seegraphicsbelow,Conventionalvs.IrriGreen).

 GeniusSprinklersdigitallycontrolthewaterdistanceandrotationalspeedofthemulti‐streamnozzle.

 Uses12VDCtopowerandcommunicatewitheachGeniusSprinkler,sodistancesupto700feetaway

fromtheGeniusServer.

 RequiresthewateringpatternforeachGeniussprinklerbeprogrammed(usingIrriGreen’sGenius

Programmer)tofittheindividuallandscapeshapebeingwateredineachzone.

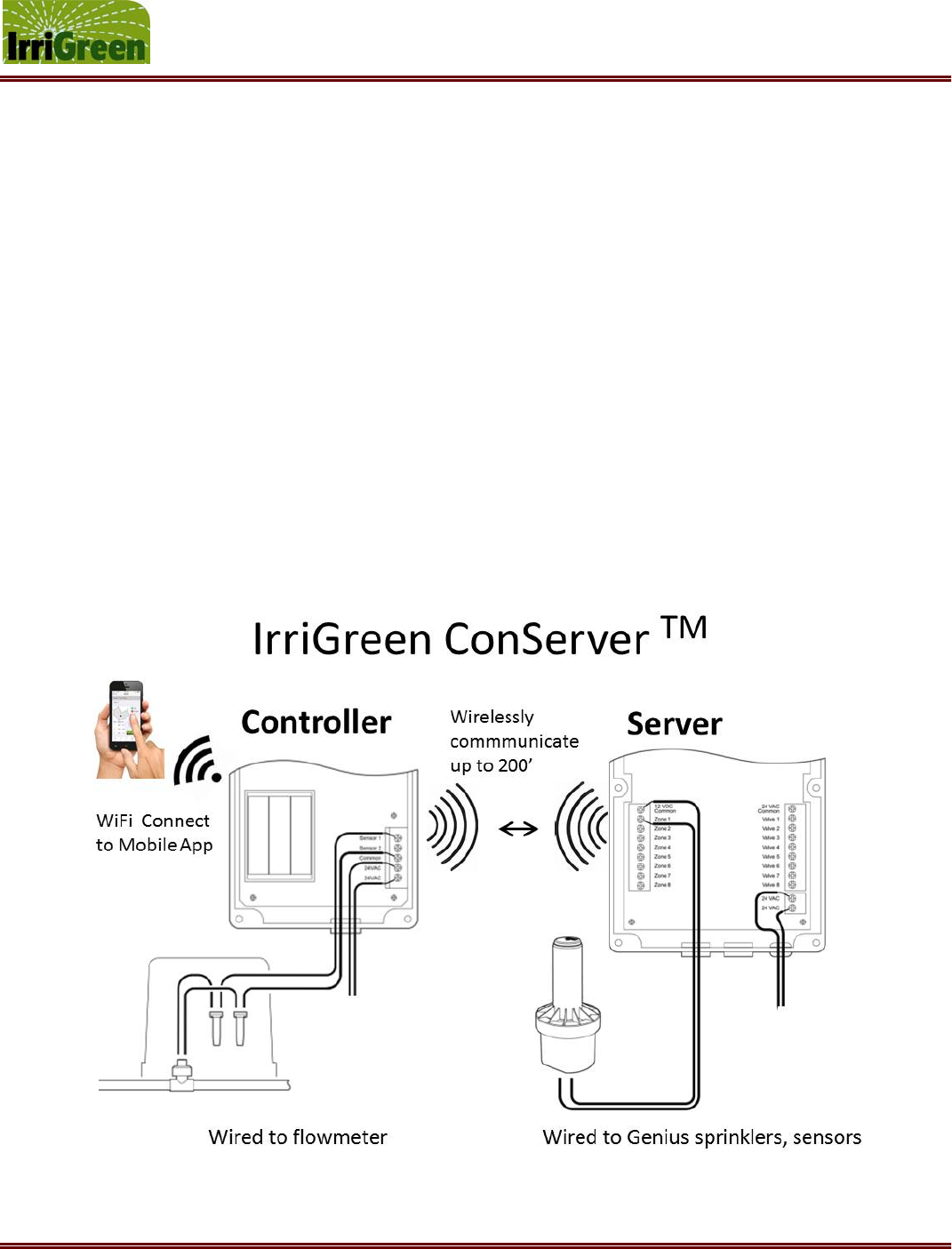

 IncludesanIrriGreenGeniusServerwhichiselectricallyconnectedtoa3

partyirrigationclockandto

eachsprinklerplusawirelessGeniusProgrammerformappingeachwateringzone.

 TheGeniusProgrammercanbeusedformappingeachwateringzoneupto200feetawayfromthe

GeniusServer.

 WerecommendamastershutoffvalvebeinstalledbetweenthewatersourceandtheGeniussprinklers.



ConventionalSystem  IrriGreenSystemIrriGreenNozzle



IrriGreenGeniusIrrigationSystem–TrainingManual  Page4



Changing the way we water the world®

KeyFeaturesandBenefitsoftheGeniusIrrigationSystem



BecausetheGeniussprinklersareindividuallyprogrammable,eachsprinklercanbeprogrammedtowaterthespecific

landscapeshapewithinthewateringzoneitislocated.Duringtheinstallationprocess,thewaterthrowdistancesare

programmedforeachindividualsprinklertomatchthelandscapeshapeitwillirrigate.Minimumwateringoverlapis

recommendedbetweenGeniussprinklers,andtheneedforhead‐to‐headsprinklerwateringcoverageiseliminated.

Thiseliminationofrequiredhead‐to‐headcoveragecanresultinsavingasmuchas50%ofthewastedwater.



Sinceeachsprinklerhasitsownself‐containedflowcontrolvalve,theneedforvalveboxesservicingmulti‐headzonesis

nolongernecessary.Thisinturnreducestheamountofdistributionpiperequiredtoinstallasystem,inmanycasesby

85%,whichalsoreducesthetimerequiredtopullortrenchthepipe.Theresultisasignificantsavingsininstallation

labor,reducingthetimerequiredtoinstallagivensystemby50%ormore.



KeyFeature:Digitallycontrolledwaterdistributionatindividualsprinklerheads

 Reducesthelaborrequiredtoinstalltheentiresystem.

 Capabilitytoprogramthewateringpatterntofittheshapeofthelandscape.

 Minimizesoverwateringbyeliminatingtheneedforhead‐to‐headcoverage.

 Ensuresaccuracyofwaterdeliveryprecipitationrate.

 Providesaccuratewateringtimesandprecipitationratesduringinstallation.

 Reducestheamountofdistributionpiperequiredforinstallation.

 Reducesthenumberofirrigationsprinklersrequiredforinstallation–1sprinklerfor1zone.

 Reducesthewatertypicallywastedduetooverlapwhileirrigatingturfareasbyupto50%.



KeyFeature:Uniquestreamingnozzledesign(patentspending)

 Irrigateswateringzoneusingstreamsofwater,reducingwinddriftandincreasingsoilmoisture.

 Increaseddropletsizefromstreamsratherthansprayormist,whichdriveswaterintosoil.

 Createsamoreevendistributionuniformityoverentirewateringzone.

 Reducesthepotentialfordryspotsandminimizesoversprayingontohardscapeareas.

 Useslesswaterandwatersmoreaccurately.



KeyFeature:Standardindustrydesigncomponents

 Workswithtypicalirrigationwatersourceswithstandardpipe/tubefittingsandelectricalconnectors.

 Worksinconjunctionwithstandardindustrycontrollers/schedulers.

 Compatiblewithrainand/ormoisturesensorsandotherwatersavingtechnologies.

 Capableoffunctioninginahybridsystemwithconventionalwateringzonesusingspray,rotorordrip.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page5



Changing the way we water the world®

SellingtheGeniusIrrigationSystem



YourcustomerswilllikelybeattractedtotheGeniusirrigationsystembecauseofthefinancialaspectofthewater

savingswhileothersmaywantitbecauseitis“green”.



1. TargetCustomers

 Residentialhomeowners

 Commercialpropertyowners

 Realestatemanagementfirms,consultantsandhomeownerassociations

 “Green”andCleantechcustomers

 Customersconcernedaboutthecostofwater

 Early“technology”adopters



2. WhywillresidentialandcommercialenduserswanttobuyaGeniusirrigationsystem?

 Costsavingsfromlowerwaterbills(vs.conventionalsystems)

 Watersavings(beinggreen)

 Lessmessandhassleduetotornuplandscape

 Reducedinstallationtime

 21stCenturytechnology



3. EnvironmentallyconsciouscustomersandearlyadopterswillalsowanttobuyaGeniusirrigationsystem.

 Theywantagreenlawn

 Theywanttobe“green”

 Theywanttosavemoney

 Theywanttobesustainable

 Theyliketotrynewthings







IrriGreenGeniusIrrigationSystem–TrainingManual  Page6



Changing the way we water the world®

Designing&EstimatingtheGeniusIrrigationSystem



Usethefollowingstepstoplanyourdesign:

1. MeasurewatersupplypressureandcapacityinGPMattheproposedsite.

 UseawaterpressuregaugeandrecordthepressureinPSIGatanoutdoorspigot.

 Mostcitywatersystemssupplybetween10‐12GPMateachspigot–pleasecheckifuncertain.

 A1”pipediameter(orlarger)isrecommendedfordistributionofthemainwatersupplylinefortheGenius

irrigationsystem.A¾”mainlinepipemayprovideenoughGPMatpressuresabove60PSI,butwill

experiencemorepressuredropandshorterthrowdistances.A½”pipeorsmallerisnotrecommendedfor

mainlines.Ashortrunoffunnypipeorswingpipeisusedfromthemainlinetoindividualsprinklerheads.

 ThechartbelowcanbeusedtoplantheGeniussprinklerheadspacing,andillustratesthemaximumdesign

waterthrowdistancefromasprinklerheadbasedonwatersupplypressure.(NOTE:itisimportantthat

calculationsforadditionalpressuredropduetoelevationchanges,lengthofmainlineanduseofanti‐

syphonvalvesbesubtractedfromthewatersupplypressuretoeachsprinklerhead.)



2. LocatingtheGeniussprinklerheadsforeachwateringzone



ThemaximumdistancethataGeniussprinklerwilluniformlythrowwaterdependsonwatersupplypressure

andpressuredroptothesprinklerhead.SinceGeniussprinklerswilloftenbeplacednearthecenterofanarea

oflandscape,thediagonaldistancetothecornerswilldeterminethemaximumdistance.Forinstance,ina42x

42footsquareora24x55footrectangle,thediagonaldistancetothecornersis30feet.Theminimumdesign

distancethataGeniussprinklerwilluniformlythrowwateris5feet.Seeexamplesofmaximumthrowdistance

(inblue)andminimumthrowdistance(inred)below.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page7



Changing the way we water the world®



3. Considerothersitespecificissuesandregulations



 Local,stateandHOAregulations

 Rainsensorrequirements(Note:mayberequiredinsomestates)

 SoiltypemaydeterminehowdeeptoburythepipeandwhethertopullpolypipeortrenchinPVCpipe

 Presenceoflandscapeobstaclesliketrees,fences,andelevationchangesmayinhibitwateringpatterns







IrriGreenGeniusIrrigationSystem–TrainingManual  Page8



Changing the way we water the world®

InstallingtheGeniusIrrigationSystem



Usethefollowinginstallationsteps:



1. Installplumbingasrequiredbyinstallationandregulations.

2. Installback‐flowpreventer(anti‐syphonvalve).

3. Installamastershutoffvalve(necessaryforpoweroutages).

4. Marksprinklerplacementperdesignplan.

5. Installmainlinepipealongwithmulti‐wirecabletomarkedlocations.



6. InstallingeachGeniussprinkler:

 Beforeconnectingsprinklers–flushoutthesystemlayingflexiblepipeoutsideeachsprinklerhole.

 Connectthesprinklerfitting(¾inchFPT)tothemainwaterlineusingfunnypipeorswingpipe.

 Installtheflexiblepipetothemainlineandconnectthesprinklerwitha¾inchfittingandTeflontape.

 Positionsprinklersothetopcapisabout½inchabovetheground(dirtportionofthesodlayer–seephoto).



 Connectthewhitesprinklerwiretothewhitecommonwireinthemulti‐wirecableusingwaterproof

connectors.Continuethewhitewireconnection(common)toallothersprinklers.

 Connecttheredsprinklerwiretoanothercoloredwireinthemulti‐wirecableusingwaterproofconnectors.

Recordthecolorwireconnectedtoeachsprinklerforeachnumberedwateringzone.



7. InstallingtheGeniusserver:

 Feedthemulti‐wirecablecominginfromthefieldthroughthegrommetonthebottomleftoftheserver

closesttotheterminalstriplocatedontheleft.(Seephotosandnotesonfollowing2pages.)

 Connectthewhitewireofthemulti‐wirecabletotheCOMMONterminal(top)oftheleftterminalstrip.

 ConnecttheremainingcoloredwirestoindividualOUTterminalsnumbered1–8matchingthecoloringof

individualsprinklersfromeachwateringzoneconnectedinstep6above.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page9



Changing the way we water the world®

WiringcomingintotheIrriGreenGeniusserverfromthefield:



 IrriGreenGeniussprinkler

 ¾”MPTtoswingpipefitting

 Connectorfrommainlinetofunnypipe

 Runoffunnypipeto1”mainpoly

 2‐pairconductorwirepigtail(onsprinkler)

 Waterproofconnectorstohookupsprinkler

 Multi‐conductorwiretoIrriGreenserver



WiringgoingoutfromIrriGreenGeniusservertoa3rdpartycontroller/scheduler:



 LeftsideIrriGreenserver–OUTtofield12VDC

 RightsideIrriGreenserver–INfromclock24VAC

 BottomrightIrriGreenserver–24VACpower

 Leftside3rdpartycontroller

o Topleft–rain(ormoisture)sensorleads

o Nextlead–remotecontrollead

o Next3leads–24VACpower

 Rightside3rdpartycontroller

o Bottomlead–common

o Nextleadup–ACVshut‐offvalve(orpump)

o Next8leads–Zones1through8



Wiringadditionalitemsto3rdpartycontroller/scheduler:



 Connectthe24VACtransformerforpower

 Run2‐pairconductortoIrriGreenfor24VACpower

 Connecttherain(ormoisture)sensortothecontroller

o Installsensorasindicatedbymanufacturer

o Installwirelessreceiverinsidebuilding

o Connectleadstocontroller

 Connecttheremotecontroltothecontroller

o Installremotekey(plug)outside

o Runwireleadsthroughwall

o Connectleadstocontroller



IrriGreenGeniusIrrigationSystem–TrainingManual  Page10



Changing the way we water the world®

WiringdiagramforIrriGreenGeniusServer:



(inthisexample)(inthisexample)



7leadsOUTtofield(12VDC)7LeadsINfromclock(24VAC)

Common(white)→←Common(white)

Zone1(black)→←Zone1(black)

Zone2(blue)→←Zone2(blue)

Zone3(green)→←Zone3(green)

Zone4(orange)→←Zone4(orange)

Zone5–Zone8(open,nowires)←Zone5–Zone8(nowires)



←24VACpower(white)

←24VACpower(red)

ACVshut‐off(redwires)→←ACVshut‐off(redwires)

24VACcom(yellowwires)→←24VACcom(yellowwires)



*Note:Donotconnect12VDCto24VACcommon



Wiringdiagramfor3rdpartycontroller/scheduler:



Multi‐leadsintocontroller7LeadsinfromGeniusserver

RainSensor1(blue)→←Zone5–Zone8(nowires)

RainSensor2(white)→←Zone4(orange)

Remotecontrol(blue)→←Zone3(green)

24VACpower(white)→←Zone2(blue)

24VACpower(red)→←Zone1(black)

24VACCom(yellow)→←ACVshut‐off(red)

←Common(white/yellow)



*NOTE:Run24VACpowerfrom3rdpartycontrollertoIrriGreenServerusing2‐conductorirrigationwire.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page11



Changing the way we water the world®

8. BeforecoveringtheGeniussprinklers,testeachsprinklerusingtheGeniusMobileApp:



 [PleaserefertoStep2onpage14tosettheprogrammertotheaddressontheserver.]

 [PleaserefertoStep3onpage15–thefirst5bulletpoints–forbestpracticestocheckforgood

electricalconnectionsbetweenthesprinklerandserver.]

 Youshouldtestallsprinklersinthismannertobecertainallelectricalconnectionsareworking.



9. BeforeburyingtheGeniussprinklers,testforleaksatallfittingsbyturningonthewater.(NOTE:Ifyouare

usinganACVforemergencyshut‐off,thenyouwillneedtoopenthisvalveforproperwatersupply.)



10. Connectaccessorydeviceslikerainandmoisturesensorstounusedvalveinputsoneachserverortoa

conventional3rdpartycontroller.



11. ConnectanIrriGreenflowmetertotheGeniusControllerandwire24VACtothecontrollerACterminals.



IrriGreenGeniusIrrigationSystem–TrainingManual  Page12



Changing the way we water the world®

ProgrammingtheGeniusIrrigationSystem

1. OverviewMobileAppScreens



Screen  DescriptionofScreenFunction

 Customer EnterandmanagemultiplephysicaladdressesandGeniusIrrigationSystems

 Dashboard DisplayGeniussystemstatus,wateruse,runtimeandsprinklerhealth

 Server  EnterGeniusServeraddresses,selectzonesandselectflowmeters

 Zones  View,programandchangeindividualsprinklerwateringzones

Schedule View,programandchangewateringschedule,plussensorinputs

Manual  Turnanindividualsprinkleronoroff

 Settings  ChangepasswordsandWi‐Fisettings



Rotate tonextpoint

P011

P061

P041

P051

P031P02 1

WateringZone1with6MappingPoints

Exitafterlastpointismapped(P06)



IrriGreenGeniusIrrigationSystem–TrainingManual  Page13



Changing the way we water the world®

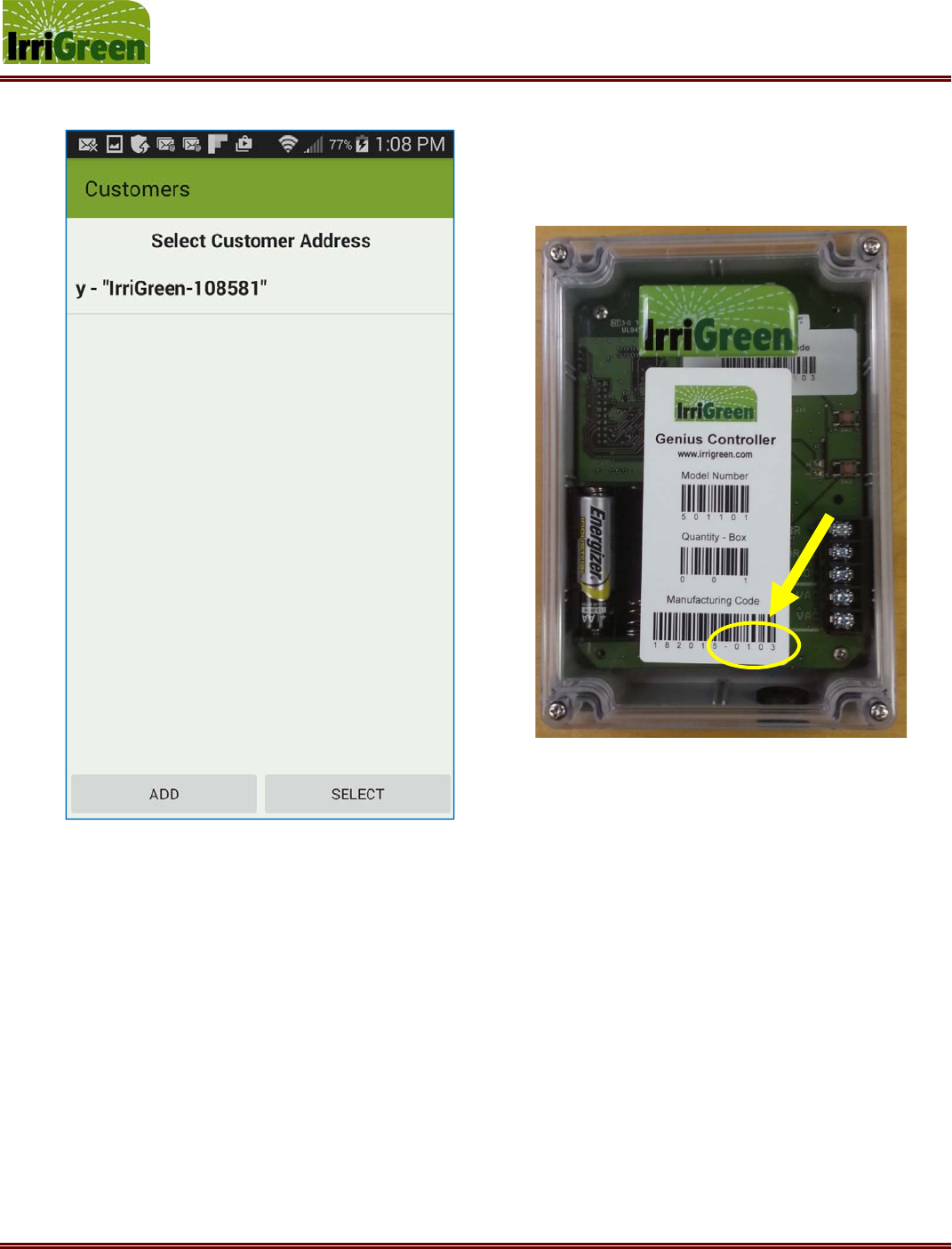

2. CustomerScreen





SelectaGeniusControllertooperate

 Enterthenameandaddressoftheinstallation

 SelecttheIrriGreenWi‐FiNetwork

 EntertheSSIDpassword“Genius0103”(Seeyellowarrow)



IrriGreenGeniusIrrigationSystem–TrainingManual  Page14



Changing the way we water the world®

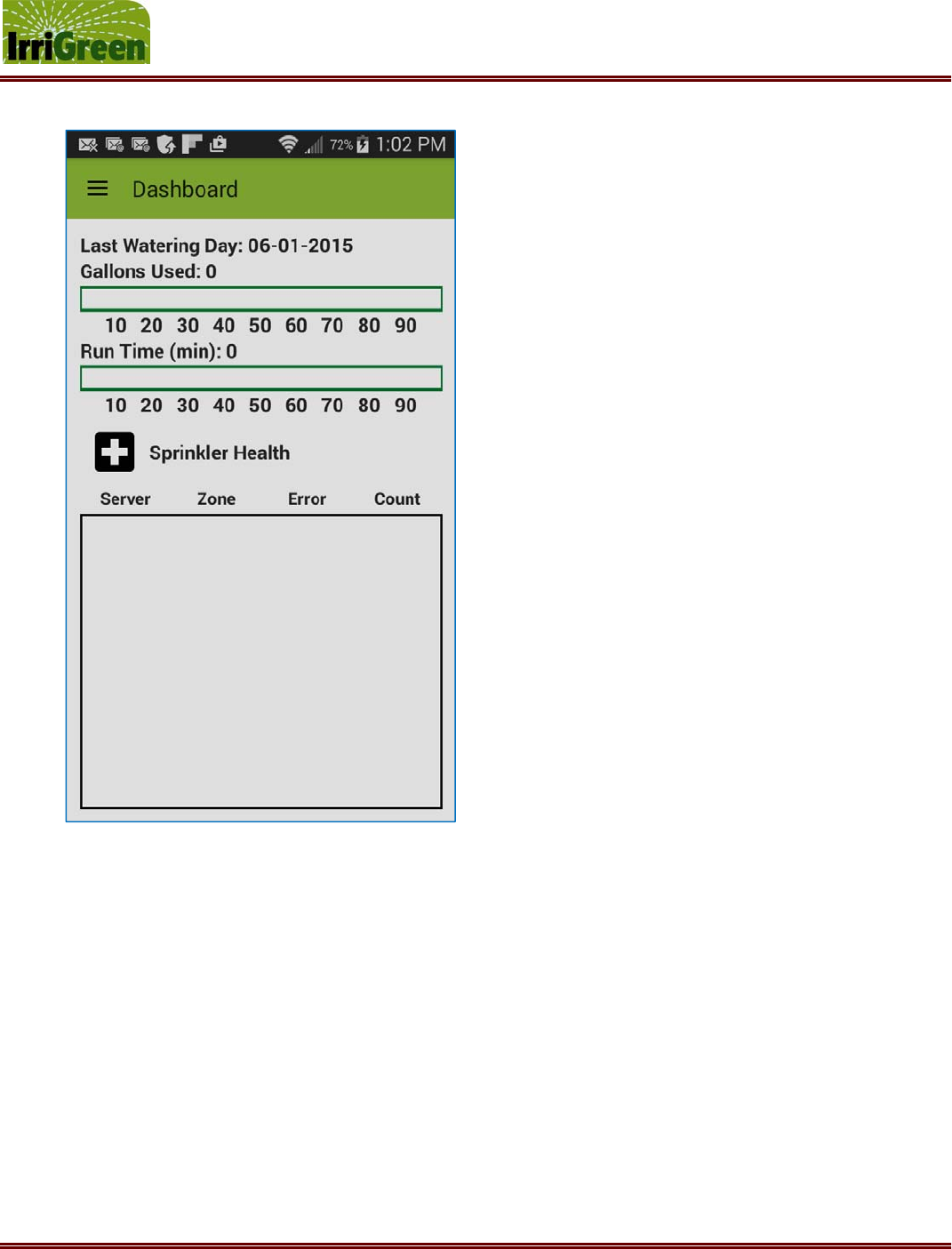

3. DashboardScreen



Viewthelastwateringday,numberofgallonsusedandtotalruntimeforallservers

Viewandclearindividualsprinklererrorssuchasvalve,rotorandwiringerrors



IrriGreenGeniusIrrigationSystem–TrainingManual  Page15



Changing the way we water the world®

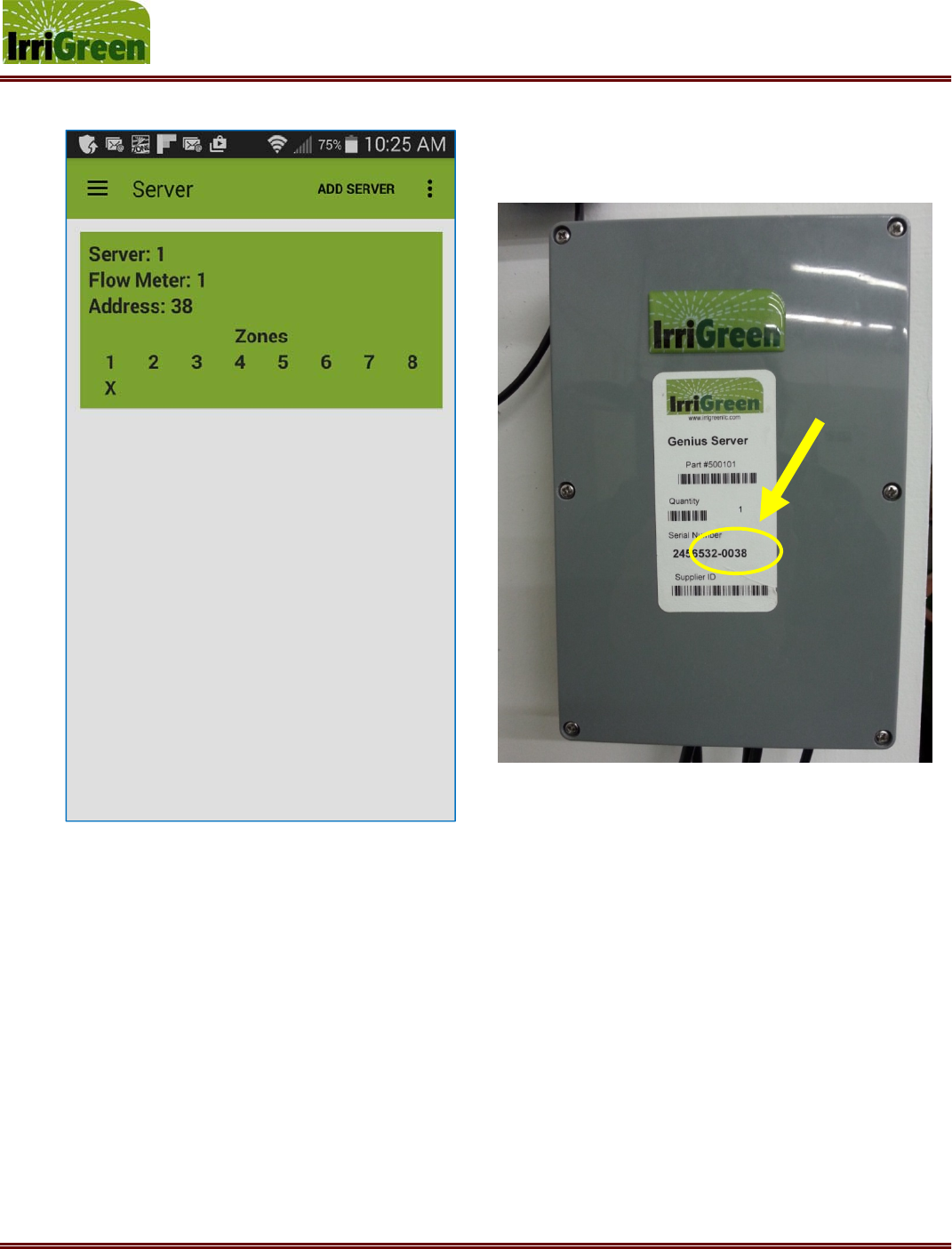

4. ServerScreen



SelectaGeniusServertomodify

 Selectaflowmeterbasedforcalibrationandmonitoringthesprinkler

 SelecttheactivezonesontheServerwithan“X”(deselectinactivezoneswithblank)

 SelecttheServerAddress(seeyellowarrow)



IrriGreenGeniusIrrigationSystem–TrainingManual  Page16



Changing the way we water the world®

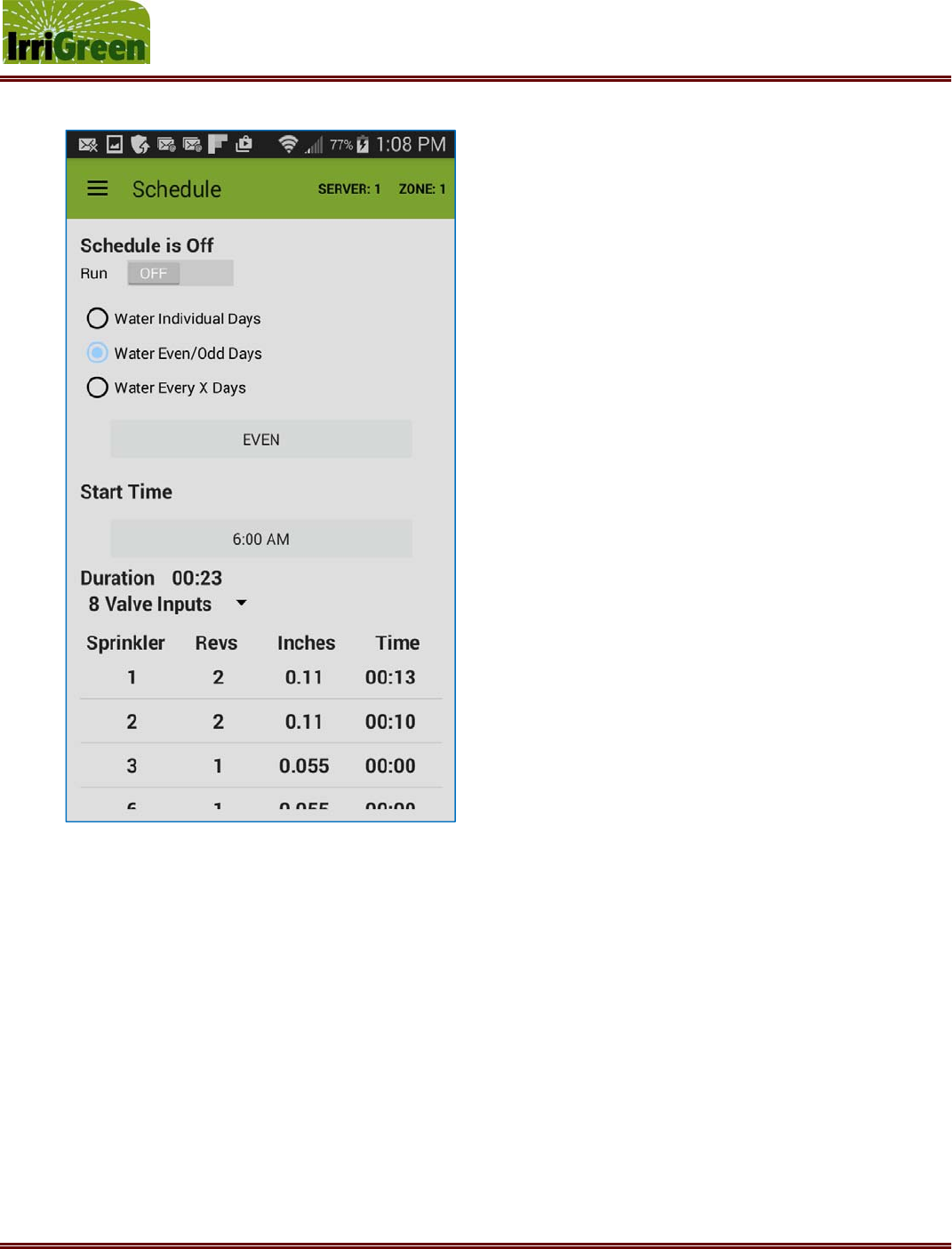

5. ScheduleScreen



SelectaGeniusServertoschedule

 Enableordisabletheschedule

 WaterdaysoftheweekbyselectingdaysSunday–Saturday

 Wateroddorevendaysoftheweek

 Selectanintervaltowaterstartingi.e.2for2,4,6or3for3,6,12

 Selectastarttimefortheschedule

 Displaythedurationforallzonescombined–theywillwaterinsequentialorder

 SelectwhethertheServerValveInputsareValveInputsorSensorInputs(Rain,Moisture)

 Setthenumberofrevolutionsforeachzone’ssprinkler

(Note:thetimecanbeusedtosettheruntimewhenaconventionalclockisused.)



IrriGreenGeniusIrrigationSystem–TrainingManual  Page17



Changing the way we water the world®

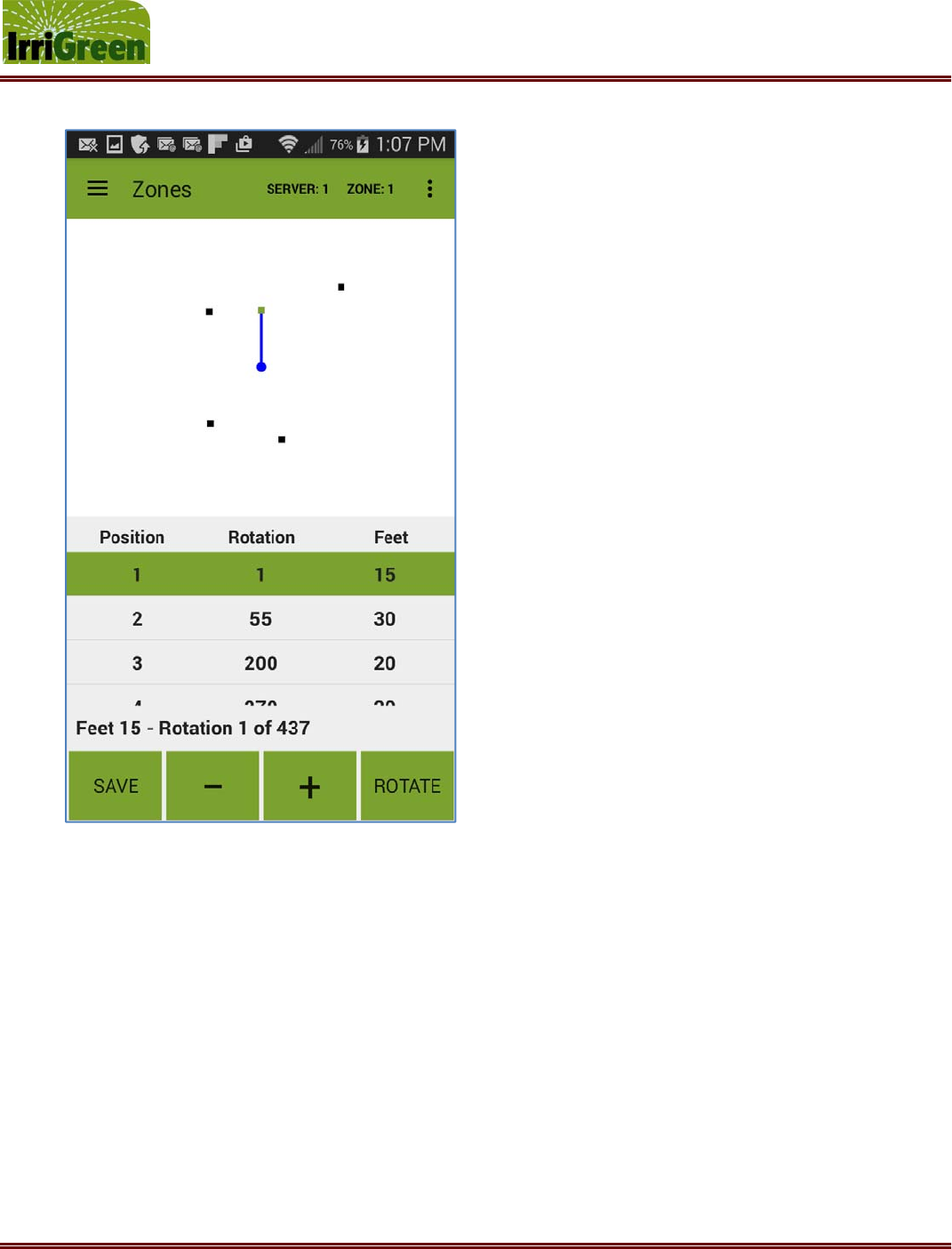

6. ZoneScreen



SelectaServerandZonetoProgram

 SAVEaposition(Rotation,Feet)orINSERTanewposition

 Use‐/+tochangethedistanceofthestreamsinfeet(holdtoaccelerate)

 ROTATEthestreamsclockwise(holdtoaccelerate)

 Toprightdropdownbox

o Recall:readZonedatastoredinsprinklerbacktoZonedatainServer

o Erase:erasealloftheZonepositionsandstartover

o Calibrate:automaticallydetermineseffectivepressureandcalibratessprinkler

o Exit:endZoneprogramming



IrriGreenGeniusIrrigationSystem–TrainingManual  Page18



Changing the way we water the world®

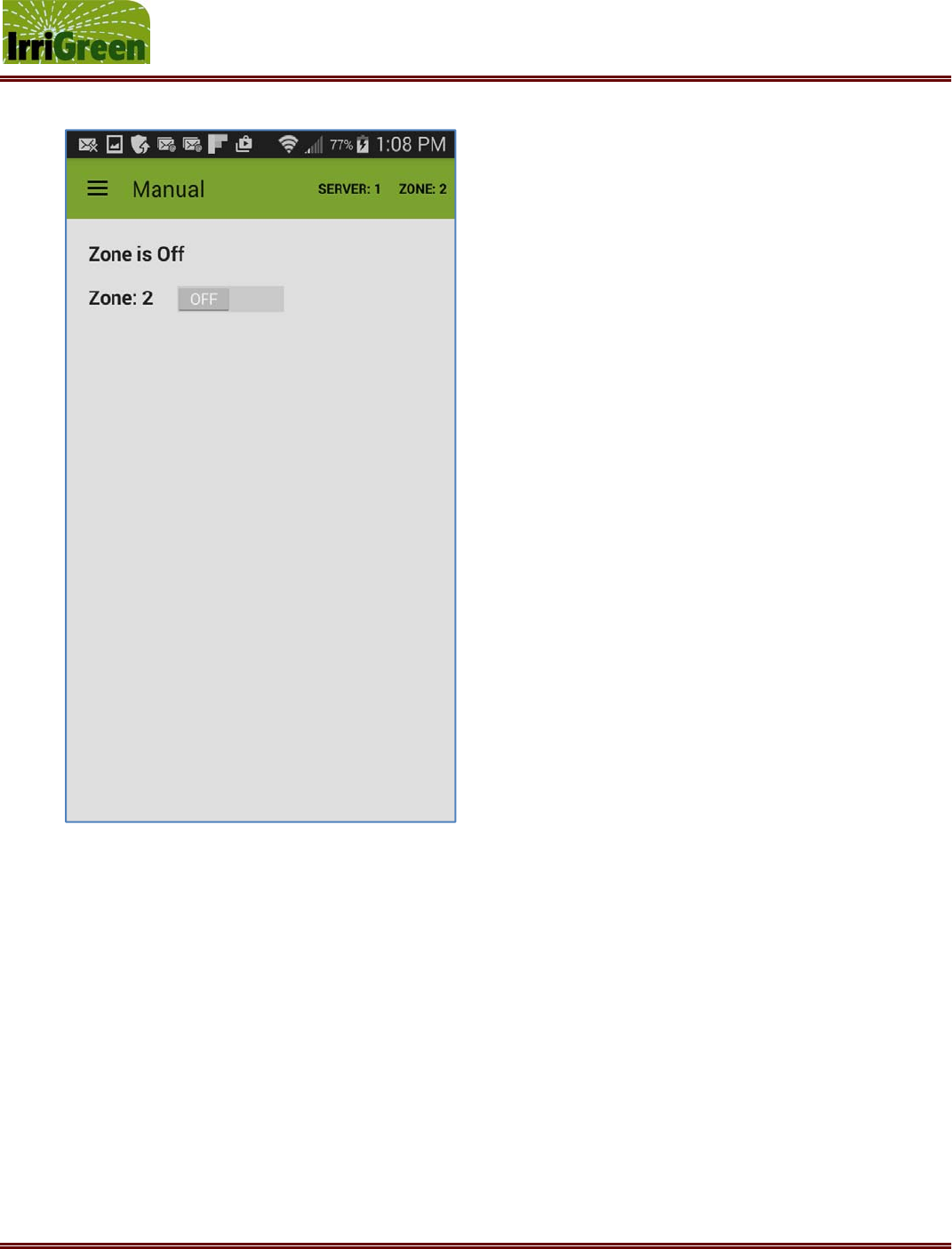

7. ManualScreen



SelectaServerandZone

 TurntheZoneon(run)oroff

8. SettingScreen

Setthesystempassword







IrriGreenGeniusIrrigationSystem–TrainingManual  Page19



Changing the way we water the world®

ReplacingtheGeniusNozzleandFilterSystem







IrriGreenGeniusIrrigationSystem–TrainingManual  Page20



Changing the way we water the world®

Warranty



IrriGreen 5011 501101 User Manual

IrriGreen, Inc. 501101

User Manual

Navigation menu

Namespaces

Views

Navigation
