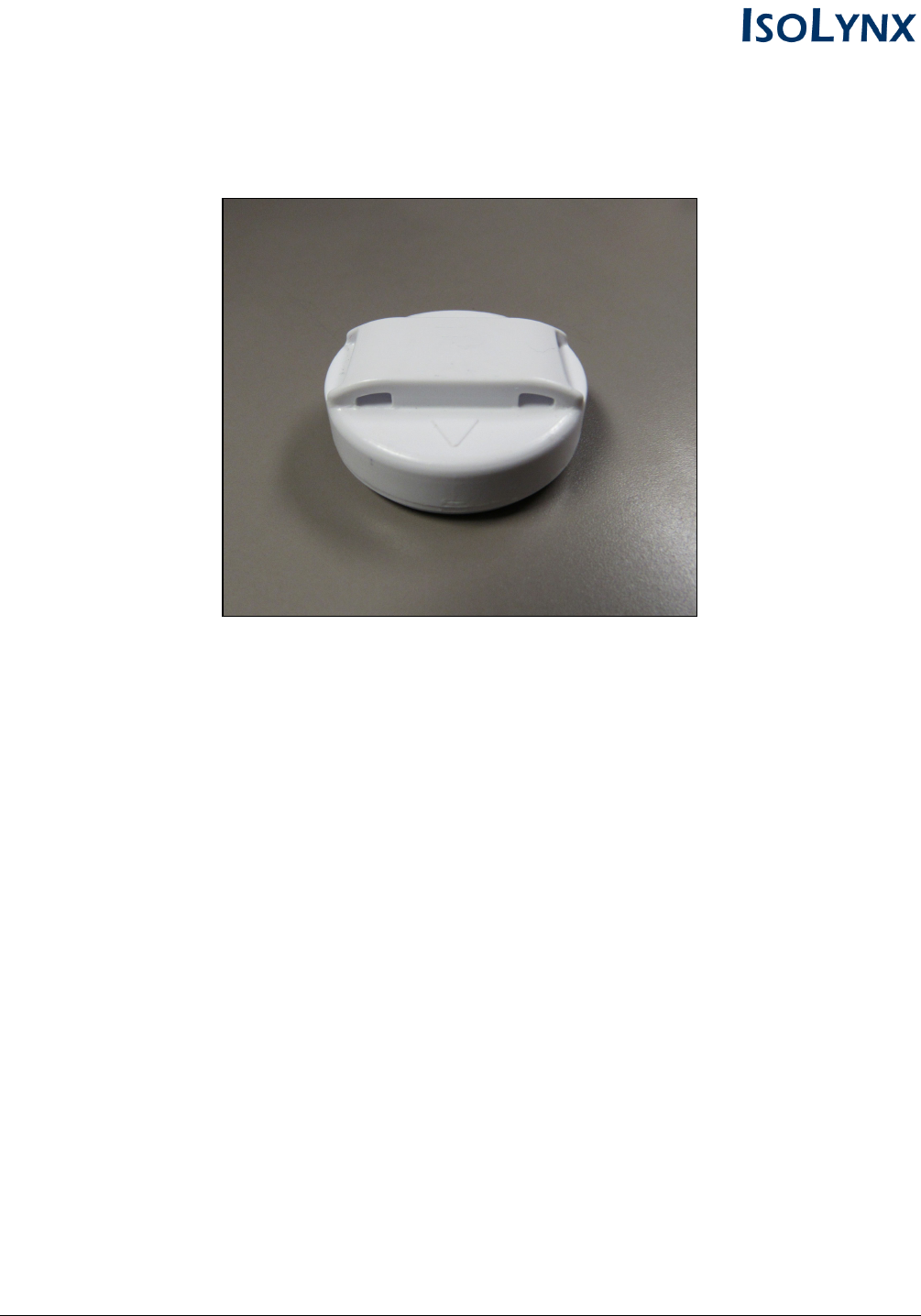

IsoLynx Tracking Tag - 2AHCQ-IL0302 1
IsoLynx II UWB Tracking Tag
IL0302 - User Manual
April 2018
IsoLynx Tracking Tag - 2AHCQ-IL0302 2
Table of Contents
Introduction.......................................................................................................................................... 3
Regulatory Information for the United States................................................................................. 3
FCC Notice (For US Customers): FCC ID: 2AHCQ-IL0302 Model: IL0302 .................... 3
Hardware & Specifications................................................................................................................ 4
IsoLynx Tracking Tags ............................................................................................................... 4
USB Tag Charger ....................................................................................................................... 4
Charging the IsoLynx Tags................................................................................................................ 5
Mounting On American Football Shoulder Pads ........................................................................... 5
Removing the Player Tracking Tags................................................................................................ 6
IsoLynx Tag Hardware Specifications ............................................................................................. 6
Main System Components........................................................................................................ 6
RF Characteristics...................................................................................................................... 6
Mechanical .................................................................................................................................. 6
IsoLynx Tracking Tag - 2AHCQ-IL0302 3
Introduction
The IsoLynx Tracking Tag (IL0302) is a small, battery-powered RFID device that produces ultra-
wideband pulses that are used to generate real-time location and movement data. IsoLynx tags are
fixed to athletes, equipment, and other objects of interest and transmit UWB "pings" to reference
nodes placed around the venue. Its small size and low power consumption make the IsoLynx tag an
ideal UWB tracking apparatus for large venues and multiplayer sporting events. The IsoLynx tags also
allow for remote activation, easy attachment/removal, convenient USB charging, and have an onboard
LED indicator for real-time feedback of tag state.
Regulatory Information for the United States
FCC Notice (For US Customers):
FCC ID: 2AHCQ-IL0302
Model: IL0302
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/television technician for help.
Changes and modifications not expressly approved by IsoLynx LLC can void your authority to operate
this equipment under Federal Communications Commissions rules.
IsoLynx Tracking Tag - 2AHCQ-IL0302 4
Hardware & Specifications
IsoLynx Tracking Tags
The battery-powered tracking tags transmit UWB pings at up to 80Hz to allow for real-time location
calculation. Tag pulse rates can be programmed for rates between 0.1Hz and 80Hz depending on their
use or the number of other active tags in the venue. Tags remain in sleep mode when not in use and
can be activated or deactivated remotely by using a master reference node.

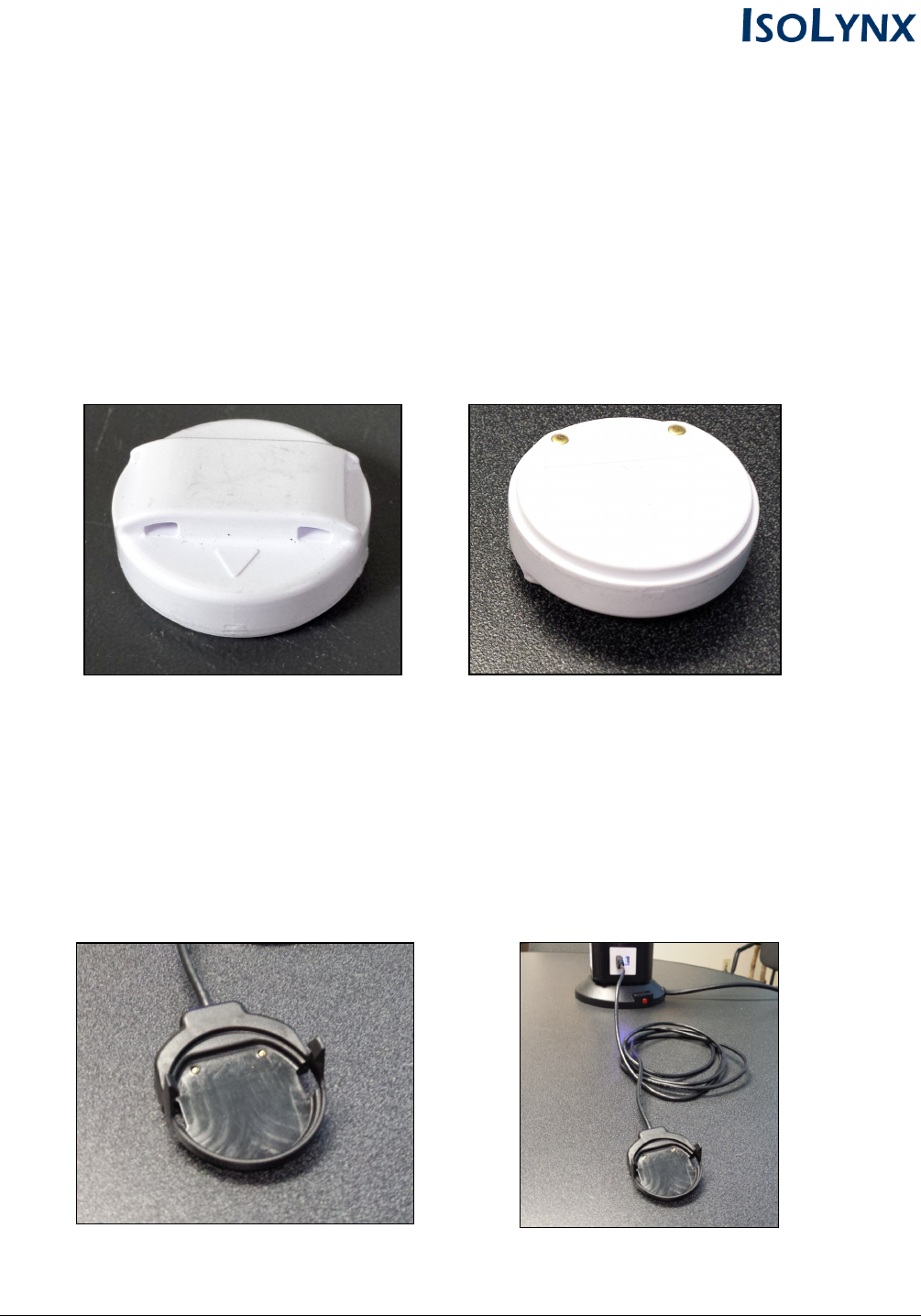

Tag Top Tag Bottom
USB Tag Charger
The IsoLynx tags come equipped with a portable USB charger for convenient, on-site charging and
storage. The tag fits securely into the tag charger dock, which can be connected to any compatible
USB charger station.
IsoLynx Tracking Tag - 2AHCQ-IL0302 5

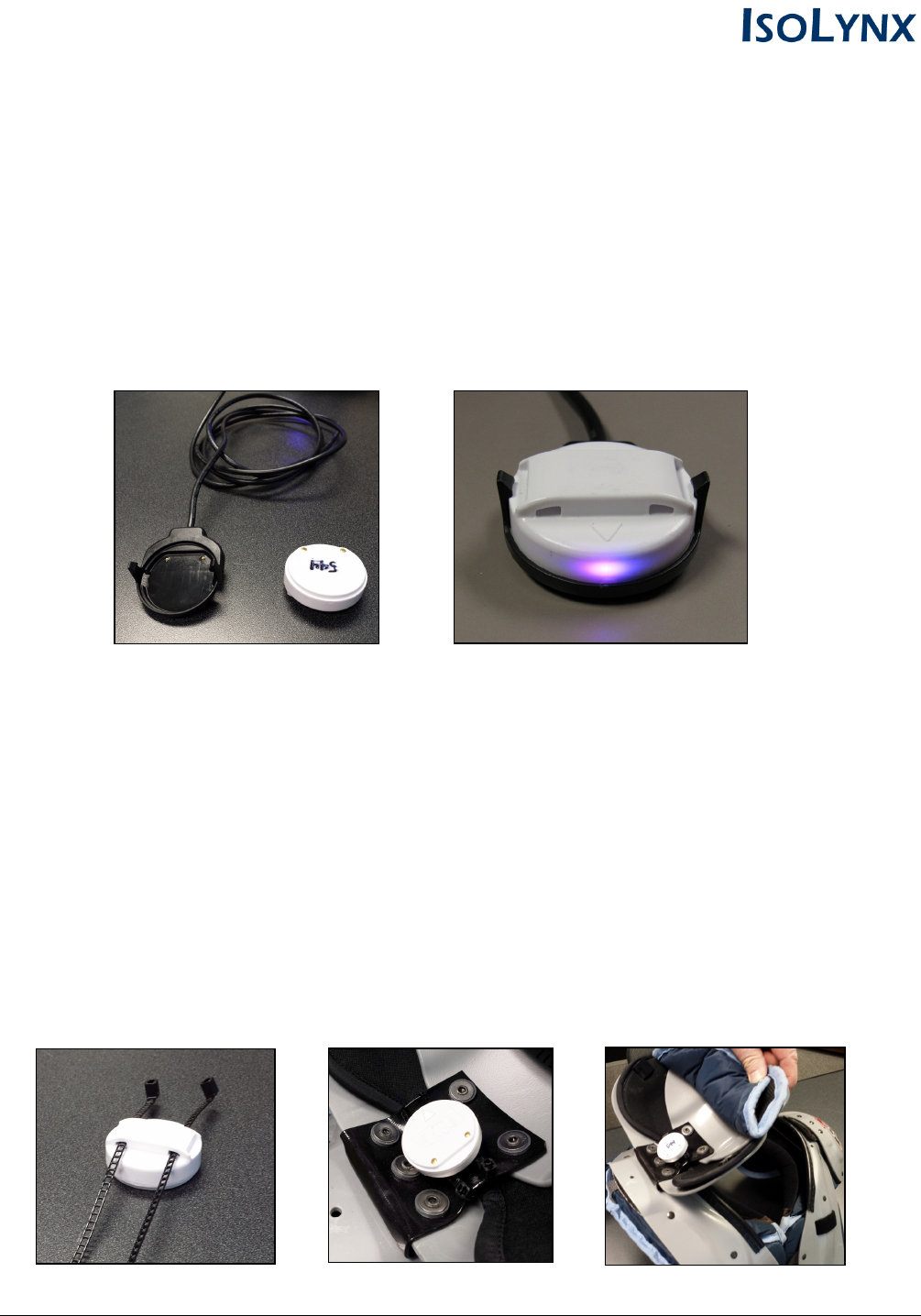

Charging the IsoLynx Tags
To ensure reliability and longevity, all tags should be fully charged before and after their use. The tags
can be charged quickly using the charging dock and any compatible USB power station. Charging
takes approximately 2-3 hours.
1. Secure the tag inside the charging dock so the metal pins on both devices are aligned.
2. Plug the charging dock into any compatible USB power source.
3. The tag’s LED displays Blue + Solid Red when actively charging. The LED displays Blue +
Blinking Red when the tag is completely charged.
Mounting On American Football Shoulder Pads
One use for IsoLynx Tracking Tags is collecting data from American football games. The steps below
detail how the tags should be attached to a set of shoulder pads. Ideally, each set of pads will contain
two tracking tags—one on each shoulder.
1. Feed two plastic zip ties through the guide holes on the top of the tag.
2. Find a location within the shoulder pads where the ties can be securely fastened.
3. Ensure the tag stays upright and the arrow faces the front of the pads for proper orientation.
4. Pull the zip ties tightly and cut the excess ends to ensure a snug and comfortable fit.
5. Ensure the tag is fastened securely to prevent it from coming loose during game-play.
IsoLynx Tracking Tag - 2AHCQ-IL0302 6
Removing the Player Tracking Tags
The IsoLynx tags are designed to be easily removed and powered-down after use. To remove the
IsoLynx tags after a game, complete the following steps:
1. Detach the player tracking tags from the athlete pads/jersey. This may require a pair of scissors
depending on how they were attached before the game.
2. Recharge the batteries while inactive to prepare for the next use
3. Inspect all the hardware for visible damage before storing the system away after an event.
IsoLynx Tag Hardware Specifications
Main System Components
Microcontroller: Onboard ARM Processor with BLE and NFC-A tag
Accelerometer/Gyroscope/Magnetometer: Onboard 9-Axis Accelerometer/Gyroscope/Magnetometer
Battery: 3.7V 300mAh - Rechargeable in Application
Operating Voltage: 3.0V
Operating Current: 5mA (nominal)
Temperature Range: -40 - 85C
RF Characteristics
UWB IEEE802.15.4-2011 UWB Channel: 5
Center Frequency: 6489.6 MHz
Band: 6240 – 6739.2 MHz
Bandwidth: 499.2 MHz
Antenna: 0 dBi Omnidirectional
Locate Precision: 10cm
Locate Rate: 0.1Hz - 80Hz
Mechanical
Weight: 22 grams
Diameter: 1.54"
Height: 0.64"
Model
: IL0302
FCC ID: 2AHCQ-IL0302
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired operation.
