User Manual

BW2569‐14PWIFIModule
Hardwarespecification
ProjectorConnectivityModule(PCM)Certification‐OperationalDescription
PublicationNumber:Iton0704;Ver.1.1;July4,2016
PartNumber:BW2569‐14P
OperationalDescription:
ThePCMisacompletedual‐band(2.4Gand5G)2*2WIFImodule,specificallyaimedatthe
IoT,Lightingandprojectormarket.Operatingfromasingle5Vsupply,thePCMallowssimple
integrationintoexistingproducts.Fullyqualifiedfirmwareandsoftwareareprovided,enabling
simpledesign‐in.
SupportforAppleWirelessAccessoryConfigurationandHomeKitisavailablewithan
optionalMFIAuthenticationCoprocessor.
Themoduleisavailablewithtemperatureratingof105°C,enablingawiderangeof
householdappliances
MainFeatures:
一：2X2mimo802.11b/g/n/acdual‐bandandblue‐toothwpa2authentication
二：dual‐streamspatialmultiplexingupto867Mbpsdatarate三：
optionforexternalantennaviaU.FL•IPv4andIPv6support四：OTA
fimwareupgrades
五:Receivesensitivityto‐94dBm
六：105°Ctemperatureratingavailable•Single5VSupply
七：Supportedtheoperatingsystem:WindowsXP/Vista,Windows7,Linux(TBD),Android。 八：
Small41×21mmStandardPCBAprocesscompatible.
Pinfunctionlis:
Pinfunction
CON1:
1 WL_REG_ON
2 GND
3 WL_DP
4 WL_DN
5 VBUS
CON2:
1GND
2 BT_DN
3 BT_DP
4 BT_REG_ON

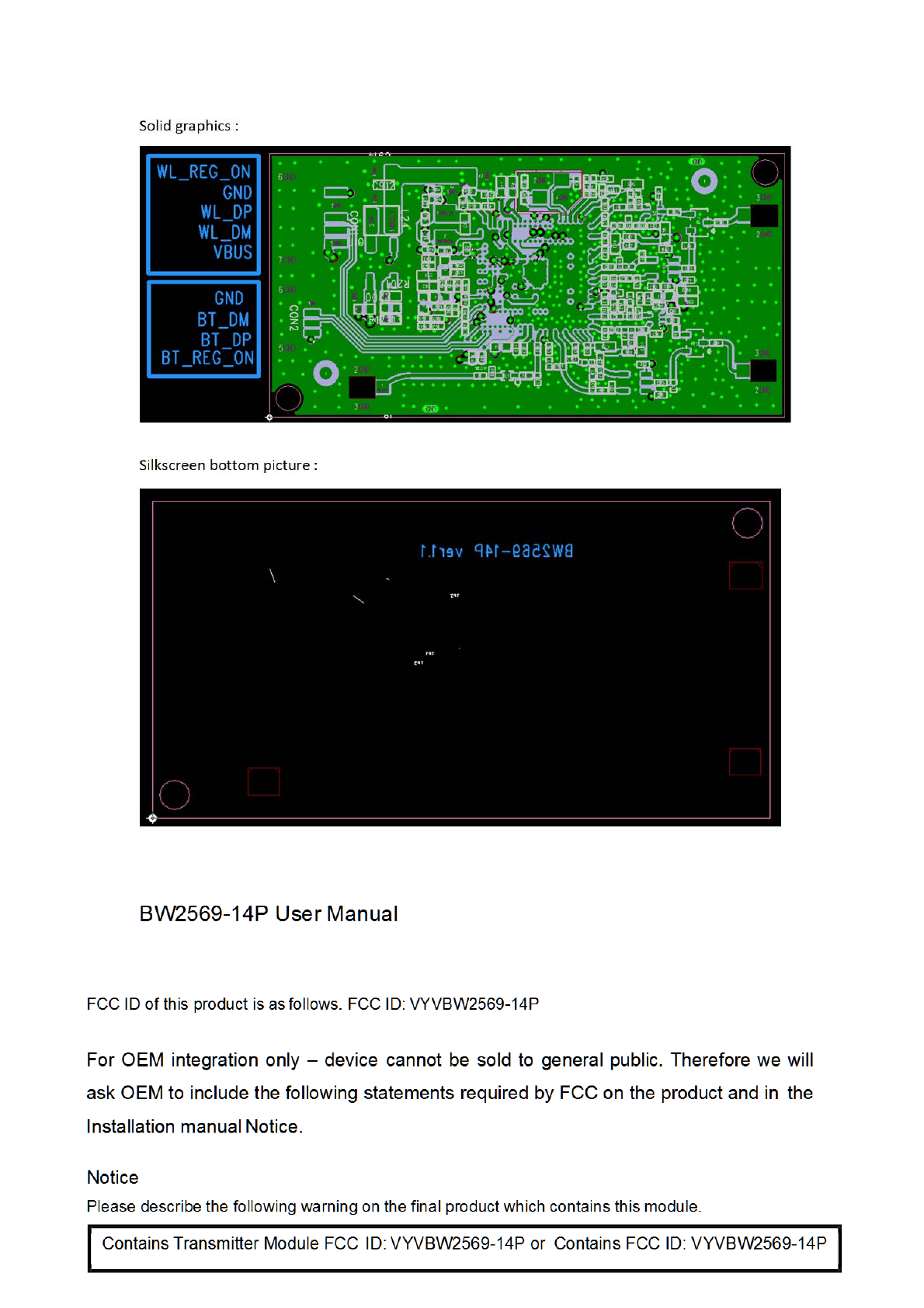

Solidgraphics:
Silkscreenbottompicture:
BW2569-14P User Manual
FCC ID of this product is as follows.
FCC ID: VYVBW2569-14P
For OEM integration only – device cannot be sold to general
public. Therefore we will
ask OEM to include the following
statements required by FCC on the product and in the
Installation manual Notice.
Notice
Please describe the following warning on the final product which contains this module.

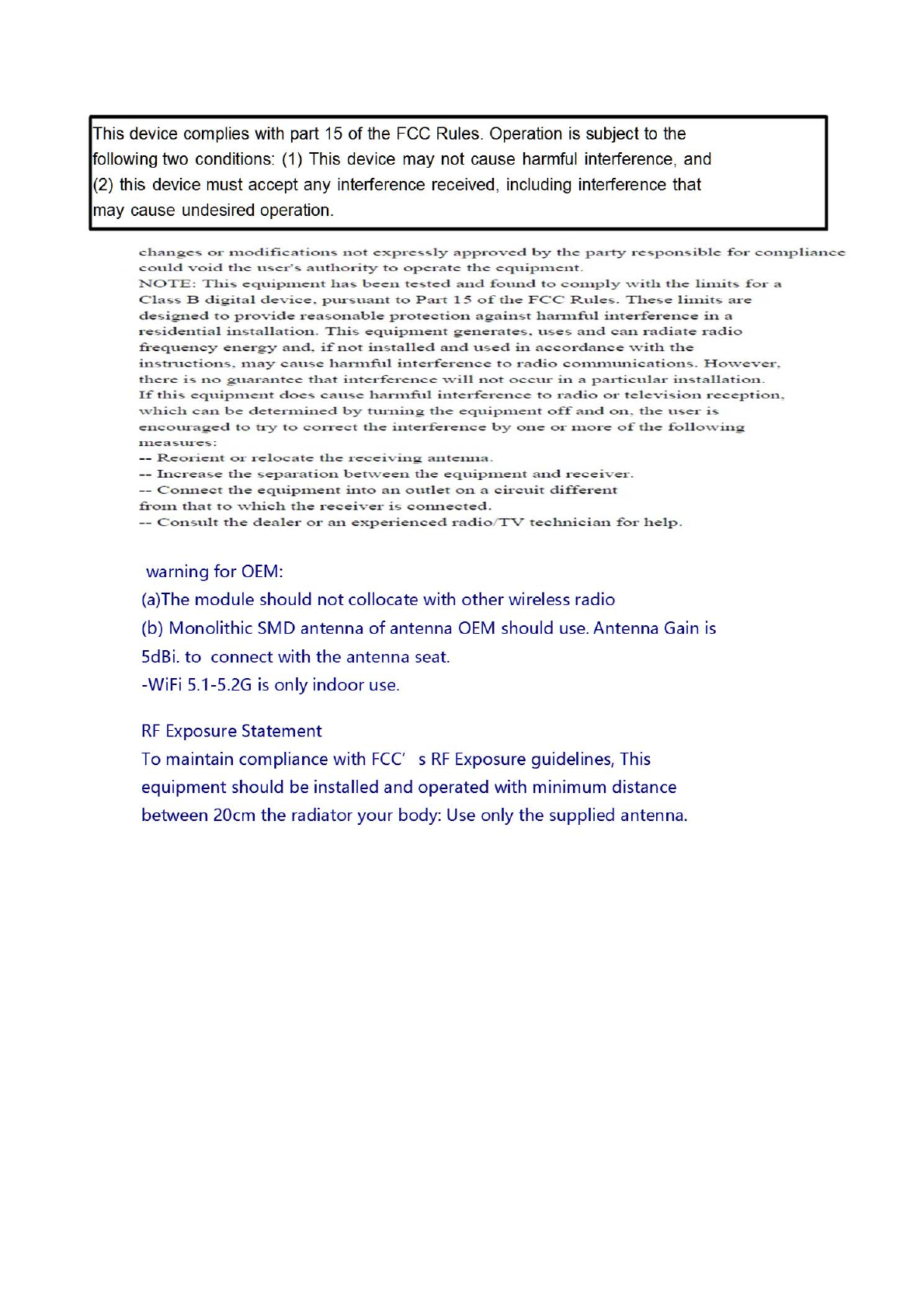

warningforOEM:
(a)Themoduleshouldnotcollocatewithotherwirelessradio
(b)MonolithicSMDantennaofantennaOEMshoulduse.AntennaGainis
5dBi.toconnectwiththeantennaseat.
-WiFi5.1-5.2Gisonlyindooruse.
RFExposureStatement
TomaintaincompliancewithFCC’sRFExposureguidelines,This
equipmentshouldbeinstalledandoperatedwithminimumdistance
between20cmtheradiatoryourbody:Useonlythesuppliedantenna.
