BW2569‐32P2WIFIModule
Hardwarespecification
ProjectorConnectivityModule(PCM)Certification‐OperationalDescription
PublicationNumber:Iton0704;Ver.1.0;July4,2016
PartNumber:BW2569‐32P2
OperationalDescription:
ThePCMisacompletedual‐band(2.4Gand5G)2*2WIFImodule,specificallyaimedatthe
IoT ,Lighting and projector market.Operatingfromasingle5Vsupply, the PCM allows simple
integrationintoexistingproducts.Fullyqualifiedfirmwareandsoftwareareprovided,enabling
simpledesign‐in.
Support for Apple Wireless Accessory Configuration and HomeKit is available with an
optionalMFIAuthenticationCoprocessor.
The module is available with temperature rating of 105°C, enabling a wide range of
householdappliances
MainFeatures:
一:2X2mimo802.11b/g/n/acdual‐bandandblue‐tooth wpa2authentication
二:dual‐streamspatialmultiplexingupto867Mbpsdatarate

三:optionforexternalantennaviaU.FL•IPv4andIPv6support
四:OTAfimwareupgrades
:
Receivesensitivityto‐94dBm
六:105°Ctemperatureratingavailable•Single5VSupply
七:Supportedtheoperatingsystem:WindowsXP/Vista,Windows7, Linux(TBD),Android
八:Small18×27mm32‐padpackageandStandardPCBAprocess compatible.

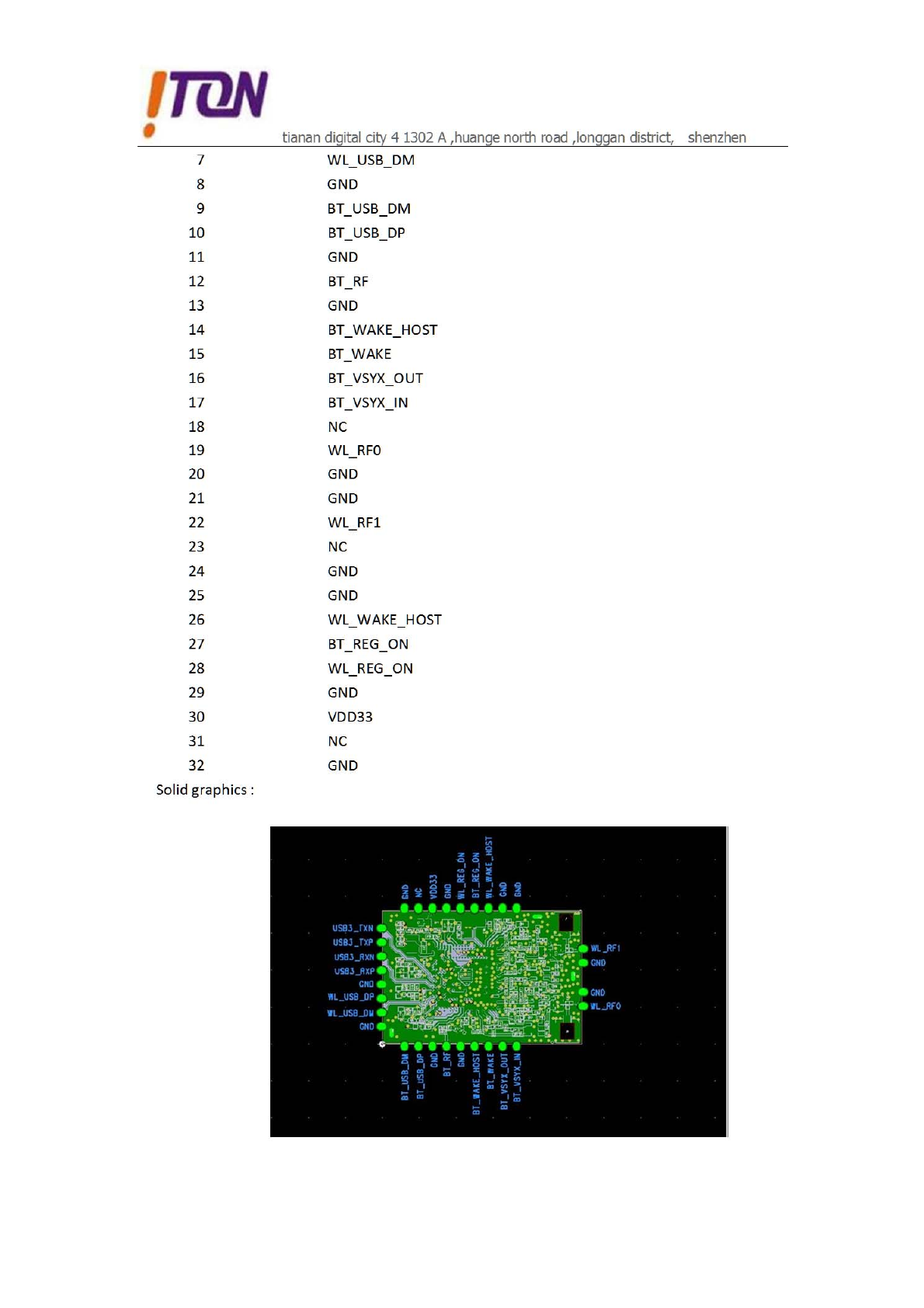

Pinfunctionlis:
Pin function
1
USB3_TXN
2
USB3_TXP
3
USB3_RXN
4
USB3_RXP
5
GND
6
WL_USB_DP
tianan
digital
city
4
1302
A
,huange
north
road
,longgan
district,
shenzhen

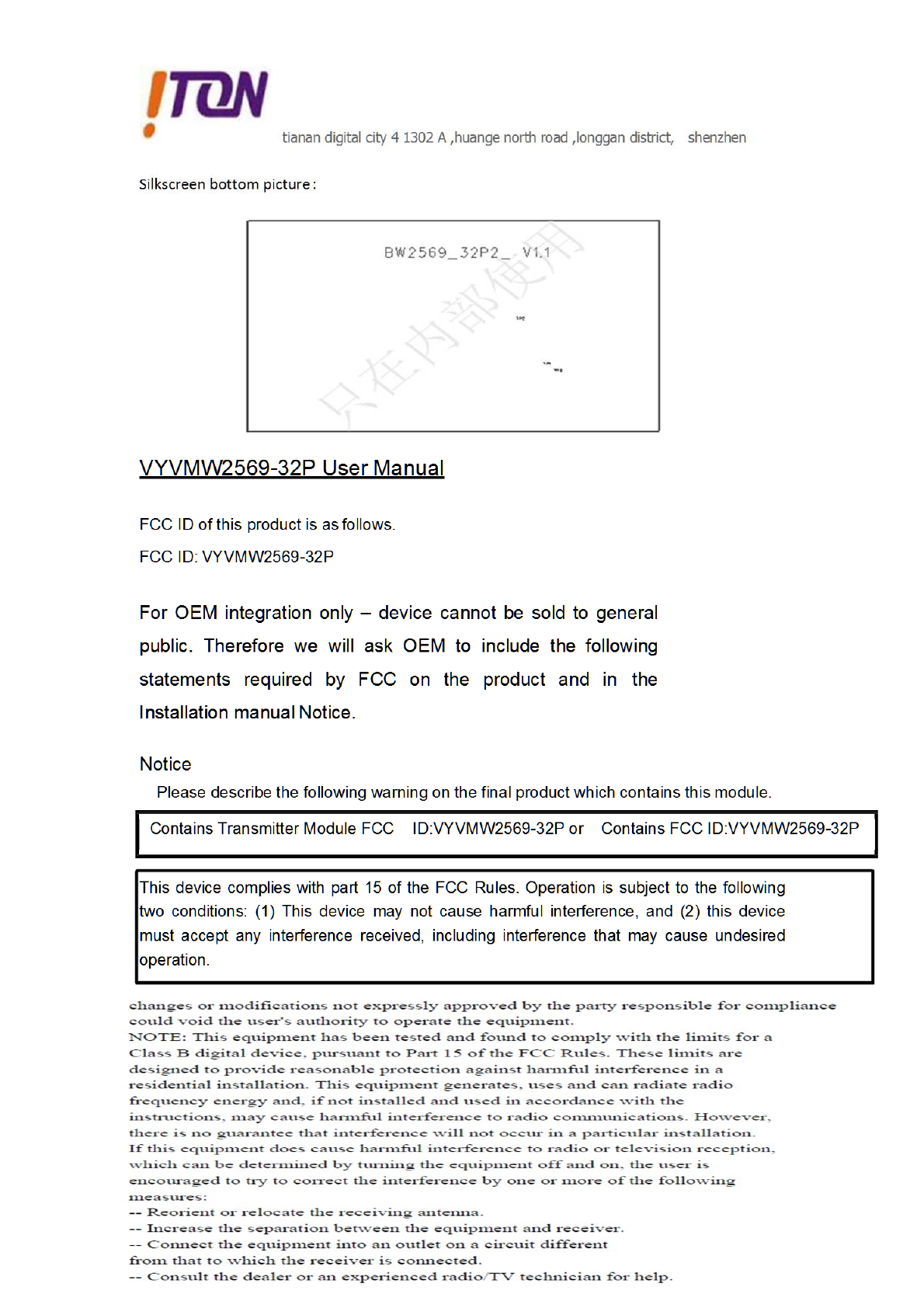

warningforOEM:
(a)Themoduleshouldnotcollocatewithotherwirelessradio
(b)MonolithicSMDantennaofantennaOEMshoulduse.AntennaGainis
2dBi.toconnectwiththeantennaseat.
-WiFi5.1-5.2Gisonlyindooruse.
RFExposureStatement
TomaintaincompliancewithFCC’sRFExposureguidelines,Thisequipmentshould
beinstalledandoperatedwithminimumdistancebetween20cmtheradiatoryour
body:Useonlythesuppliedantenna.
