Users Manual
Natural Gas Solutions
100G Datalogging
Installation Guide – Remote Disconnect
Identification
100G Datalogging Installation Guide - Direct Mount
08/25/2009 TDC-0884-000
Endpoint part number: ERG-5002-105
Copyright
© 2009 Itron, Inc. All rights reserved.
Applicable Patents
U.S. Patent Numbers:
Canadian Patent Numbers:
Compliance Statement
This device complies with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Operation is
subject to the following two conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may cause undesirable operation.
This device must be permanently mounted such that it retains a distance of 20 centimeters (7.9 inches) from all persons in order to comply with FCC RF exposure levels.
Compliance Statement
This equipment has been tested and found to comply with the limits, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. Operation is subject to the following conditions:
• This device may not cause interference.
• This device must accept any interference that may cause undesired operation of the device.
Compliance Statement
This equipment complies with policies RSS-210 and RSS-GEN of the Industry Canada rules.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Trademark Notice
Itron is a registered trademark of Itron, Inc.
All other product names and logos in this documentation are used for identification purposes only and may be trademarks or registered trademarks of their respective companies.
Suggestions
If you have comments or suggestions on how we may improve this documentation, send them to TechnicalCommunicationsManager@itron.com
If you have questions or comments about the software or hardware product, contact Itron Technical Support:
Contact
• Internet: www.itron.com
• E-mail: support@itron.com
• Phone: 1 800 635 8725
Warning Follow these procedures to avoid injury to yourself or others:
• The lithium battery may cause a fire or chemical burn if it is not
disposed of properly.
• Do not recharge, disassemble, heat above 100º Celsius (212º
Fahrenheit), or incinerate the lithium battery.
• Keep the lithium battery away from children.
• Replace the lithium battery only with batteries meeting Itron
specifications. Any other battery may cause a fire or explosion.
Warning Only authorized Itron personnel should attempt repairs on Itron
equipment. Attempts to do so by others might void any maintenance contract
with your company. Unauthorized service personnel might also be subject to
shock hazard on some Itron equipment if removal of protective covers is
attempted.
Warning To prevent ignition of flammable or combustible atmospheres,
disconnect power before servicing.
Warning Substitution of components may impair intrinsic safety.
ii 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Transportation Classification
The Federal Aviation Administration prohibits operating transmitters and receivers on all commercial aircraft. When powered, the 100G Datalogging Endpoint is considered an operating
transmitter and receiver and cannot be shipped by air. All product returns must be shipped by ground transportation.
Modifications and Repairs
To ensure system performance, this device and antenna shall not be changed or modified without the expressed approval of Itron. Any unauthorized modification will void the user's
authority to operate the equipment.
Meter Installation/Removal
In the event of malfunction, all repairs should be performed by Itron. It is the responsibility of users requiring service to report the need for service to Itron.
Document Conventions
The following documentation conventions are used:
Caution This type of note warns the user that failure to heed the
information in the note could result in loss of data. Be sure to carefully read
a CAUTION note and heed the advice/instructions.
Warning This type of note is used to warn of potential physical harm to
the user or hardware. It is critical that you pay strict attention to
WARNING notes, read the information carefully, and heed the advice,
instructions.
Tip This type of note provides the user with extra hints/tips to make a task
easier to perform or a concept easier to understand.
Note This type of note supplies generic information to the user. The
information could be ignored and the user could still continue with a task
without suffering any adverse consequences.
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0884-000 iii
iv 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Contents
Chapter 1 100G Datalogging Endpoint - Remote Disconnect ………………..………..7
Transmission Modes ..................................................................................................................................... 7
Specifications ................................................................................................................................................ 8
Related Documents ....................................................................................................................................... 8
Meter Compatibility List ................................................................................................................................. 8
Installation Prerequisites ............................................................................................................................... 9
Installation Overview ................................................................................................................................... 10
Chapter 2 Itron METRIS 250 Meter Installation ......................................................... 11

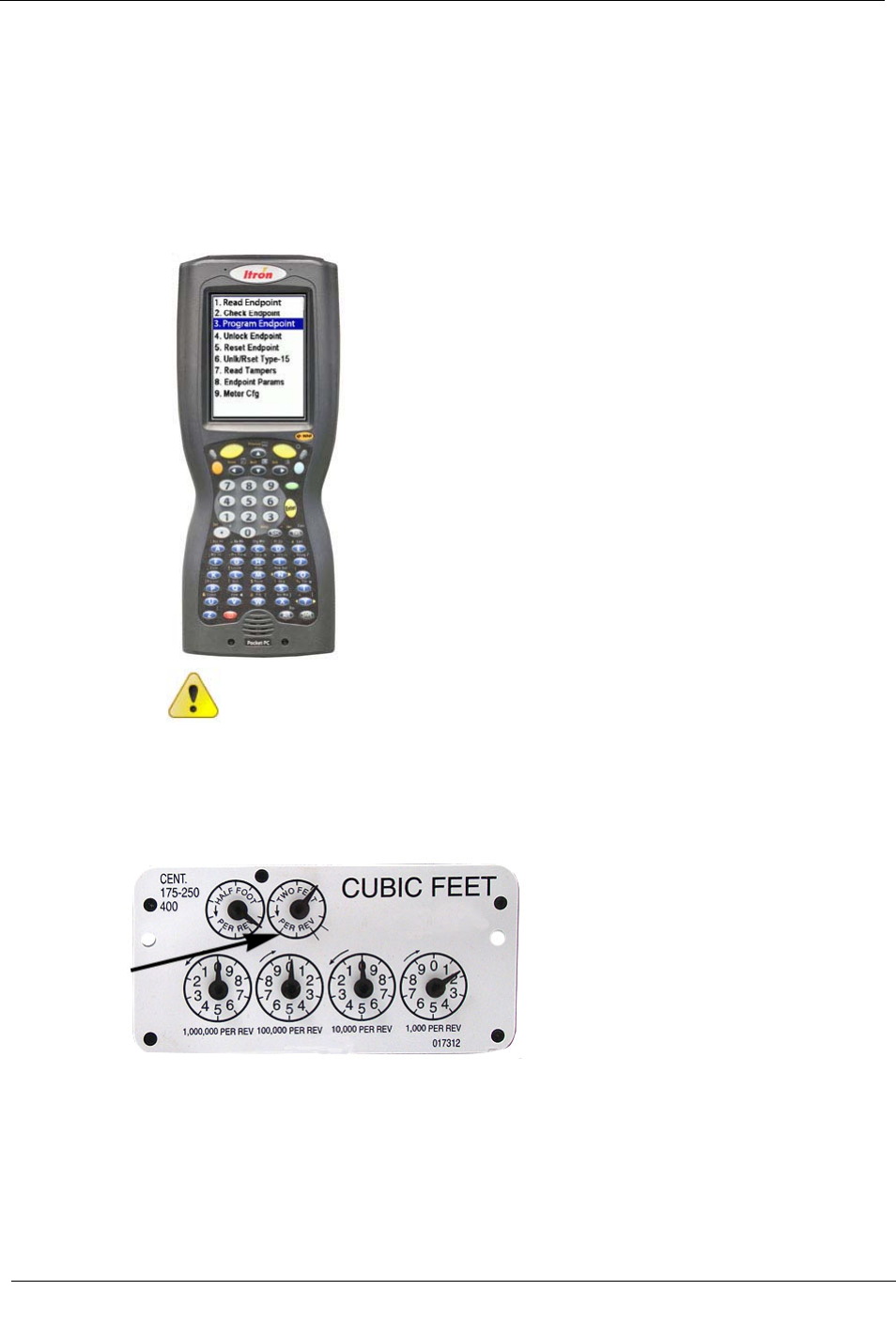

Programming the 100G Datalogging Gas Endpoint Assembly ................................................................... 14
Attaching the 100G Datalogging Gas Endpoint Assembly to the Meter ..................................................... 16
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0884-000 v
CHAPTER 1
100G Datalogging Remote Disconnect Gas Endpoint
Itron 100G Datalogging Remote Disconnect Gas endpoints are radio-frequency (RF)
devices designed to transmit meter data to an RF meter reading device within transmission
distance of the endpoint. 100G Datalogging Gas Remote Disconnect endpoints have the
same increased output power as the first generation 100G Gas endpoints for greater RF
transmission distance. The 100G direct-mount Remote Disconnect endpoint reads and
transmits a Standard Consumption Message (SCM) with magnetic-tamper and tilt-tamper
data. Datalogging functionality provides increased benefits by storing up to 40 days of
hourly data.
This installation guide provides step-by-step instructions for installing the 100G Gas
Remote Disconnect Endpoint on the Itron METRIS 250 meter.
Transmission Modes
The 100G Datalogging Remote Disconnect Gas endpoint can be set to transmit in Fixed
Network, Mobile and Handheld, or Hard to Read Mobile and Handheld Mode.
• Fixed Network Mode The 100G Datalogging Remote Disconnect Gas endpoint
transmits a high-powered RF message every 60 seconds. Output power in this mode is
250 milliwatts or +24dBm; expected battery life is 20 years.
• Mobile and Handheld Mode The 100G Datalogging Remote Disconnect Gas
endpoint transmits a medium-powered RF message every 15 seconds. Output power
in this mode is 10 milliwatts or +10dBm; expected battery life is 20 years.
• (Optional) Hard to Read Mobile and Handheld Mode The 100G Datalogging
Remote Disconnect Gas endpoint transmits a high-powered RF message every 30
seconds. Output power in this mode is 250 milliwatts or +24dBm; expected battery
life decreases to 15 years in this mode. The Hard to Read Mobile and Handheld Mode
should only be used for exceptionally hard-to-read applications (such as meters
installed on roof tops or in sub-basements).
An FCC license is not required to read 100G Datalogging Gas Endpoint.
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0884-000 7
Chapter 1 100G Datalogging Remote Disconnect Gas Endpoint
8 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Specifications
Functional Specifications Description
Power Source
100G Datalogging
Two "A" cell lithium batteries
Tamper Detection Tilt tamper and magnetic tamper
FCC Compliance Part 15 certified
Industry Canada Compliance RSS-210 certified
Intrinsically Safe per UL Class I, Division 1, Groups C and D
Product Identification Numeric and bar-coded endpoint type and serial number
Construction Materials Gray polycarbonate housing and back plate with encapsulated
electronics
Operational Specifications Description
Operating Temperatures -40° to 158° F (-40° to +70° C)
Operating Humidity 5 to 95 percent relative humidity
Program Frequency 908 MHz
Transmit Frequency Spread spectrum 908 to 924 MHz ISM band
Data Integrity Verified in every data message
Related Documents
Document Title Document Part Number
Gas Endpoint Meter Compatibility List PUB-0117-002
Gas Endpoint Ordering Guide PUB-0117-001
100G Datalogging Specification Sheet Publication 100941SP-01
Endpoint Link® Programming Guide TDC-0744
Meter Compatibility List
100G Datalogging Endpoint – Remote Disconnect Meter Compatibility
Mfg. Model Description Class Comments Endpoint
Type Endpoint
Part No.
Itron/Actaris/
Schlumberger/
Sprague
METRIS 250 Remote disconnect Residential
100G Datalogging ERG-5002-105
Installation Prerequisites
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0884-000 9
Installation Prerequisites
Prior to installation, verify you have the following items:
• 100G Datalogging Gas Endpoints designed for your specific brand of residential or
commercial gas meters (endpoints include new tamper seals).
• A METRIS 250 meter (see the Meter Compatibility List on page 8).
• A compatible index. Itron 100G Datalogging Gas Endpoints are compatible with
standard dial and direct-read (odometer) indexes. Exceptions are noted on the Meter
Compatibility List on page 8.
• Installation tools (provided by installer or customer)
• Small and medium flat-blade or Phillips screwdrivers - to remove and tighten
index and index-cover screws.
• Side-cutting pliers/wire snips - to cut wire seals, if applicable.
• Small putty knife - residential meters.
• Meter seals, wire seal, and seal press - to protect the meter from tampering, if
applicable.
• 11/32-inch nut driver or other blunt tool - to securely seat new tamper plugs
over screw holes.
• FC200SR handheld computer with Endpoint-Link or Endpoint-Link Pro
software - to program and check 100G Datalogging Gas Endpoint installation
and operation.
Caution The 100G Datalogging Gas Endpoints can only be programmed using
FC200SR Handheld Computers loaded with Endpoint-Link or Endpoint-Link Pro
software version 5.3 or later.
• Replacement screws - to mount the 100G Datalogging Gas Endpoint assembly
to the meter and the index to the endpoint housing:
Replacement Screws
Residential Meter To mount the 100G
Datalogging Gas
Endpoint on the
meter:
Itron Part
Number To mount the index on the 100G
Datalogging Gas Endpoint
housing:
Itron Part
Number
Itron METRIS 250 10 - 24 x 5/8" slotted
Fillister head 10 - 24 x 1/4" slotted, round
pan-head
Chapter 1 100G Datalogging Remote Disconnect Gas Endpoint
10 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Installation Overview
Installing the 100G Datalogging Remote Disconnect Gas endpoint on a meter involves four
tasks:
1. Removing the index from the meter.
2. Assembling the 100G Datalogging Remote Disconnect Gas endpoint and index.
3. Programming the 100G Datalogging Remote Disconnect Gas endpoint assembly.
4. Attaching the 100G Datalogging Remote Disconnect Gas endpoint to the meter.
CHAPTER 2
Itron METRIS 250 Meter Installation
This chapter provides the instructions to install the 100G Datalogging Remote Disconnect
Gas endpoint on an Itron METRIS 250 meter.

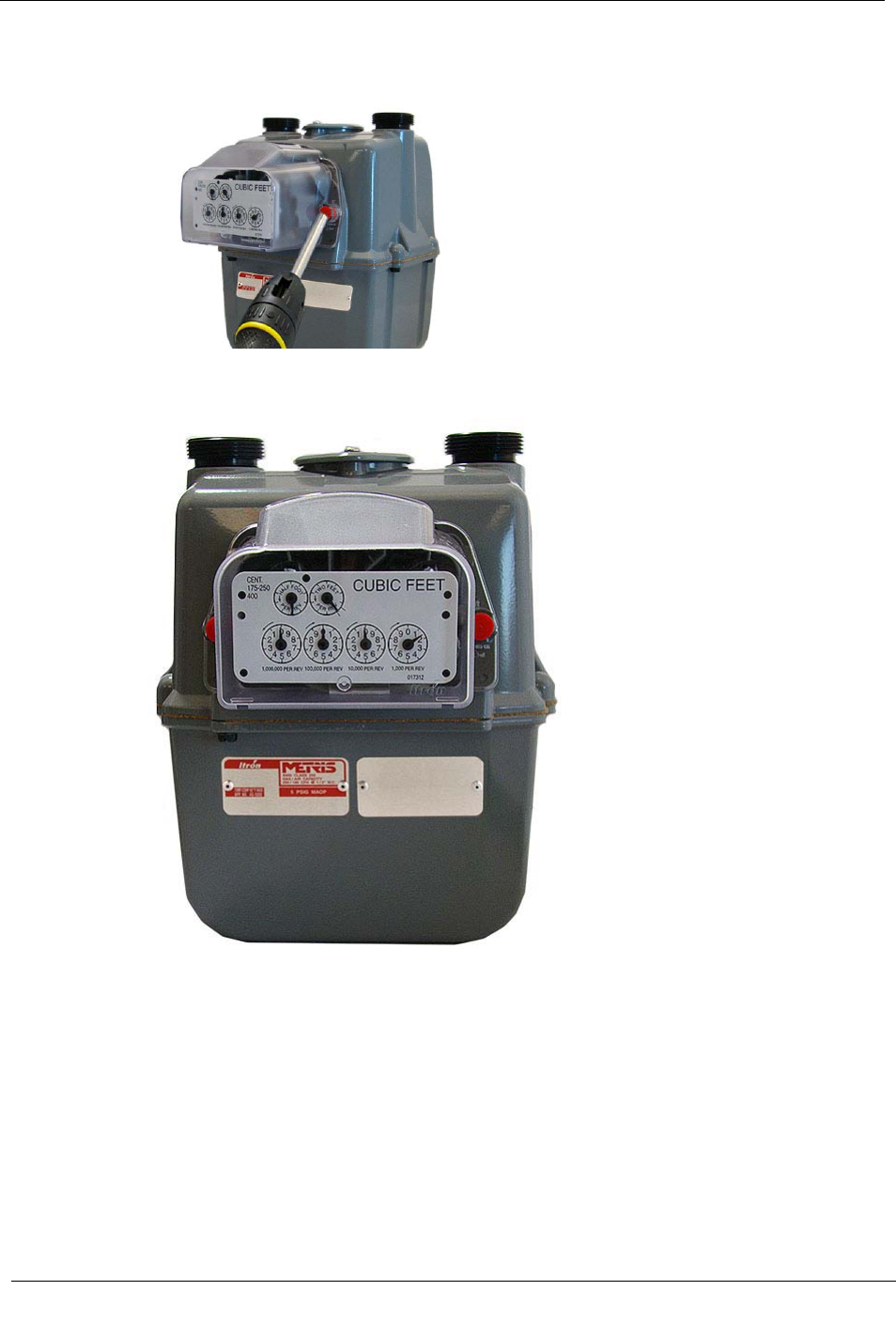

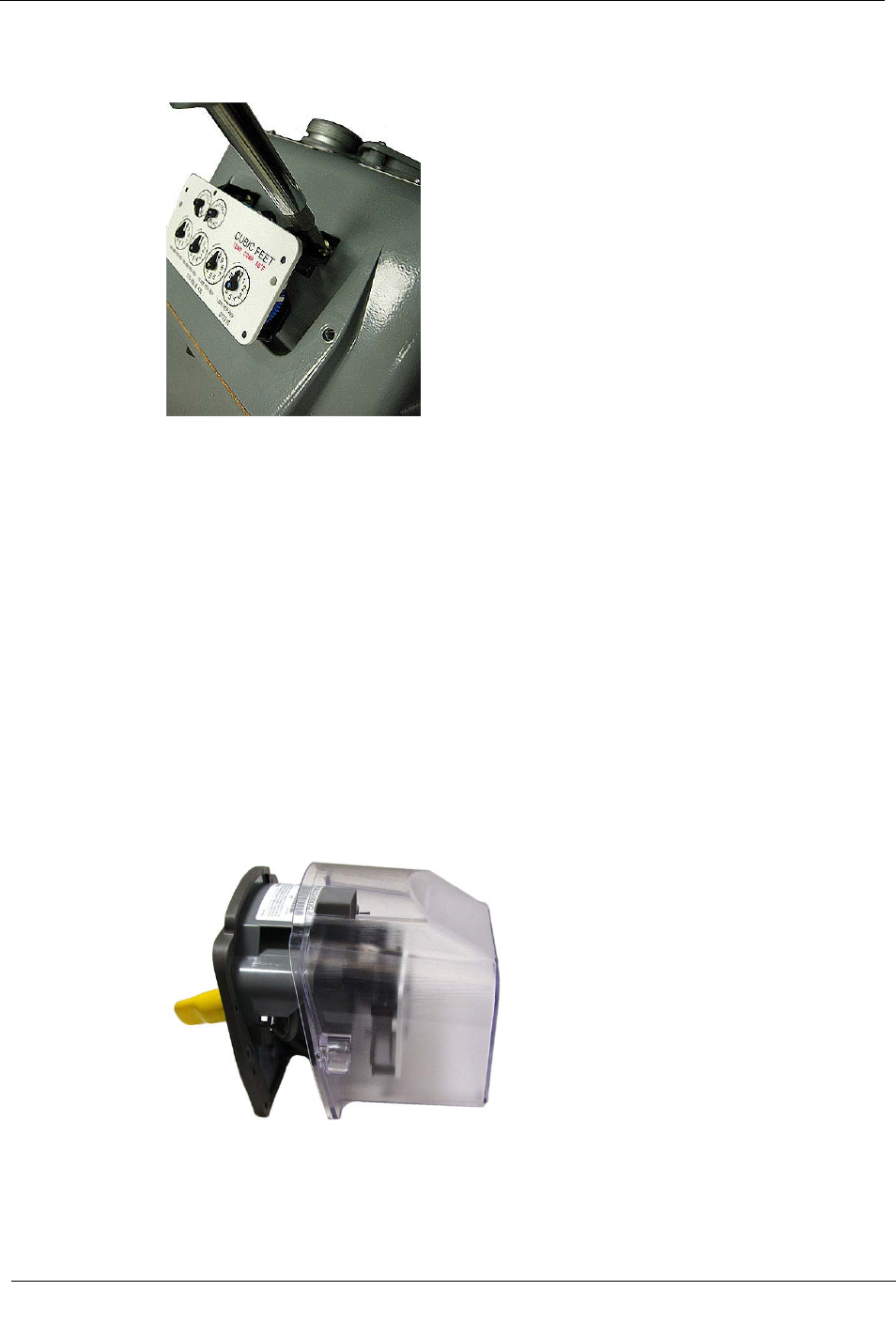

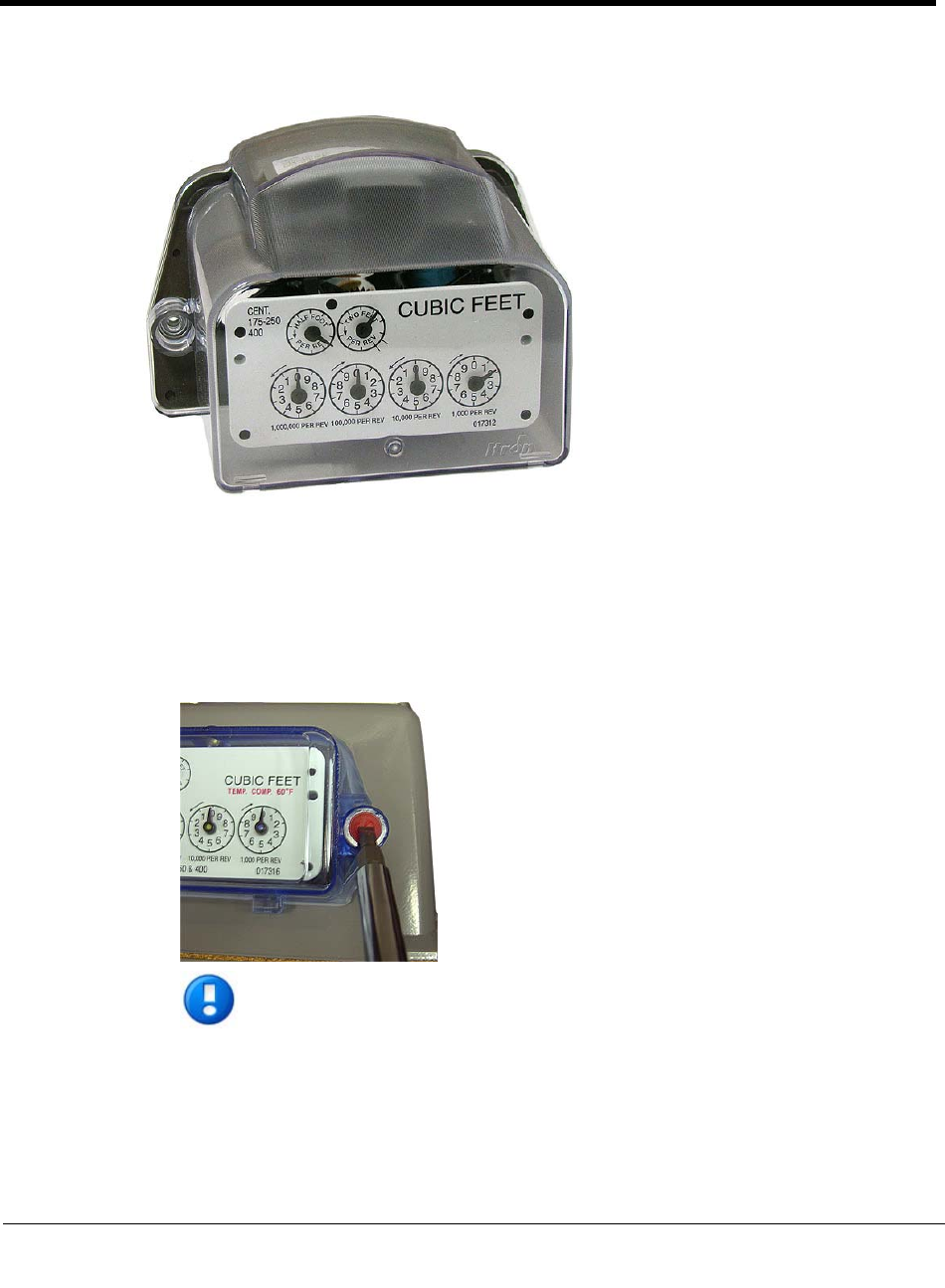

To remove the index from the meter
1. Remove the tamper seals, index cover screws and the index cover from the Itron
meter. Examine the mounting screws. If they are 5/8" long and not corroded, keep
them to re-attach the endpoint assembly. If the screws are not the correct length or if
the screws are corroded, discard.
Note Use the removed index cover as a temporary storage container for
screws. Properly dispose all unused screws, old index covers, gaskets, tamper
seals, and other leftover materials. Do not leave materials on customer premises.
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0884-000 11
Chapter 2 Itron METRIS 250 Meter Installation
12 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
2. Loosen the index mounting screws 1/2 to one turn. Slide the index to the left and off
the mounting screws and remove from the meter.
Set the index aside where it will not be damaged or fill with dirt, rain or snow. The
index is mounted in the endpoint later in this procedure. Verify the index mounting
screws are 1/4" long and not corroded. If the screws are the correct length and not
corroded, retain for later use. If the original screws are discarded, use the correct
replacement screws (see Installation Prerequisites on page 8).
3. Remove the old gasket, gasket residue, and dirt from the meter (if applicable). The
meter face must be free of gasket residue or dirt before you install the endpoint.
To assemble the 100G Datalogging Remote Disconnect Gas endpoint and
index
1. Separate the 100G Datalogging Gas Endpoint housing from the cover by pulling the
cover straight out from the housing. Set the endpoint cover aside where it will not be
damaged or fill with rain, dirt or snow. The cover will be used later in this installation
procedure.
Installation Prerequisites
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0844-000 13
2. Screw the 10 - 24 x 1/4" screws into the index mounting posts two turns. Do not
tighten the screws.

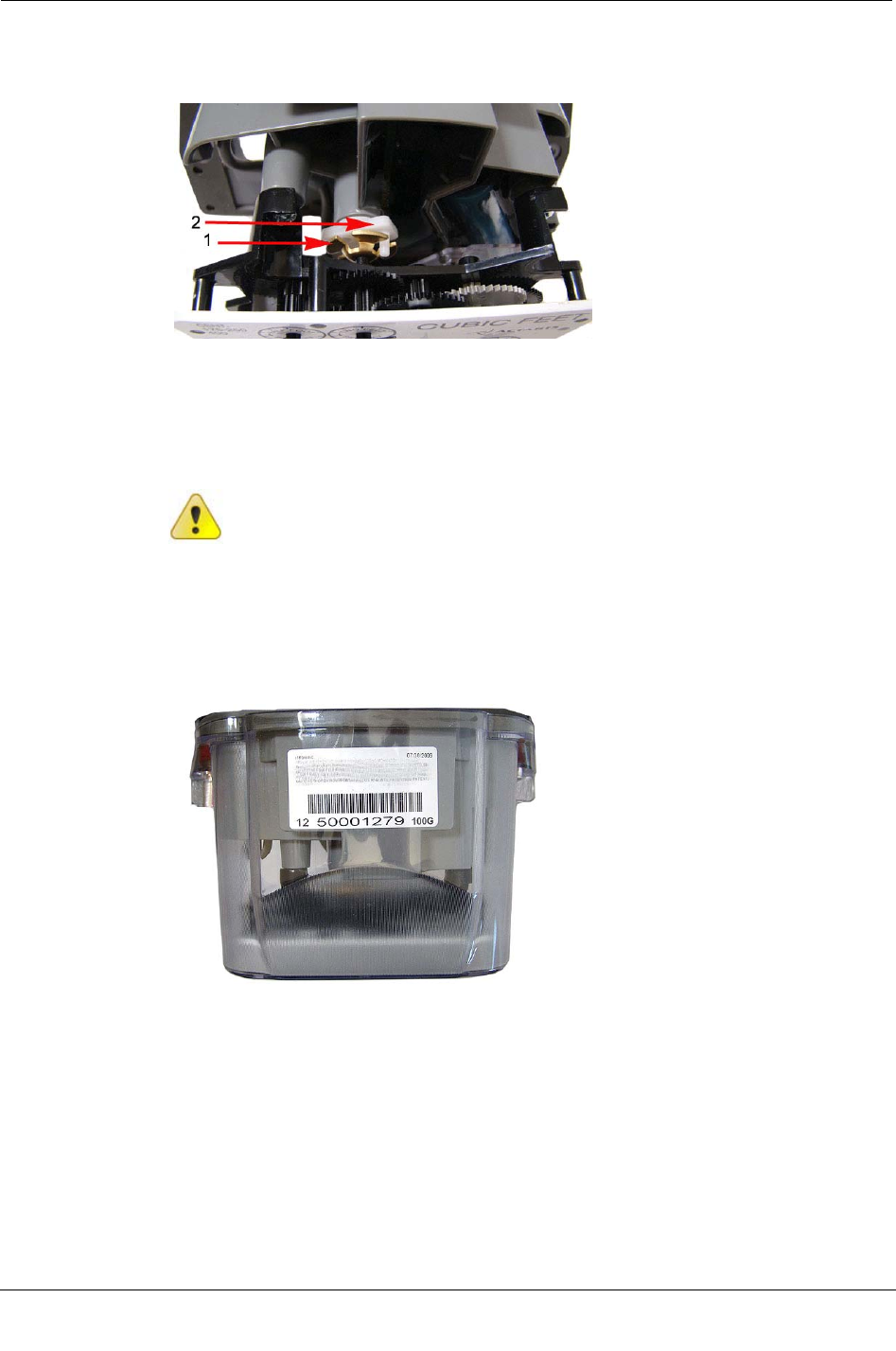

3. Align the index wriggler (1) with the endpoint drive post (2). Carefully slide the index
onto the mounting screws. Verify the 100G Datalogging Gas Endpoint's housing drive
post makes positive engagement with the index wriggler. Hold the index in place and
tighten the index mounting screws.
Caution Indexes have varying drive mechanism styles. Failure to align the
endpoint wriggler with the index drive post can cause binding and lead to poor
registration or meter failure. To verify proper engagement of the index to the
endpoint housing, spin the wriggler one clockwise rotation, then one-
counterclockwise rotation. Do not spin more than one complete rotation. The
wriggler should spin freely, with little or no resistance.
4. Slide the endpoint cover over the index and housing. Verify the cover is installed
correctly. The endpoint label should be clearly visible and easily read.
Chapter 2 Itron METRIS 250 Meter Installation
14 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Programming the 100G Datalogging Remote Disconnect Gas
Endpoint Assembly
The 100G Datalogging Remote Disconnect Gas endpoint must be programmed with
the FC200SR handheld computer loaded with Endpoint-Link® or Endpoint-Link Pro®
software version 5.3 or higher. See the Endpoint-Link v5.3 (or later) Endpoint
Programming Guide (TDC-0744) for more complete programming information.
Caution The 100G Datalogging Remote Disconnect Gas Endpoint must be
programmed before use. Follow the steps in this section to properly program the
endpoint.
Take note of the index drive rate shown on the drive dial on the index. The endpoint is
programmed based on the drive rate. Itron METRIS 250 meter index drive rates are
typically 2-cubic feet or 0.05 cubic metres (not shown below).
Programming the 100G Datalogging Remote Disconnect Gas Endpoint Assembly
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0844-000 15
To program the 100G Datalogging Remote Disconnect Gas endpoint
1. Program the index drive rate into the endpoint using the FC200SR. For all
programming and "Check Endpoint" operations, hold the FC200SR as close to vertical
as possible. For best success, keep the FC200SR within 6 feet of the target endpoint.
Verify you have the correct programming mode (Fixed Network Mode,
Mobile/Handheld Mode, or Hard to Read Mobile/Handheld Mode) for your
application. Programming parameters are based on the configuration file loaded into
the FC200SR.
During programming, the endpoint is set to the nearest 100 cubic feet; the last two
digits (tens and units) are programmed as zeros (0). After programming is complete,
the endpoint assembly will read to the nearest cubic foot.

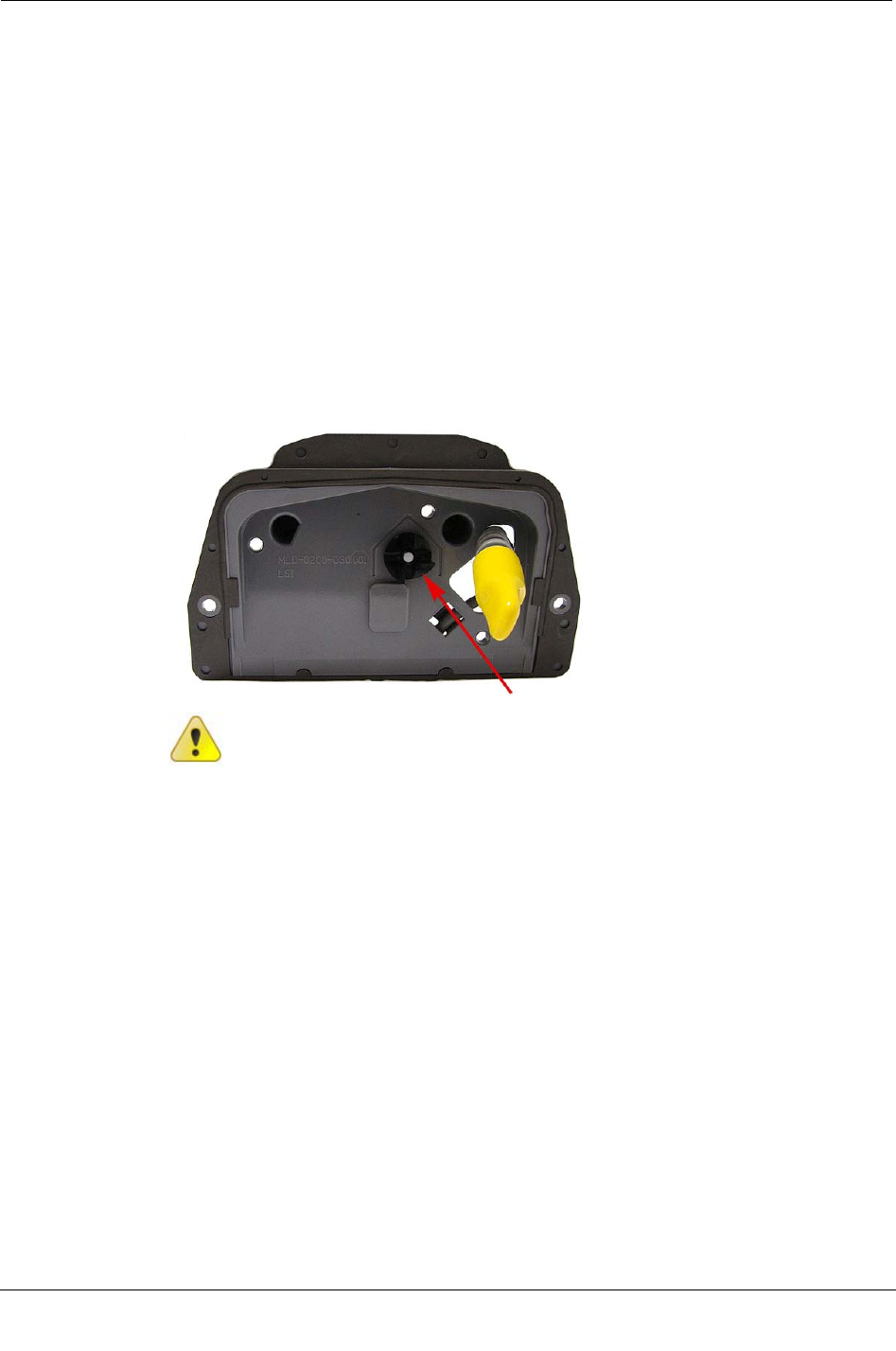

2. Slowly turn the endpoint's drive wriggler two turns in the direction shown on the
index drive rate. This verifies the endpoint is counting properly after assembly.
Caution Do not turn the drive wriggler faster than one turn per second.
Read or Check the endpoint using the FC200SR.
• If the read result is higher than the number programmed in Step 1, the endpoint
is counting correctly.
• If the read result is not higher than the number programmed in Step 1, replace
the endpoint.
Chapter 2 Itron METRIS 250 Meter Installation
16 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
Attaching the 100G Datalogging Remote Disconnect Gas
Endpoint Assembly to the Meter
After programming the 100G Datalogging Remote Disconnect Gas endpoint, attach it to the
Itron METRIS meter.
To attach the 100G Datalogging Gas Endpoint to the meter

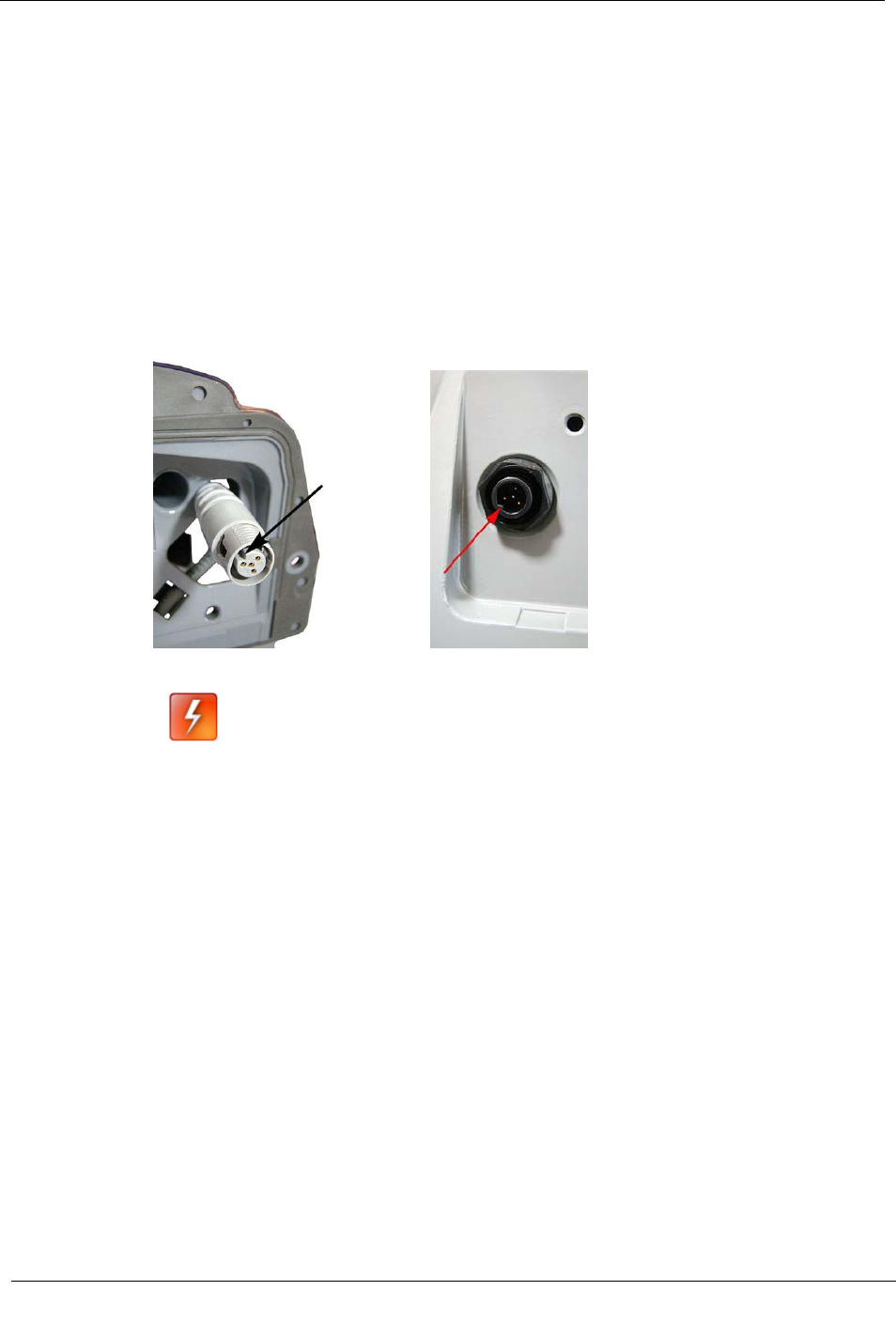

1. Align the endpoint communications plug with the meter receptacle. Insert the
endpoint communications plug into the meter receptacle and push gently until the plug
snaps into place.
Endpoint communications plug Meter receptacle
Warning The communications plug notch must align with the meter receptacle
notch. Verify the notches are properly aligned before pushing the
communications plug into place. Do not force the plug if the notches are not
aligned.
Attaching the 100G Datalogging Remote Disconnect Gas Endpoint Assembly to the Mete
r
100G Datalogging
Installation Guide – Remote Disconnect
TDC-0844-000 17

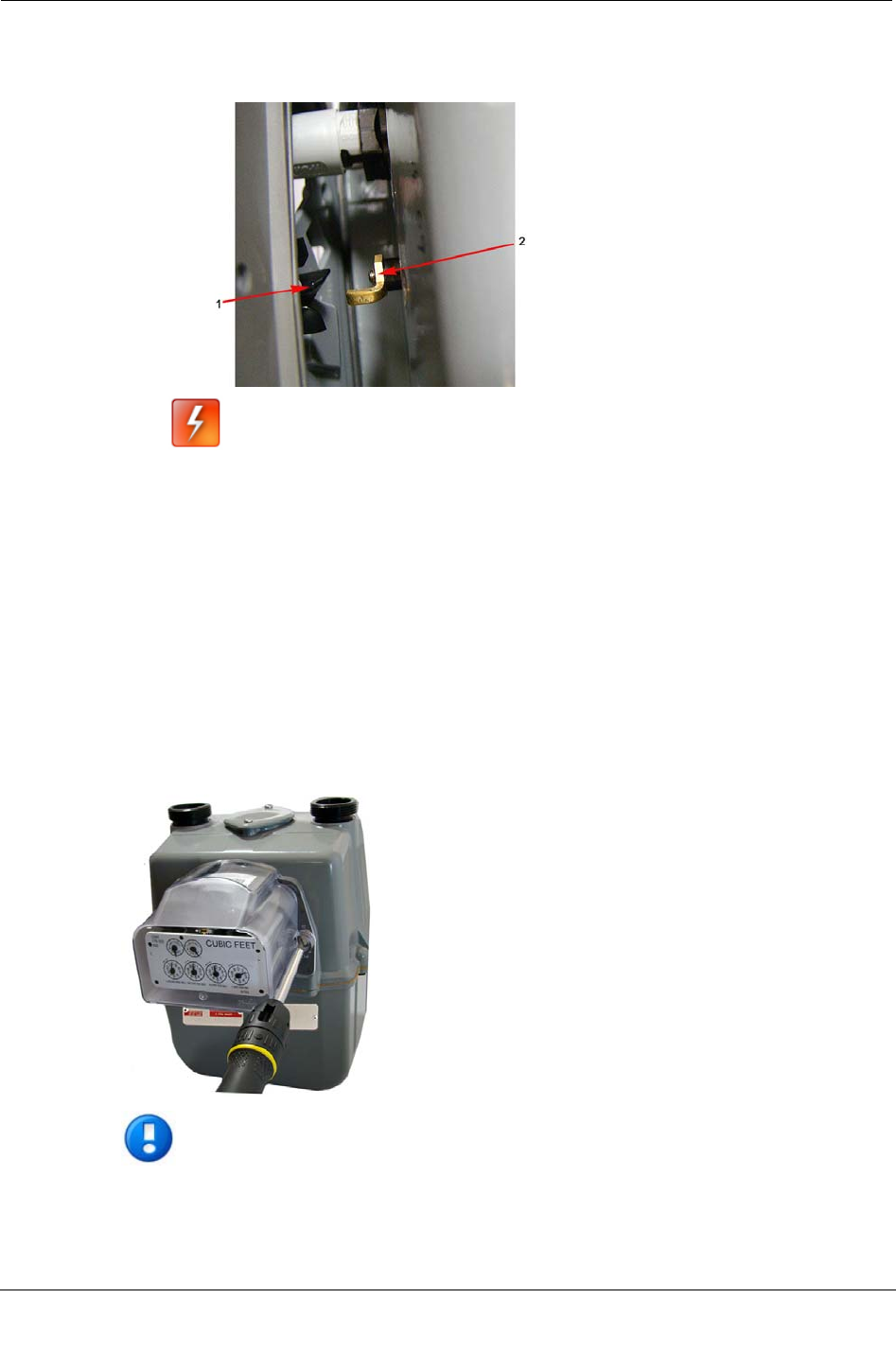

2. Align the endpoint wriggler (1) so one of its four drive slots lines up with the meter's
drive dog (2).
Warning Failure to correctly align the meter drive post (2) and endpoint
wriggler drive slots (1) can cause binding and lead to poor registration or meter
failure. You must properly align the meter drive dog with the endpoint wriggler
drive fin.
3. Carefully place the endpoint on the meter.
4. Install endpoint to meter mounting screws in an alternating fashion. Use the original
mounting screws if they were the correct size and not corroded. If the original screws
were discarded, use the correct replacement screws (see Installation Prerequisites on
page 8.)
• Insert the right index cover mounting screw and tighten the screw enough to hold it
in place. Do not completely tighten.
• Install the left index cover mounting screw and tighten to a snug fit.
• Finish by tightening the right mounting screw to a snug fit. Tighten each mounting
screw evenly.
Important Meter manufacturers: torque the mounting screws 15 to 20 inch-
p
ounds.
Chapter 2 Itron METRIS 250 Meter Installation
1. Place a new tamper seal over the two screws in the tamper seal cups. Press the new
tamper seals into place using an 11/32-inch nut driver or similar blunt tool.
2. Complete any necessary paperwork and properly dispose excess installation materials
and scrap from the customer premises.
100G Datalogging Gas Remote Disconnect endpoint installation on the Itron METRIS 250
Meter is complete.
18 100G Dataloggin
g
Installation Guide – Remote Disconnec
t
TDC-0884-00
0
