ACT2 Meter Module
ACT2
Meter Module
Technical Reference Guide
Effective Date: June, 2018
ACT2 Meter Module
Revision History
The following table describes the changes to this document for each revision of the ACT2 meter module:
Revision Date Description of Change
A June, 2018 Initial Release
ACT2 Meter Module
Labeling
The following requirements will be applied to any products that use this module:
The end product or host label will include the following text:
• Contains:
• FCC ID: SK9ACT2
• IC: 864G-ACT2, Model: ACT2
The user’s manual for any product that contains this module will contain the following text. If the device is large
enough, then this will also be placed on the label.
“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.”
Regulatory Compliance
The user’s manual for any product that contains this module will contain the following text:
FCC Part 15, Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this device not expressly approved by Itron,
Inc. could void the user’s authority to operate the equipment.
Innovation, Science and Economic Development Canada (ISED)
This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Cet appareillage numérique de la classe B répond à la norme Canadienne sur le matériel brouilleur. L'opération est
sujette aux deux conditions suivantes: (1) ce dispositif ne peut pas causer d'interférence nocive, et (2) ce dispositif doit
accepter n'importe quelle interférence reçue, y compris les interférences pouvant entraîner un fonctionnement
indésirable.
ACT2 Meter Module
Under Innovation, Science and Economic Development Canada regulations, this radio transmitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Innovation, Science and
Economic Development Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une
antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le
but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le
type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
RF Exposure (FCC/ISED)
“This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.”
“Cet équipement est conforme aux limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement
do it être installé et utilisé à distance minimum de 20 cm entre le radiateur et votre corps. Cet émetteur ne doit pas être
co-localisées ou opérant en conjonction avec tout autre antenne ou transmetteur.”
Miscellaneous
The user’s manual for any product that contains this module will contain the following text:
Professional Installation
This module is intended for professional installation by the integrator. The OEM integrator is still responsible for the
FCC compliance requirement of the end product, which integrates this module.
Modification and Repairs
To ensure FCC compliance and system performance, this device, antenna and/or coaxial assembly shall not be changed
or modified without the express written approval of Itron. Any unauthorized modification will void the user’s authority
to operate the equipment. WARNING! This device contains no user serviceable parts. Attempts to repair this device by
unauthorized personnel may subject the person to shock hazard if removal of protective covers is attempted.
Unauthorized repair will void the warranty and/or maintenance contract with your company.
General Description
The Itron ACT2 is an electricity metering module which includes a 902.4 MHz to 927.6 MHz transmitter as well as WiFi.
The module operates on AC as well as DC voltage which is supplied by a host device.
Recycling Information
The product you have purchased contains circuit boards. At the end of the modules useful life, under various state
and local laws, it may be illegal to dispose of certain components into the municipal waste system. Check with your
local solid waste officials for details about recycling options or proper disposal.
About this Manual
This technical reference guide describes the installation of the ACT2 for the Itron OPENWAY RIVA CENTRON
meter.
ACT2 Meter Module
Installation
The ACT2 module will be installed in the Itron OPENWAY RIVA CENTRON electric meter.

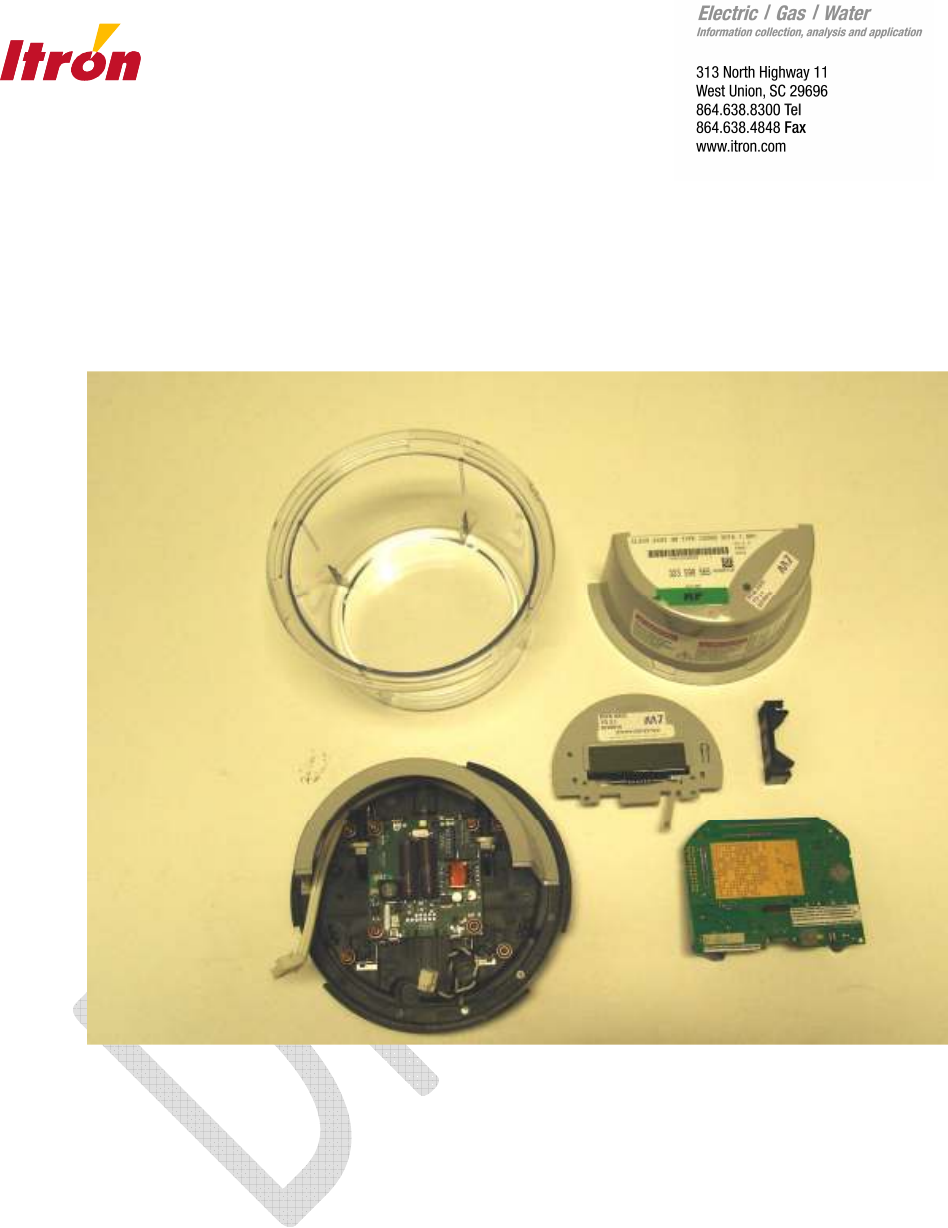

Shown are the meter base with metrology board, the board to board connector, the ACT2 module, the display and the
inner and outer cover.
ACT2 Meter Module

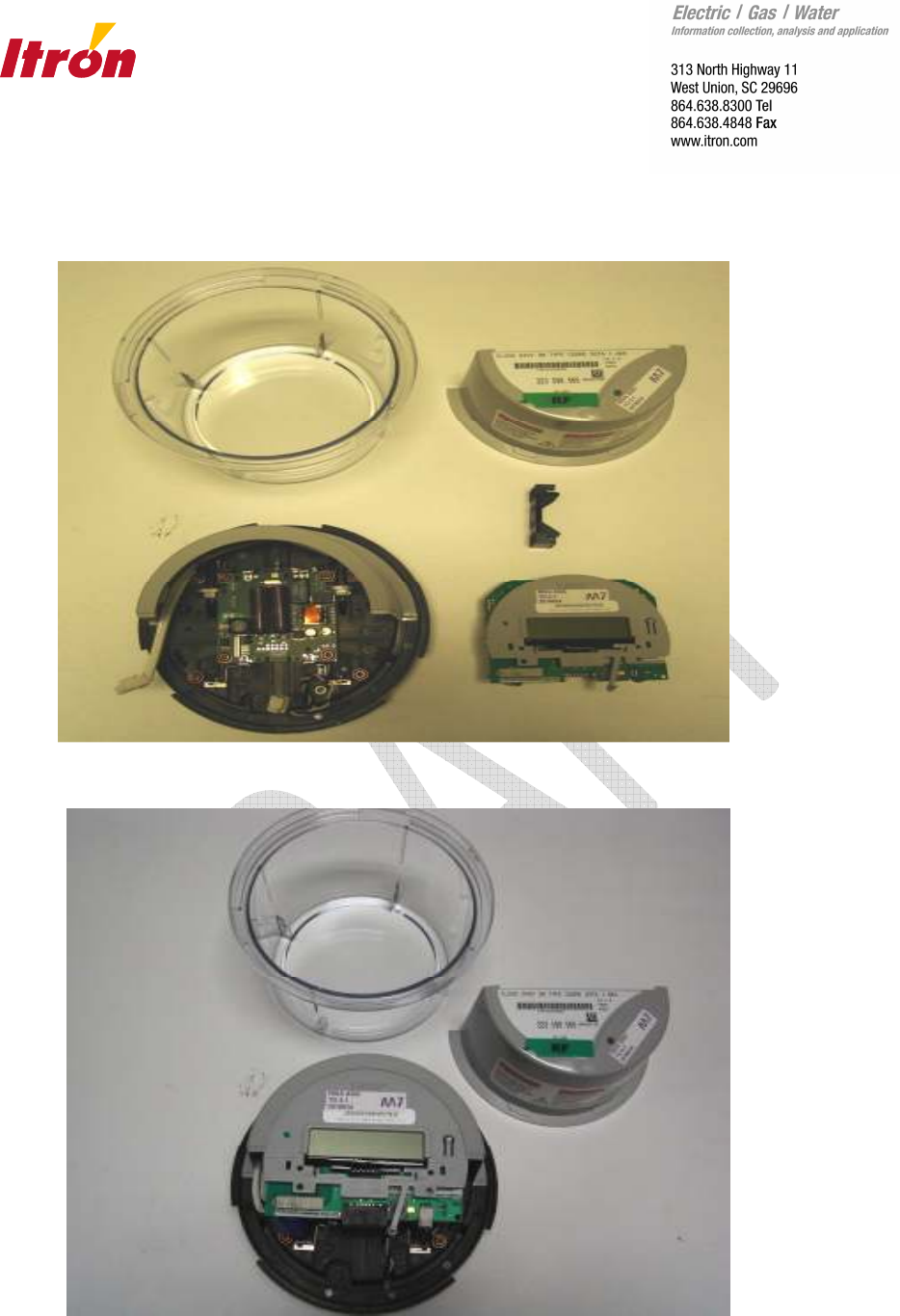

Install the display on the ACT2 module by pushing metal pins of display into module connector.
Connect metrology and the ACT2 module using the board to board connector.
ACT2 Meter Module
Install lower inner cover.
Install outer cover.
