User Manual 1
33
PCTEL Antenna Products Group, Inc. ORDER (800) 323-9122 http://www.maxrad.com
Maximum Power:
150 Watts
VSWR at Resonant Point:
<1.5:1
Nominal Impedance:
50 Ohms
Antenna Type:
700 MHz Model:
Wideband collinear
800 MHz Models:
3dB: 5/8 wave over a 1/4 wave
5dB: Dual 1/2 wave over a 1/4 wave
900 MHz Models:
3dB: 5/8 wave over a 1/4 wave
5dB: Dual 1/2 wave over a 1/4 wave
Radiator Material:
.100” diameter stainless steel; bright or black finish
Optional Spring:
Stainless steel; bright or black finish
Phasing Coil Housing:
Molded polymer jacket with copper, nickel and chrome
plated brass bushing
Rod Ferrule:
5/16” -24 thread; bright or black chrome plated brass
Base Coil Housing:
Molded polymer with a plated brass insert ring and a
spring-loaded brass contact pin
700 MHz Antenna Height: Approximately 14”
800 MHz Antenna Height:
3dB: Approximately 13” at lowest frequency
5dB: Approximately 24” at lowest frequency
900 MHz Antenna Height:
3dB: Approximately 11” at lowest frequency
5dB: Approximately 23” at lowest frequency
Electrical Specifications Mechanical Specifications
This series features a molded polymer base, plated spring-loaded contact
pin, and a .100” diameter stainless steel whip for long-lasting, trouble-free
service. It is available with either an open coil rod or our “quiet” closed
coil rod.
Features
•Available in bright chrome or our black finish
•Antenna is ready to install; no rod cutting is required
•Mates with all 1-1/8”-18 thread mounts, including 3/4” mounts

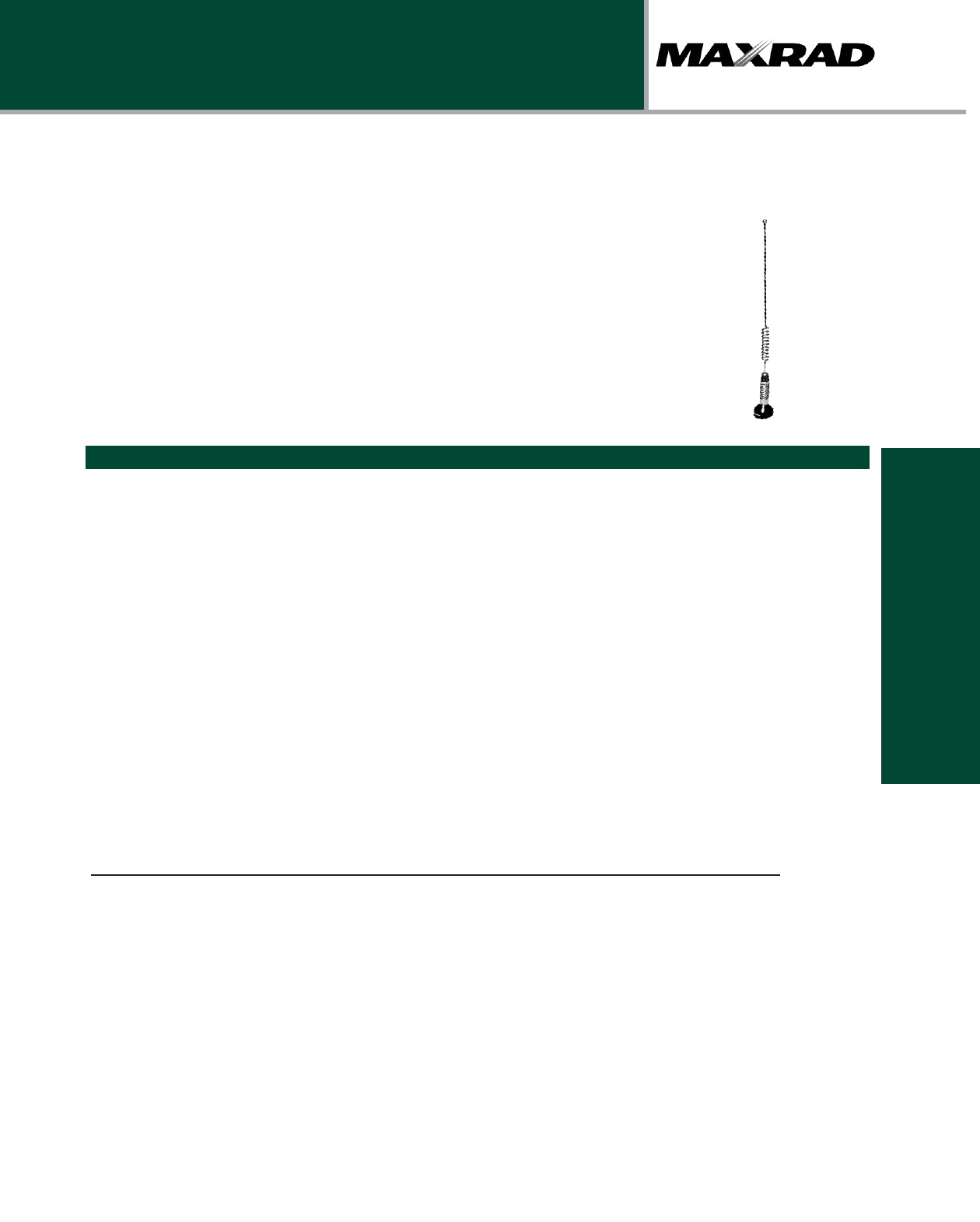

Mobile MAX Base
700/800/900 MHz
MAX Base Series
Model # Frequency Range Factory Tuned
Frequency Rod/Coil Type Gain
(B)MAX7603S 760-870 MHz 815 MHz Collinear/Open 3dB
(B)MAX7633S 760-870 MHz 815 MHz Collinear/Closed 3dB
(B)MAX8053(S) 806-896 MHz 835 MHz Collinear/Open 3dB
(B)MAX8033(S) 806-896 MHz 835 MHz Collinear/Closed 3dB
(B)MAX9053(S) 896-940 MHz 896 MHz Collinear/Open 3dB
(B)MAX9033(S) 896-940 MHz 896 MHz Collinear/Closed 3dB
(B)MAX9103(S) 870-950 MHz 898 MHz Collinear/Closed 3dB
(B)MAX8135(S) 806-866 MHz 815 MHz Trilinear/Open 5dB
(B)MAX8055(S) 806-866 MHz 815 MHz Trilinear/Closed 5dB
(B)MAX8355(S) 825-896 MHz 835 MHz Trilinear/Open 5dB
(B)MAX8375(S) 825-896 MHz 835 MHz Trilinear/Closed 5dB
(B)MAX9075(S) 896-940 MHz 896 MHz Trilinear/Open 5dB
(B)MAX9085(S) 896-940 MHz 896 MHz Trilinear/Closed 5dB
(B)MAX9105(S) 870-950 MHz 898 MHz Trilinear/Closed 5dB
Prefix “B” indicates black. Suffix “S” indicates spring.
MAX7603S
700/800/900 MHz
