The MLOG Controller collects data from field-installed MLOG Radio-Loggers and
transfers that data to mlogonline™ Network Leak Monitoring System for analysis. This
guide describes the components and use of the MLOG Controller.
CHAPTER 1
Introduction
Chapter 1 Introduction
6 TDC-0796-001 MLOG Controller User Guide
Document Conventions
Caution A Caution note warns the user that failure to heed the
information in the note could result in loss of data. Be sure to carefully
read a Caution note and heed the advice, instructions.
Warning A Warning note alerts users of potential physical harm to the
user or hardware. Pay strict attention to Warning notes, read the
information carefully, and heed the advice, instructions.
Tip A tip provides the user with extra hints to make a task easier to
perform or a concept easier to understand.
Note A Note supplies generic information to the user. The
information could be ignored and the user could continue with a task
without suffering any adverse consequences.
TDC-0796-001 MLOG Controller User Guide 7

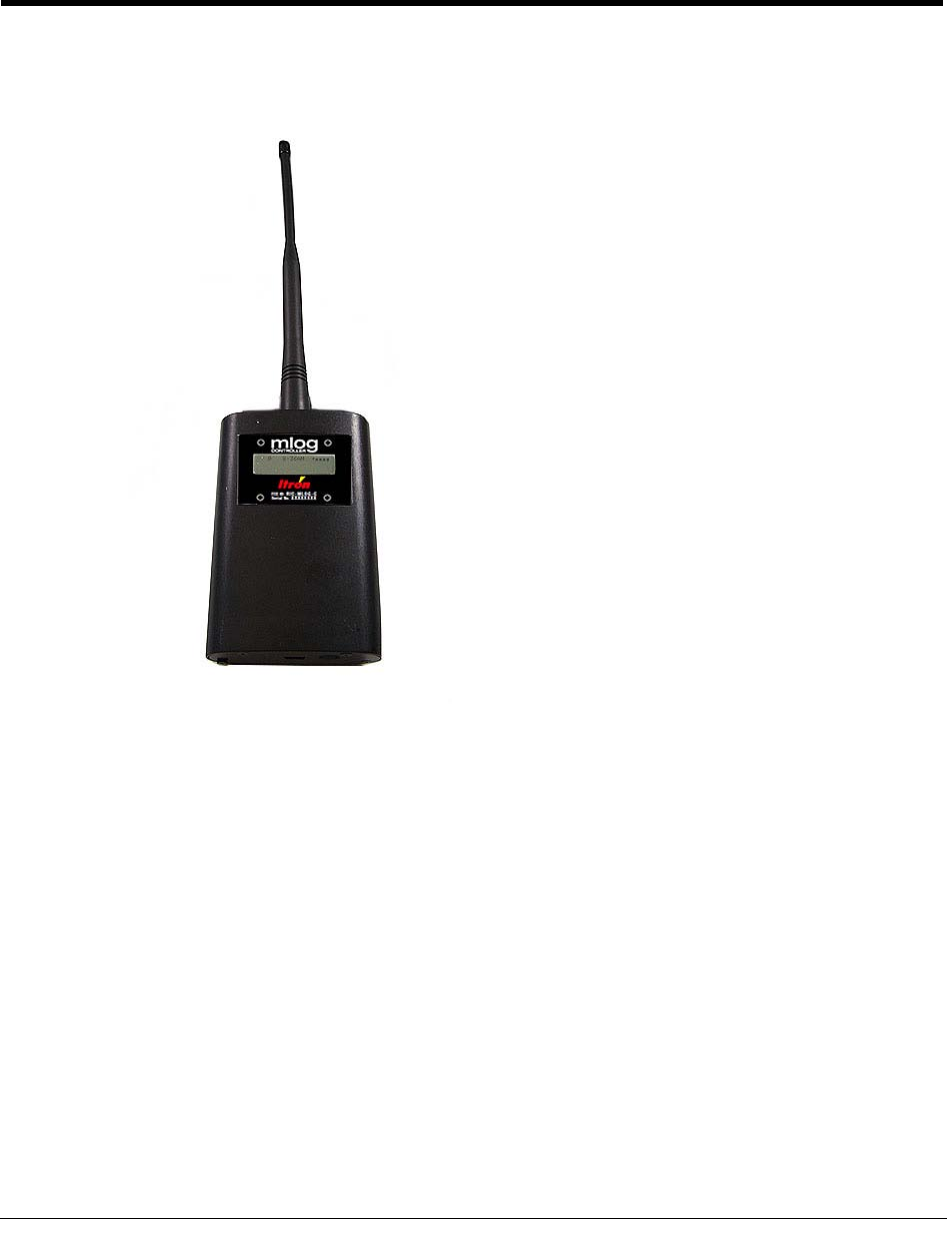

The MLOG Controller communicates with mlogonline™ through the MLOG Controller
software (SFL-1082-XXX). The MLOG Controller is initially programmed at Itron
specifically for your water system.
External Antenna Connector

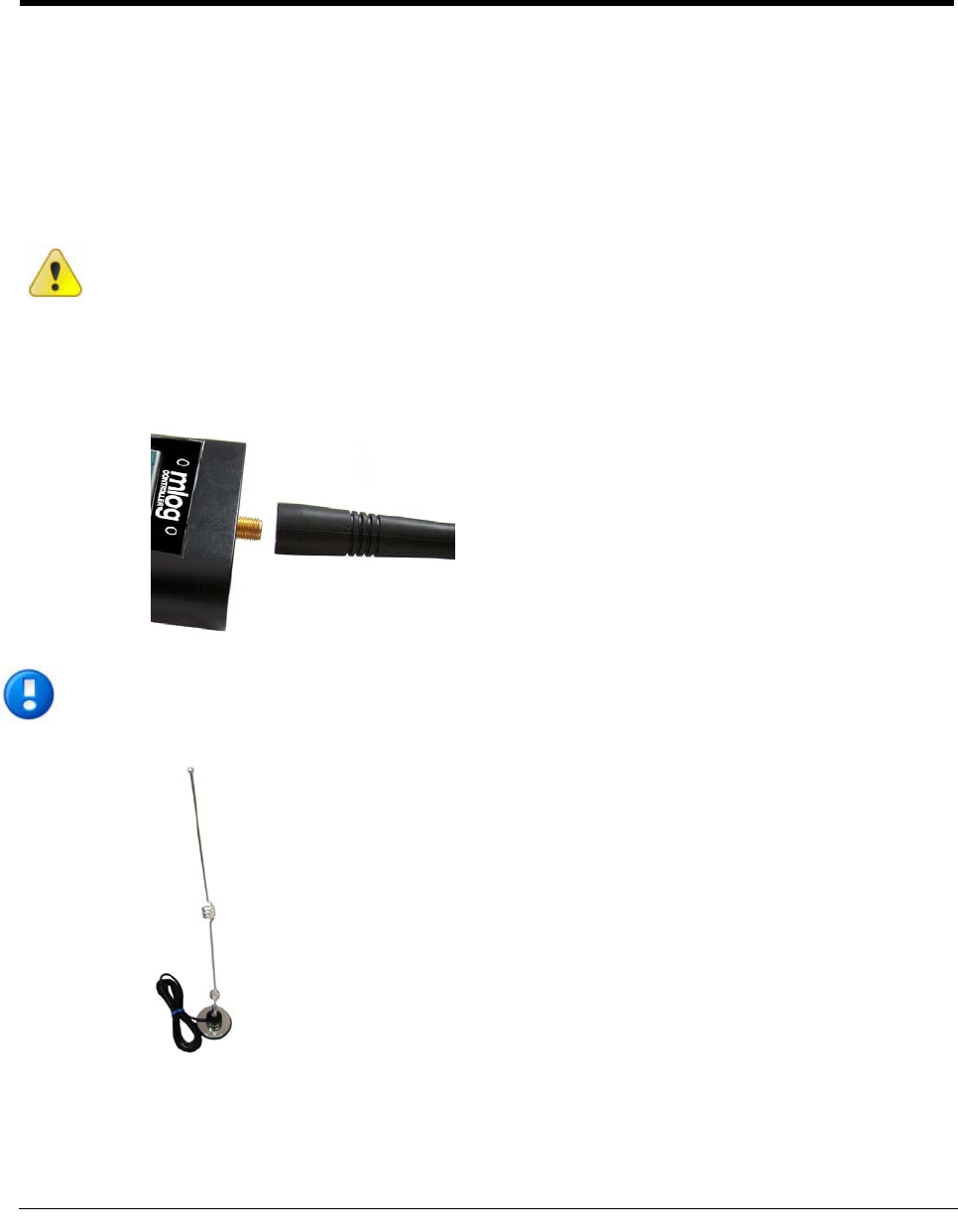

Use only an Itron-approved and supplied antenna with the MLOG Controller.
Caution This device has been designed to operate with the antennas listed below (MLOG
Controller Accessories on page 9), and having a maximum gain of 5 dB. Antennas not included
in this list or having a gain greater than 5 dB are strictly prohibited for use with this device. The
required antenna impedance is 50 ohms.
Failure to use an Itron-approved and supplied antenna with the MLOG Controller will also void
the warranty.
Note Itron offers an optional magnetic, vehicle roof-mounted antenna for the MLOG Controller
to improve 2-way radio communication for mobile data collection.
CHAPTER 2
Controller Connections/Components
Chapter 2 Controller Connections/Components
8 TDC-0796-001 MLOG Controller User Guide
Mini USB Data Connector
Caution MLOG Controller software (SFL-1082-XXX) must be installed on your system PC
before initial use. Remove the yellow label to access the MLOG Controller's mini USB port.
The MLOG Controller is setup and powered through a mini USB data cable.

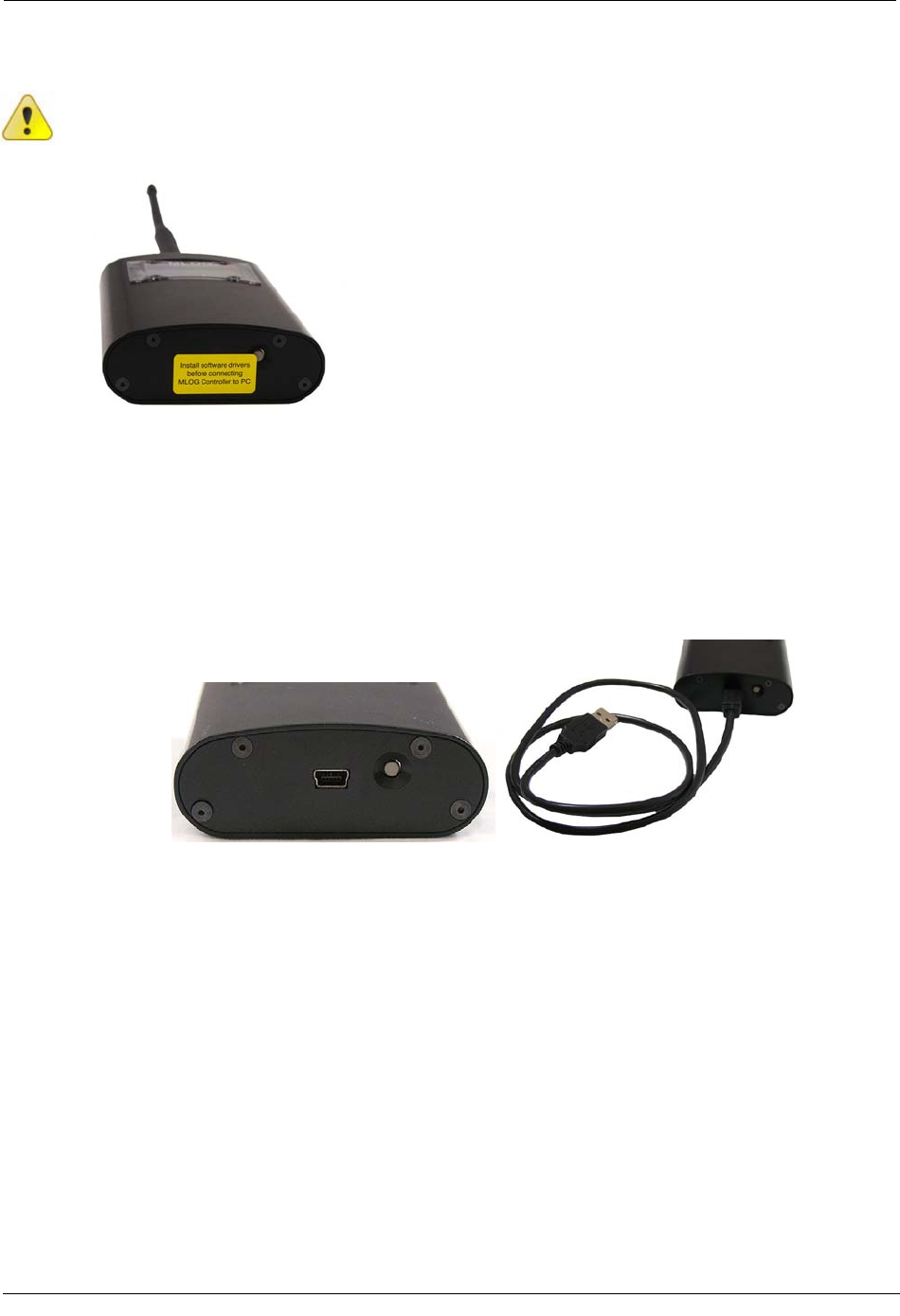

To connect the mini USB data cable
1. Connect the MLOG Controller power/data cable (mini USB) to the MLOG Controller
as shown.
2. Plug the USB connector end into an open USB port on the PC with MLOG Controller
desktop software loaded (ships with the MLOG Controller).
While the MLOG Controller is connected to the computer, the Controller recharges its
internal battery. Keep the Controller connected for approximately 6 hours to fully recharge
the battery.
MLOG Controller Accessories
TDC-0796-001 MLOG Controller User Guide 9
MLOG Controller Accessories
The MLOG Controller is shipped with an 8" 902 - 928 MHz antenna, USB Power/Data
Cable, the MLOG Controller holster, and an MLOG Controller Documentation CD
(includes MLOG Controller Software SFL-1082-XXX). Accessories and replacement parts
are shown in the MLOG Controller Accessories table. Itron recommends the use of the
MLOG Controller holster with the MLOG Controller.
MLOG Controller & Accessories
Component Itron Part Number
MLOG Controller MLC-0001-001
Antenna, 8" - 902 - 928 MHz,
RPM SMA connector
MSE-0131-001
USB Power/Data Cable CBL-0067-001
MLOG Controller Holster FAB-0370-002
Antenna, magnetic roof mount MSE-0370-003
MLOG Controller Software Installation and User Guide TDC-0793-XXX
MLOG Controller Software SFL-1082-XXX
MLOG Controller Documentation CD
MLOG Controller Software
MLOG Controller Software Installation and User
Guide
MLOG Controller User Guide
mlogonline User Guide
SWK-0085-XXX
SFL-1082-XXX
TDC-0793-XXX
TDC-0796-XXX
TDC-0792-XXX
Chapter 2 Controller Connections/Components
10 TDC-0796-001 MLOG Controller User Guide
TDC-0796-001 MLOG Controller User Guide 11
The following sections describe the physical operation of the MLOG Controller.
Power management
The MLOG Controller features a rechargeable battery. The Controller's rechargeable battery
has no memory effect and can be recharged at any time. On a full charge, the Controller
operates for approximately 5 days. The Controller only transmits a radio wake-up signal
while the rechargeable battery has a charge. Plug the MLOG Controller into a USB data
port for approximately 6 hours to recharge.
When the rechargeable battery is discharged:
• The MLOG Controller radio turns "OFF" regardless of settings.
• The time and current settings are maintained (for approximately 2 years).
• The LCD display is switched off.
• The USB interface remains active.
• The data memory is maintained.
If the MLOG Controller's rechargeable battery completely discharges, the data stored in the
Controller's memory can be accessed by connecting the Controller USB data cable to a PC.
The display activates, data is available, and the Controller recharges while the MLOG
Controller is connected to the PC.
Caution Do not repeatedly drain the MLOG Controller's rechargeable battery. Repeated deep
discharge will reduce MLOG Controller battery life and recharging functionality. A discharged
battery does not affect data stored in the Controller's memory.
CHAPTER 3
Operating the MLOG Controller
Chapter 3 Operating the MLOG Controller
12 TDC-0796-001 MLOG Controller User Guide
Reading MLOGs in the field
The MLOG Controller is mounted in the vehicle or carried by a person.
Date/Time: Date/Time field shows the current date and time transmitted to MLOG Radio-
Logger.
Radio INHIBIT/ON-OFF (MLOG Controller): Push the power button next to the USB
port on the Controller to turn the Controller Radio "ON" or "OFF" during the hours of 7
a.m. to 4 p.m. Monday through Friday. When the Controller's radio power is on, the MLOG
Controller will continuously listen for a beacon from MLOG Radio-Loggers in range. The
Controller's radio, if switched on, has an active window of 7:00 a.m. to 4:00 p.m., Monday
through Friday. An LED and the Controller's backlight illuminate to indicate the
Controller's radio is on. The Controller will not transmit outside of these hours (at night or
on weekends).

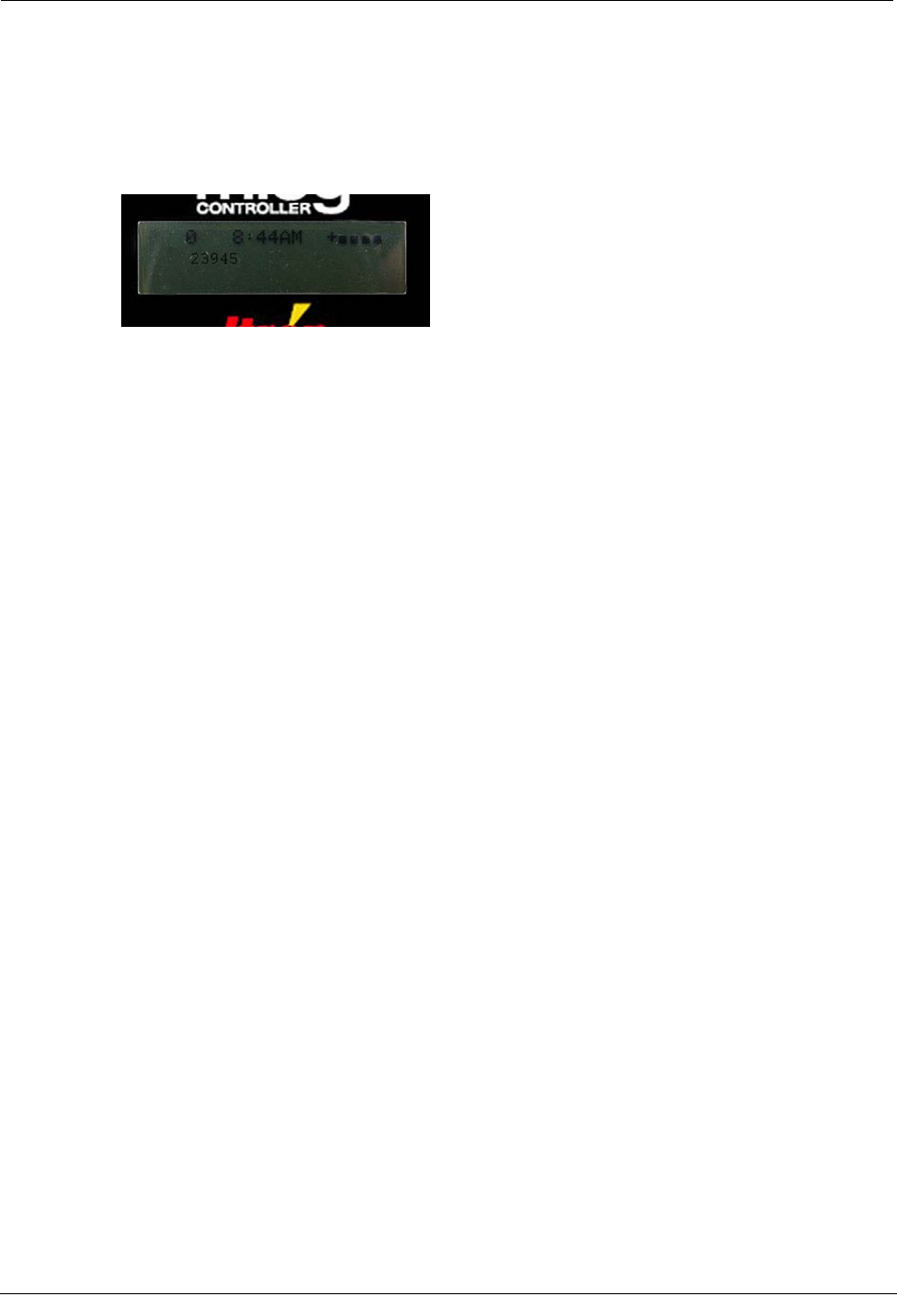

MLOG Controller Display: The Controller's display has two operational modes dependent
on the unit's setting:
• Idle: time and battery life display. The backlight is off.
• Active: time, battery life, number of MLOG Radio-Loggers read, and the last
read MLOG Radio-Logger ID displays on the screen. The backlight is on.
Display Messages:
• Low Battery: the rechargeable battery has less than 10% charge remaining.
Charge the Controller with the USB data cable and a PC.
• Memory Full: The Controller's memory is full. Connect the Controller to PC
and open the mlogonline upload program to read the data saved to memory and
clear this setting.
• USB Communications: The Controller is communicating with the PC.
MLOG Controller's Memory
The MLOG Controller can hold approximately 4000 readings. The number in the top left
corner of the display indicates the current number of MLOG-Logger's read. This number
clears when the MLOG Controller's power button is cycled. When the memory is full, the
LCD display will indicate "Memory Full" and the MLOG Controller will switch OFF. No
further radio communications will occur until the memory is read by mlogonline using the
software (SFL-1082-XXX). Reading the Controller's memory will clear the memory archive
and the MLOG Controller will activate.
Radio Range of the MLOG Controller
TDC-0796-001 MLOG Controller User Guide 13
Battery Charging Indicator/Percent of Battery Charge Indicator
• Battery Charging Indicator
The MLOG Controller has a rechargeable battery. It takes up to 6 hours to fully charge
(or recharge) the battery. While the battery is recharging, the battery charging
indicator flashes in sequence as the darkened box moves from right to left (spending
approximately two seconds in each box).
• Percent of Battery Charge Indicator
The MLOG Controller displays the percent of charge remaining in the battery when
the unit is in use or not being charged. The battery charge indicator displays the charge

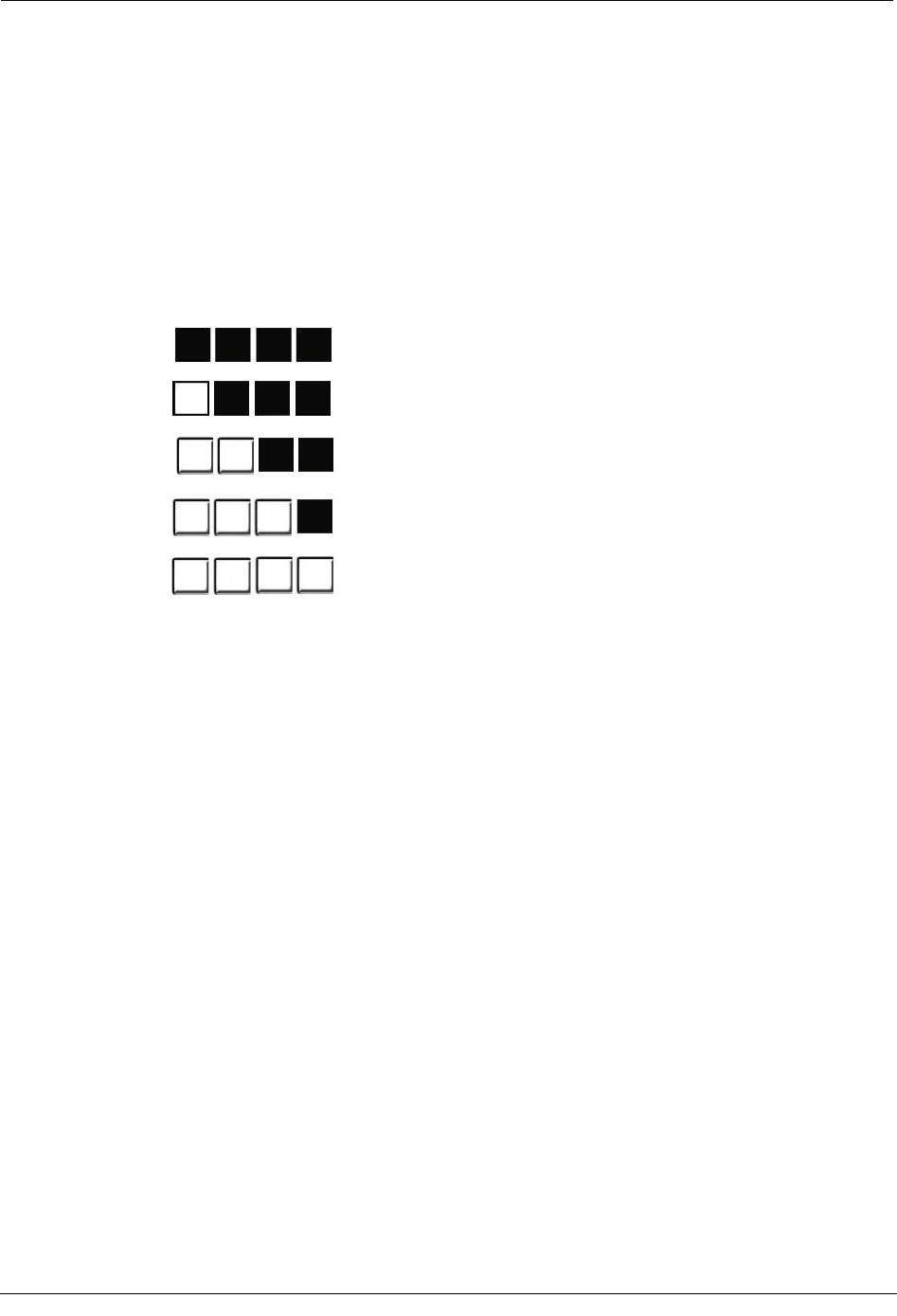

remaining as shown below:
Fully charged or >90%
75% charge remaining
50% charge remaining
25% charge remaining
10% charge remaining
MLOG Power Management: MLOG Radio-Logger's battery life can be increased by
selecting the number of days a MLOG Radio-Logger keeps its radio switched OFF. The
MLOG Power Management setting can only be changed from the original programming
settings by Itron. Contact Itron for more information about MLOG Power Management.
Radio Range of the MLOG Controller
The Controller's radio range is dependent on field conditions. Range varies from 50 to 800
feet (or more.) The principal factors affecting range are:
• Orientation of the MLOG Radio-Logger's antenna to the Controller - Itron
recommends mounting the MLOG Radio-Logger Leak Detection Sensor in a vertical
orientation to keep the antenna directed in an upright position.
• Location - mounting MLOG Radio-Loggers in pits with metal lids will reduce radio
range.
• MLOG Radio-Logger's altitude - if the MLOG Radio-Logger's antenna is at grade or
above ground level, radio range will be significantly increased.
• MLOG Controller's antenna altitude - a roof-mounted vehicle antenna (available from
Itron) will increase overall radio range.
Chapter 3 Operating the MLOG Controller
14 TDC-0796-001 MLOG Controller User Guide

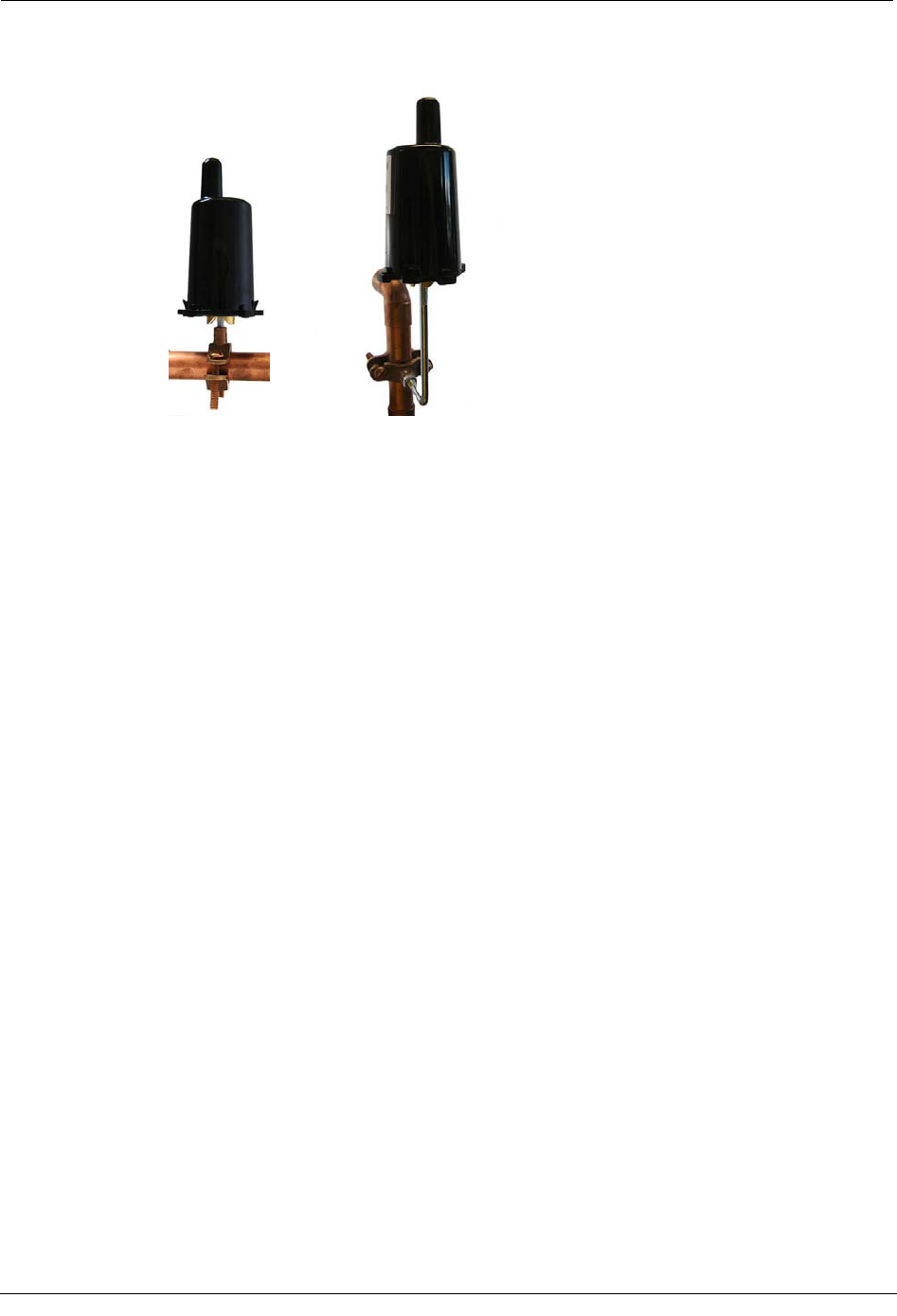

Itron Recommended MLOG Radio-Logger Mounting
